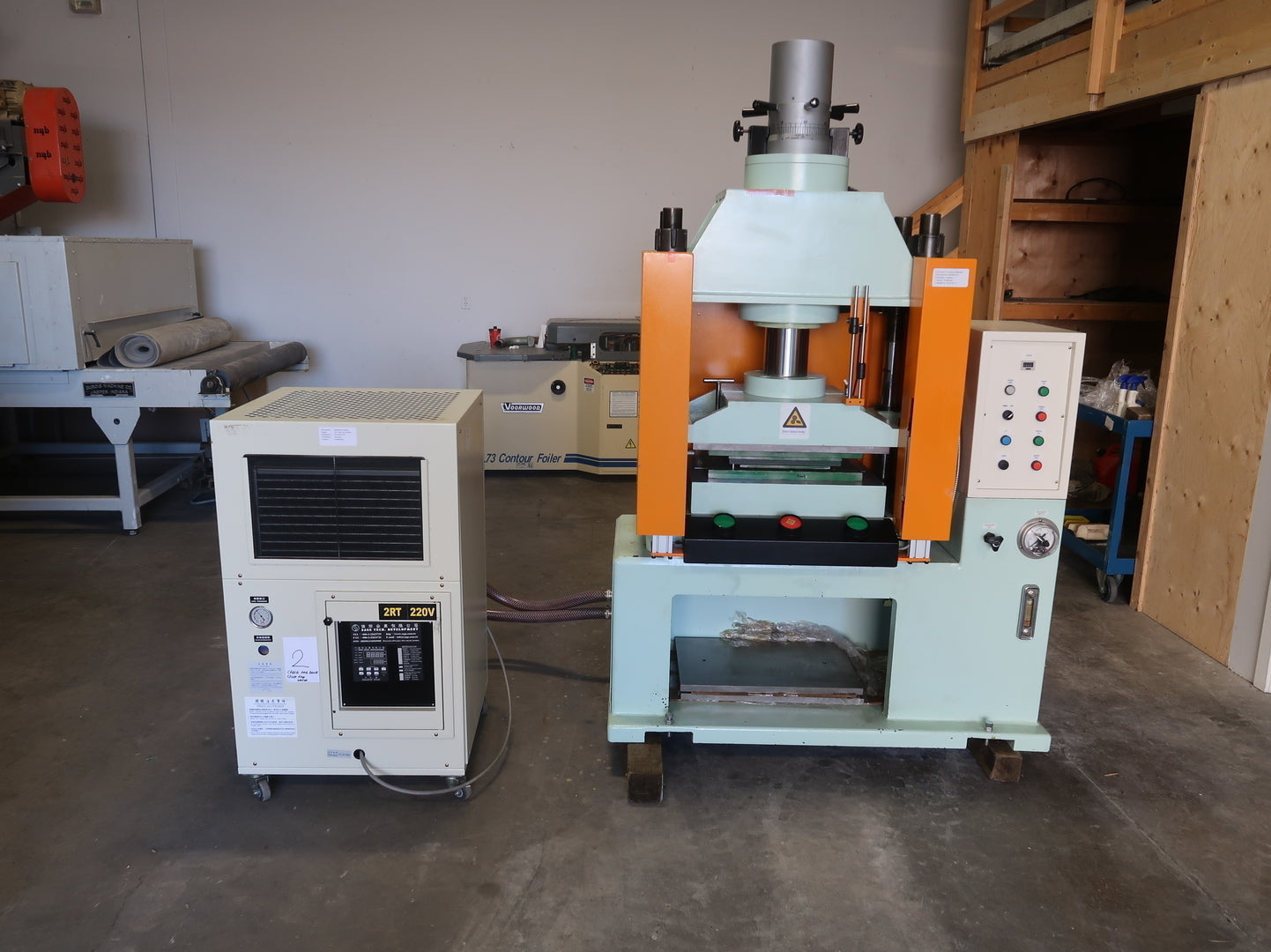

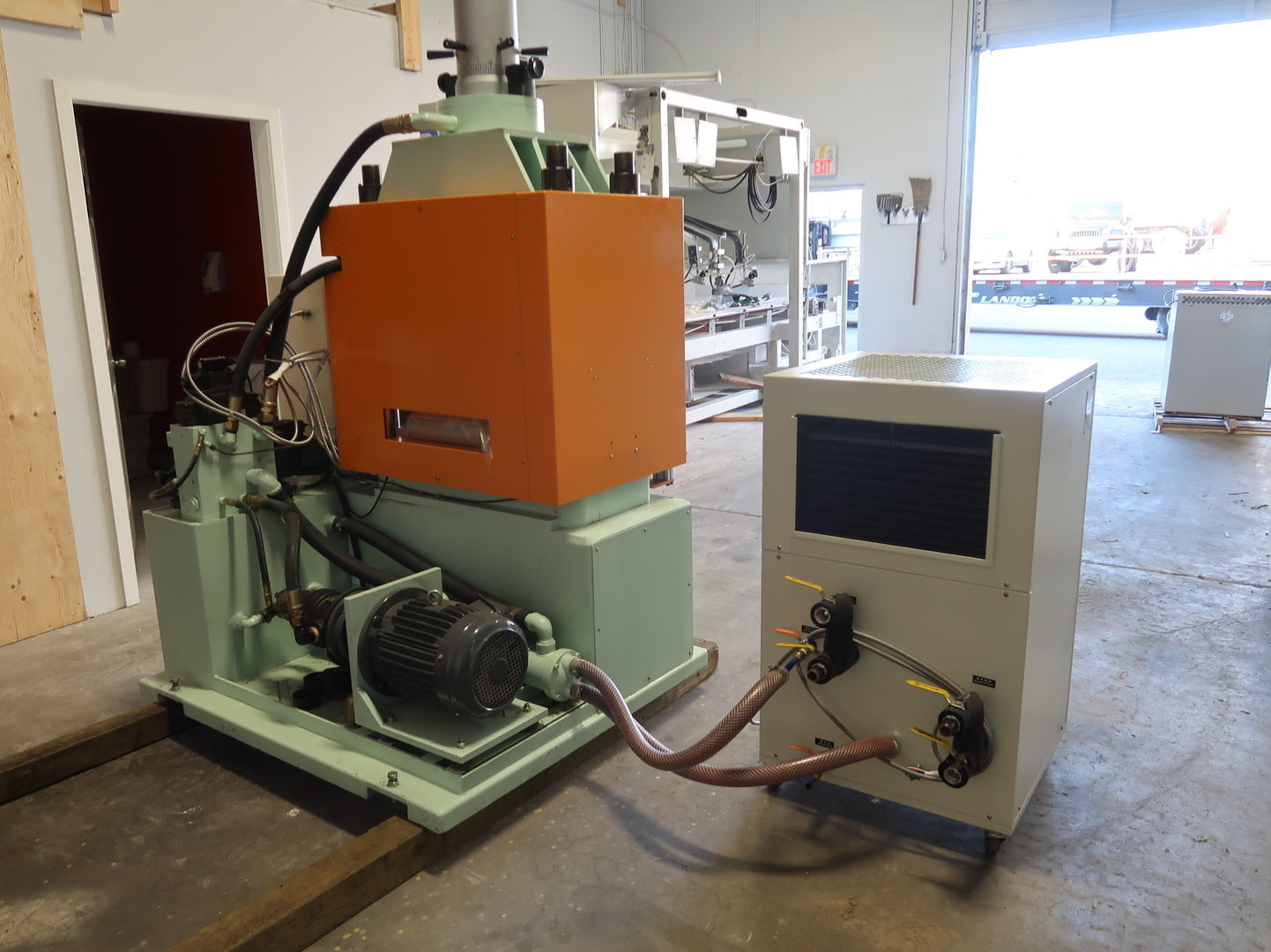

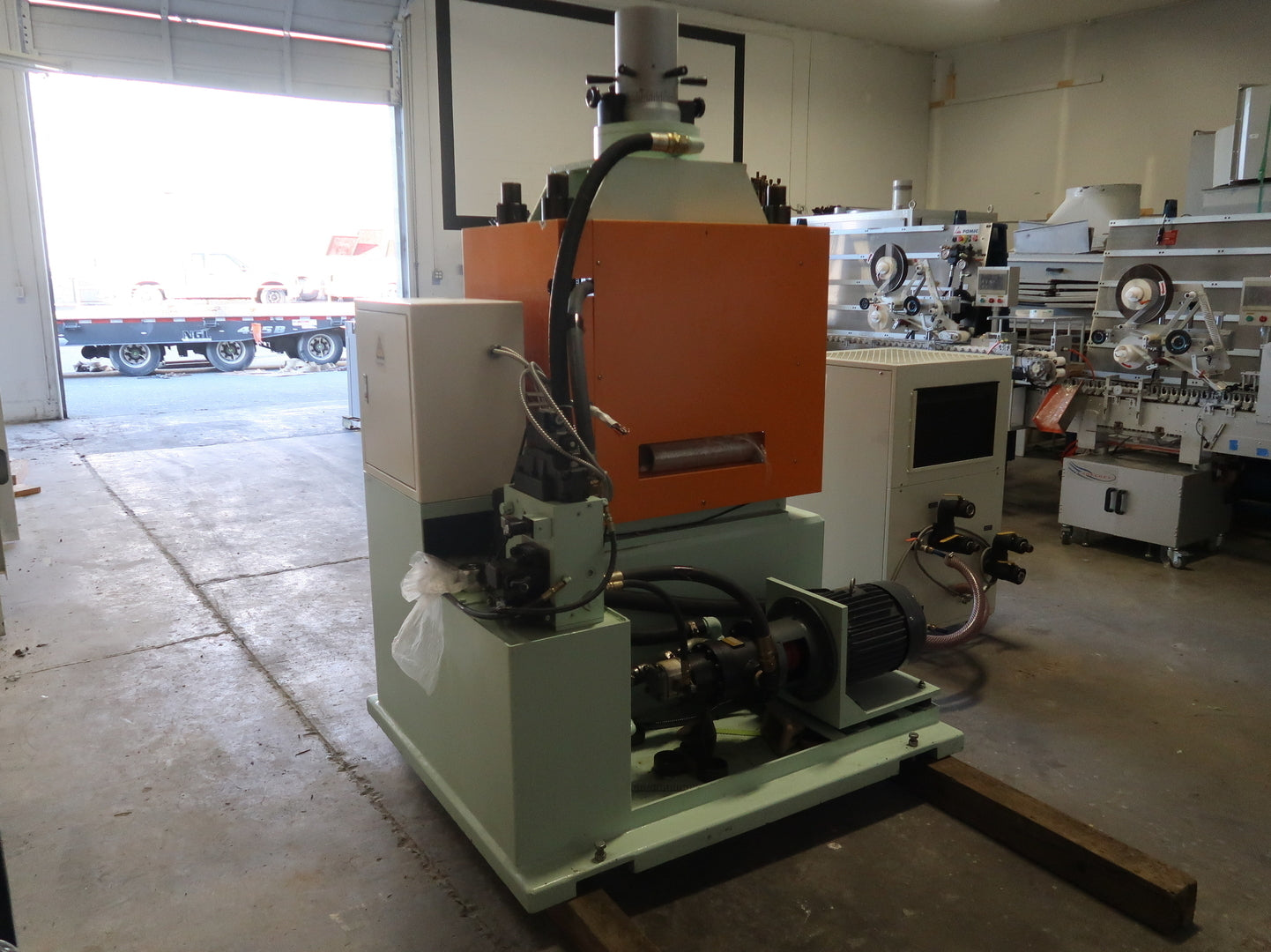

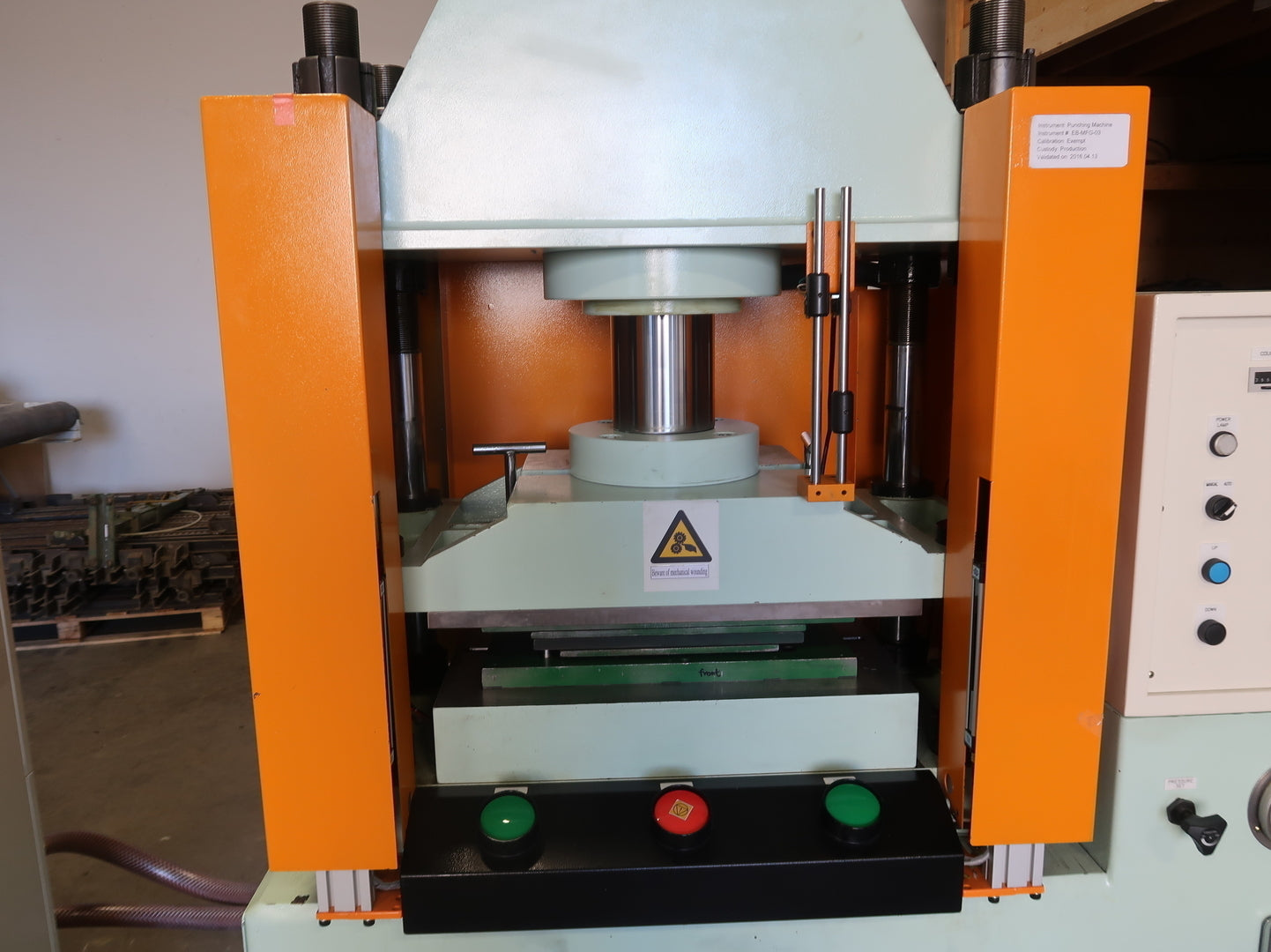

Complete hydraulic compression molding system consisting of a vertical hydraulic press and matching Sage APS-24M industrial water chiller. The system features a hydraulic power unit with KCL hydraulic pump, Yuken directional control valve, cooling heat exchanger, operator controls, and a large platen work area. The included 24,000 BTU chiller circulates temperature-controlled water through the machine for process cooling and hydraulic temperature management. Ideal for compression molding, laminating, composite forming, rubber product manufacturing, and other industrial pressing operations.
| Specifications |
| Model |
APS-24M |
| Year: |
2016 |
| Condition |
Used |
| Other Specifications |

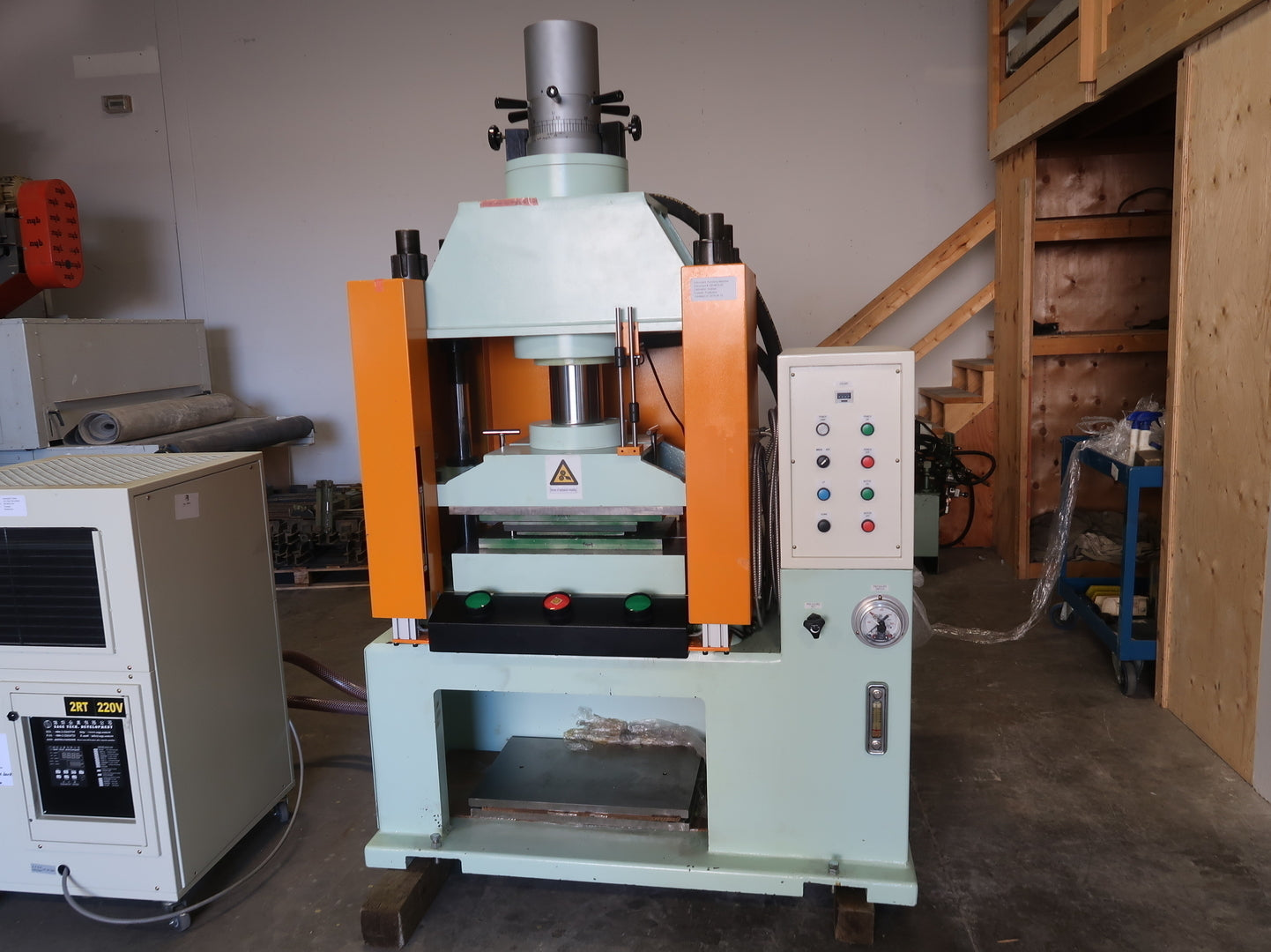

Hydraulic Press
-
Machine Type: Hydraulic Compression Press
-
Operation: Manual / Auto
-

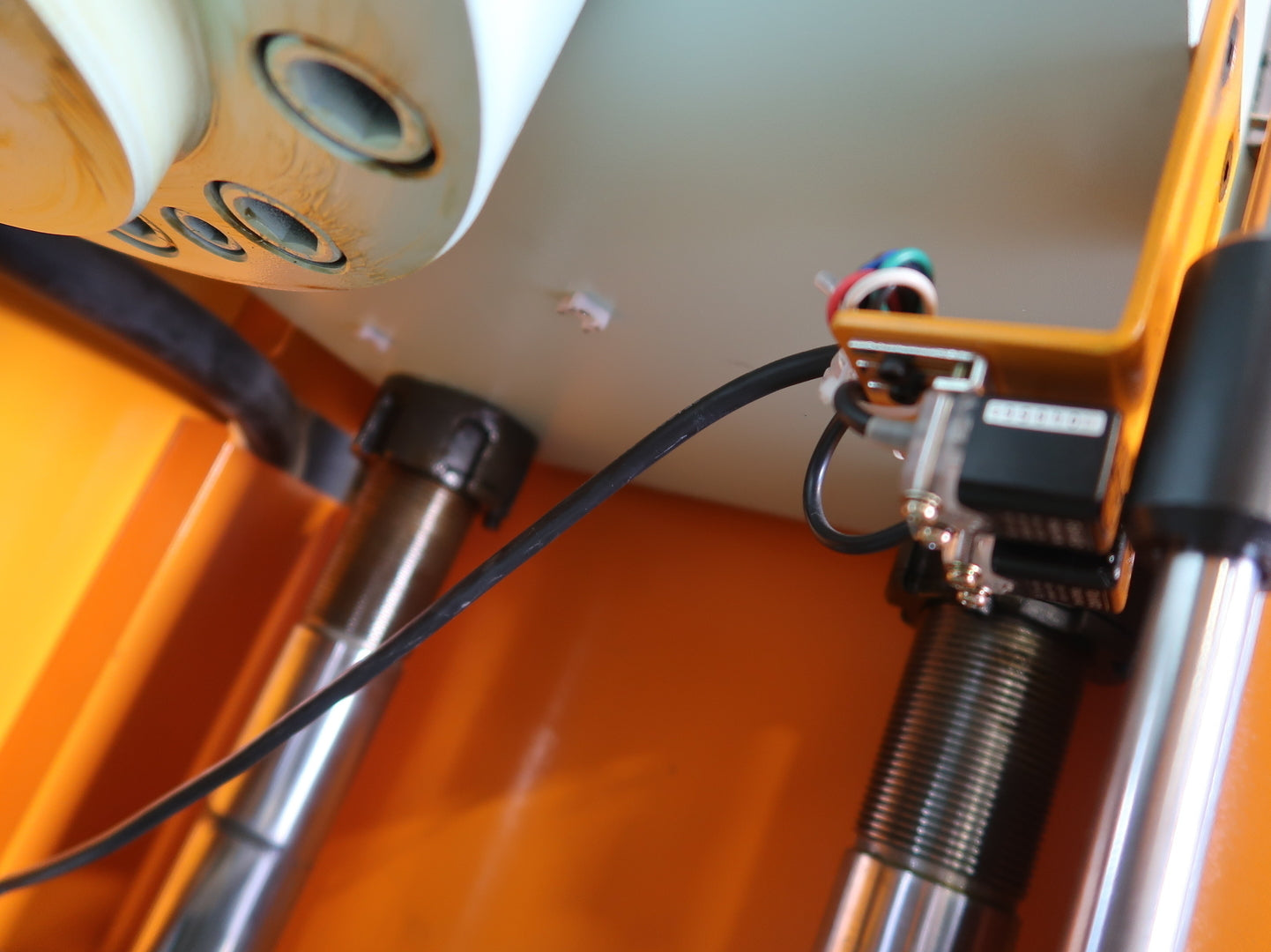

Vertical ram design
-

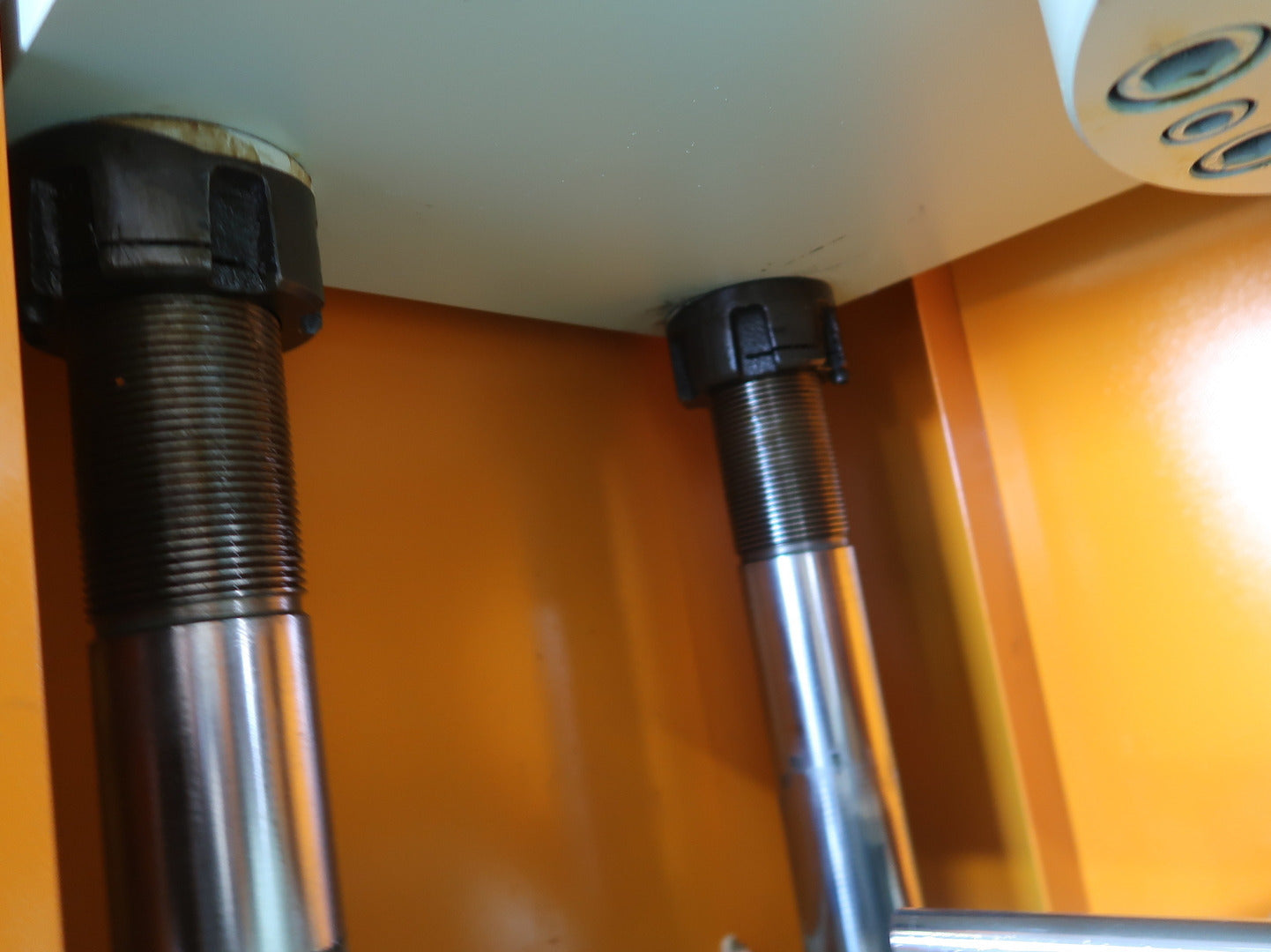

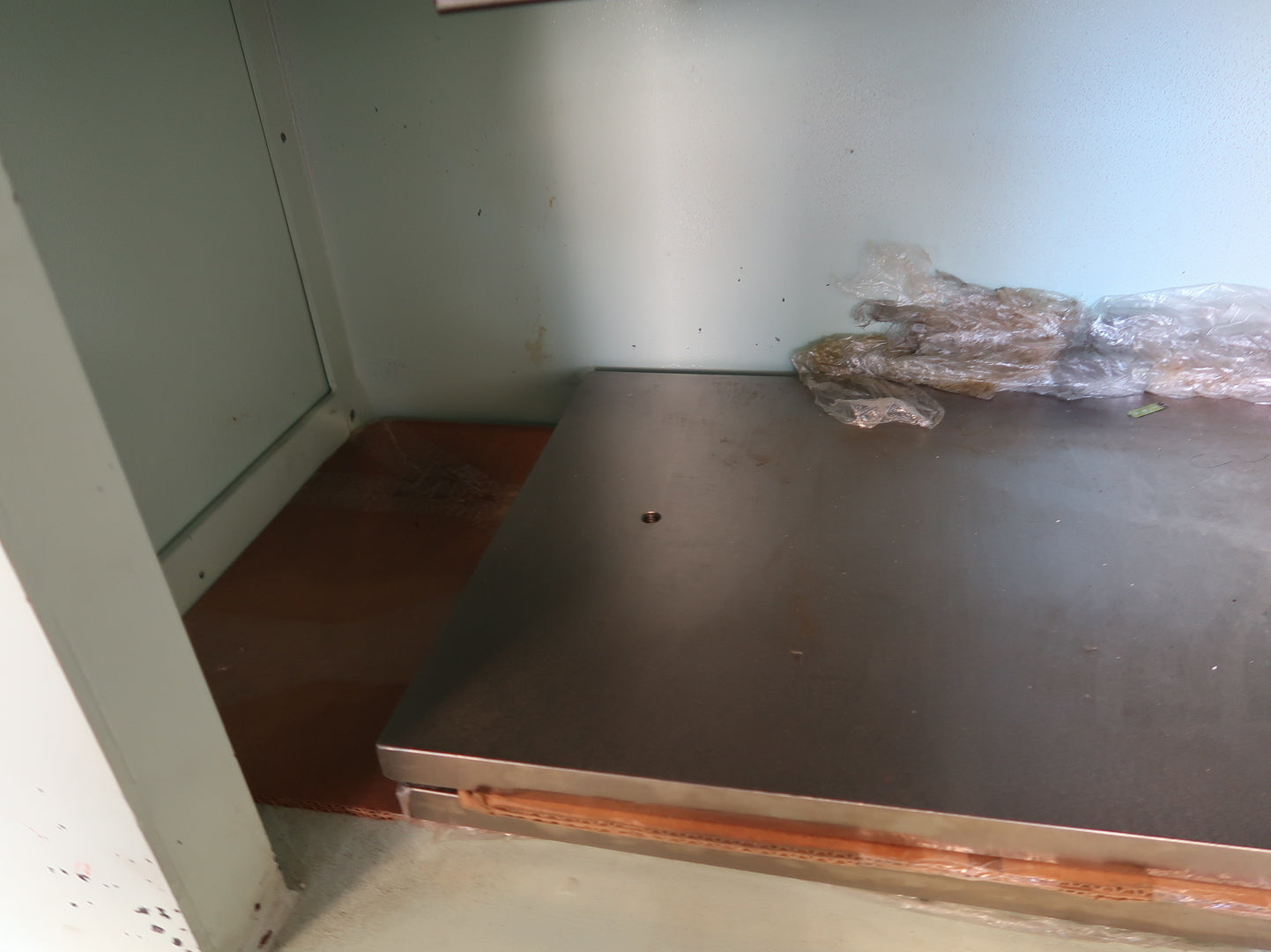

Guided platen assembly
-
Hydraulic power unit integrated into base
-

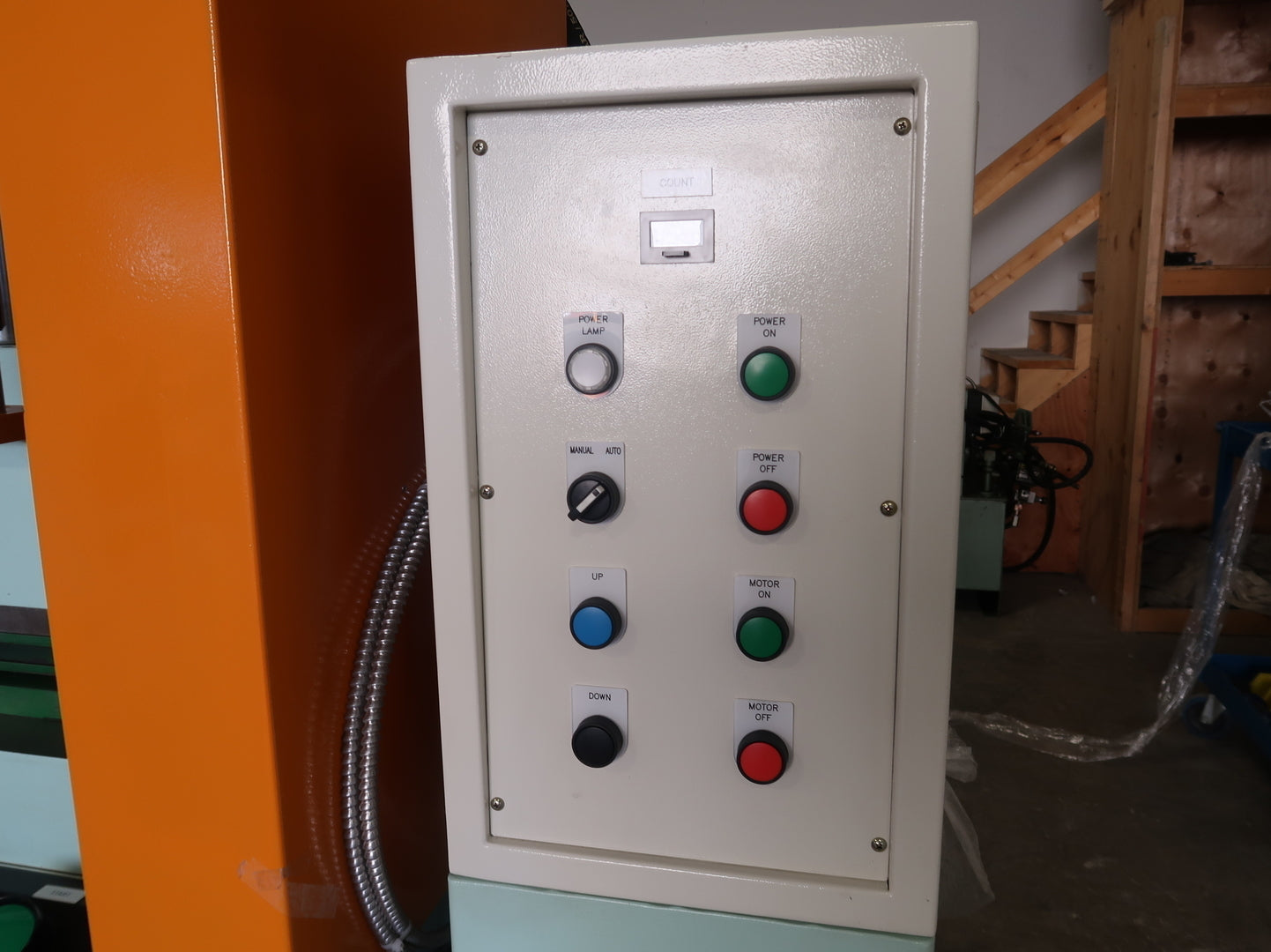

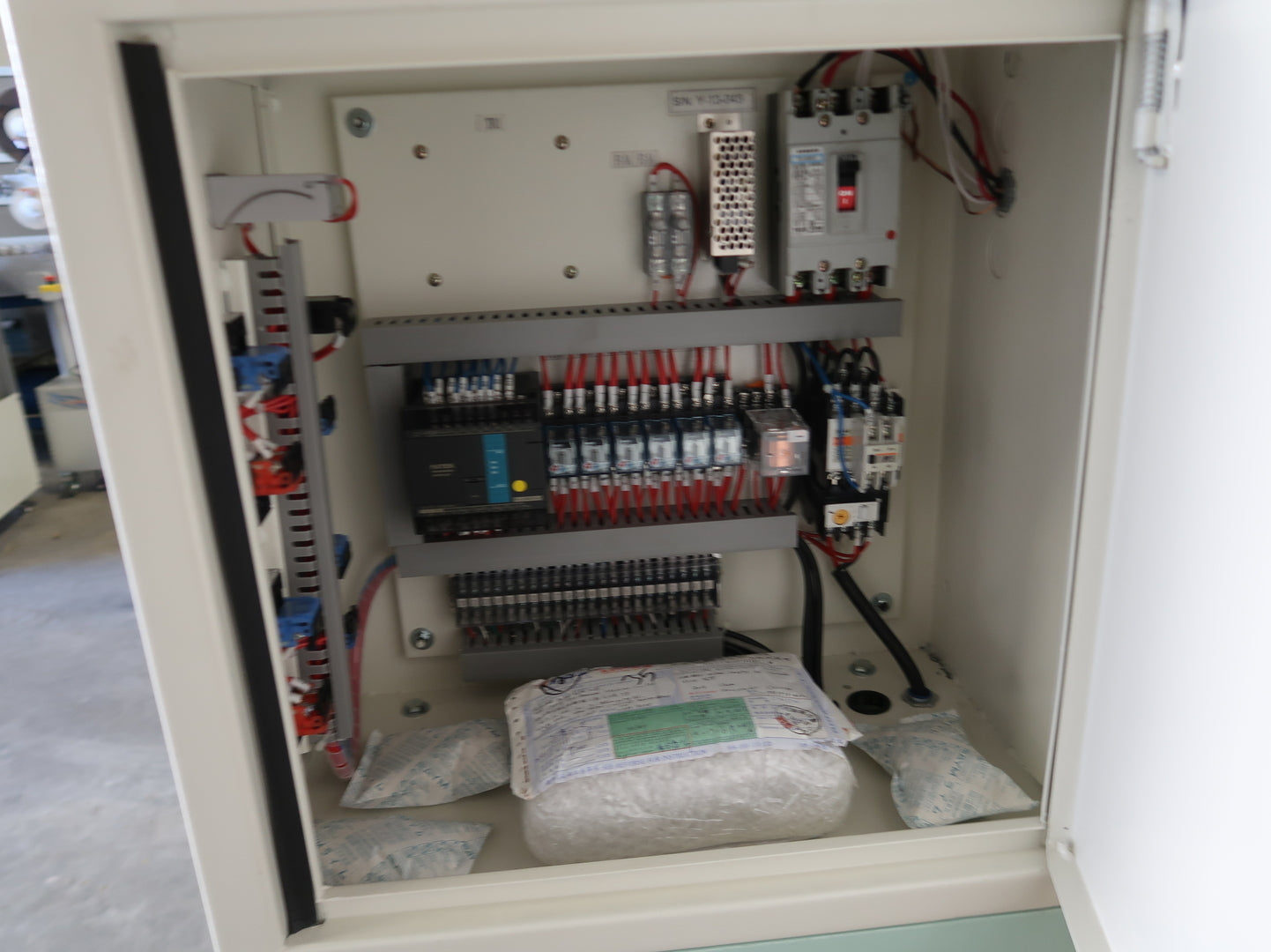

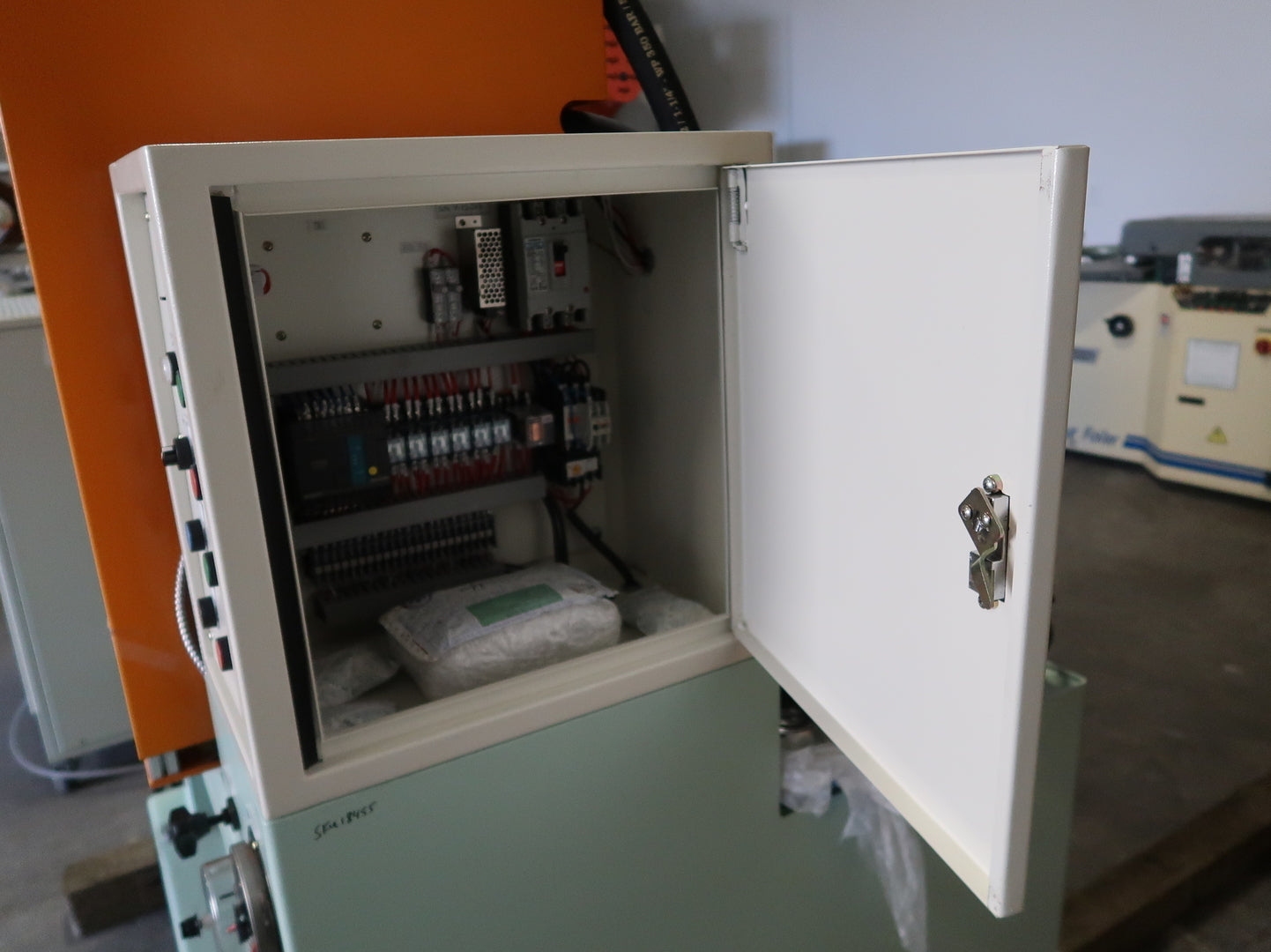

Control cabinet with relays and controls
-
Emergency stop and operator controls
-
Heavy welded steel construction

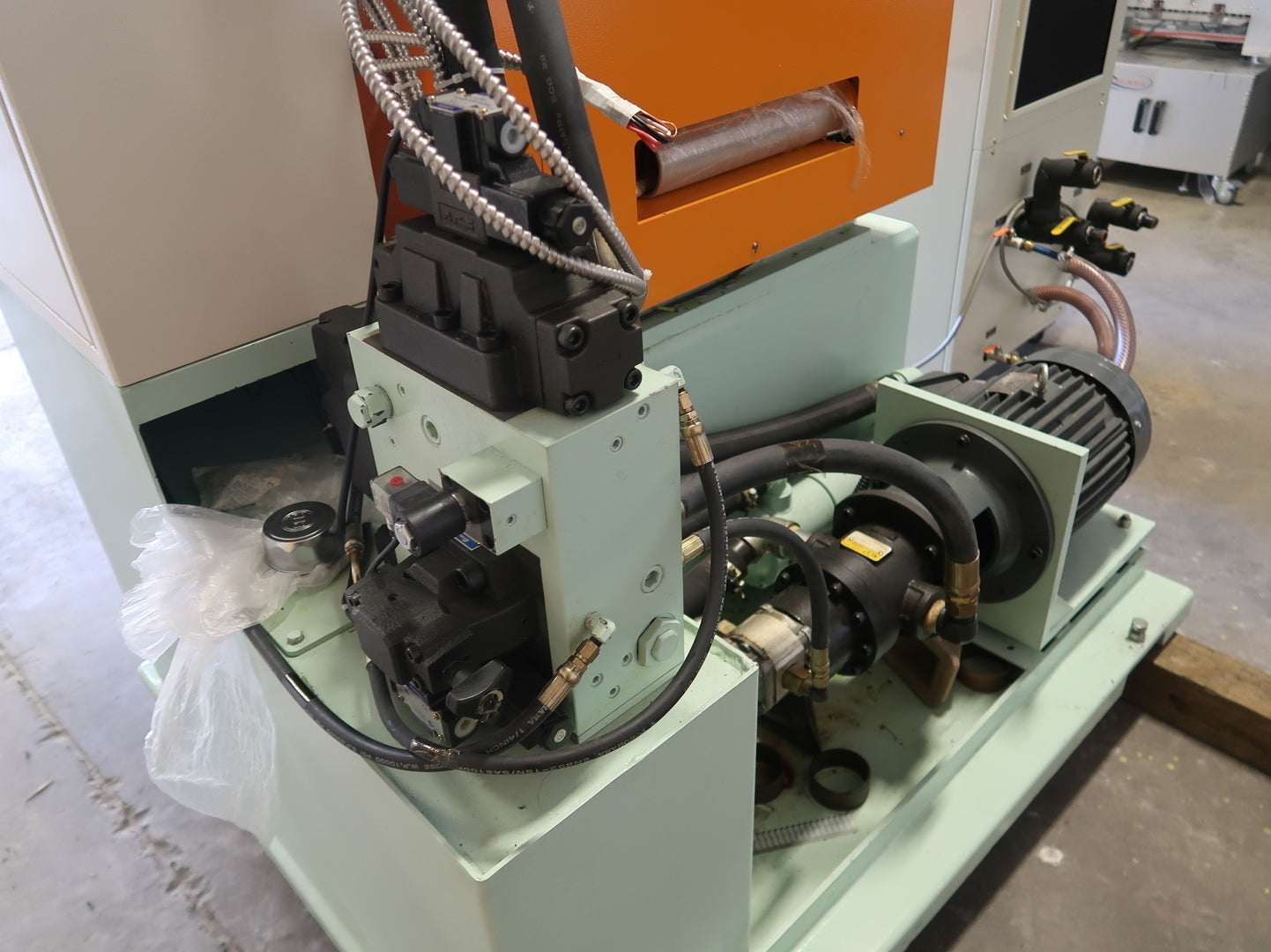

Hydraulic Components
-

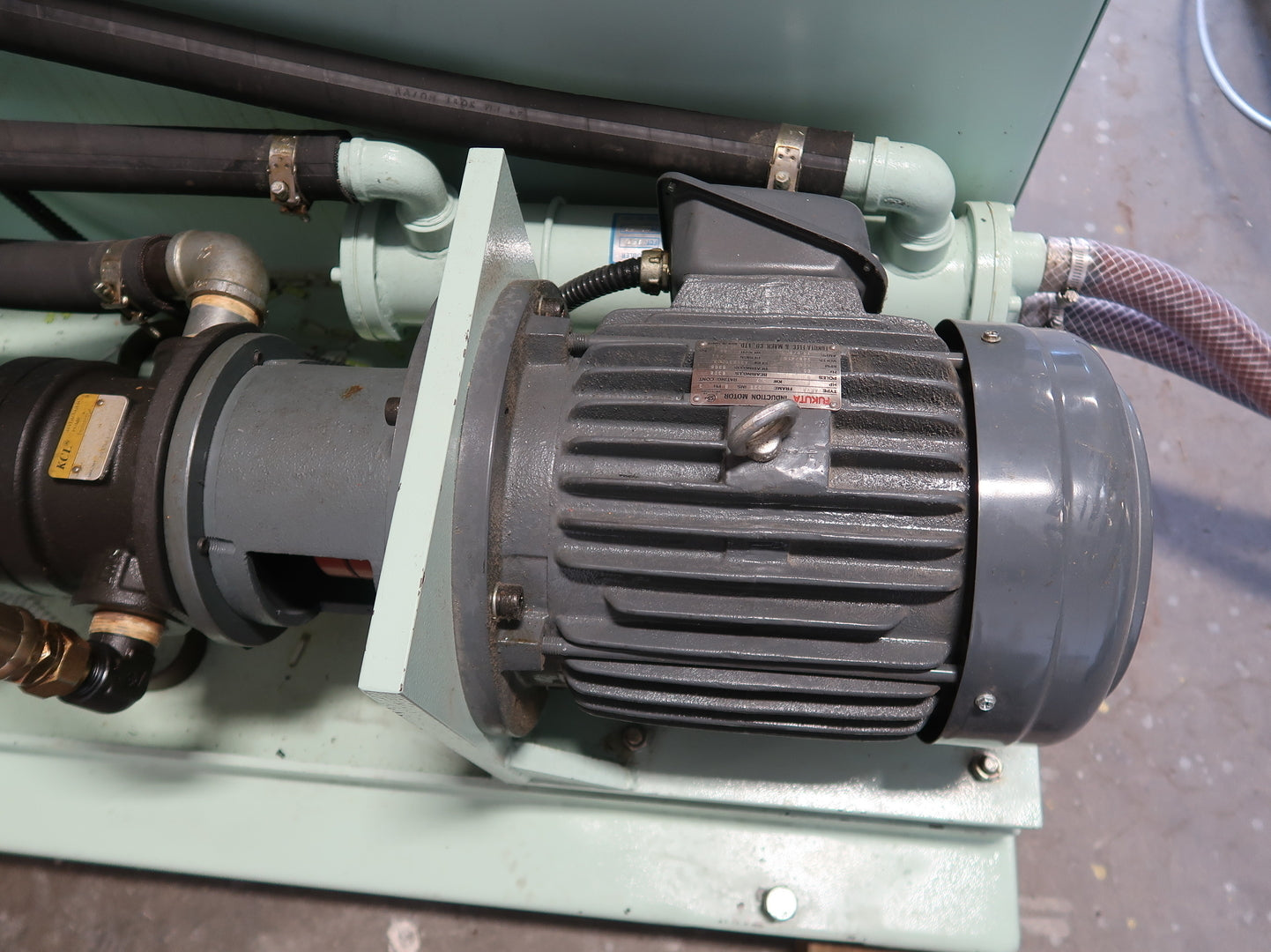

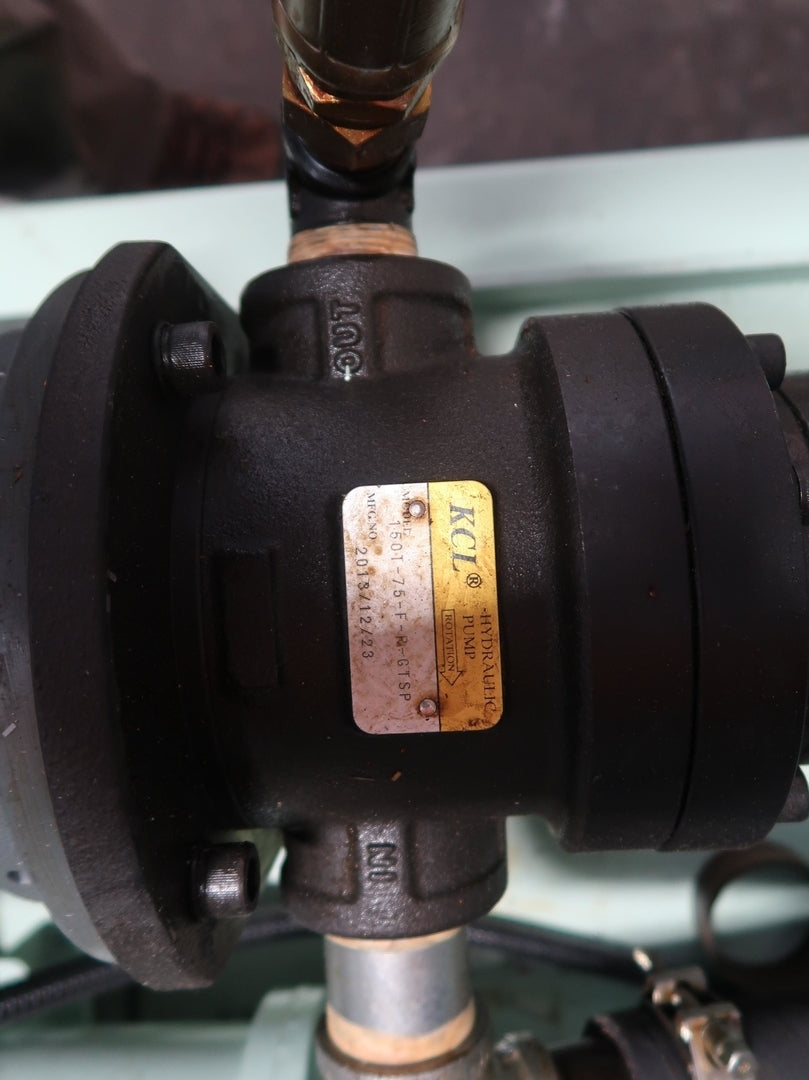

Hydraulic Pump: KCL
-

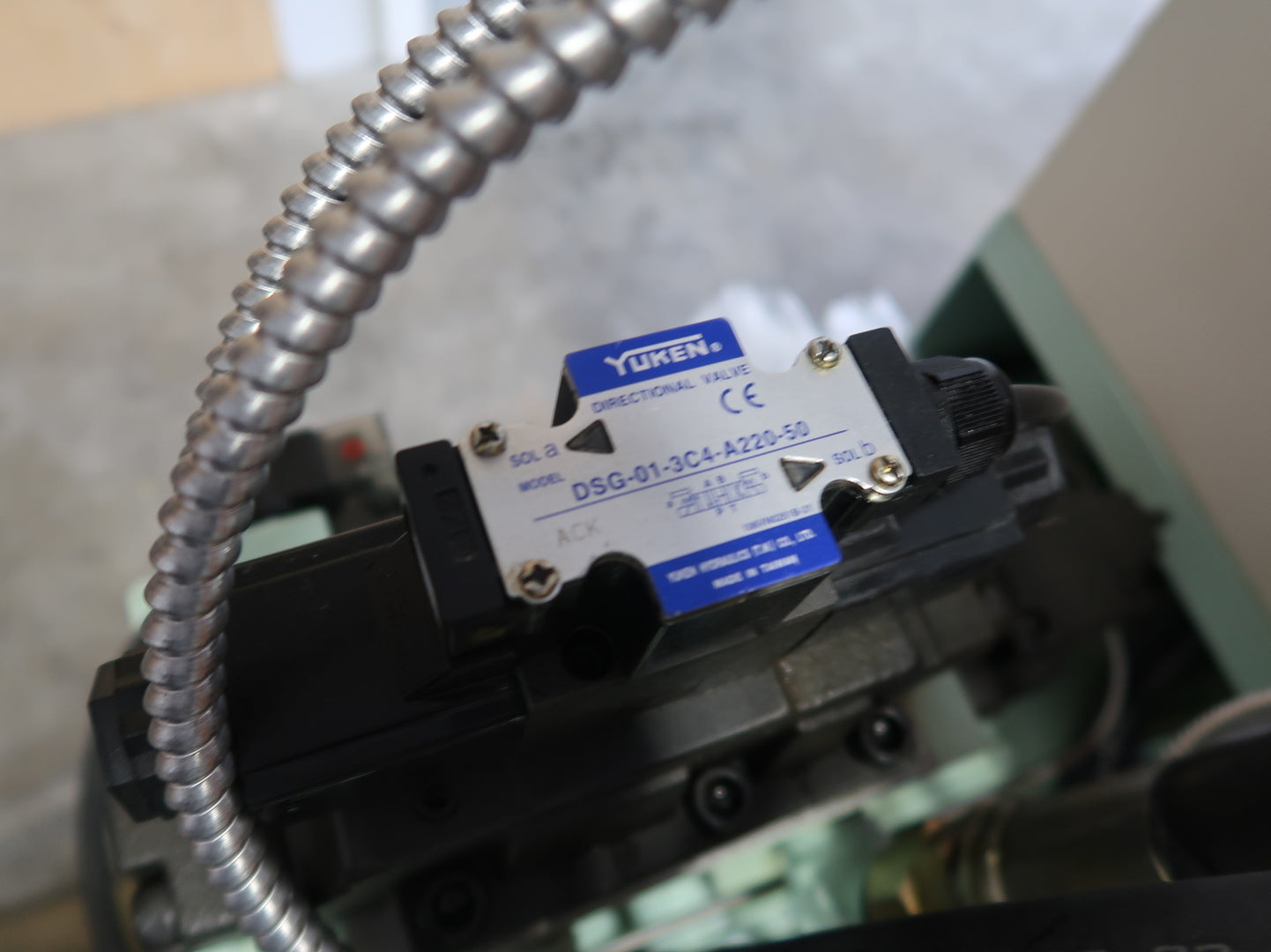

Directional Valve: Yuken DSG-01-3C4-A220-50
-

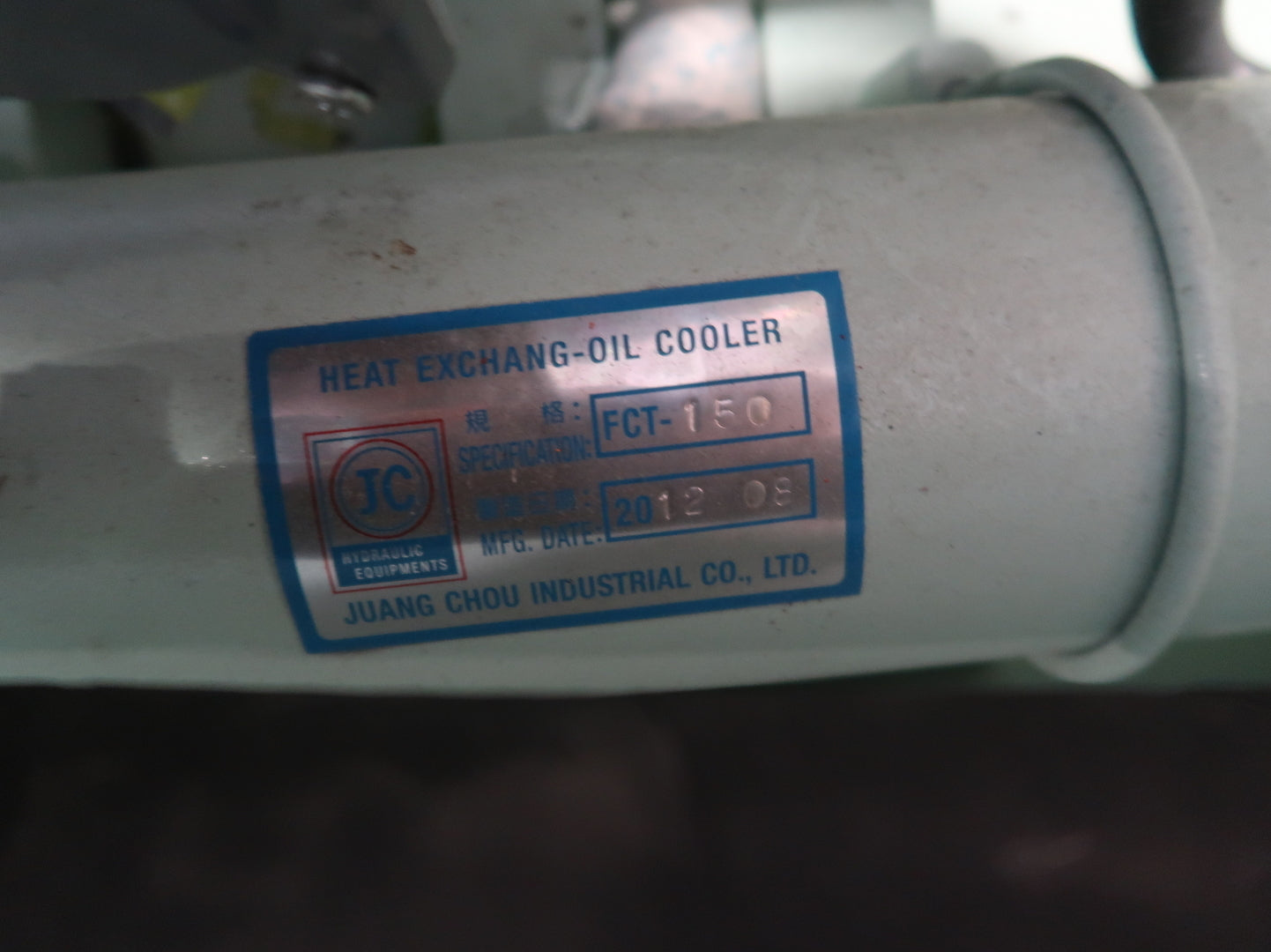

Oil Cooler / Heat Exchanger:
-
Manufacturer: Juang Chou Industrial Co., Ltd.
-
Model: FCT-150

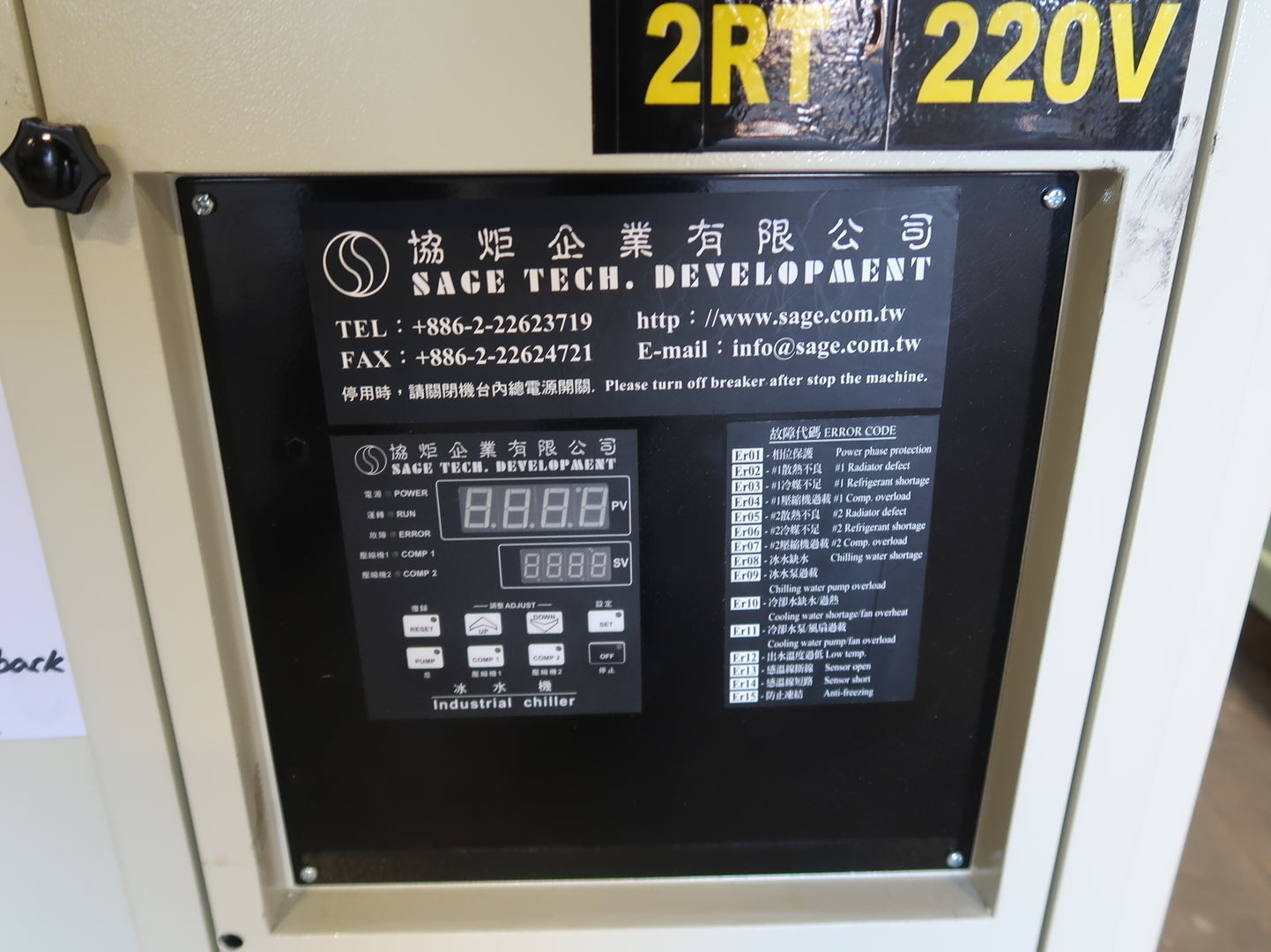

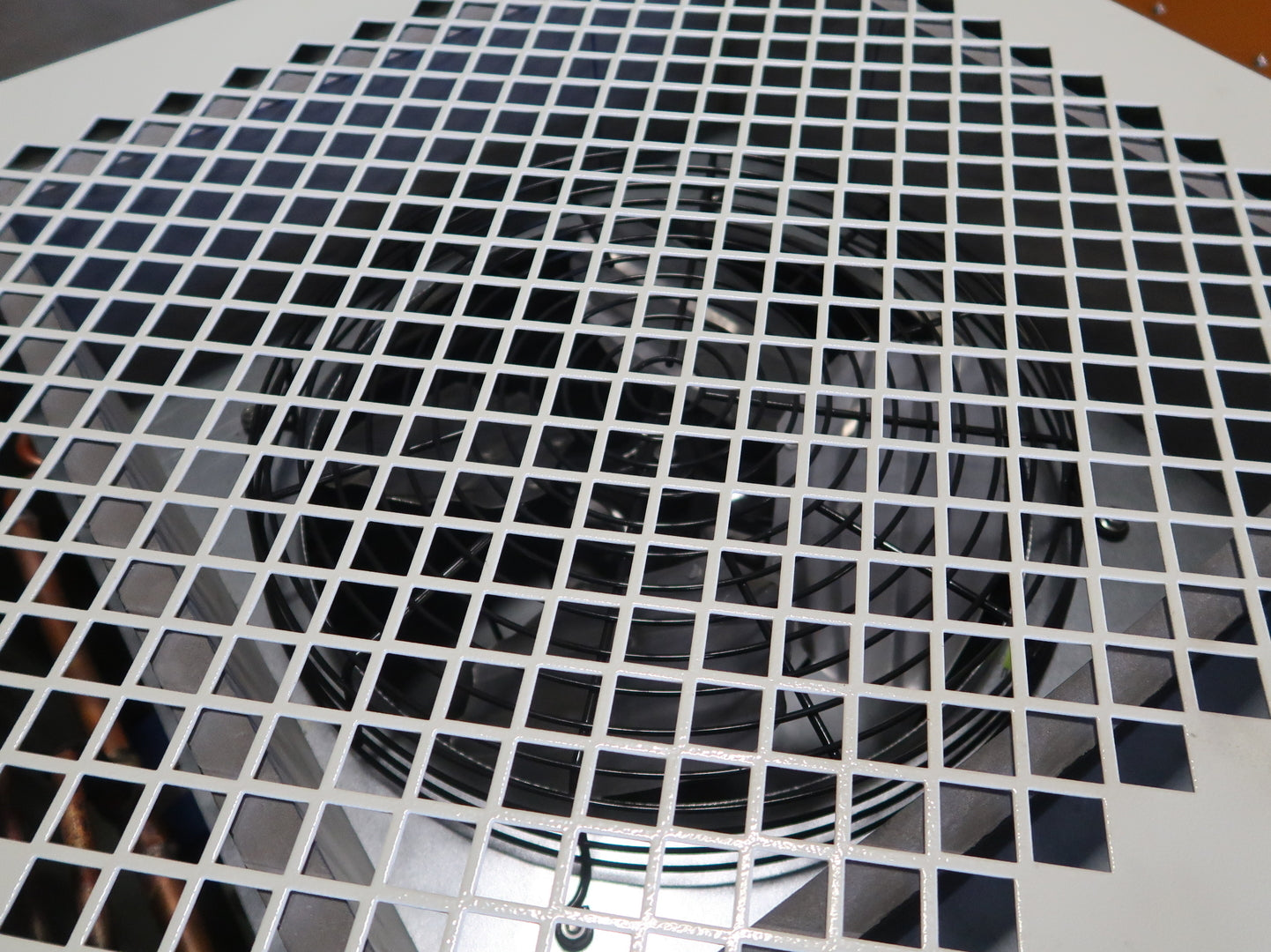

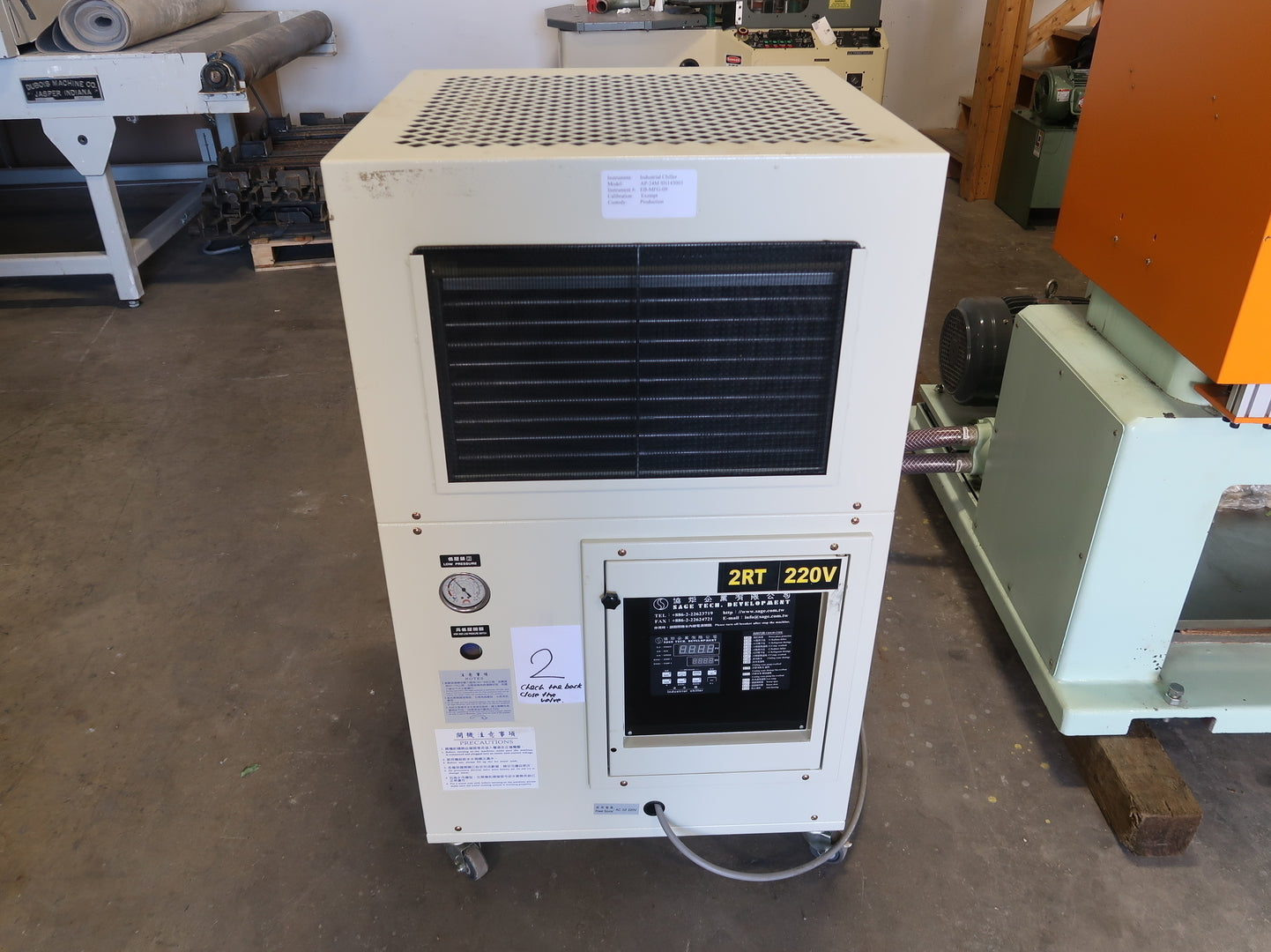

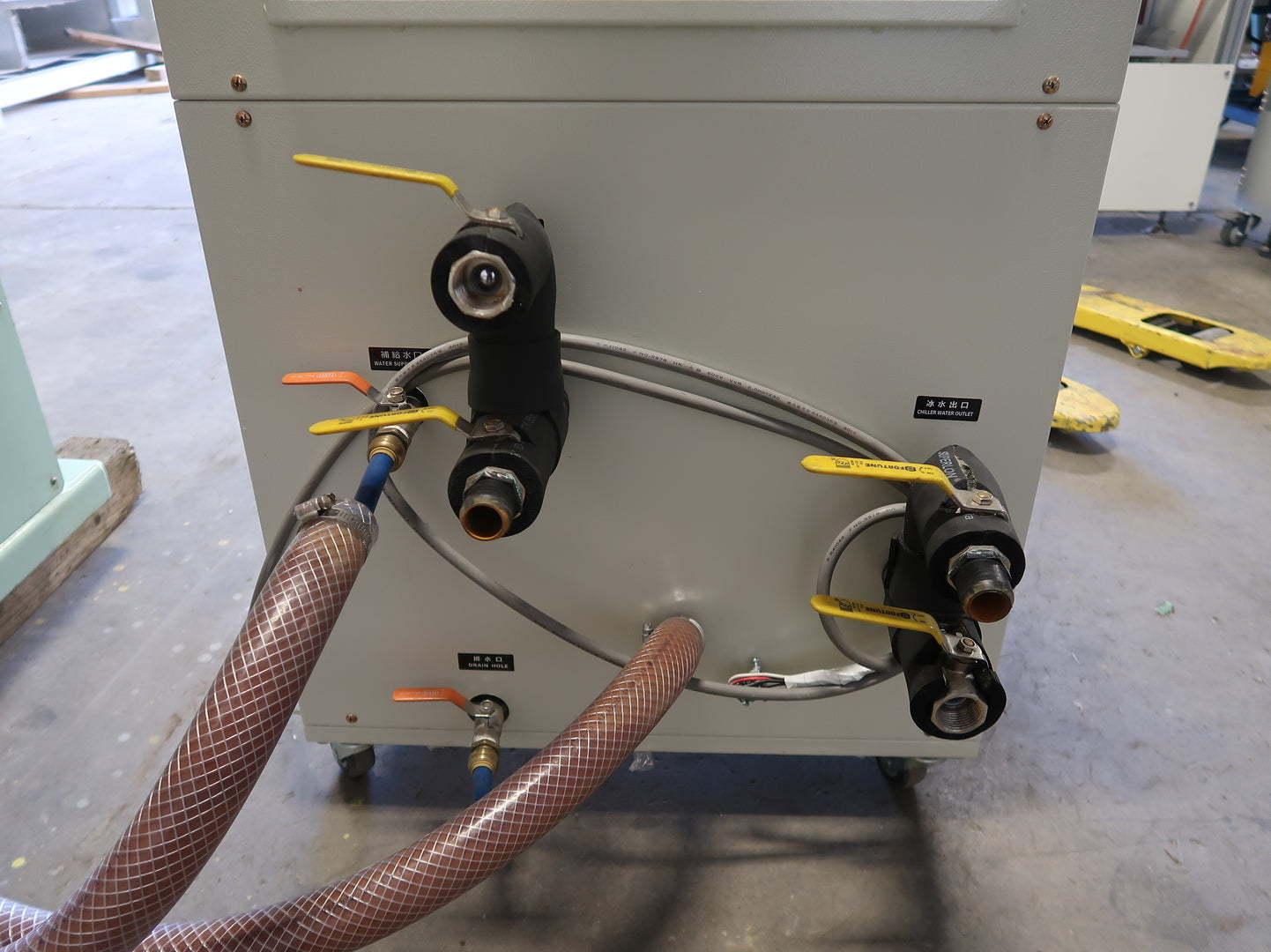

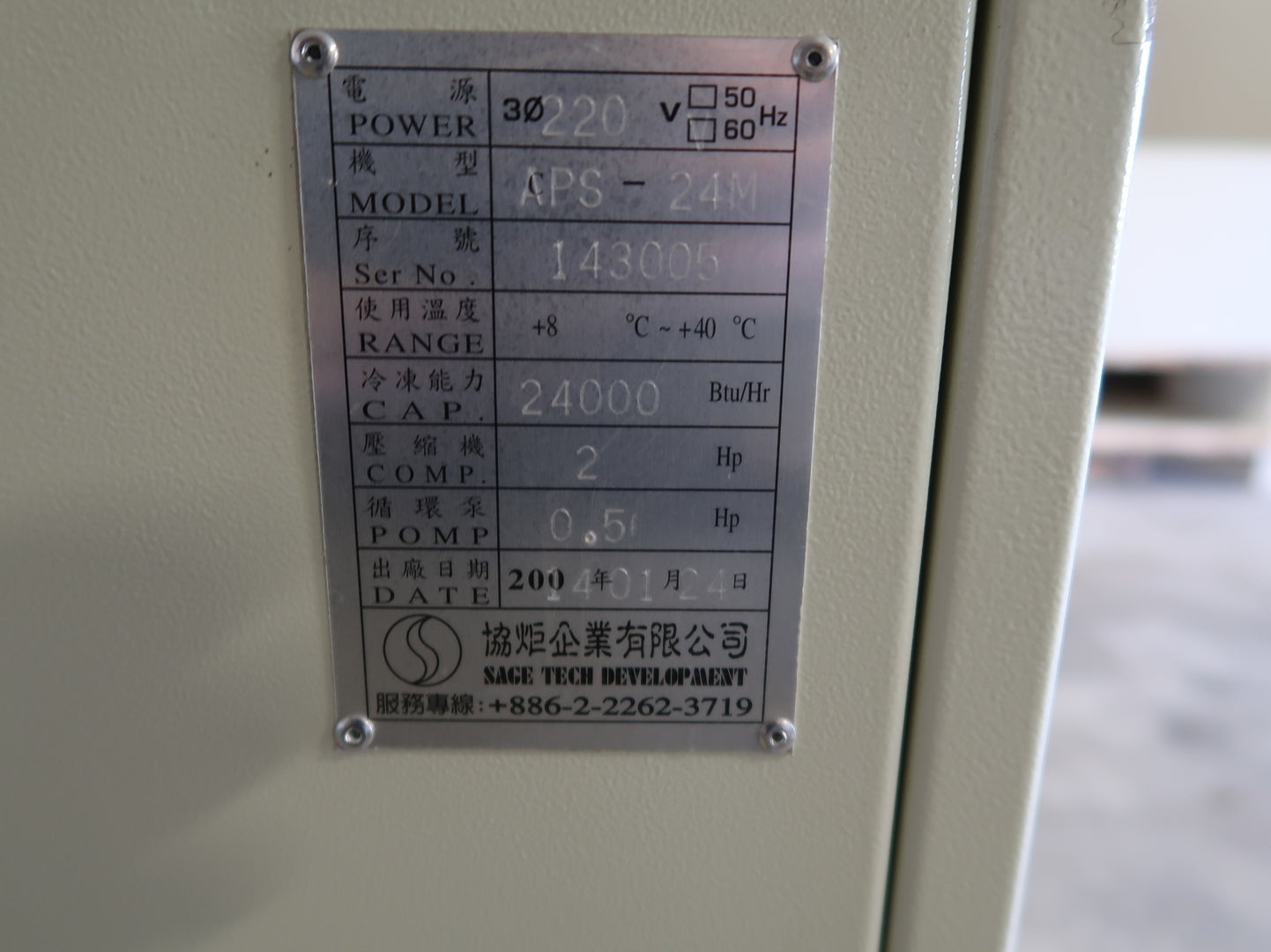

Chiller
-
Manufacturer: Sage Tech Development
-
Model: APS-24M
-
Cooling Capacity: 24,000 BTU/hr
-
Compressor: 2 HP
-
Circulation Pump: 0.5 HP
-
Power: 220V, 3-Phase
-
Operating Range: +8°C to +40°C
-
Mounted on casters
Applications
-
Rubber compression molding
-
Silicone molding
-
Composite panel forming
-
Fiberglass layup pressing
-
Thermoset plastic molding
-
Industrial laminating
-
Material testing and forming operations
|
