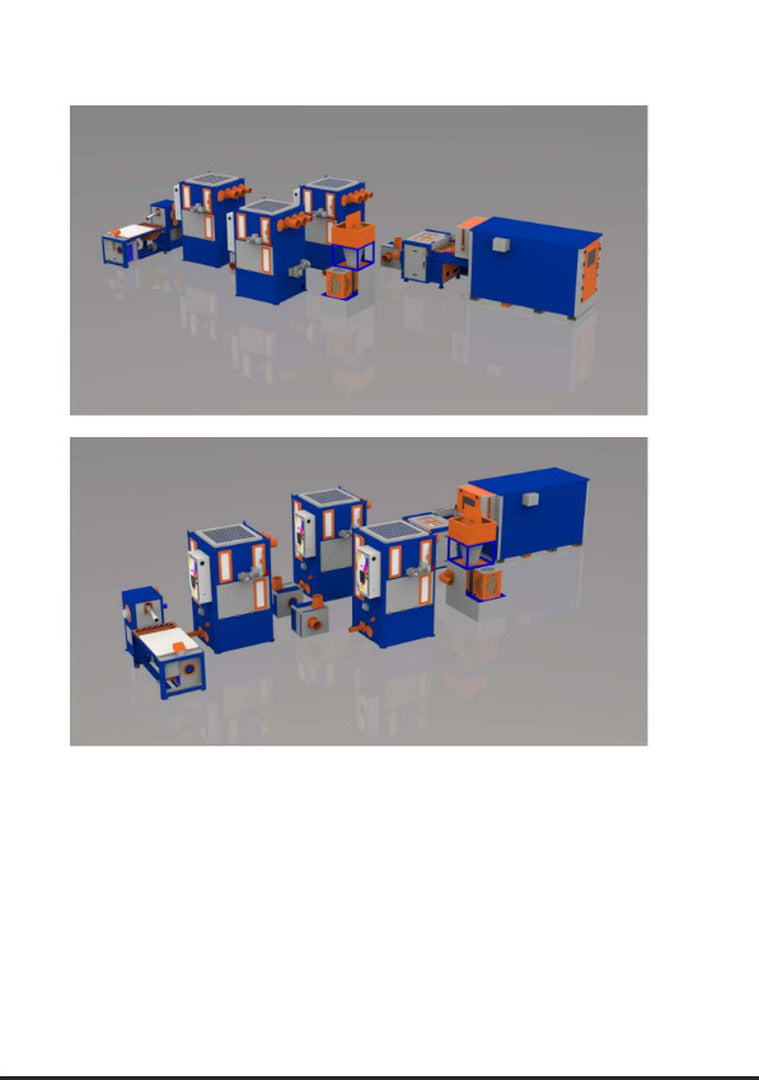

CombyMove Cushion and Pillow Production Line

2020 Quarrata Cushion and Pillow Production Line - Fiber - Foam Shredding - Blending -Filling Installed 2021. Very low working hours. Operated as a testing line for new products. Like new condition and reliable machine.

• QUARRATA COMBYMOVE SERIAL NUMBER: BLM-0028
• CONVEYOR KIT FOR COMBYMOVE QUARRATA COMBYFLEX SERIAL NUMBER: CFX-025+ H
• QUARRATA GRIZZLY SHREDDING MACHINE 25HP SERIAL NUMBER: GM0009
• 3 x QUARRATA SILO SERIAL NUMBER: SLO-098 SERIAL NUMBER SLO-099 SERIAL NUMBER: SLW-017
• WEIGHING OPTION FOR SILO 2 x QUARRATA HURRICANE 315 SERIAL NUMBER: HZM-187 SERIAL NUMBER: HZM-188
• QUARRATA DUMBO FILLING MACHINE SERIAL NUMBER: DO-358
• QUARRATA KILO SERIAL NUMBER: CWS-077
• WEIGHING OPTION FOR KILO

CombyMove is a machine for automatic transfer of raw fibre from the bale to the processing units. Load the fiber inside the machine and CombyMove will automatically feed the other processing machines of the production line. Speed is adjustable and the machine is fully equipped with safety devices and protections for the users.

CombyMove See CombyFlex on YouTube (shows both CombyMove and CombyFlex): https://youtu.be/ufy9mgWZV0w?si=WrG1HUoAFRRRH4PB

Technical specifications

• Code: MTD00002
• Dimensions: 300 x 180 cm
• Height: 180 cm
• Installed power: motor 1HP, 380V.
• Motor: 2 motors: 1 Hp / 0,75 kw, 400V Three-phases, 1 motor: 0,75 Hp / 0,55 kw, 400V Three-phases
• Weight: 800 kg

CombyFlex is a fine opener fiber carding machine. This machine is easy to use and the protection devices always assure the highest safety level for the workers. The raw material loaded on the belt (80mm long) is processed inside the machine and then transferred, by the onboard ventilator, to the next working unit (i.e. Silo).

CombyFlex See CombyFlex on YouTube (shows both CombyMove and CombyFlex): https://youtu.be/ufy9mgWZV0w?si=WrG1HUoAFRRRH4PB

Technical specifications

• Dimensions: 200 x 170 cm
• Height: 120 cm
• Motor: 400 V Three-phase (8kw) - 3 motors
• Production capacity: 300 kg/h approx.
• Weight: 600 Kg

Grizzly 25 HP - A powerful electric shredding machine designed to process polyurethane and rubber foam wastes, to reduce waste to dispose of and saving at the same time (recycling waste foam into filling materials). The shredded foam is driven out of the machine (i.e. into a Silo) by a powerful fan and foam chip size can be adjusted by using different sizes of outlet meshes. The shredded material is blended with fibre and blown into cushions or pillows to make high-quality yet economical and ecological products.

Grizzly Shredder See Grizzly on Youtube: https://www.youtube.com/watch?v=SrBVvcQSbYk

Technical specifications

• Code: GRZ00036
• Dimensions: 125 x 125 cm (side connection included)
• Height: 225 cm
• Motor: 400 V Three-phases, 25 Hp
• Operation: Electric
• Outlet pipe diameter: 140 mm
• Production capacity: 175 kg/h approx.
• Safety equipment: automatic overload cutout, minimum tension trip coil, emergency stop button
• Weight: 500 kg

The Silo Machine is a buffering and mixing machine. The buffering function is conceived to meet the different productivities of the upstream processing machines and downstream filling machines. The mixing function is instead useful when there's the necessity to make a blend of different materials. A versatile machine, it can handle multiple fillings such as shredded foam, feathers and fibre or even a combination of fillings. Due to a combination of its three rotating blades and fan, it is able to allow a constant and continuos flow to the filling machine. The Silo has the function to buffer between higher productivity upstream and lower productivity downstream.

Silo See Silo on YouTube: https://youtu.be/ceGwNBKBzYY?si=Hez5TeRY9va6wu9B

Technical specifications

• Accessories: Inspection window
• Code: 5000121254004
• Dimensions: 125 x 125 cm (on floor), max dimension 245 cm
• Height: 220 cm
• Installed power: 1 Motor da 0,75Kw. - 1 Motor da 1,5 - 1 Electric fan da 1,1 Kw
• Load volume: 2,5 mc approx.
• Operation: Electric 400 V - 50/60 Hz
• Safety equipment: automatic overload cutout, minimum tension trip coil, emergency stop button
• Weight: 635 Kg

Hurricane

The Hurricane ventilator is a fan which facilitates the flow of the material processed by one fiber/foam processing machines toward the buffer and mixing unit (Silo machine), or from one Silo to another.

Dumbo is an electric machine for filling cushions with short fibre materials like feathers, polyurethane foam chips, wool, resin-bonded products, composites etc. Dumbo can be used both directly connected with sacks containing the filler or with a storage silo. Its vertical opening allows maximum speed and ease of use, together with extremely precise and uniform filling. The machine is equipped with a pneumatic gate valve that permits instant, accurate control when filling cushions.

Dumbo See Dumbo on YouTube (machine is shown at the end of video): https://youtu.be/sFn_mJ7swC8?si=24SIVTtVbGtNX61i

Technical specifications

• Code: 5000225550002
• Dimensions: 80 x 110 cm (on floor)
• Height: 145 cm
• Motor: 220/380 V three-phase, 1,5 kw
• Operation: Electro - pneumatic (electric motor + pneumatic valve)
• Safety equipment: automatic overload cutout, minimum tension trip coil, emergency stop button
• Weight: 120 Kg
• Width: 100 cm

Kilo is a working table perfectly integrated in the cushion filling line, after the cushion filling machine Dumbo. The Kilo has a wide working surface for cushions under the Dumbo filling spout and the accurate sensor together with the large display allow easy monitoring of the weight. The conveyor and the ventilator fan return any excess filling material (fibre, foam chips, feathers, etc.) from the cushion or Dumbo spout back to the Silo, always keeping the working area clean.

Kilo See Kilo on YouTube (machine is shown at the end of video): https://youtu.be/sFn_mJ7swC8?si=24SIVTtVbGtNX61i

Technical specifications

• Code: PSP00001
• Dimensions: 170 x 190 cm
• Height: 130 cm
• Motor: 0,35 kw, 230 V mono-phase
• Weight: 160 Kg
• Width: 130 cm
