Description
Specifications | |
---|---|

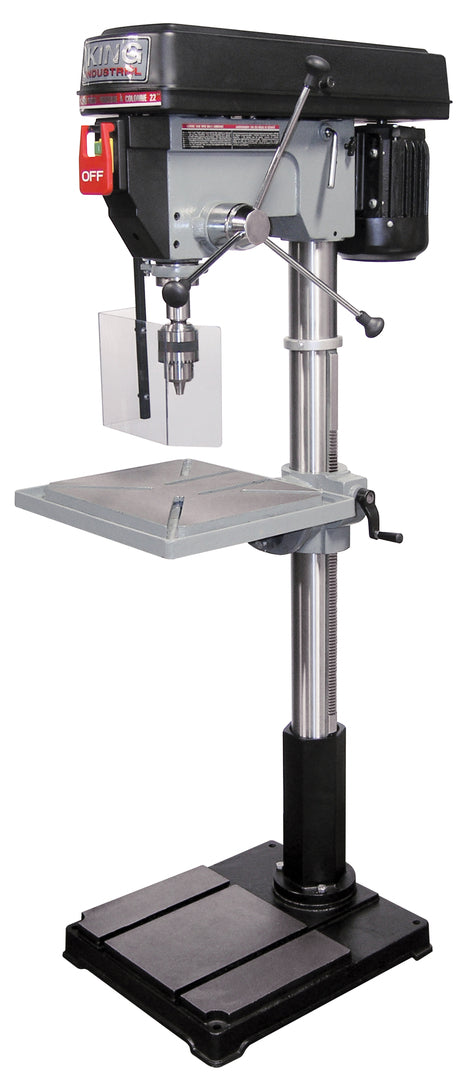

Model | KC-122FC-LS |
Condition | New |
Assembled Dimensions: | 18.75 x 33 x 69 inches | General |
Table Size | 18-3/4" x 16-1/4" | Electrical |
Horsepower | 1 hp |
Other Specifications |
---|
Capacity: 1-1/4"
Chuck Size: 3/4"
Swing: 22"
Stroke: 4-3/4"
Max. Distance from Chuck to Table: 21-3/4"
Max. Distance from Chuck to Base: 41-7/8"
Size of T-slot on Table: 5/8"
Spindle Taper: MT#4
Quill Diameter: 75 mm
Speeds: (RPM)12 (180 - 4,200)
Motor: 12.5 Amp.@ 110 volts, 6.25 Amp.@ 220 volts
Voltage: 110 volts/ 220 volts, 1 phase
Pre-Wired at: 110 volts
|
