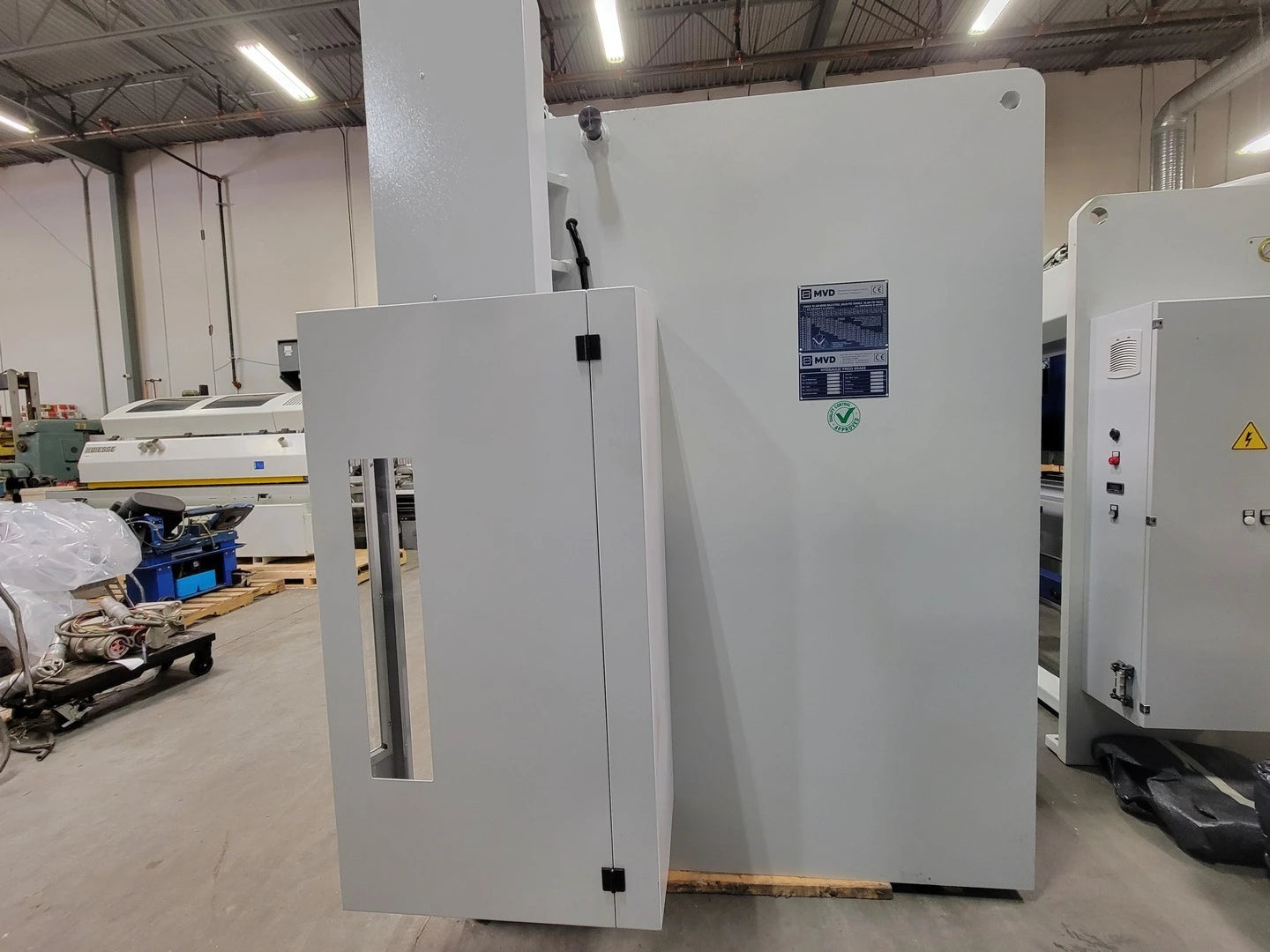

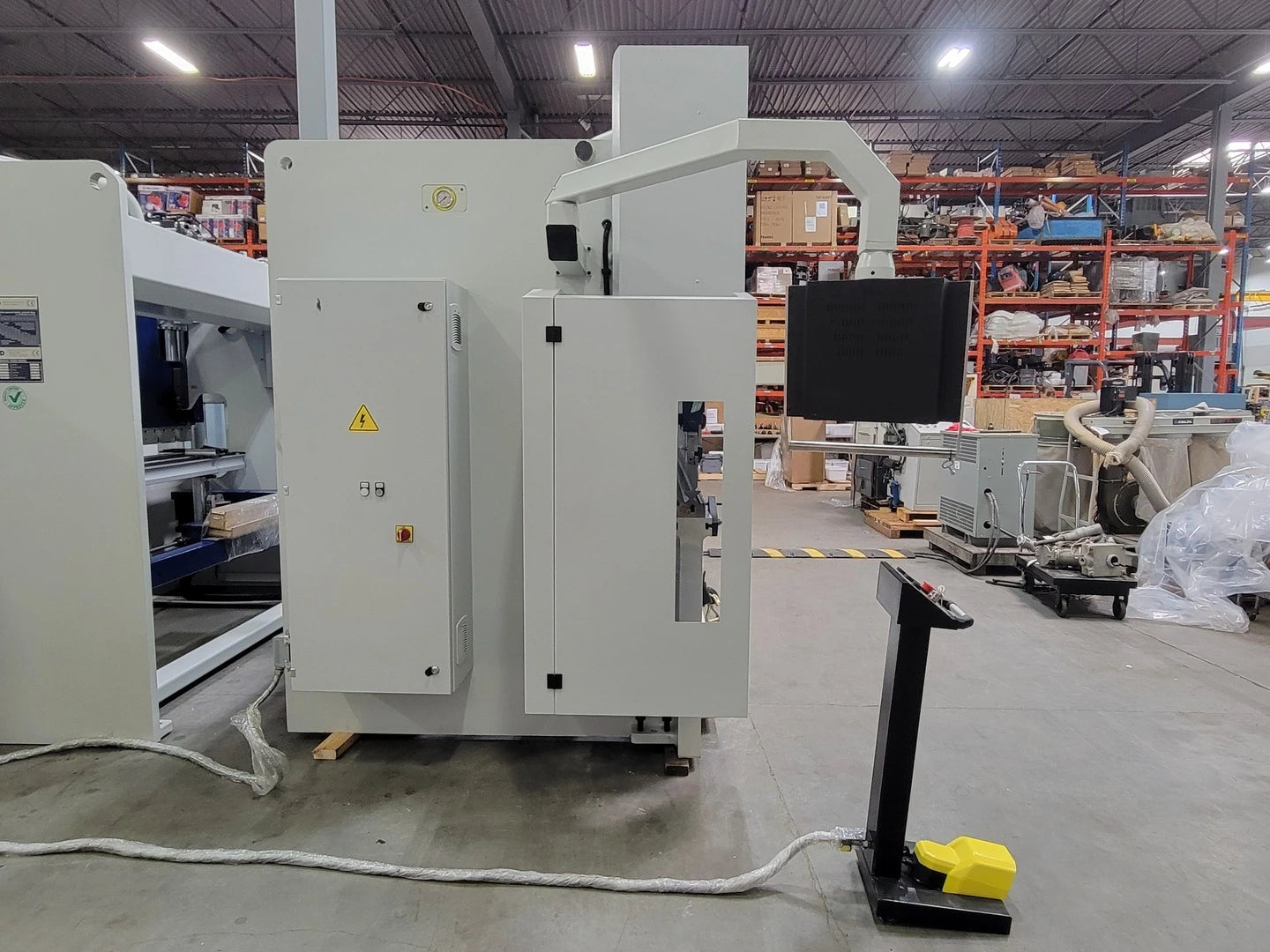

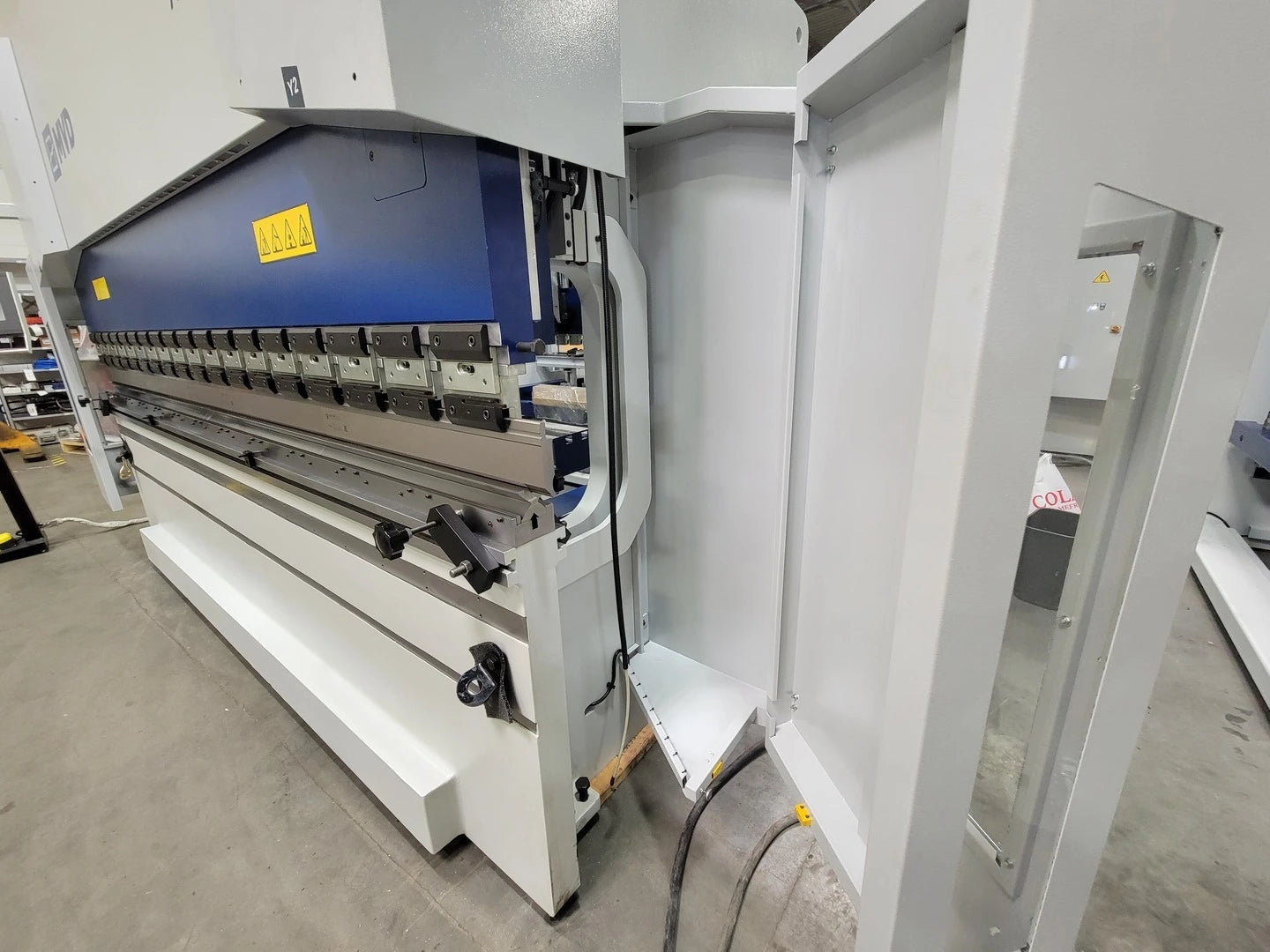

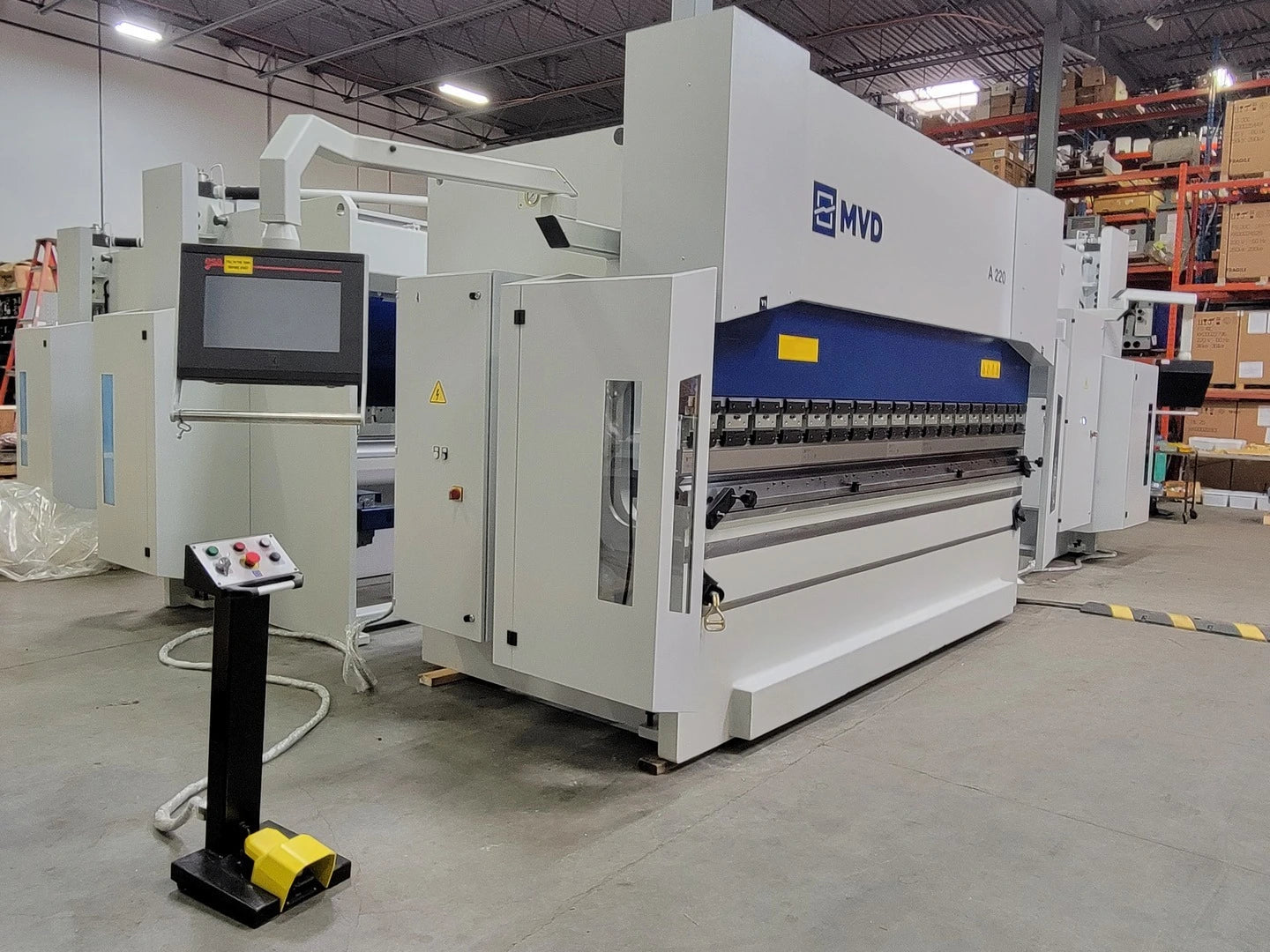

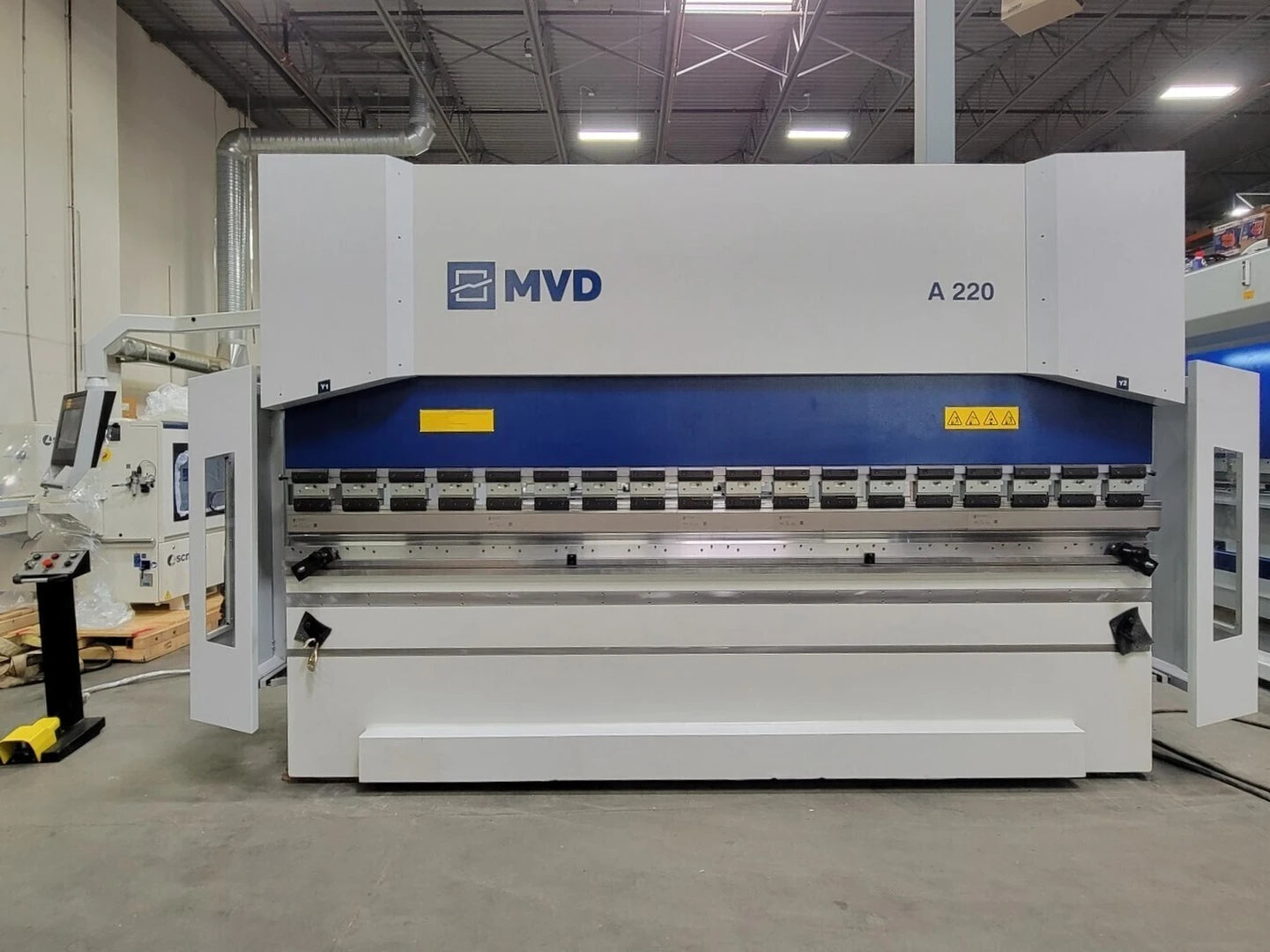

220 ton iBend Hydraulic Press Brake A-Series A220-3700

SKU: 26829
Price:
$120,175 CAD

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

A SERIES Maximum machine performance and high bending accuracy provided by synchronized Hydraulic Cylinders, CNC-controlled, assembly in ideal conditions made the original Germany hydraulic block, Proportional Valves, high quality linear scales.
Specifications
Model A220-3700
Condition New
General
Bed Length 12 ft
Tons 220 ton
Brake Type Hydraulic
CNC Yes

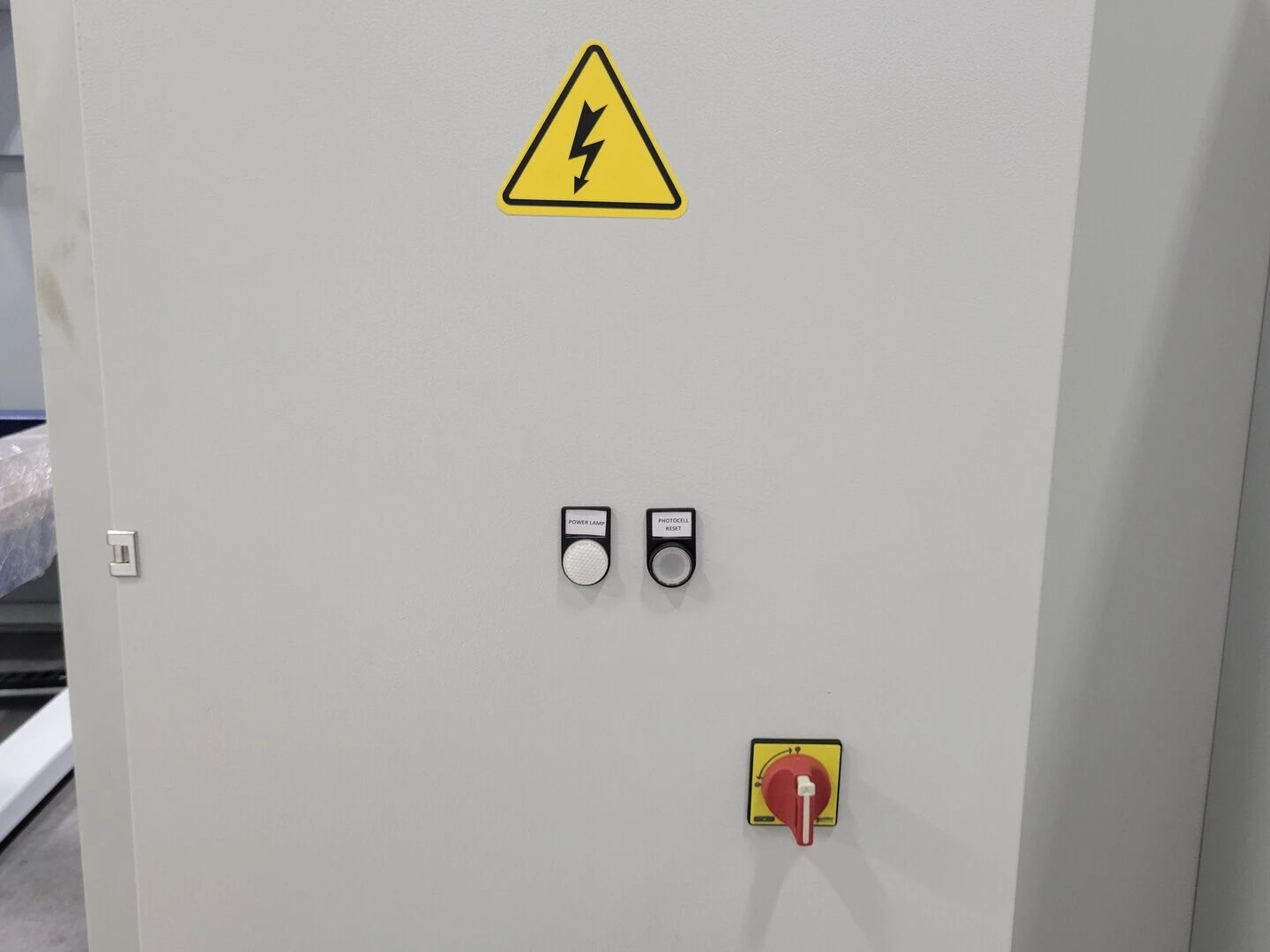

Electrical
Voltage 600 volts
Phase 3-phase
Other Specifications
Distance between columns: 3200 mm / 125.98 in.
Stroke: 210 mm / 8.27 in.
Daylight: 415 mm / 16.34 in.
Throat: 410 mm / 16.14 in.
Table Height: 930 mm / 38.19 in.

Includes:

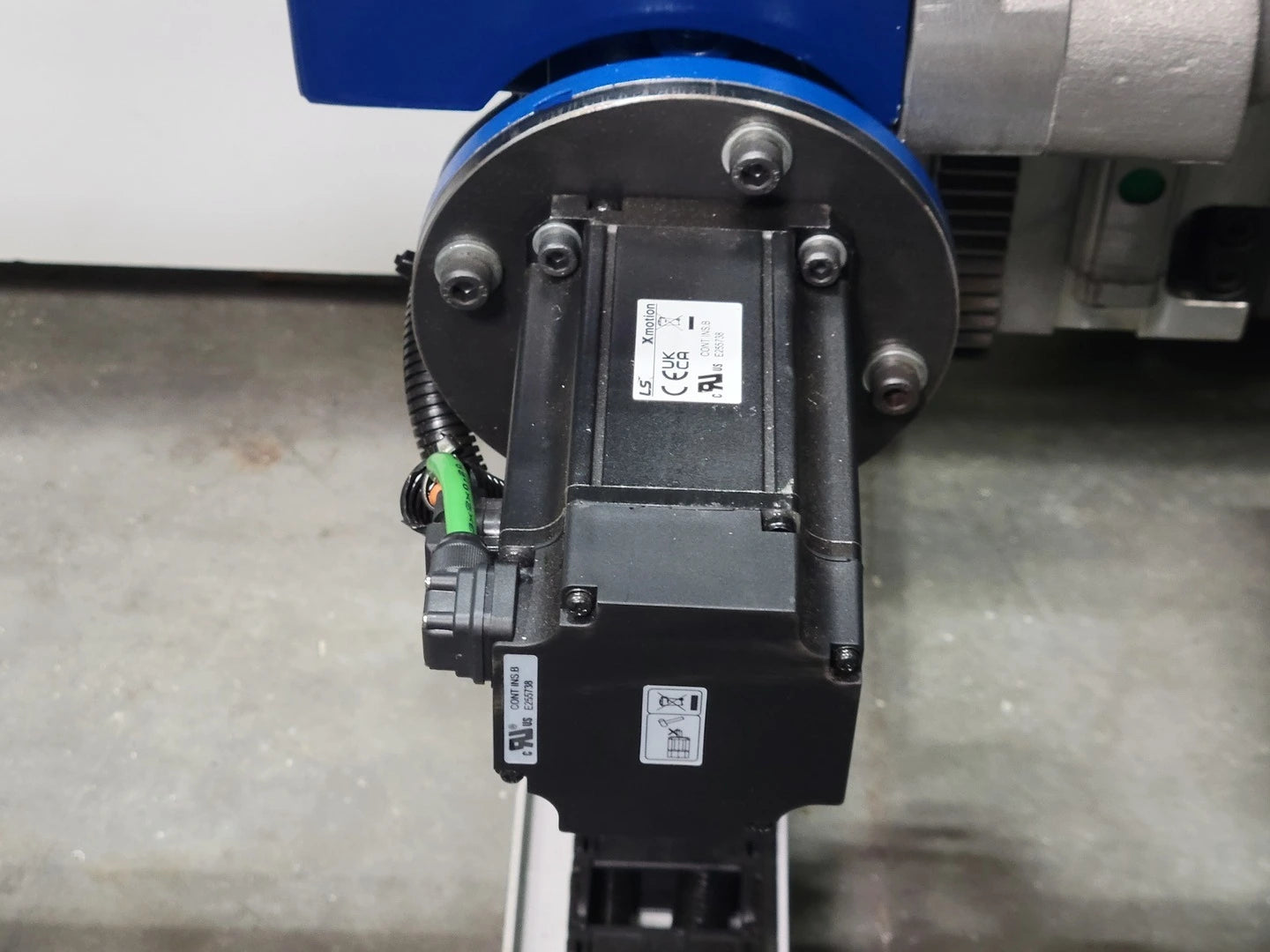

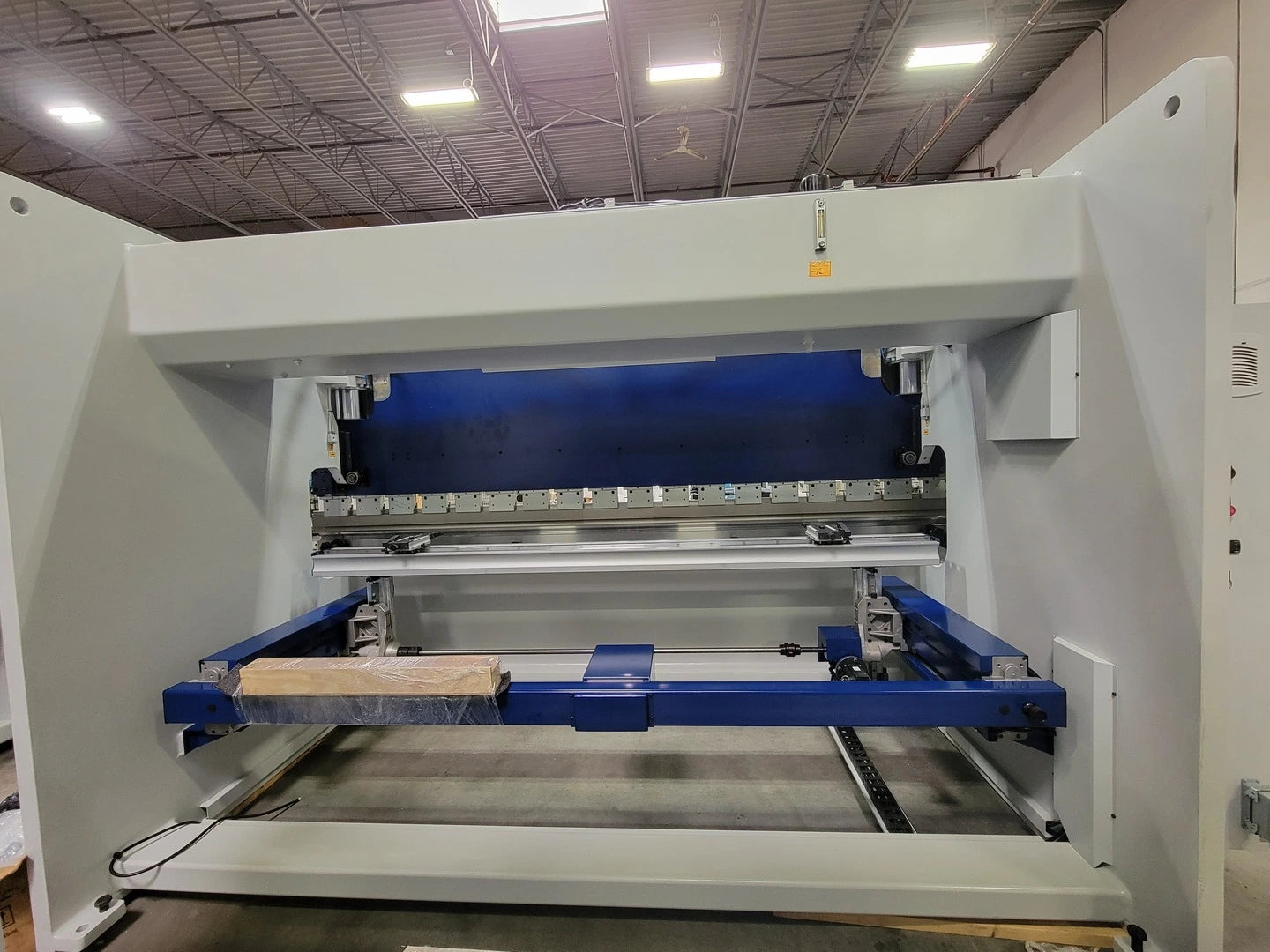

  • iBend - Back Gauge MVD (X+R) - SERVO Motorized
  • Large Bottom table for multi Vee die (150 mm / 5.90 in.) + American groove, 13.1 mm + EU die holder IW = 70mm

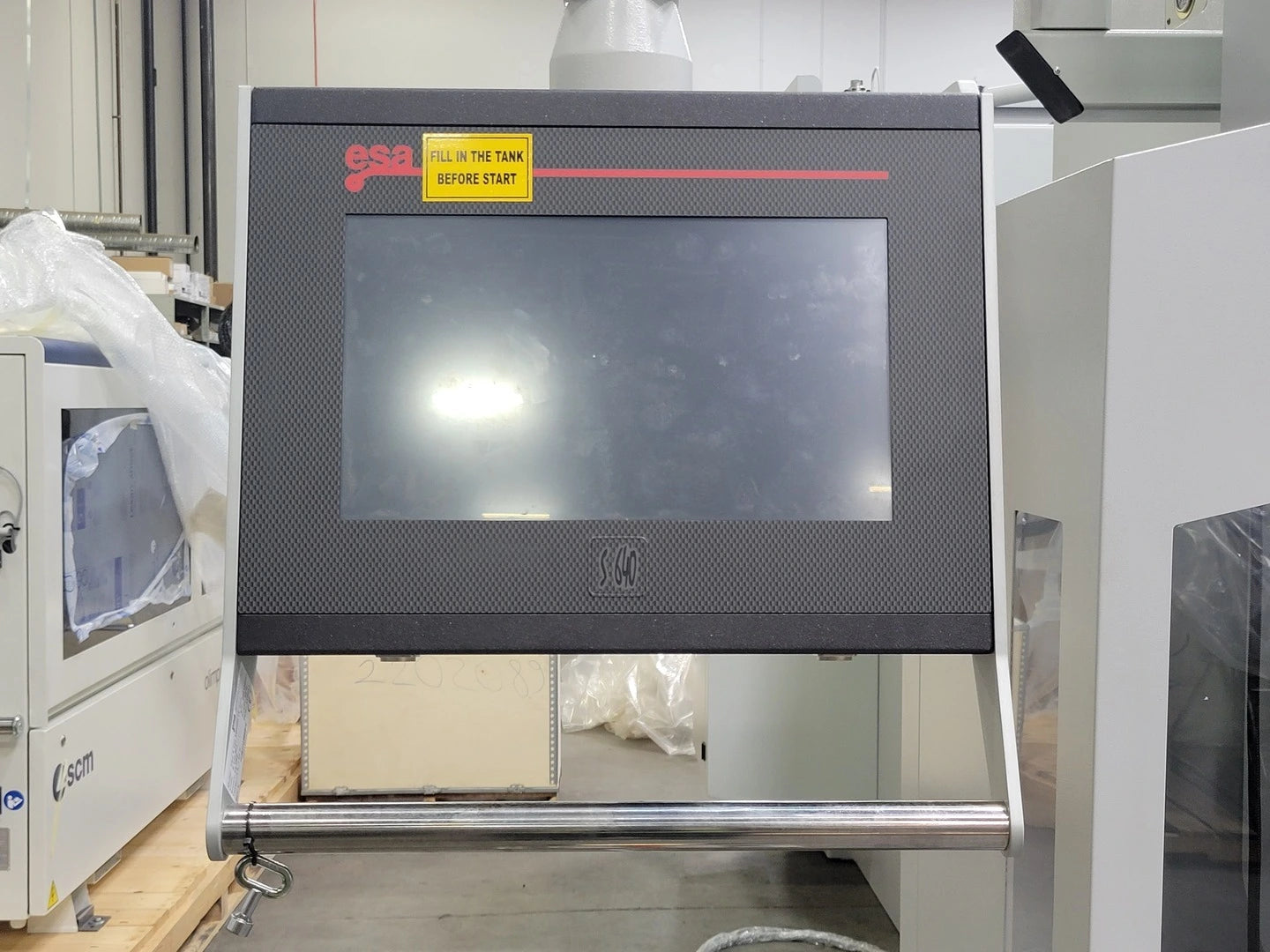

  • ESA S640, 15" Touch Screen, 2D Graphical (3-6 Axes)
  • Rear Safety Light Barrier PILZ 030/90
