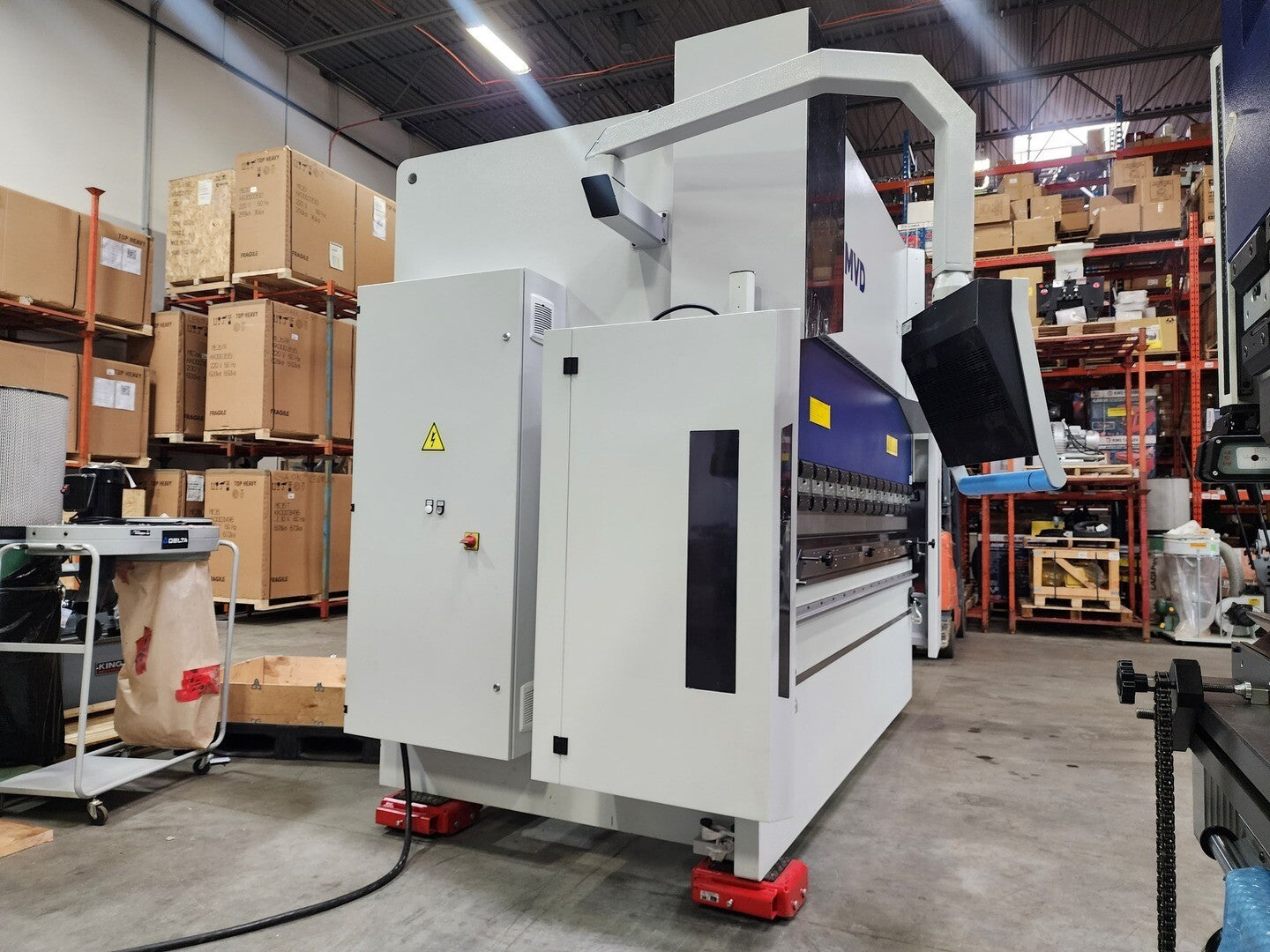

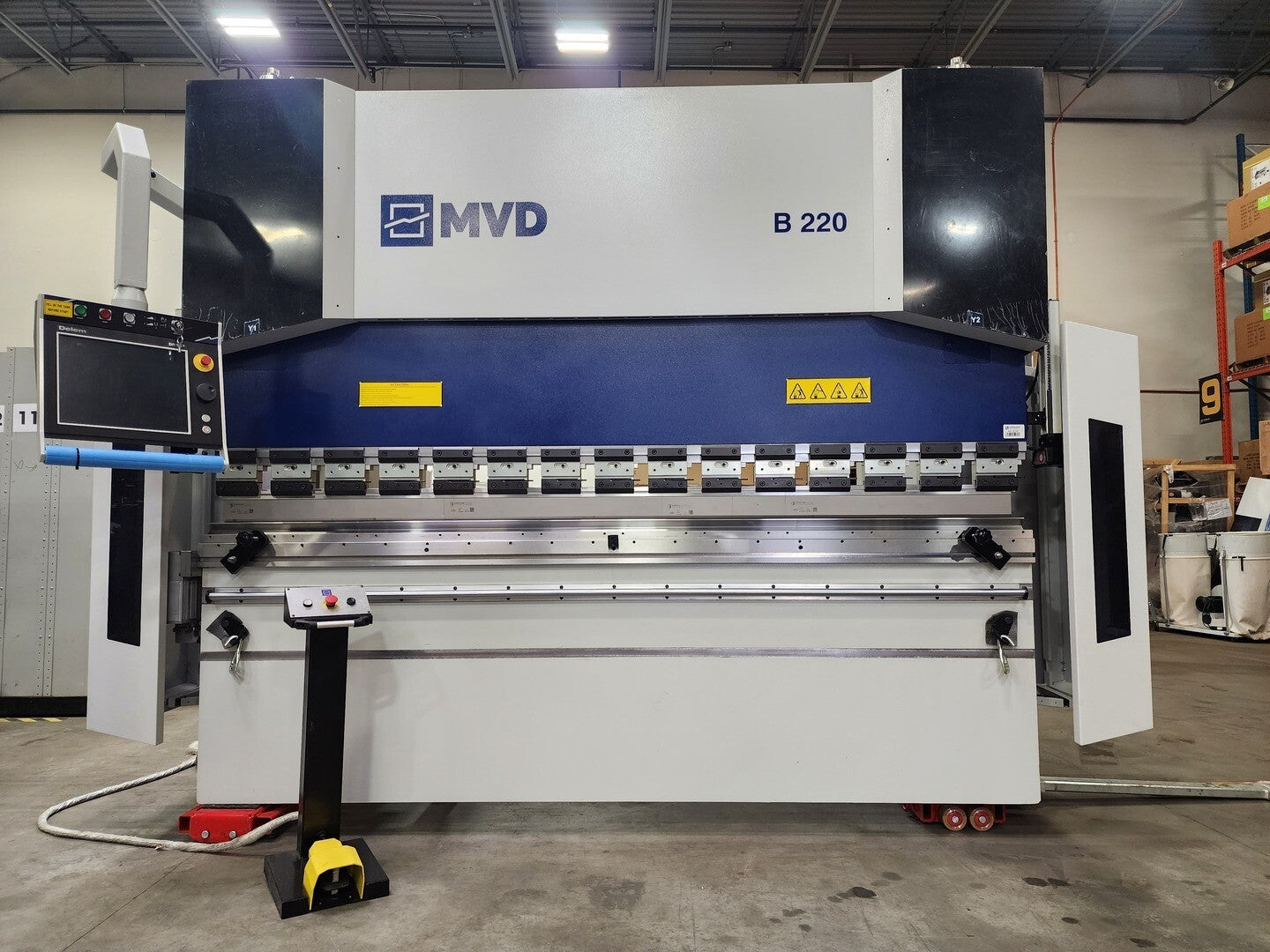

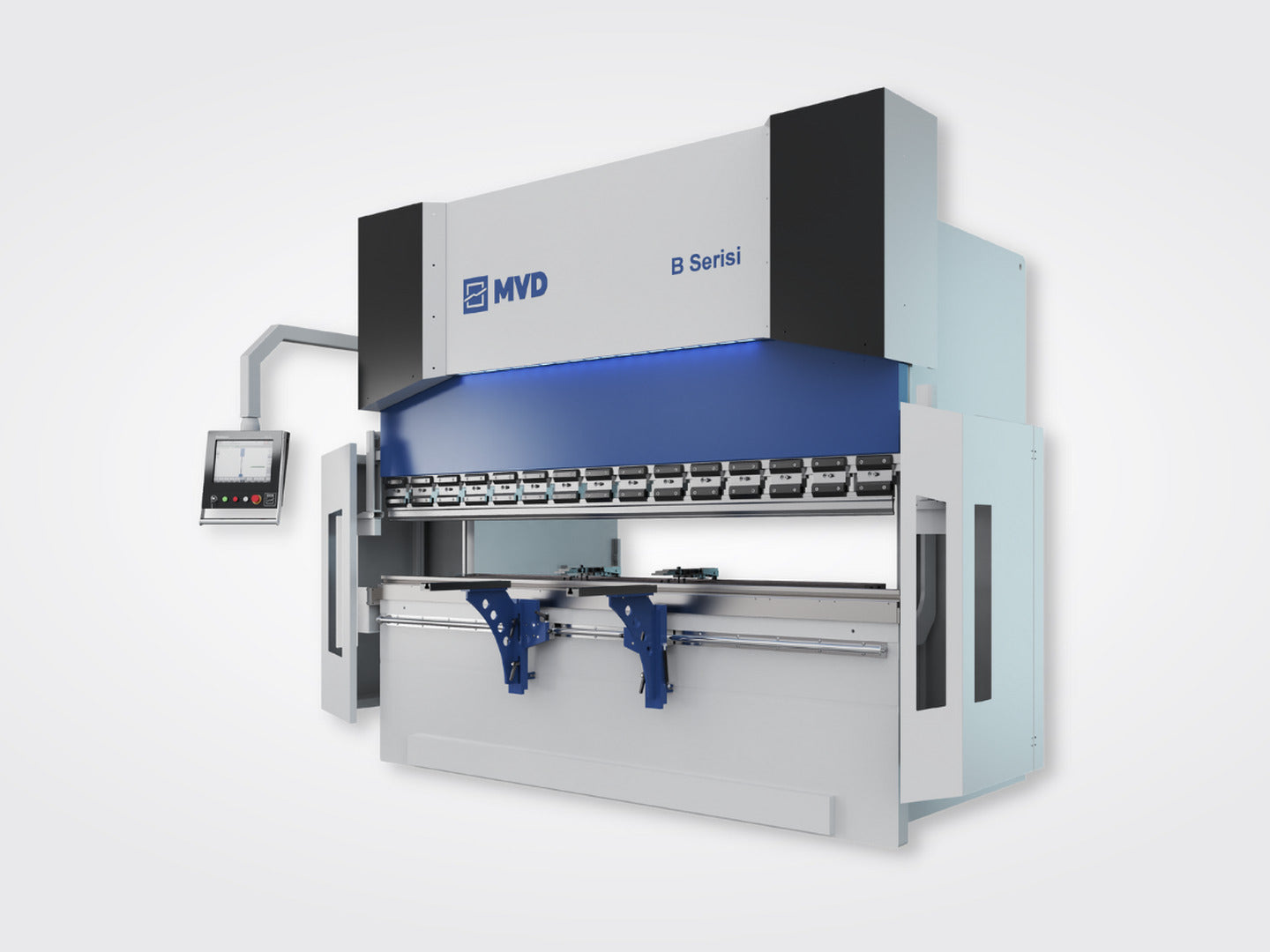

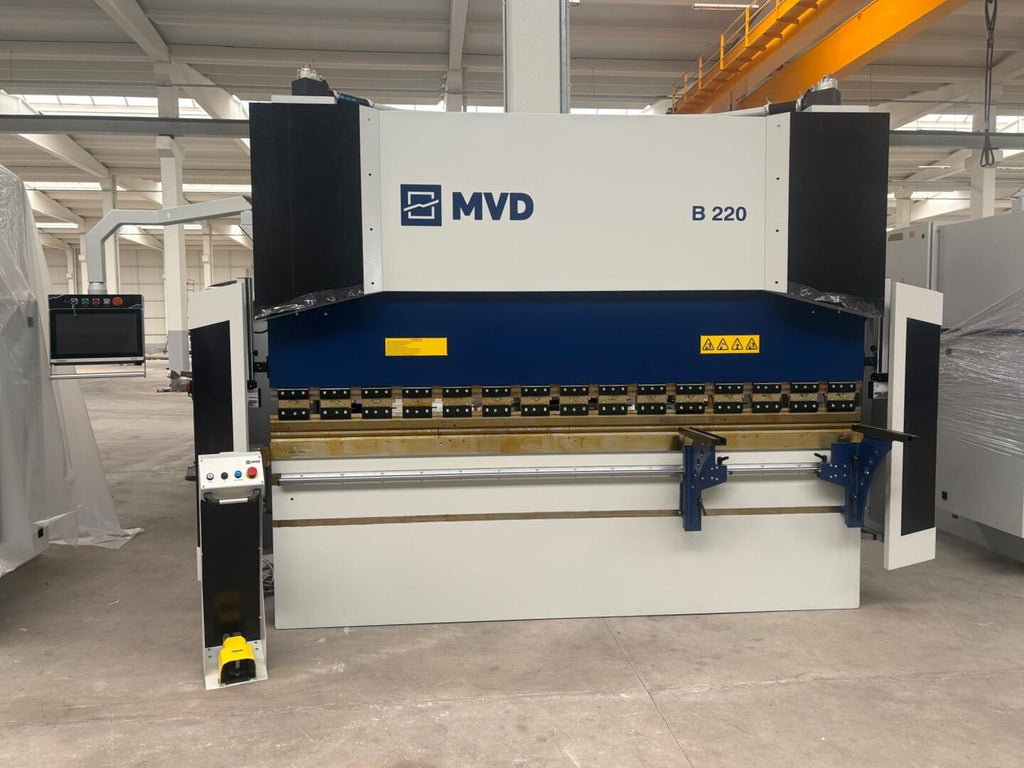

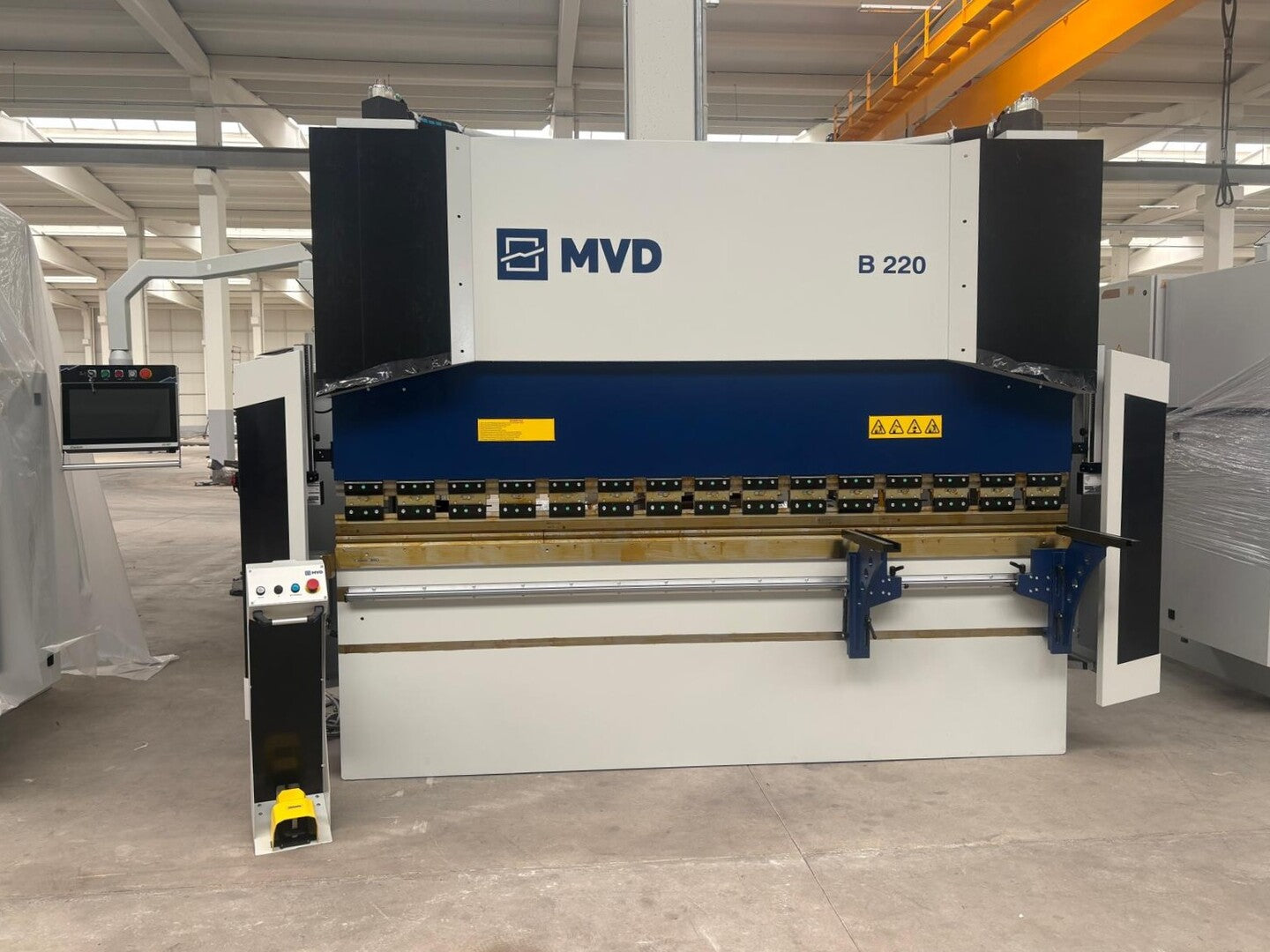

220 ton iBend Hydraulic Press Brake B-Series B220-3100

SKU: 155214
Price:
$179,244 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model B220-3100
Year: 2026
Made In TURKEY
Condition New
General
Bed Length 3100 mm
Tons 220 ton
Brake Type Hydraulic
CNC Yes
Other Specifications

PDF Catalog

Features:

  1. Y1, Y2, X, R (4 axis with X=750mm, R=250mm)

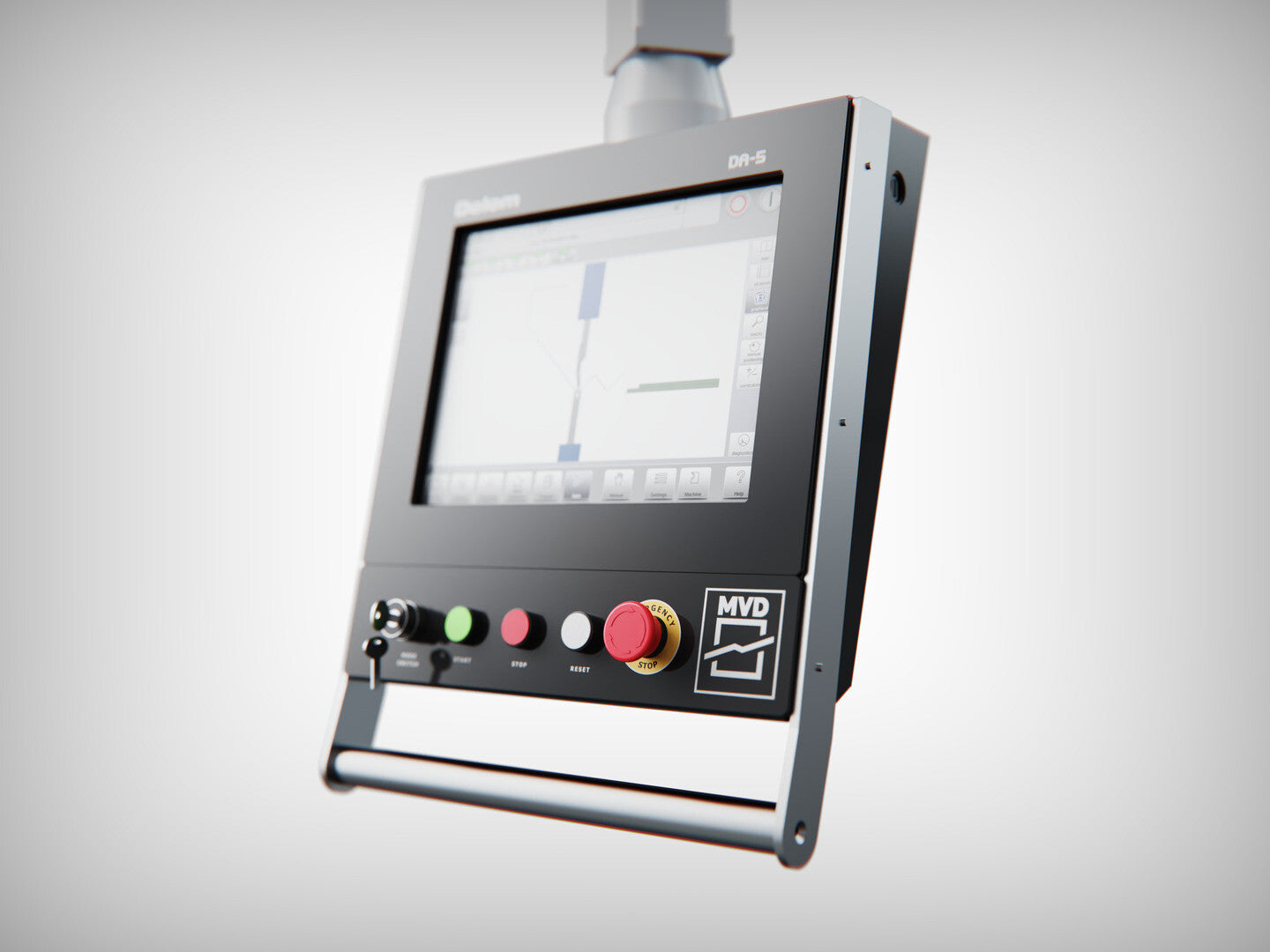

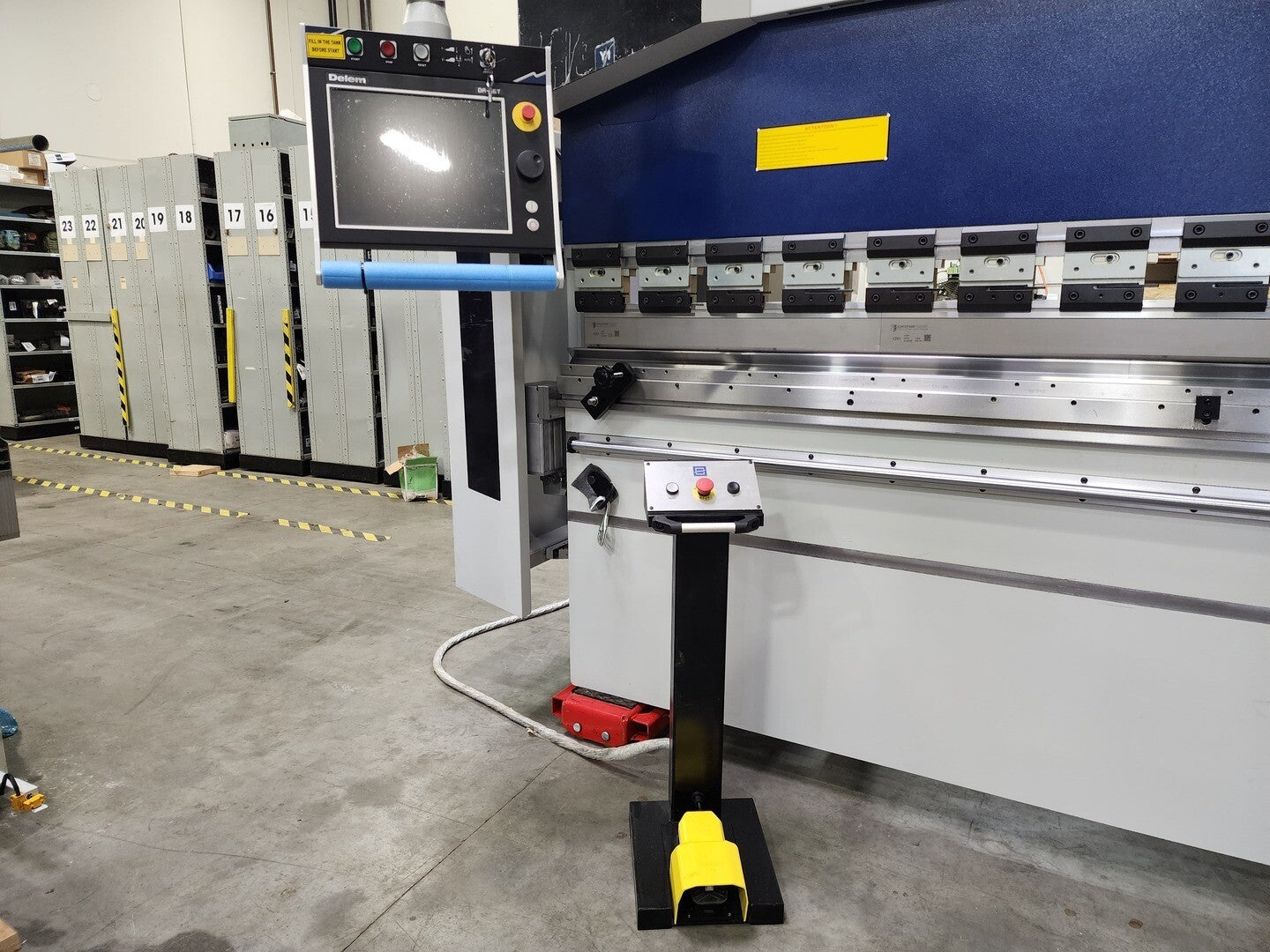

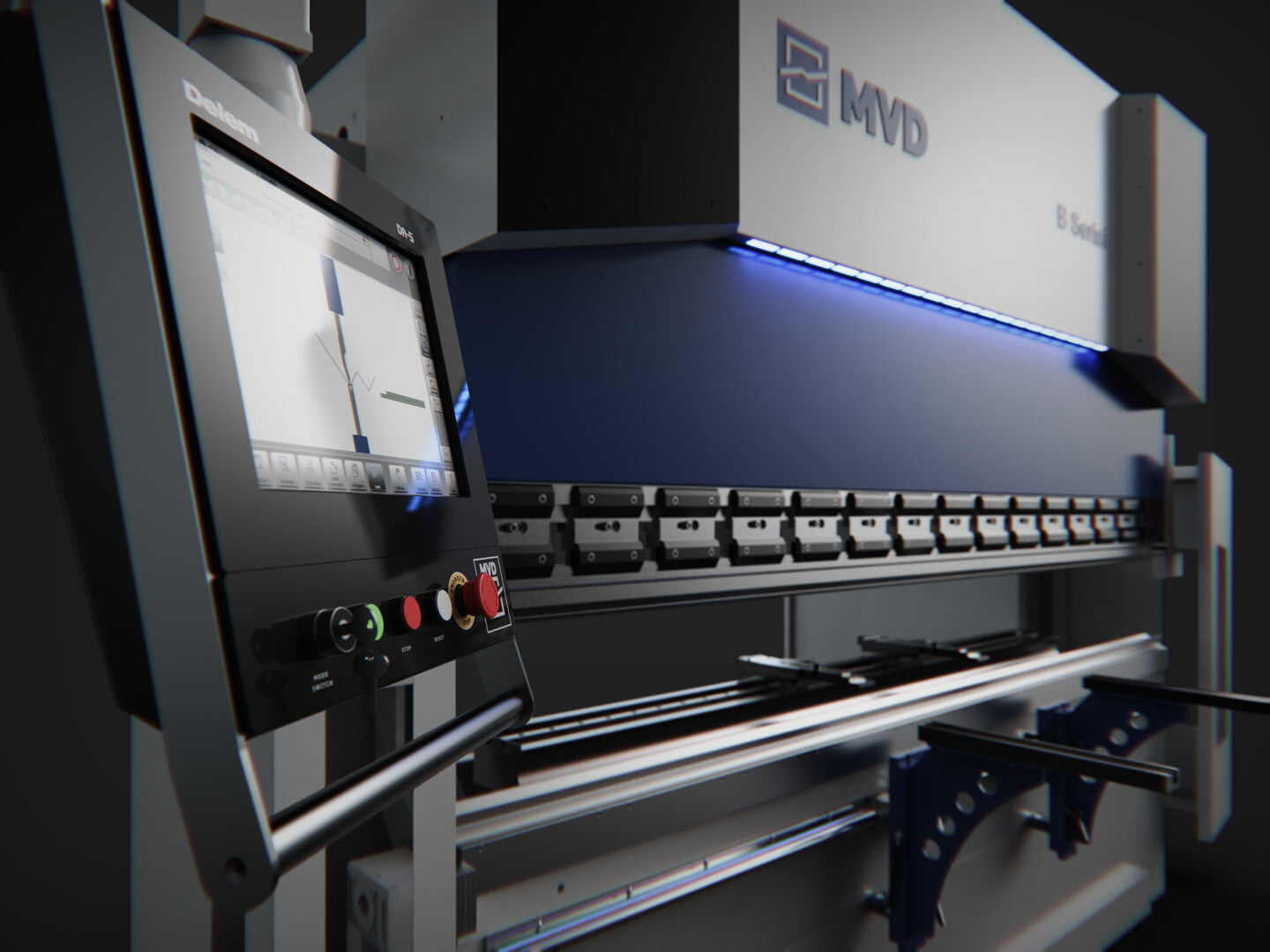

  2. CNC unit Delem DA-66S, 24" Touch screen 2D Graphical, (3-8 axis)
  3. Stroke 260mm & Throat depth 410 mm

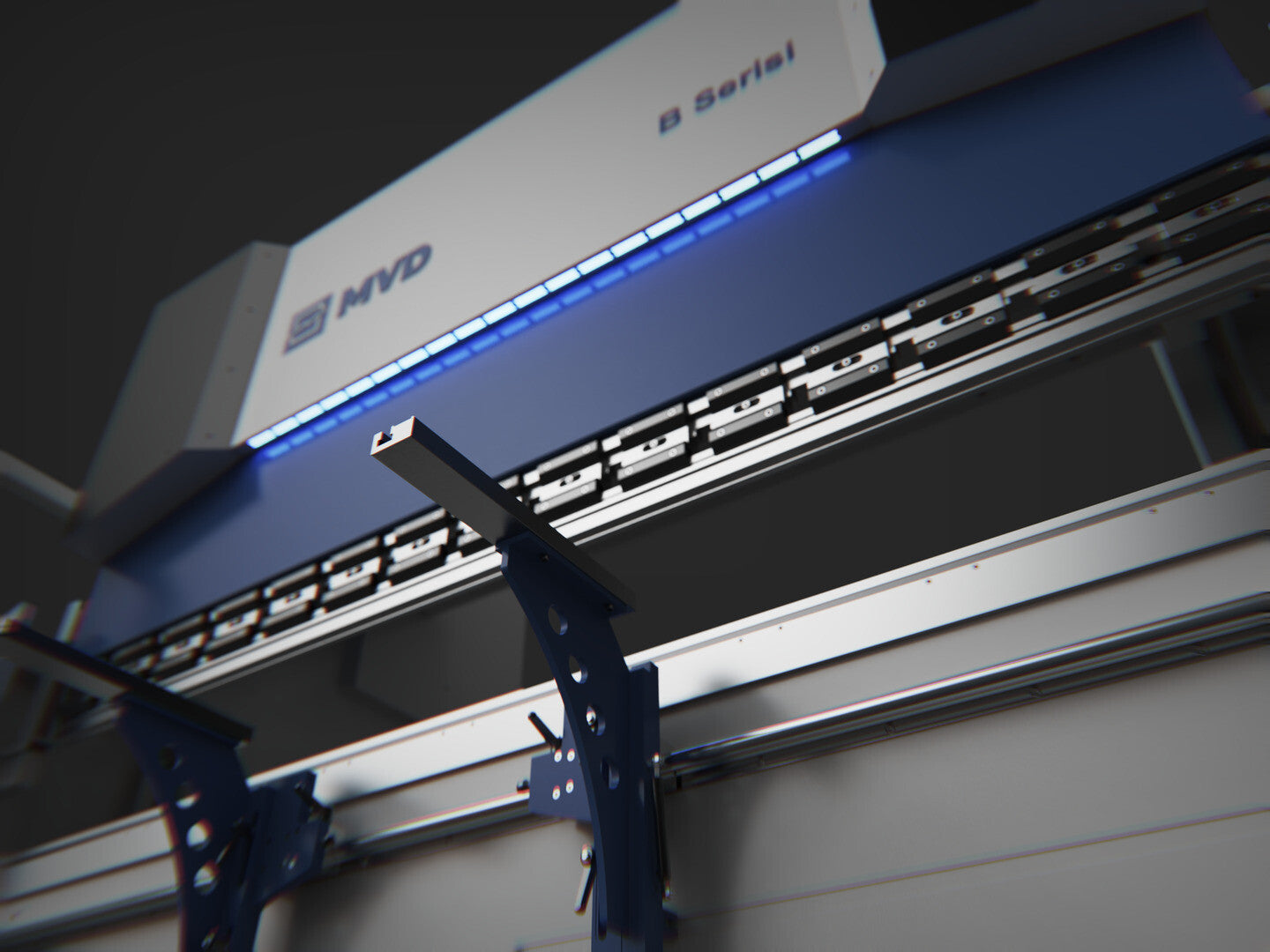

  4. MVD Servo motorised backgauge with ball screws, linear guided, Mitsubishi/LS/Delta Motors & Drivers
  5. CNC Controlled Type#1 Crowning (by MVD wedges and GEC motor)
  6. GIVI (Italy) Optic Linear Scales
  7. 2 Pieces backgauge fingers, manually movable along the linear guide, precisely adjusted
  8. Side safety doors and cylinder covers
  9. HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
  10. Eckerle (Germany) oil pump, internal gear type

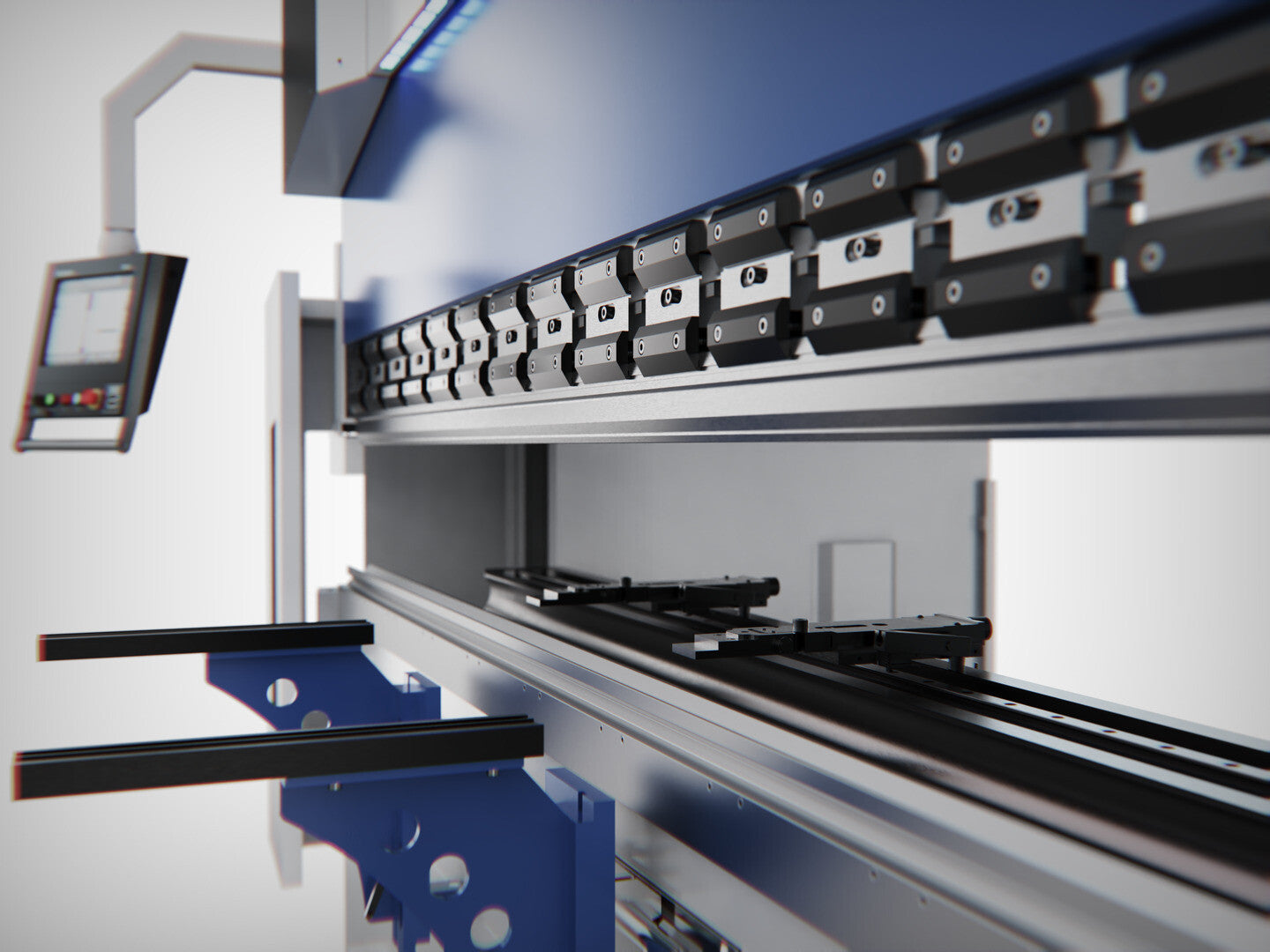

  11. M-EASY Manual promecam Z1 (vertical removal/insertion)
  12. Narrow Bottom table (MVD Special design) IW = 60mm+10mm spacer (F<= 270Tons) IW=90mm (F>=320 ton)
  13. Sliding Front support arms (2pcs)
  14. Top Tool : Eurostamp 1260, H:67, 85°, R:0,8
  15. Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60
  16. AKAS(FPBS) front safety lasers + rear light beams
  17. Set-up and Training
  18. 1 Year Warranty

Dimensions (L x W x H): 4720 x 2430 x 2998 mm

Total Weight (approx): 10400 kg
