Description
| Specifications | |
|---|---|
| Model | ER1830 |
| S/N: | 272591 |
| Condition | Used | General |
| Type | Drill Press |
| Morse Taper | MT#4 |

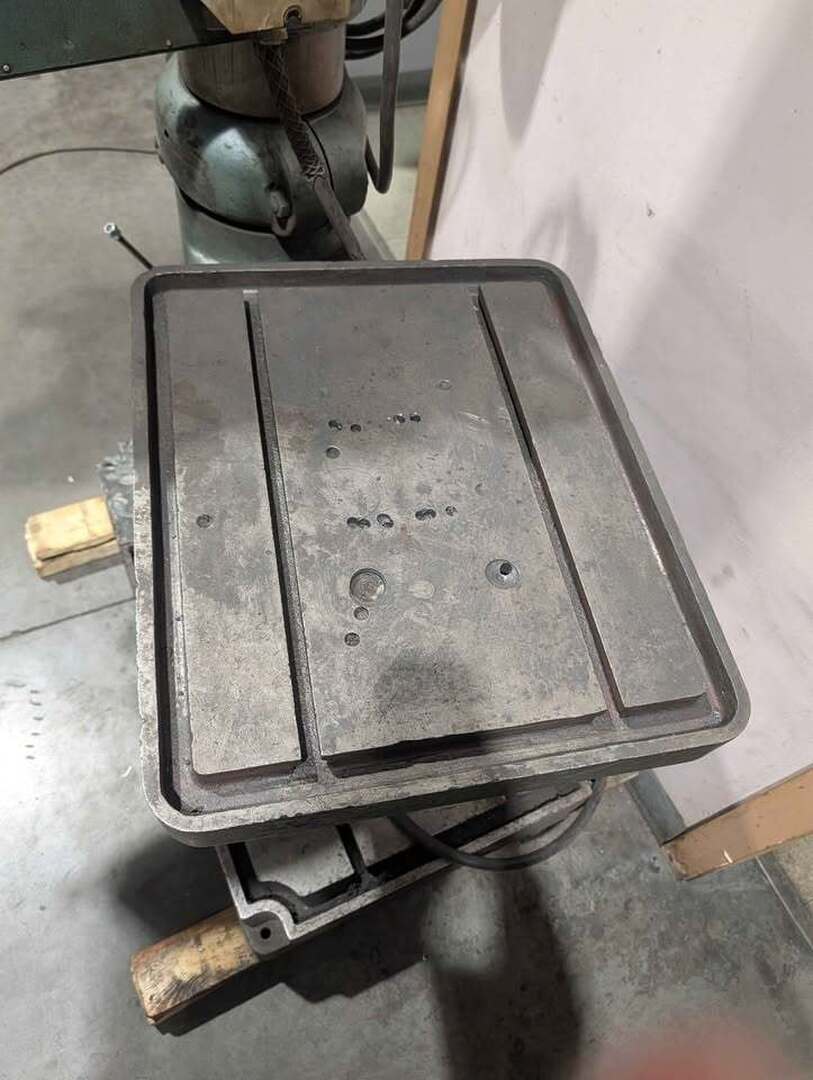

| Table Size | 24" x 20" | Electrical |
| Horsepower | 2.55 hp |
| Voltage | 575 volts |
| Phase | 3-phase | Additional Data |
| Diameter of Column | 8" " |
| Other Specifications |
|---|
|
Ditto between 16 mm (3/8") holes: 33.5" x 21.5" Max distance centre of spindle to column: 24.5" Min distance centre of spindle to column: 14.375" Max distance spindle nose to baseplate: 53.75" Min distance spindle nose to baseplate: 25.5" Height of working surface of table above baseplate: 23.25" Working surface of table: 19.625" x 23.5" Vertical movement of column of radial arm: 28.125" Diameter of ground column: 7.125" Automatic power feed per spindle revolution: 0.004", 0.008" Quill movement: 6.75" Drilling capacity in steel: 1.25" Drilling capacity in cast iron: 1.375" Tapping capacity in steel (UNC/M): 1" Tapping capacity in cast iron (UNC/M): 1.25" Tapping/min: 4 |
