Description
| Specifications | |
|---|---|

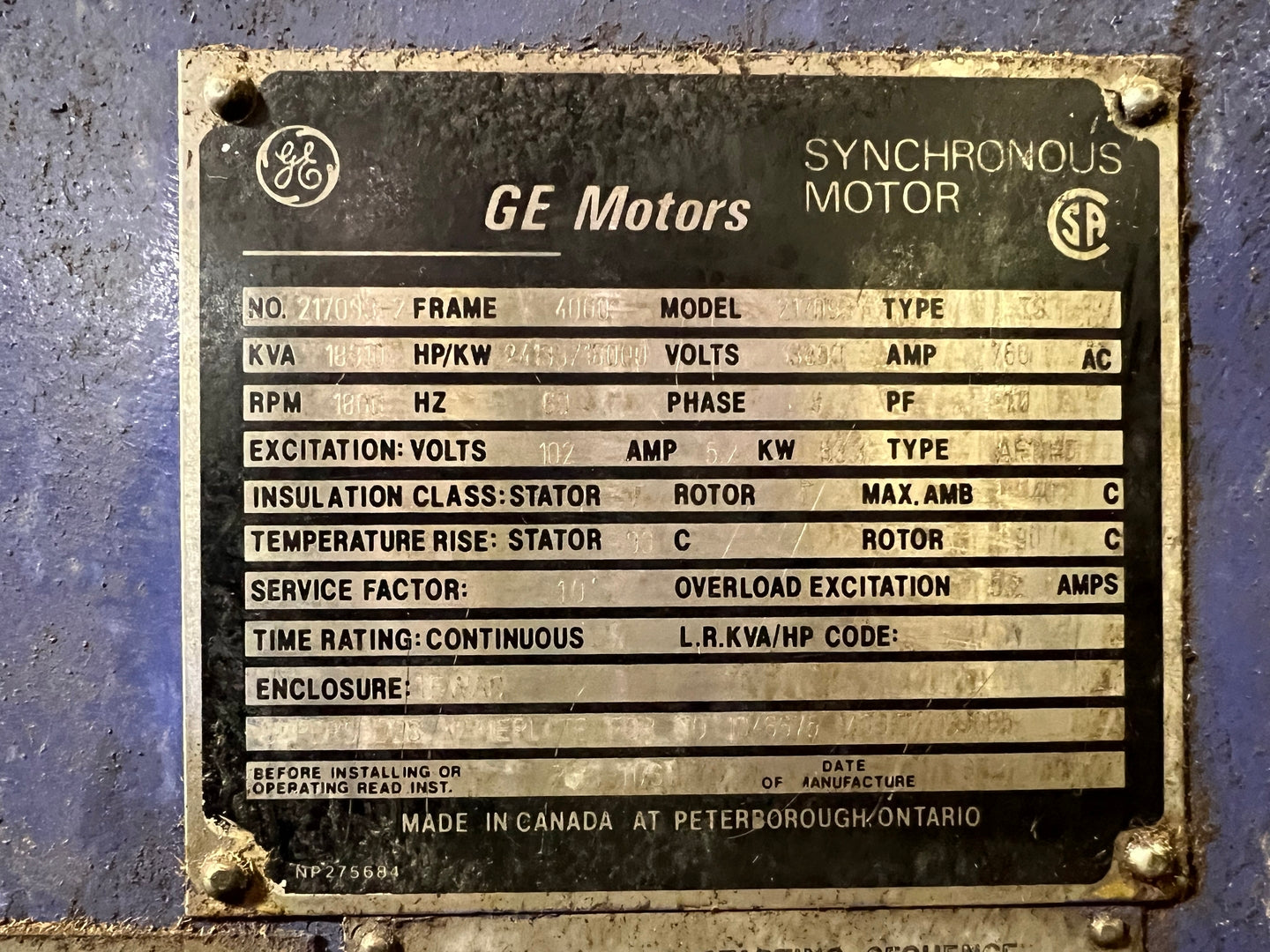

| Model | 217093 |
| Year: | 1995 |
| S/N: | 217093-2 |
| Made In | CANADA |
| Condition | Used | General |
| Current Type | AC |
| Horsepower | 24135 hp |
| Voltage | 13800 volts |
| Phase | 3-phase |
| RPM | 1800 rpm |
| Frame | 4000 | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|

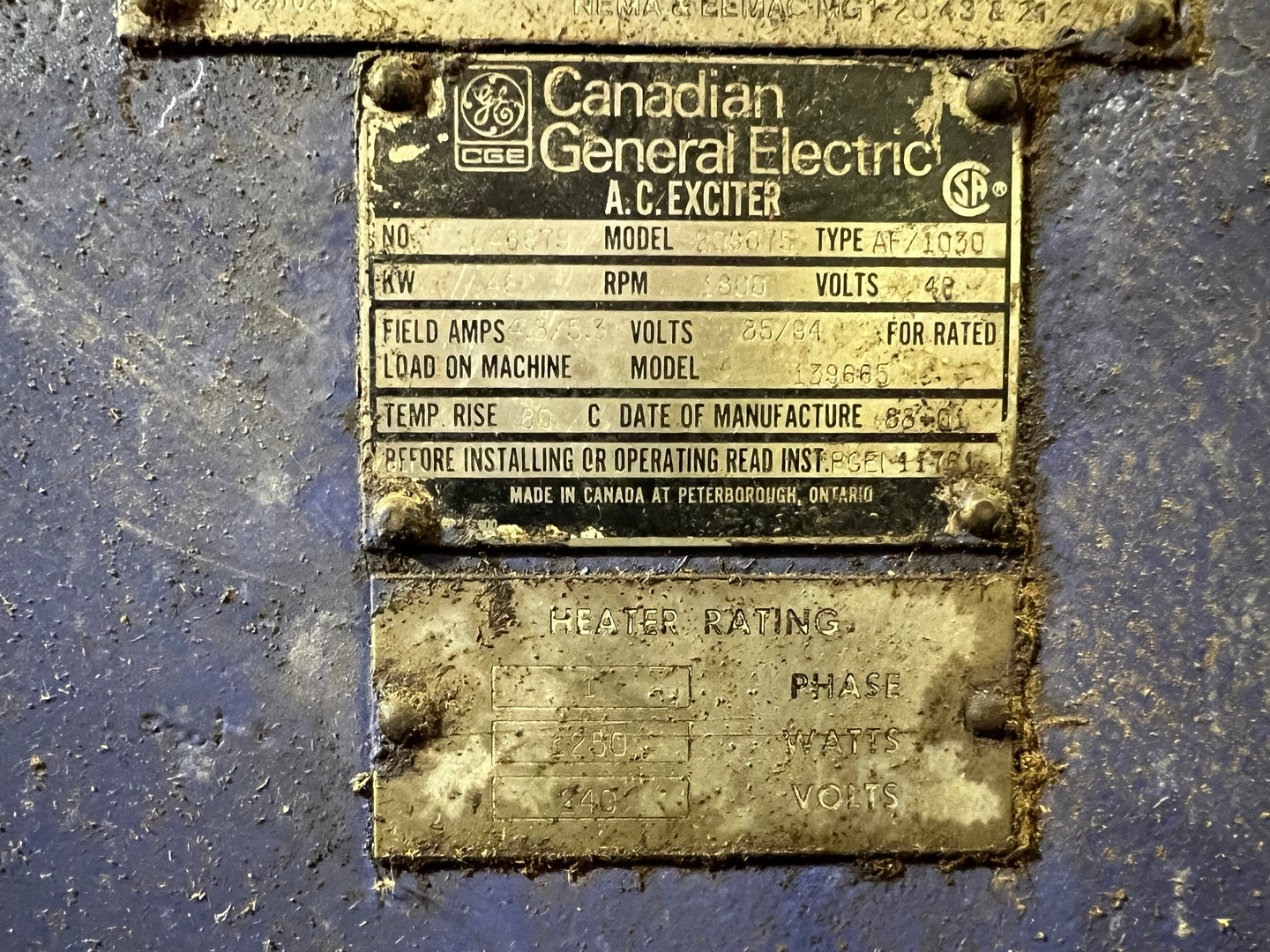

kVA: 18310 Amps: 766 A Enclosure: TEWAC Insulation Class (Stator & Rotor): F Temperature Rise (Stator & Rotor): 90 C Max. Ambient Temp.: 40 C Overload Excitation: 5.2 A Motor Exciter 1 Type: AF1040 Power: 53.3 kW Volts: 102 V Amps: 5.2 A Motor Exciter 2 Type: AF/1030 Power: 46 kW Volts: 46 V Field Amps: 4.8/5.3 A Heater Ratings Power: 1250 Watts Volts: 240 V Phase: 1 |
