25,000 kg (55,000 lb / 27.5 Ton) 28.35 meter 98 ft span Overhead Bridge Crane w/ 700 ft Crane Rail System

SKU: 152816
Price:
$400,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

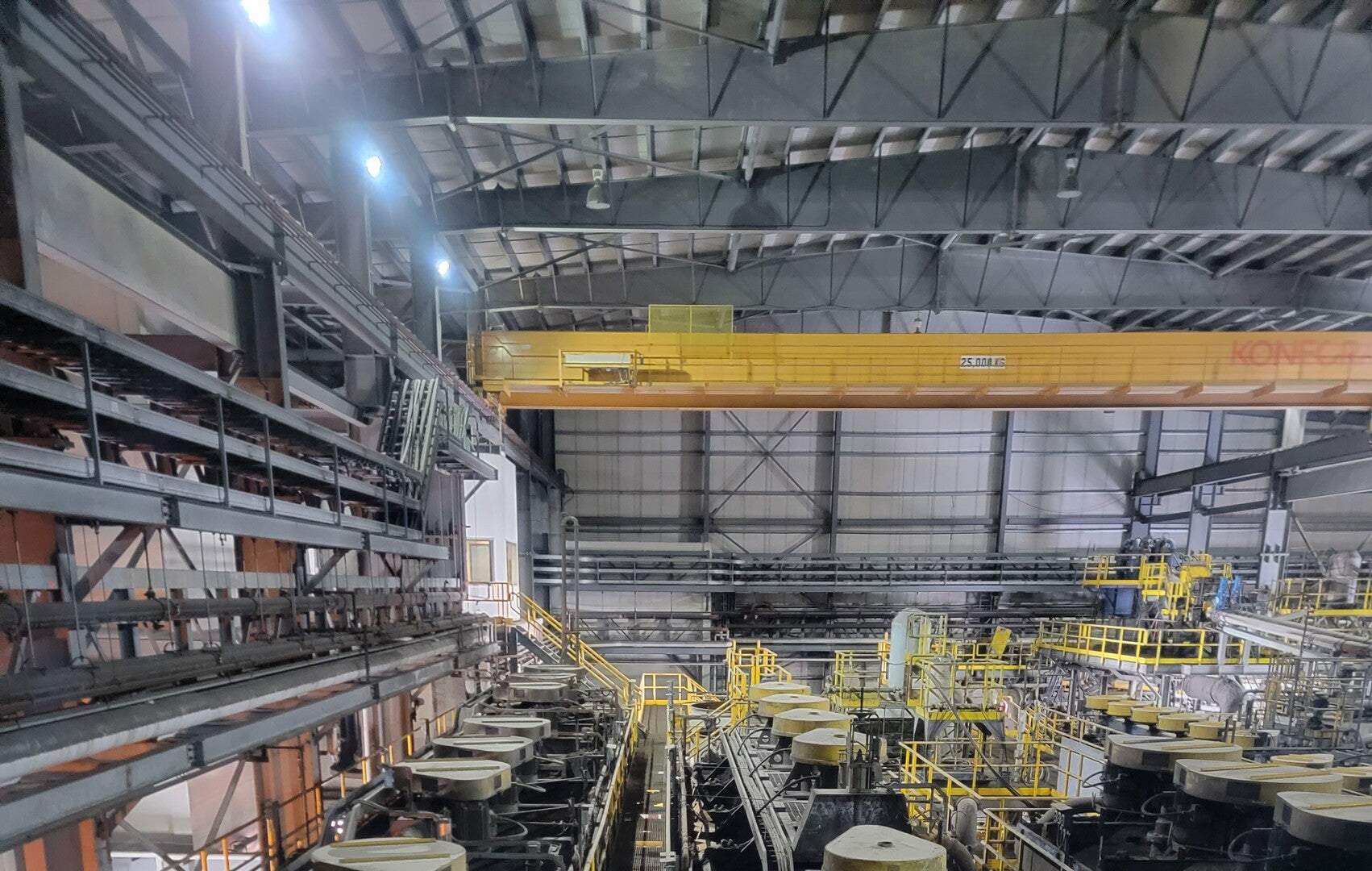

25 Ton overhead bridge crane with approximately 28.35 meter span and 16.46 meter lift height. Features 2-speed hoist, stepless travel controls, and remote operation. Built to FEM 3m duty classification for heavy-duty industrial lifting applications.
Condition Used
General
Max. Lift Capacity 55,000 lb
Additional Data
Includes Hoist? Yes
Other Specifications

**Price does not include dismantling

Technical Data PDF

Rail length:

  1. Runway 1: 350 ft
  2. Runway 2: 350 ft
  3. Total rail: 700 ft

General

Type: Overhead Bridge Crane

Capacity: 25 Ton

Control: Remote Controlled

Crane ID: 10688

Dimensions

Span: 28,346 mm (28.35 m)

Lifting Height: 16.46 m

Runway Length: 109 m

Hoist & Motion

Hoisting Speed: 8 / 0.63 m/min (2-speed)

Trolley Traversing Speed: 20 m/min (stepless)

Bridge Travel Speed: 32 m/min (stepless)

Electrical

Voltage: 575V (noted also 415V option on drawing)

Phase: 3 Phase

Frequency: 60 Hz

Weights

Trolley Weight: 3.21 Ton

Bridge Weight: 22.72 Ton

Duty Classification

Crane Group: FEM 3m

Hoist Machinery Group: FEM M5 (2m)

Bridge Travel Group: FEM M5 (2m)

Additional Features

Variable speed (stepless) travel drives

Heavy-duty industrial construction

Designed for continuous operation

Remote pendant/handheld control
