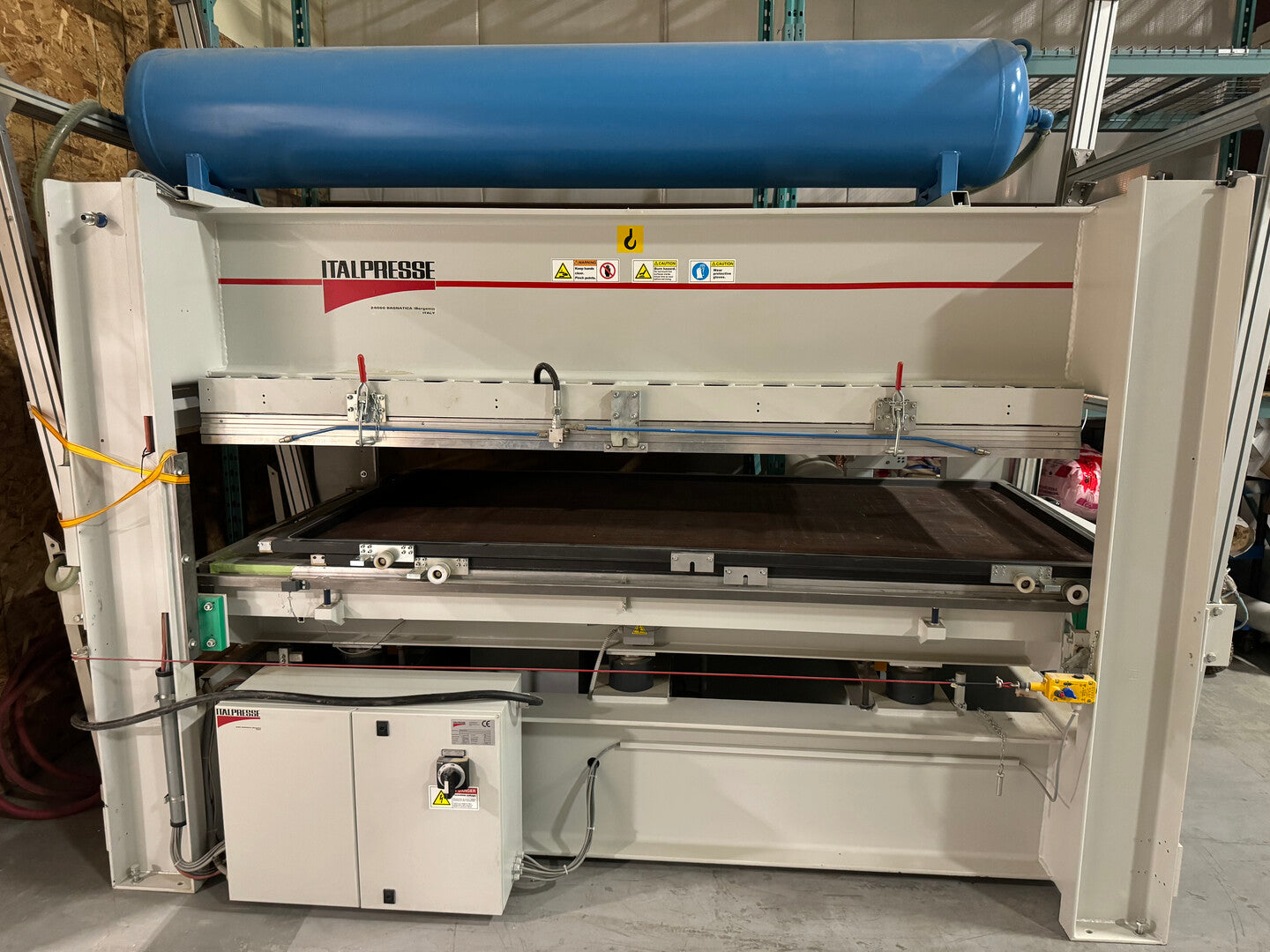

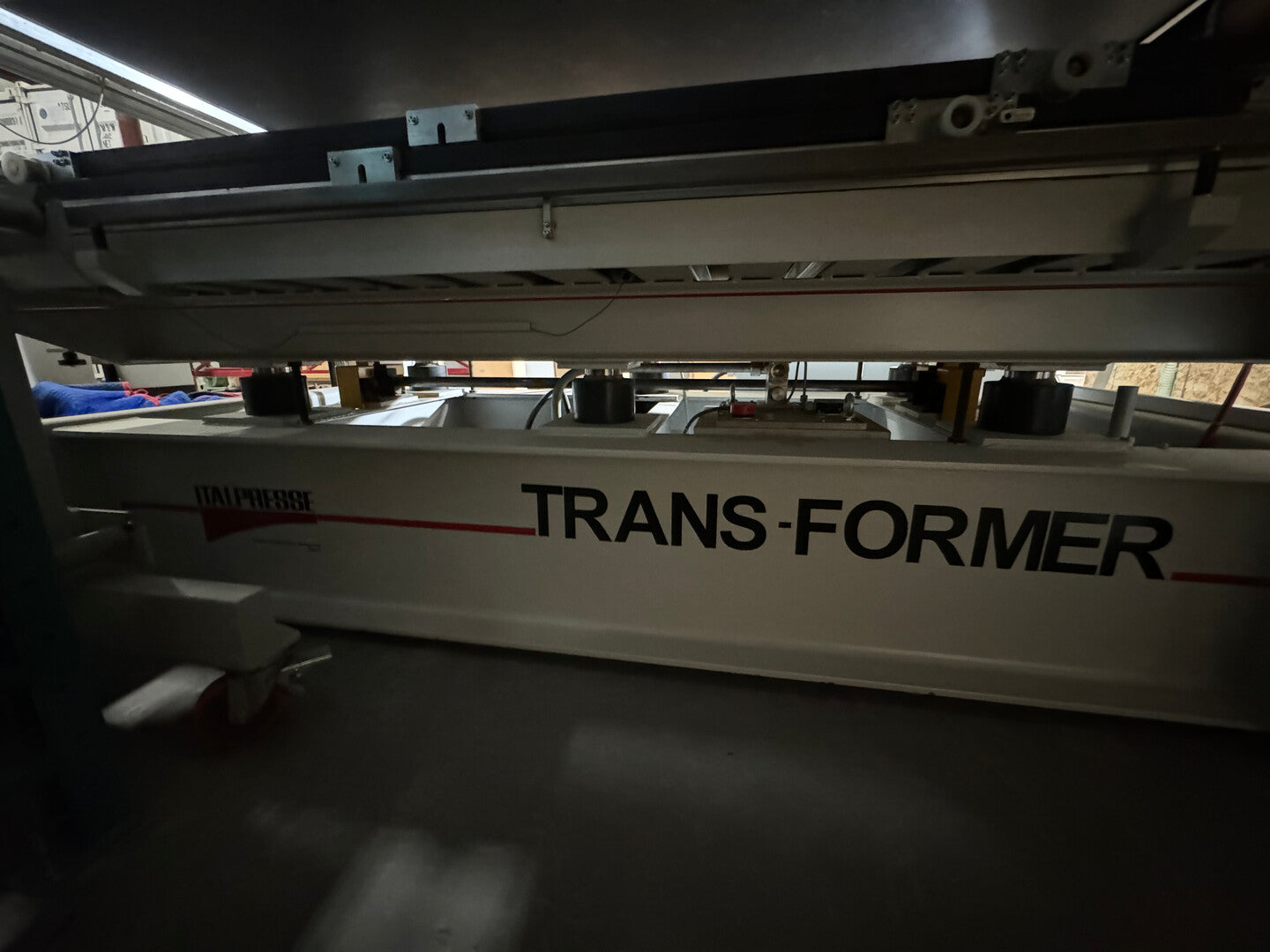

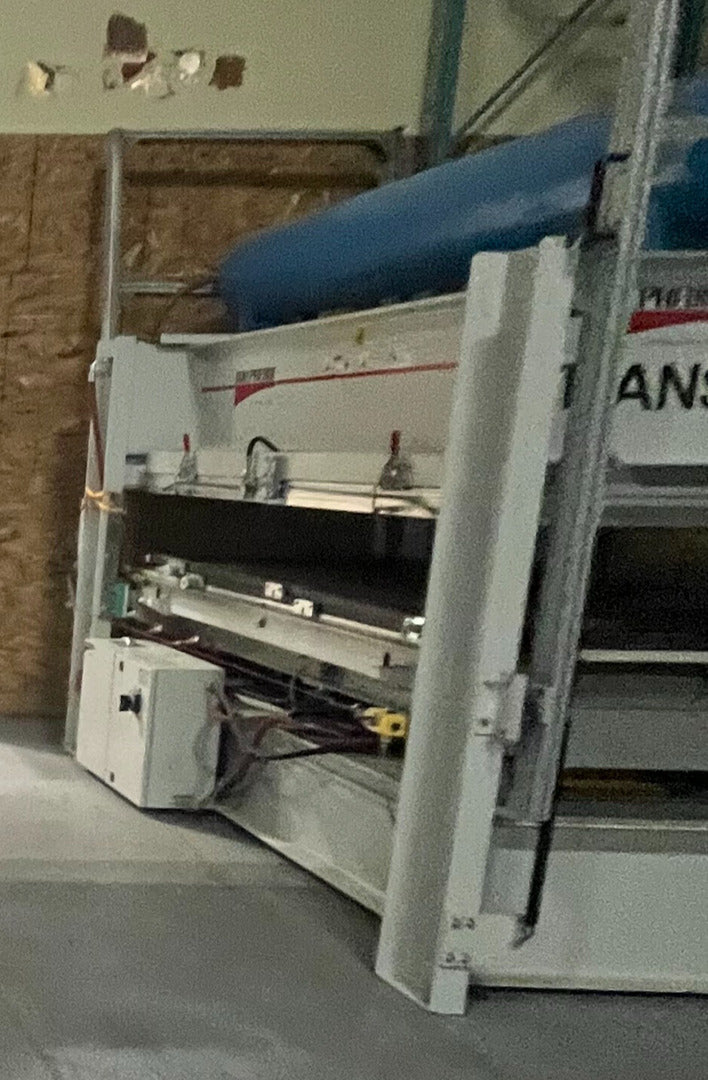

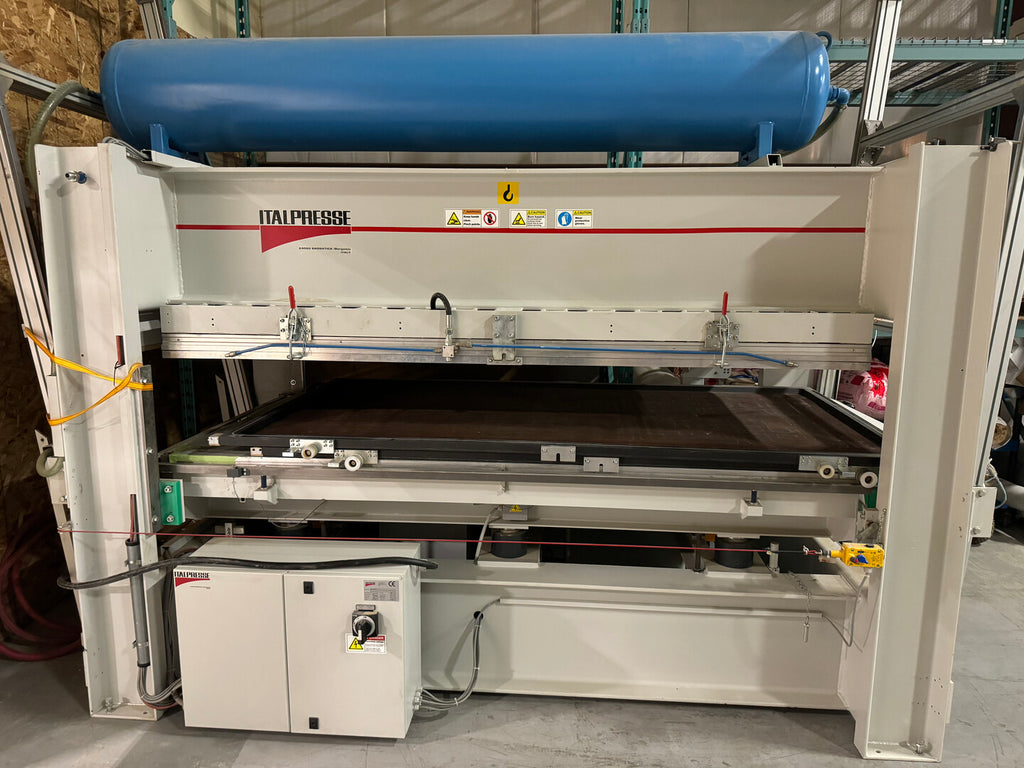

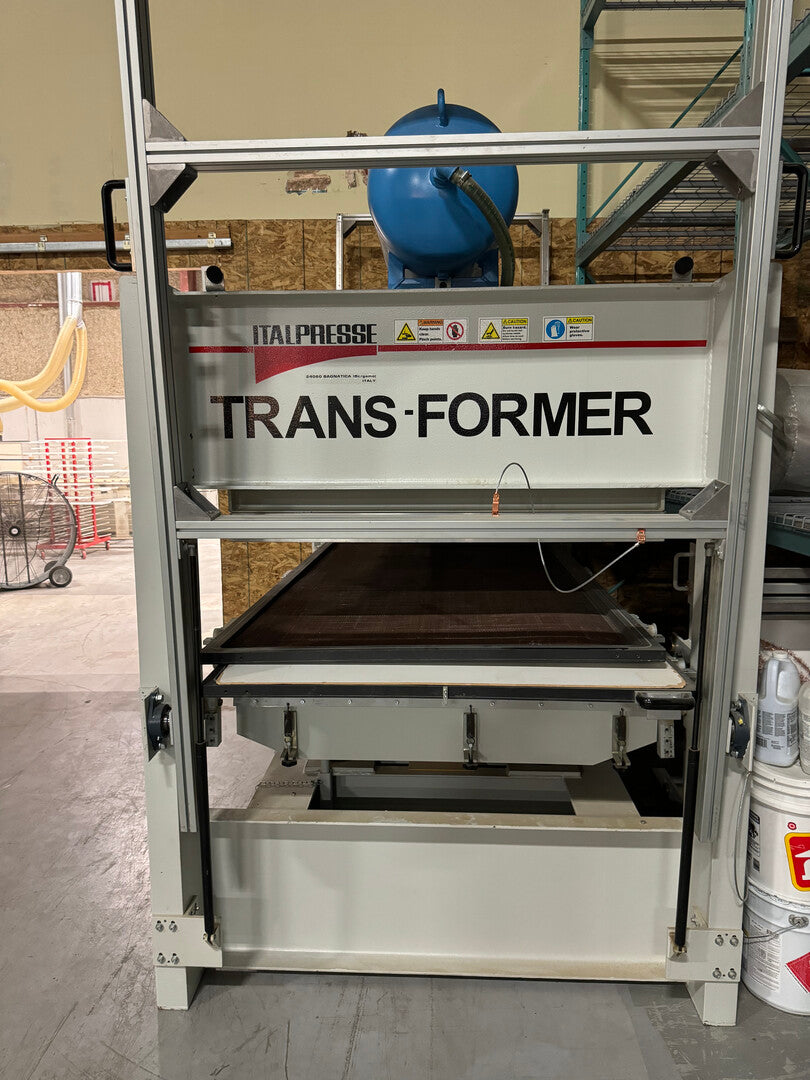

2500 x 1300 mm, 25.5 hp Air Membrane Press Trans-Former

SKU: 140045
Price:
$150,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model Trans-Former
Year: 2018

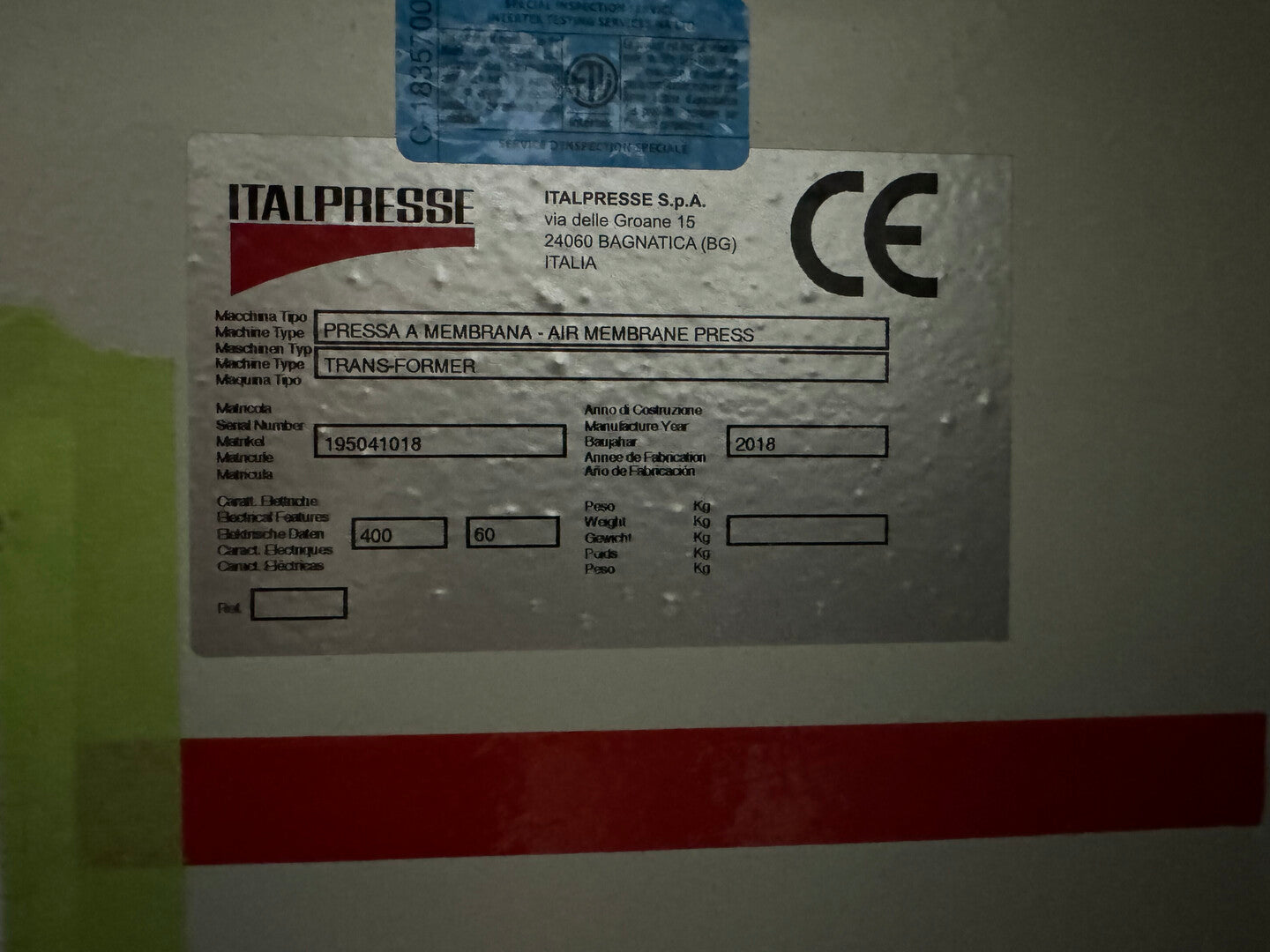

S/N: 195041018
Made In ITALY
Condition Used
Electrical
Voltage 400 volts
Phase 3-phase
Other Specifications

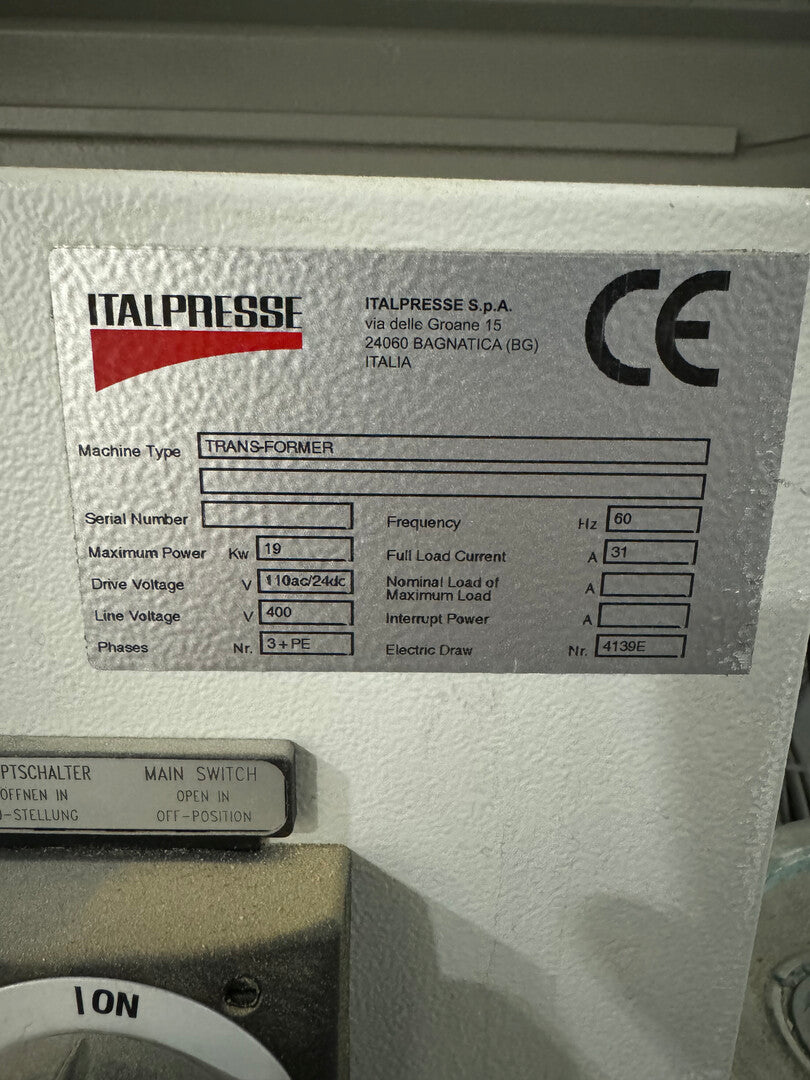

Electrical:

  • Max. power: 19 kW // 25.5 hp
  • Drive voltage: 110 volts AC / 24 volts DC
  • Line voltage: 400 volts
  • Phase: 3 + PE
  • Full load current: 31 amps
  • Frequency: 60 Hz

Flat pressing:

  • Platens dimensions: 2500 x 1300 mm // 98.4 x 51.2 in.
  • Opening: 400 mm // 15.7 in.
  • Loading side: 2500 mm // 98.4 in.
  • Total pressure: 105 tonn.
  • Max. platens temperature: 130 °C

3D membrane pressing:

  • Loading side: 1300 mm // 51.2 in.
  • Inside frame dimensions: 2380 x 1180 mm // 93.7 x 46.5 in.
  • Maximum thickness: 55 mm // 2.17 in.
