Description

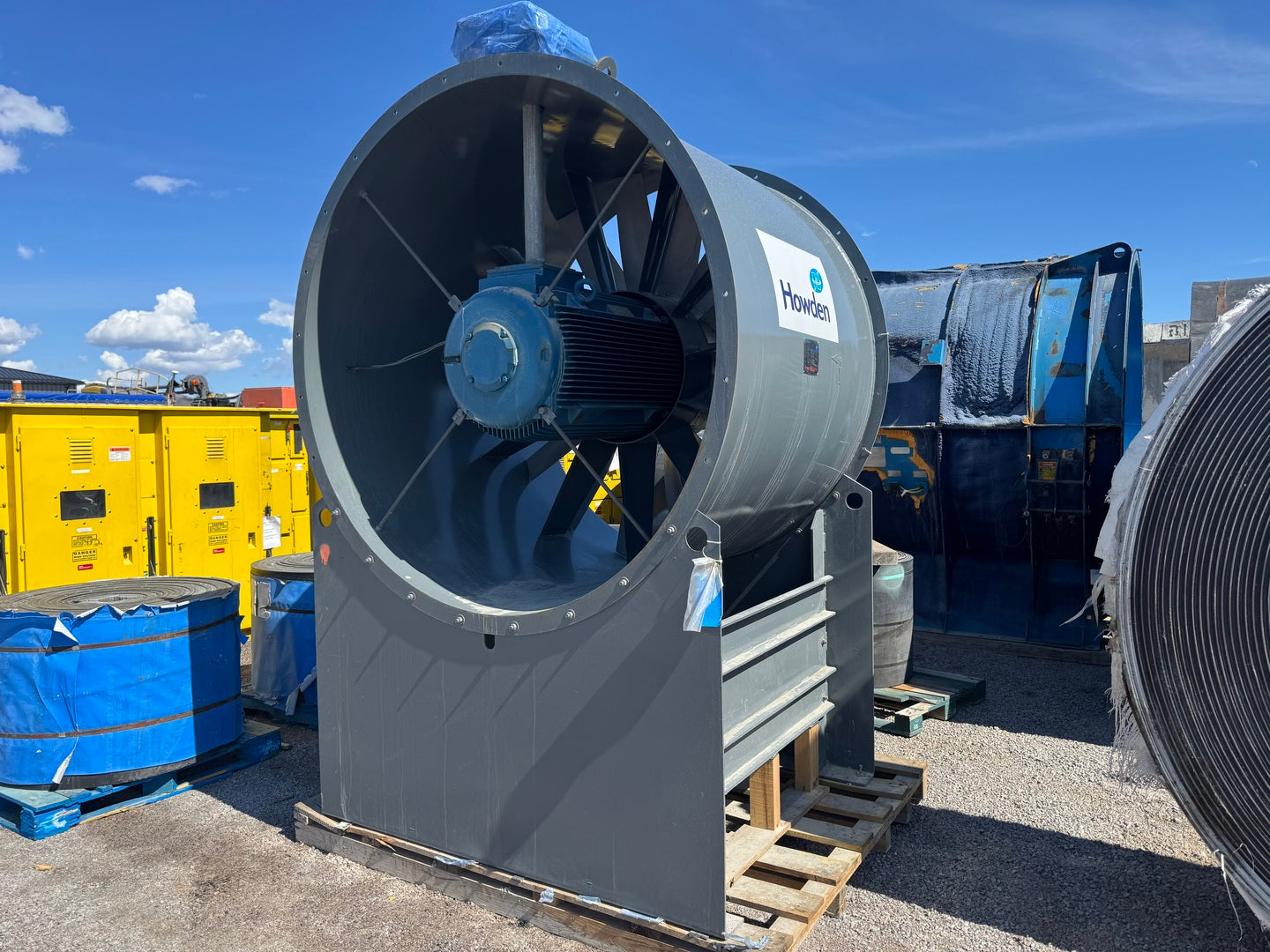

Howden model 72-AFS-S-3-1FB industrial axial flow fan, manufactured in 2020 and configured with an Arrangement 4, full-bladed fan assembly. The unit is designed for high-volume ventilation and air-handling applications, with a rated capacity of 185,000 CFM and total fan pressure of 6.2 in. w.g. It is powered by a 250 HP, 3-phase, 575V, 60 Hz motor and operates at 1,180 RPM. The fan has a listed brake power requirement of 202 BHP, a blade angle setting of 23.7°, and an operating temperature of 70°F
| Specifications | |
|---|---|
| Model | 72-AFS-S-3-1FB |
| Year: | 2020 |
| S/N: | 70877-01 |
| Condition | Used |

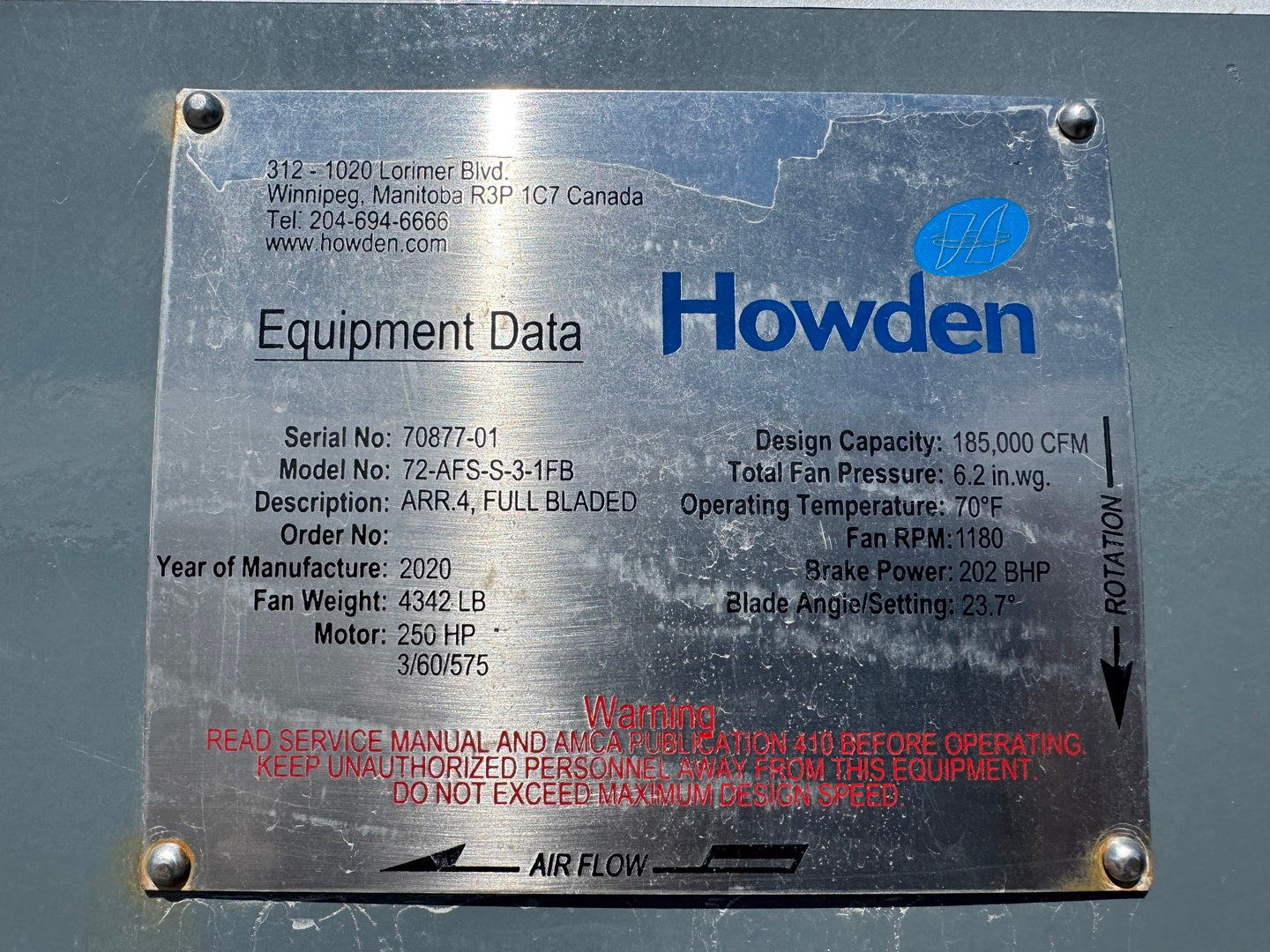

| Other Specifications |
|---|
|
Type: ARR.4, FULL BLADED Drive: 250 HP, 3-Ph, 60hz, 575V Design Capacity: 185,000 CFM Total Fan Pressure: 6.2 in. w.g. Operating Temperature: 70F Fan RPM: 1180 Brake Power: 202 BHP Blade Angle/Setting: 23.7 Deg. |
