Description

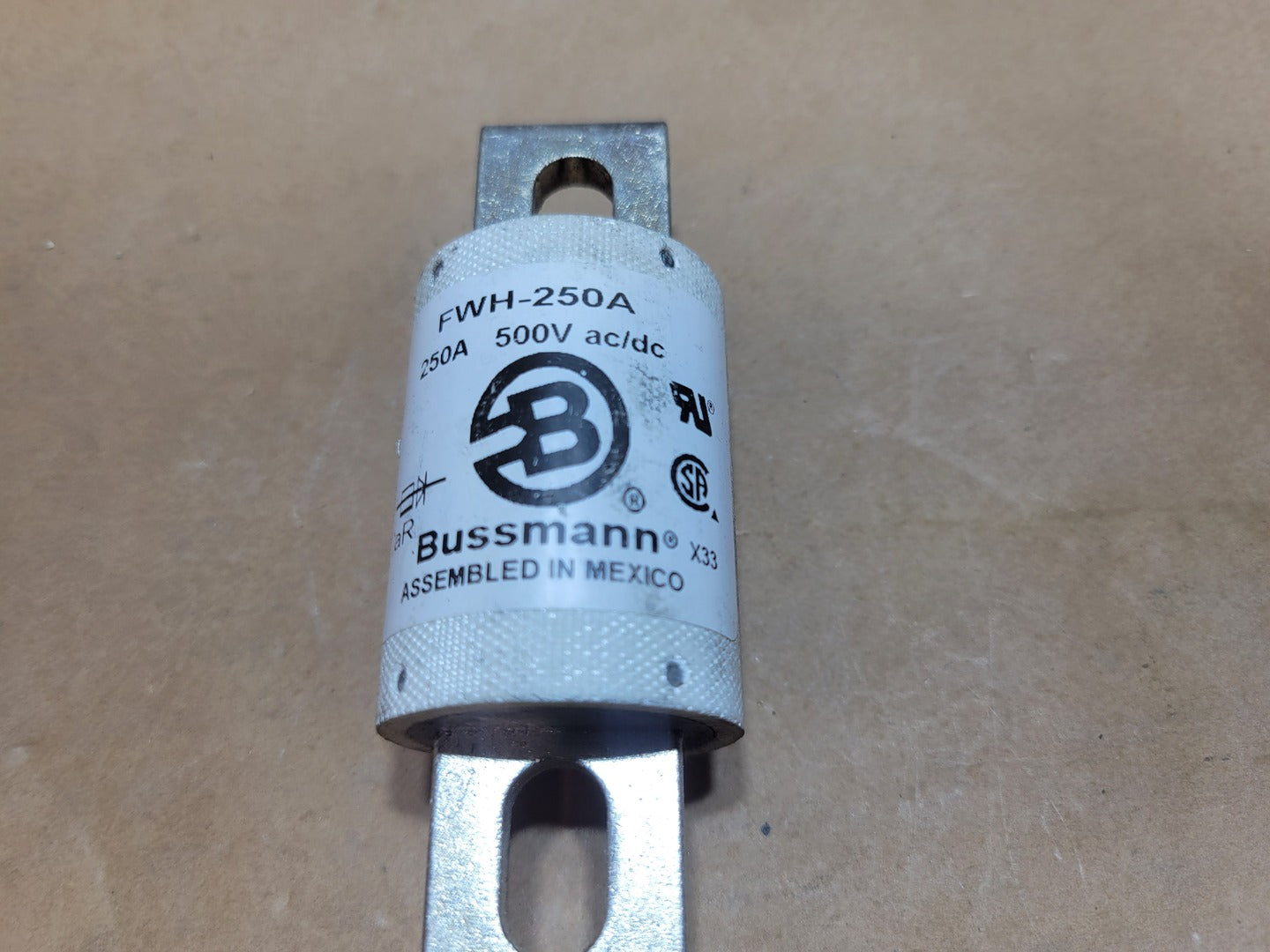

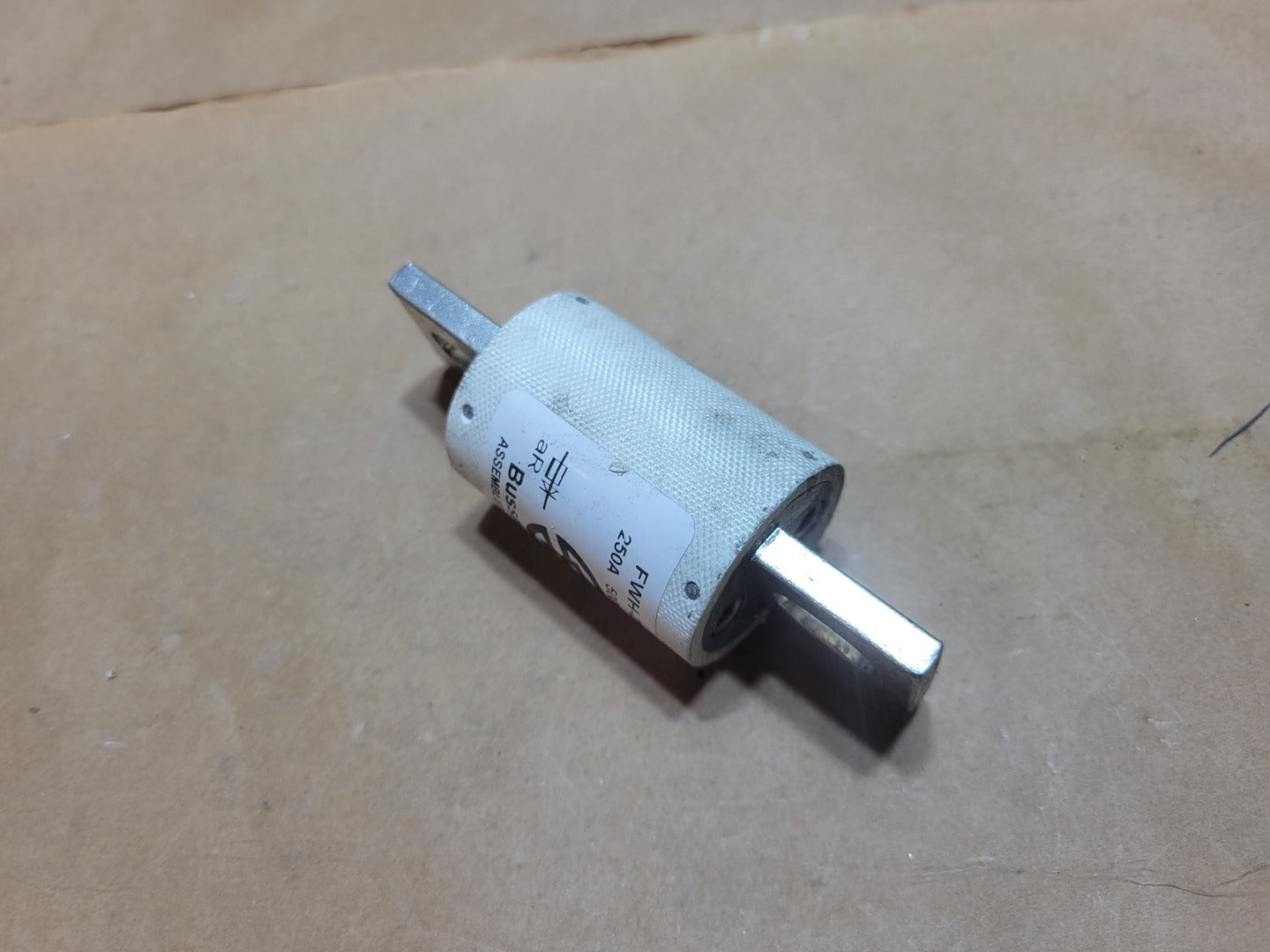

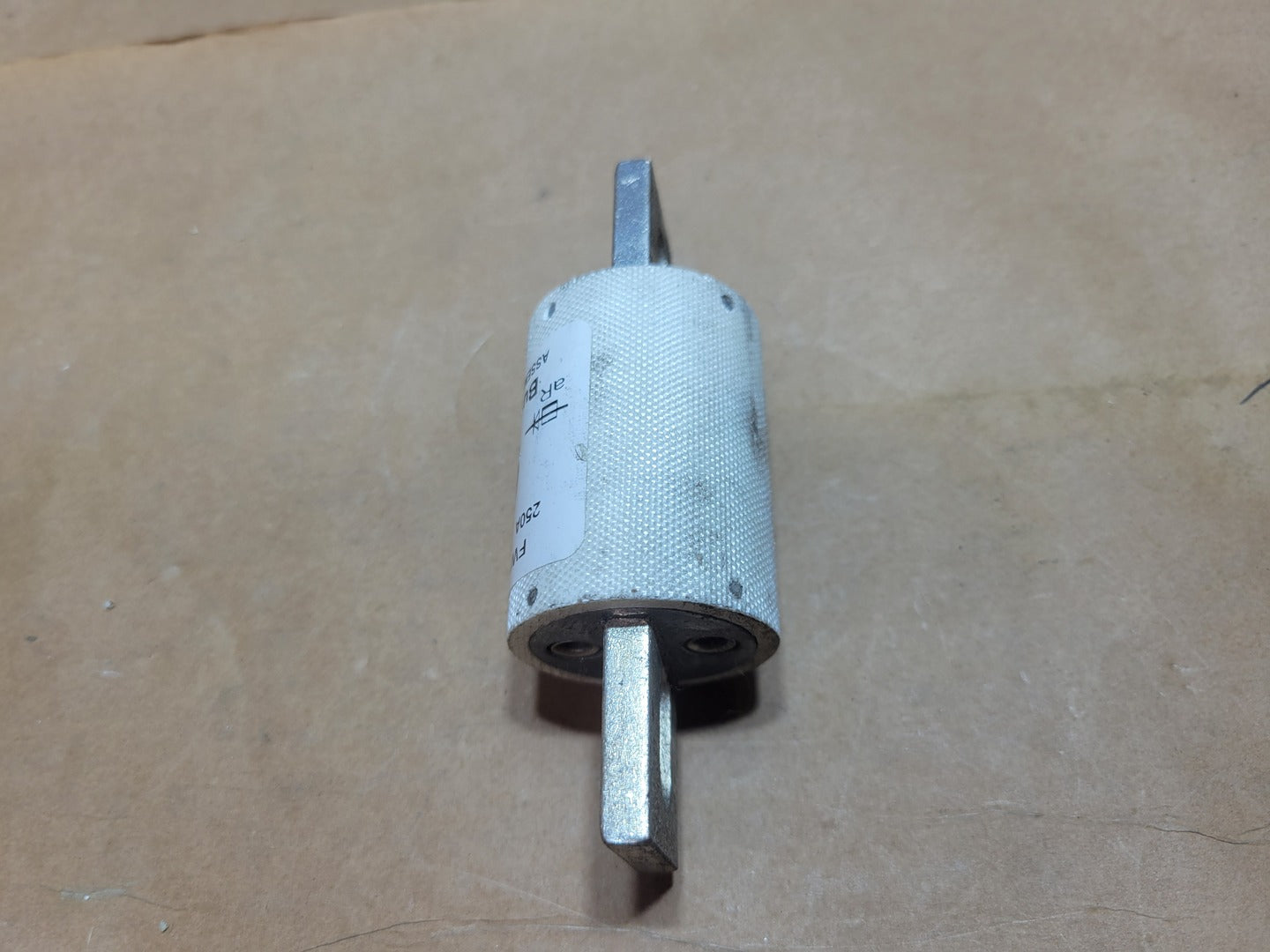

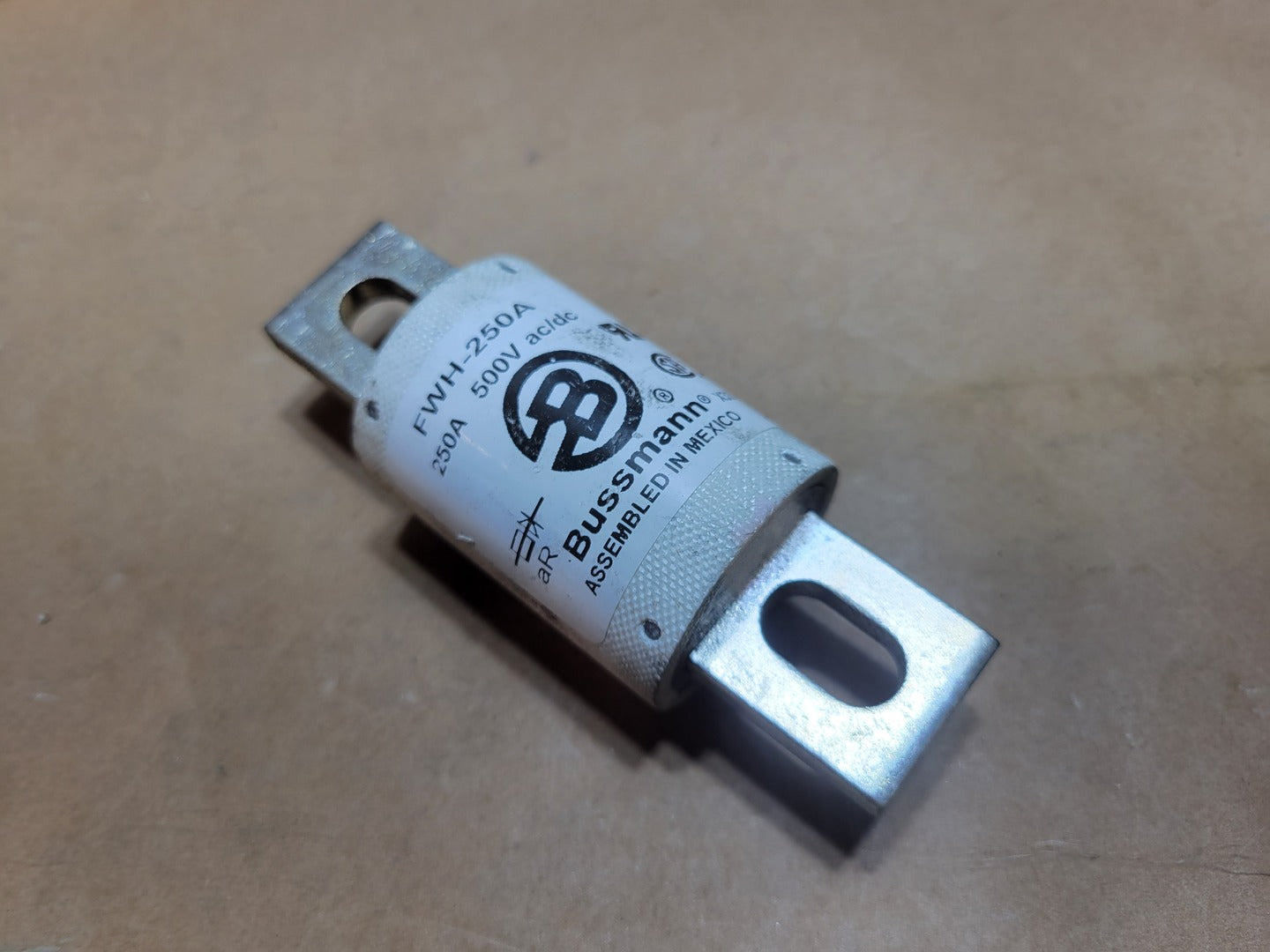

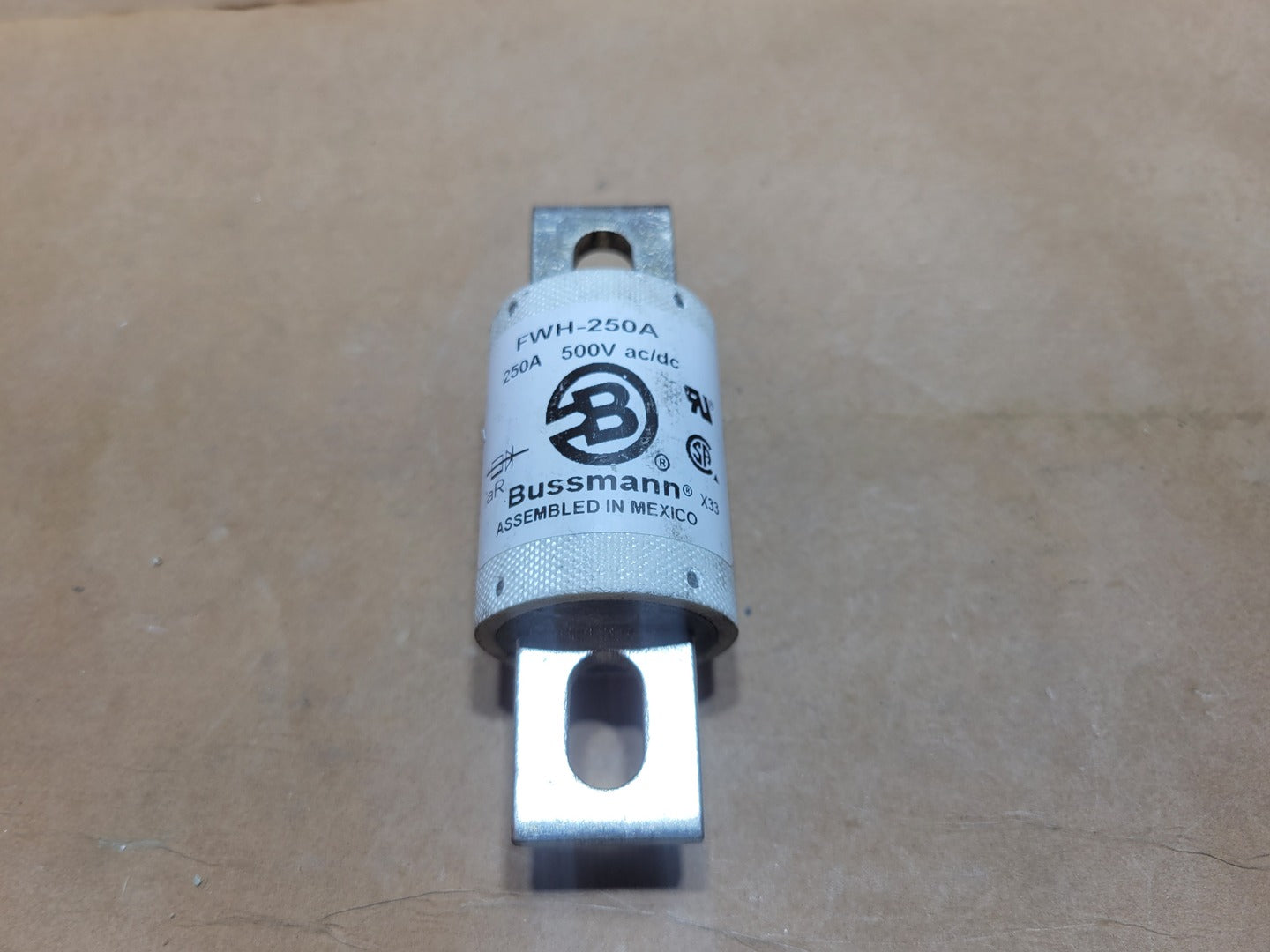

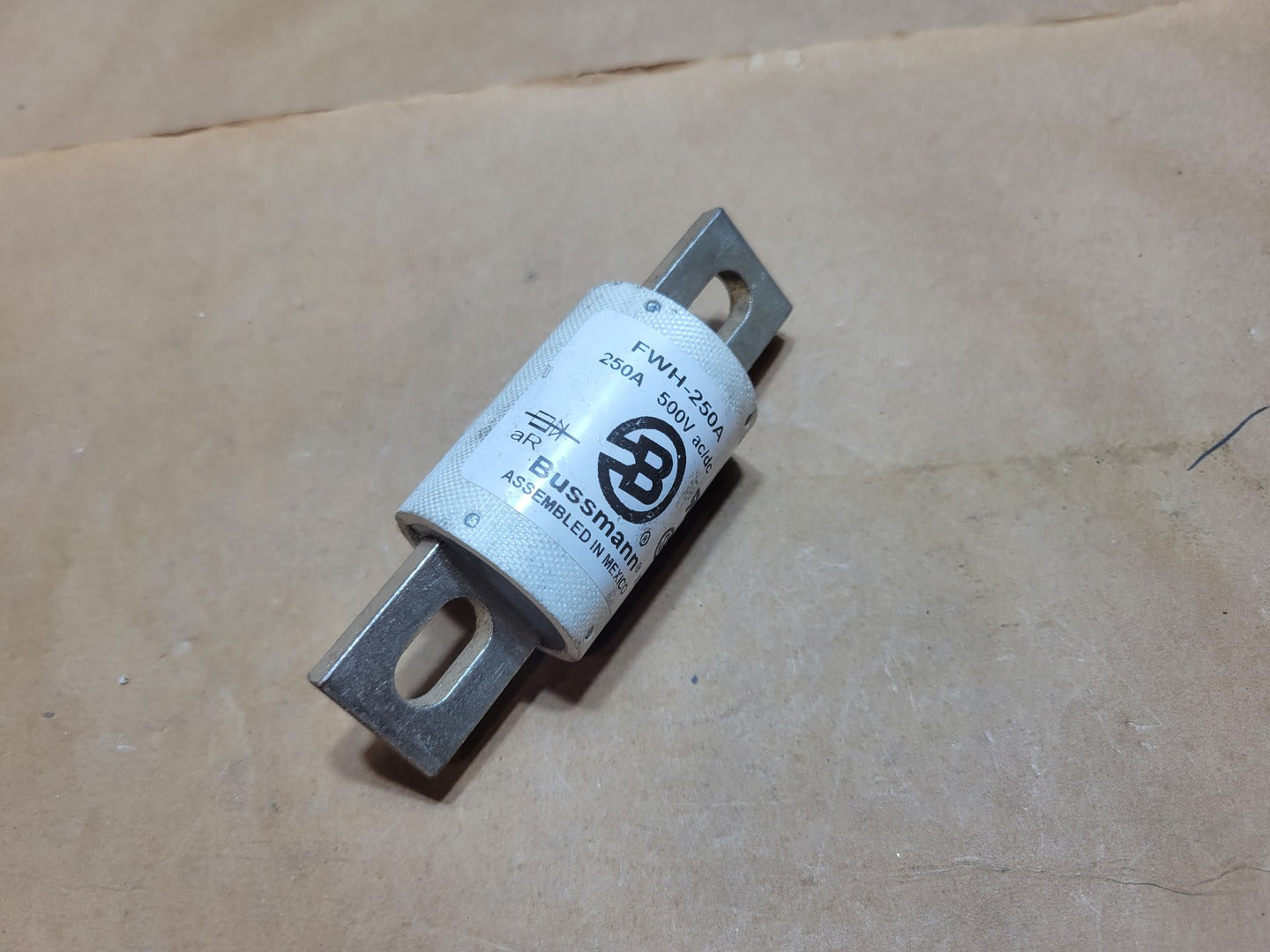

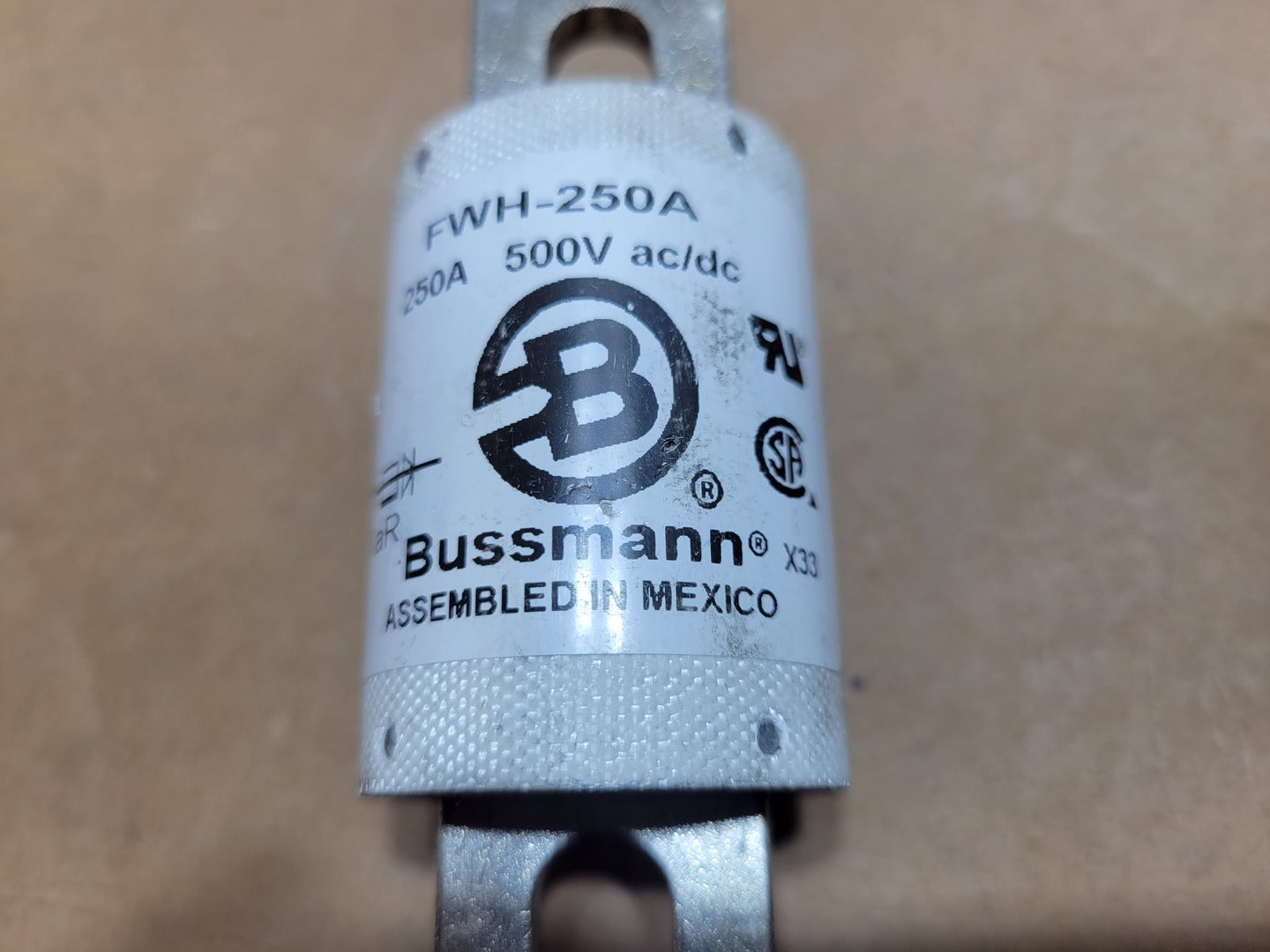

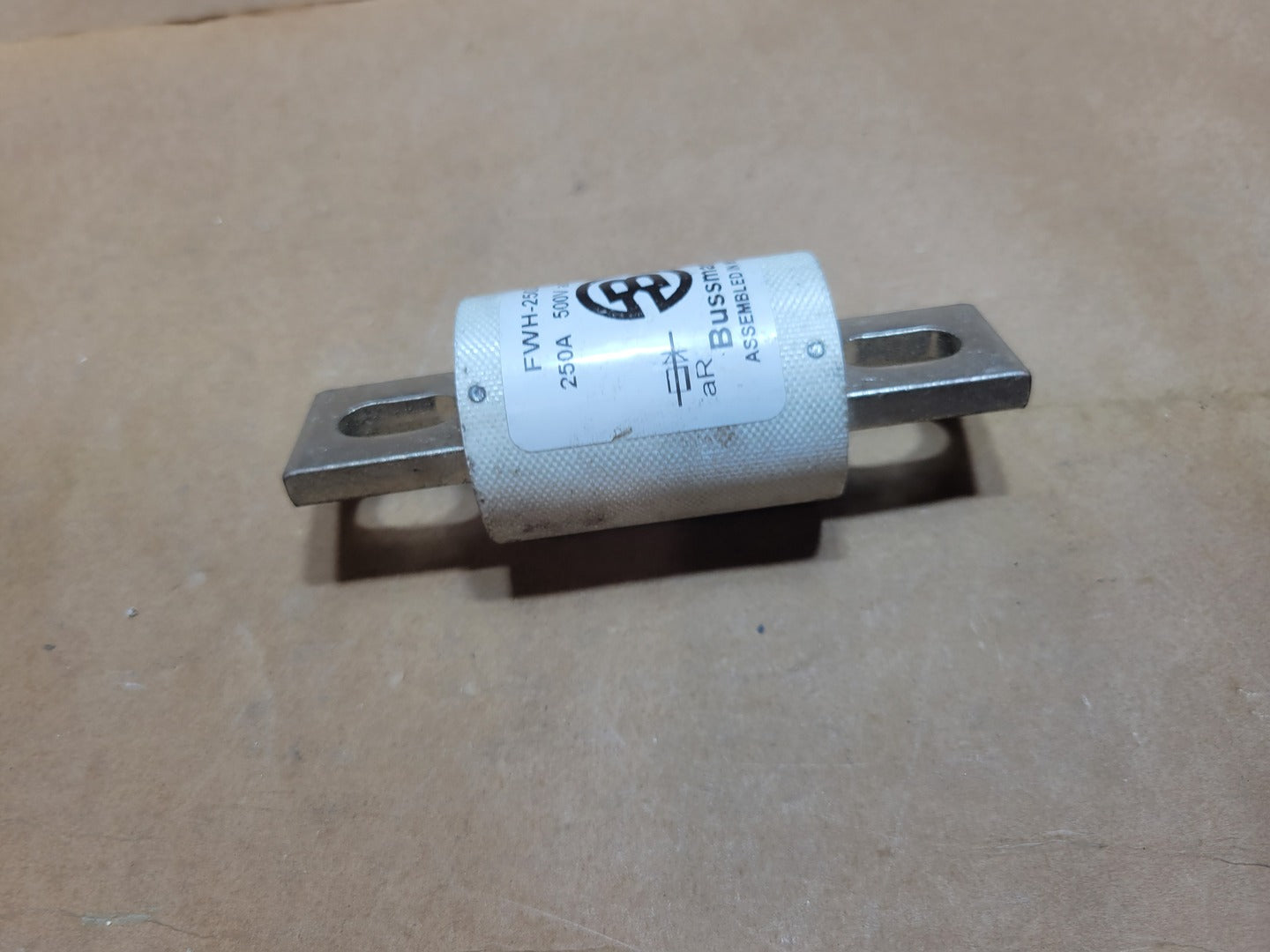

Eaton Bussmann FWH-250A high-speed cartridge fuse rated for 250 A at 500 VAC or 500 VDC. This bolt-mount fuse is designed for fast protection of power-semiconductor equipment and compatible industrial electrical systems
| Specifications | |
|---|---|
| Model | FWH-250A |
| Condition | Used | Electrical |
| Amps | 250 amps |
| Phase | Multi-phase |
| Fuse Type | Low Volt |
| Current Type | AC |
| Other Specifications |
|---|
|
Series: FWH Product type: High-speed cartridge fuse Typical fuse category: Semiconductor protection fuse Current rating: 250 A AC voltage rating: 500 VAC DC voltage rating: 500 VDC Mounting type: Bolt mount Terminal configuration: Two slotted blade terminals Body style: Cylindrical cartridge Breaking capacity at rated voltage: 200 kA AC / 50 kA DC Melting It: 6,300 As, according to current distributor data Nominal body diameter: 1.500 in. / 38.10 mm Nominal catalogued length: 4.340 in. / 110.24 mm |
