Description
| S/N: | F01019021011 |
| Condition | Used | General |
|---|---|
| Amps | 1200 amps |
| # of Poles | 3 |
| Phase | 3-phase |
| Other Specifications |
|---|
|

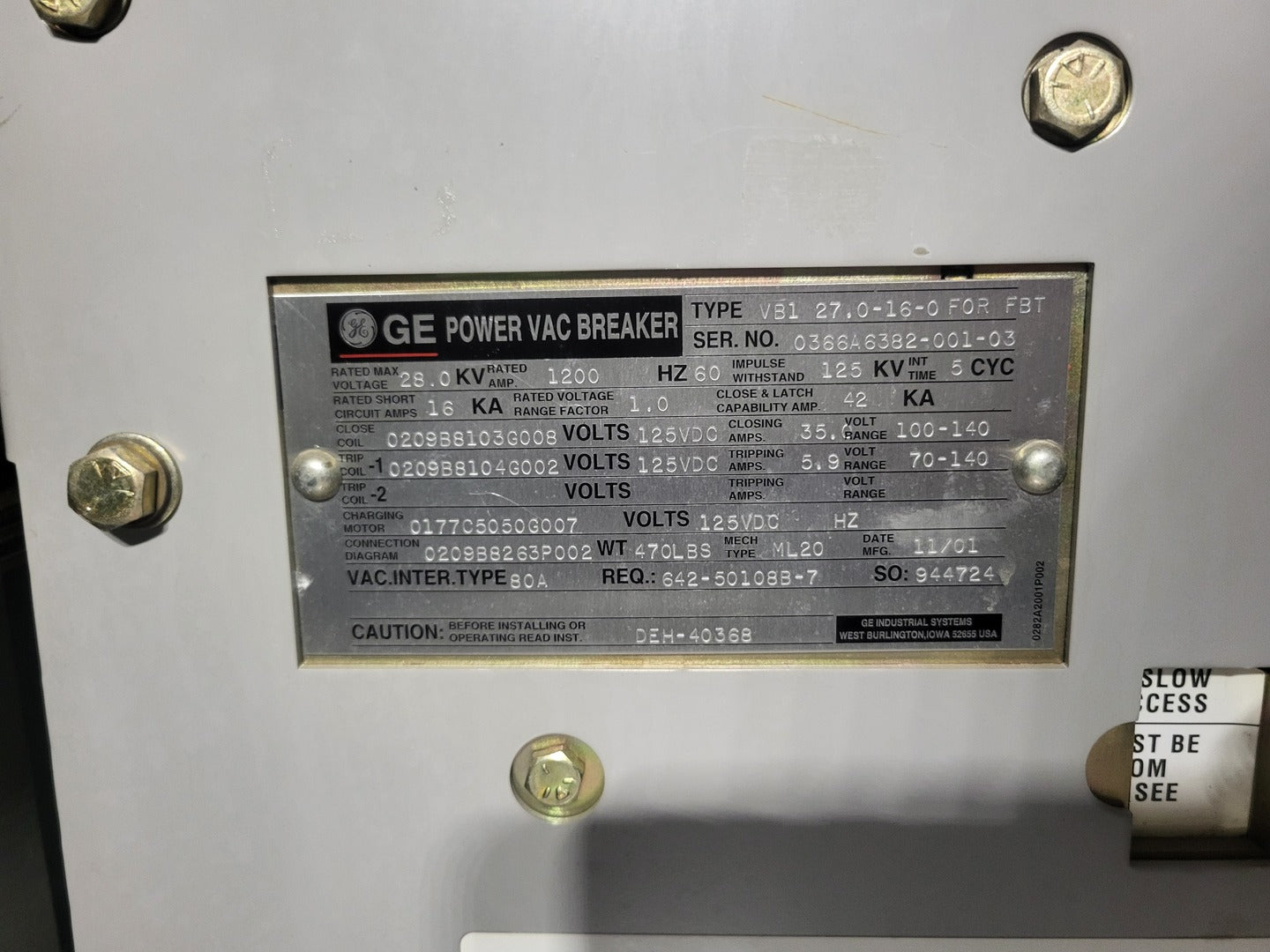

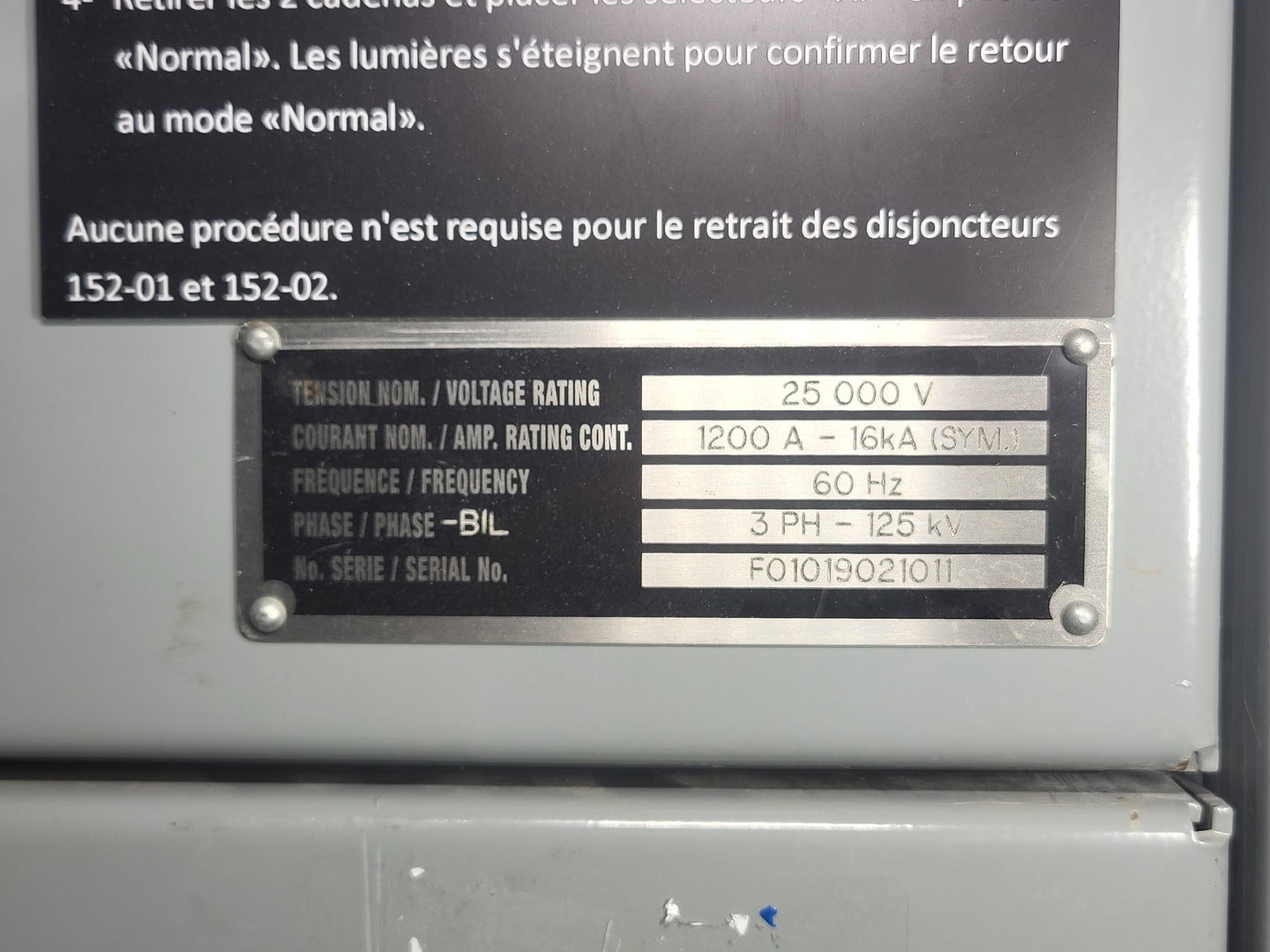

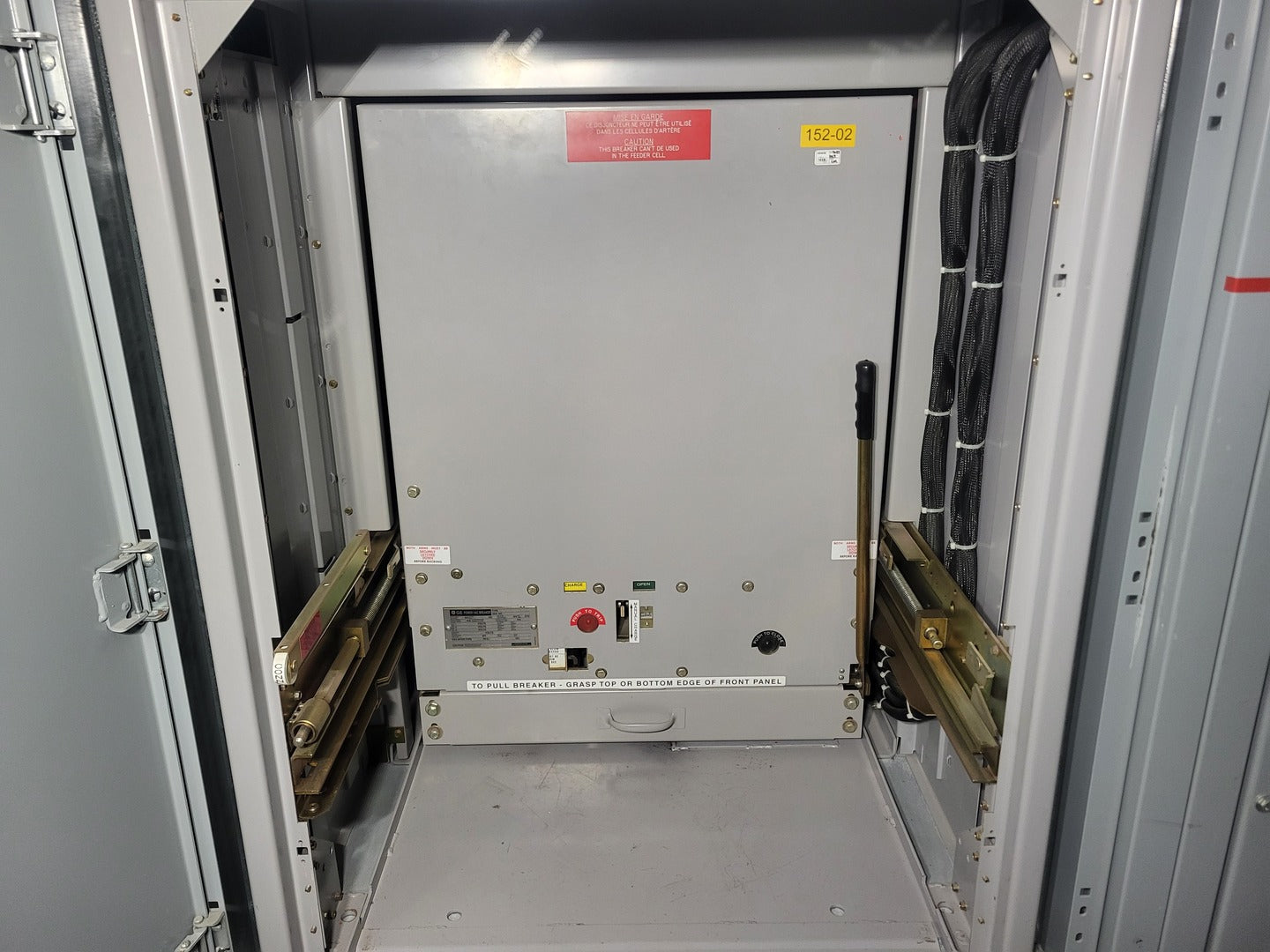

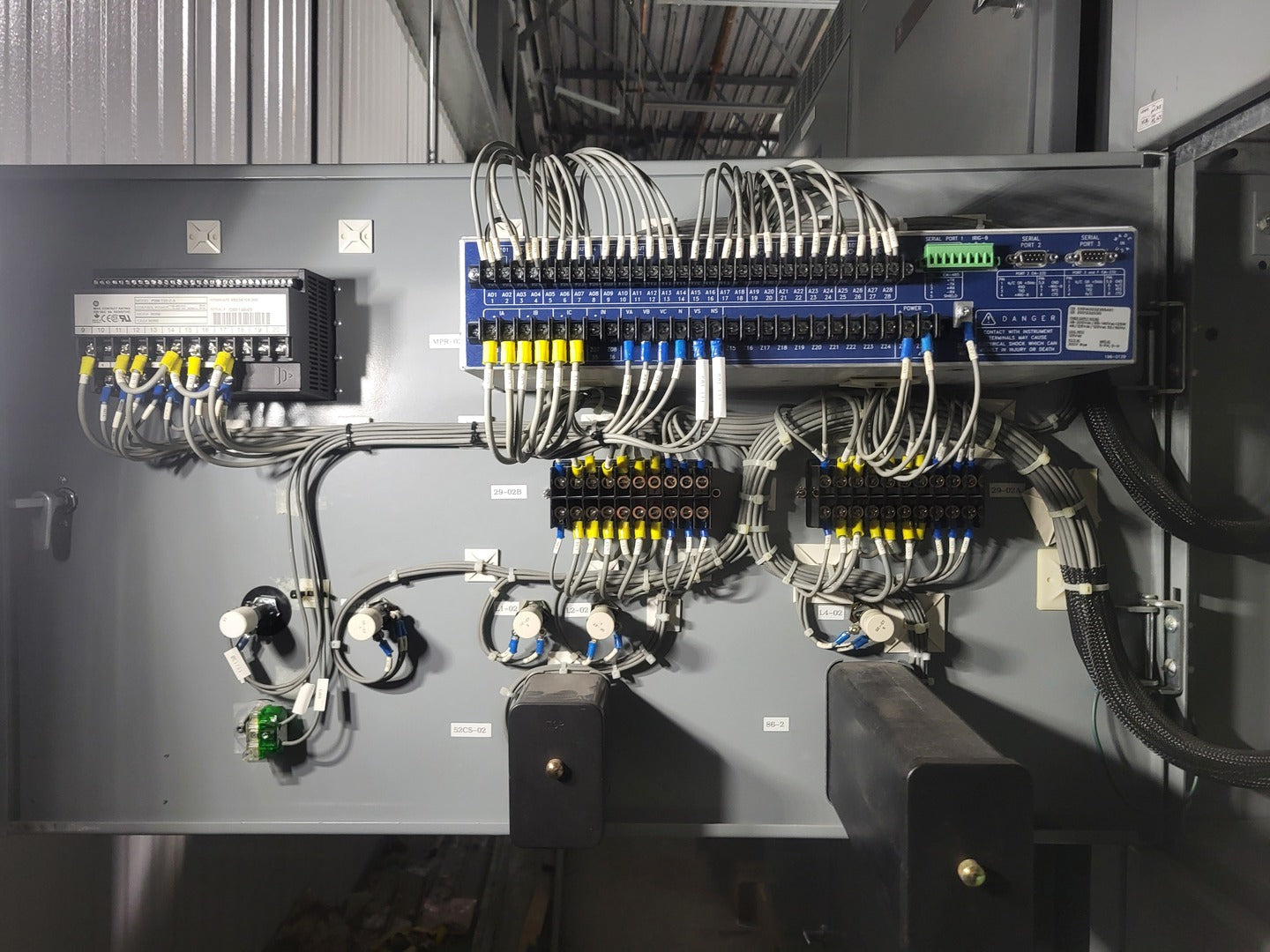

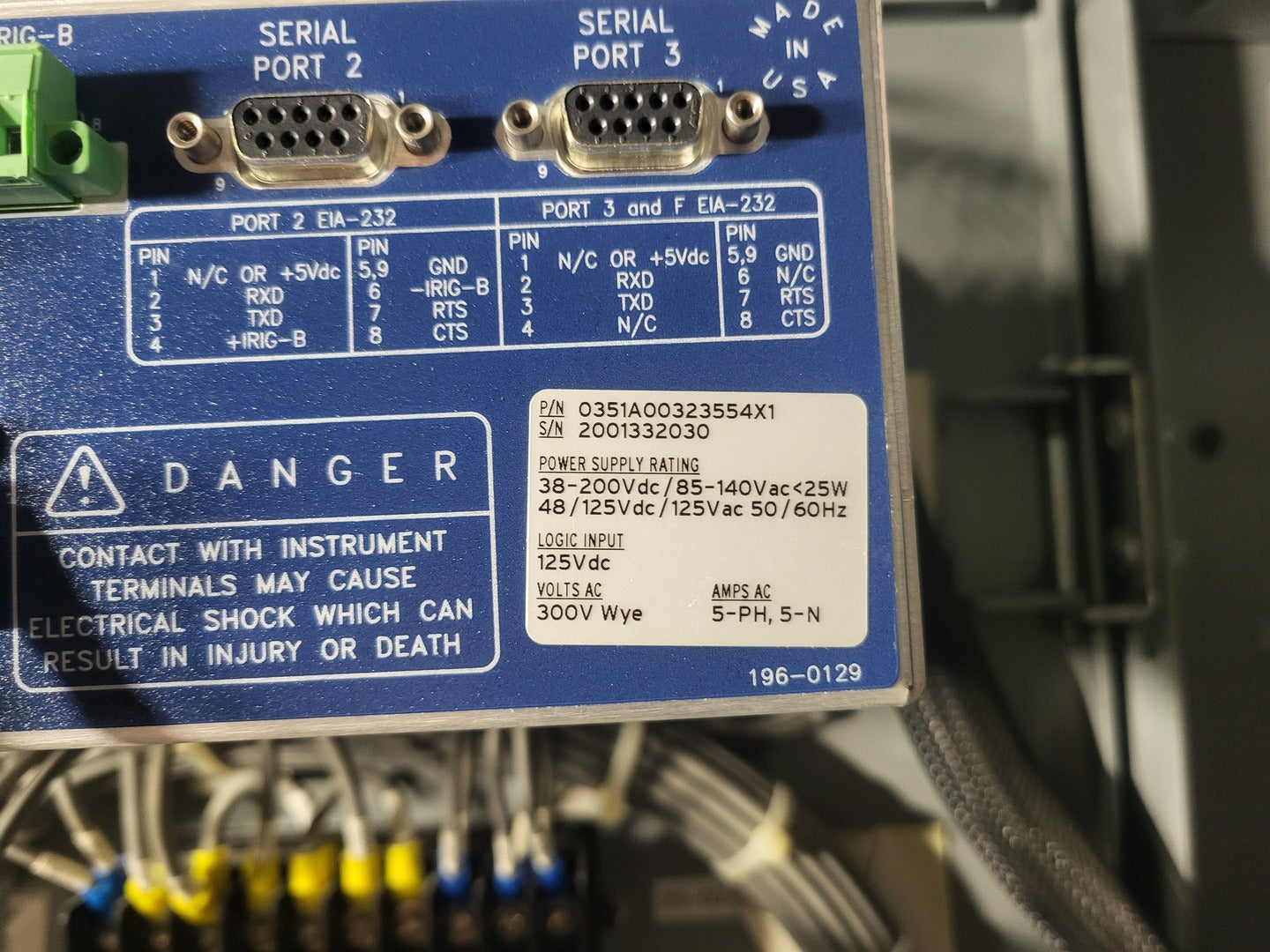

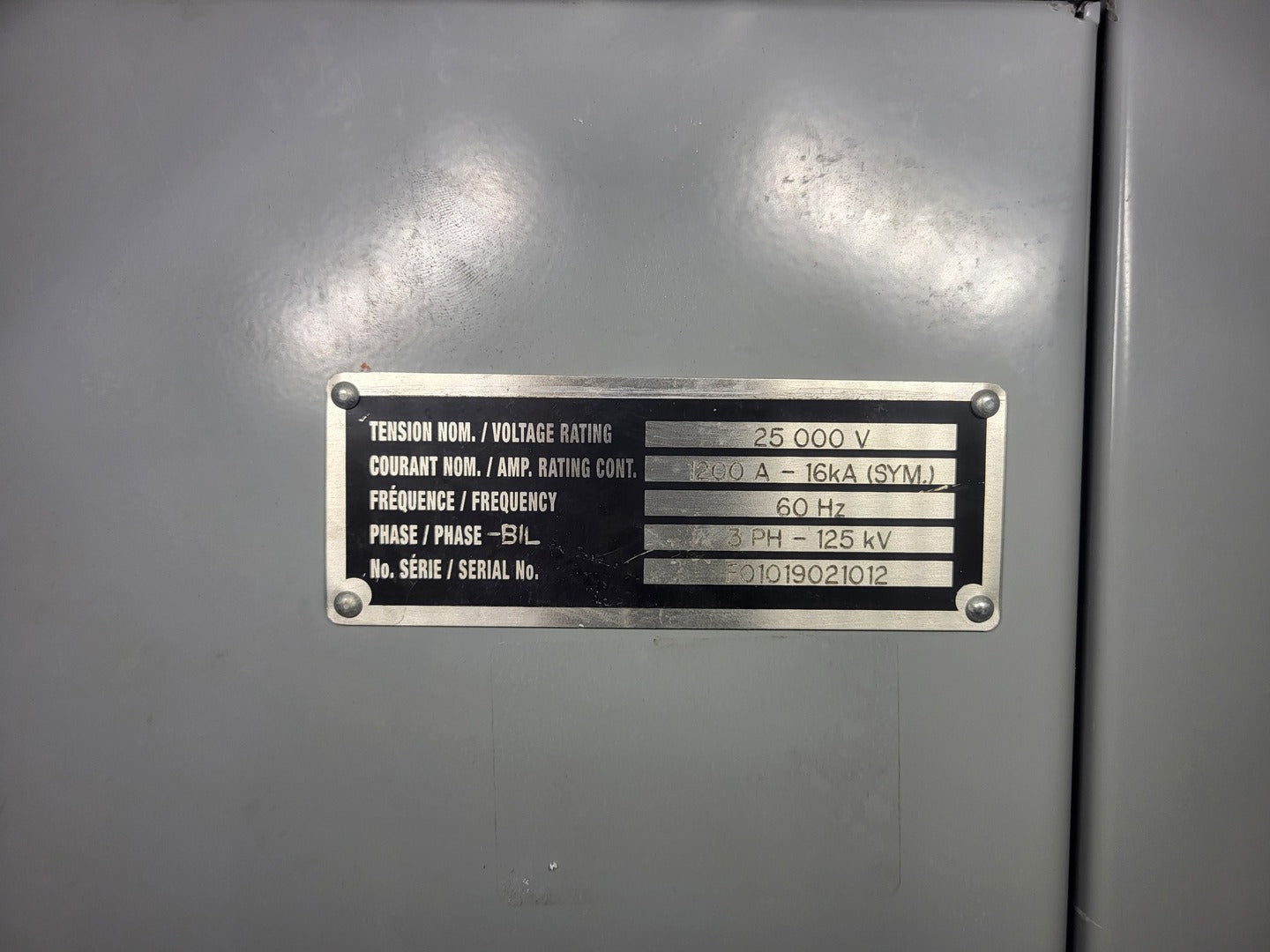

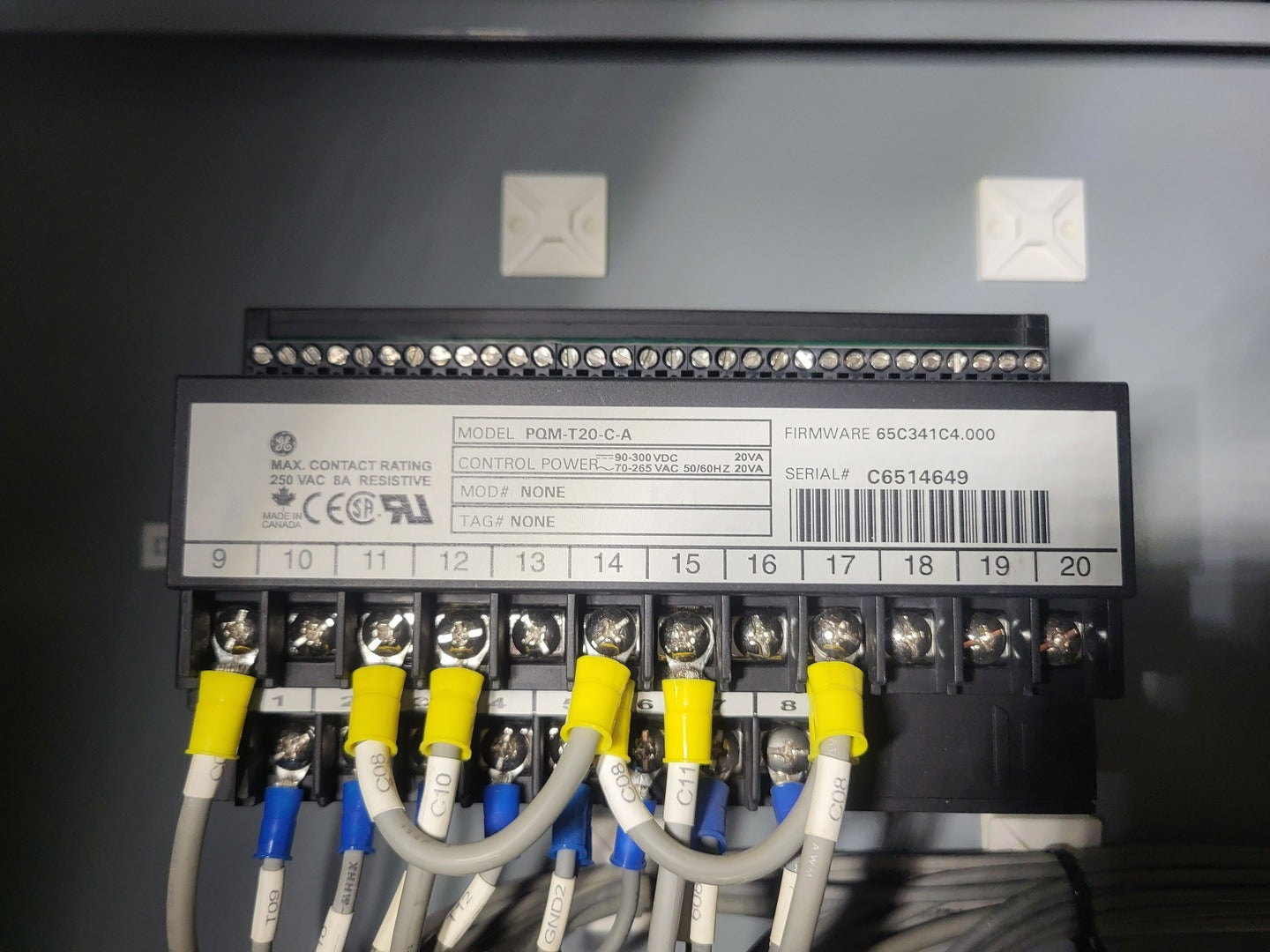

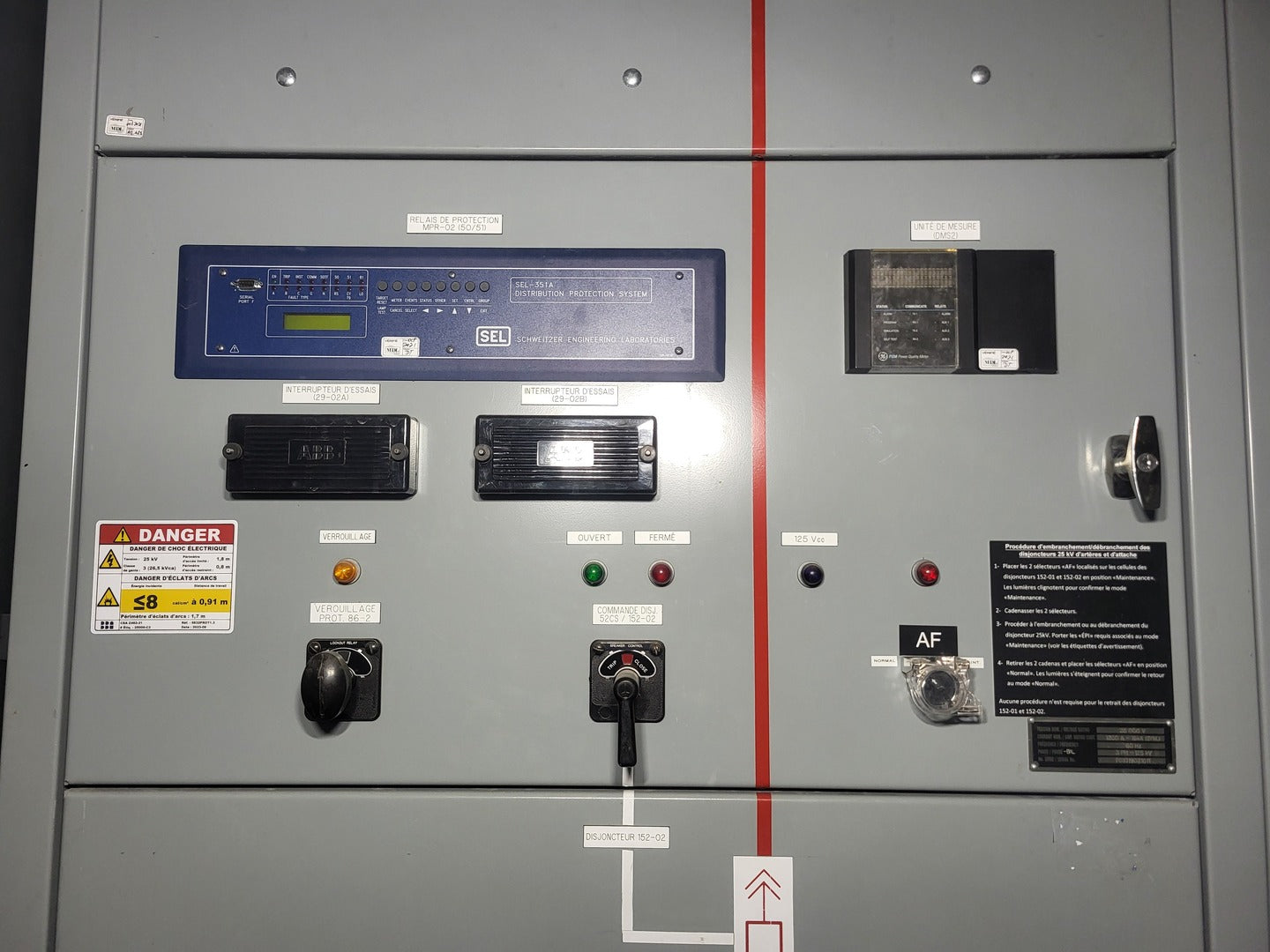

Voltage Rating: 25000 V Amp Rating Cont: 1200 A Short Circuit Rating: 16 kA symmetrical Phase: 3 ph BIL: 125 kV Power Vac Breaker VB1 27.0-16-0 Rated Max Voltage: 28 kV Rated Amp: 1200 A Frequency: 60 Hz Impulse Withstand: 125 kV Int Time: 5 CYC Rated Short Circuit Amp: 16 kA Rated Voltage Range Factor: 1.0 Close & Latch Capability Amp: 42 kA Distribution Protection Relay SEL-351A Mounting: Panel mount Ports: Three EIA-232 ports, an EIA-485 port Outputs: 8 (1 Alarm) Inputs: 6 Power Supply Rating: 38-200 VDC / 85 - 140 VAC, < 25 Watts Logic Input: 125 VDC Current Input: 5 A phase, 5 A neutral Power Quality Meter PQM-T20-C-A Control Power: 90 - 300 VDC, 20 VA // 70 - 265 VAC, 20 VA Additional (2) ABB Test Switches |
