Description

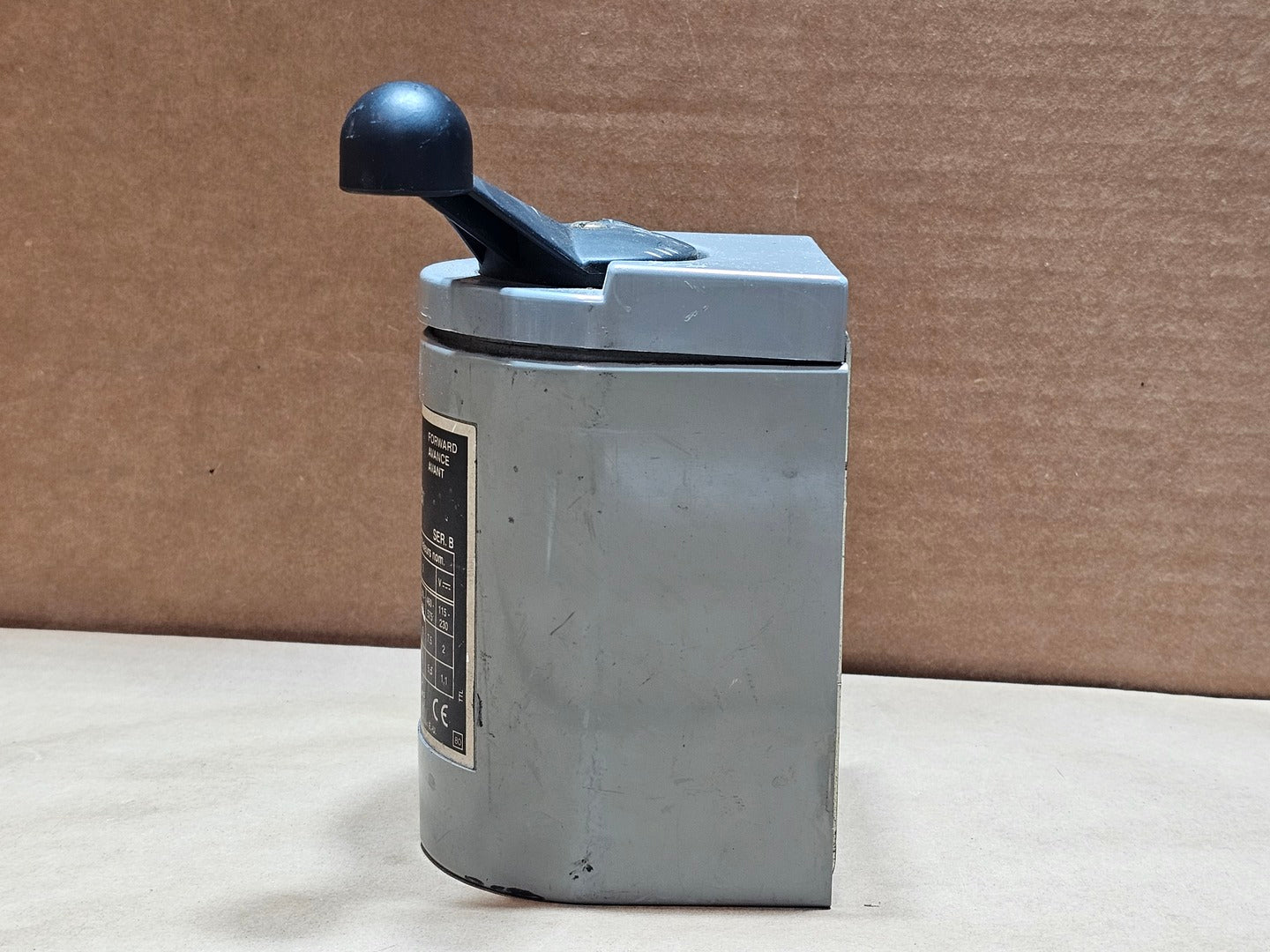

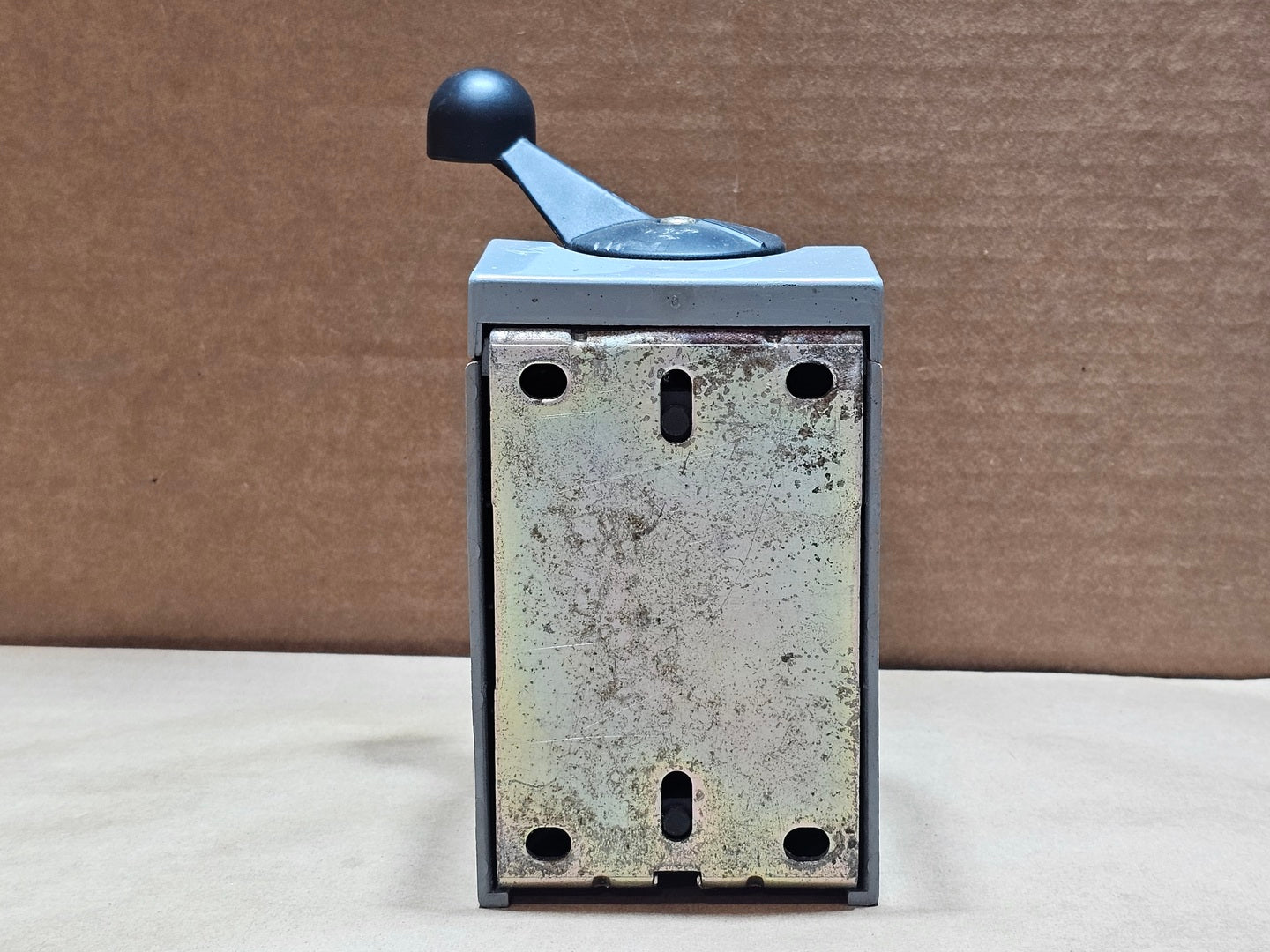

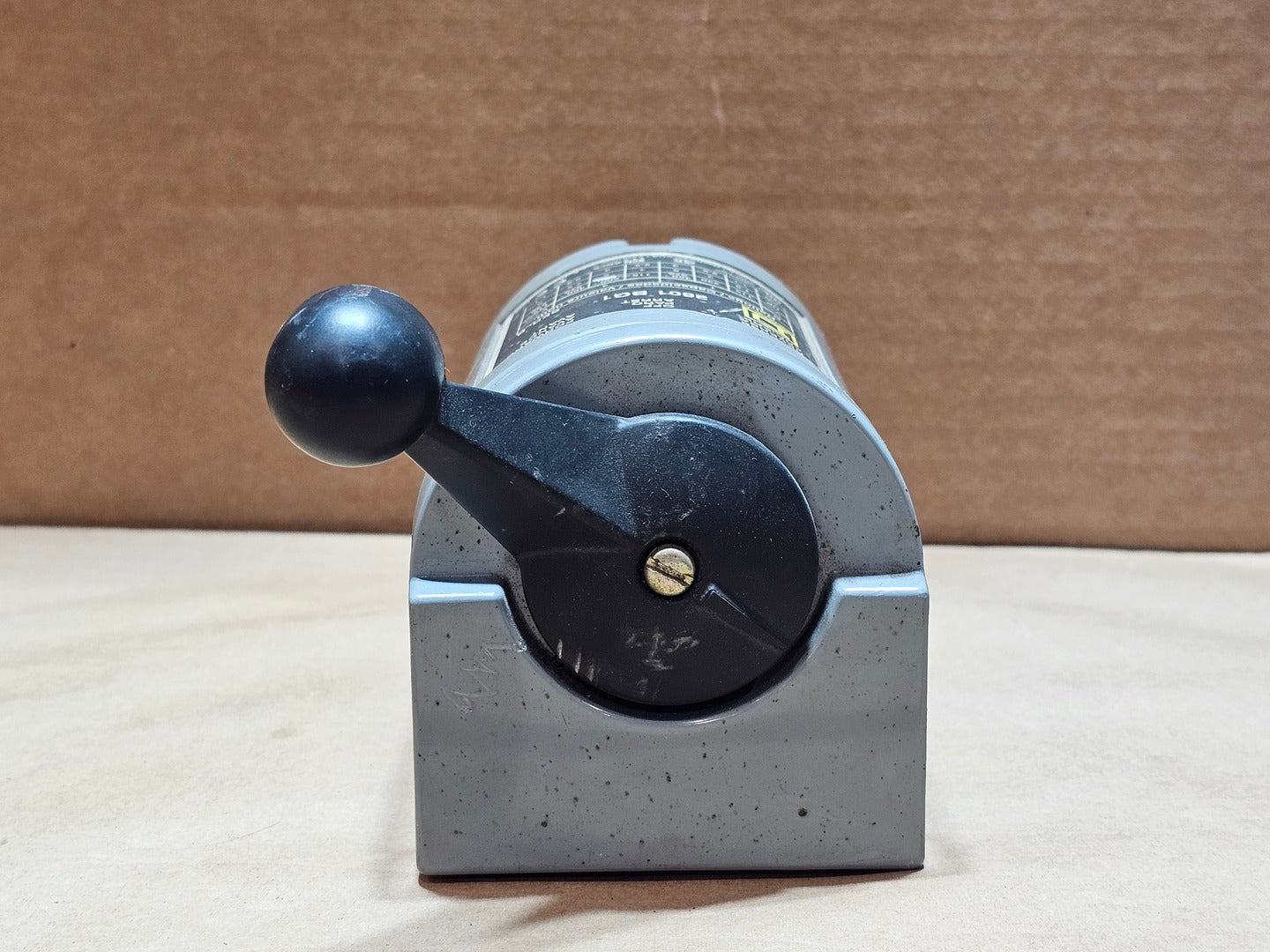

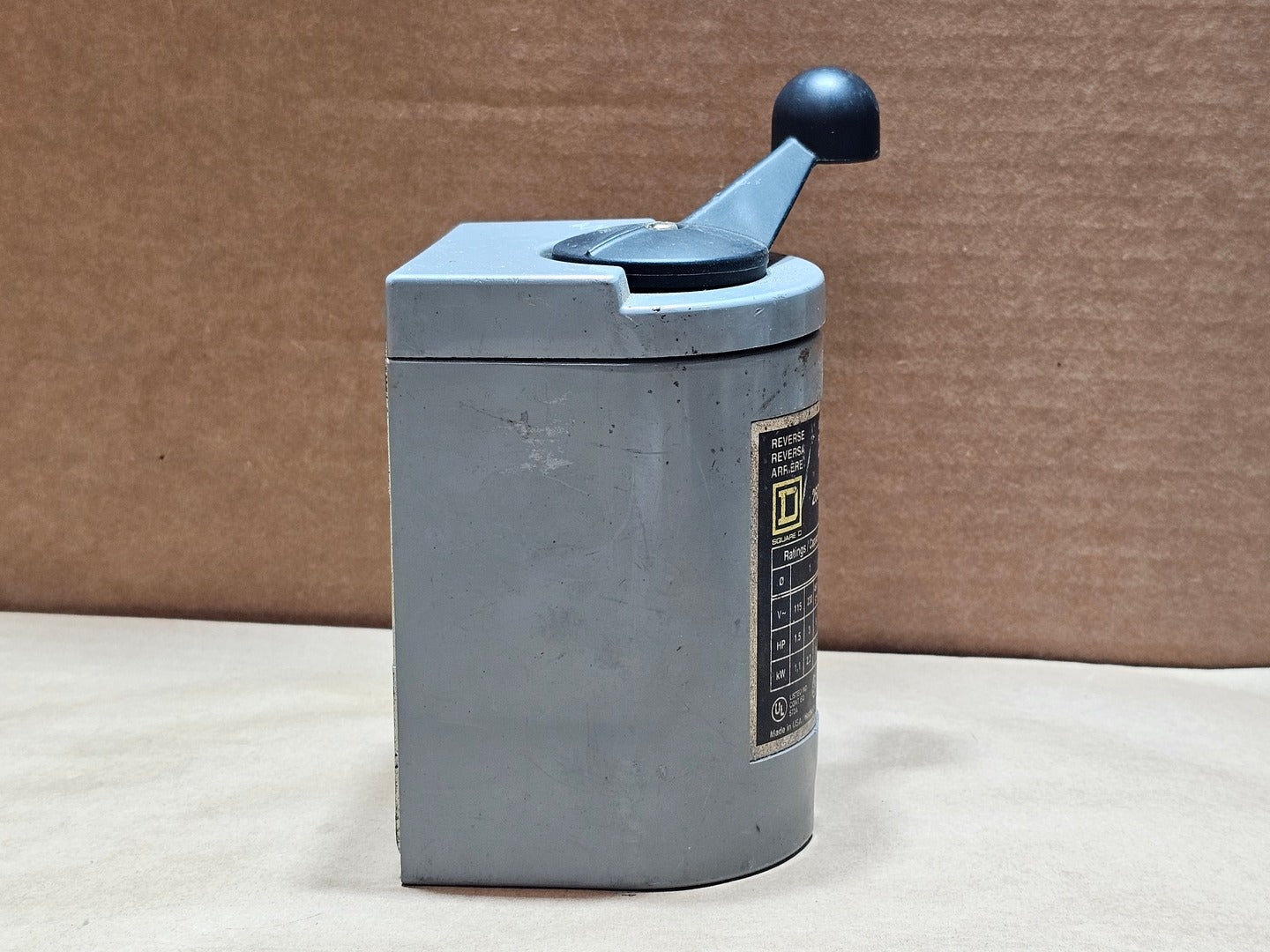

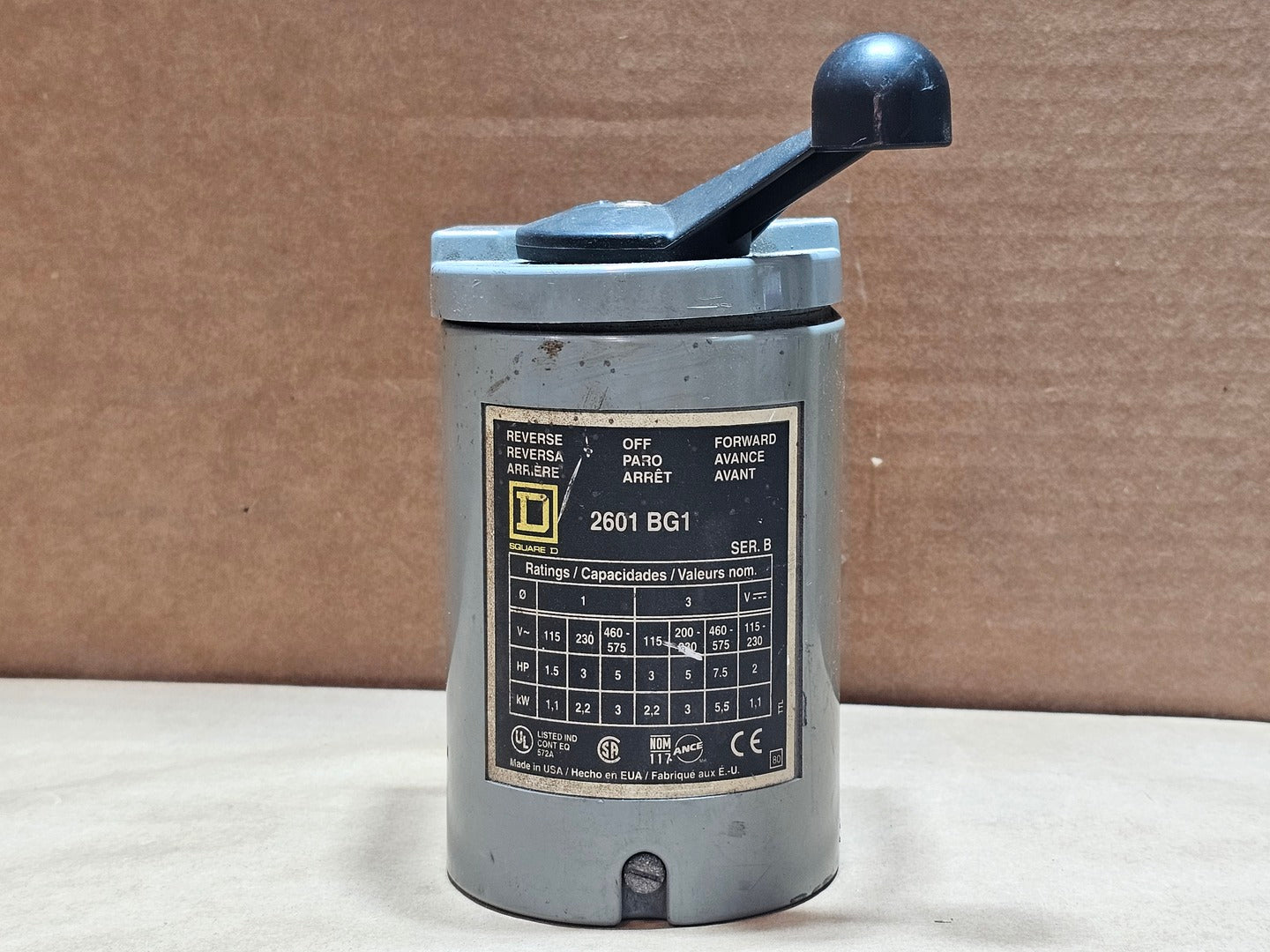

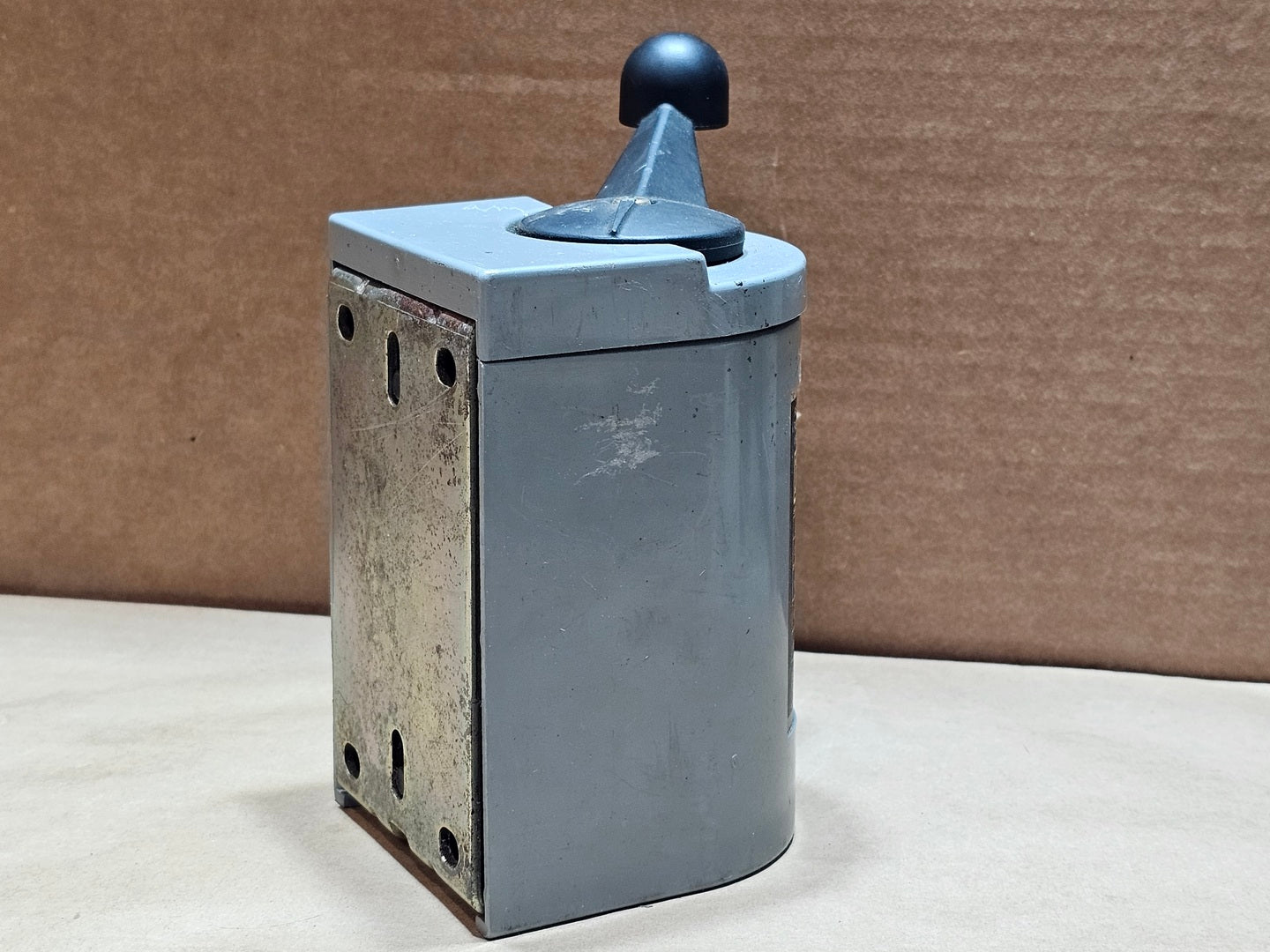

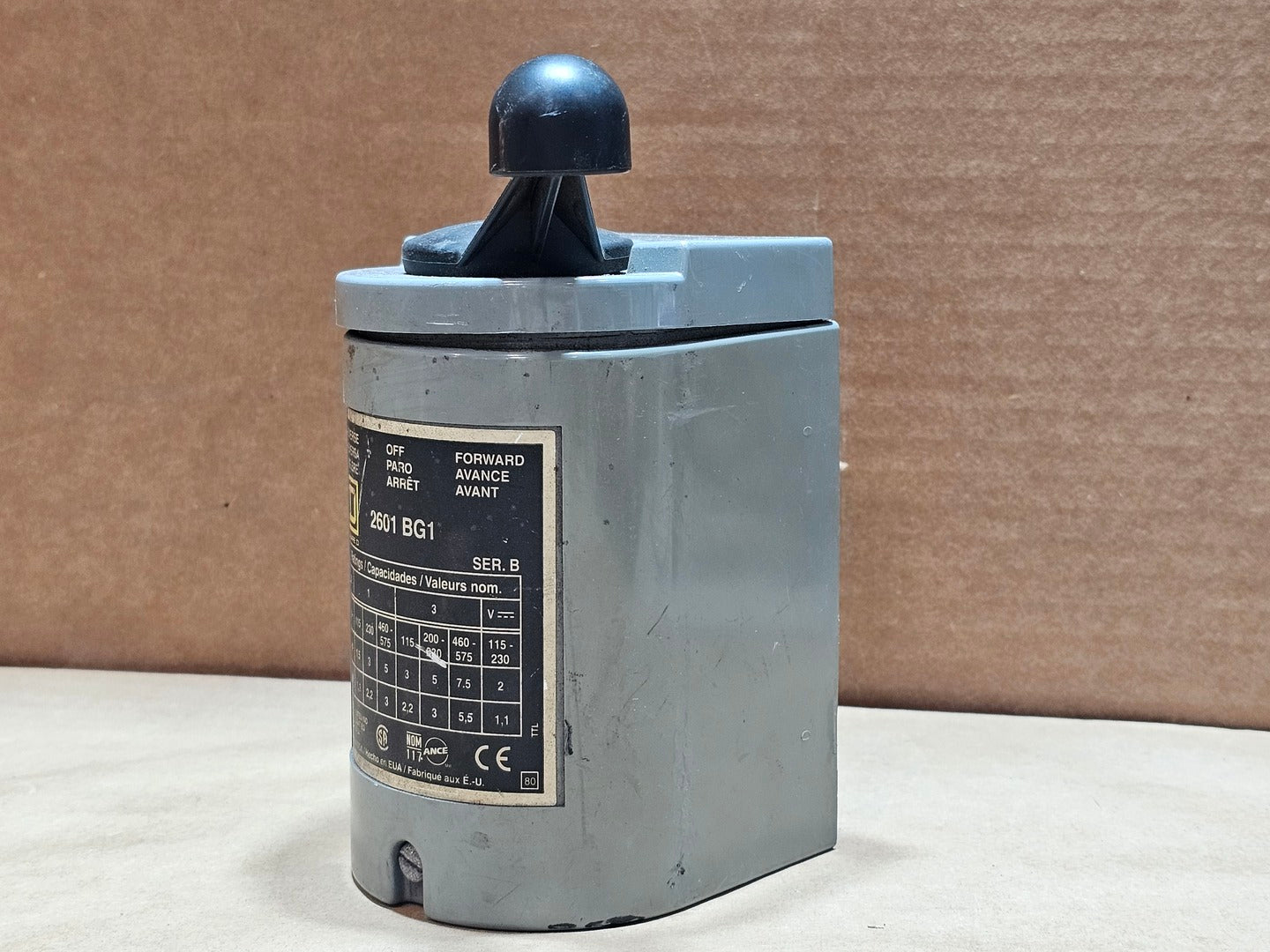

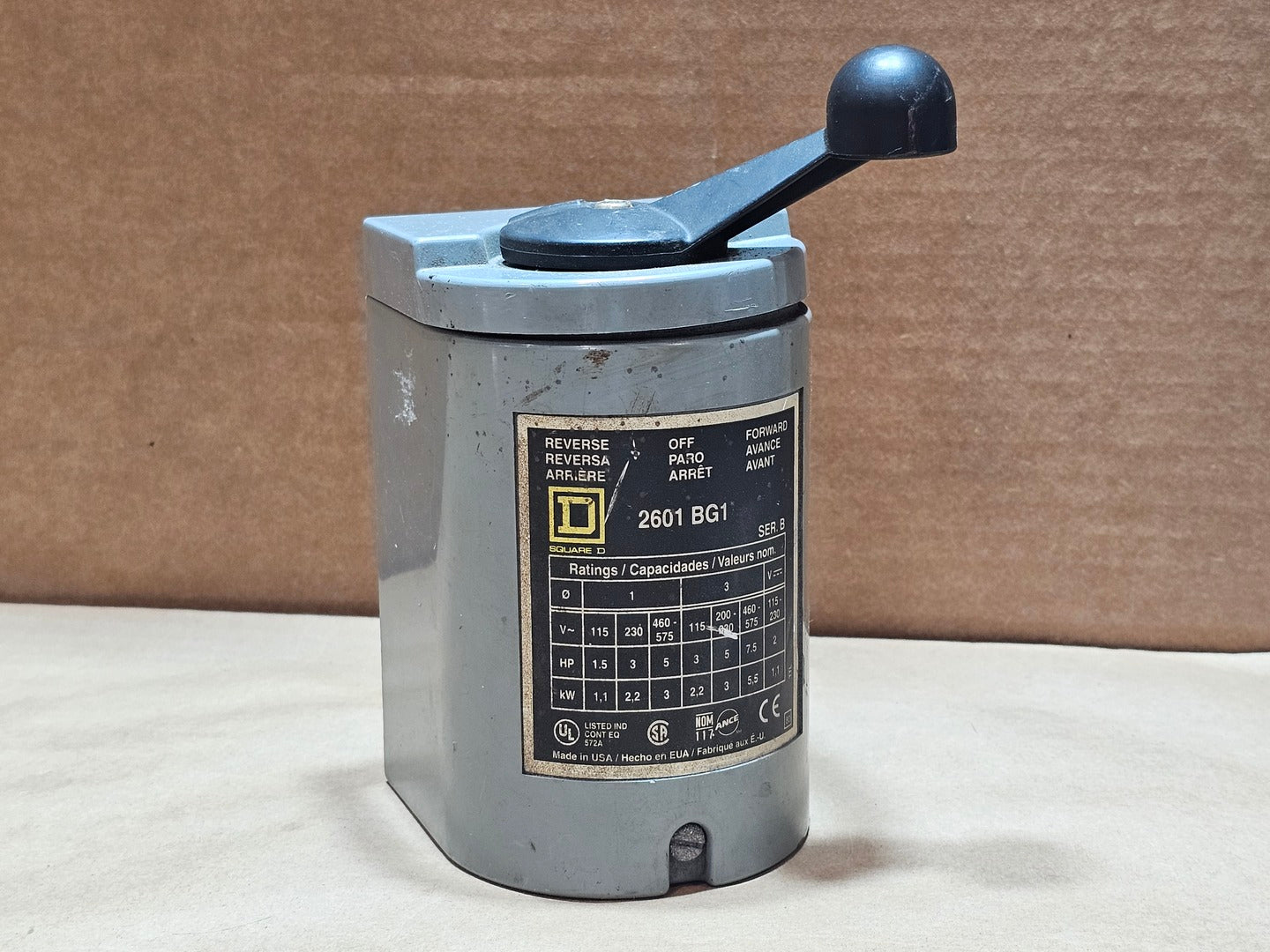

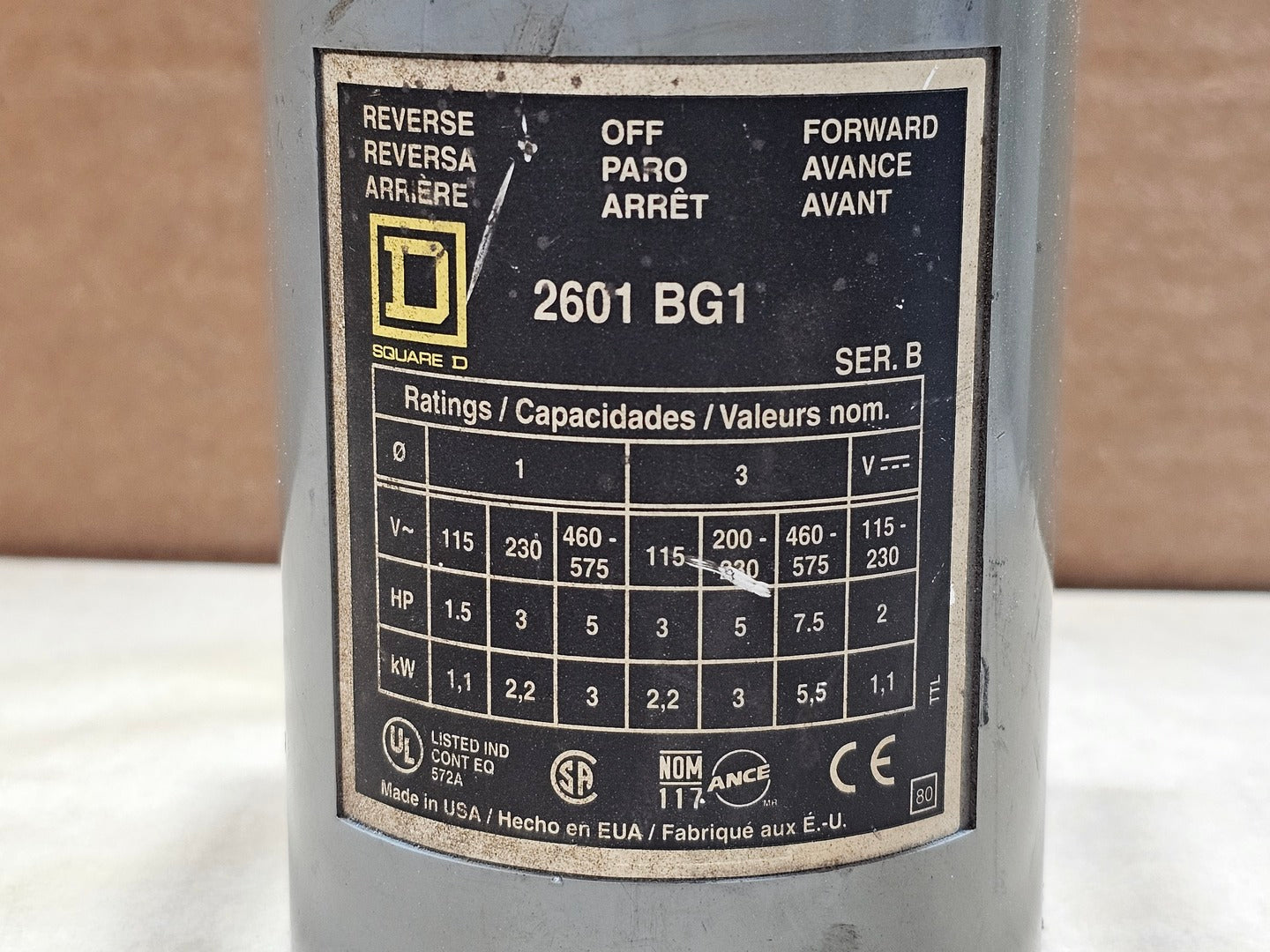

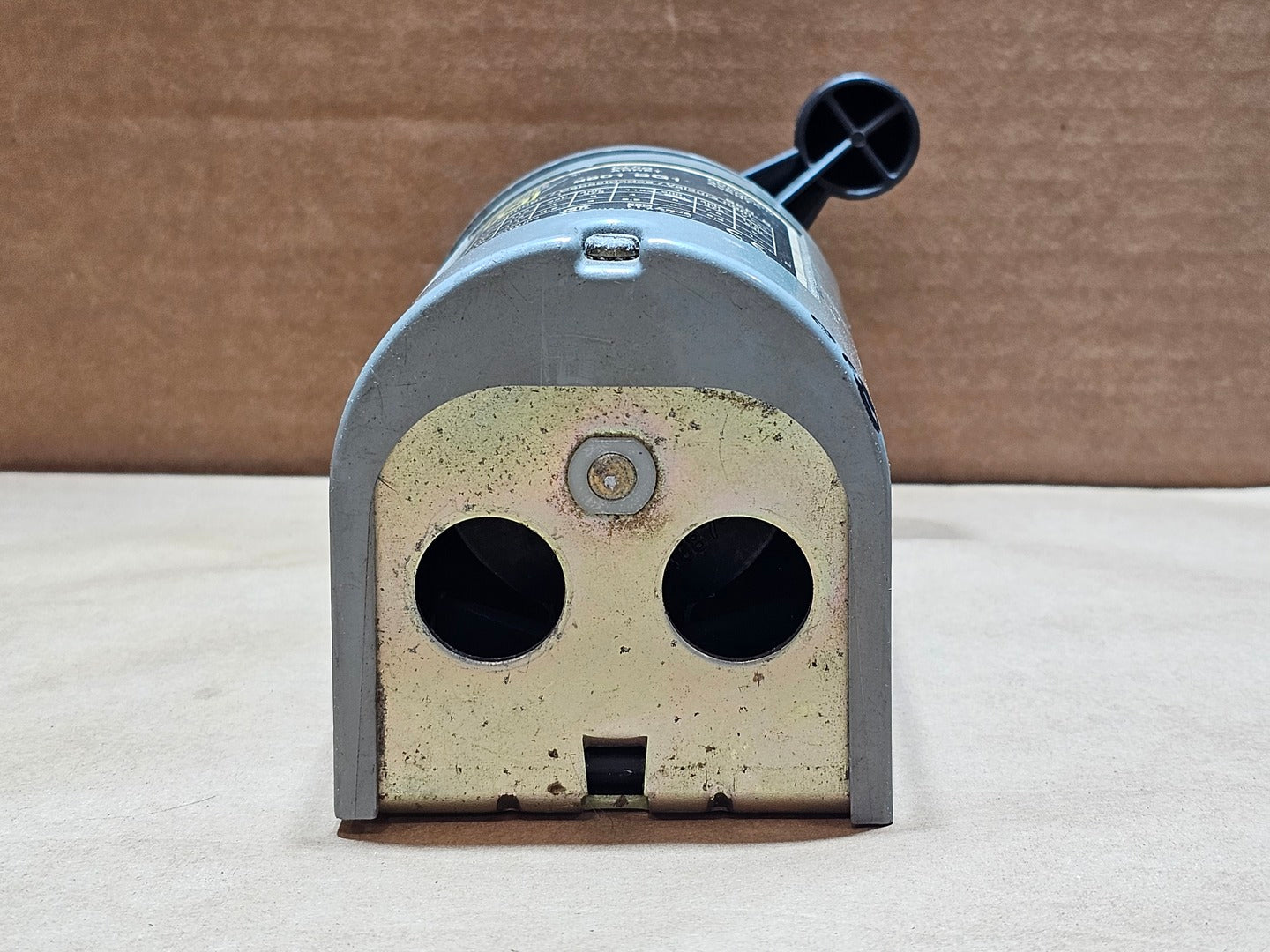

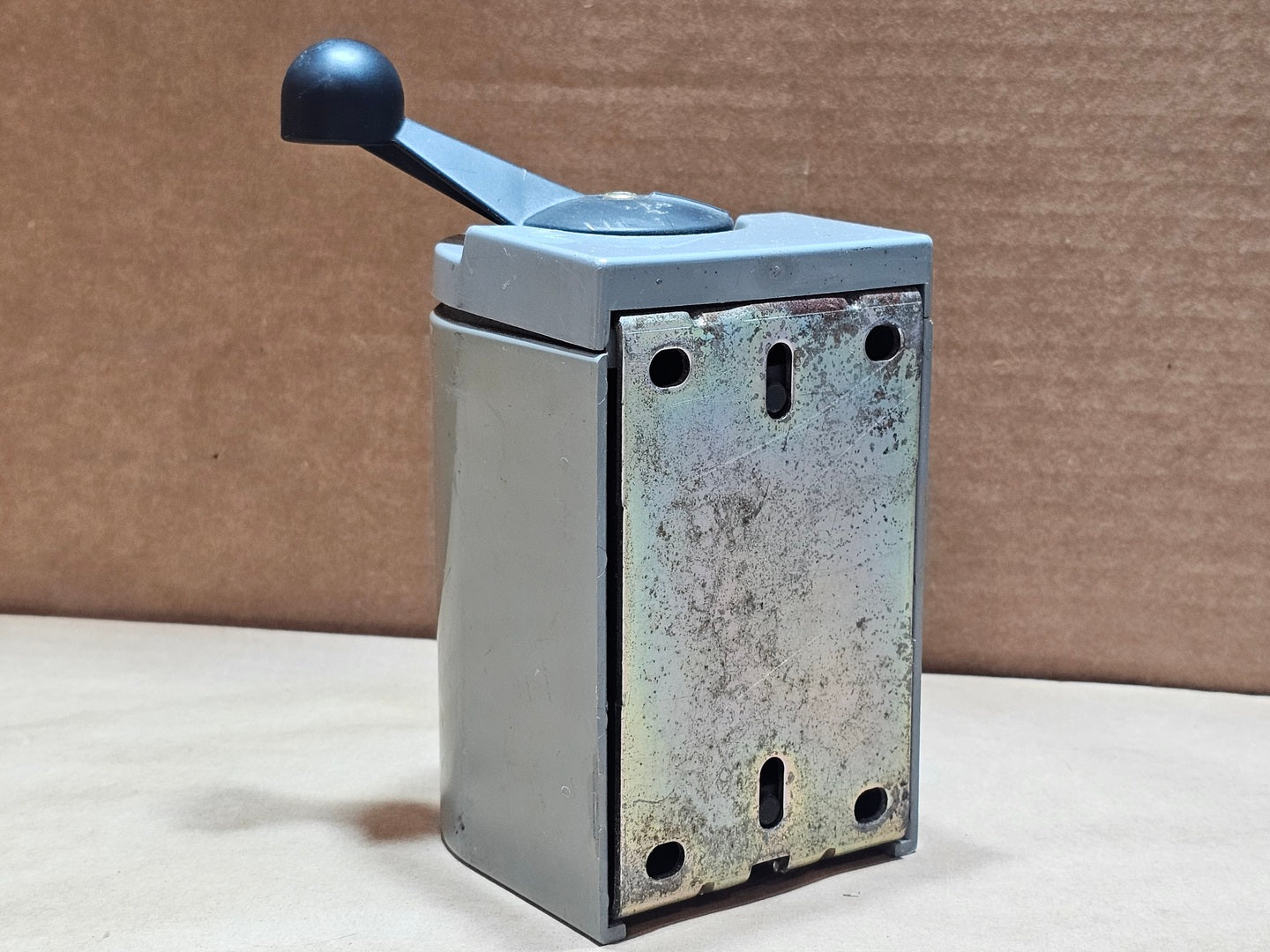

Square D 2601BG1 Series B reversing drum switch with three-position Reverse-Off-Forward manual lever control and NEMA 1 enclosure. This 3-pole switch is rated up to 600 VAC / 250 VDC and up to 7.5 HP on qualifying three-phase applications.
| Specifications | |
|---|---|
| Model | 2601BG1 |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
|
Series: B Product Type: Reversing drum switch Poles: 3 Operating Positions: Reverse / Off / Forward Operator: Manual lever Switching Function: Motor reversing Enclosure Rating: NEMA 1 Maximum AC Voltage: 600 VAC Maximum DC Voltage: 250 VDC Electrical Connection: Screw-clamp terminals 1-Phase 115 VAC Rating: 1.5 HP / 1.1 kW 1-Phase 230 VAC Rating: 3 HP / 2.2 kW 1-Phase 460-575 VAC Rating: 5 HP / 3 kW 3-Phase 115 VAC Rating: 3 HP / 2.2 kW 3-Phase 200-230 VAC Rating: 5 HP / 3 kW 3-Phase 460-575 VAC Rating: 7.5 HP / 5.5 kW DC 115-230 V Rating: 2 HP Approvals: UL Listed / CSA / CE visible |
