Description

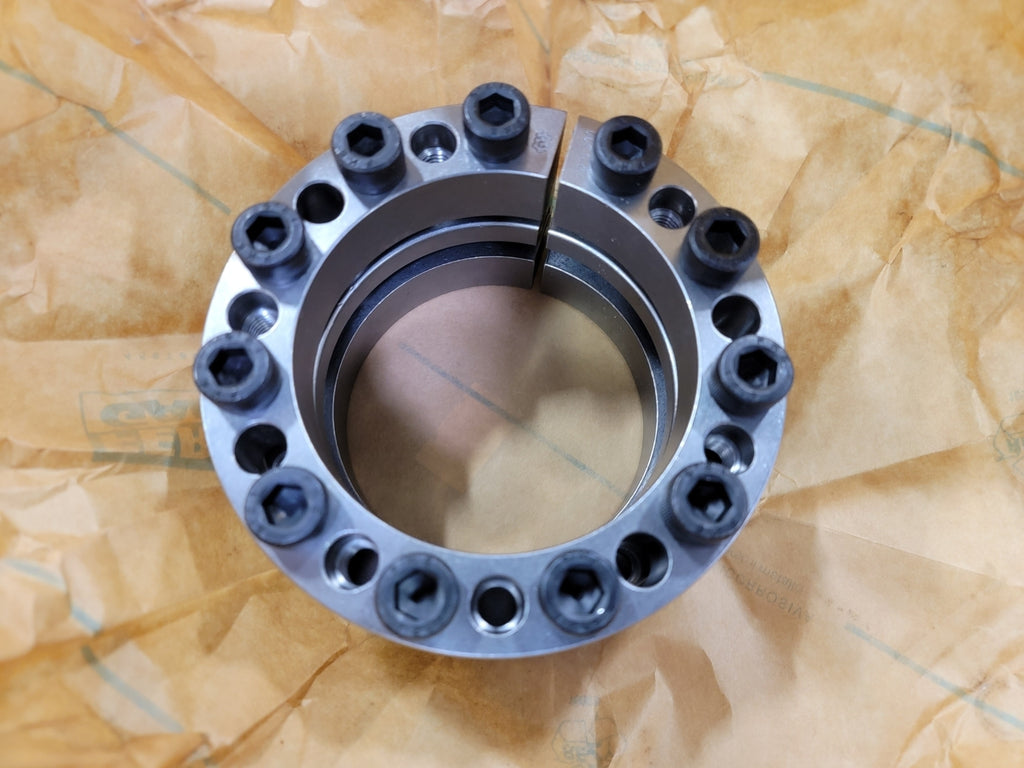

New surplus MAV Series 1008 keyless locking assembly designed to create a high-strength, backlash-free friction connection between a shaft and hub without the use of keys or splines. The MAV 1008 uses opposing tapered rings tightened with high-strength socket head cap screws to generate uniform radial clamping pressure, making it ideal for pulleys, sprockets, gears, couplings, conveyor drives, and other power transmission applications. This unit is factory packaged and unused.
| Specifications | |
|---|---|
| Model | MAV 1008 3-1/2" x 130 mm |
| Made In | ITALY |
| Condition | Surplus New | General |
| Type | Keyless Bushing |
| Series | 1008 |
| Bore Diameter | 3.5 " |
| Other Specifications |
|---|
|
Series: 1008 Product Type: Keyless Locking Assembly Connection Type: Shaft-to-Hub Locking Device Nominal Shaft Size: 3-1/2 in (approximately 90 mm) Outside Diameter: 130 mm Configuration: Self-centering, single taper locking assembly Torque for Mounting Screws: 83 Nm (61 ft-lb) Fastener Type: Socket head cap screws Part Number: MAV 1008 3-1/2" x 130 mm Features:-
Ideal Applications:-
|
