Description
| Specifications | |
|---|---|

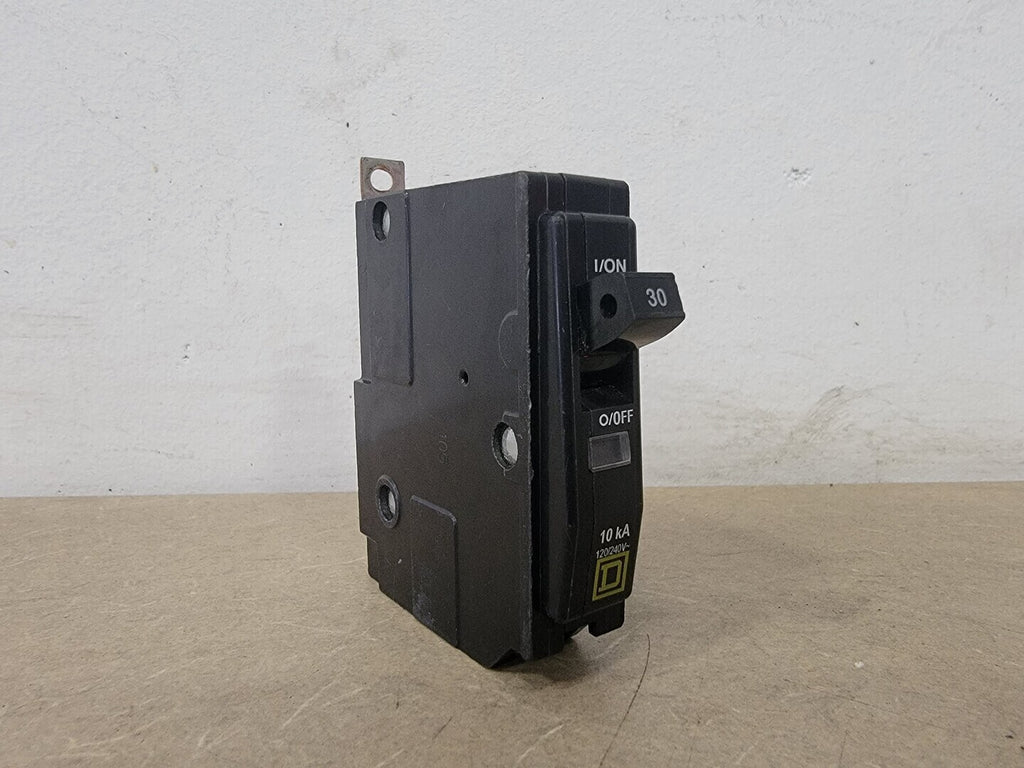

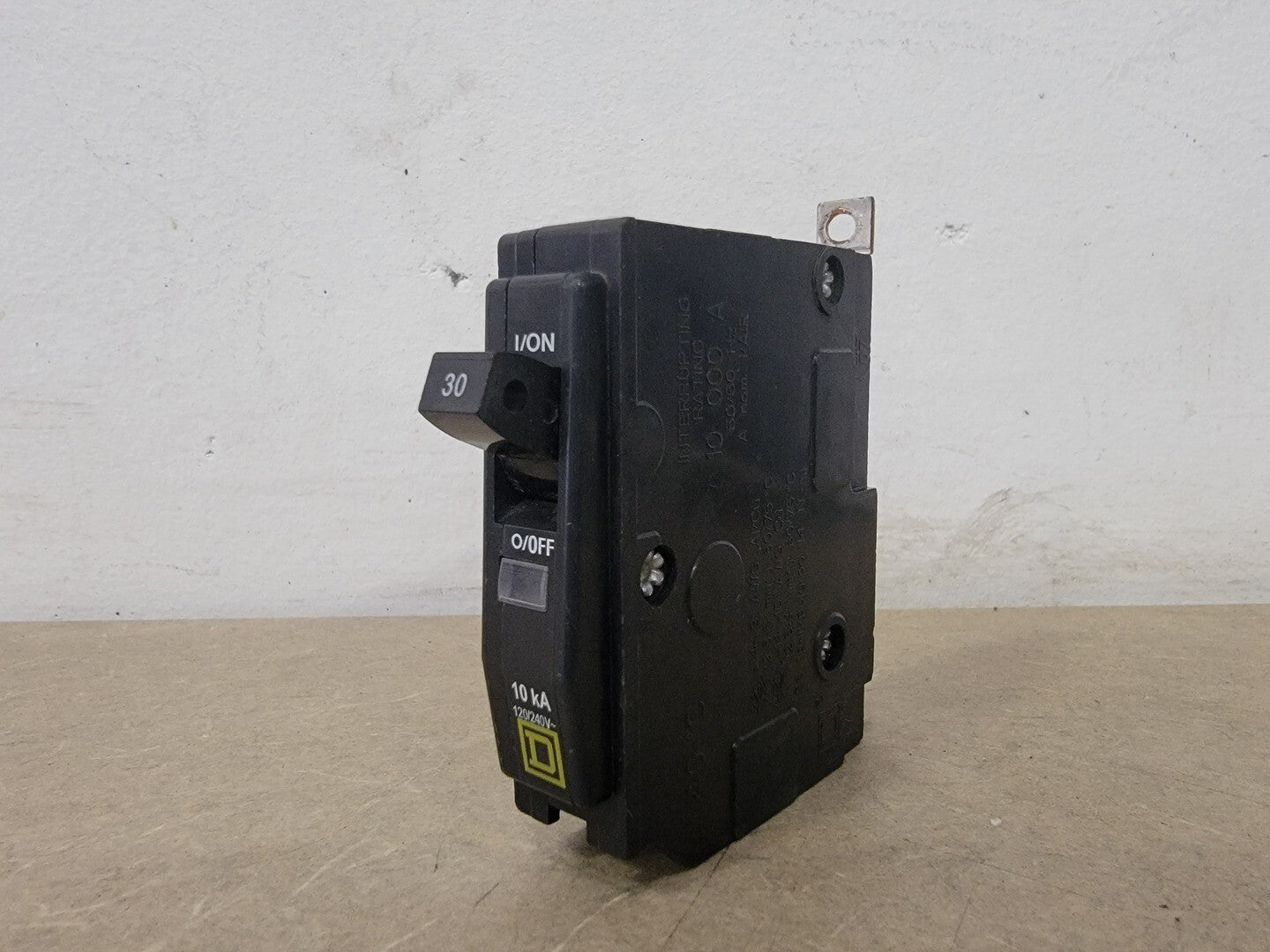

| Model | QO130 |
| Condition | Used | General |
| Amps | 30 amps |
| # of Poles | 1 |
| Voltage | 120/240 volts |
| Other Specifications |
|---|
|
Interrupting Rating: 10,000 Amps (10 kA) Frequency: 50/60 Hz Wire Compatibility (Aluminum): #14 to #8 AWG (2.5-6 mm squared) Wire Compatibility (Copper): #14 to #10 AWG (2.5-4 mm squared) Torque Rating: 36 lb-in (4 Nm) Temperature Rating: 40 Degrees Celsius Mounting Type: Plug-on (for QO load centers) Trip Type: Thermal Magnetic |
