Description

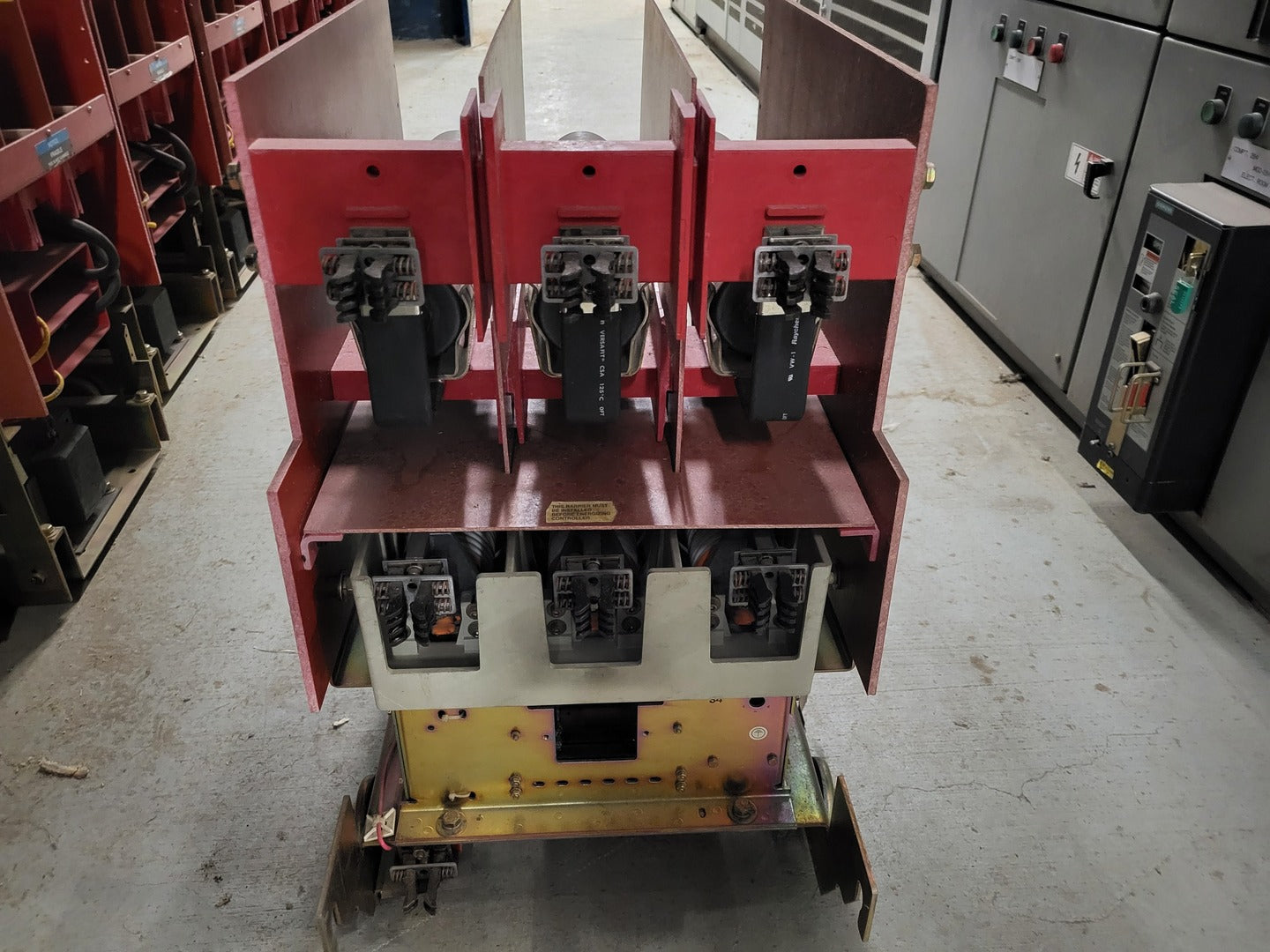

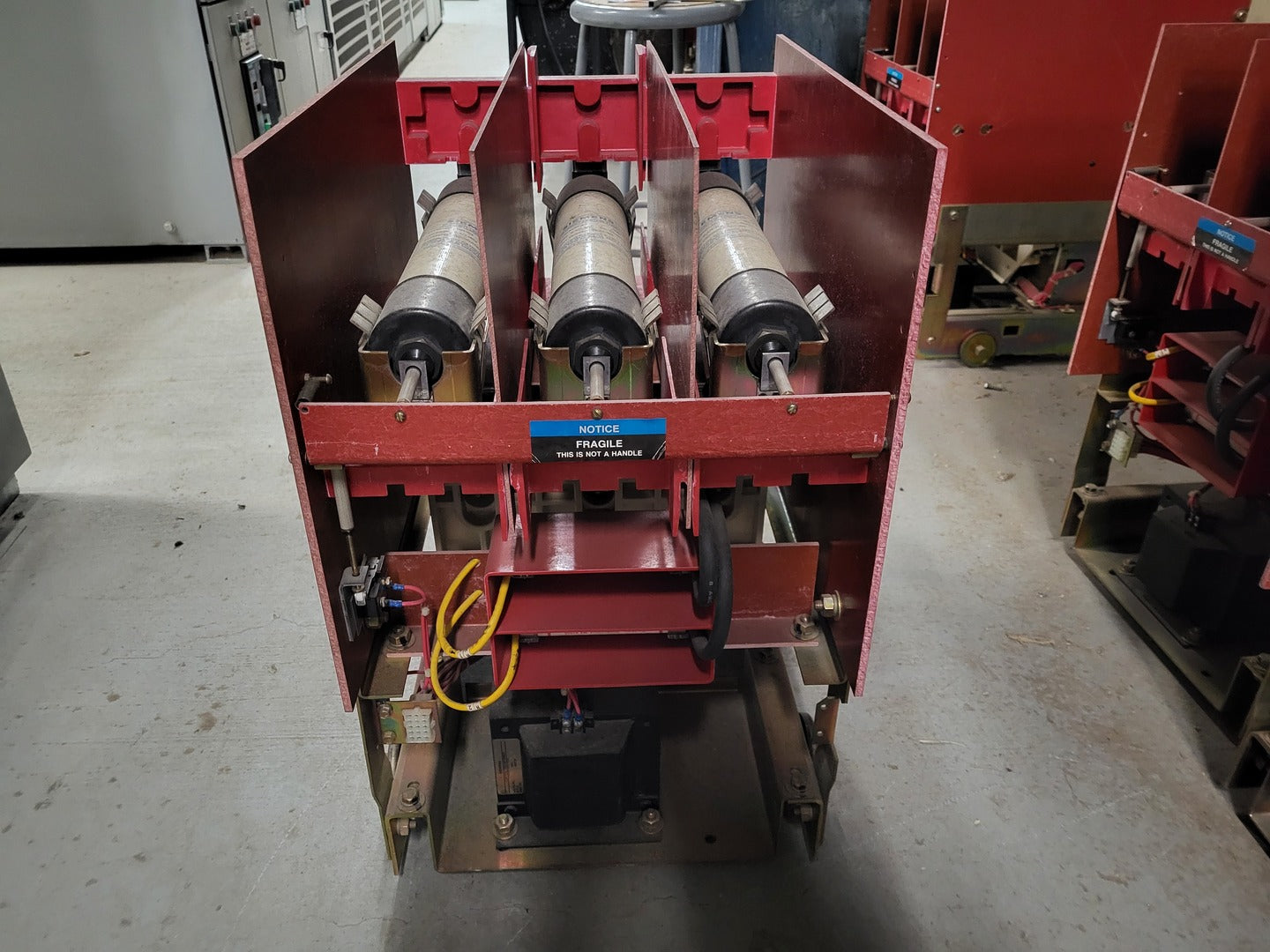

The Siemens 88H3533034A1AT AC vacuum contactor is a 3-pole, 5.0 kV NEMA H3 type device with a 360 Amp capacity. It includes a drawout contactor type, suitable for NEMA 3 size applications and requiring a control transformer with specific voltage and capacity specifications. The main power fuse needed is the Siemens 48FM3R-4 model, with a voltage rating of 2.4/4.8 kV. This contactor is designed for high-power applications requiring reliable and efficient switching capabilities for voltages up to 5000 volts.
| Specifications | |
|---|---|
| Model | 88H3533034A1AT |
| Condition | Used | Electrical |
| Voltage | 5000 volts |
| Amps | 360 amps | General |
| Includes Fuses | Yes |
| Control Transforms Sometimes | Yes |
| Other Specifications |
|---|
|

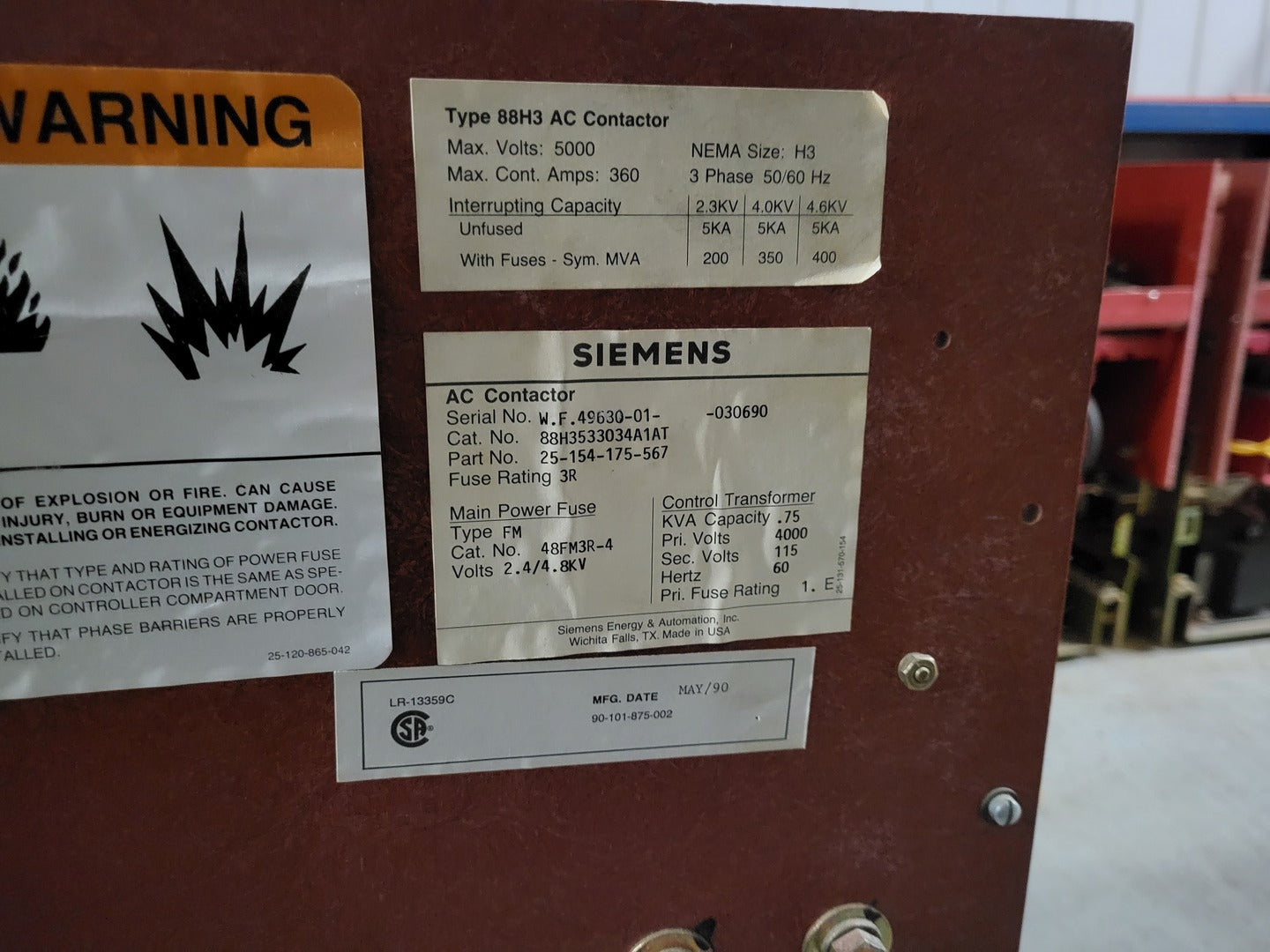

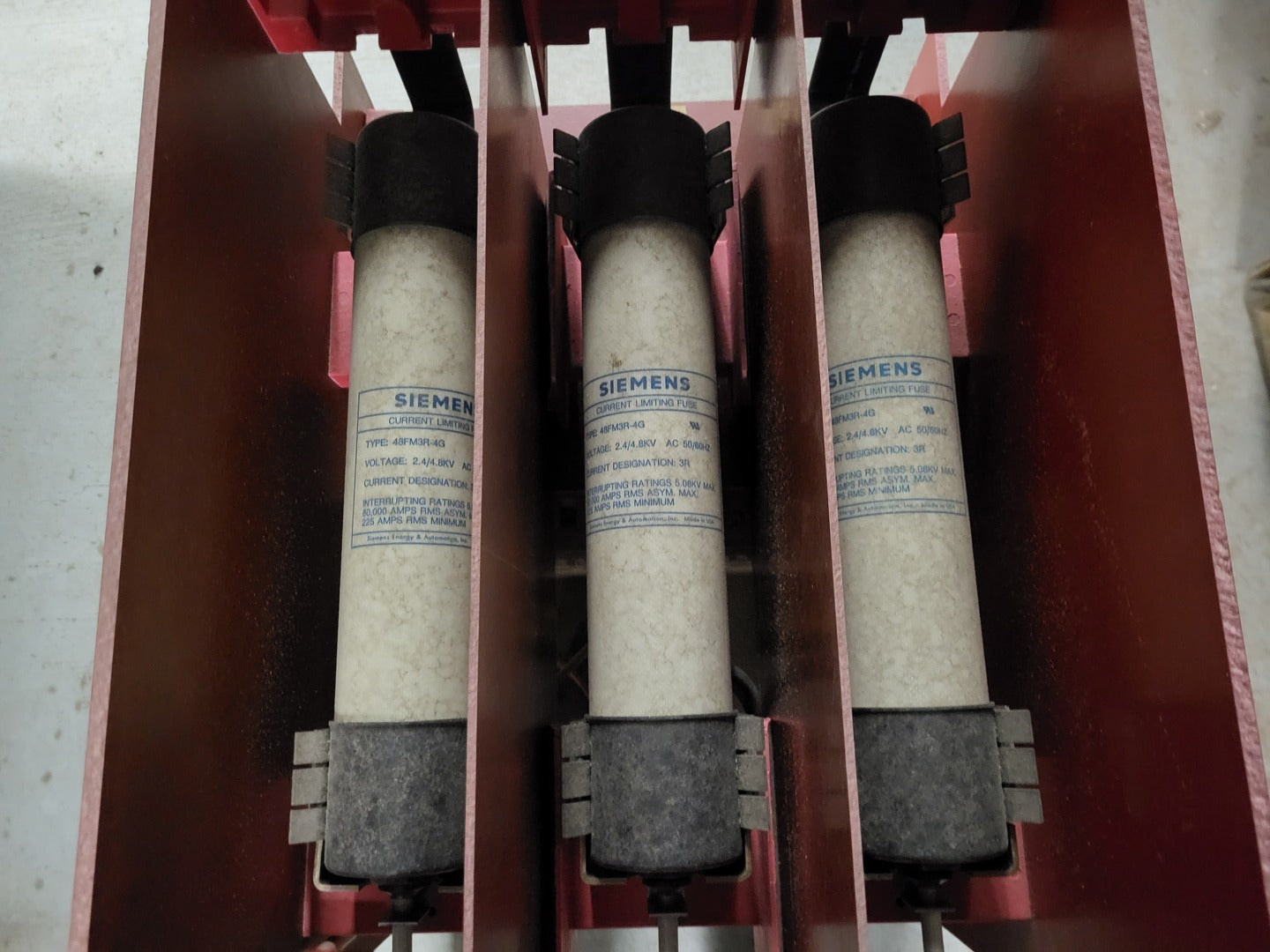

Poles: 3 Insulation Voltage: 5 kV Interruption Capacity: 350 MVA Main Fuse Rating: 3R Contactor Type: Drawout Contactor Size: NEMA 3 Phase: 3 Control Transformer:- CPT Primary Voltage: 4000 V CPT Secondary Voltage: 115 VAC CPT Capacity: 0.75 kVA CPT Primary Fuse Rating: 1.E Main Power Fuse:- Make: Siemens Model: 48FM3R-4 Type: FM Voltage Rating: 2.4/4.8 kV |
