Description
| Specifications | |
|---|---|

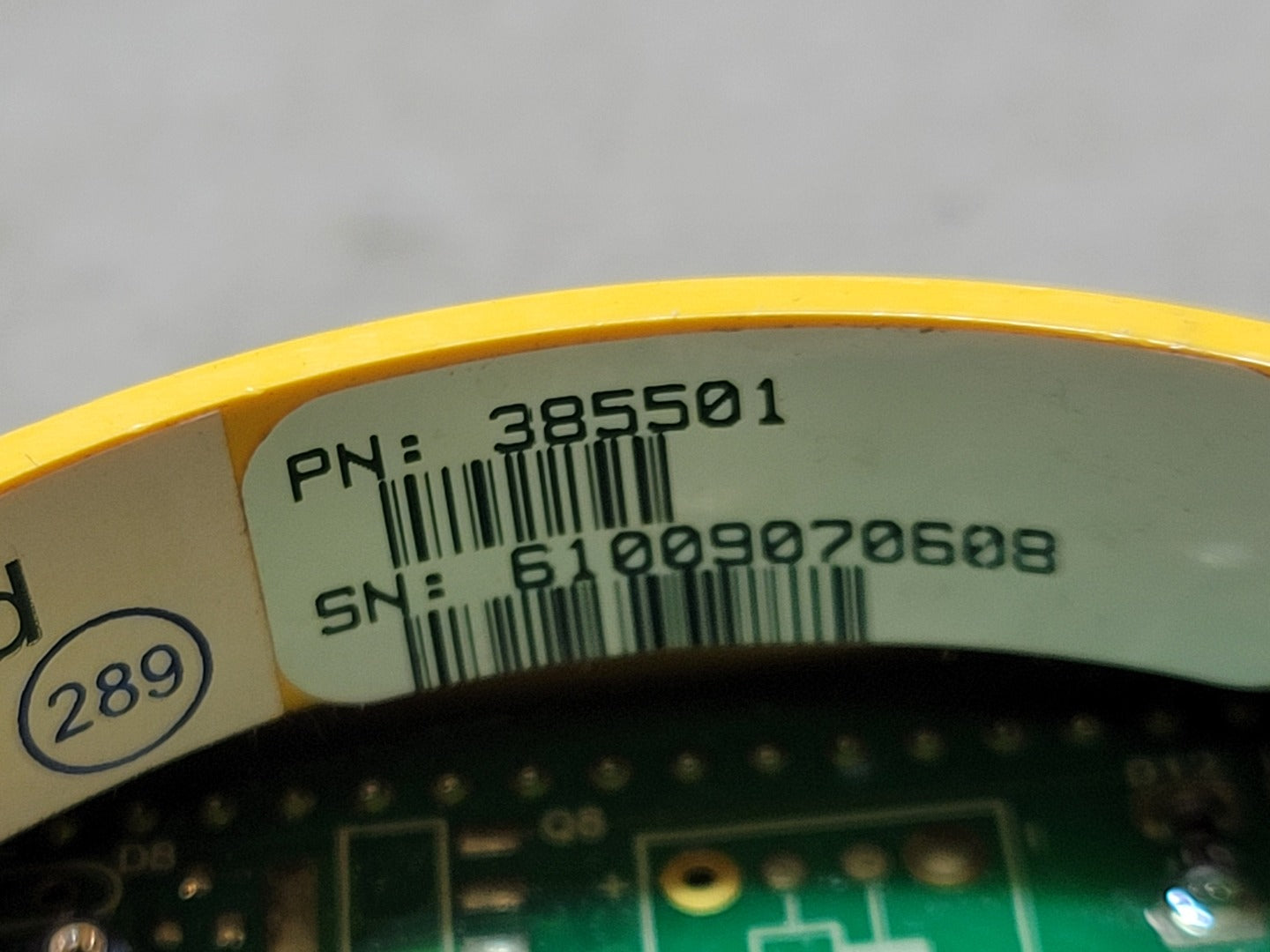

| Model | 385501 |
| Condition | Used |
| Other Specifications |
|---|
|

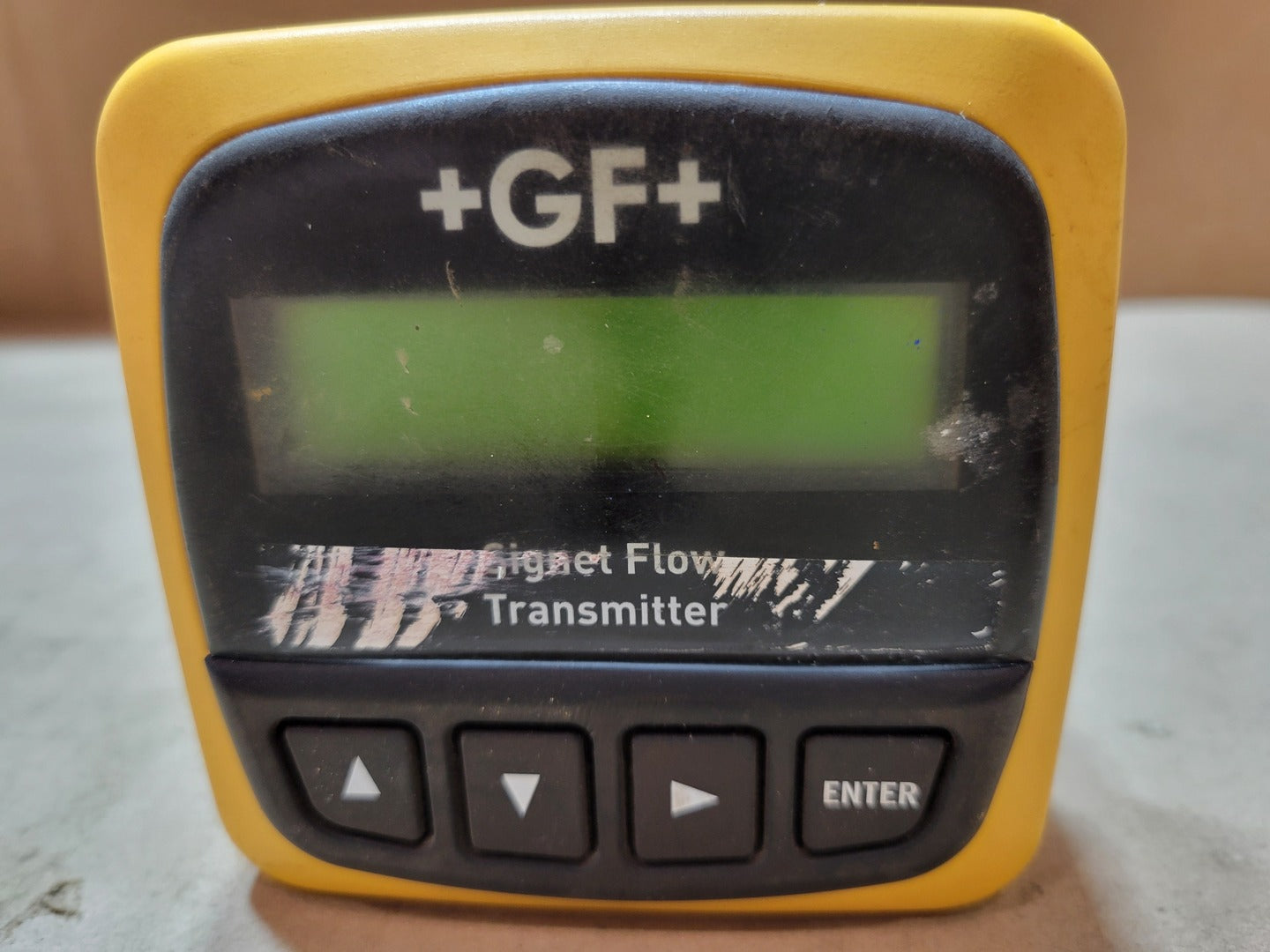

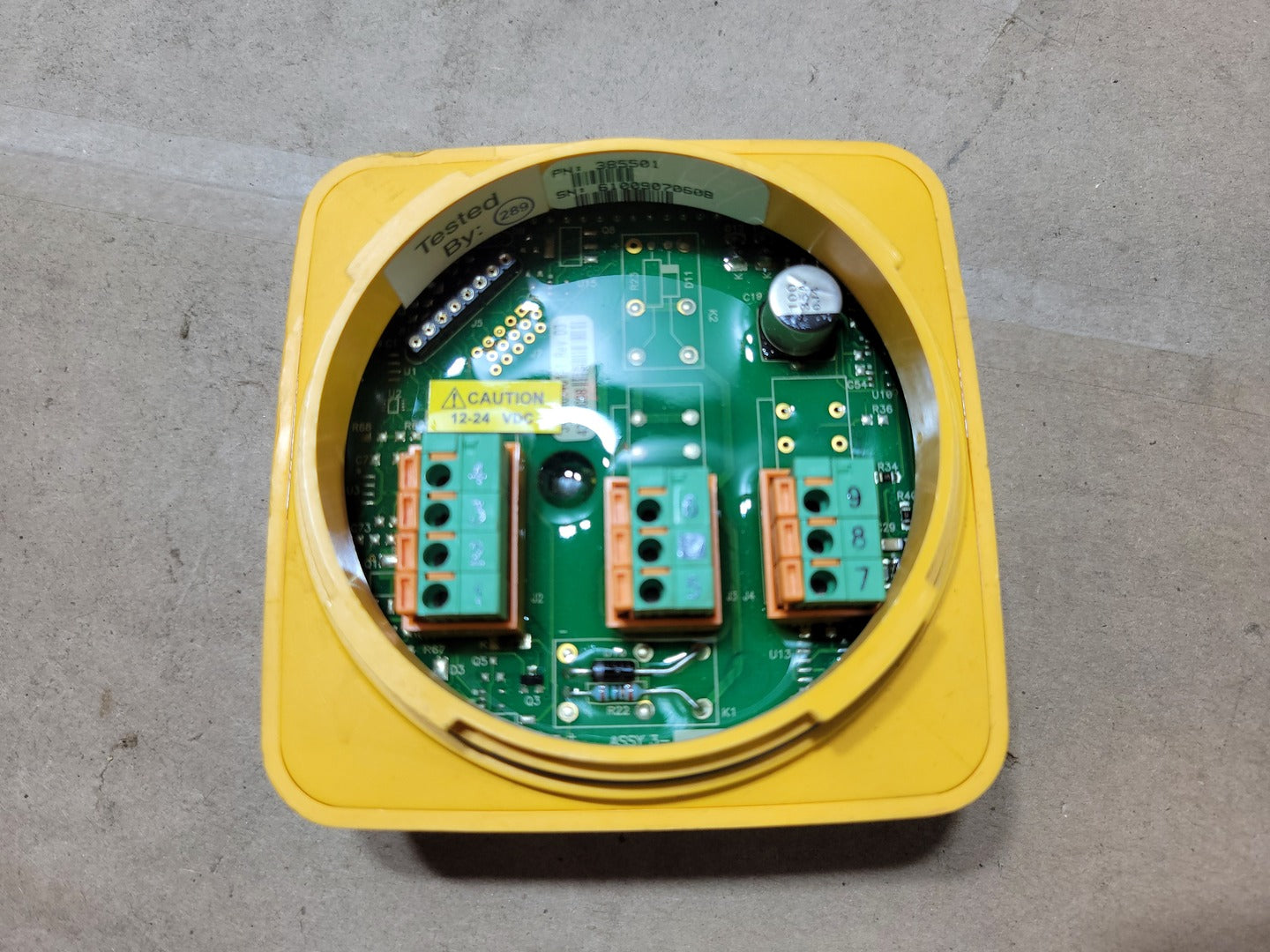

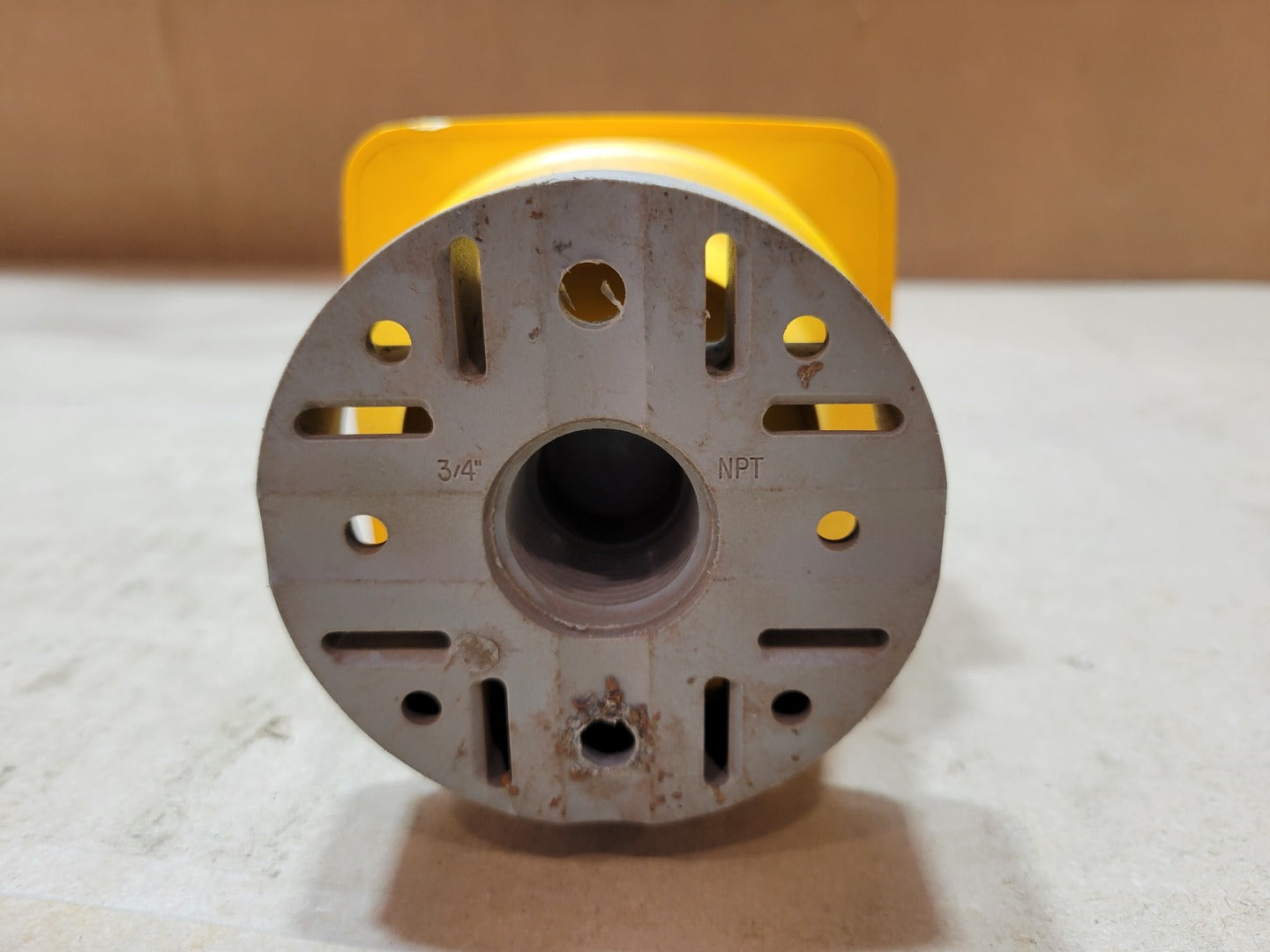

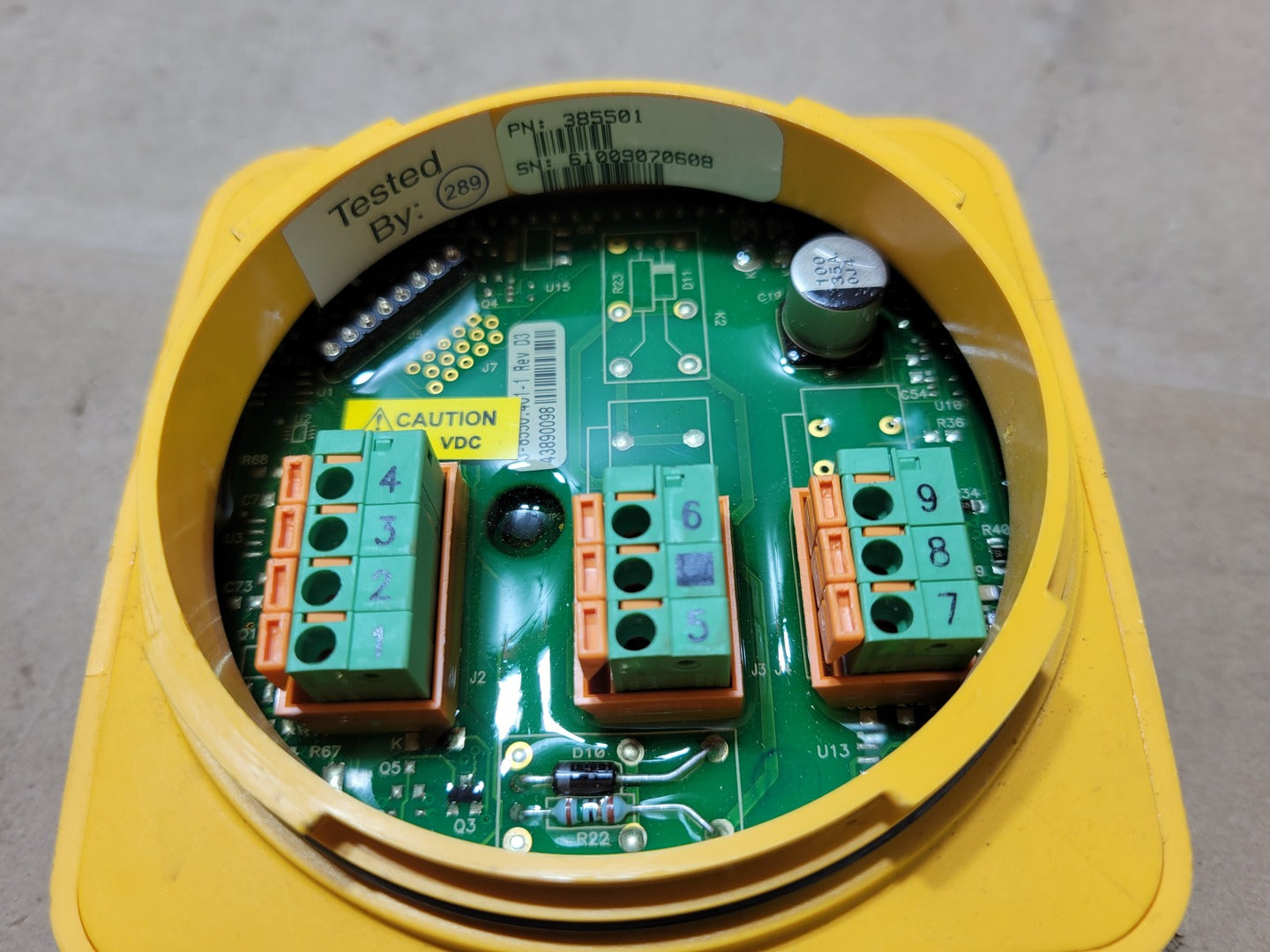

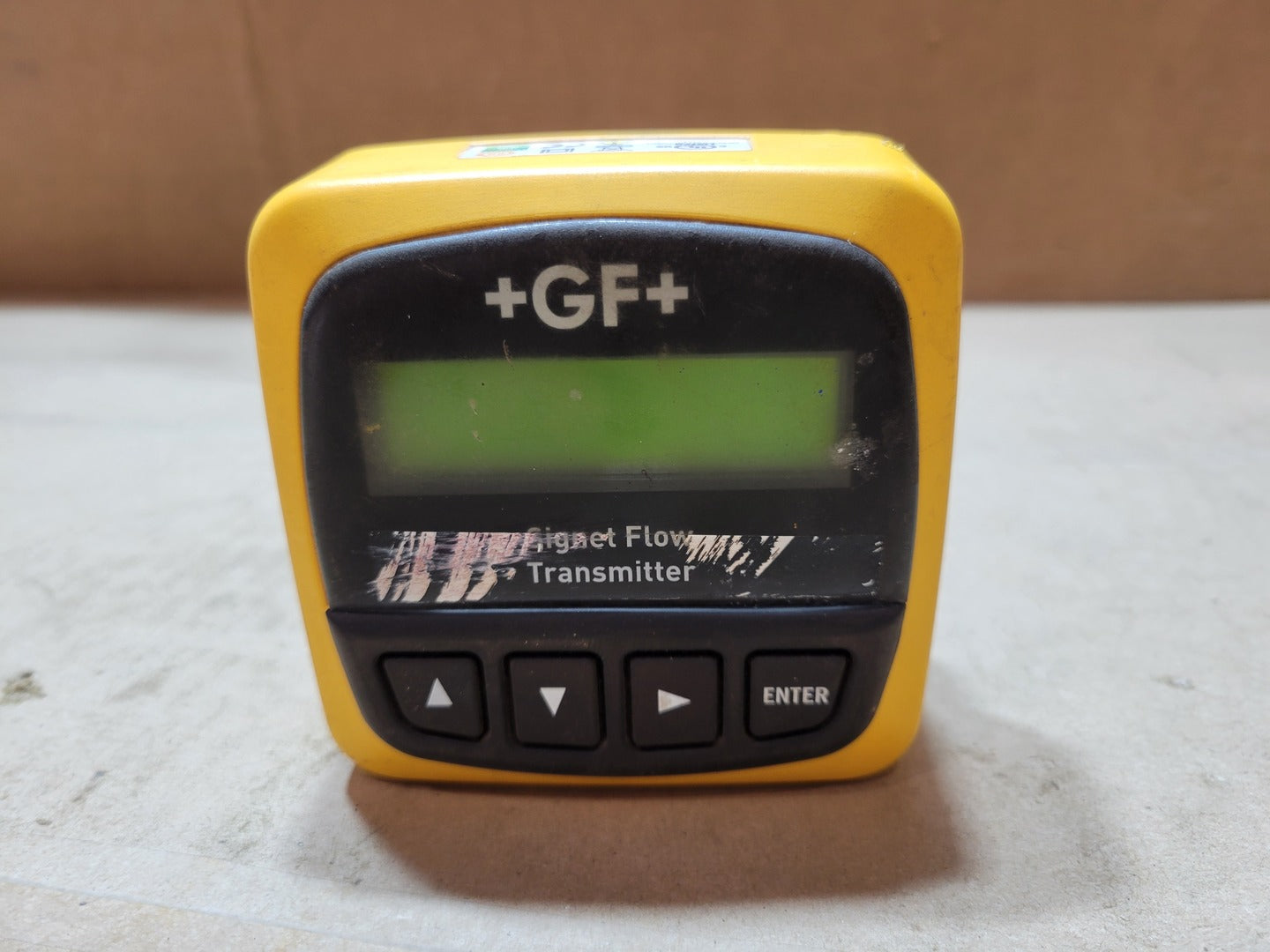

Series: 8550 ProcessPro Product Type: Digital Flow Transmitter Mounting Configuration: Field Mount Flow Sensor Inputs: 1 Compatible Sensors: GF Signet Frequency-Output Flow Sensors Sensor Input Frequency: 0.5-1500 Hz Output Signal: 4-20 mA, Isolated Output Configuration: Single Analog Current Output Additional Output: 1 Open-Collector Output Power Supply: 12-24 VDC +/-10%, Regulated Maximum Supply Current: 61 mA Display: 2 x 16 Character Alphanumeric LCD Display Update Rate: 1 Second User Interface: 4-Button Silicone Rubber Keypad Accuracy: +/-0.5% of Reading at 25°C Current Output Accuracy: +/-0.03 mA Current Output Update Rate: 100 ms Operating Temperature: -10°C to +70°C (14°F to 158°F) Storage Temperature: -15°C to +80°C (5°F to 176°F) Relative Humidity: 0-95%, Non-Condensing Enclosure Rating: NEMA 4X / IP65 Front Housing Material: PBT Display Window: Polyurethane-Coated Polycarbonate Mounting Connection: 3/4" NPT Electrical Connections: Removable Terminal Blocks |
