Description

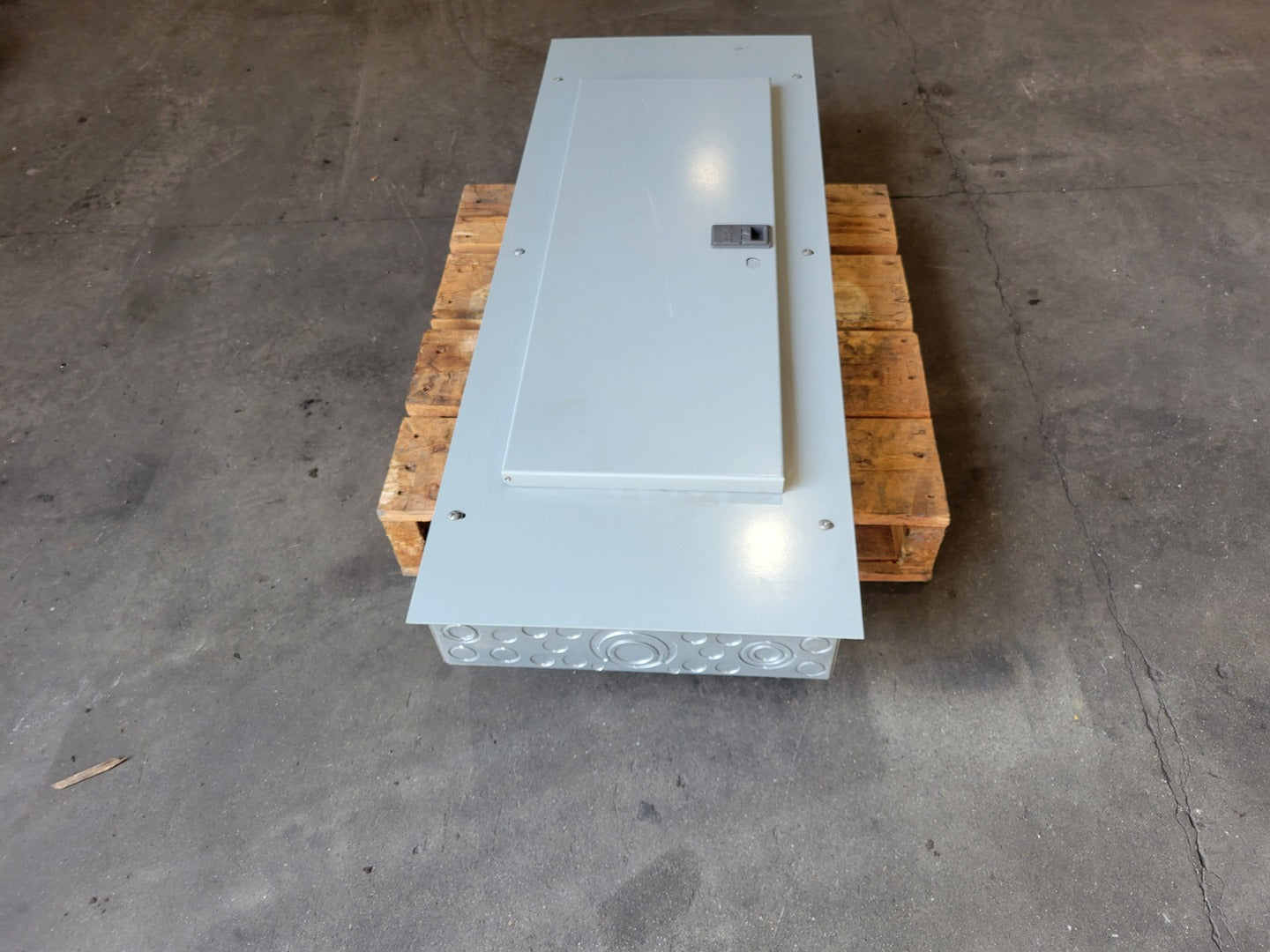

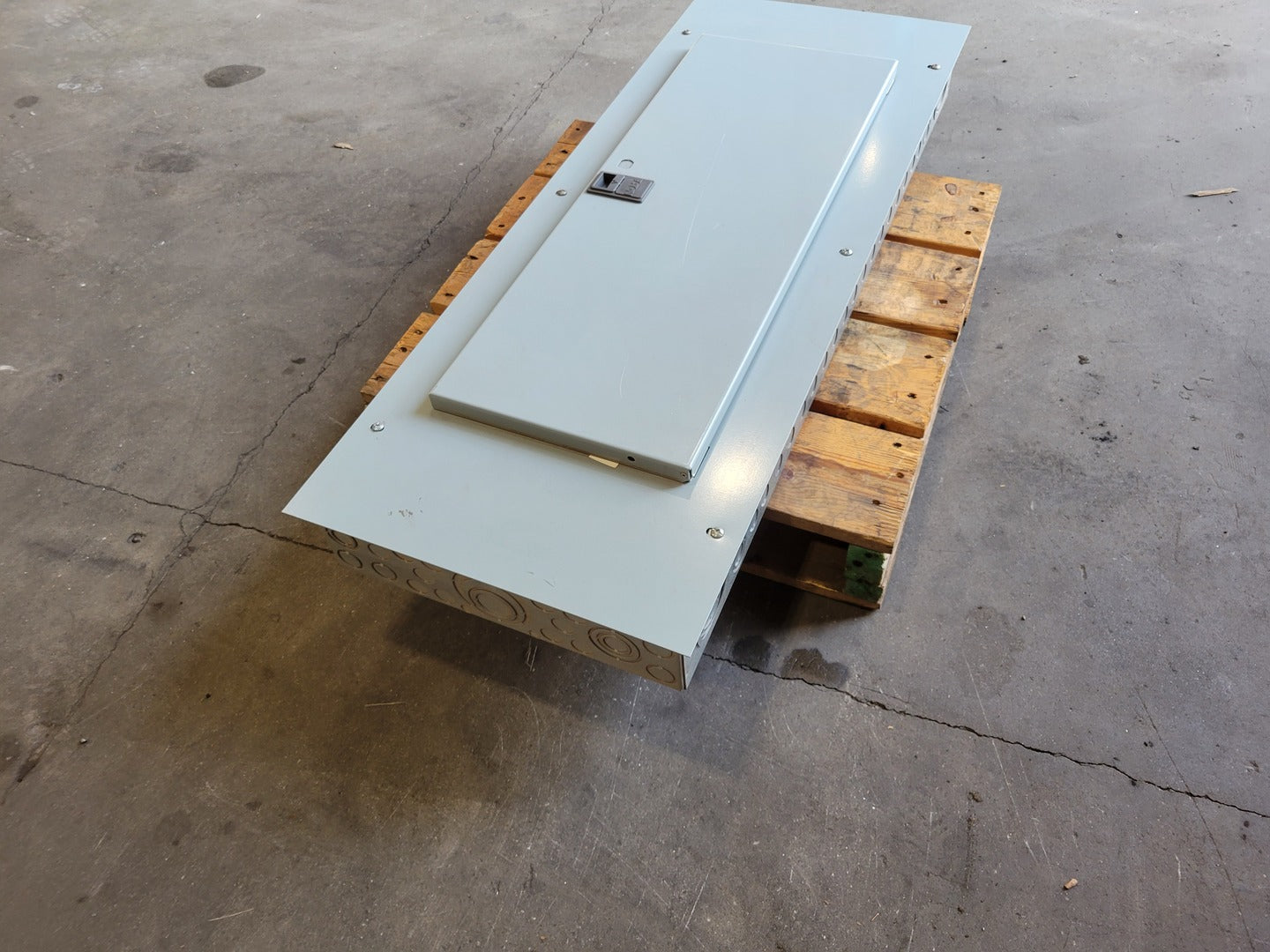

Eaton CBL Series 3CBL142 panelboard rated 125A maximum, 120/240 VAC, three-phase, four-wire plus ground. Features bolt-on breaker connections, main incoming lugs, neutral and ground bars, and a Type 1 enclosure with deadfront and hinged door. Supplied without circuit breakers.
| Specifications | |
|---|---|
| Model | 3CBL142 |
| Condition | Surplus New | General |
| Amps | 125 amps |
| Voltage | 120/240 volts |
| # of Circuits | 42 |
| Enclosure Type | Nema 1 |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Catalog number: 3CBL142 Series: CBL Equipment type: Bolt-on loadcentre / panelboard Maximum current rating: 125A Voltage: 120/240 VAC Phase: Three-phase Wire configuration: Four-wire plus ground Breaker spaces: 42 standard spaces Branch breaker mounting: Bolt-on Main breaker included: No Branch breakers included: No Enclosure: Type 1 Cover: Gray metal trim with hinged door Neutral bars: Present Ground bars: Present |
