Description
| Year: | 2002 |
| Condition | Used | Electrical |
|---|---|
| Amps | 2000 amps |
| Phase | 3-phase |
| Other Specifications |
|---|
|

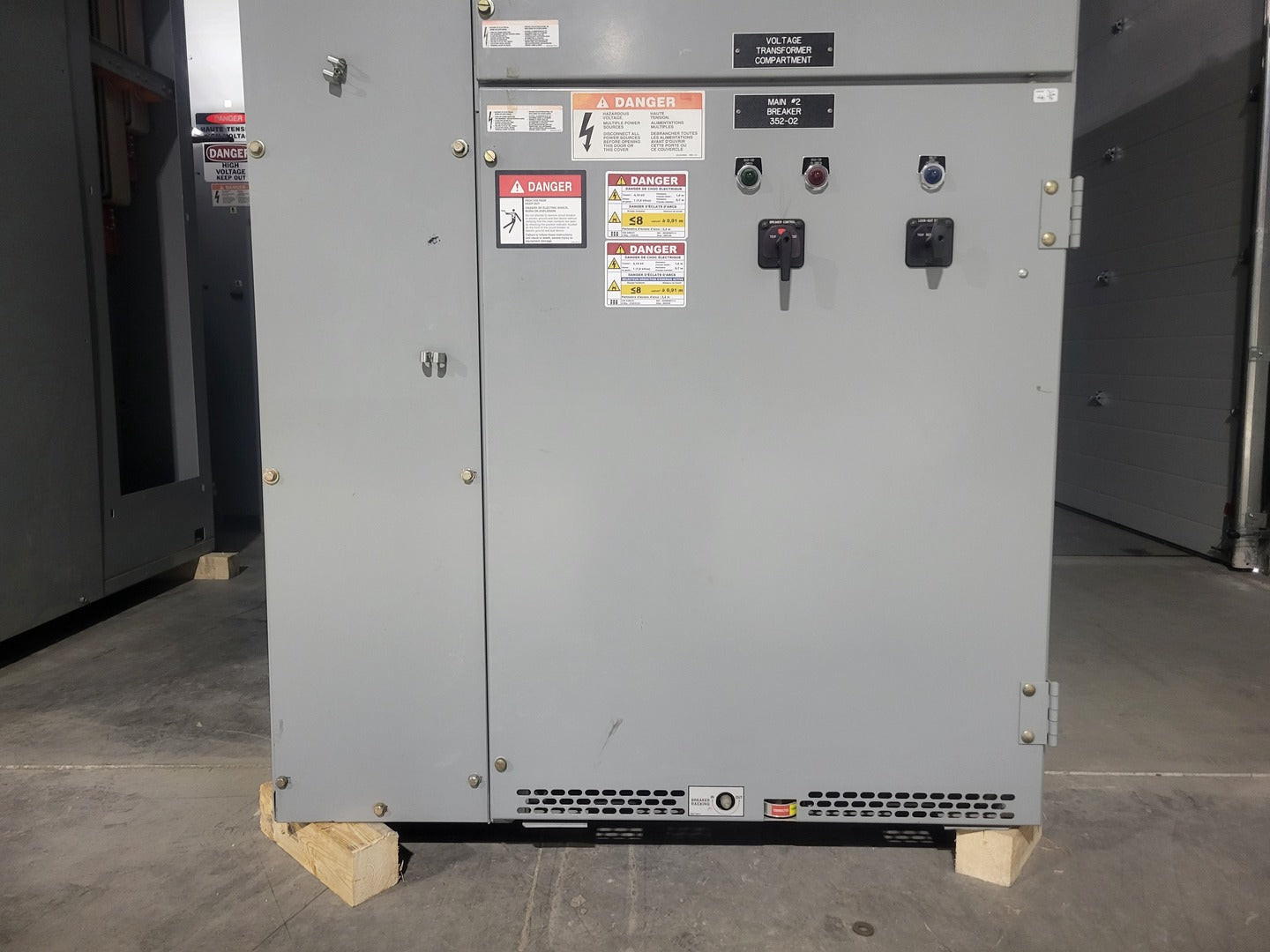

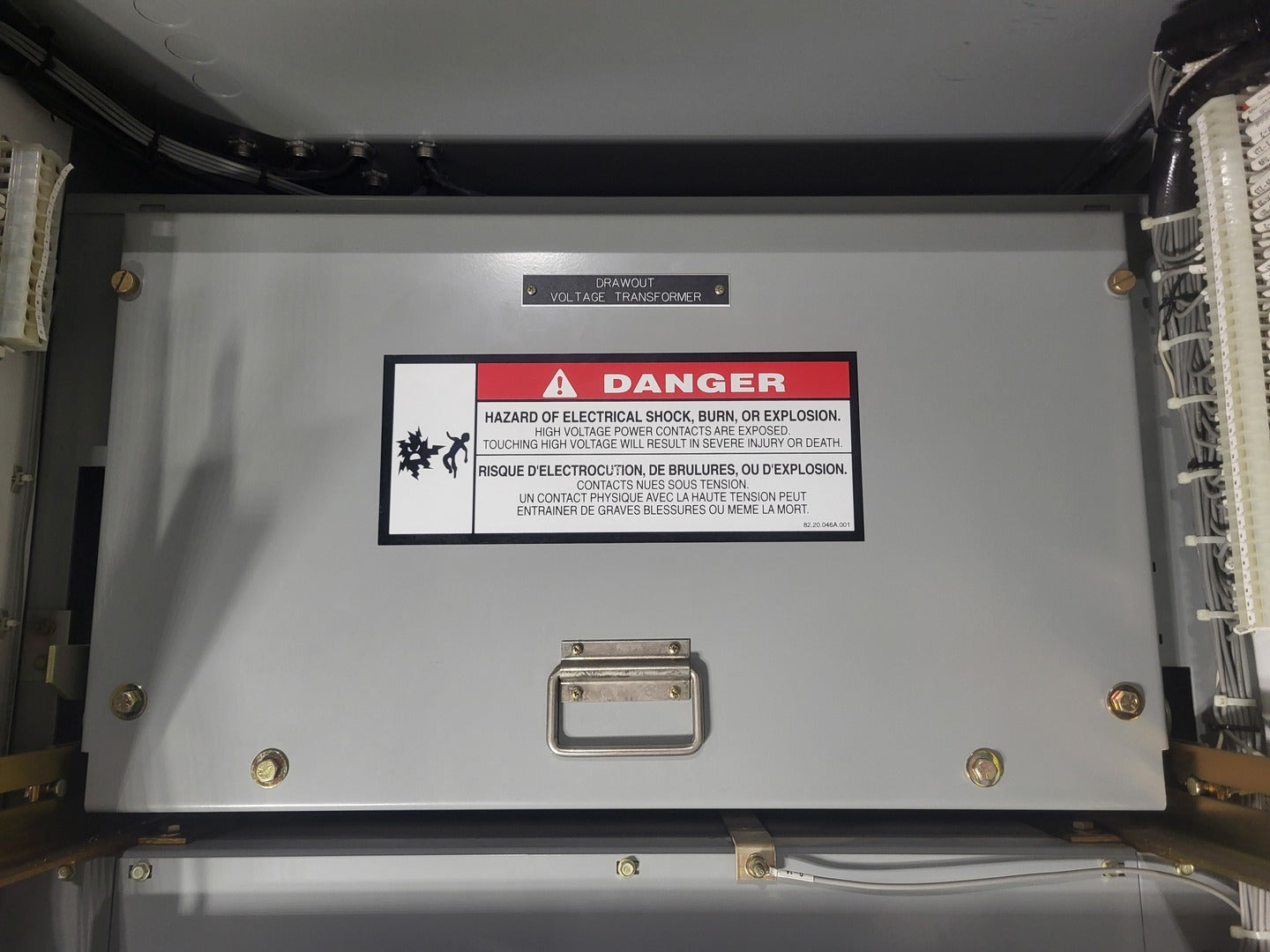

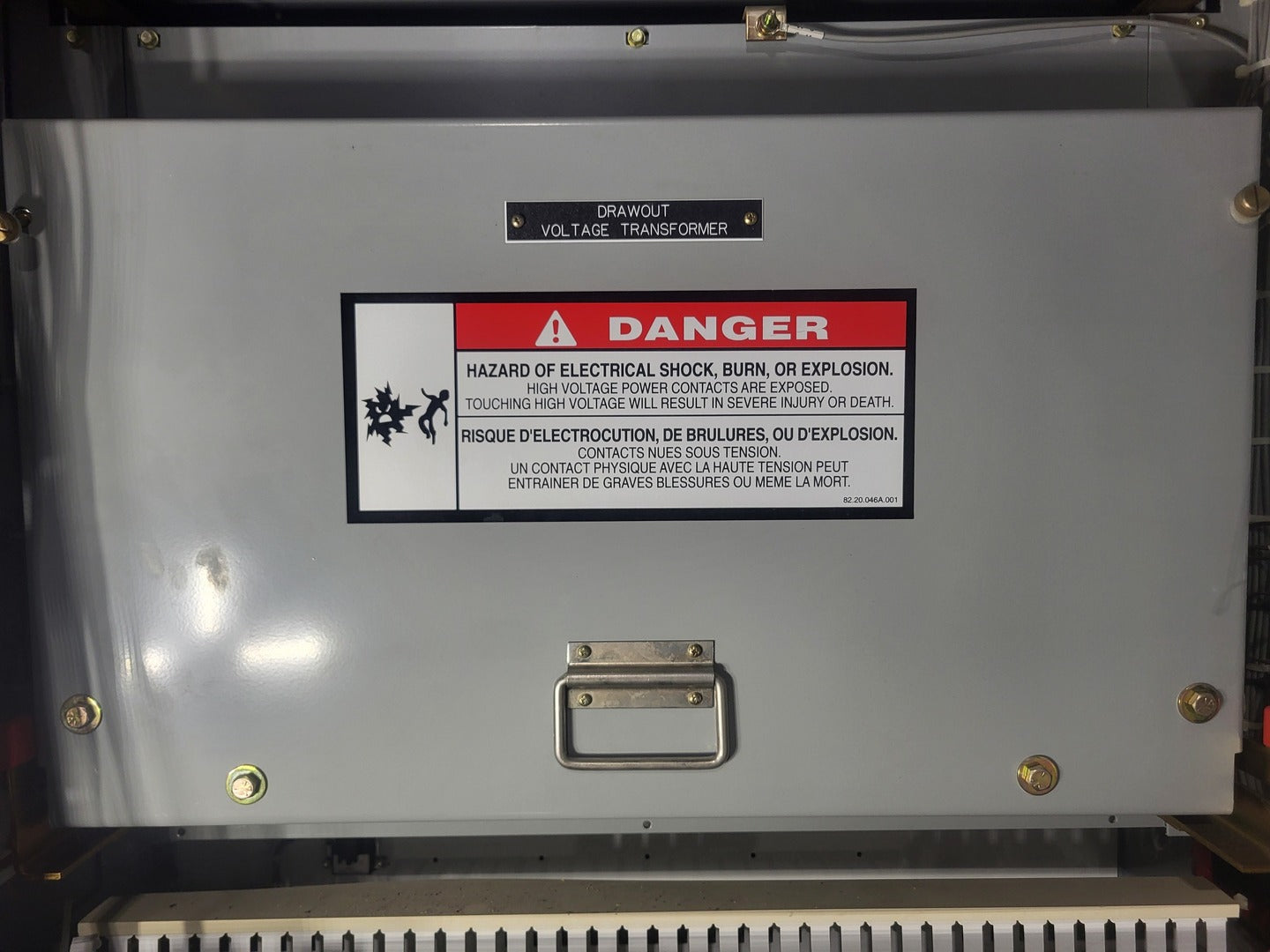

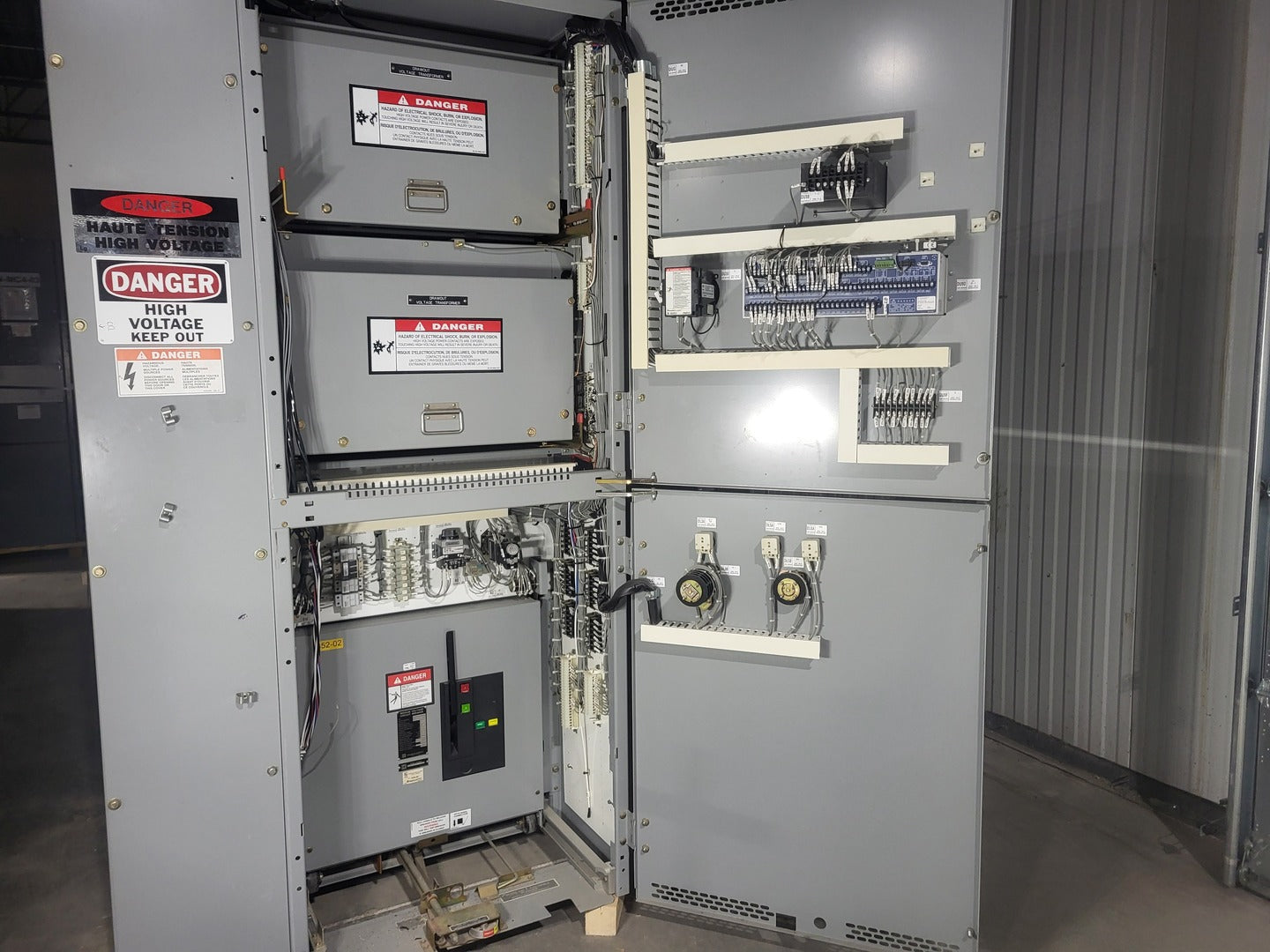

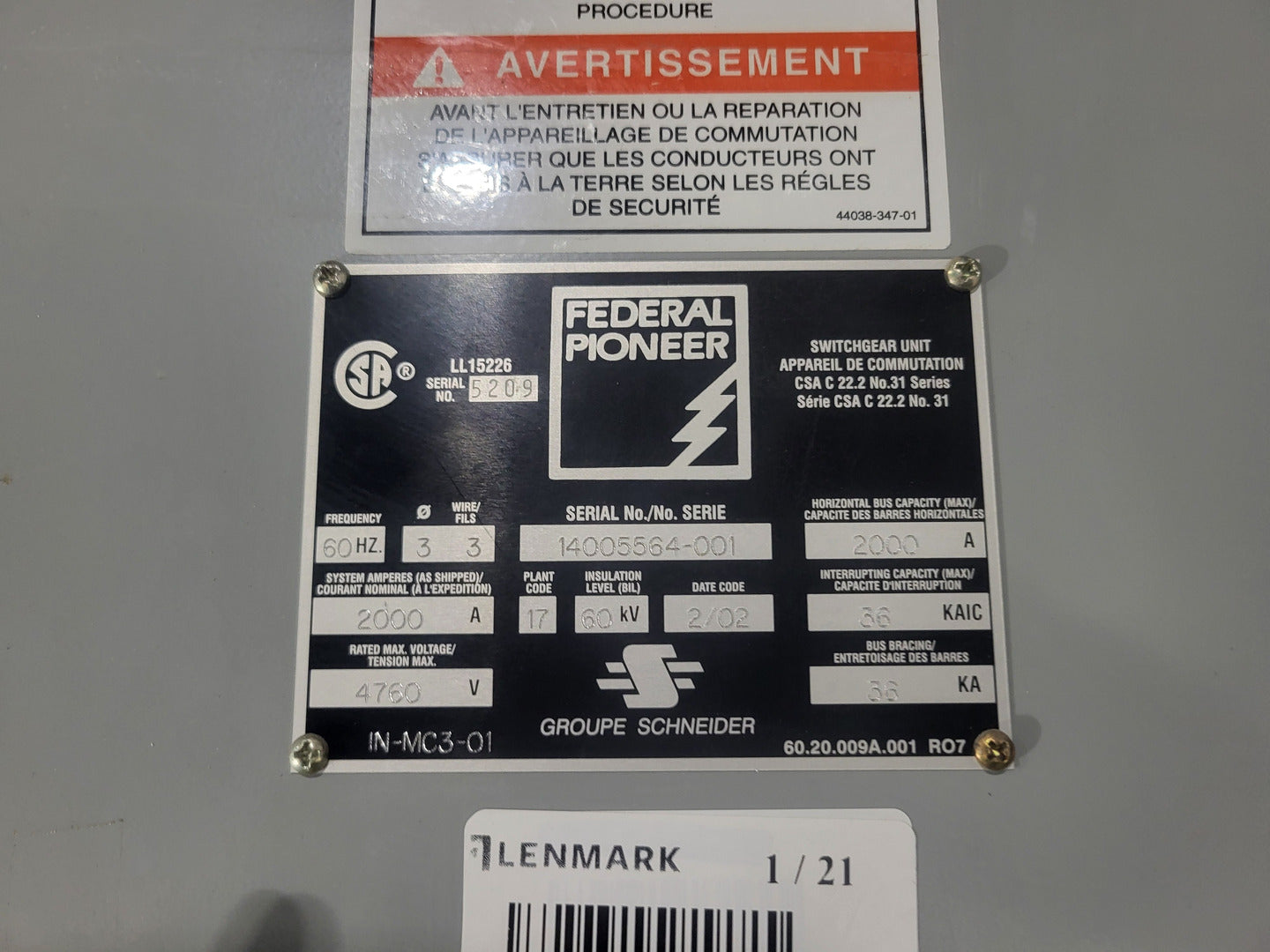

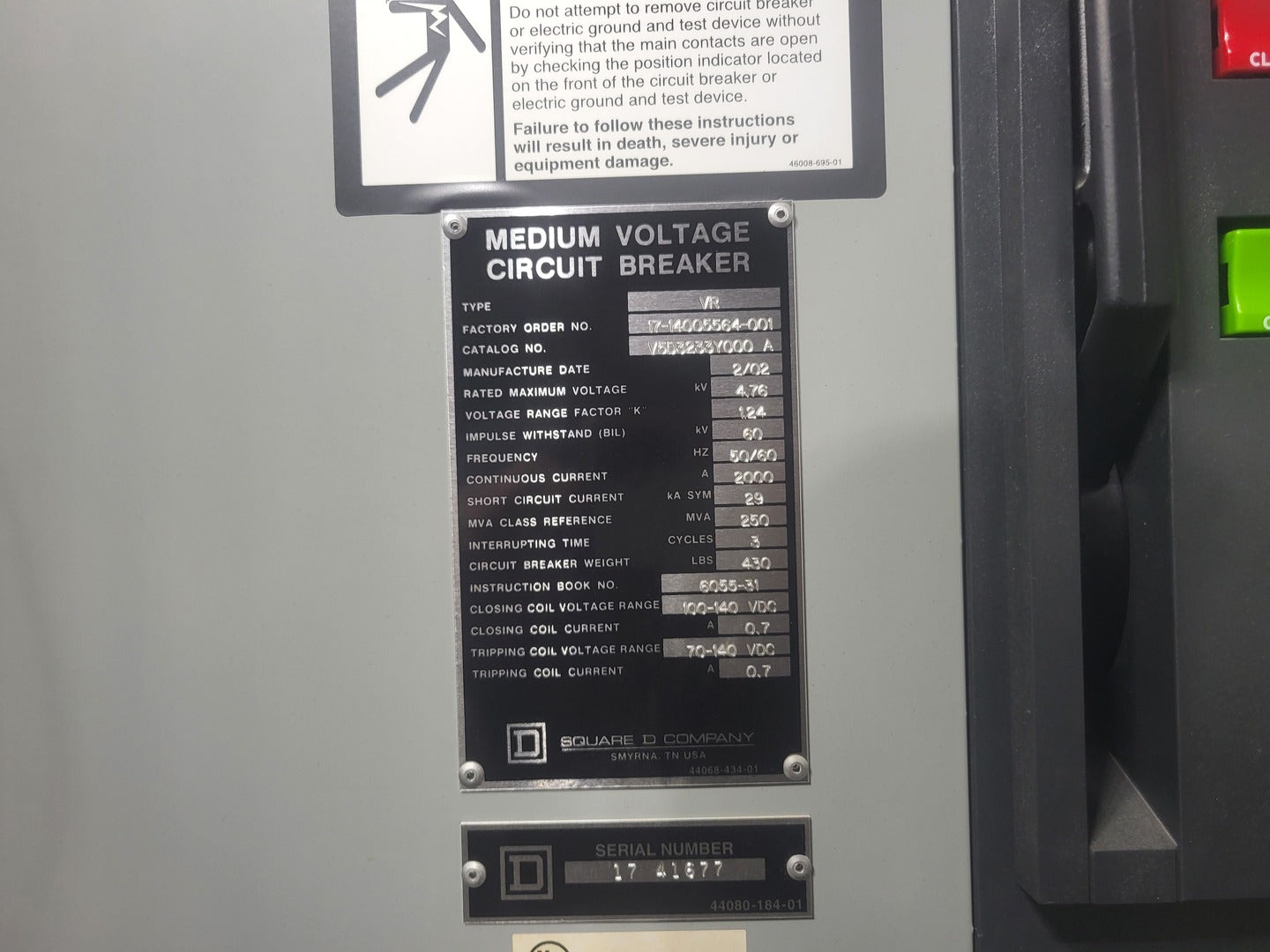

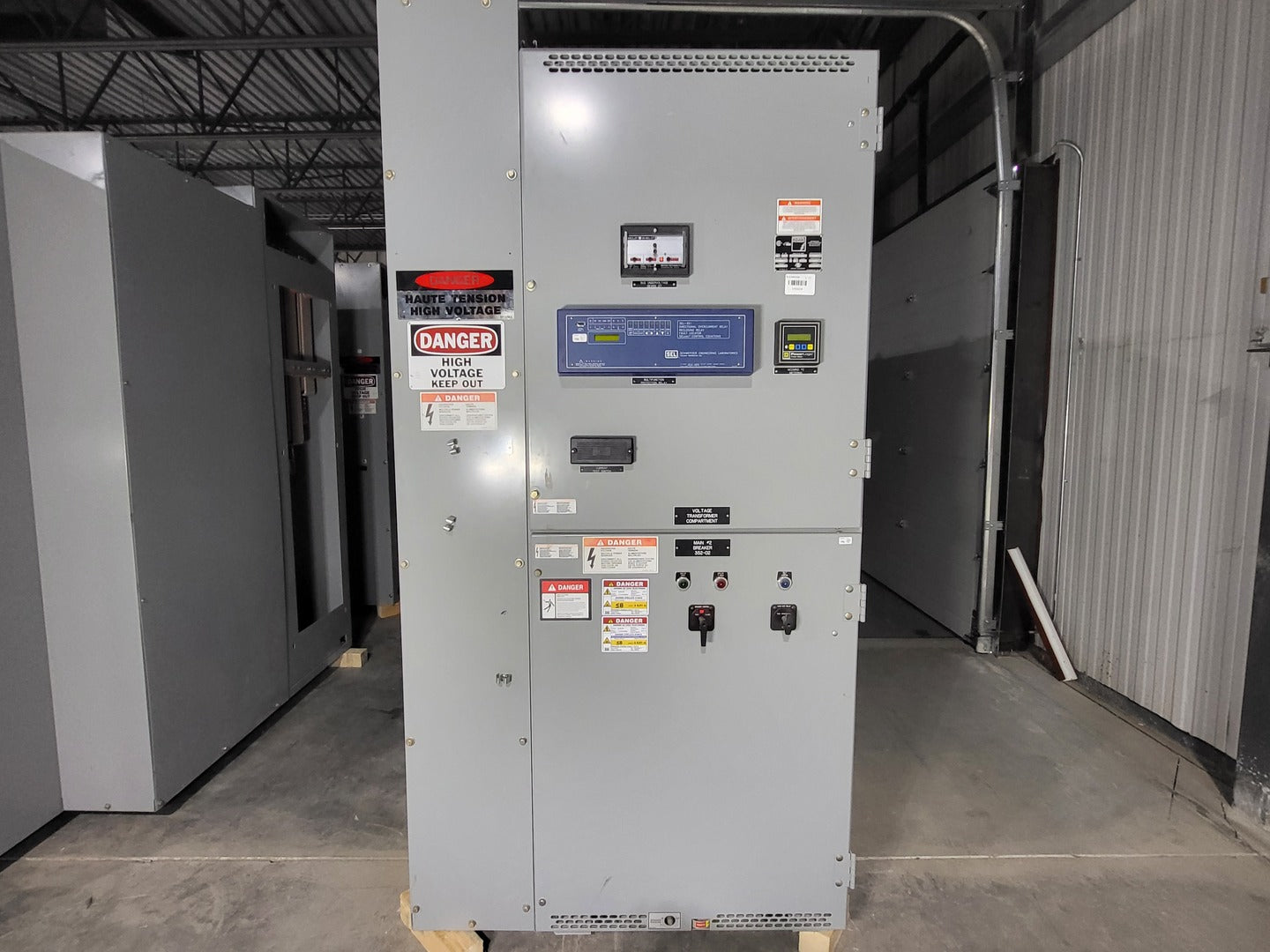

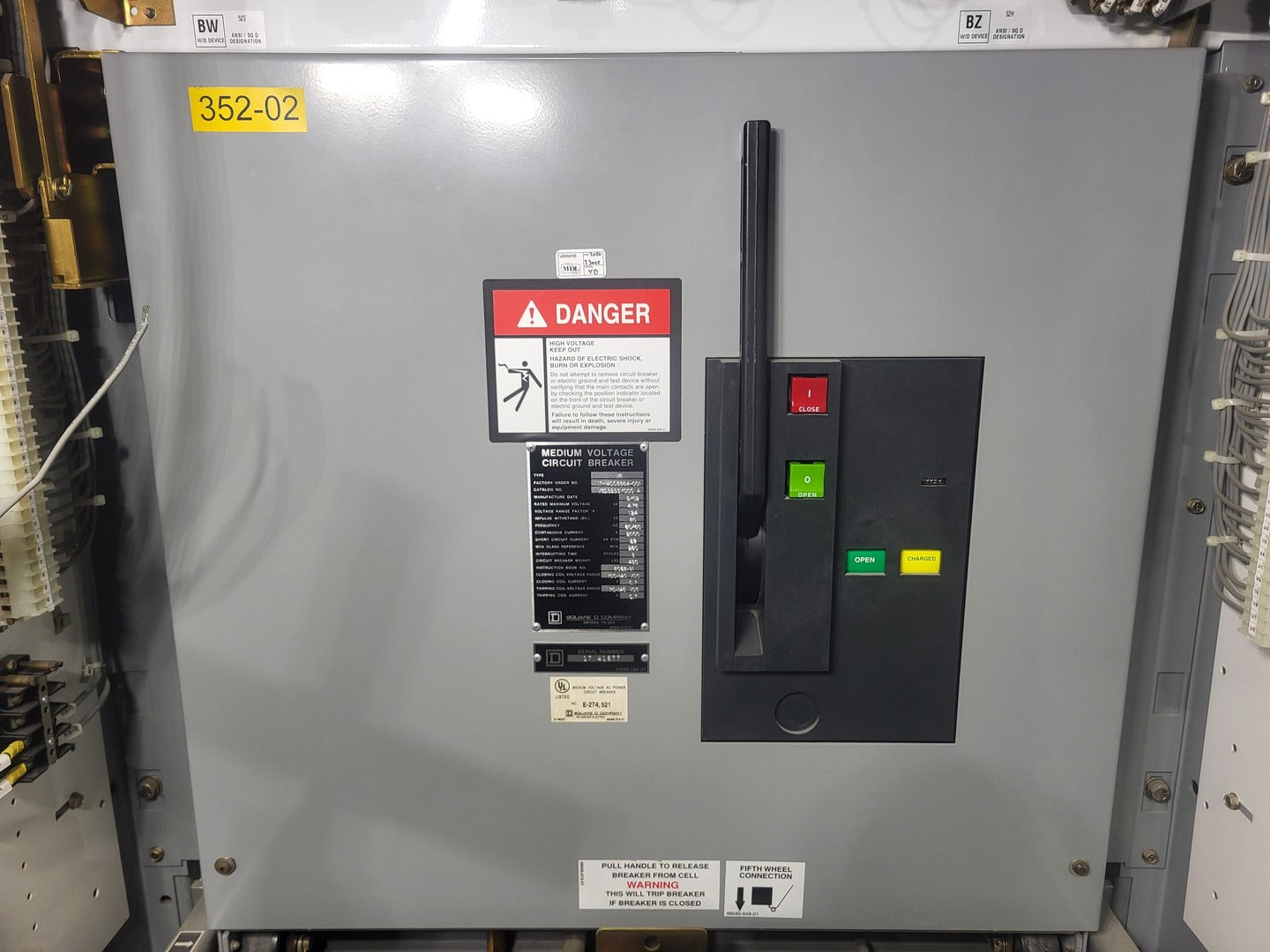

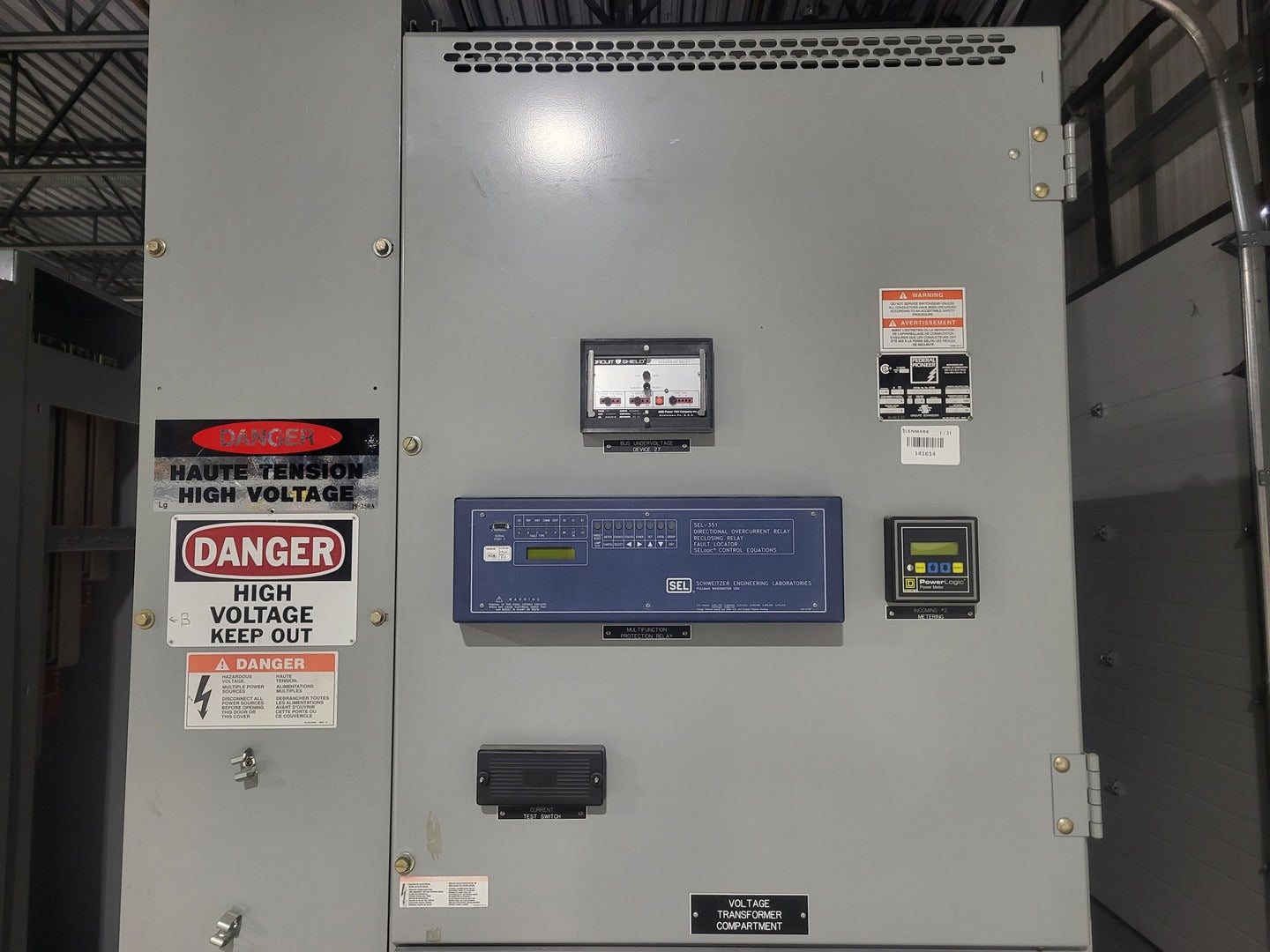

General Manufacturer: Federal Pioneer (Groupe Schneider) Equipment Type: Medium Voltage Metal-Clad Switchgear Installation Type: Indoor Phase: 3 Phase Frequency: 60 Hz Year: 2002 Electrical Ratings Rated Maximum Voltage: 4,760 V (4.16 kV Class) Continuous Bus Rating: 2000 A Interrupting Capacity: 36 kAIC Bus Bracing: 36 kA Insulation Level (BIL): 60 kV System Amps (Nominal): 2000 A Circuit Breaker Manufacturer: Square D / Schneider Type: Vacuum Drawout Circuit Breaker Rated Voltage: 4.76 kV Continuous Current: 2000 A Short Circuit Current: 29 kA Symmetrical MVA Class: 250 MVA Closing Coil Voltage: 100-140 VDC Tripping Coil Voltage: 70-140 VDC Protection & Controls Protection Relay: SEL (Schweitzer Engineering Laboratories) Metering: Schneider PowerLogic Voltage Transformer: Drawout Type Compartment Certifications Standard: CSA C22.2 No.31 Serial Number: 14005564-001 |
