Description

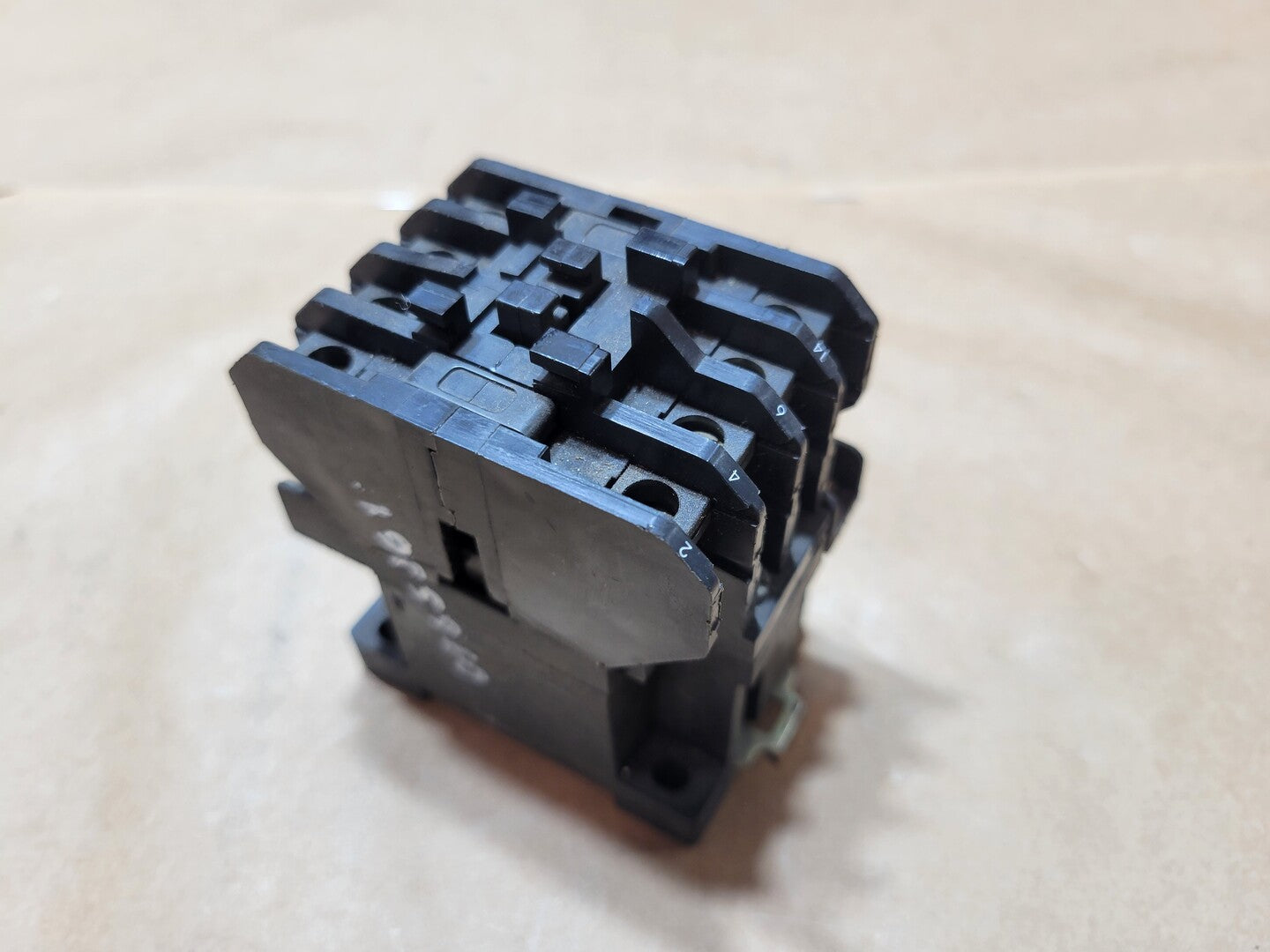

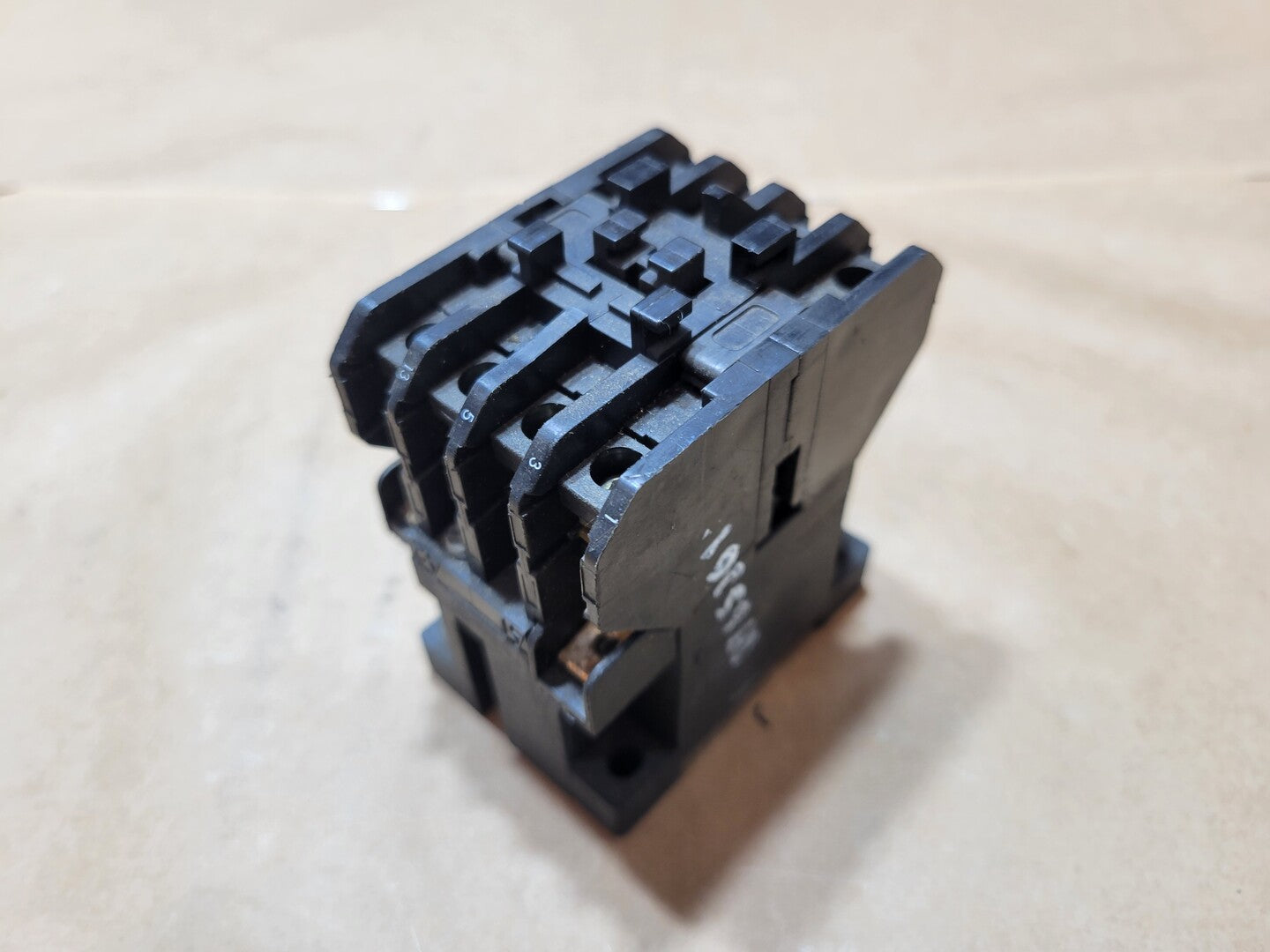

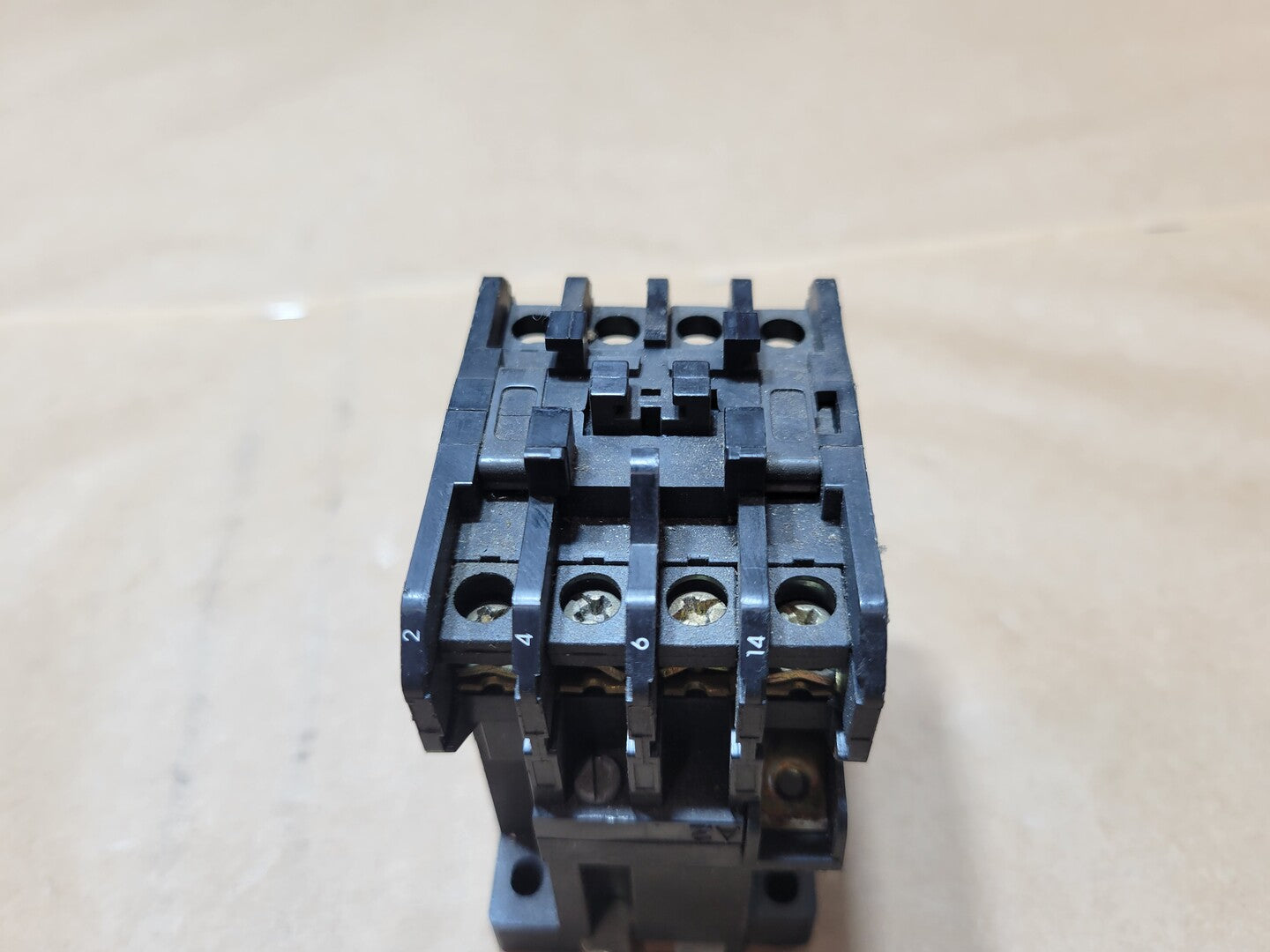

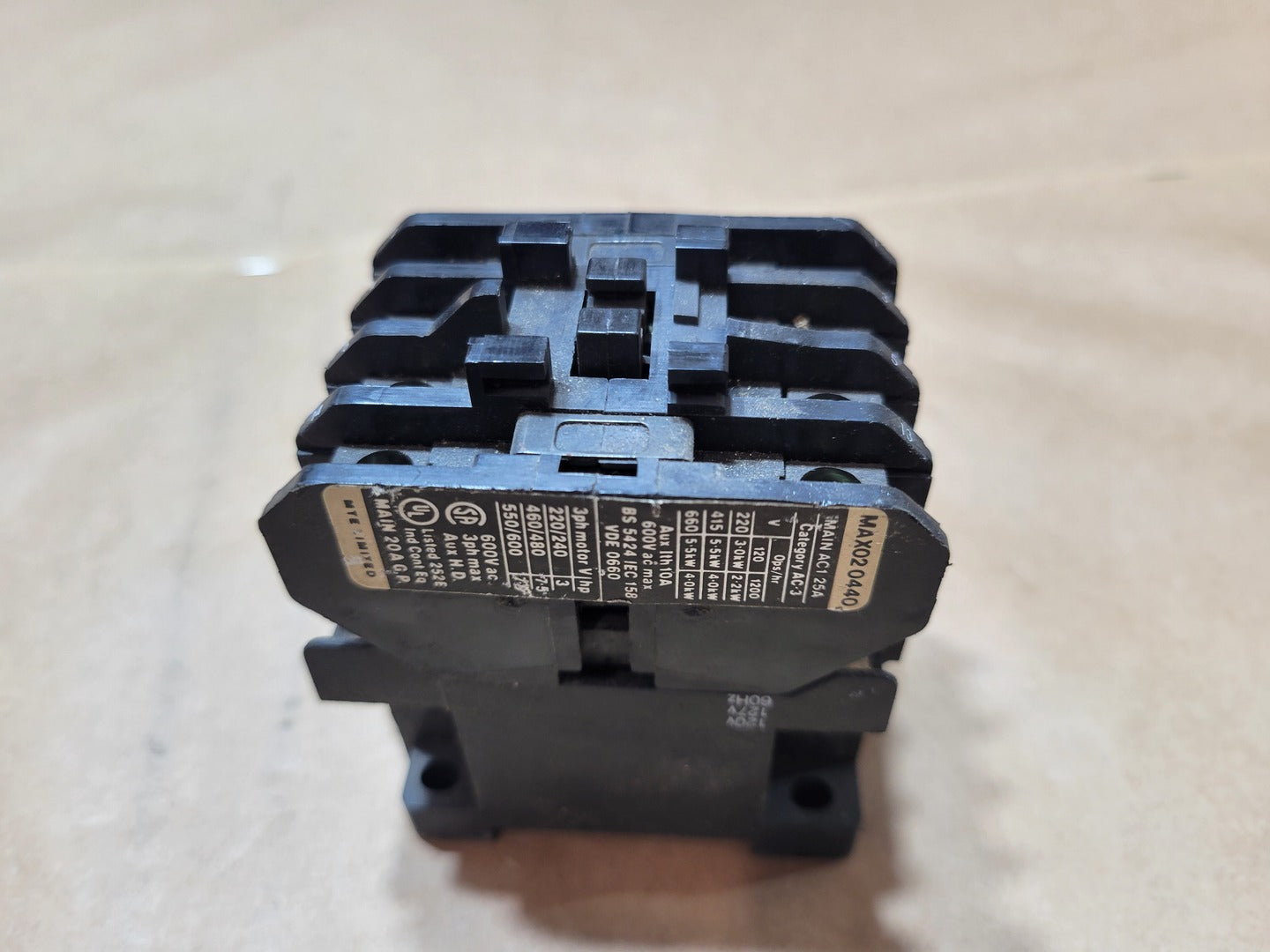

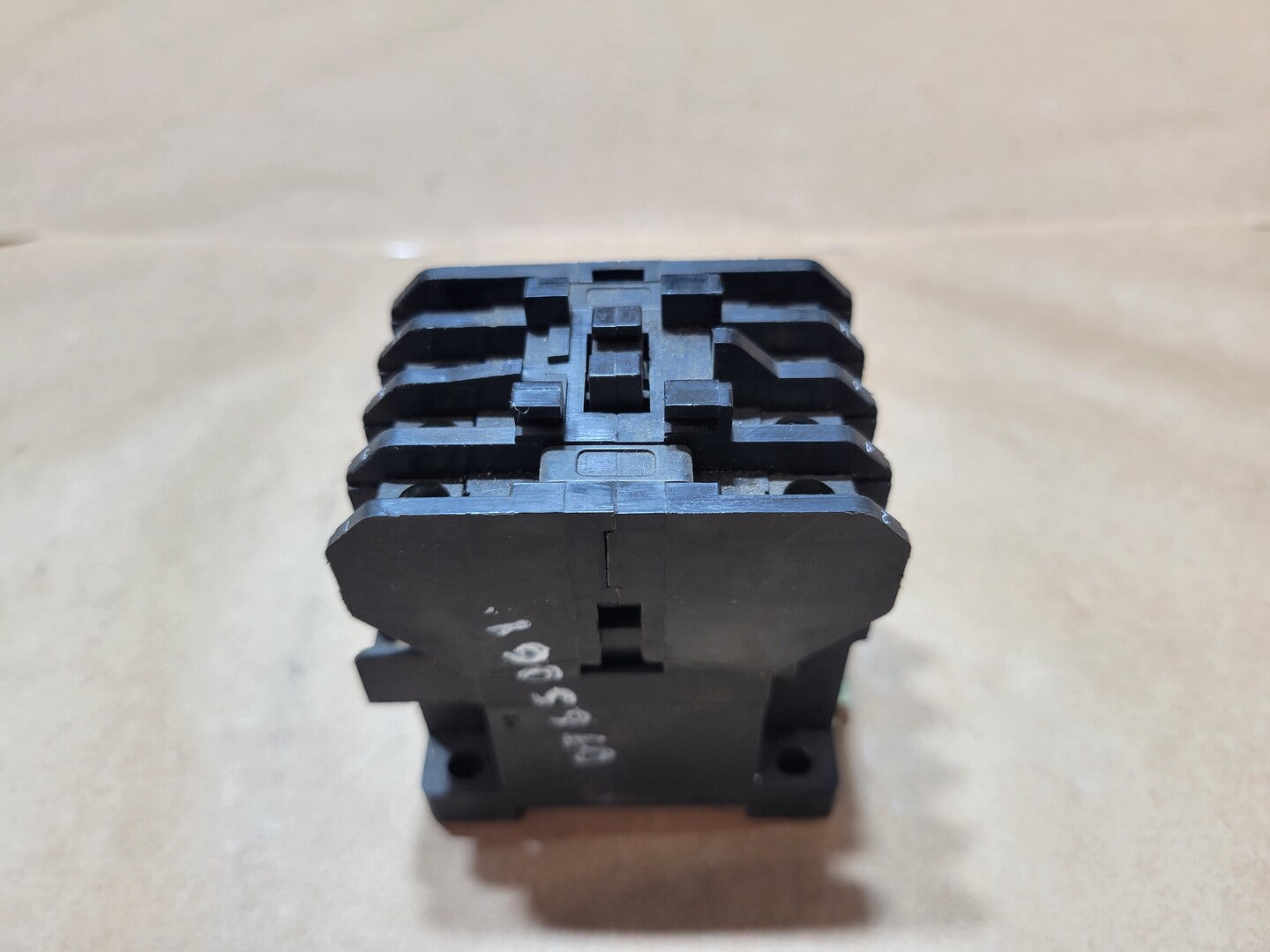

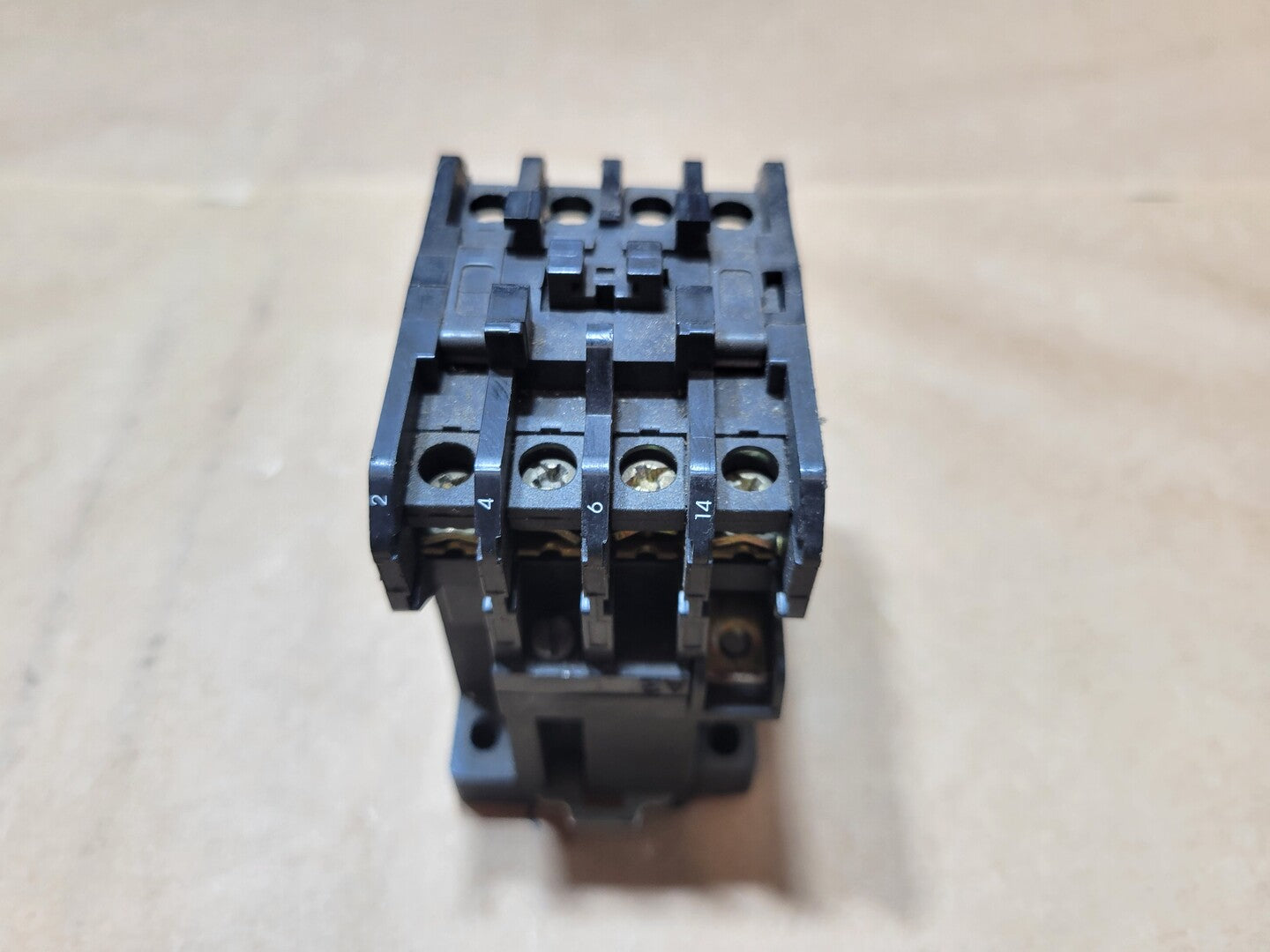

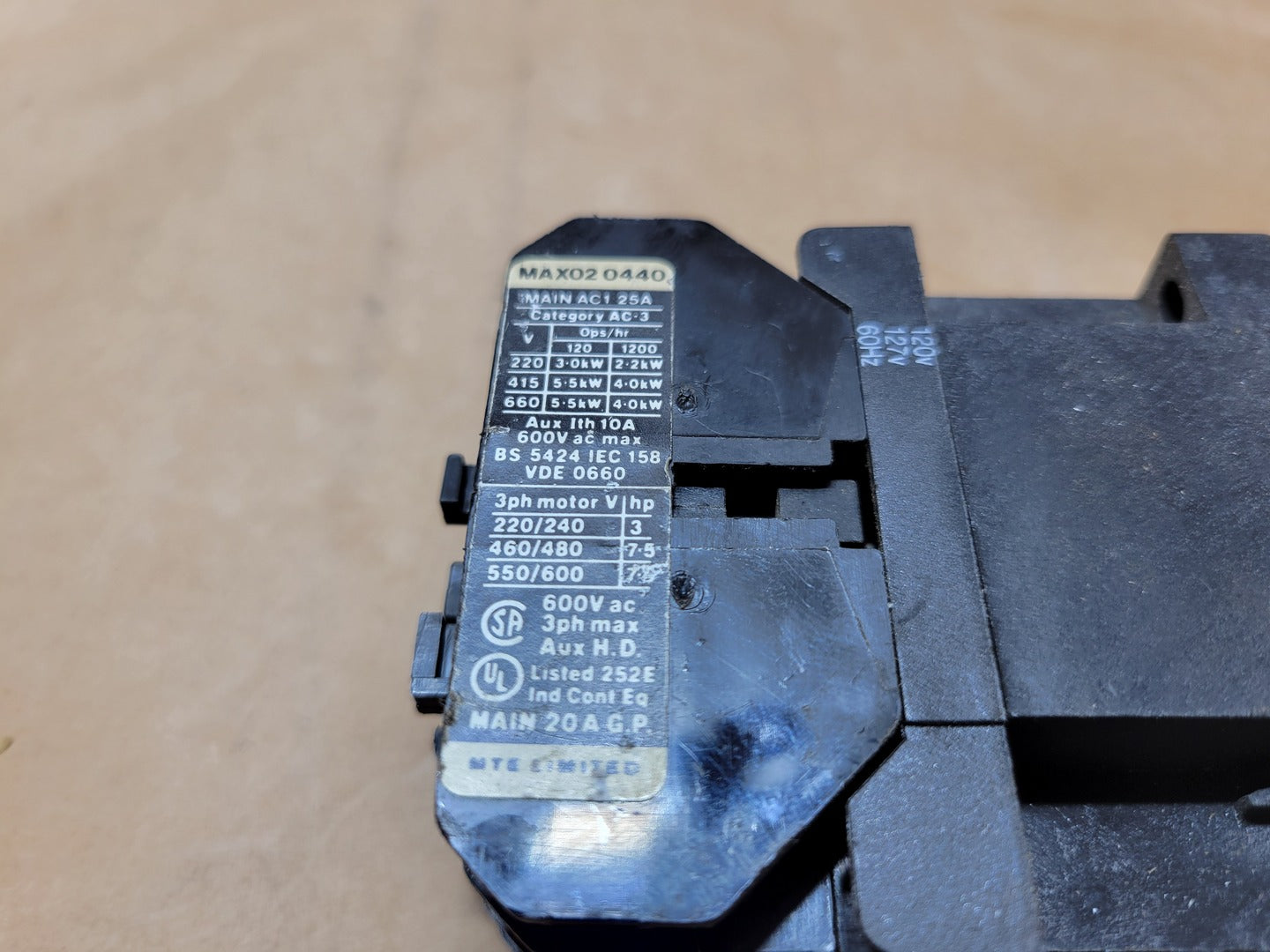

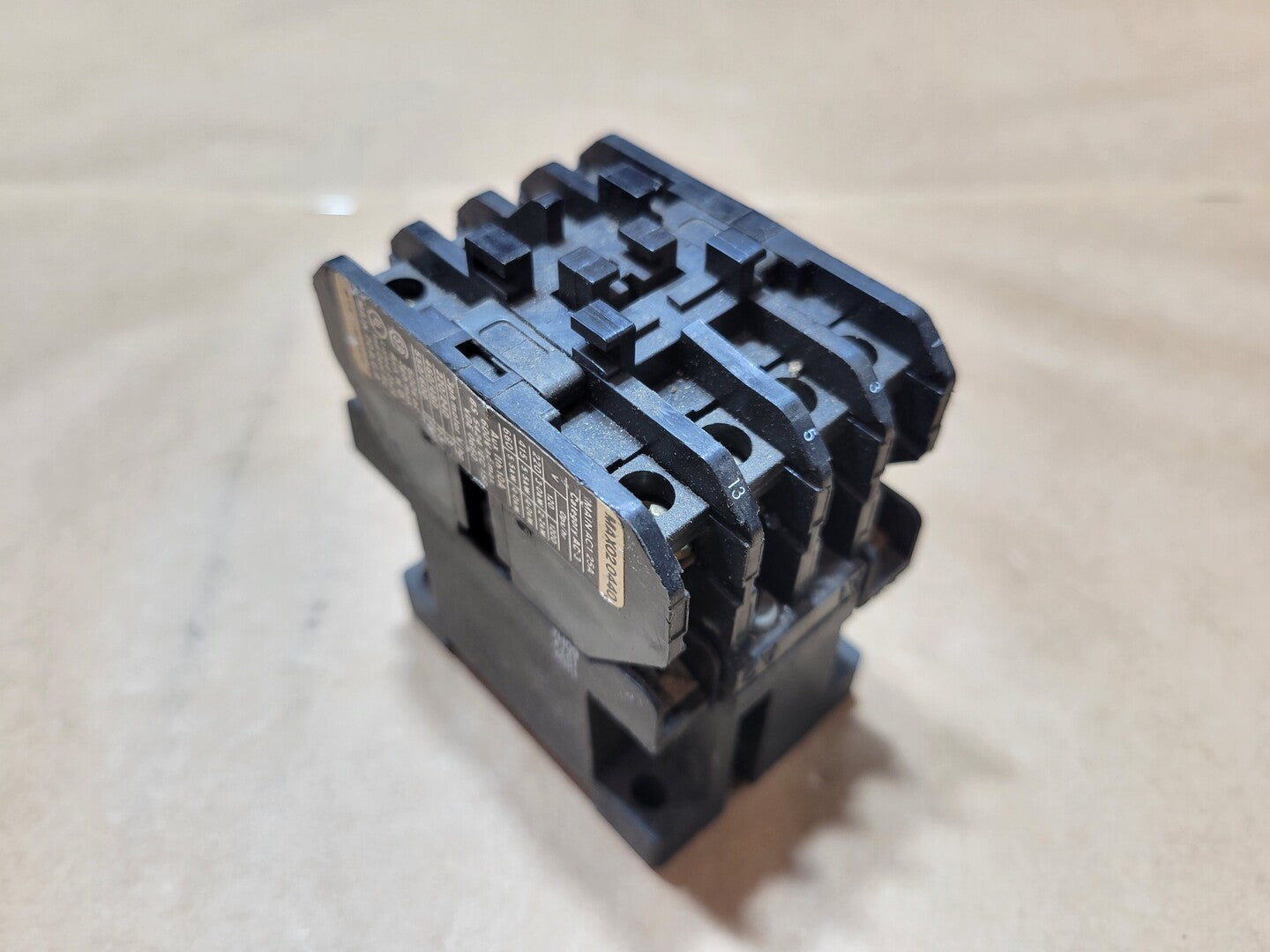

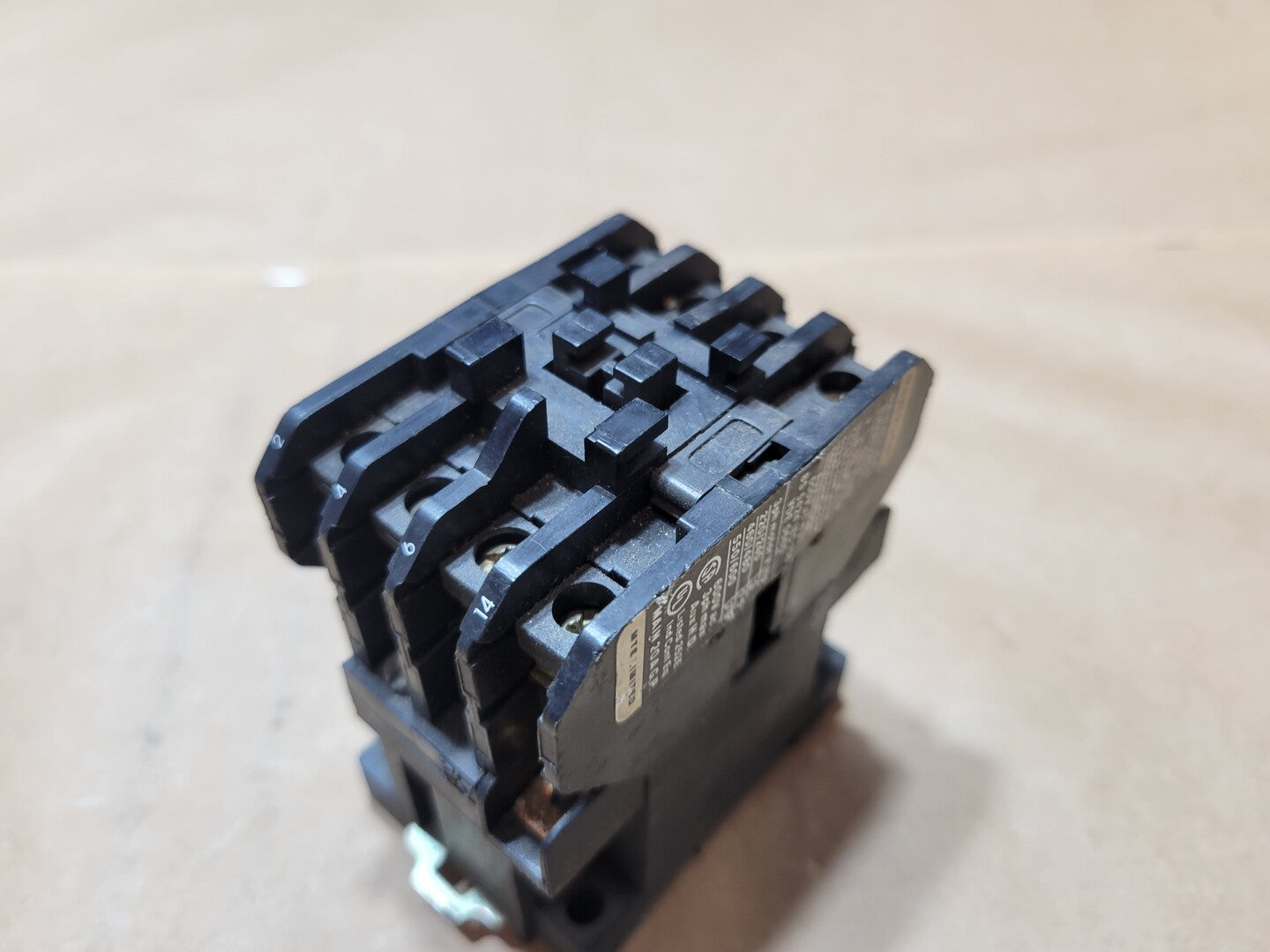

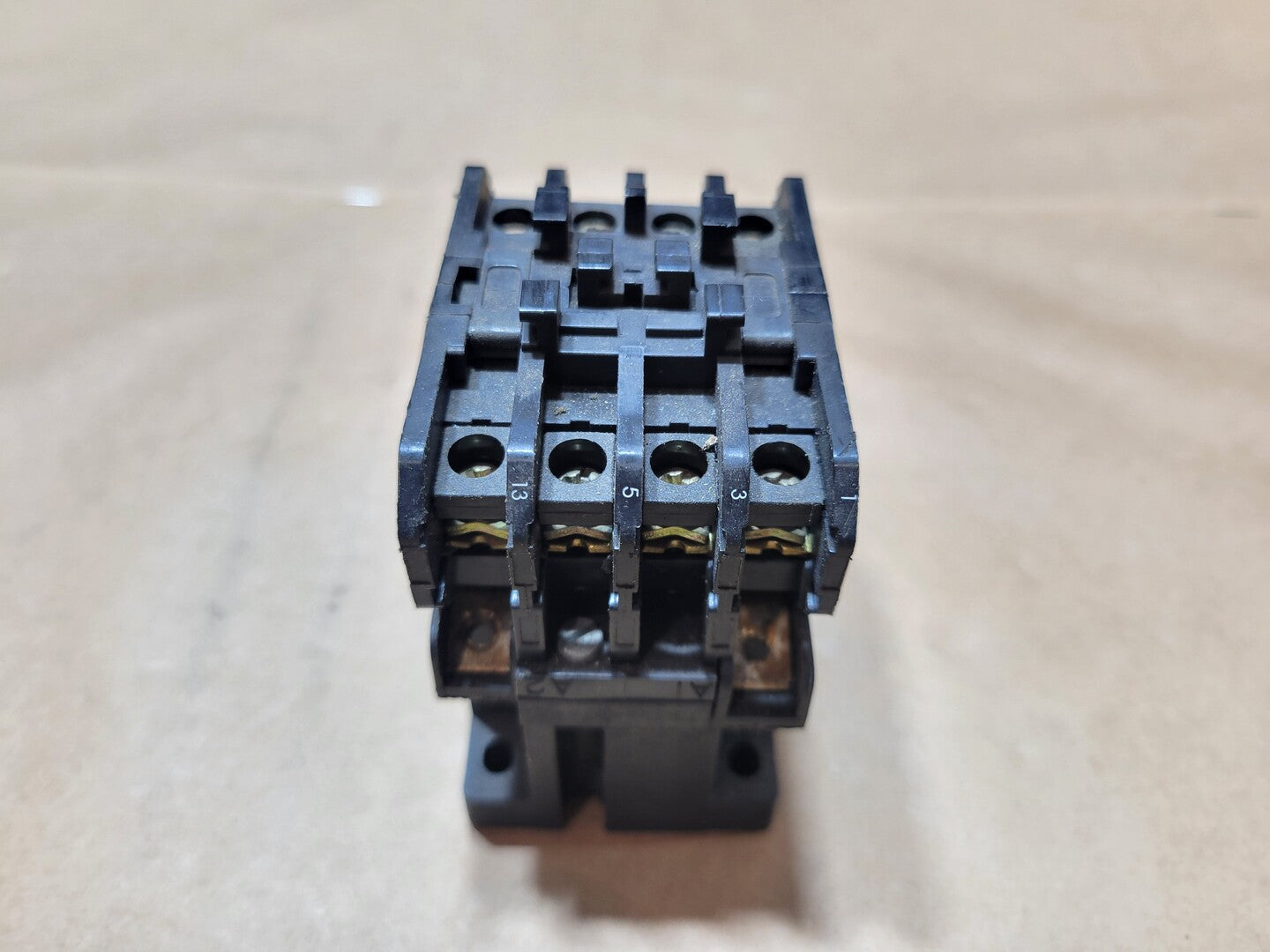

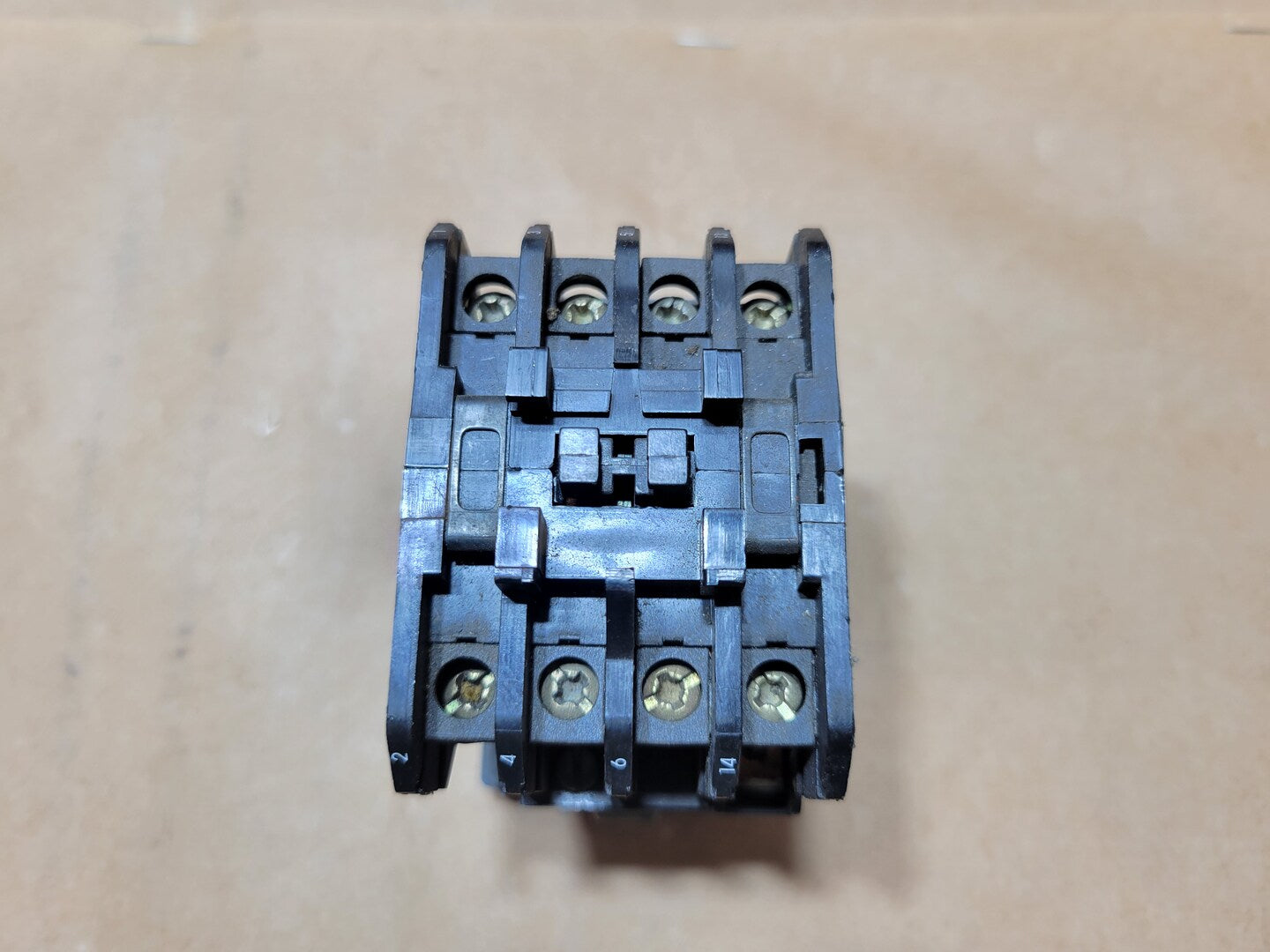

MTE Limited MAX02 0440 four-pole IEC contactor with a 120 VAC 60 Hz / 127 VAC 50 Hz operating coil. The nameplate specifies a 25 A AC-1 main-contact rating and AC-3 motor ratings up to 7.5 HP.
| Specifications | |
|---|---|
| Model | MAX02 0440 |
| Condition | Used |
| Other Specifications |
|---|
|
Series: MAX02 Catalog number: MAX02 0440 Device type: Electromagnetic IEC contactor Number of poles: Four, based on model documentation Main-contact configuration: Configuration not fully confirmed; published MAX02 0440 records commonly identify four poles Coil voltage at 60 Hz: 120 VAC Coil voltage at 50 Hz: 127 VAC Main AC-1 rating: 25 A Utilization category: AC-3 Auxiliary thermal current rating: 10 A Auxiliary maximum voltage: 600 VAC Maximum general-purpose current: 20 A, based on label Maximum CSA/UL application voltage: 600 VAC, three-phase 220/240 VAC: 3 HP 460/480 VAC: 7.5 HP 550/600 VAC: Appears to be 7.5 HP |
