Description

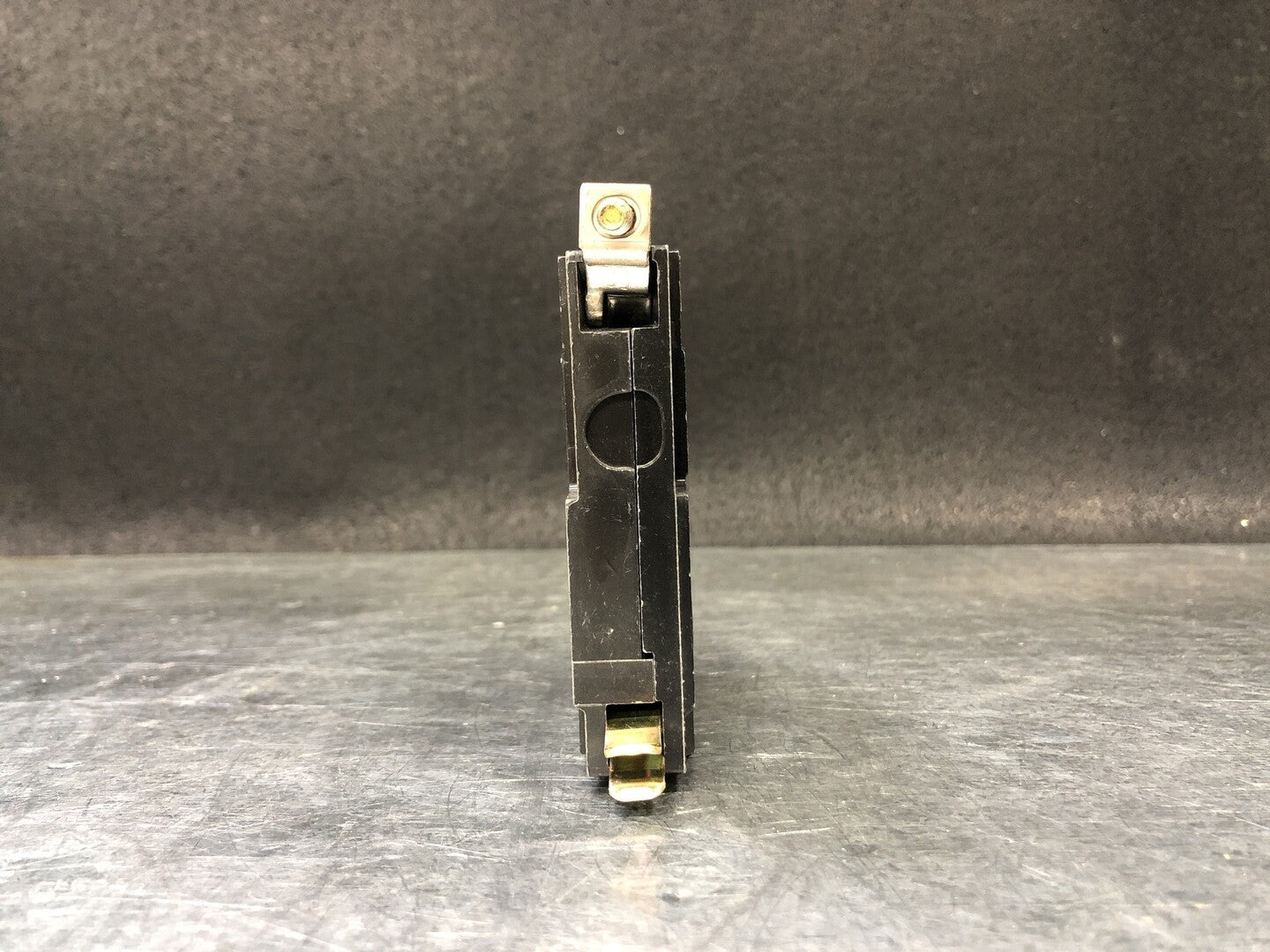

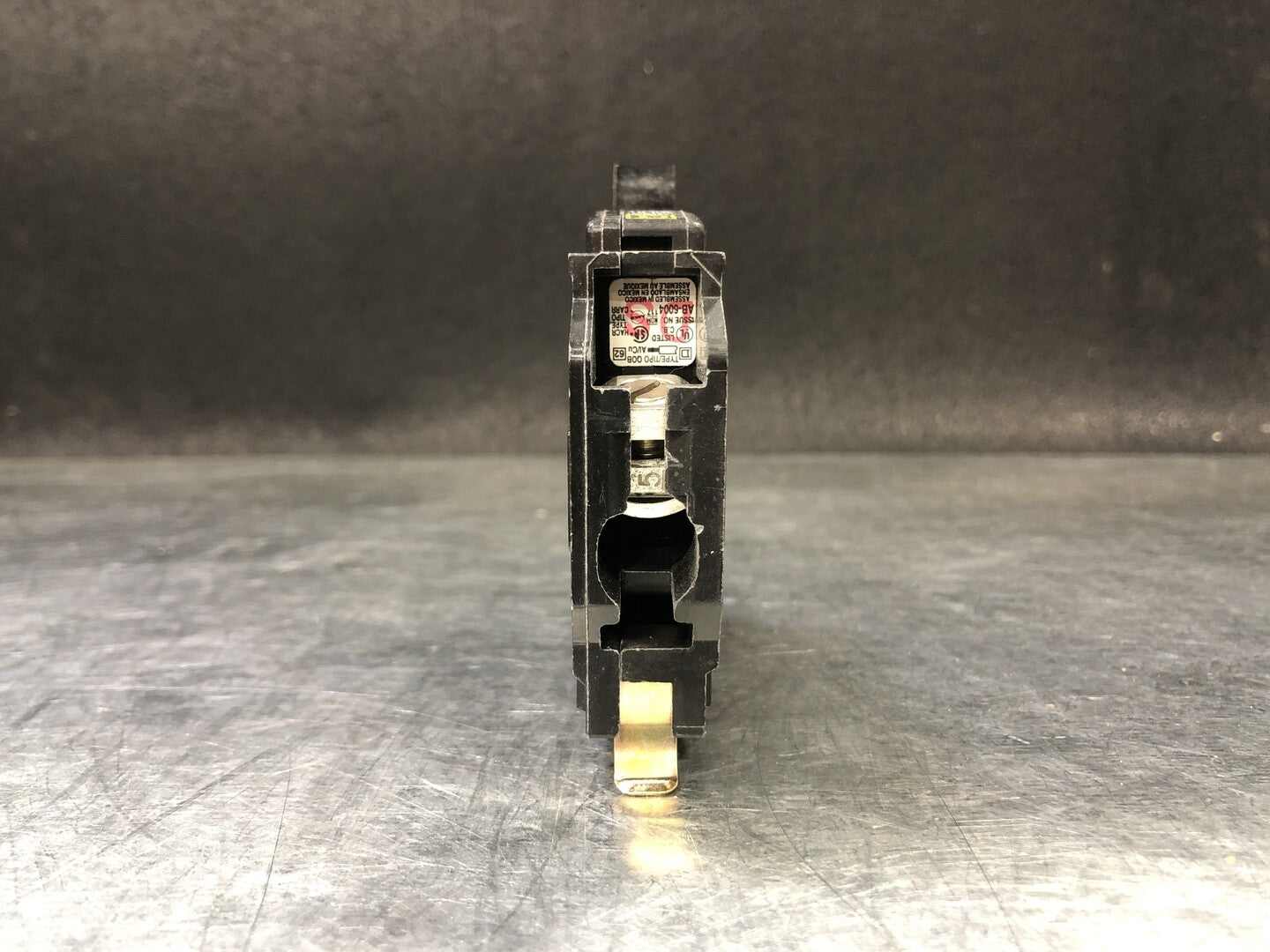

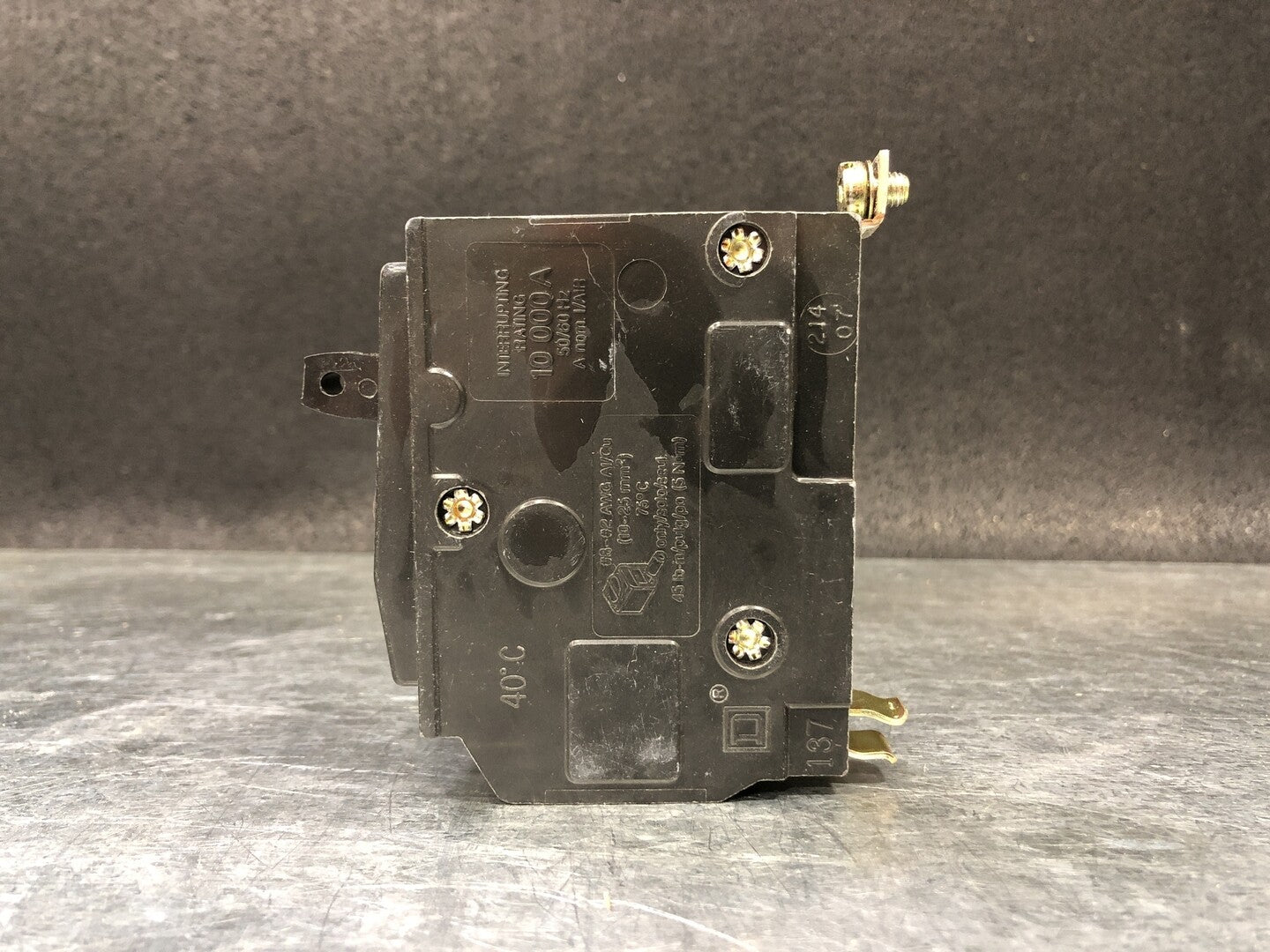

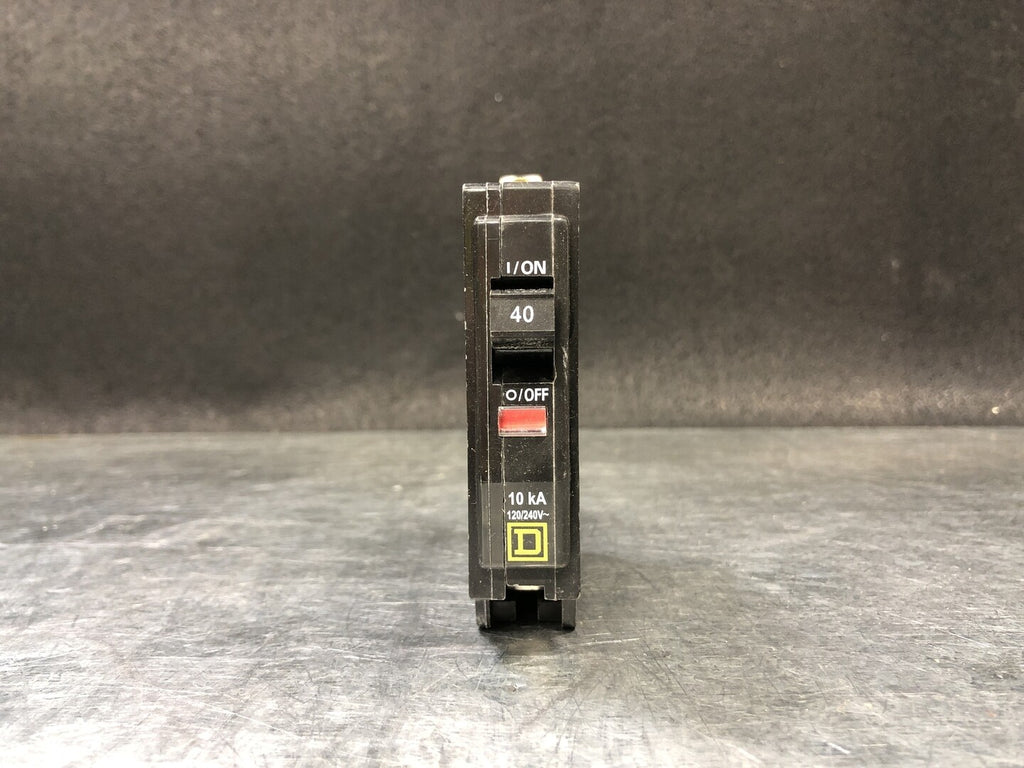

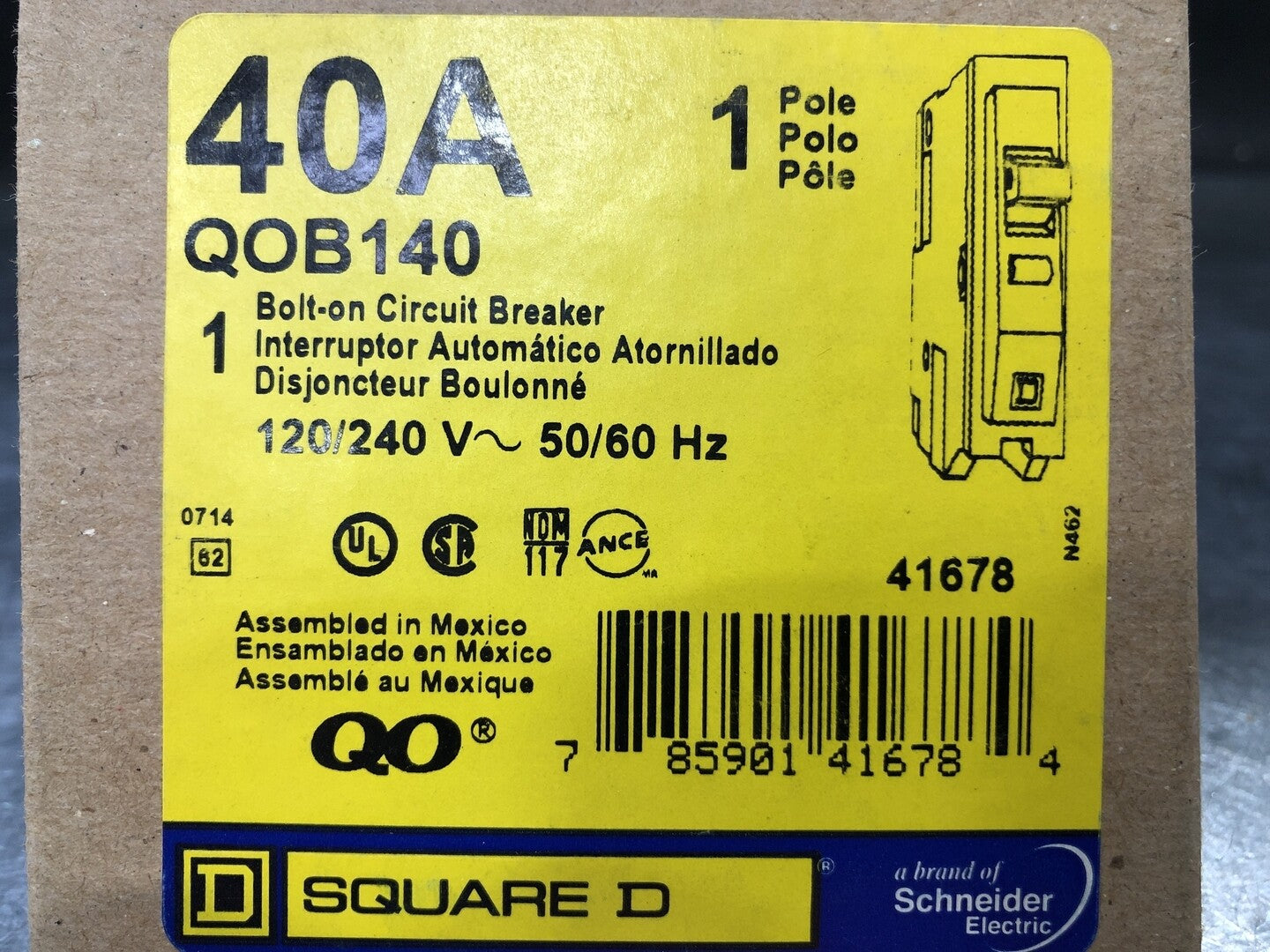

Square D QOB series single pole 40 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V complete with (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.
| Specifications | |
|---|---|
| Model | QOB140 |
| Condition | Surplus New | General |
| Amps | 10 amps |
| Series | QOB |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Alternate Part No.: QOB-140
UPC: 785901416784
Series: QOB
Voltage Rating: 120/240 Vac At 50/60 Hz (Ul/Csa) 48 Vdc
Connection: Bolt-On
Protection: Thermal Magnetic
Functions: (LI) Long-Time and Instantaneous
Interrupting Rating: 10 Kiloampere At 120/240 Vac (Ul/Csa) 5 Kiloampere At 48 Vdc
Wire Size: 8 To 2 Awg (Aluminum/Copper)
Approval: Ul Listed
Used On: Nq Panelboard
|
