Description

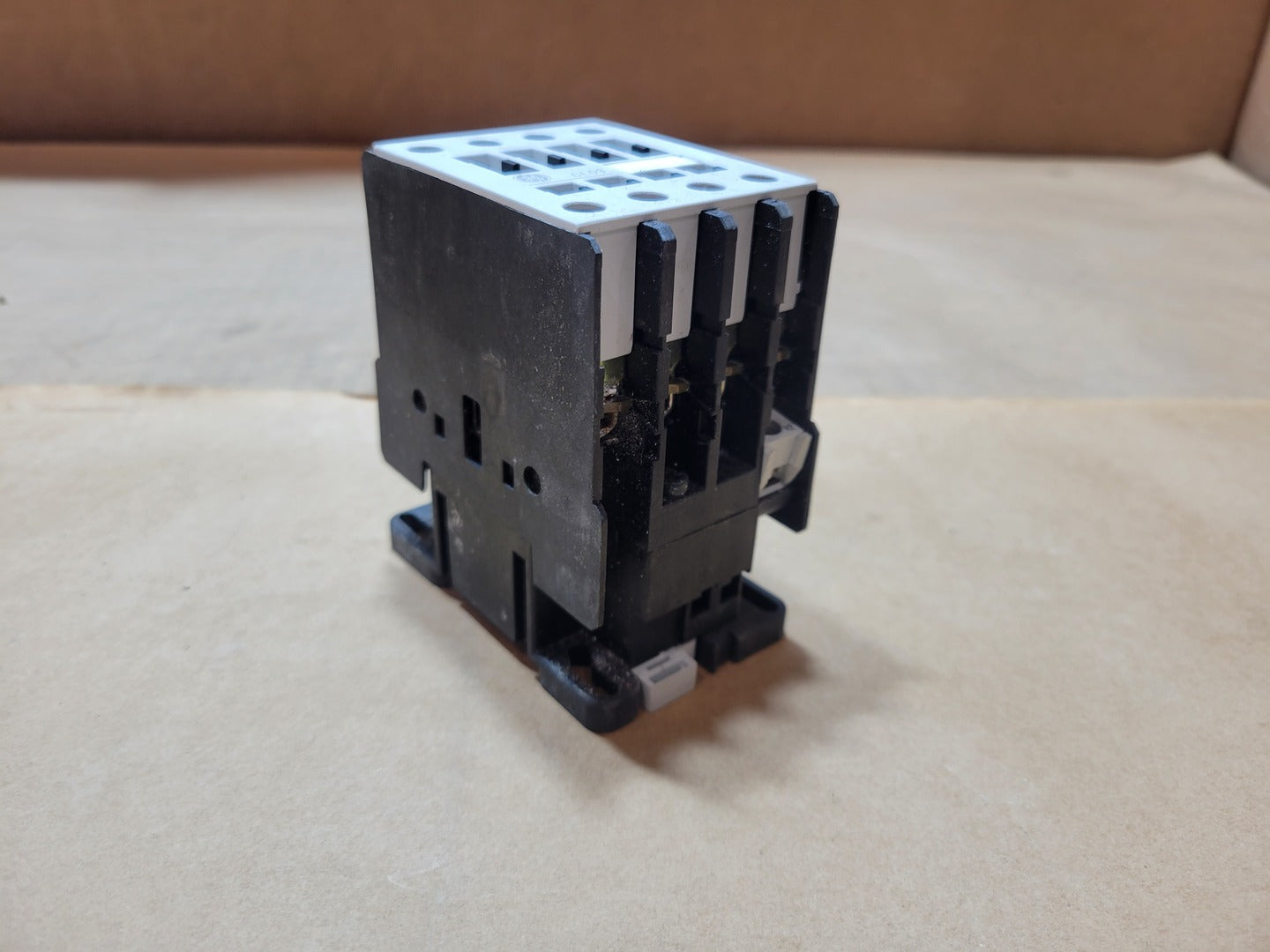

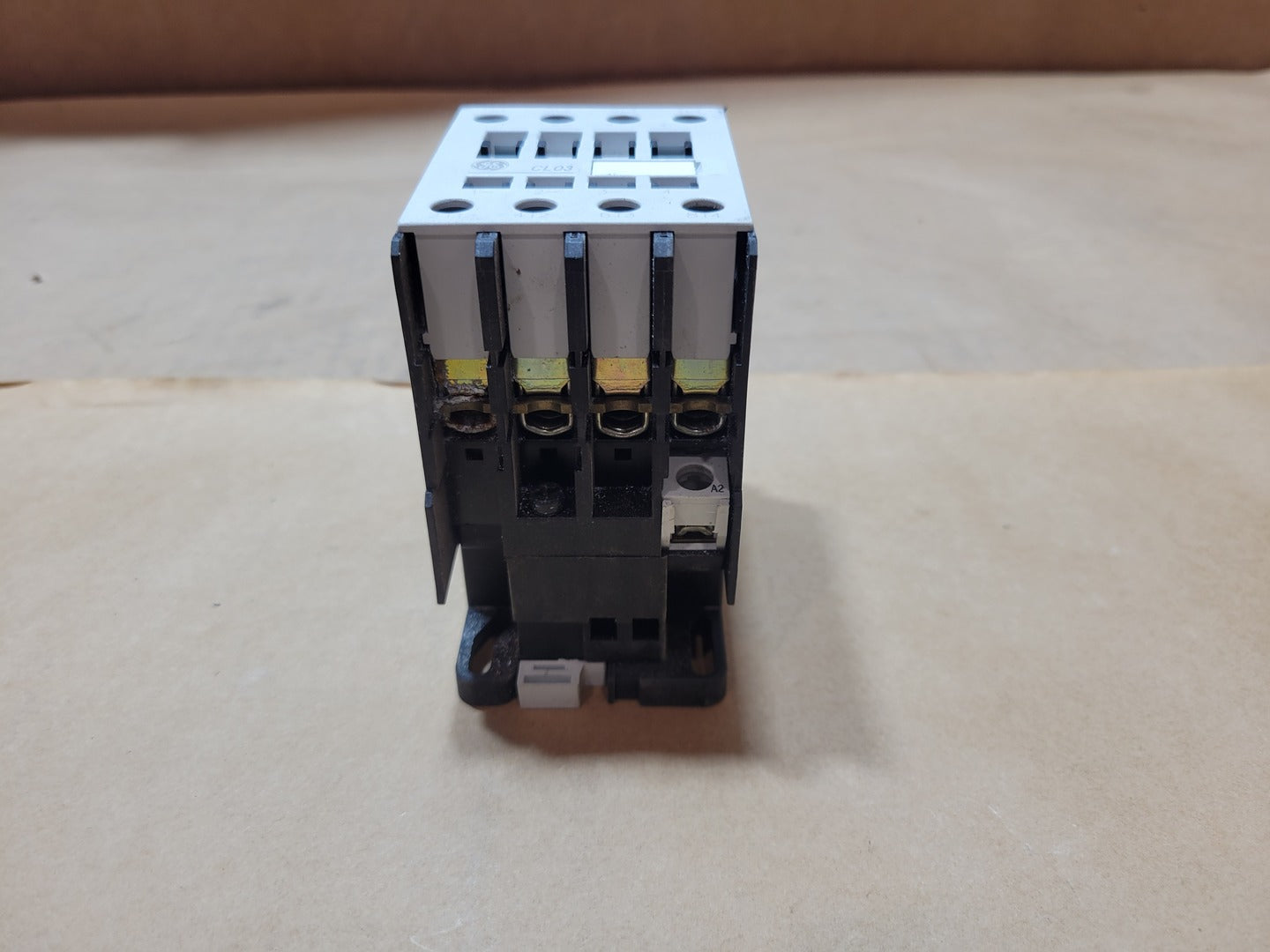

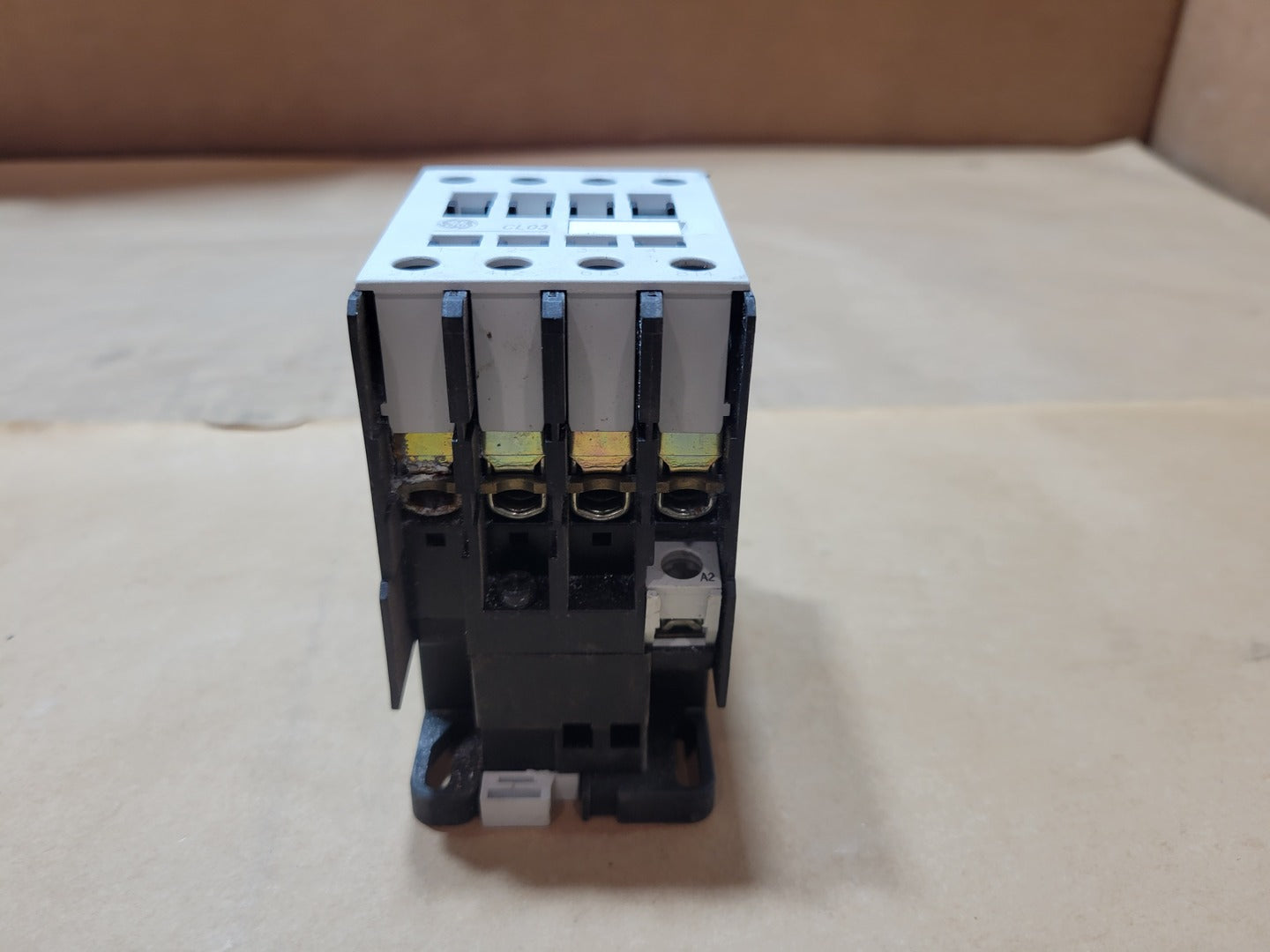

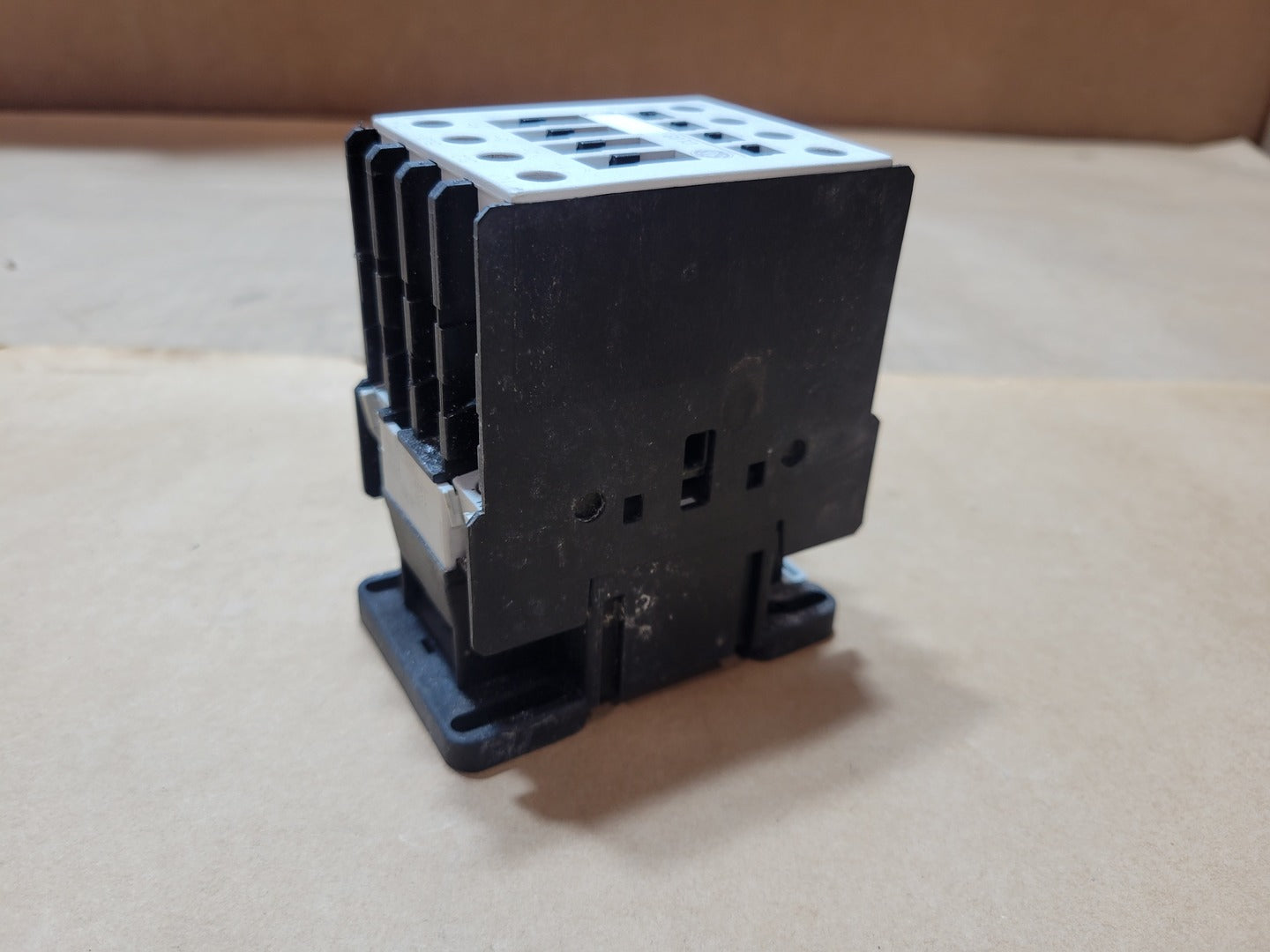

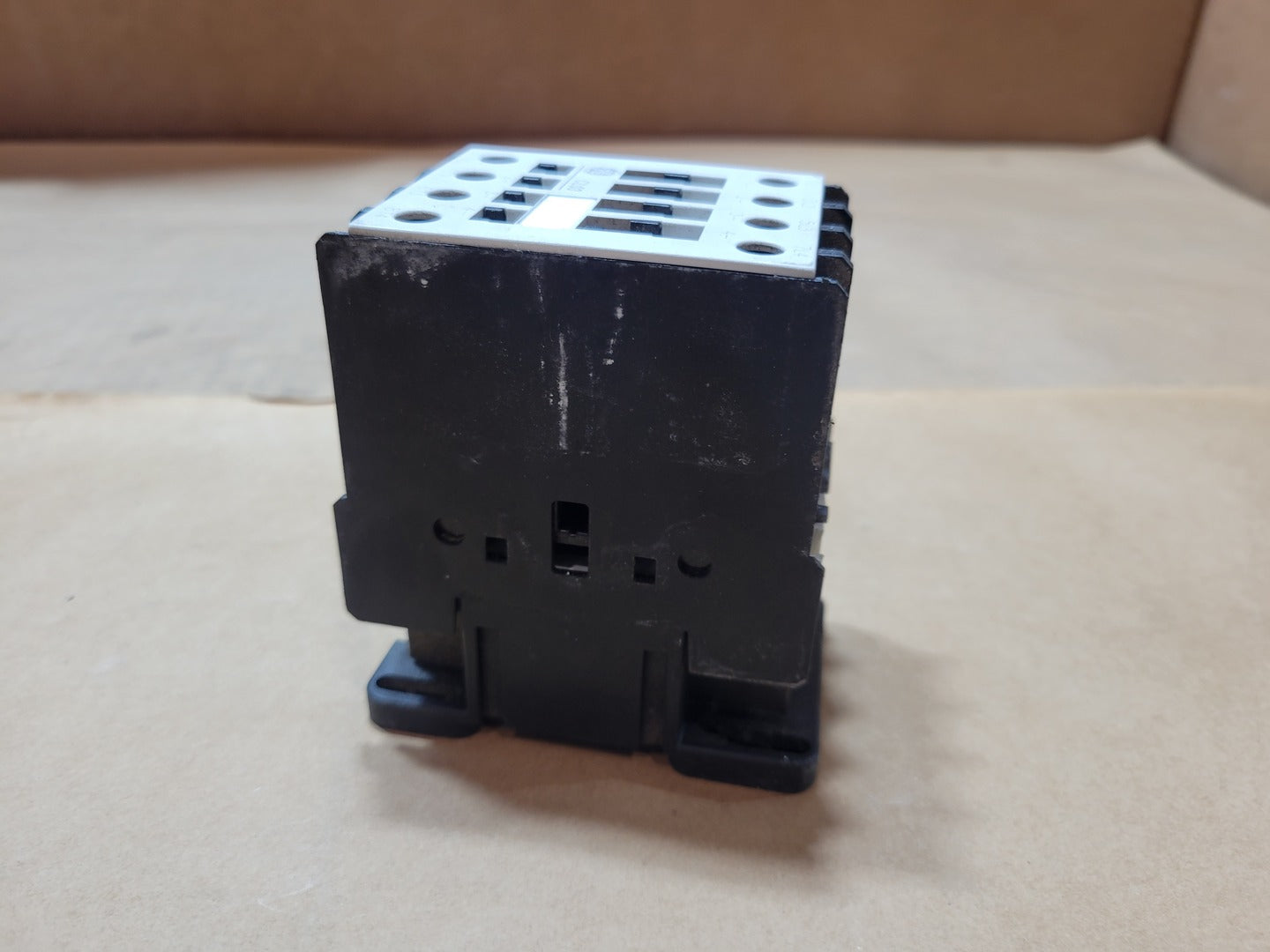

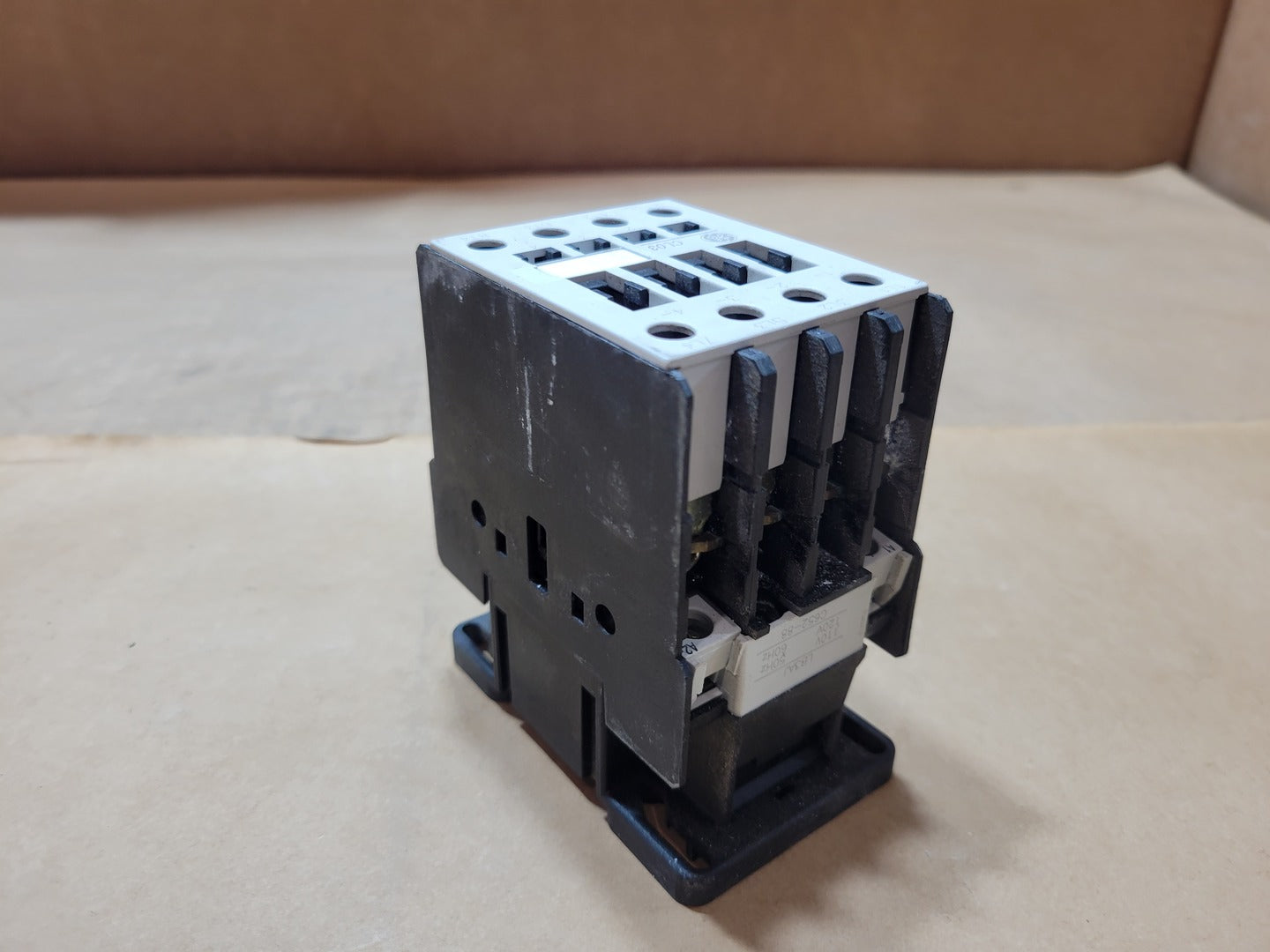

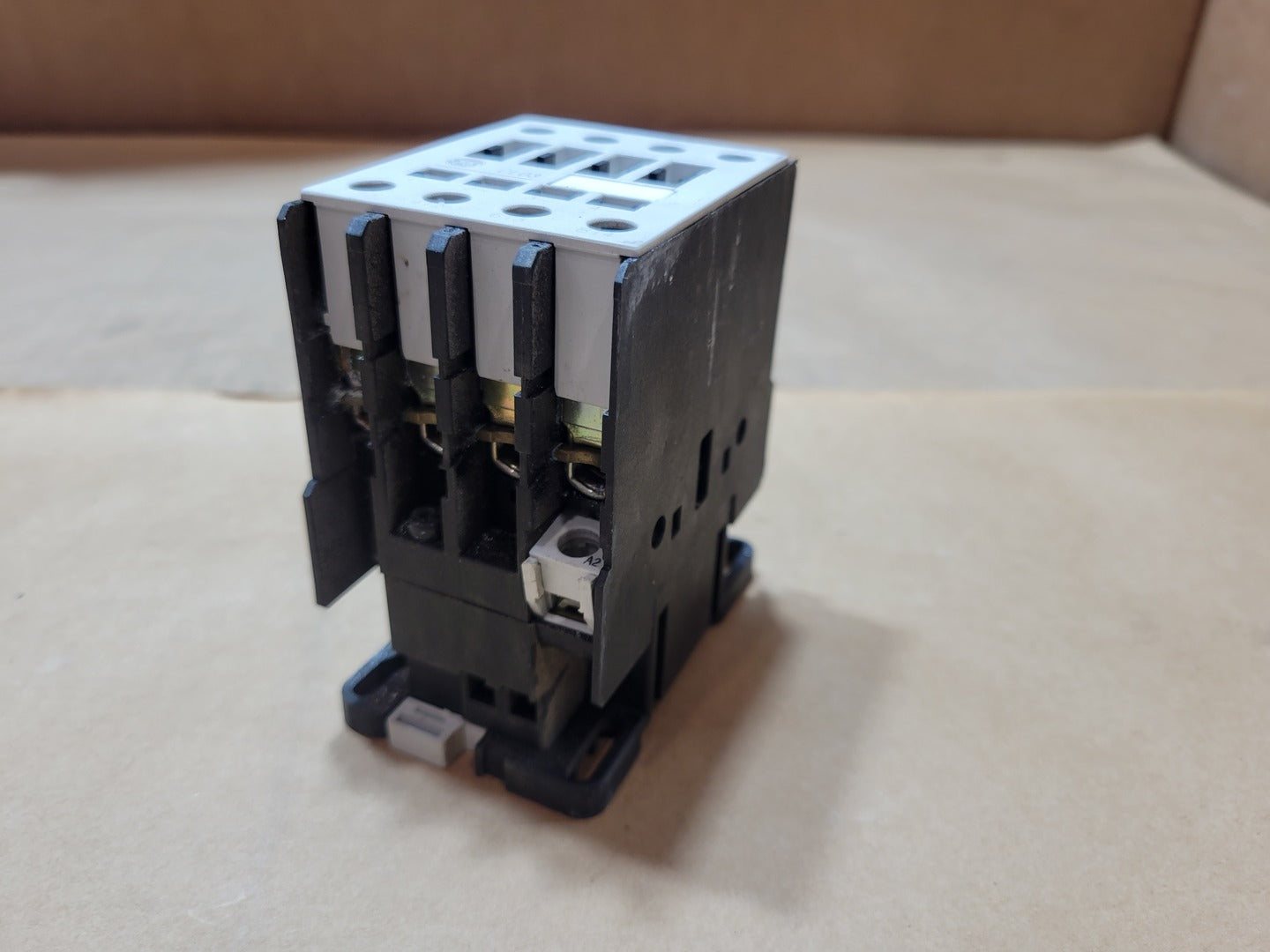

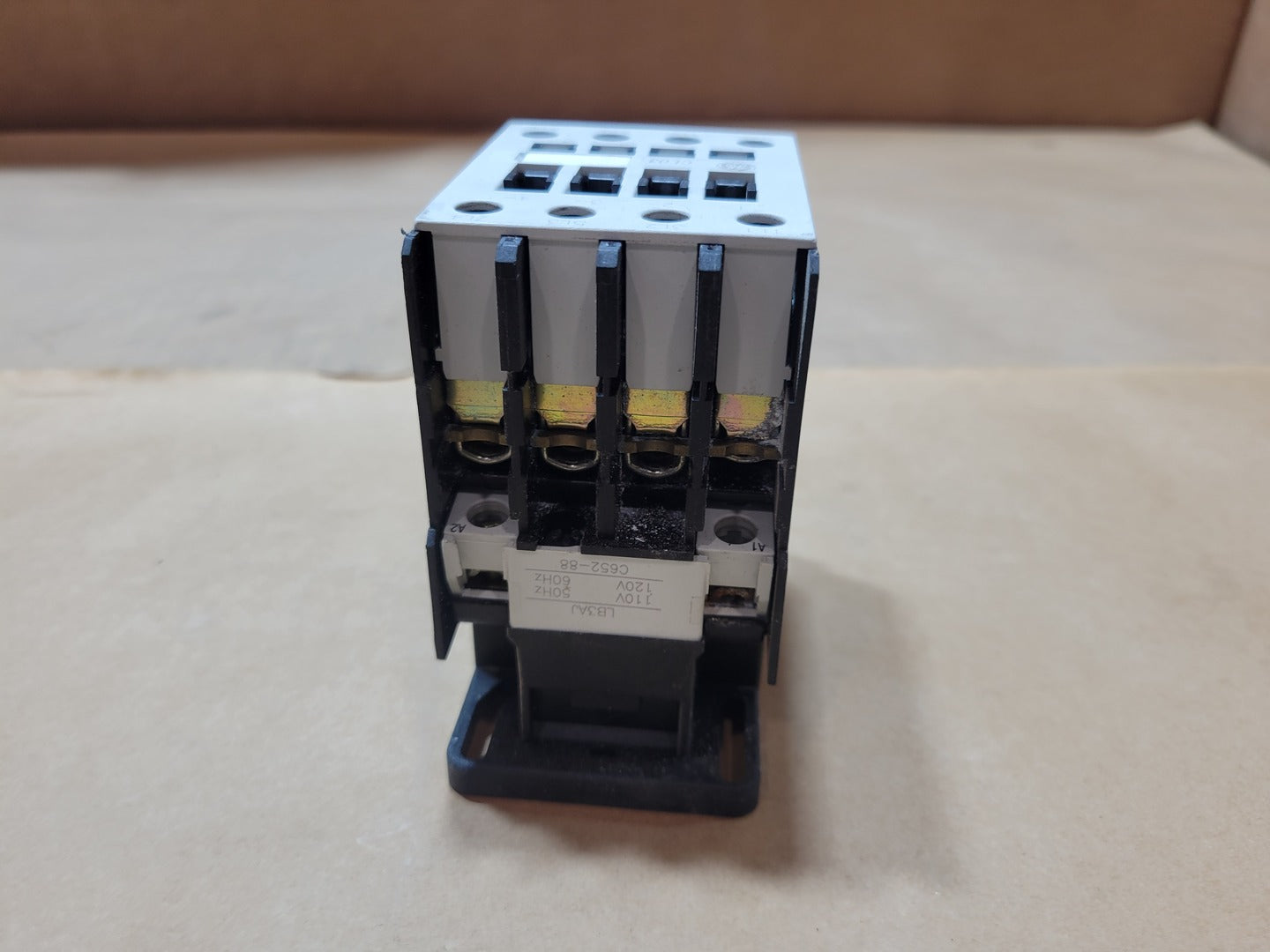

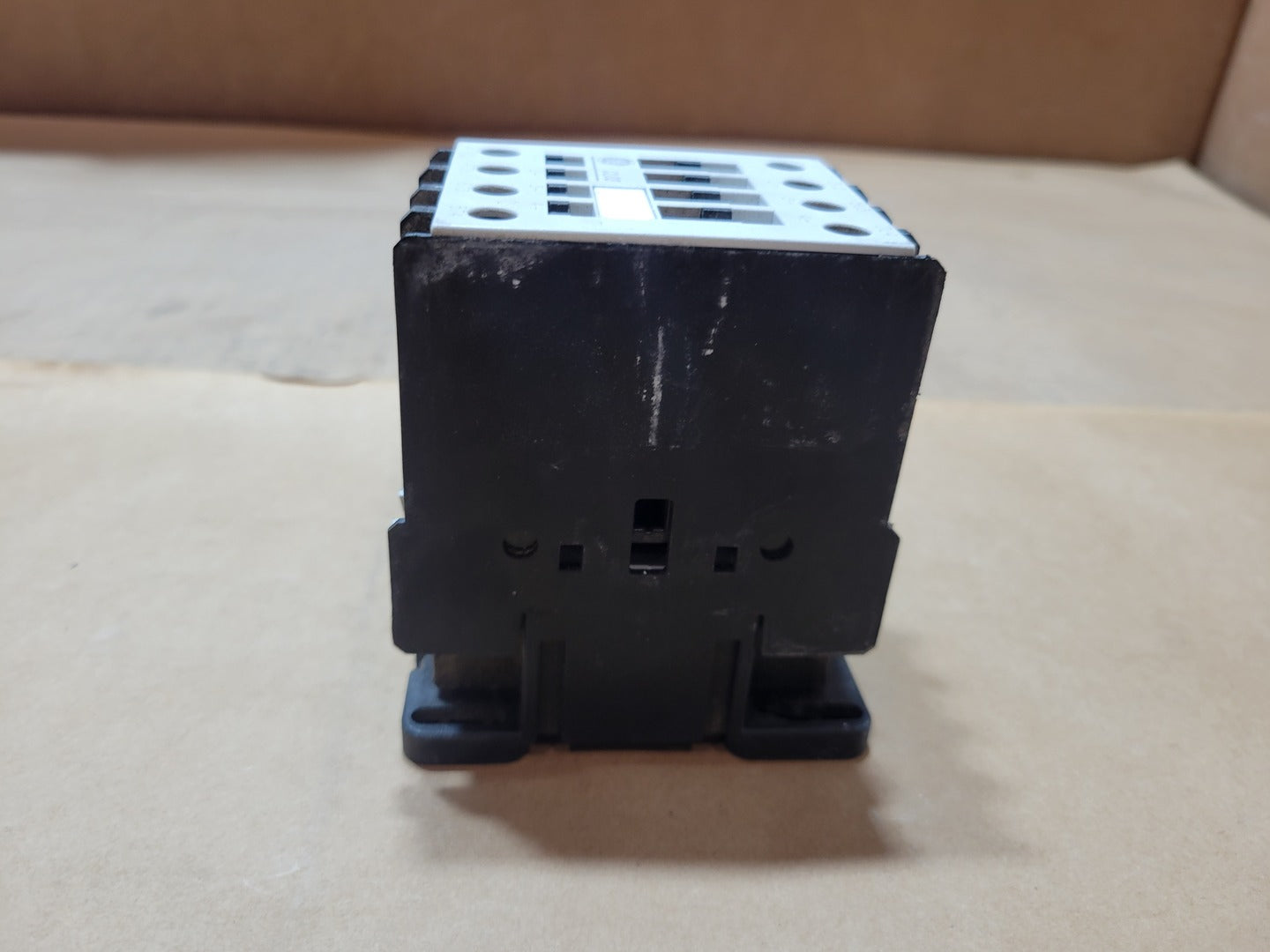

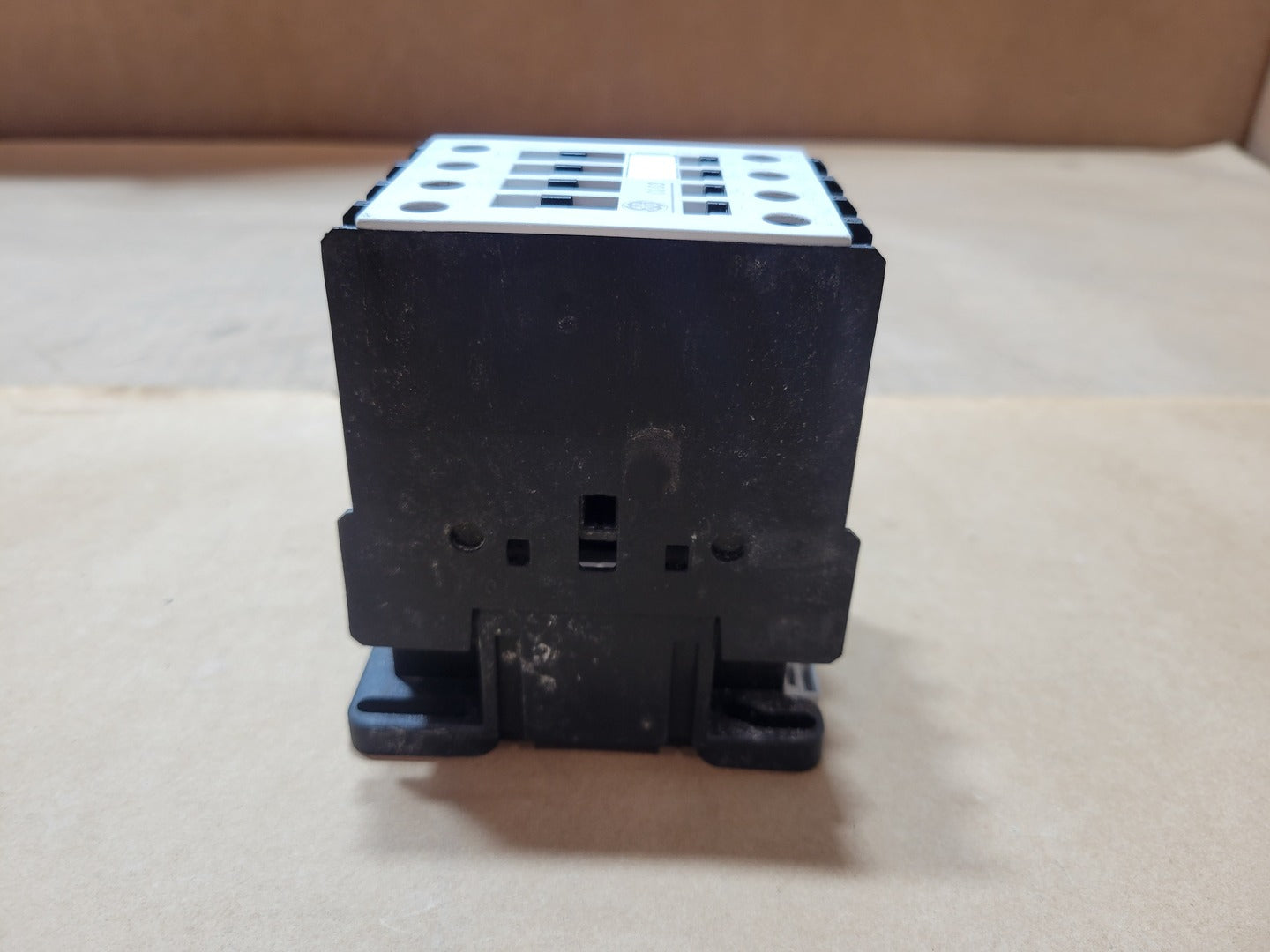

General Electric CL03 C-2000 Series four-pole IEC contactor with four normally open power contacts. The CL03 frame is commonly rated for approximately 25 A AC-3 motor loads and 40-45 A AC-1 resistive loads
| Specifications | |
|---|---|
| Model | CL03A400M |
| Condition | Used |
| Other Specifications |
|---|
|

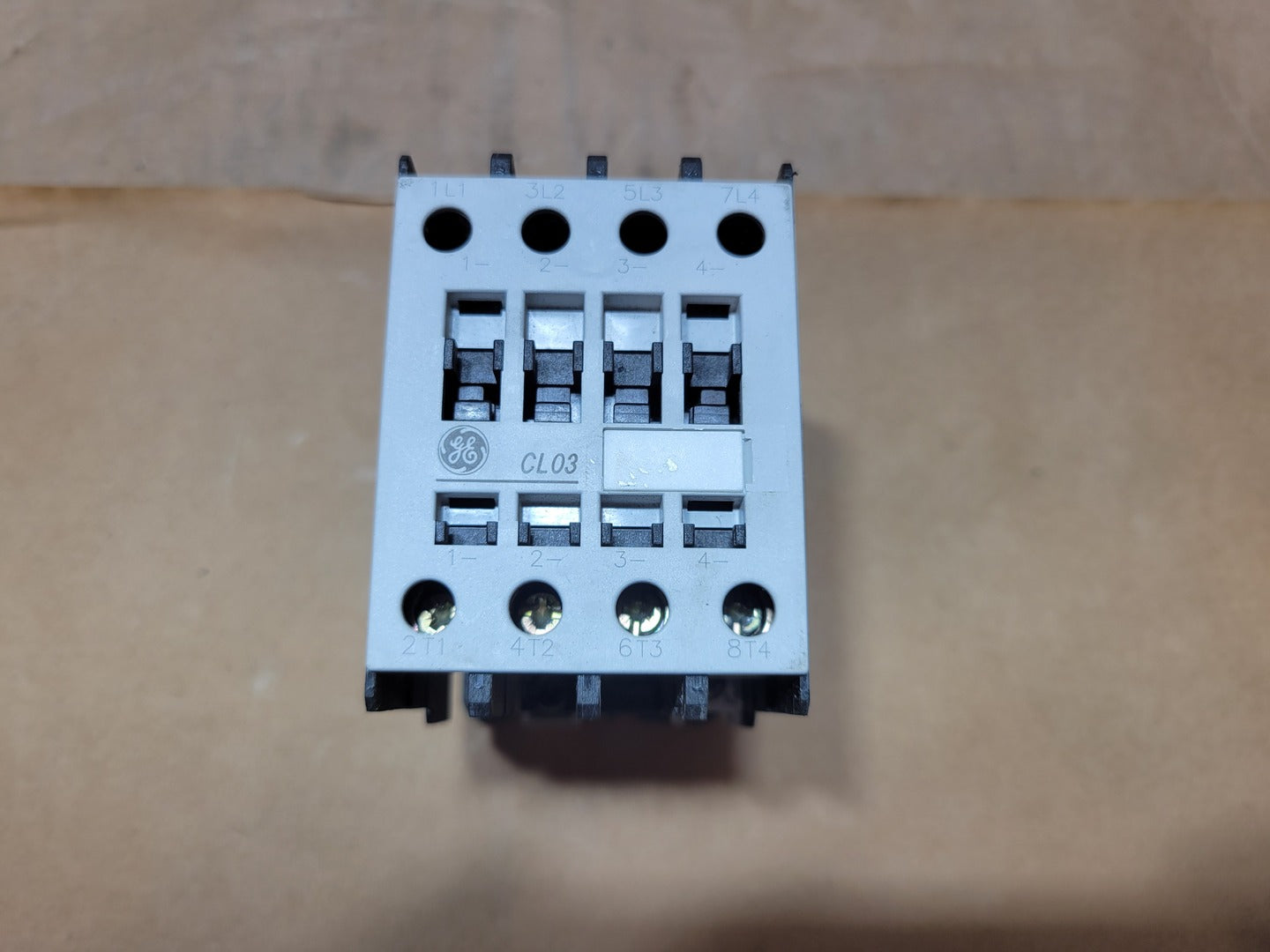

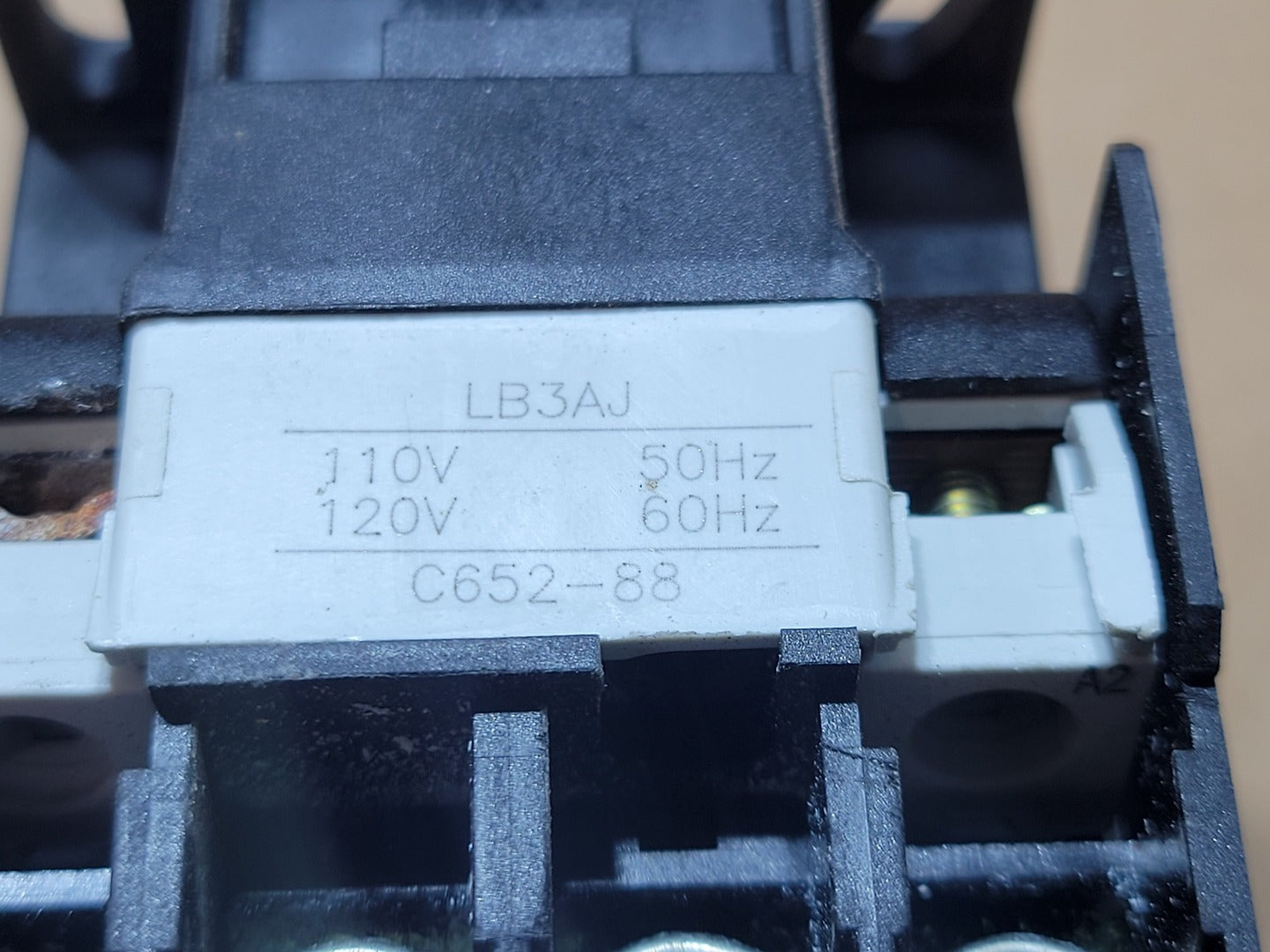

Catalogue family: CL03A400M Product type: IEC magnetic contactor Configuration: Non-reversing Number of main poles: 4 Main contact arrangement: 4 normally open AC-3 operational current: Approximately 25 A AC-1 operational current: Approximately 40-45 A Maximum motor rating at 460-480 VAC: Approximately 15 HP Maximum motor rating at 575 VAC: Approximately 20 HP Maximum motor rating at 200-230 VAC: Approximately 7.5 HP Main terminals: Screw clamp Line terminals: 1L1, 3L2, 5L3 and 7L4 Load terminals: 2T1, 4T2, 6T3 and 8T4 Mounting: 35 mm DIN rail Coil Voltage: 110-120V Coil model: GE LB3AJ |
