Description

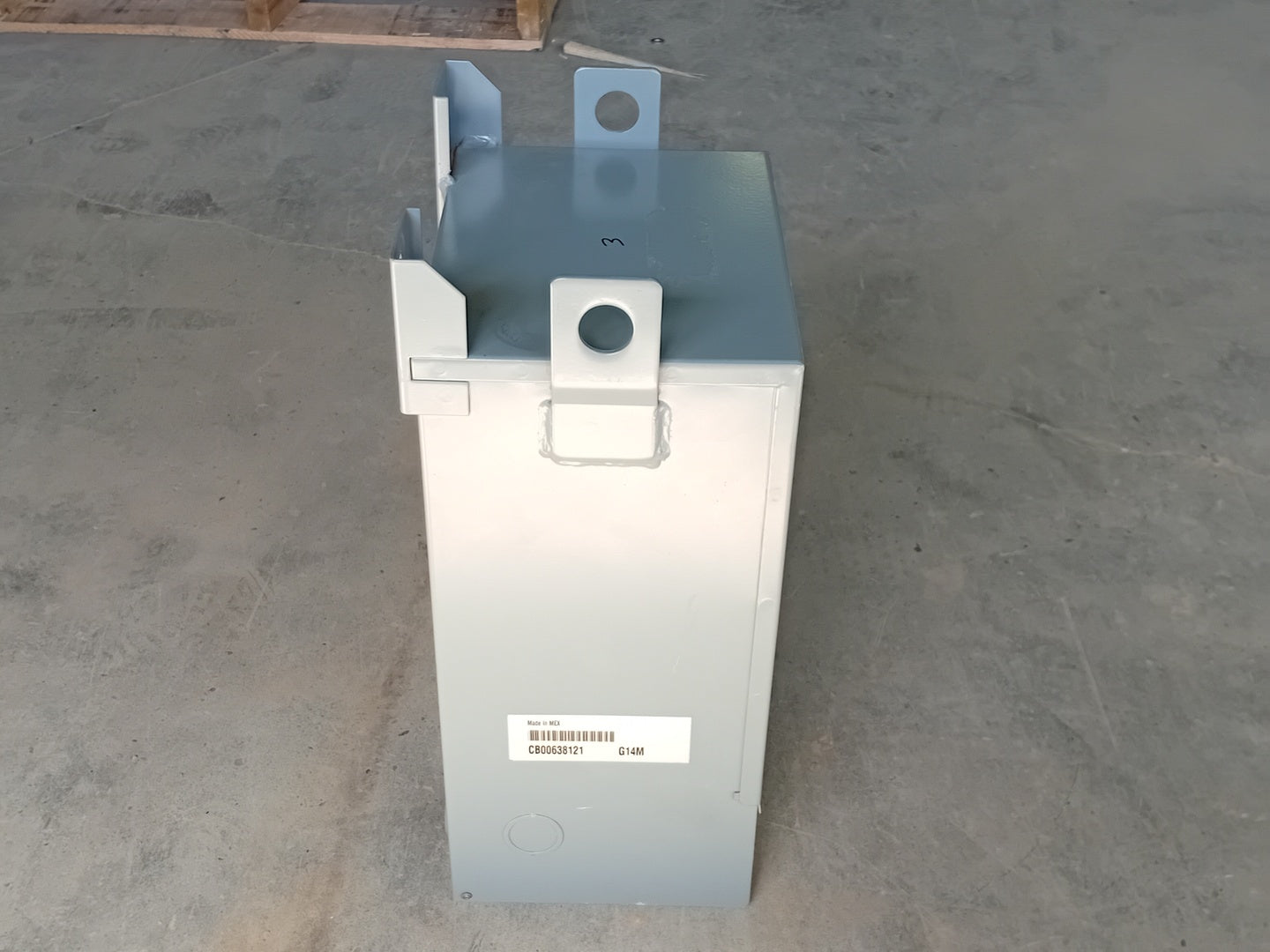

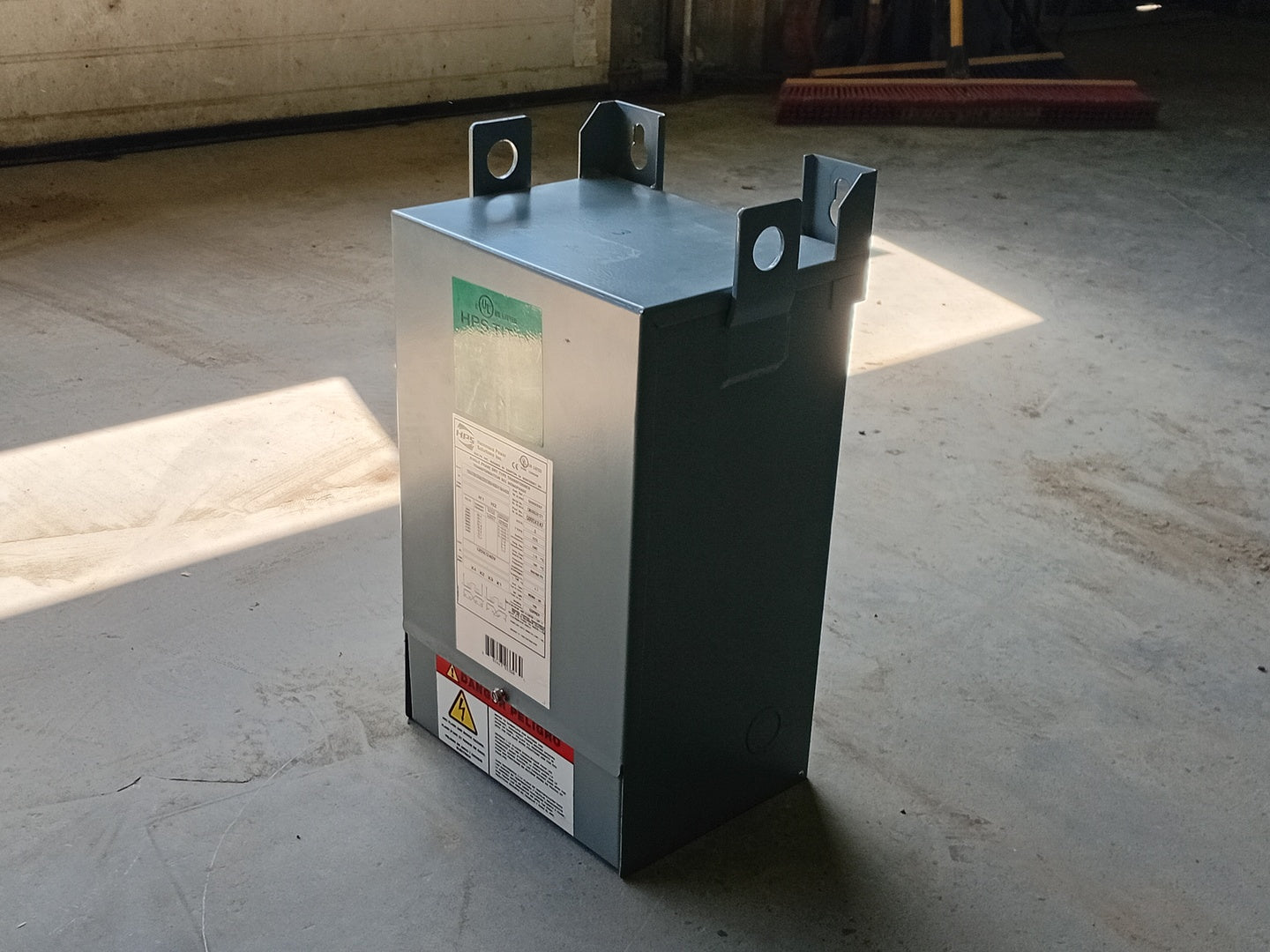

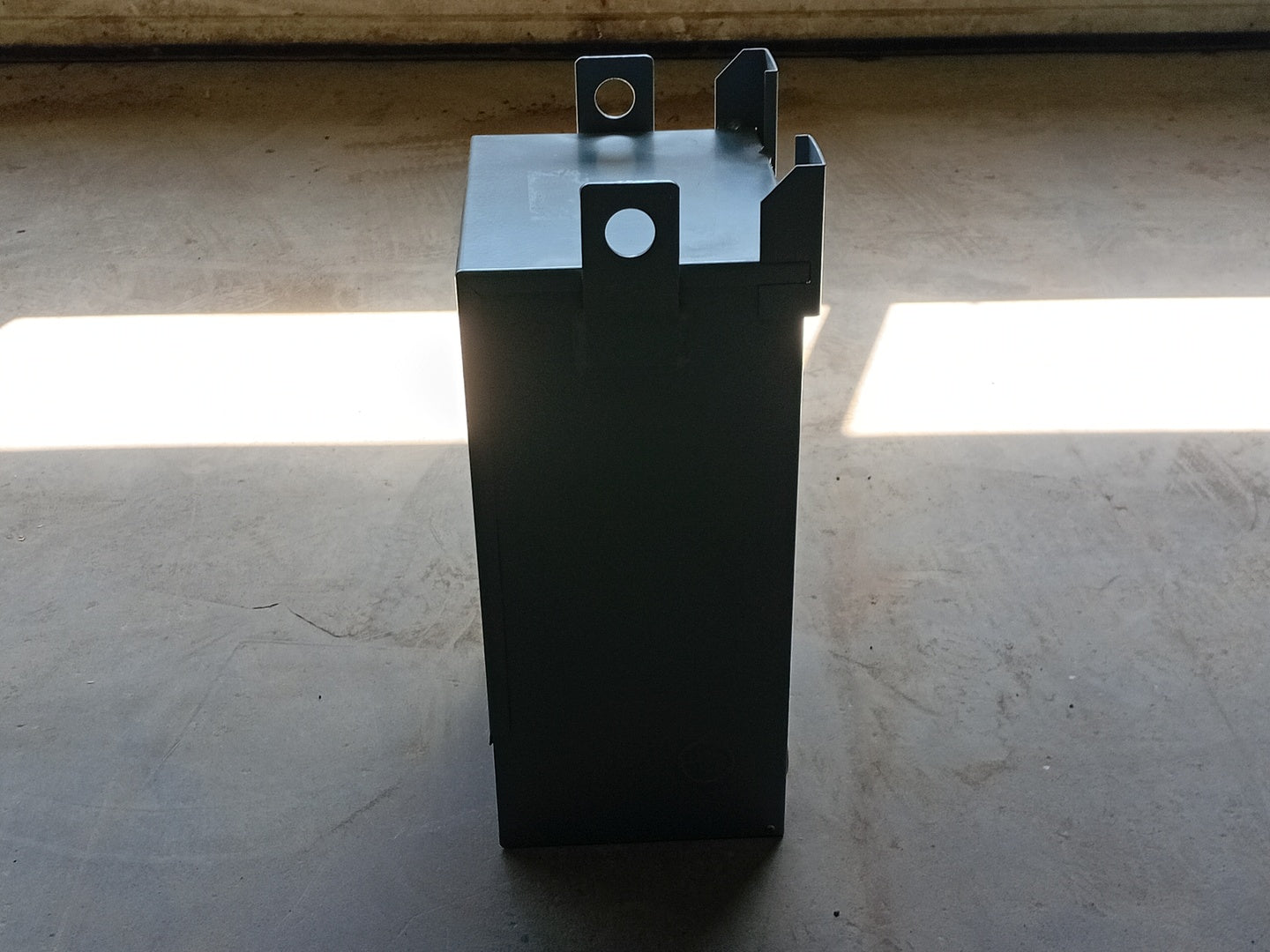

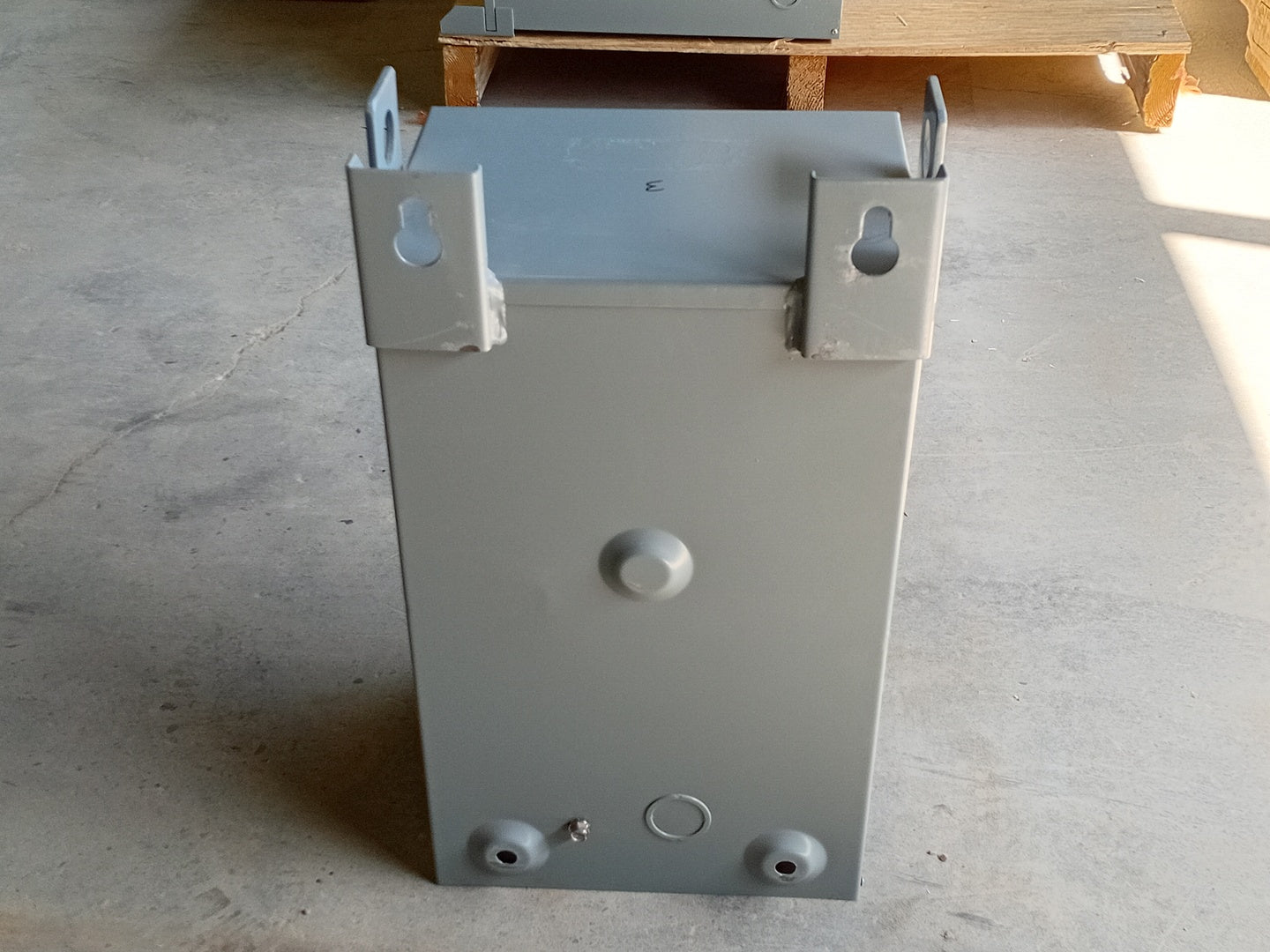

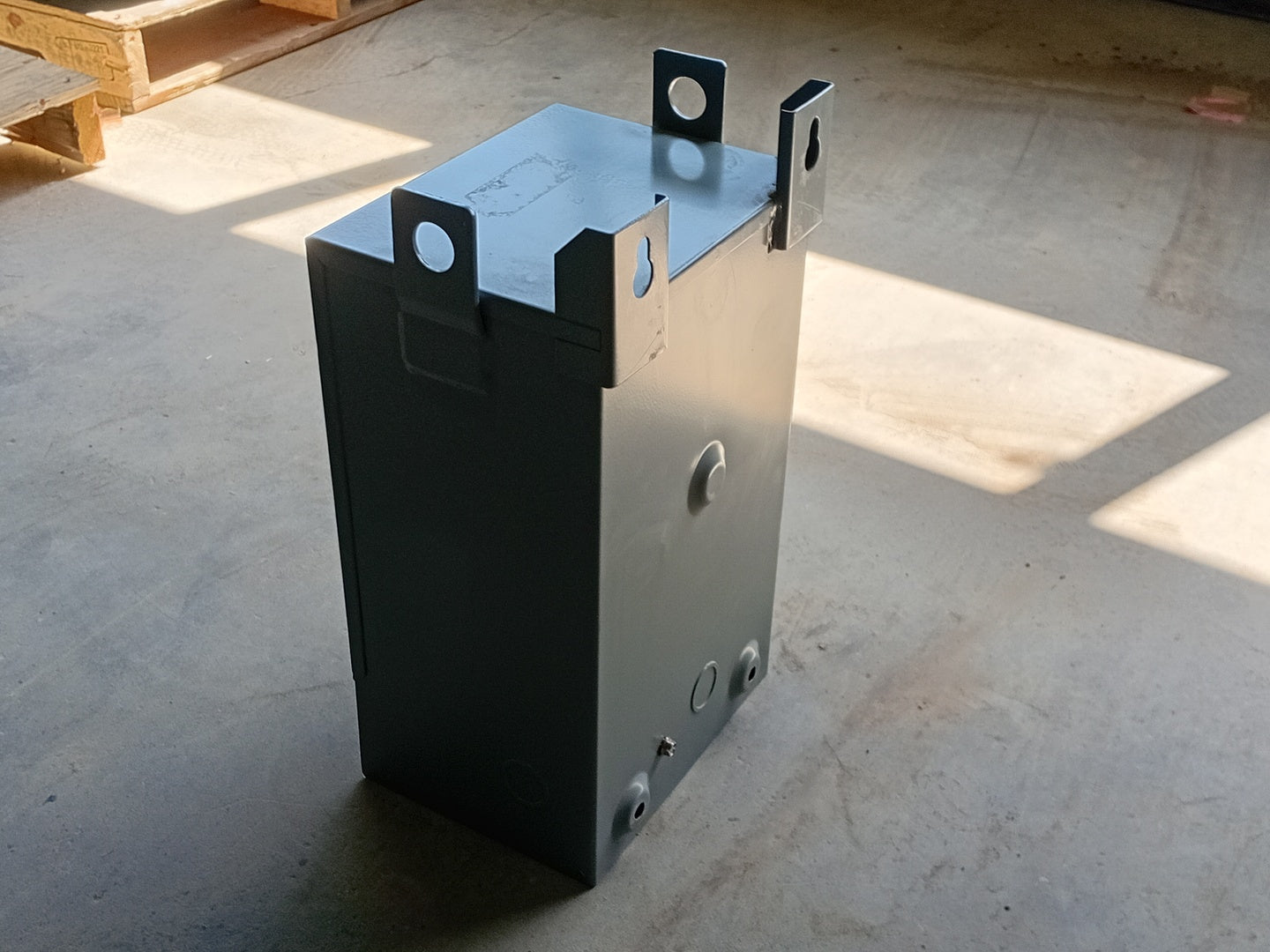

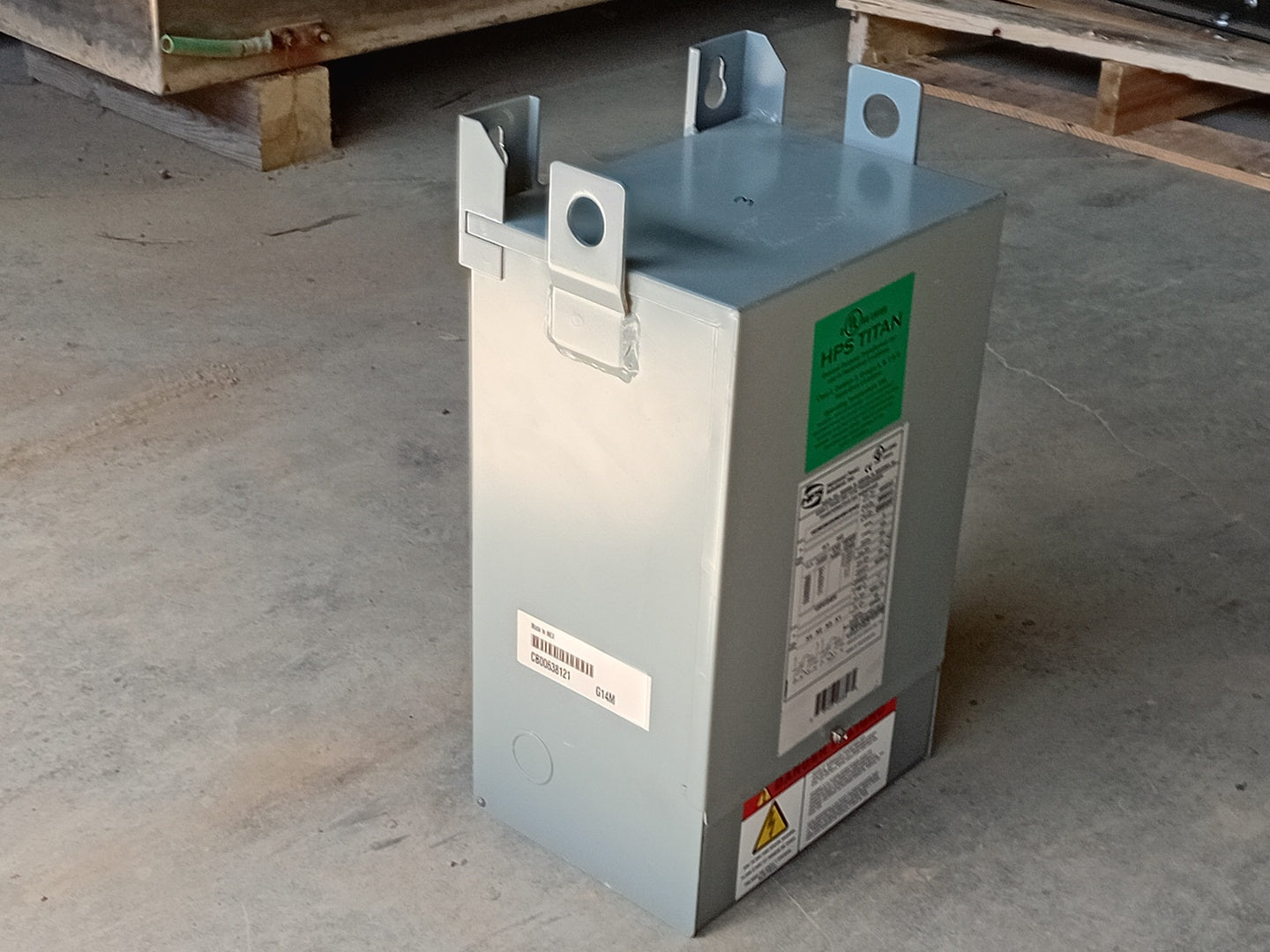

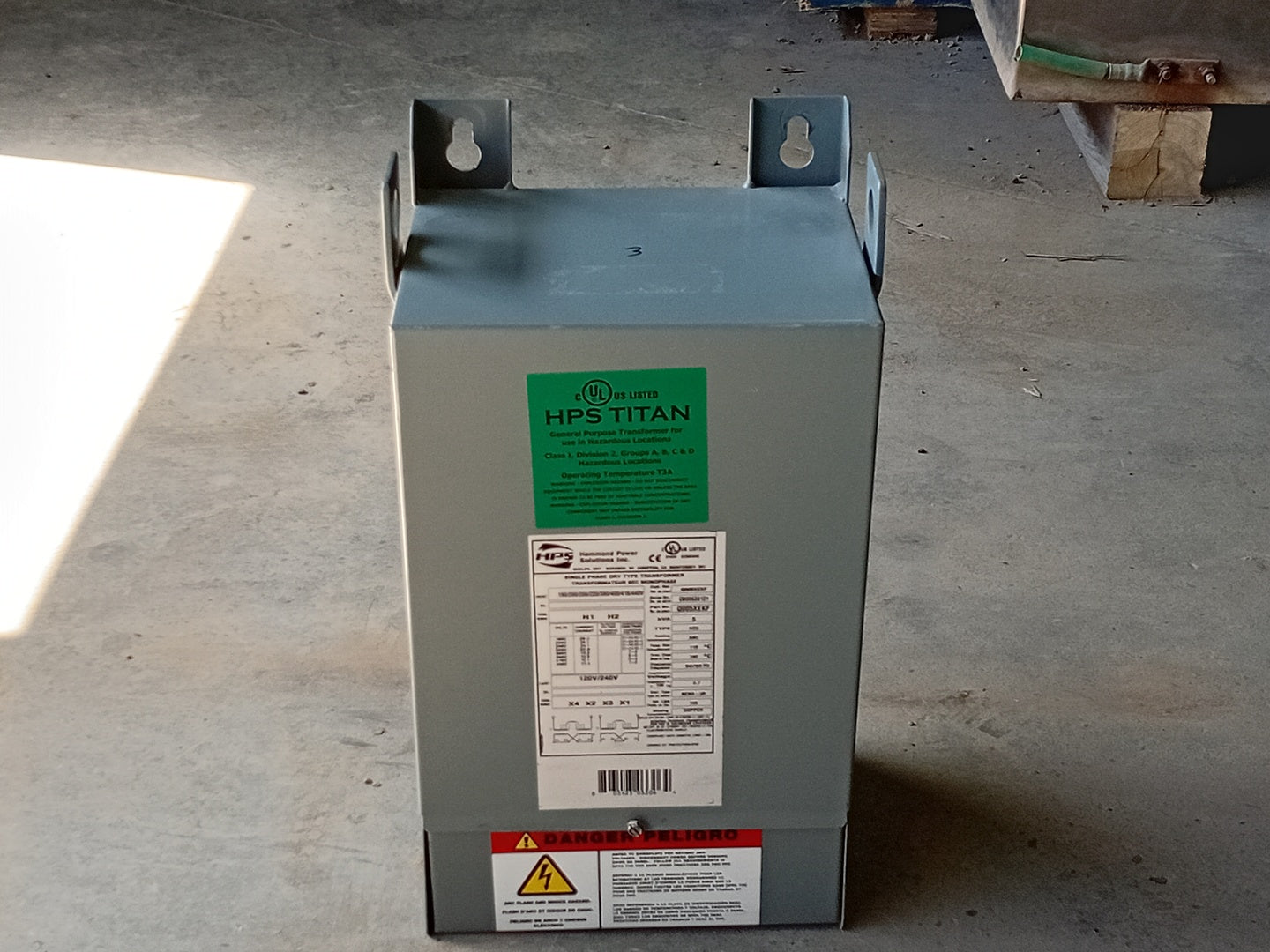

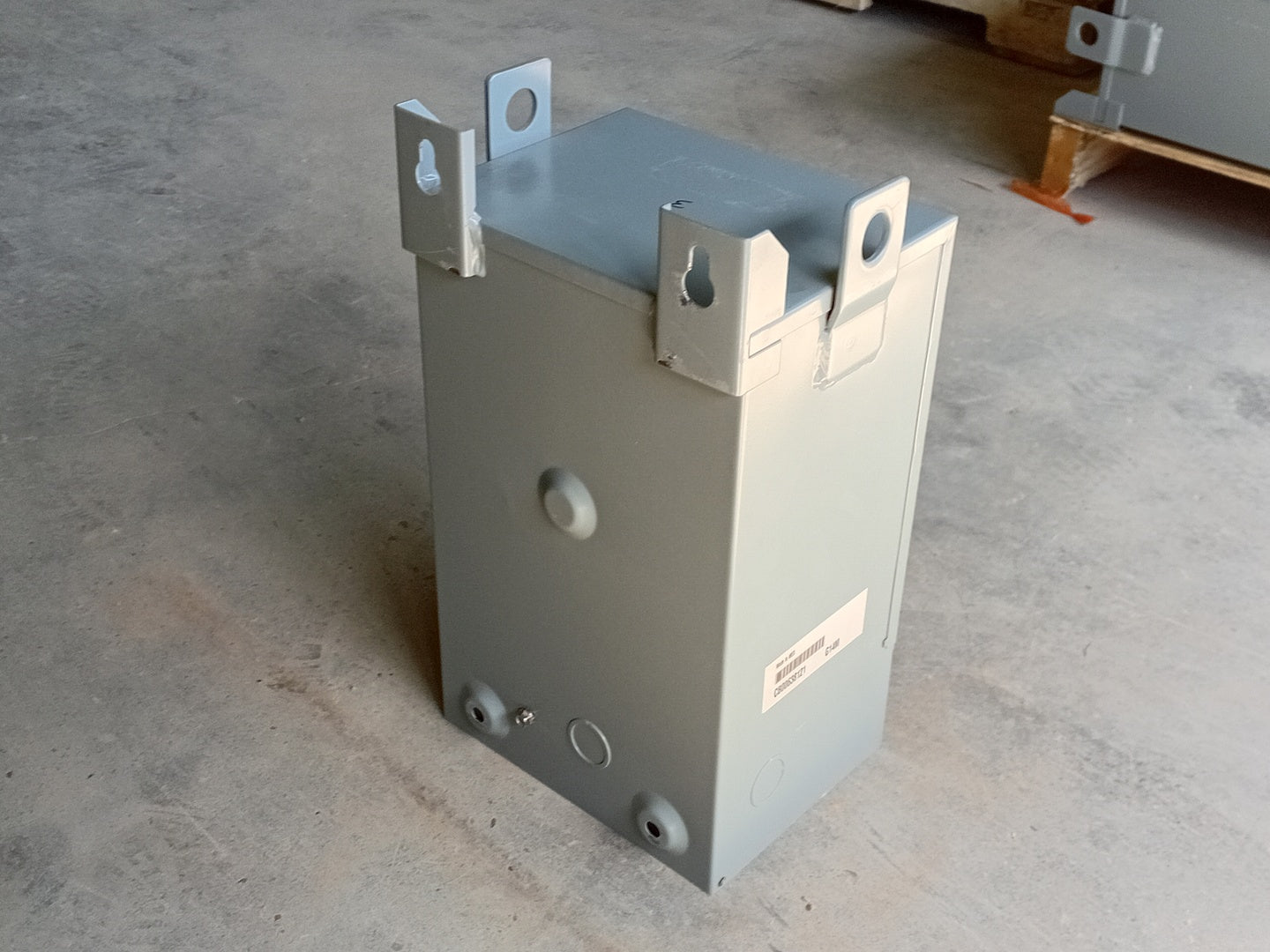

HPS Titan Q005XEKF 5 kVA single-phase dry-type transformer, 190/200/208/220/380/400/416/440V primary to 120/240V secondary. Copper windings, electrostatic shield, NEMA 3R enclosure, Class I Division 2 Groups A-D hazardous-location rated, 50/60 Hz, 115°C rise, 3.7% impedance. Suitable as an industrial isolation/distribution transformer.
| Specifications | |
|---|---|
| Model | Q005XEKF |

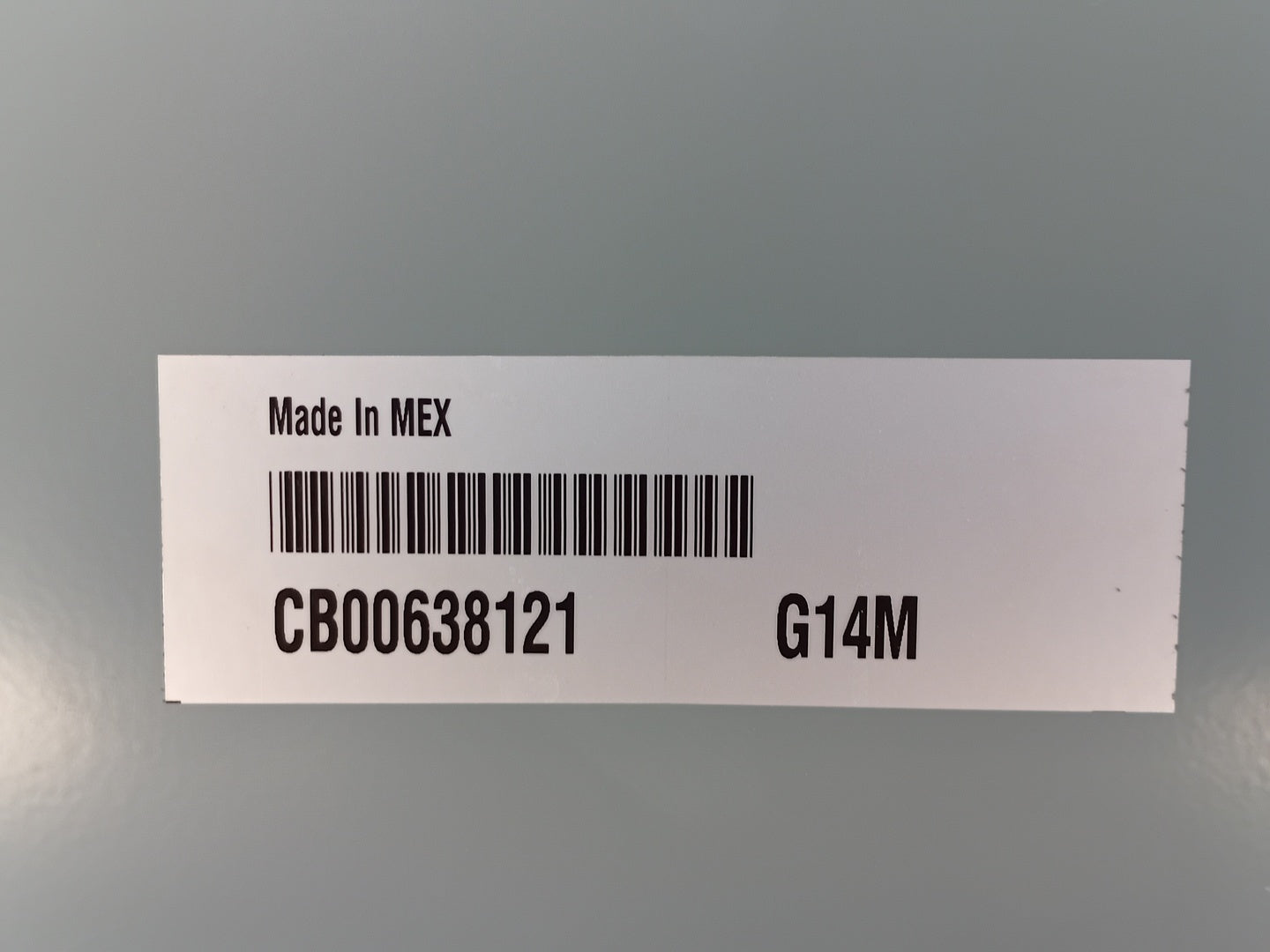

| Made In | MEXICO |
| Condition | Surplus New | Electrical |
| kVA | 5 kVA |
| Secondary Voltage | 120/240 volts |
| Phase | Single-phase | General |
| Transformer Type | Distribution Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Dry |
| Enclosure Type | Nema 3R |
| Other Specifications |
|---|
|

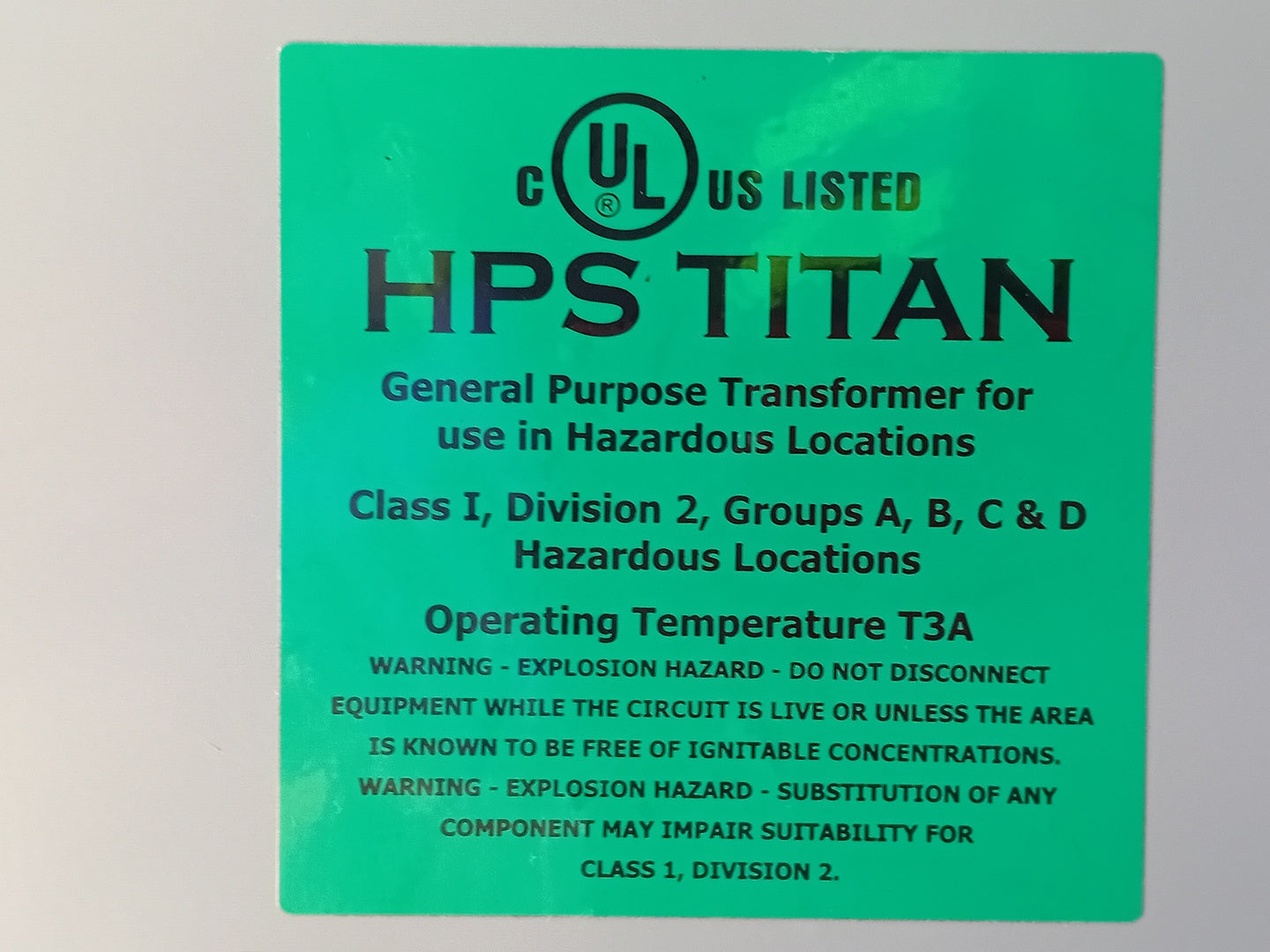

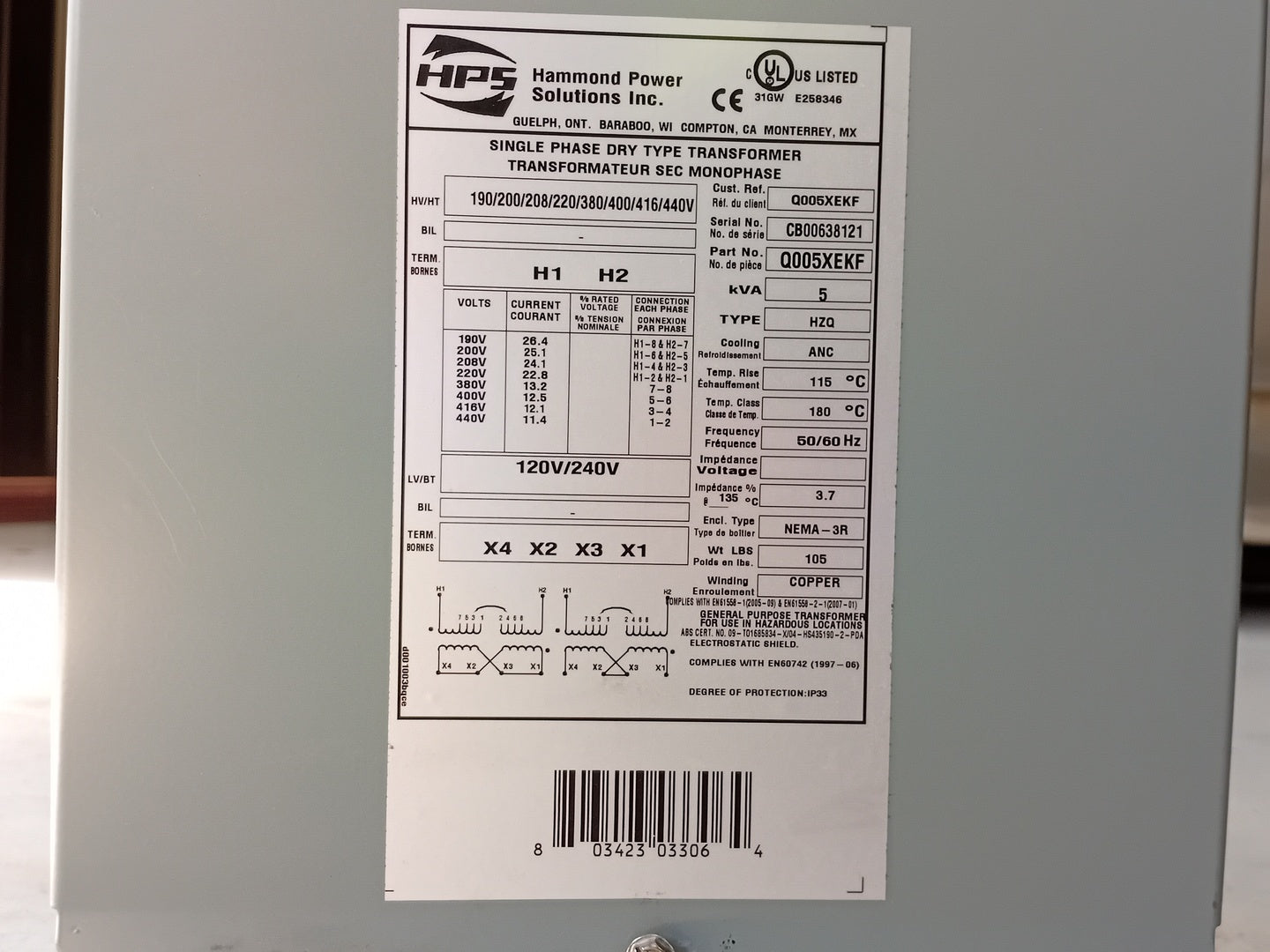

Frequency: 50/60 Hz Primary Voltage: 190/200/208/220/380/400/416/440 VAC Secondary Voltage: 120/240 VAC Primary Current: 26.4A @ 190V, 25.1A @ 200V, 24.1A @ 208V, 22.8A @ 220V, 13.2A @ 380V, 12.5A @ 400V, 12.1A @ 416V, 11.4A @ 440V Temperature Rise: 115°C Insulation Class: 180°C Impedance: 3.7% Cooling: ANC Winding Material: Copper Enclosure: NEMA 3R Degree of Protection: IP33 Electrostatic Shield: Yes Hazardous Location Rating: Class I, Division 2, Groups A, B, C & D Operating Temperature Classification: T3A |
