Description

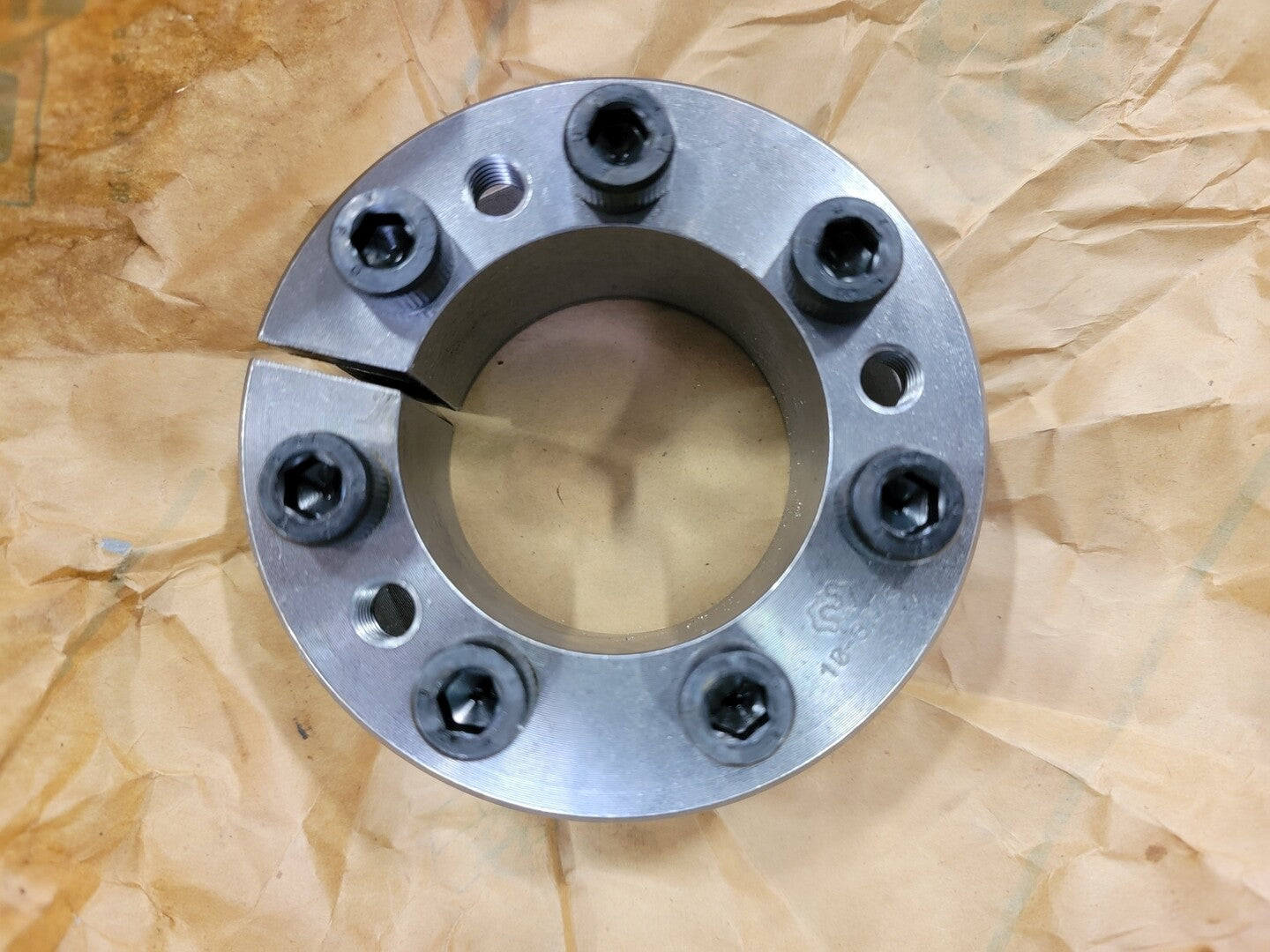

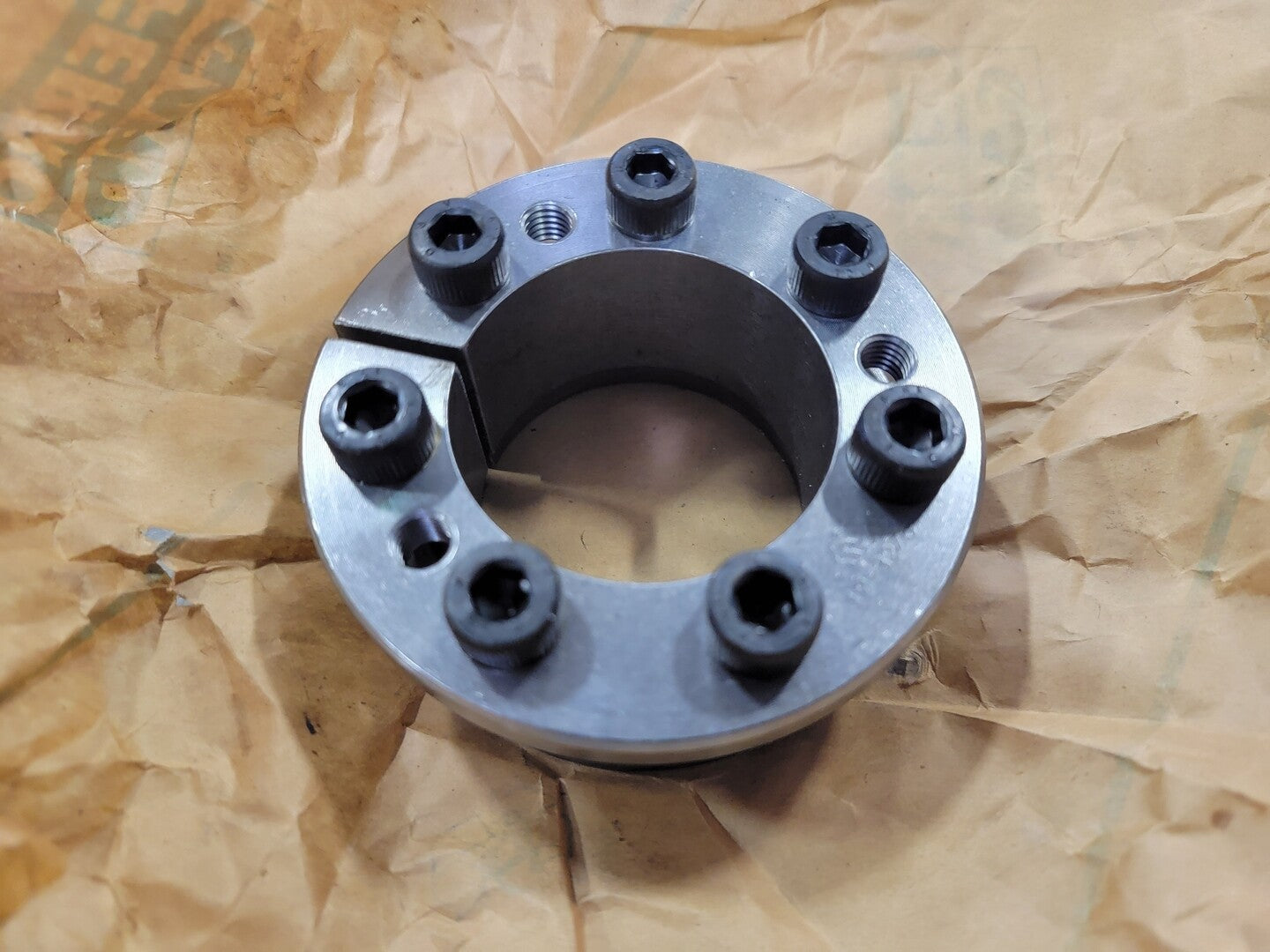

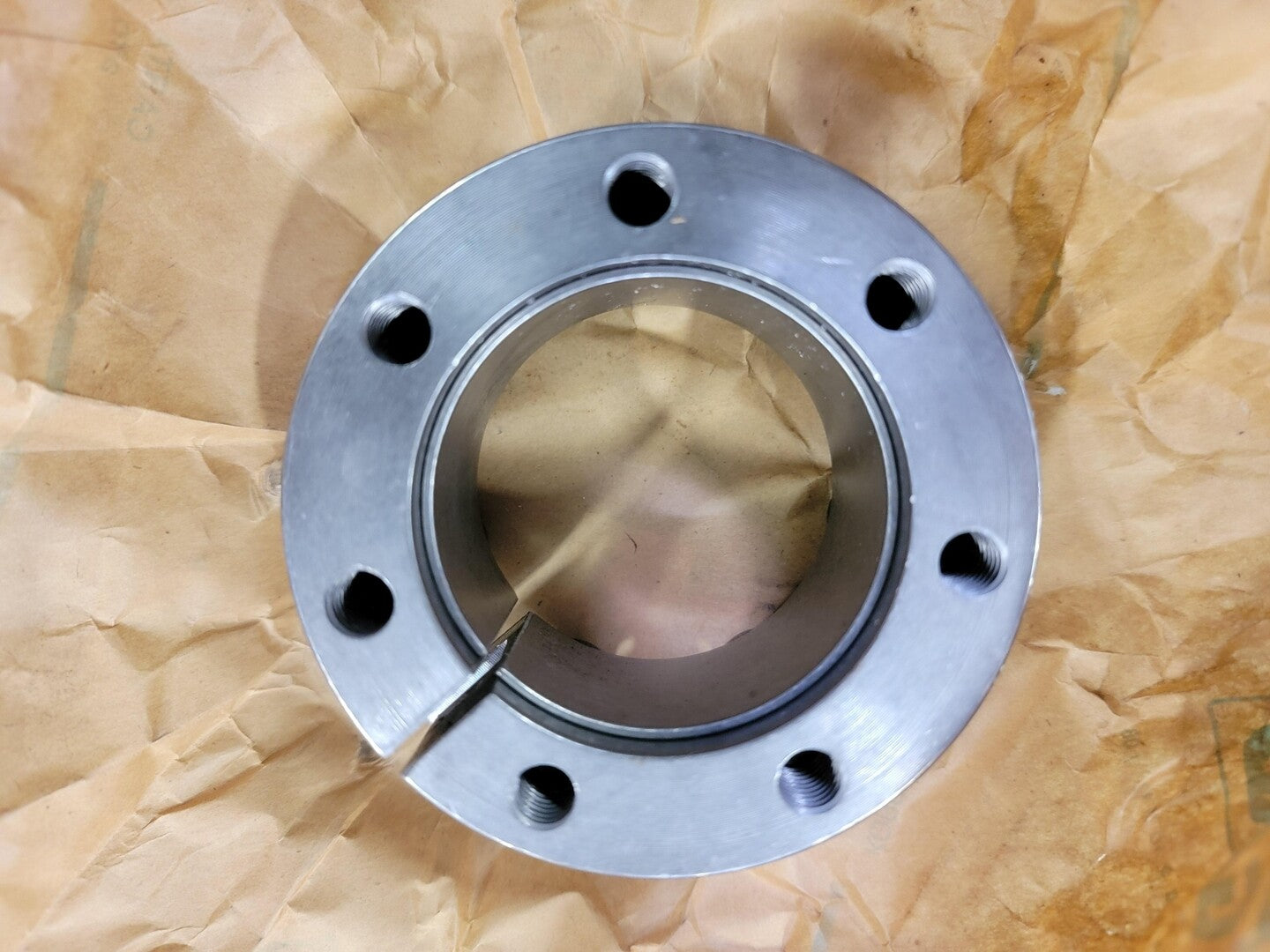

MAV 1061 keyless locking assembly designed for creating a high-strength, backlash-free connection between a 50 mm shaft and an 80 mm hub bore. This self-centering, single-taper mechanical locking device eliminates the need for keys or splines while maintaining a fixed axial hub position during tightening. Suitable for pulleys, sprockets, gears, couplings, conveyor drums, and other rotating power transmission components.
| Specifications | |
|---|---|
| Model | MAV 1061 50 x 60 mm |
| Made In | ITALY |
| Condition | Surplus New | General |
| Type | Keyless Bushing |
| Series | 1061 |
| Bore Diameter | 1.968 " |
| Other Specifications |
|---|
|
Type: Keyless Locking Assembly Series: 1061 Bore Diameter (d): 50 mm Outside Diameter (D): 80 mm Outside Flange Diameter (D1): 88.5 mm Locking Screw Quantity: 8 Locking Screw Size: M8 Recommended Tightening Torque (Ma): 41 Nm (30 ft-lb) Maximum Transmissible Torque (Mt): 1,800 Nm Axial Force (Fax): 72 kN Features:-
Ideal Applications:-
|
