Description

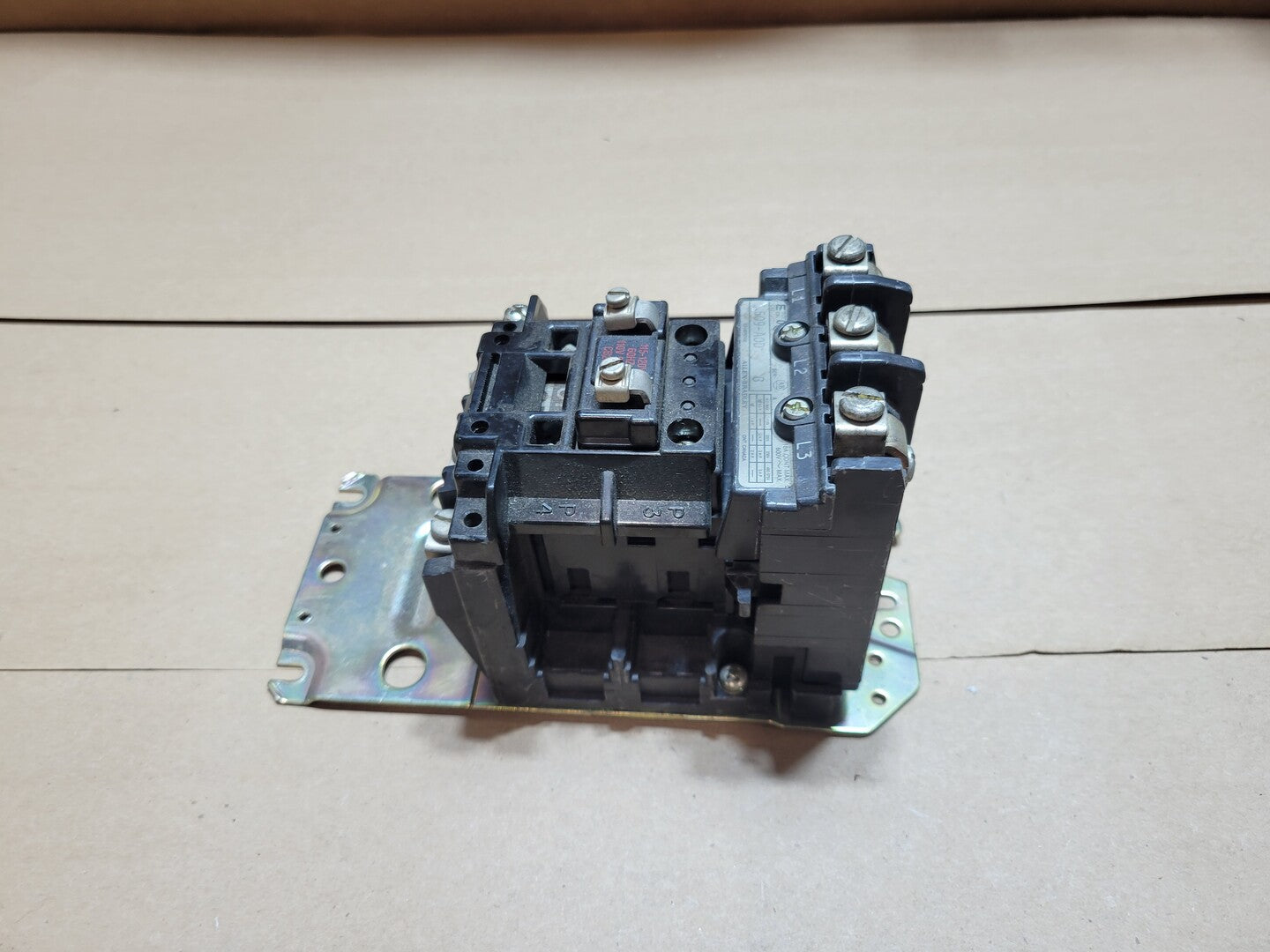

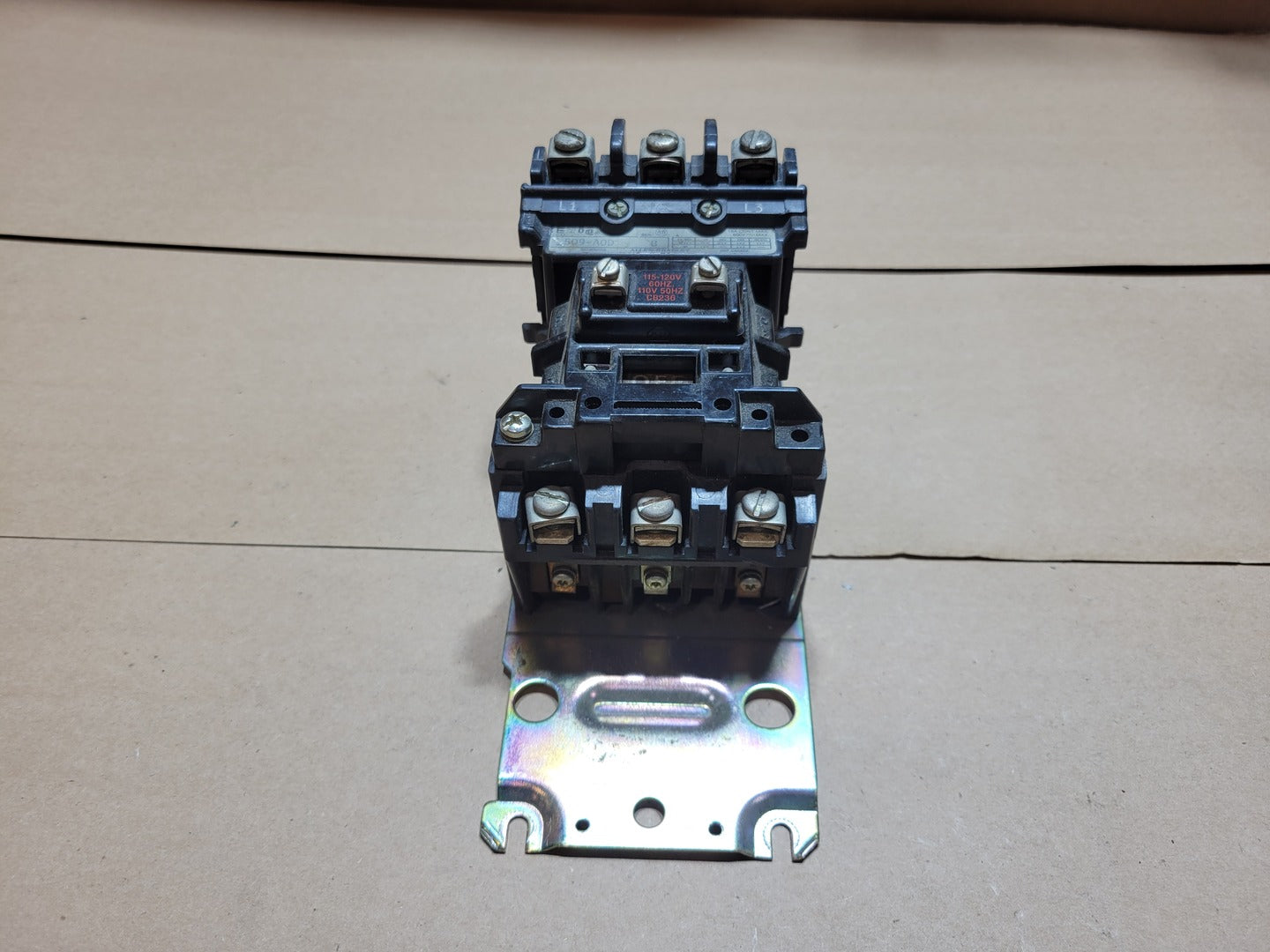

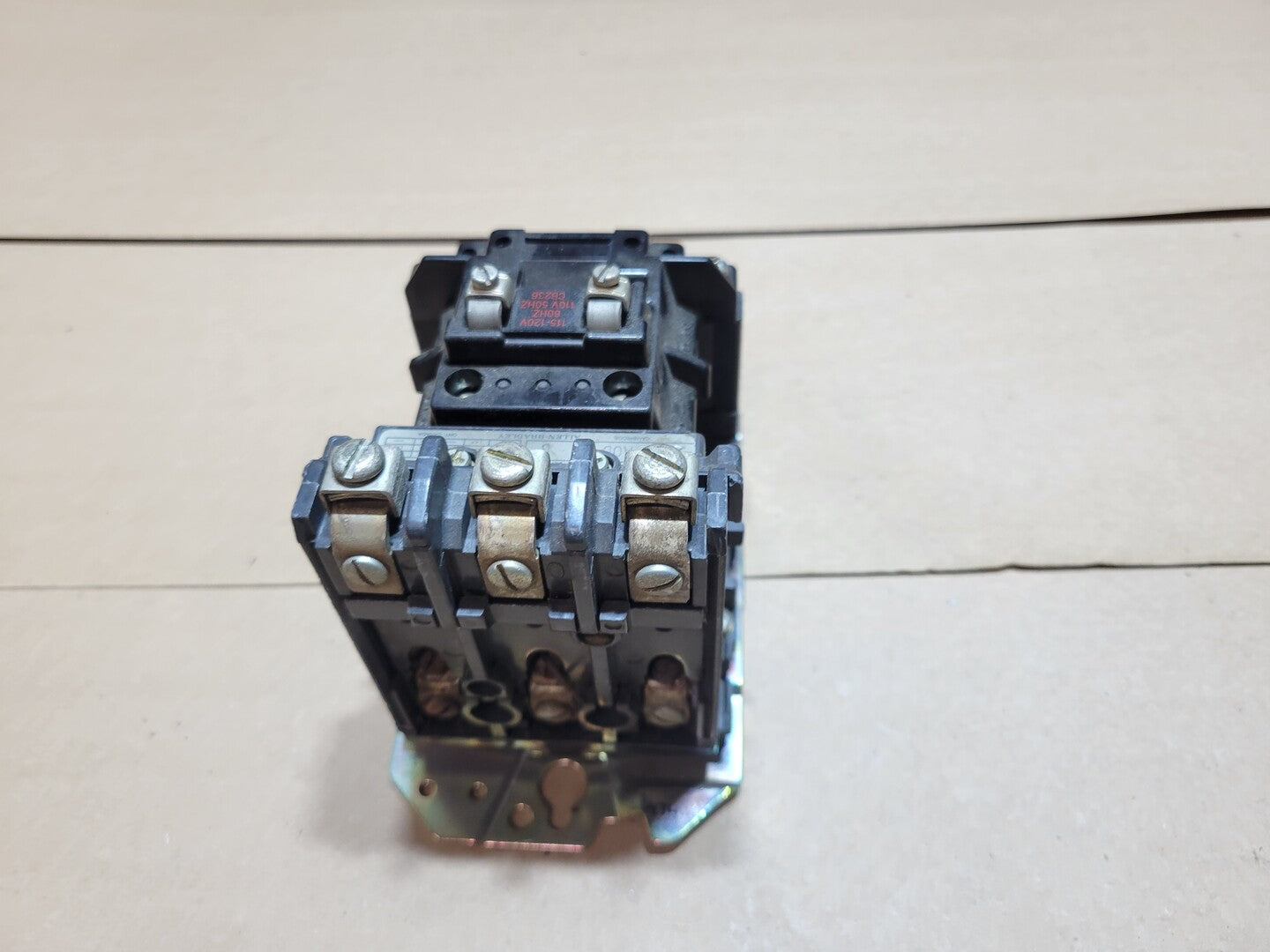

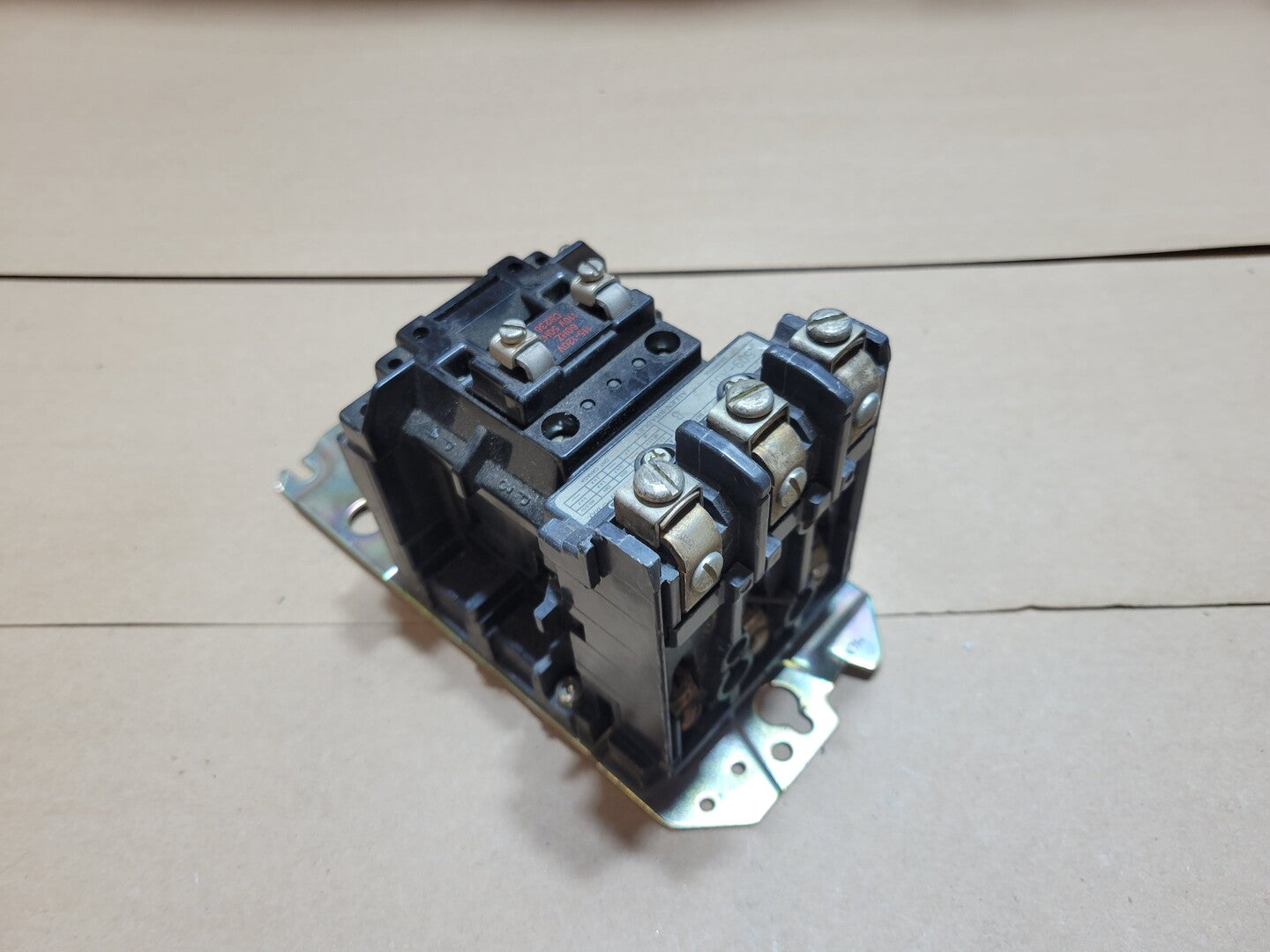

Allen-Bradley 509-AOD Series B NEMA Size 0 full-voltage non-reversing magnetic motor starter with three power poles and a CB236 115-120VAC 60Hz / 110VAC 50Hz control coil. Rated for up to 18A continuous current and 600VAC maximum. Includes the photographed overload section and metal mounting plate.
| Specifications | |
|---|---|
| Model | 509-AOD |
| Condition | Used | Electrical |
| Amps | 18 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 5 hp | General |
| Enclosure | No |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|
Series: B Starter Type: Full-voltage non-reversing NEMA Size: 0 Number of Power Poles: 3 Coil Number: CB236 Coil Voltage: 115-120VAC at 60Hz / 110VAC at 50Hz Main Terminals: L1, L2, L3 Connection Type: Screw terminals Mounting: Open style, metal mounting plate Motor horsepower ratings 3-Phase, 200V: 3 HP 3-Phase, 230V: 3 HP 3-Phase, 460-575V: 5 HP 1-Phase, 115V: 1 HP 1-Phase, 230V: 2 HP |
