Description

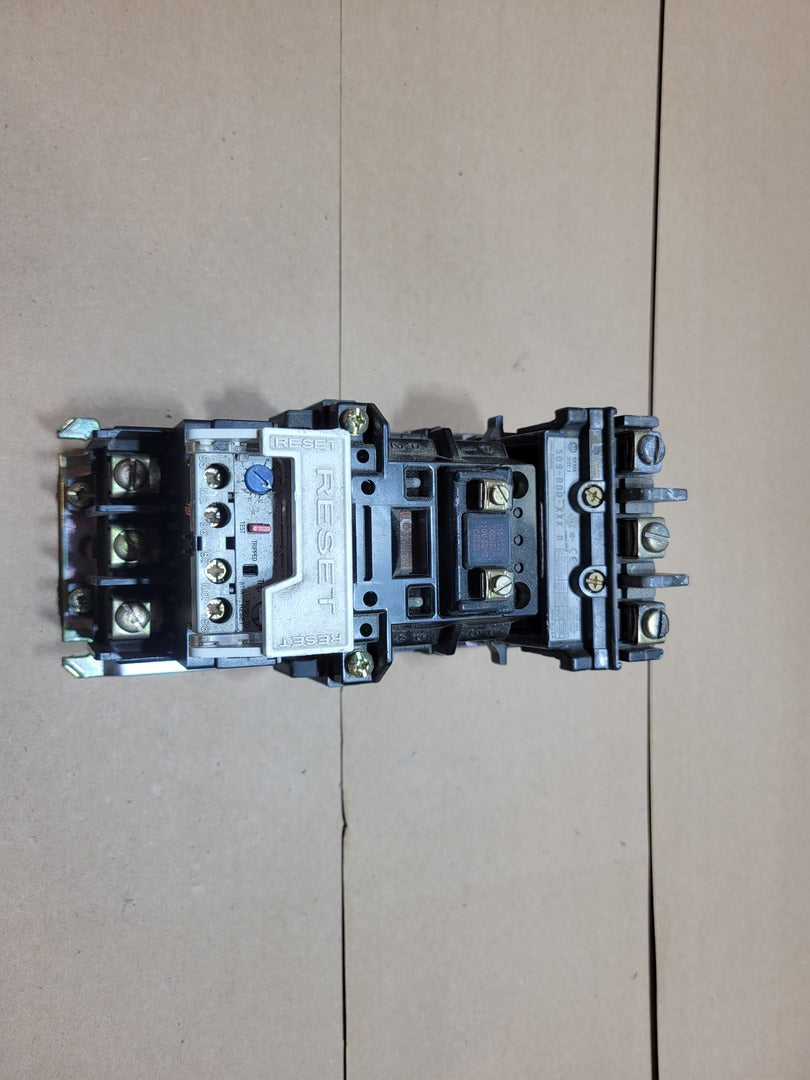

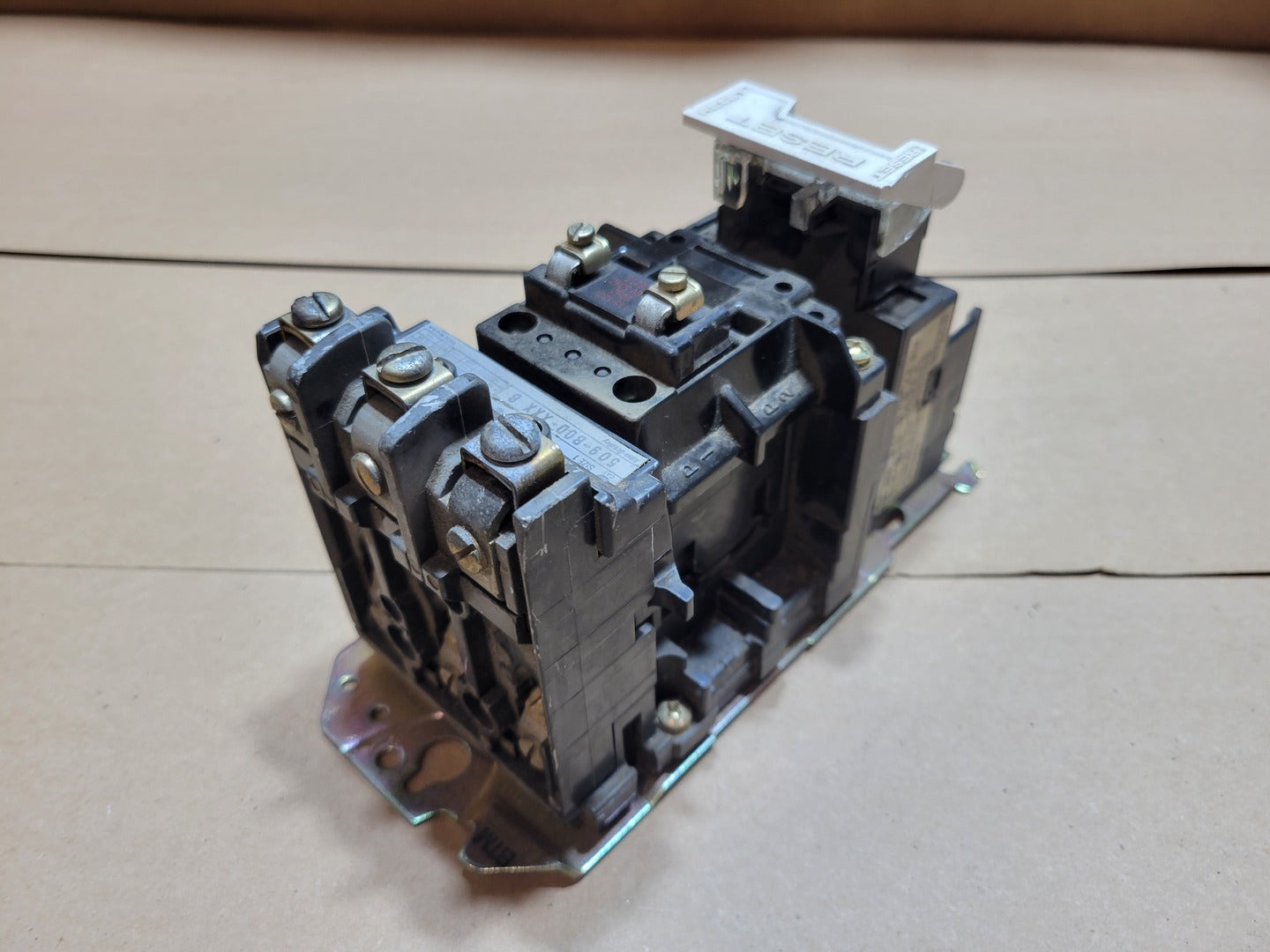

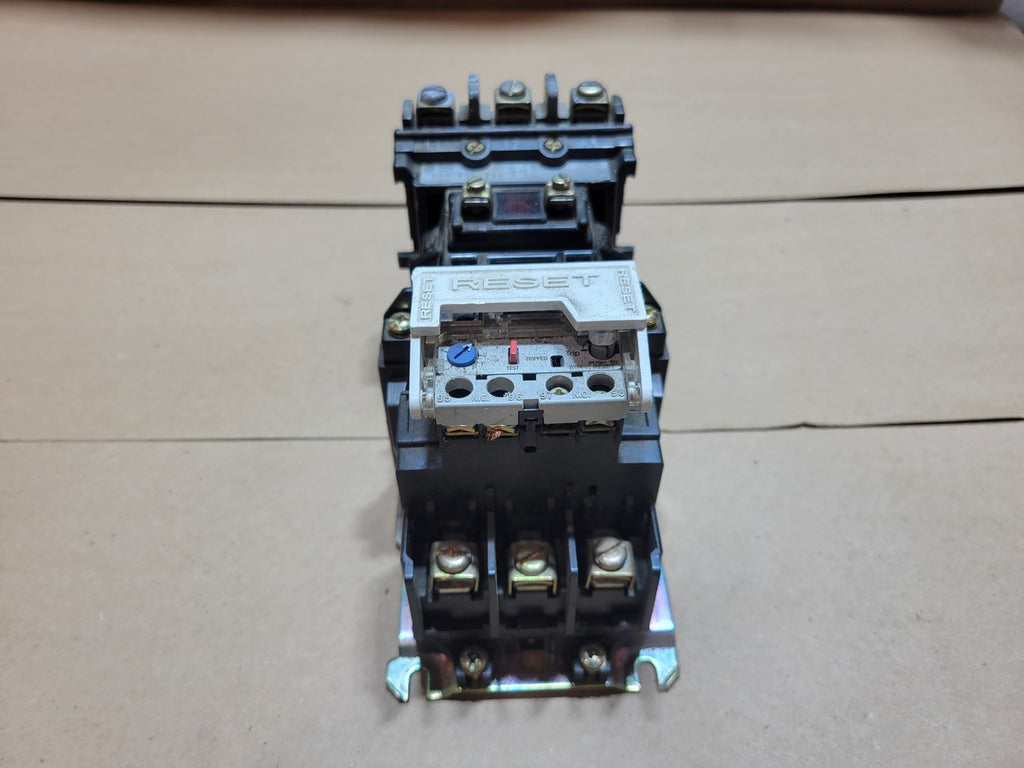

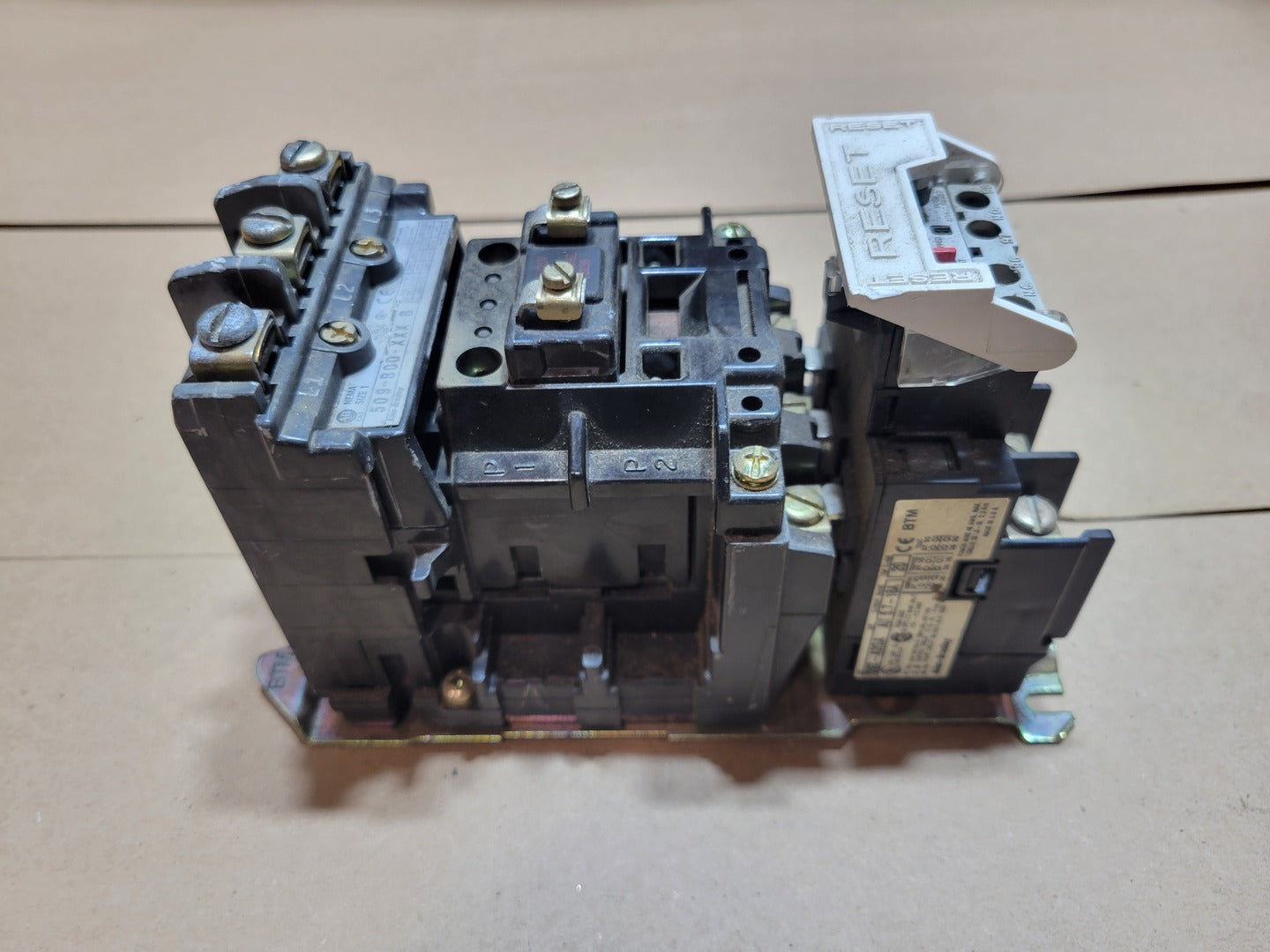

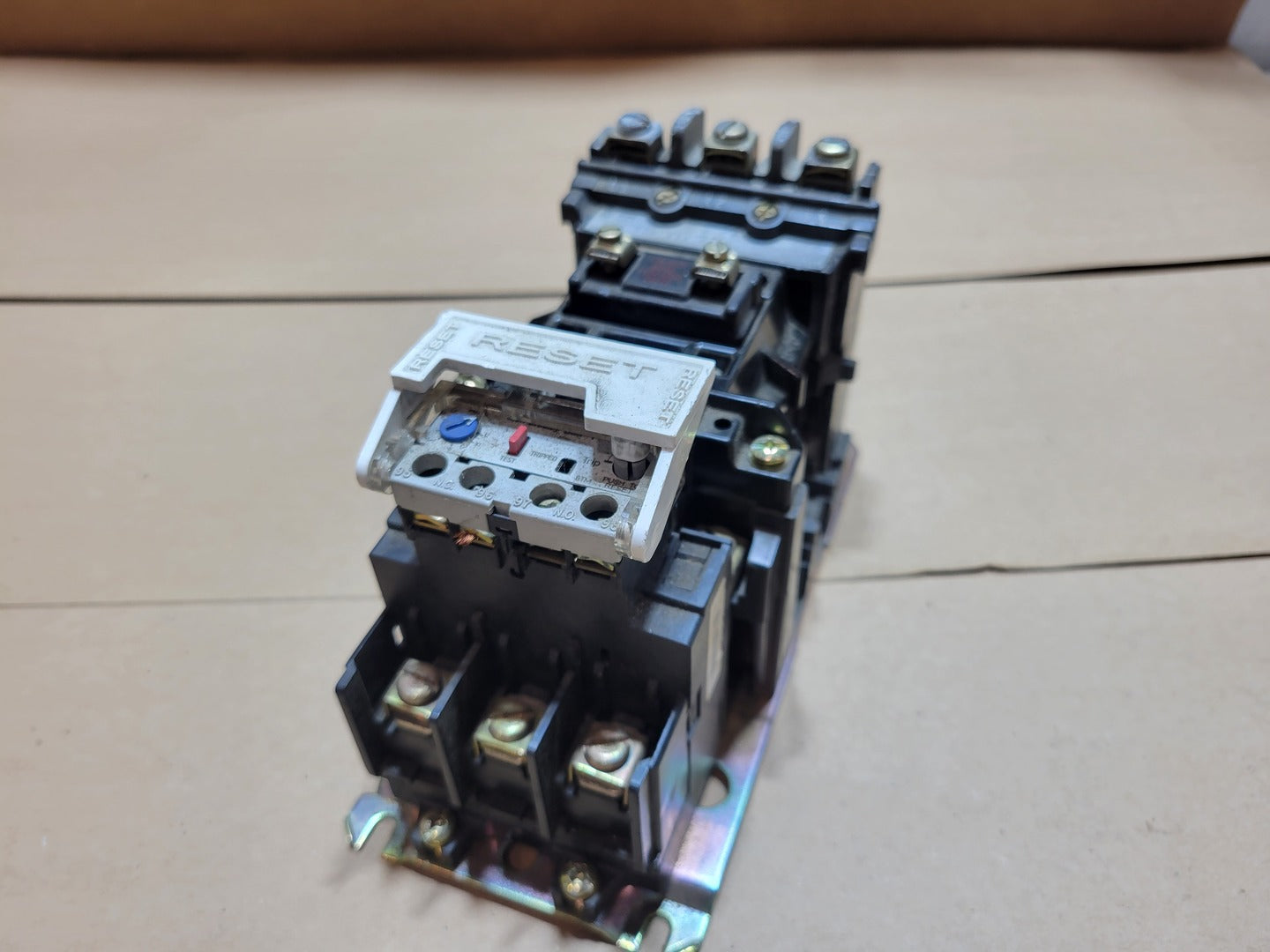

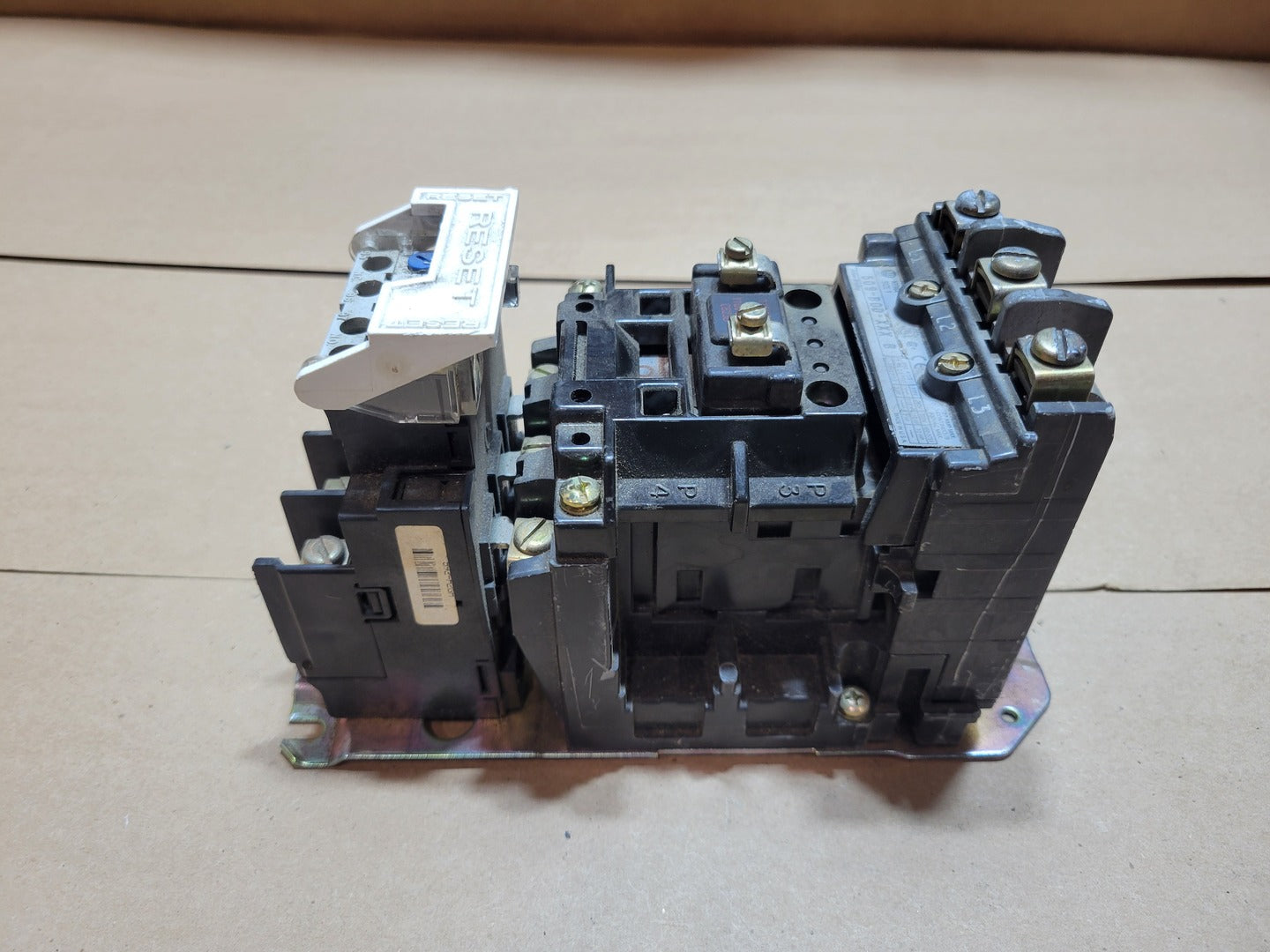

Allen-Bradley 509-BOD Series B NEMA Size 1 full-voltage non-reversing magnetic motor starter with three-pole contactor, CB236 115-120VAC control coil, and adjustable overload relay with manual reset and trip indication. The starter is rated 27A maximum continuous and 600VAC maximum. Rockwell documentation confirms the 509-BOD configuration as an open-style Size 1 starter with eutectic-alloy overload protection.
| Specifications | |
|---|---|
| Model | 509-BOD |
| Condition | Used | Electrical |
| Amps | 27 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 10 hp | General |
| Enclosure | No |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|
Series: B Starter Type: Full-voltage non-reversing (FVNR) NEMA Size: Size 1 Configuration: Open style / panel mount Power Poles: 3 Control Coil: CB236 Coil Voltage: 115-120 VAC, 60 Hz / 110 VAC, 50 Hz Overload Protection: Eutectic-alloy overload relay Overload Reset: Manual reset Trip Indication: Yes Auxiliary Overload Contacts: 95-96 NC and 97-98 NO Power Terminal Wire Range: 14-8 AWG Power Terminal Torque: 20 lb-in Motor horsepower ratings 3-Phase, 200V: 7.5 HP 3-Phase, 230V: 7.5 HP 3-Phase, 460-575V: 10 HP 1-Phase, 115V: 2 HP 1-Phase, 230V: 3 HP |
