Description

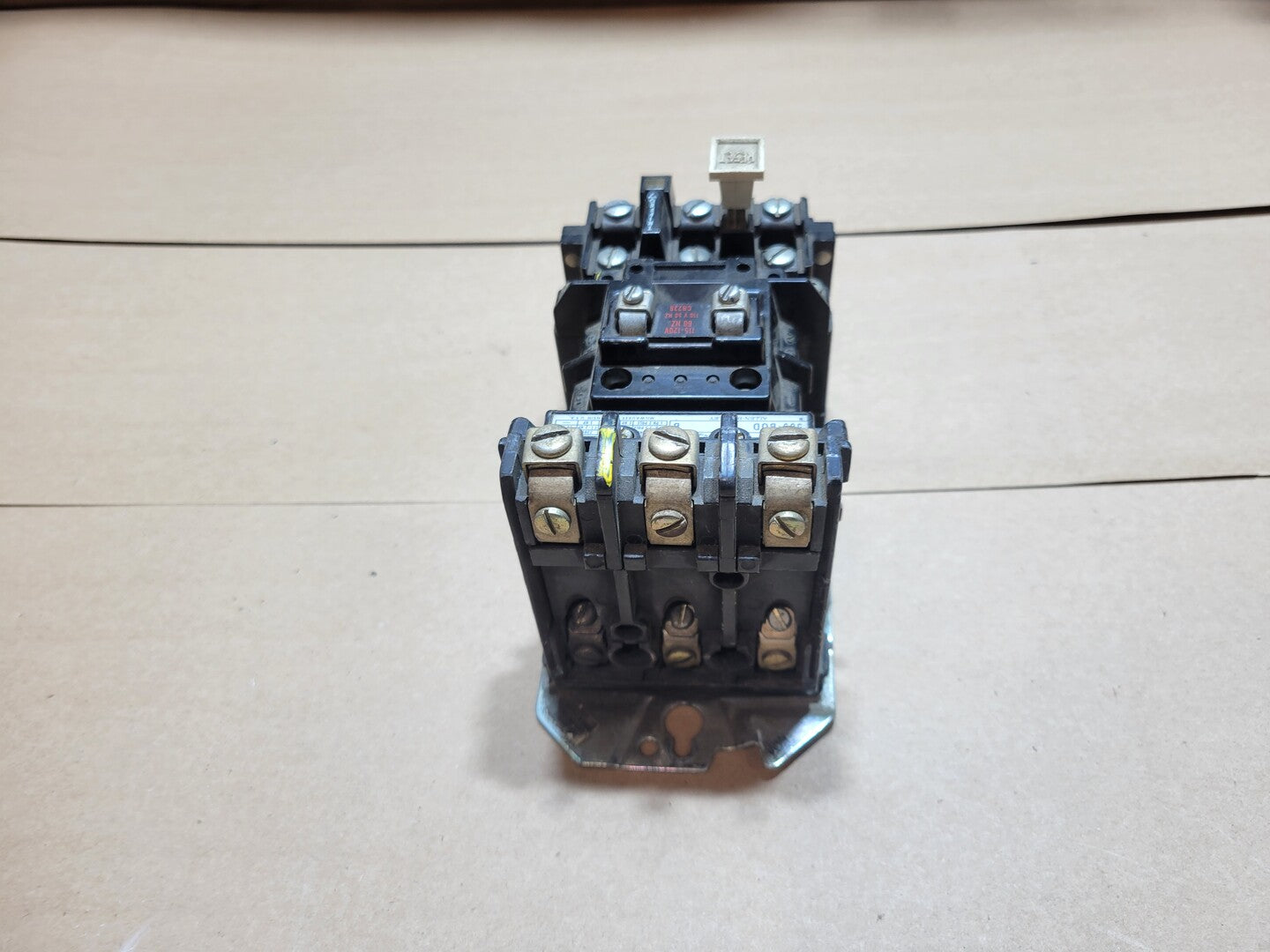

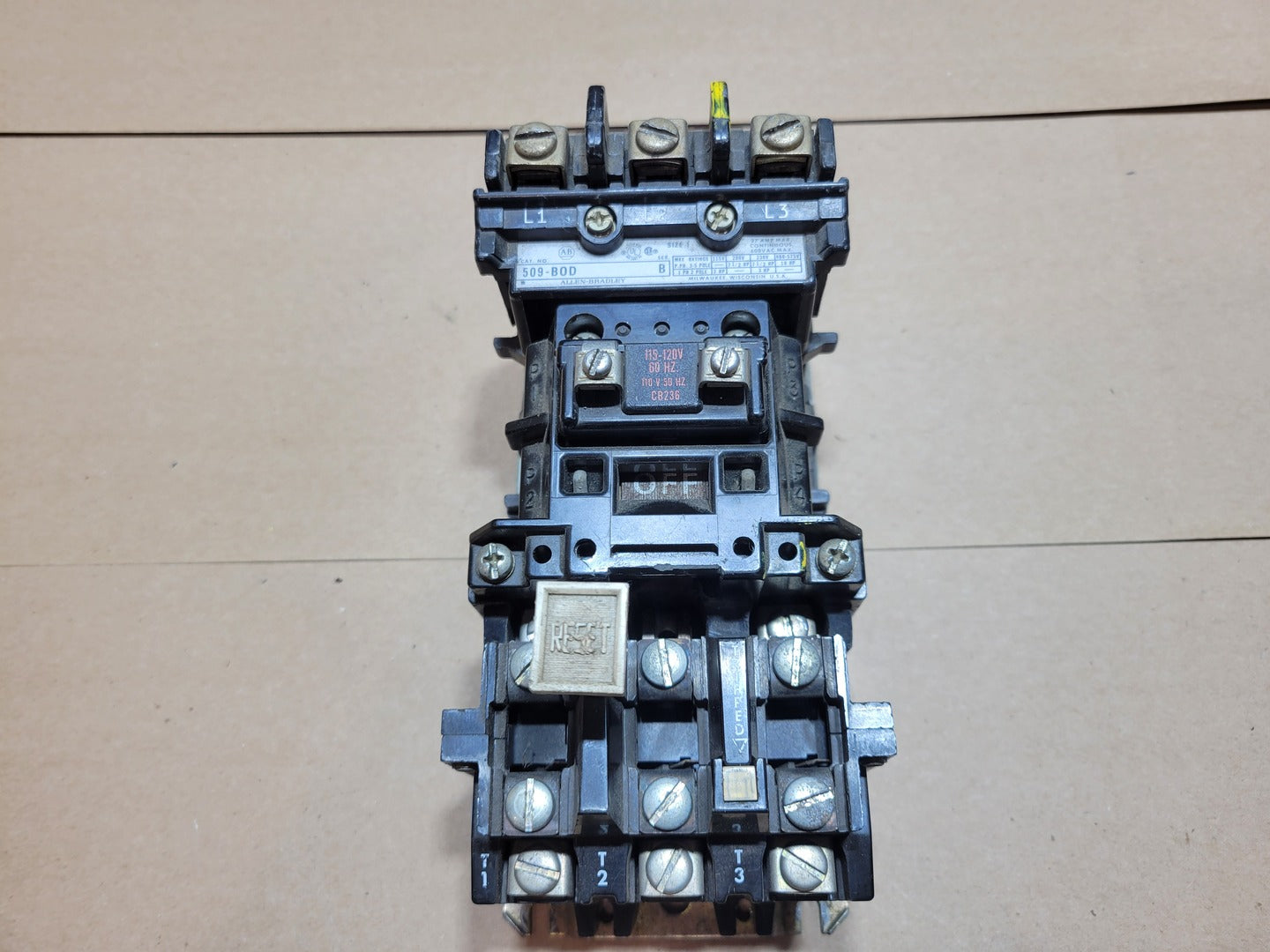

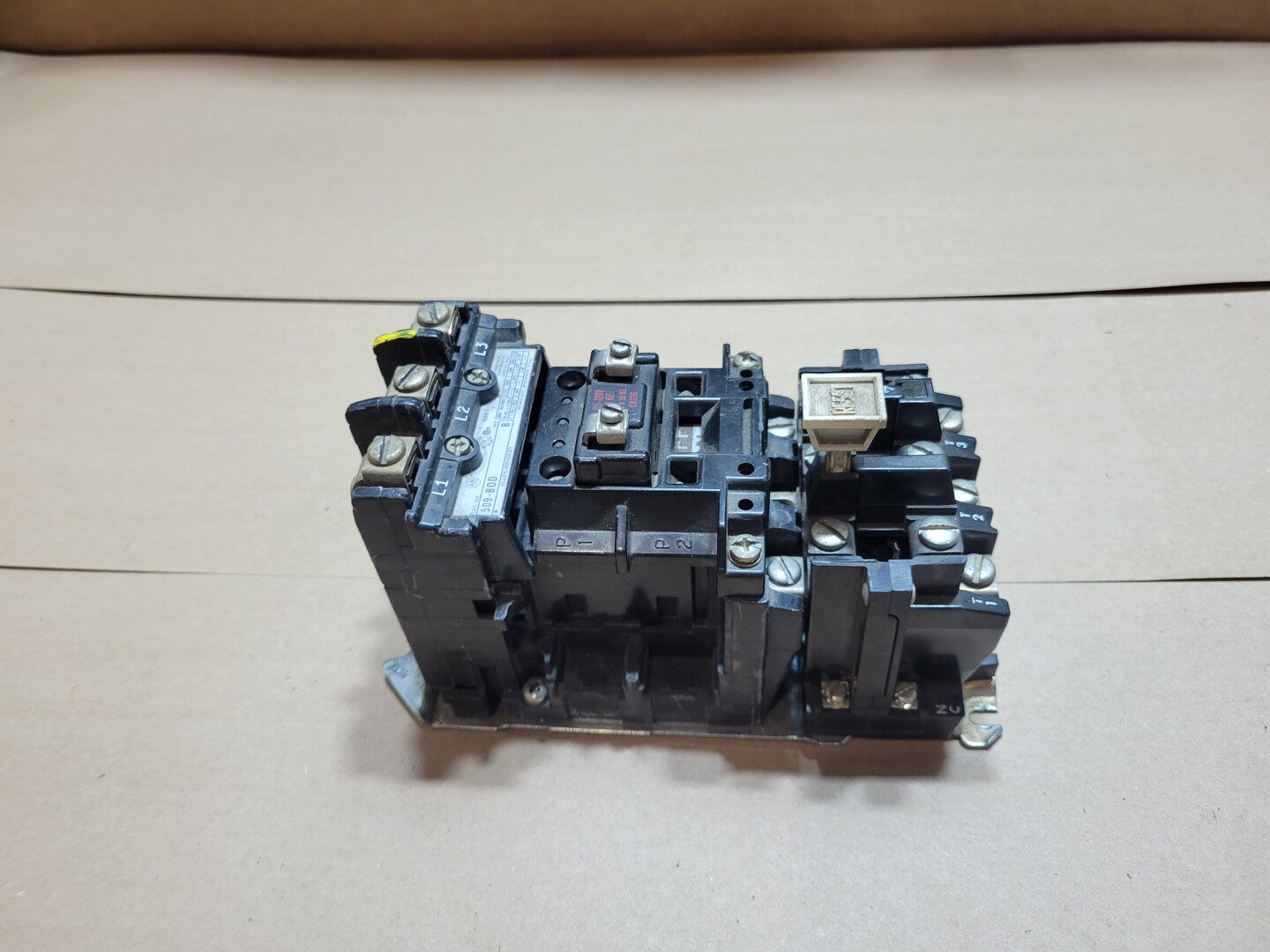

Allen-Bradley 509-BOD Series B NEMA Size 1 magnetic motor starter with three power poles, 27 A maximum continuous rating, 600 VAC maximum power-circuit rating, and 115-120 VAC 60 Hz / 110 VAC 50 Hz operating coil. The unit is an open-style non-reversing starter with an overload relay, manual reset and trip indication. Suitable for industrial motor-control and replacement applications where the 509-BOD configuration and coil voltage are required.
| Specifications | |
|---|---|
| Model | 509-BOD |
| Condition | Used | Electrical |
| Amps | 27 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 10 hp | General |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|

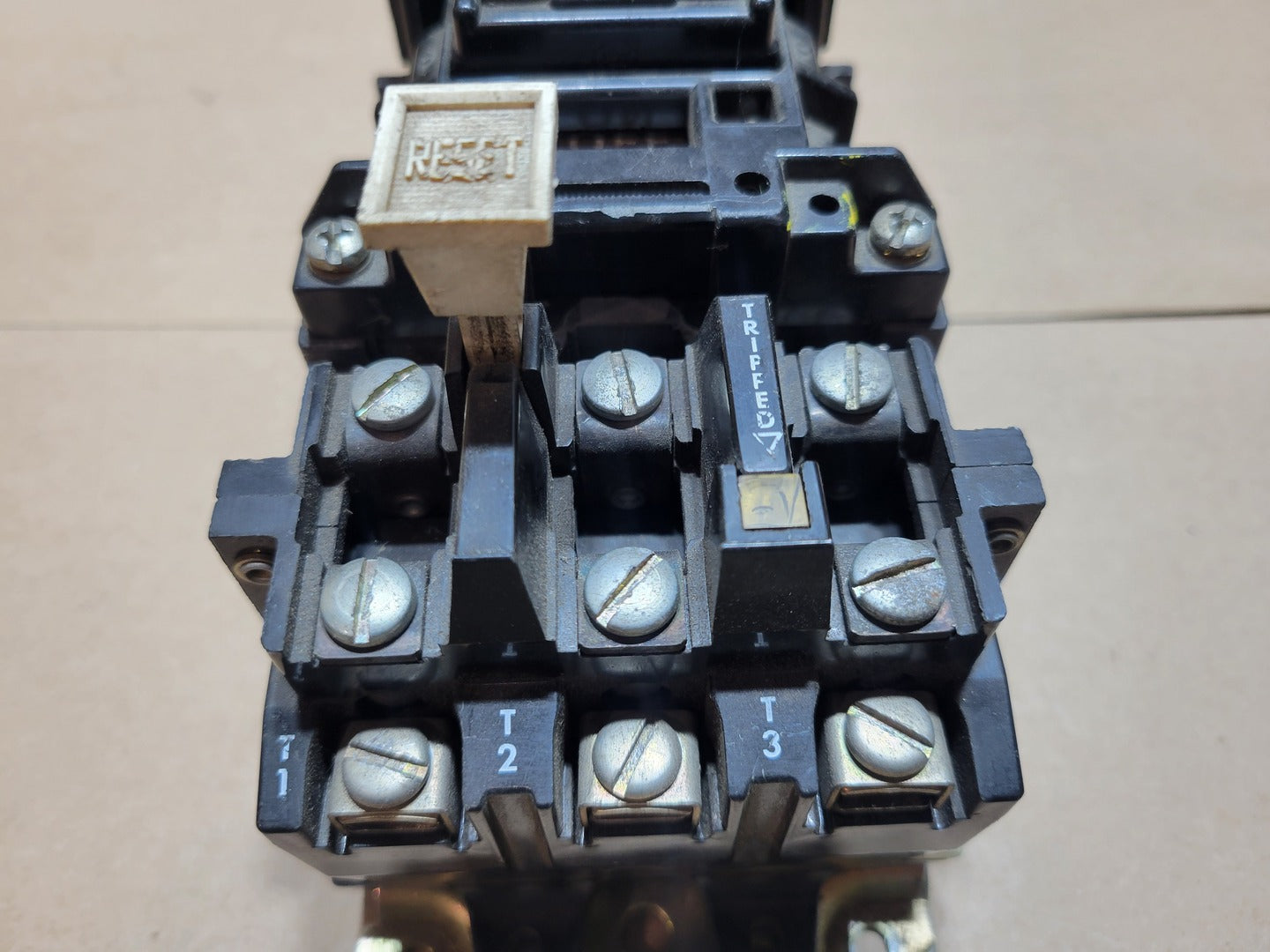

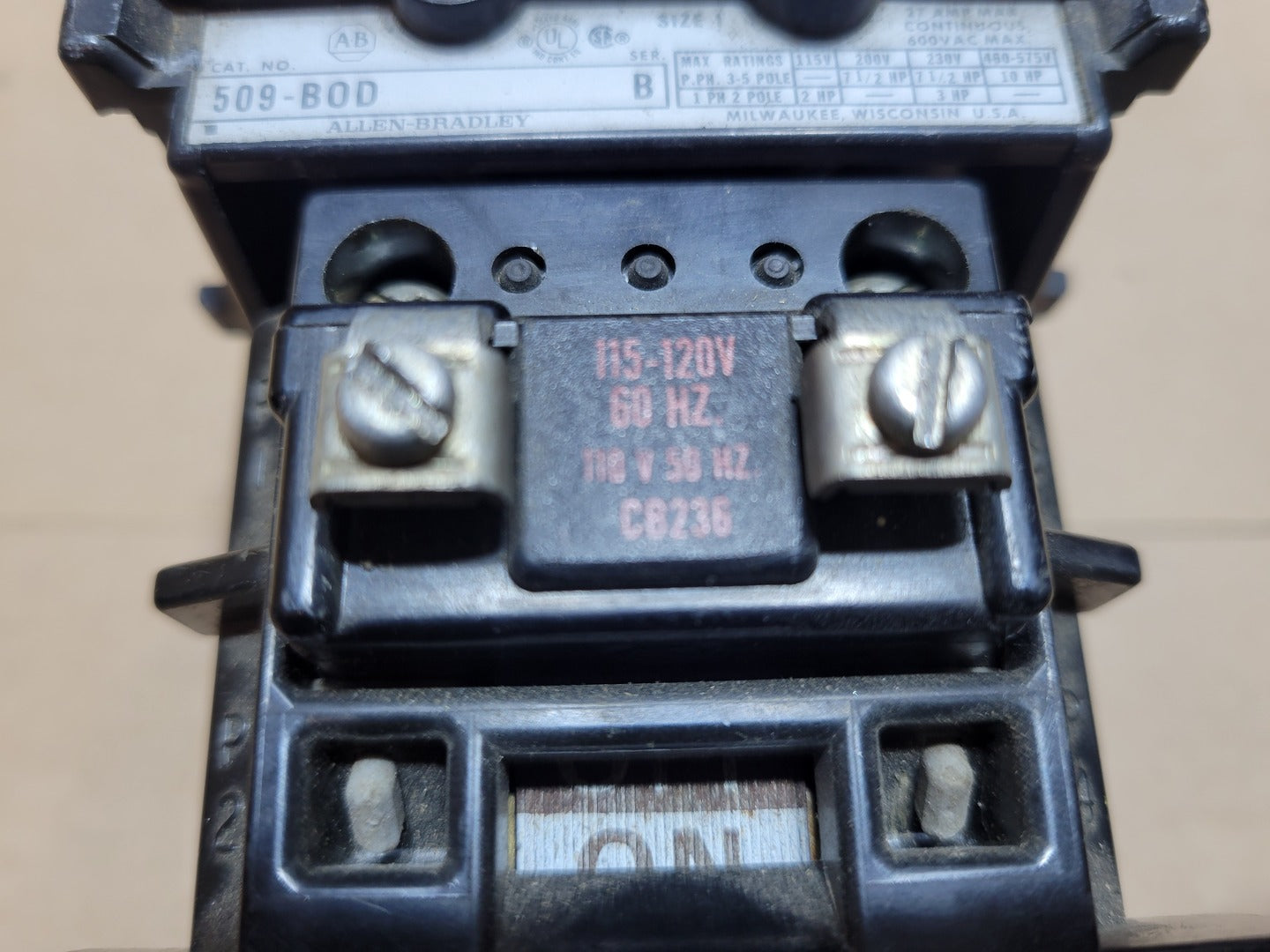

Series: B Equipment Type: Full-voltage magnetic motor starter Starter Configuration: Non-reversing NEMA Size: Size 1 Number of Main Poles: 3 Line Terminals: L1, L2, L3 Load Terminals: T1, T2, T3 Coil Voltage: 115-120 VAC at 60 Hz Coil Voltage at 50 Hz: 110 VAC Coil Marking: CB236 Overload Type: Eutectic-alloy overload relay configuration Reset: Manual reset button Trip Indication: Mechanical "TRIPPED" indicator Enclosure: Open type / no enclosure included Connection Type: Screw terminals Motor Horsepower Ratings: 3-Phase, 200 V: 7-1/2 HP 3-Phase, 230 V: 7-1/2 HP 3-Phase, 460-575 V: 10 HP 1-Phase, 115 V: 2 HP 1-Phase, 230 V: 3 HP |
