Description

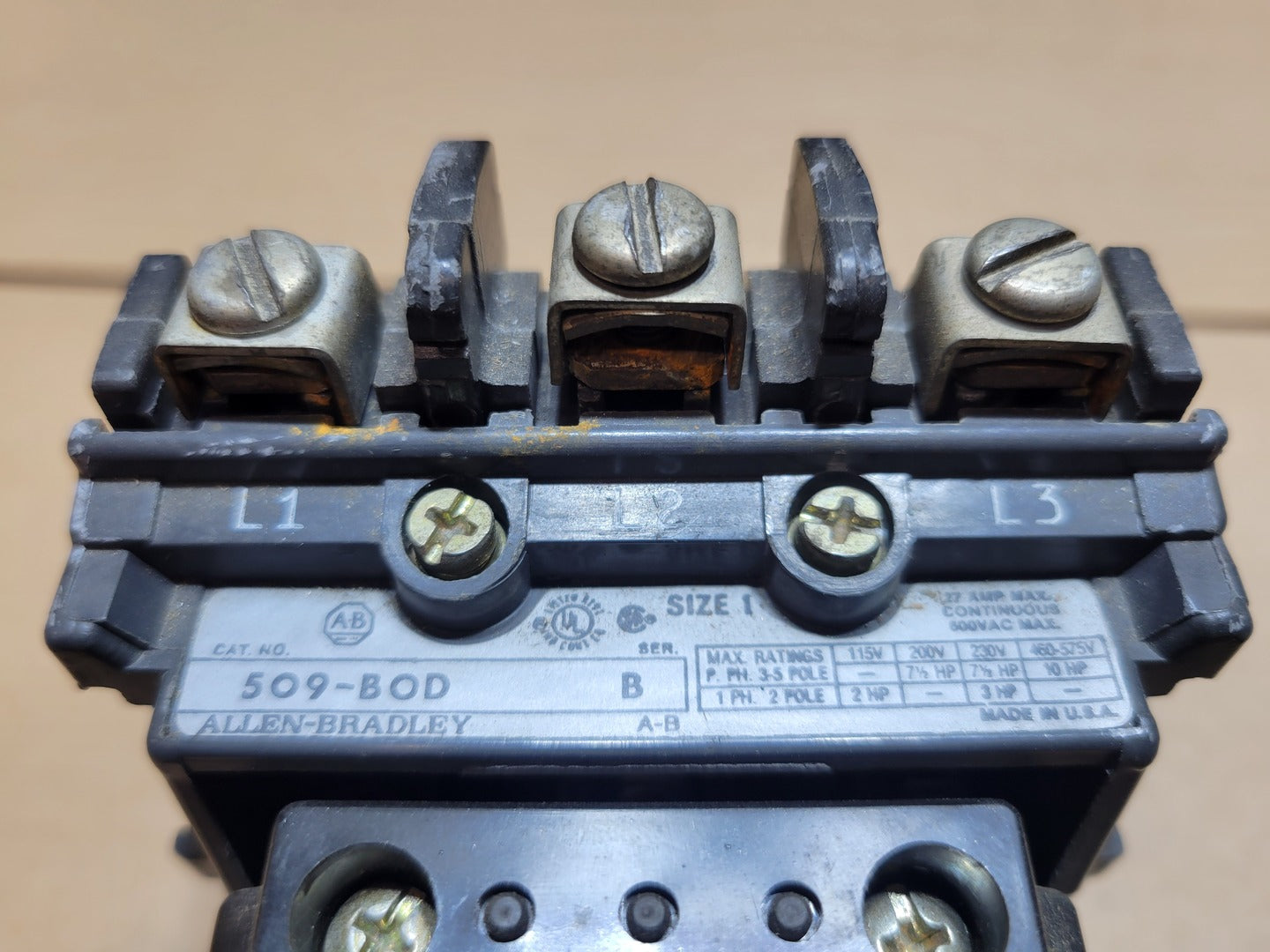

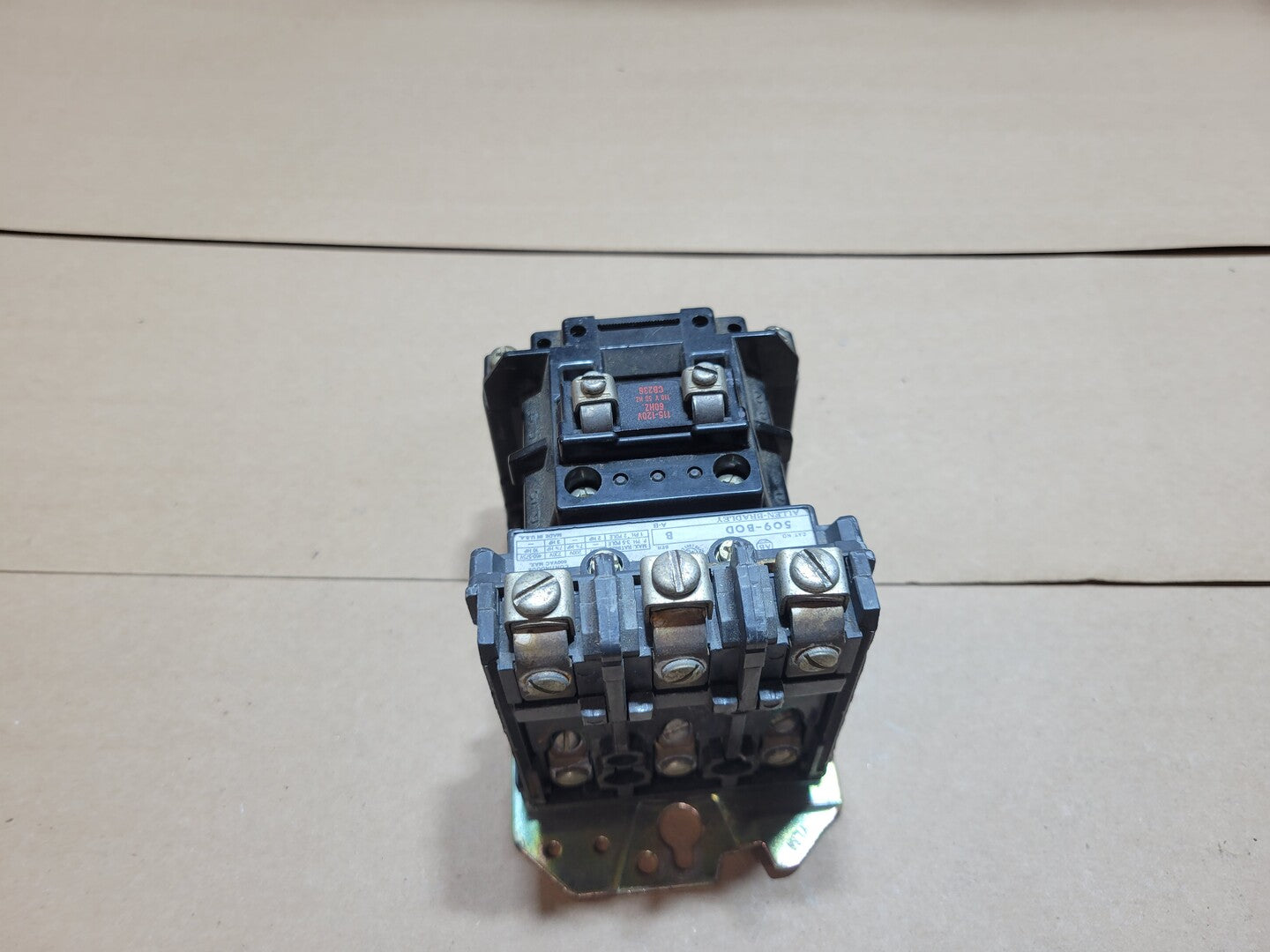

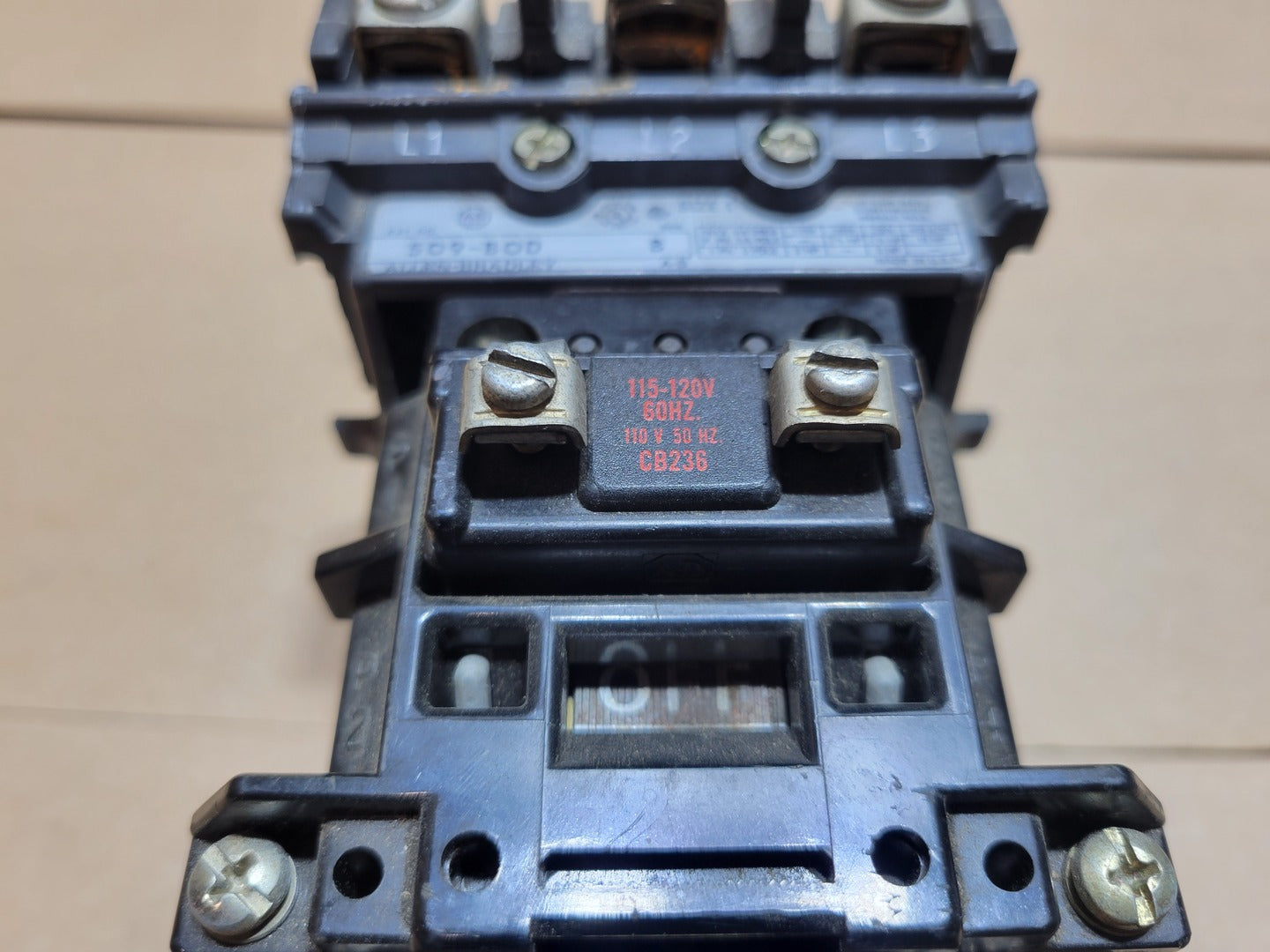

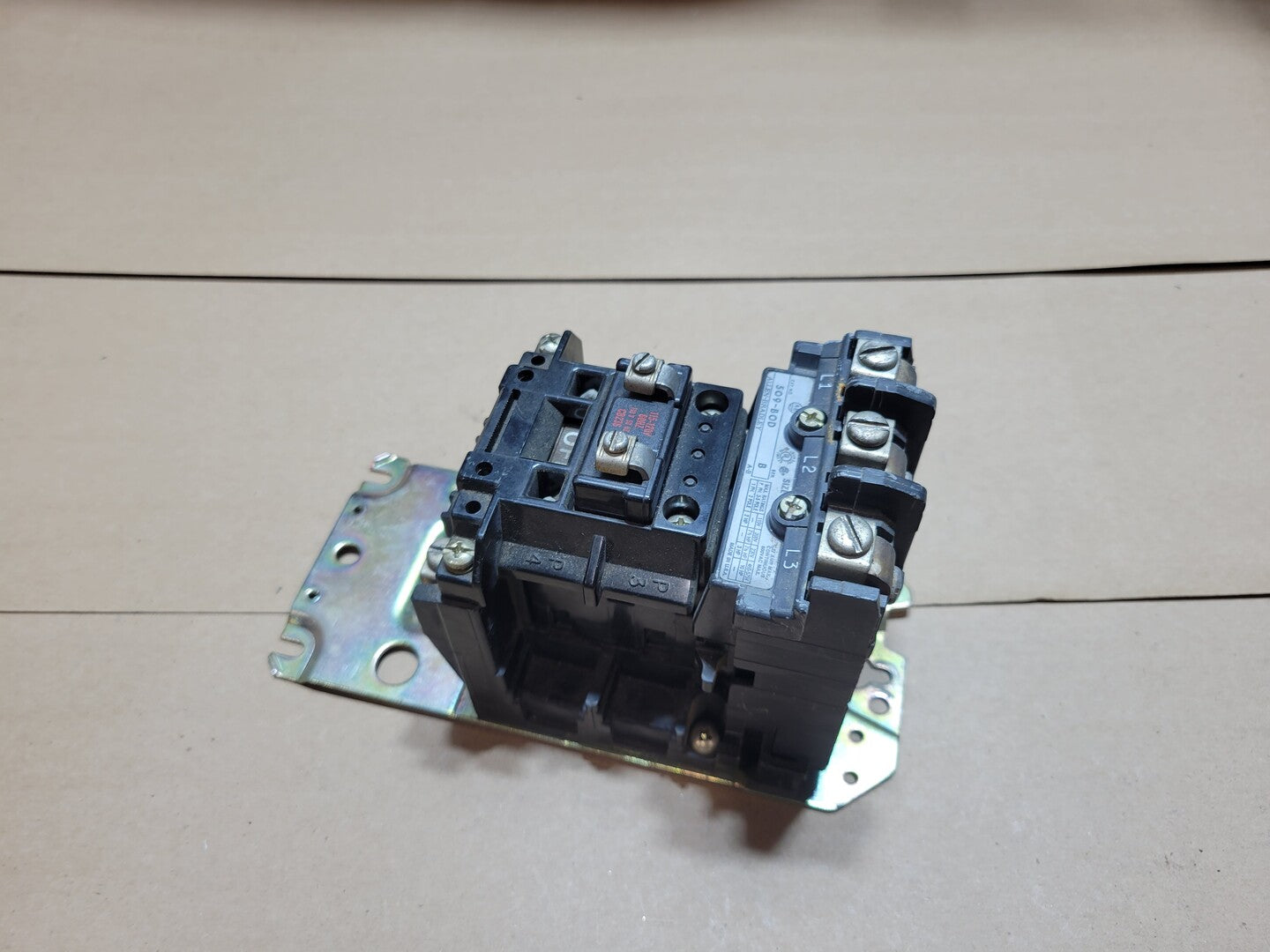

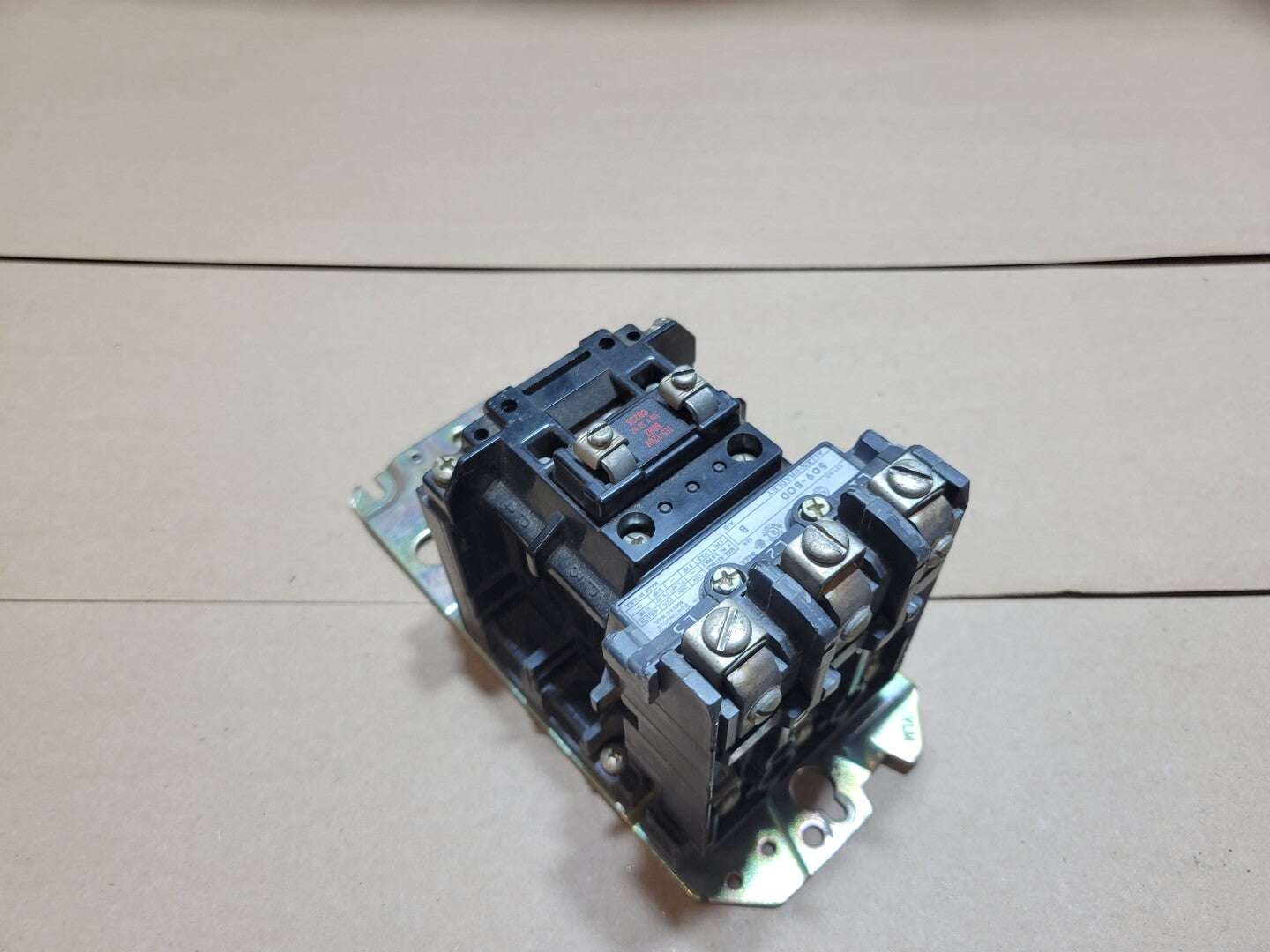

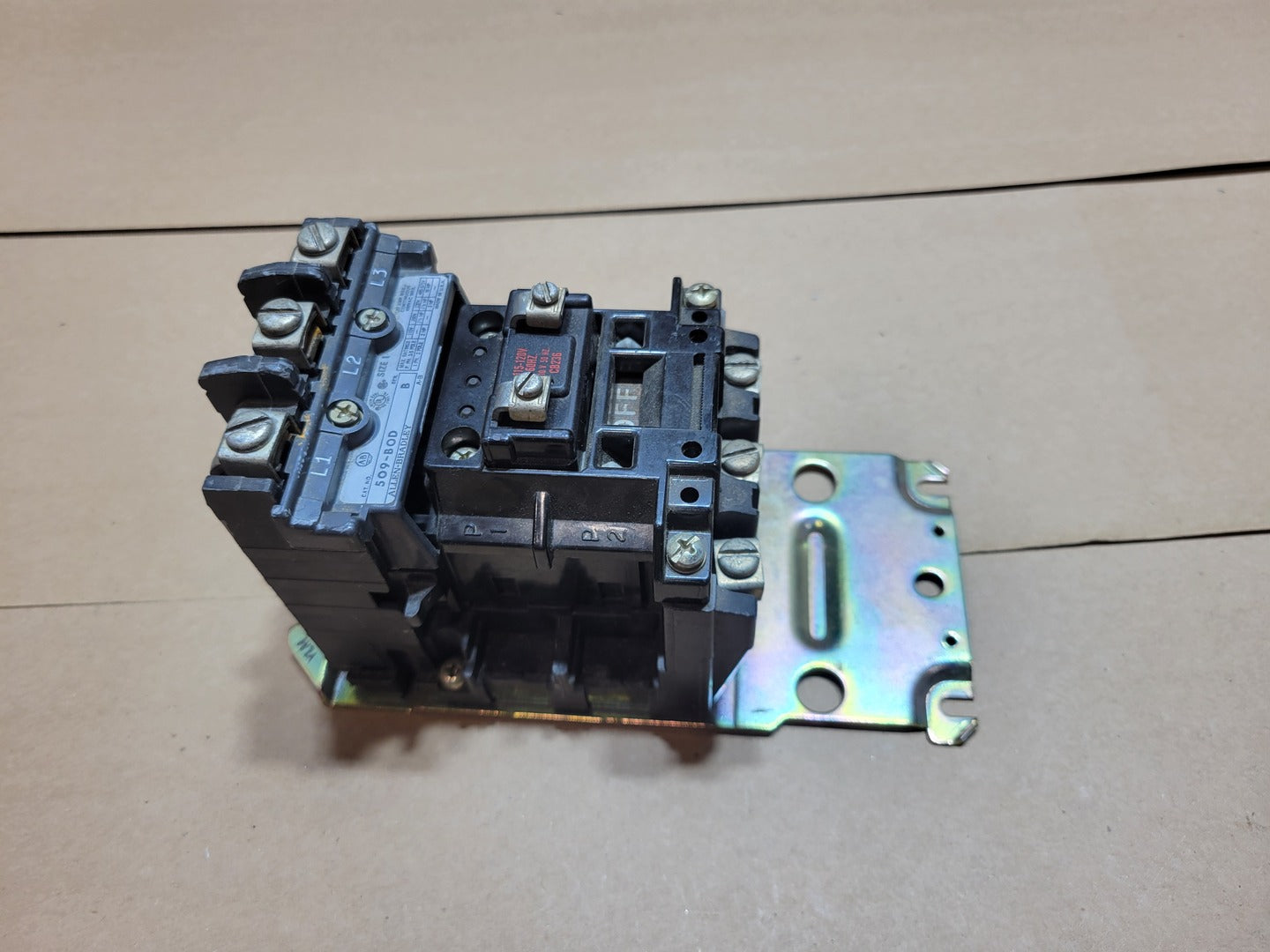

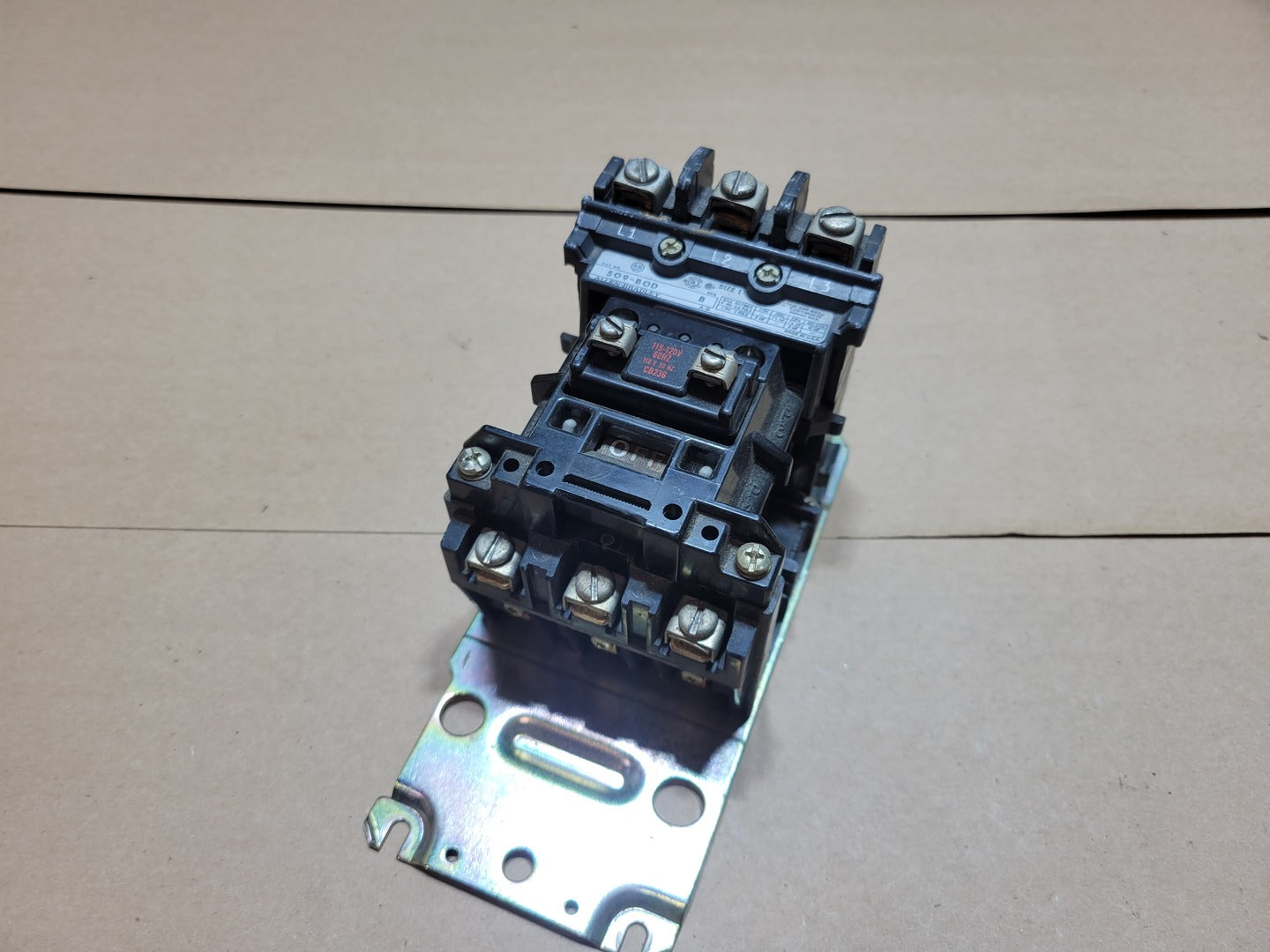

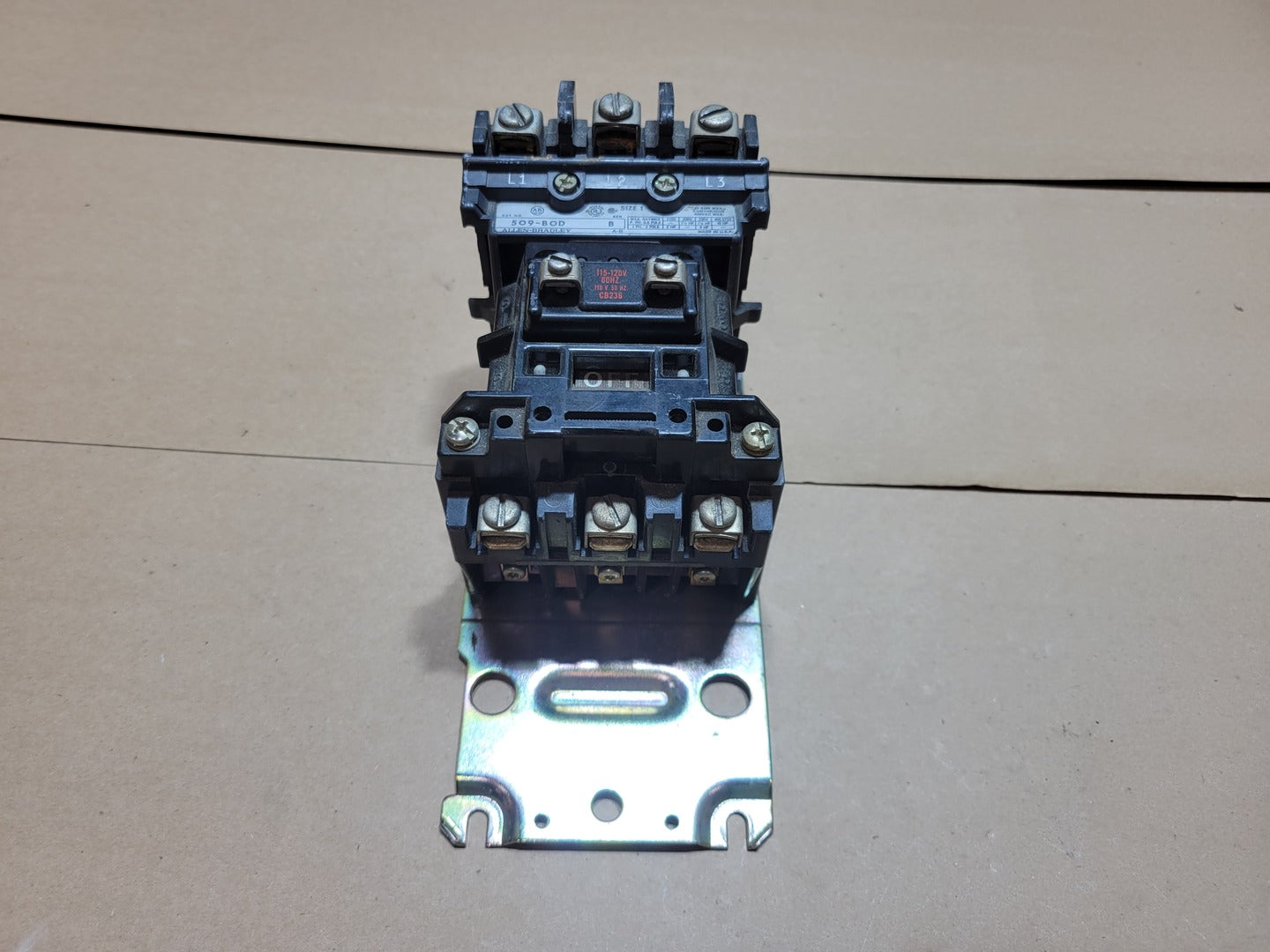

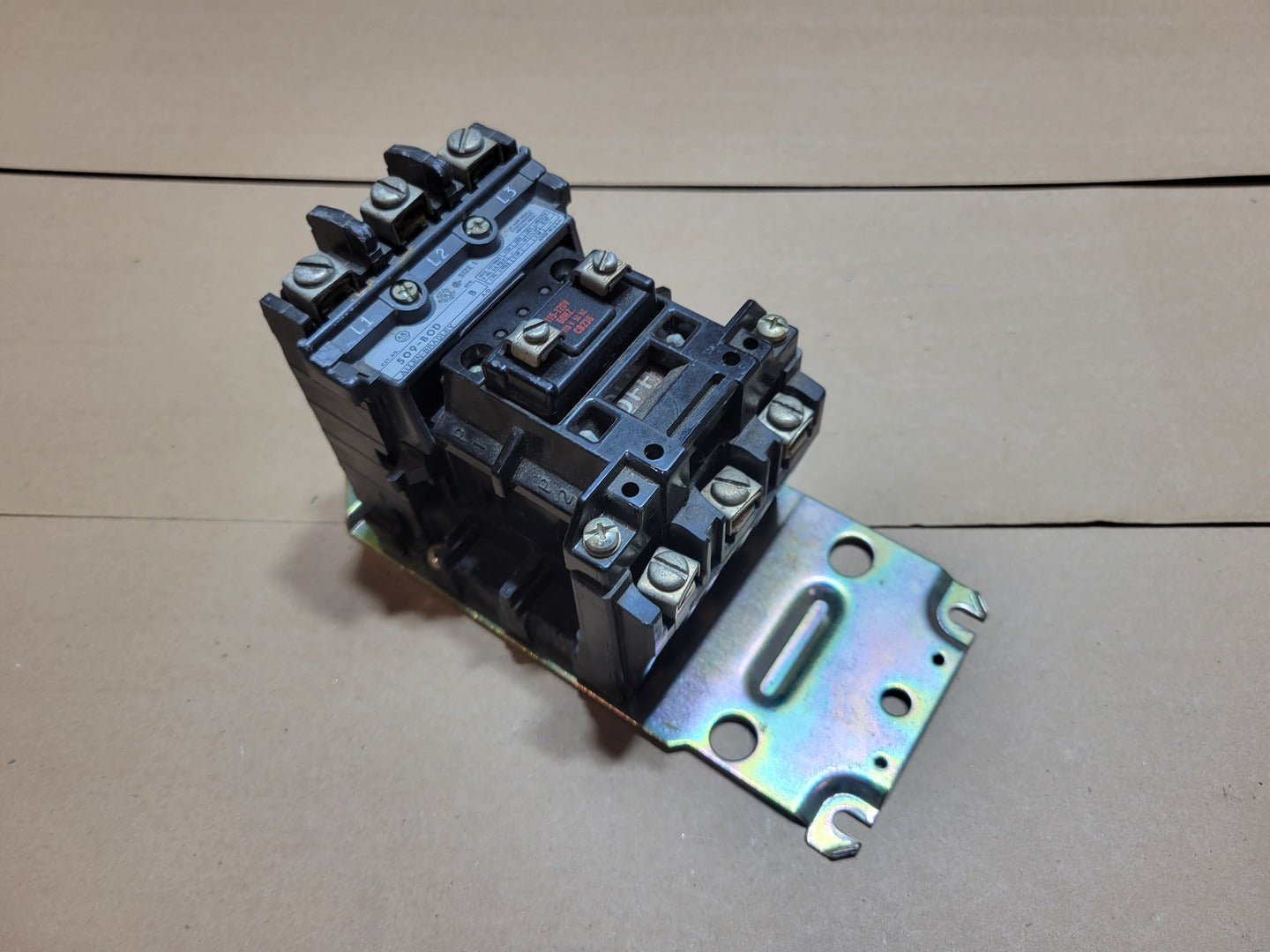

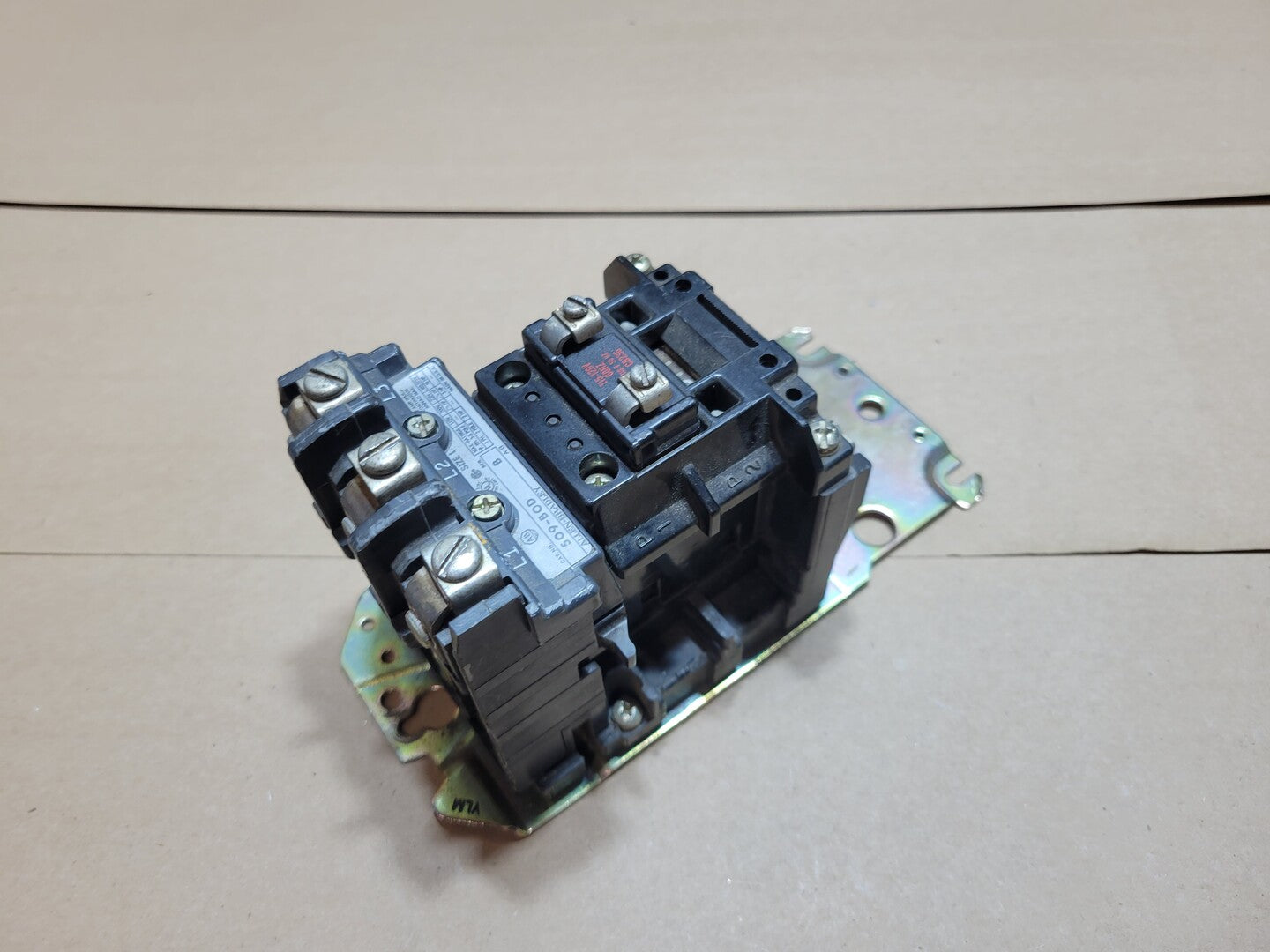

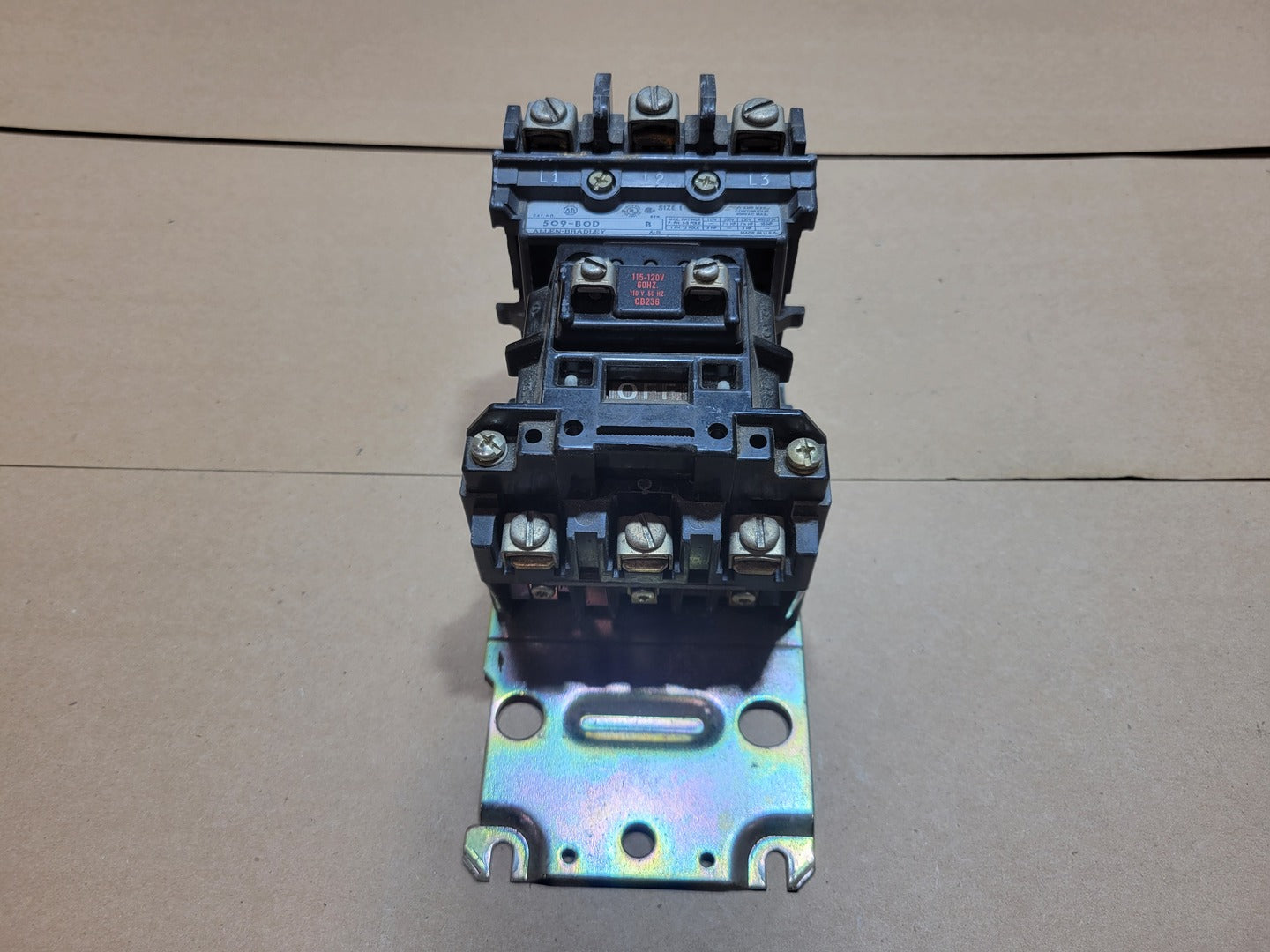

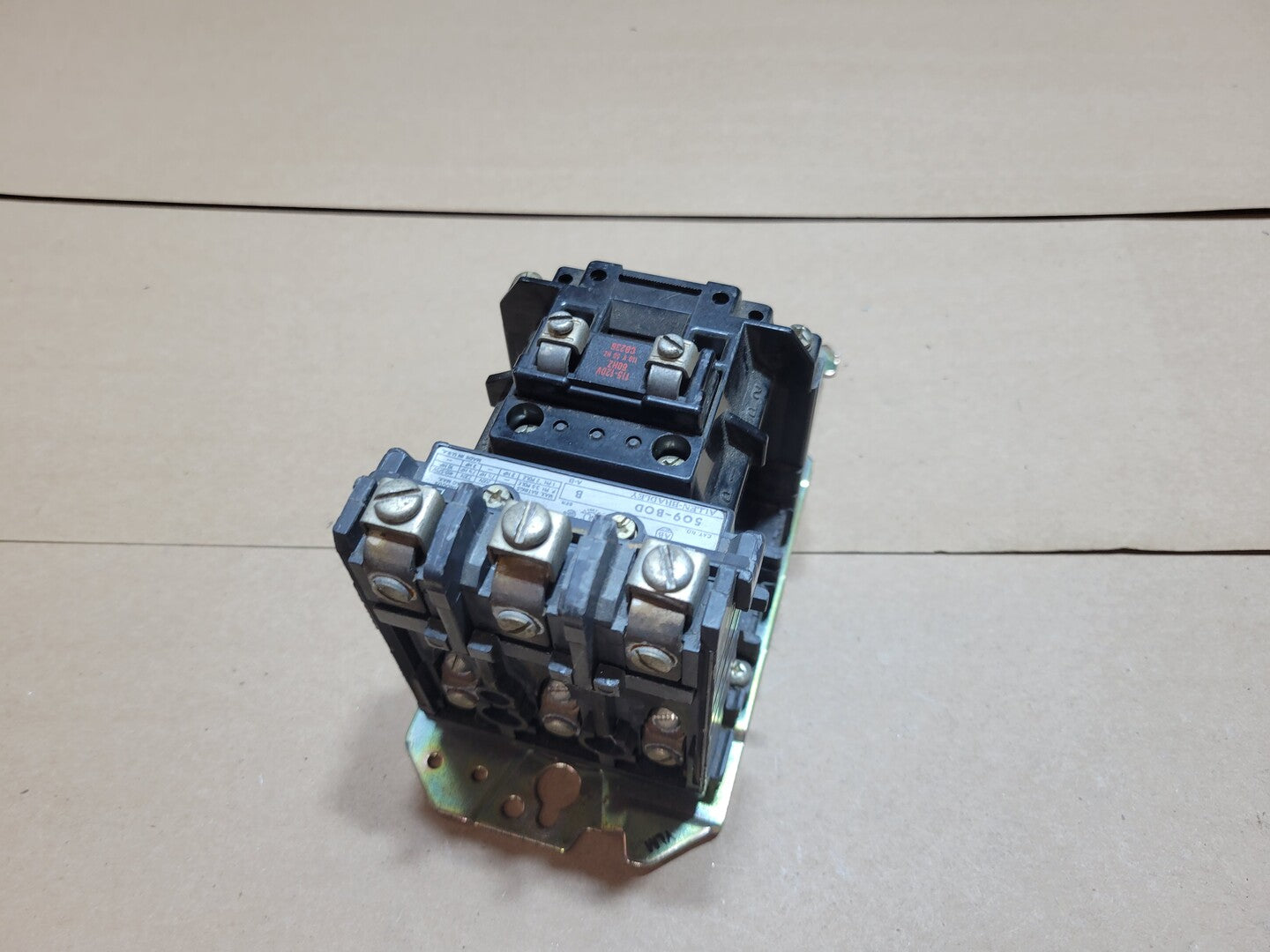

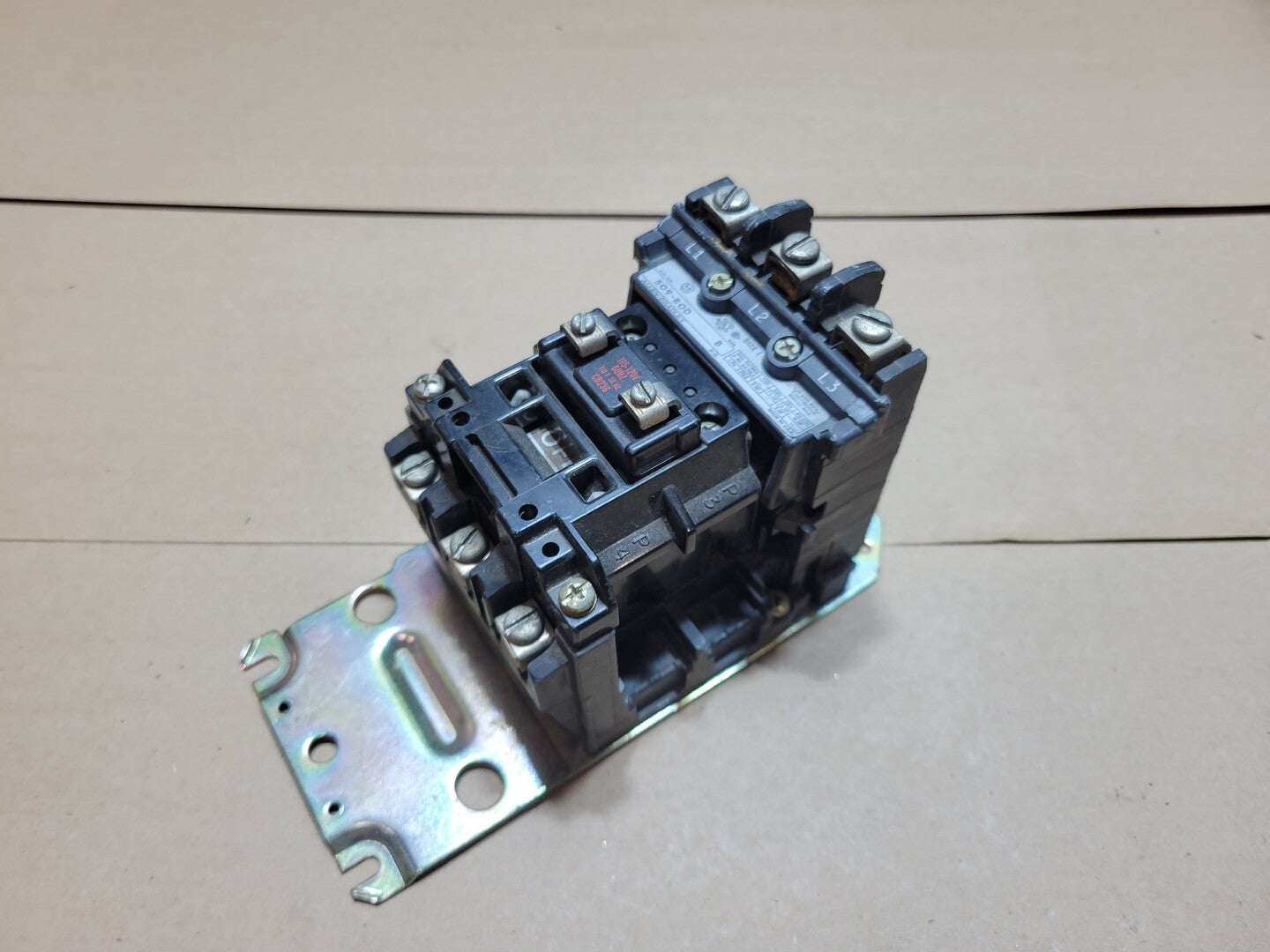

Allen-Bradley Size 1 motor starter assembly with three power poles, a lower overload section and a mounting plate. The photographed coil is marked 115-120 V at 60 Hz / 110 V at 50 Hz, and the contactor label states 600 VAC maximum. It is intended for compatible industrial motor-control installations; functionality and heater-element installation have not been confirmed.
| Specifications | |
|---|---|
| Model | 509-BOD |
| Condition | Used |
| Other Specifications |
|---|
|
Catalog number: 509-BOD Series: B Equipment type: Magnetic motor starter assembly Size: Size 1 Poles: 3 Maximum voltage: 600 VAC Continuous current: 27 A Coil voltage: 115-120 VAC at 60 Hz; 110 VAC at 50 Hz Coil marking: CB236 Maximum three-phase motor rating at 200 V: 7-1/2 HP Maximum three-phase motor rating at 230 V: 7-1/2 HP Maximum three-phase motor rating at 460/575 V: 10 HP Maximum single-phase motor rating at 115 V: 2 HP Maximum single-phase motor rating at 230 V: 3 HP |
