Description
| Specifications | |
|---|---|
| Model | ED9-IW55-3P230 |
| Condition | New | Electrical |
| Voltage | 230 volts |
| Phase | 3-phase | General |
| Tons | 55 ton |
| Other Specifications |
|---|
|

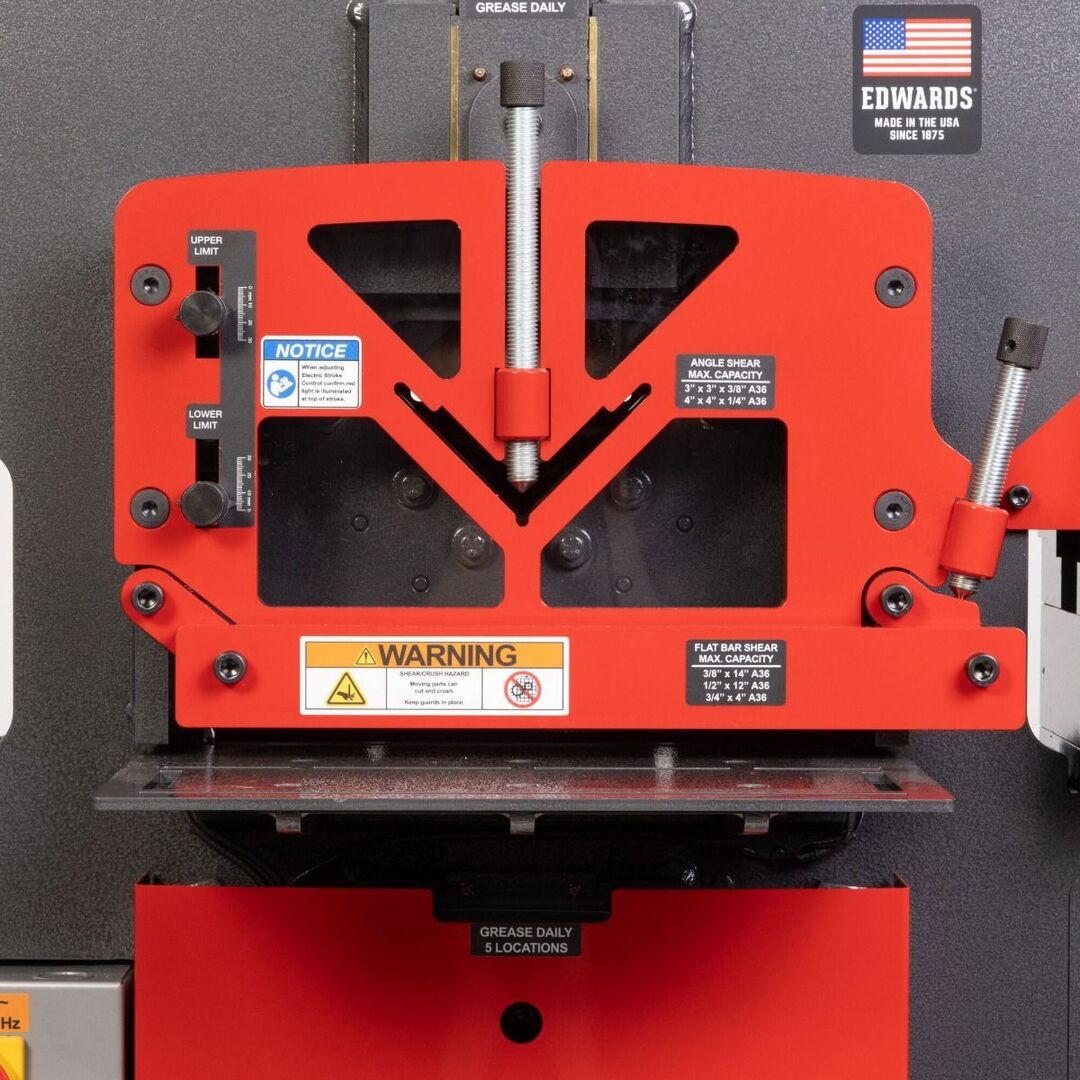

Amps: 14 Angle Shear Max Capacity 1/4": 4 x 4 Angle Shear Work Height: 39-7/8" Flat Bar Shear Max Capacity 1/2": 12 Flat Bar Shear Max Capacity 3/4": 4 Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4 Flat Bar Shear Max Round: 7/8" Flat Bar Shear Max Square: 7/8" Flat Bar Shear Rating: 55 tons Flat Bar Shear Work Height: 34-1/2" Hydraulic Pump: 3-1/2 gpm Hydraulics: 3-1/2 gpm Hydraulics: 2500 psi Motor Amps: 14 A Motor: 5 HP 3 - 230V Motor Speed: 1725 rpm Open Station Open Height: 8-1/8" Open Station Shut Height: 6-7/8" Open Station Stroke: 1-1/4" Open Station Throat Depth: 11-3/16" Open Station Work Height: 34-1/2" Open Workstation Throat Depth: 11-3/16" Open Workstation Work Height: 34-1/2" Optional Coper Notcher Work Height: 39-1/2" Overall Dimensions (L x W x H) (In.): 36-1/8 x 44-3/8 x 55-1/4 Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4 Punch Max Capacity (In.): 1-1/16 diam. in 5/8 mild steel Punch Open Height: 8-1/8" Punch Rating: 55 tons Punch Shut Height: 6-7/8" Punch Stroke: 1-1/4" Punch Throat Depth: 7-1/2" Punch Work Height: 36-9/16" Reservoir: 7 gal. Shipping Dimensions (L x W x H): 45" x 51" x 62" Valve Pressure: 2750 psi Gross Weight: 2480 lbs Net weight: 2430 lbs |
