ALLEN-BRADLEY 5kV/1200A Medium Voltage MCC Double Structure w/ Motor Protection Relays
ALLEN-BRADLEY

5kV/1200A Medium Voltage MCC Double Structure w/ Motor Protection Relays

SKU: 109488
Price:
$70,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Condition Used
Electrical
Max. Voltage 5000
Other Specifications

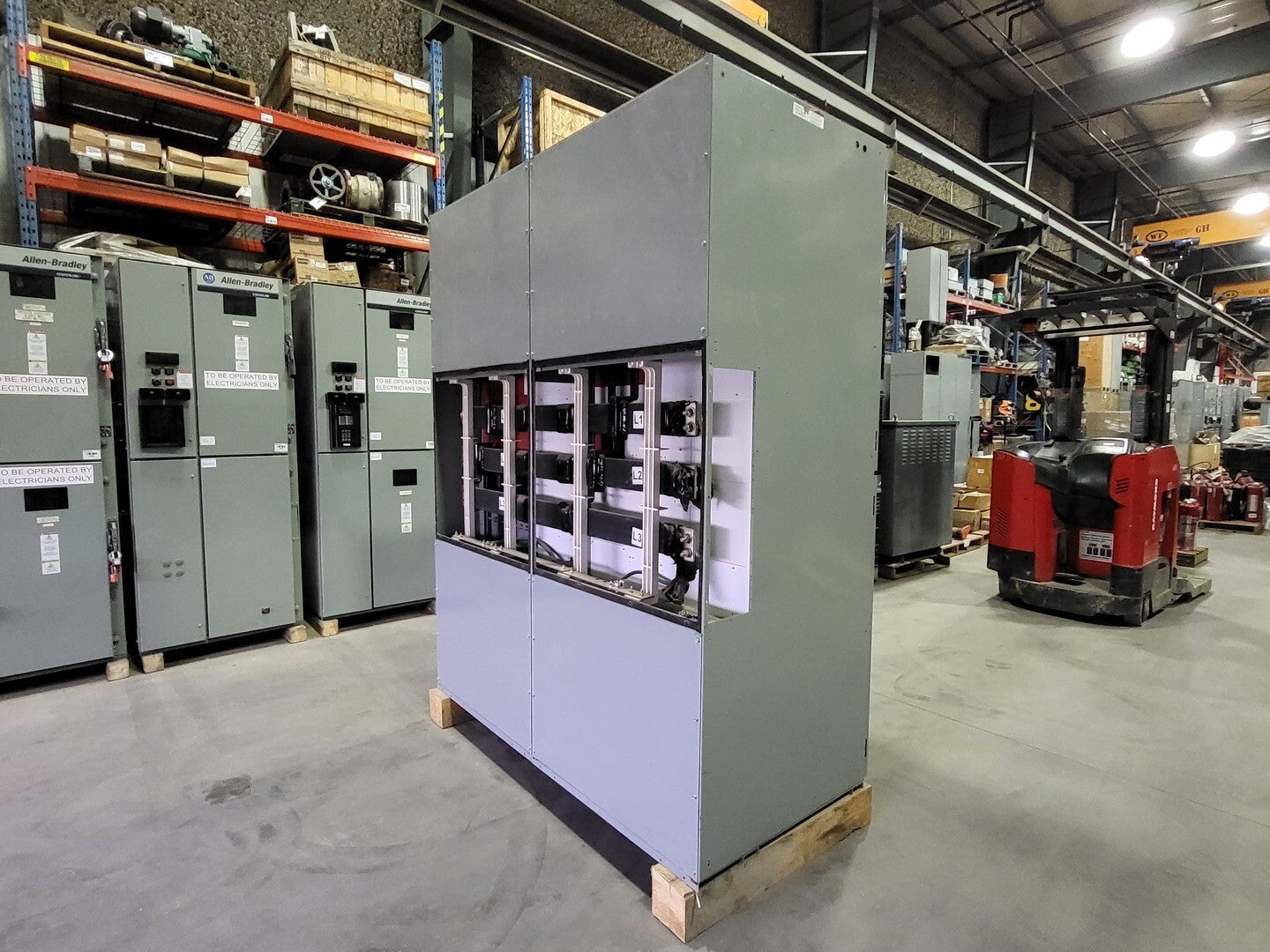

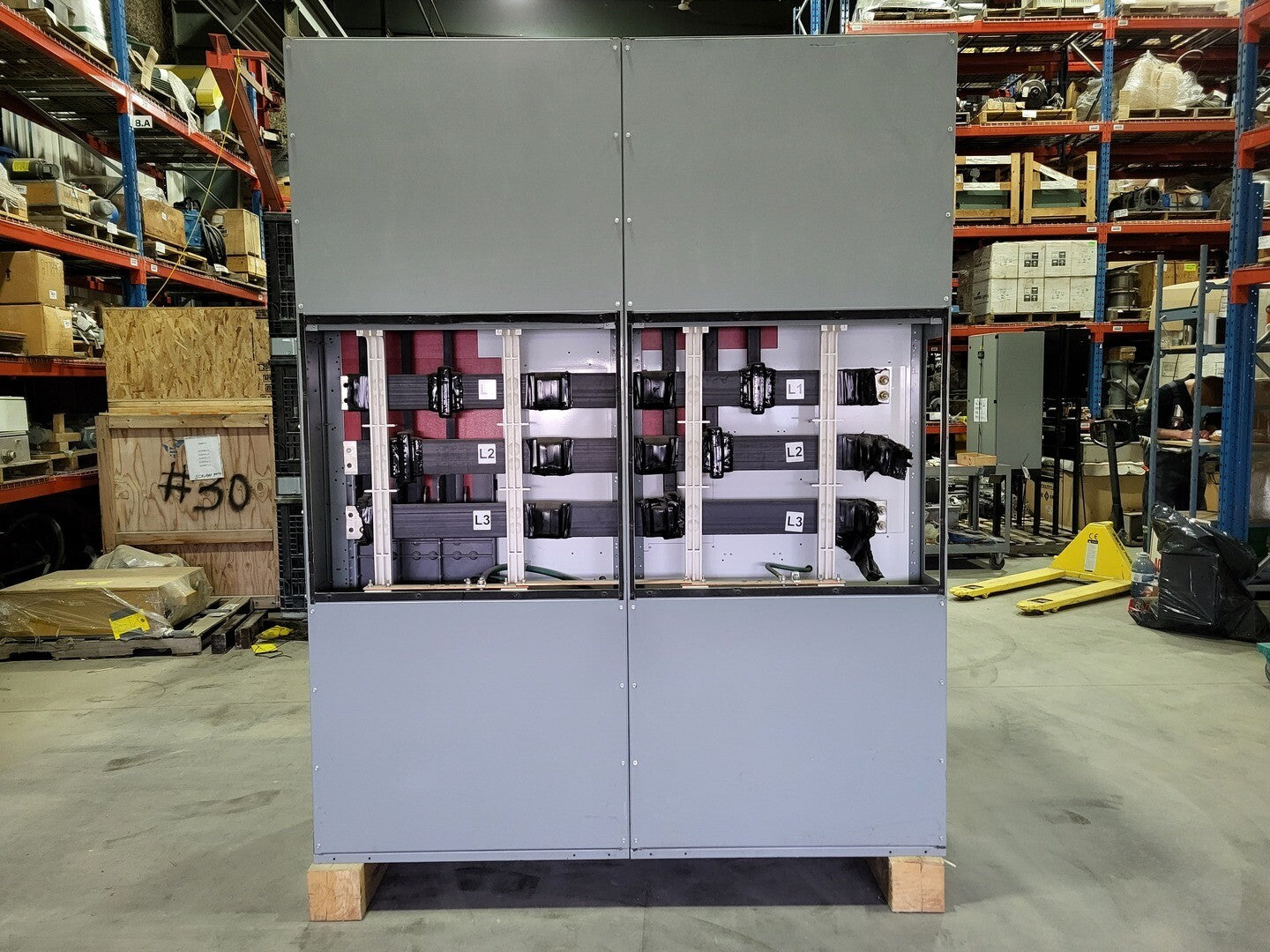

Structure 1:

Structure Configuration: 1-High

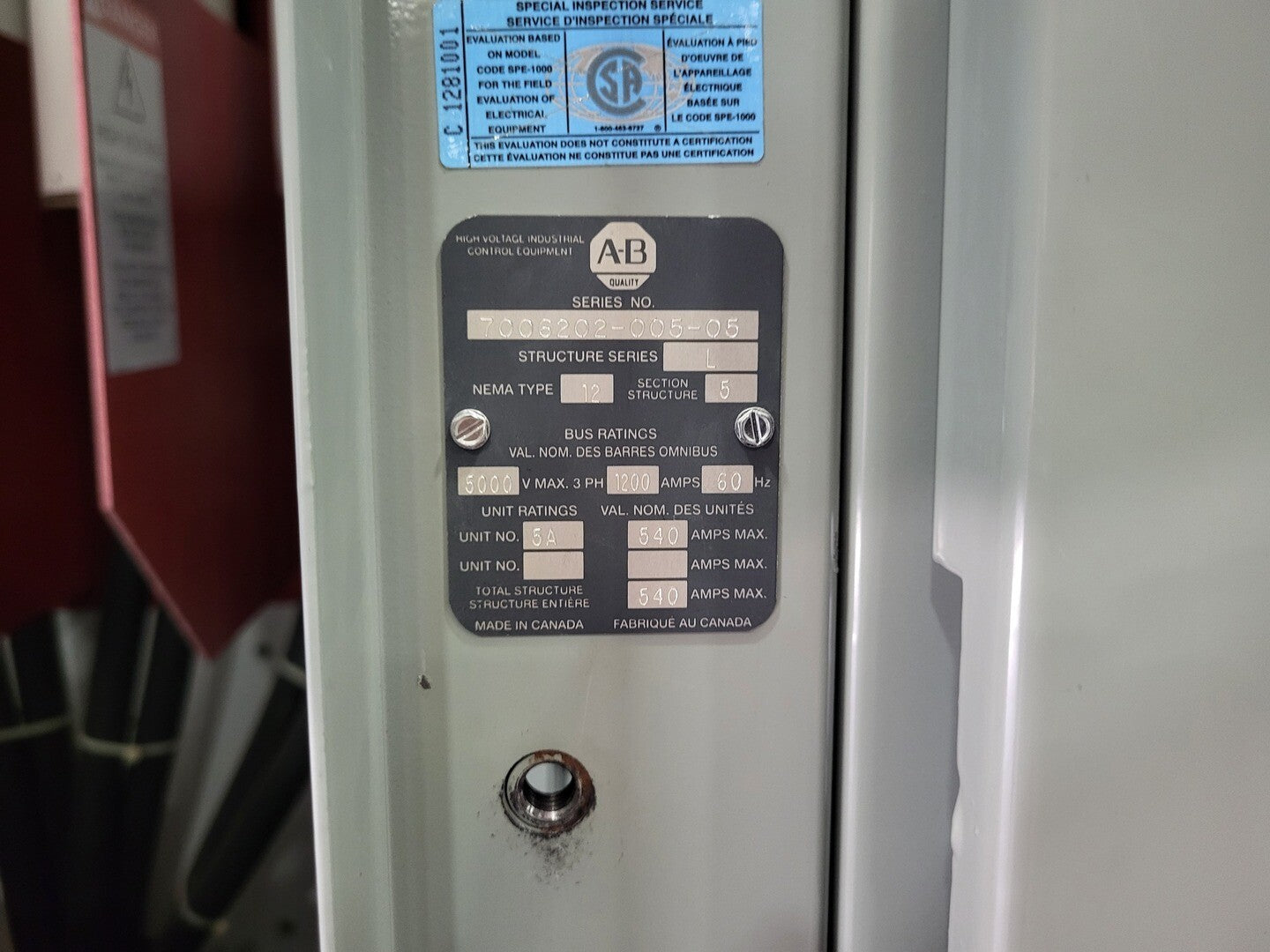

Series No.: 7006202-005-05

Structure Series: L

NEMA Type: 12

Bus Rating: 5000V Max., 1200A, 3-ph

Unit Rating: 540A

Structure Total: 540A

Unit Components:

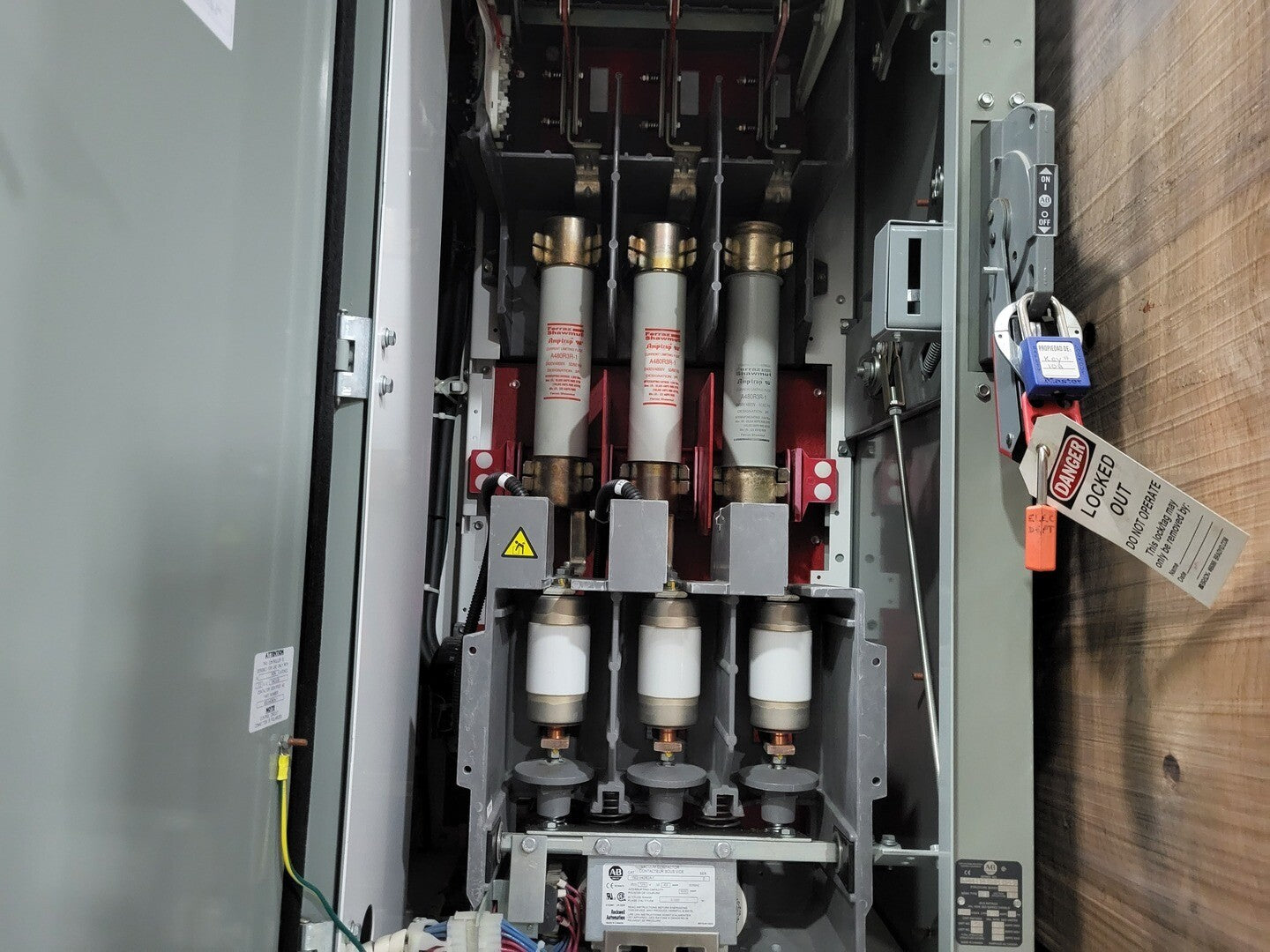

  • GENERAL ELECTRIC F35 Multiple Feeder Management Relay
  • ALLEN-BRADLEY Non-load Break Isolation Switch

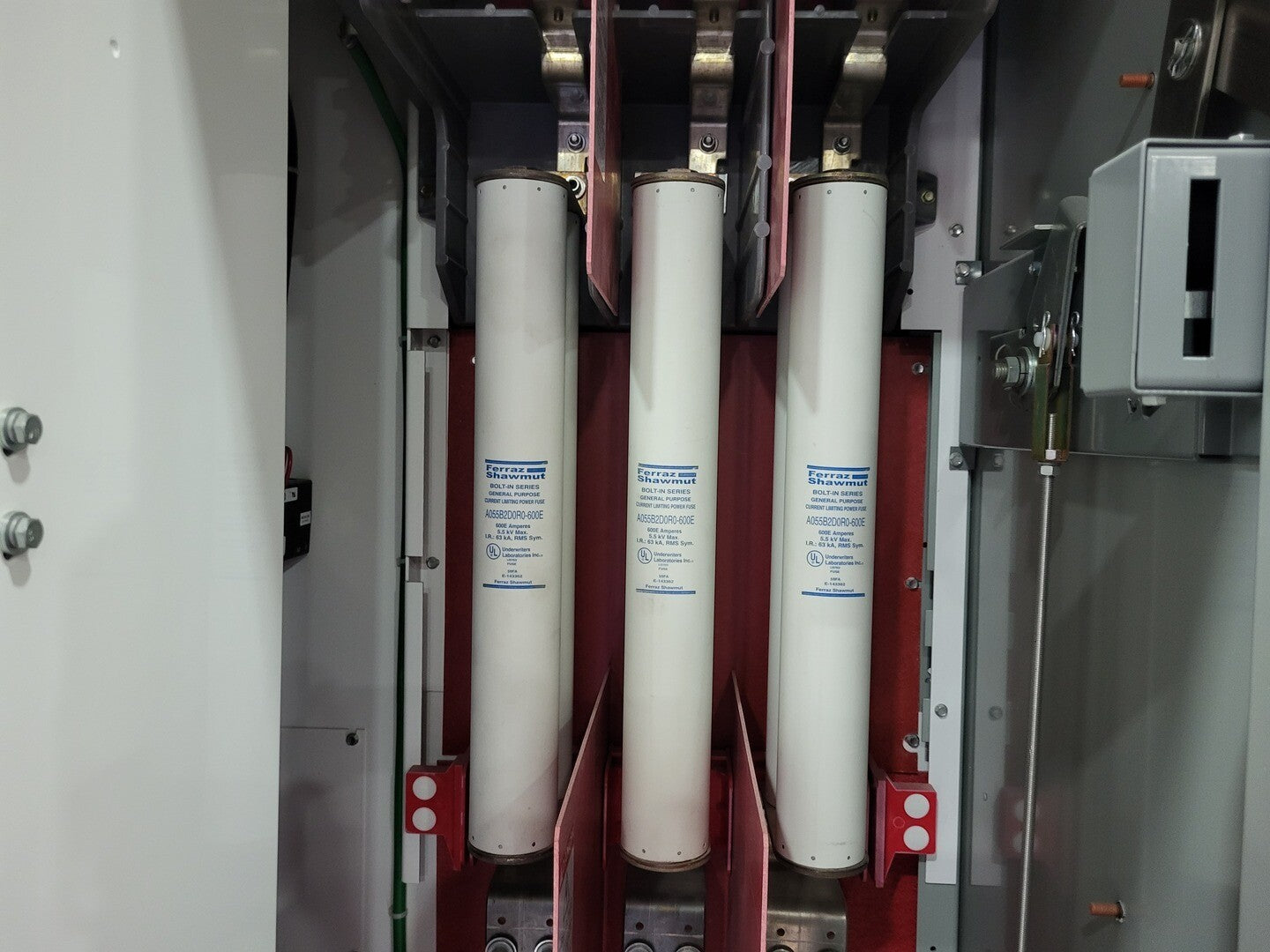

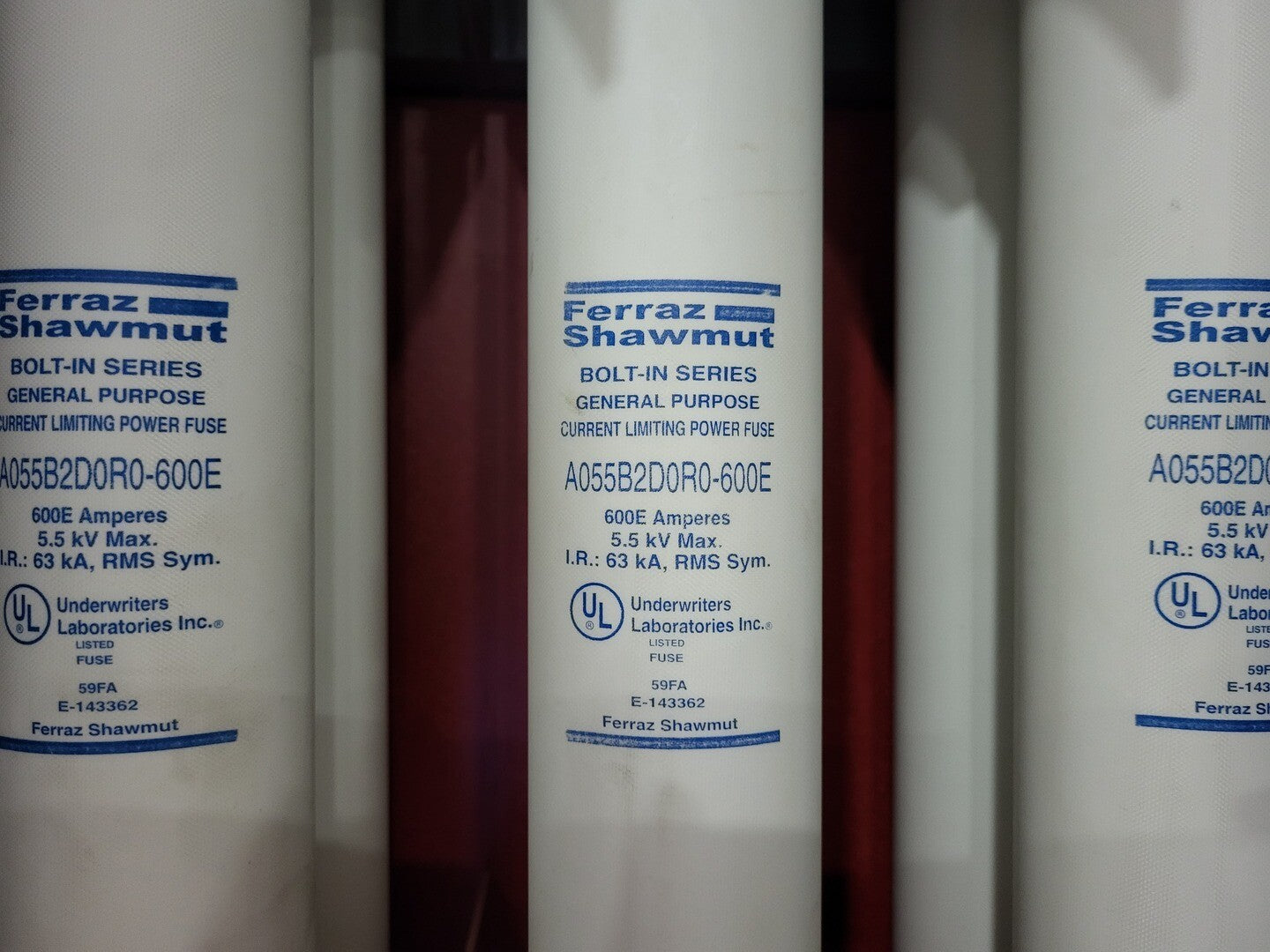

  • 3 x FERRAZ SHAWMUT Fuses A055B2D0R0-600E

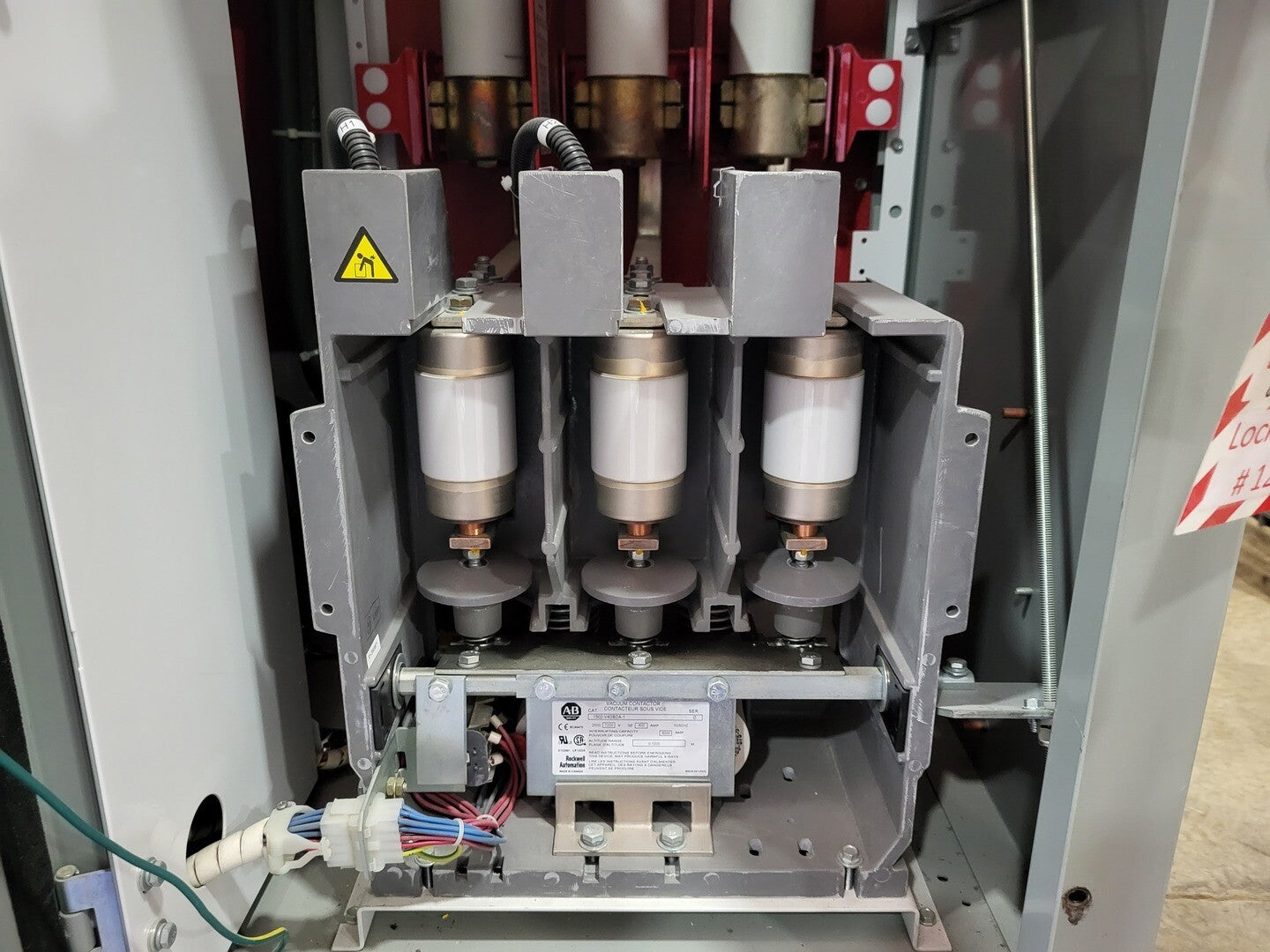

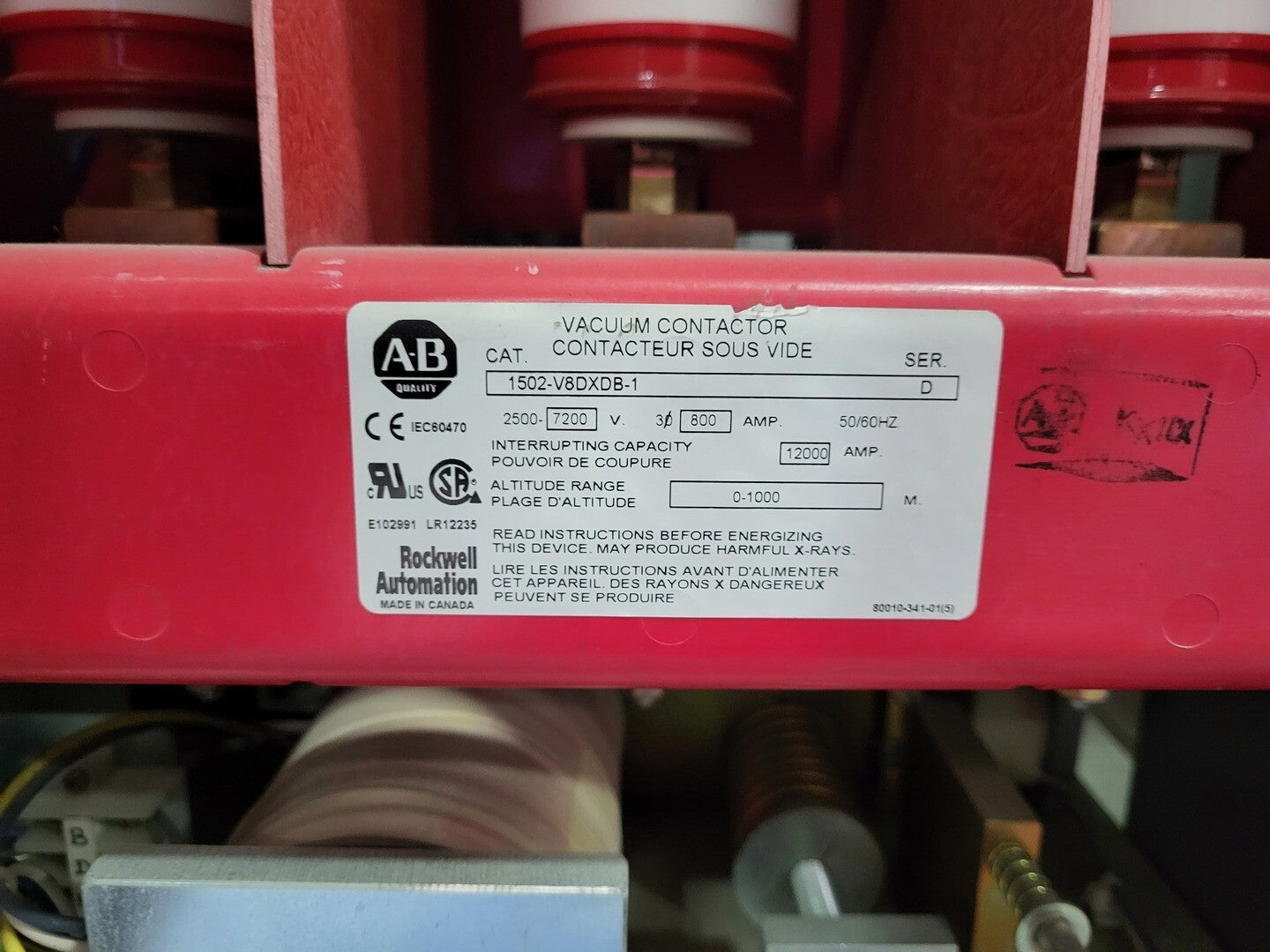

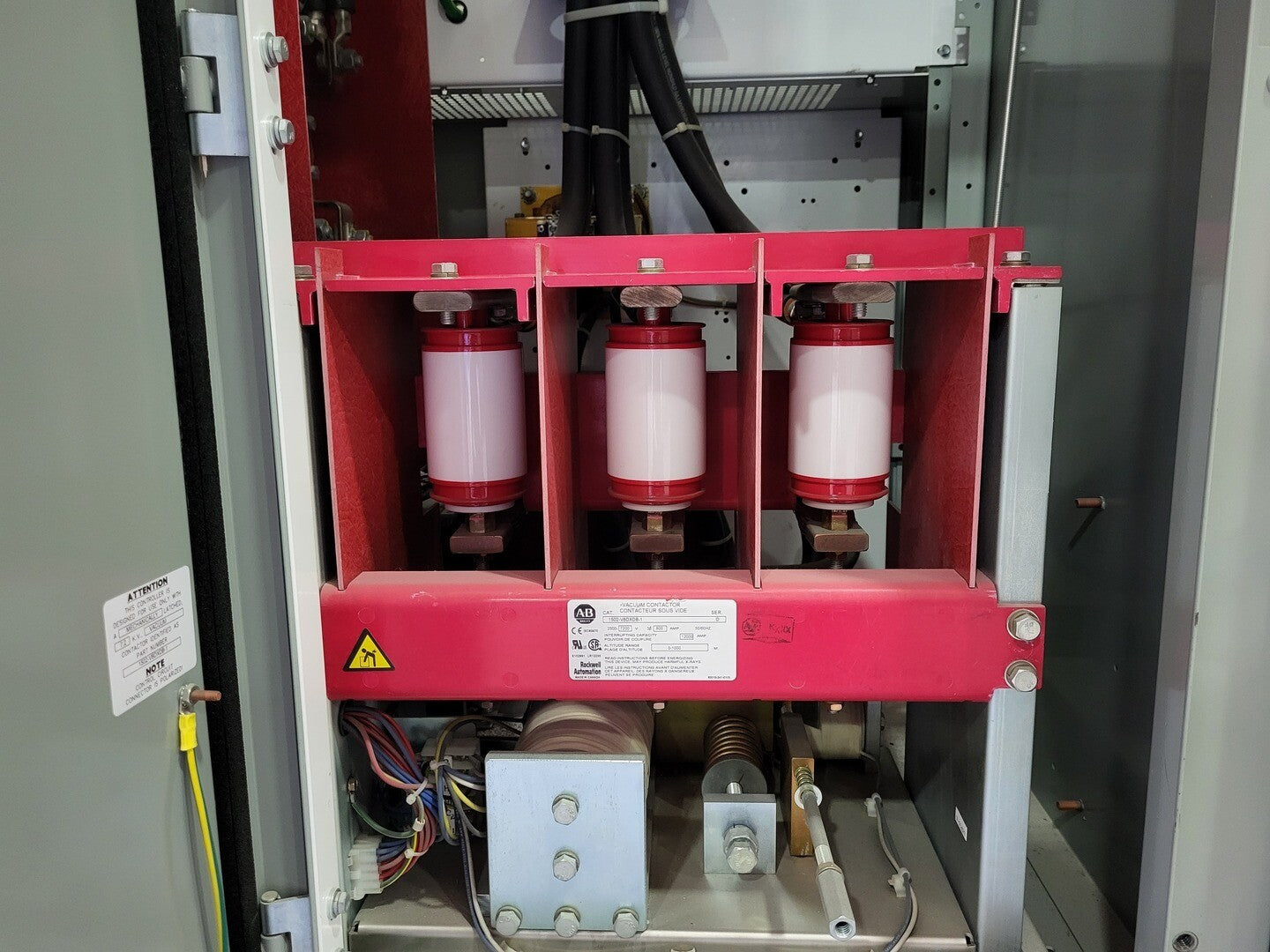

  • ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 800A, 12000A Interrupting Capacity

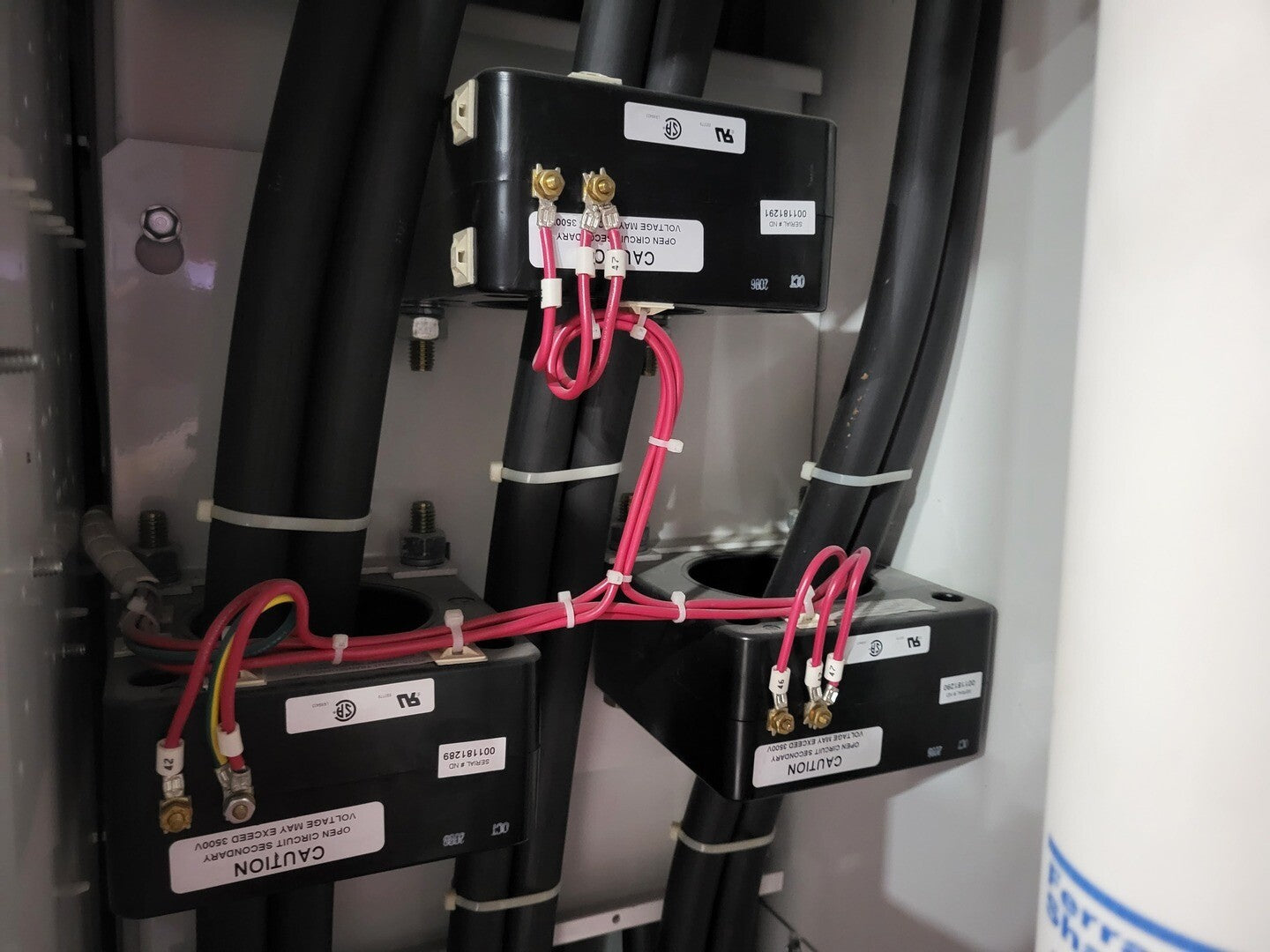

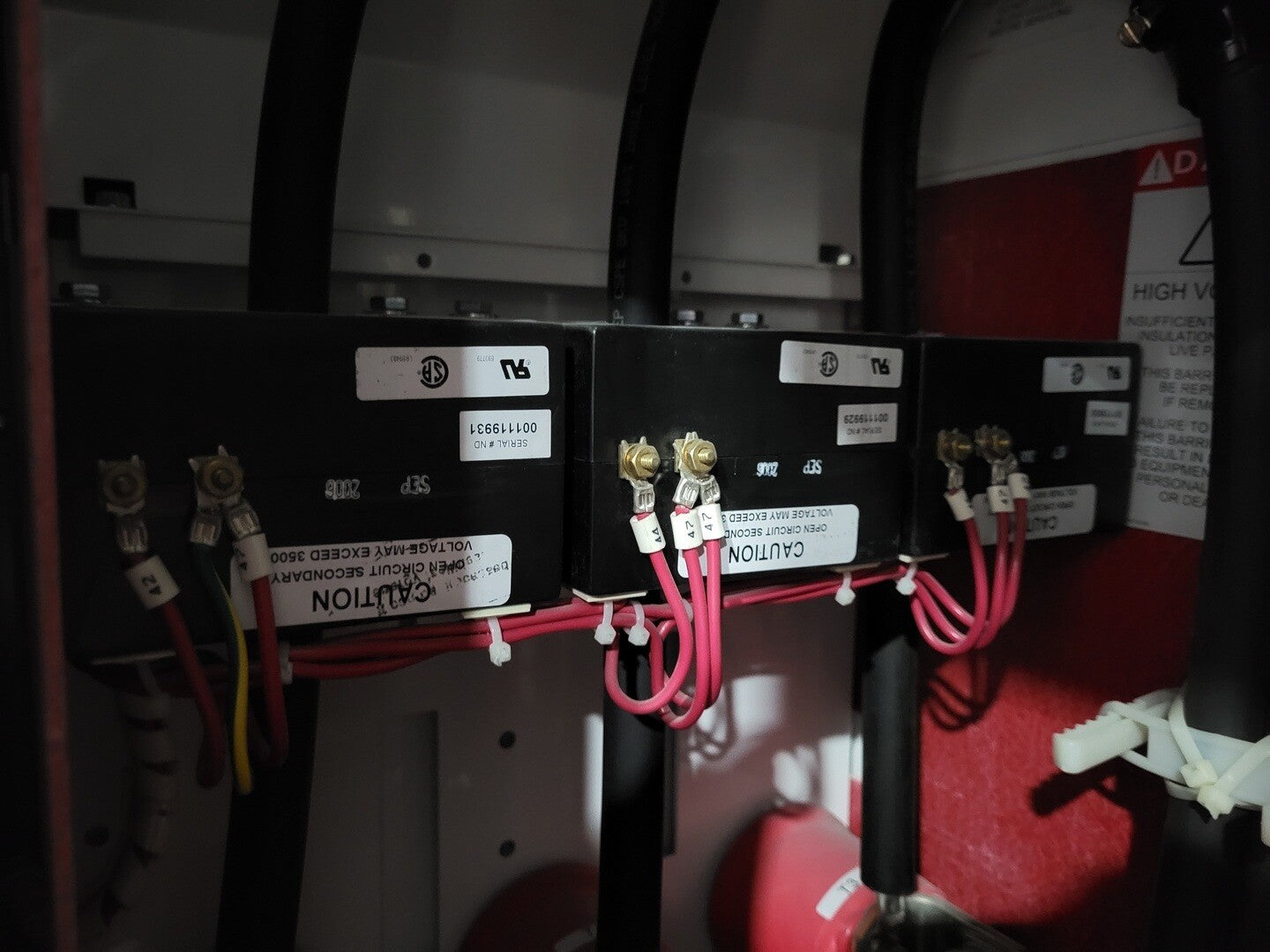

  • 3 x Donut-Type Current Transformers

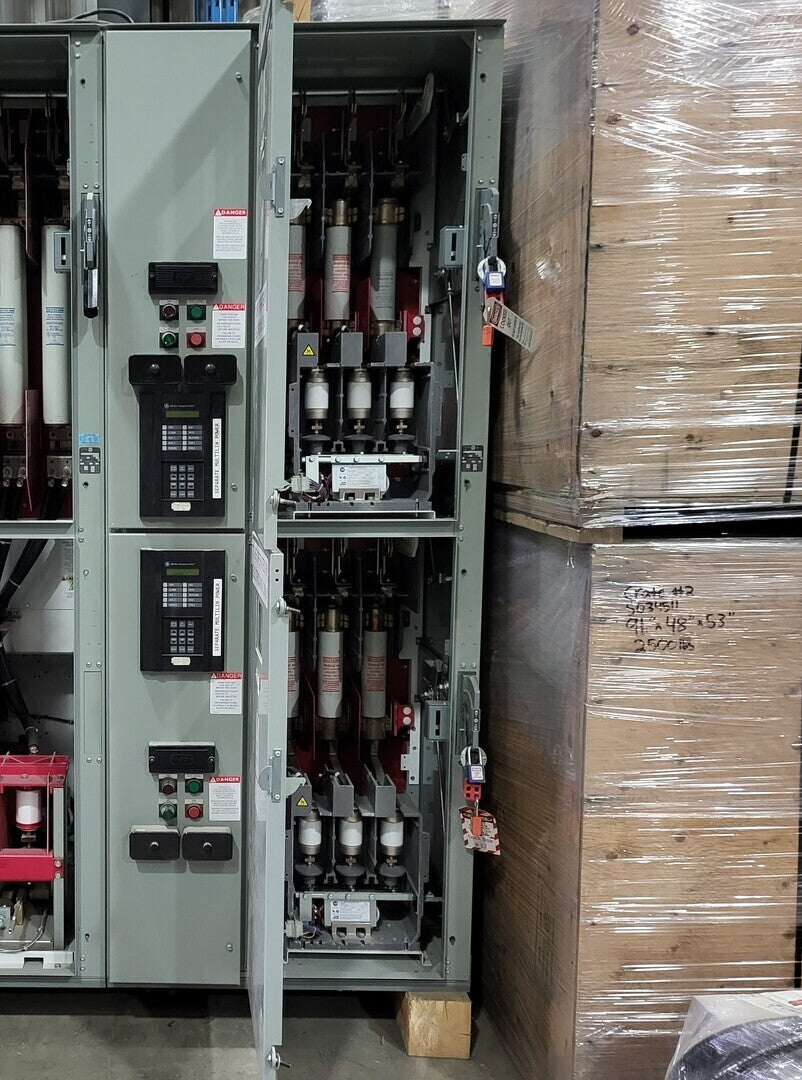

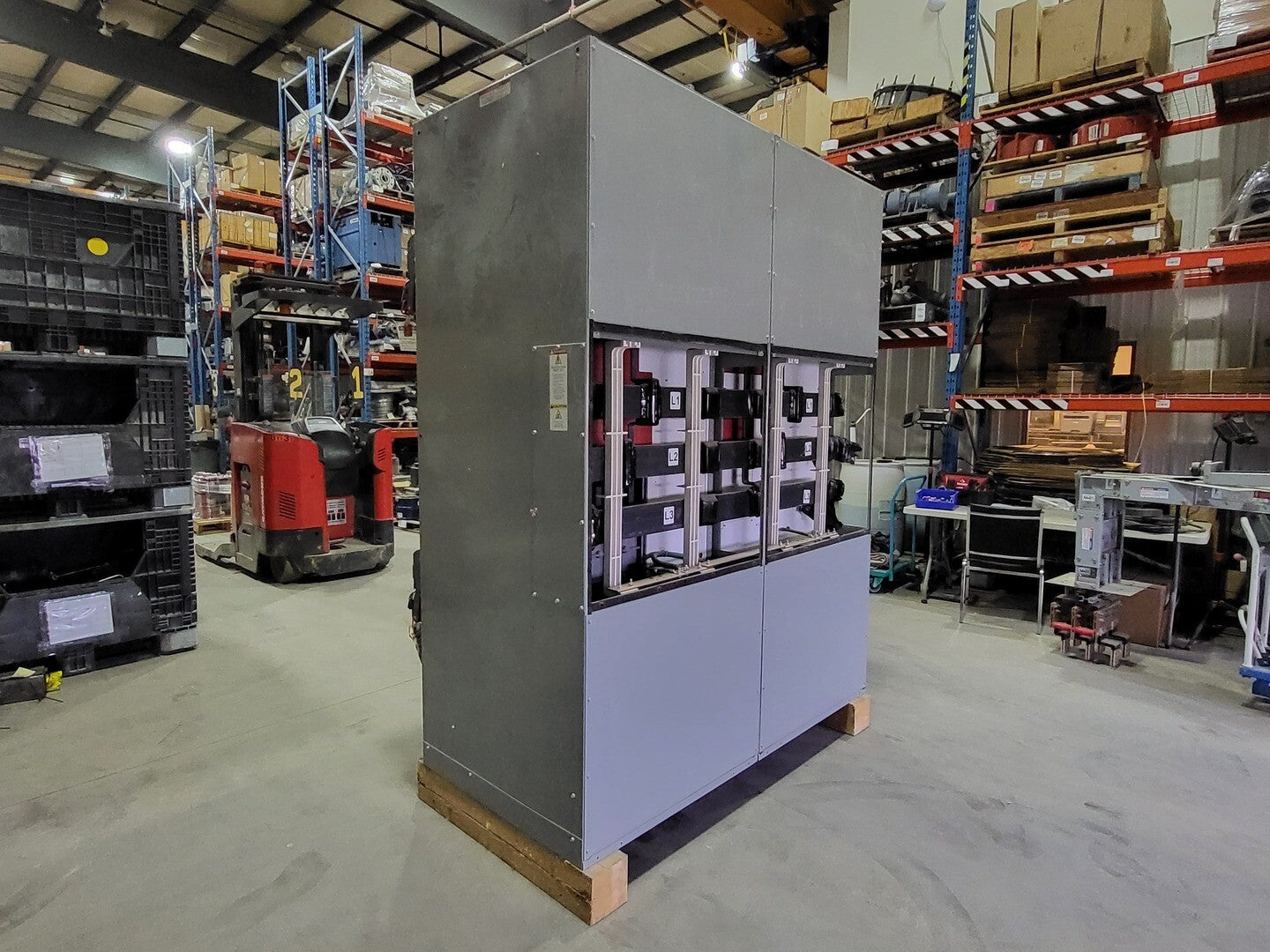

Structure 2:

Structure Configuration: 2-High

Series No.: 7006202-006-05

Structure Series: L

NEMA Type: 12

Bus Rating: 5000V Max., 1200A, 3-ph

Top Unit Rating: 260A

Bottom Unit Rating: 300A

Structure Total: 560A

Unit Components:

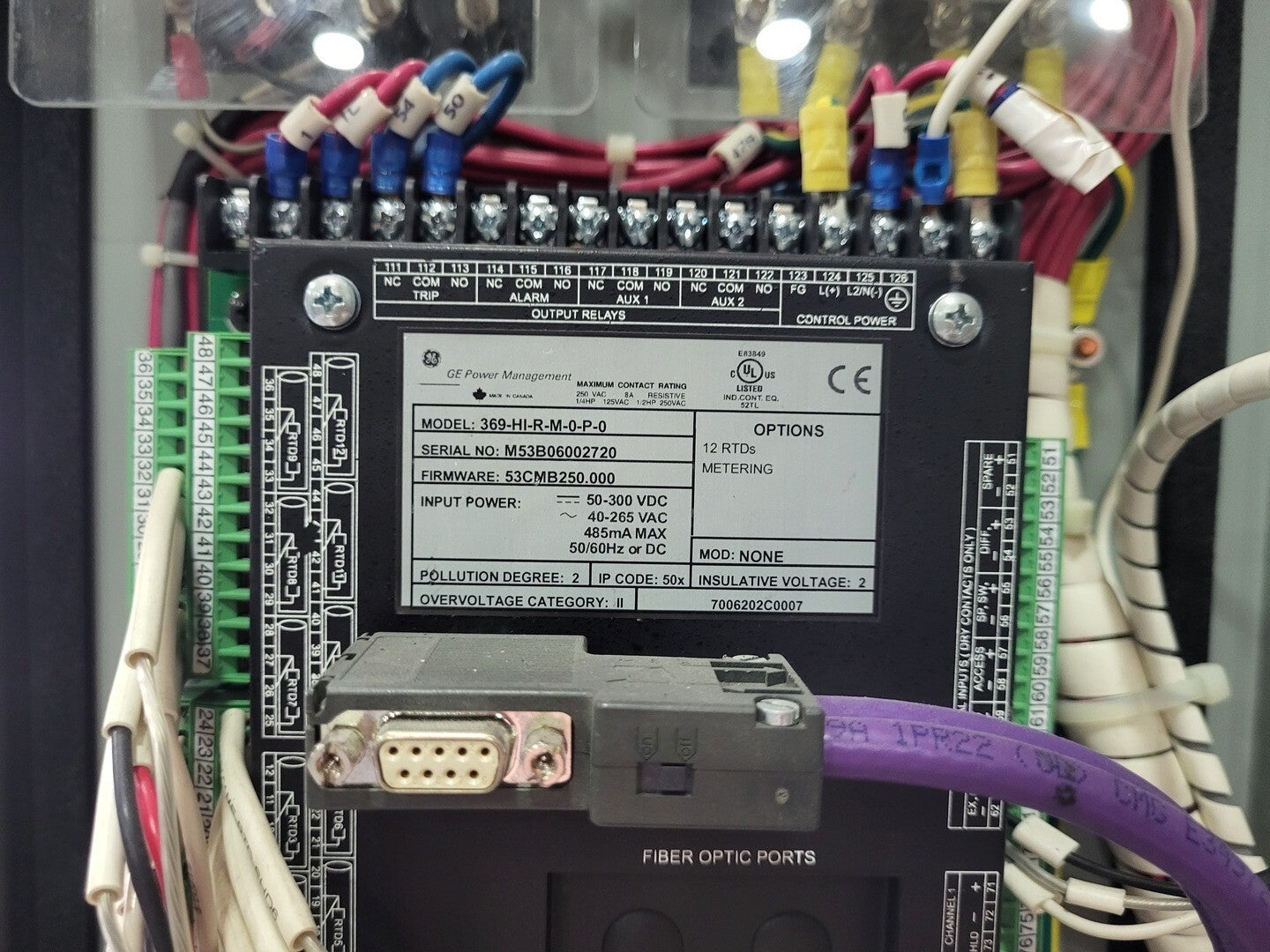

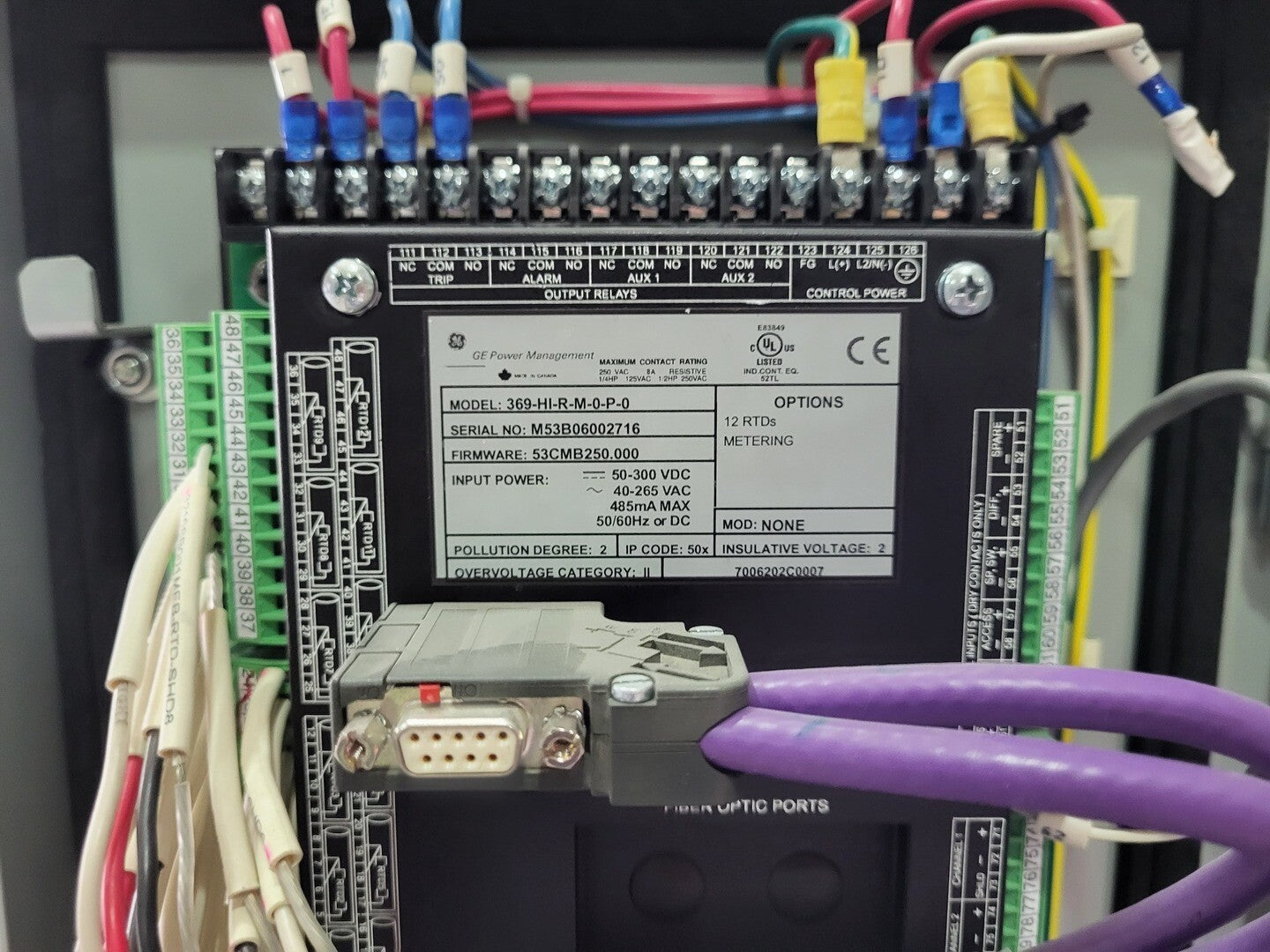

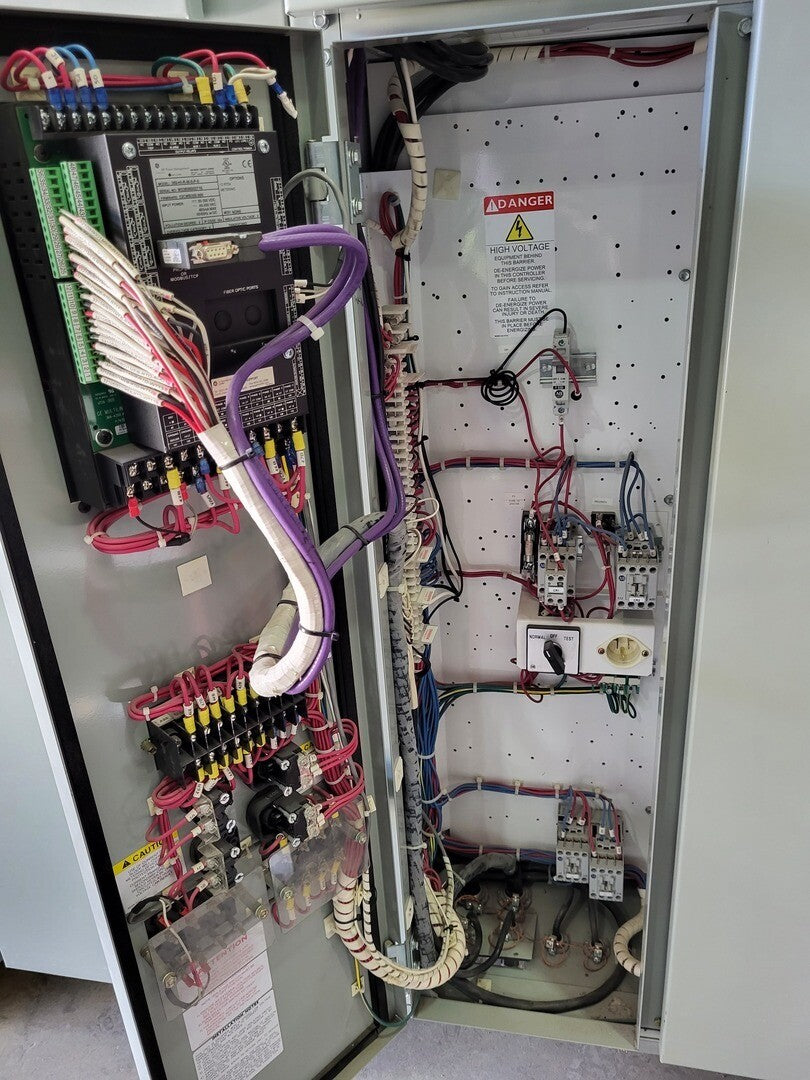

  • GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0
  • ALLEN-BRADLEY Non-load Break Isolation Switch

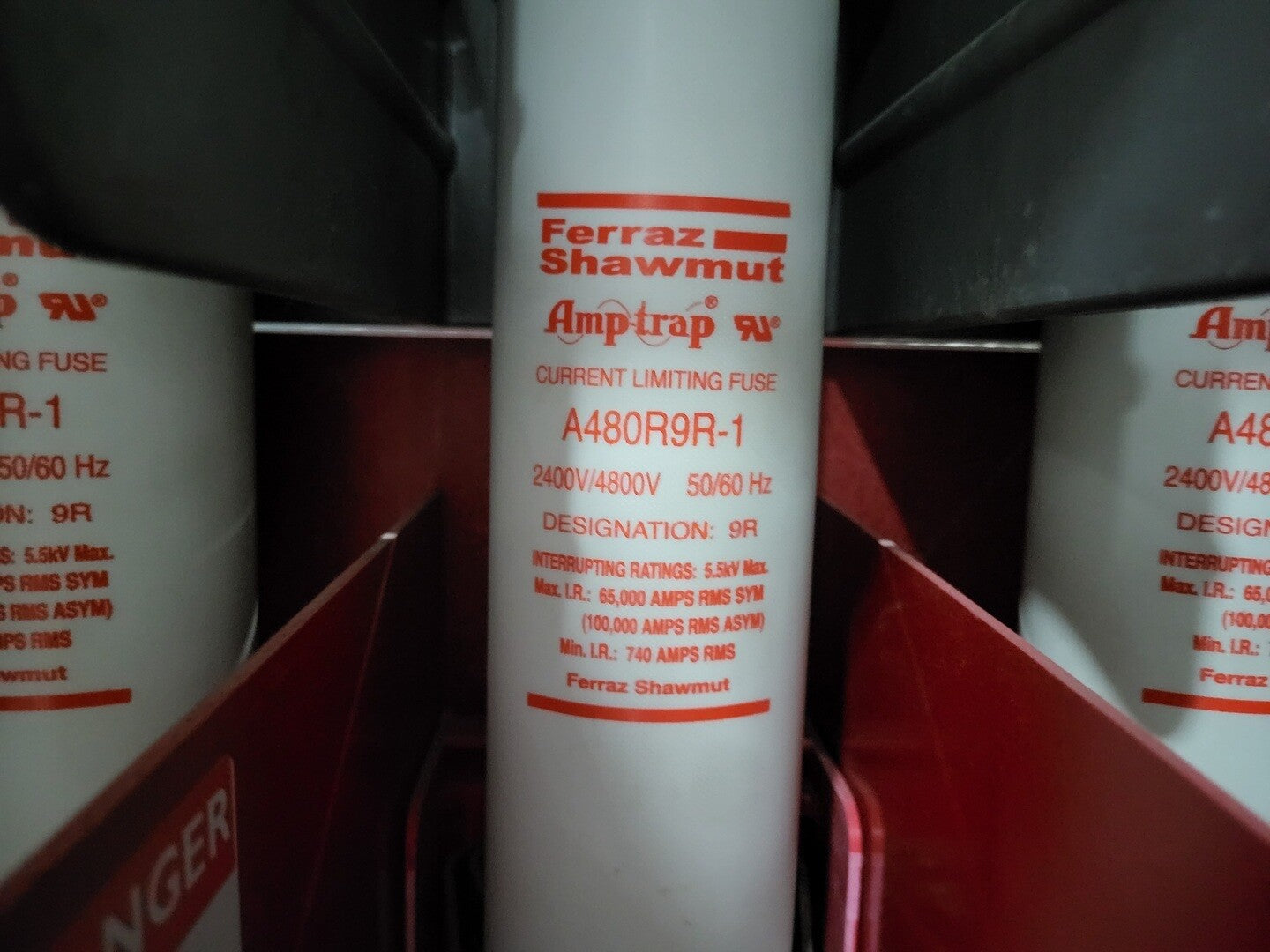

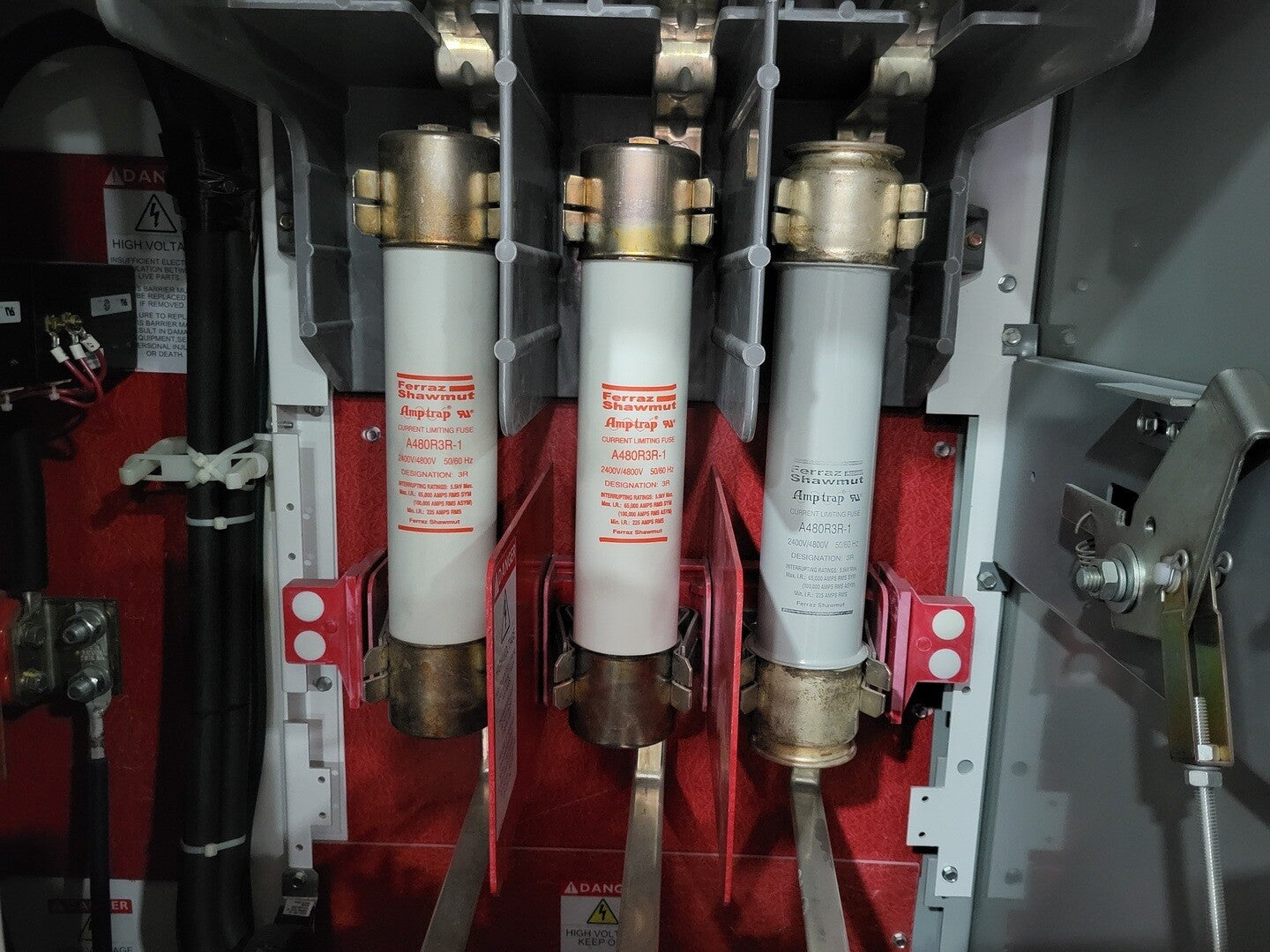

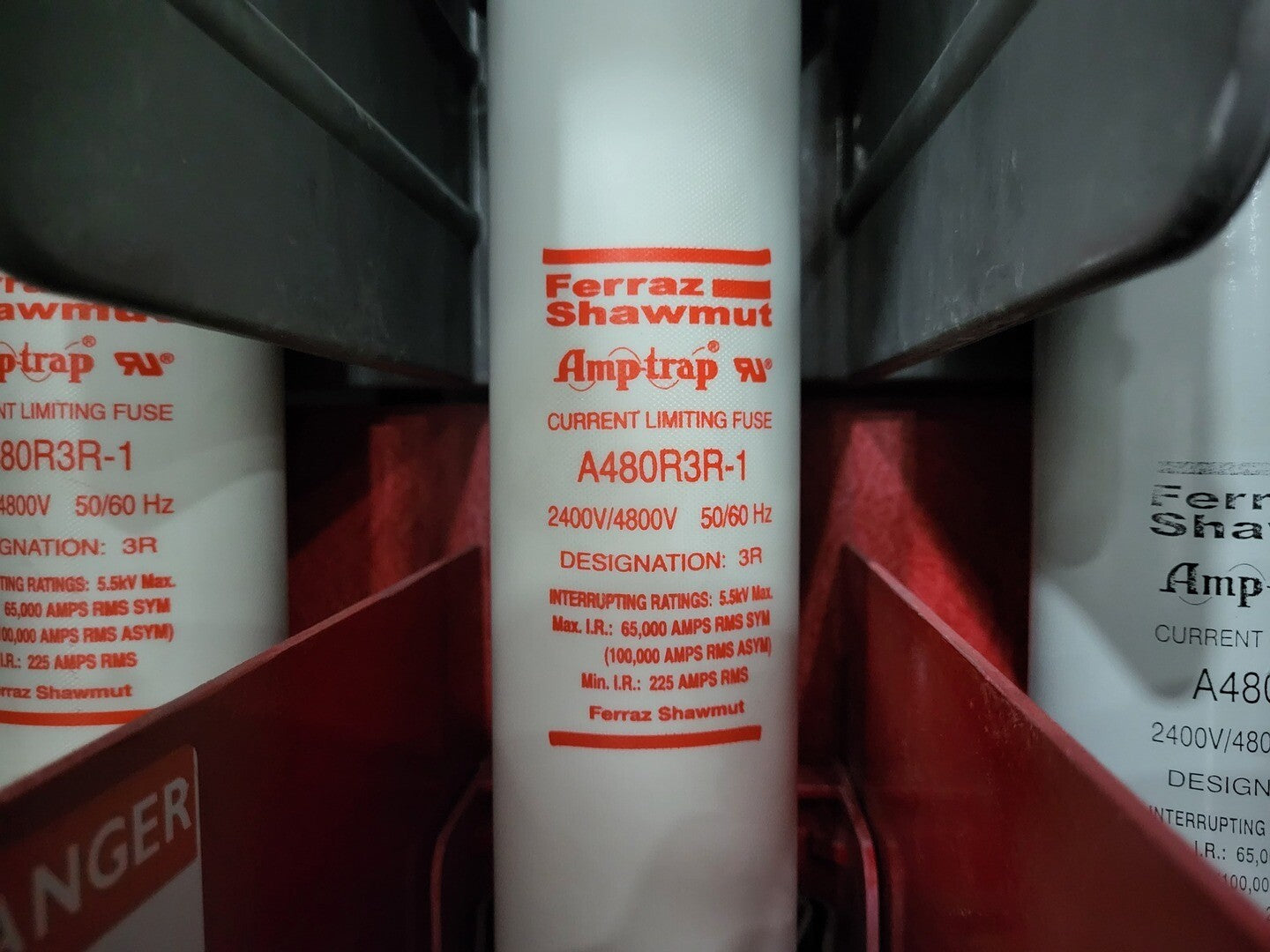

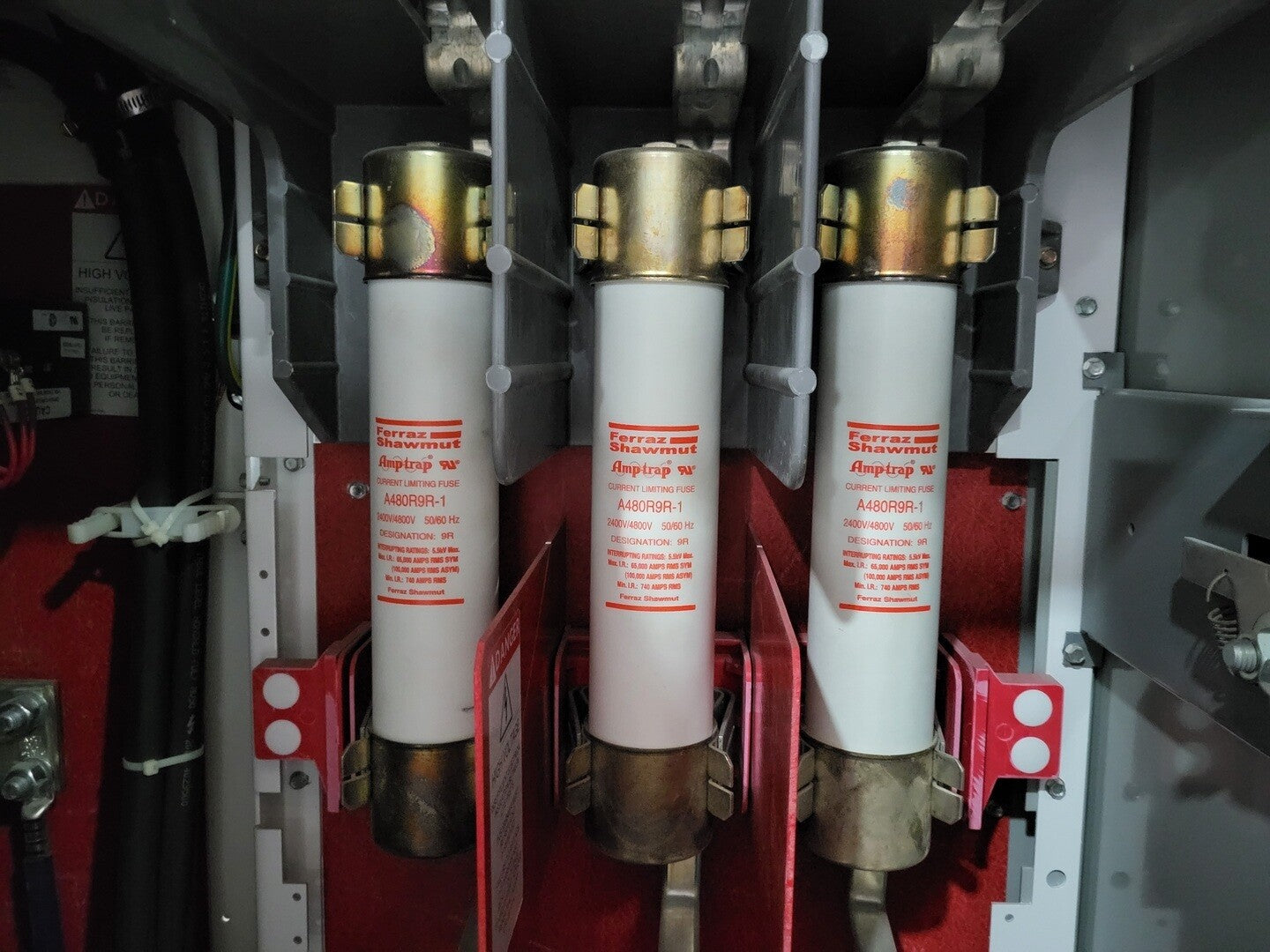

  • 3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Top)
  • 3 x FERRAZ SHAWMUT Fuses A480R9R-1 (Bottom)

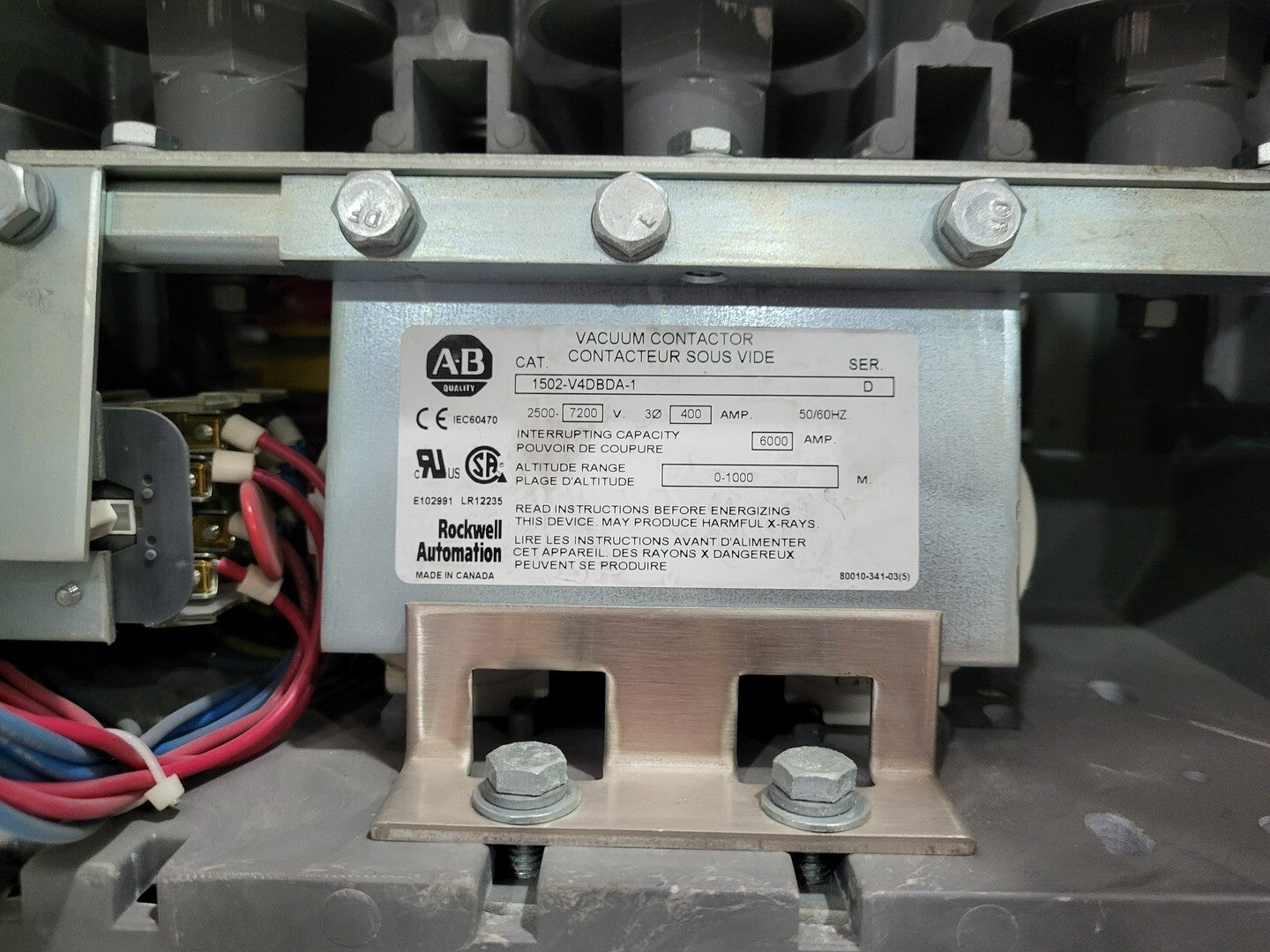

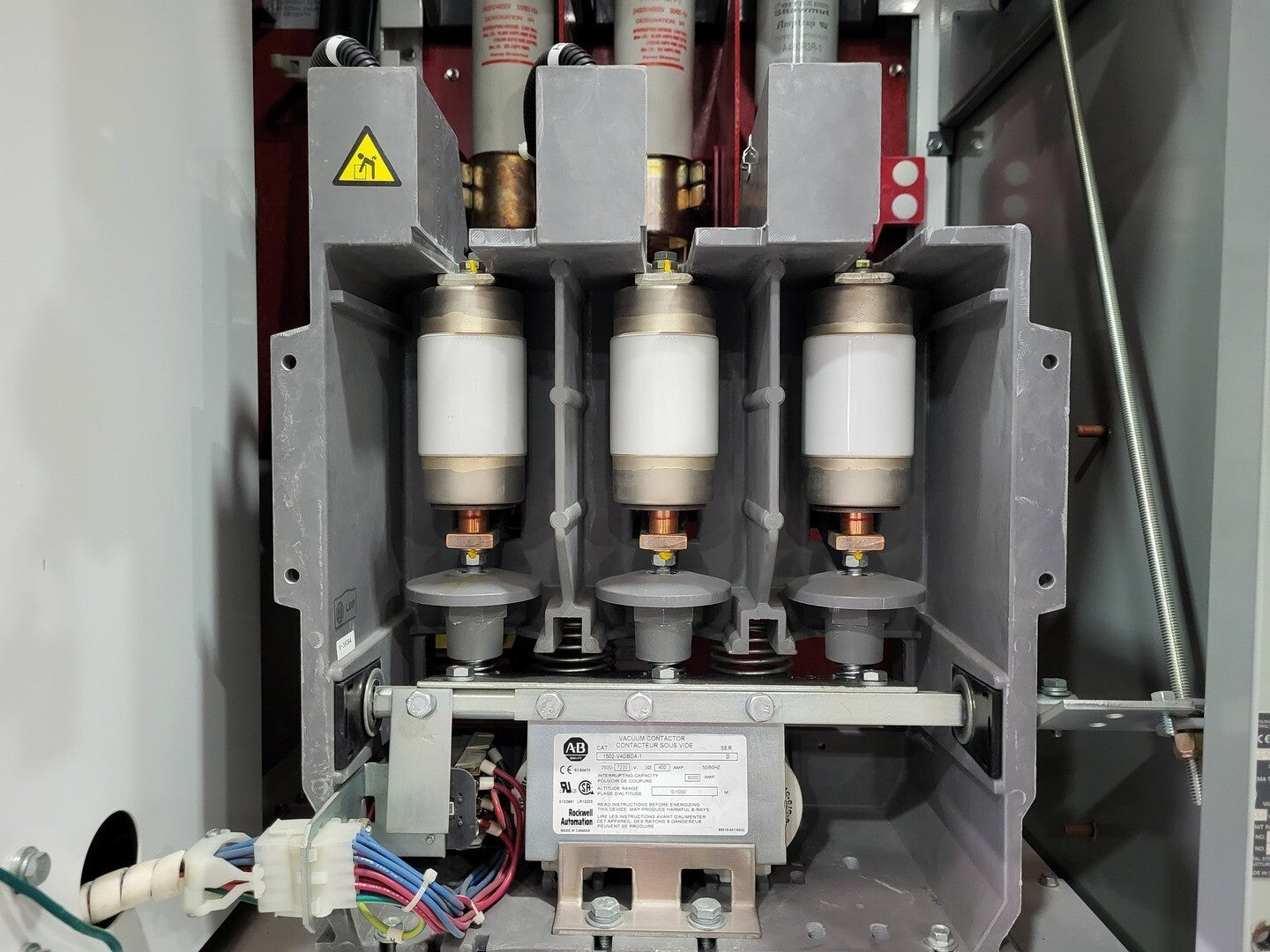

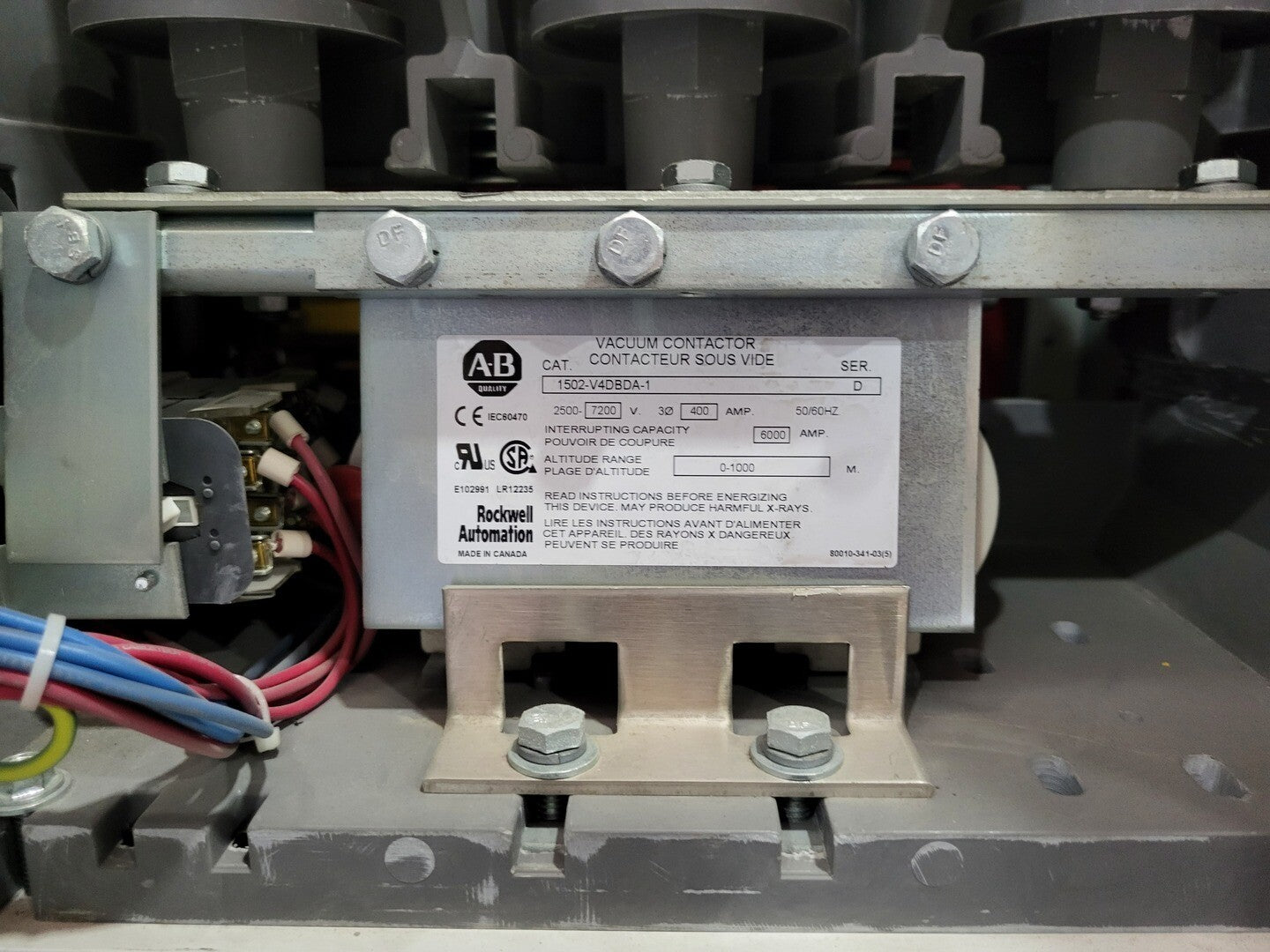

  • ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 400A, 6000A Interrupting Capacity

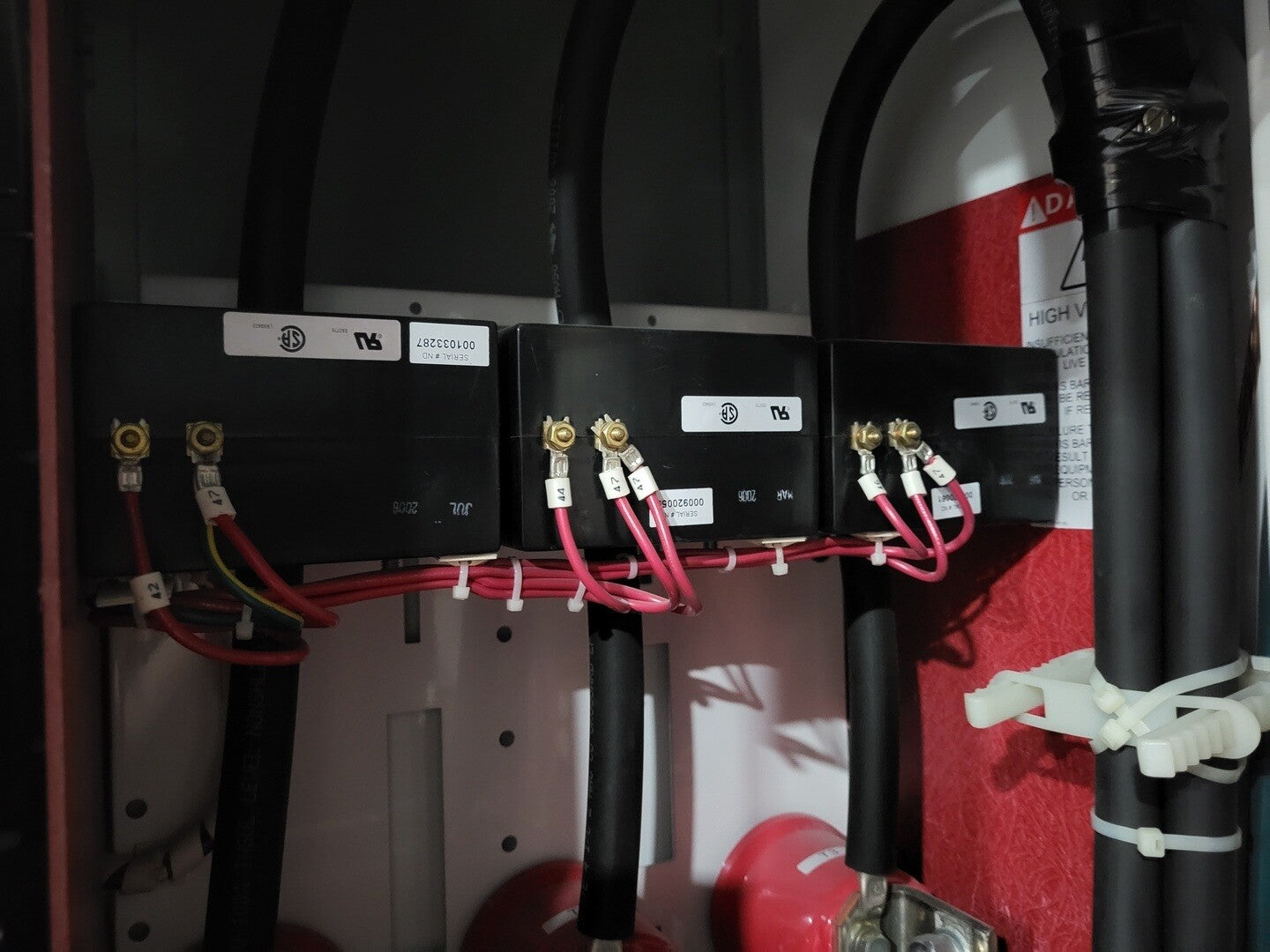

  • 3 x Donut-Type Current Transformers
