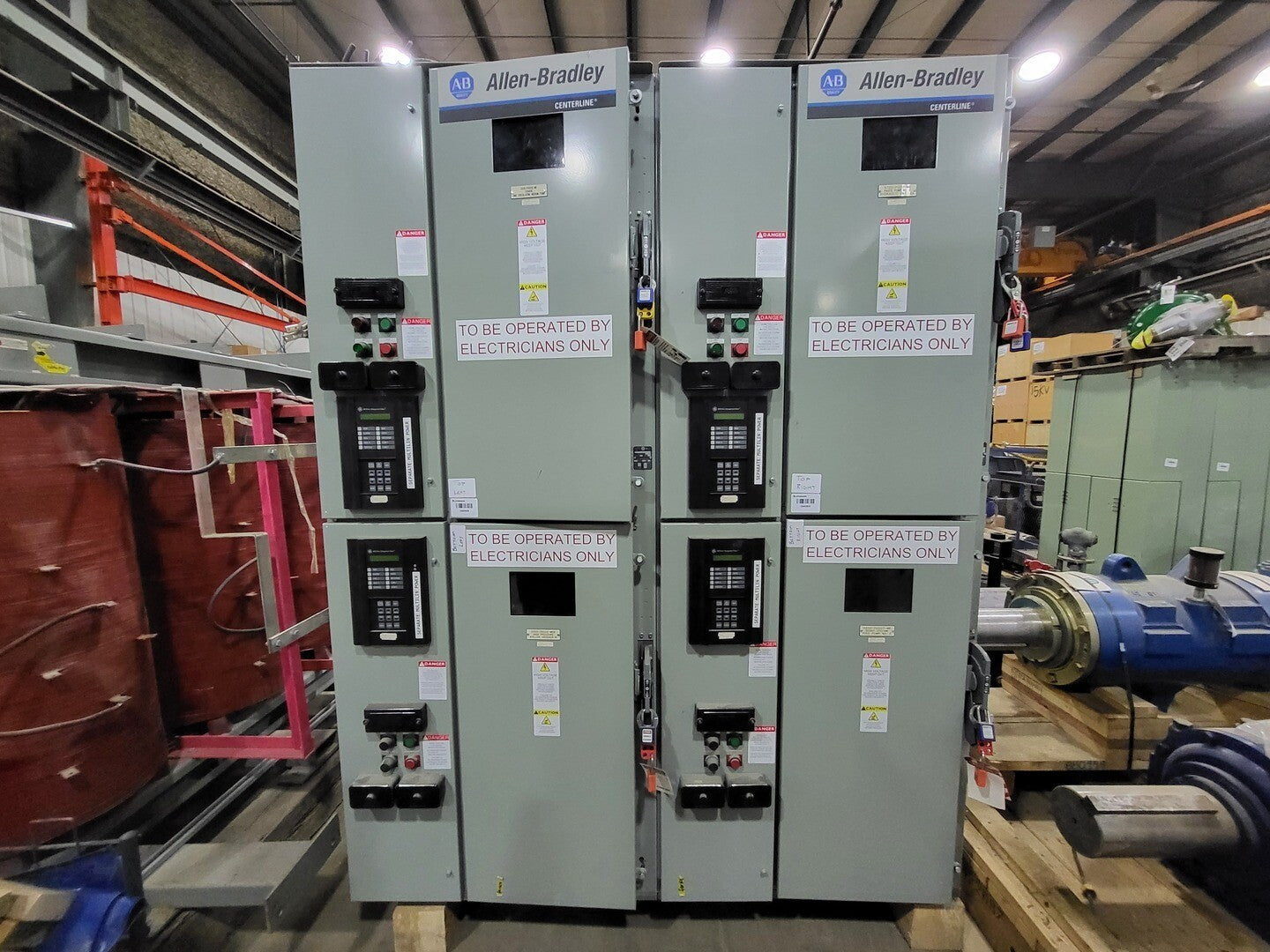

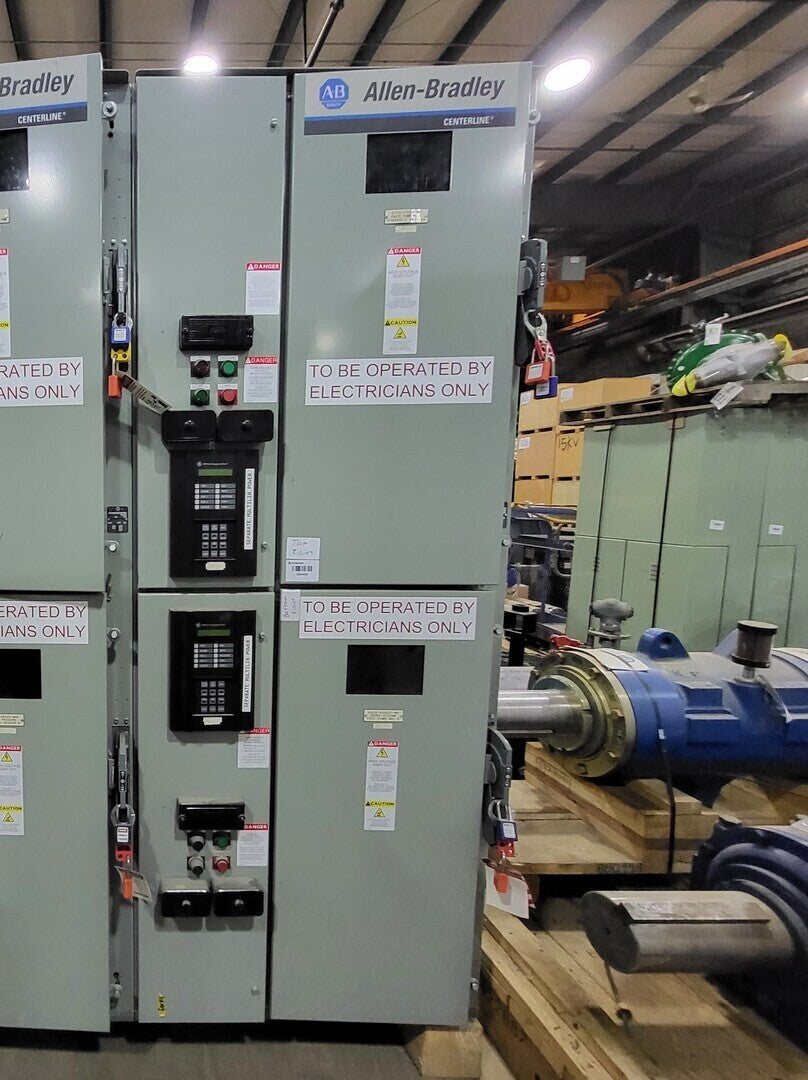

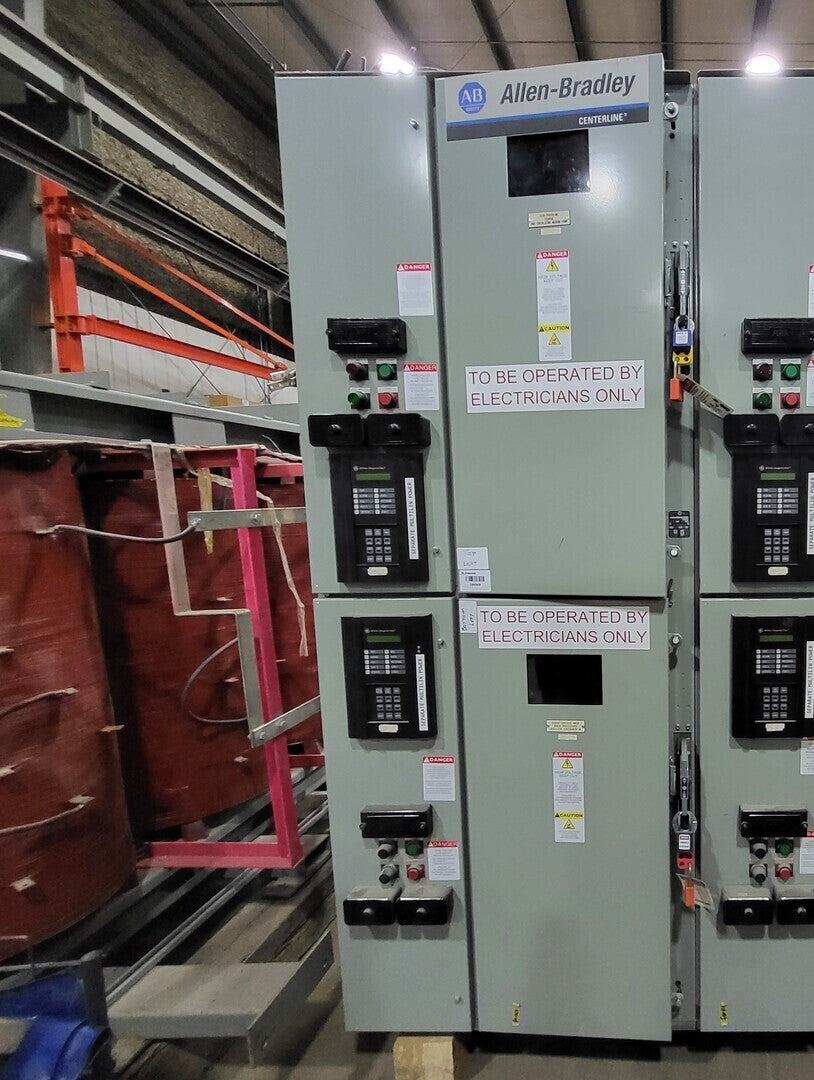

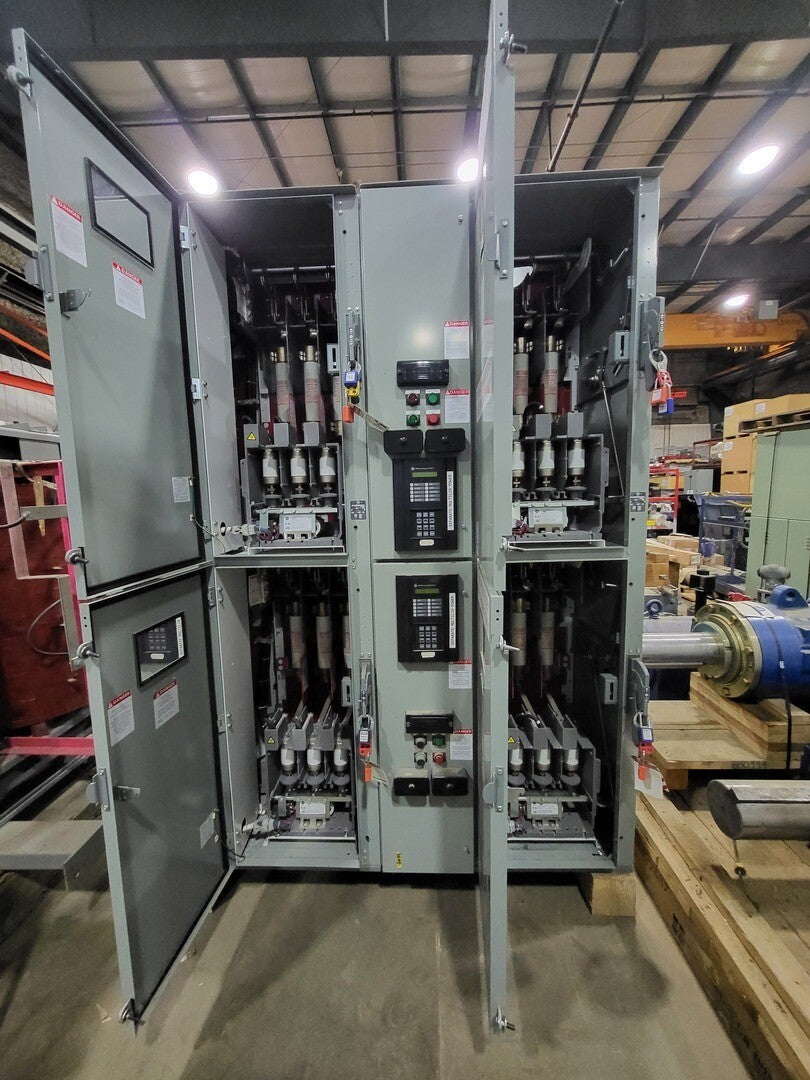

ALLEN-BRADLEY 5kV CENTERLINE 1500 Vacuum Starter Section 1512B-TJE, 2-High x 2, 500HP, 1200A
ALLEN-BRADLEY

5kV CENTERLINE 1500 Vacuum Starter Section 1512B-TJE, 2-High x 2, 500HP, 1200A

SKU: 109495
Price:
$124,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications
Model 1512B-TJE
S/N: 7006202-007-05
Condition Used
Electrical
Amps 1200 amps
Voltage 5000 volts
Phase 3-phase
HP Rating 500 hp
General
Enclosure Yes
Other Specifications

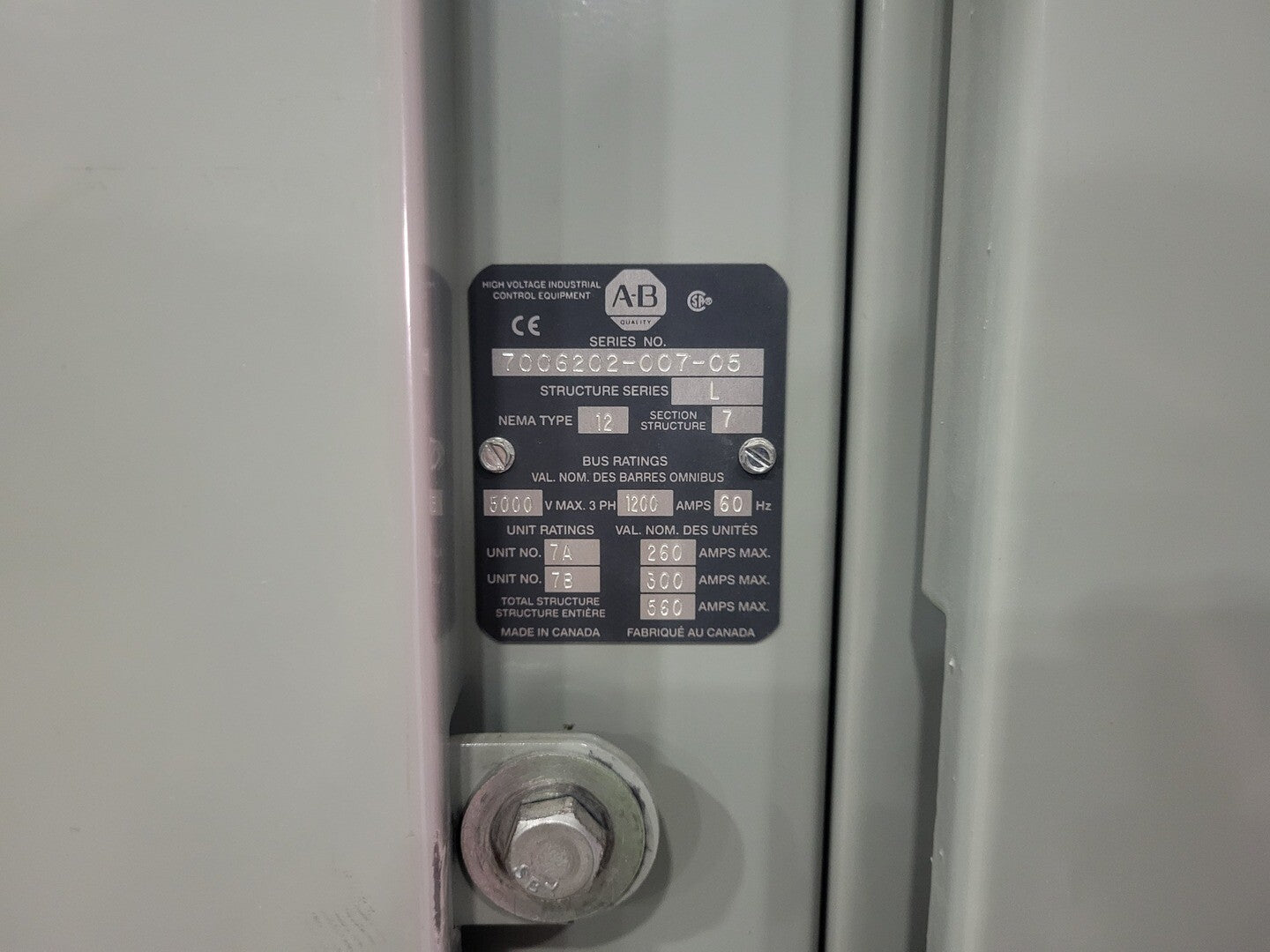

Structure 1:

Structure Configuration: 2-High

Series No.: 7006202-007-05

Structure Series: L

NEMA Type: 12

Bus Rating: 5000V Max., 1200A, 3-ph

Top Unit Rating: 260A

Bottom Unit Rating: 300A

Structure Total: 560A

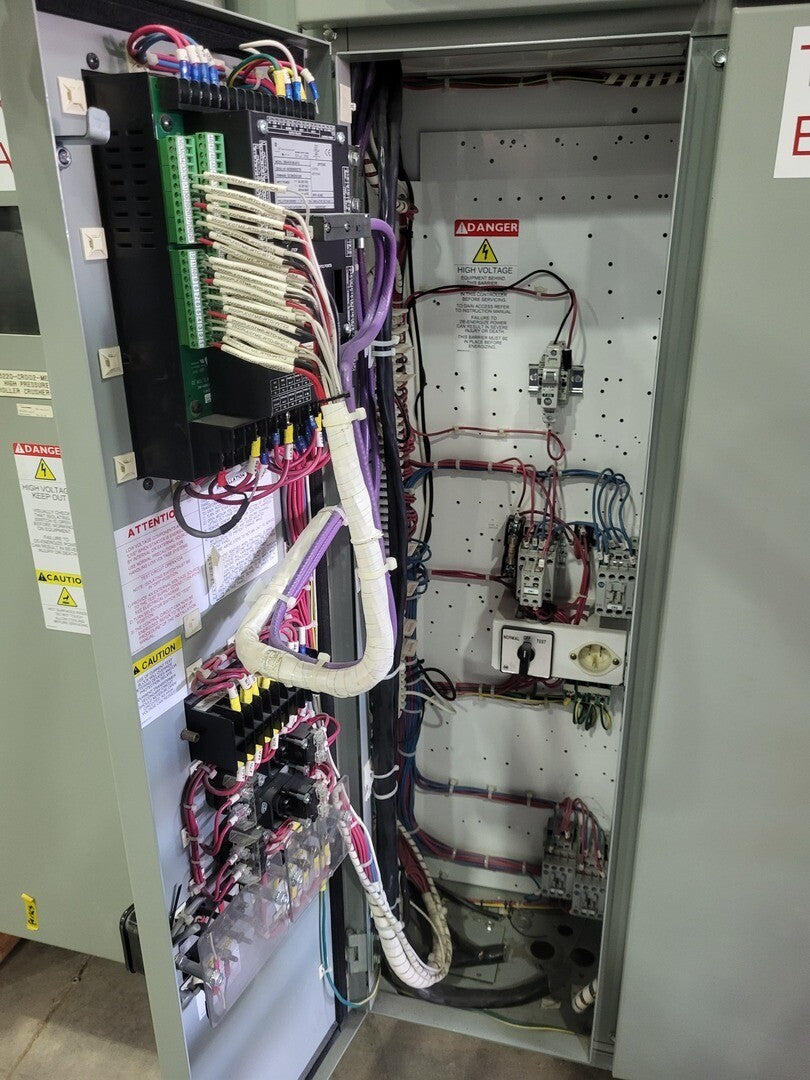

Unit Components:

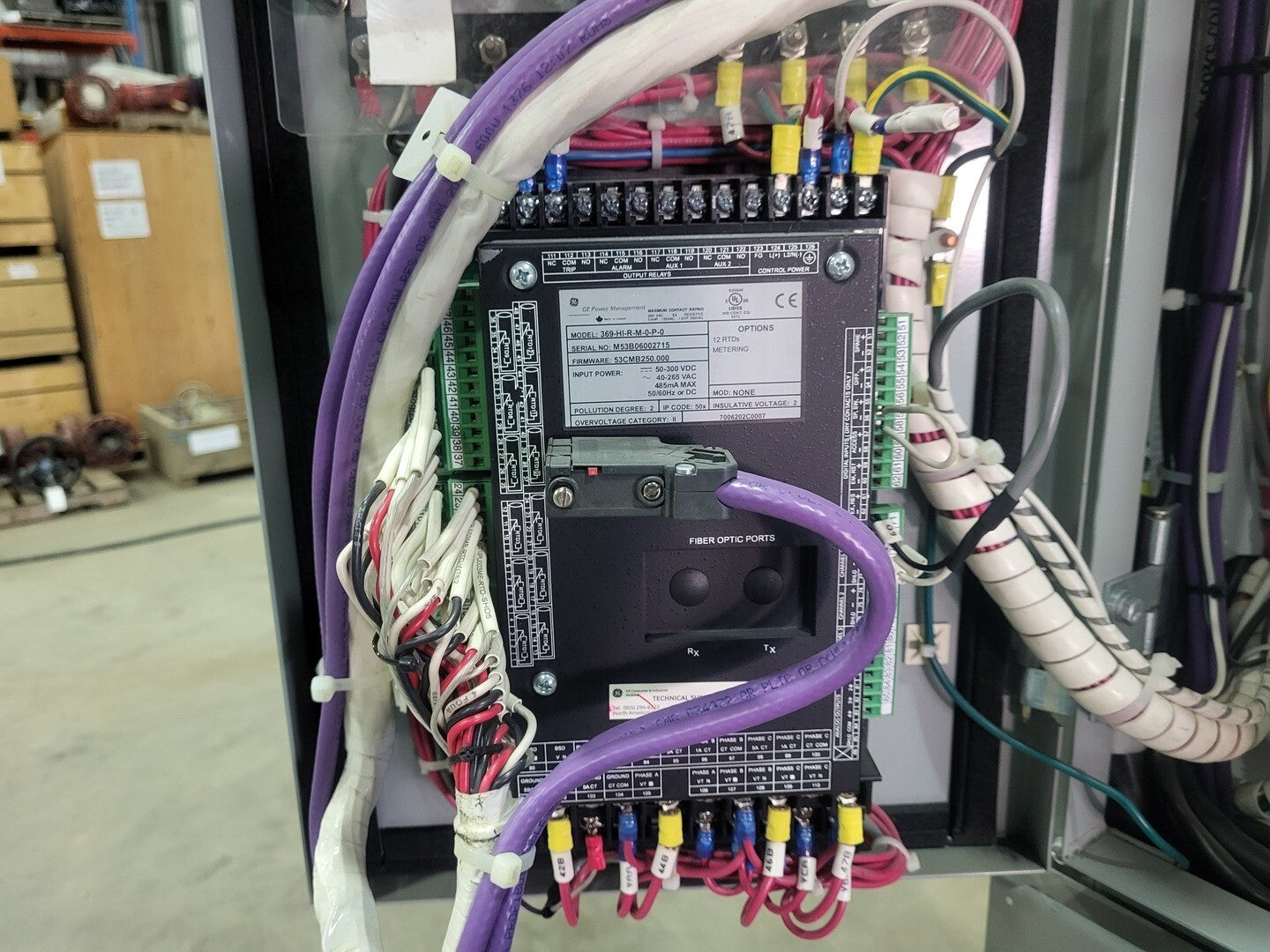

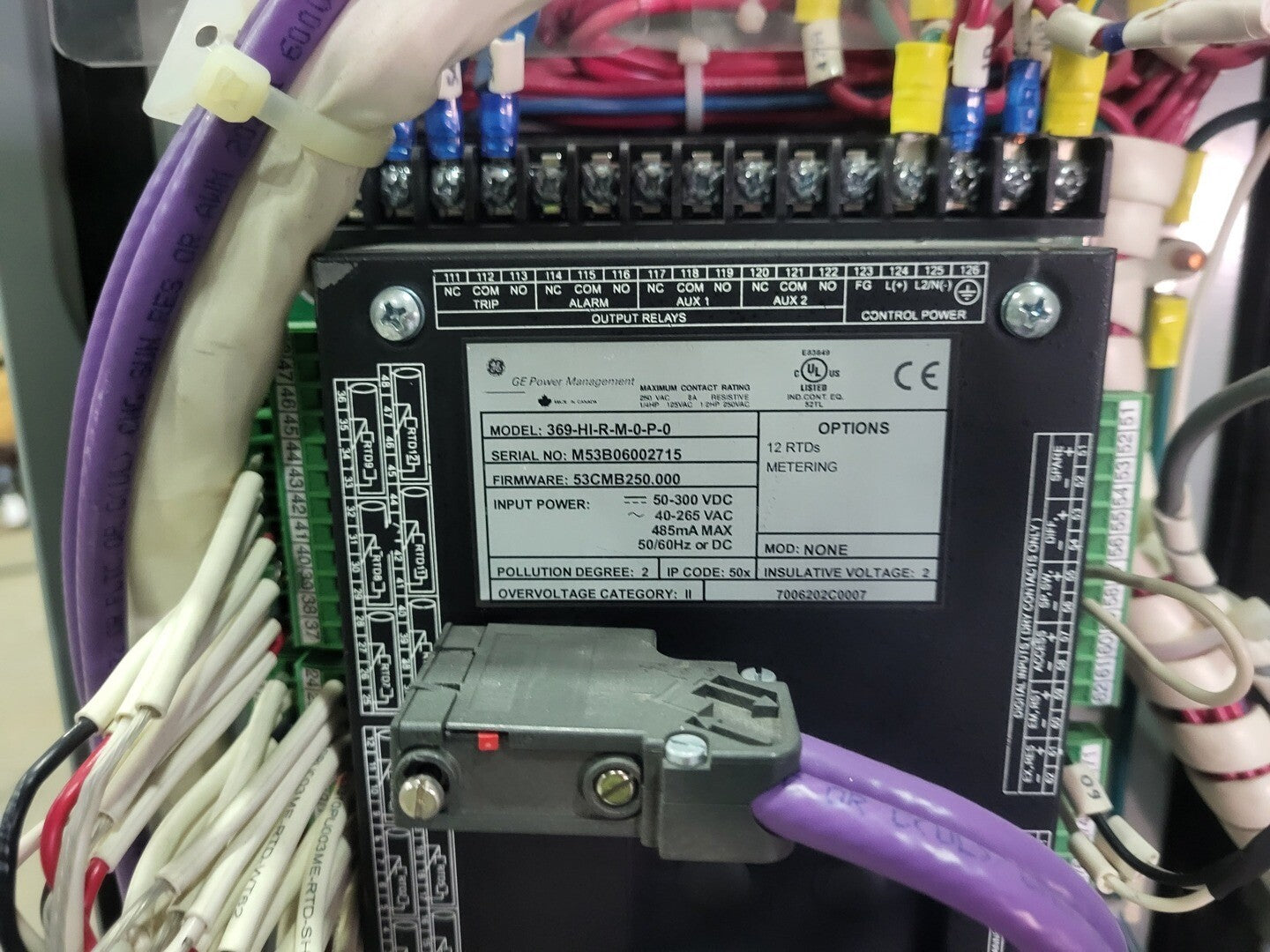

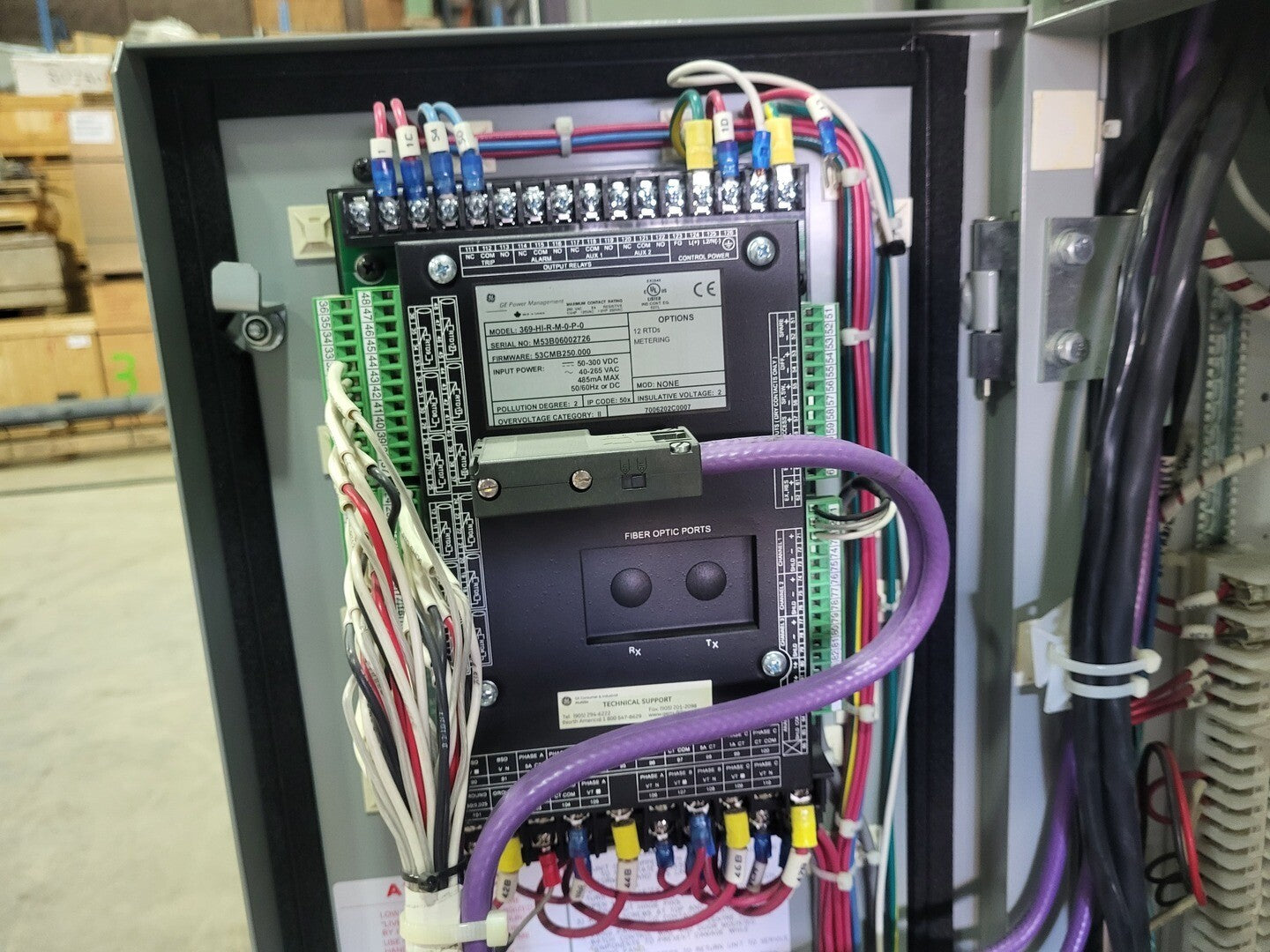

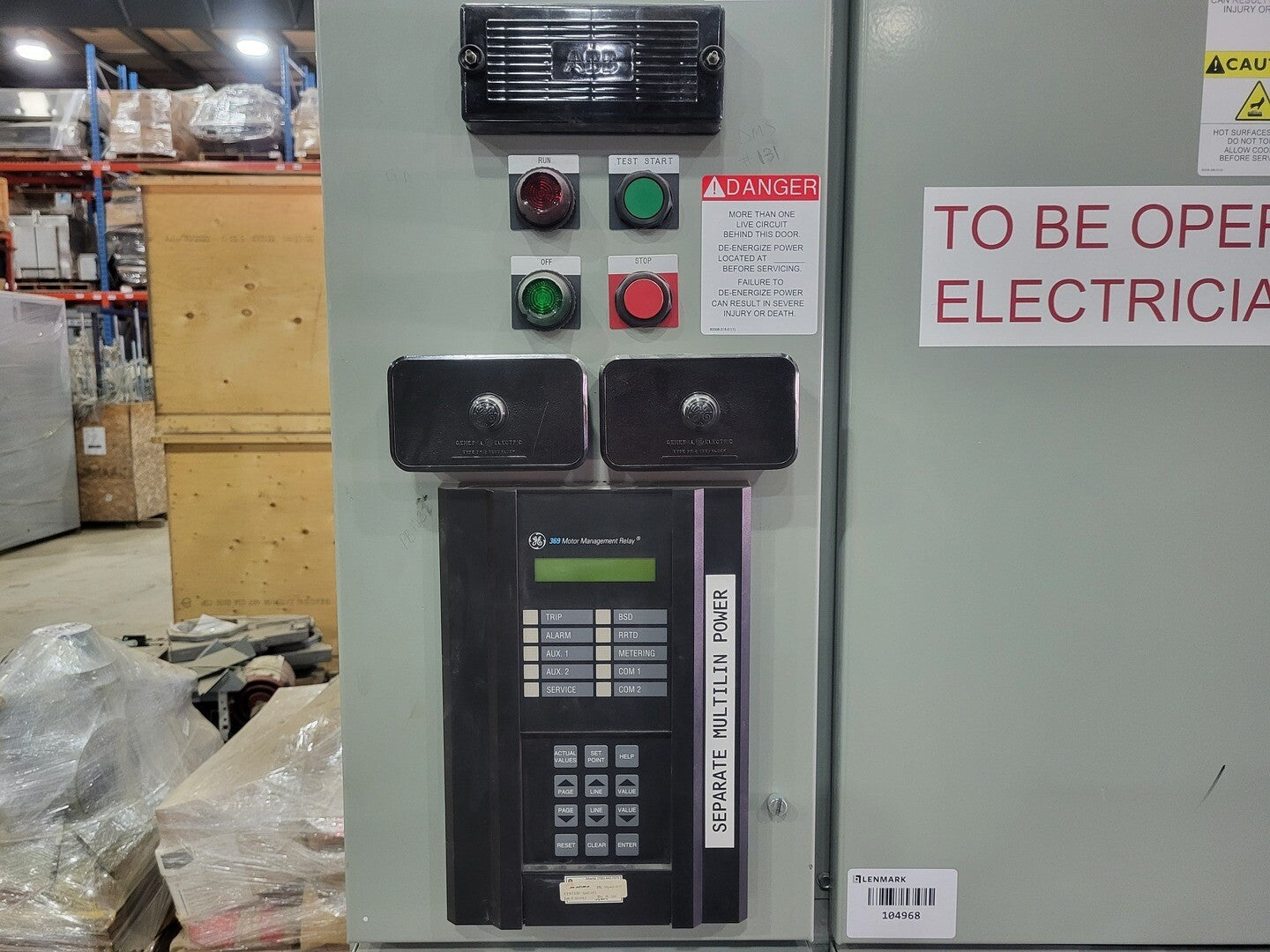

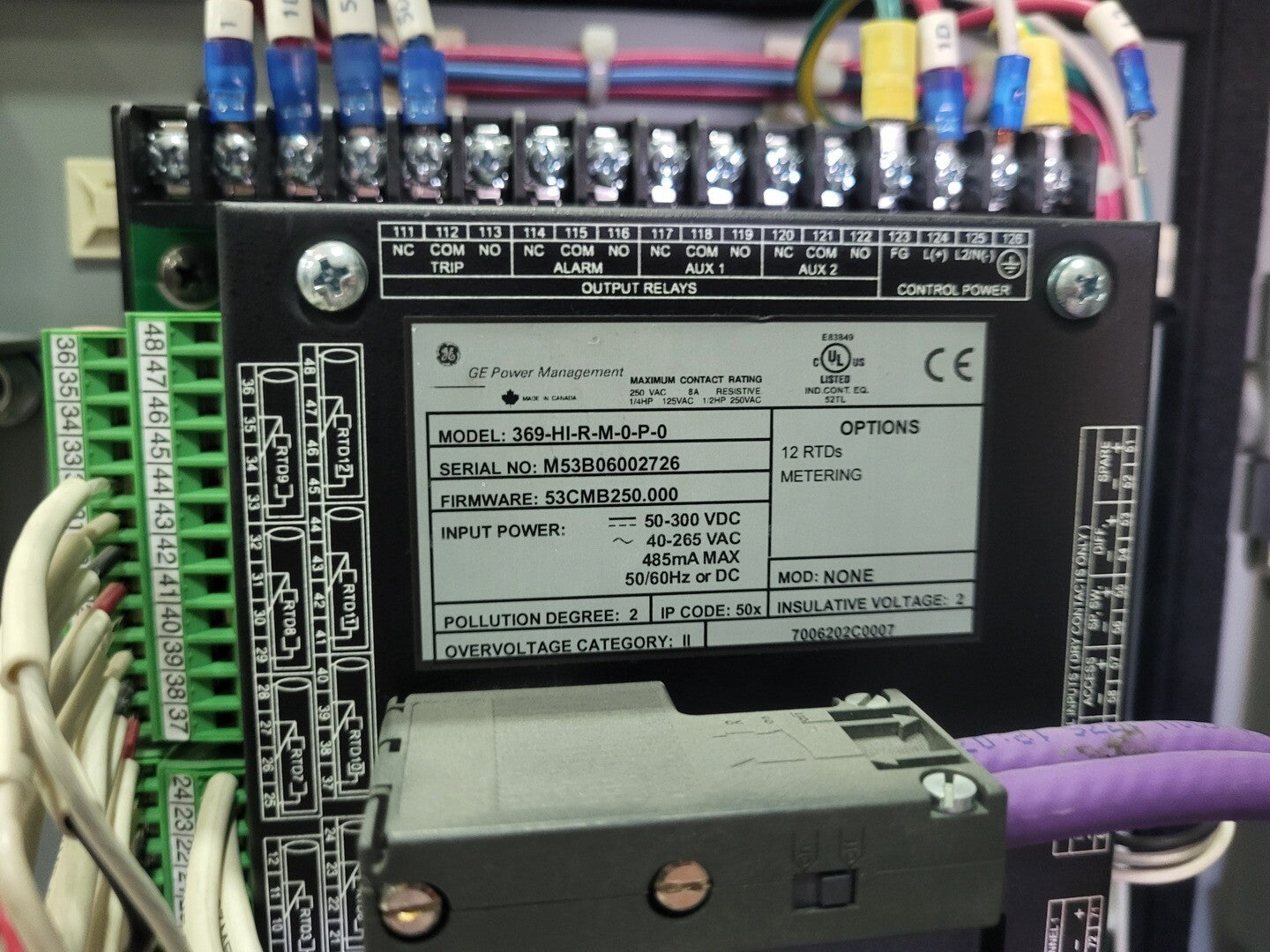

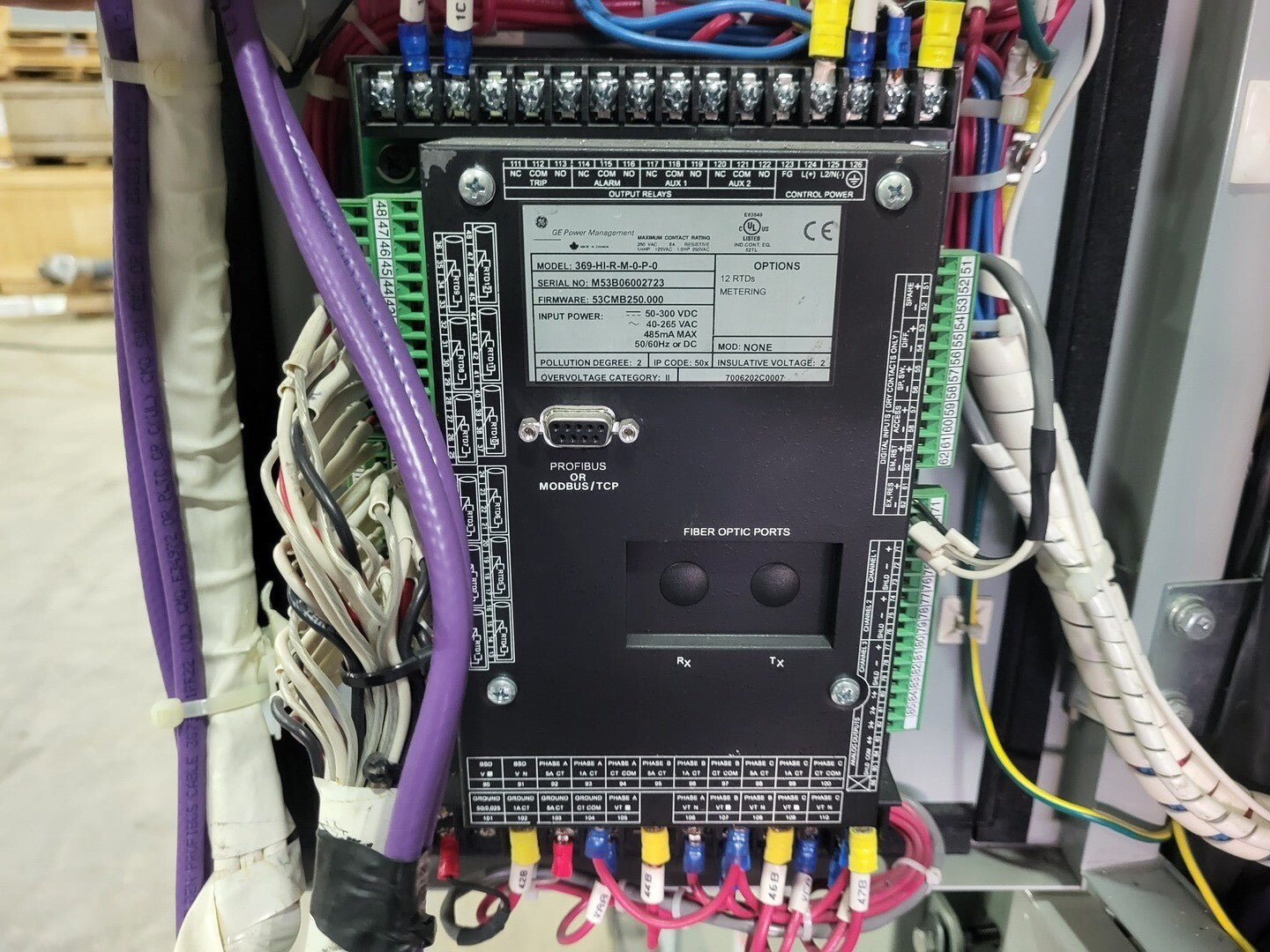

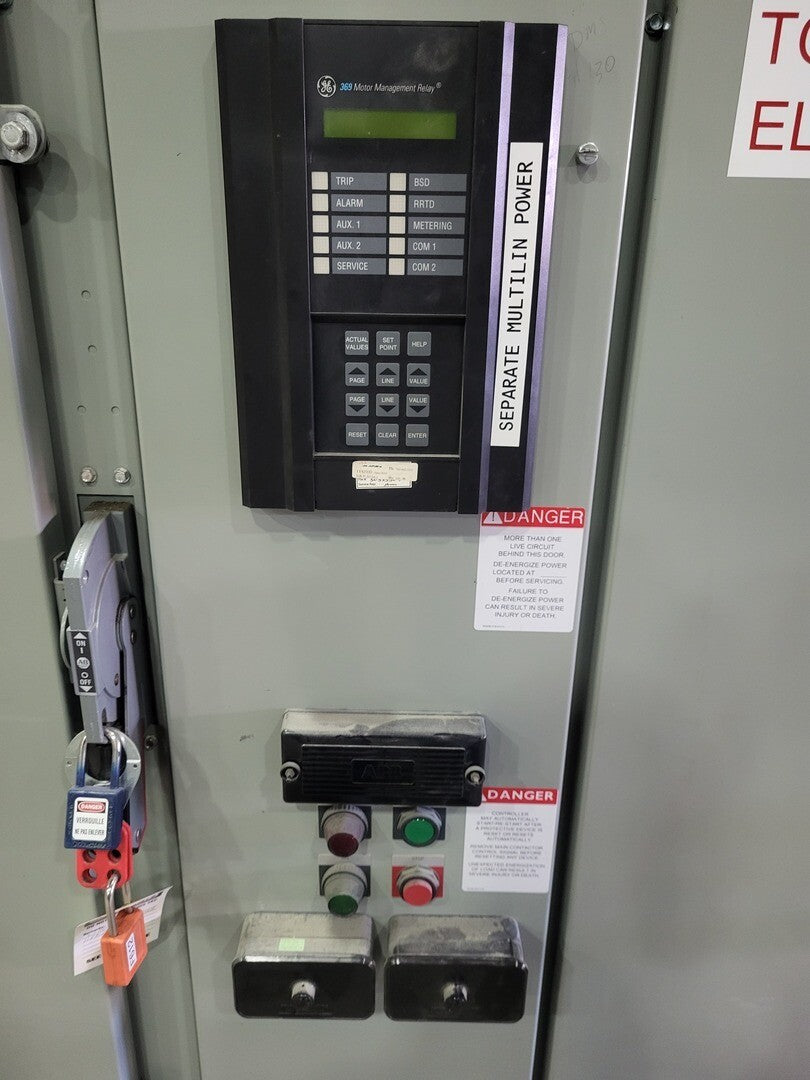

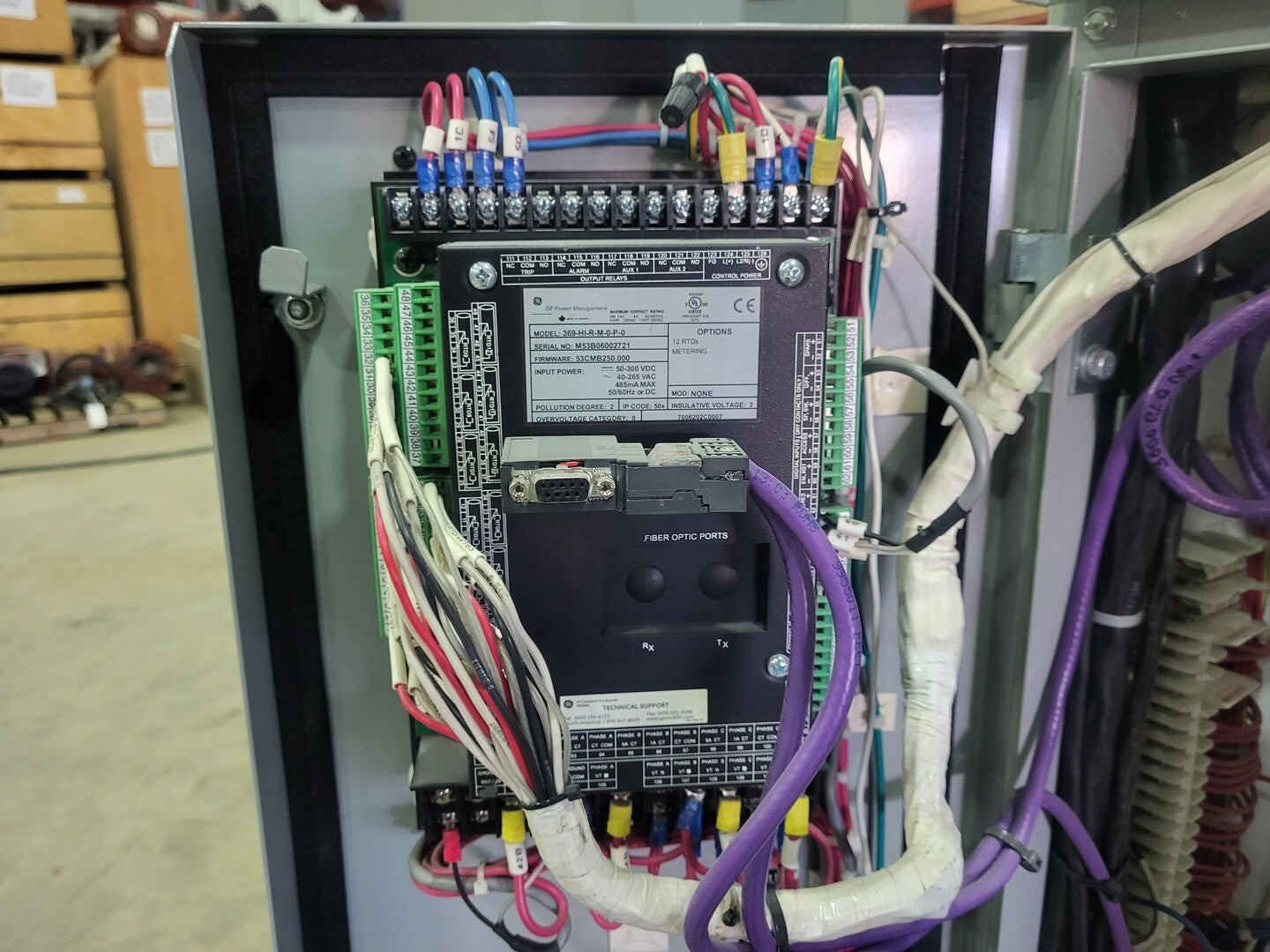

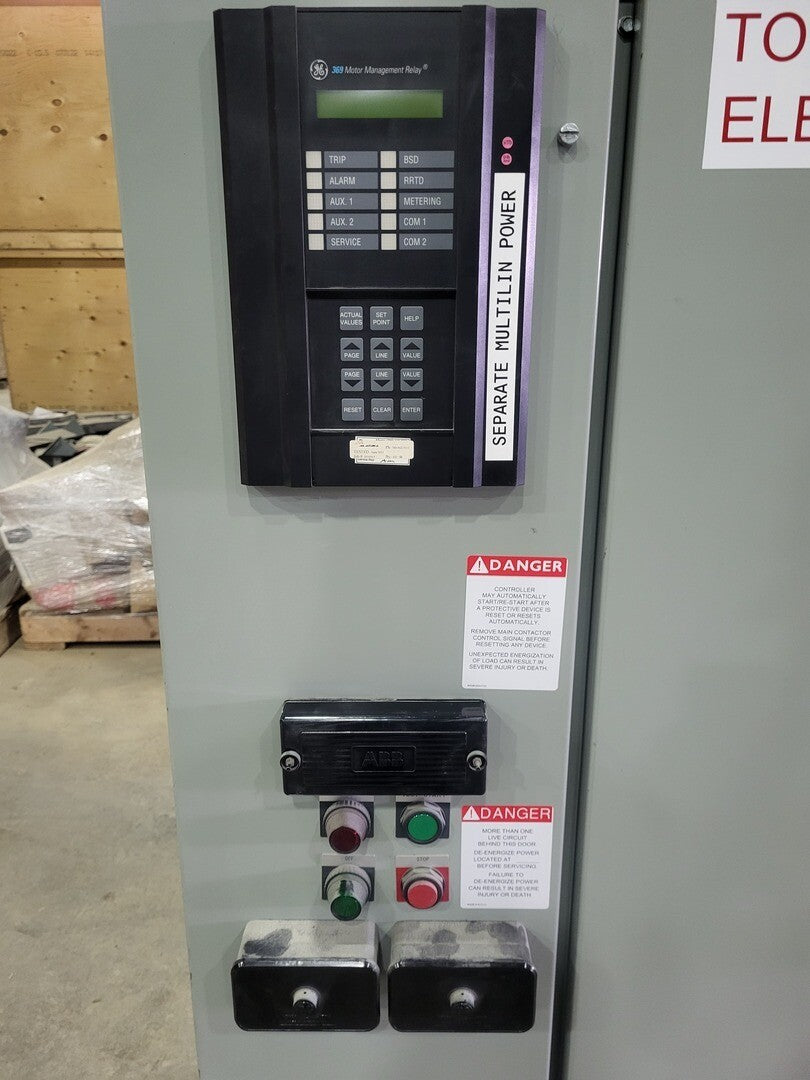

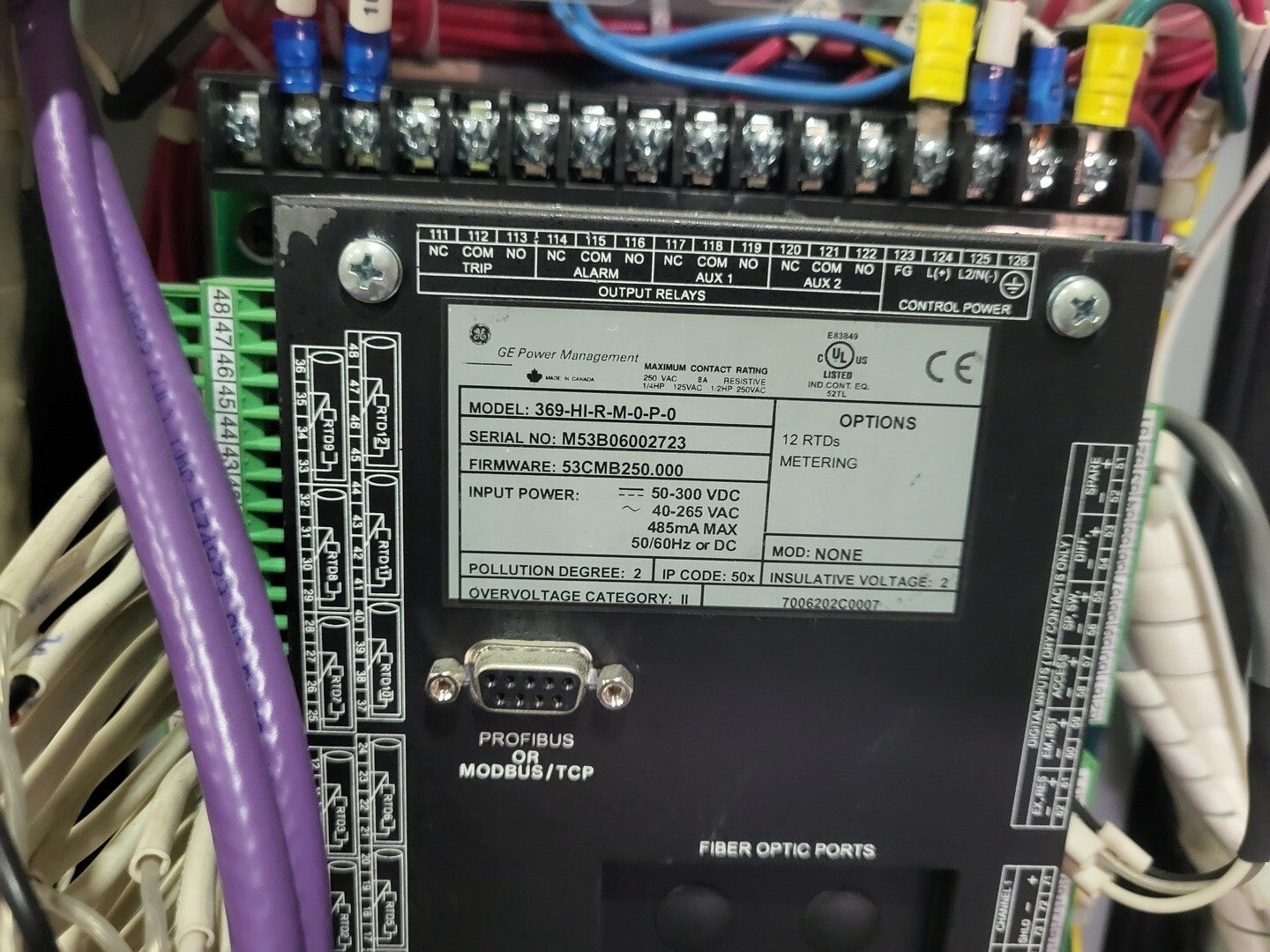

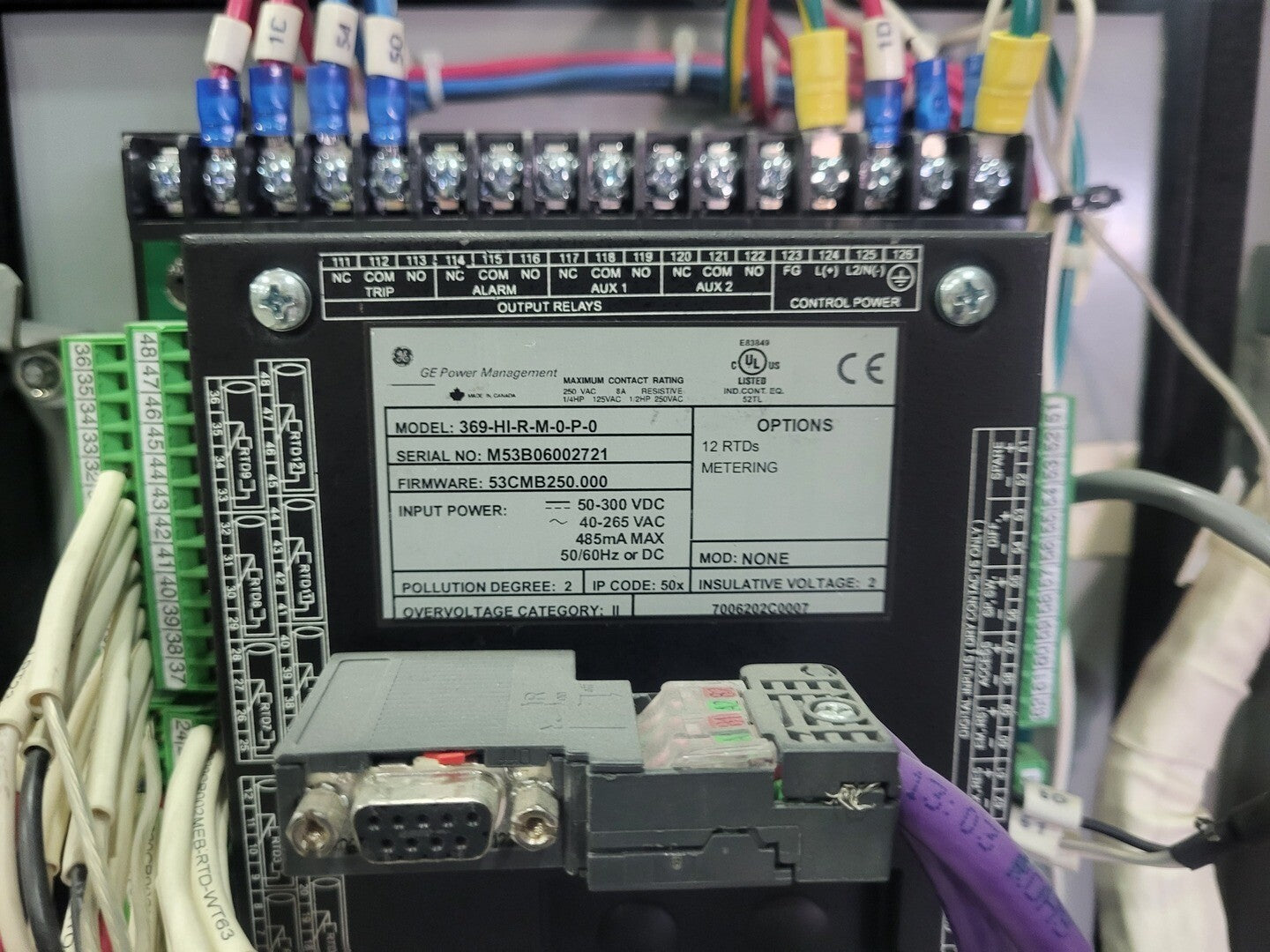

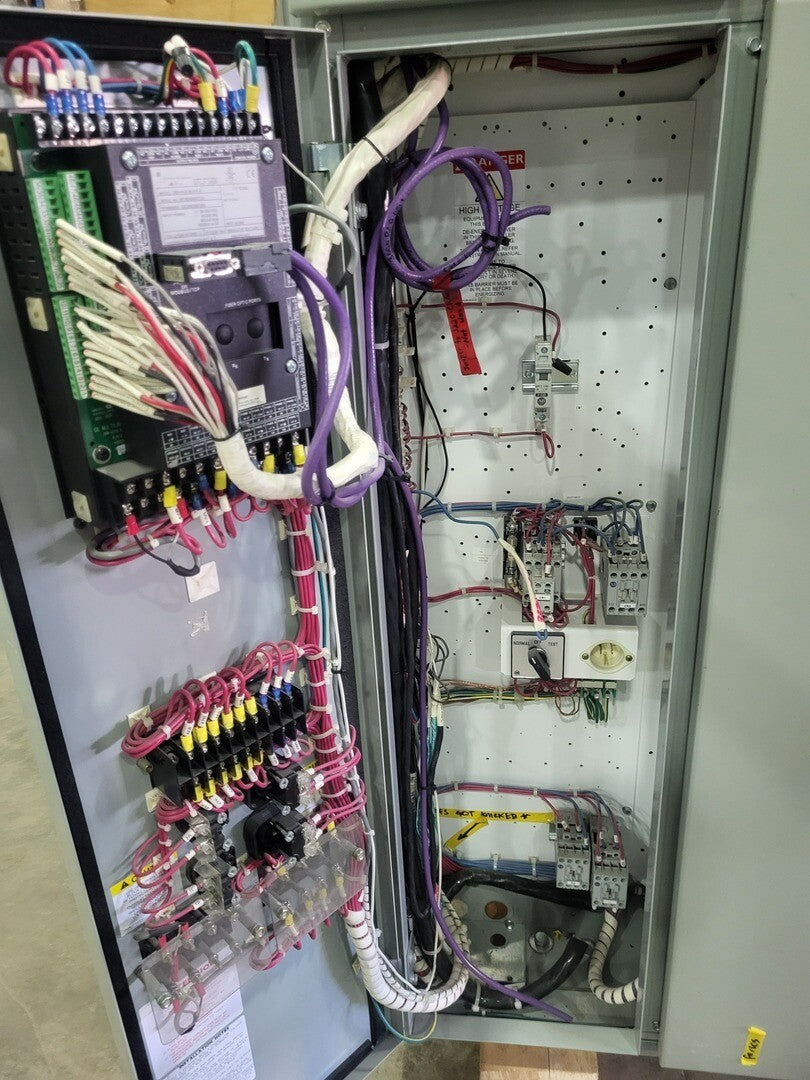

  • GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0

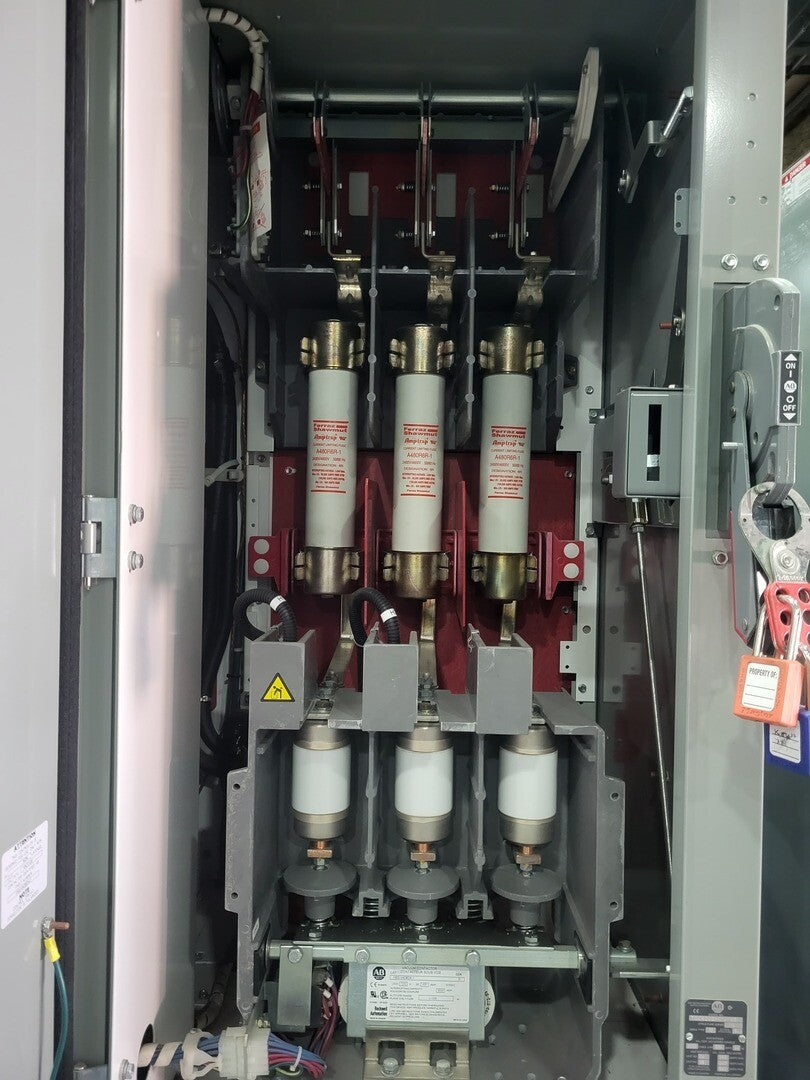

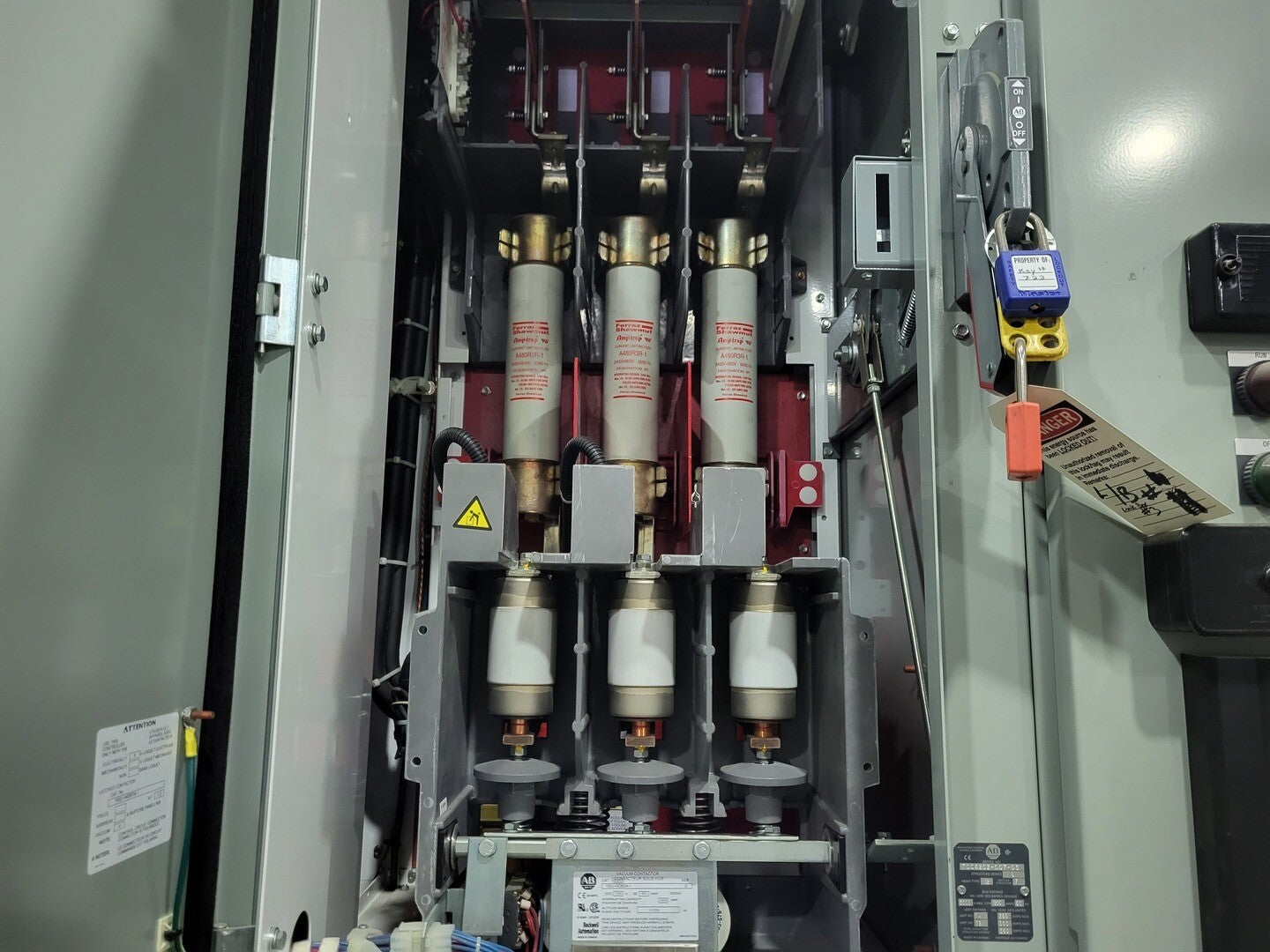

  • ALLEN-BRADLEY Non-load Break Isolation Switch

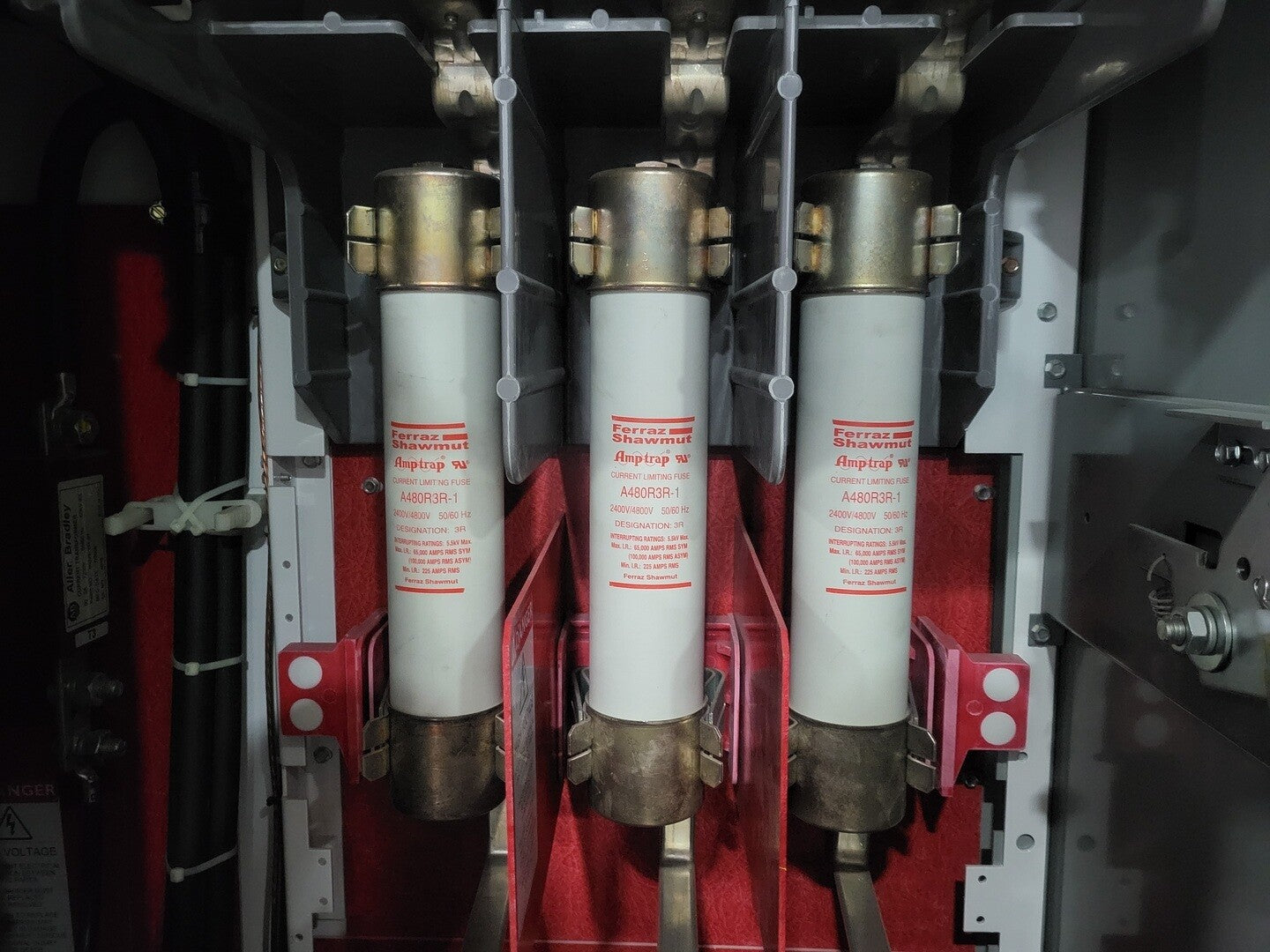

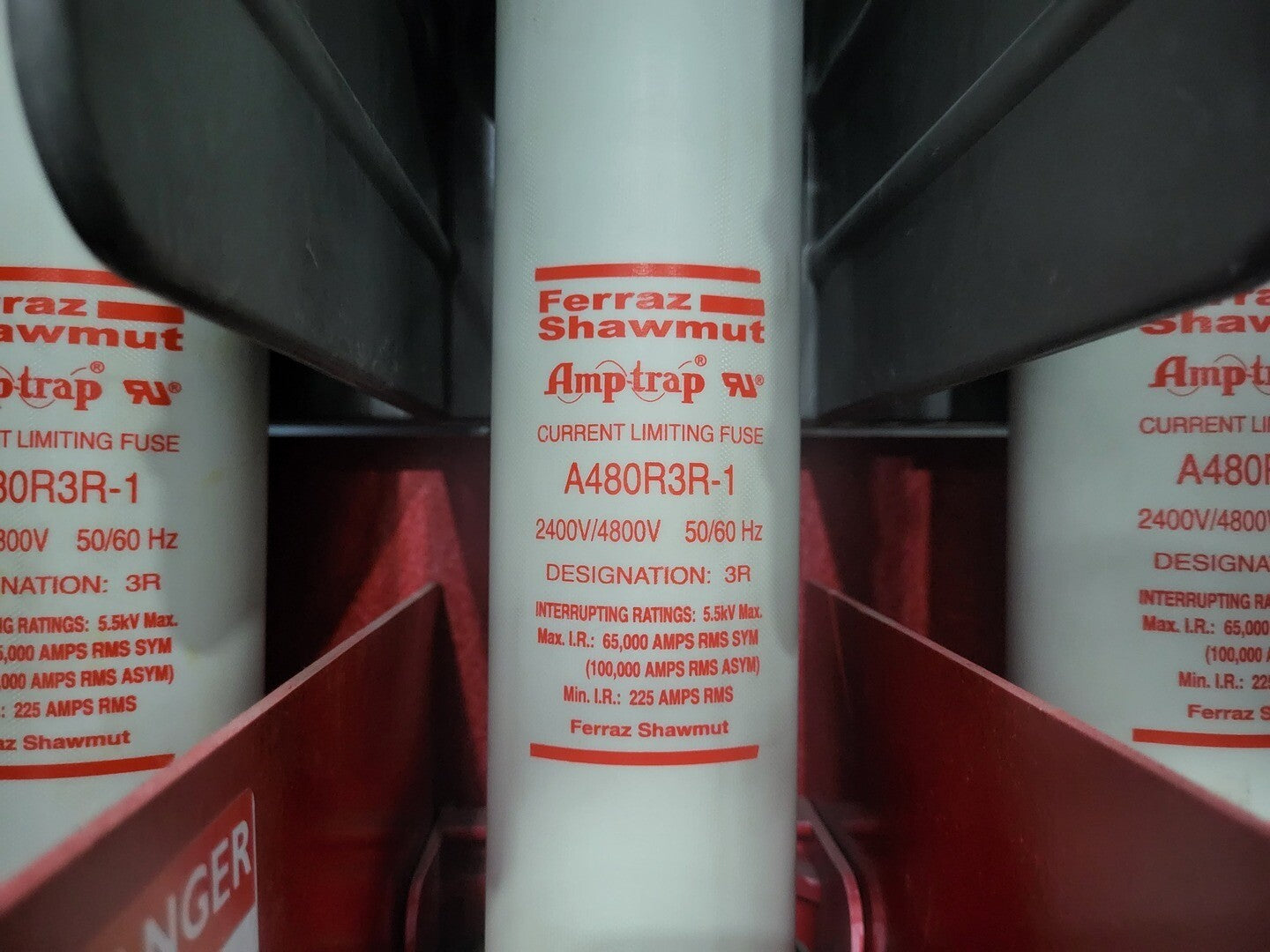

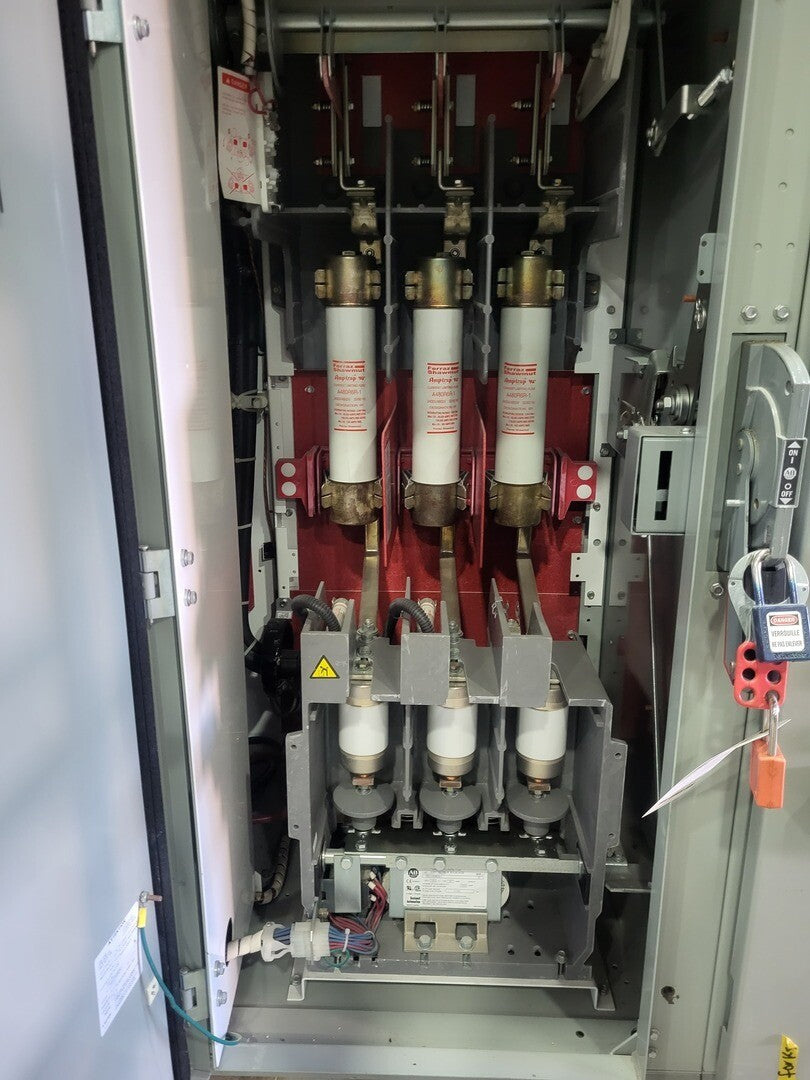

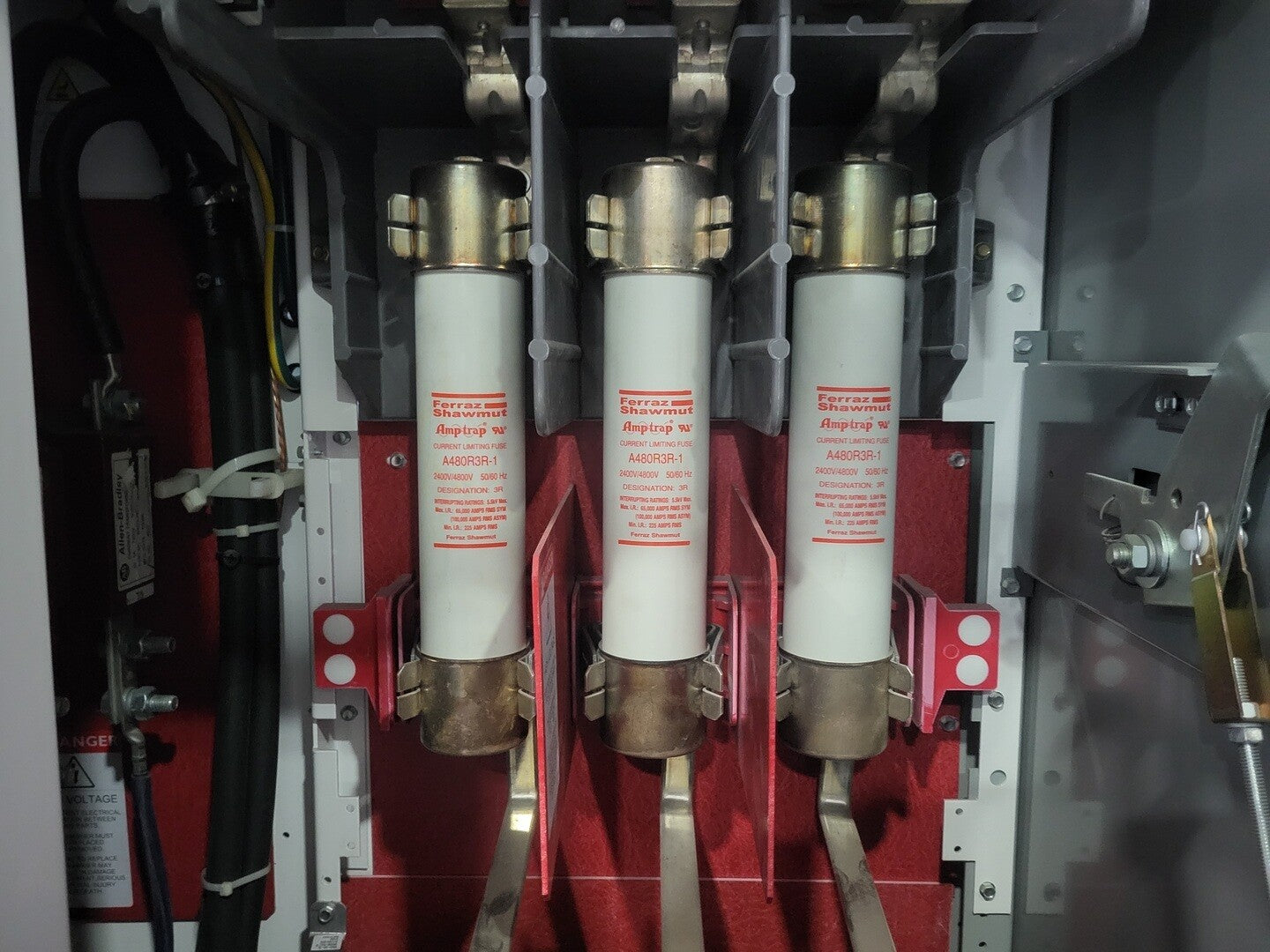

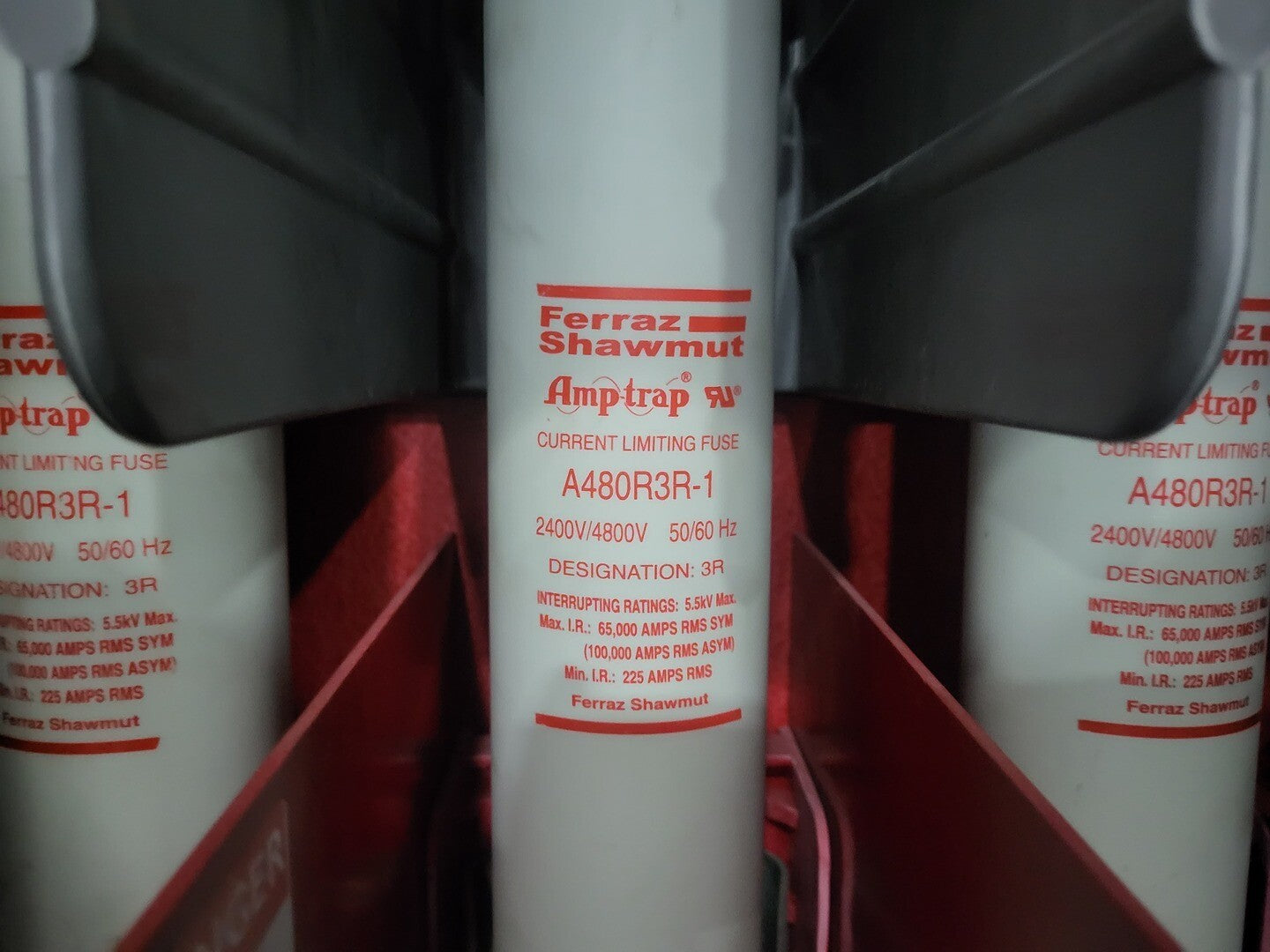

  • 3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Top)

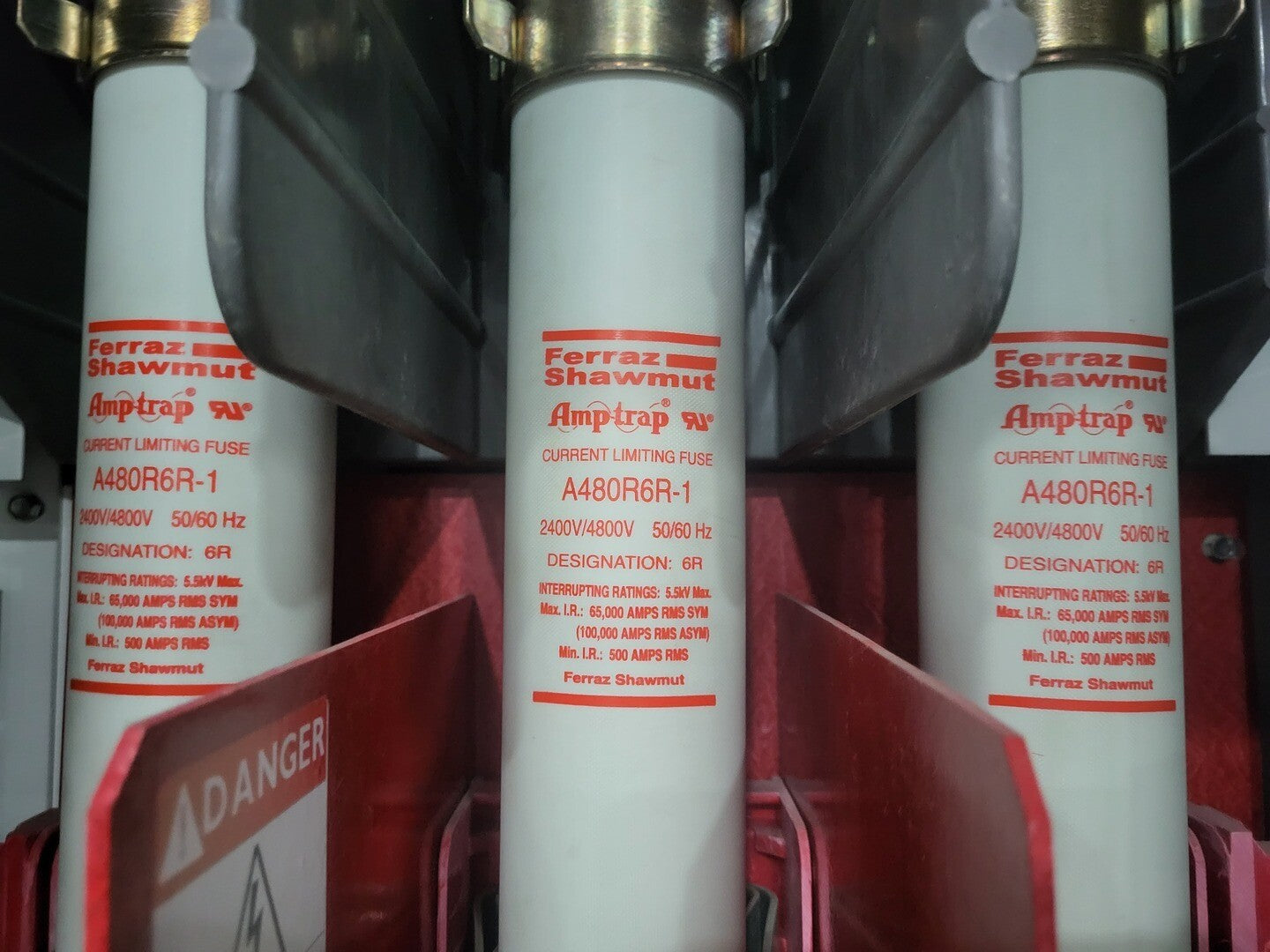

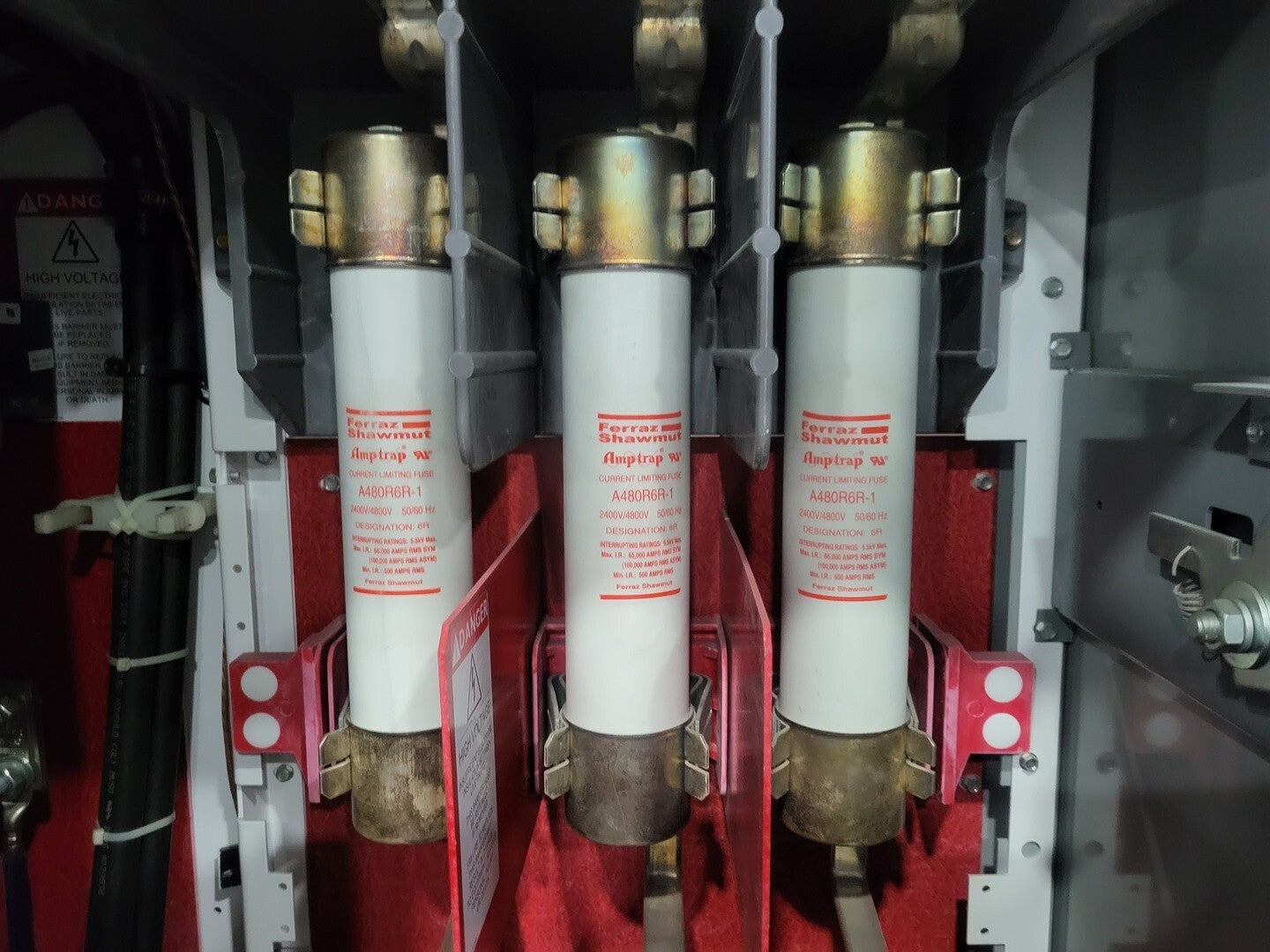

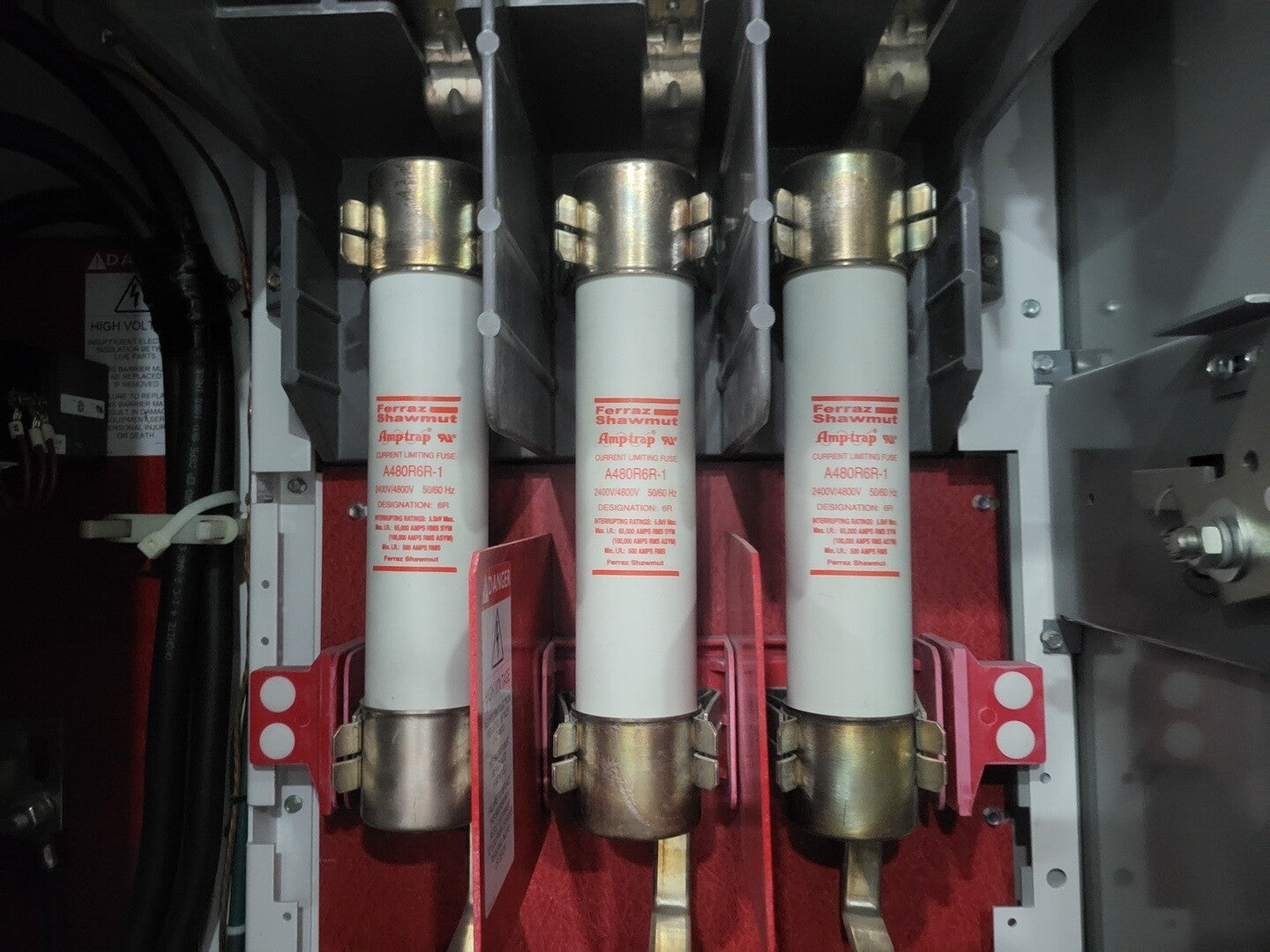

  • 3 x FERRAZ SHAWMUT Fuses A480R6R-1 (Bottom)

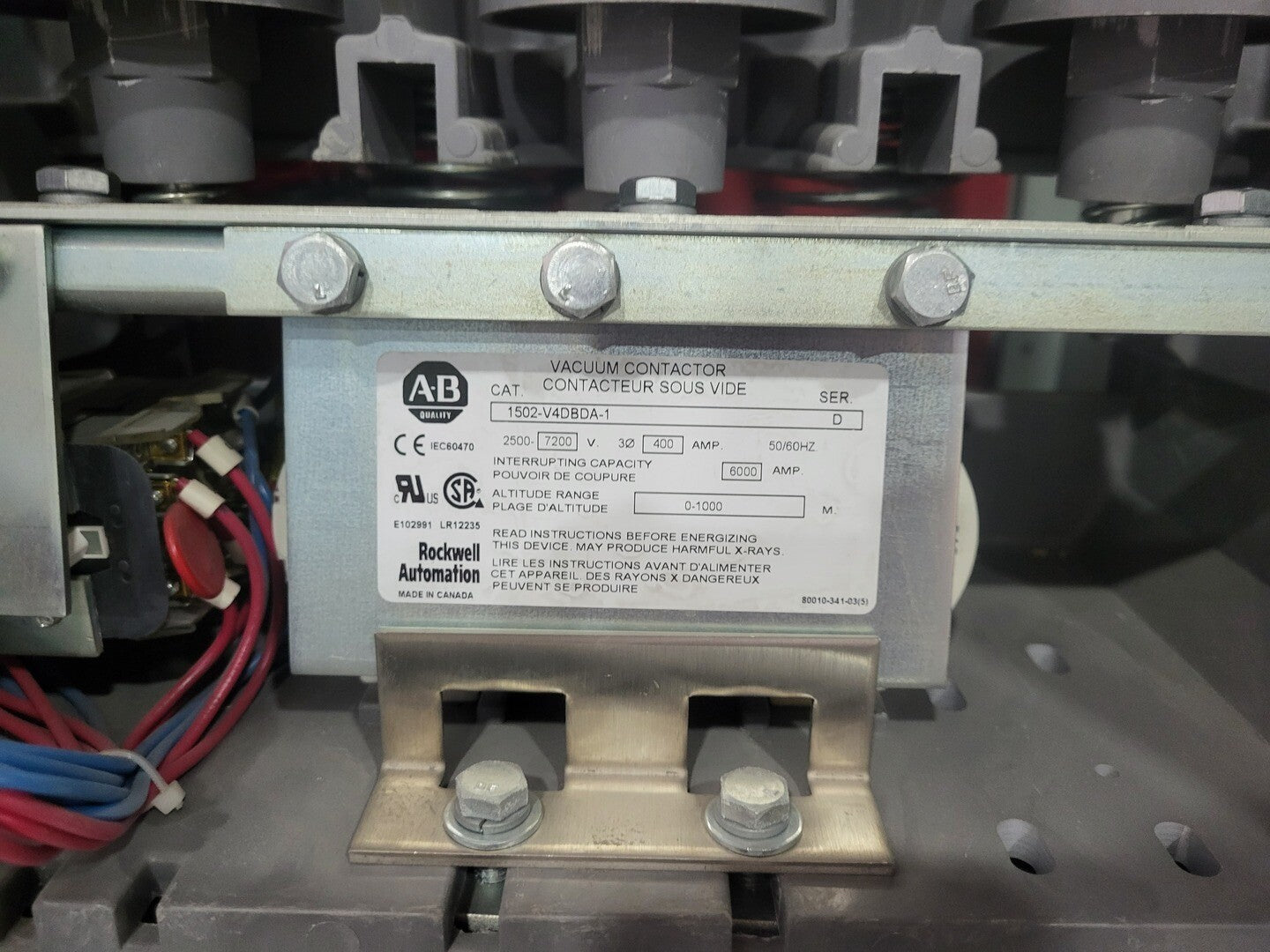

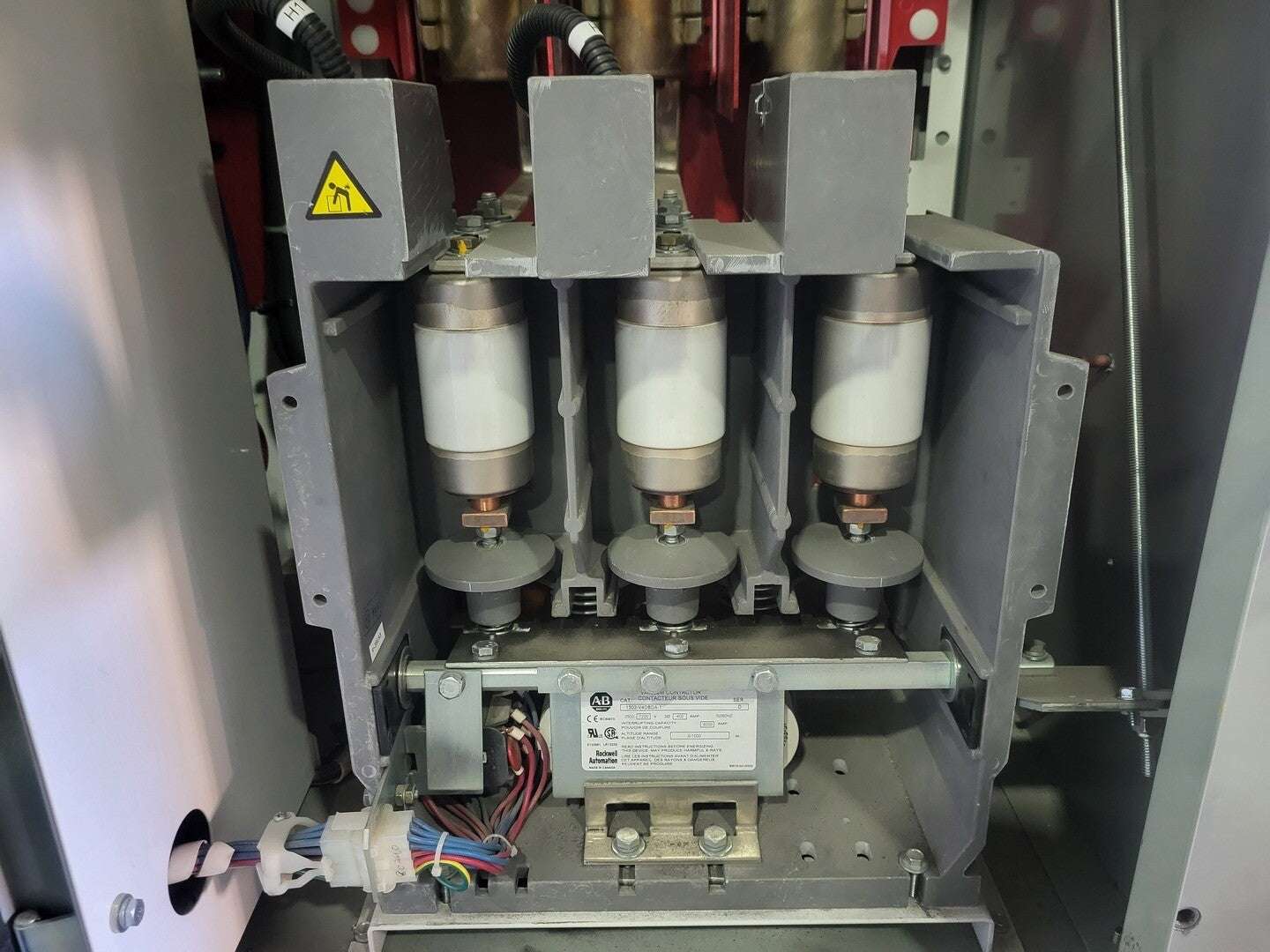

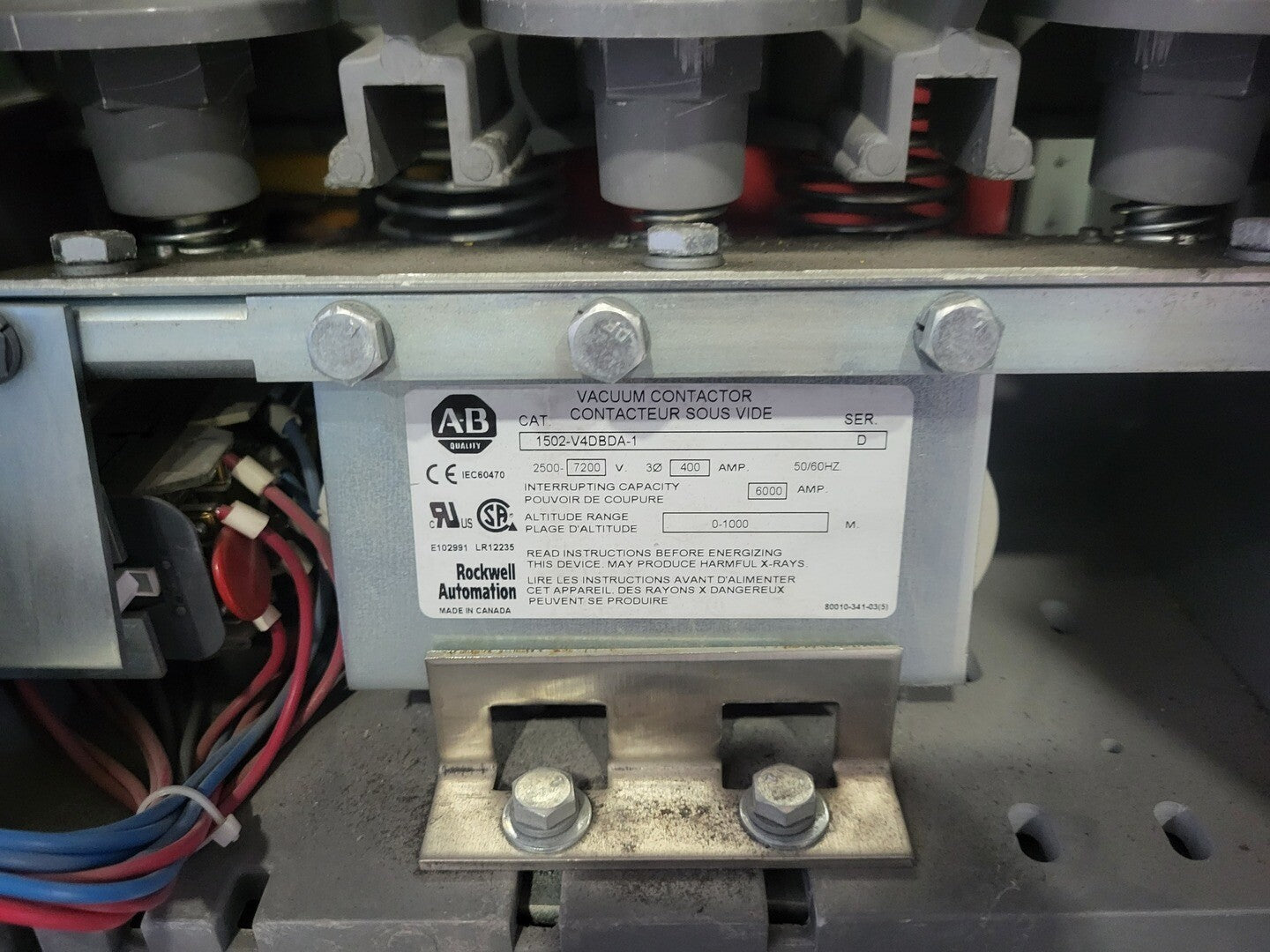

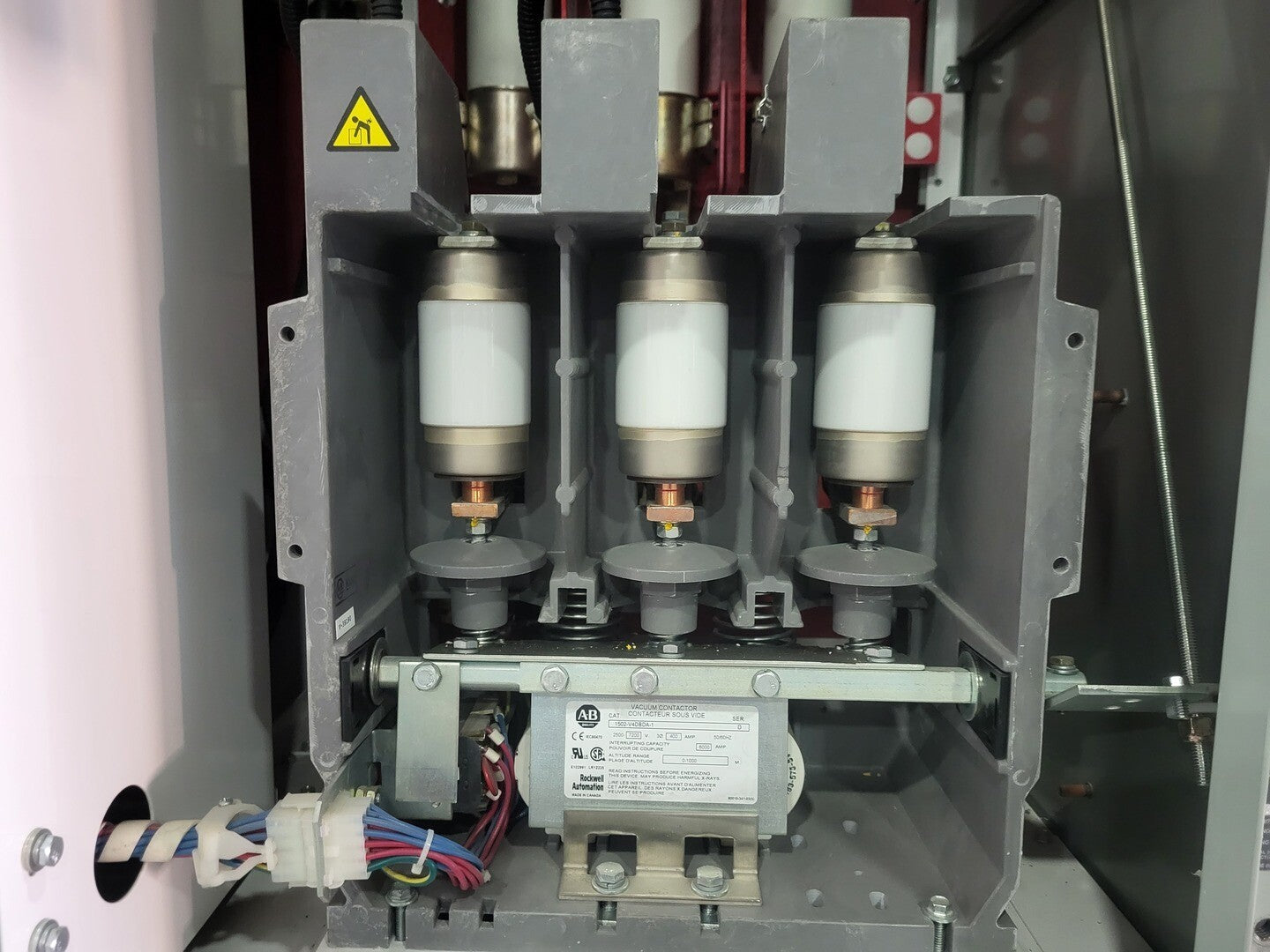

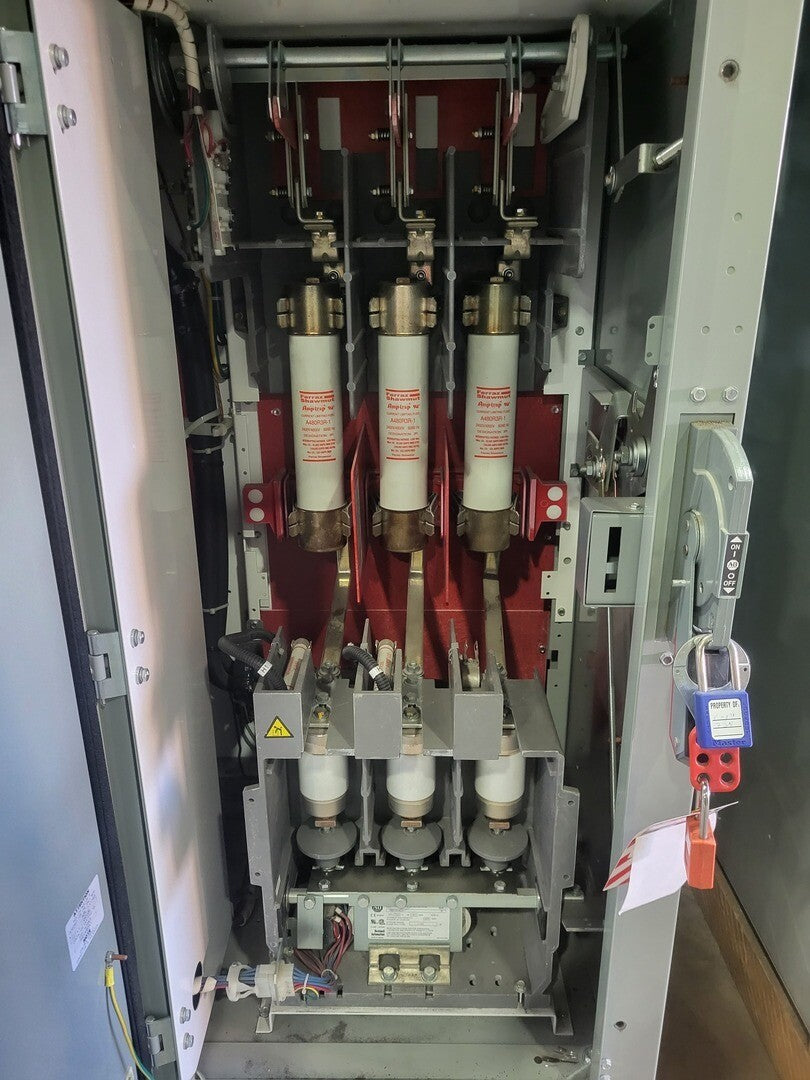

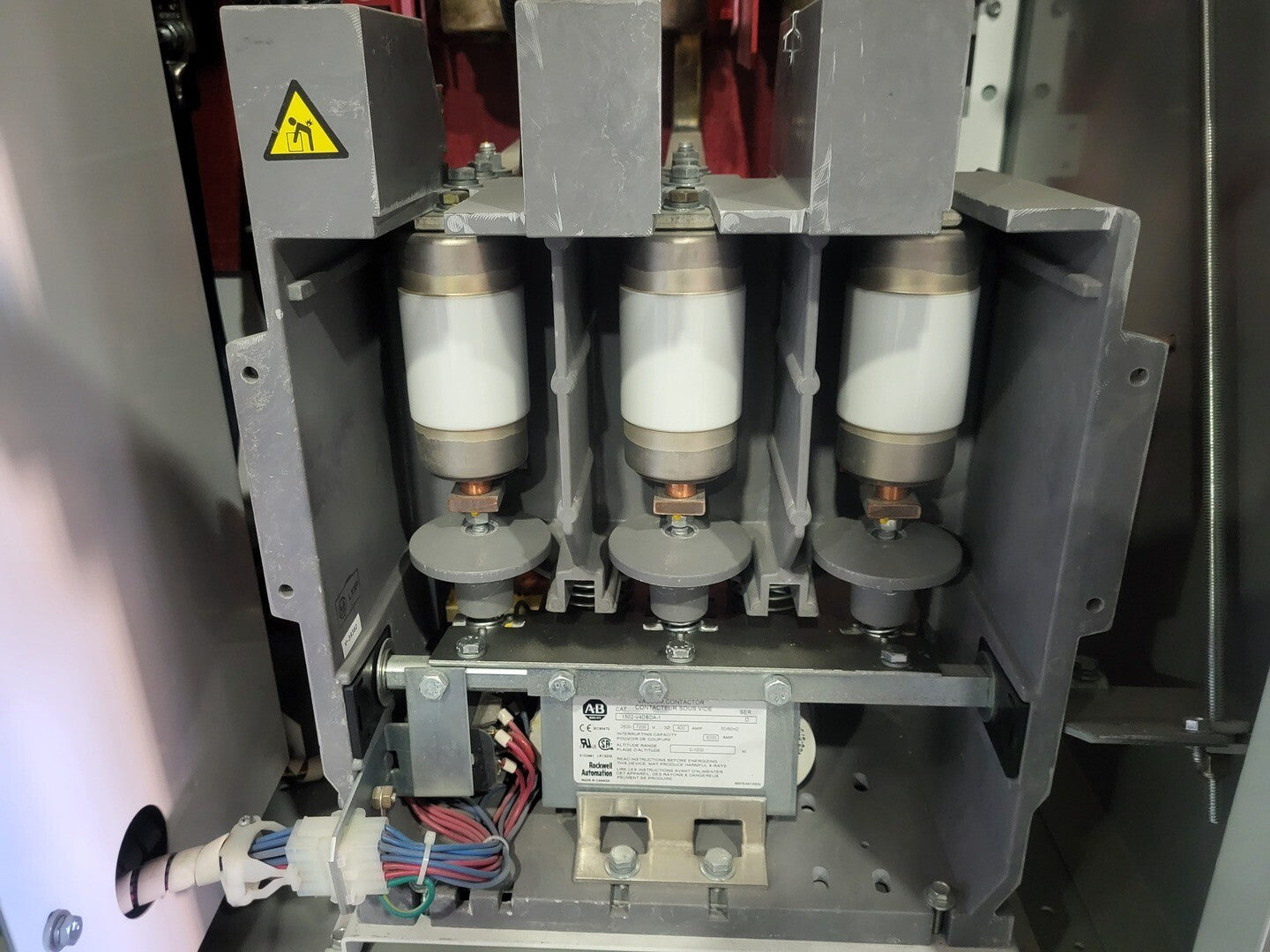

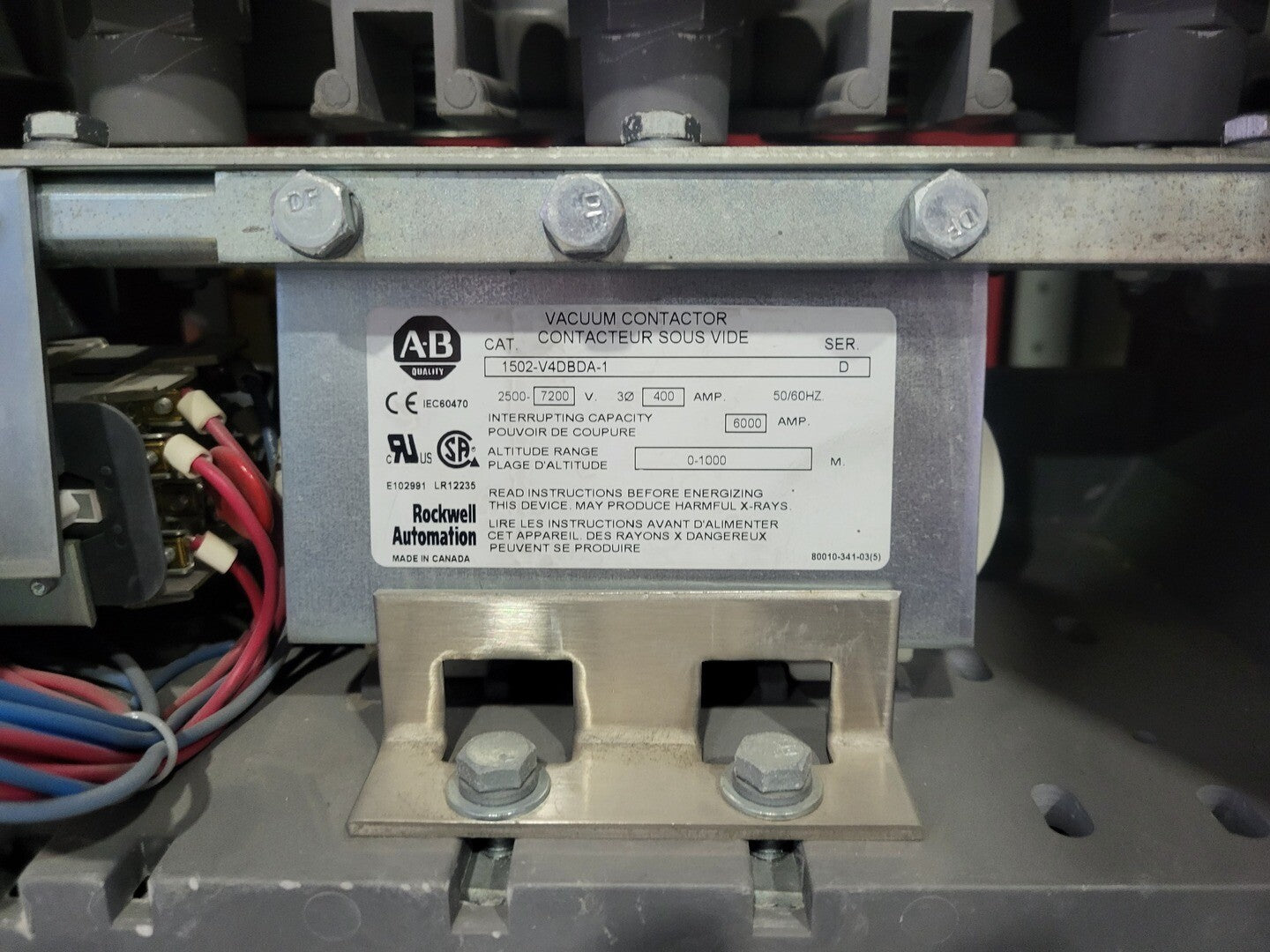

  • ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 400A, 6000A Interrupting Capacity

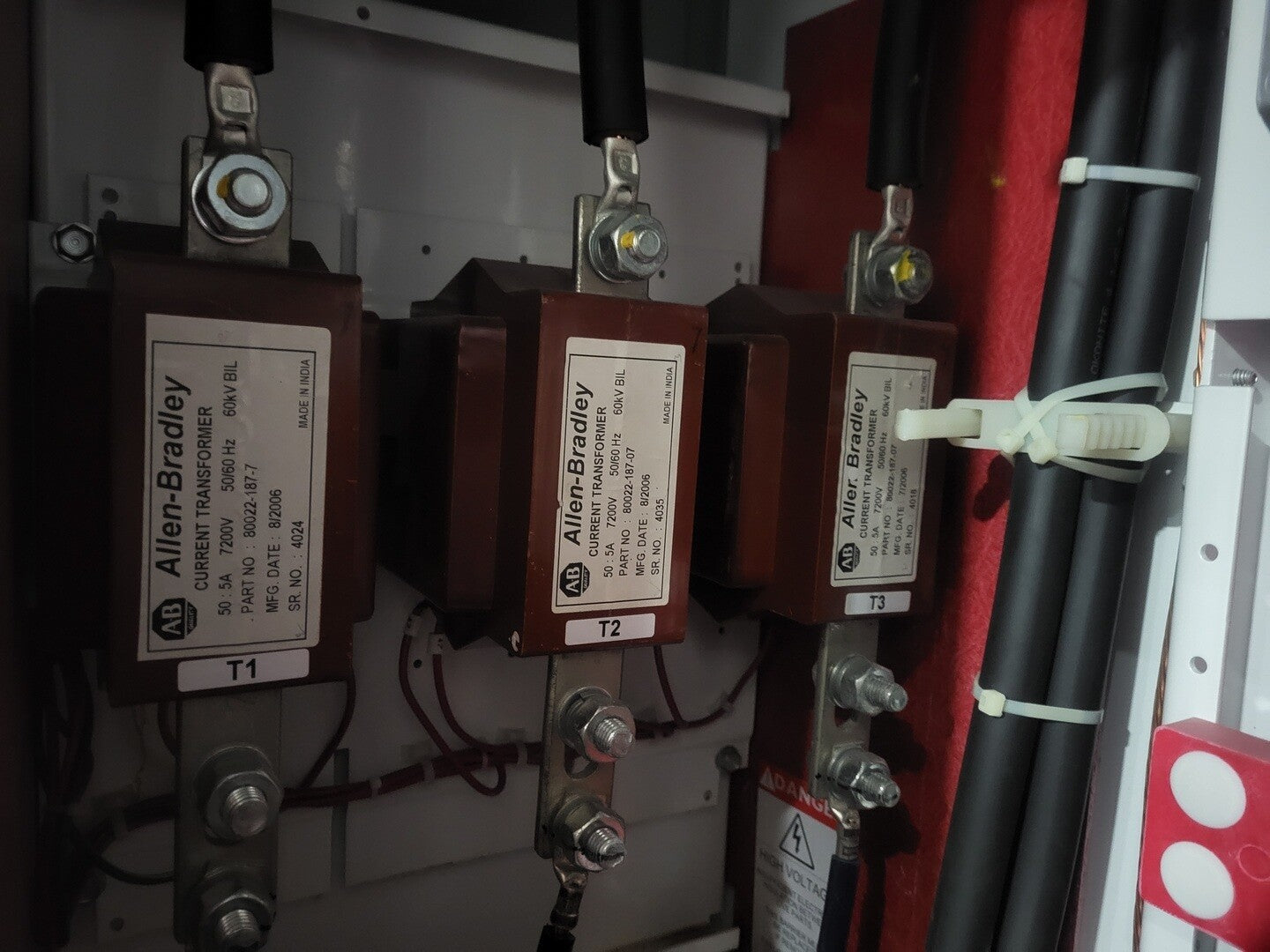

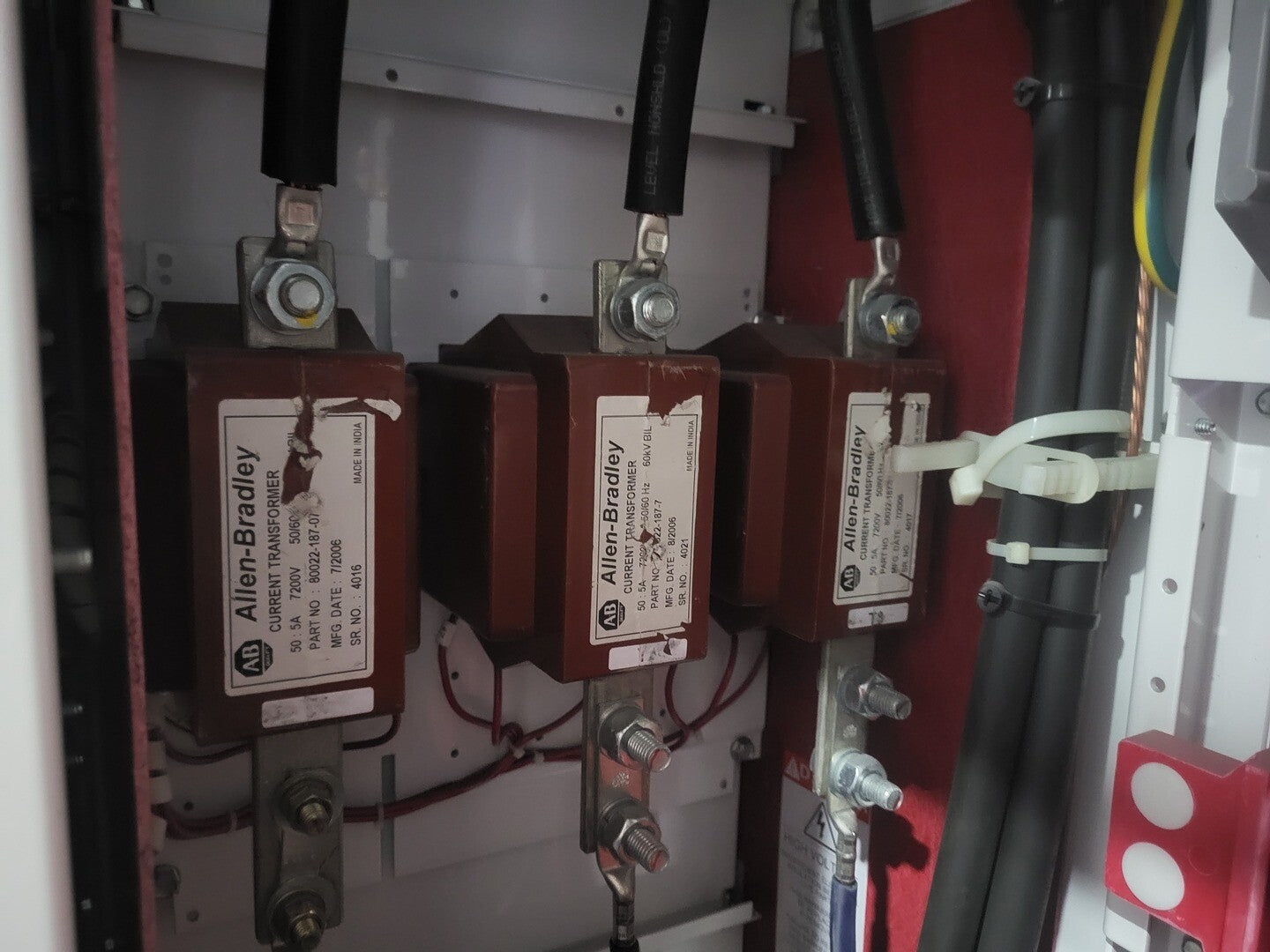

  • 3 x Bar-Type Current Transformers (Top)

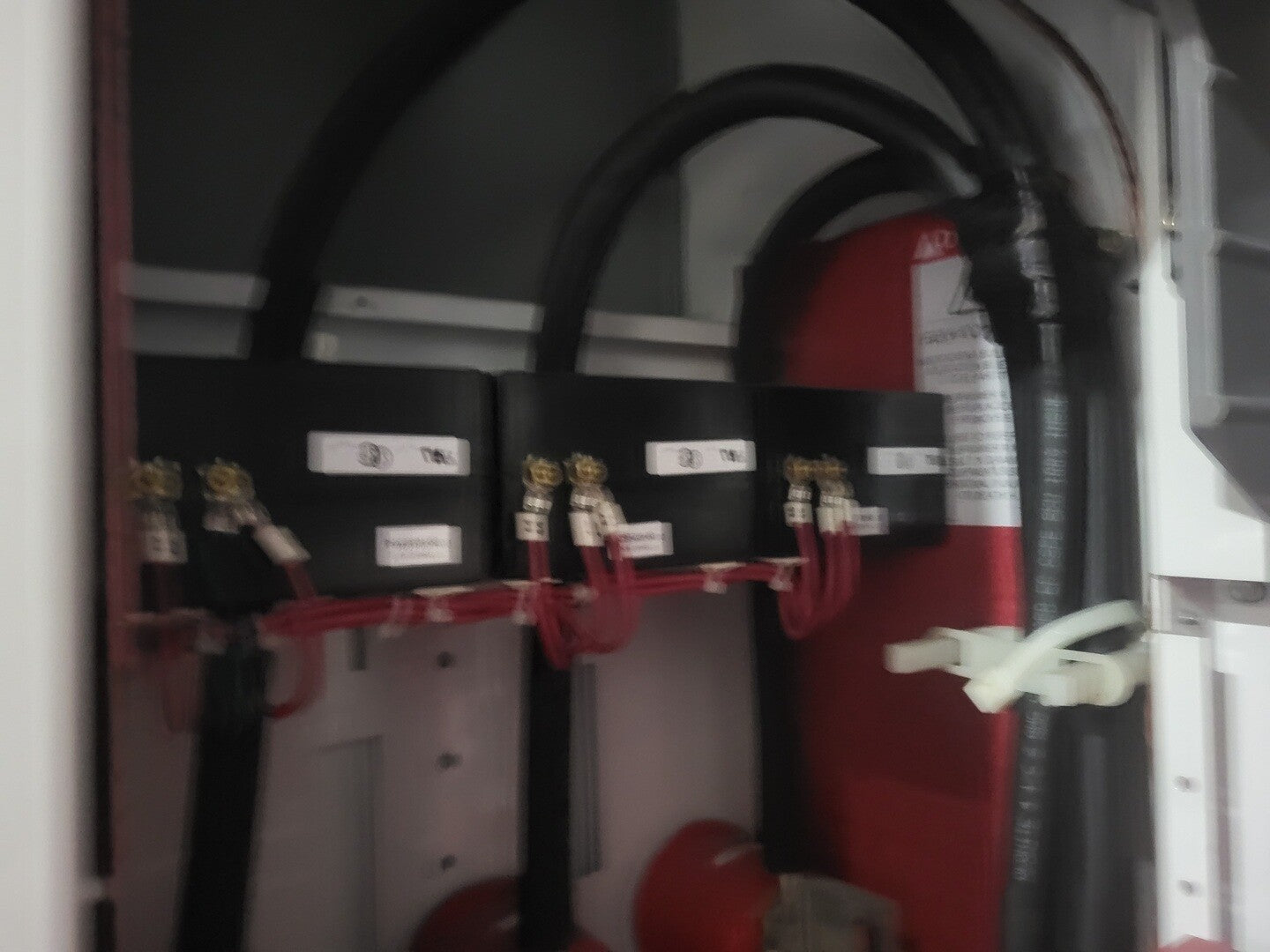

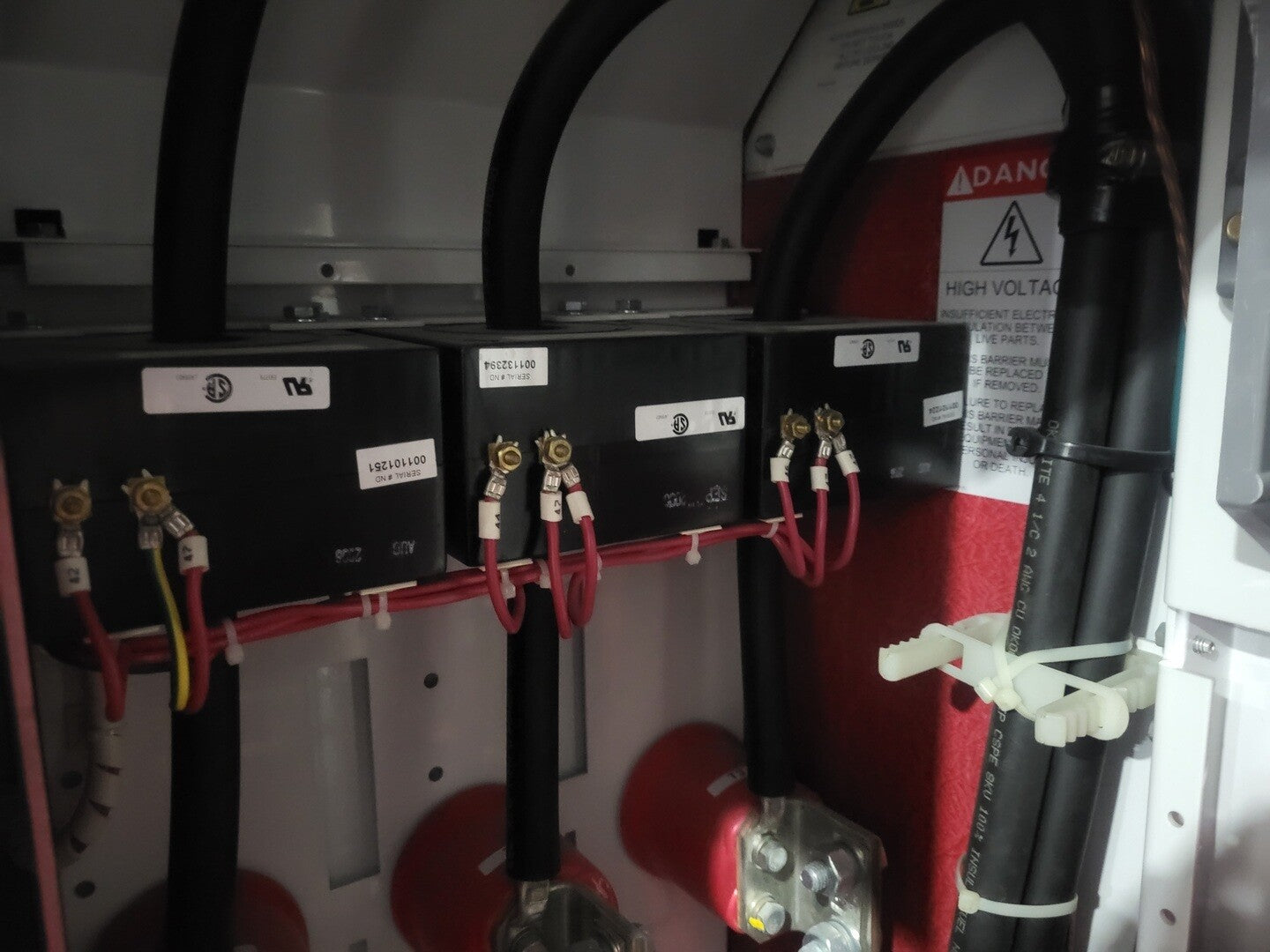

  • 3 x Donut-Type Current Transformers (Bottom)

Structure 2:

Structure Configuration: 2-High

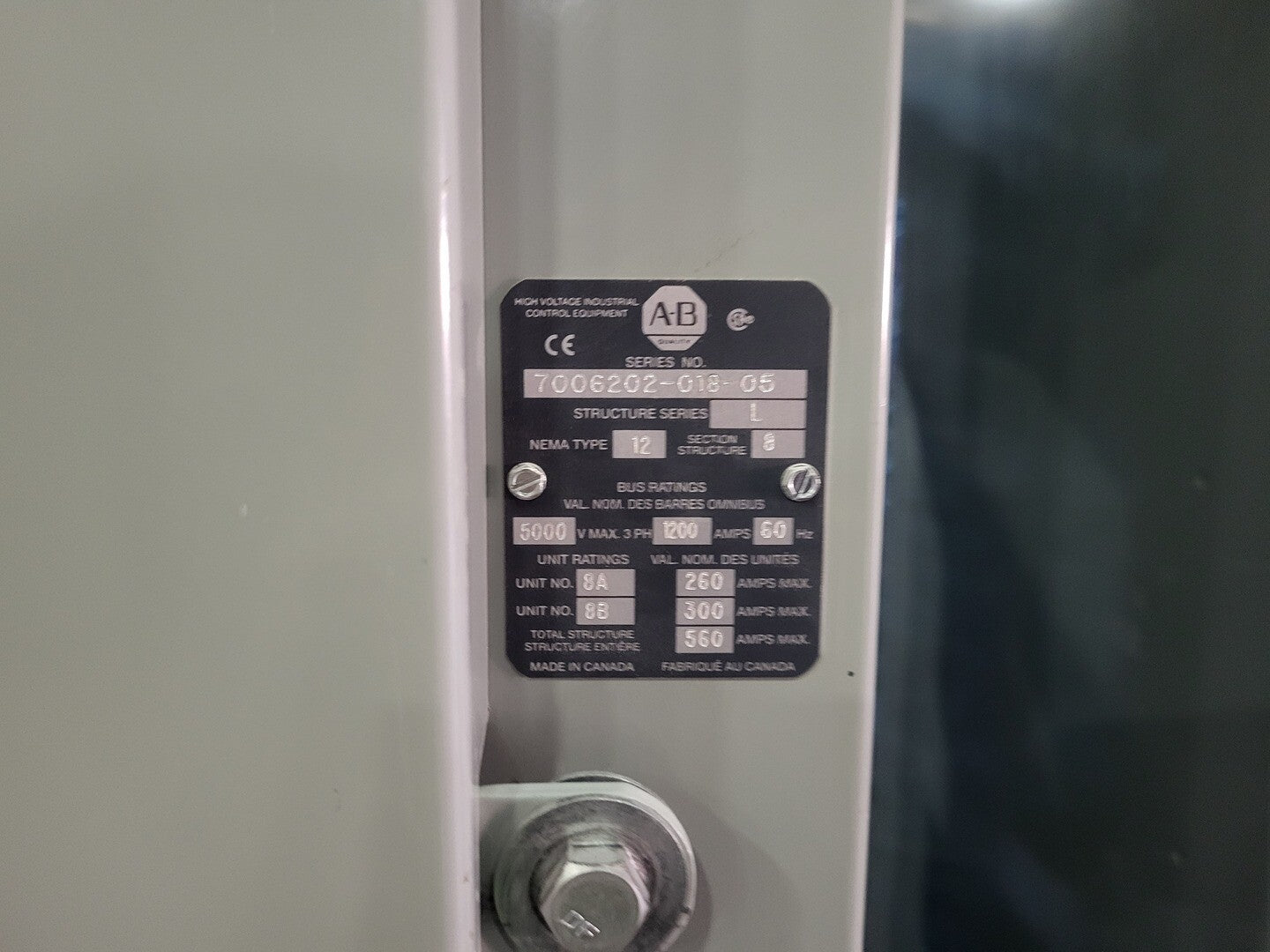

Series No.: 7006202-018-05

Structure Series: L

NEMA Type: 12

Bus Rating: 5000V Max., 1200A, 3-ph

Top Unit Rating: 260A

Bottom Unit Rating: 300A

Structure Total: 560A

Unit Components:

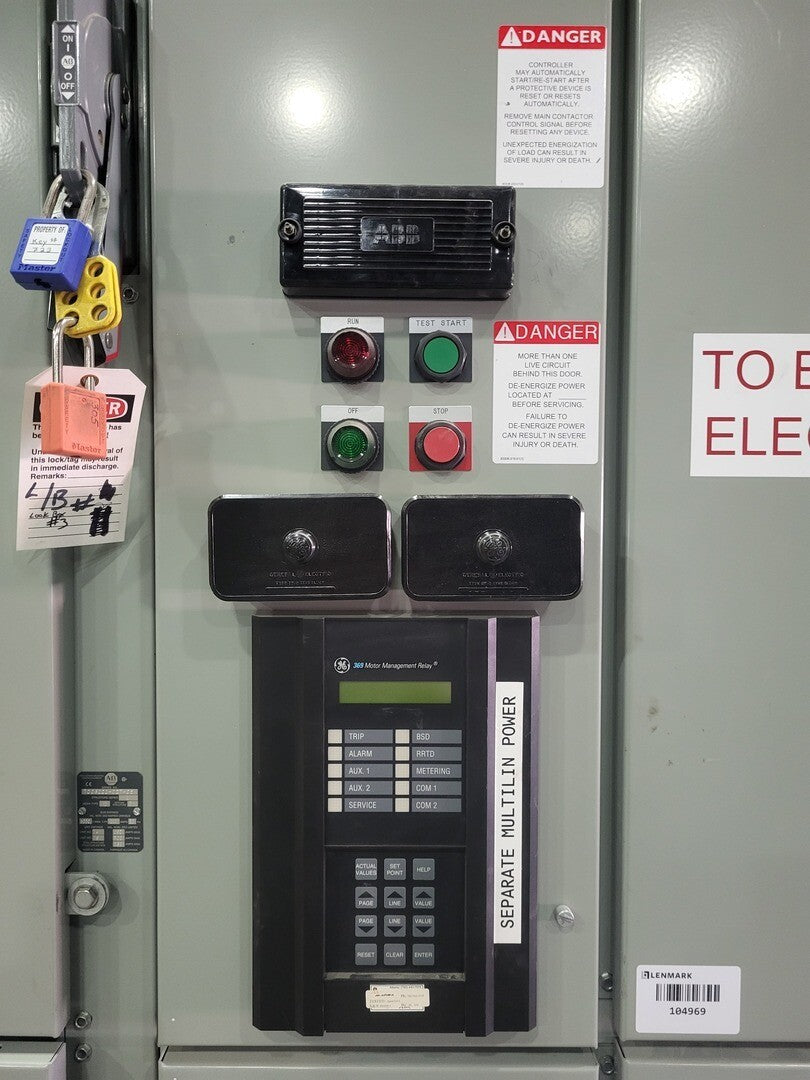

  • GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0
  • ALLEN-BRADLEY Non-load Break Isolation Switch
  • 3 x FERRAZ SHAWMUT Fuses A480R6R-1 (Top)
  • 3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Bottom)
  • ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 400A, 6000A Interrupting Capacity
  • 3 x Donut-Type Current Transformers (Top)
  • 3 x Bar-Type Current Transformers (Bottom)
