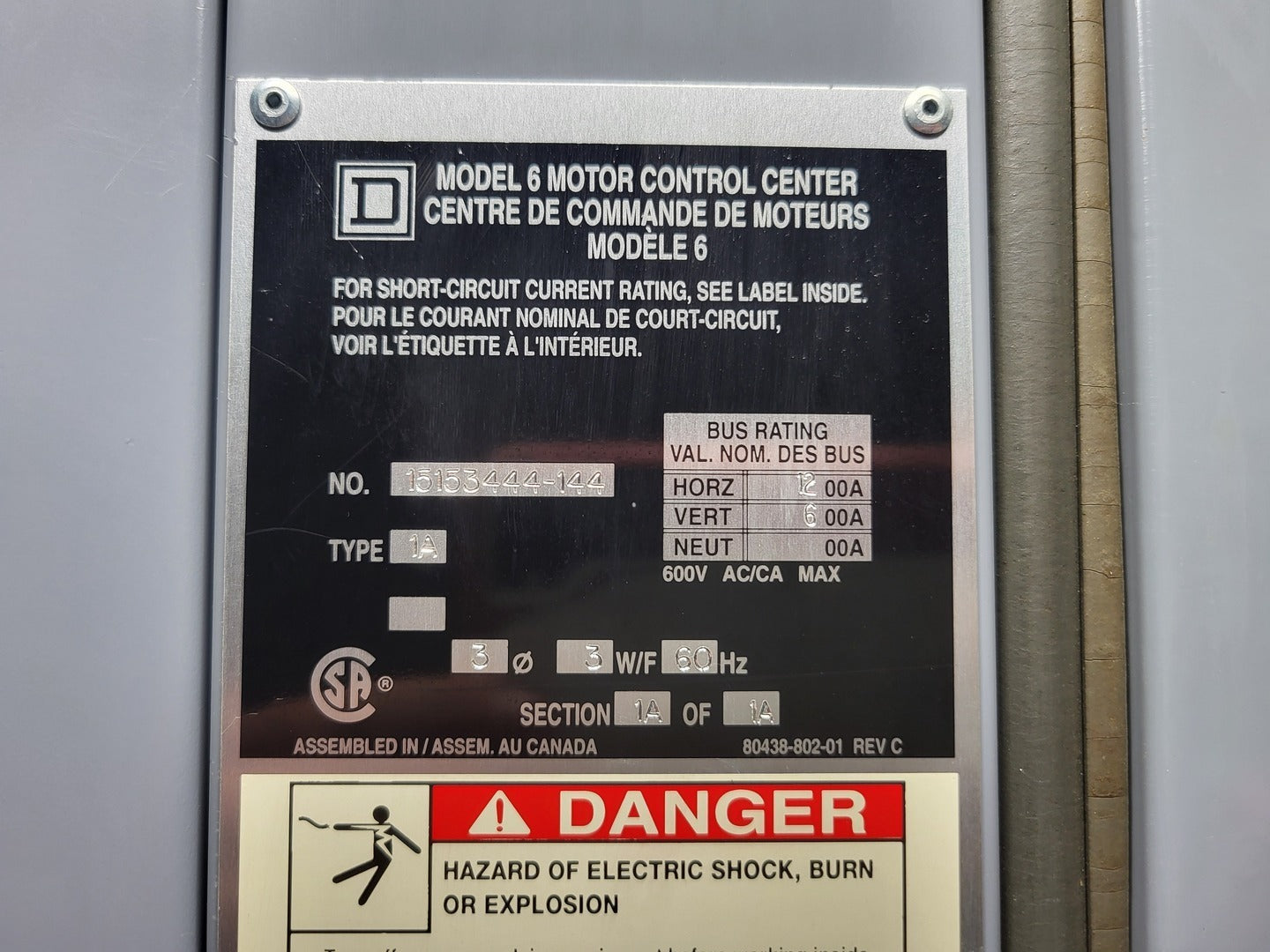

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151548
Price:
$7,100 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

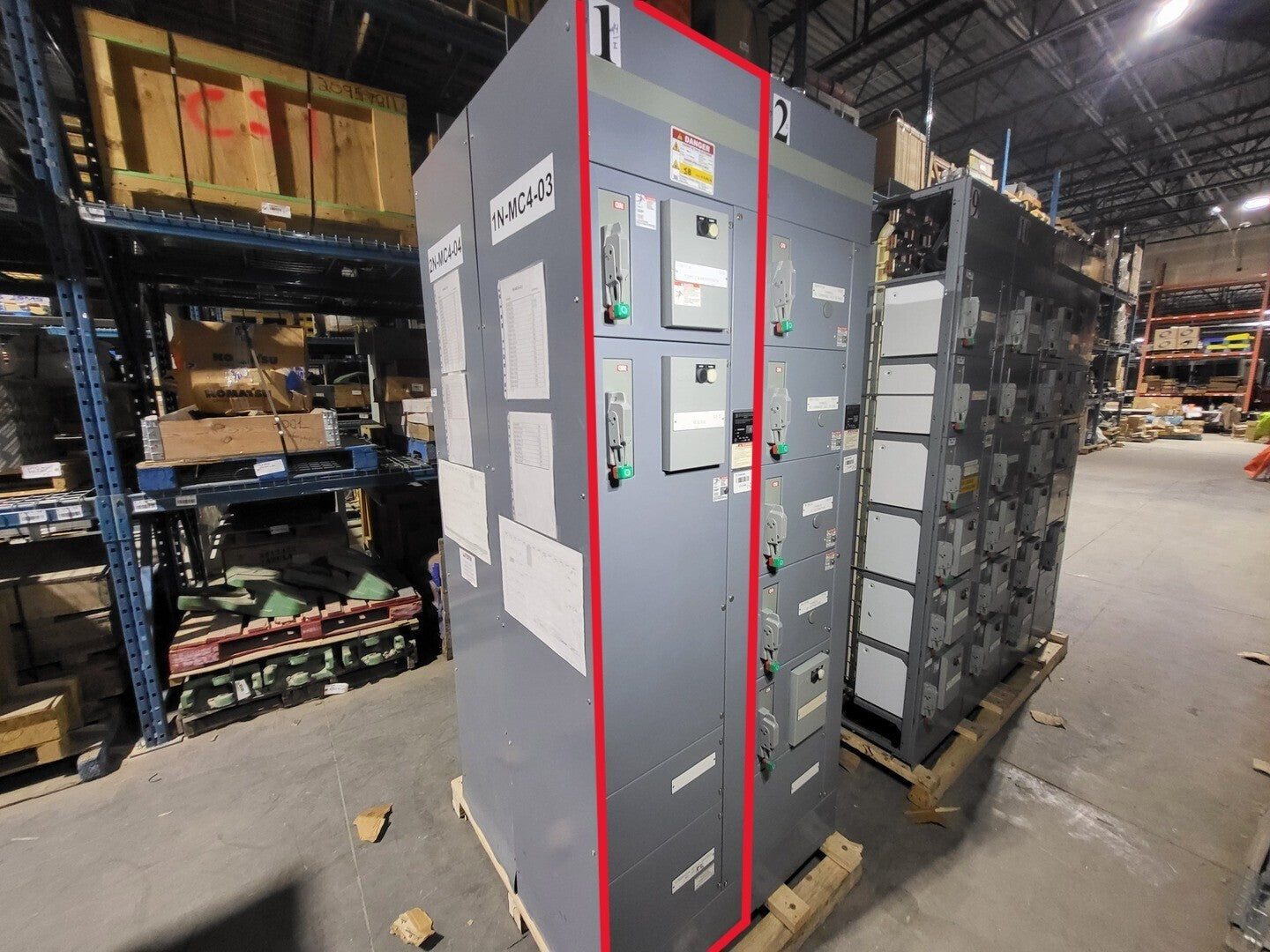

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

Note: Section 1 only

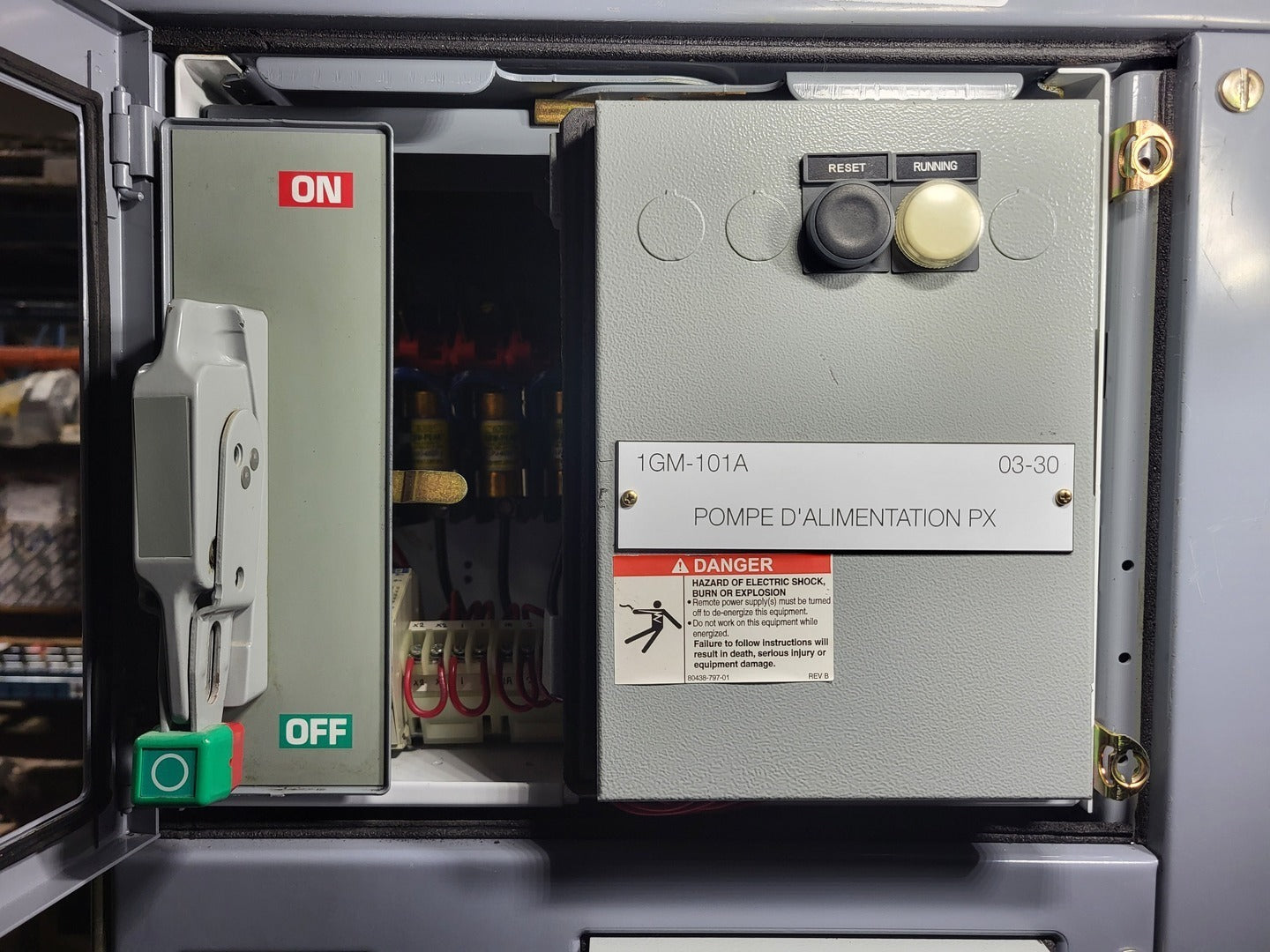

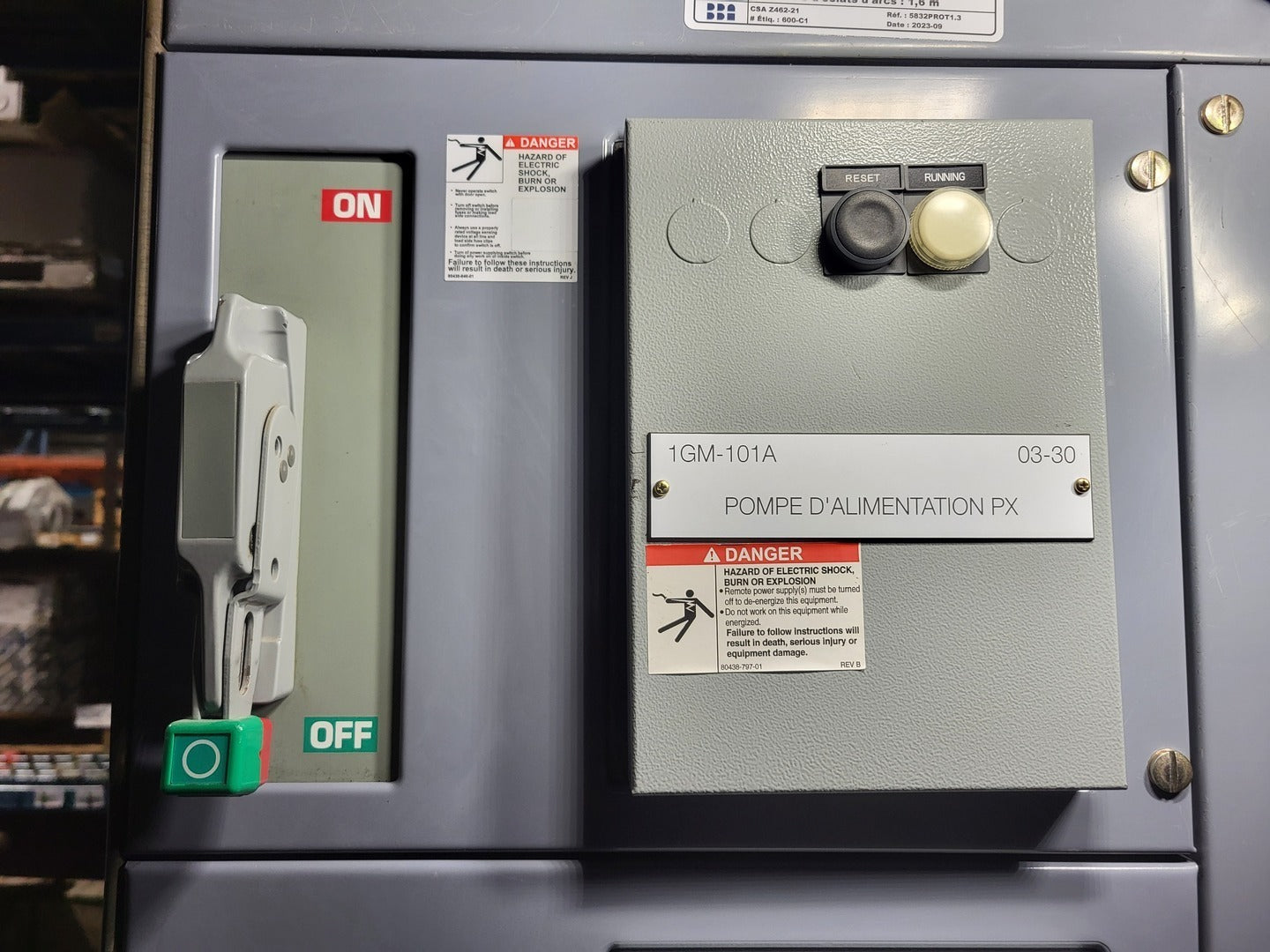

Bucket #1 1GM-101A

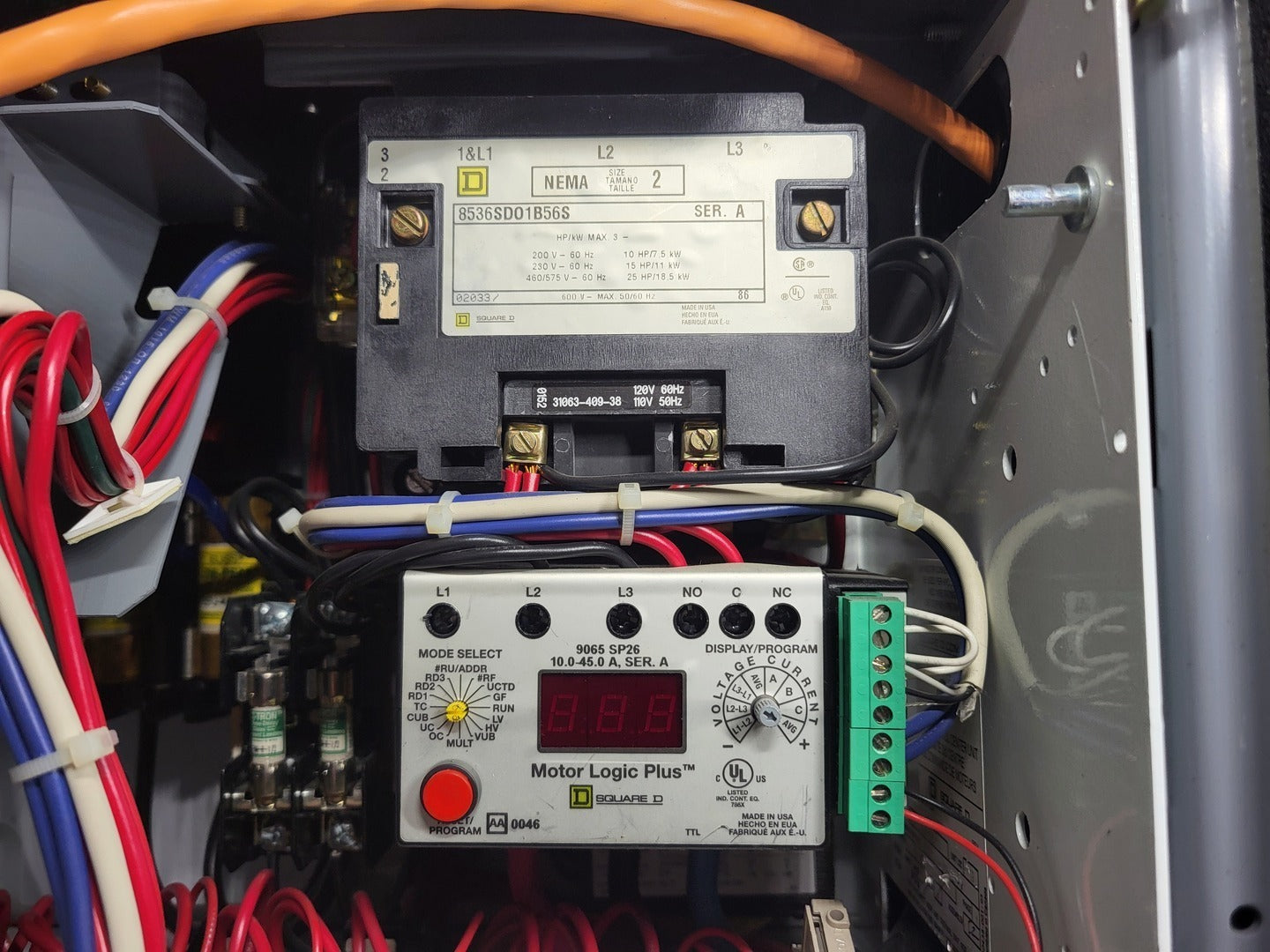

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 10 HP @ 200V, 15 HP @ 230V, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max

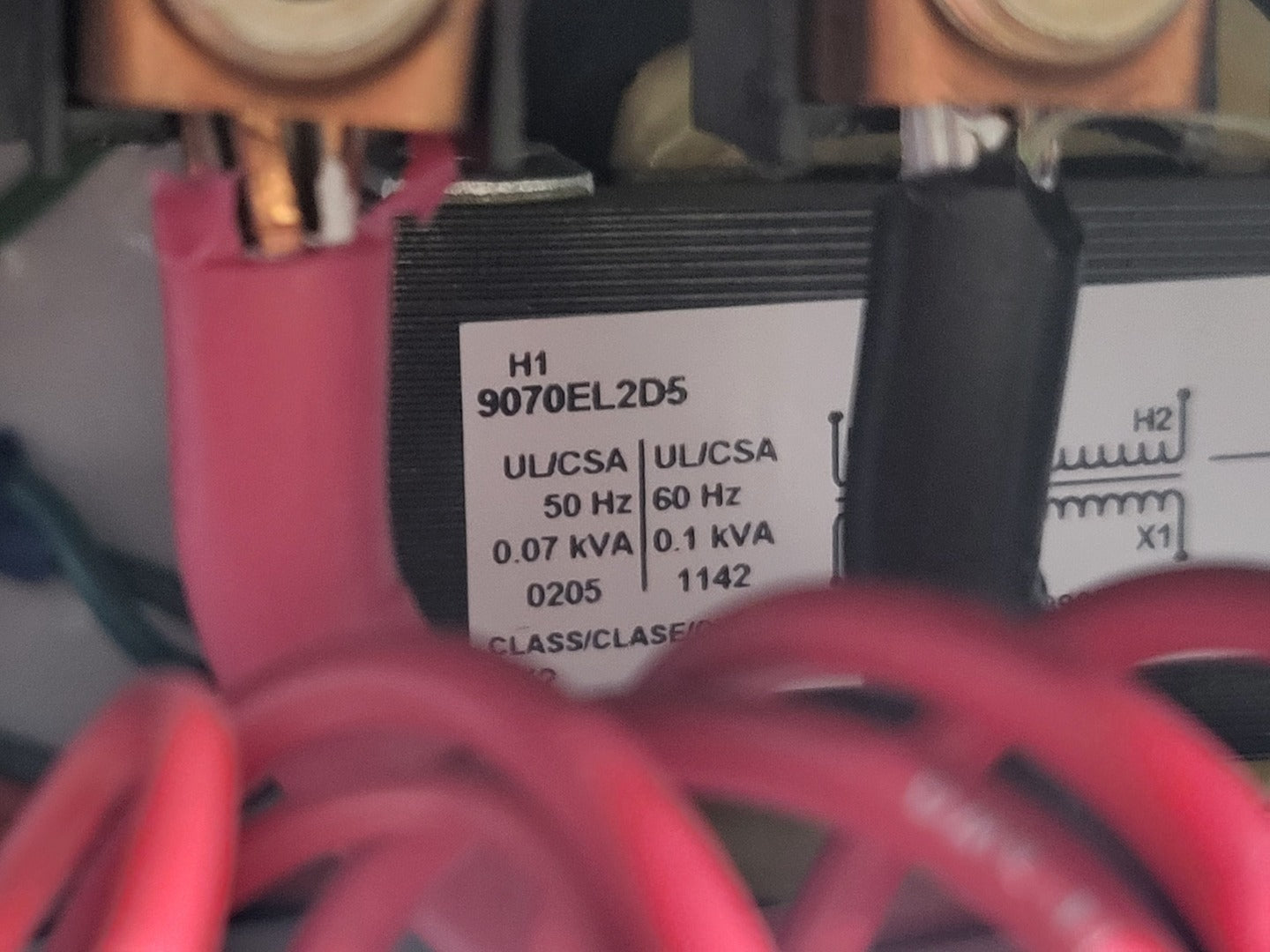

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

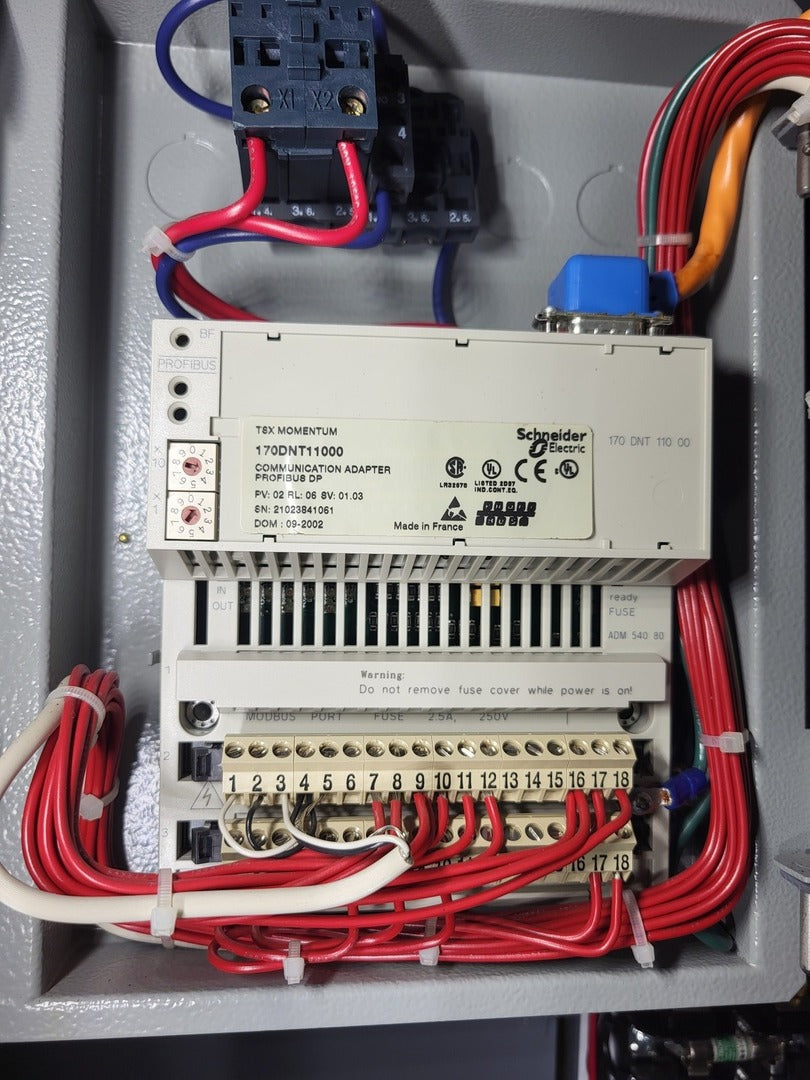

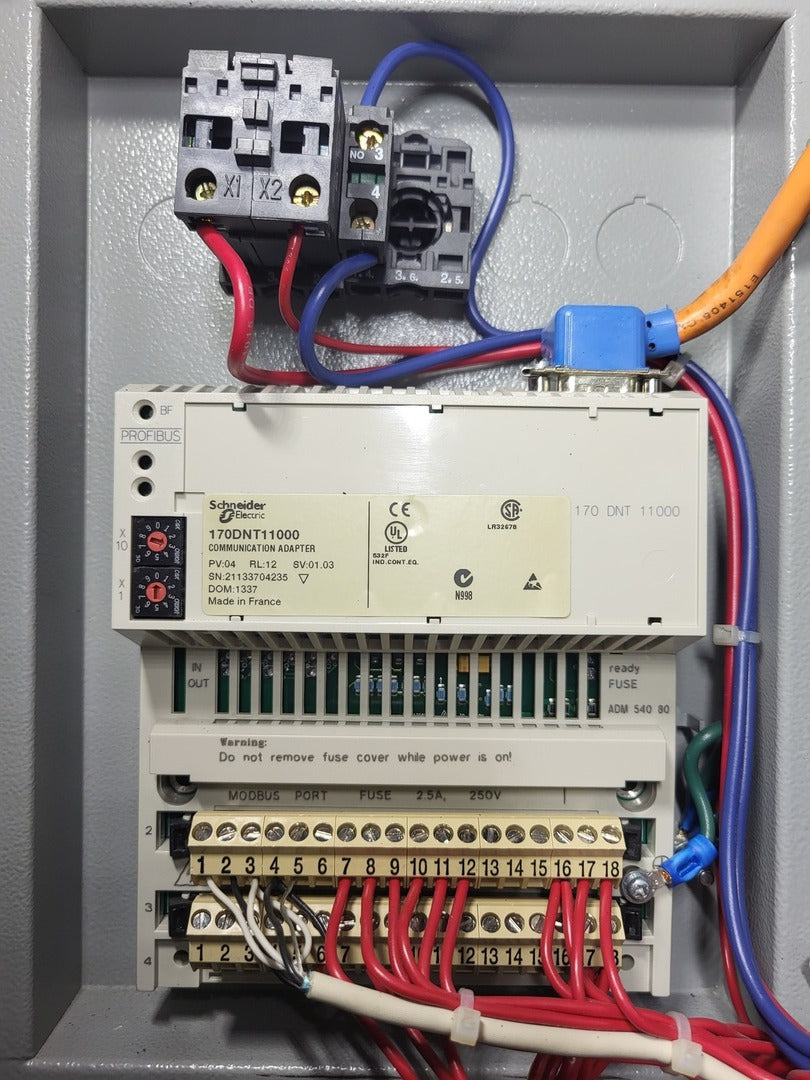

  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

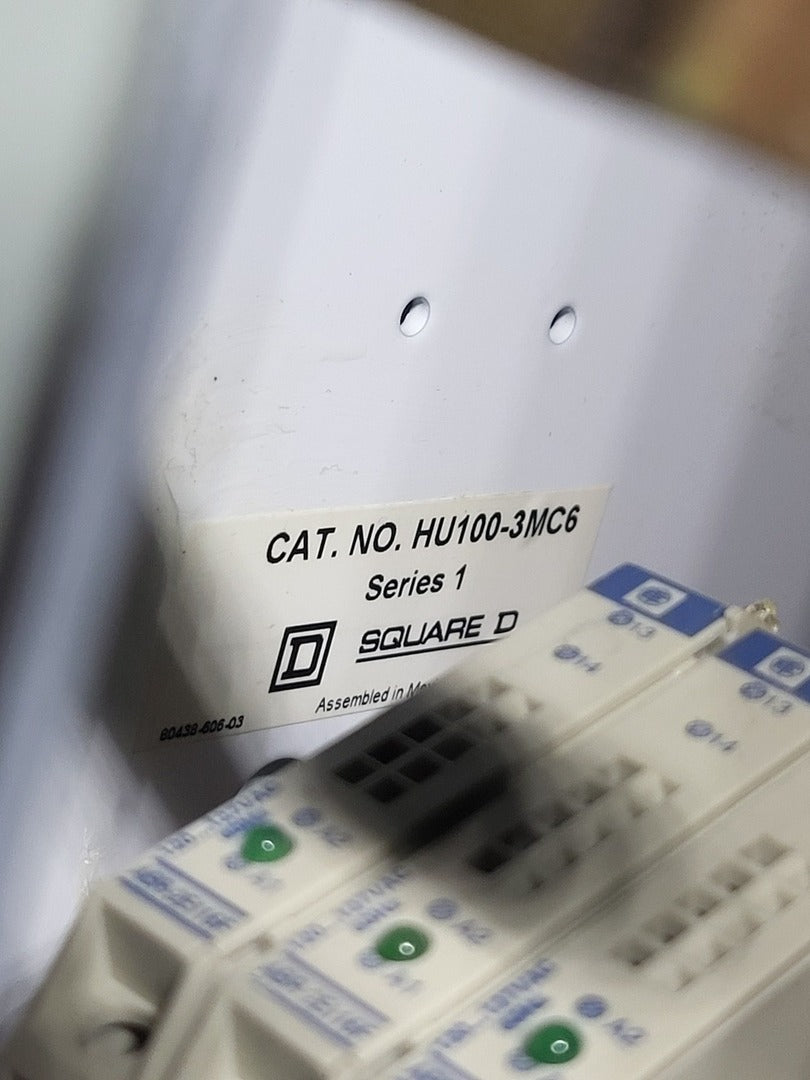

  5. Square D HU100-3MC6, Series 1, MCC bucket disconnect unit

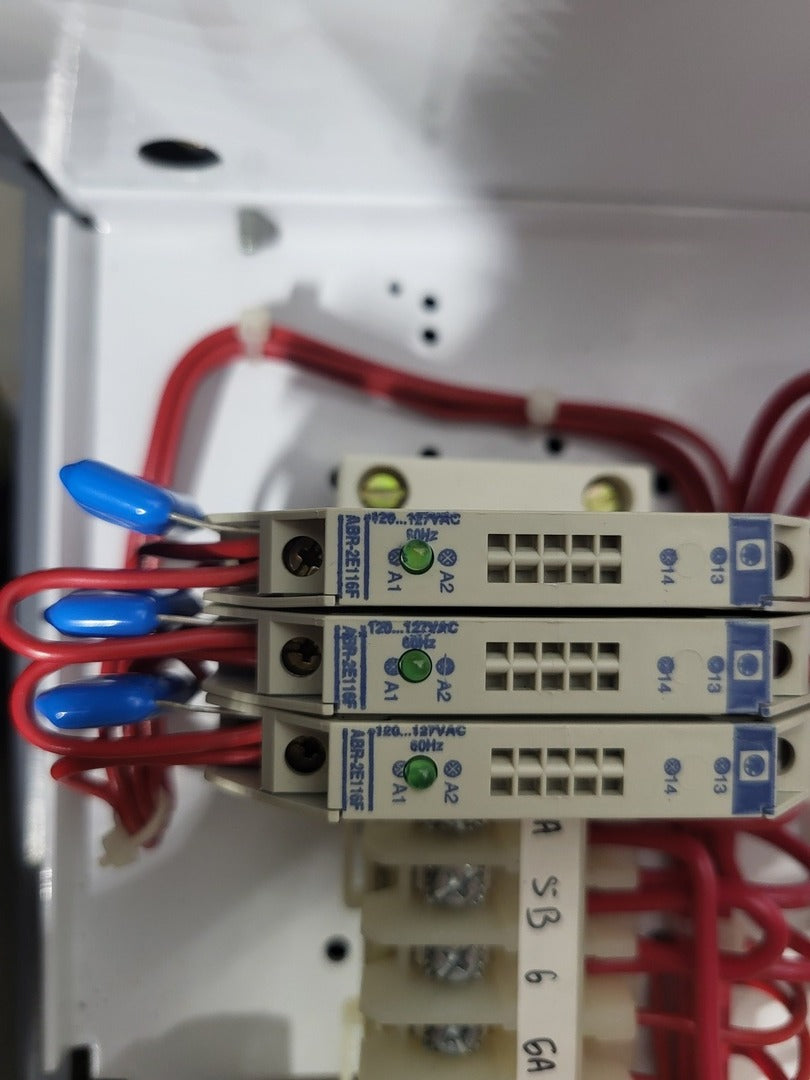

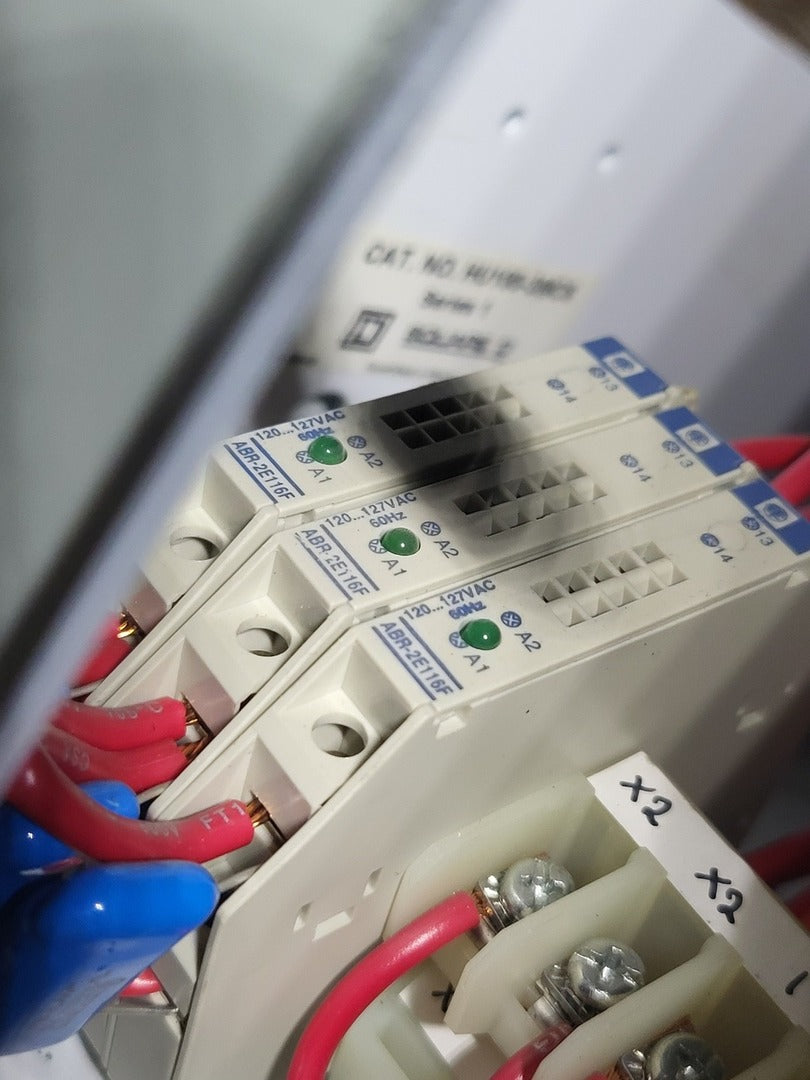

  6. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

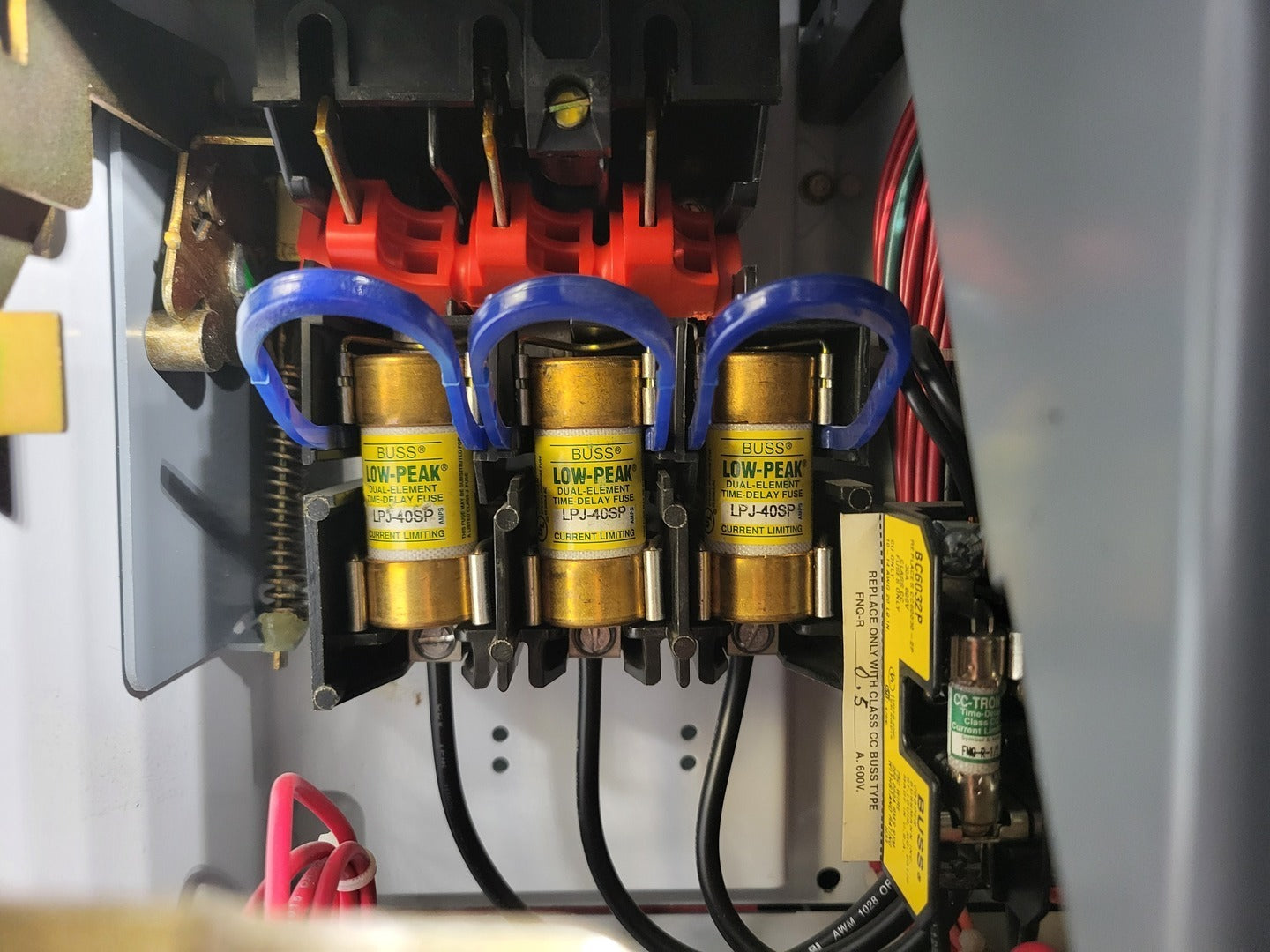

  7. 3 x Bussmann Low-Peak fuse LPJ-40SP

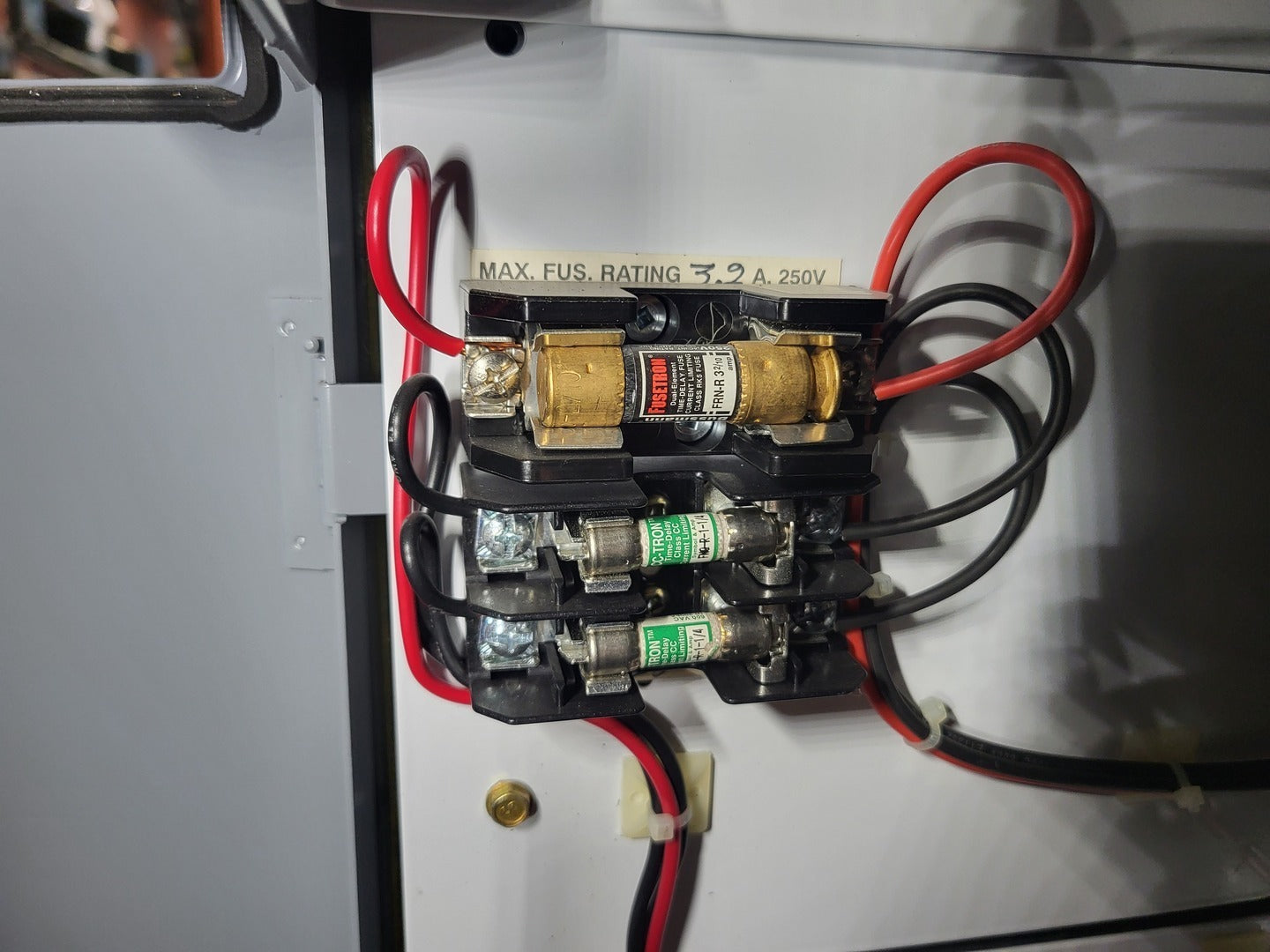

  8. 2 x Bussmann Fusetron fuse FNQ-R-1/2

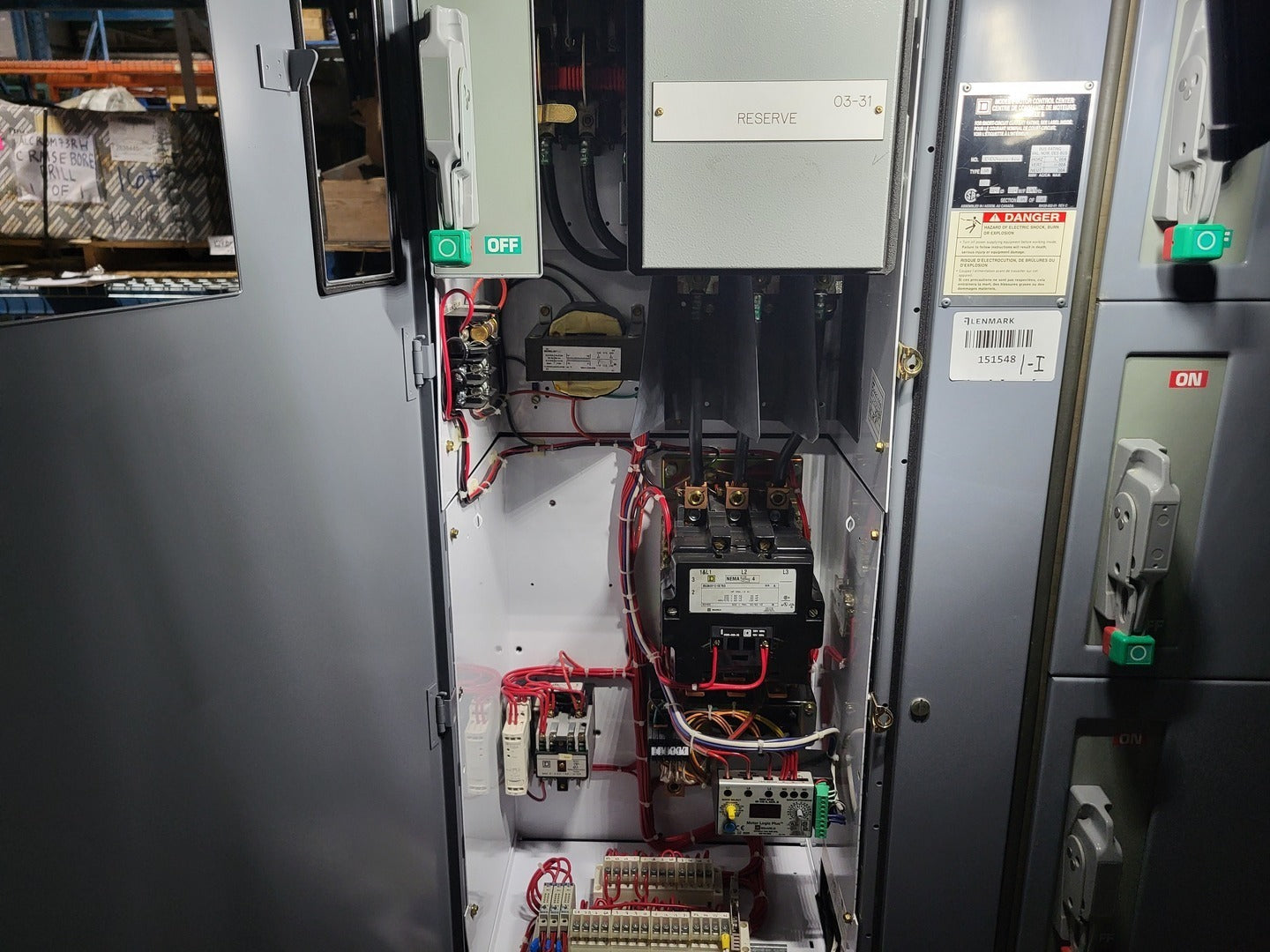

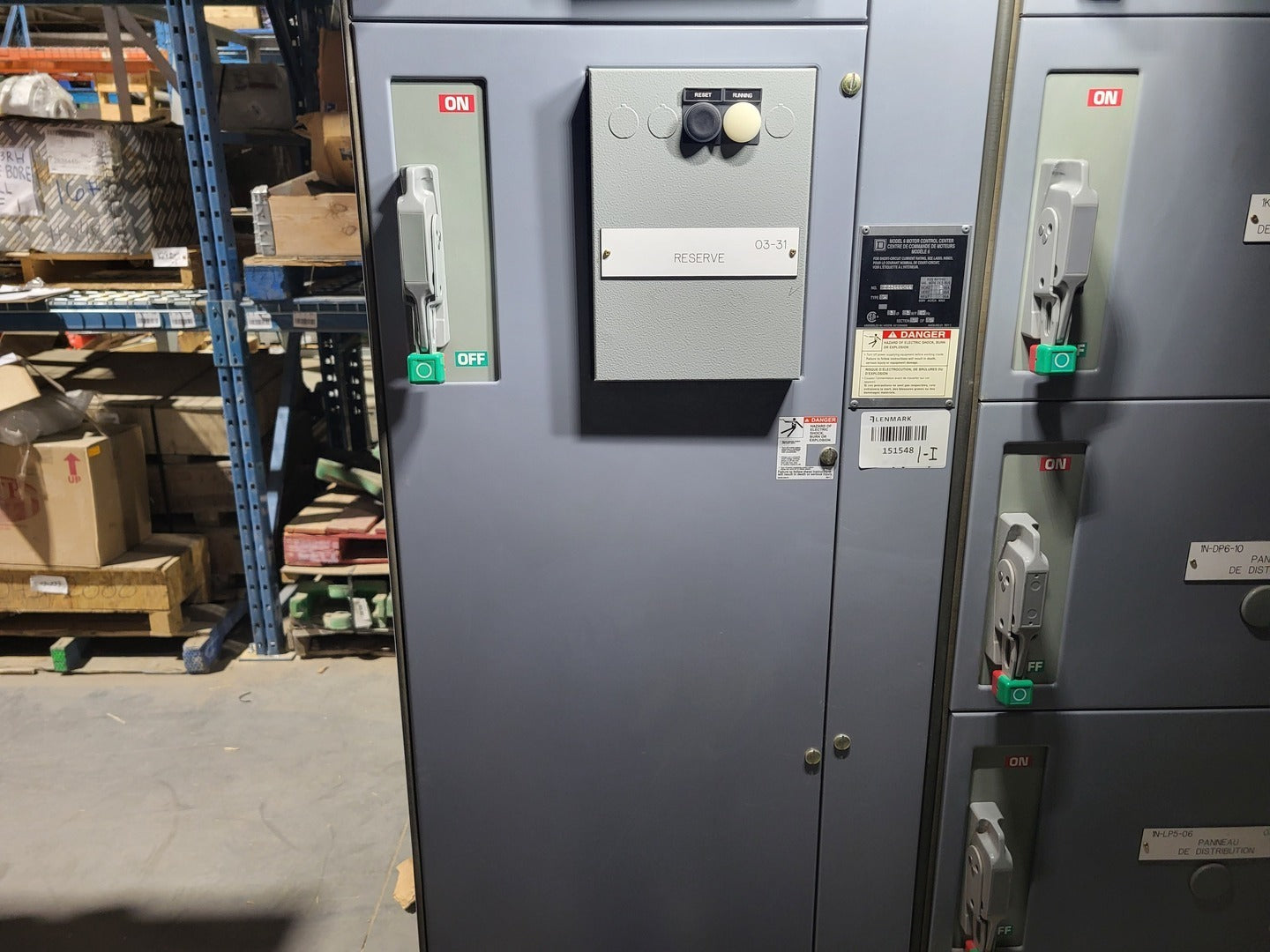

Bucket #2 Reserve

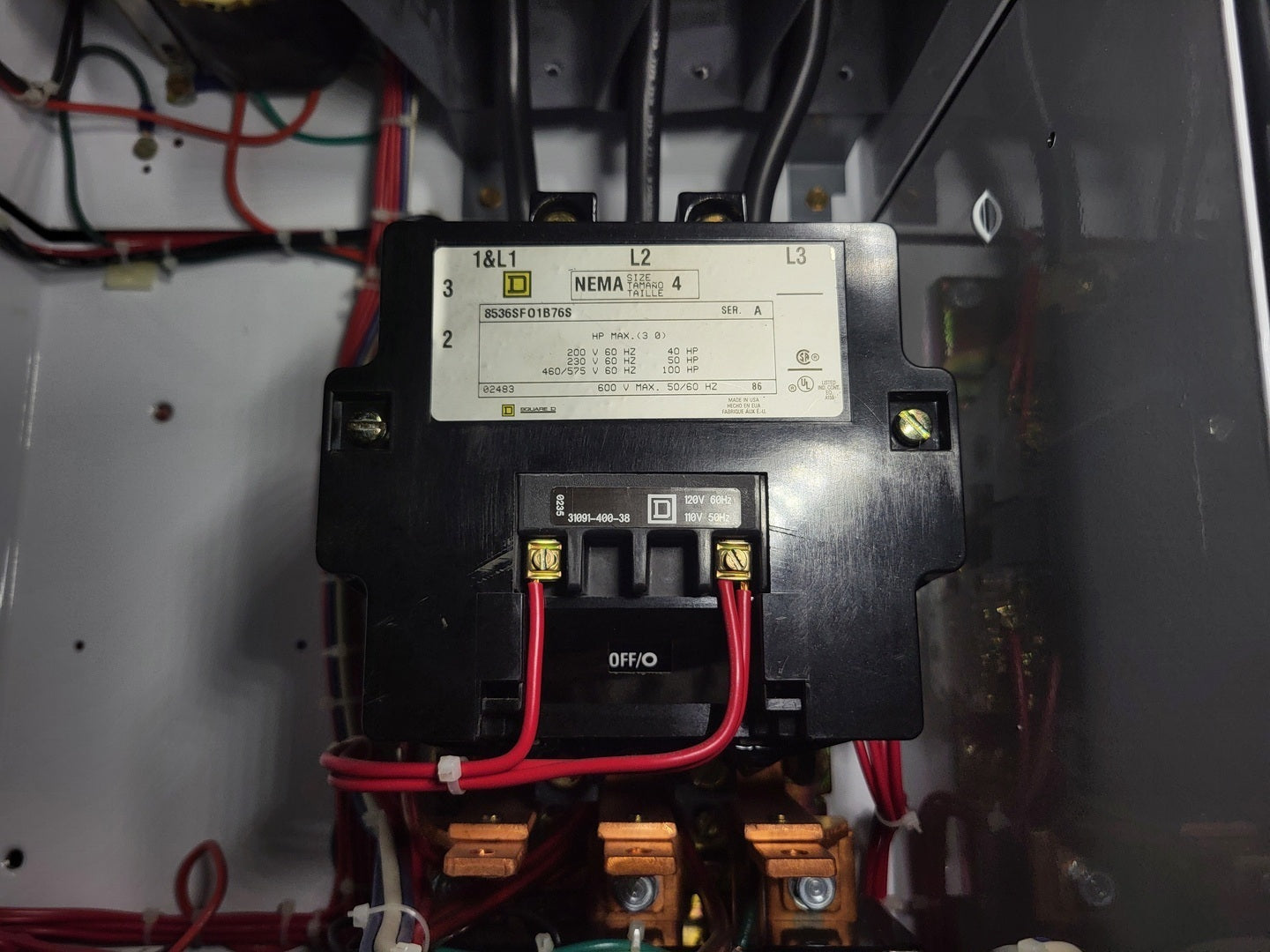

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 40 HP @ 200V, 50 HP @ 230V, 100 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil

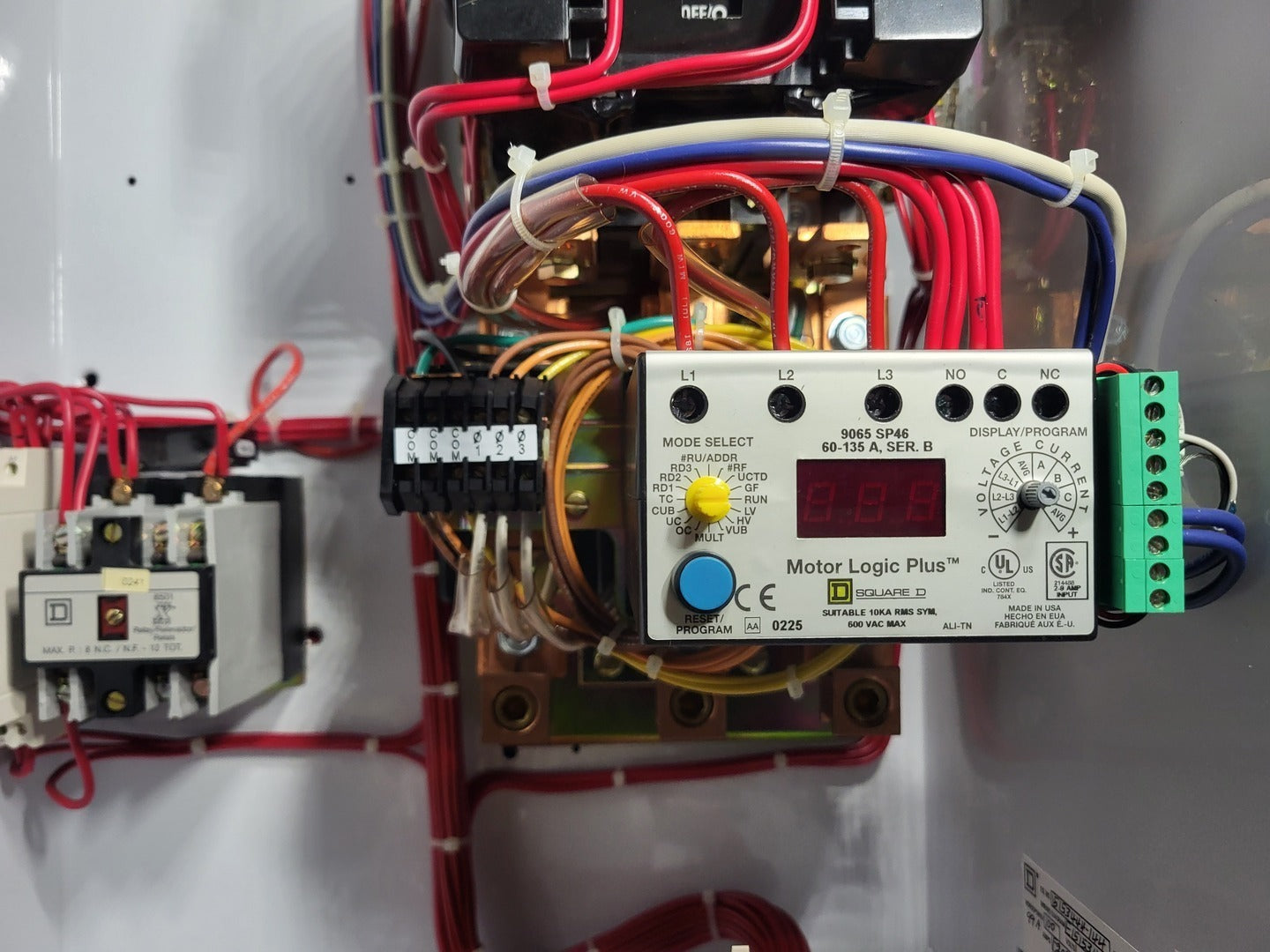

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

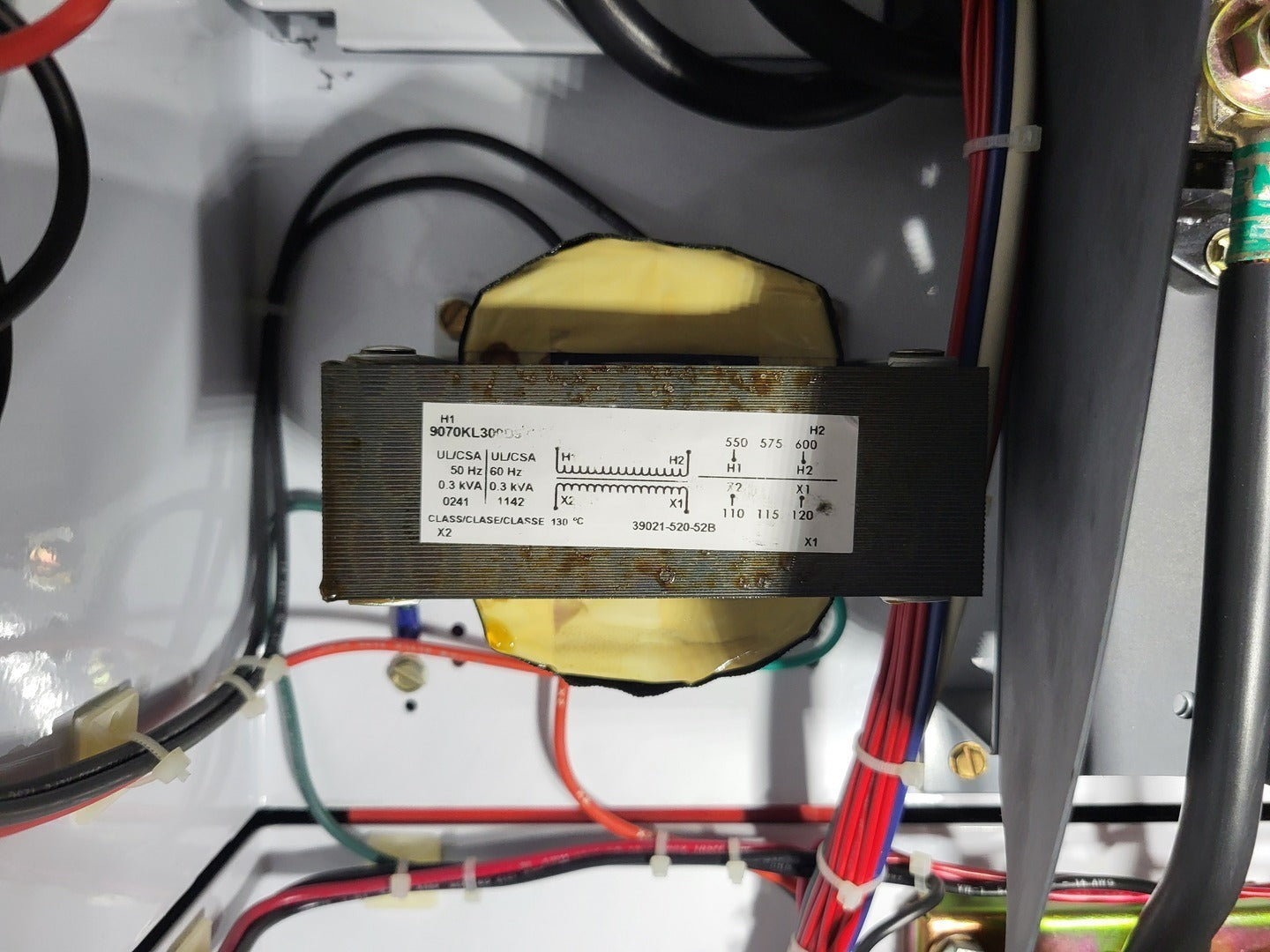

  3. Square D 9070KL30D5 control transformer, 0.3 kVA @ 50/60Hz, 550/575/600V primary, 110/115/120V secondary
  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

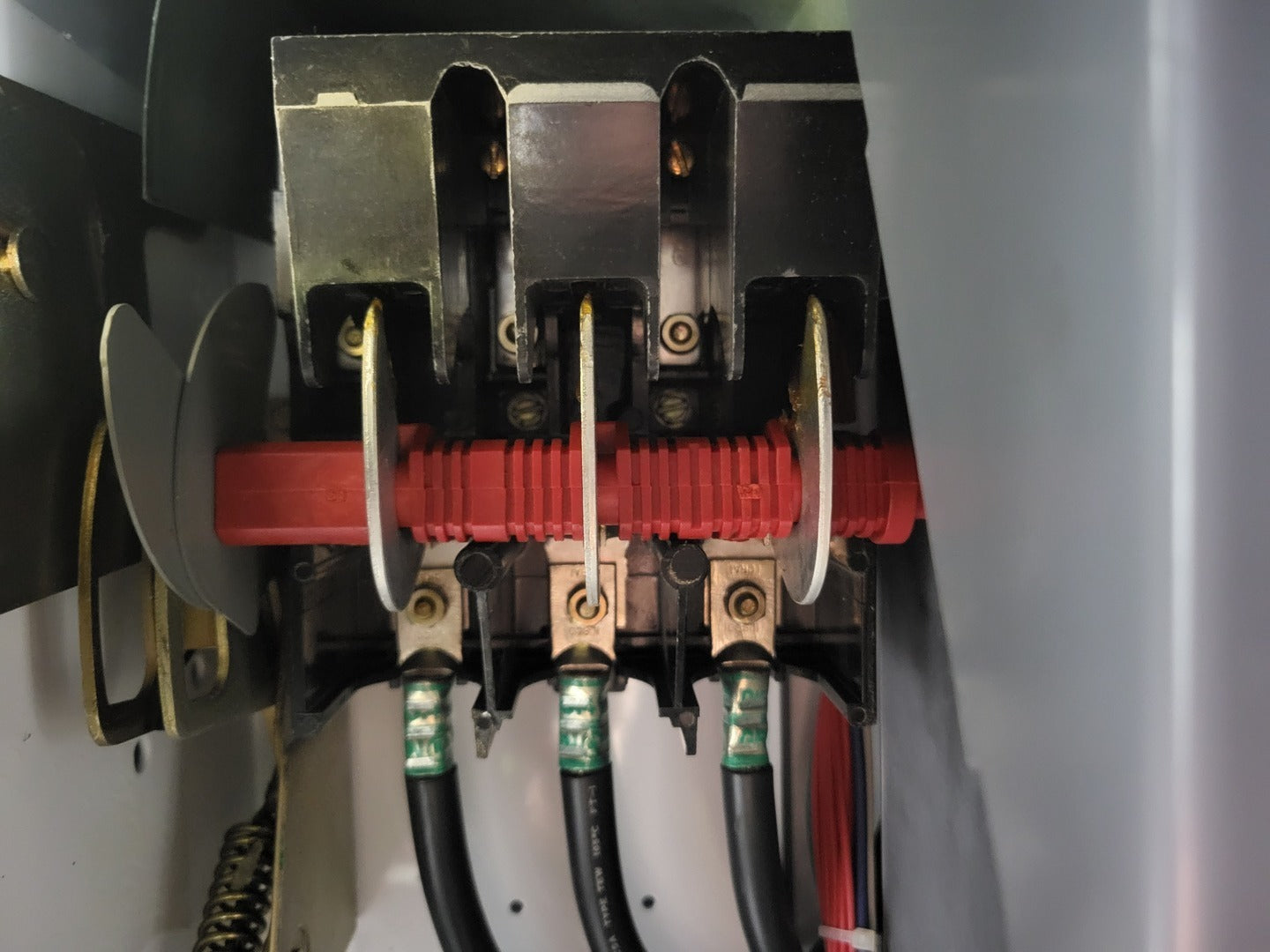

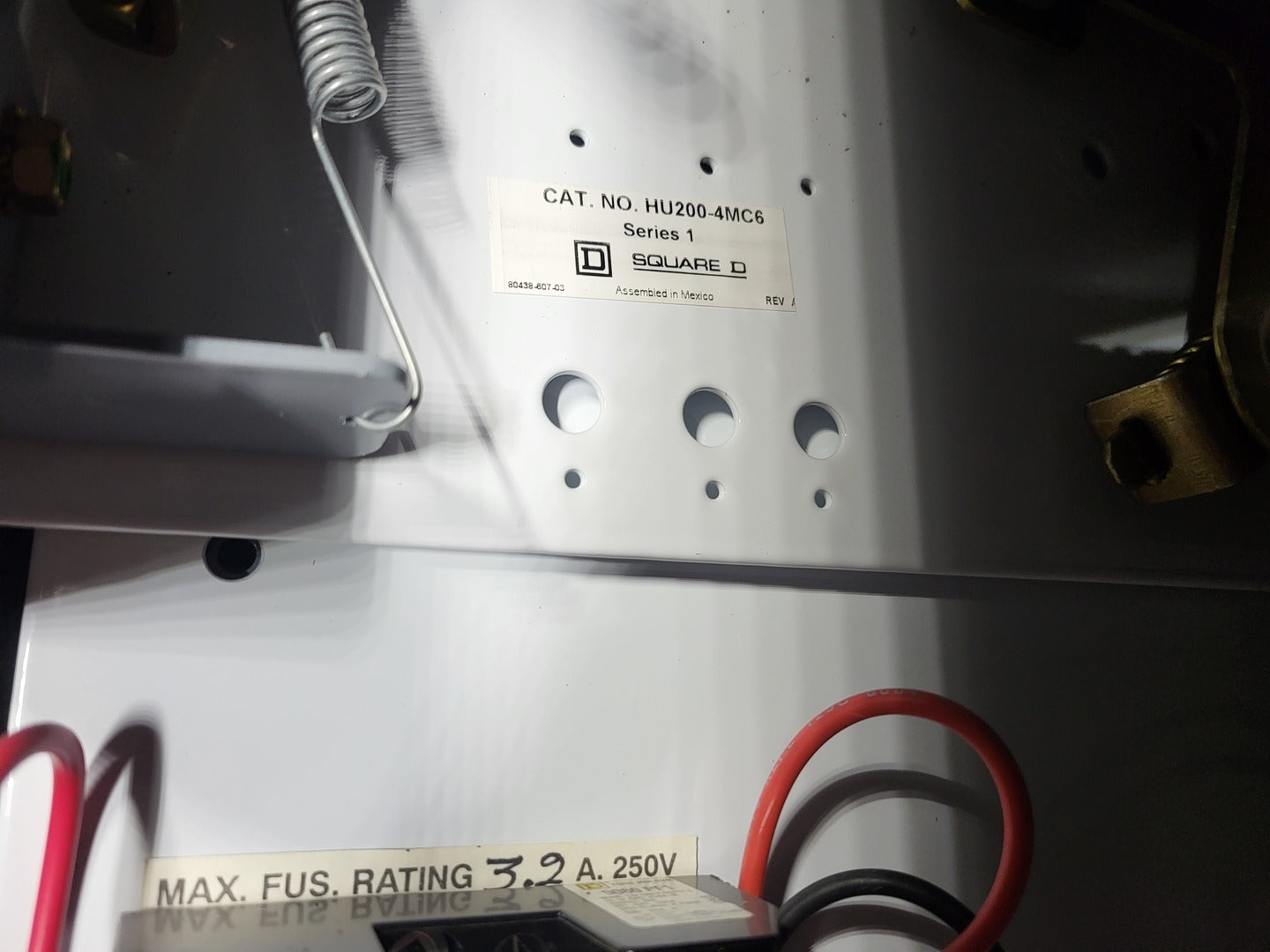

  5. Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit

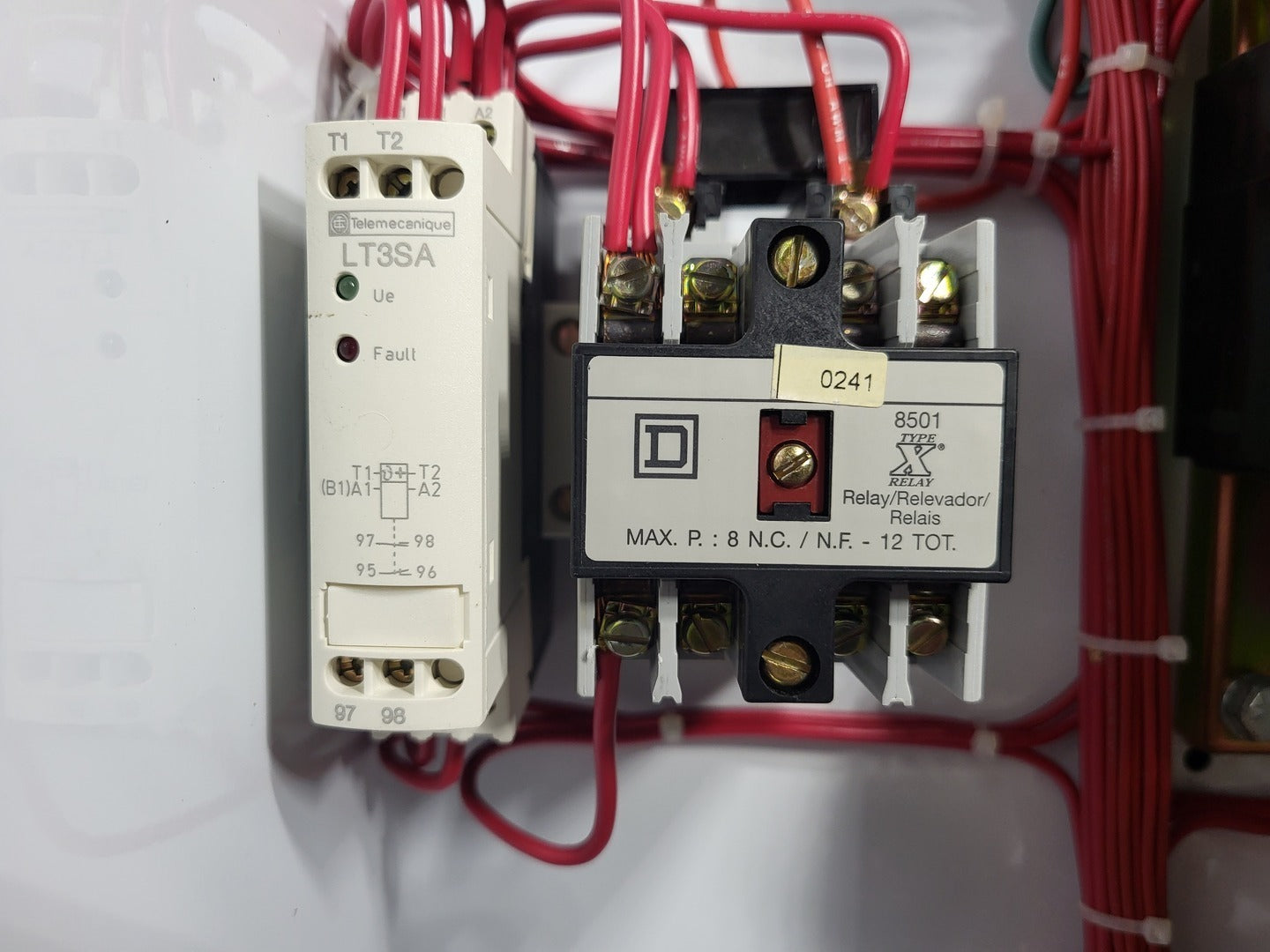

  6. Telemecanique LT3SA thermistor / motor protection relay

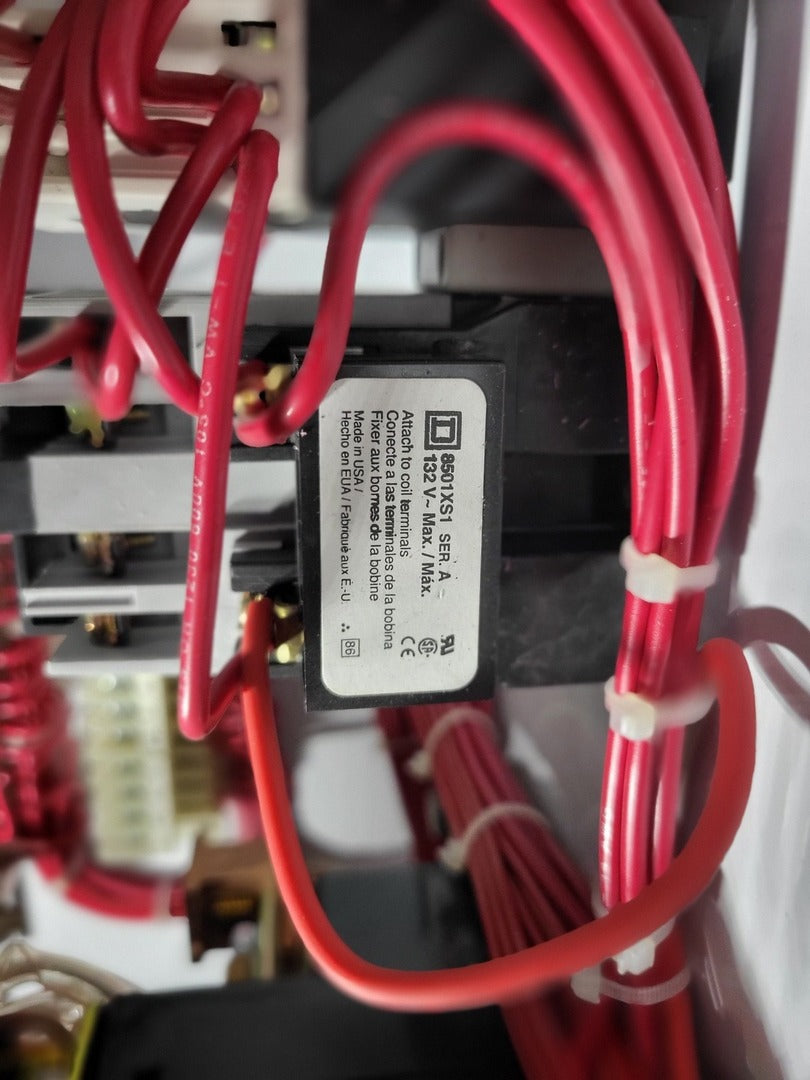

  7. Square D 8501XS1, Type X control relay, 132V max
  8. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

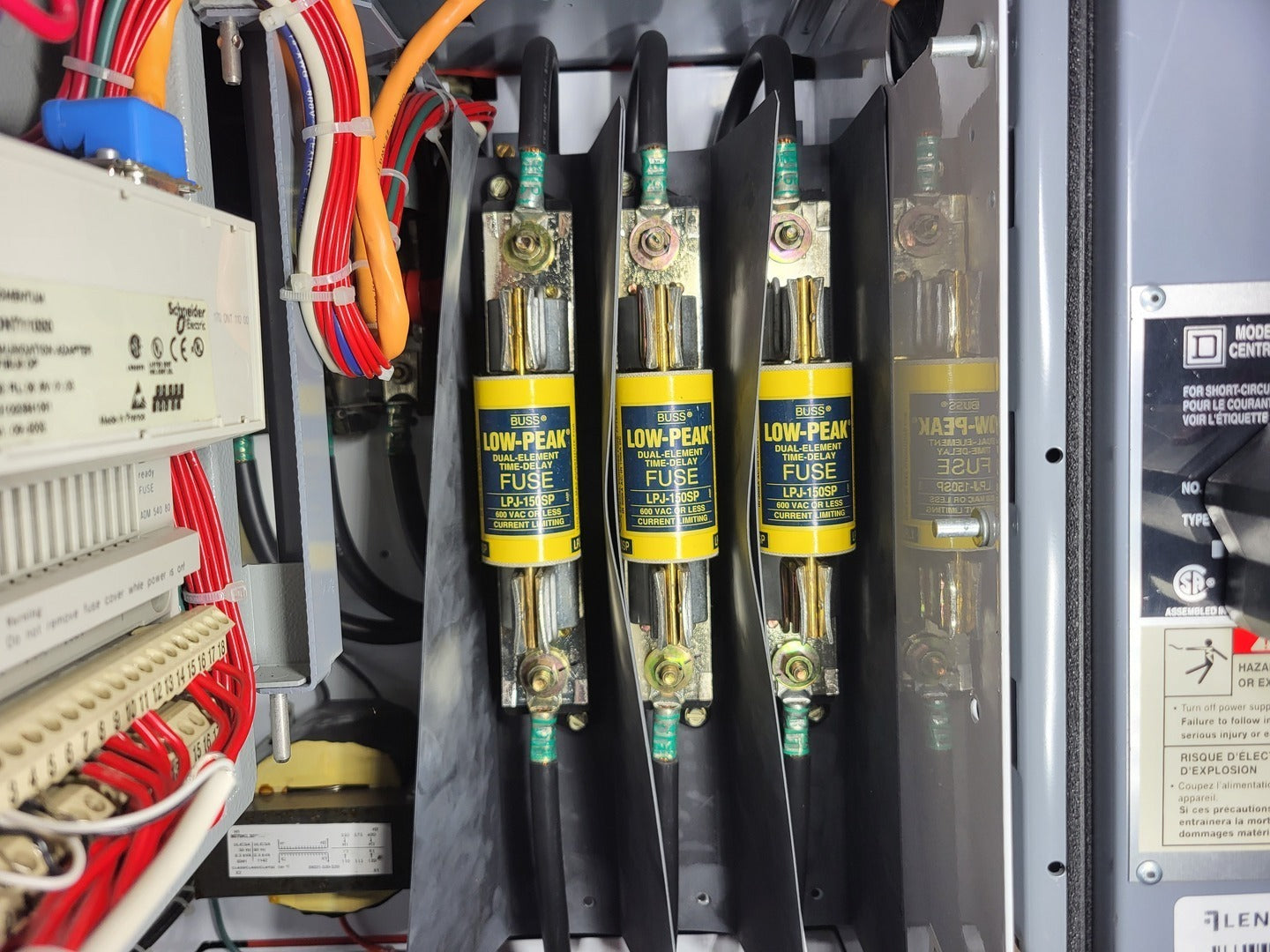

  9. 3 x Bussmann Low-Peak fuses LPJ-150SP
  10. 1 x Bussmann Fusetron fuse FRN-R-3-2/10

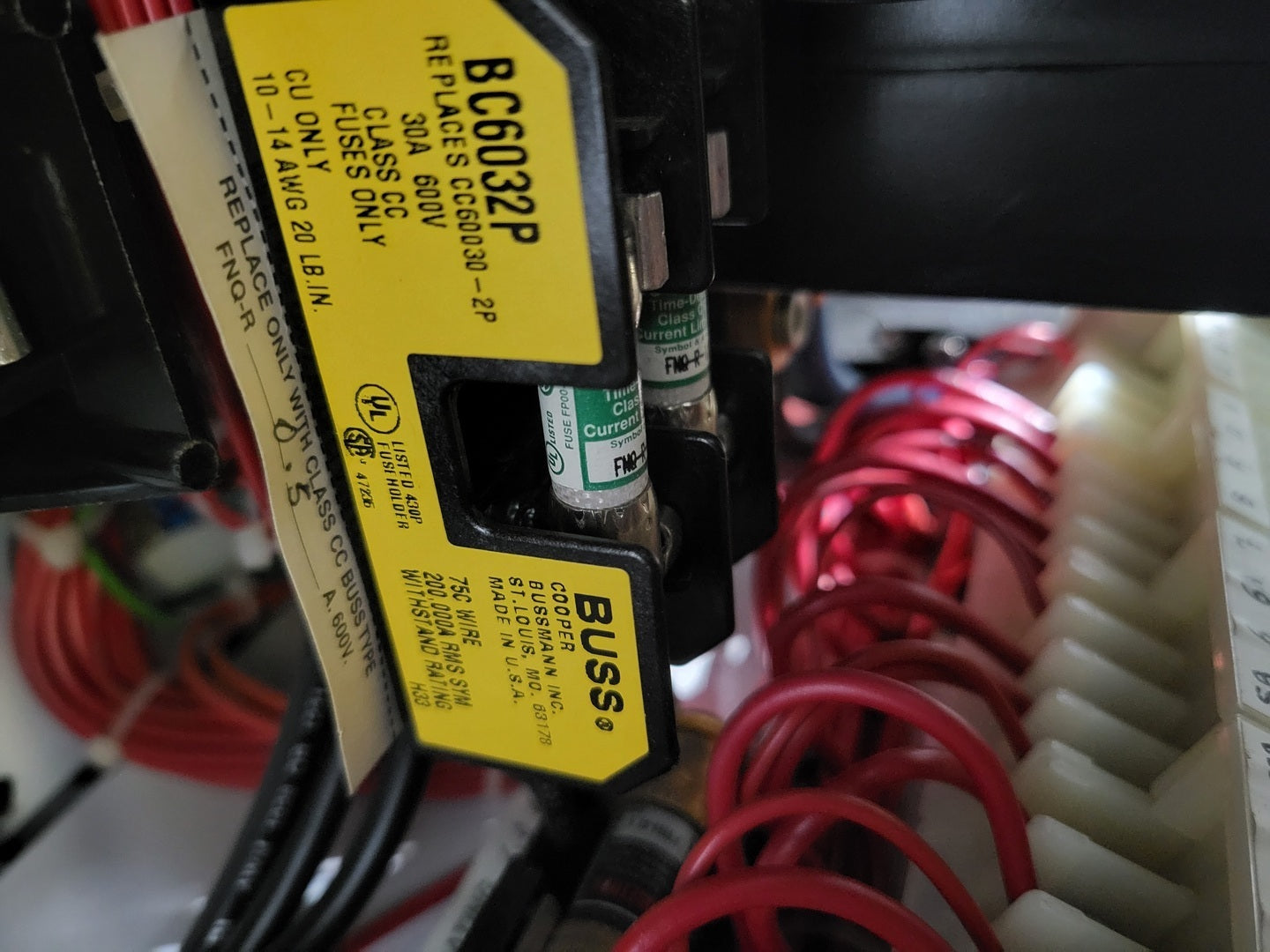

  11. 2 x Bussmann CC-Tron fuses FNQ-R-1/4

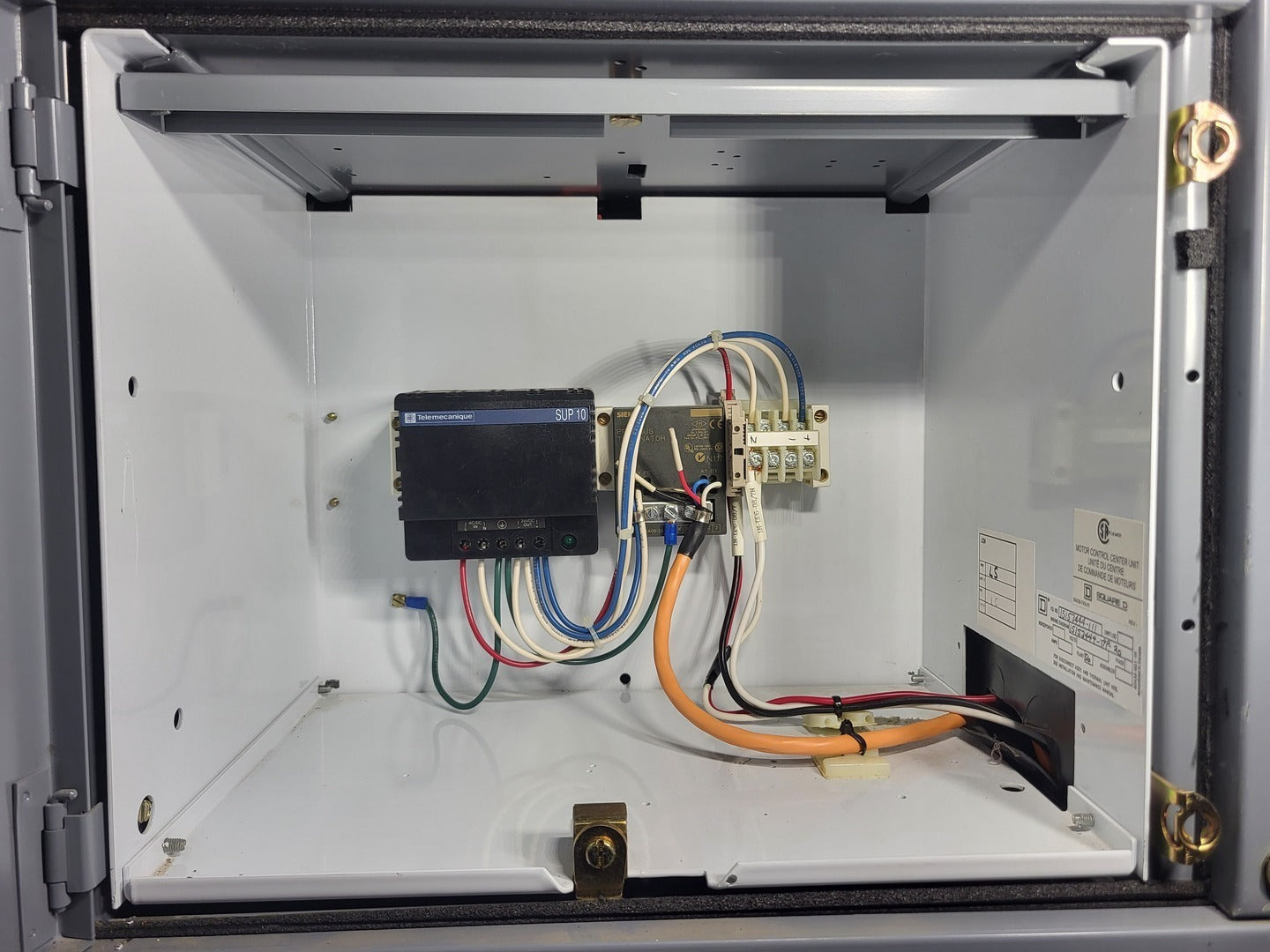

Bucket #3

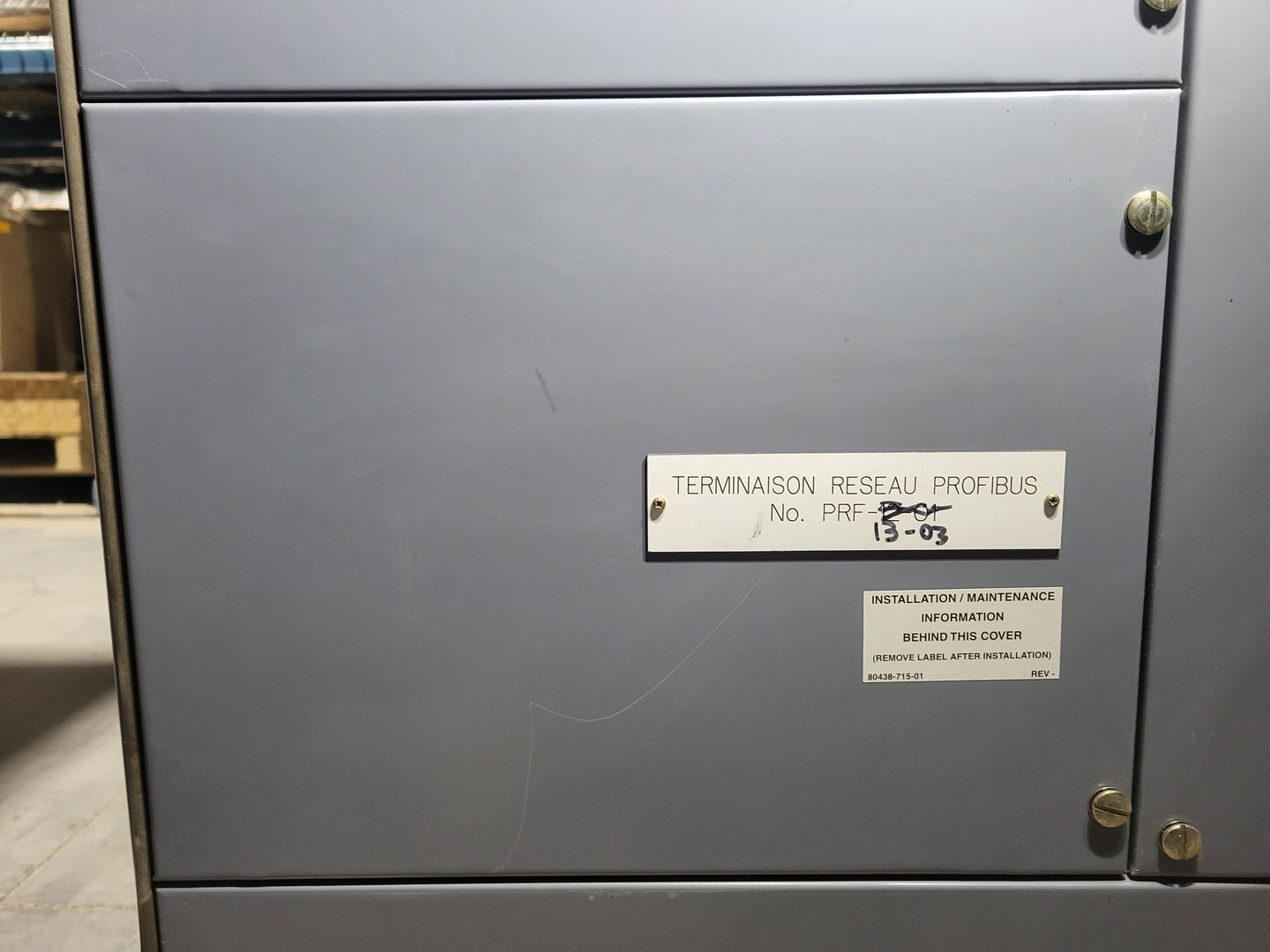

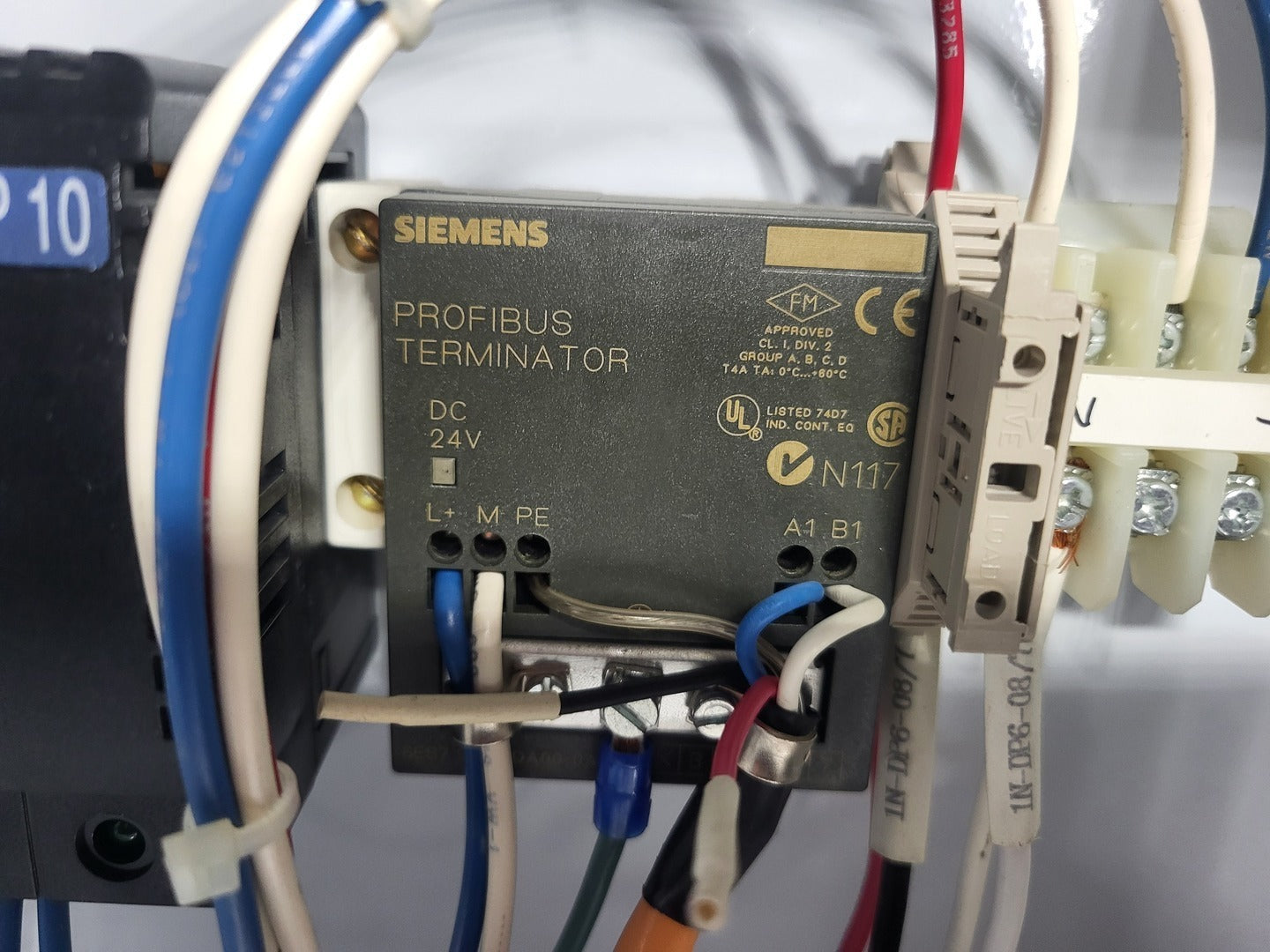

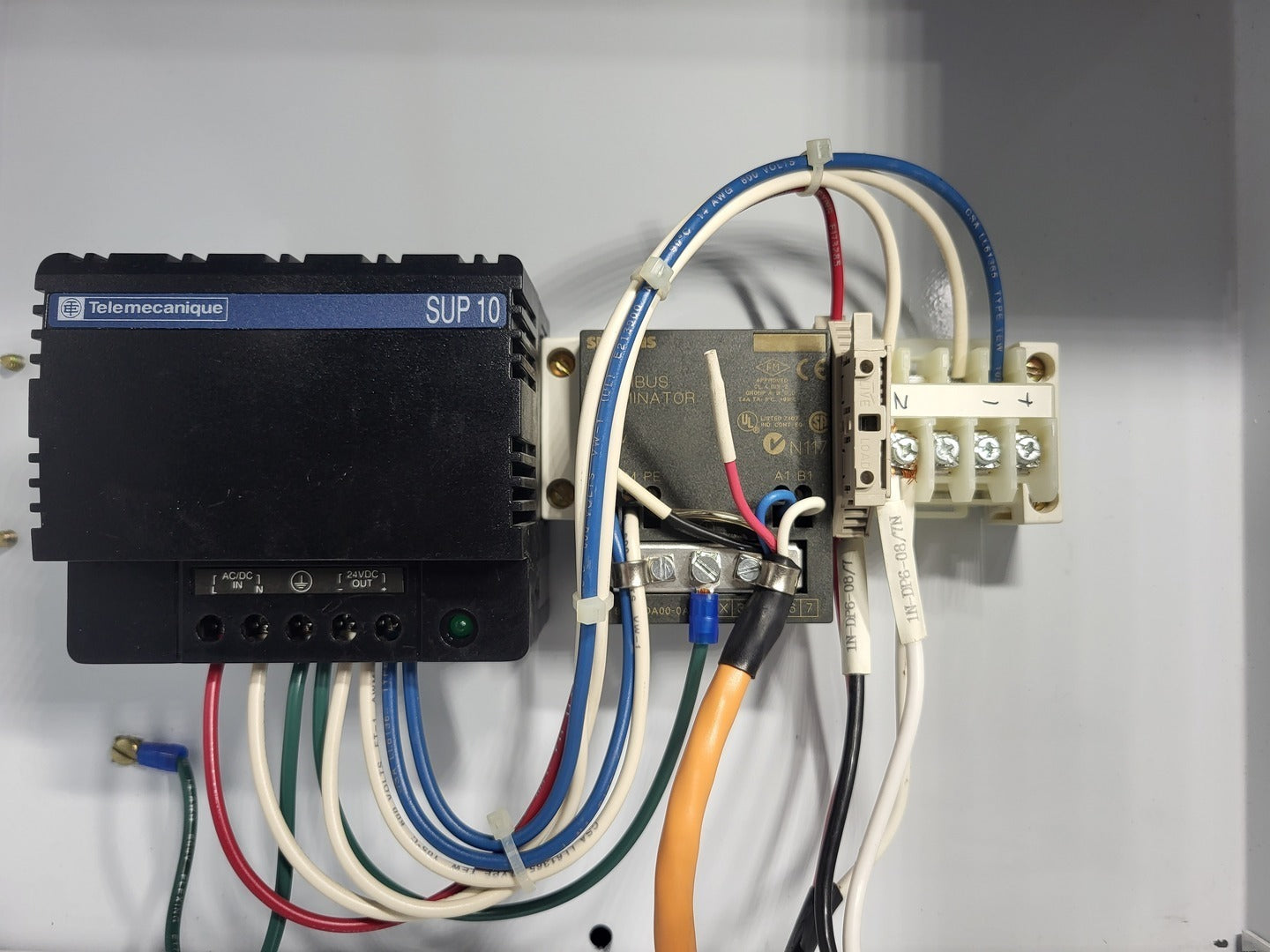

  1. Siemens PROFIBUS Terminator, 24VDC, FM approved Class I Div. 2, Group A/B/C/D
  2. Telemecanique SUP10 power supply module, AC/DC input, 24VDC output
