SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151715
Price:
$4,100 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

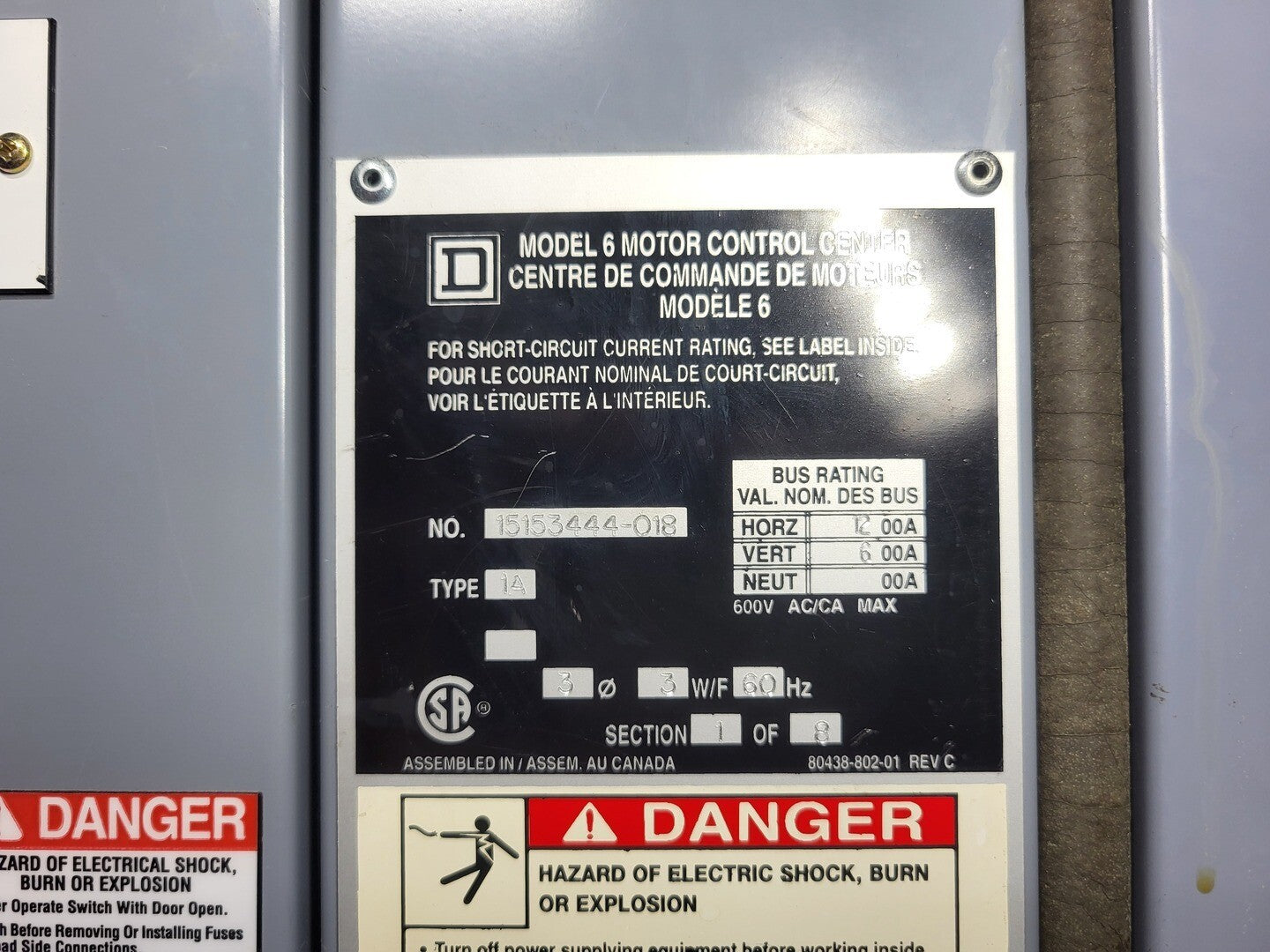

Model Model 6
Made In CANADA
Condition Used
Other Specifications

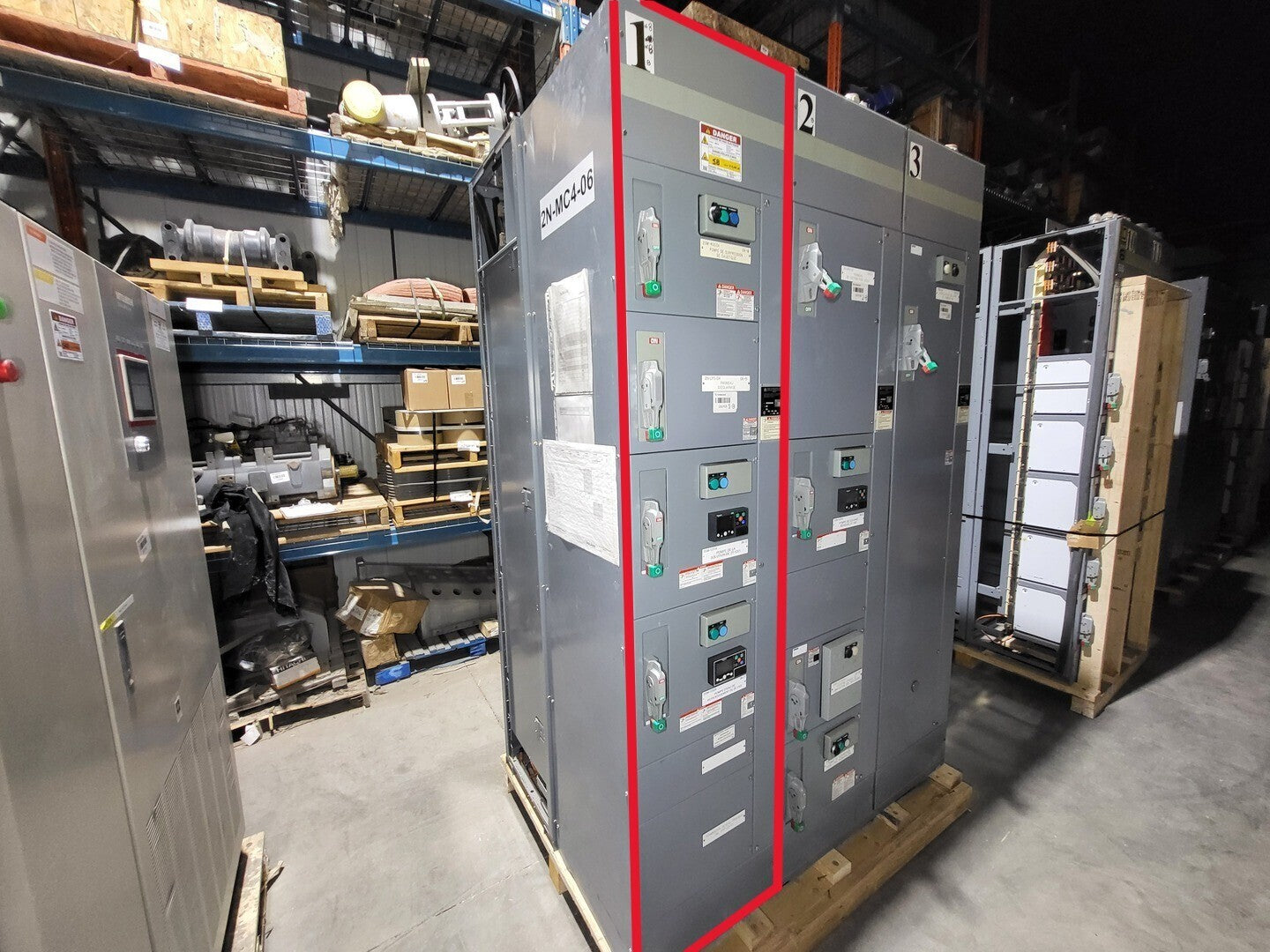

Note: Section 1 only

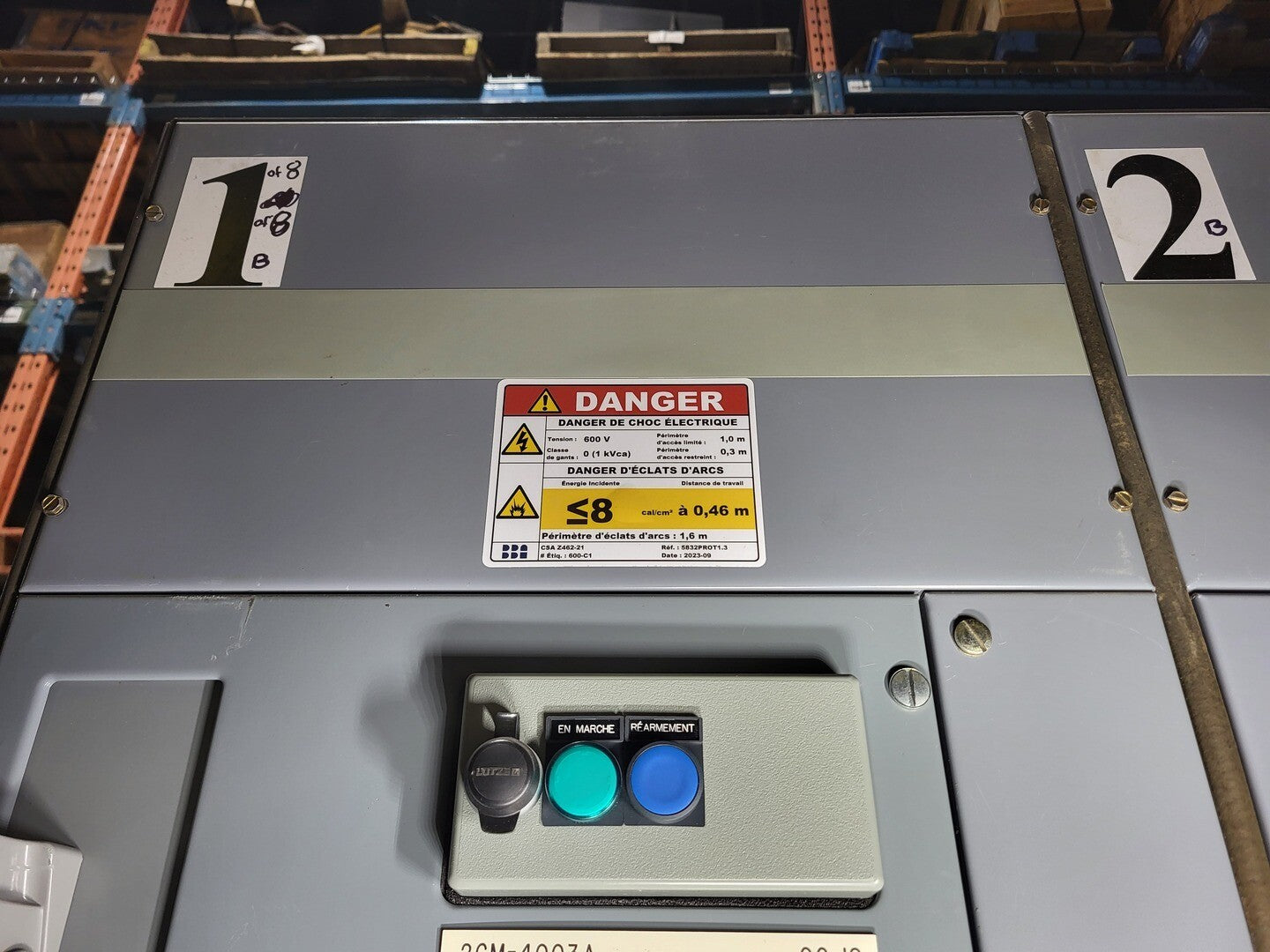

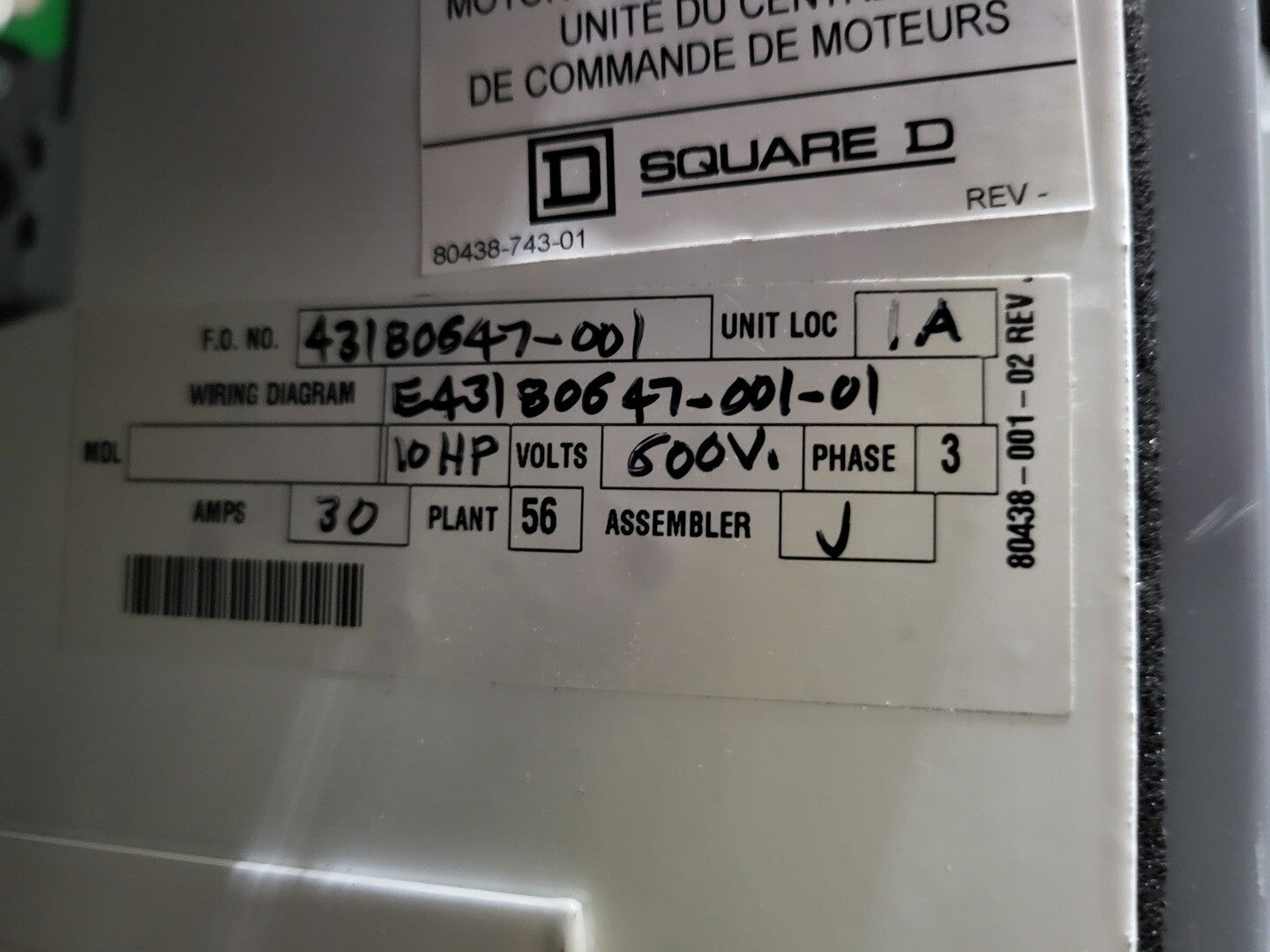

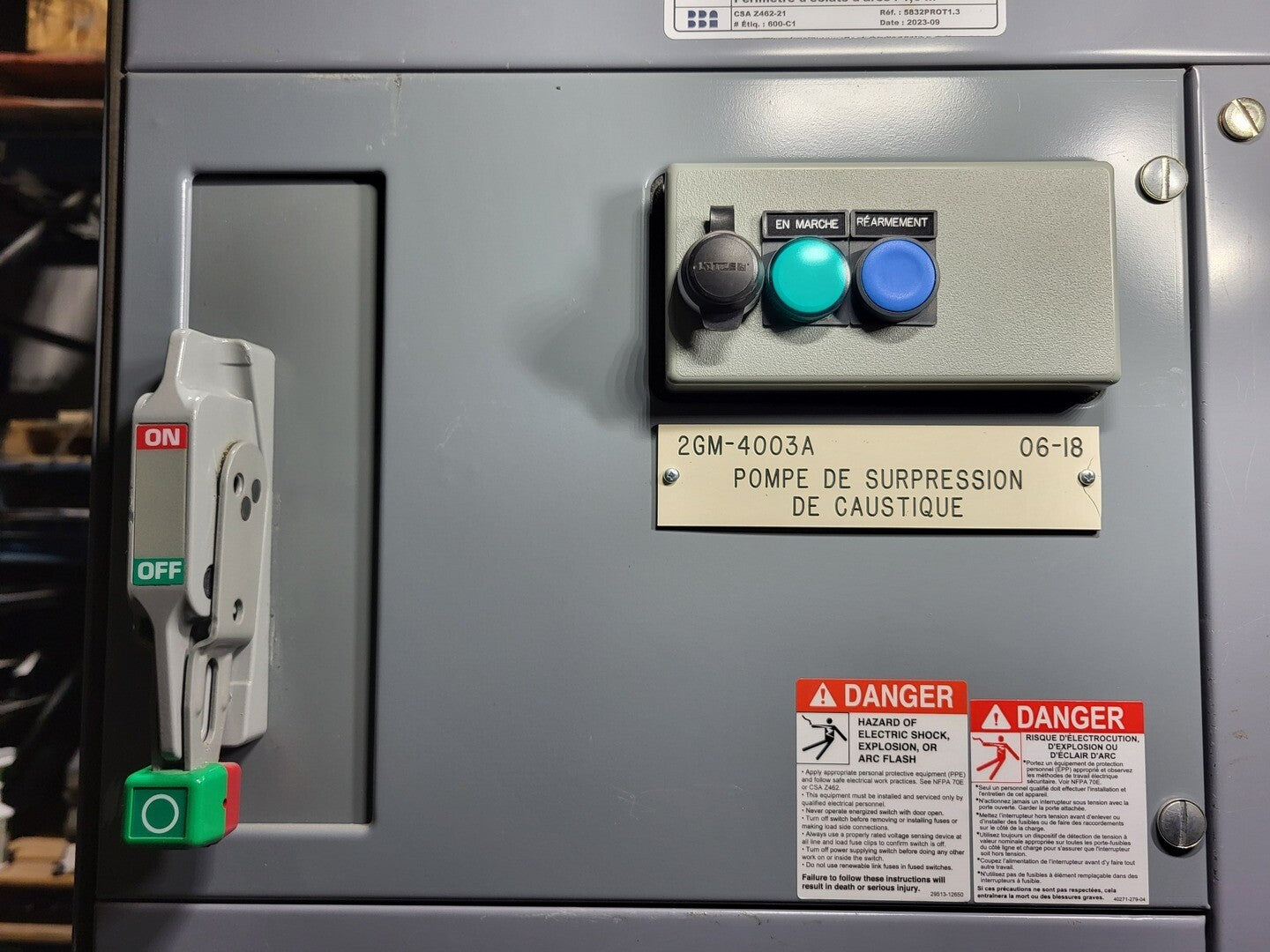

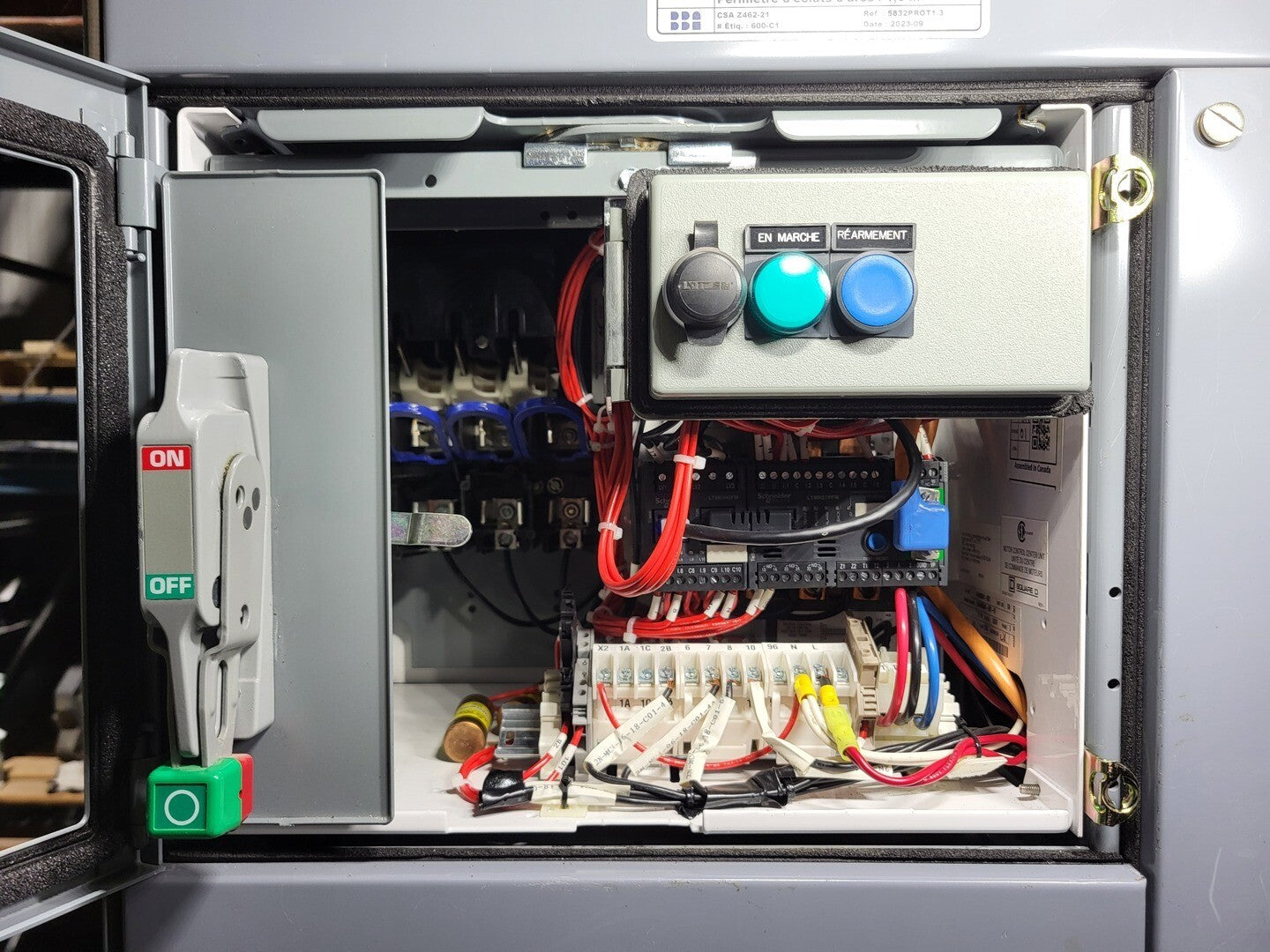

Bucket #1 2GM-4003A

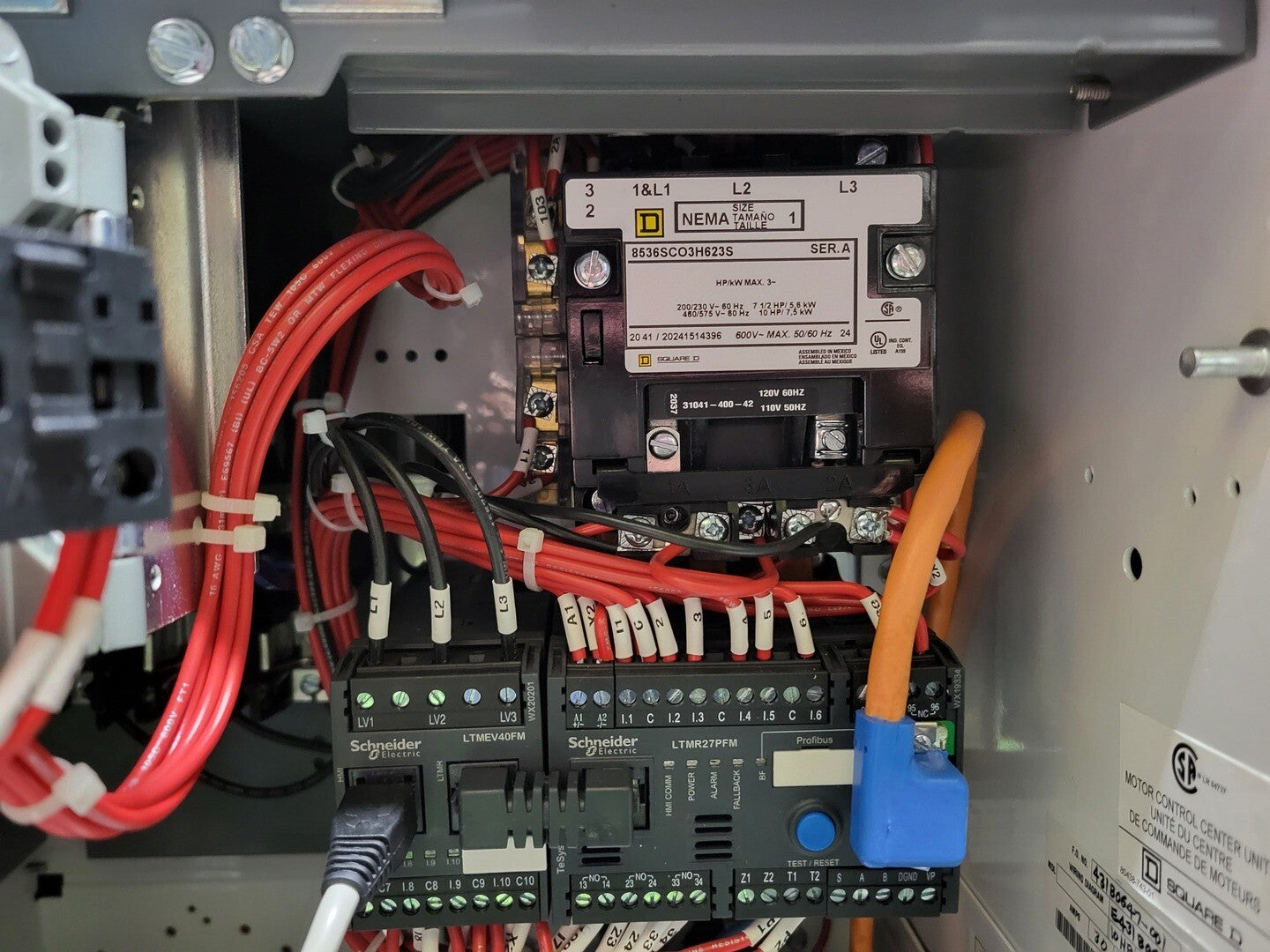

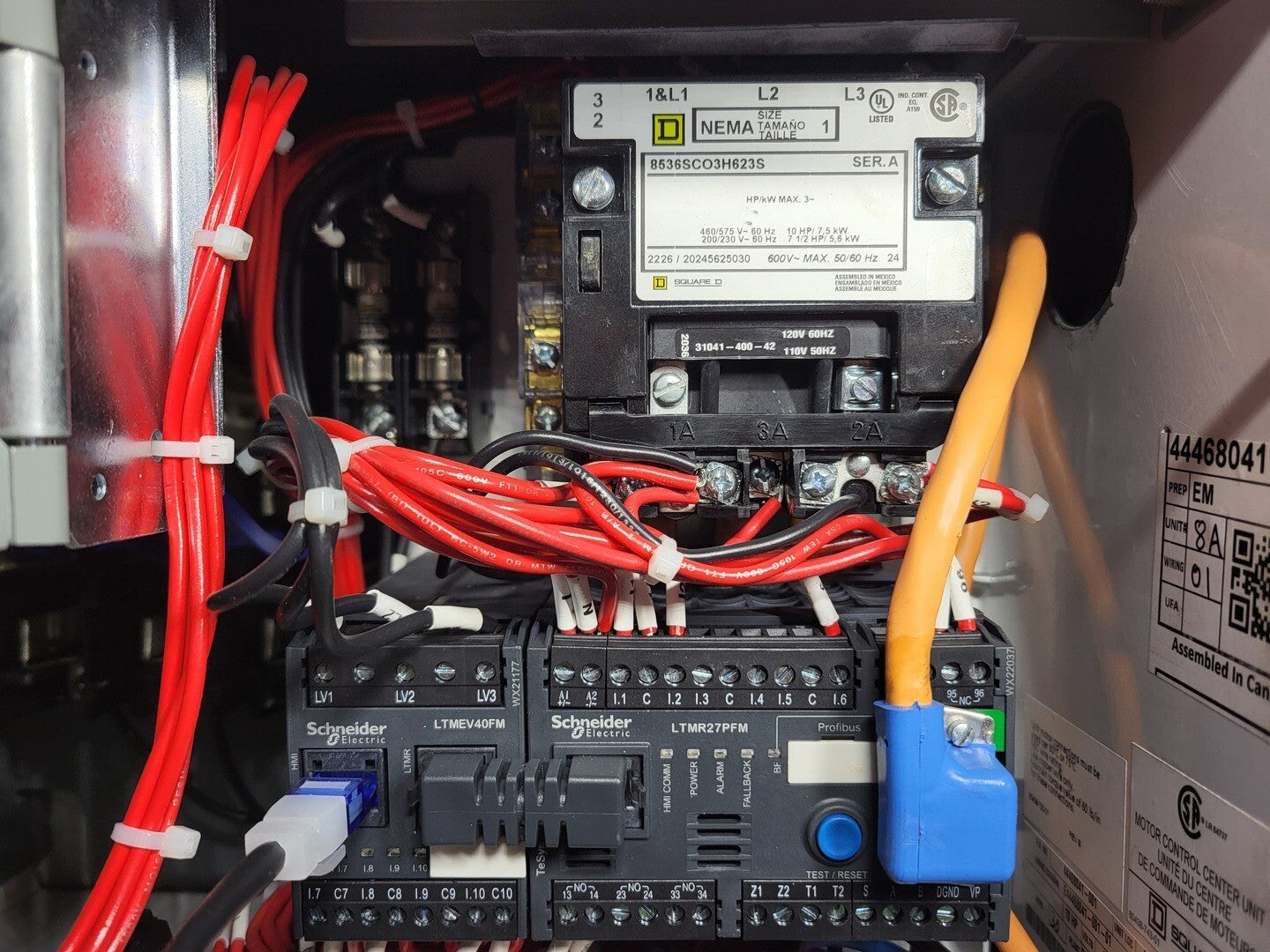

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 600V max, 120V 60Hz / 110V 50Hz coil
  2. Schneider Electric TeSys T LTMR27PFM, motor management controller, PROFIBUS, 1.35-27A range
  3. Schneider Electric LTMEV40FM, TeSys T voltage expansion module, 690VAC max

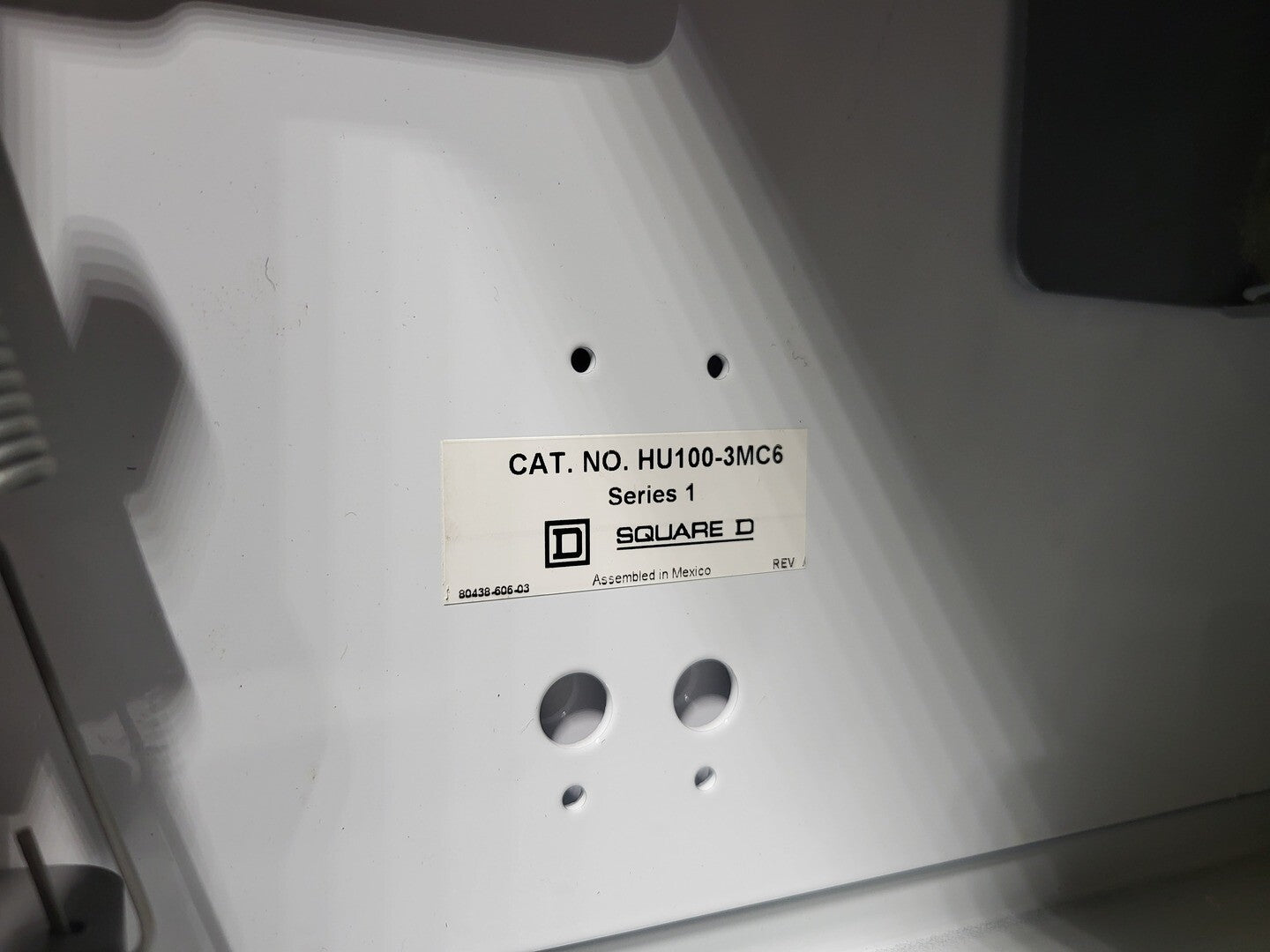

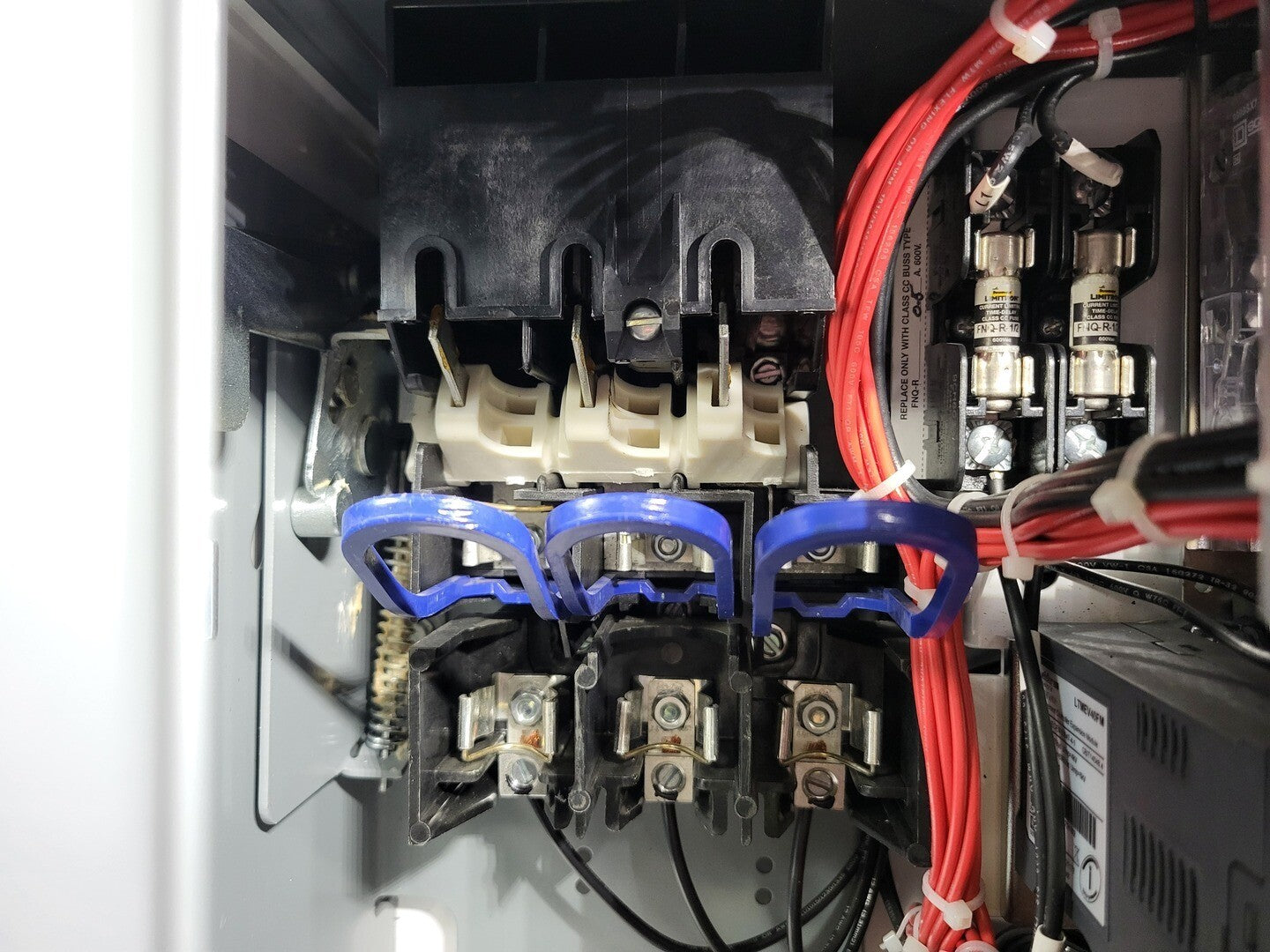

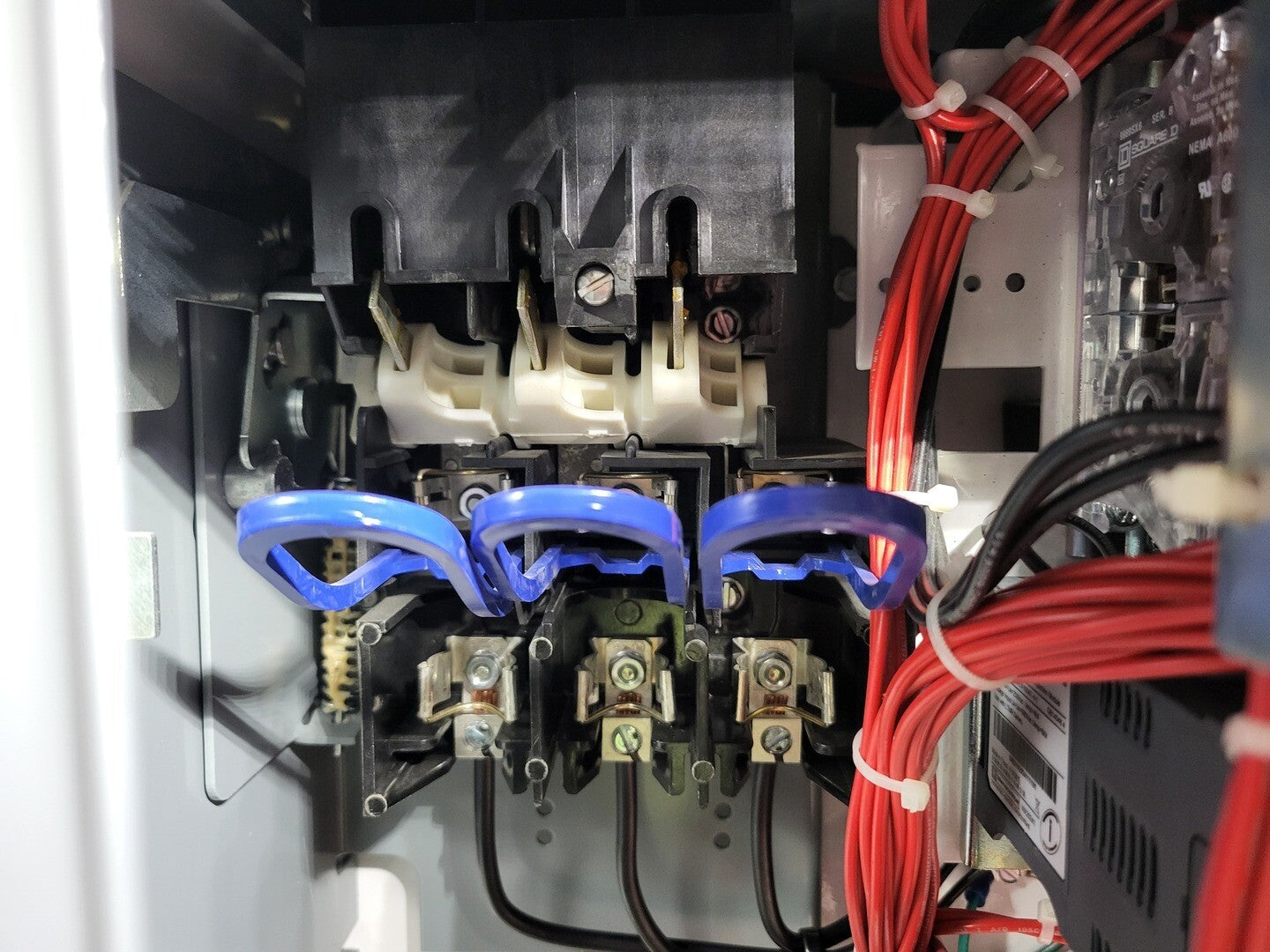

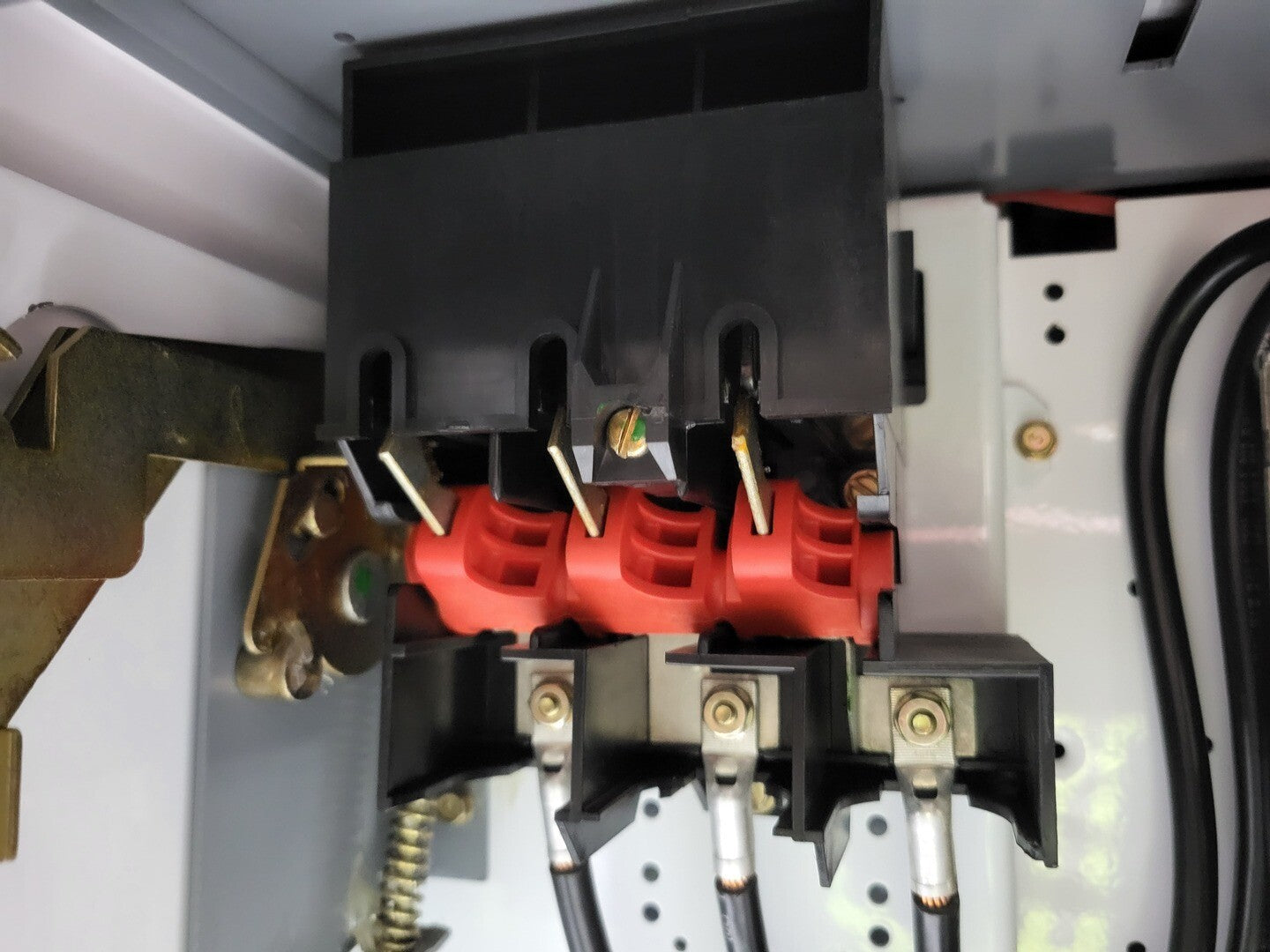

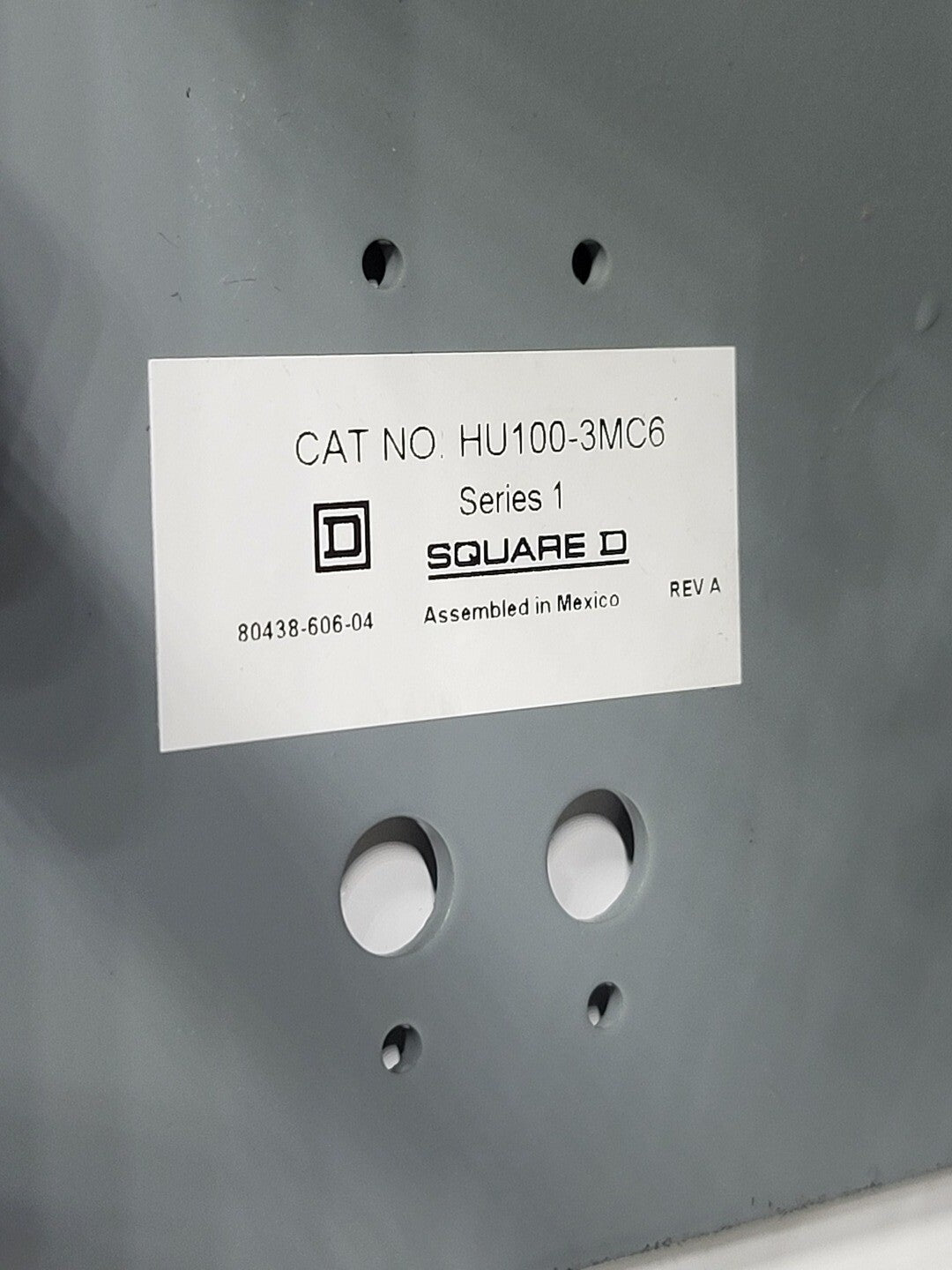

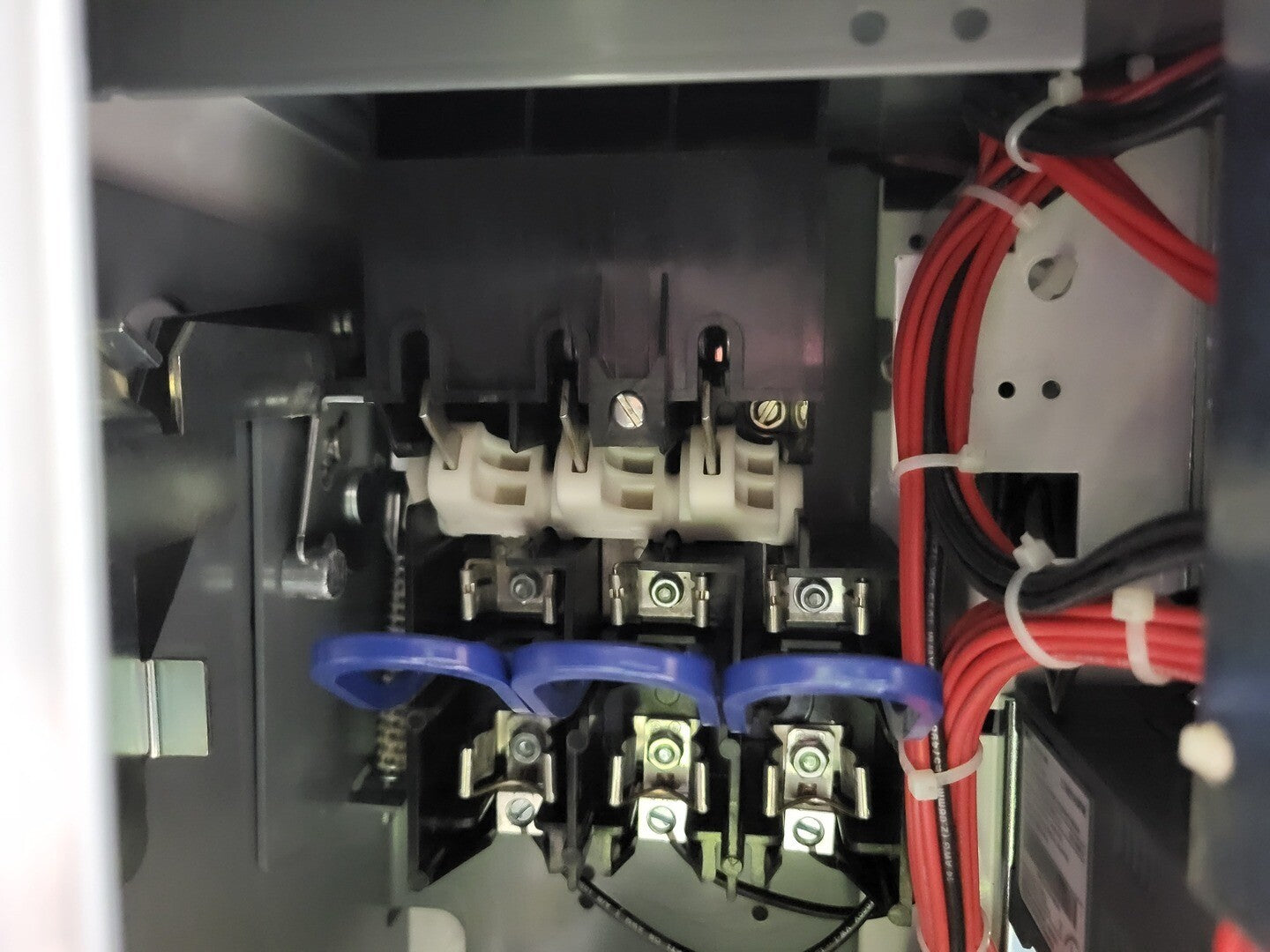

  4. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  5. 2 x Bussmann Limitron fuses FNQ-R-1/2

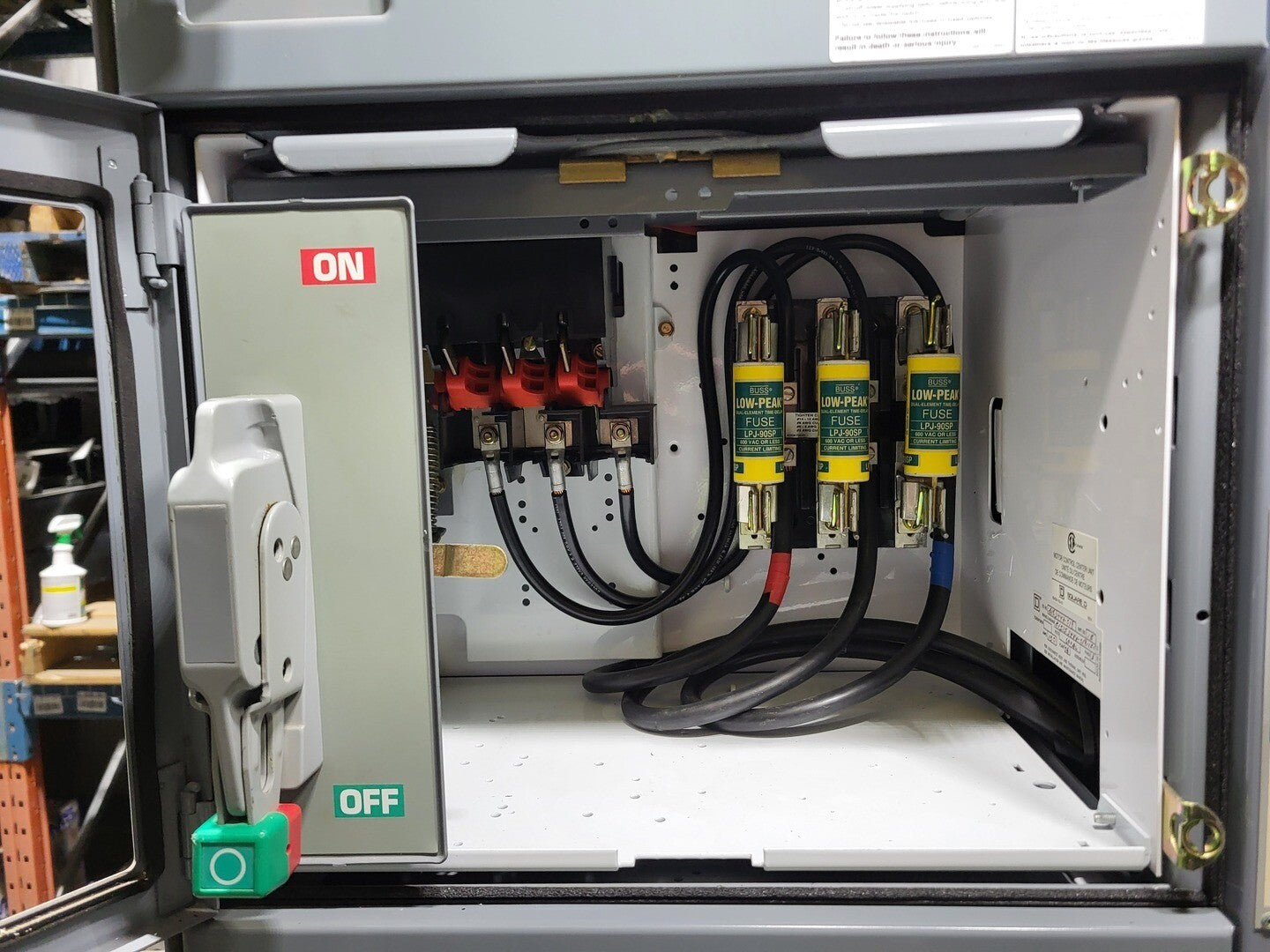

Bucket #2

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

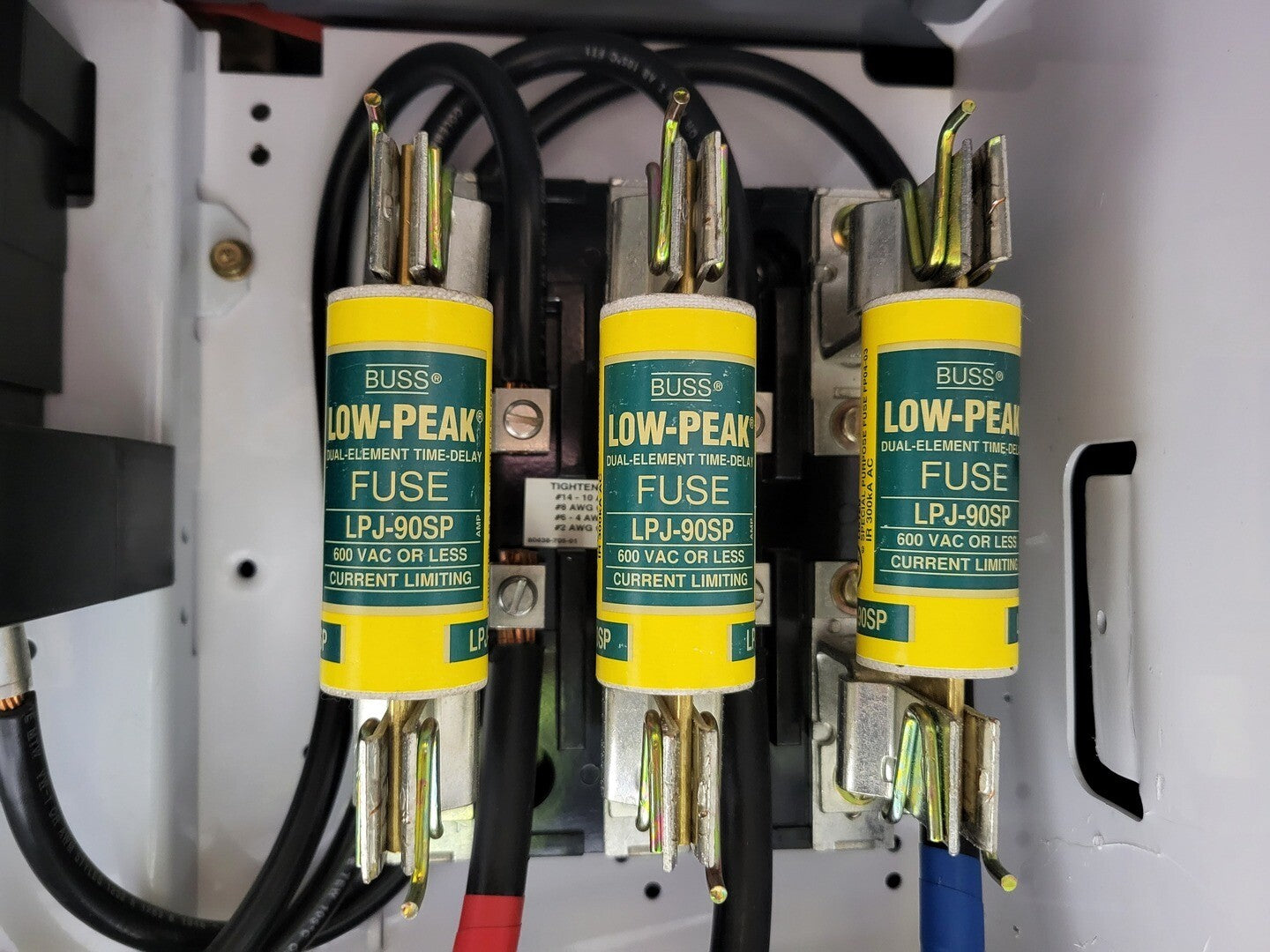

  2. 3 x Bussmann Low-Peak fuses LPJ-90SP

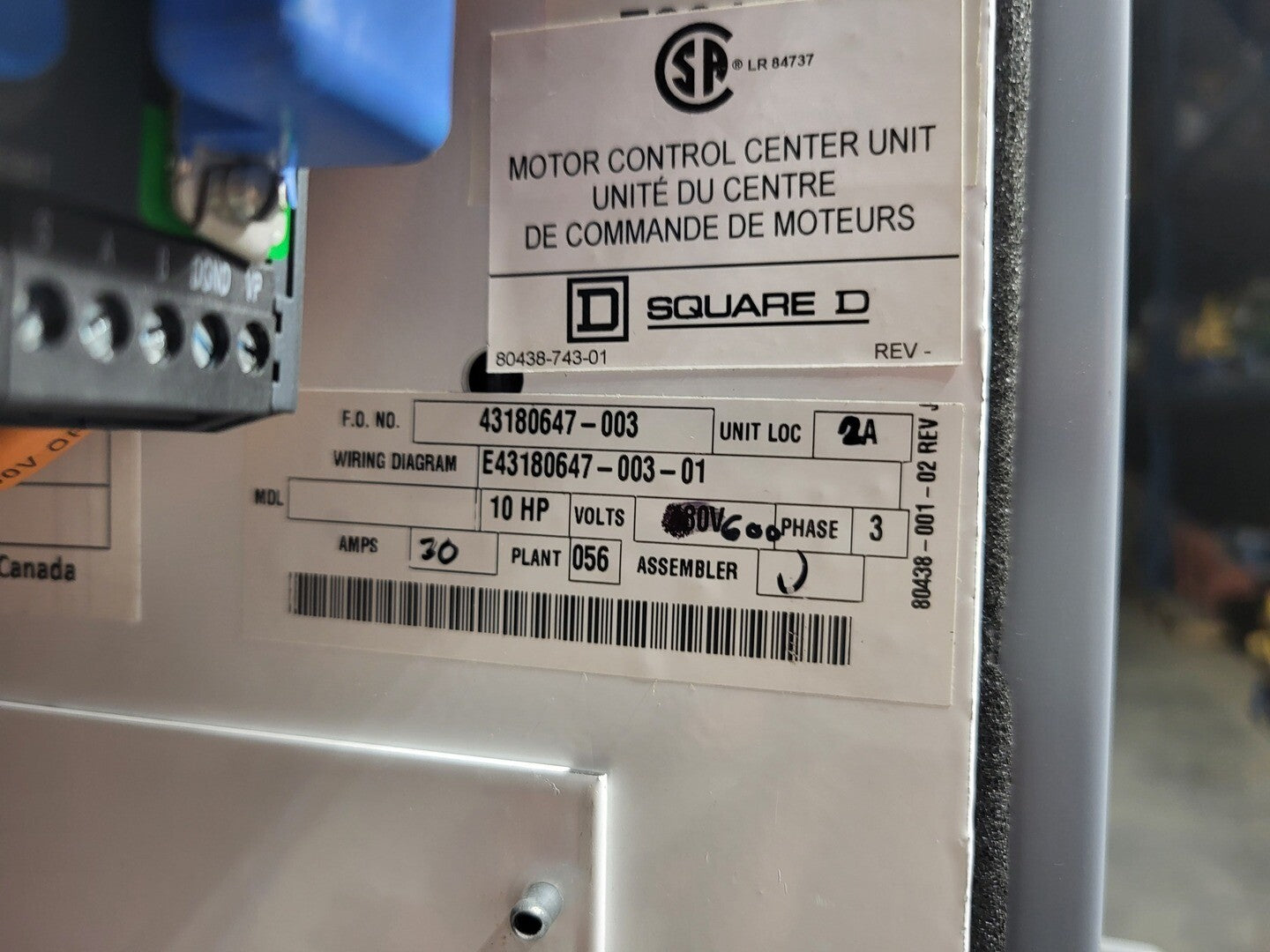

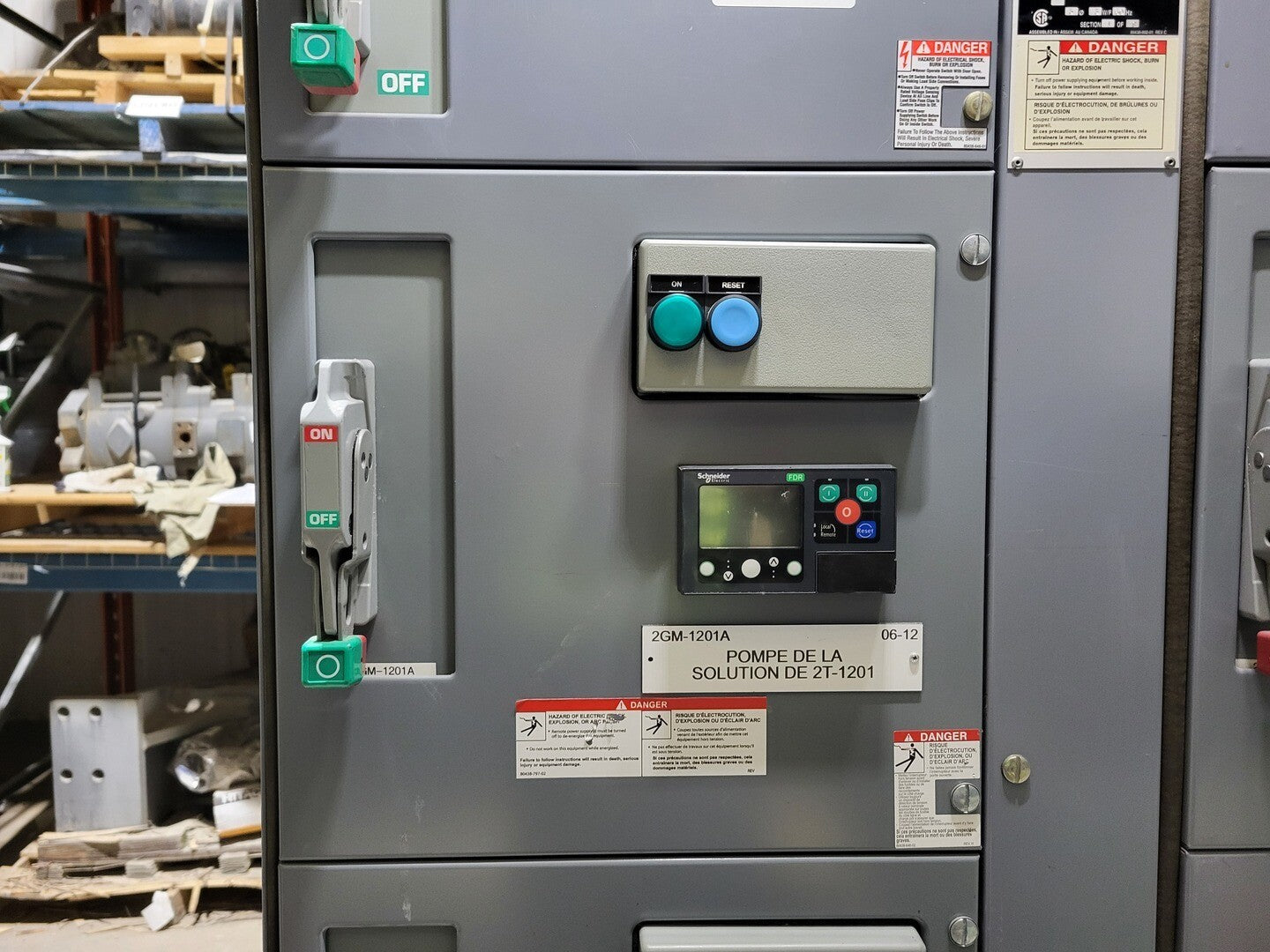

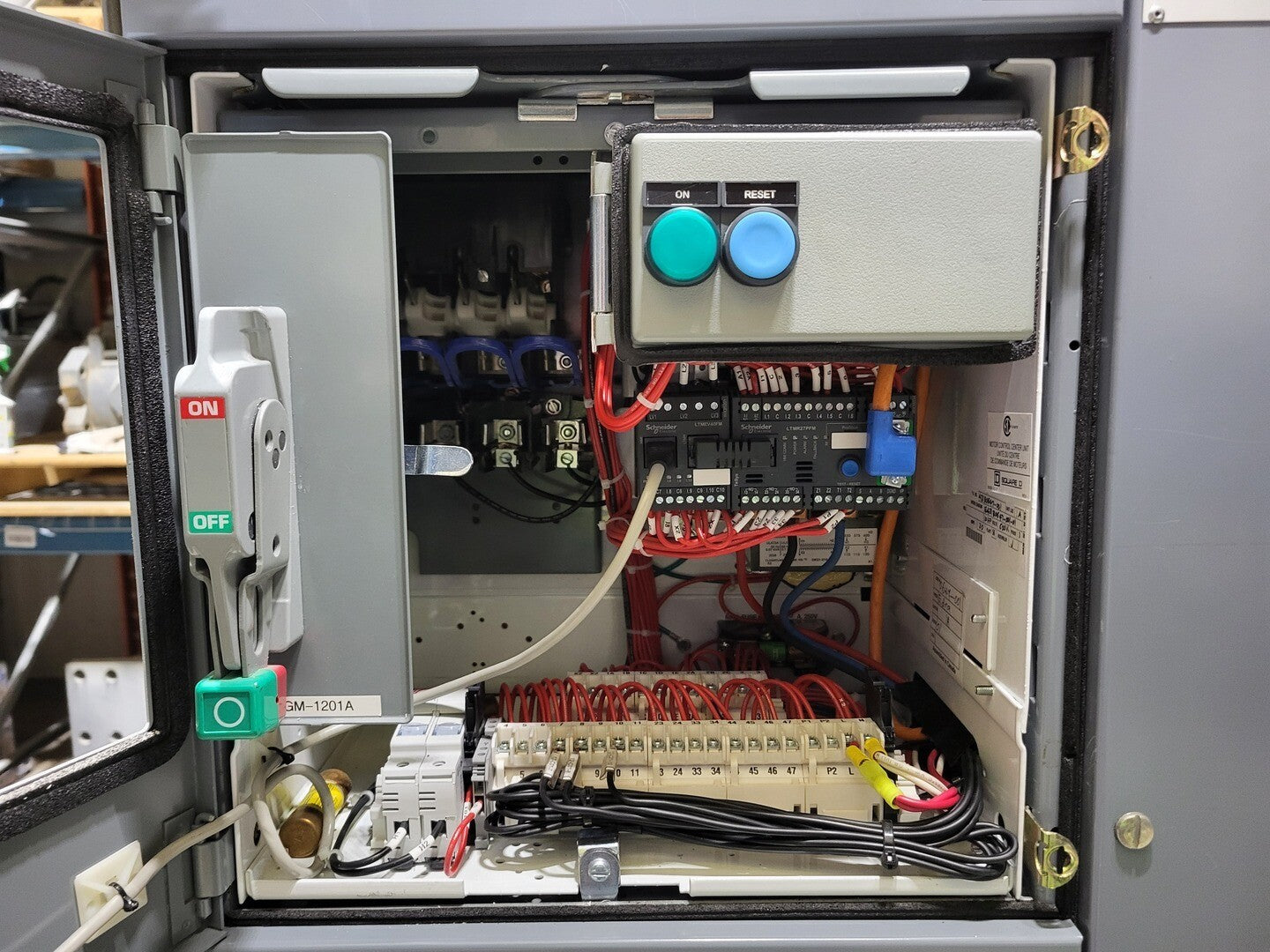

Bucket #3 2GM-1201A

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 7.5 HP @ 200/230V, 120V coil
  2. Schneider Electric / Telemecanique LTMR27PFM, TeSys T motor management controller, PROFIBUS, 1.35-27A range
  3. Schneider Electric LTMEV40FM, TeSys T motor management controller expansion module, voltage input 690VAC max

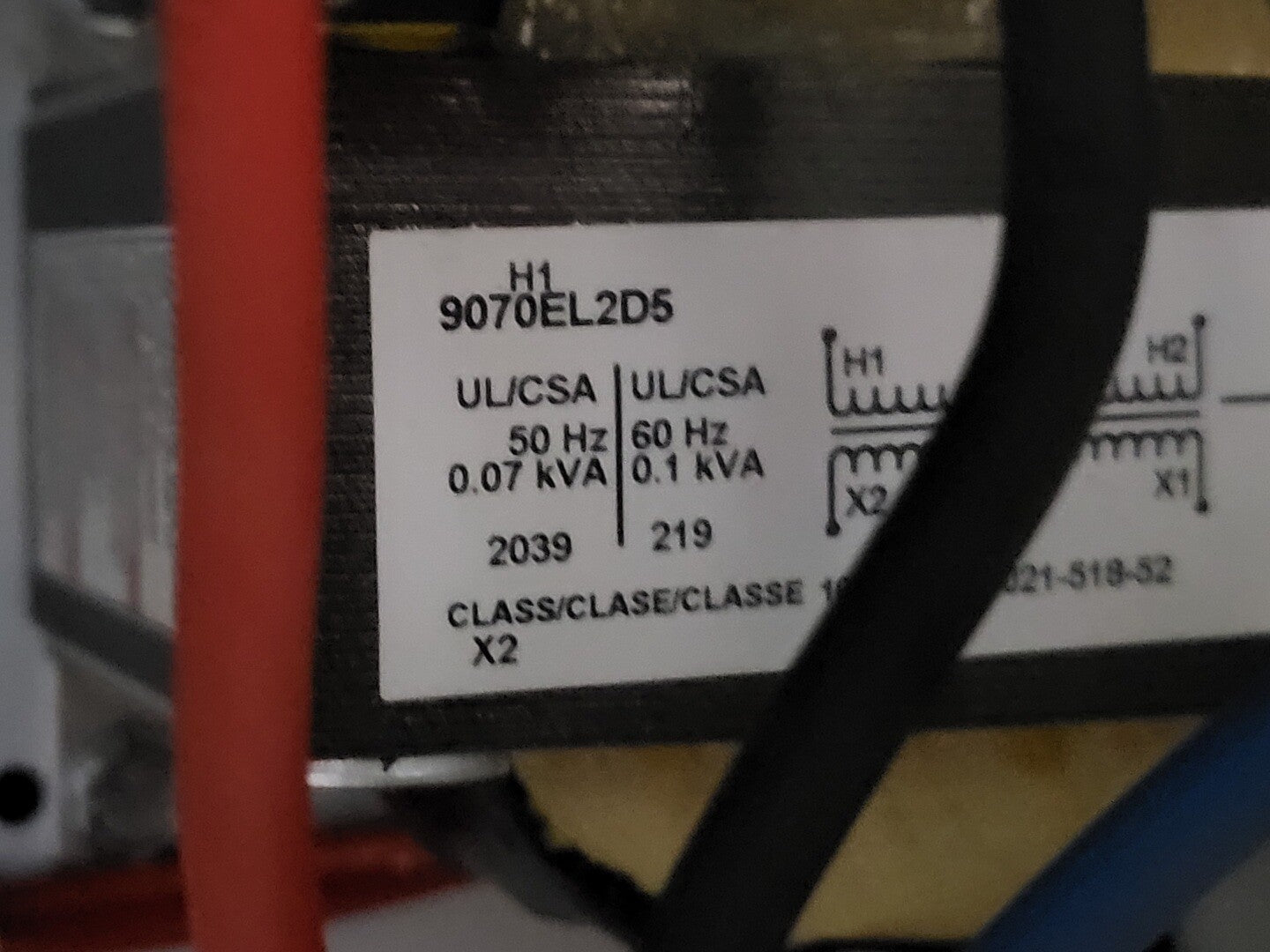

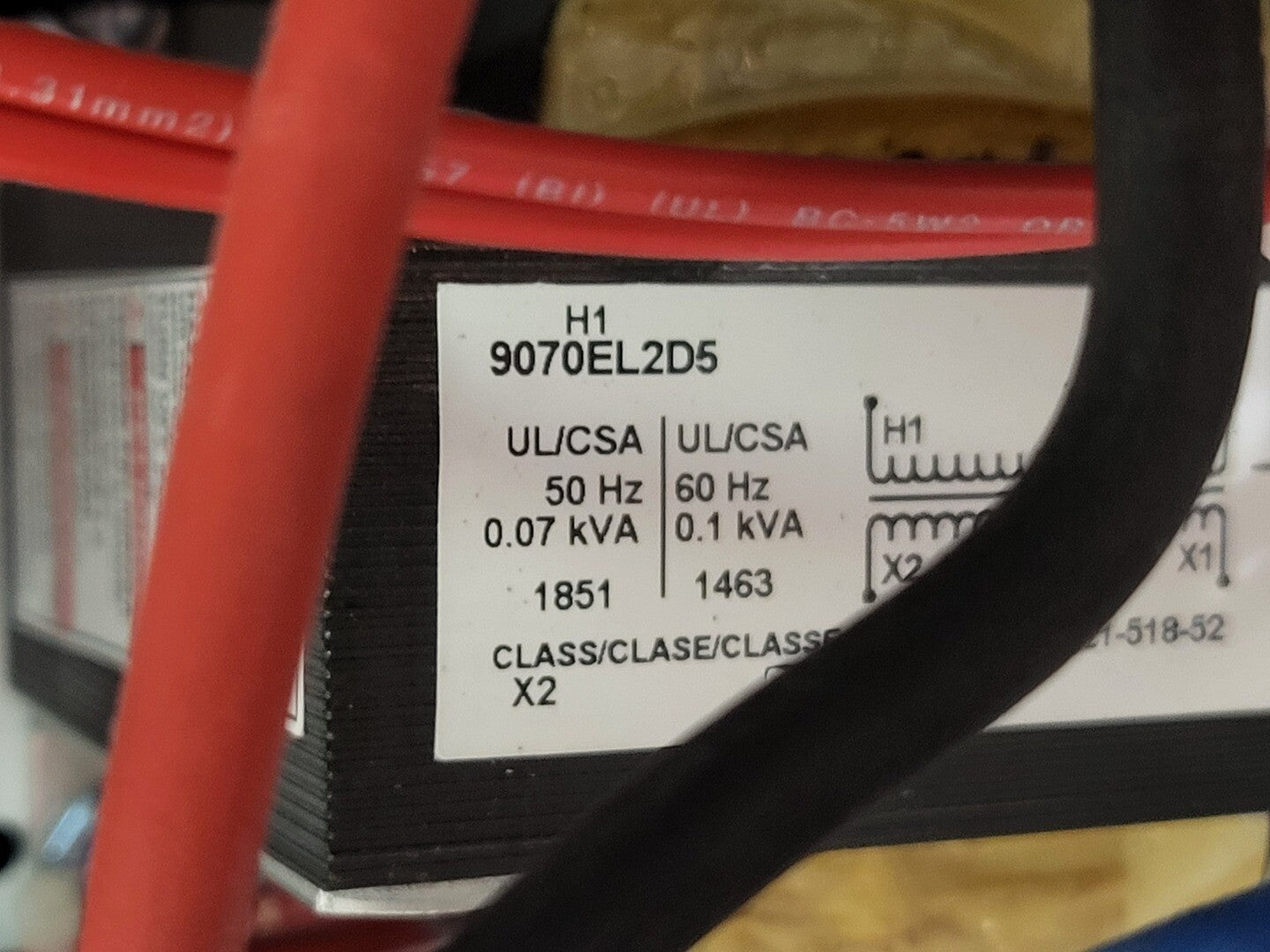

  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

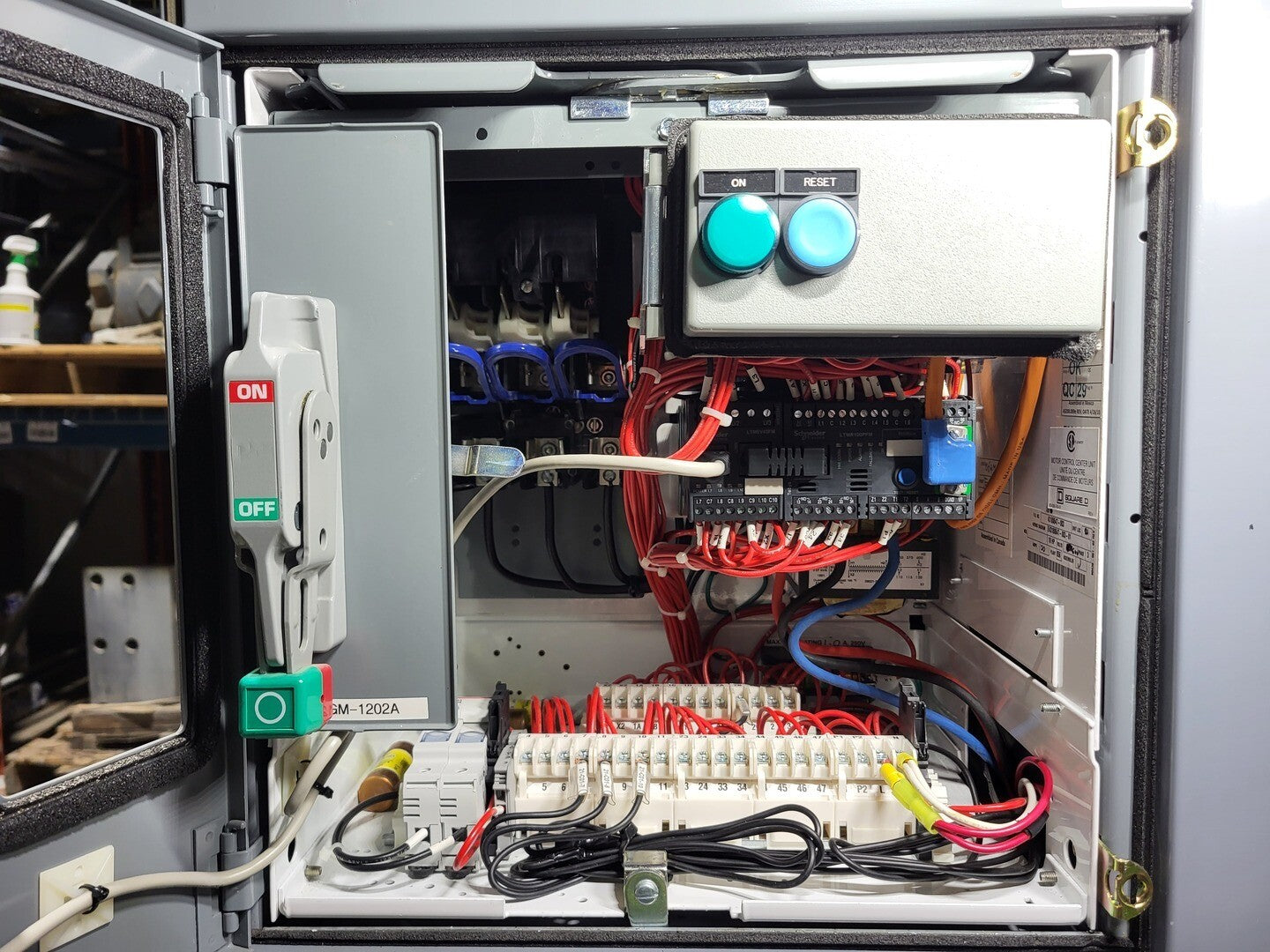

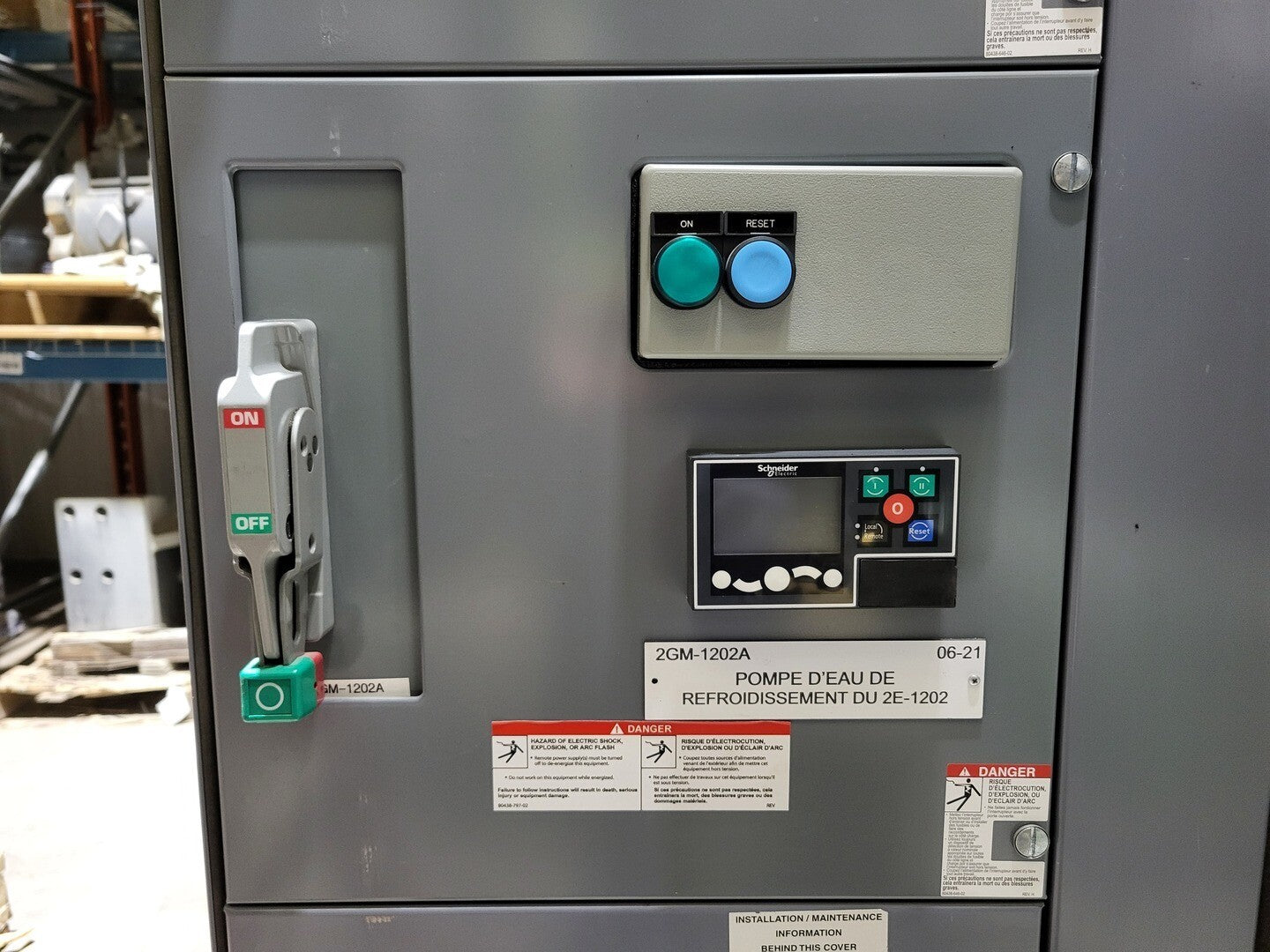

Bucket #4 2GM-1202A

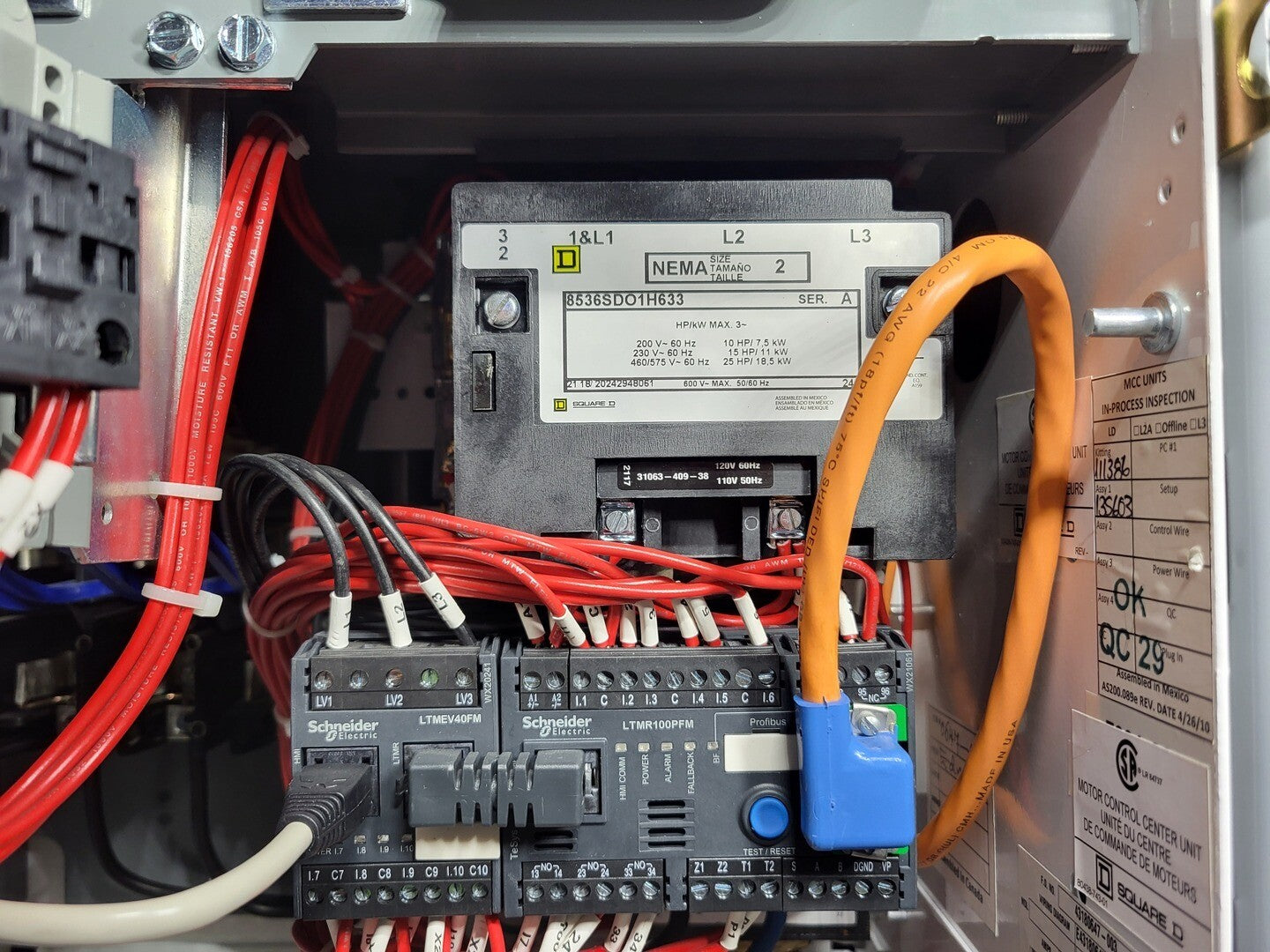

  1. Square D 8536SDO1H633, NEMA Size 2 contactor, 25 HP @ 460/575V, 15 HP @ 230V, 10 HP @ 200V, 120V coil
  2. Schneider Electric / Telemecanique LTMR100PFM, TeSys T motor management controller, PROFIBUS, 5-100A range
  3. Schneider Electric LTMEV40FM, TeSys T motor management controller expansion module, voltage input 690VAC max
  4. Schneider Electric TeSys T remote display/operator interface, panel mounted
  5. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

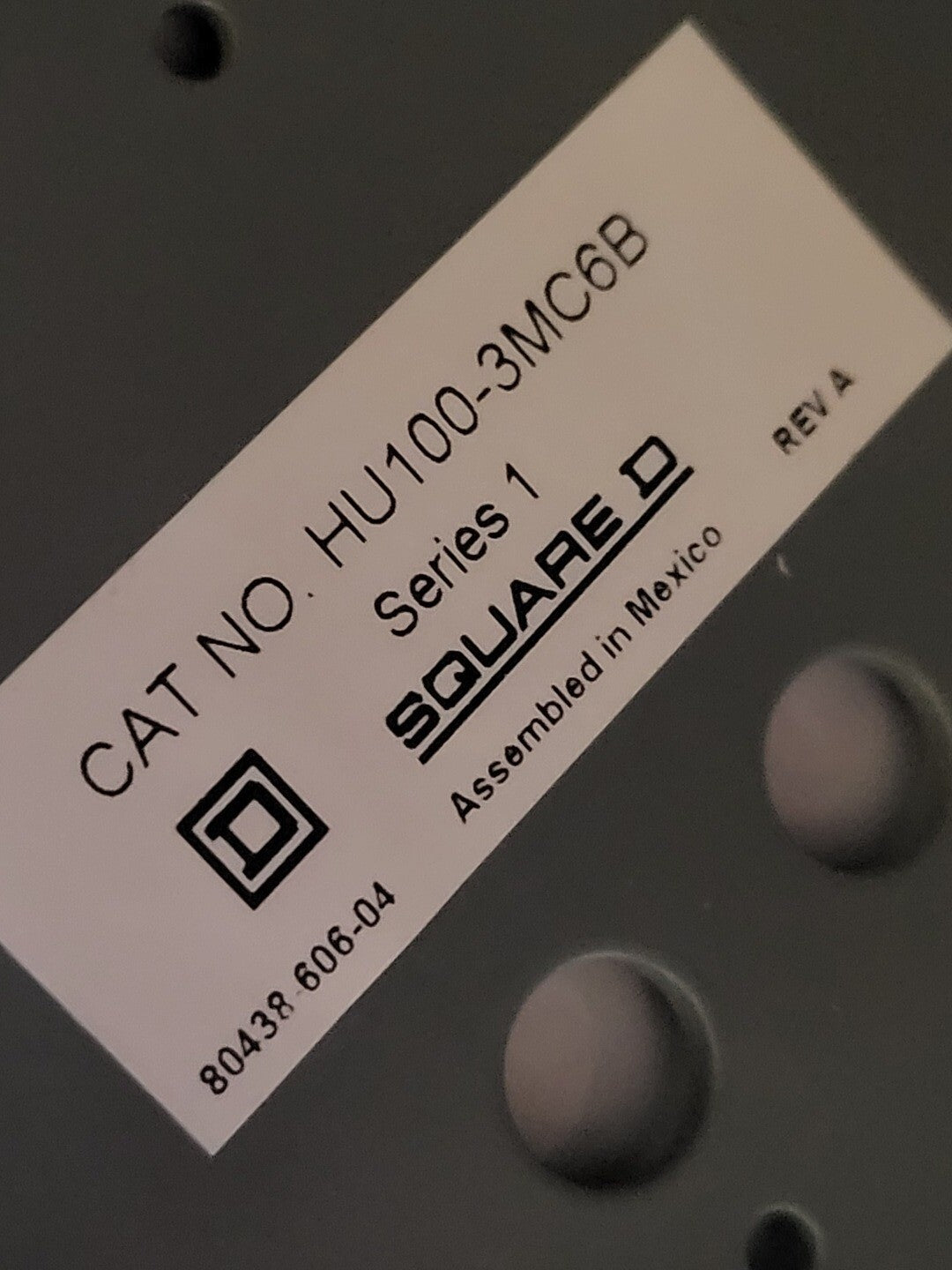

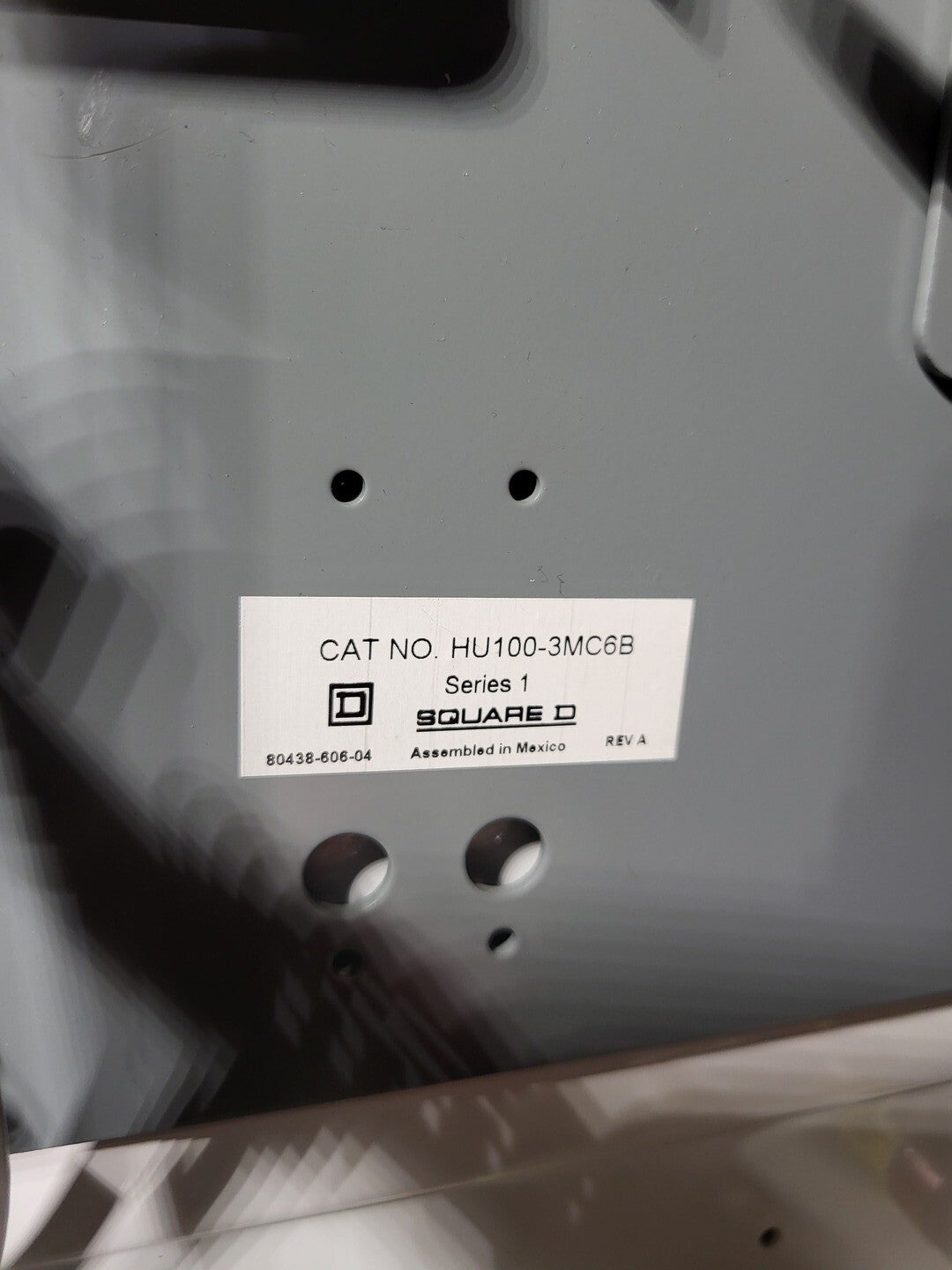

  6. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

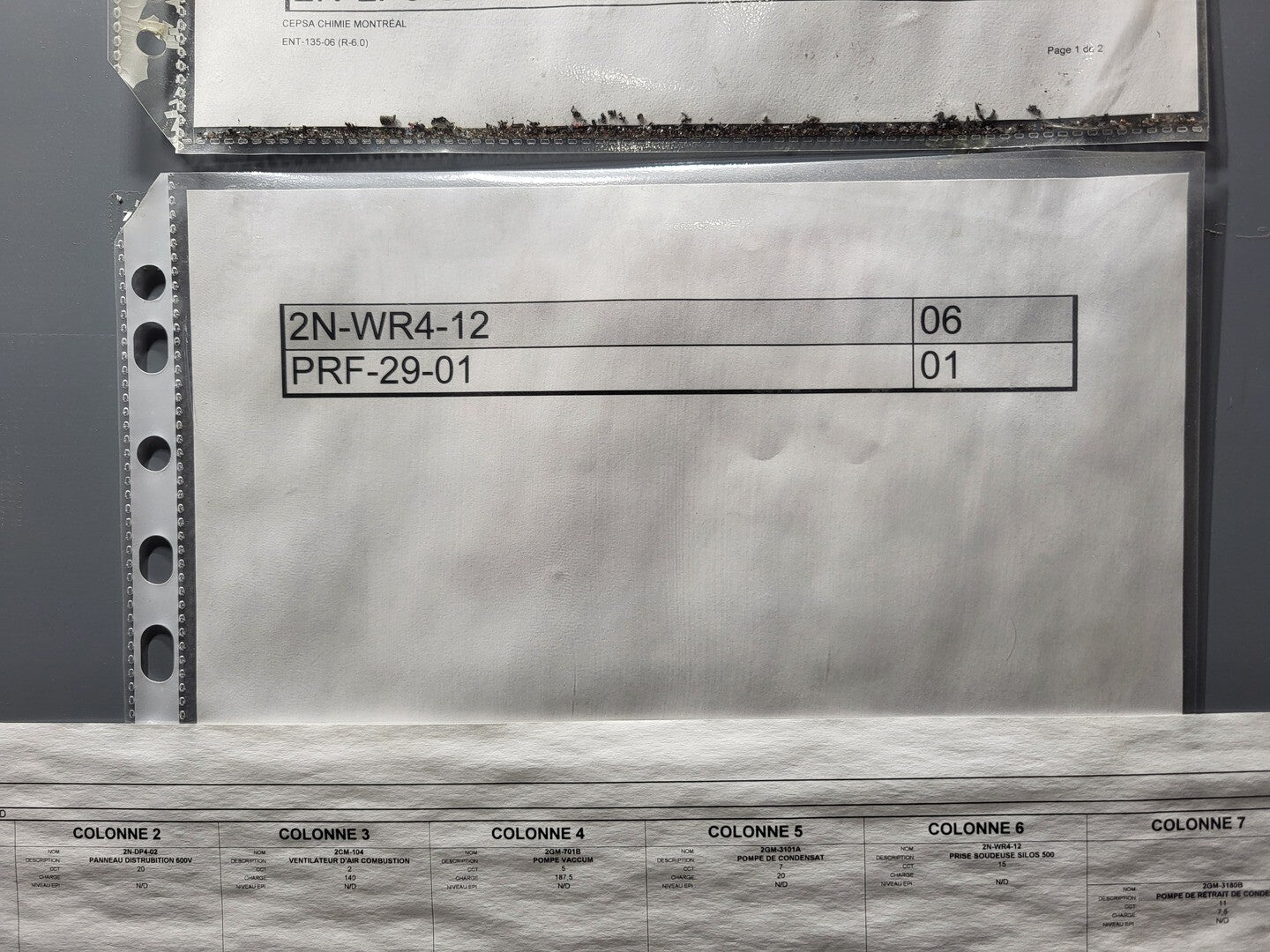

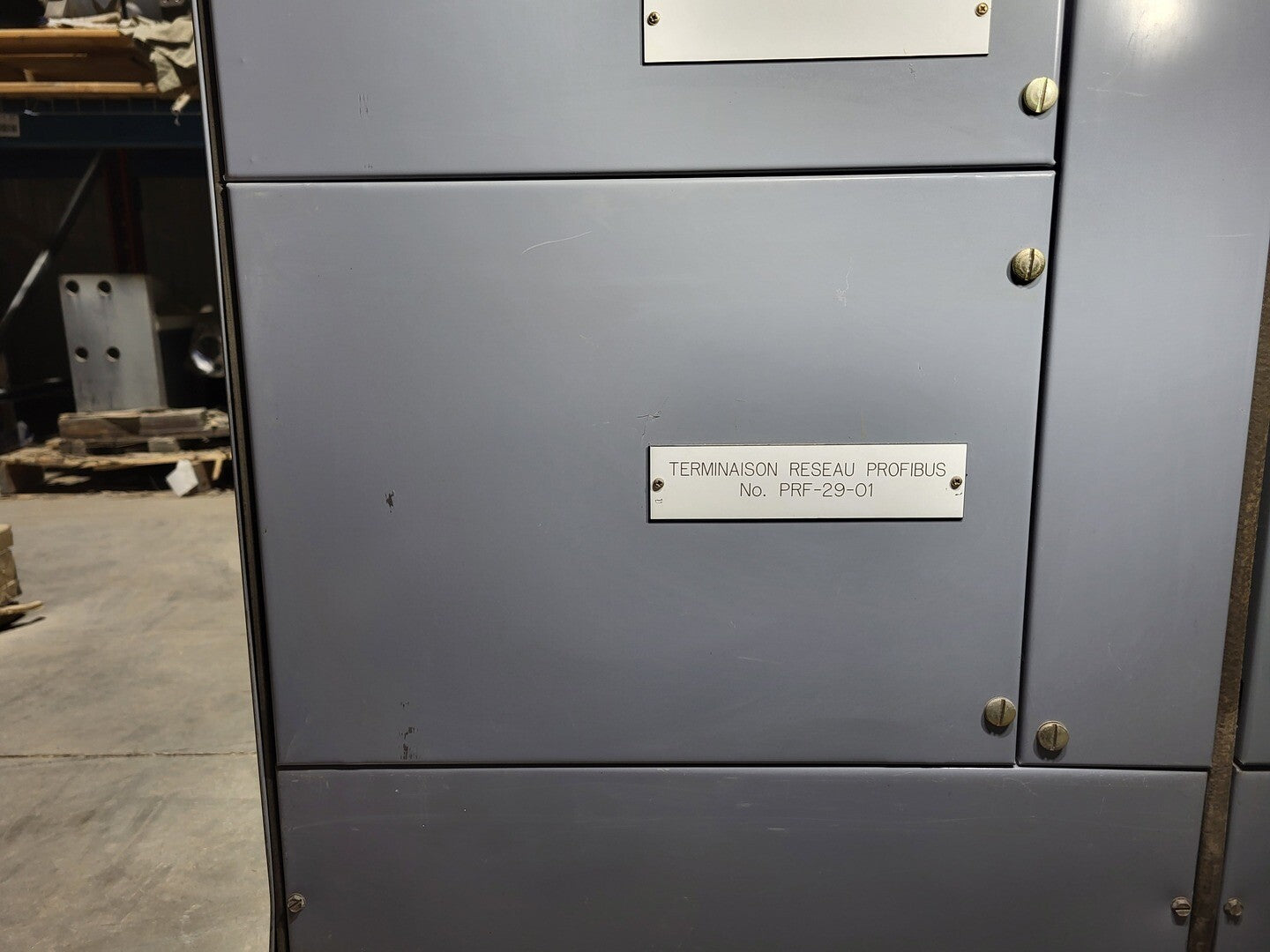

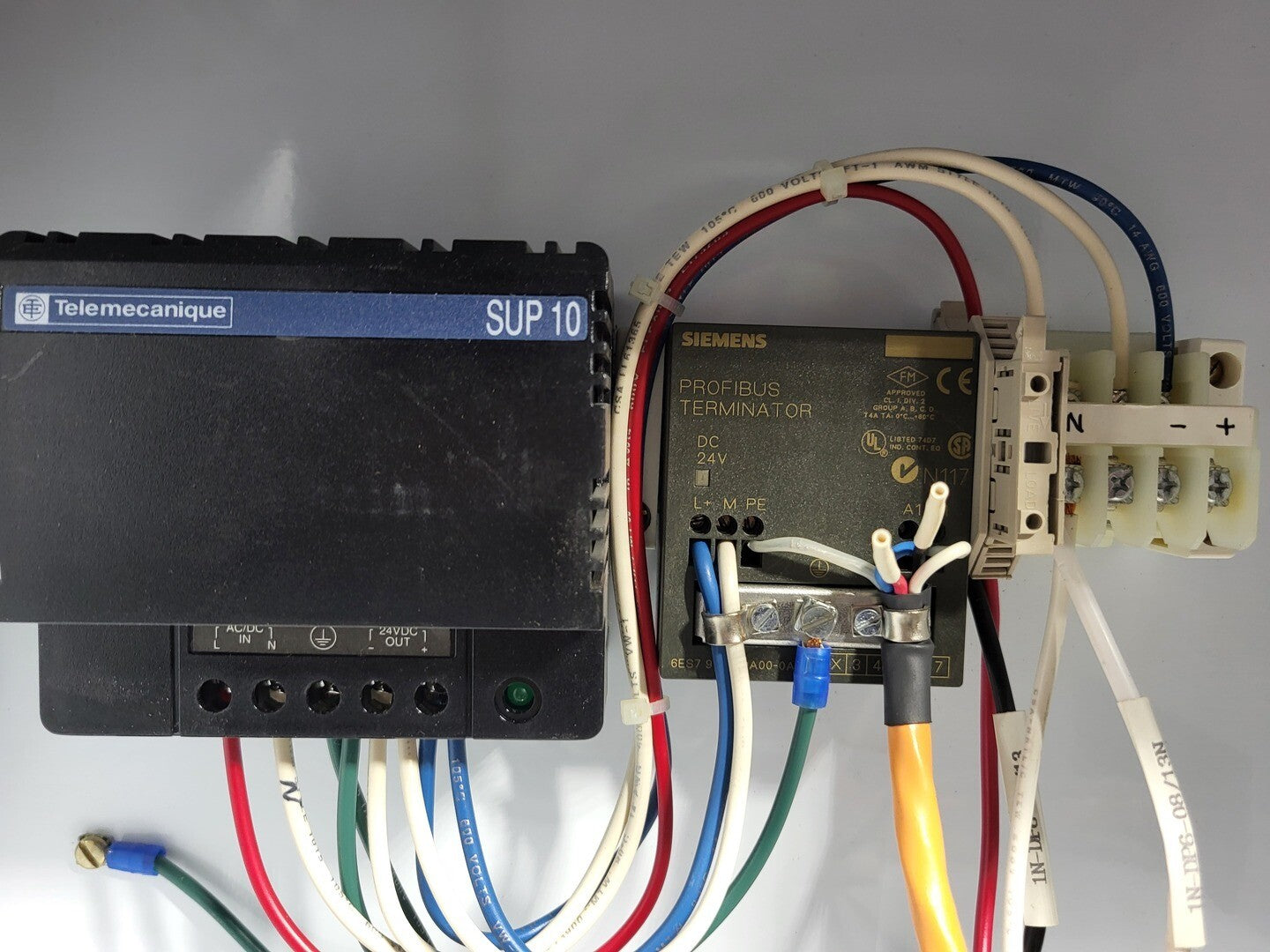

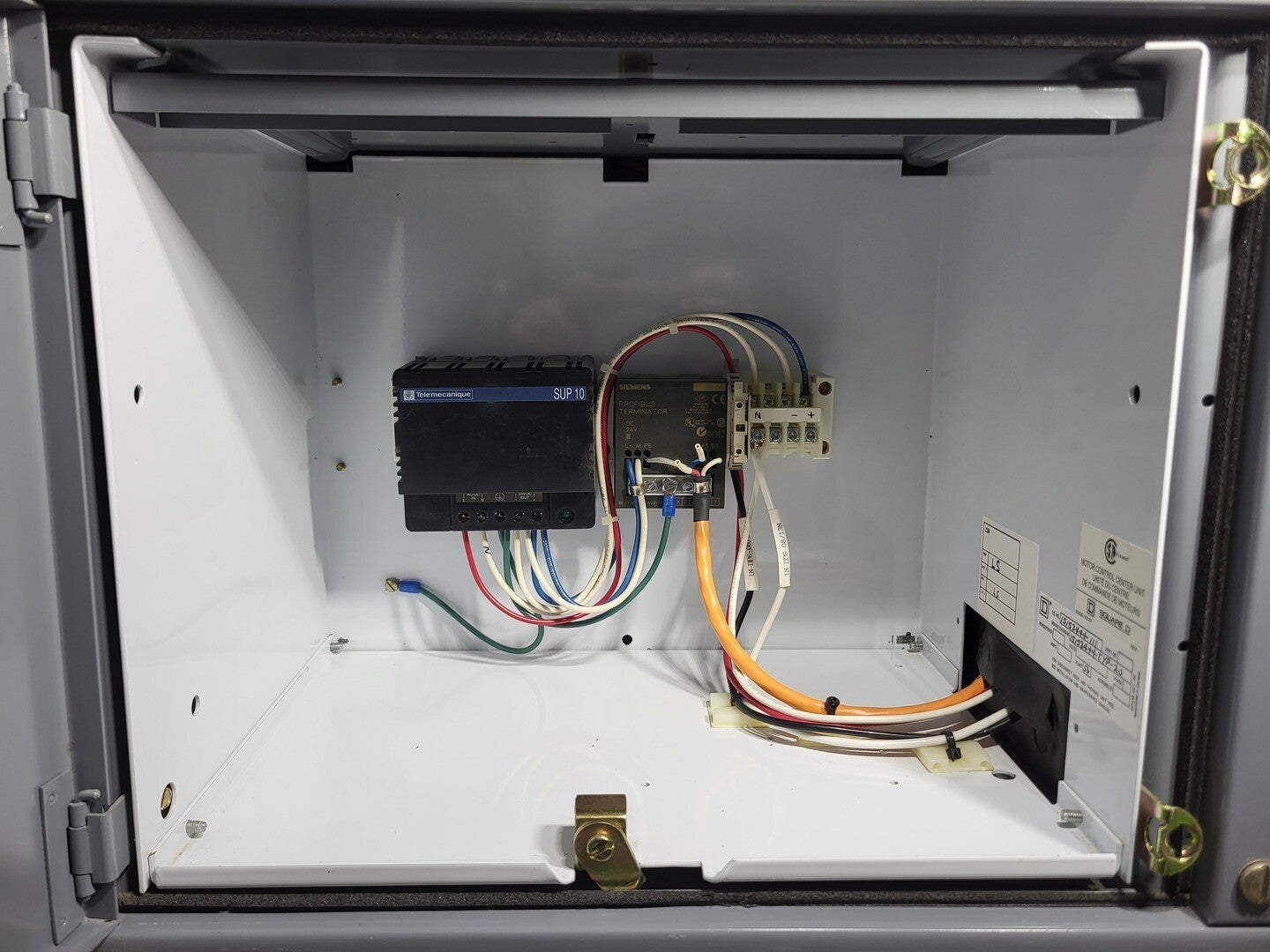

Bucket #5 PRF-29-01

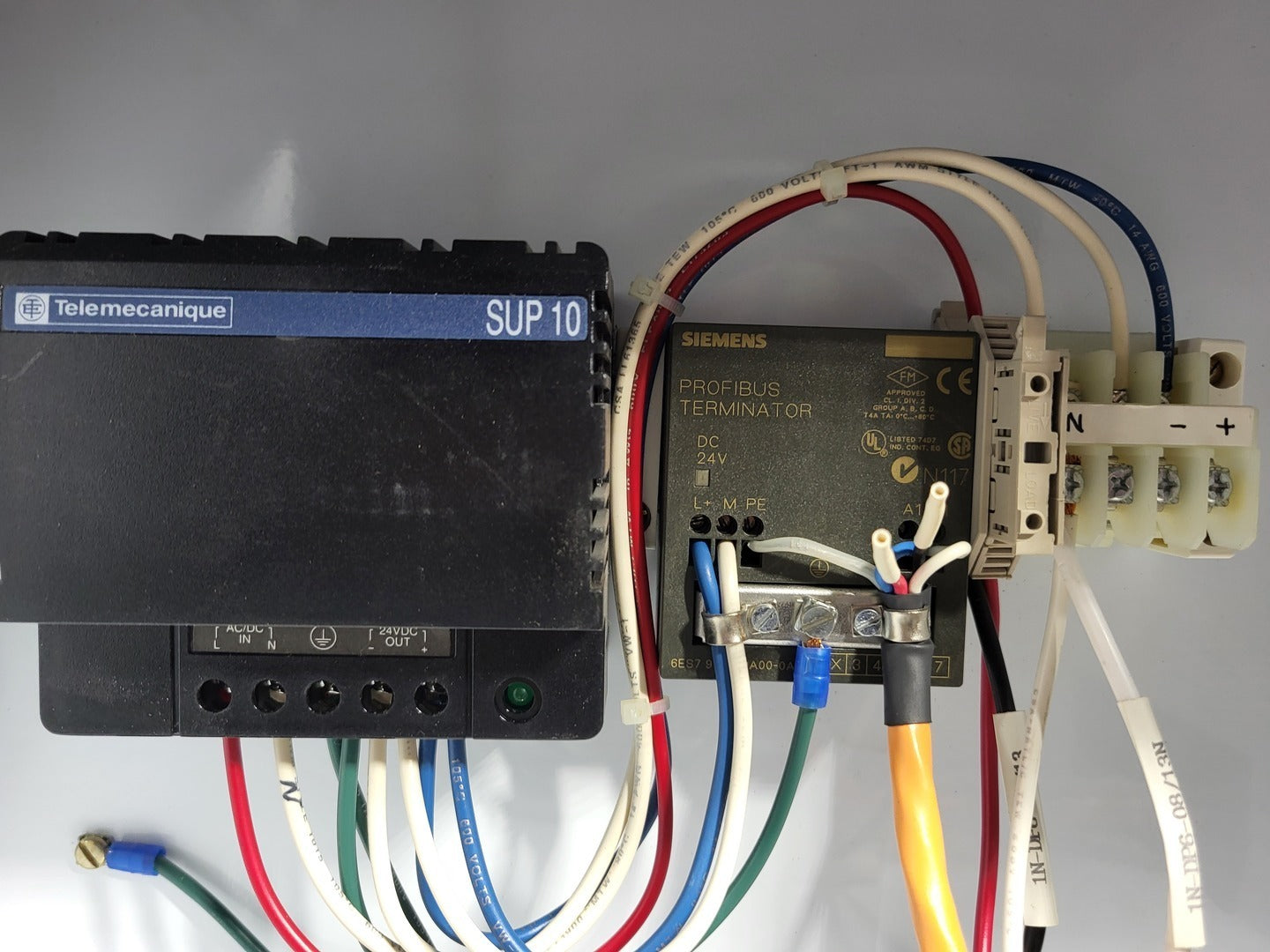

  1. Telemecanique SUP10, 24VDC power supply module
  2. Siemens PROFIBUS Terminator, 24VDC PROFIBUS network terminator
