Description

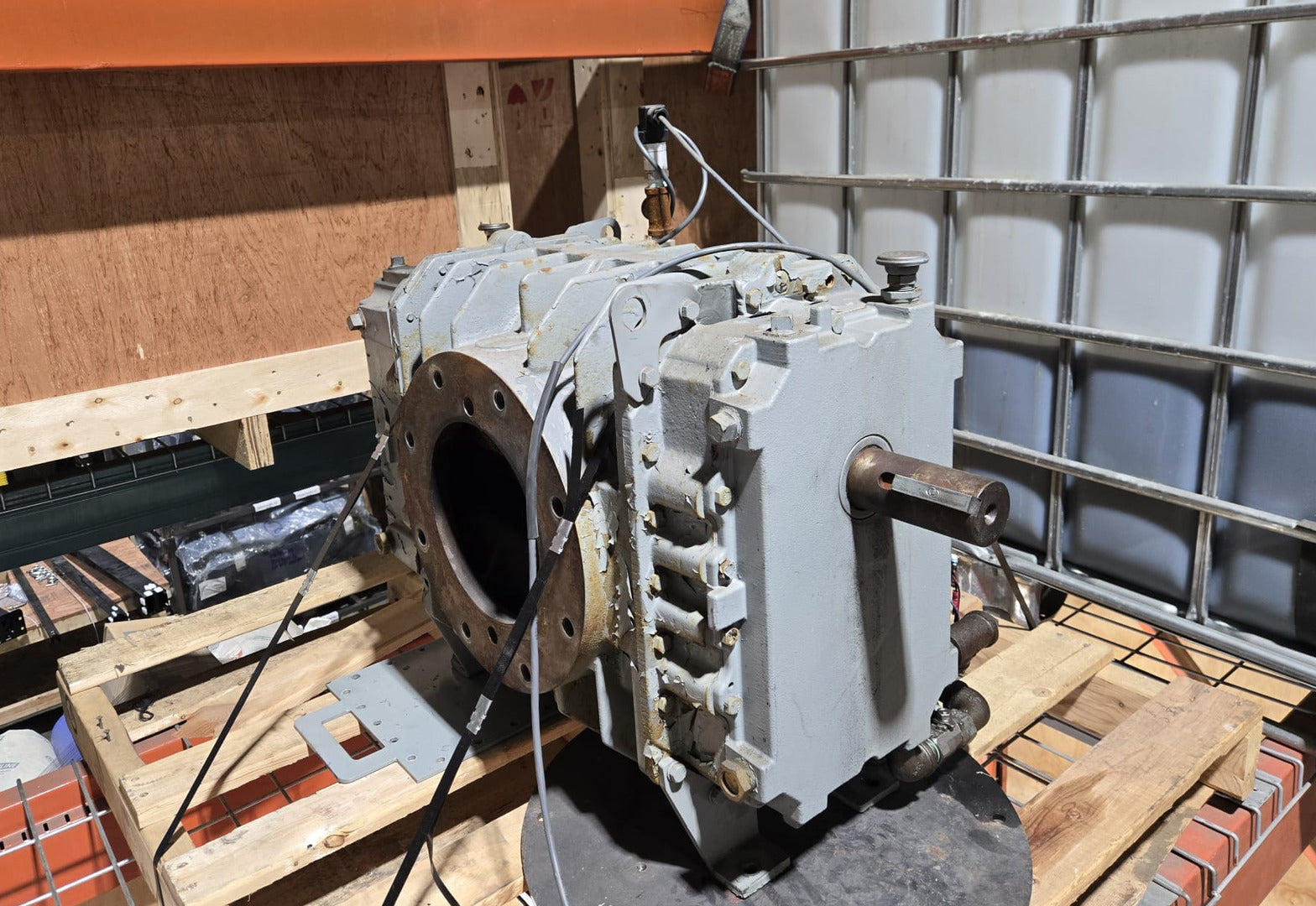

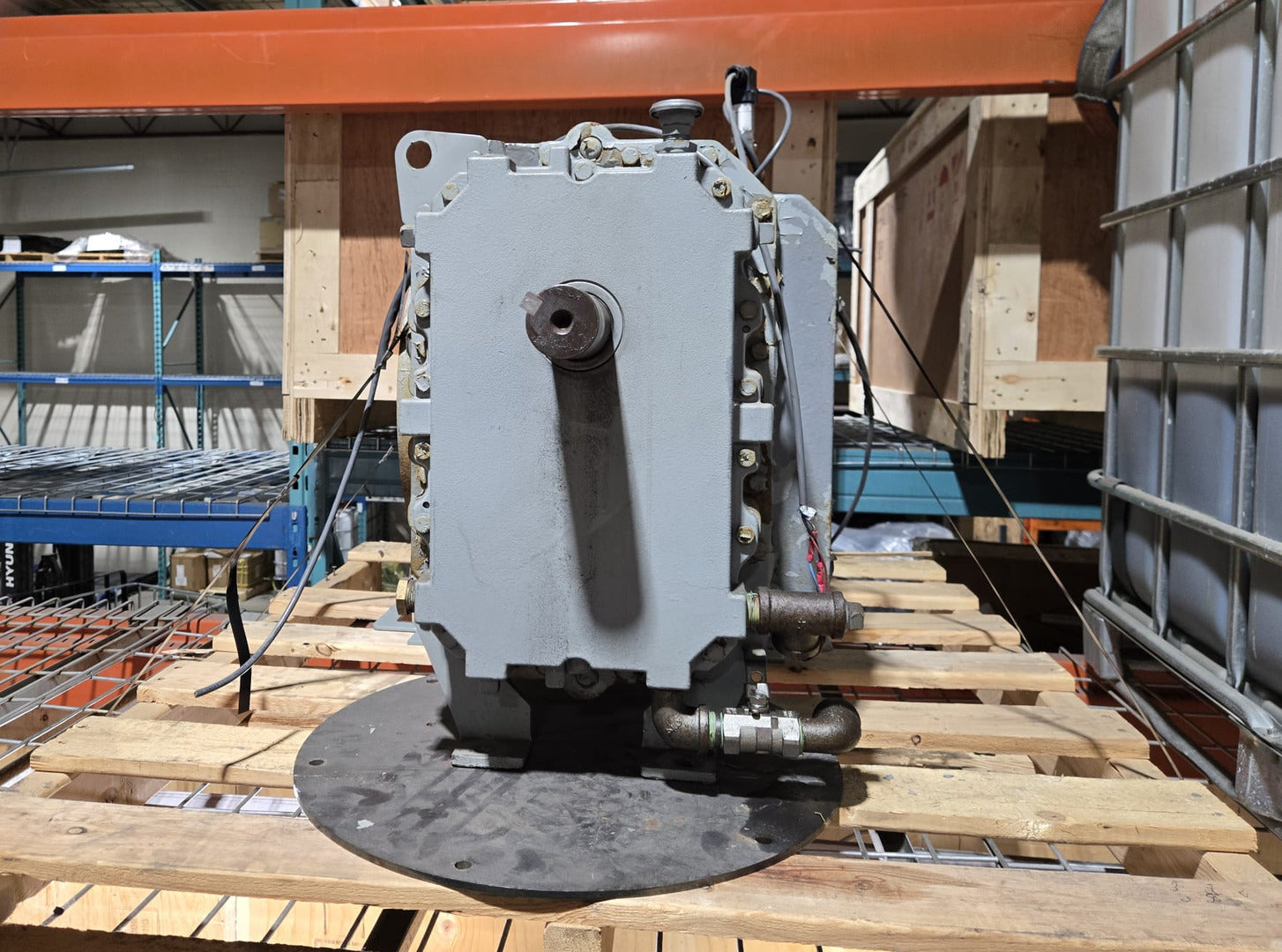

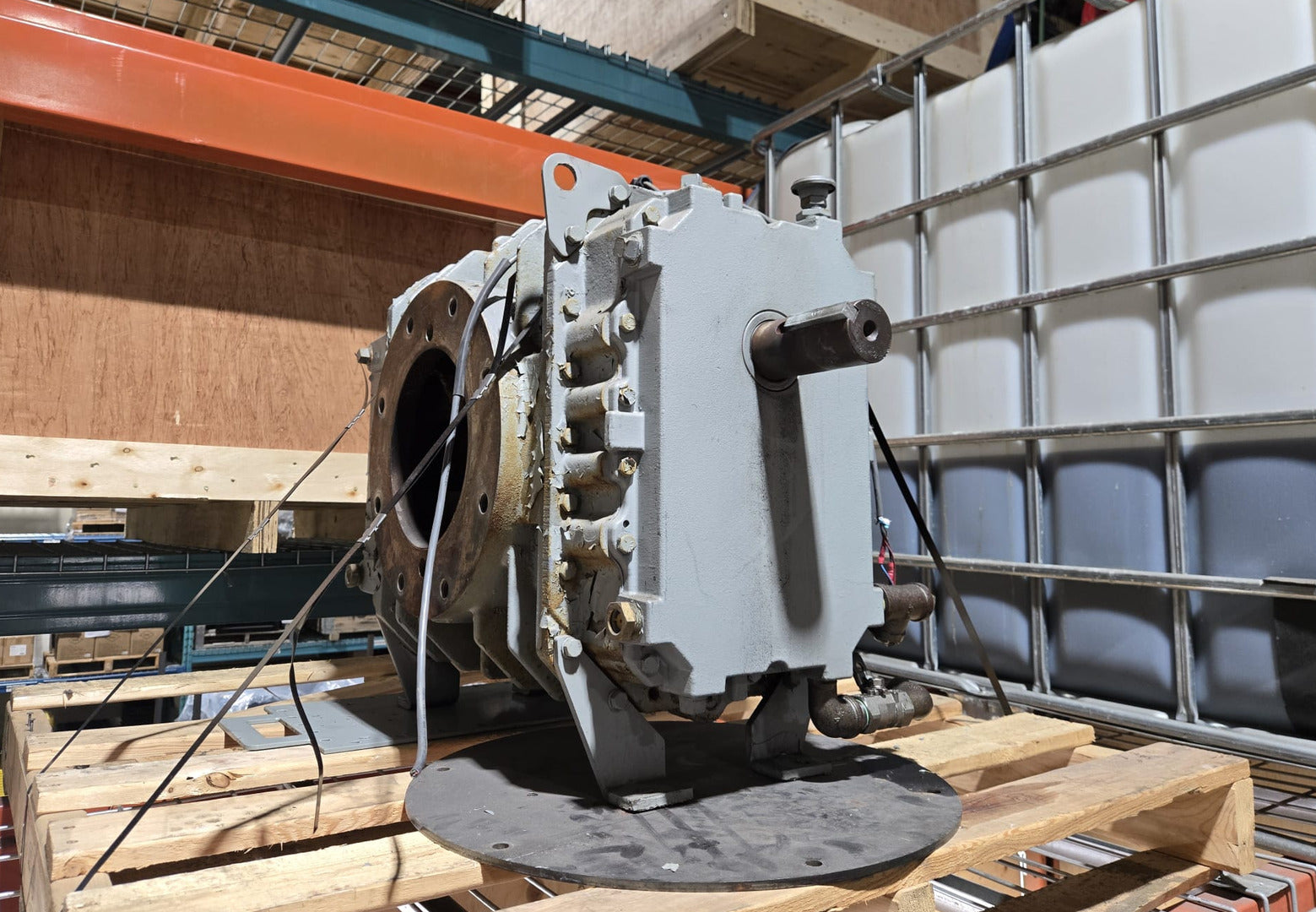

Heavy-duty Roots 616J RAM WHISPAIR rotary positive displacement blower designed for industrial air and gas handling applications. The RAM WHISPAIR design uses a proprietary pressure-equalization system to reduce pressure pulsations, operating noise and power loss compared with conventional rotary lobe blower designs. Roots Blower This unit was installed and operated for less than 50 hours, providing an excellent opportunity for applications requiring a very low-hour industrial blower without the cost of purchasing new. The 616J is rated for airflow up to approximately 2,162 CFM, pressures up to 15 PSI, vacuum service up to 16 in. Hg, and speeds up to 3,000 RPM. Current manufacturer/dealer specifications for the 616 frame confirm these ratings. pdblowers, Inc.
| Specifications | |
|---|---|

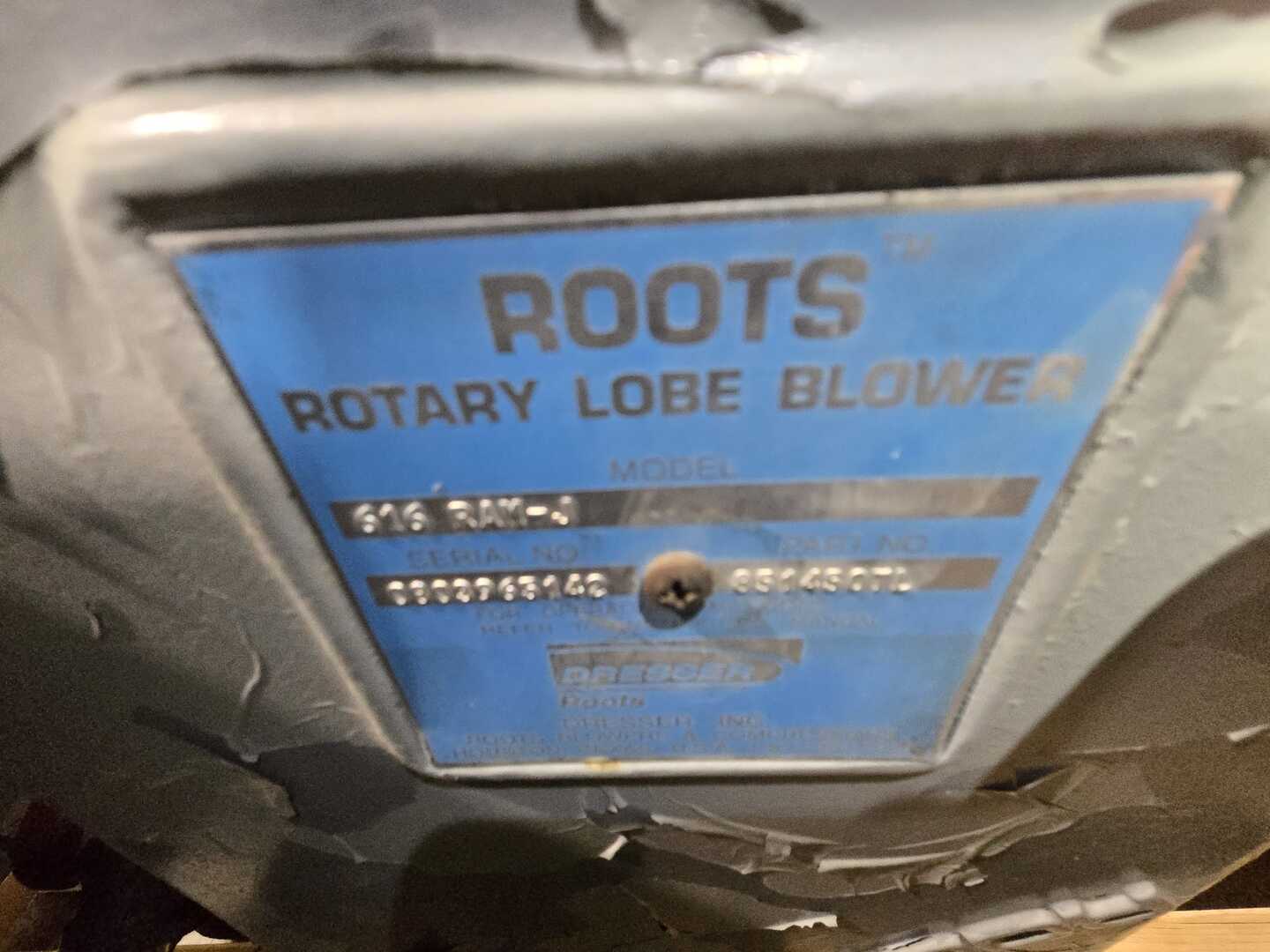

| Model | 616 Ram-J |
| S/N: | 060396514 |
| Condition | Used | General |
| Type | Positive Displacement |
| RPM | 3000 rpm |
| CFM | 2162 cfm |
| Other Specifications |
|---|
|
Type: Rotary Positive Displacement Blower Blower Design: Rotary Lobe / Bi-Lobe Frame Size: 616J Maximum Airflow: 2,162 CFM Maximum Pressure: 15 PSI Maximum Vacuum: 16 in. Hg Maximum Speed: 3,000 RPM Minimum Speed: Approx. 636 RPM Inlet Connection: 8 in. Flange Discharge Connection: 6 in. Flange Drive Shaft Diameter: 2 in. Shaft Keyway: 0.500 x 0.250 in. Lubrication: Splash Oil Timing Gears: Alloy Steel Bearings: Cylindrical Roller Air Seals: Piston Ring Drive Shaft Seal: Lip-Type Hydrodynamic Approx. Net Weight: 700 lb Hours: Less Than 50 Hours |
