Description

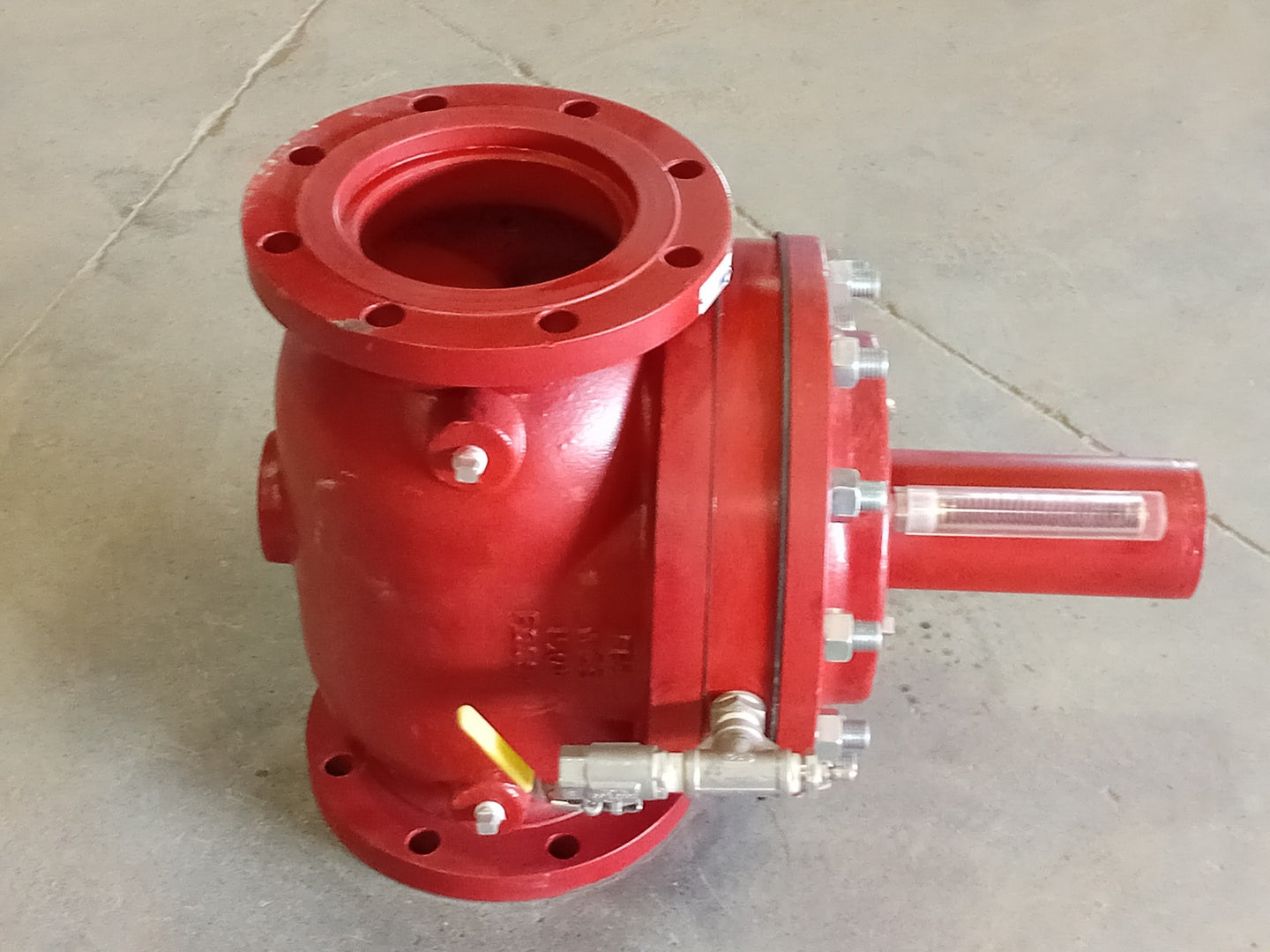

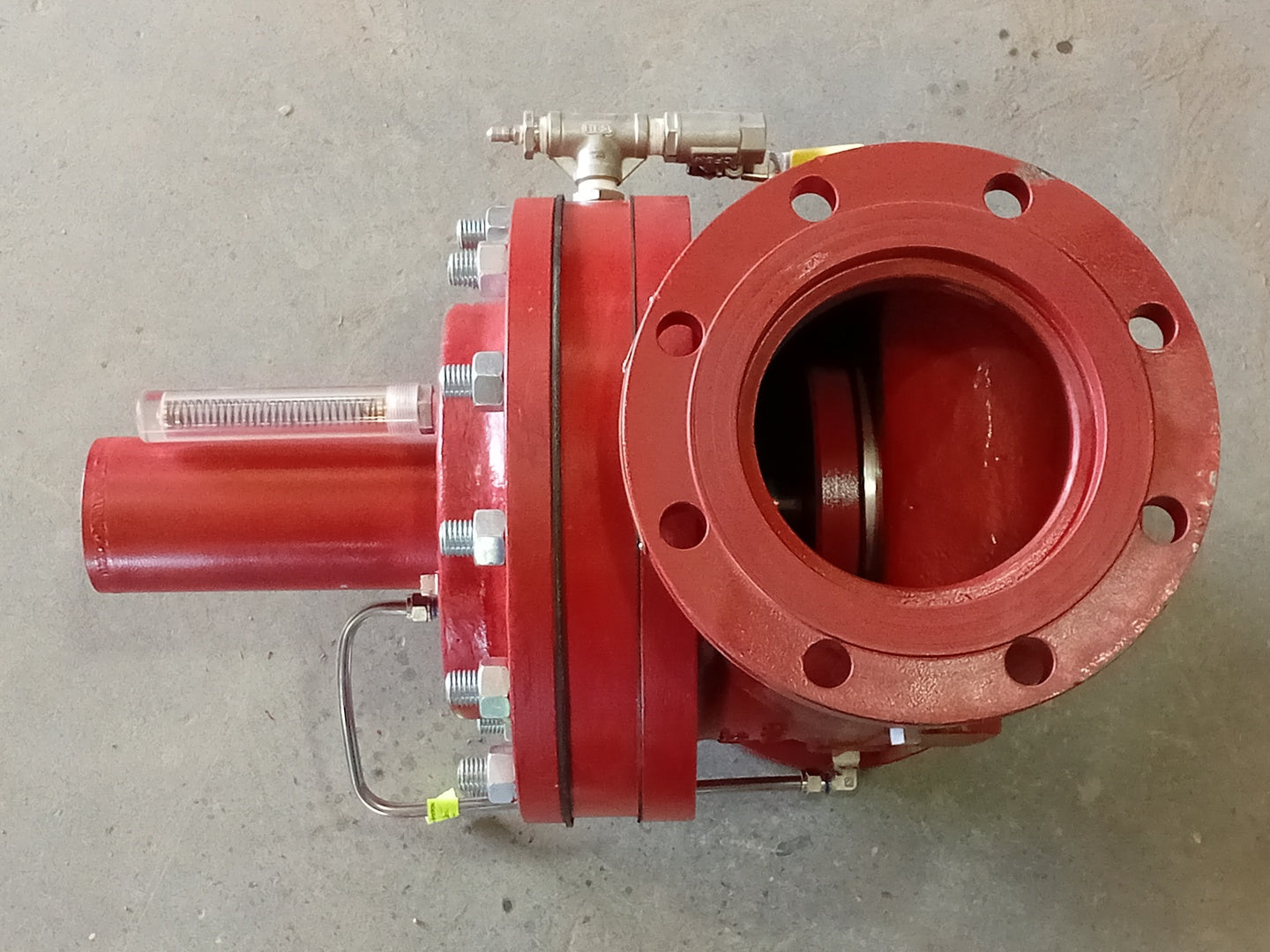

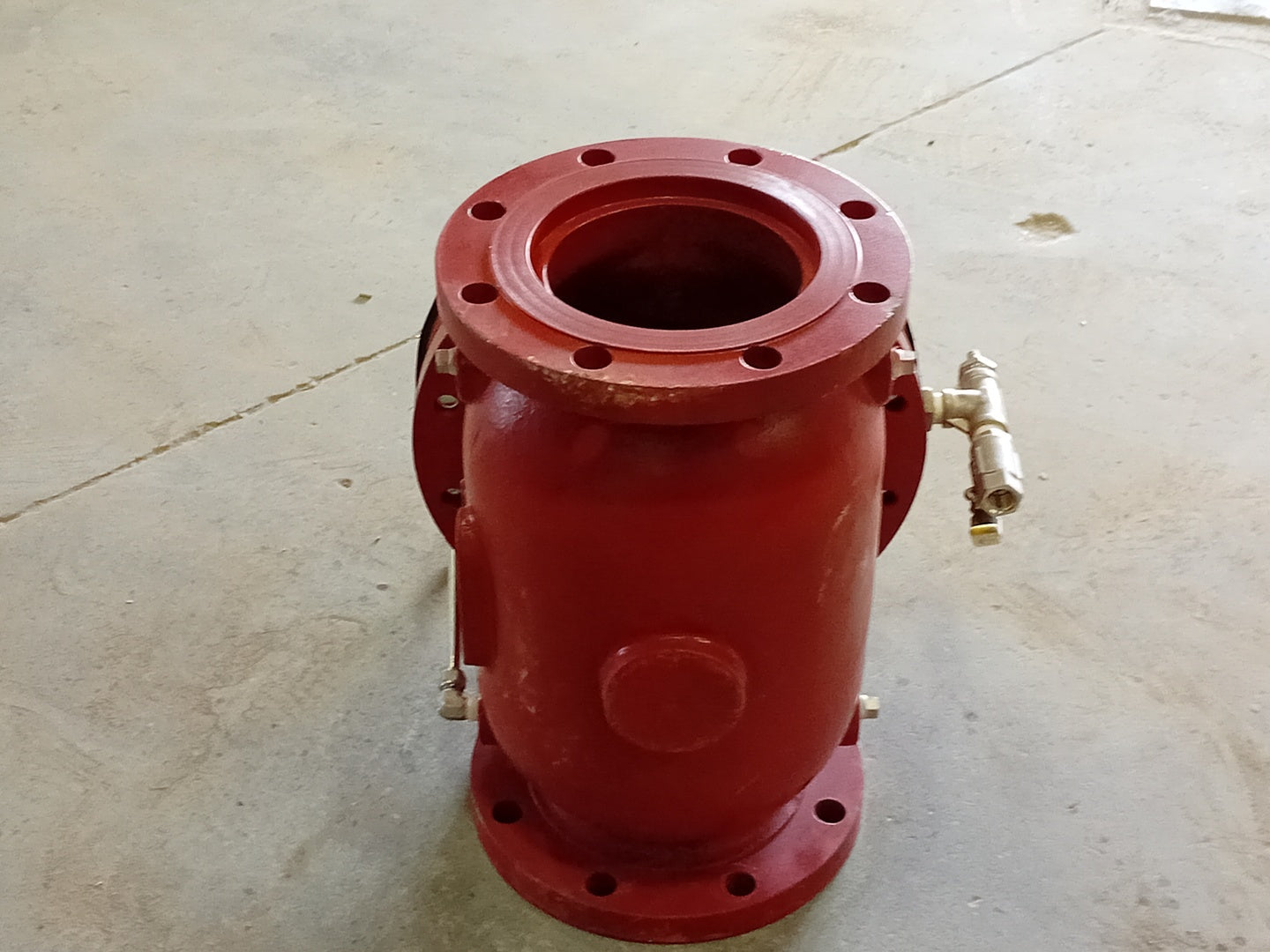

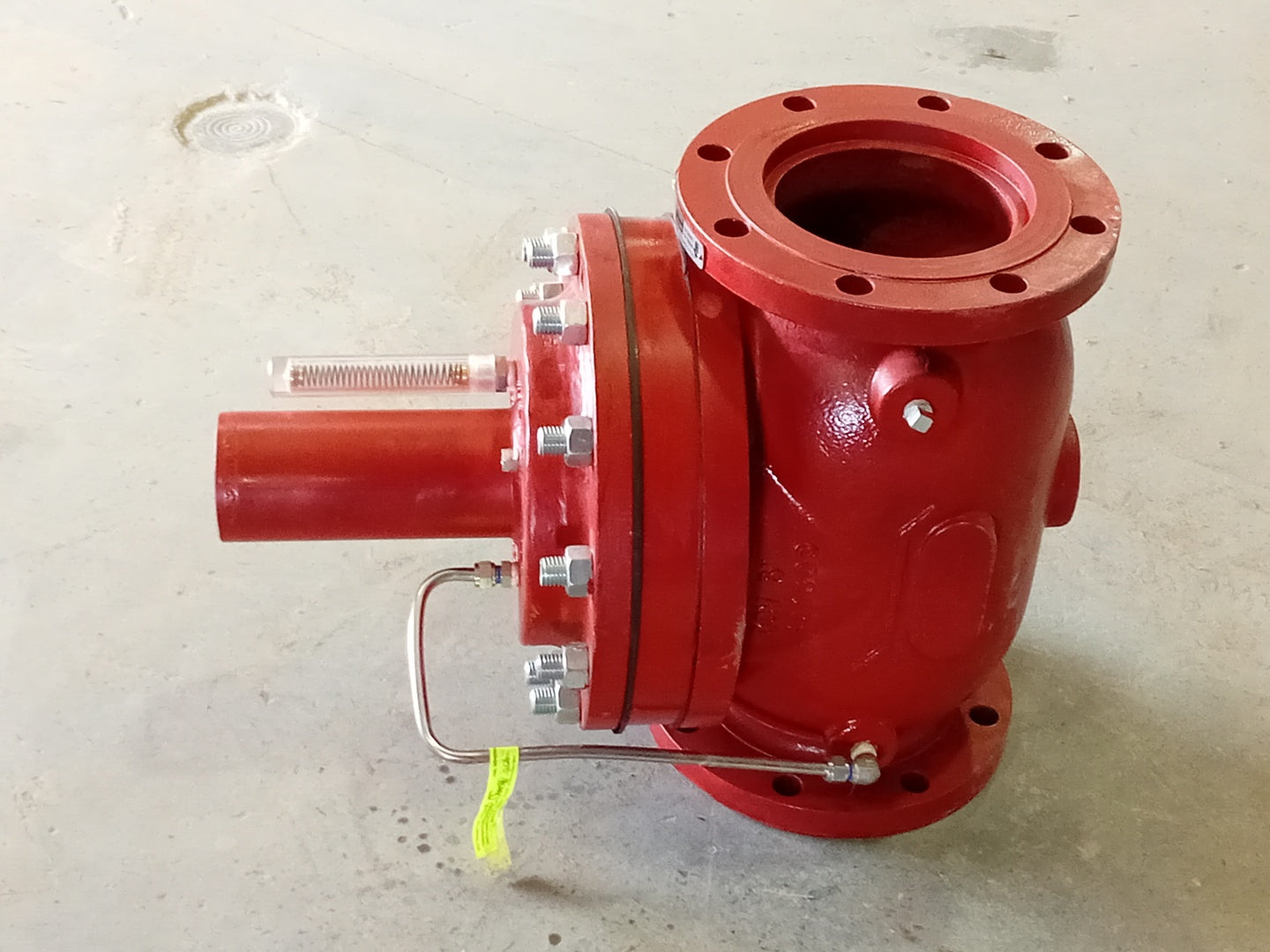

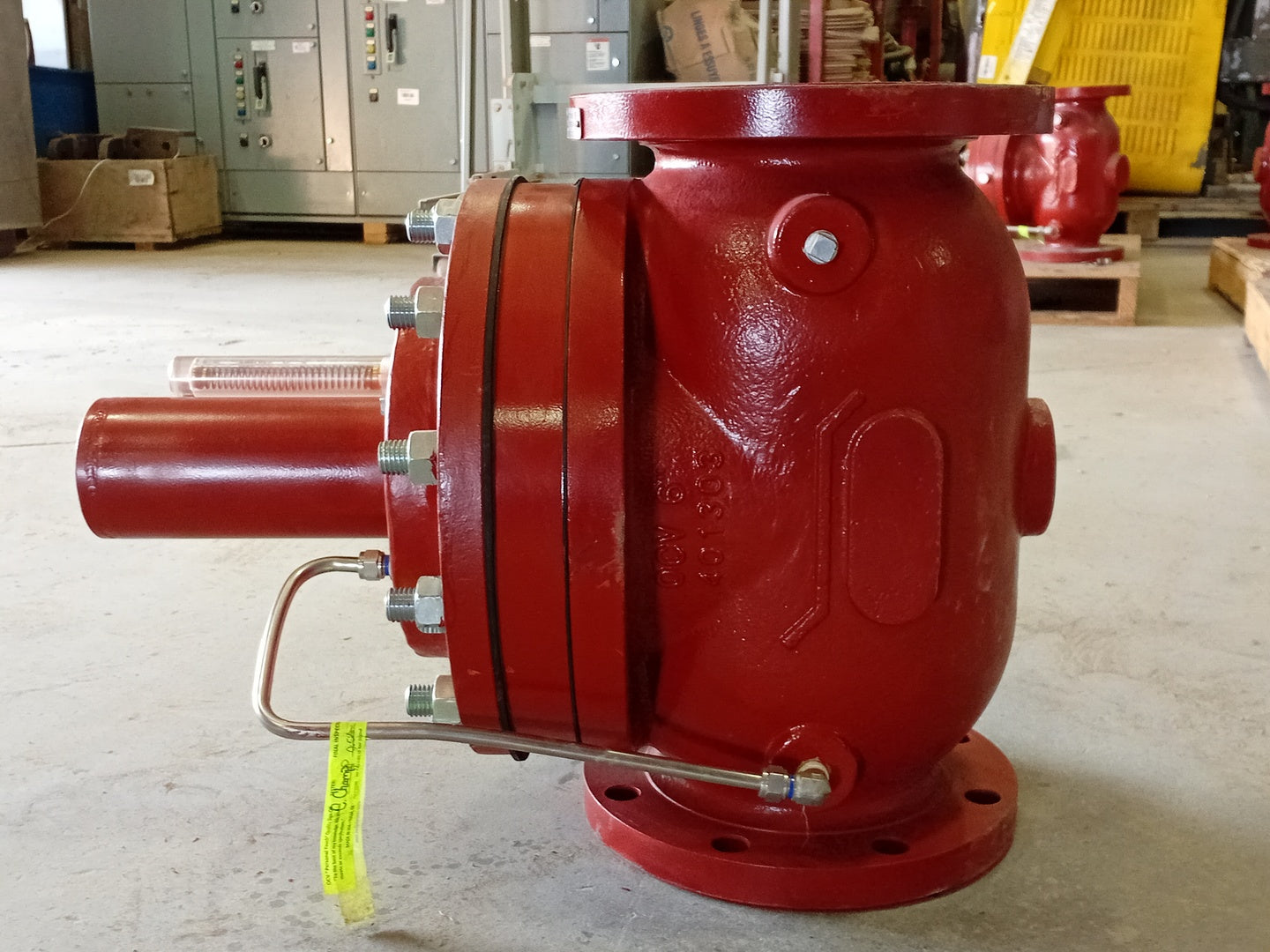

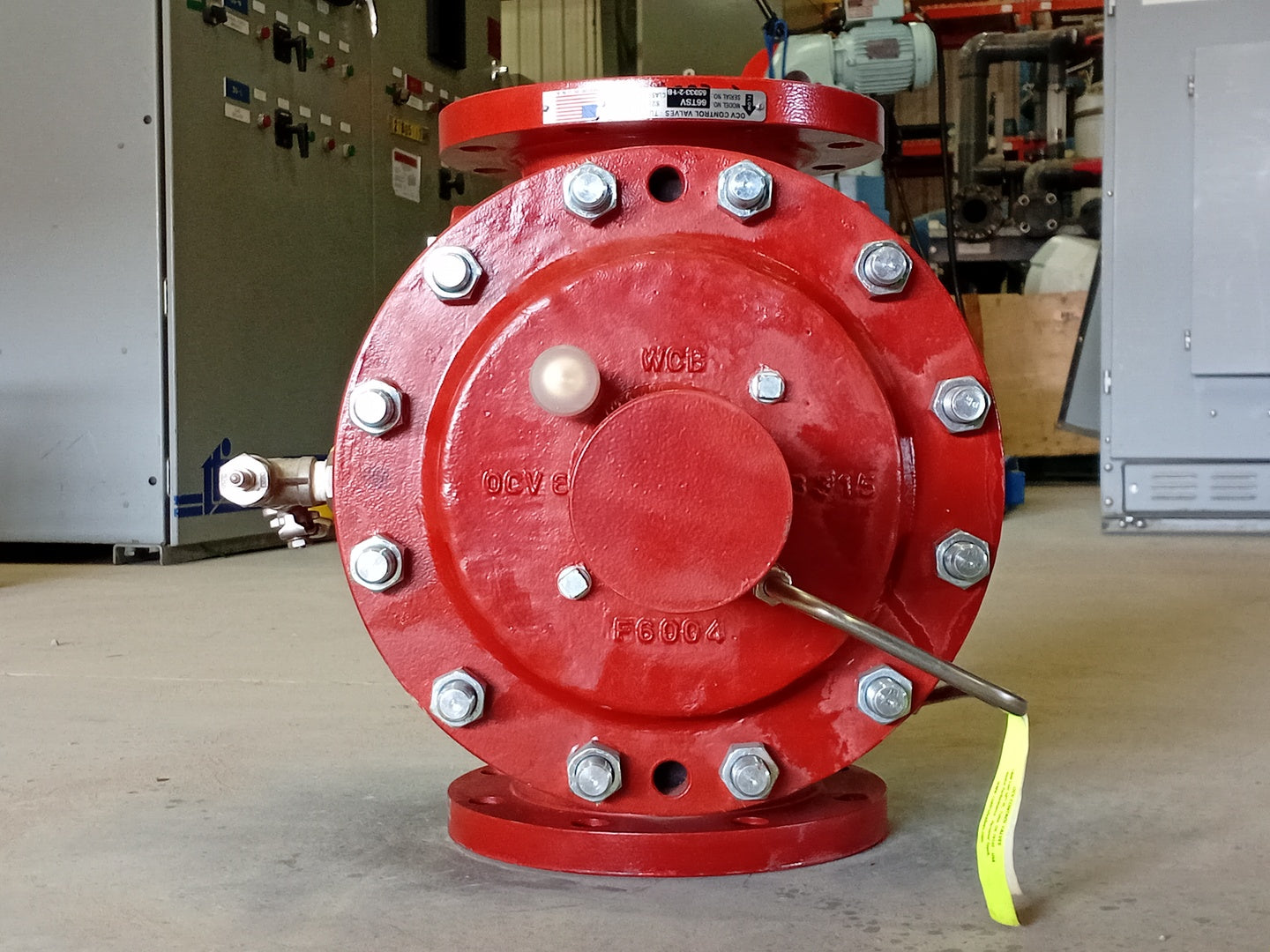

OCV Control Valves Model 66TSV 6-inch tank safety valve with Class 150 flanged connections. This hydraulically operated valve is designed to automatically isolate a storage tank from a loading terminal or transfer point. The valve opens when sufficient pump discharge pressure is available and automatically closes following pump shutdown, loss of pressure, pump failure, or line rupture. OCV also specifies thermal-relief, anti-siphon, manual-opening, and visual-position-indicator functionality for the 66TS series.
| Specifications | |
|---|---|

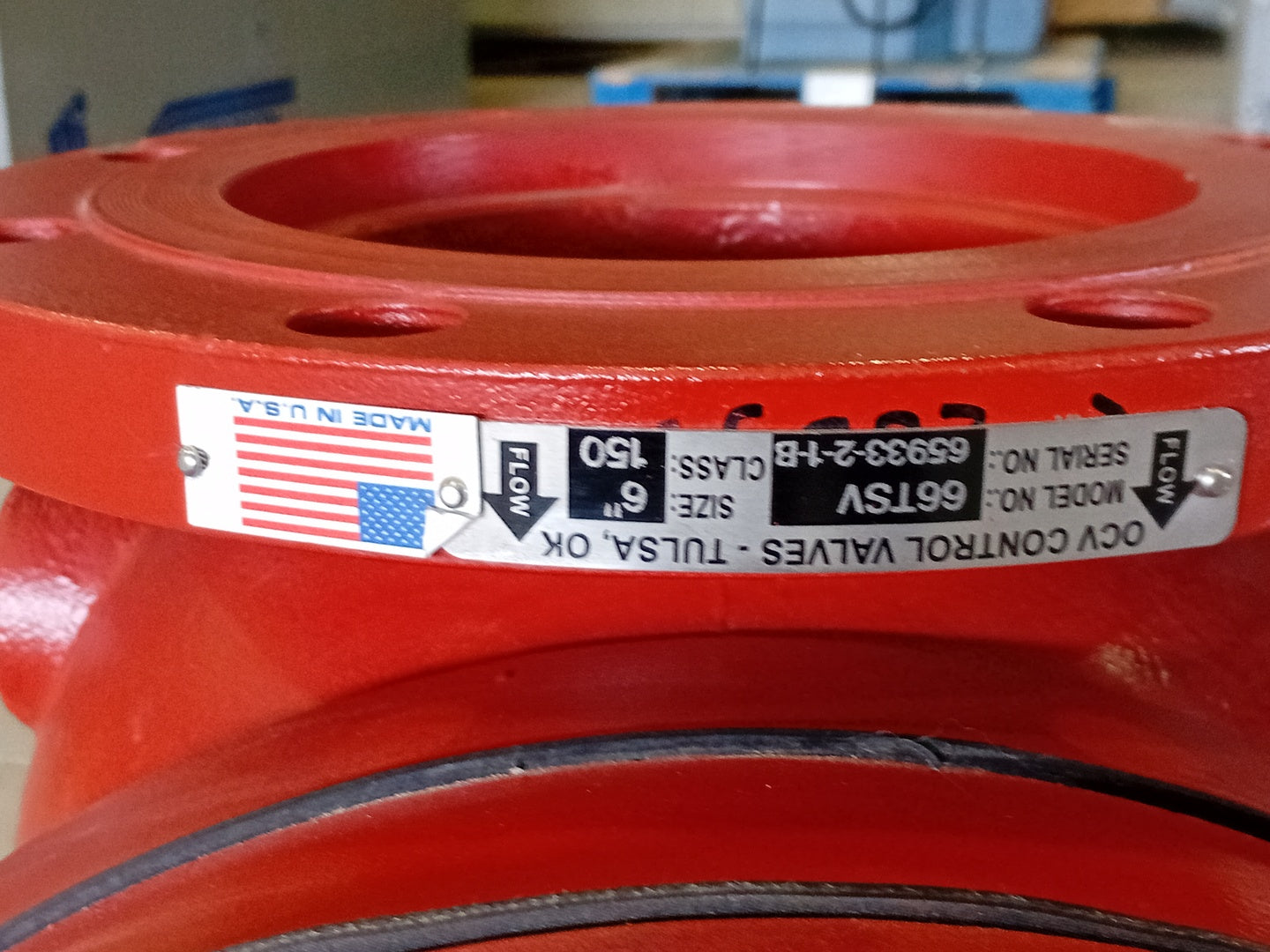

| Model | 66TSV |
| S/N: | 65983-2-HB |
| Condition | Surplus New | General |

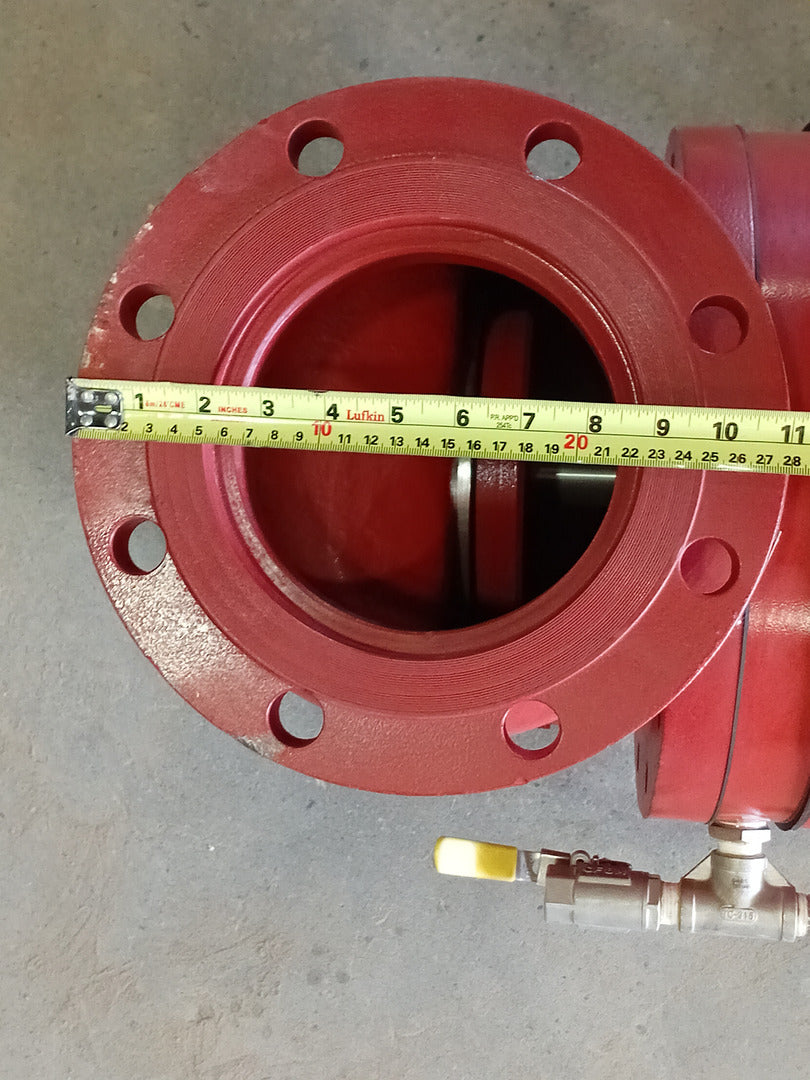

| Diameter | 6" |
| Class | 150 |
| Connection Ends | Flange |
| Body | WCB Carbon Steel |
| Other Specifications |
|---|
|

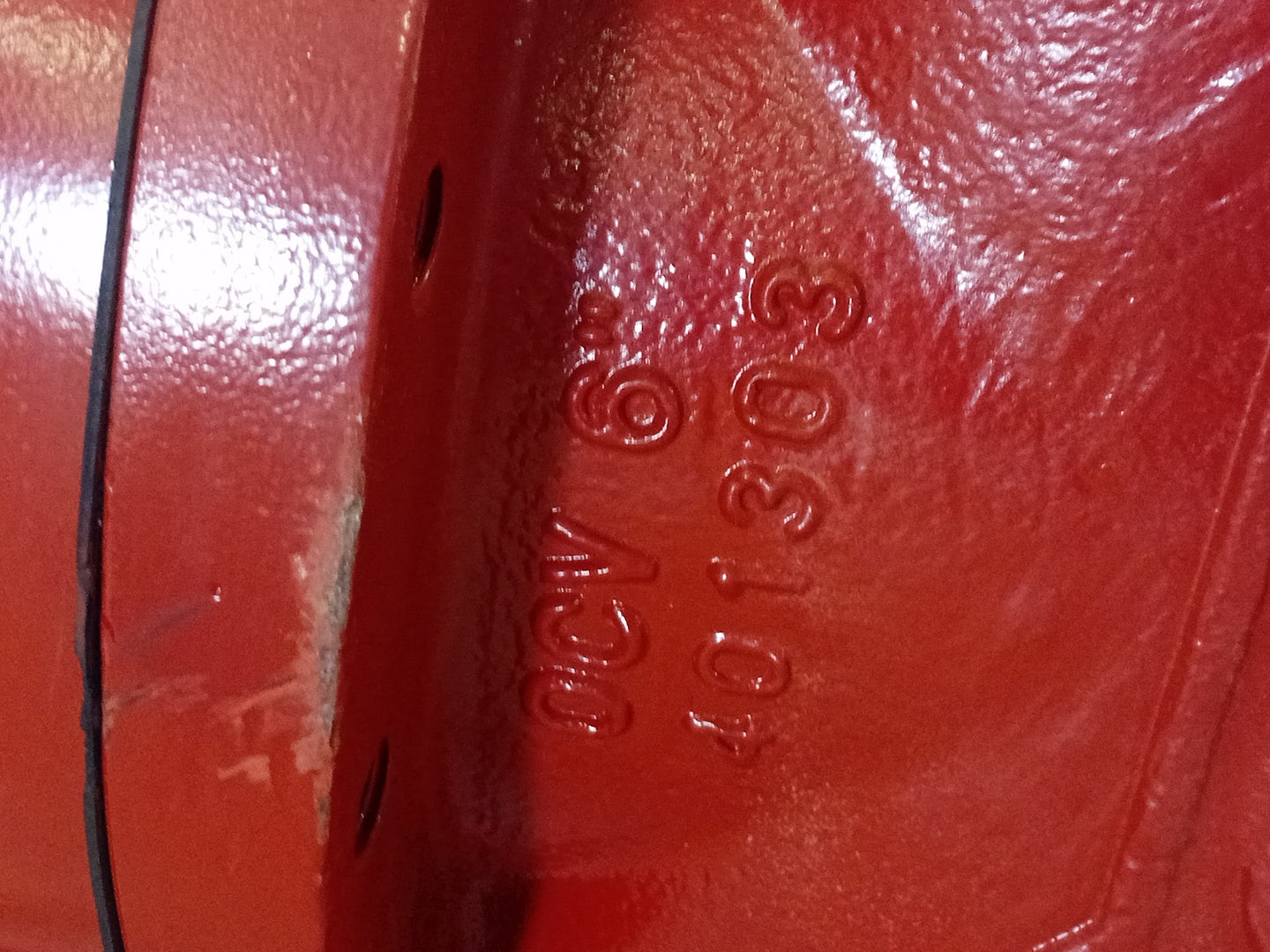

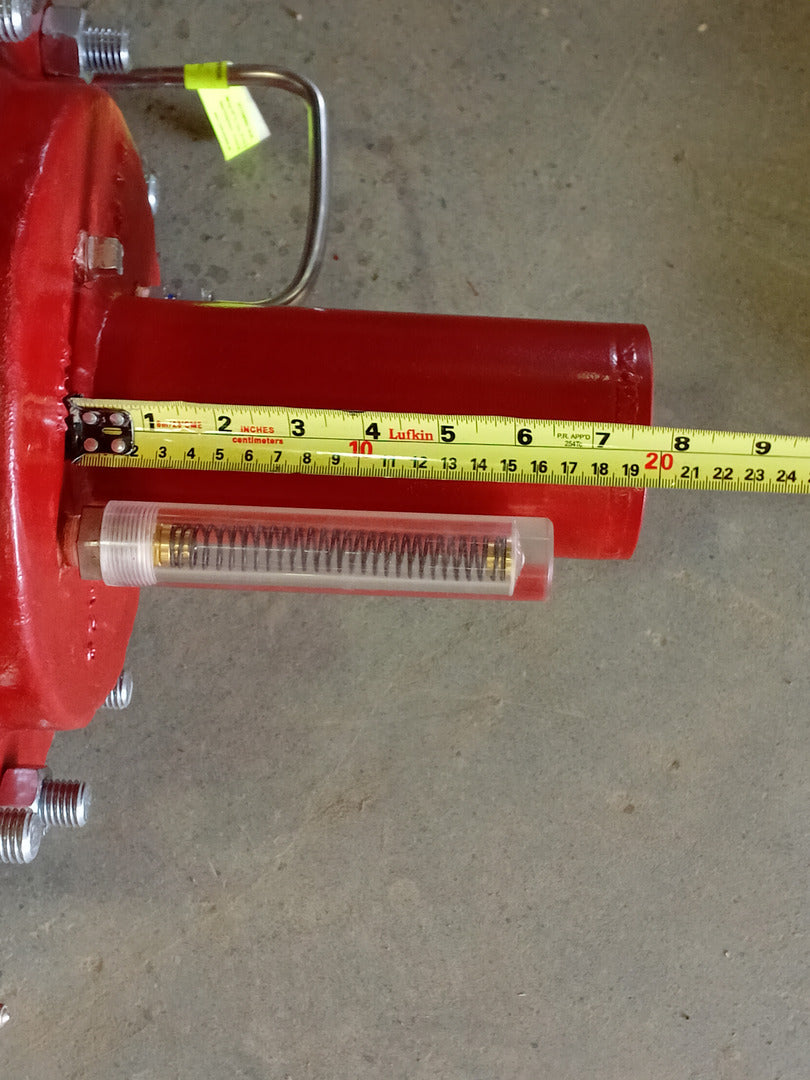

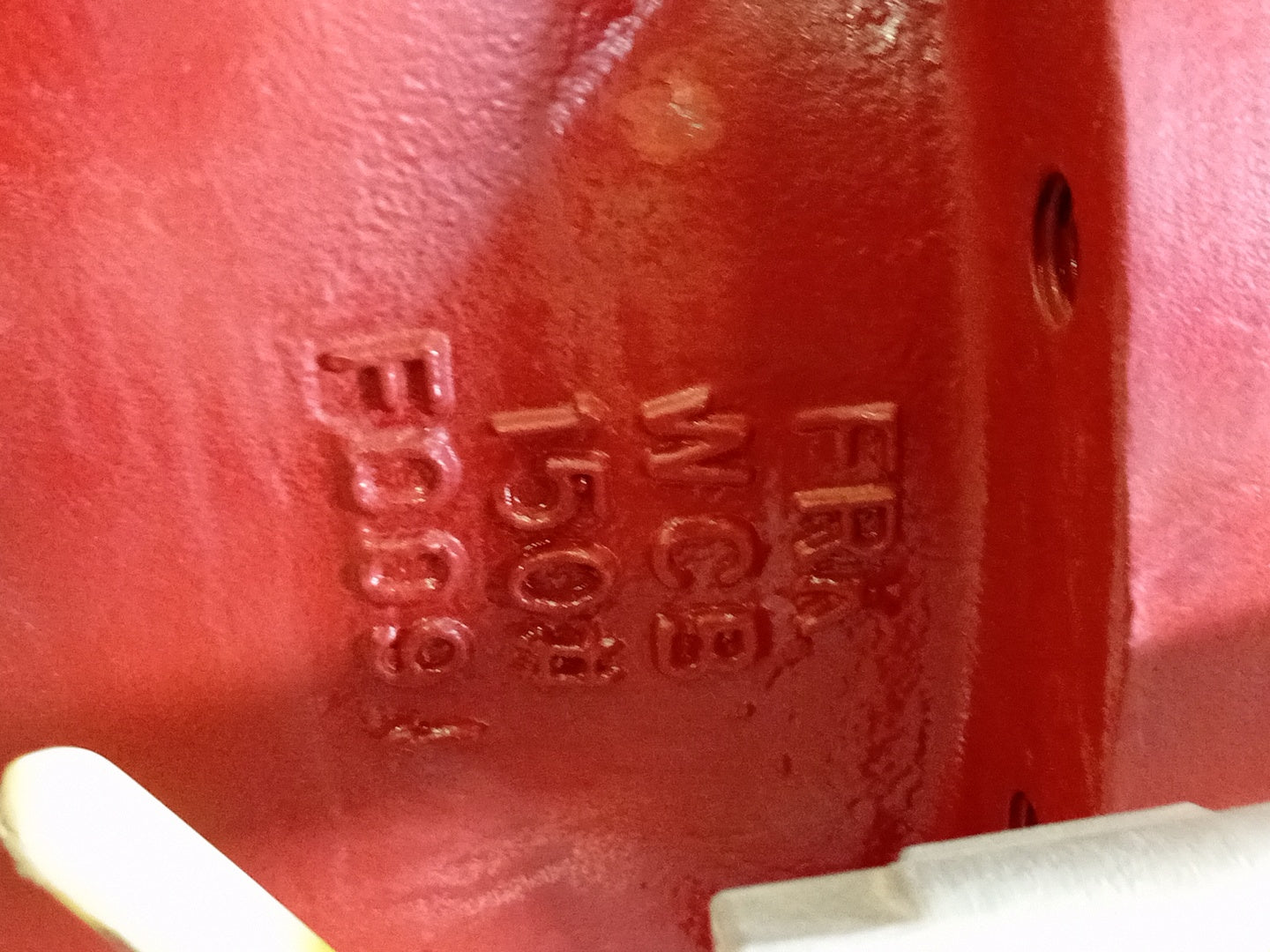

Valve Type: Tank Safety Valve Valve Style: Globe Size: 6 in Pressure Class: ANSI Class 150 Connection: Flanged Body Material: WCB Carbon Steel Body Marking: WCB Body Rating Marking: 150 Stem: Stainless Steel Operation: Hydraulic / Diaphragm Actuated Configuration: Dual Chamber, Single Seated Maximum Pressure: 285 PSI at 100°F for Class 150 steel construction Maximum Flow: 1,800 GPM Valve Cv: 450 Visual Position Indicator: Yes Manual Opening Provision: Yes Thermal Relief: Yes Anti-Siphon Protection: Yes Approx. Face-to-Face Length: 17.75 in for 6 in Class 150 configuration Made In: USA |
