Description

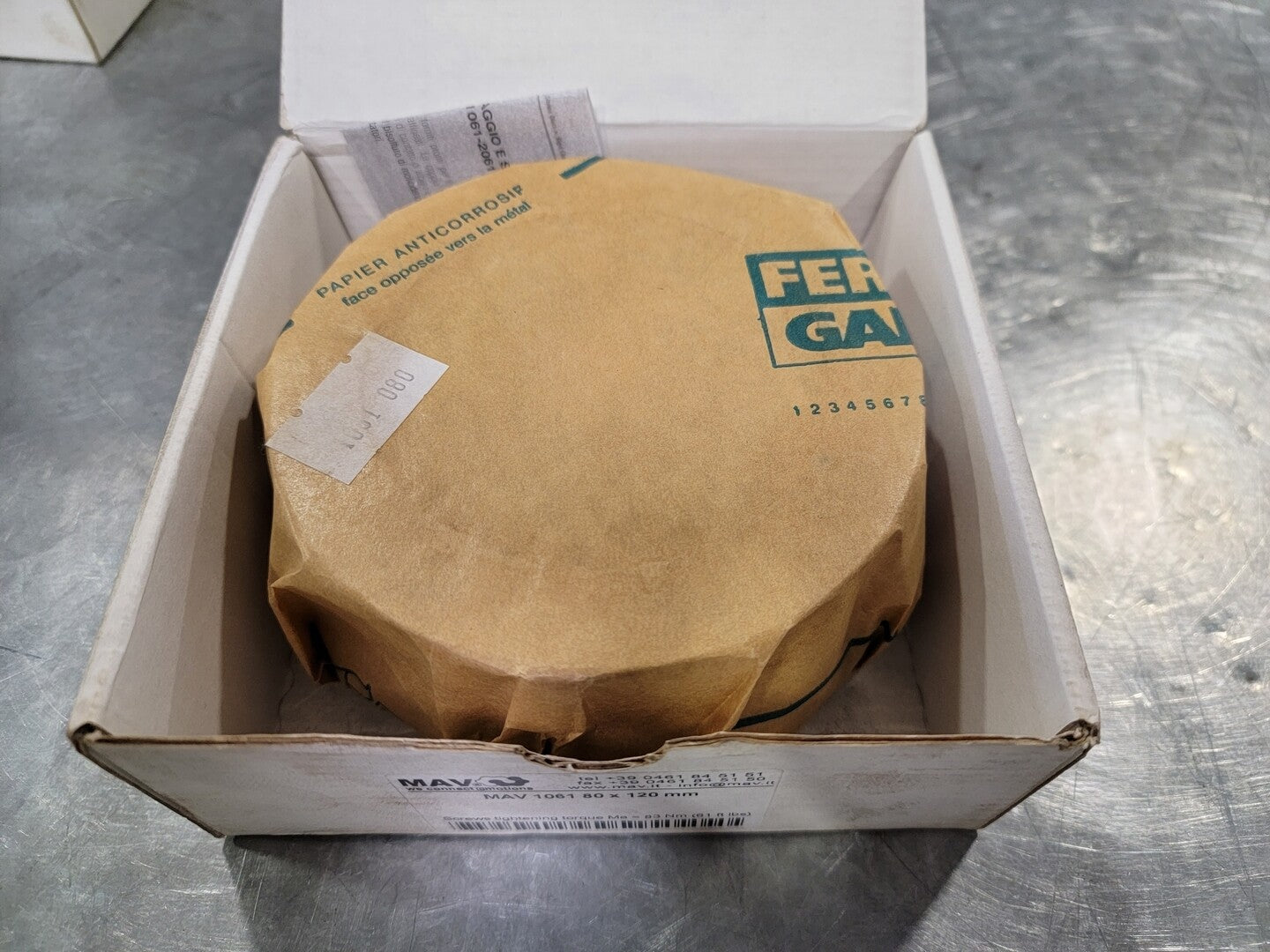

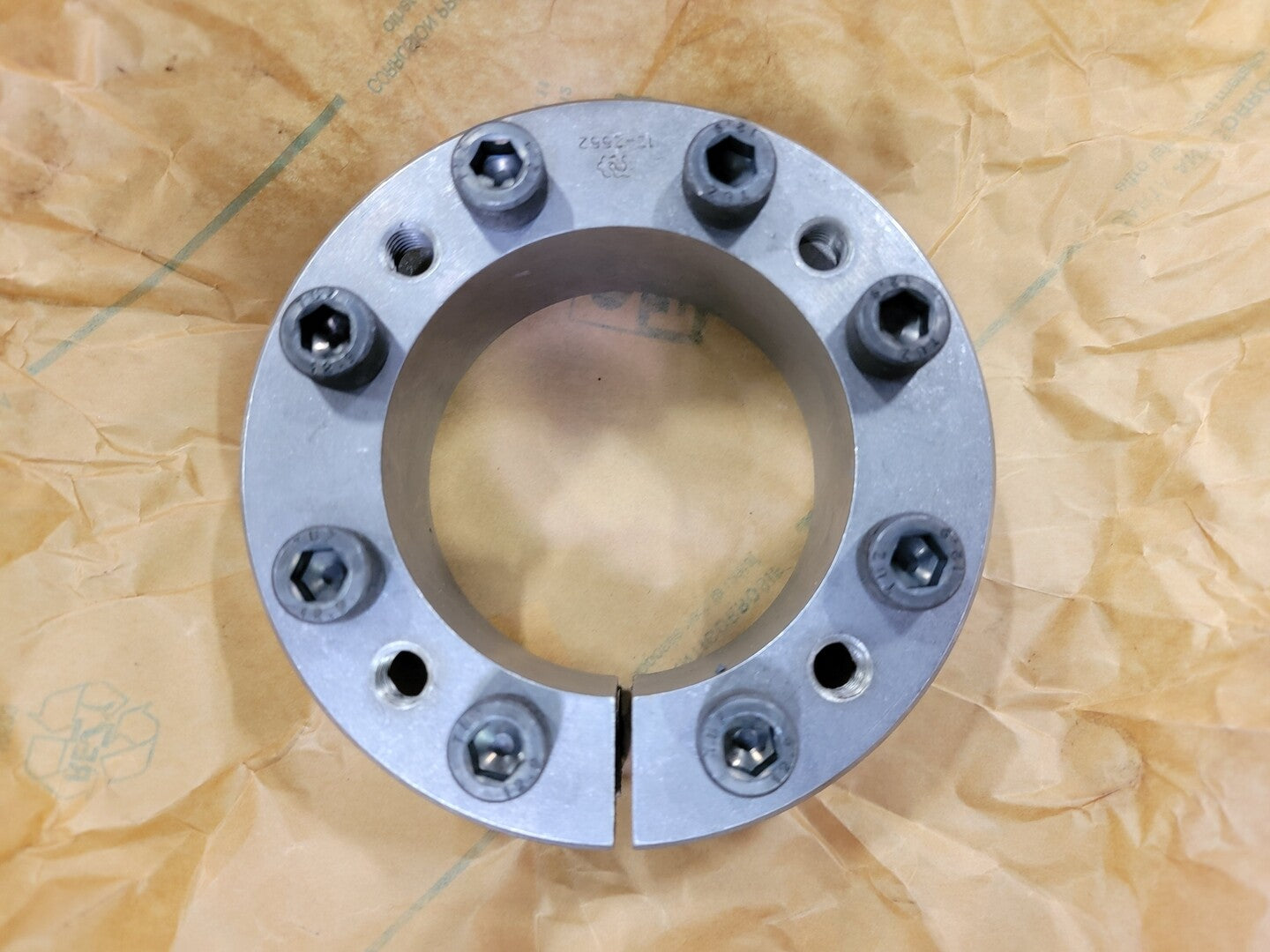

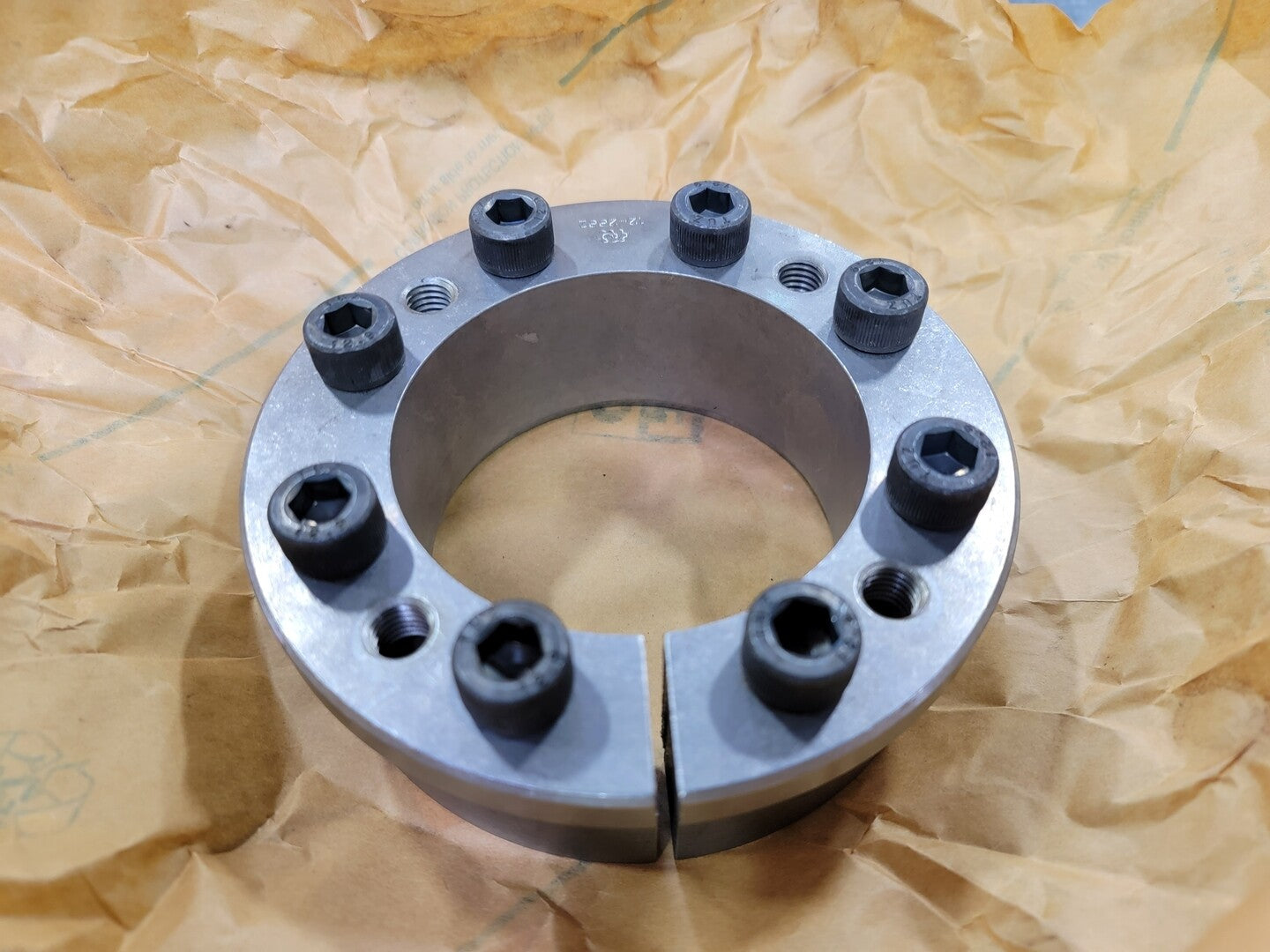

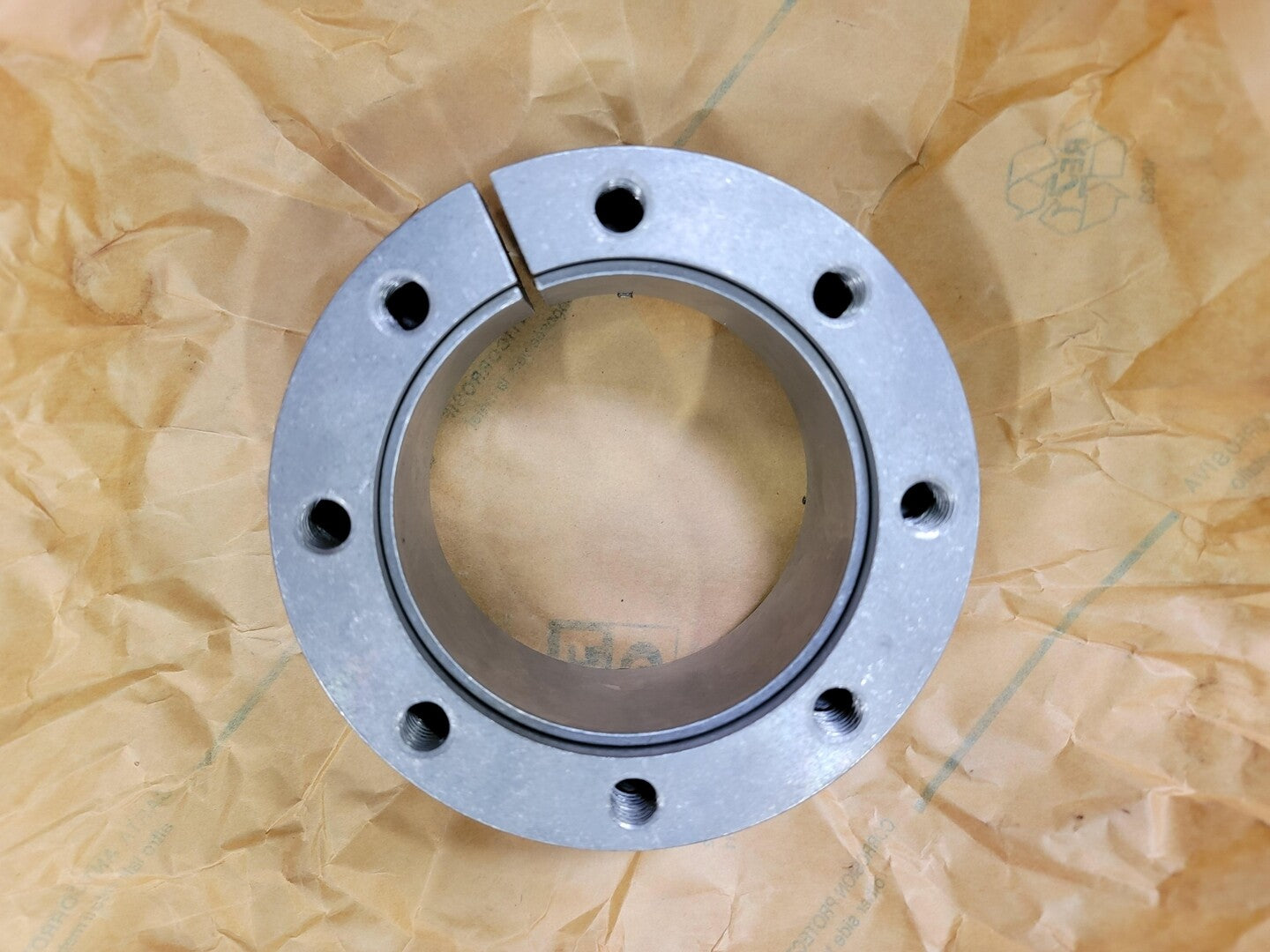

MAV 1061 keyless locking assembly designed for secure shaft-to-hub connections without keys, splines, or set screws. This self-centering, single-taper locking element provides high torque transmission while maintaining a fixed axial hub position during tightening. Suitable for mounting gears, pulleys, sprockets, couplings, fans, and conveyor components.
| Specifications | |
|---|---|

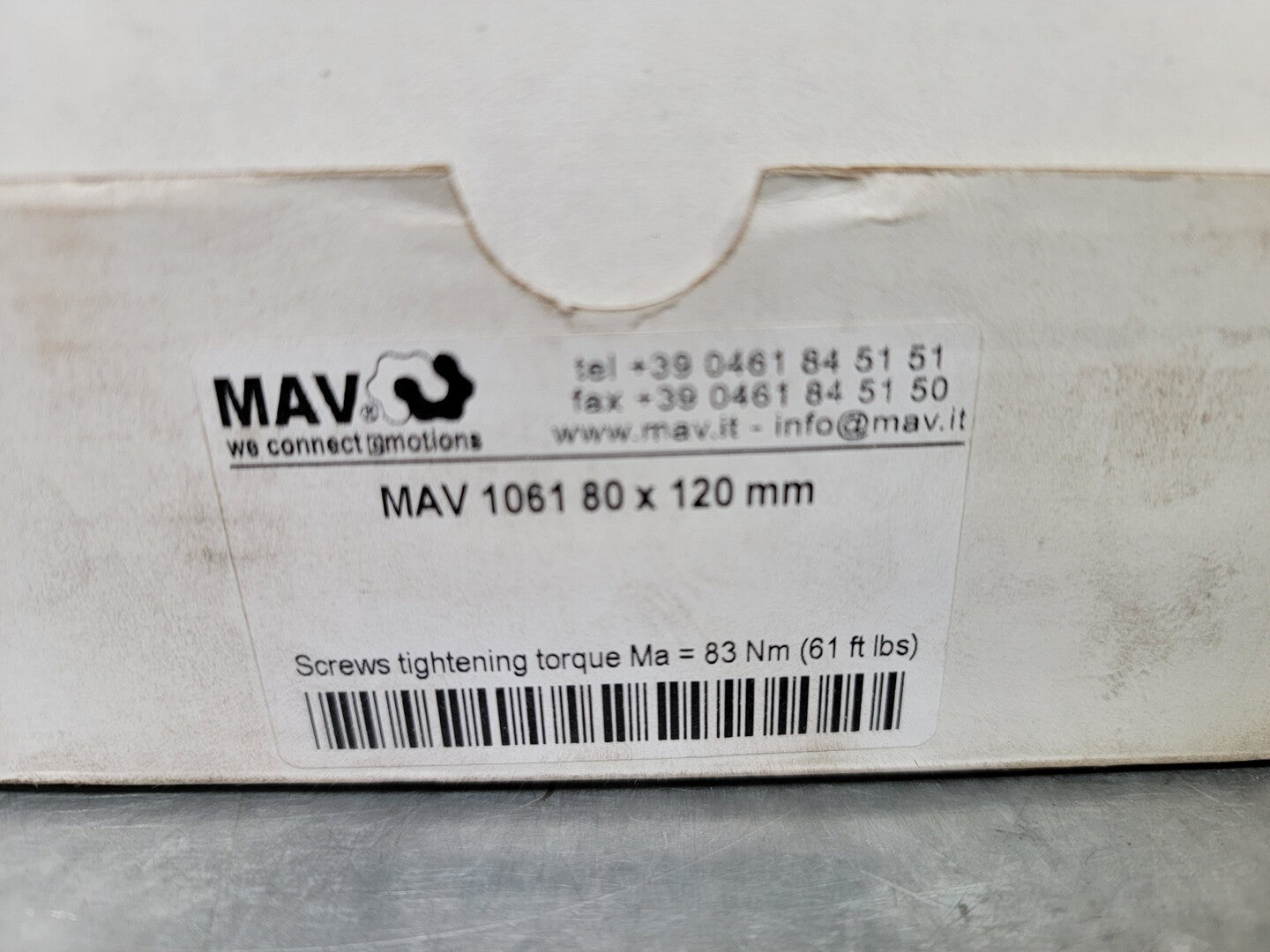

| Model | MAV 1061 80 x 120 mm |
| Made In | ITALY |
| Condition | Surplus New | General |
| Type | Keyless Bushing |
| Series | 1061 |
| Bore Diameter | 3.149 " |
| Other Specifications |
|---|
|
Type: Keyless Locking Assembly Series: 1061 Bore Diameter (d): 80 mm Outside Diameter (D): 120 mm Mounting Style: Self-centering, single taper Axial Position: Fixed during tightening Fasteners: 8 x M10 socket head screws (Class 12.9) Recommended Screw Tightening Torque (Ma): 83 Nm (61 ft-lb) Maximum Torque Capacity (Mt): 5,410 Nm Maximum Axial Force (Fax): 135 kN Hub Contact Pressure (Ph): 124 MPa Shaft Tolerance: h8 Hub Bore Tolerance: H8 Features:-
Ideal Applications:-
|
