Description
| Specifications | |
|---|---|
| Model | 780-801 |
| S/N: | 53699801 |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
|
Overview

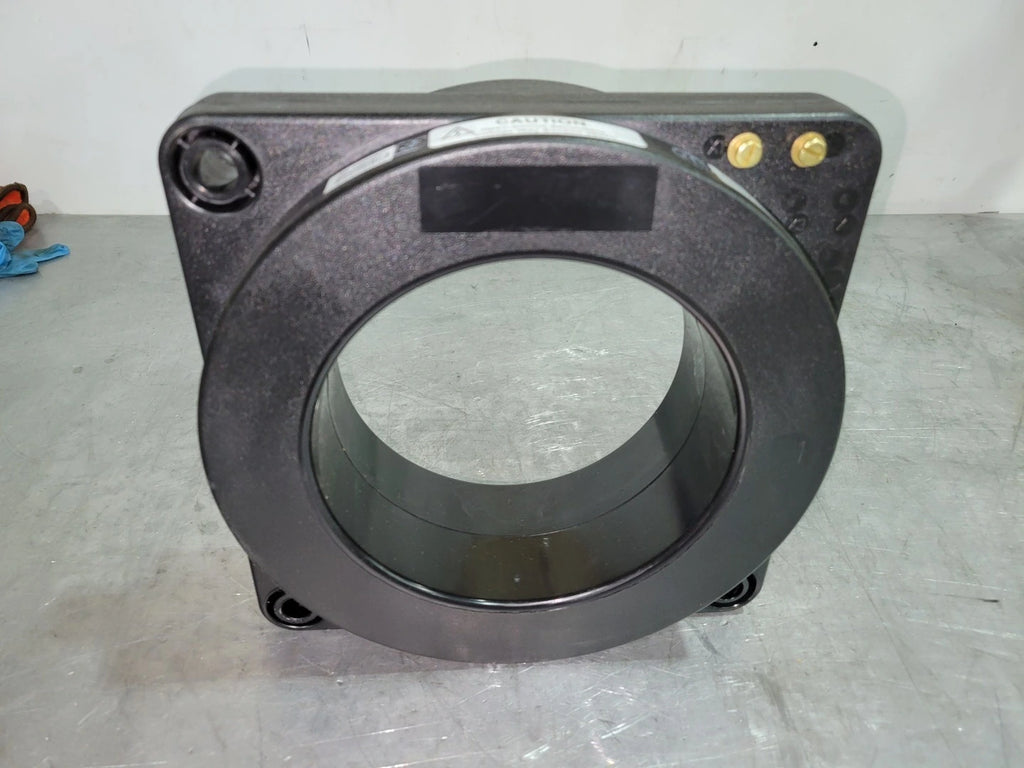

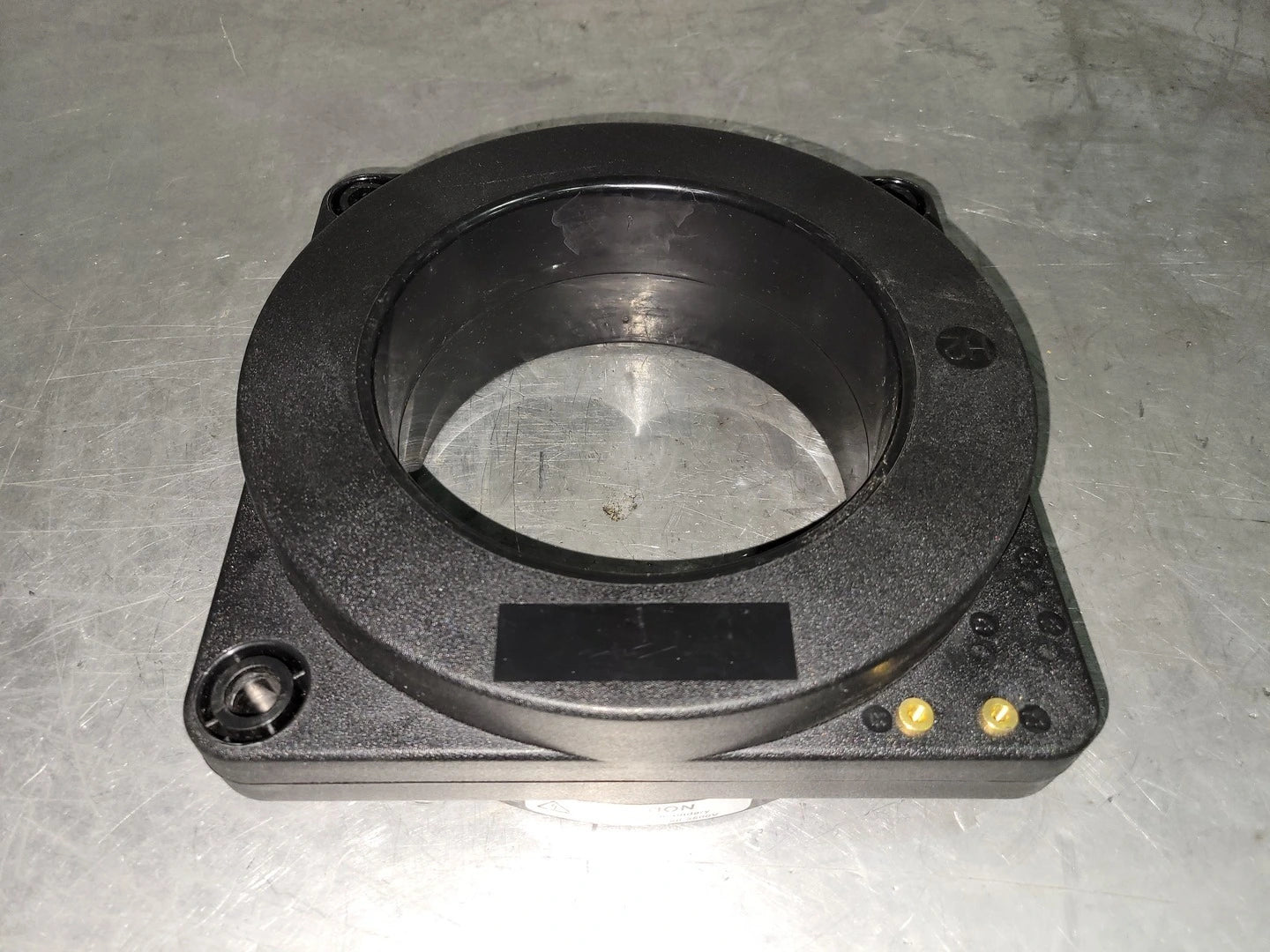

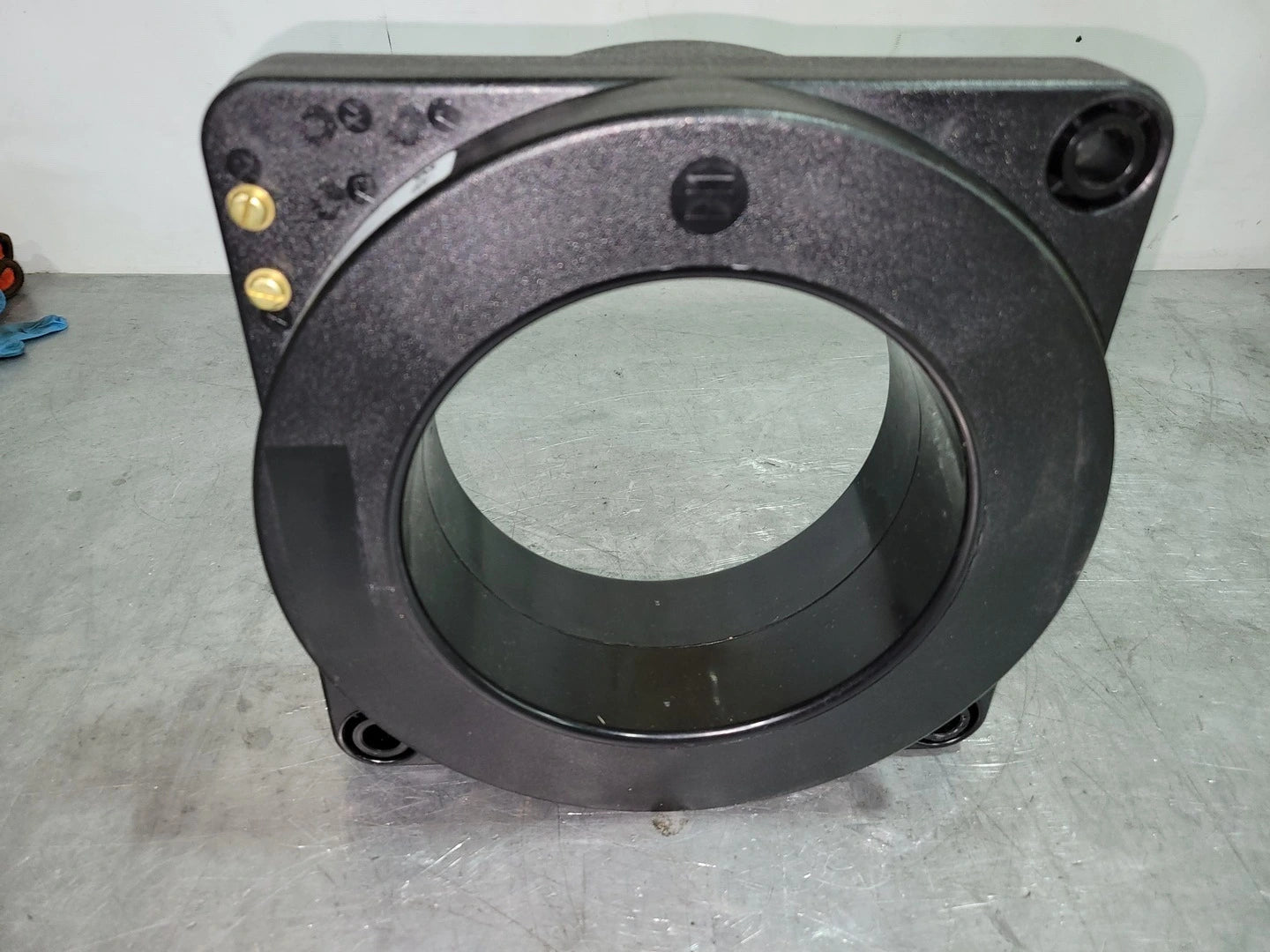

Instrument Transformer, Div of GE
Current Transformers, 780 Series
Item# 780-801

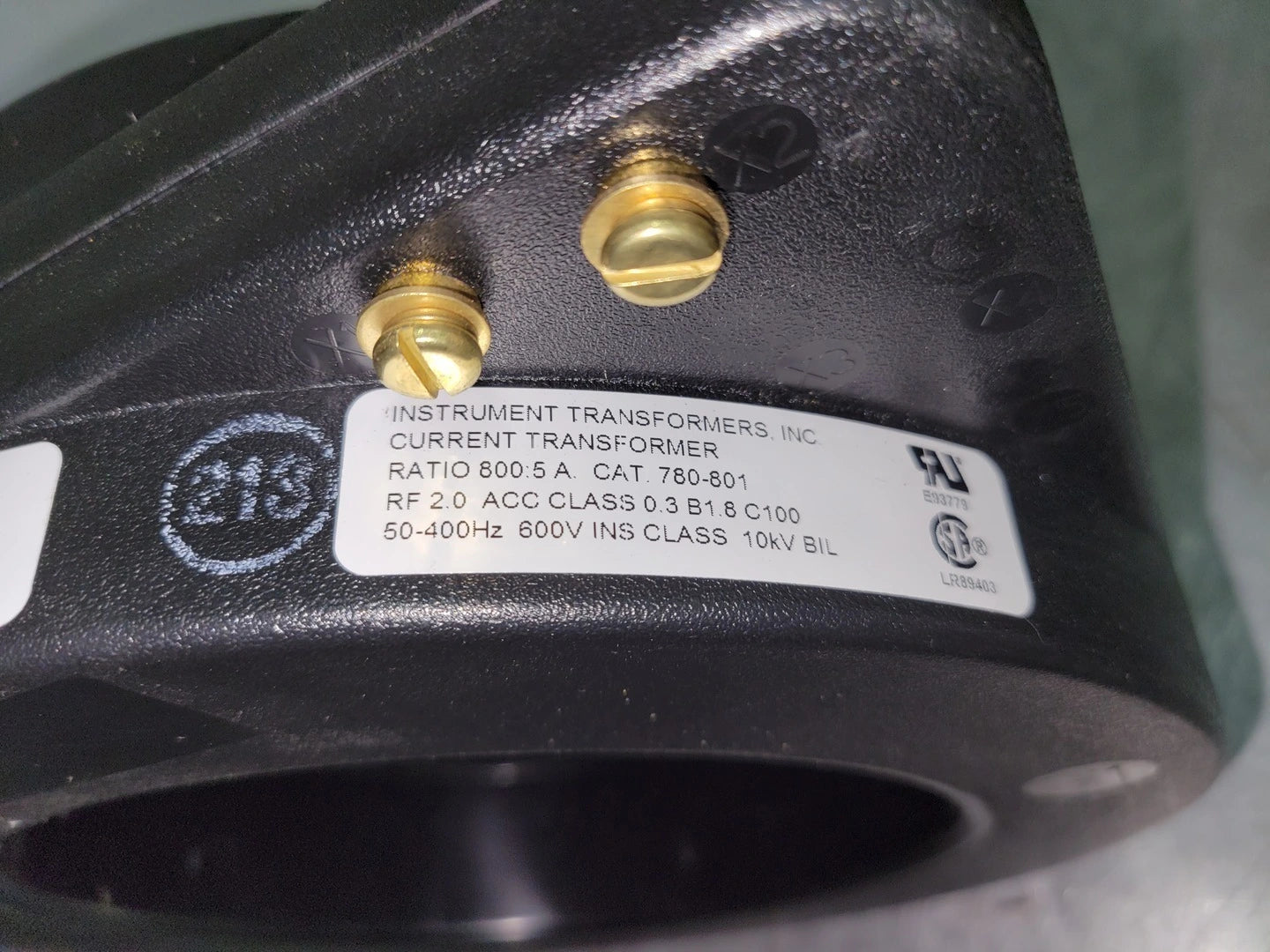

CT, Indoor, Model: 780, Ratio: 800:5 A, Single Phase, 10 kV BIL, 60 Hz, Single Ratio, Relay Class:
Item Number: 780-801
Brand: Instrument Transformer, Div of GE
Item Category: Current Transformers
Series: 780
Core Style: Solid Core
Current Ratio: 800/5
Aperture (WindowOpening): 6.50 in Dia.
Mounting: Mounting Holes
Termination: 10-32 Brass Screws
Frequency (Hz): 50 to 400 Hertz
Insulation Level (V): 600 Volts
Basic Impulse Level (kv): 10 KiloVolts
ANSI Class at 60 Hz B0.1: 0.3
ANSI Class at 60 Hz B0.2: 0.3
ANSI Class at 60 Hz B0.5: 0.3
Approvals: UR;CSA
H x W x D: 10.1 in x 10.05 in x 3.4 in
|
