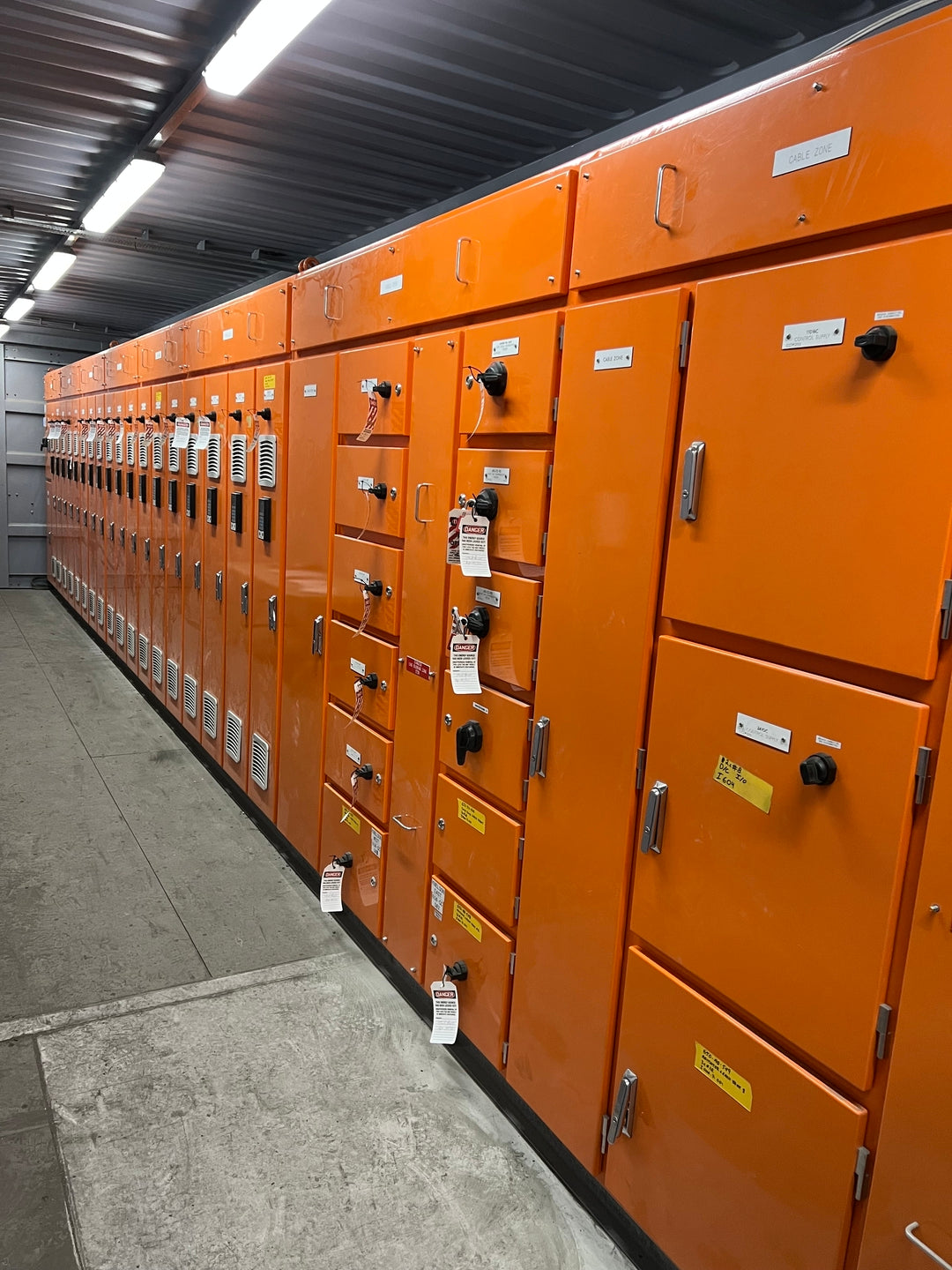

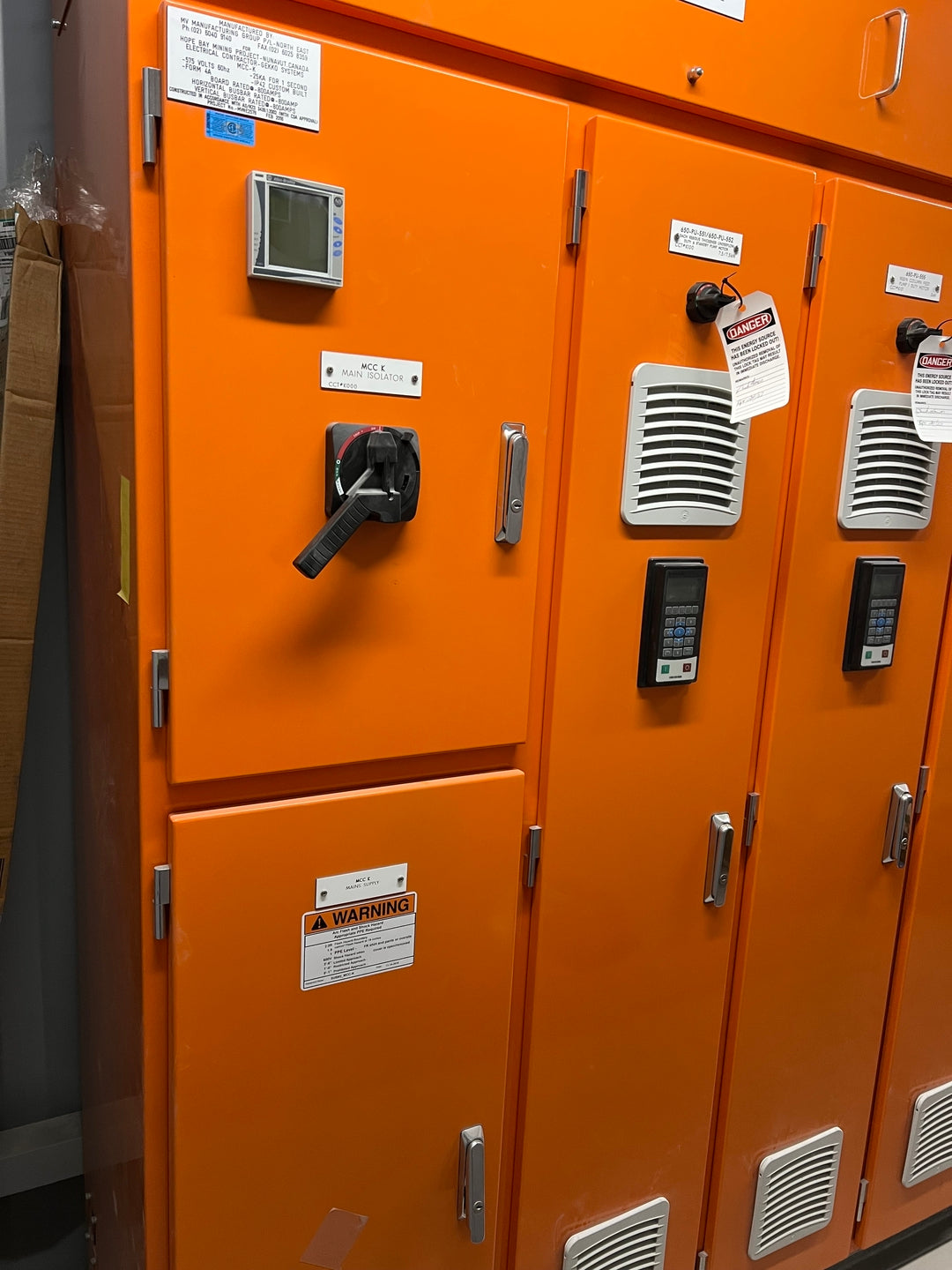

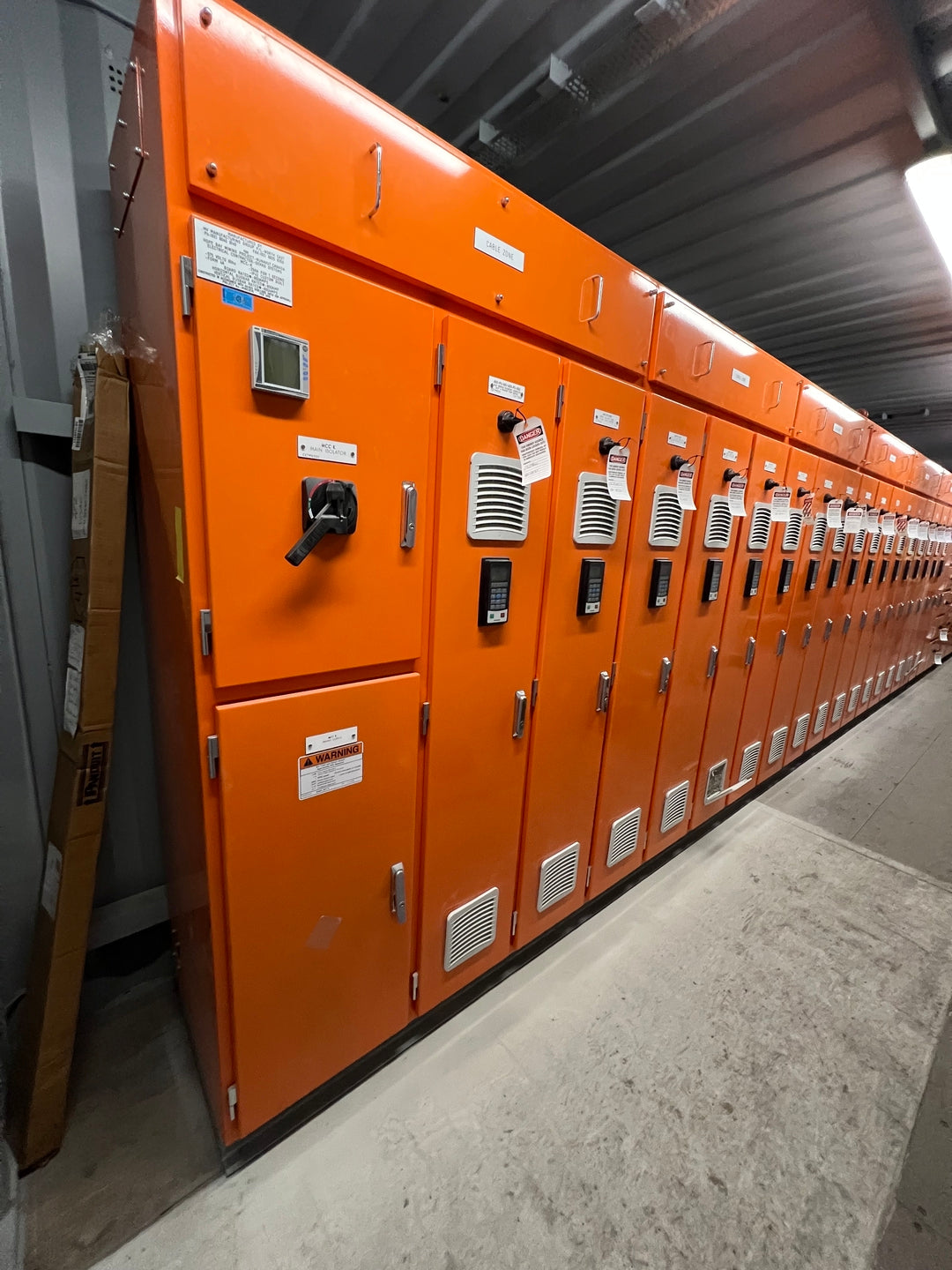

MV MANUFACTURING GROUP 800A Motor Control Center MCC, 575V, 800A Bus, Form 4A, IP42 Enclosure
MV MANUFACTURING GROUP

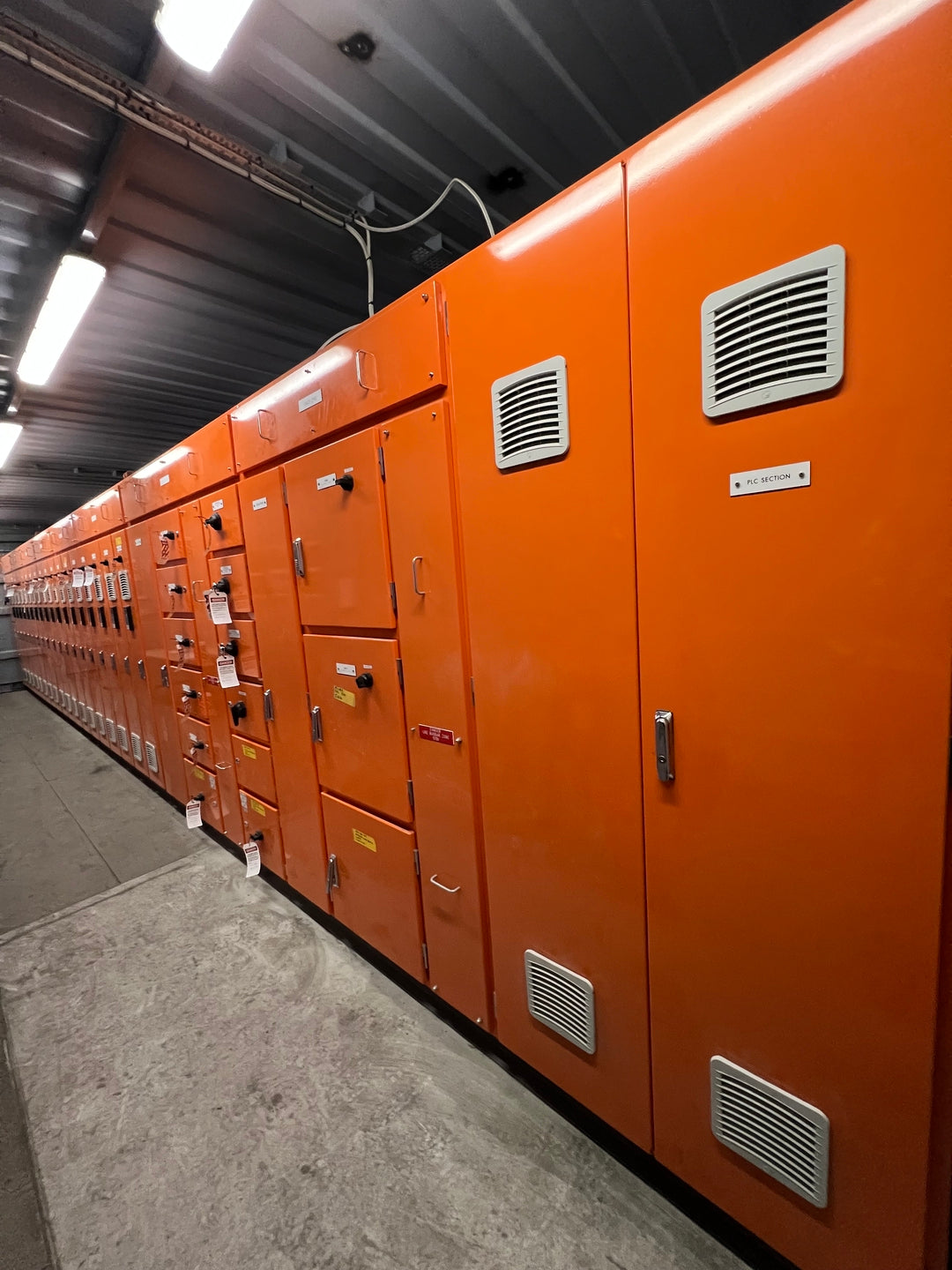

800A Motor Control Center MCC, 575V, 800A Bus, Form 4A, IP42 Enclosure

SKU: 137979
Price:
$200,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Year: 2016
Condition Used
Other Specifications

PDF Single Line Diagrams

Original Designation: MCC-K Thickener & Resin area

Bus Voltage: 575 V

Short Circuit Rating: 25 kA rms Sym

Board Rated: 800 A

Horizontal Busbar Rated: 800 A

Vertical Busbar Rated: 800 A

Form: 4A

Enclosure: IP42 custom built

**Optional Add-On**: Electrical Container for this MCC can be purchased separately

Main Equipment Summary

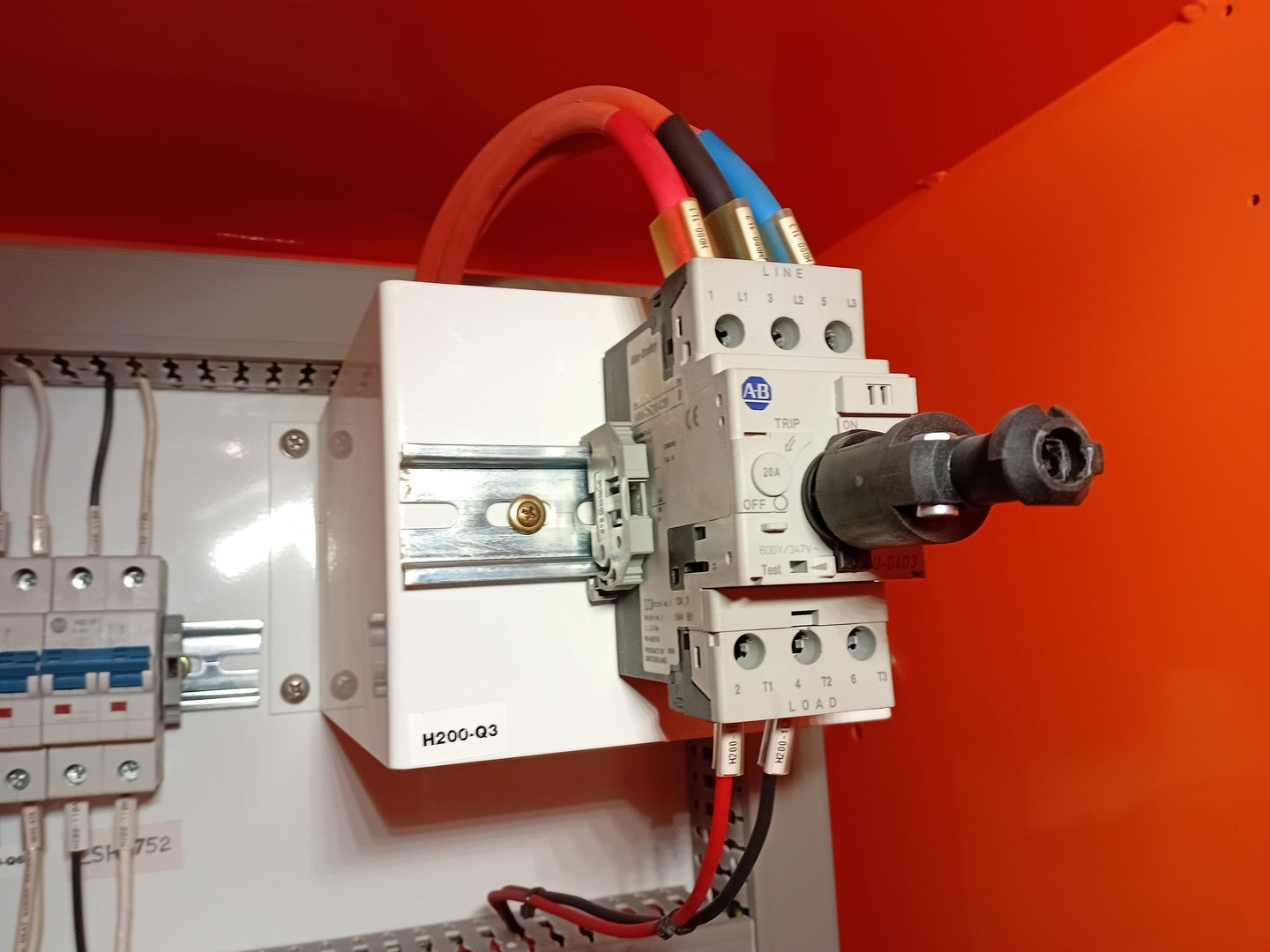

Main Switch: (1) 300 A switch

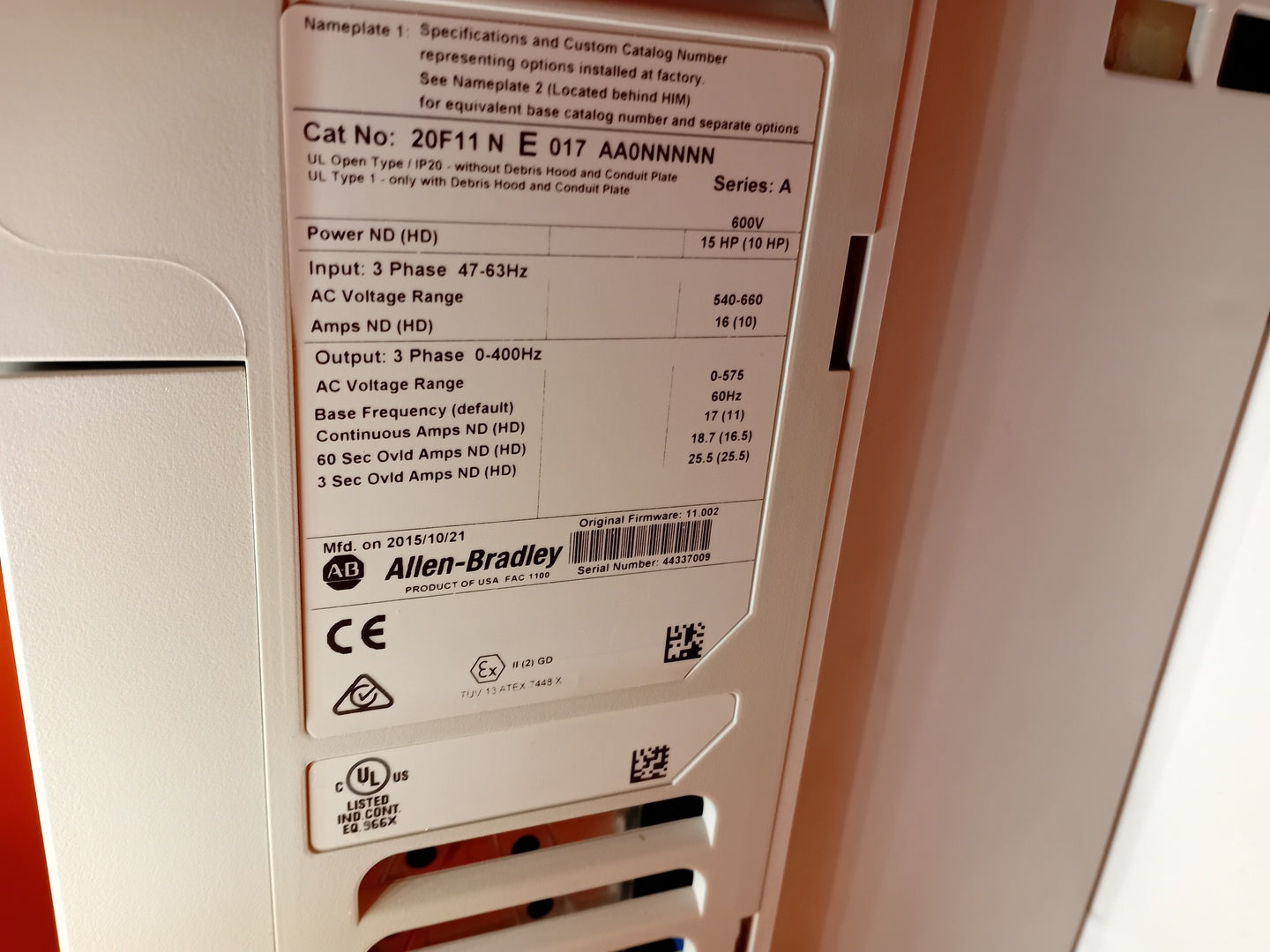

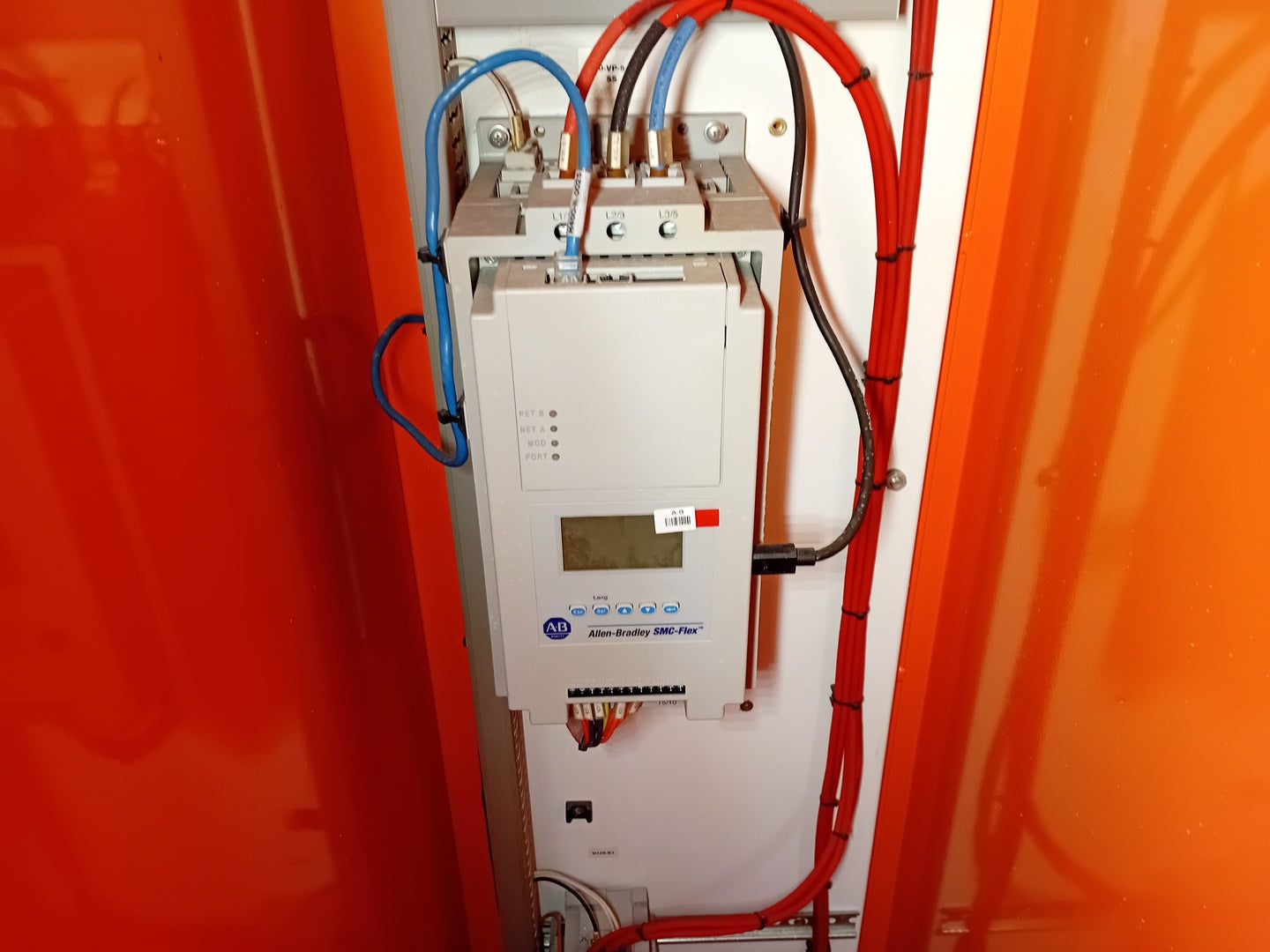

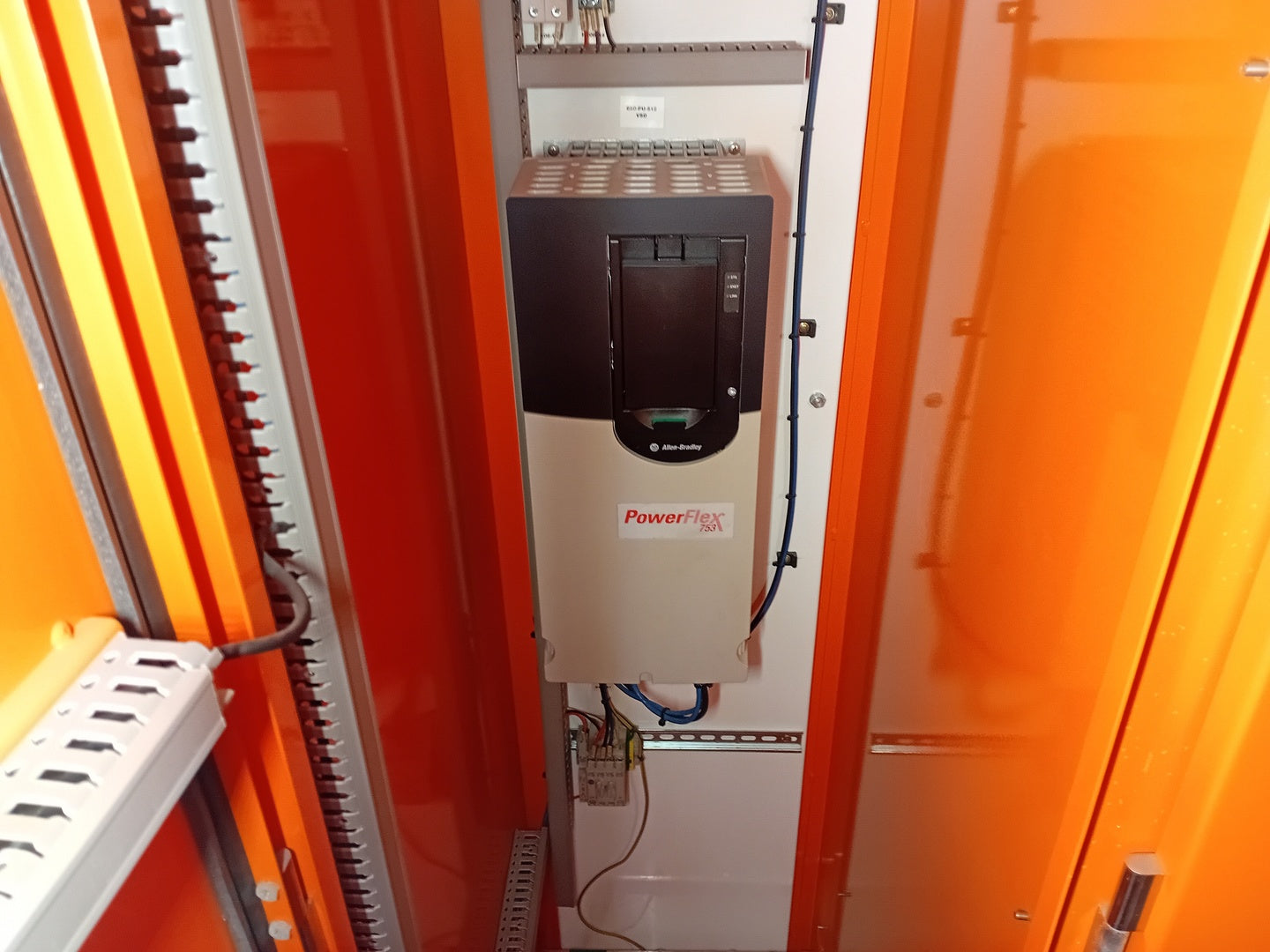

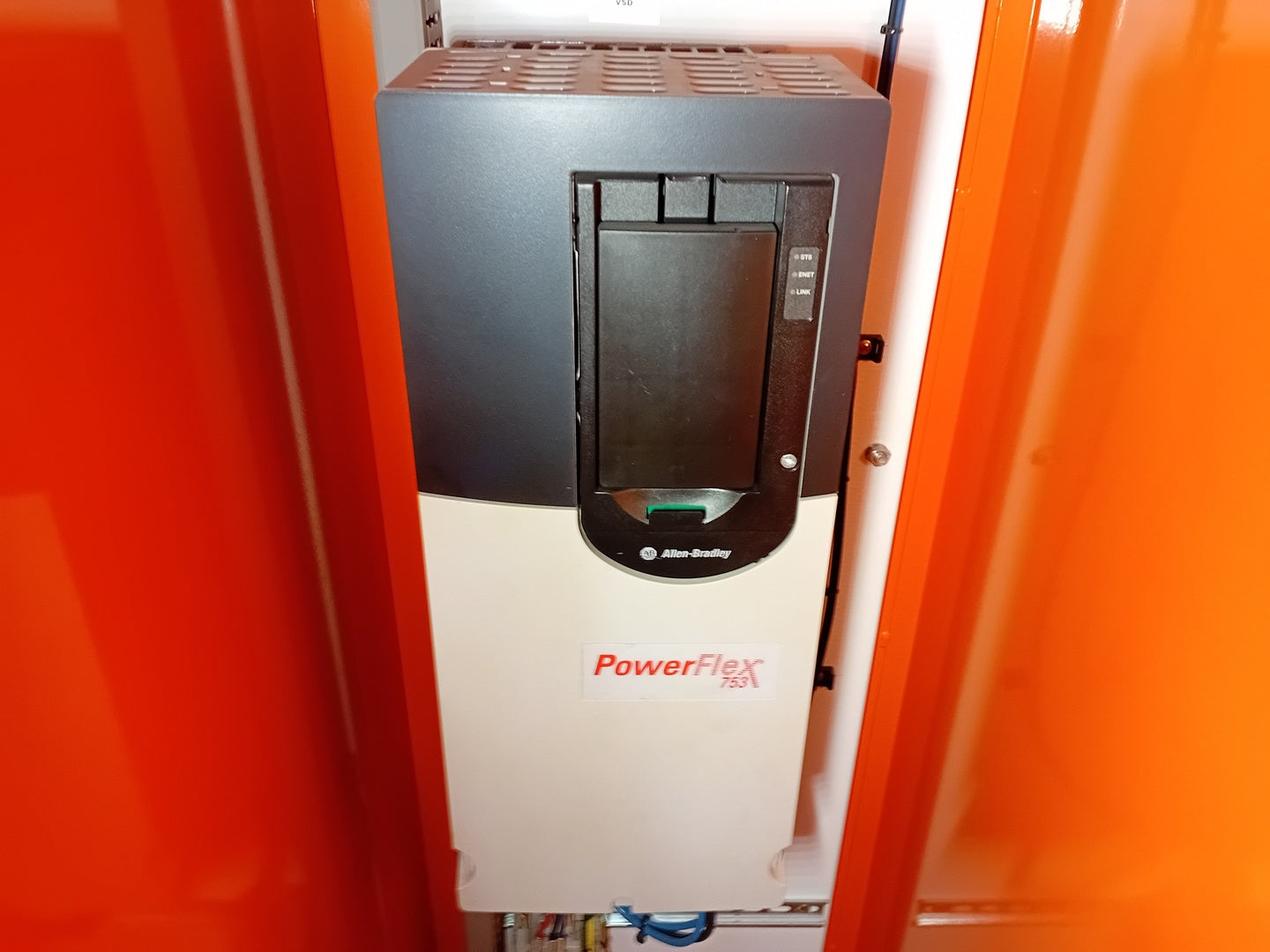

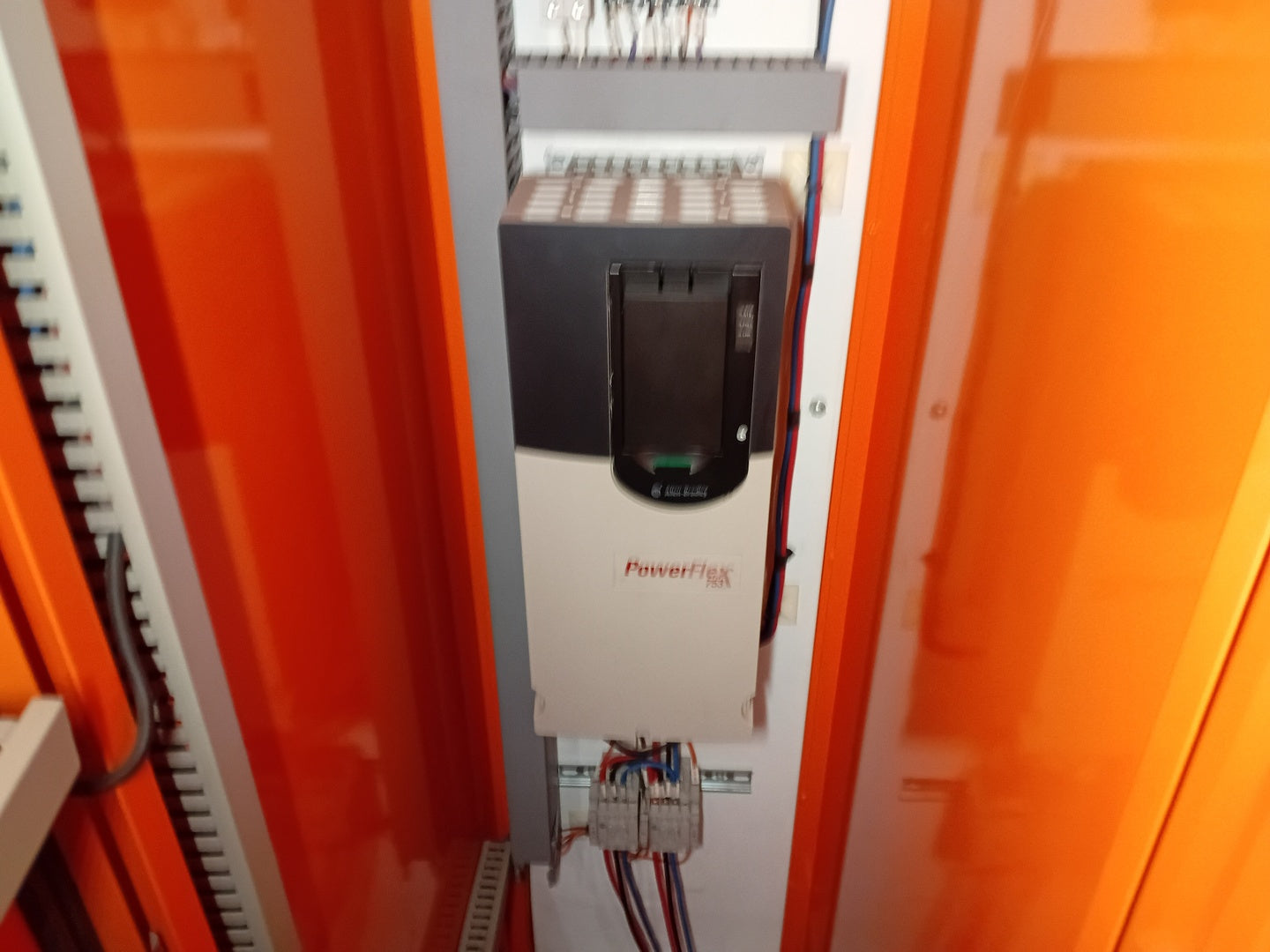

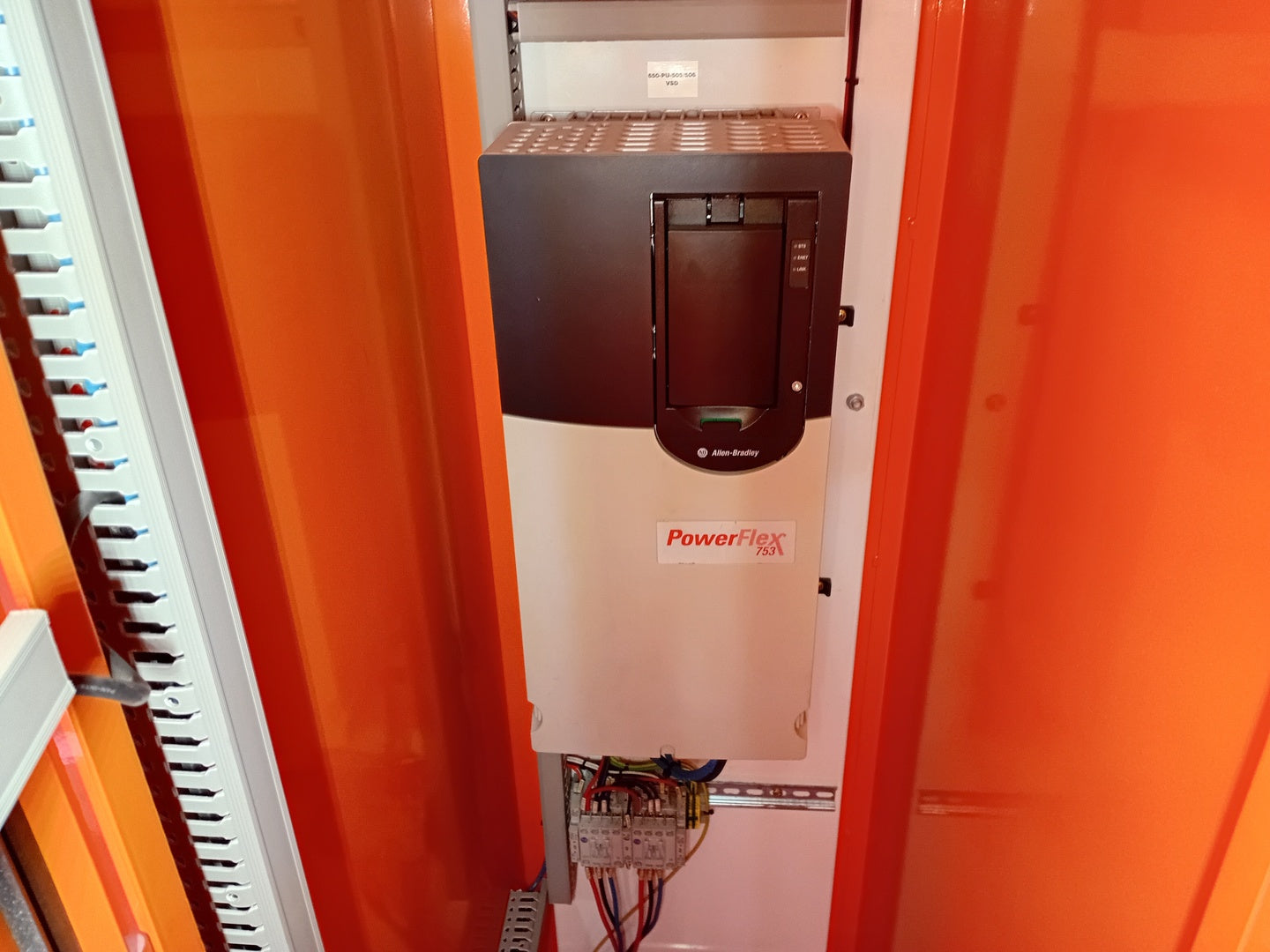

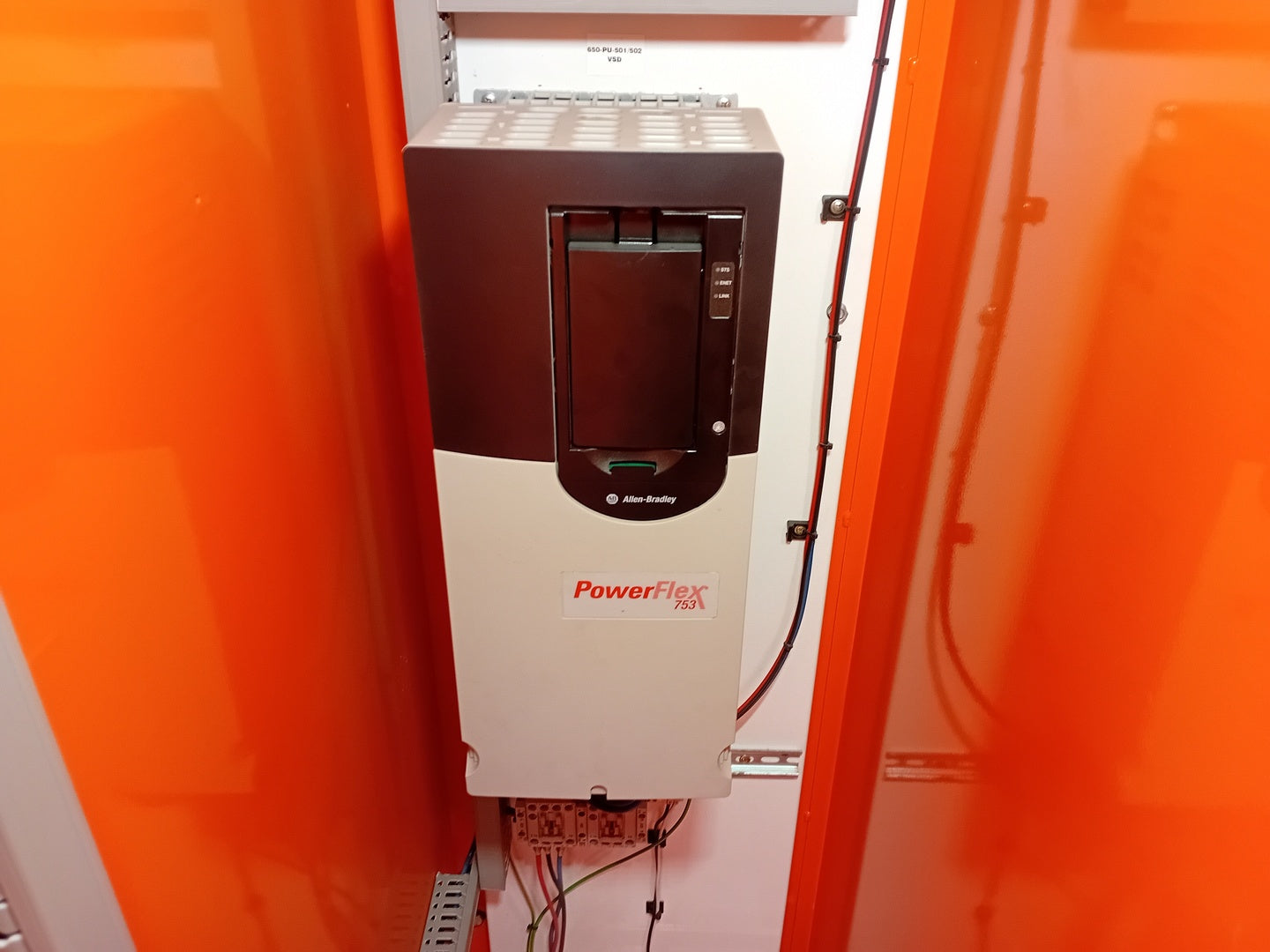

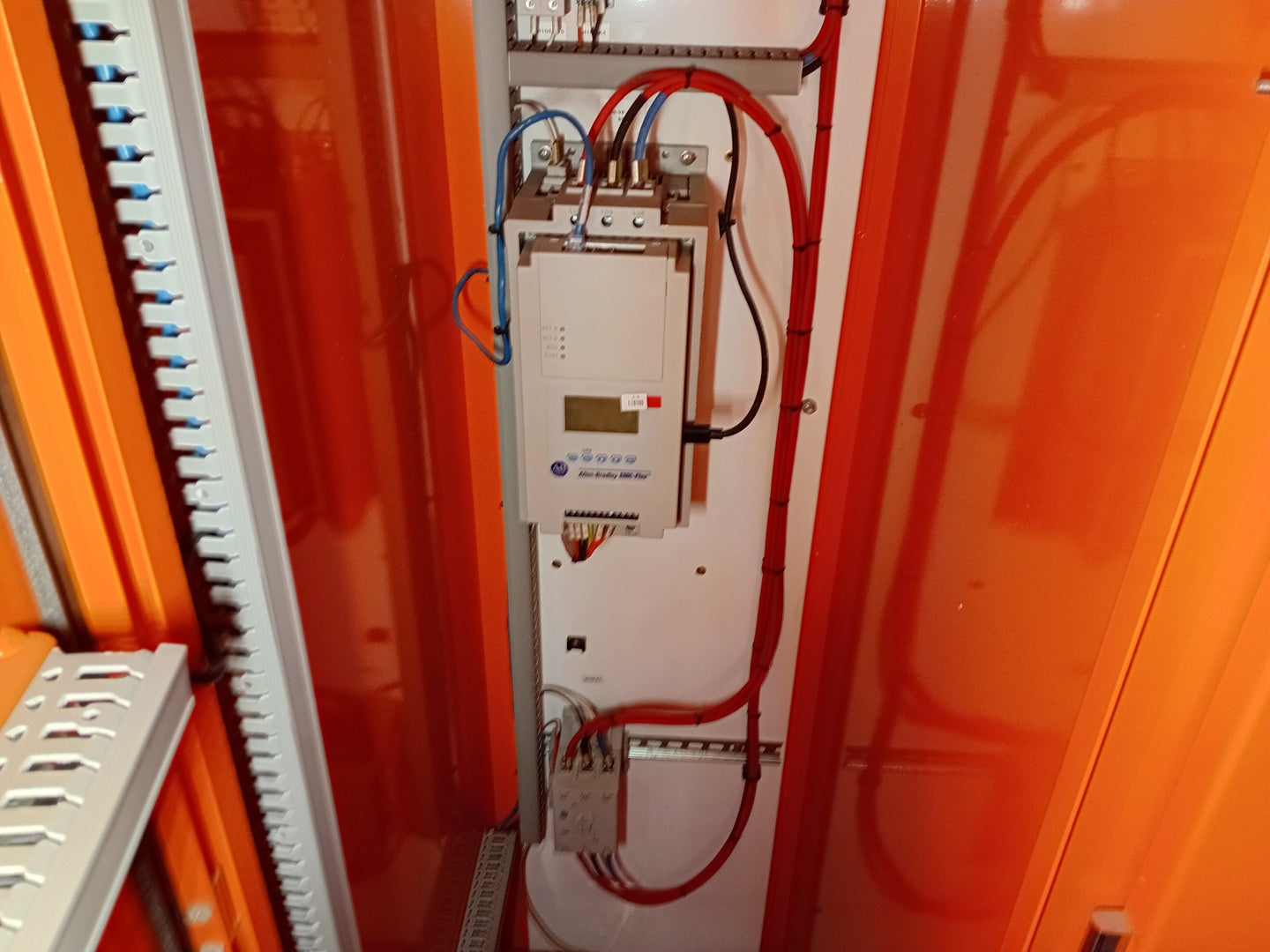

Motor Control Assemblies:

  1. (3) 7.5 kW
  2. (5) 5.5 kW
  3. (1) 11 kW
  4. (1) 37 kW
  5. (1) 1.5 kW
  6. (3) 0.75 kW
  7. (1) 4 kW
  8. (1) 0.25 kW
  9. (1) 1.86 kW
  10. (1) 2.2 kW

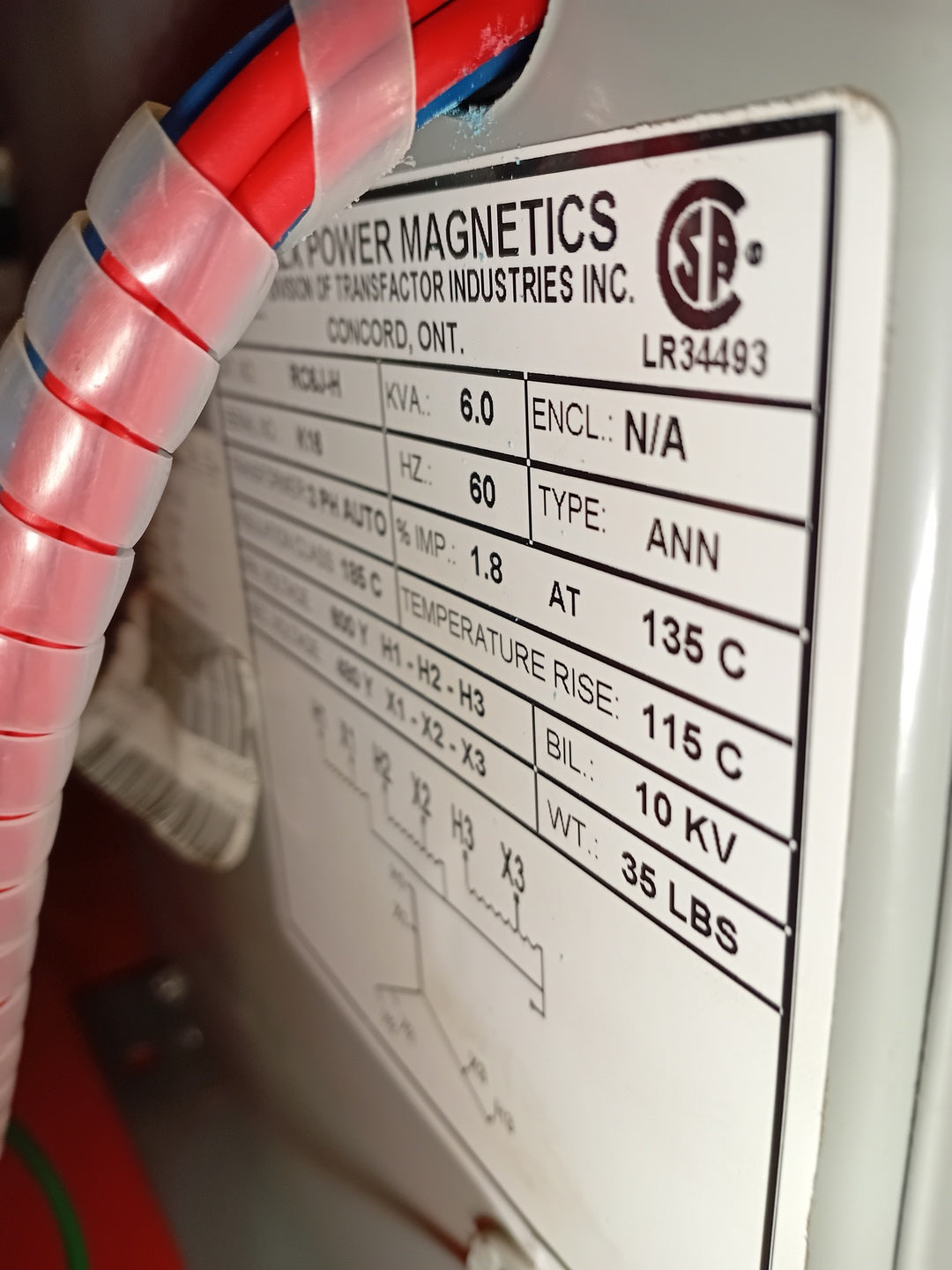

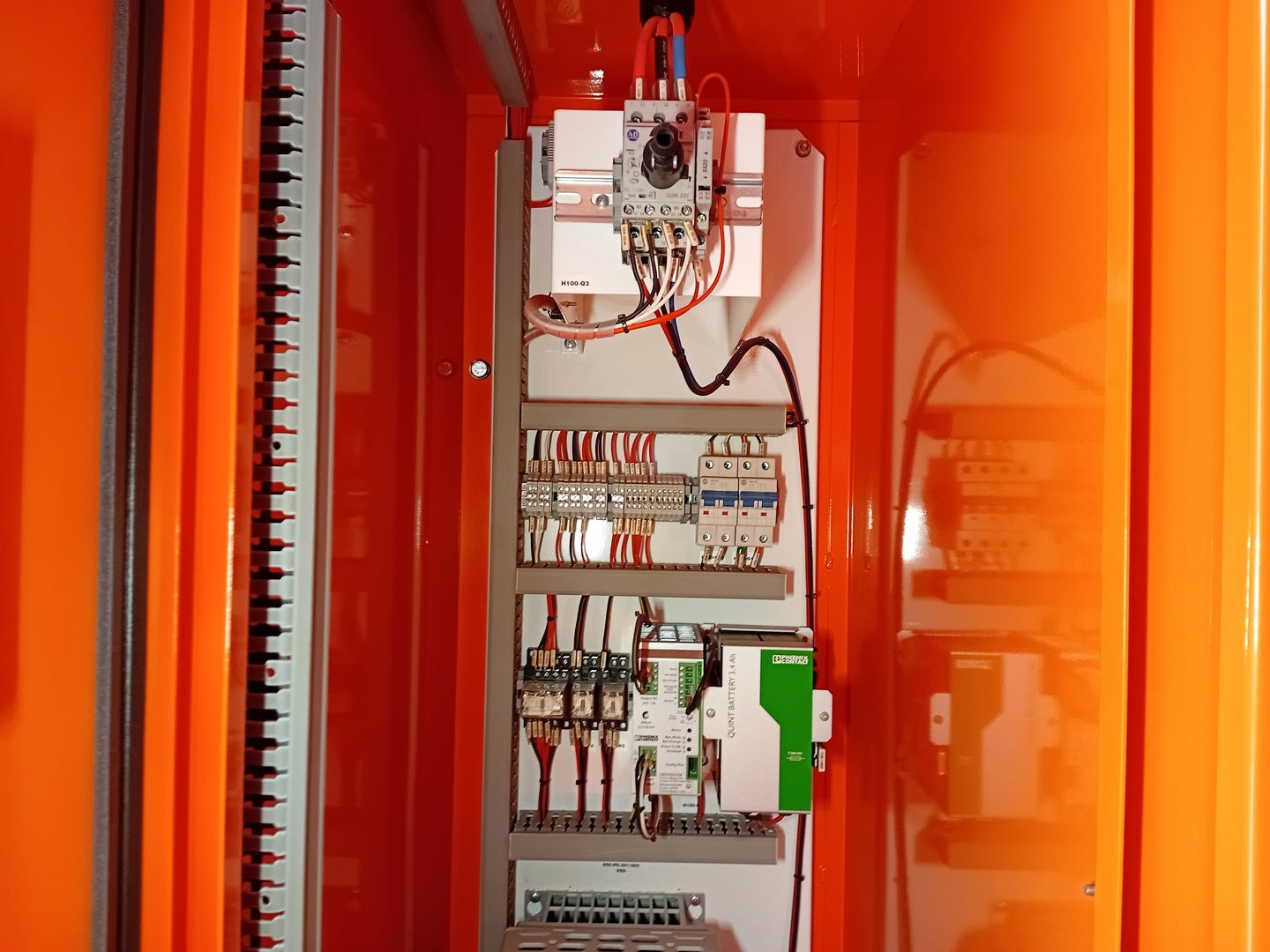

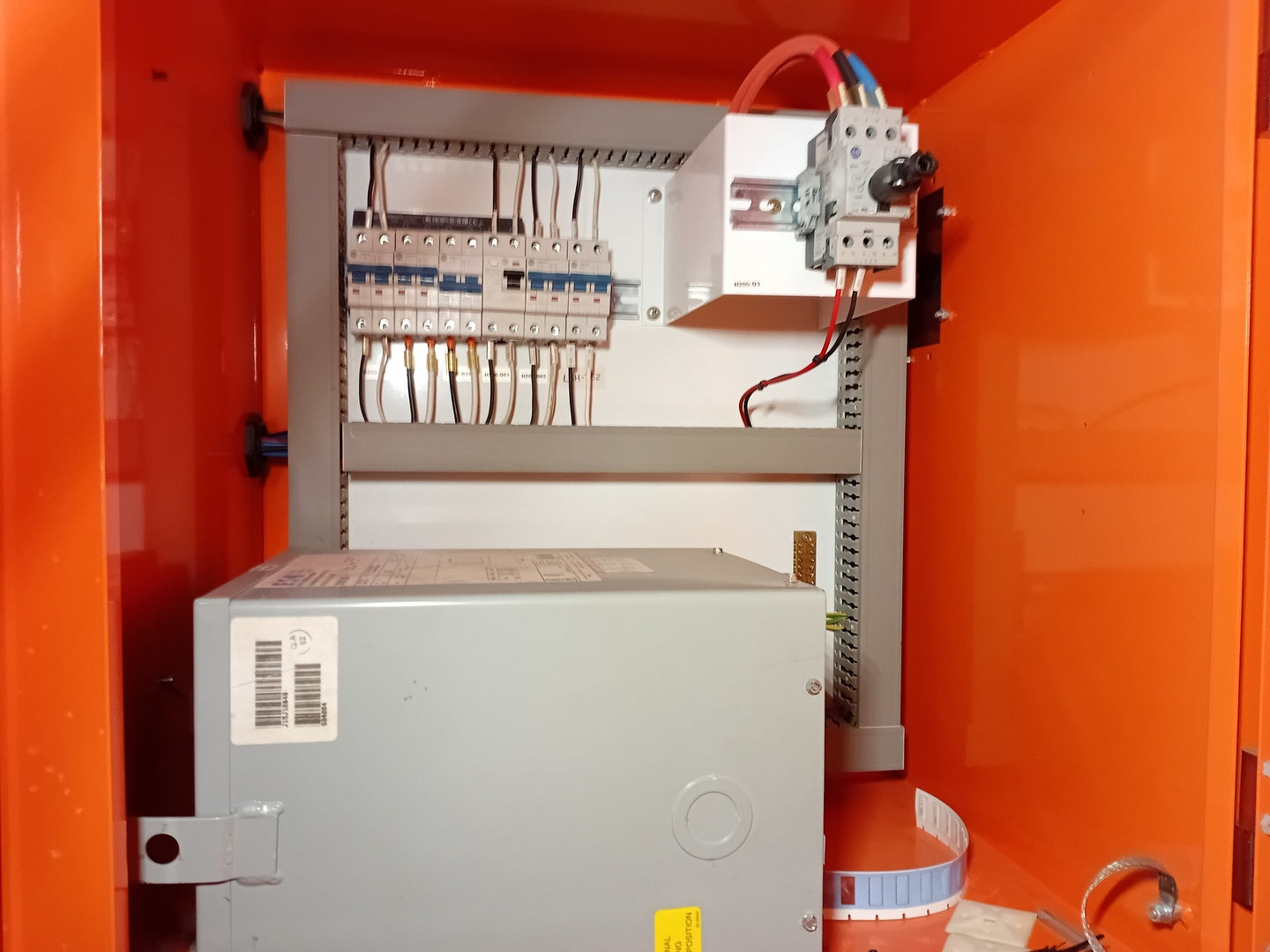

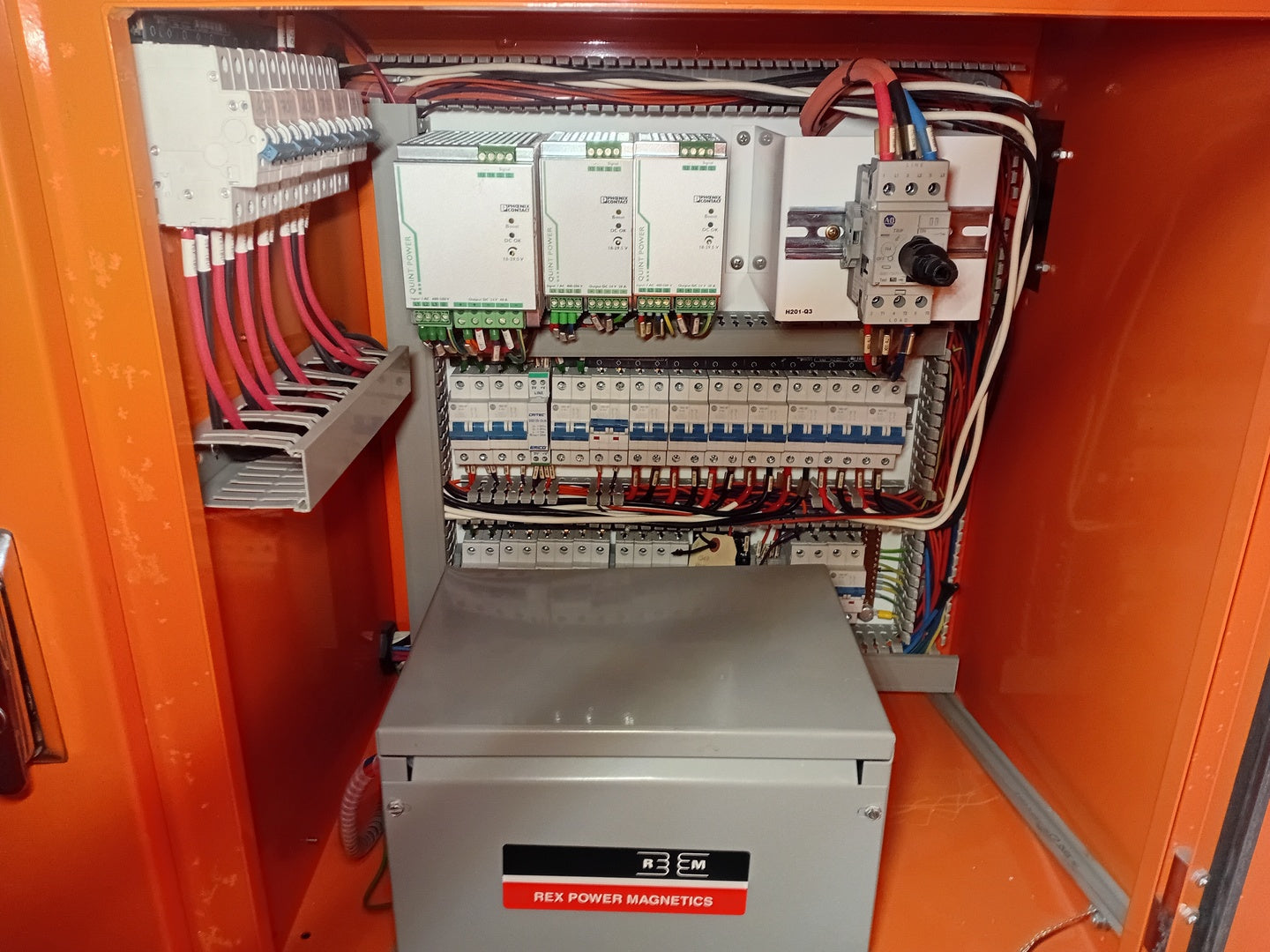

Supply Sections:

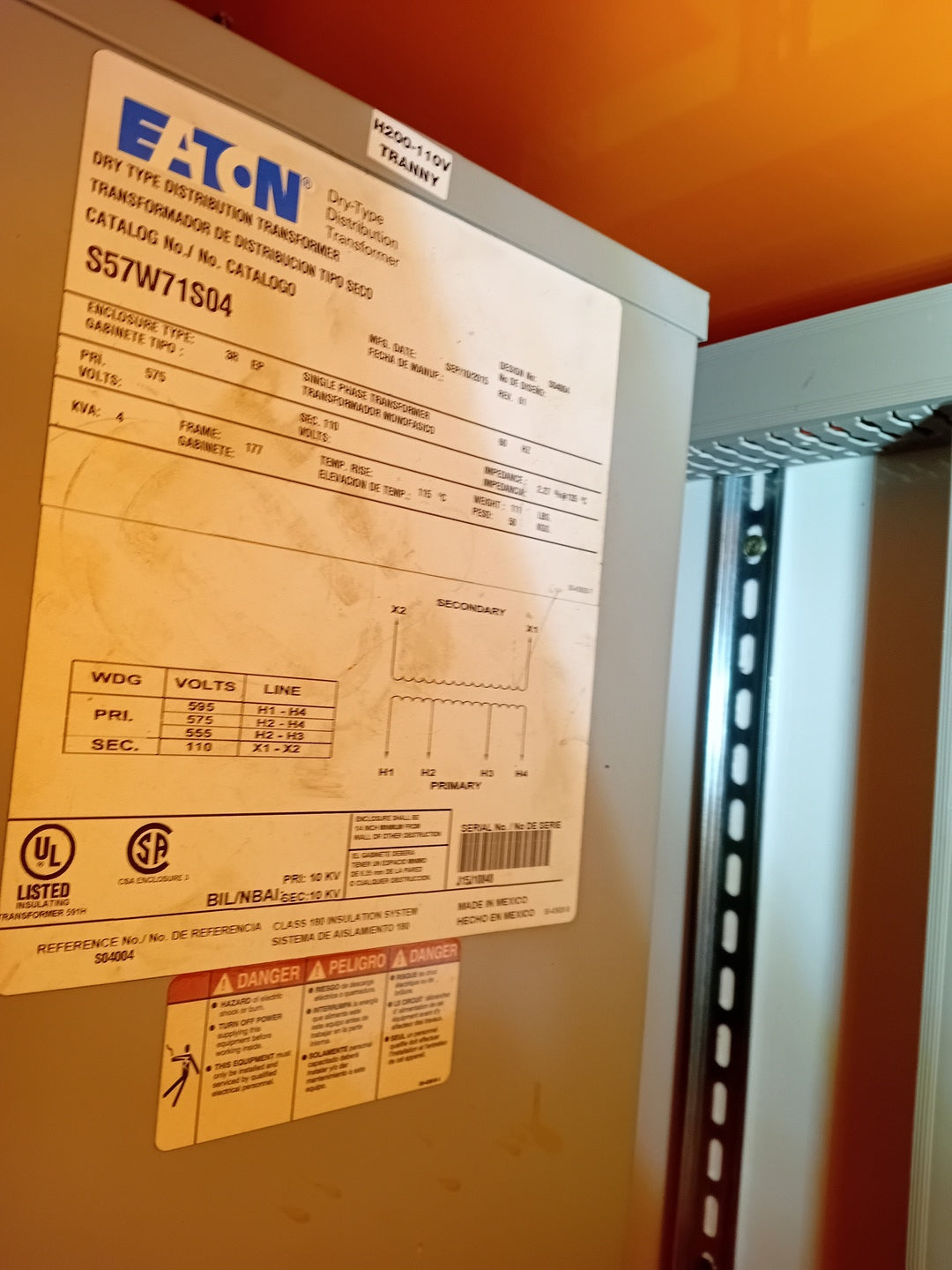

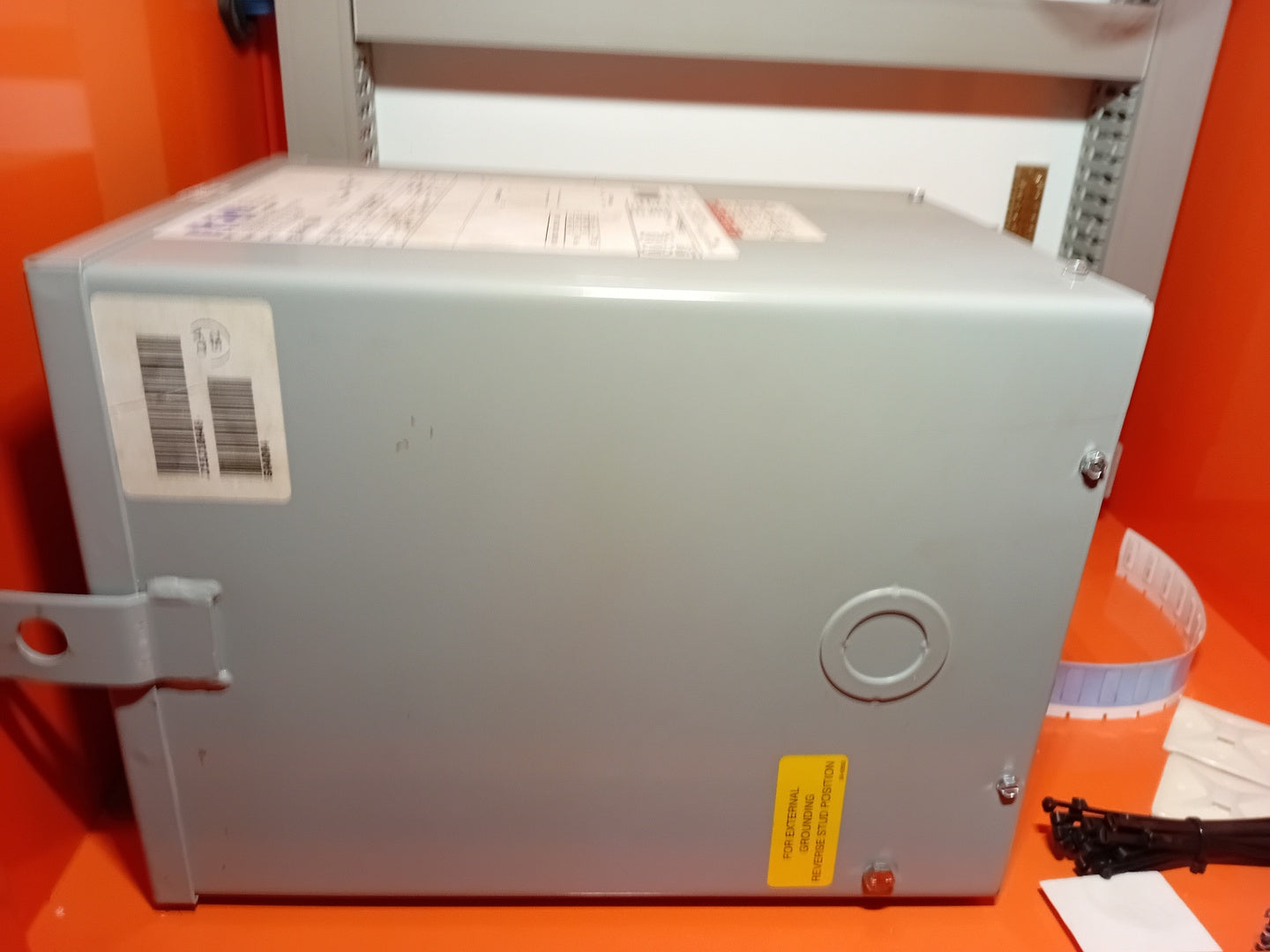

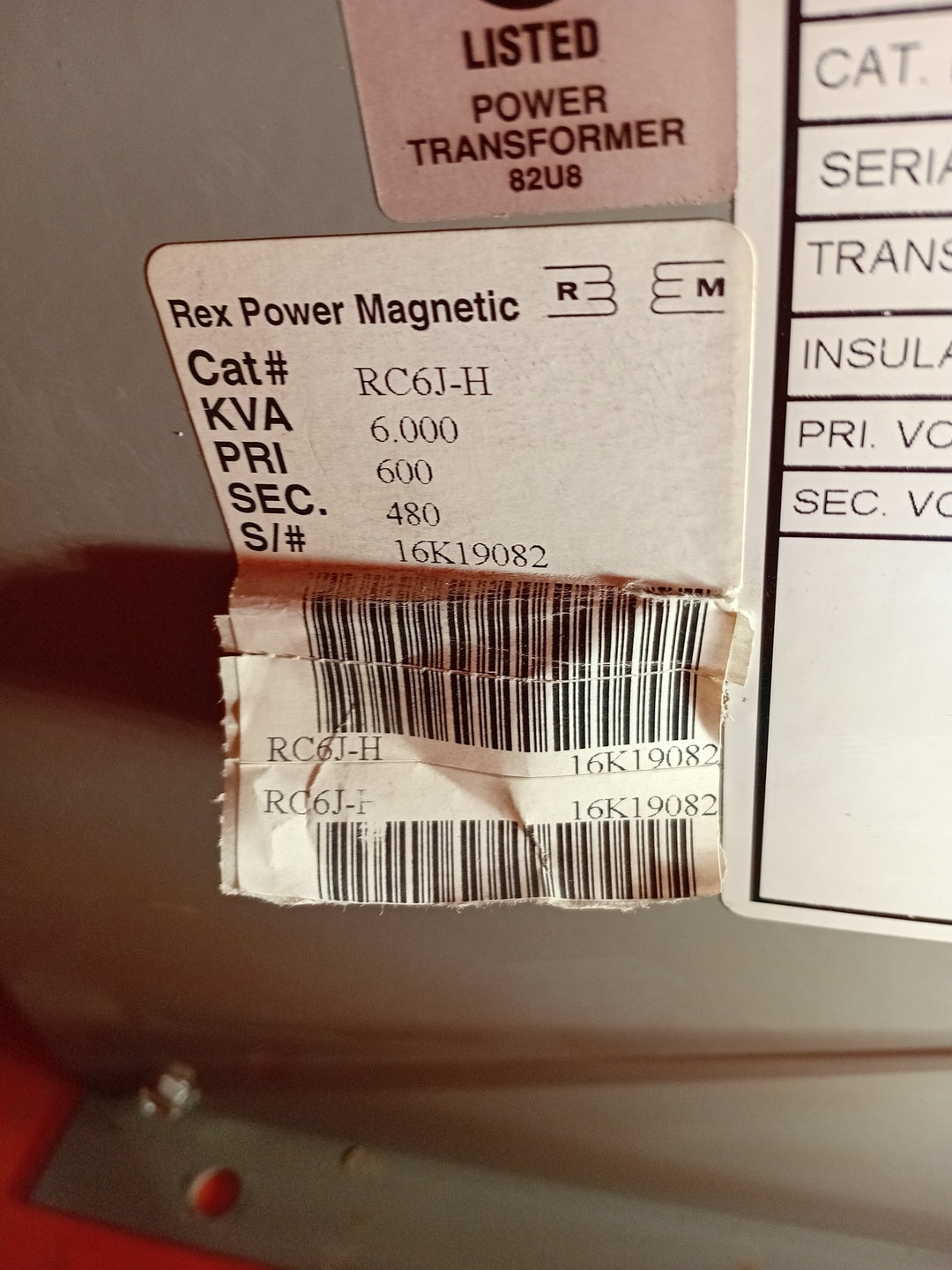

  1. (1) 2 kVA, 575 VAC to 110 VAC Control Transformer
  2. (1) 4 kVA, 575 VAC to 110 VAC Control Transformer
  3. (2) 575 VAC to 24 VDC Control Power Supply
