Description

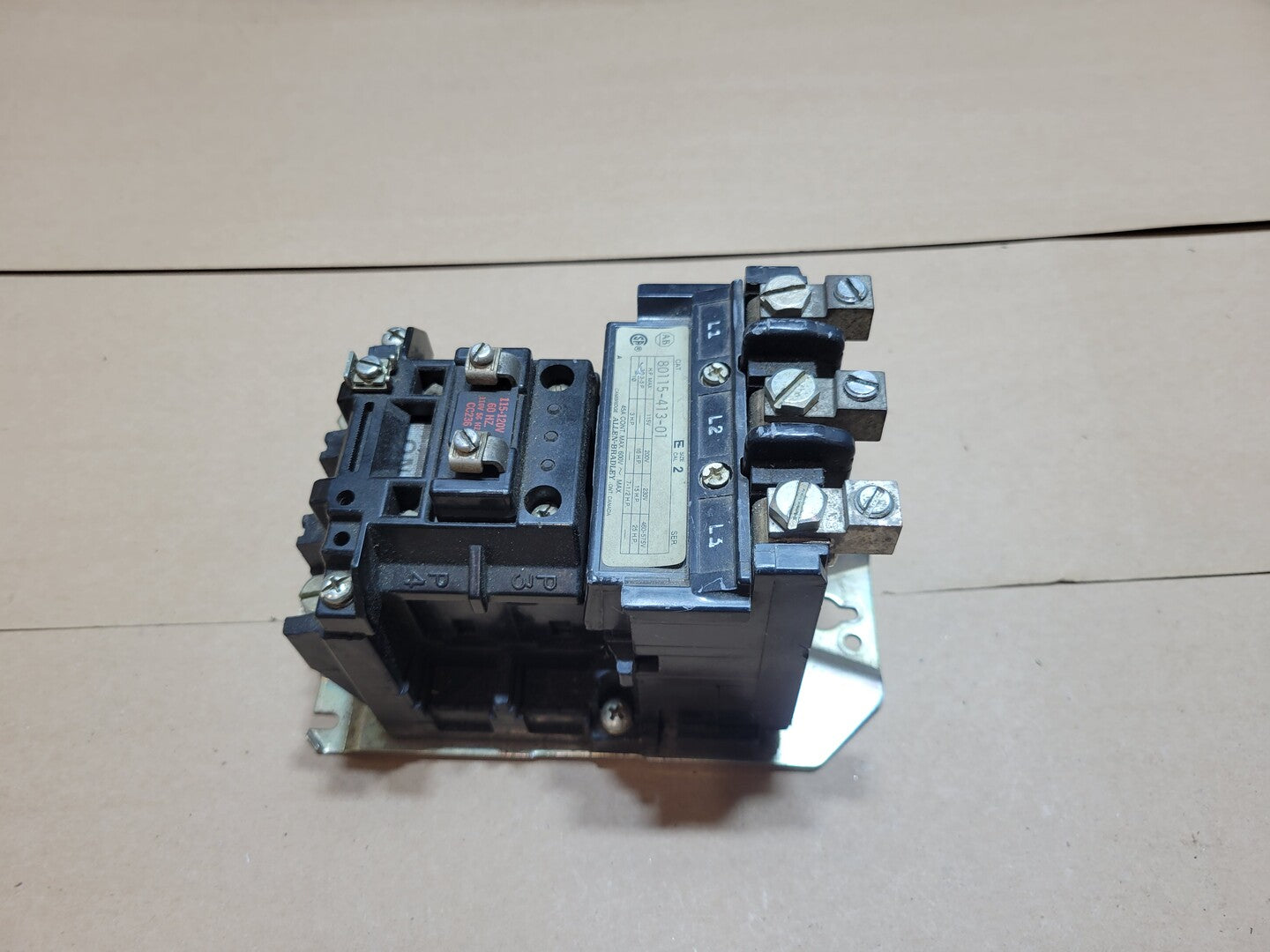

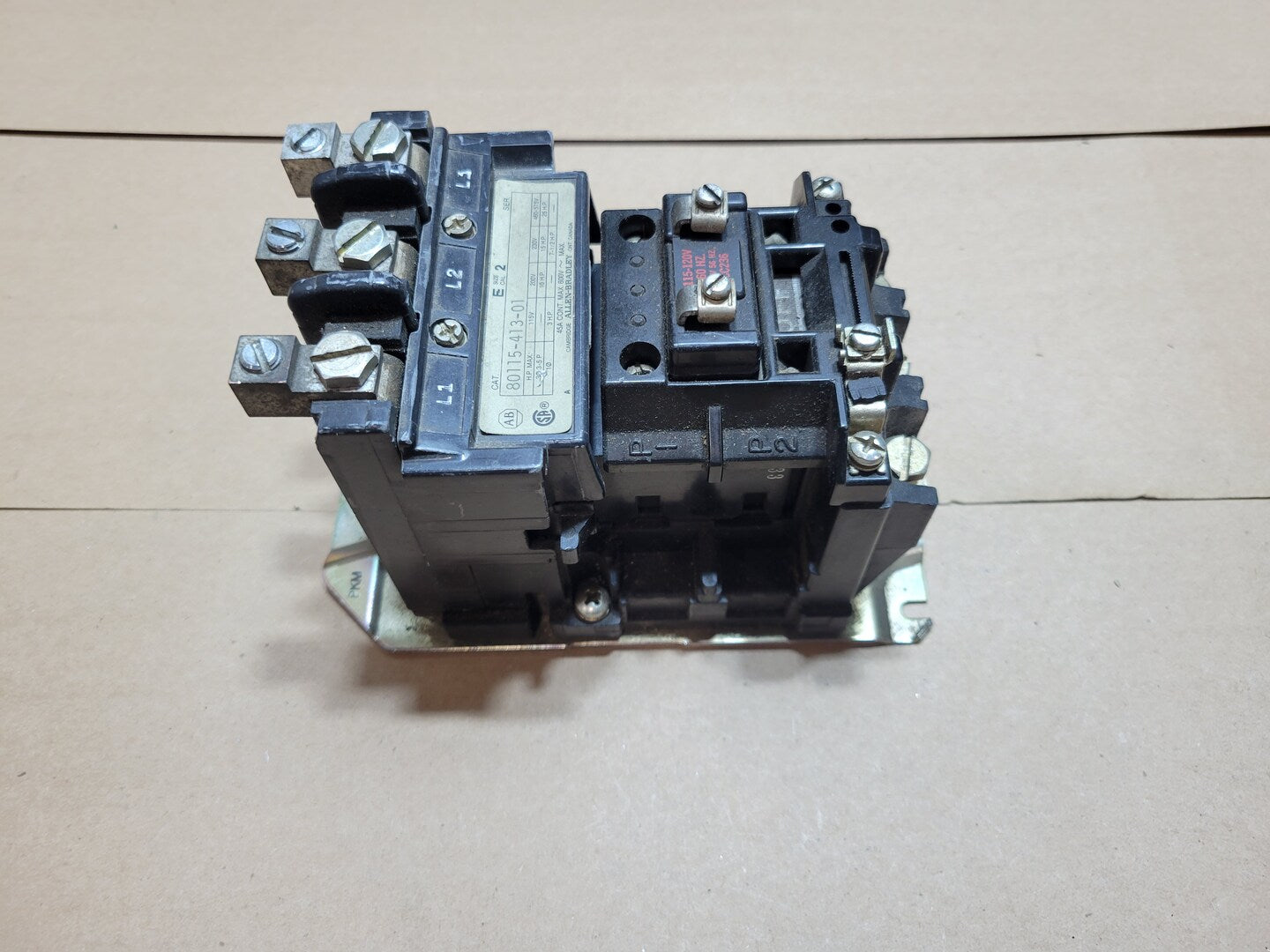

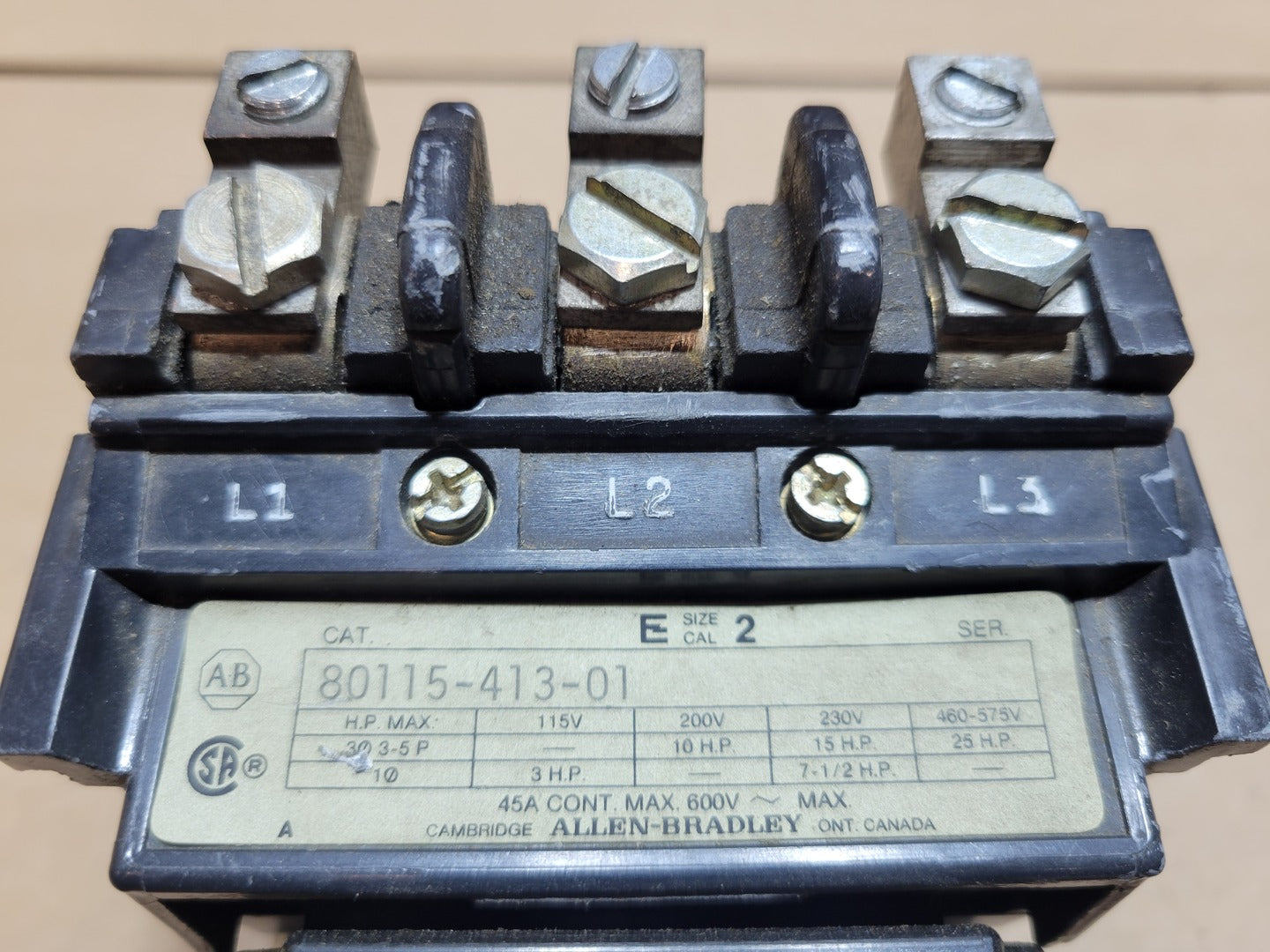

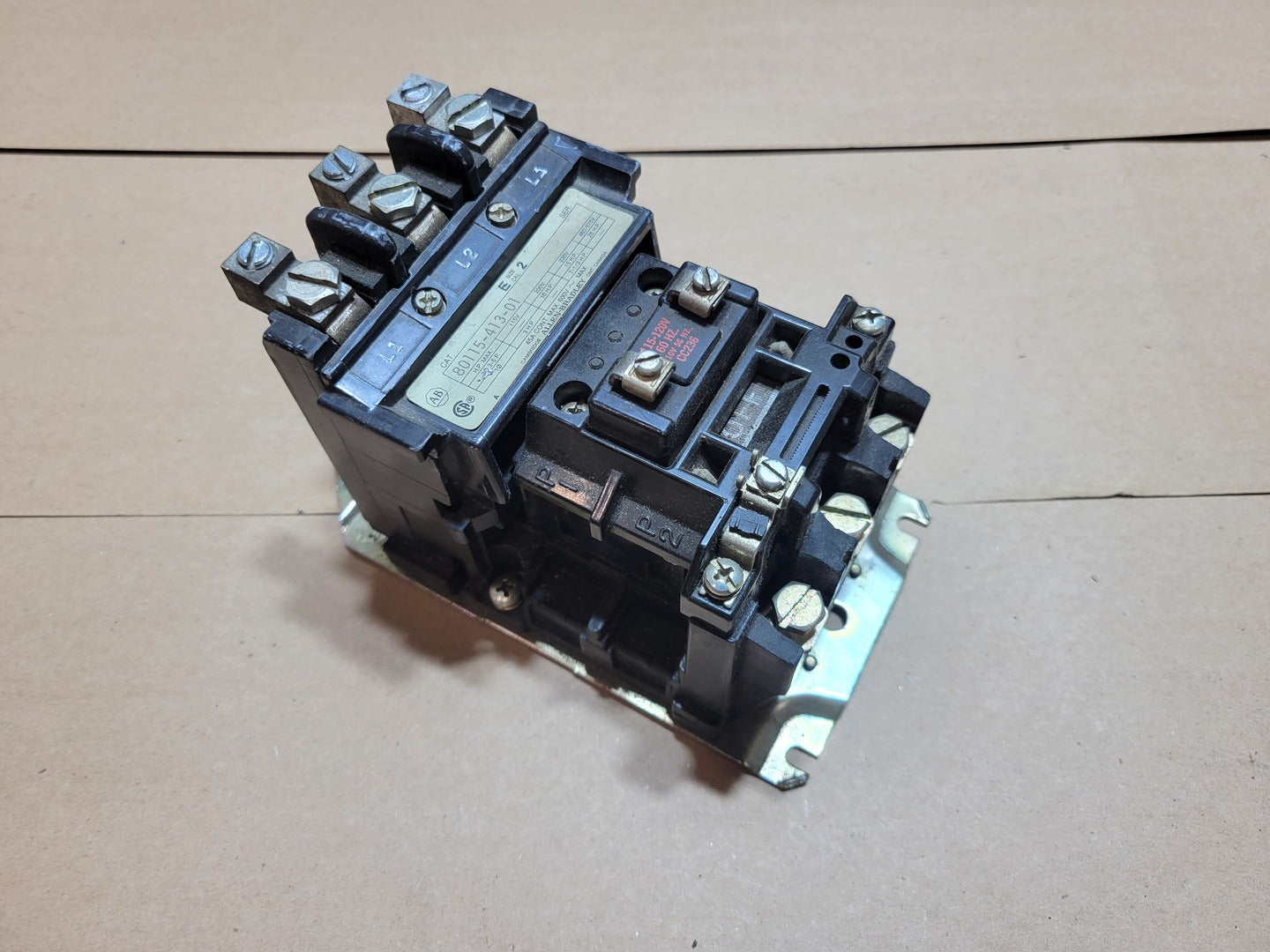

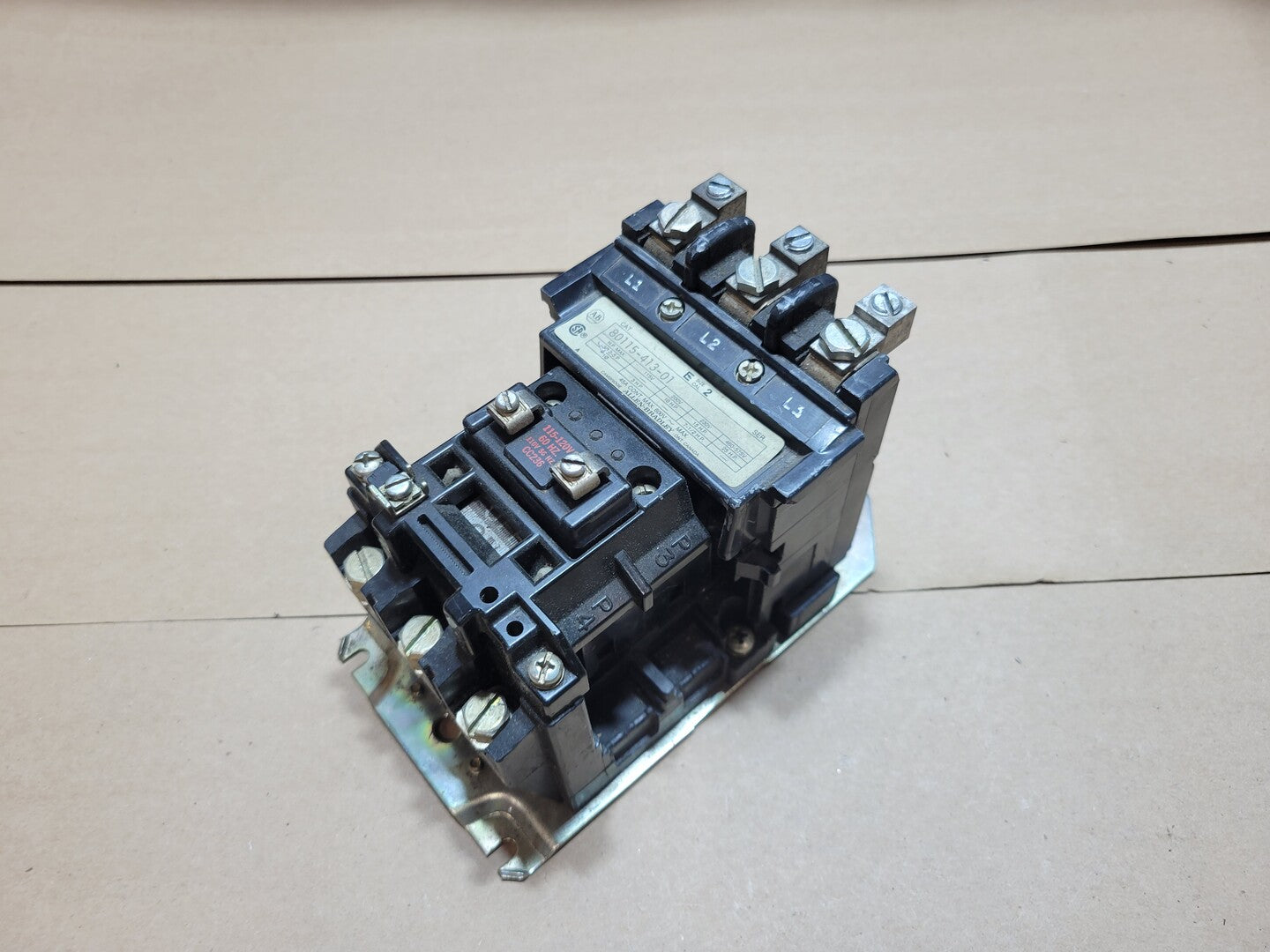

Allen-Bradley 80115-413-01 NEMA Size 2 three-pole magnetic contactor rated 45A continuous maximum and 600VAC maximum, equipped with an Allen-Bradley CC236 115-120VAC 60Hz / 110VAC 50Hz coil. The nameplate provides motor ratings up to 25 HP at 460-575VAC, 3-phase. Open-style industrial contactor mounted on a metal mounting plate.
| Specifications | |
|---|---|
| Model | 80115-413-01 |
| Condition | Used | General |
| Horsepower | 25 hp | Electrical |
| Voltage | 600 volts |
| Amps | 45 amps |
| Other Specifications |
|---|
|
Component Type: Magnetic Contactor NEMA Size: Size 2 Number of Main Poles: 3 Main Terminals: L1, L2, L3 / corresponding load terminals Coil Catalog Number: CC236 Coil Voltage: 115-120VAC at 60Hz / 110VAC at 50Hz Mounting: Open style, metal mounting plate 3-Phase Motor Rating - 200V: 10 HP 3-Phase Motor Rating - 230V: 15 HP 3-Phase Motor Rating - 460-575V: 25 HP 1-Phase Motor Rating - 115V: 3 HP 1-Phase Motor Rating - 230V: 7-1/2 HP |
