Description

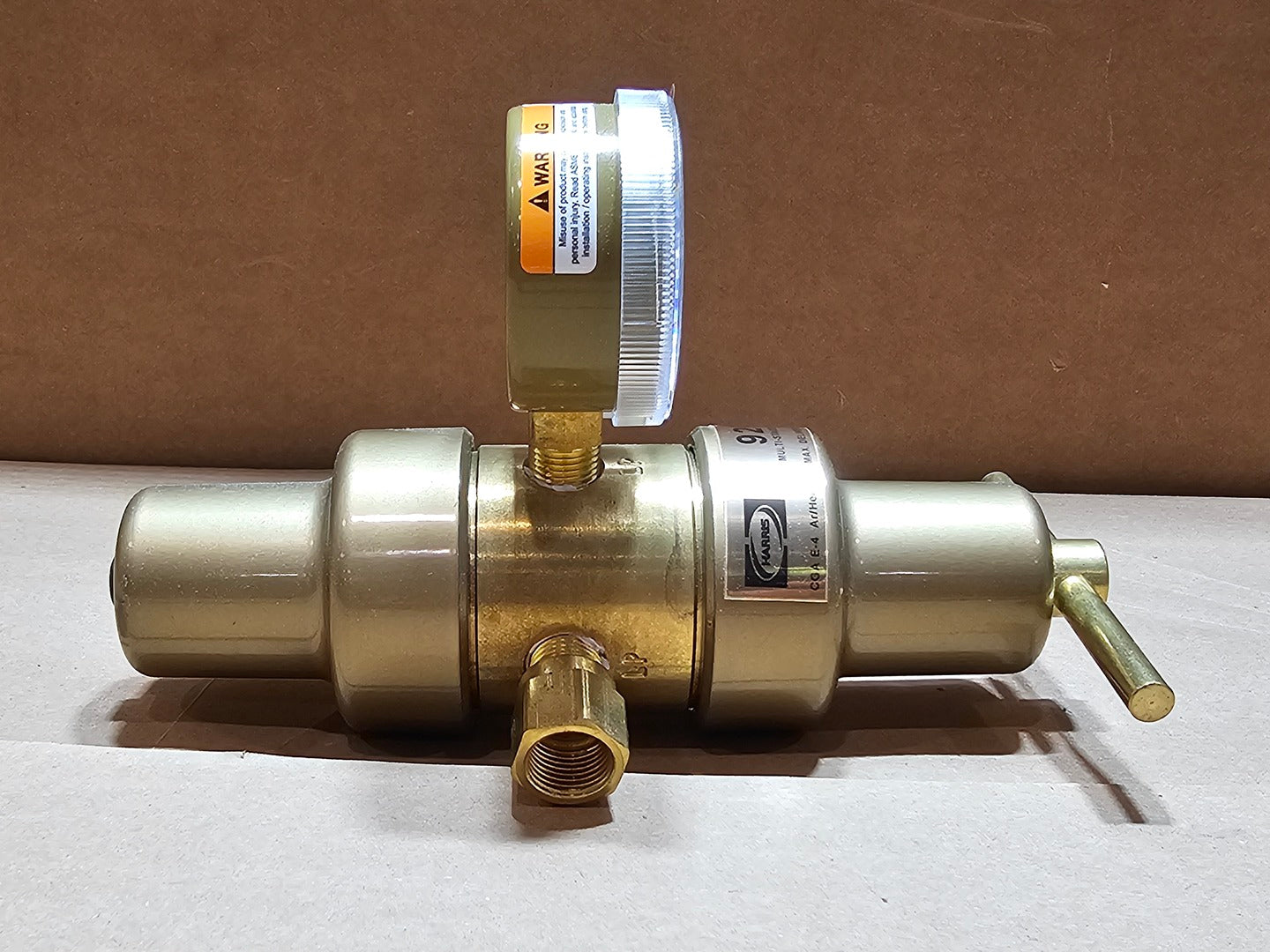

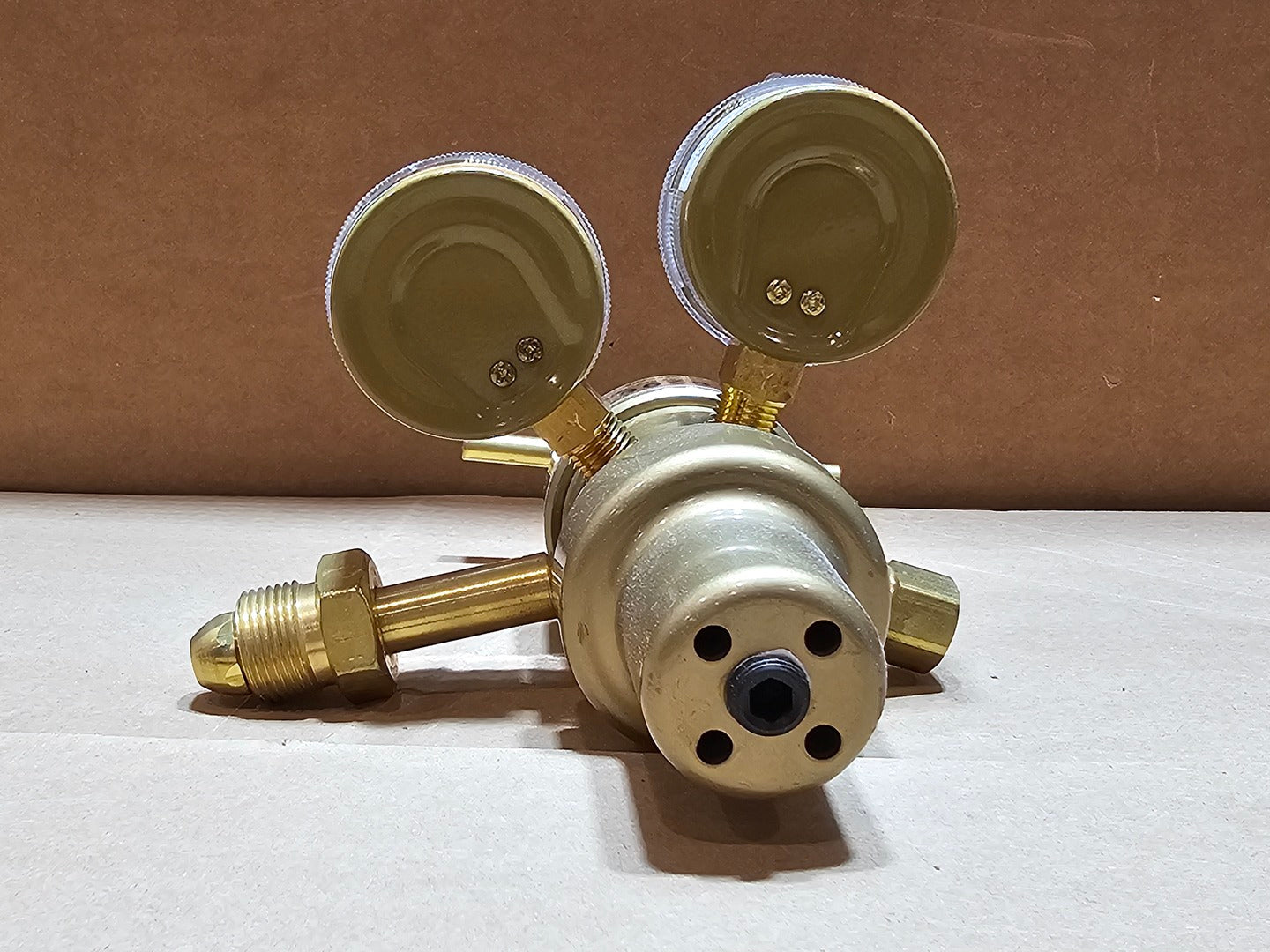

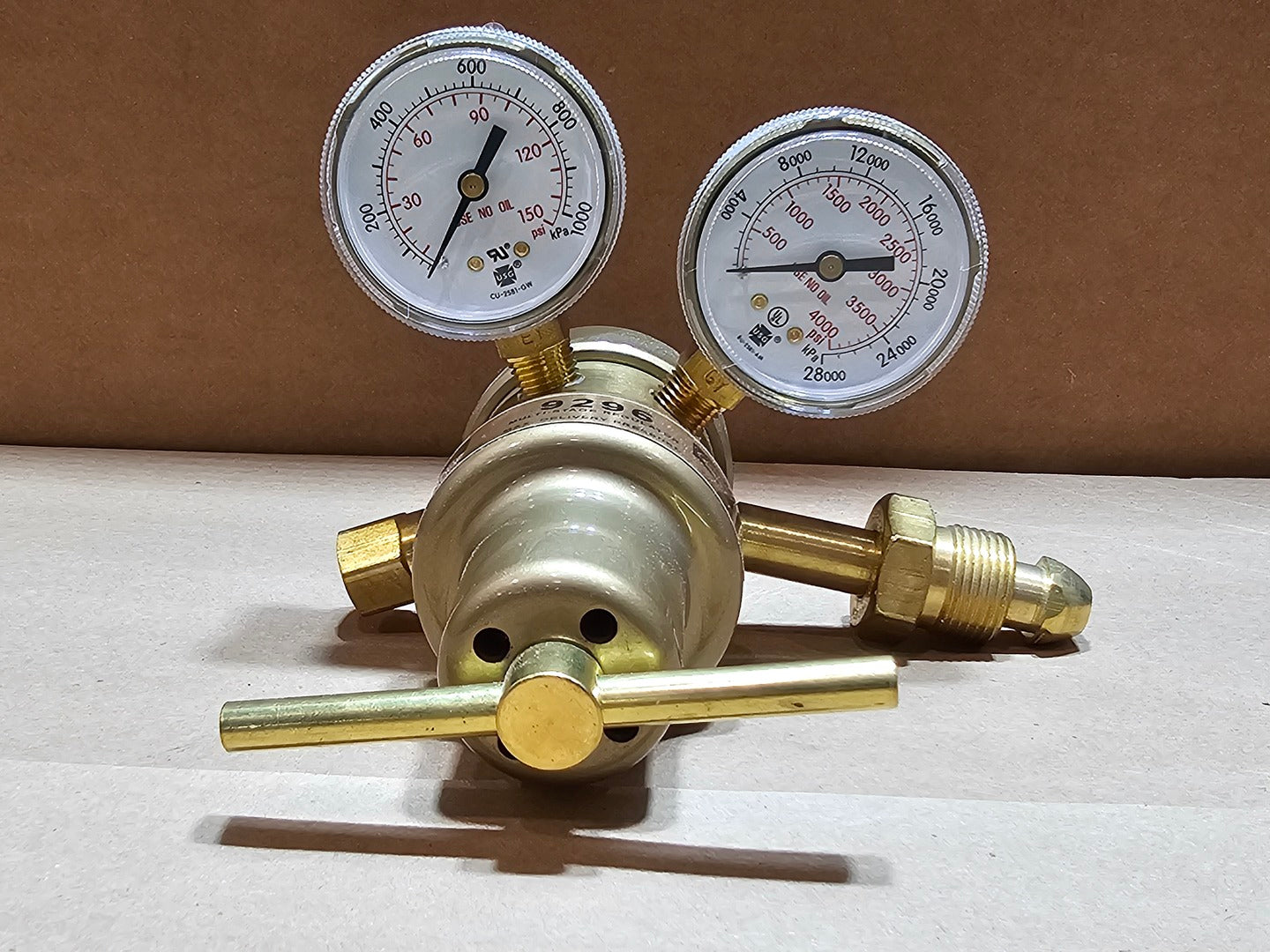

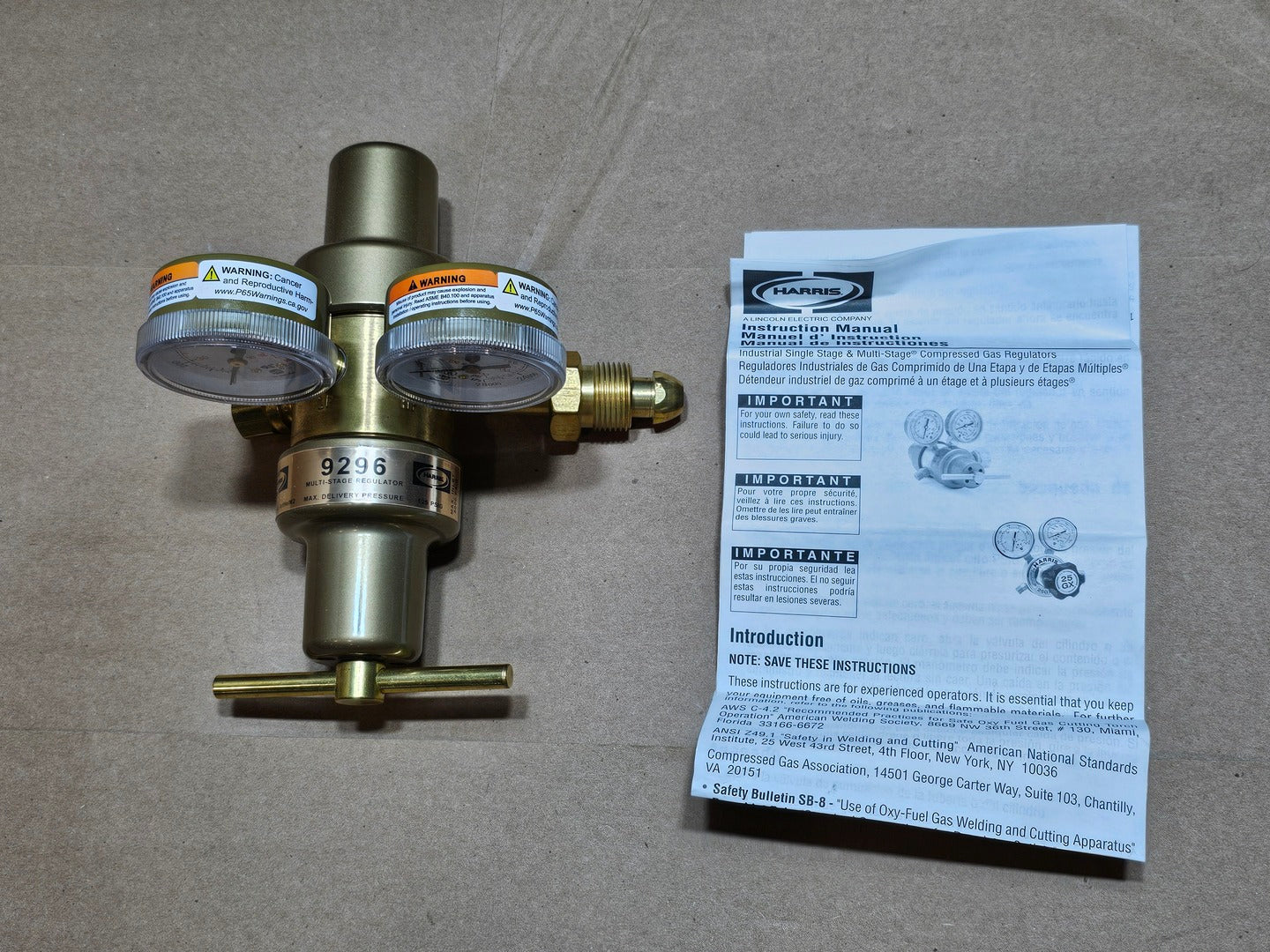

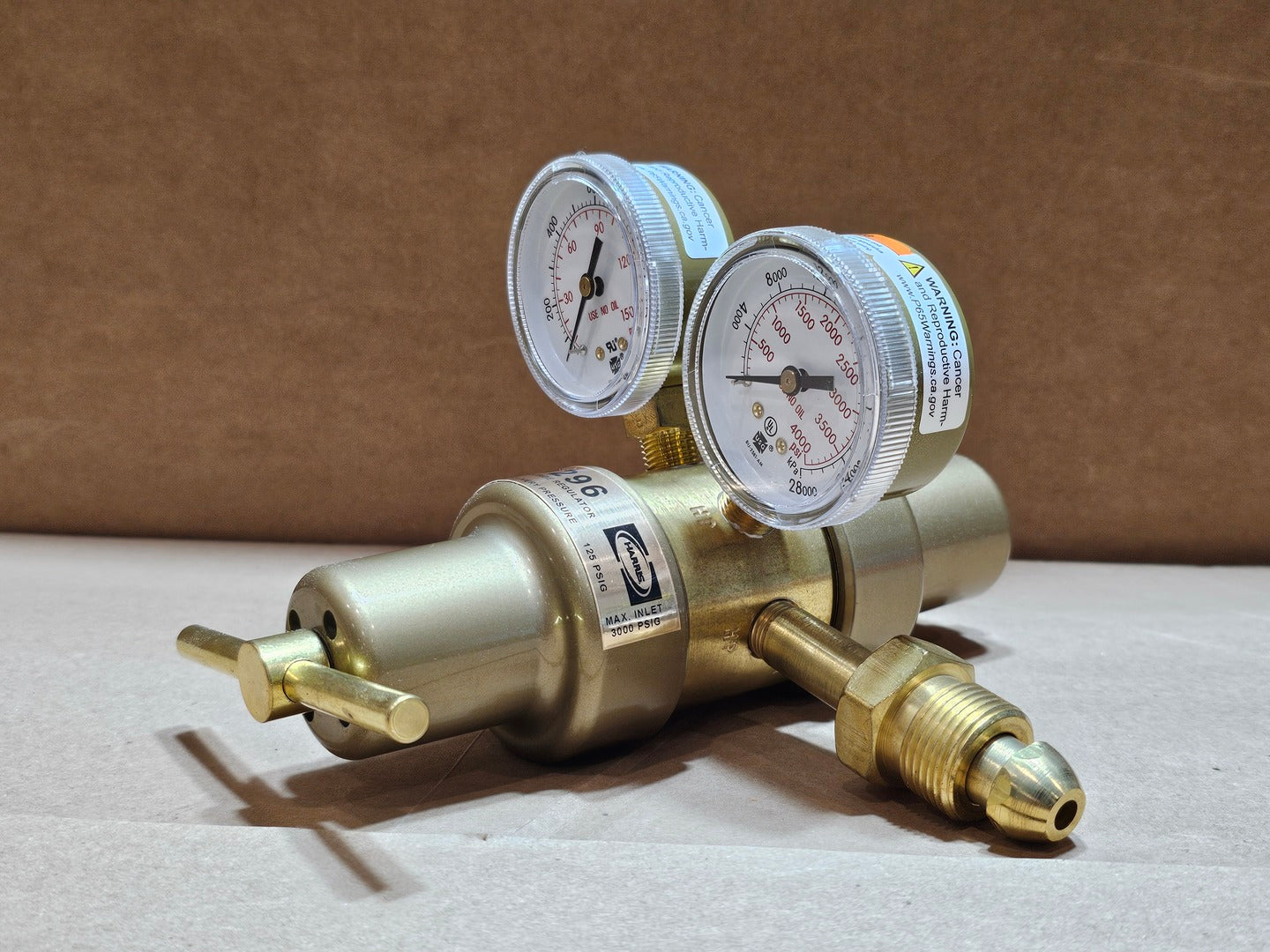

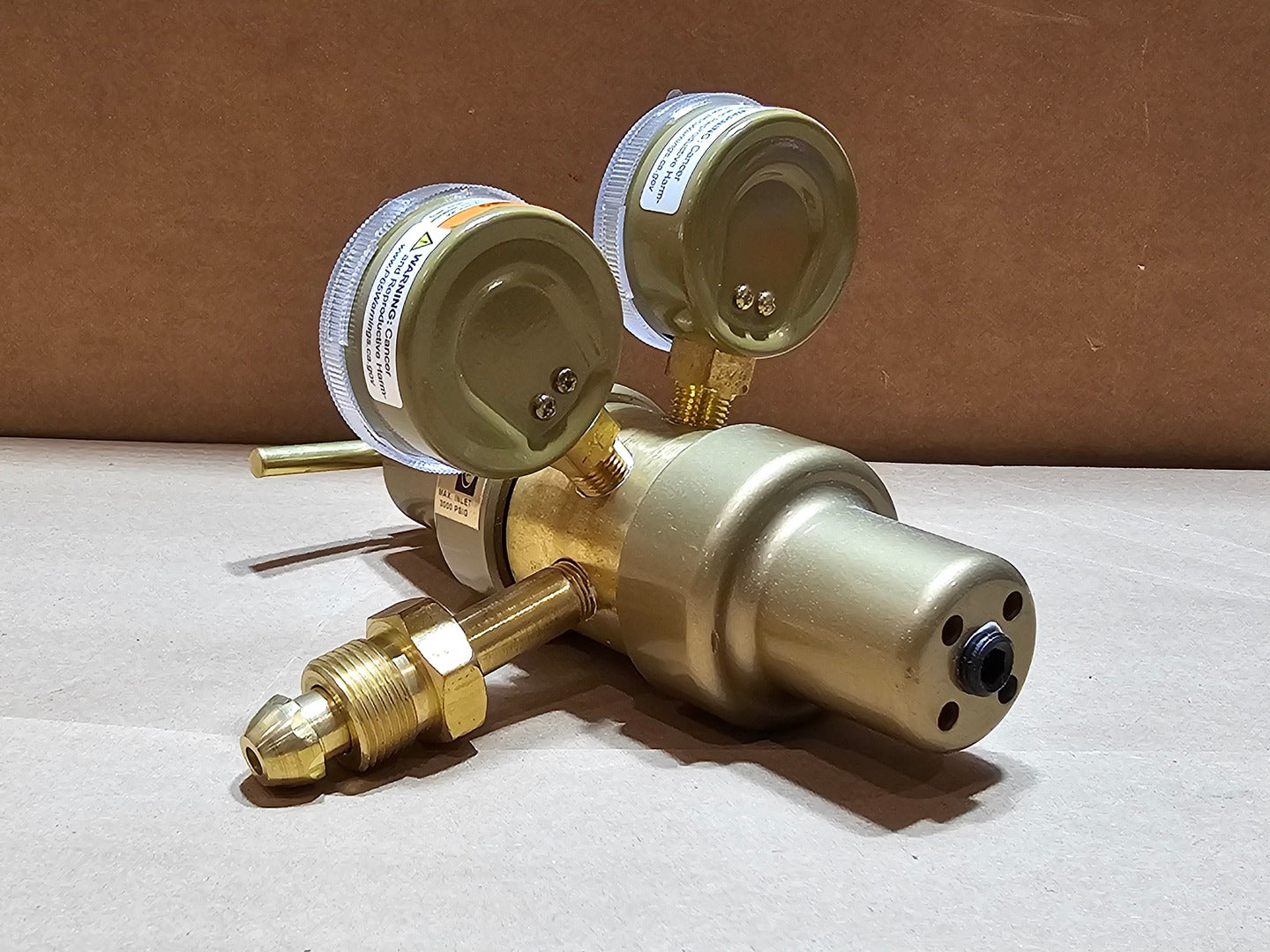

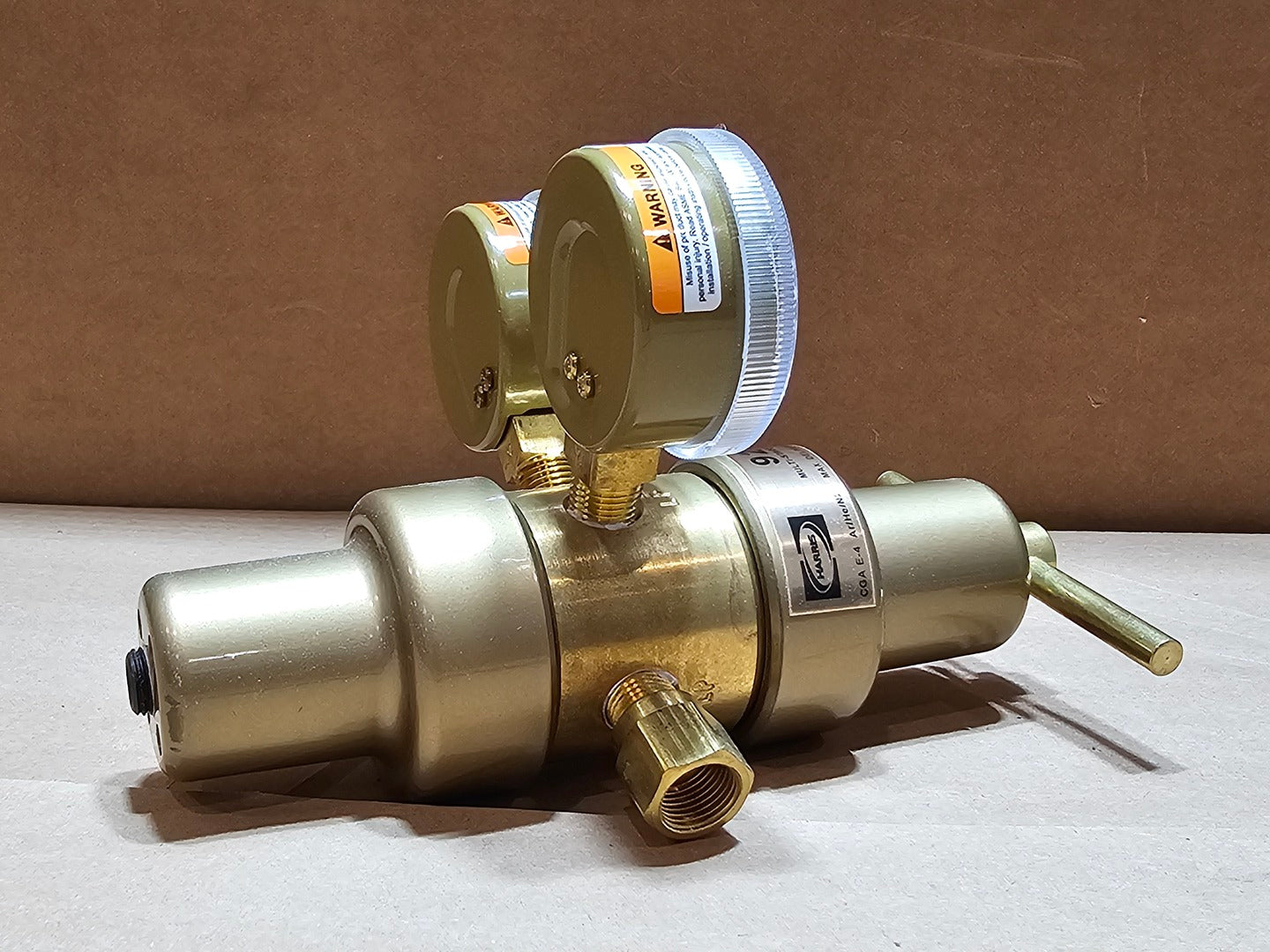

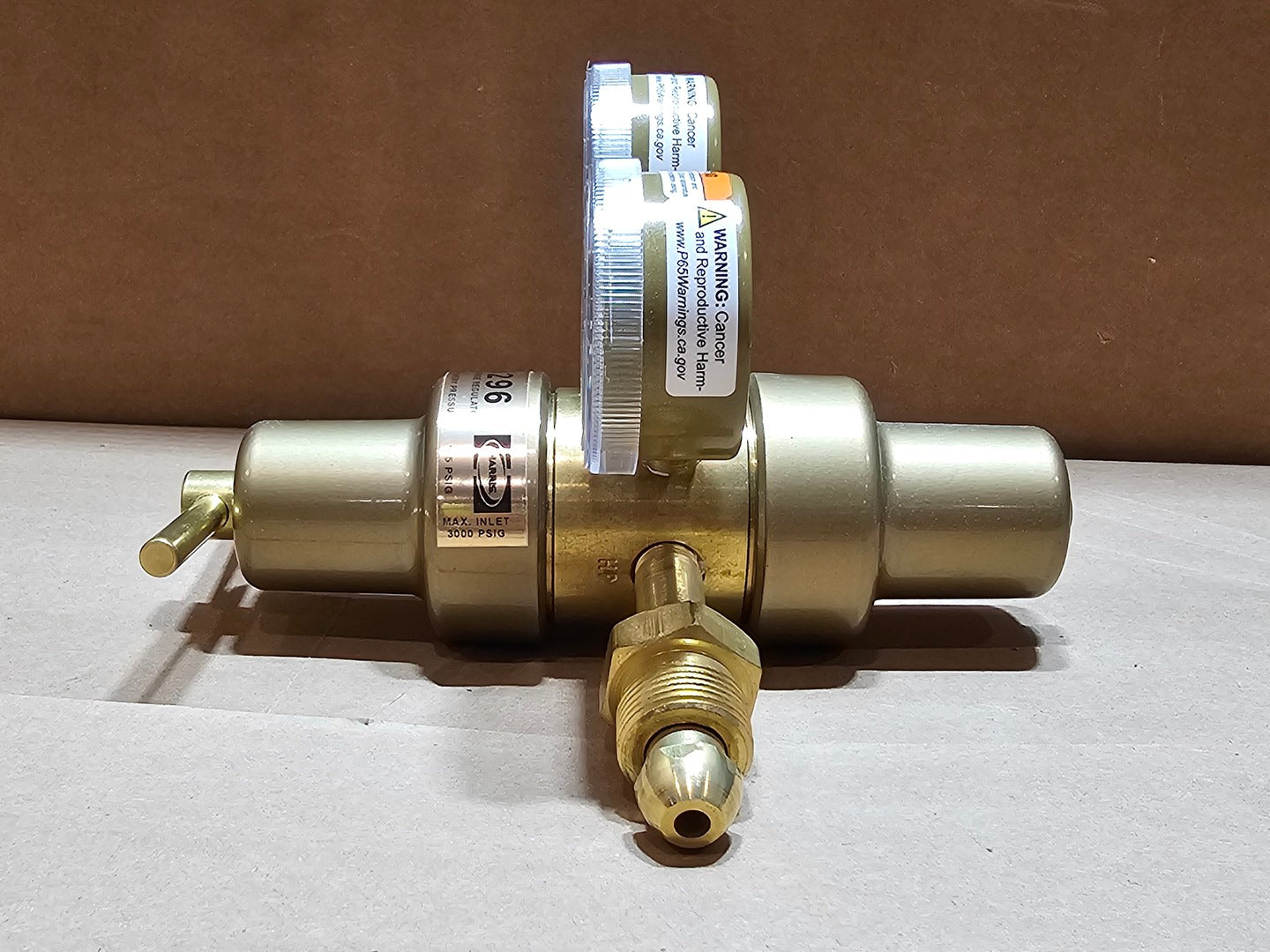

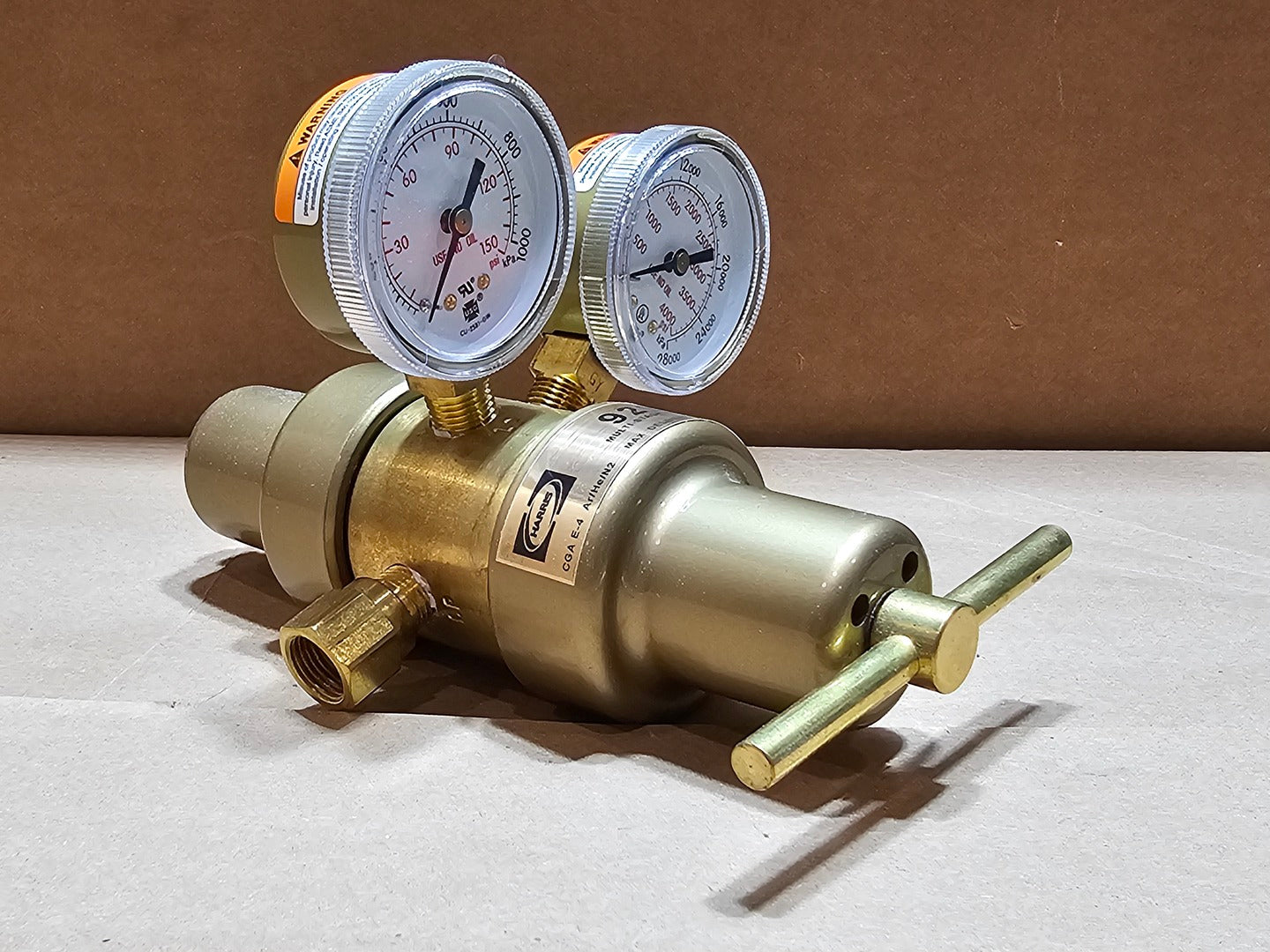

Harris 9296-125-580 heavy-duty two-stage regulator for argon, helium, and nitrogen service. Features a 0-125 psig delivery range, 3,000 psig maximum inlet pressure, CGA 580 cylinder connection, dual pressure gauges, and manual T-handle adjustment. Includes the instruction manual and labeled box. Clean surplus spare with minor handling marks
| Specifications | |
|---|---|
| Model | 9296-125-580 |
| Condition | Surplus New |
| Other Specifications |
|---|
|

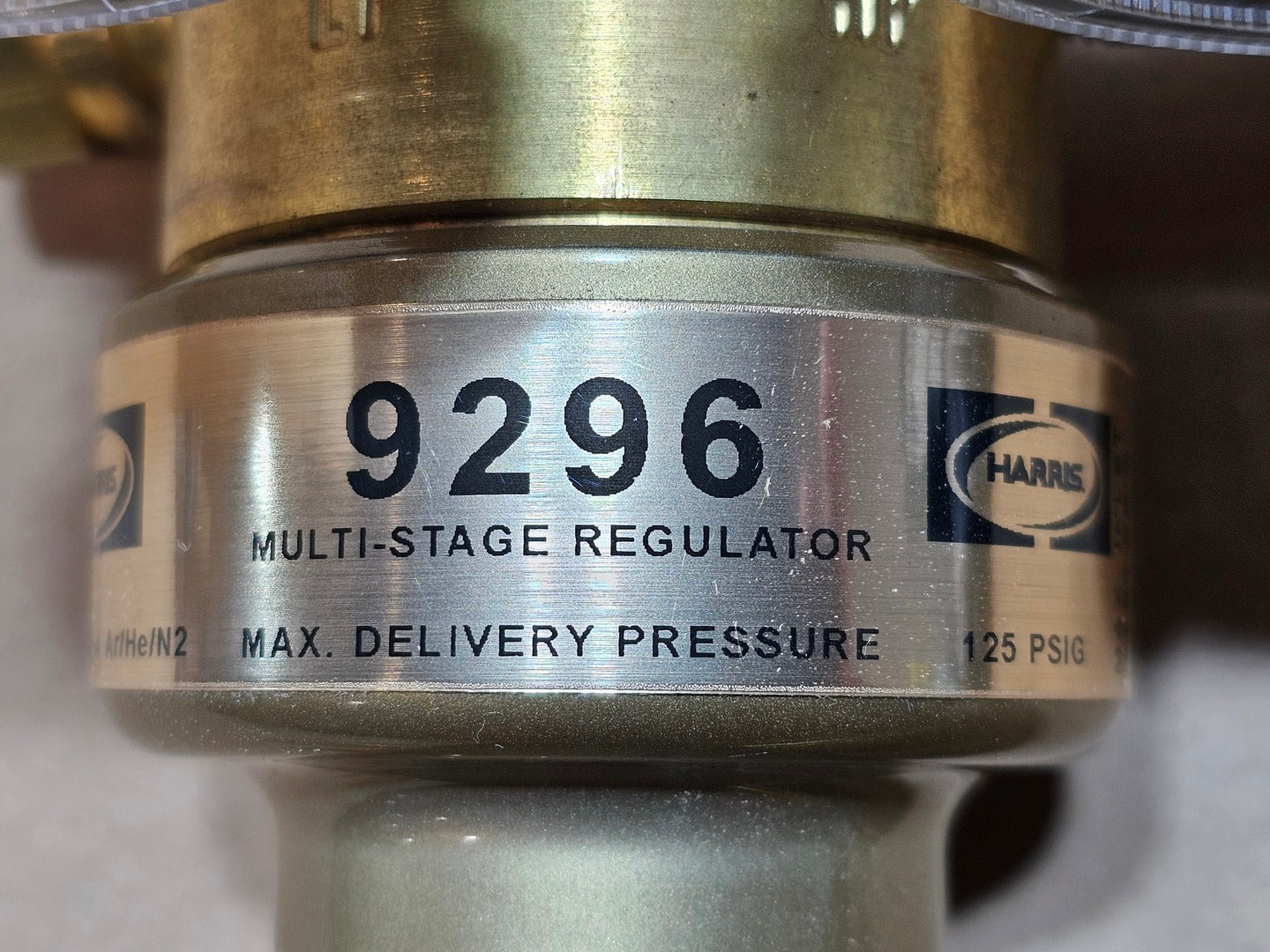

Model: 9296-125-580 Part number: 3302608 Series: 9296 Regulator type: Two-stage / multi-stage Duty: Heavy-duty general purpose Compatible gases: Argon, helium, nitrogen Maximum inlet pressure: 3,000 psig Delivery pressure range: 0-125 psig Inlet connection: CGA 580 Outlet connection: 5/8 in - 18 RH female Body material: Brass Bonnet material: Gold-painted brass Diaphragm material: Neoprene Seat material: PTFE Adjustment: Brass T-screw handle Gauge quantity: 2 Gauge diameter: 2 in Delivery gauge range: 0-150 psi / approximately 0-1,000 kPa Supply gauge range: 0-4,000 psi / approximately 0-28,000 kPa |
