Description

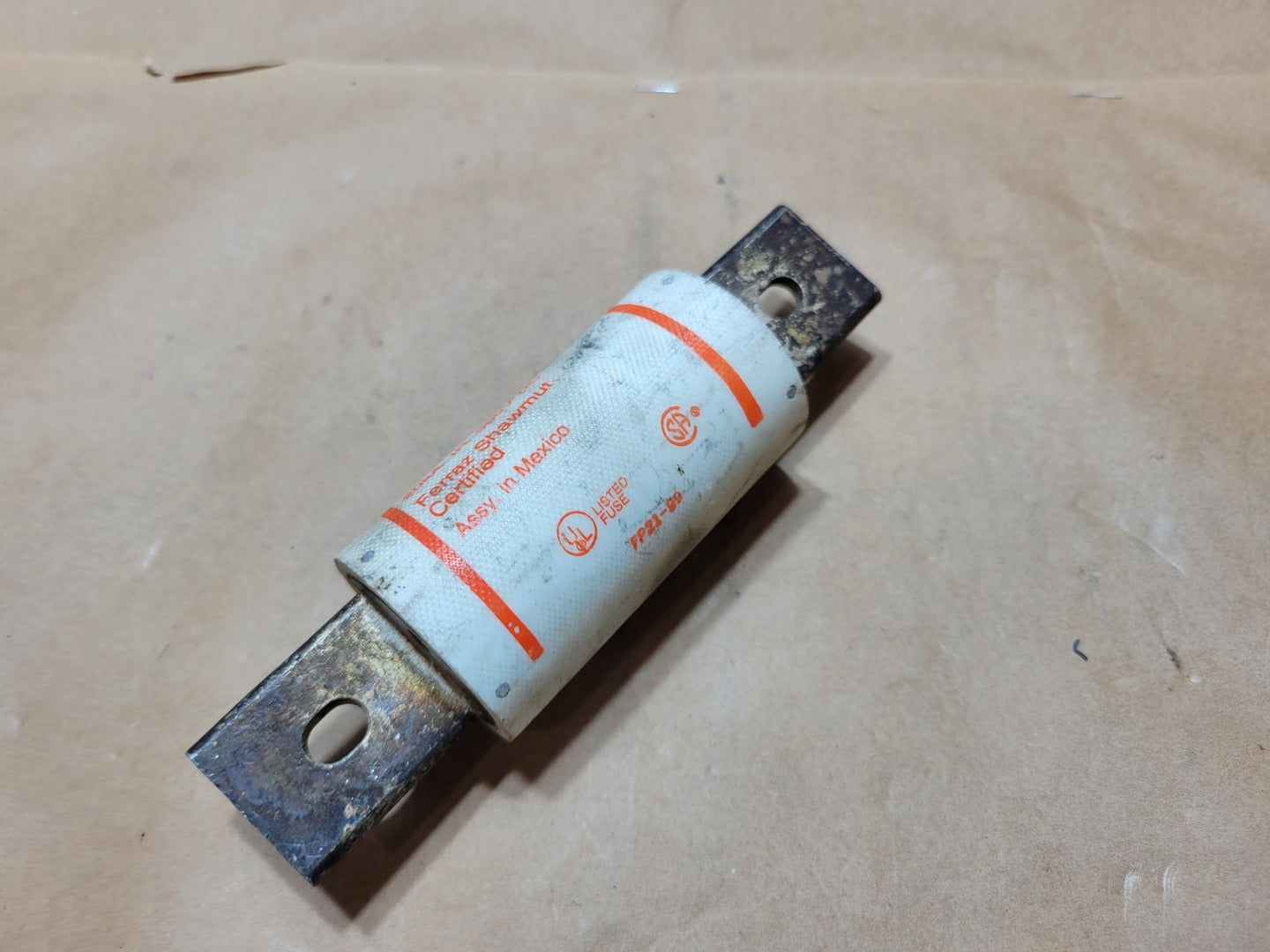

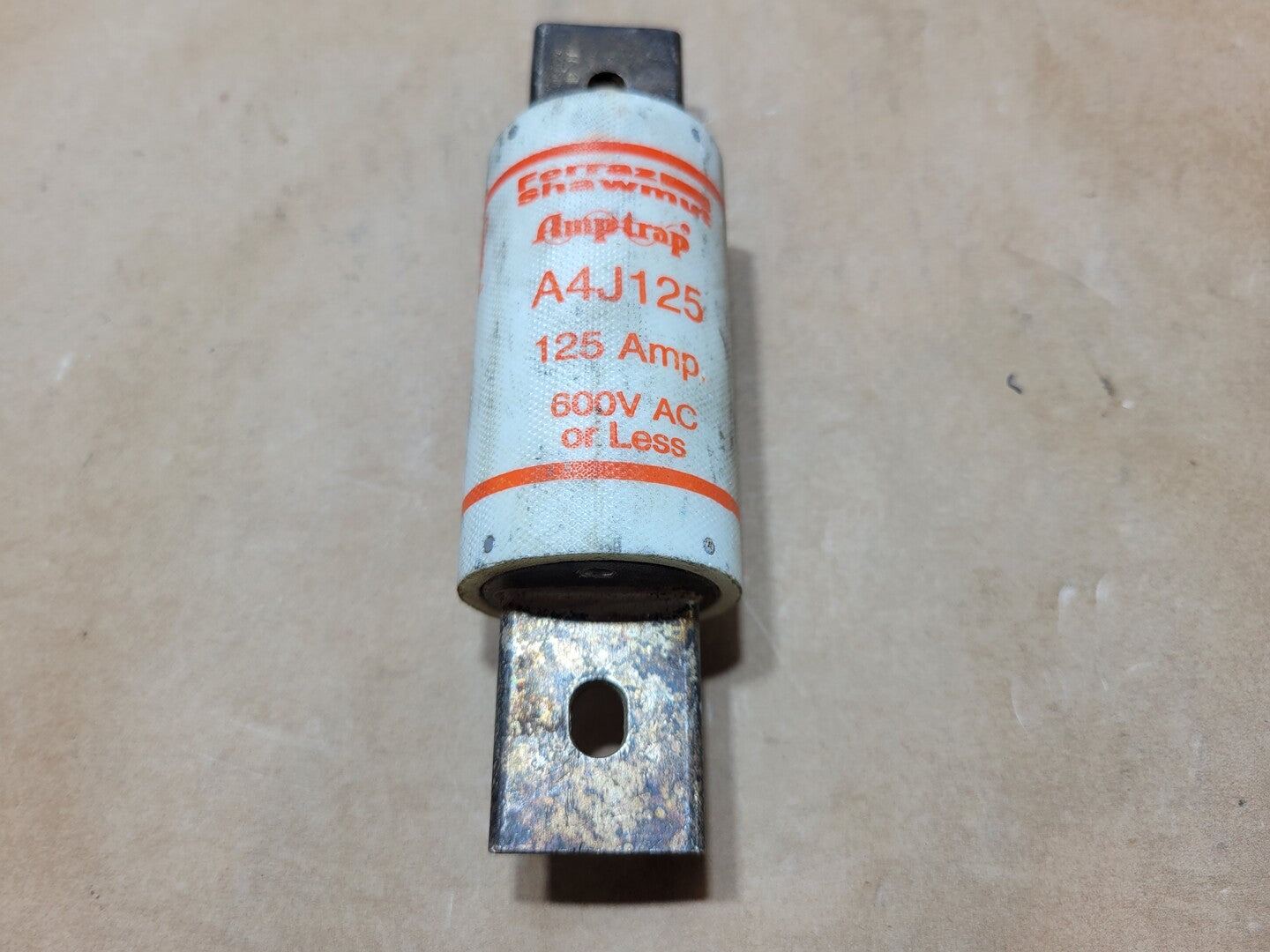

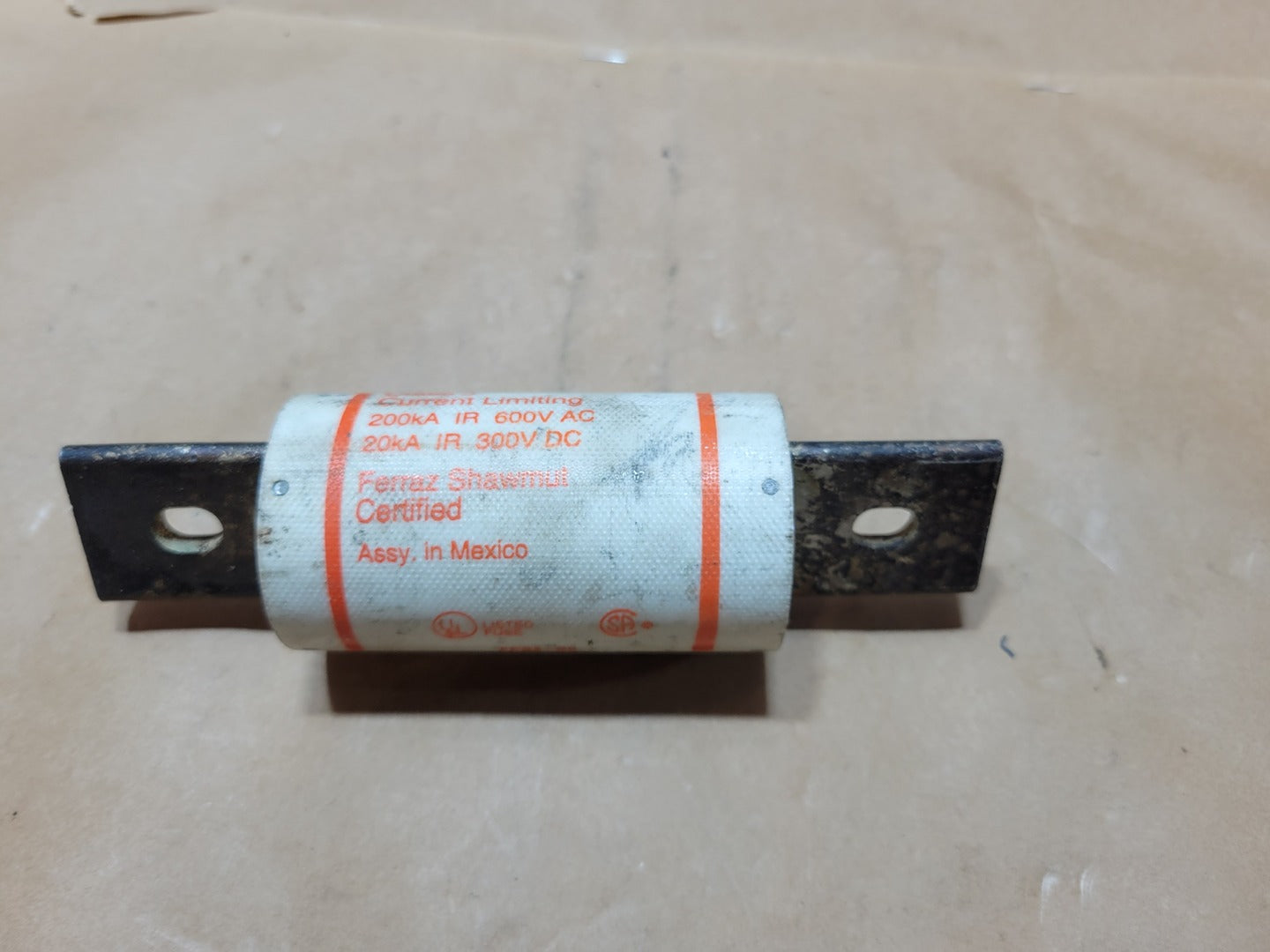

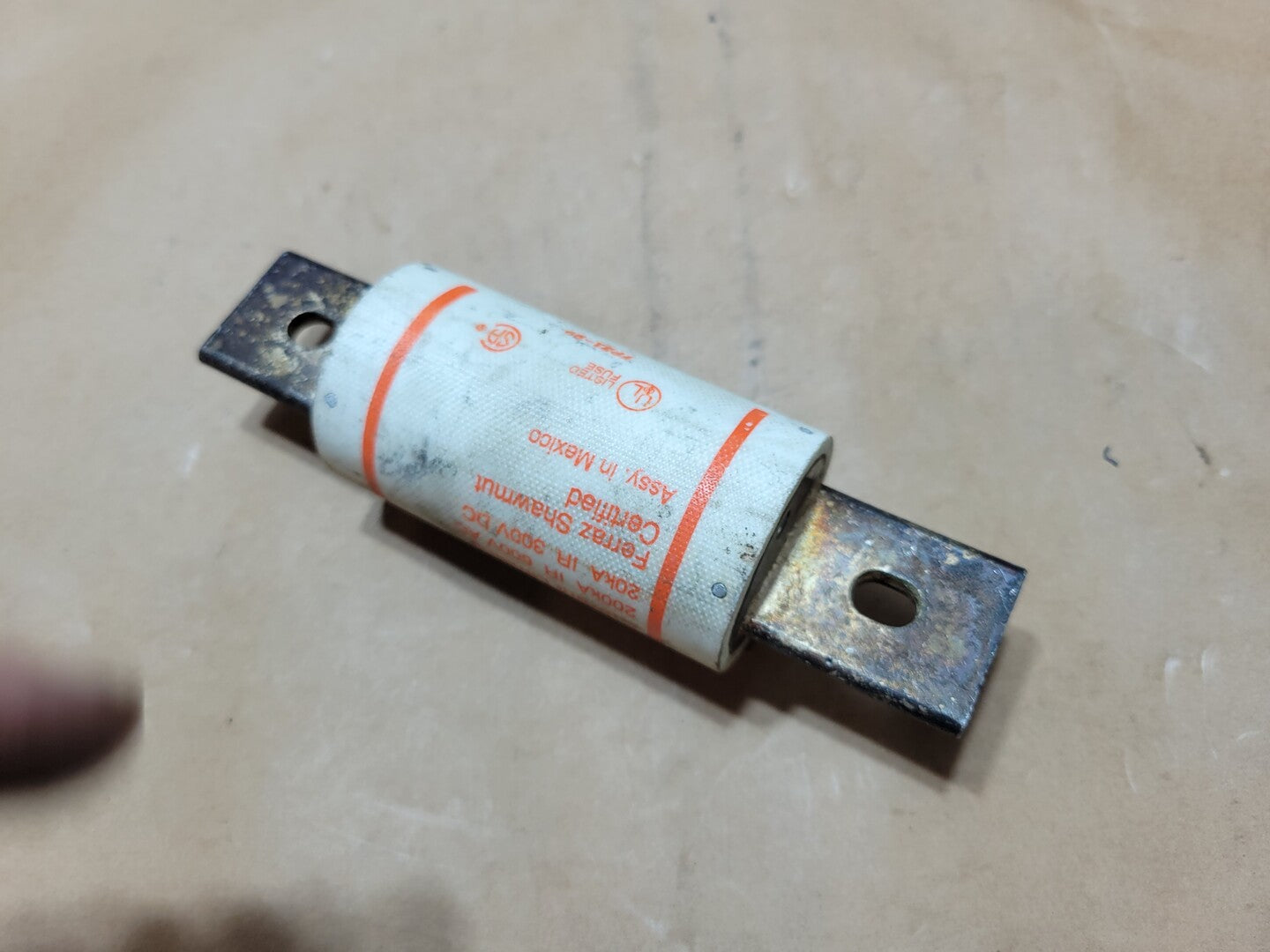

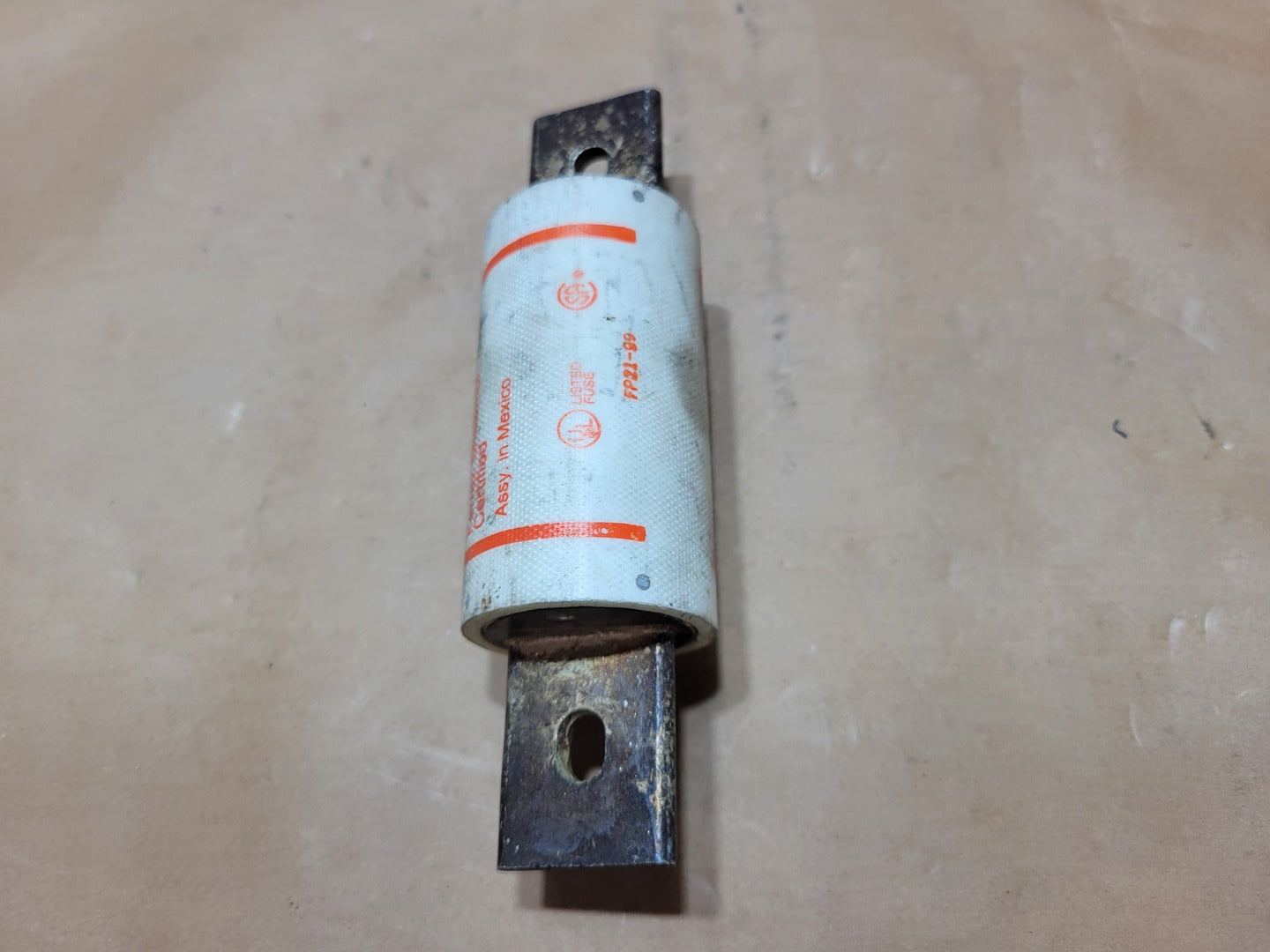

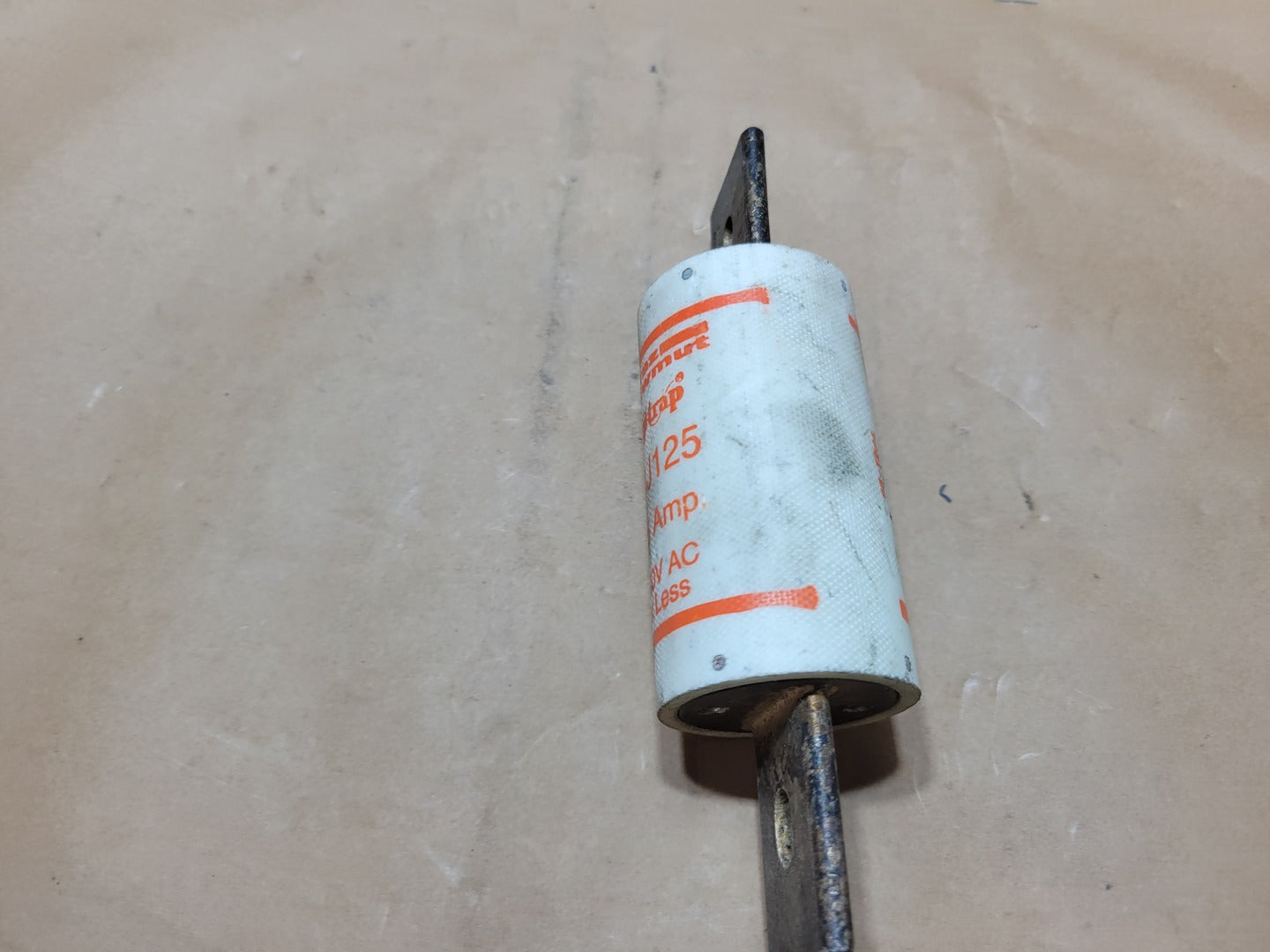

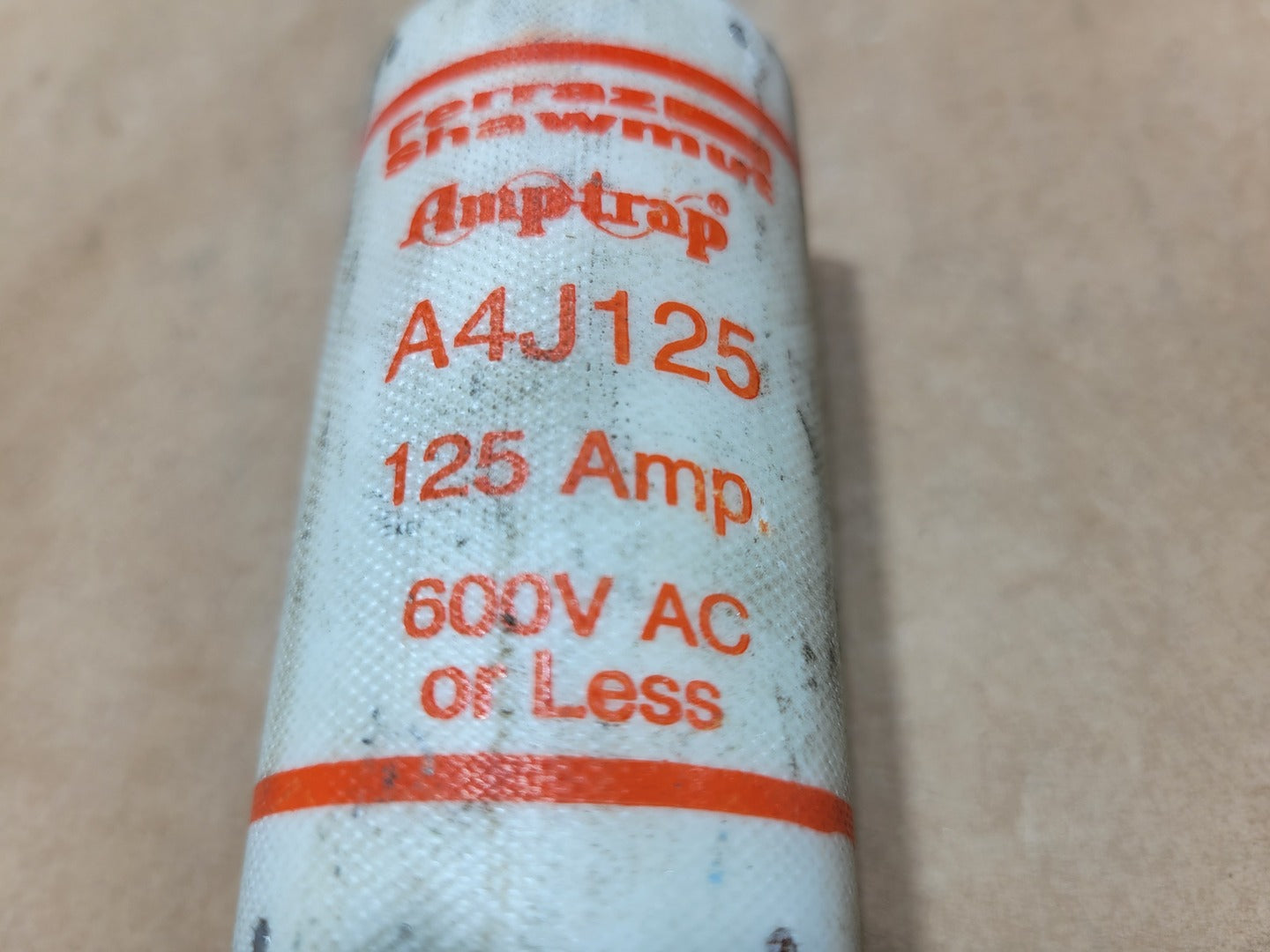

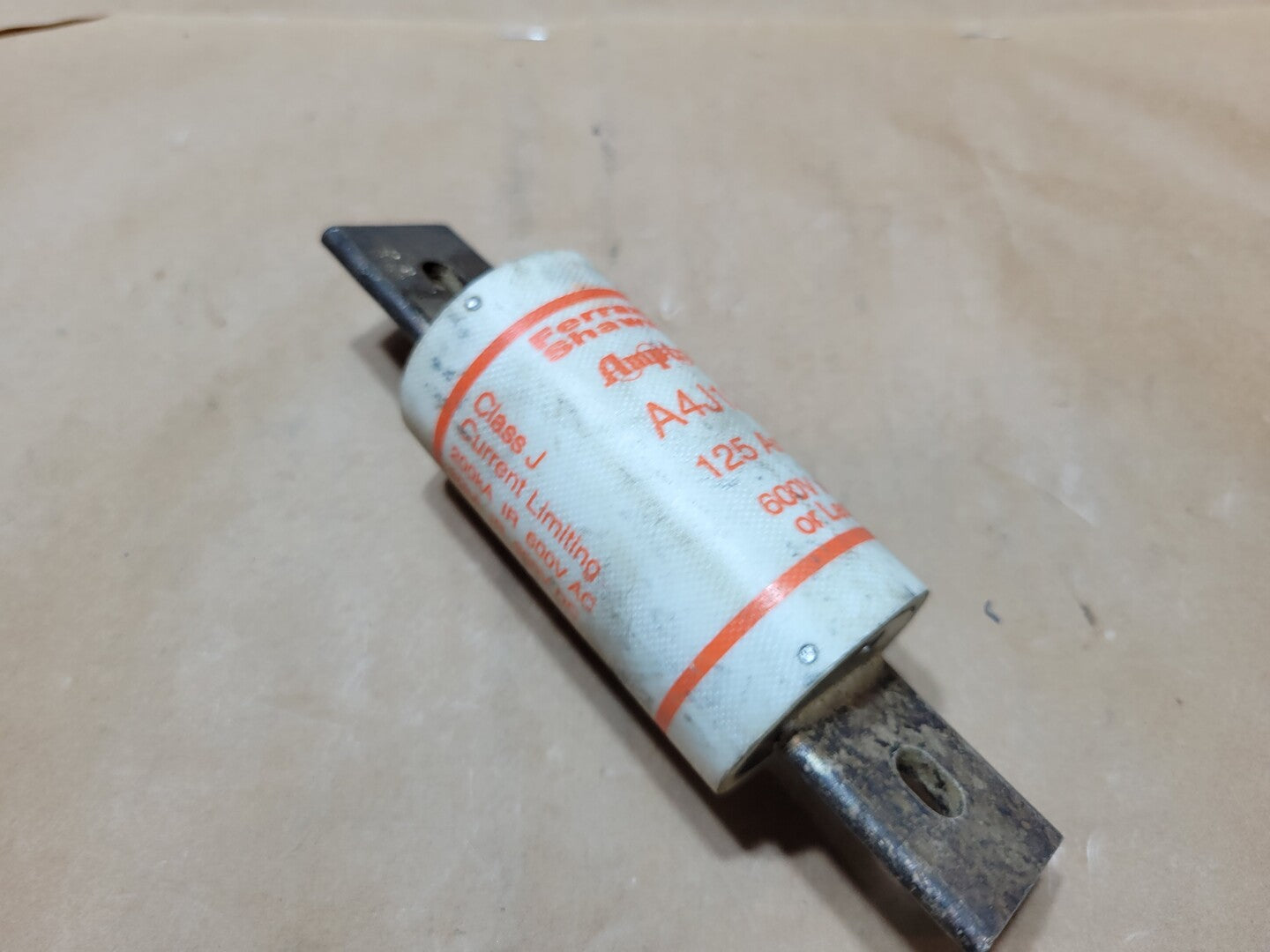

Ferraz Shawmut Amp-Trap A4J125 Class J fast-acting current-limiting fuse rated for 125 amps, 600 VAC and 300 VDC. The fuse carries a marked interrupting rating of 200 kA at 600 VAC and 20 kA at 300 VDC and features bolted blade terminals.
| Specifications | |
|---|---|
| Model | A4J125 |
| Made In | MEXICO |
| Condition | Used | Electrical |
| Amps | 125 amps |
| Voltage | 600 volts |
| Phase | Single-phase |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | J |
| Interrupting Rating | 200 kA |
| Other Specifications |
|---|
|
Series: Amp-Trap A4J Fuse Type: Fast-Acting Current-Limiting DC Voltage Rating: 300 VDC DC Interrupting Rating: 20 kA at 300 VDC Frequency: 50/60 Hz per current Mersen specification Terminal Type: Blade Connection Style: Bolted Blade |
