Description

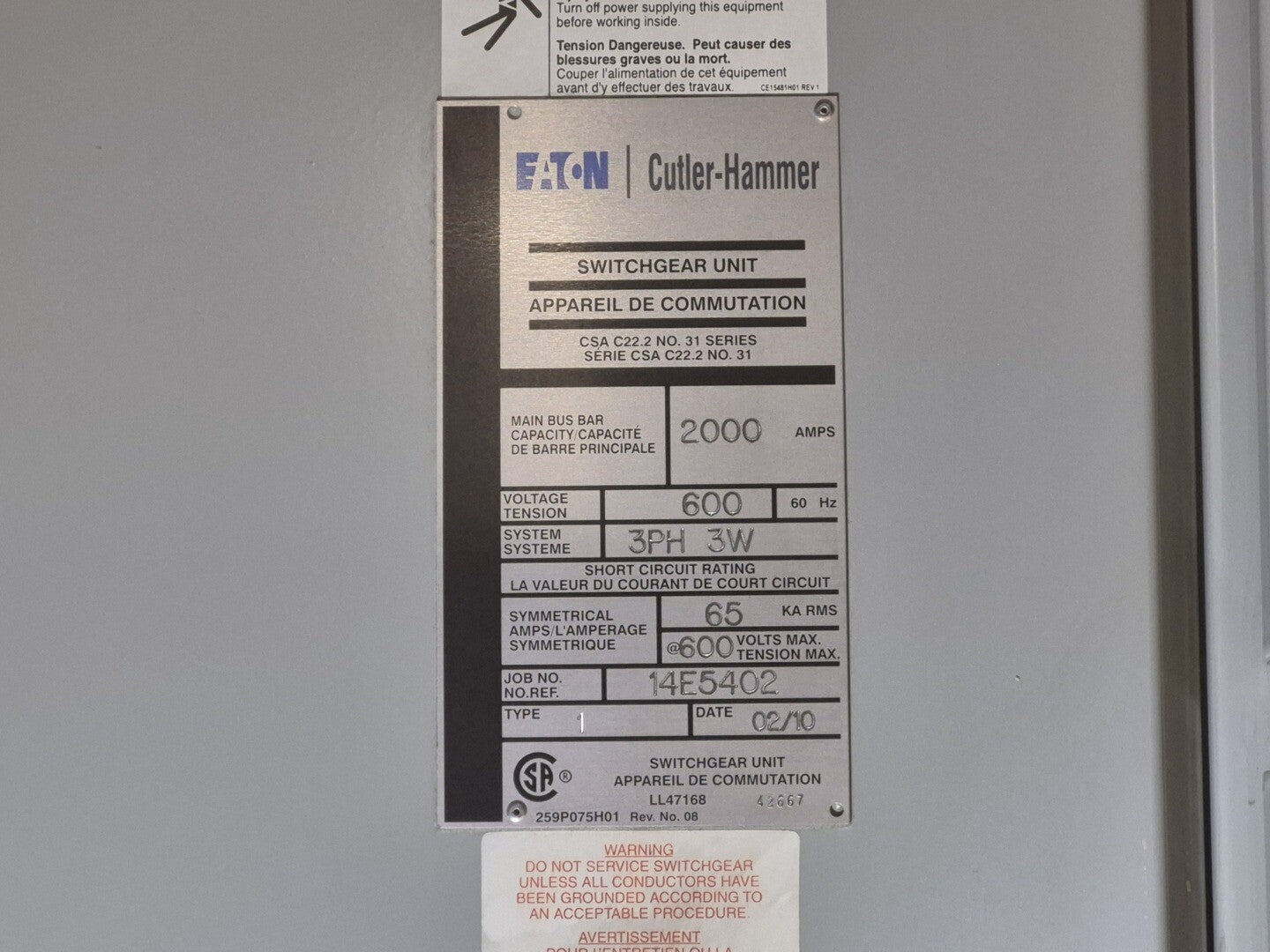

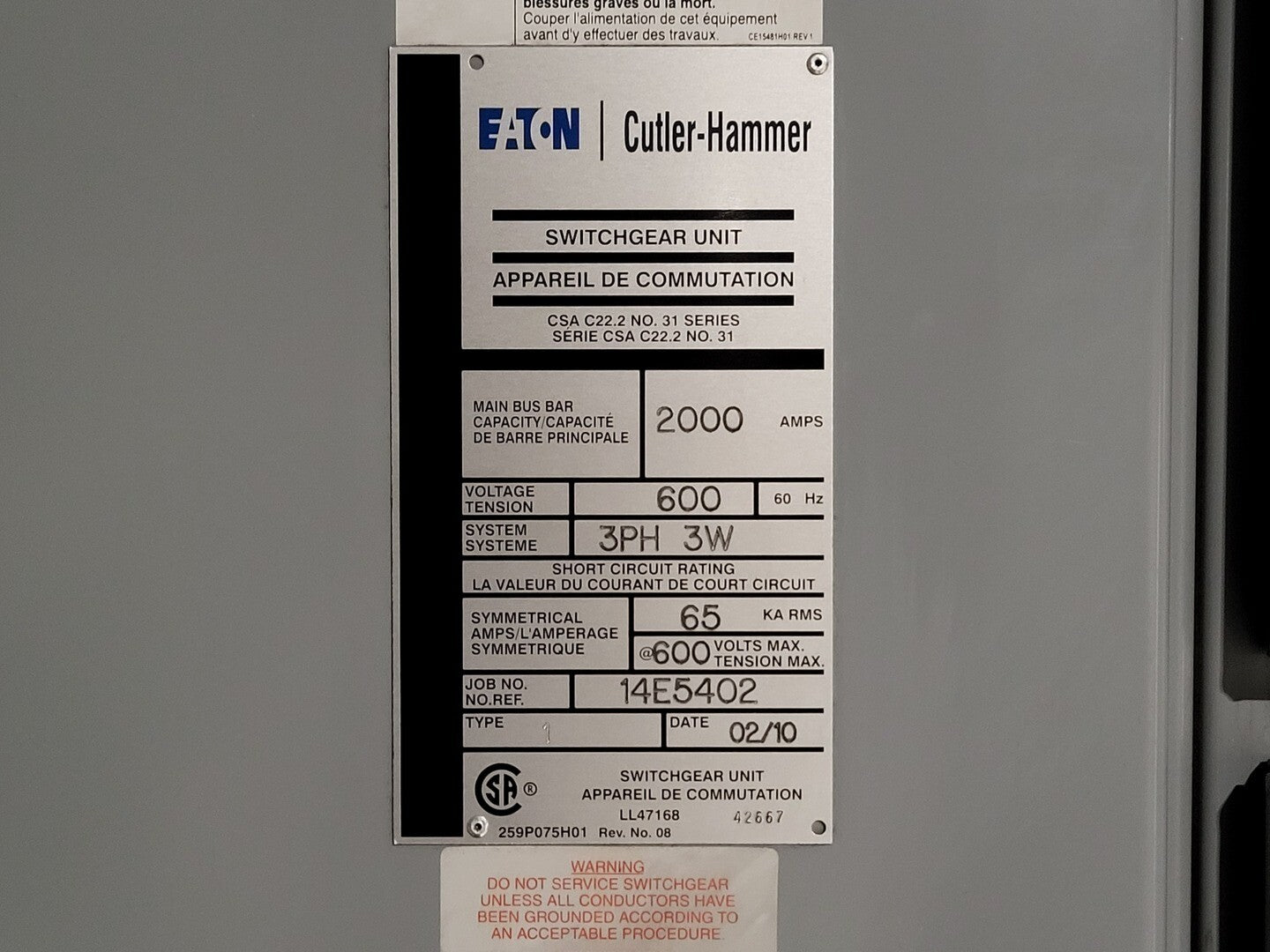

| Condition | Used - Like New | Electrical |
|---|---|
| Amps | 2000 amps |
| Voltage | 600 volts |
| Phase | 3-phase | General |

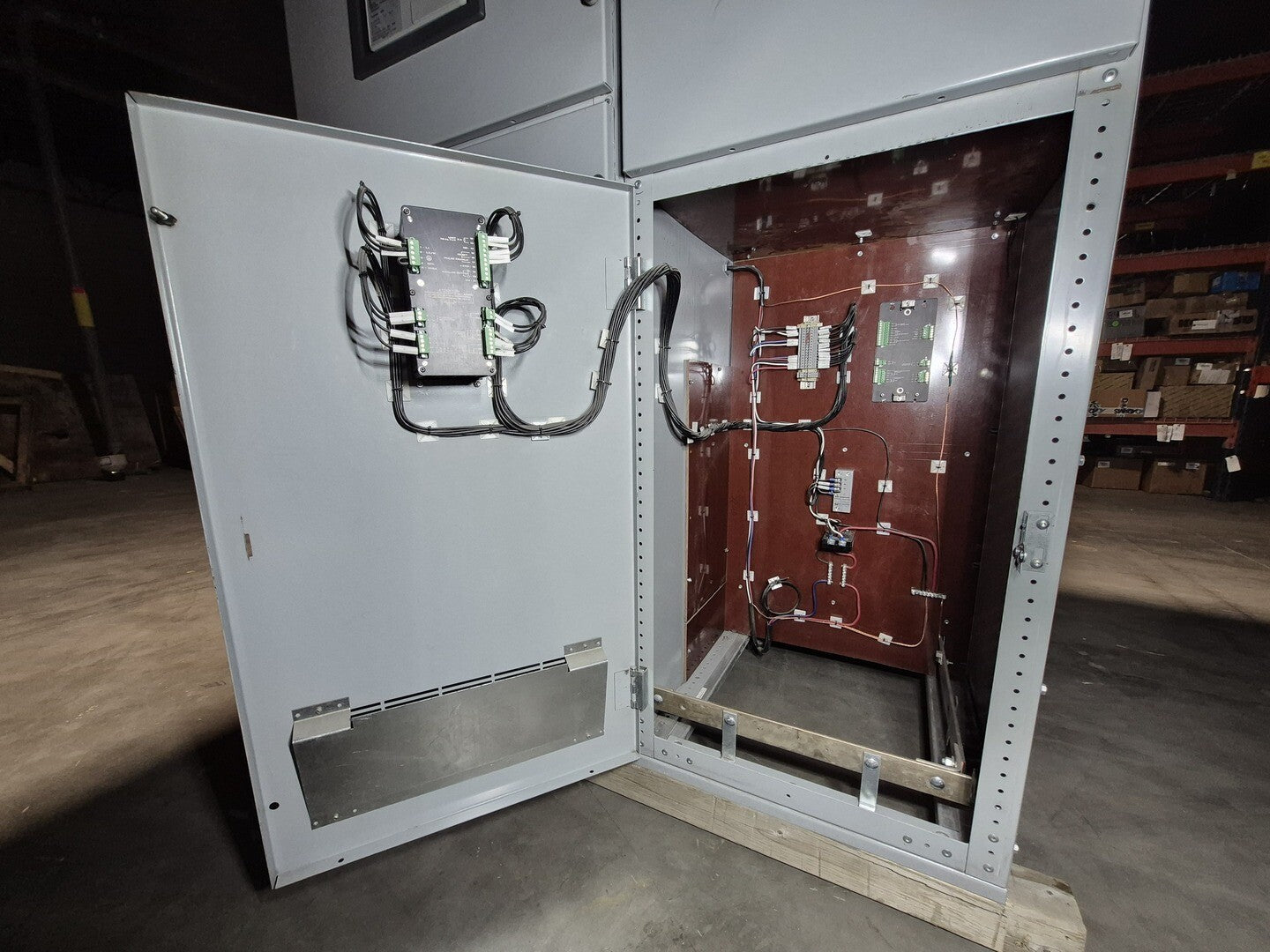

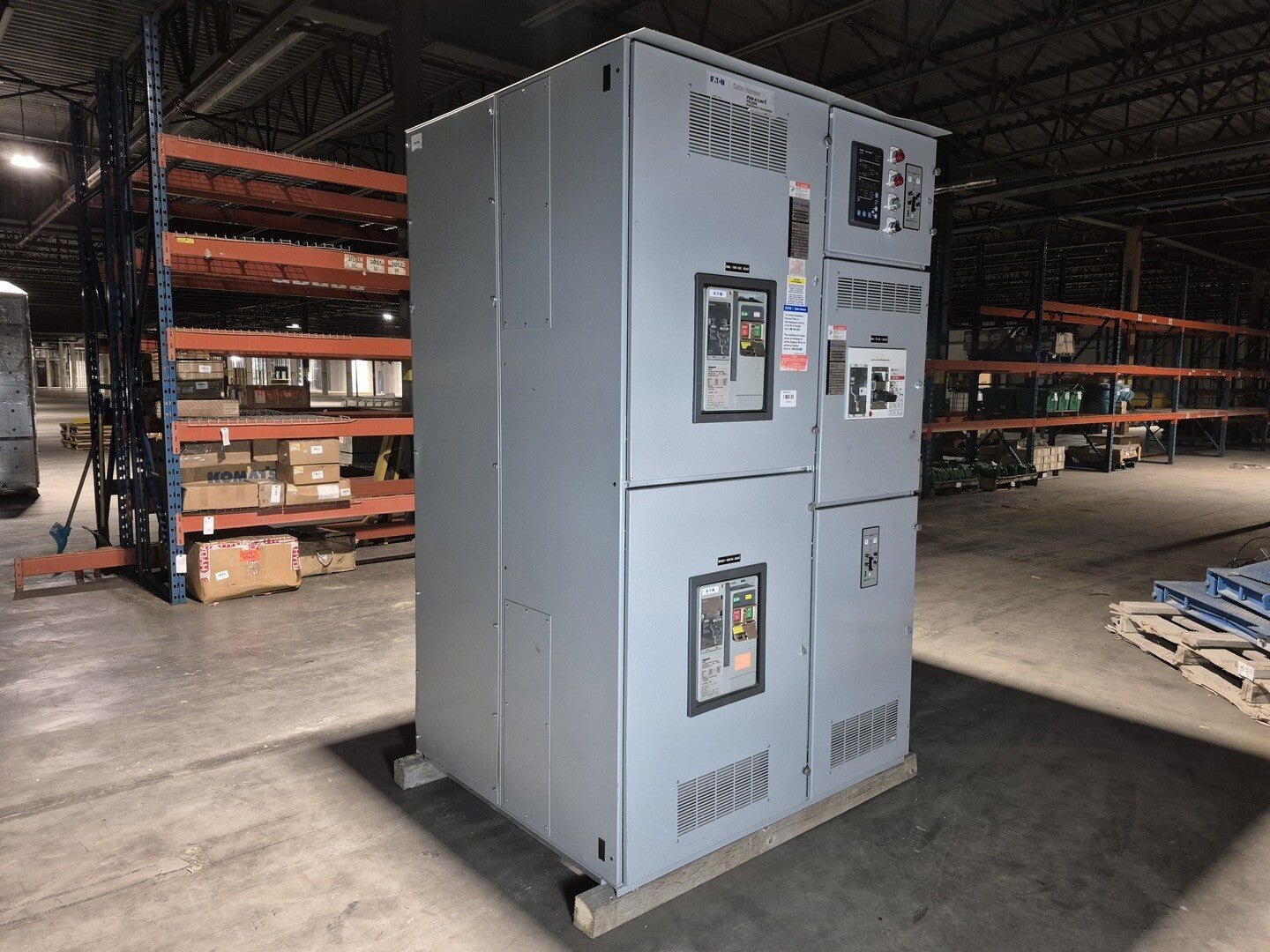

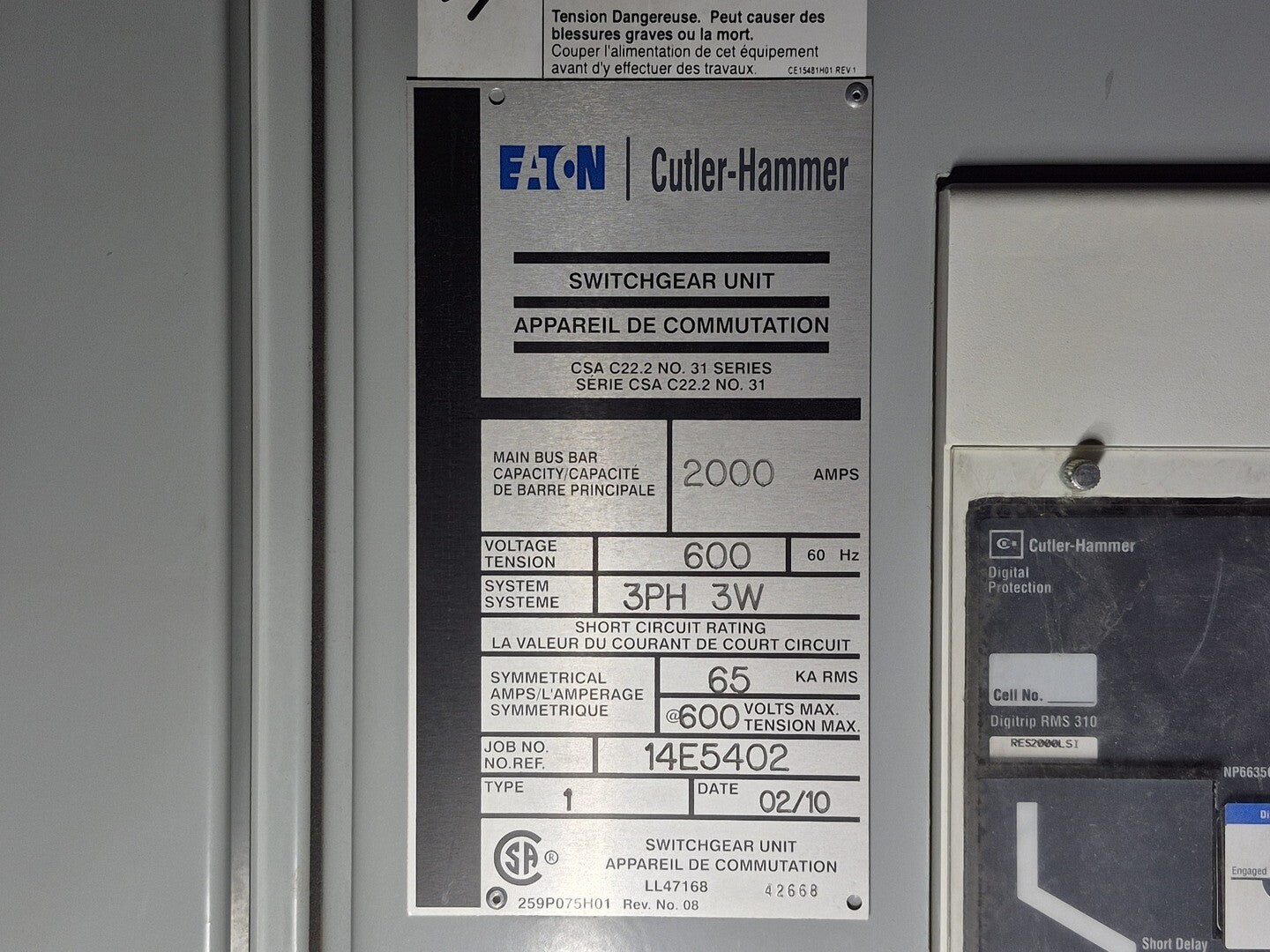

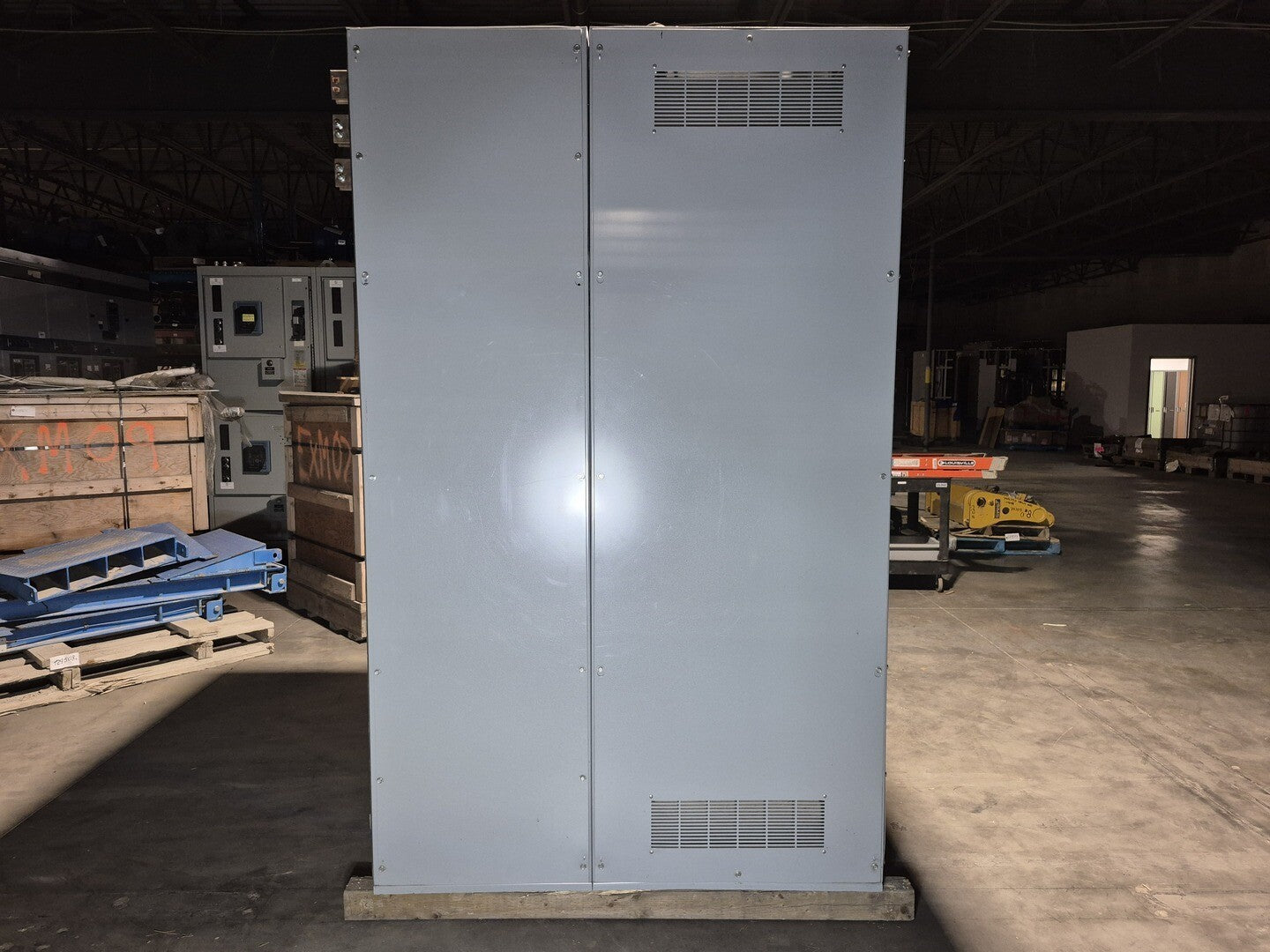

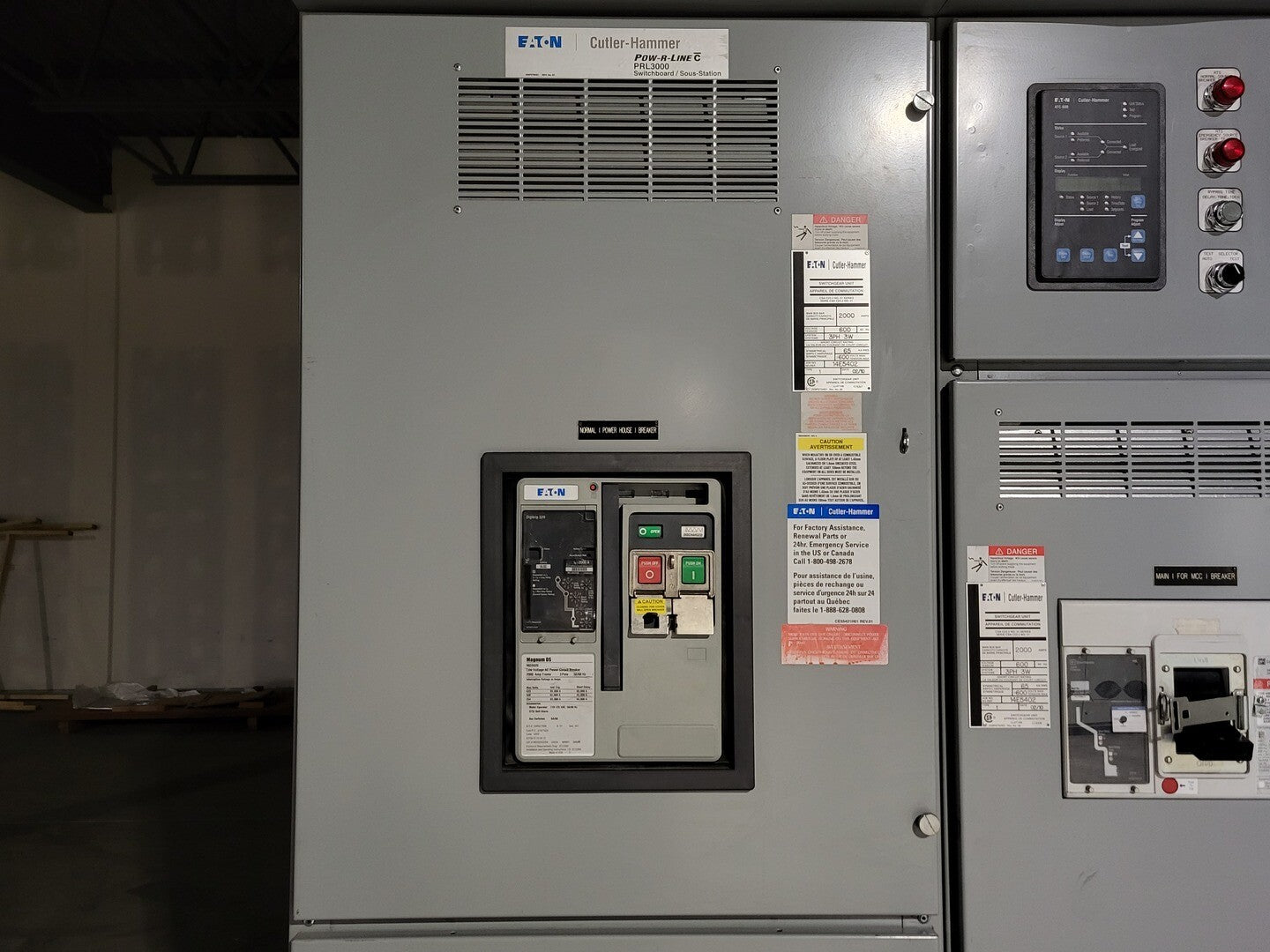

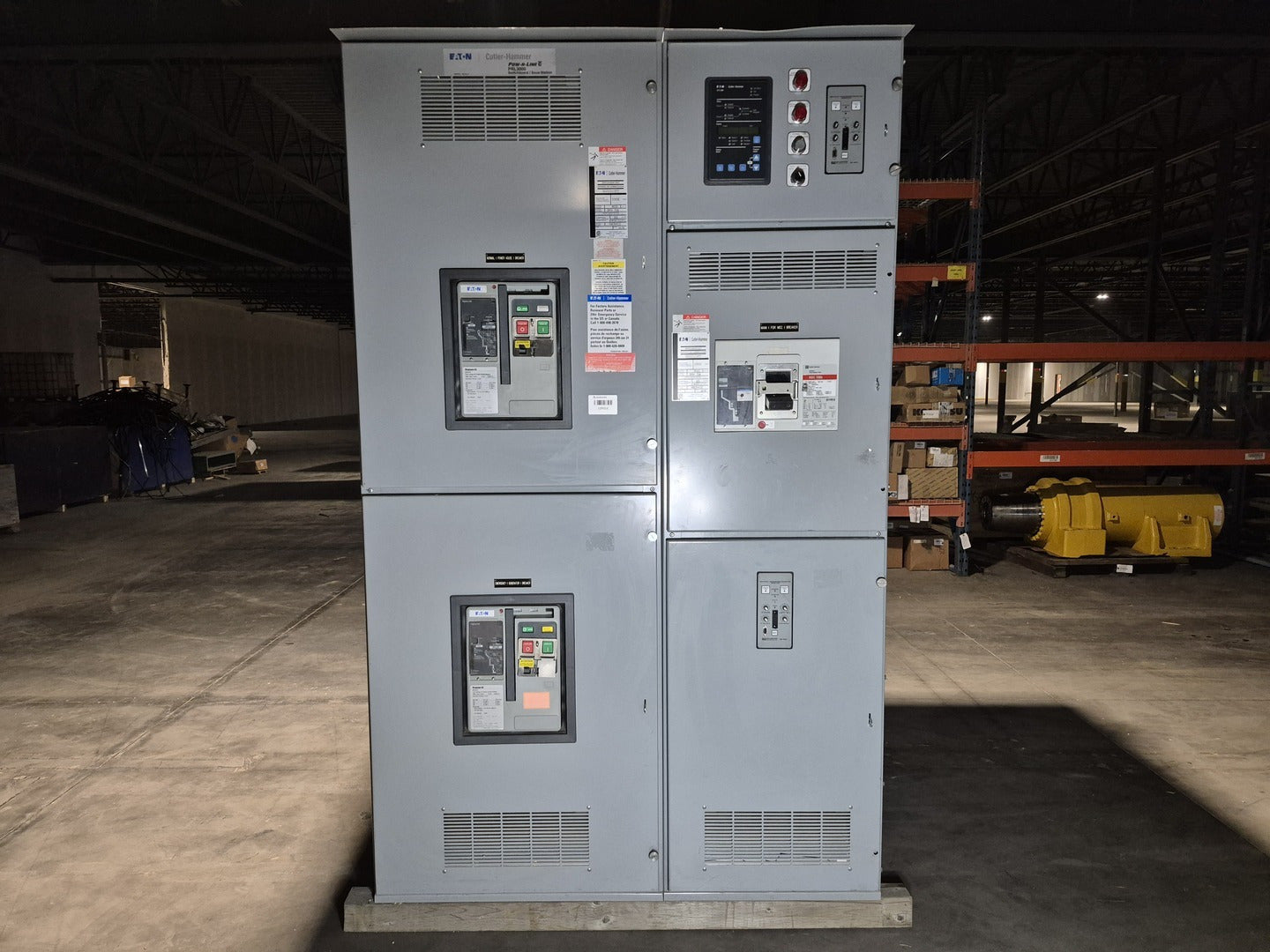

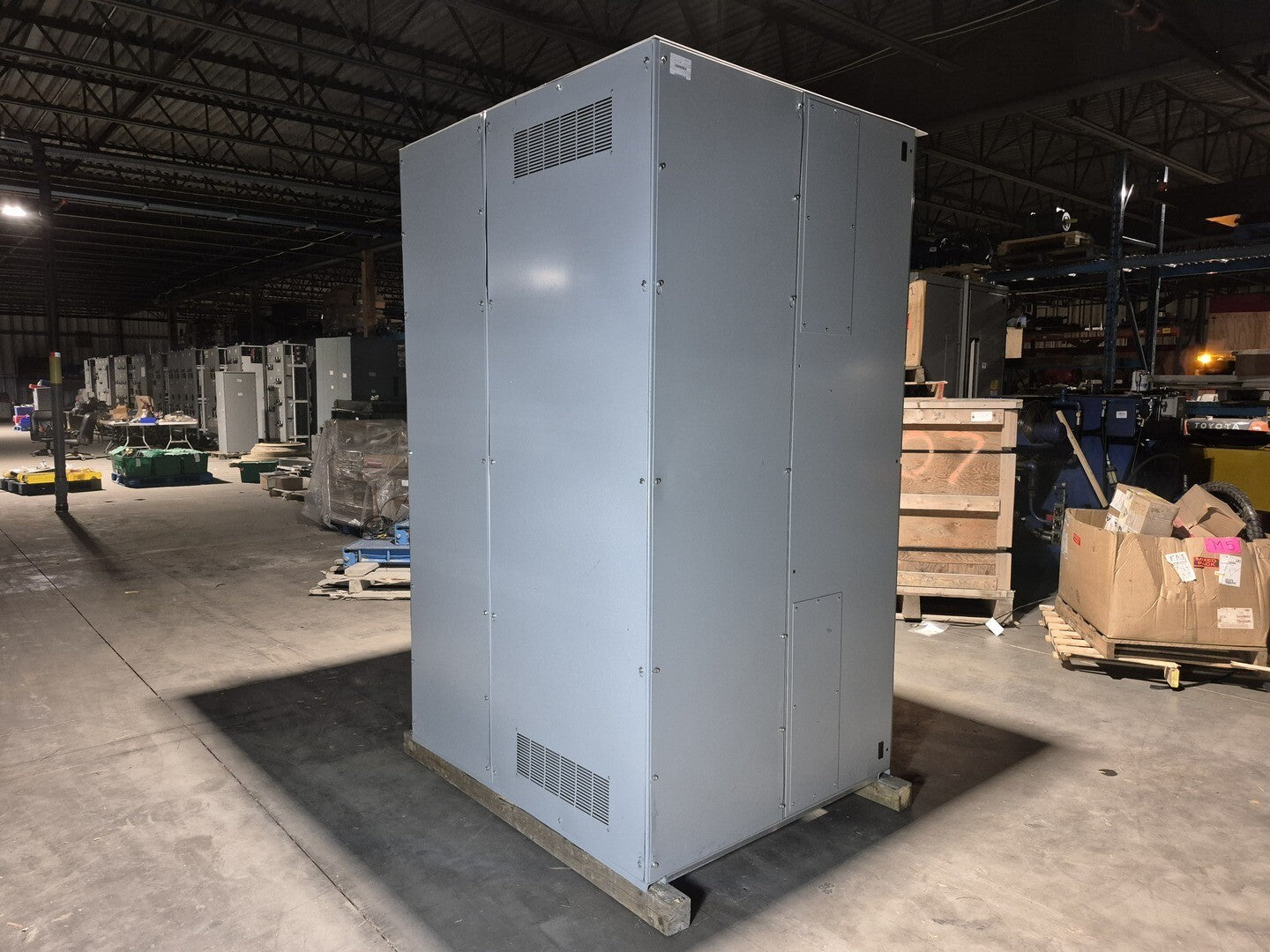

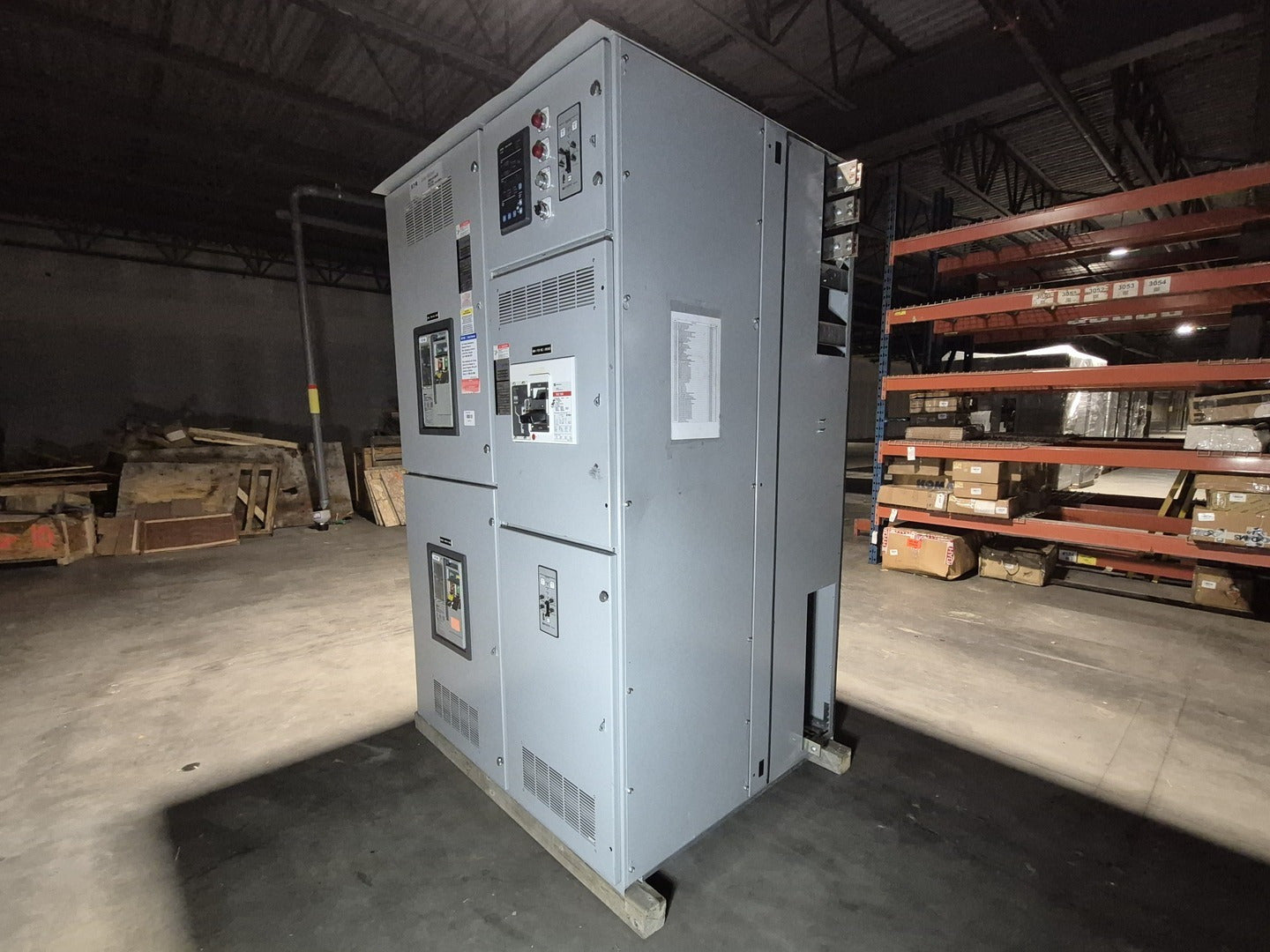

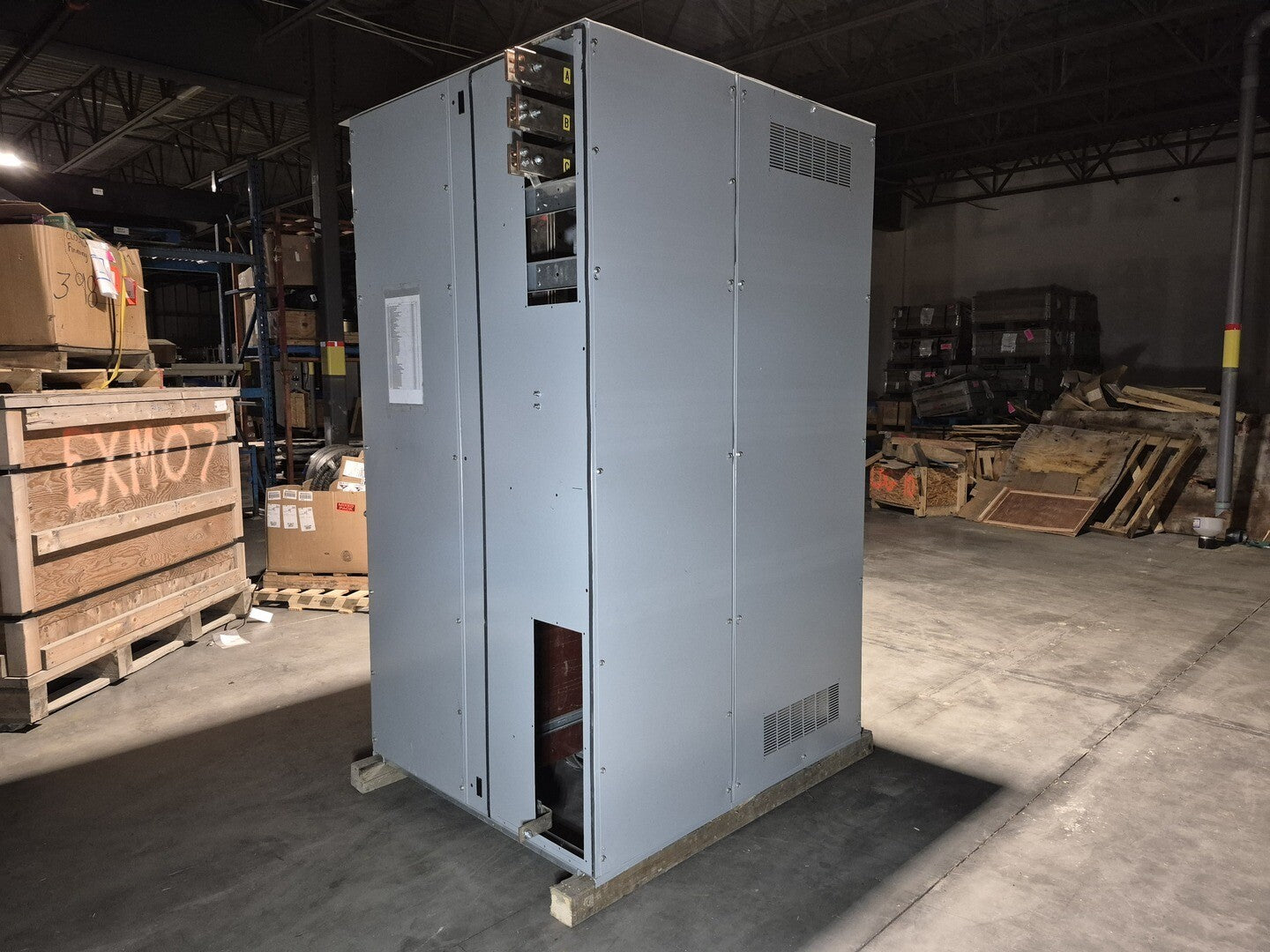

| Cabinet Type | Eaton Freedom 2100 Series |
| Other Specifications |
|---|
|

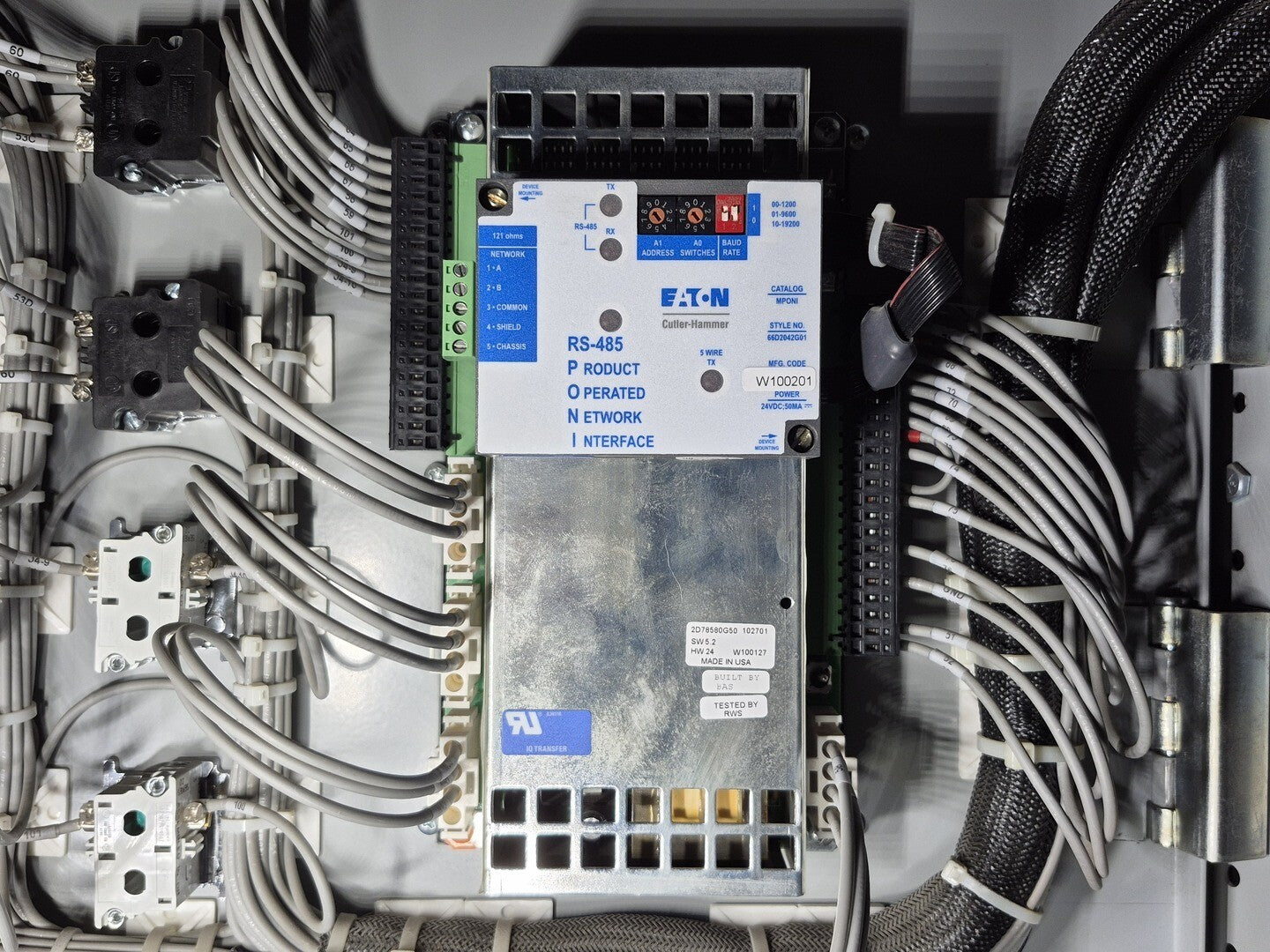

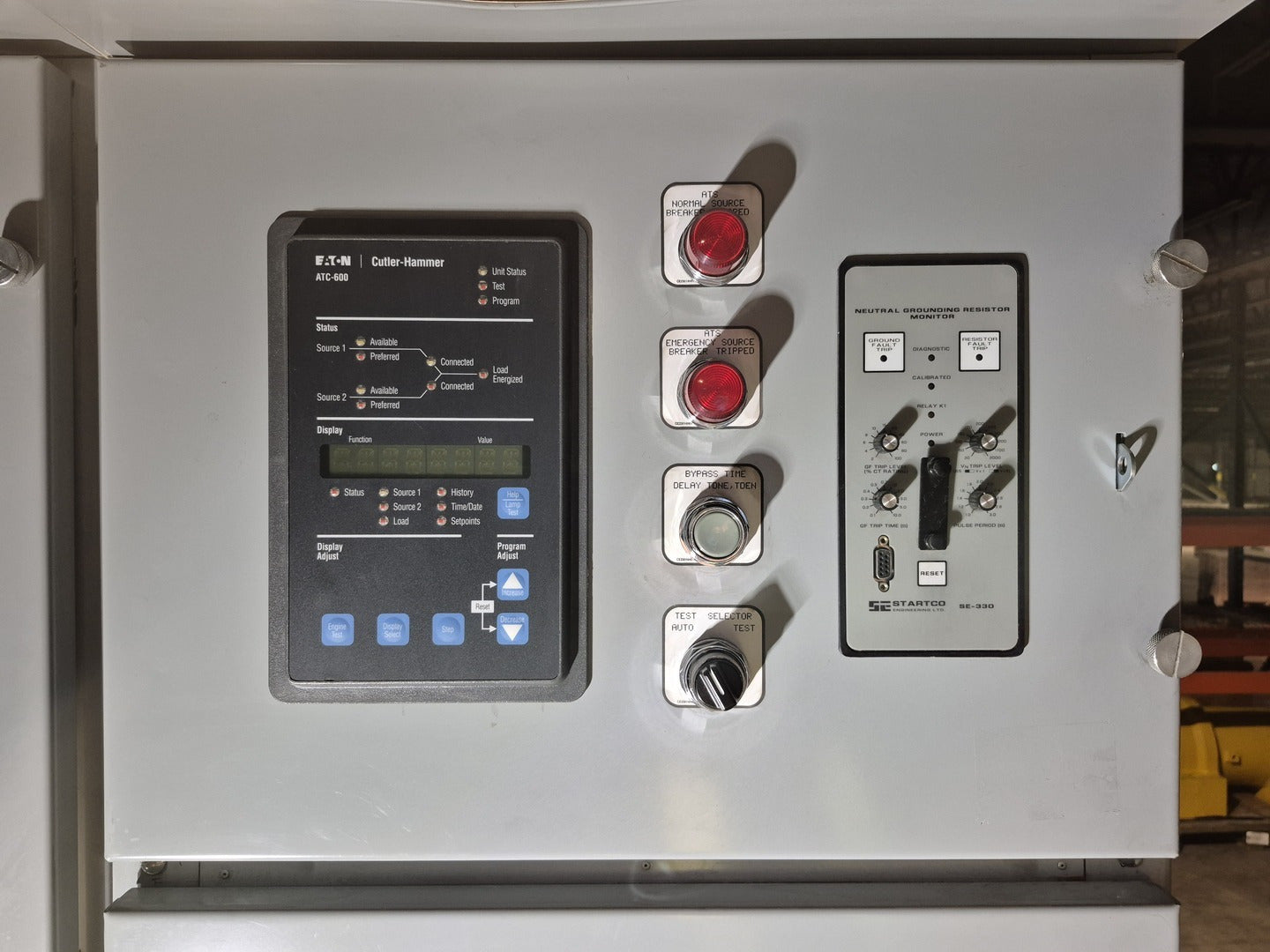

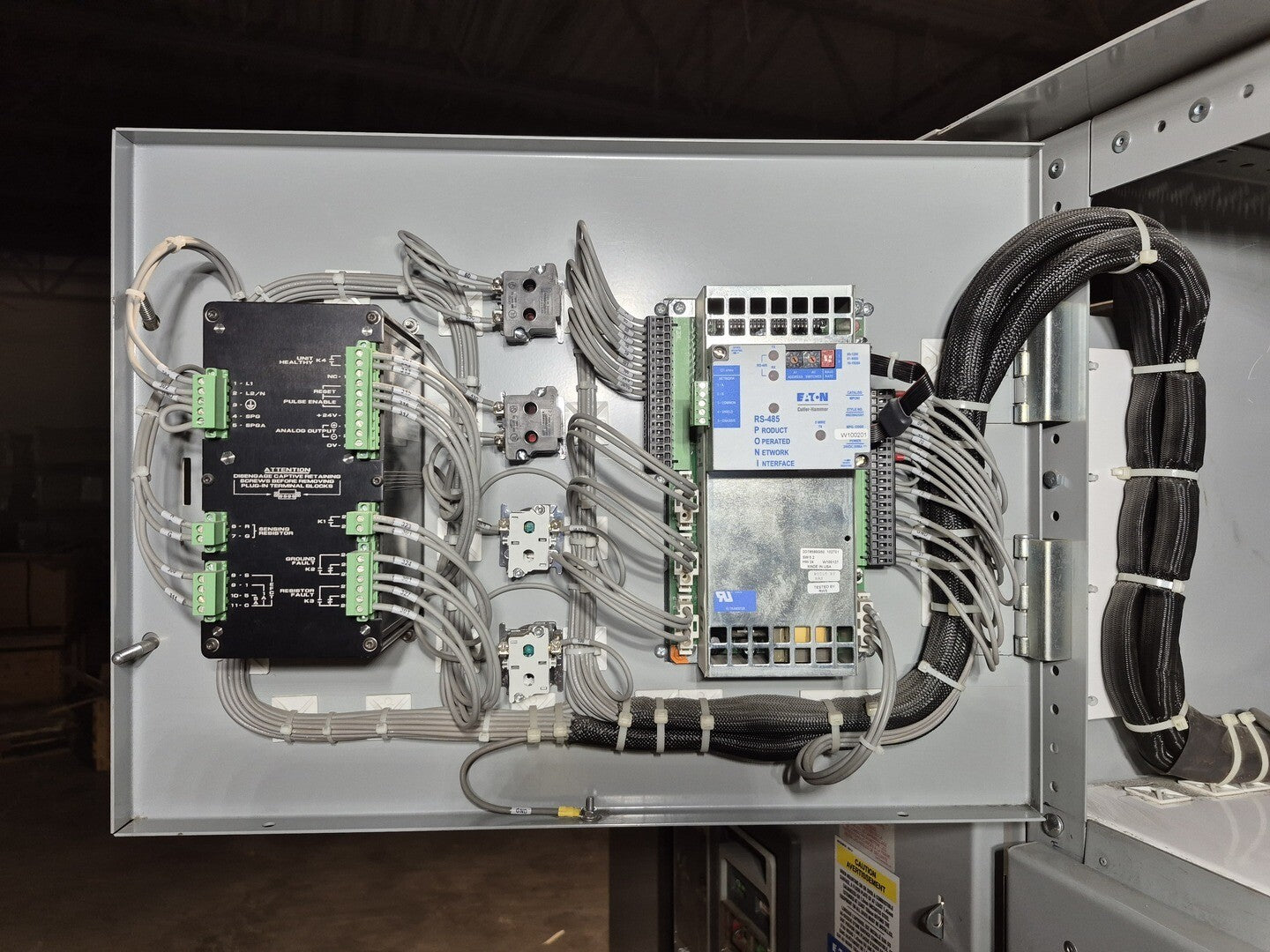

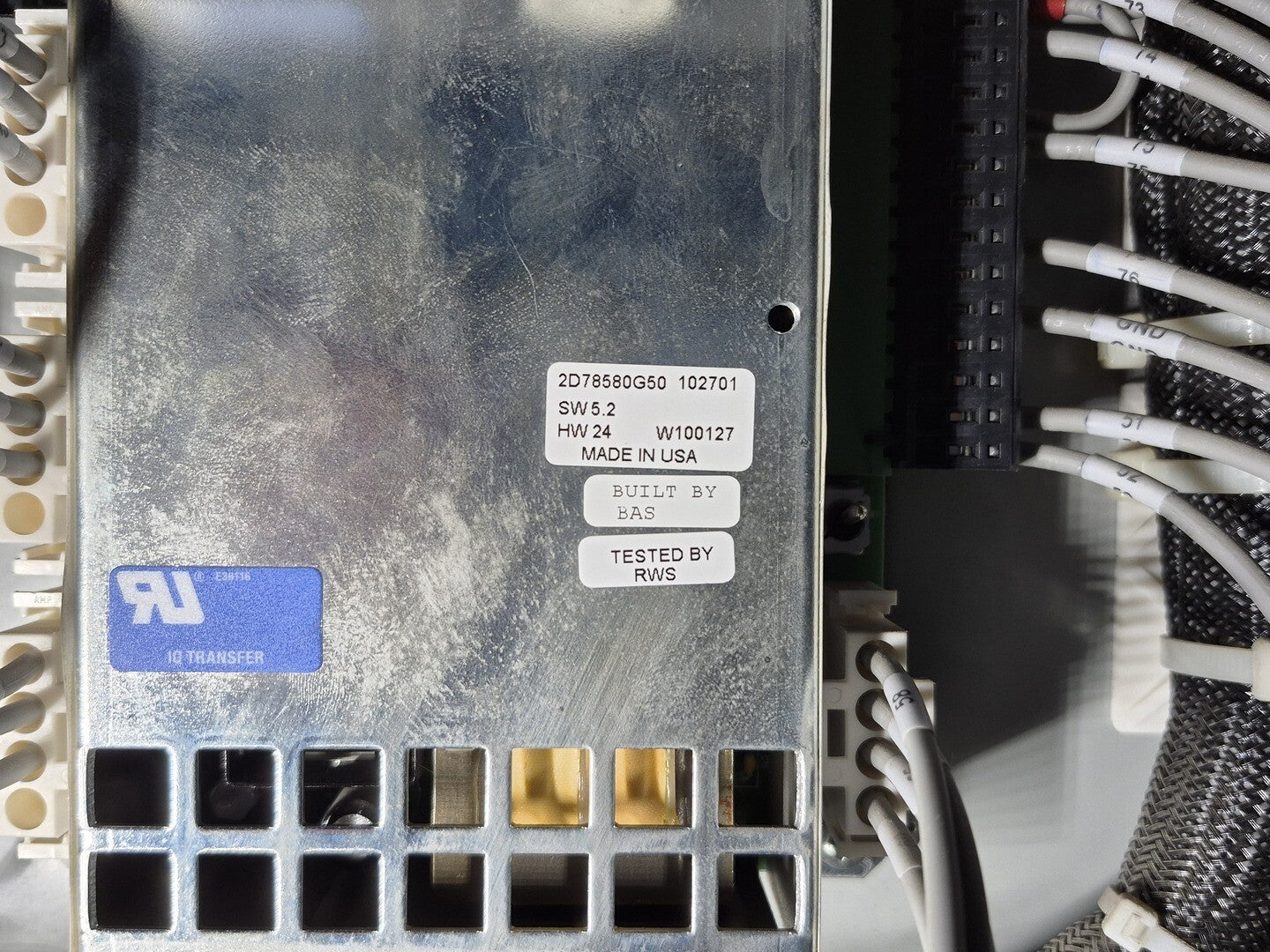

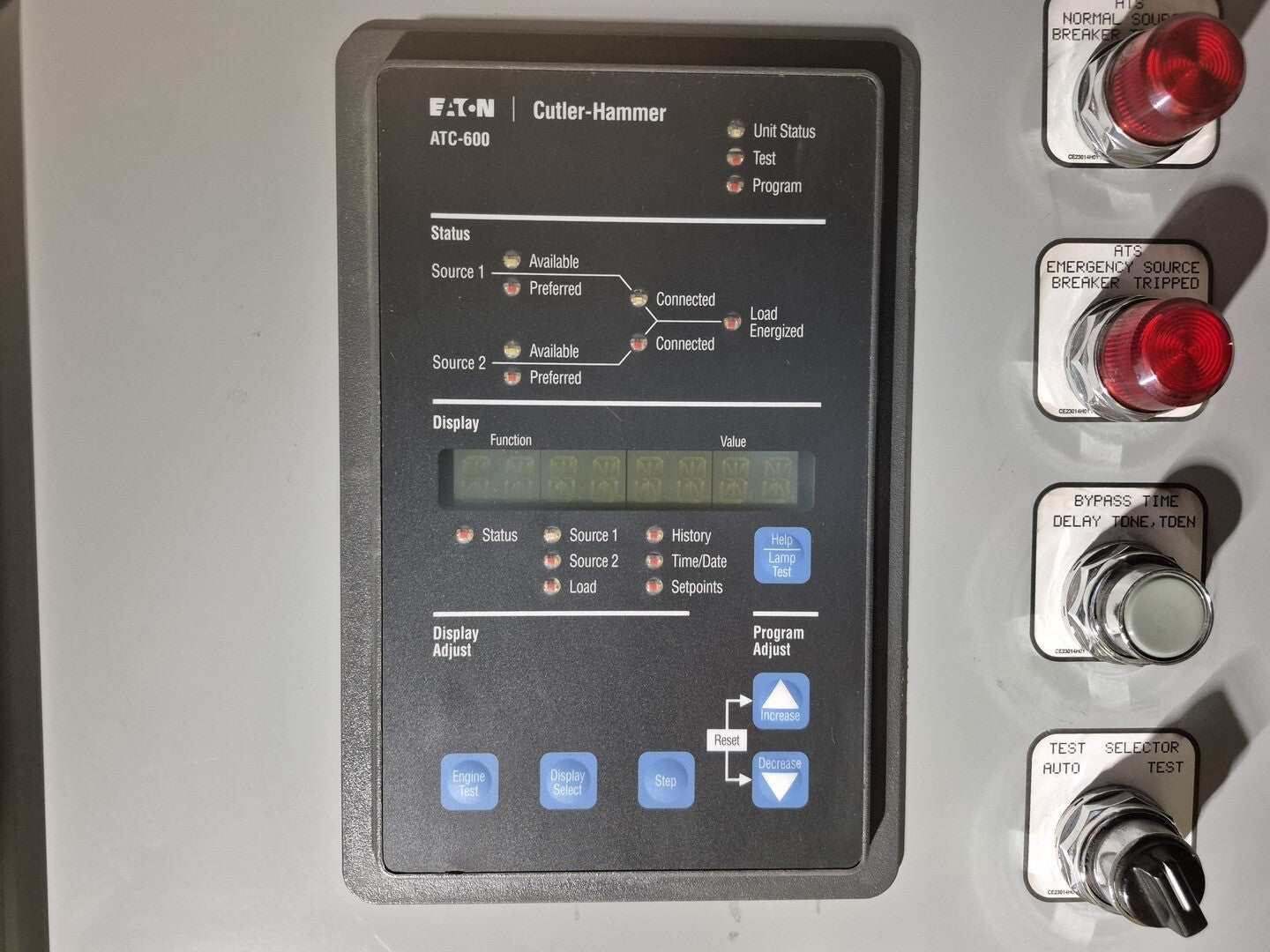

Automatic Transfer Switch Controller (ATC-60): Control Power: 120 VAC (50/60 Hz) (operating range 65 to 160 VAC) Power Consumption: 18 VA Operating Temperature: -20 to 70 deg. C Operating Humidity: up to 90% Relative Humidity (non-condensing) Enclosure Compatibility:

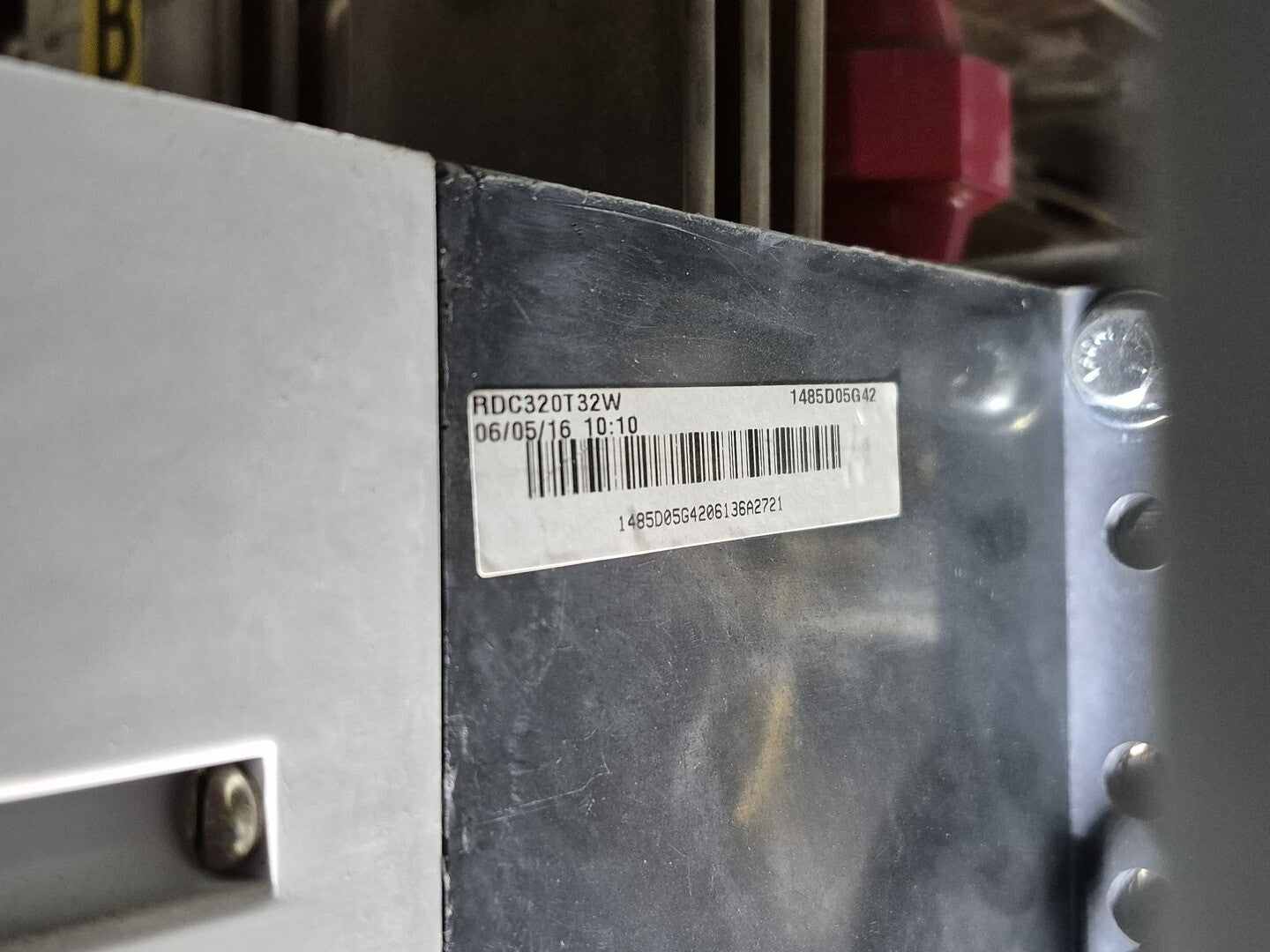

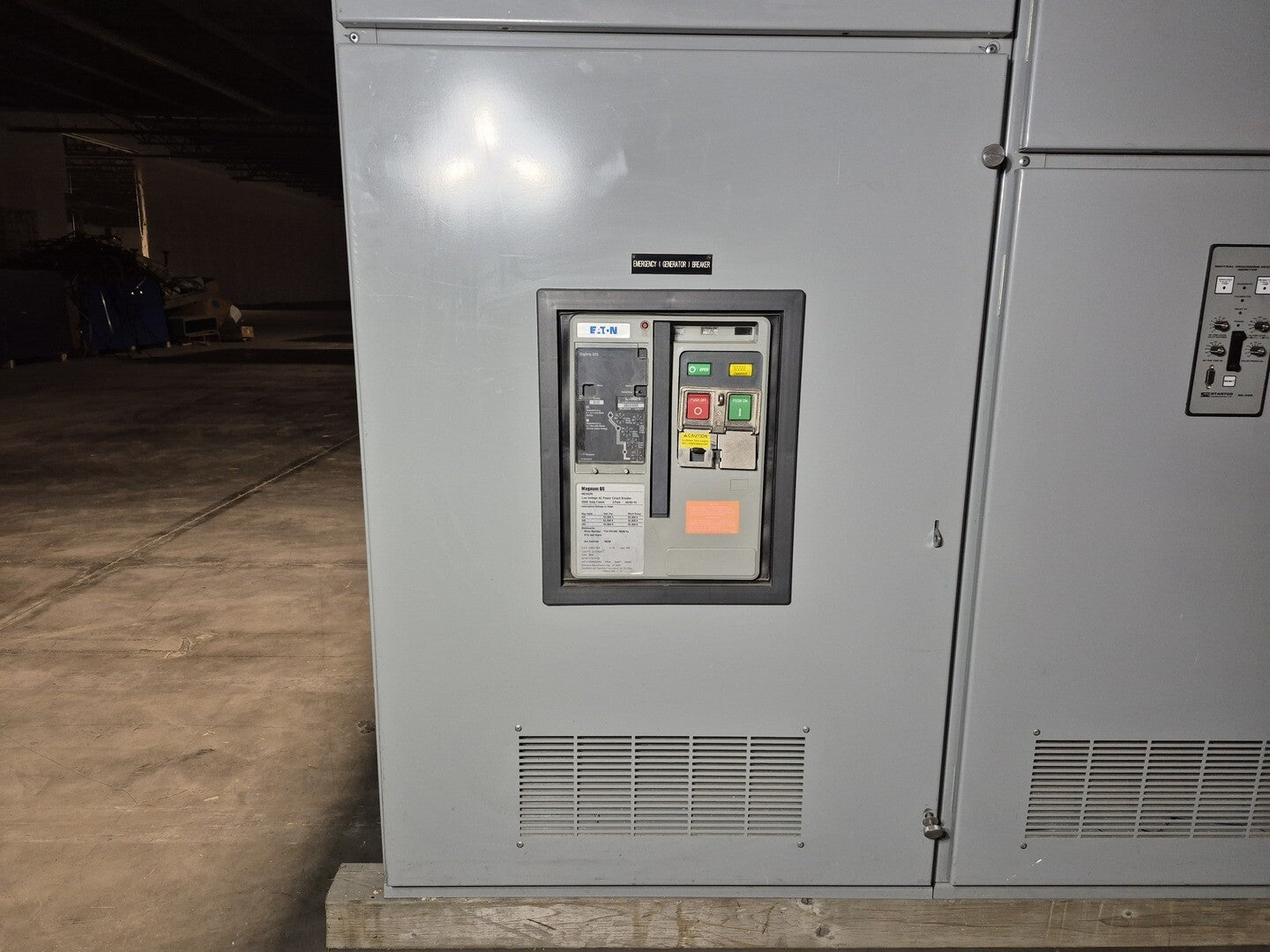

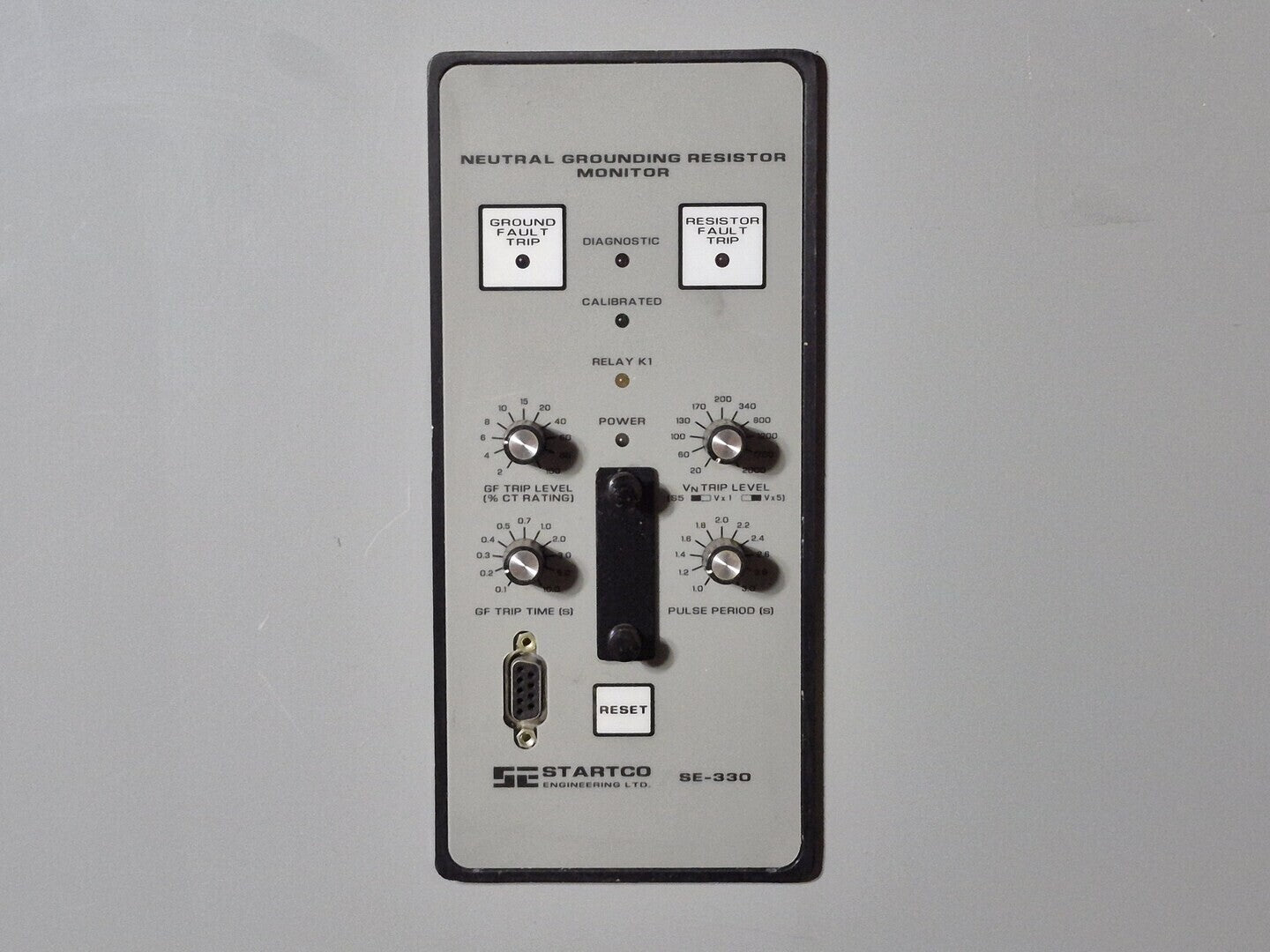

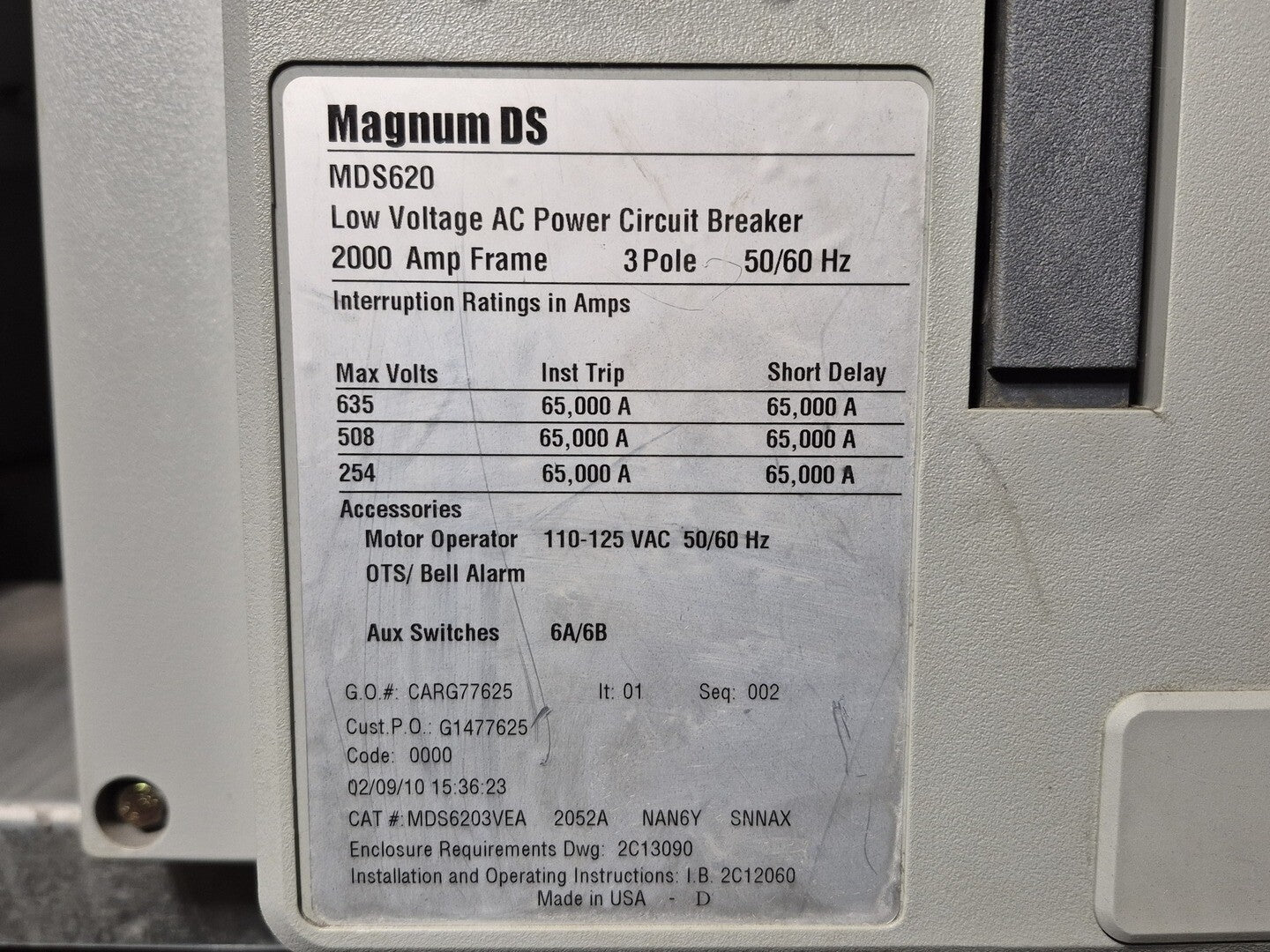

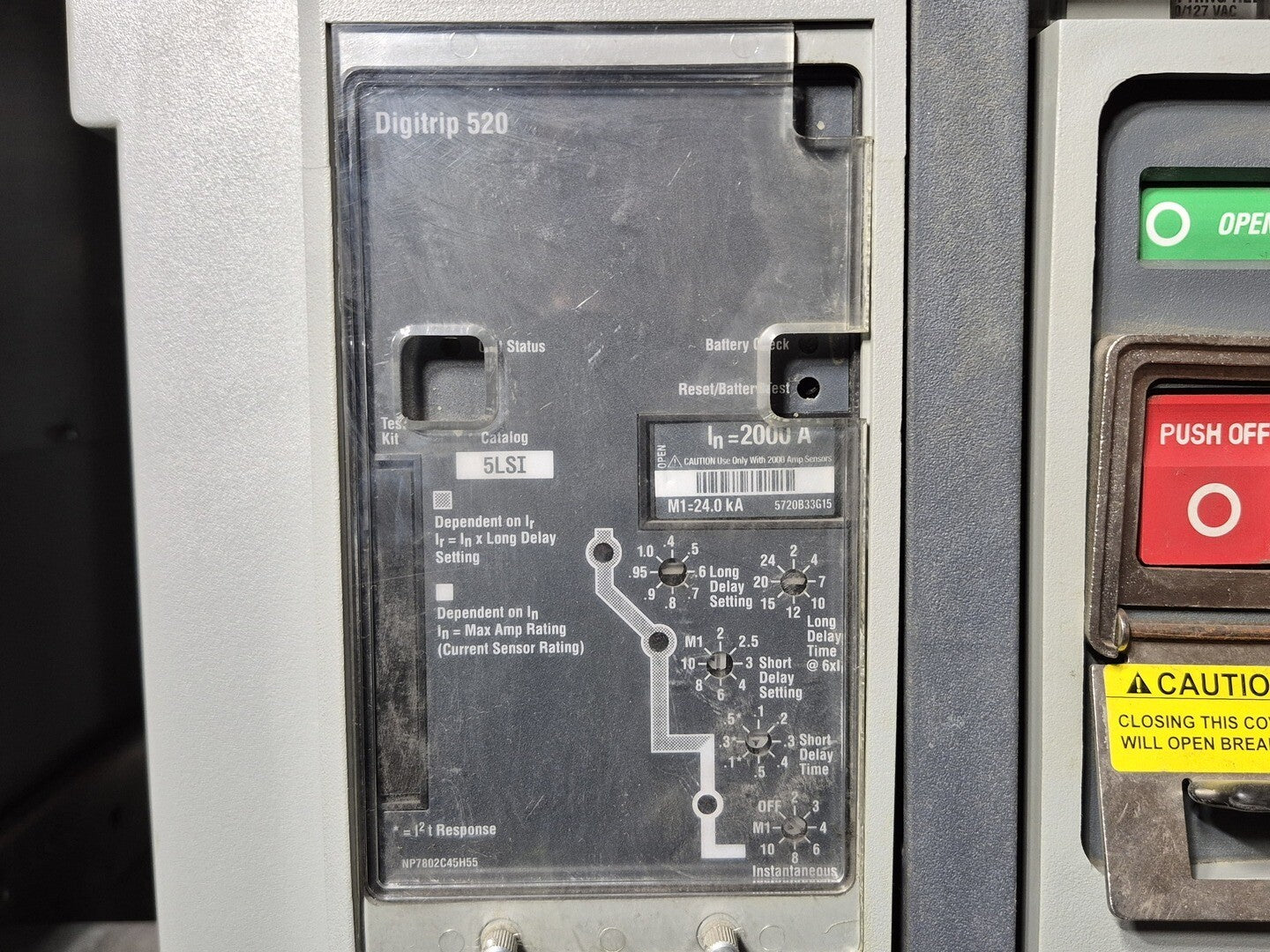

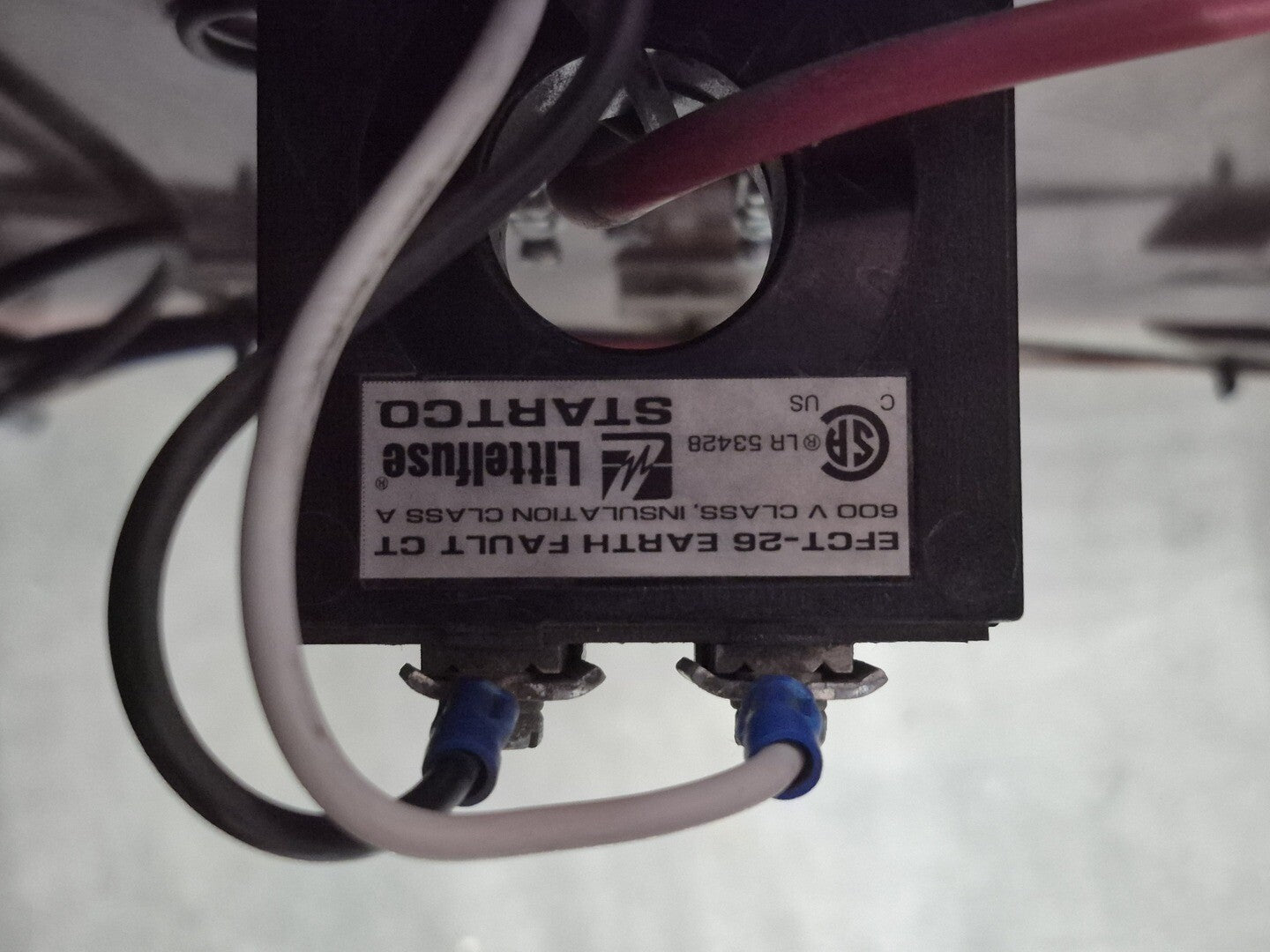

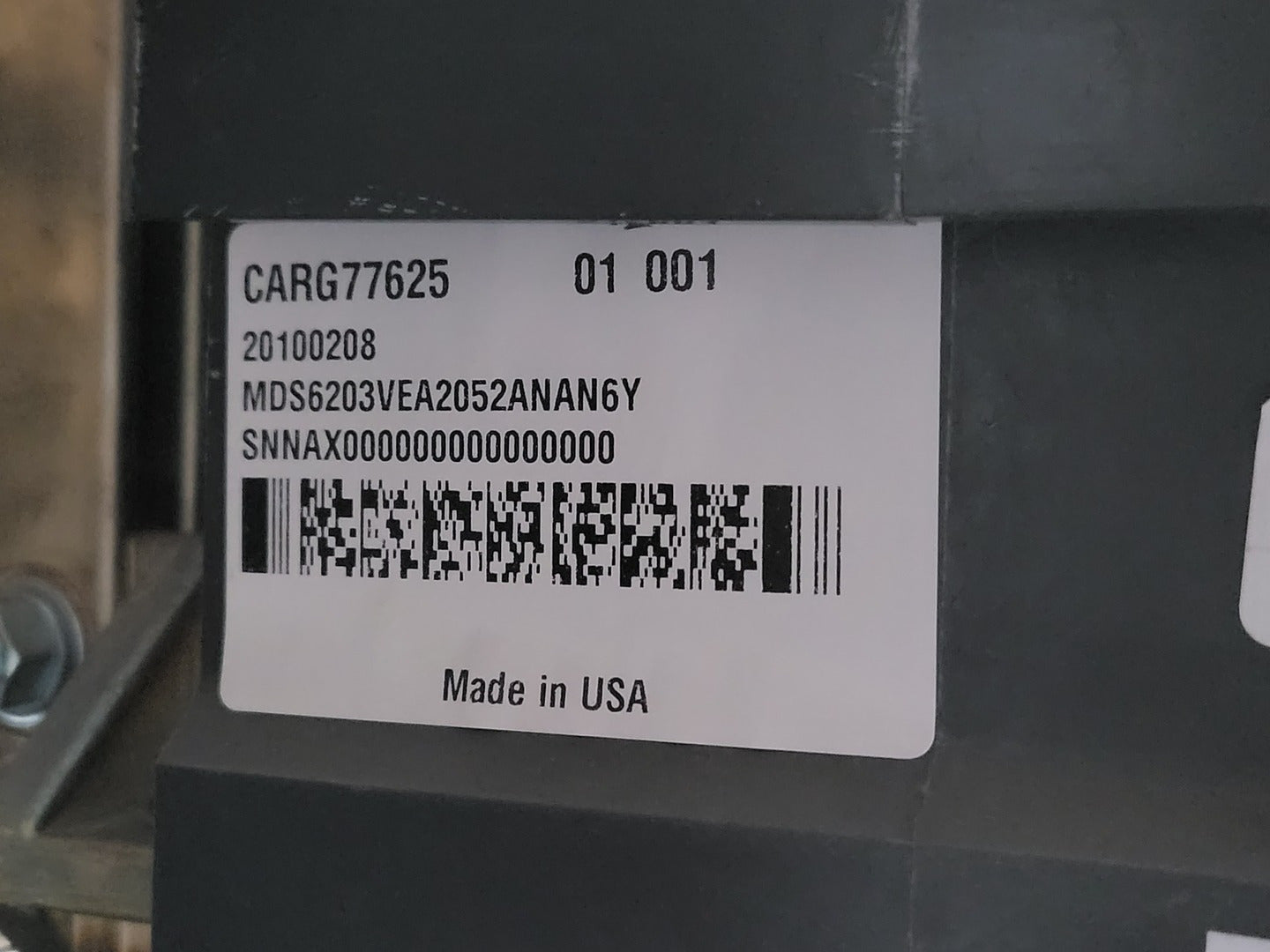

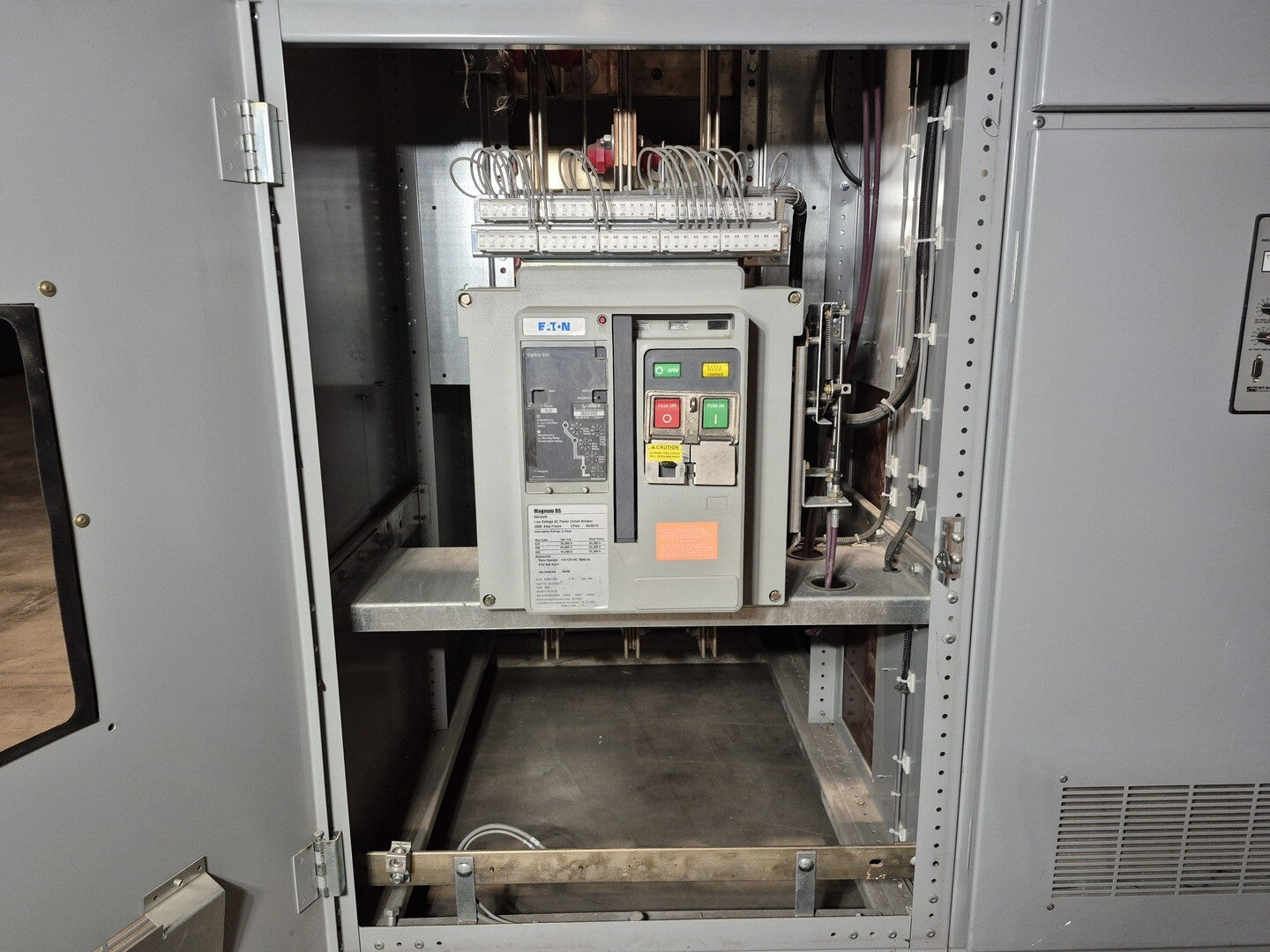

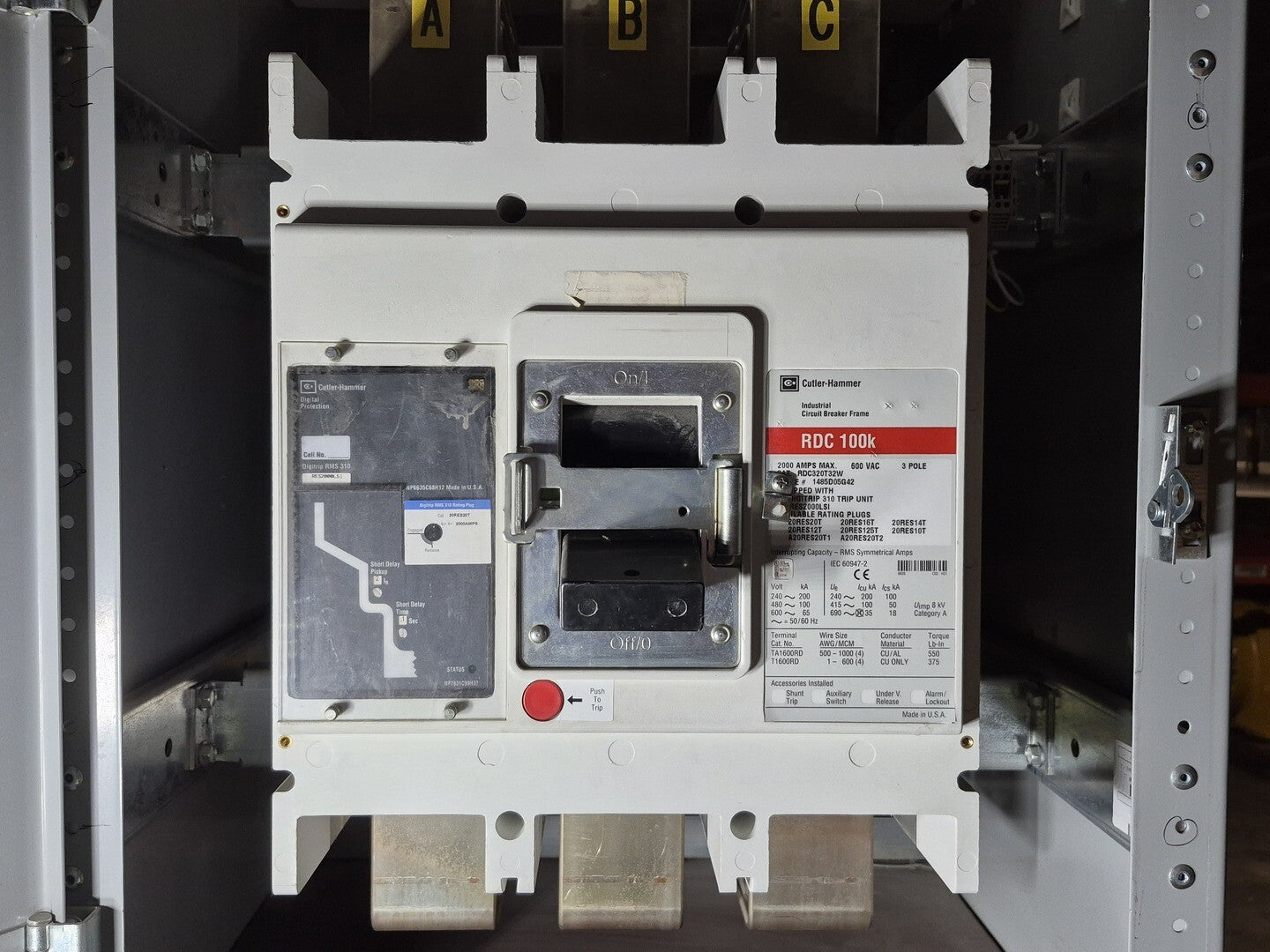

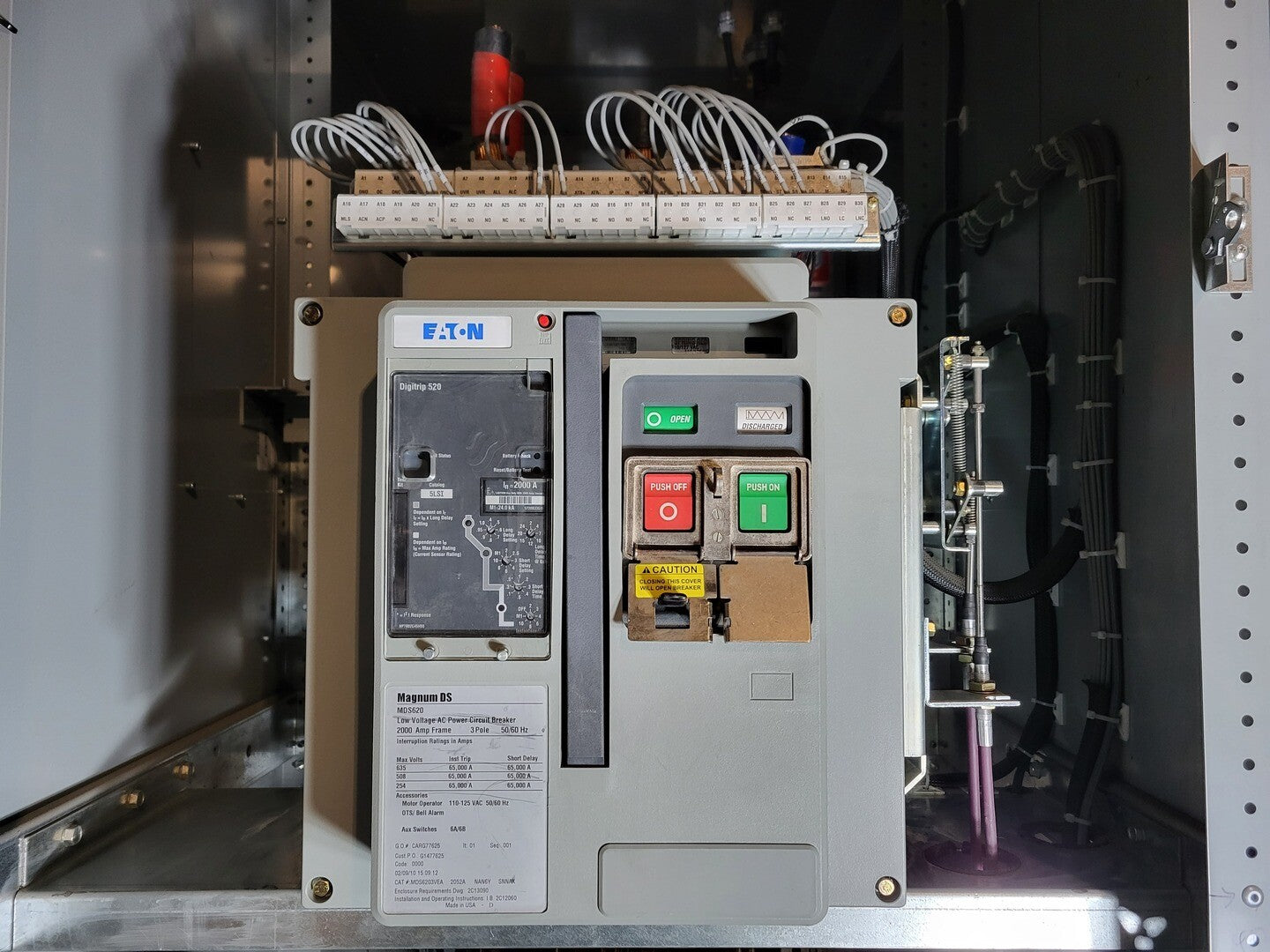

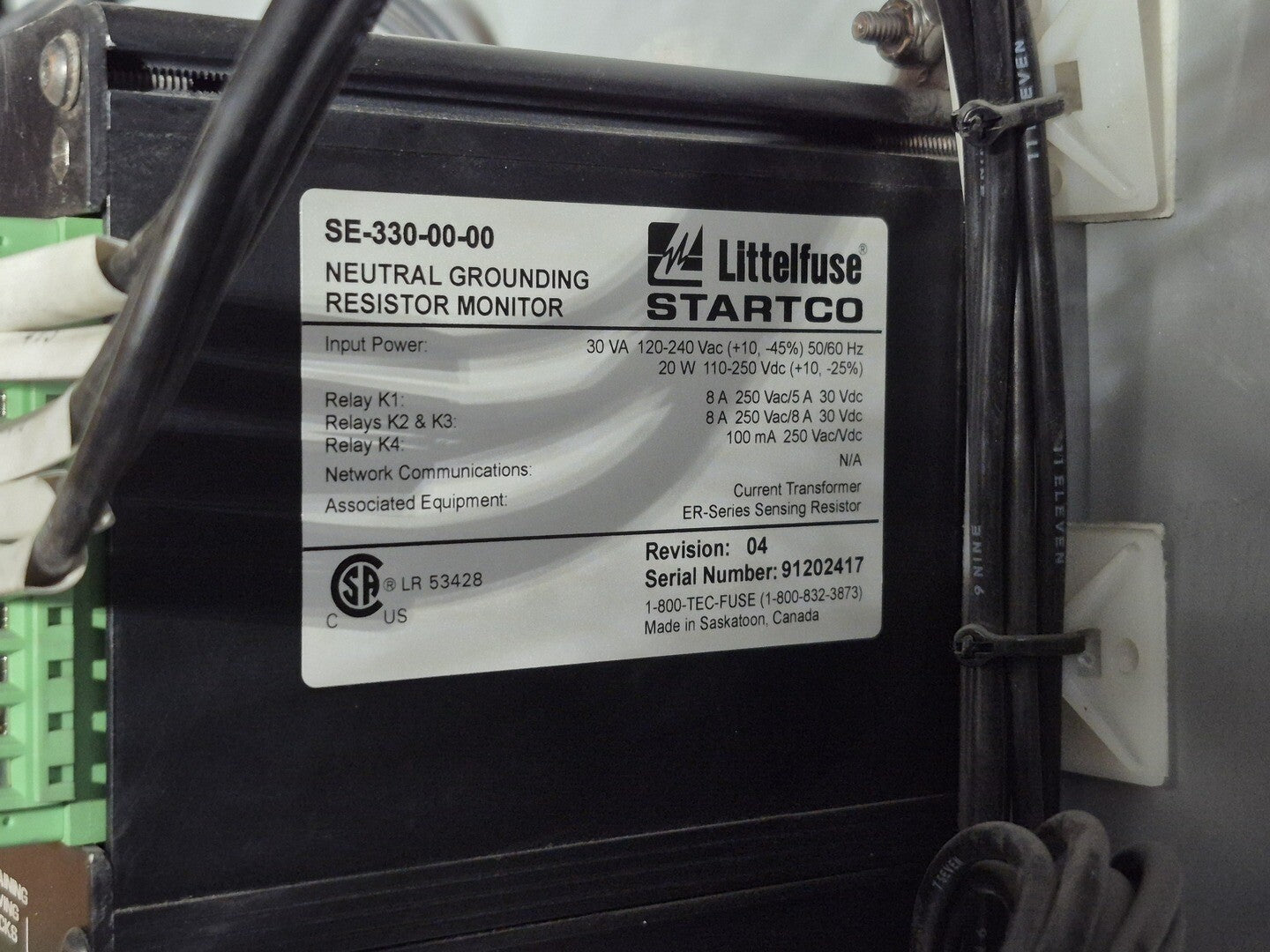

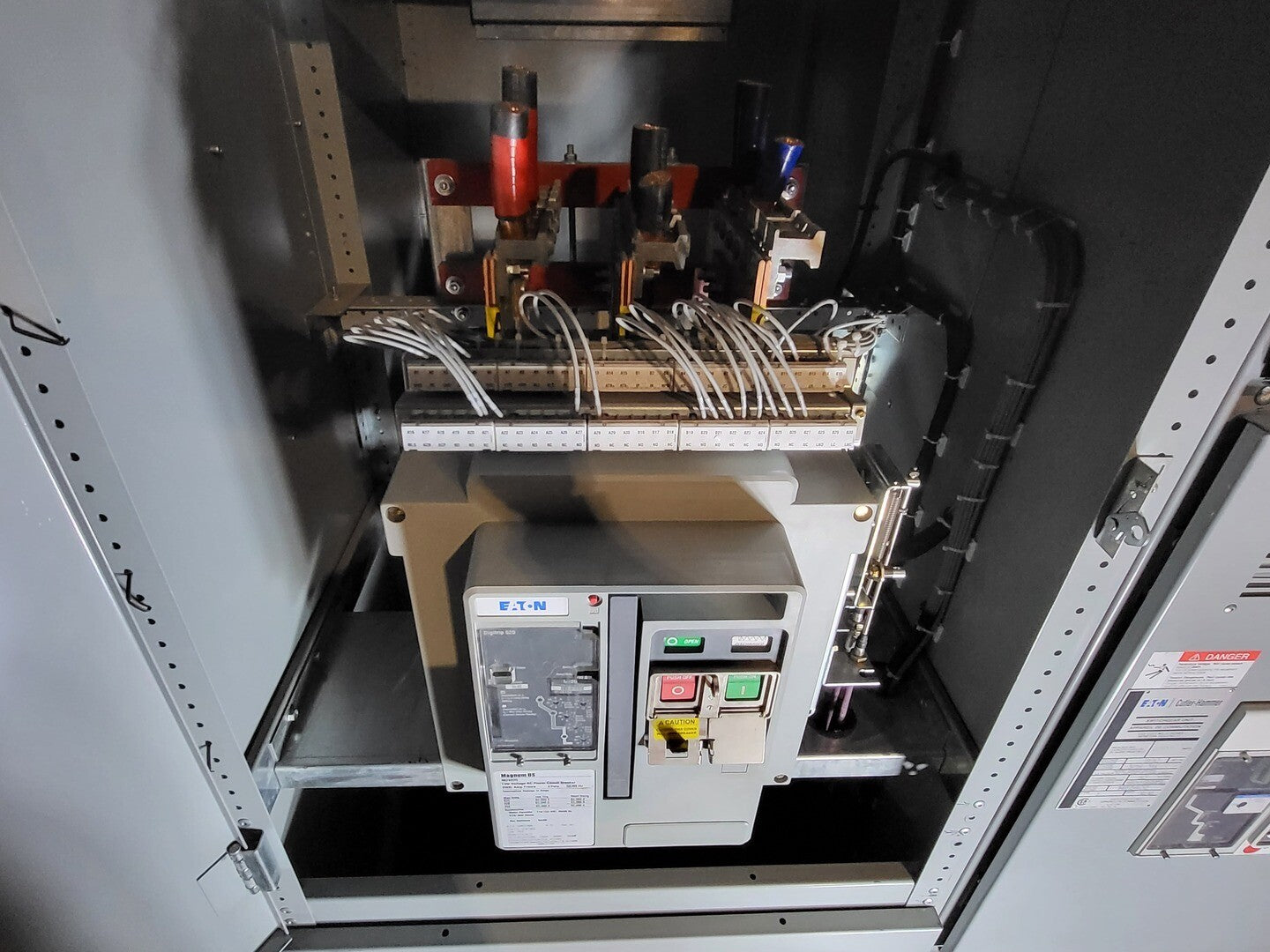

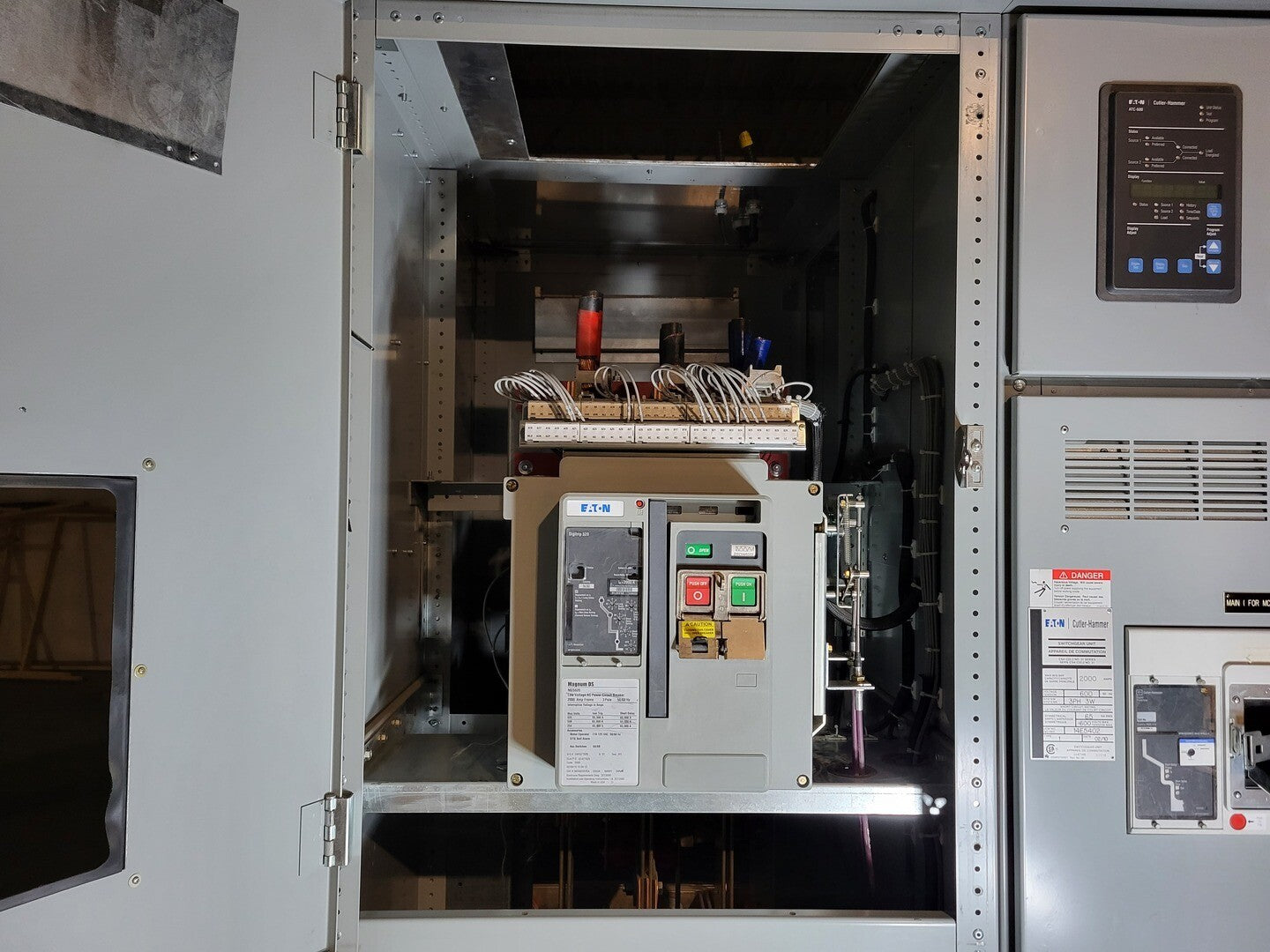

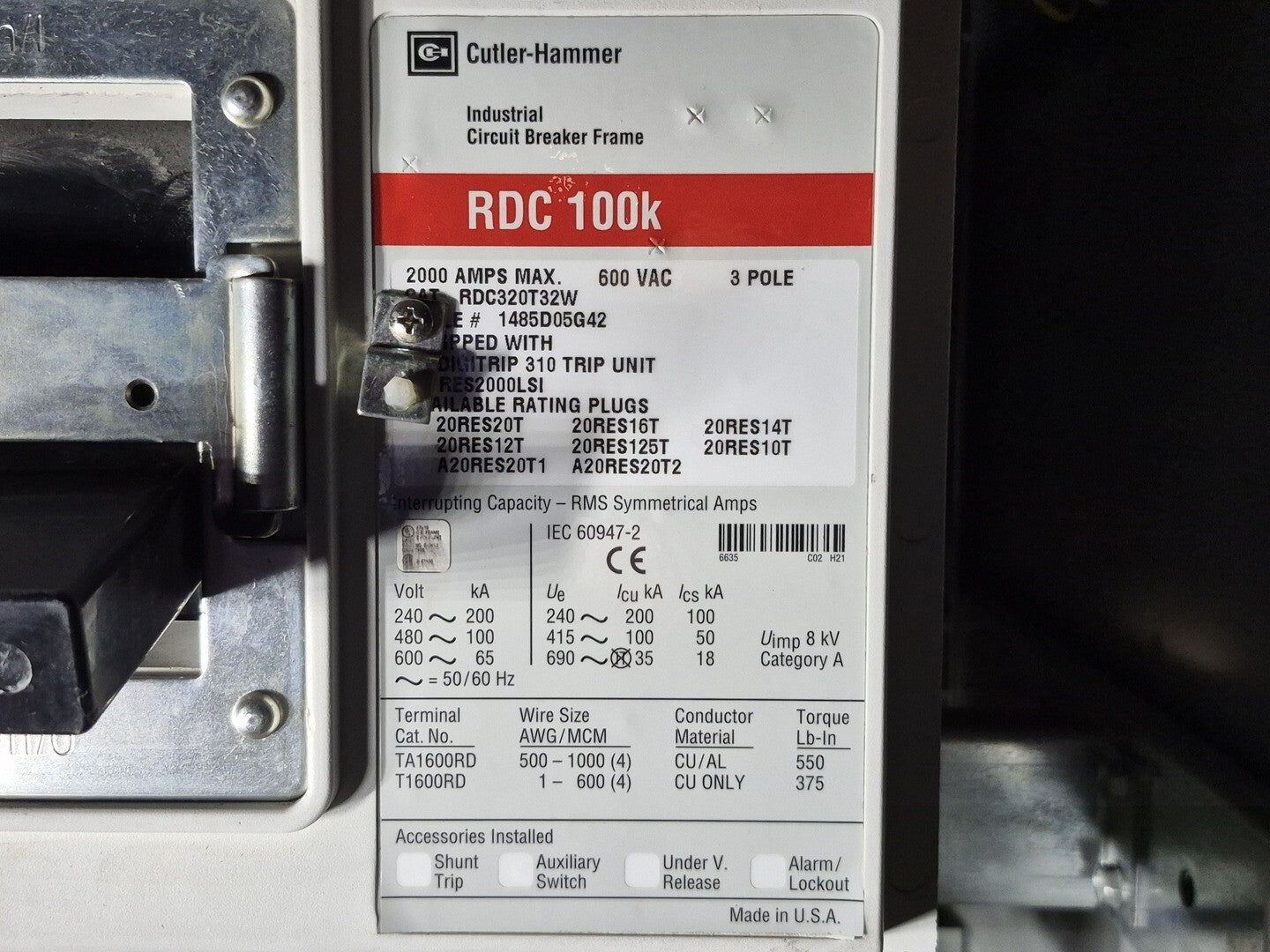

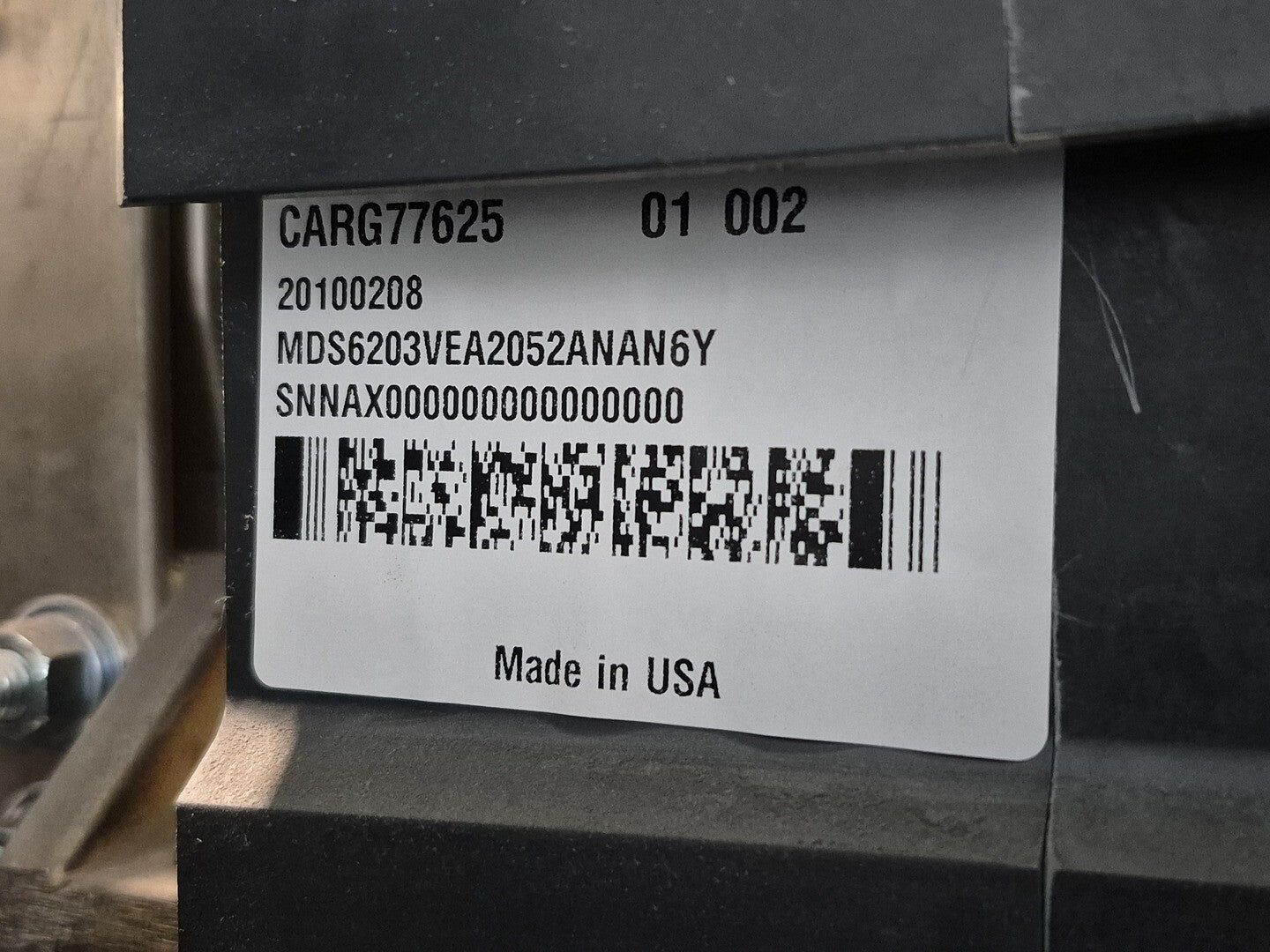

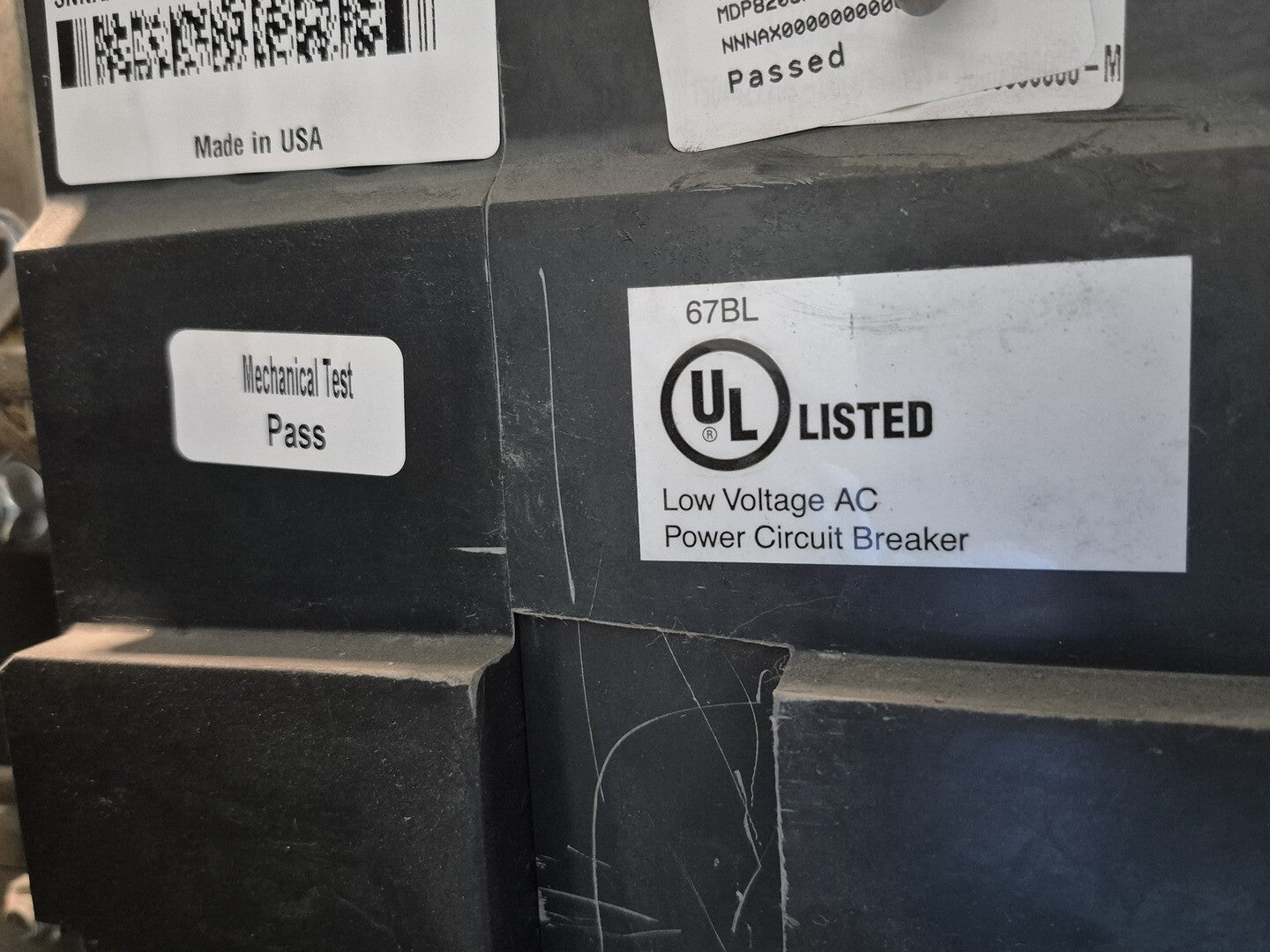

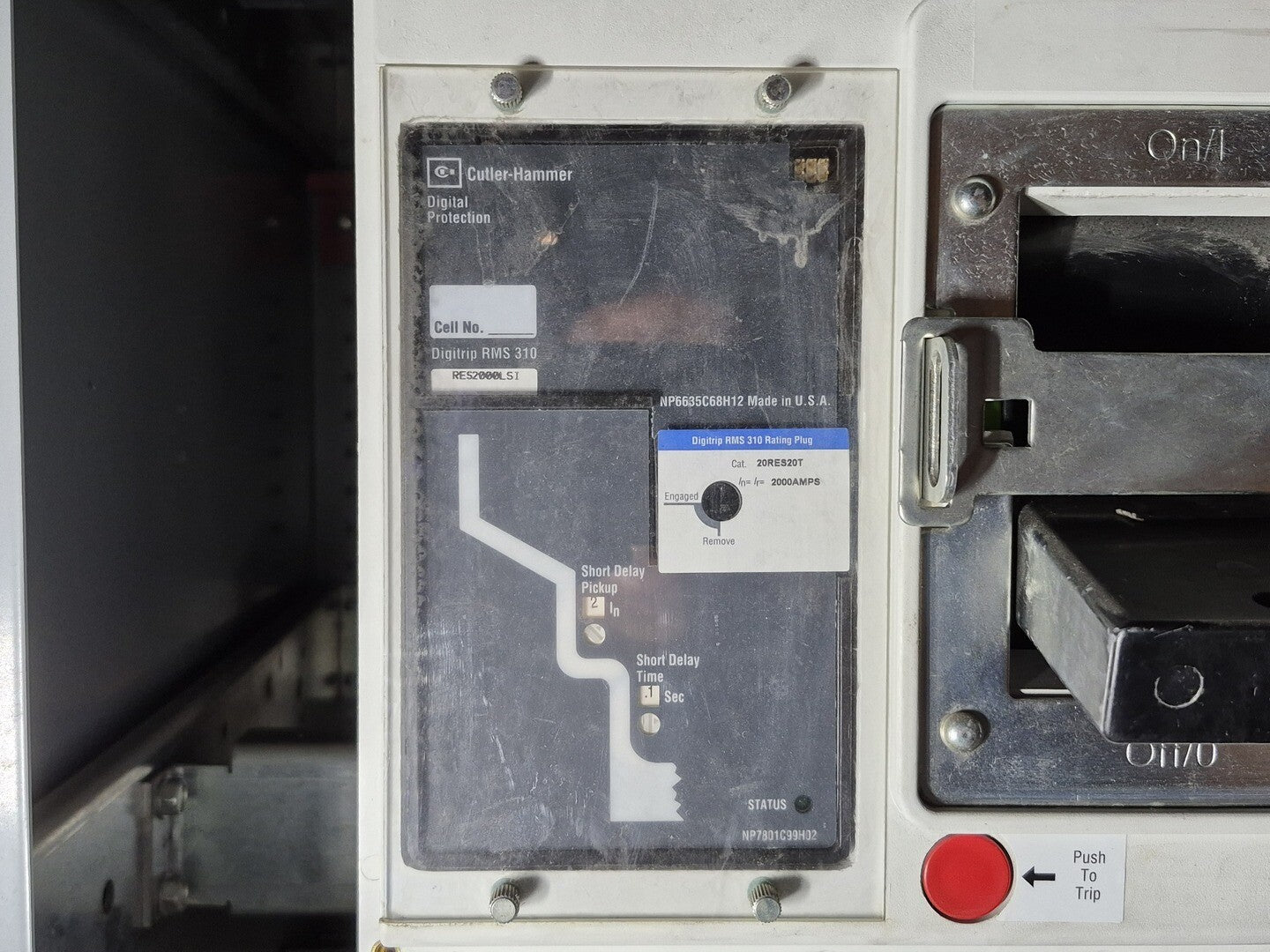

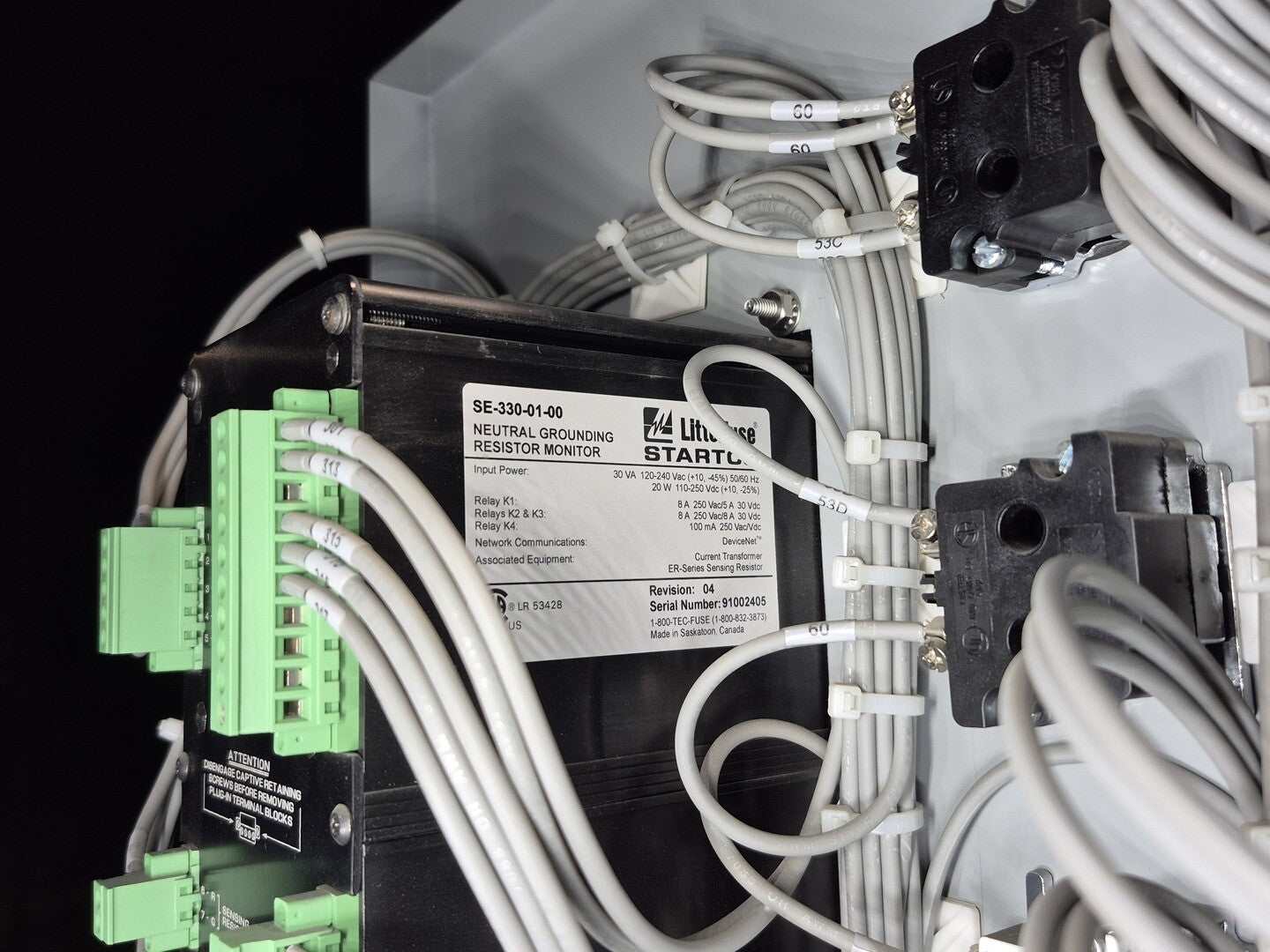

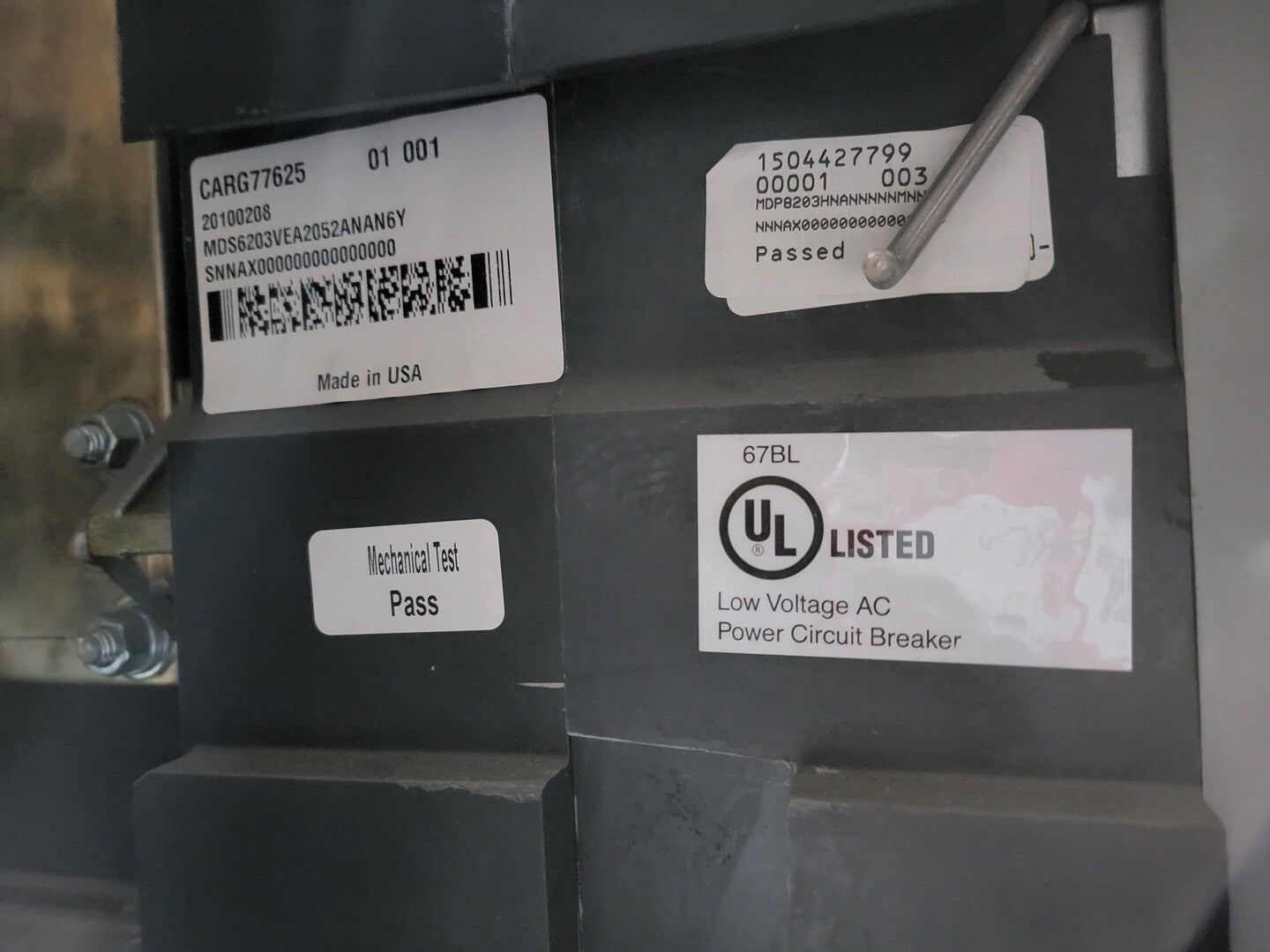

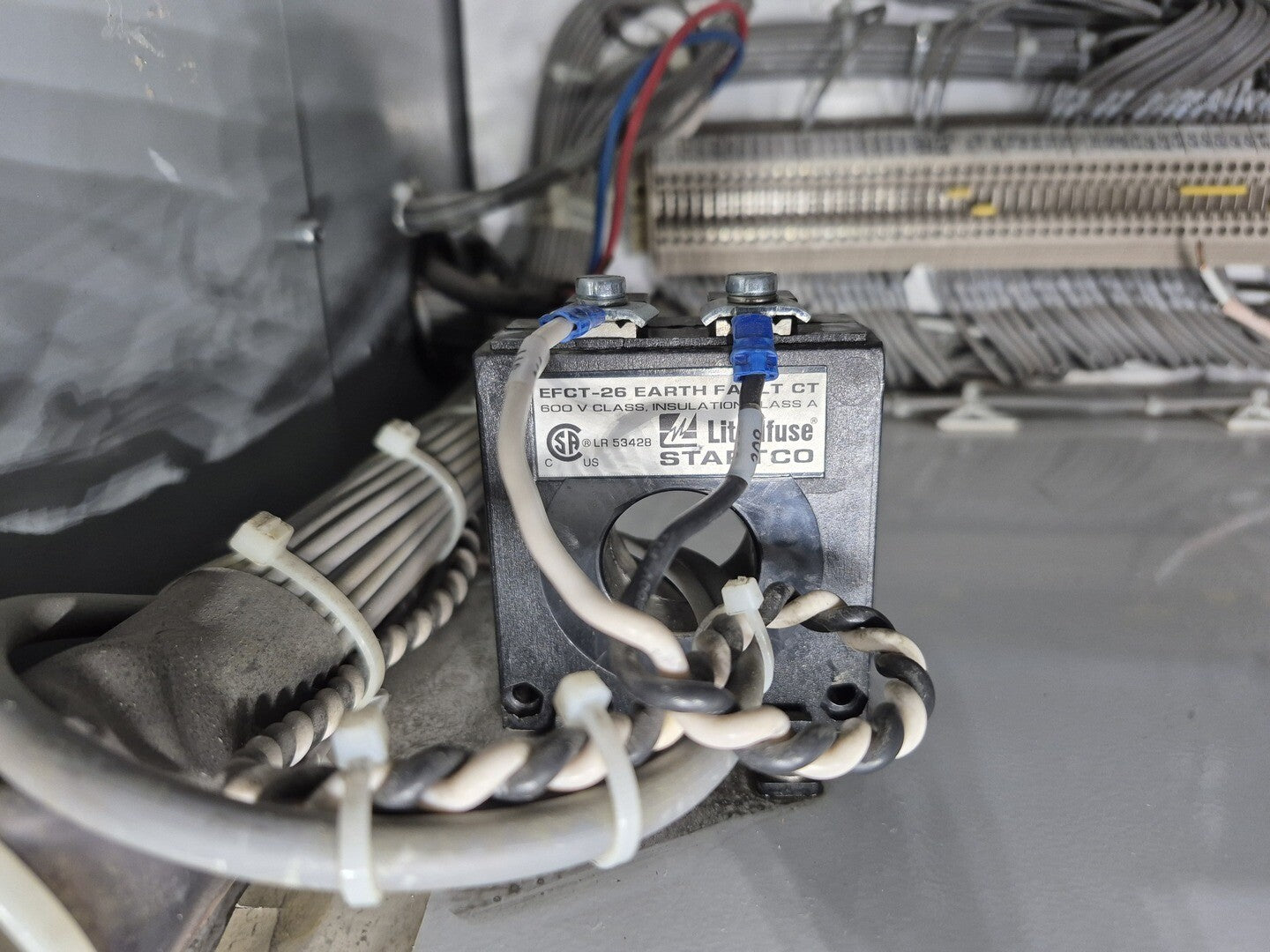

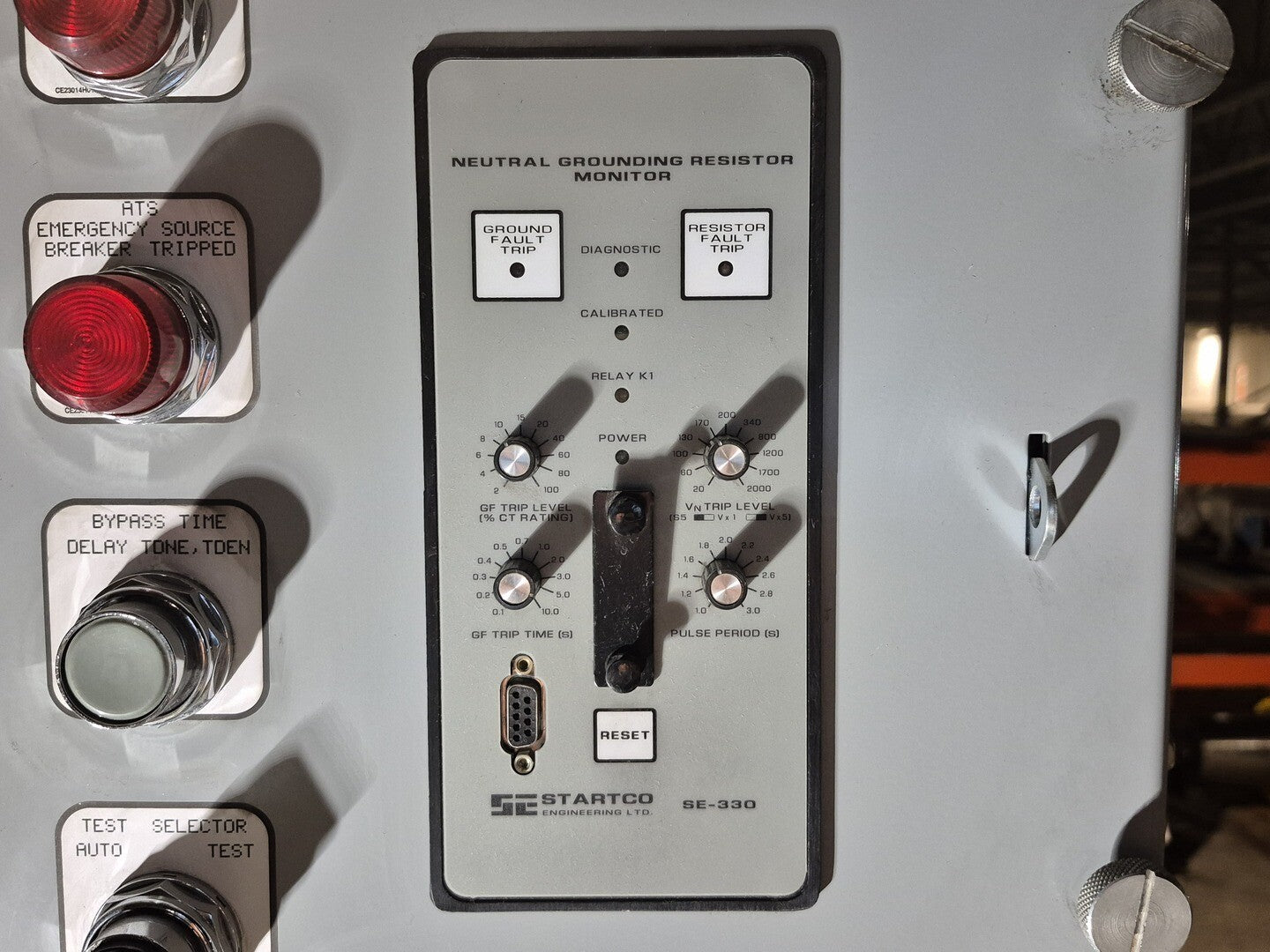

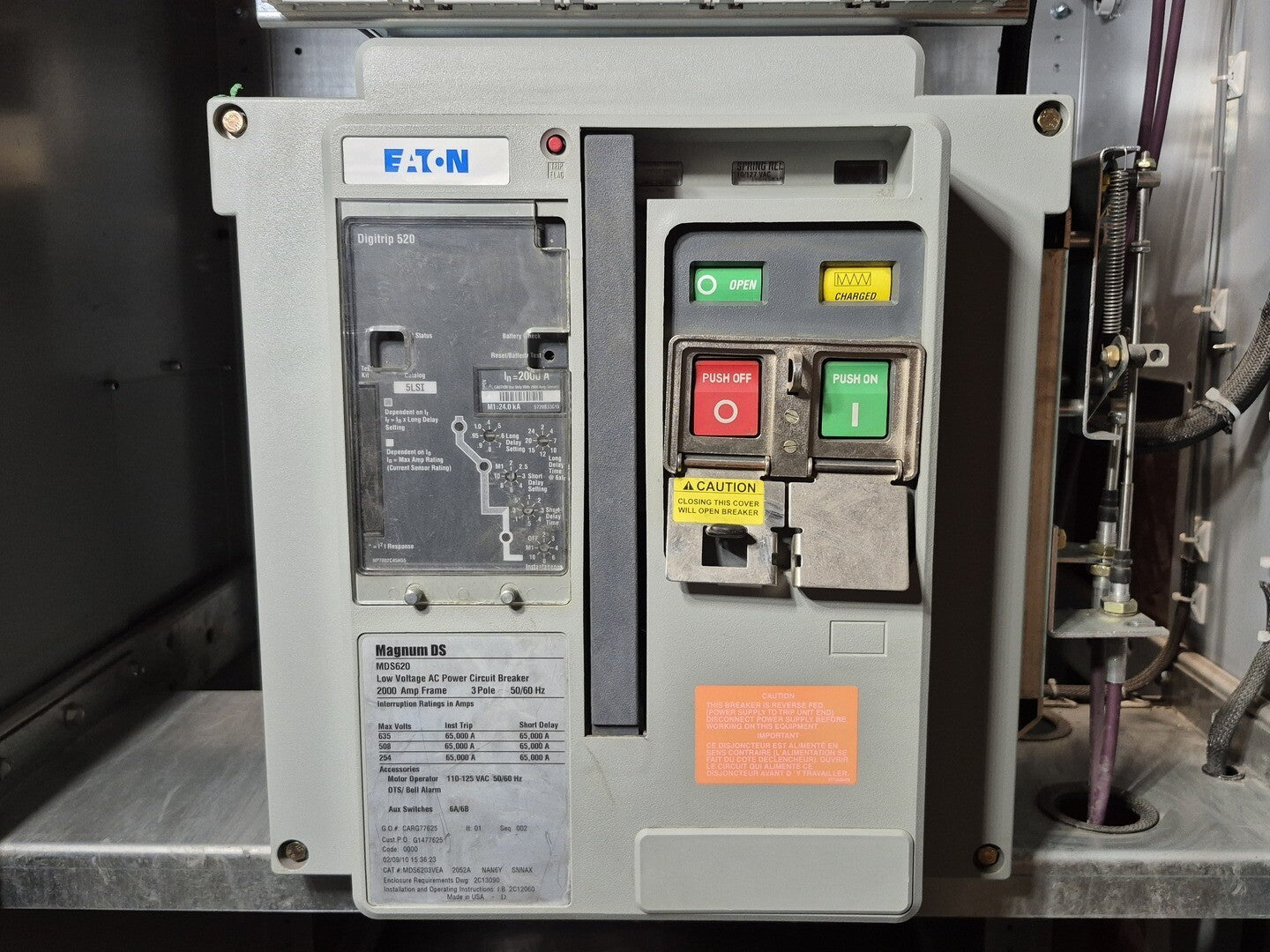

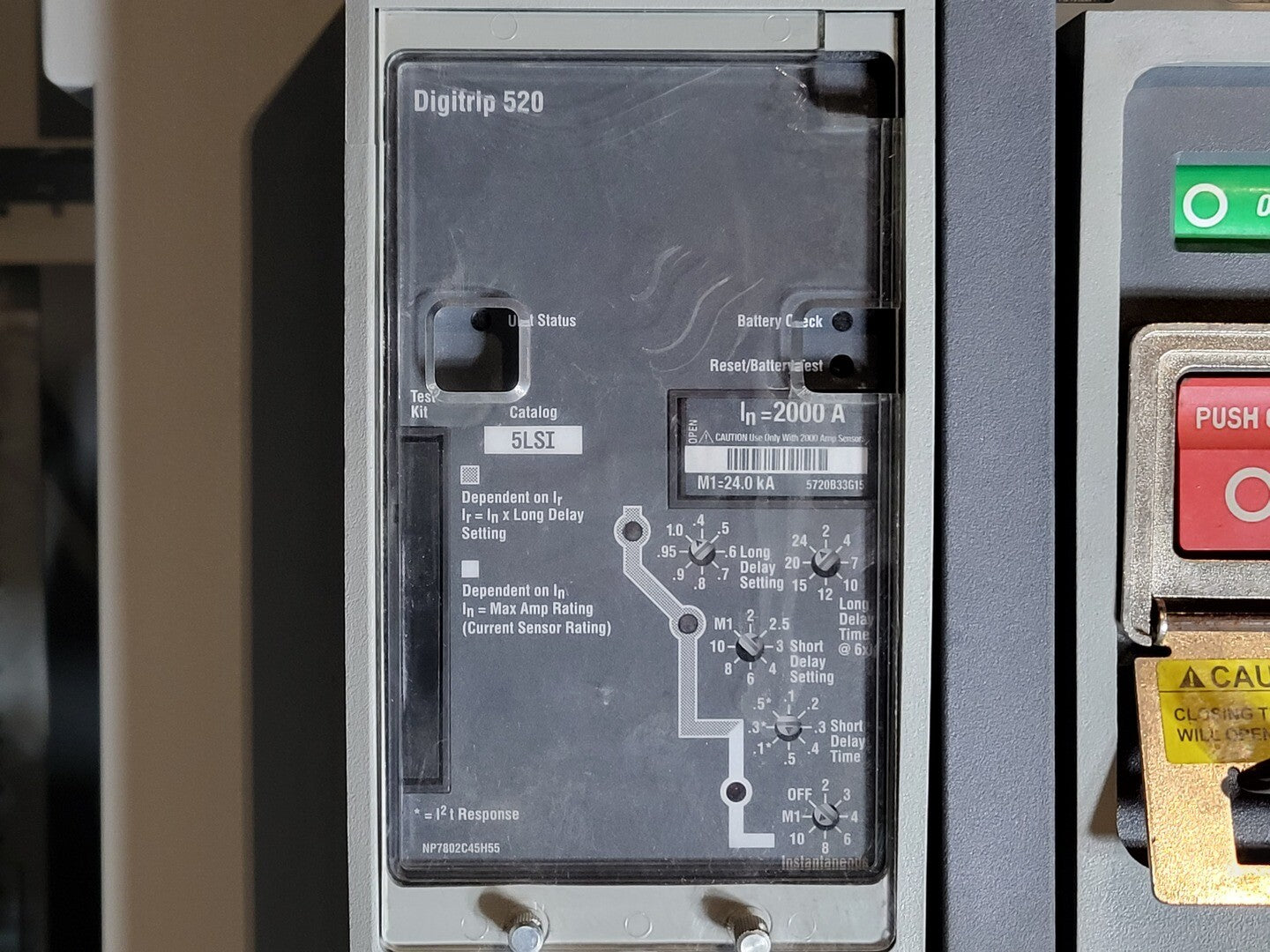

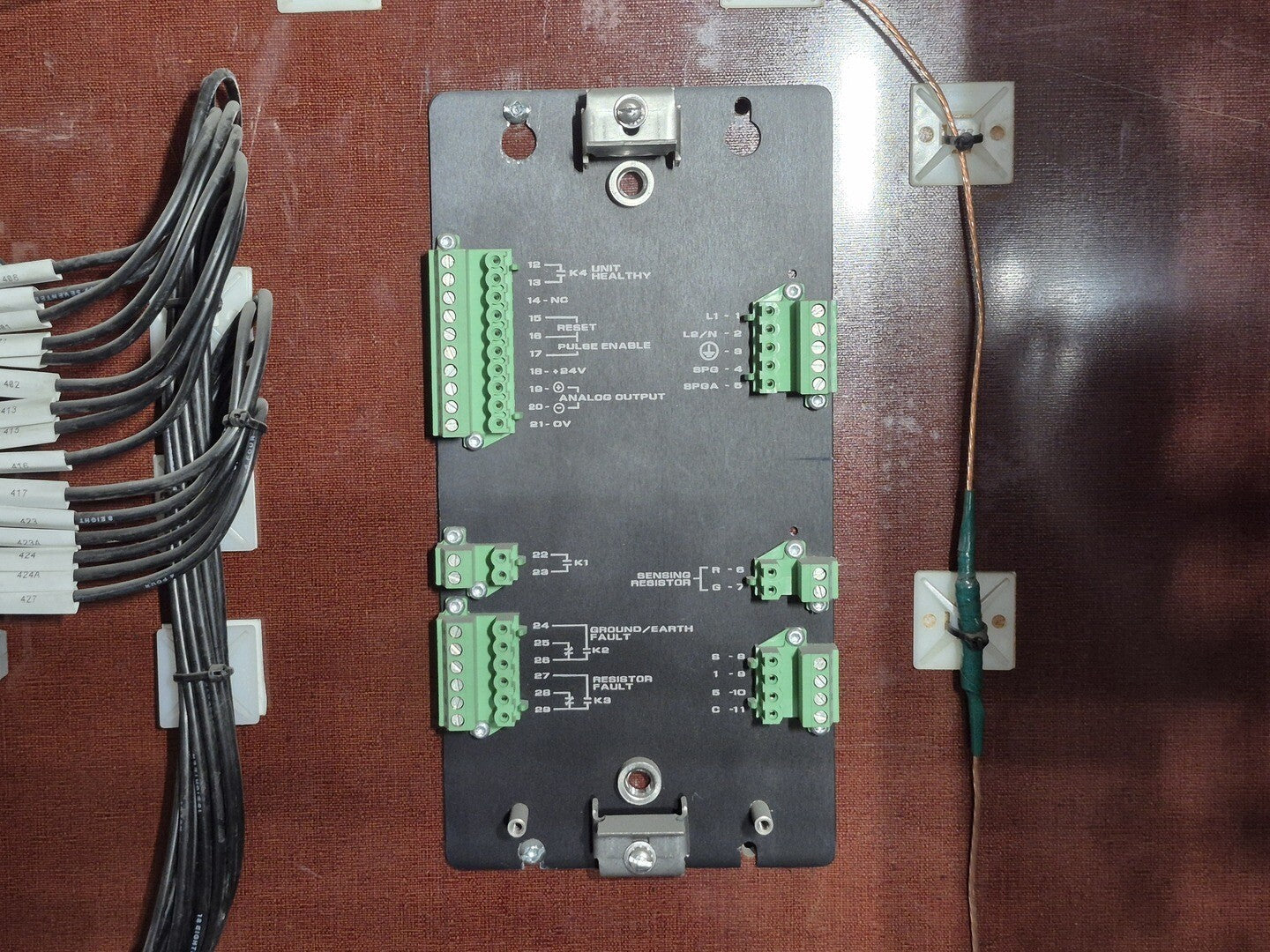

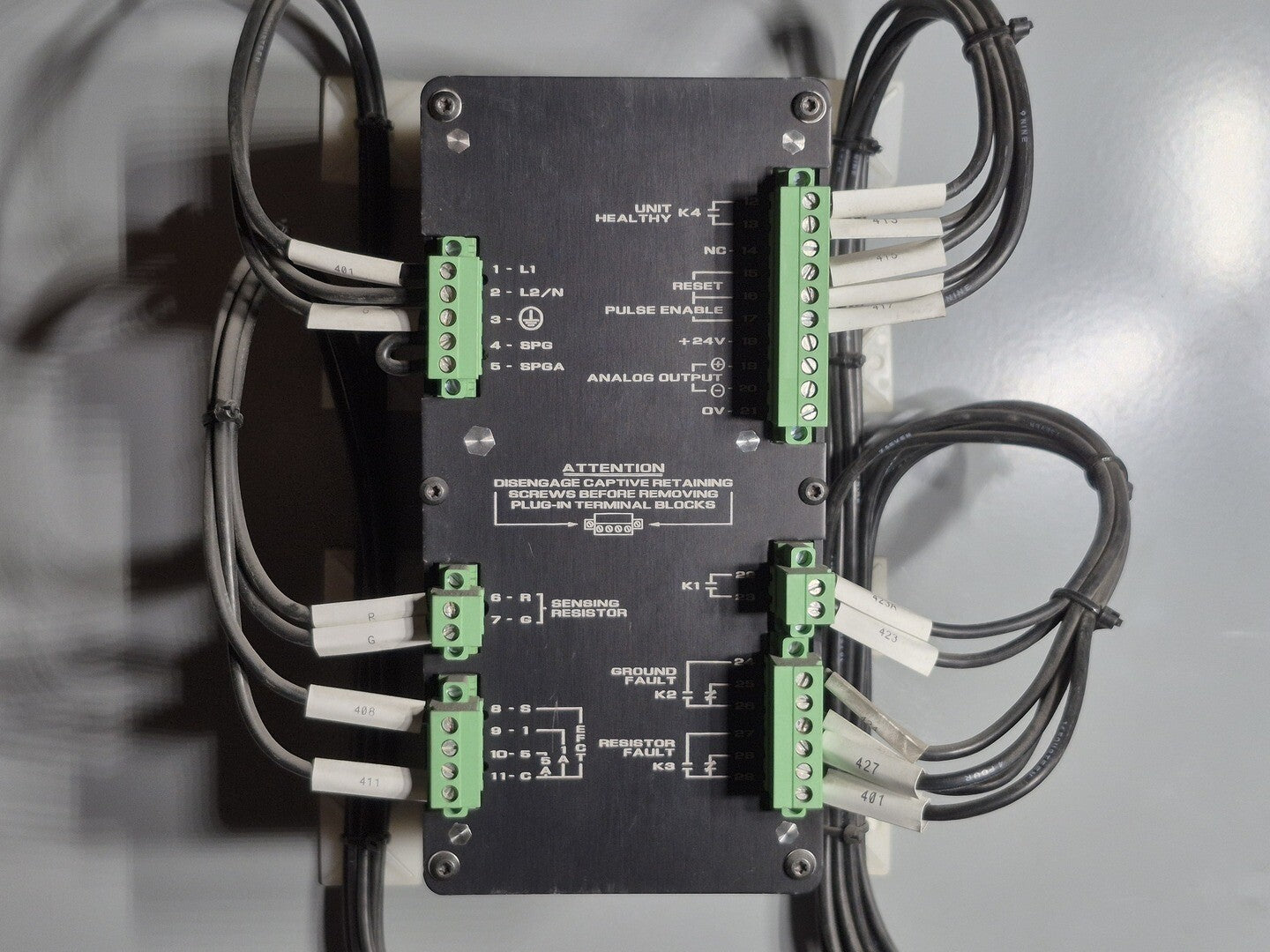

System Voltage Application: 120 to 600 VAC (50/60 Hz) (single or three phse) Voltage Measurements: Source 1, Source 2 and Load (VAB, VBC, VCA for Three Phase System) Voltage Measurement Range: 0 to 700 VAC Voltage Measurement Accuracy: +/- 1% of Full Scale Frequency Measurements: Source 1 and Source 2 Frequency Measurement Range: 40 to 80 Hz Frequency Measurement Accuracy: +/-0.1 Hz 2x Magne DS Breakers (MDS6203VEA): Breaker Type (MD): Magnum DS Frame Type (S): Standard or Double Interrupting/ withstand rating (6): 65 Continuous Amperes and phasing (facing front of breaker) (20): 2000 ABC Poles (facing front of breaker) (3): 3 Mounting Configuration and Load Terminals (V): Fixed Vertical Nameplate Language (E): English Current Limiter Selection (A): Non-DSL (no limiter) Main Breaker (RDC320T32W): Type: New Design 310 Amperage Rating: 200 A Voltage Rating: 600 VAC Trip Type: Electronic LSI Circuit Breaker Type: RDC Circuit Breaker Frame Type: Complete Breaker Terminals: with terminals Interrupt Rating: 65 kAIC @ 480 VAC; 50 kAIC @ 600 VAC Number of Poles: Three-pole Neutral Ground Resistor (SE-330): GF Trip-Level Settings: 2-100% of CT-Primary Rating in 1% increments GF Trip-Time Settings: 0.1-10s Vn Trip-Level Settings: 20-2,000 VAC (</-5 kV systems) 100-10,000 VAC (>/-5 kV systems) Contact Operating Mode: Selectable fail-safe or non-fail-safe (K1, K2, K3) Harmonic Filtering: Standard feature Reset Button: Standard feature Output Contacts: Two form A and Two Form C Pulsing Circuit: 1.0-3.0s in 0.2s increments Communications: Mini USB (standard); DeviceNet (optional), IEC 61850 (optional), Modbus TCP and Ethernet/IP (optional) Analog Input: 4-20 mA, self or loop powered Conformally Coated: Standard feature Mounting: Panel and Surface (optional) |
