Description
| Specifications | |
|---|---|

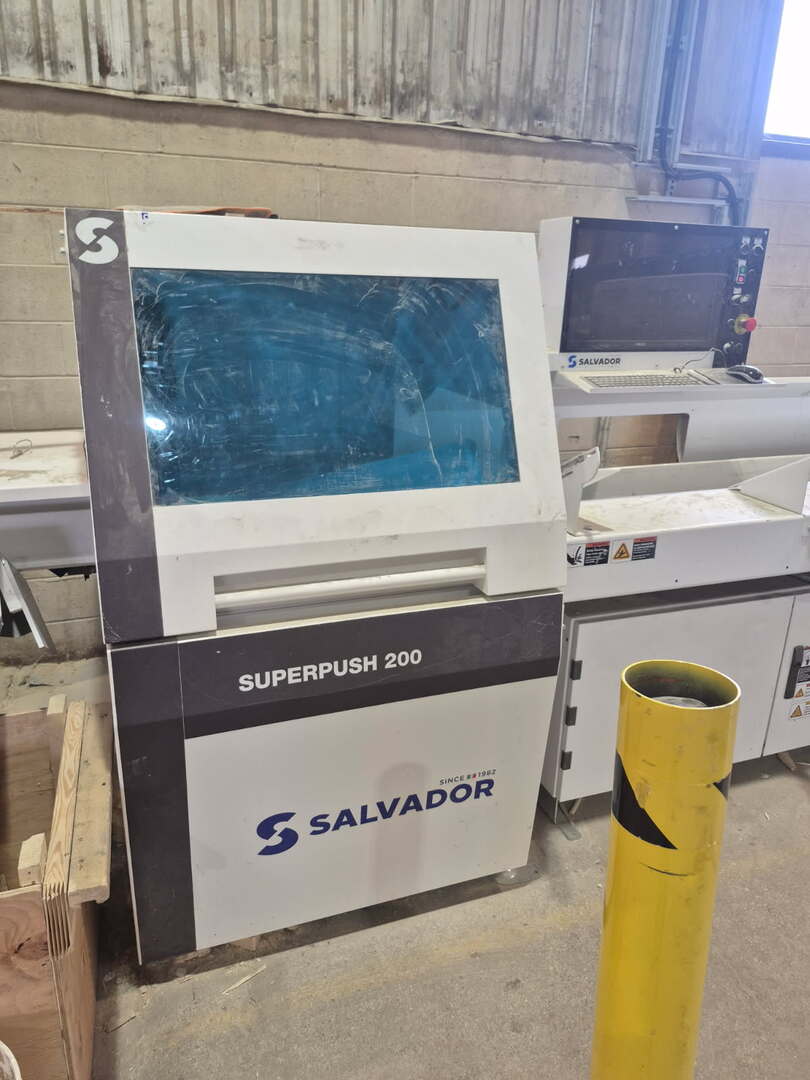

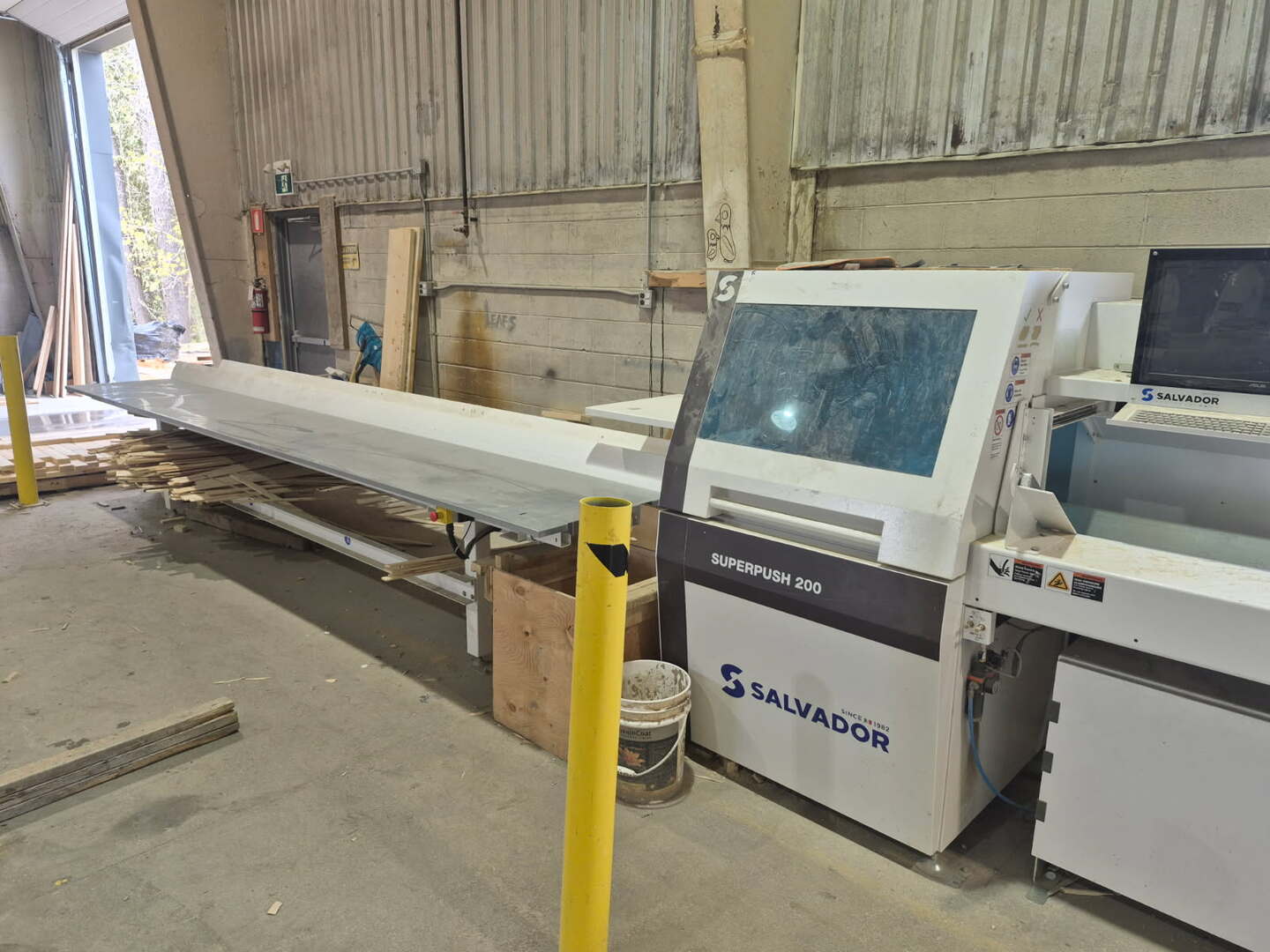

| Model | Superpush 200 |
| Year: | 2024 |
| S/N: | 1035 |
| Condition | Used | General |
| Blade Diameter | 500 mm // 19.7" |
| Voltage | 600 volts |
| Phase | 3-phase |
| Saw Type | Mitre/Crosscut Saws |
| CNC | Yes |
| Other Specifications |
|---|
|

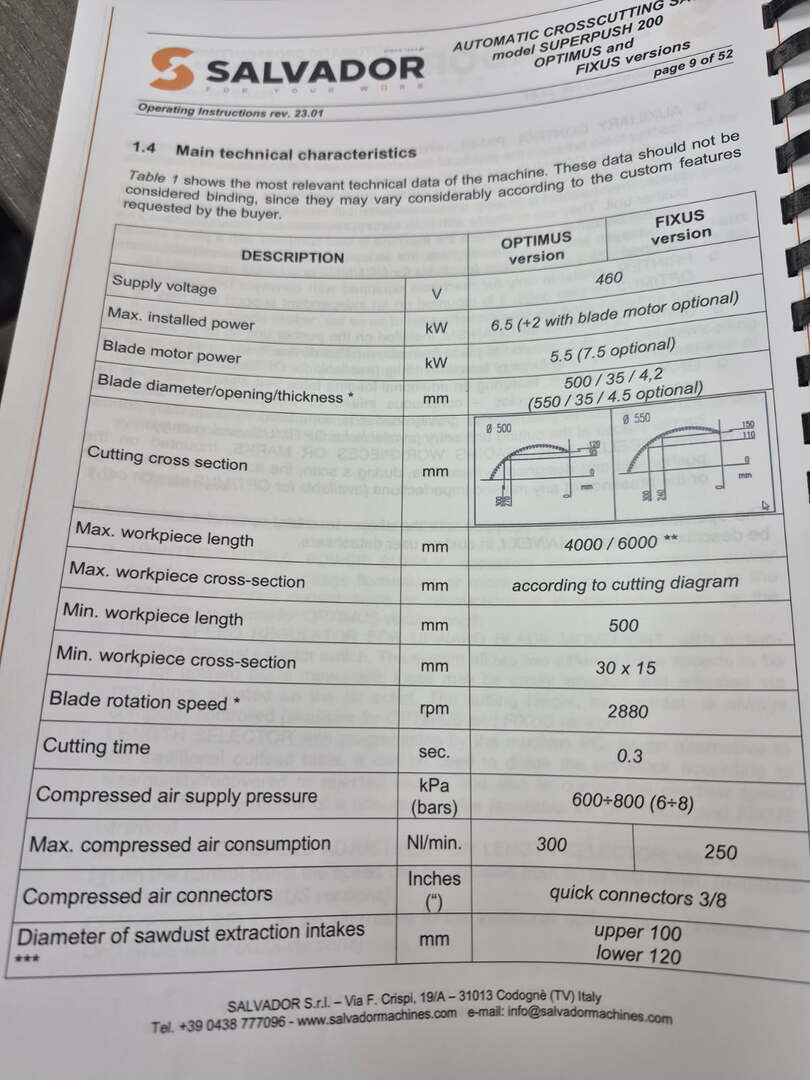

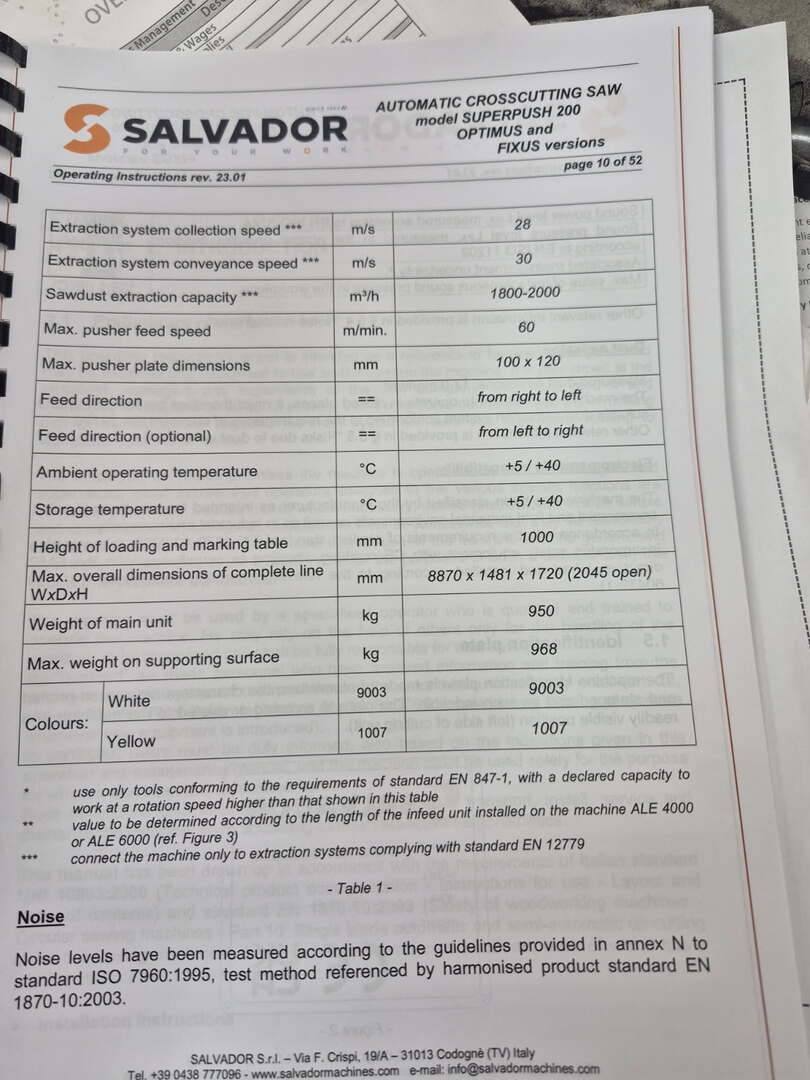

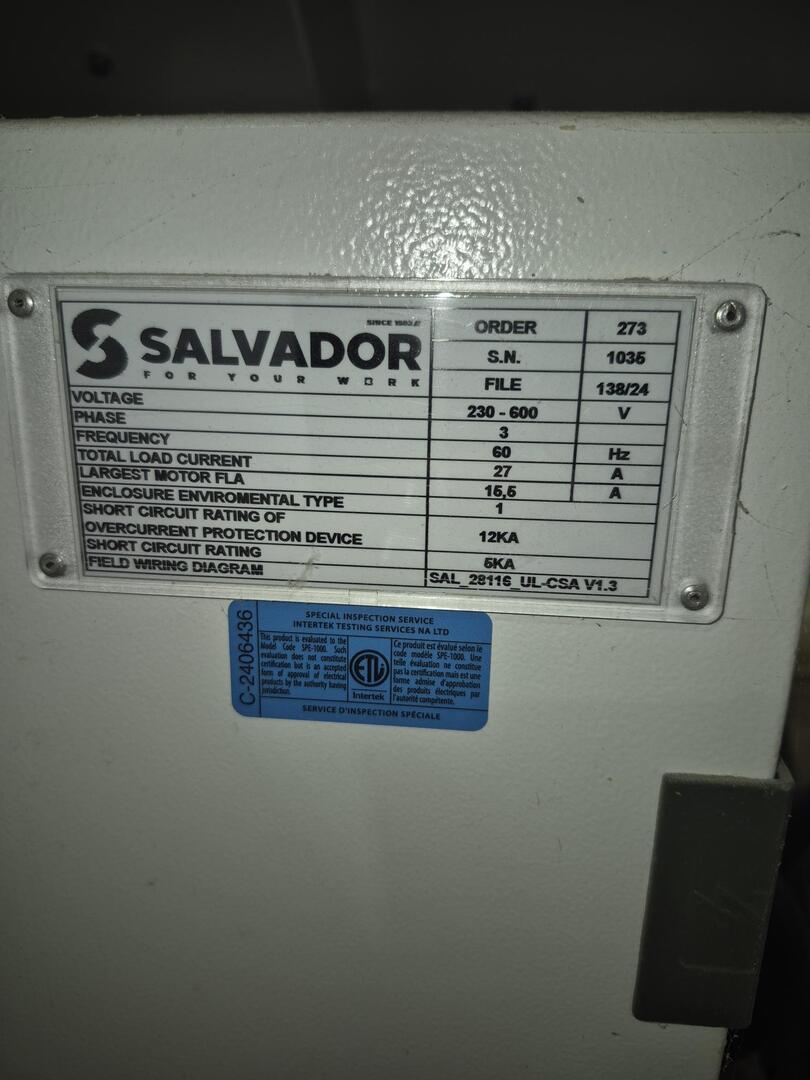

Order Number: 273 File Number: 138/24 Application: Automatic crosscutting and optimization of wood stock, planks and similar material Supply Voltage: 230-600 Volts, 3 Phase Manual Rated Supply Voltage: 460 Volts Frequency: 60 Hz Total Load Current: 27 Amps Largest Motor FLA: 15.6 Amps Max Installed Power: 6.5 kW, +2 kW with optional blade motor configuration Blade Motor Power: 5.5 kW, 7.5 kW optional Blade Diameter / Bore / Thickness: 500 x 35 x 4.2 mm Optional Blade Size: 550 x 35 x 4.5 mm Blade Speed: 2,880 RPM Maximum Workpiece Length: 4,000 / 6,000 mm depending on infeed configuration Minimum Workpiece Length: 500 mm Minimum Workpiece Cross-Section: 30 x 15 mm Maximum Pusher Feed Speed: 60 m/min Maximum Pusher Plate Size: 100 x 120 mm Cutting Time: 0.3 sec Feed Direction: Right to Left Optional Feed Direction: Left to Right Compressed Air Pressure: 600-800 kPa // 6-8 bar Maximum Compressed Air Consumption: 300 Nl/min Optimus / 250 Nl/min Fixus Compressed Air Connection: 3/8 in. quick connector Sawdust Extraction Inlets: 100 mm upper / 120 mm lower Sawdust Extraction Capacity: 1,800-2,000 m3/h Extraction Collection Speed: 28 m/s Extraction Conveyance Speed: 30 m/s Loading / Marking Table Height: 1,000 mm Main Unit Weight: 950 kg Maximum Weight on Supporting Surface: 968 kg |
