Description

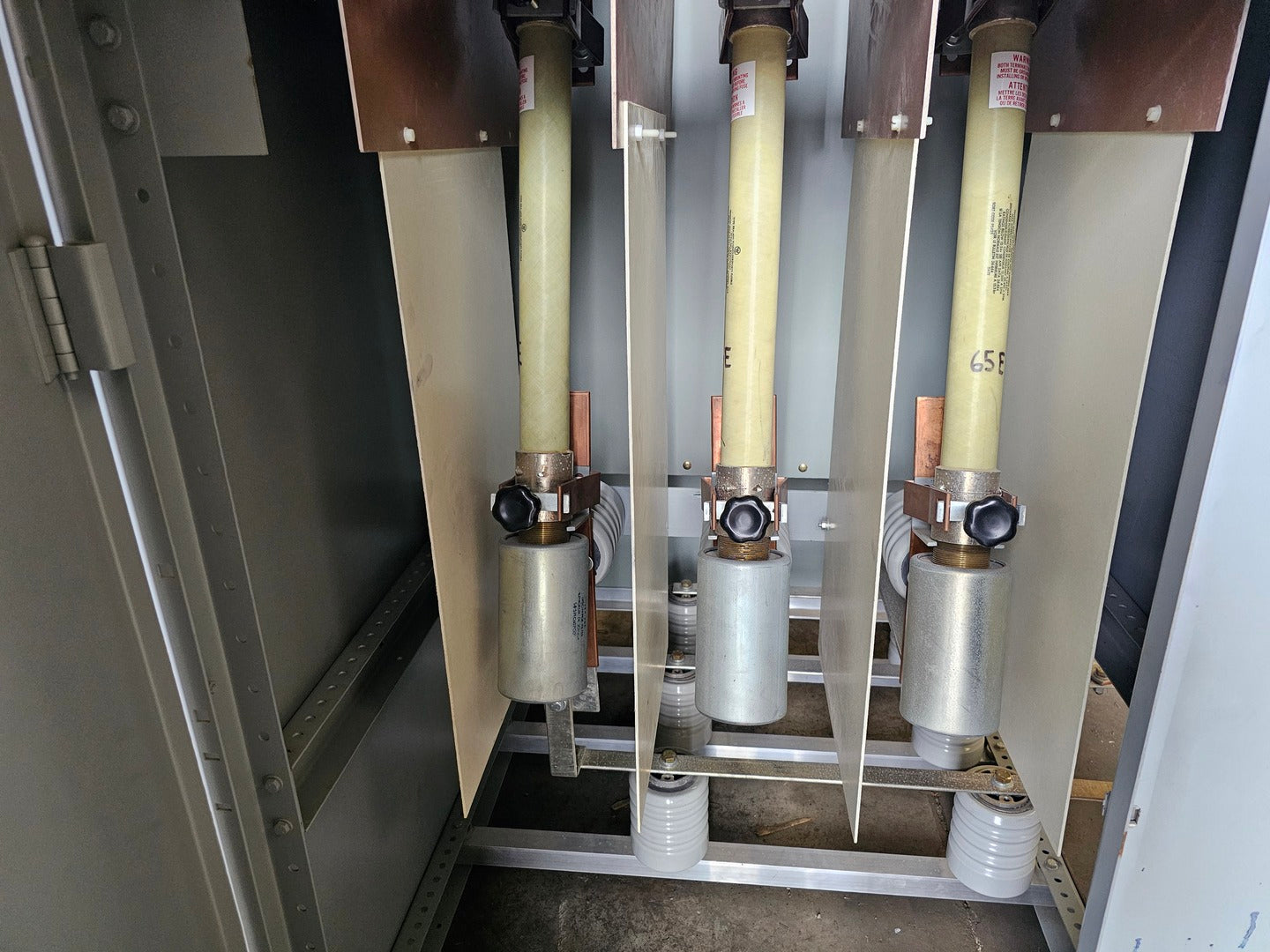

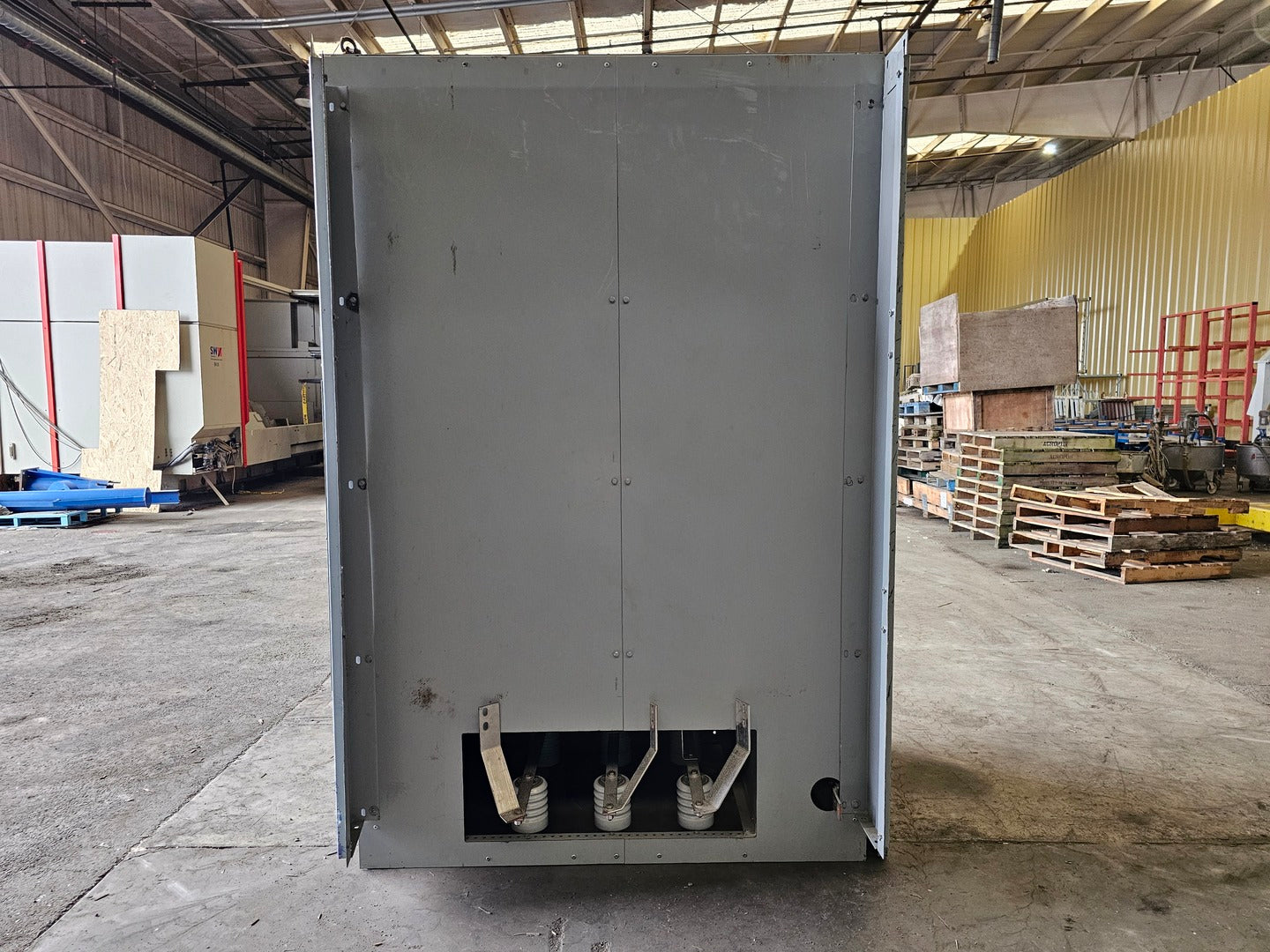

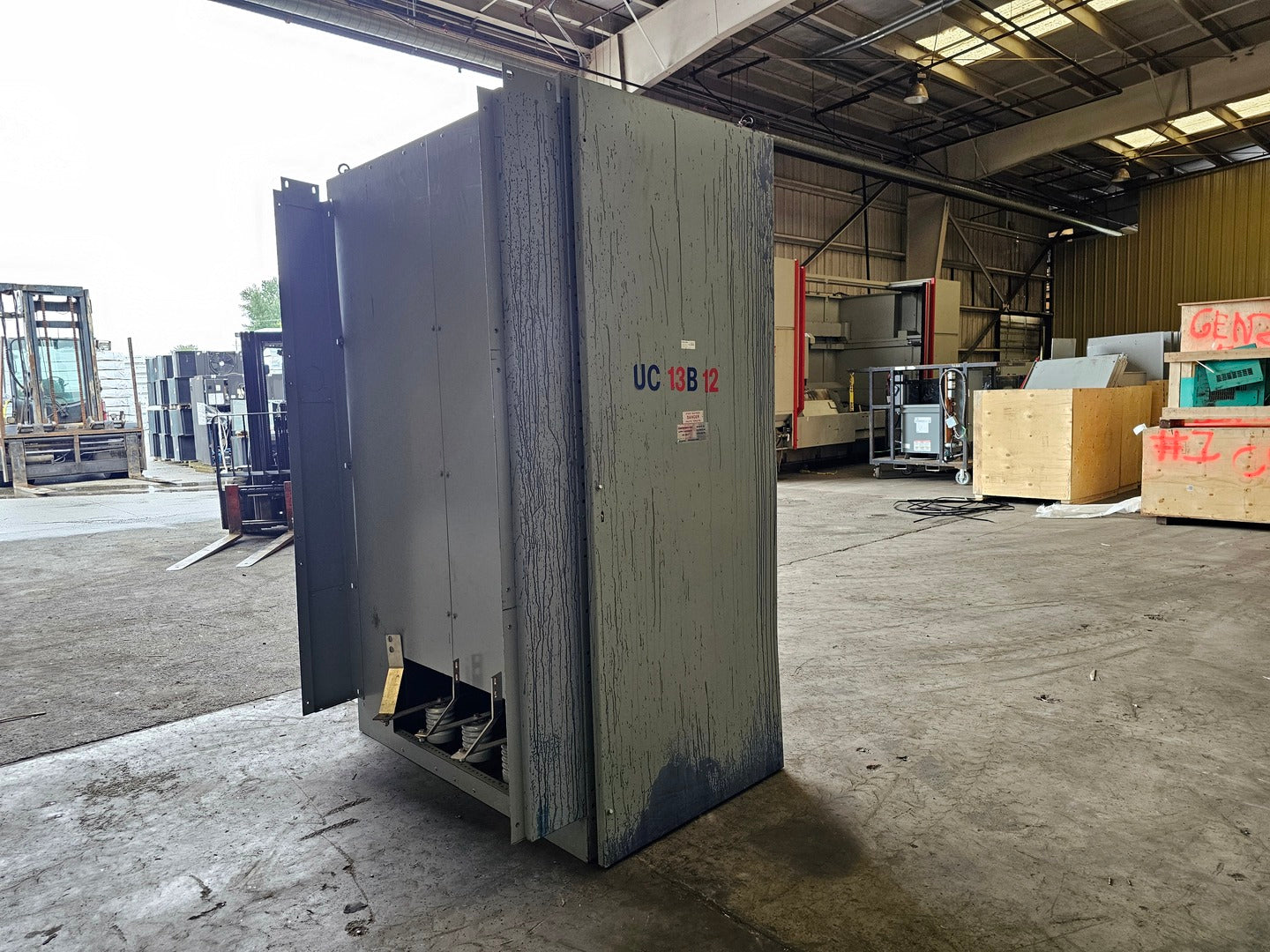

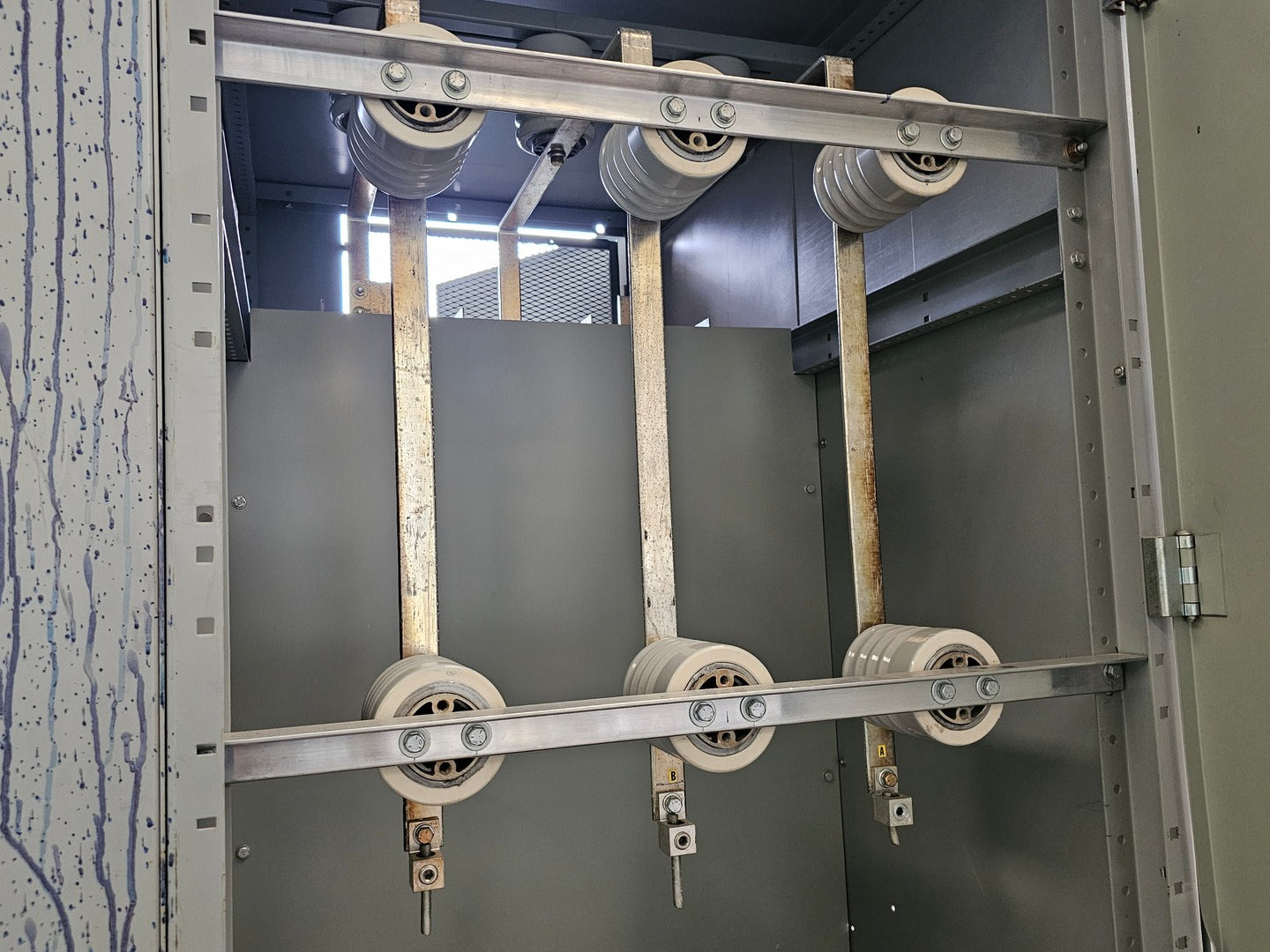

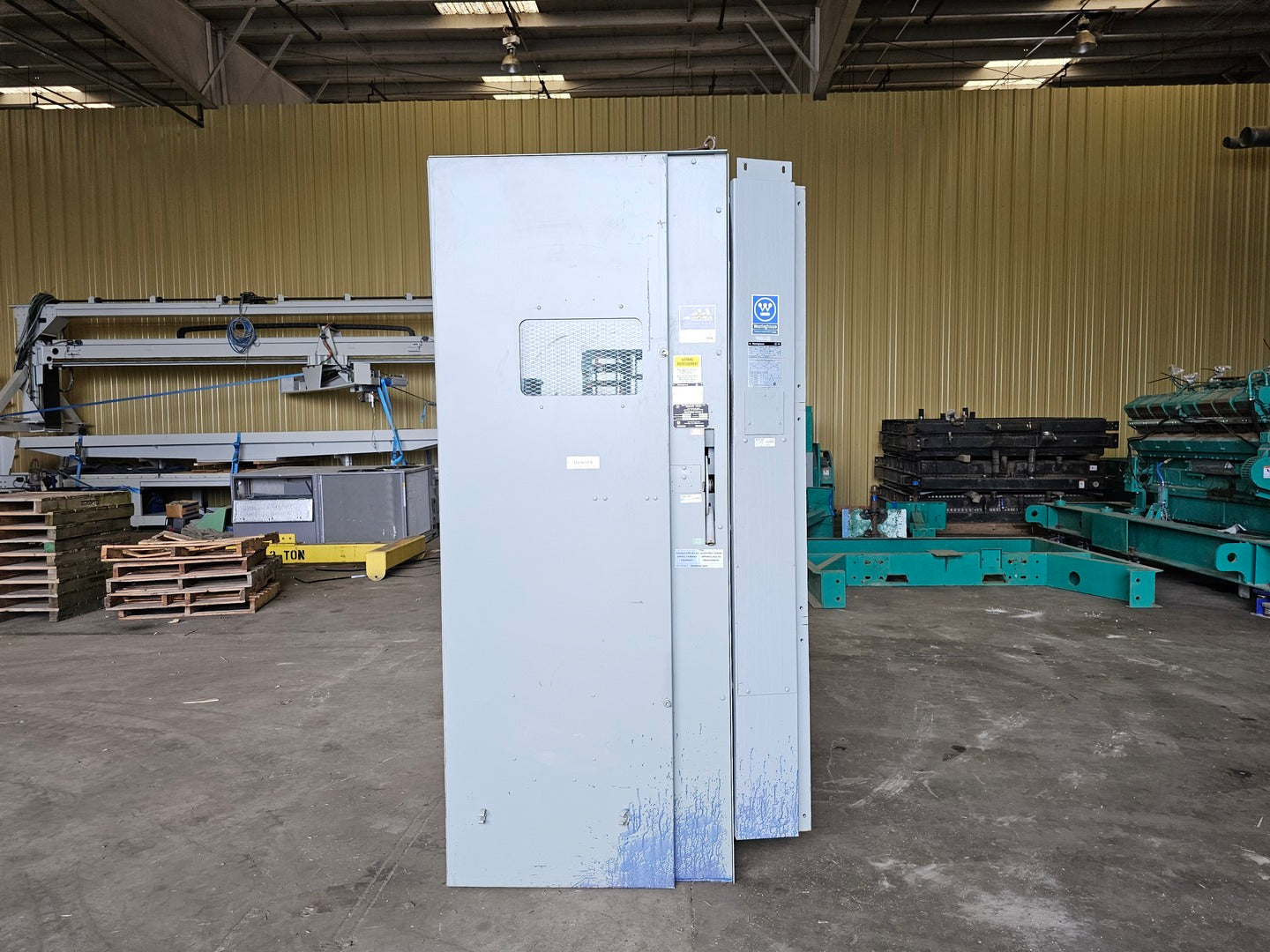

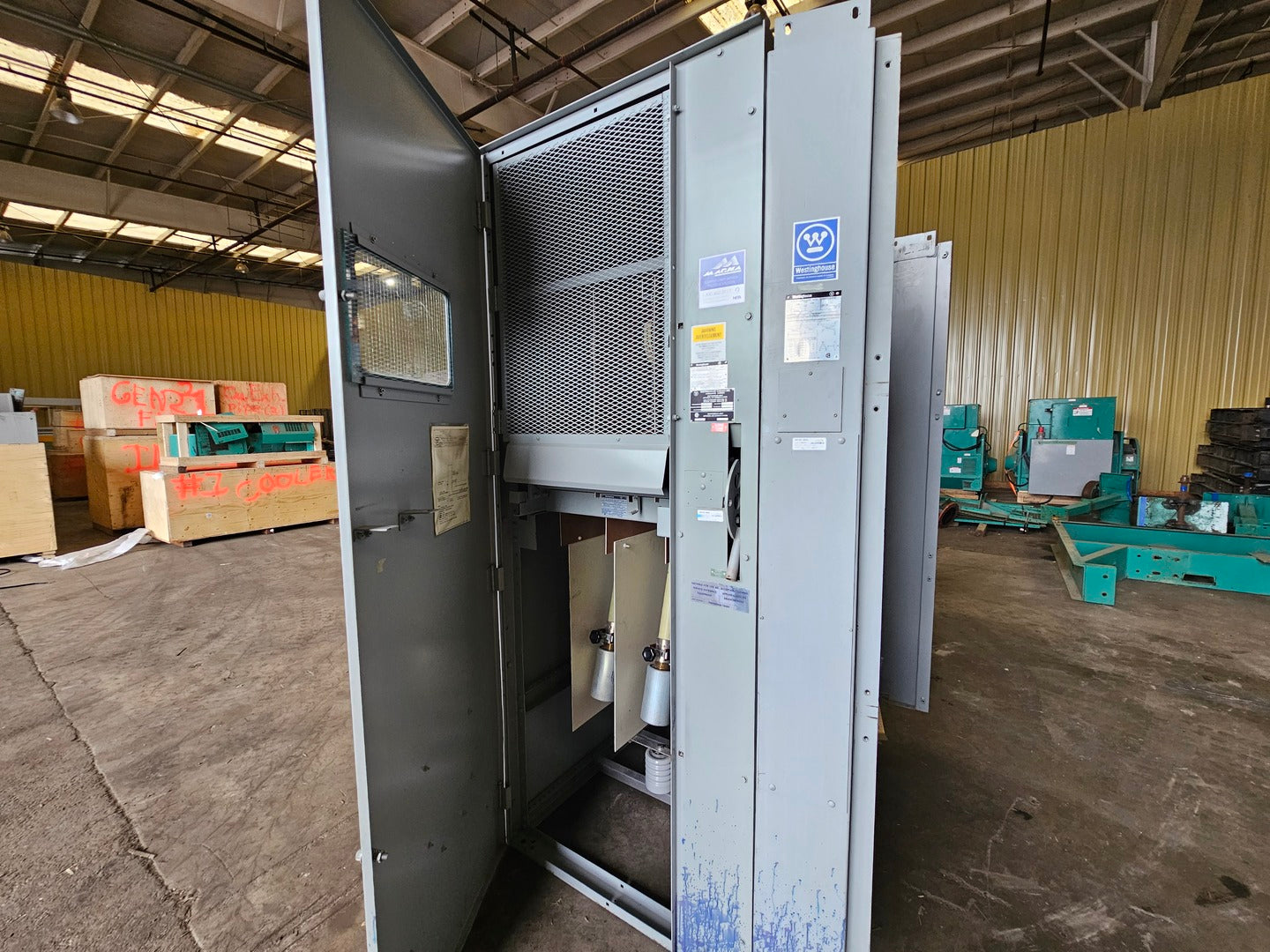

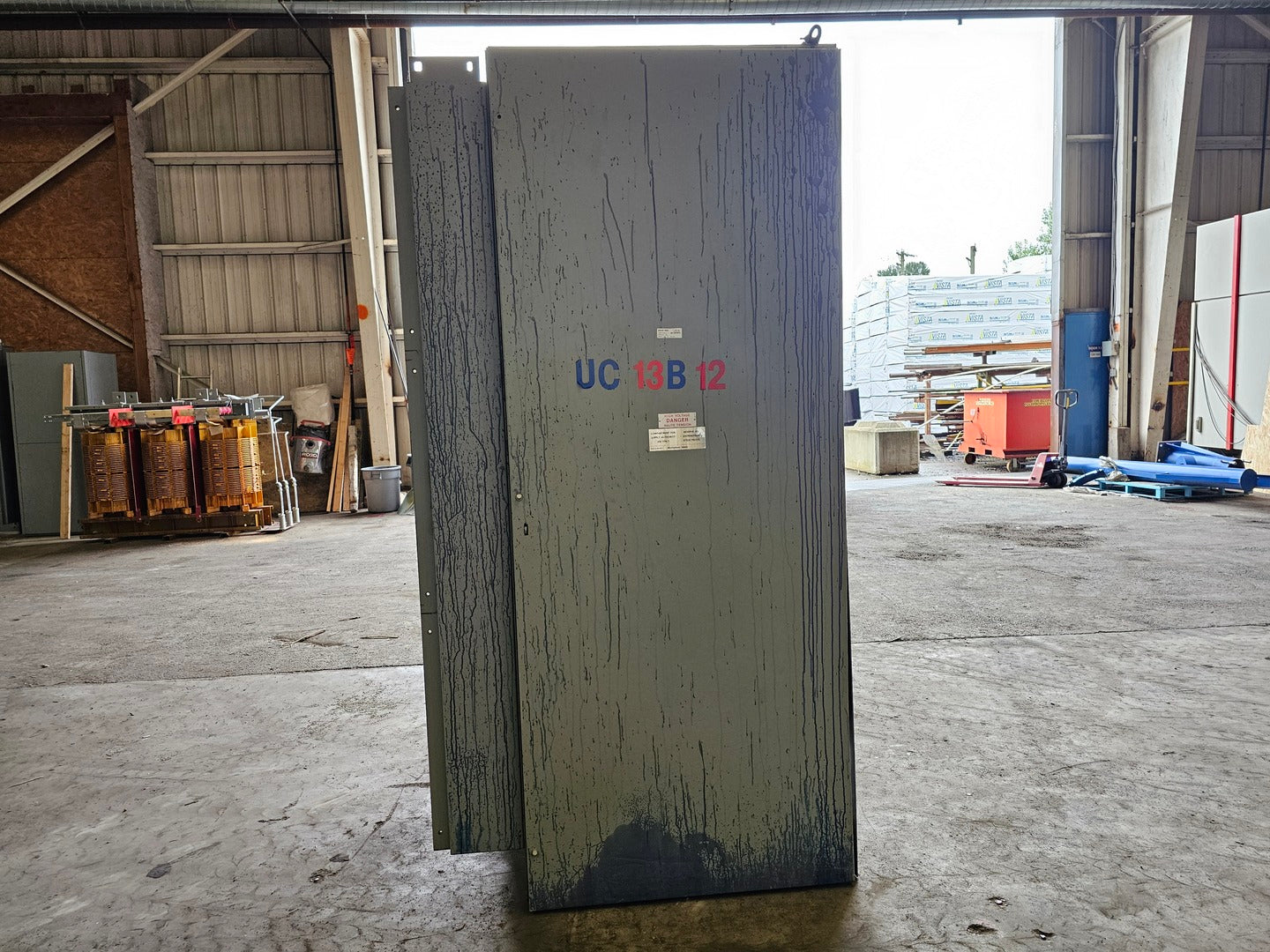

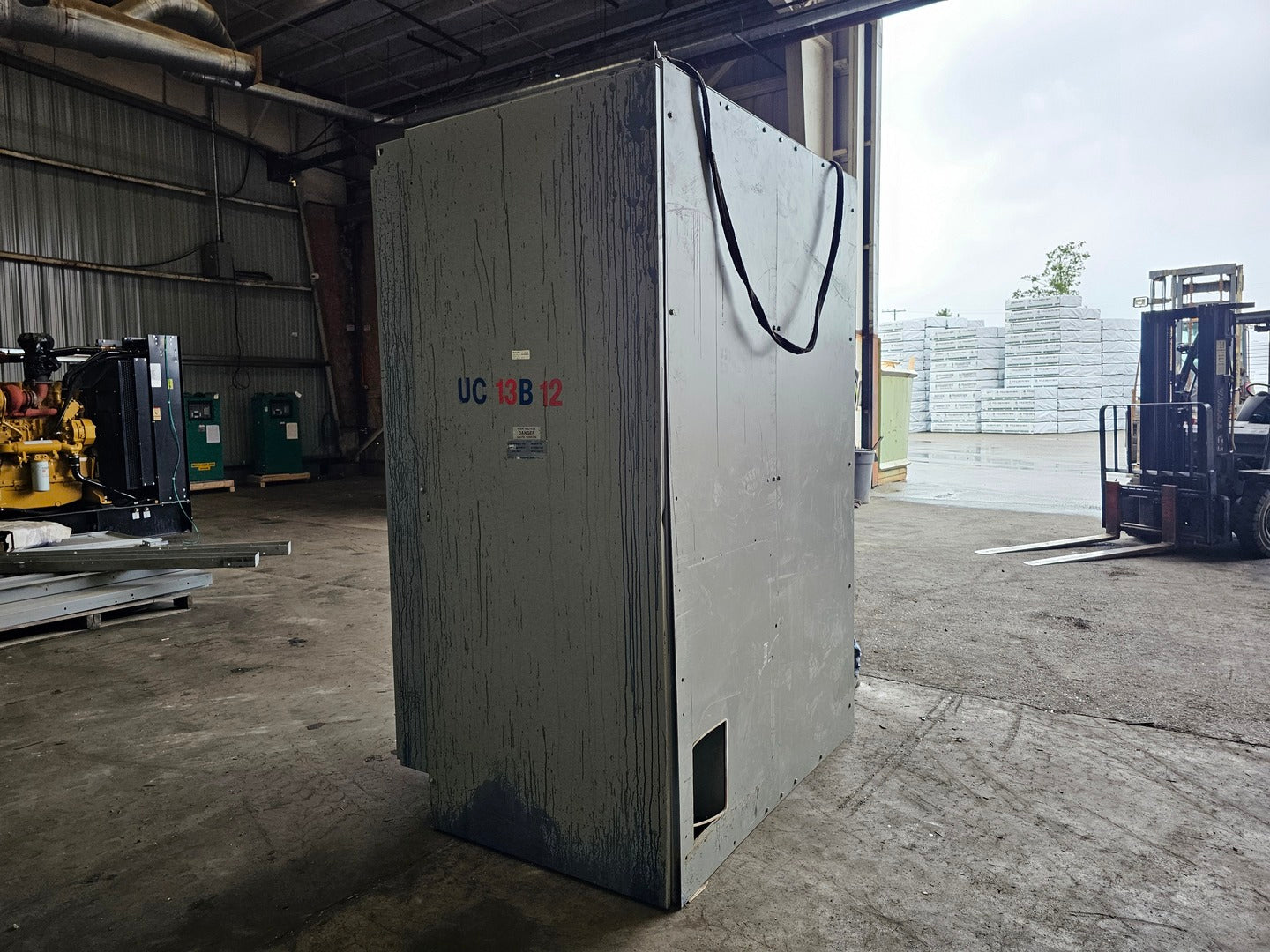

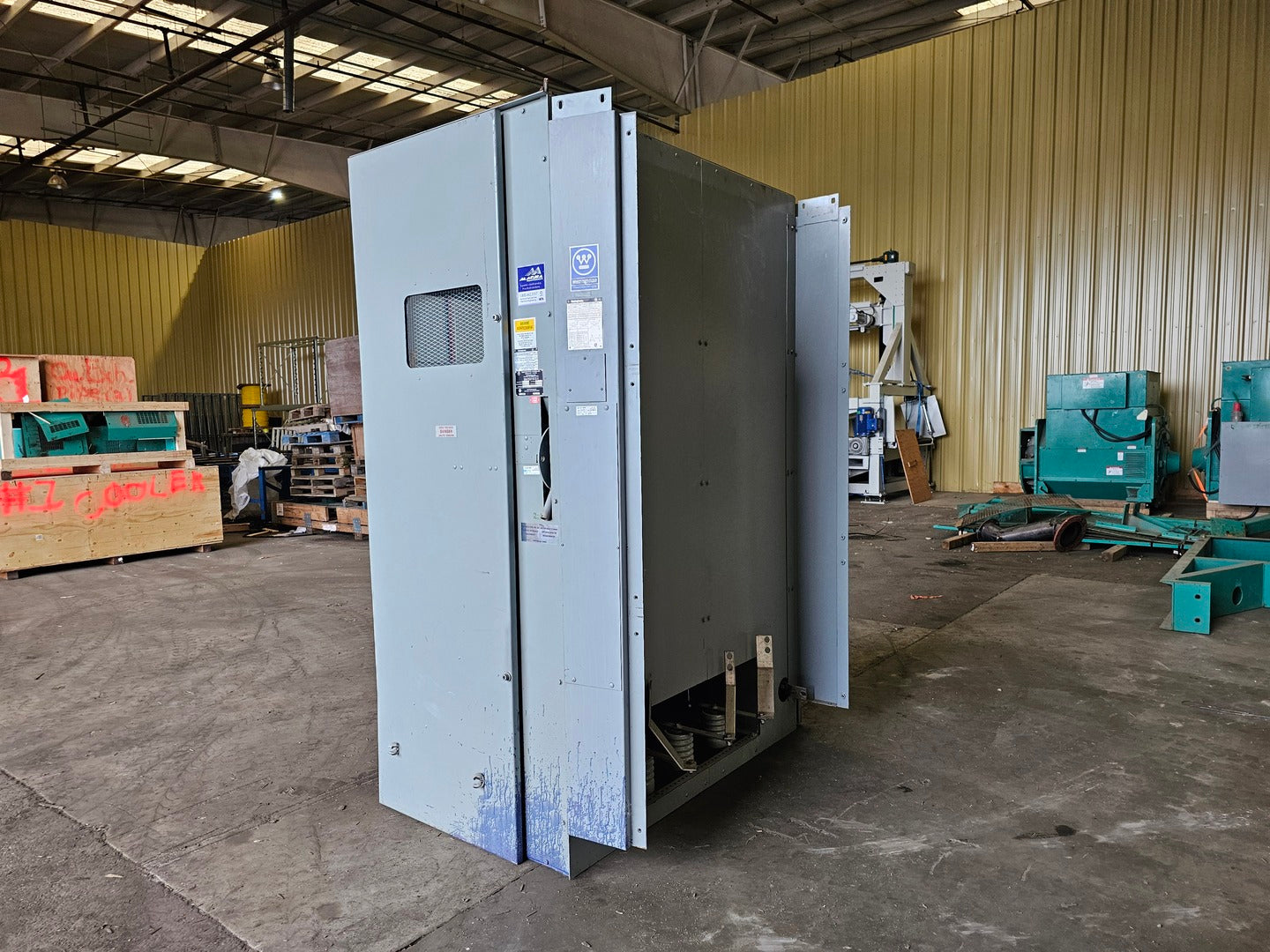

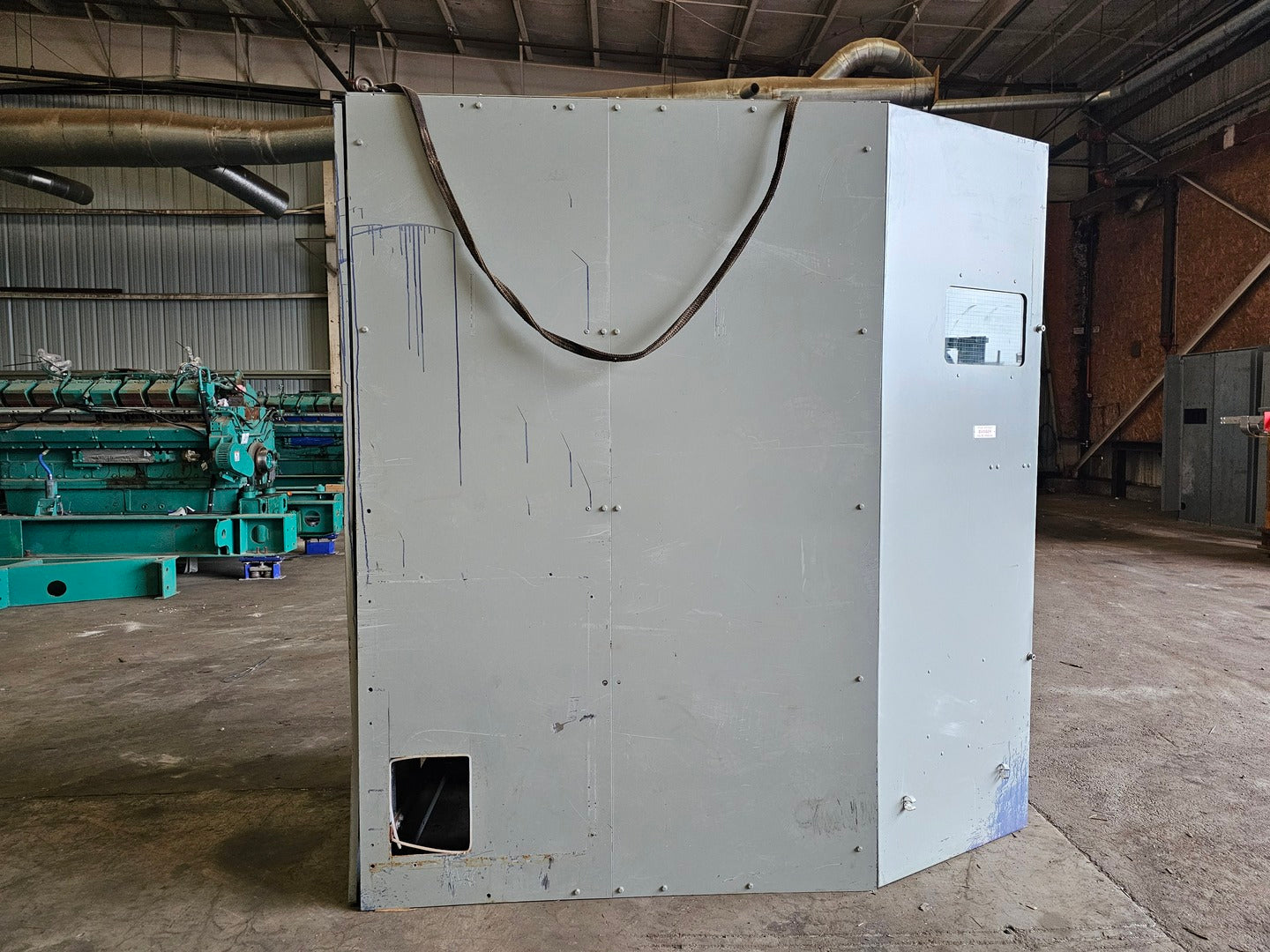

Westinghouse Canada medium-voltage switchgear assembly featuring an AWP-2 load interrupter switch and integrated 1000 kVA dry-type transformer. Designed for utility and industrial power distribution applications, this unit accepts 12.47-13.8 kV primary voltage and provides 600Y/346V three-phase secondary power. The enclosure contains fused load-break switching, copper buswork, porcelain insulators, and transformer sections within a heavy-duty steel cabinet. Ideal for industrial facilities, manufacturing plants, utility substations, mining operations, commercial campuses, and power distribution upgrades.
| Specifications | |
|---|---|
| Model | AWP-2 |
| Condition | Used | Electrical |
| Amps | 600 amps |
| Phase | 3-phase |
| Other Specifications |
|---|
|

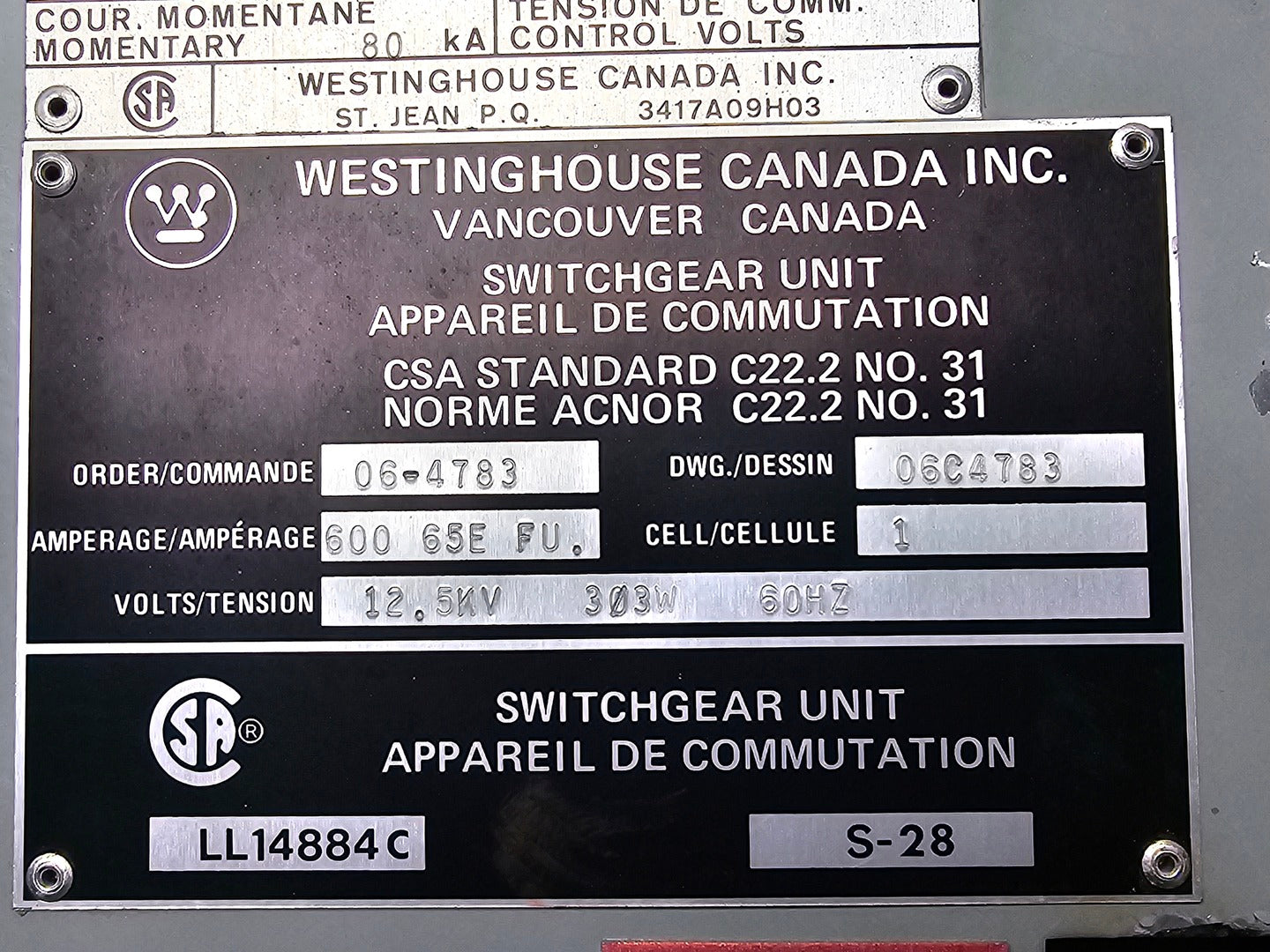

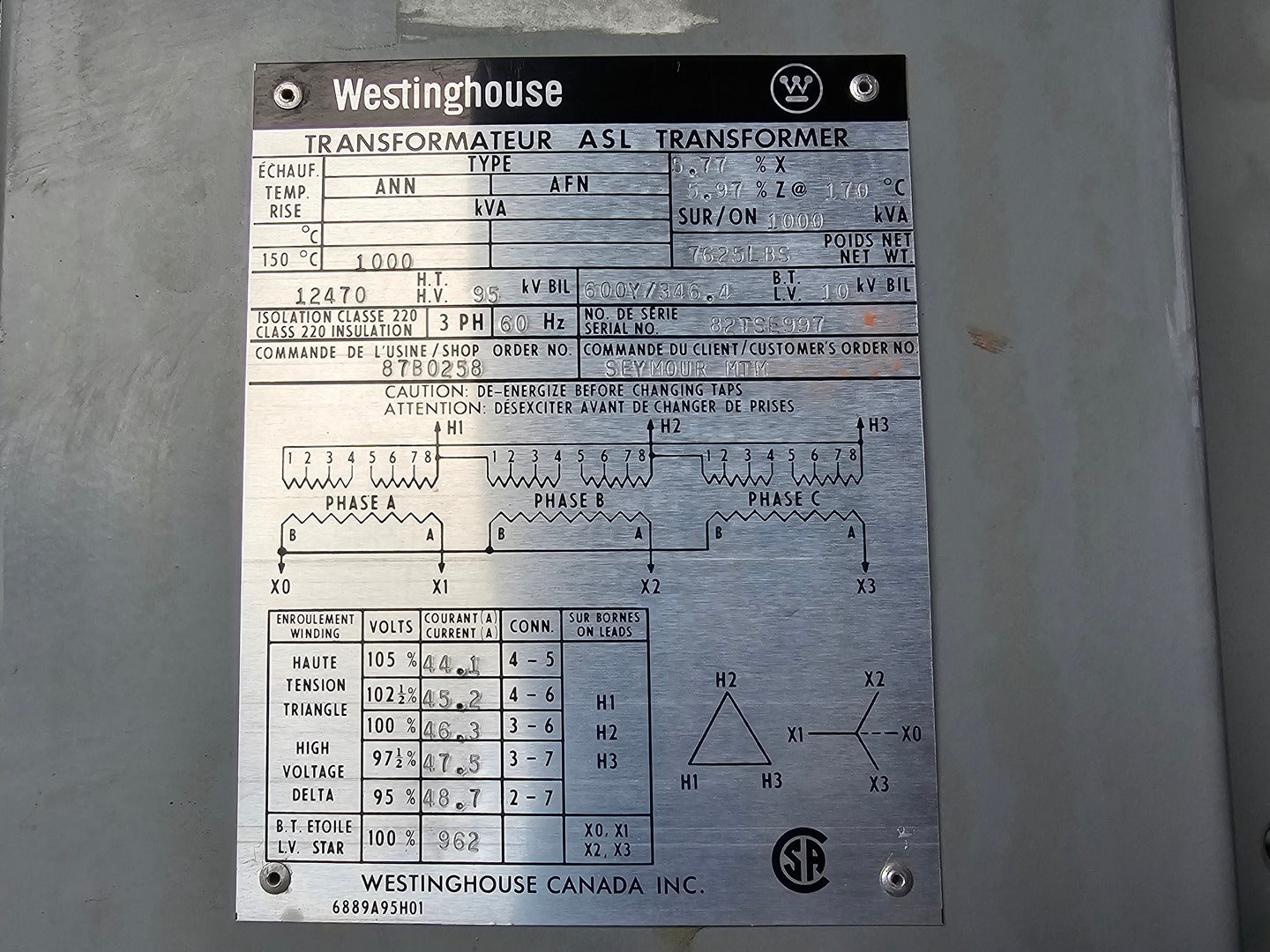

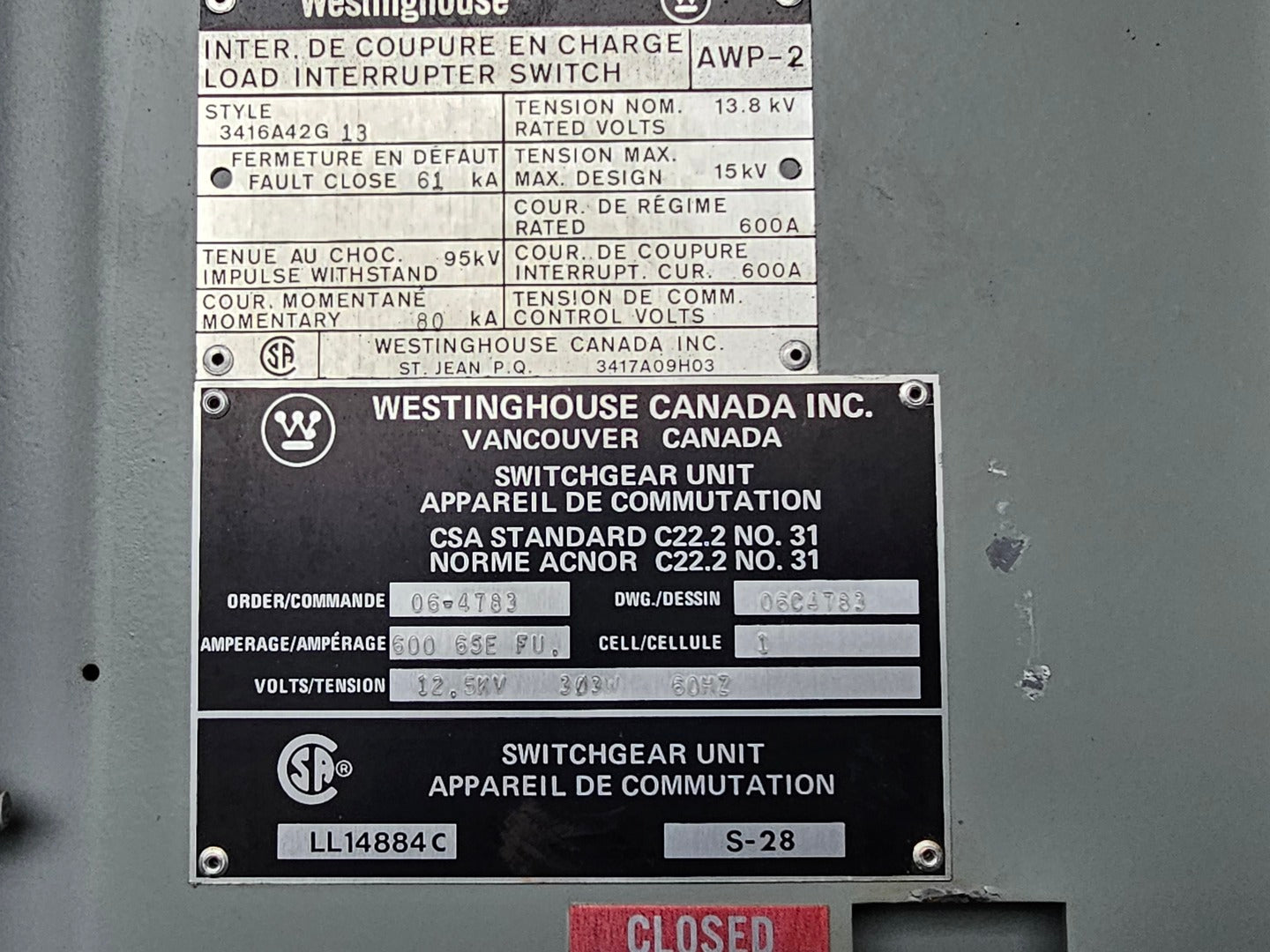

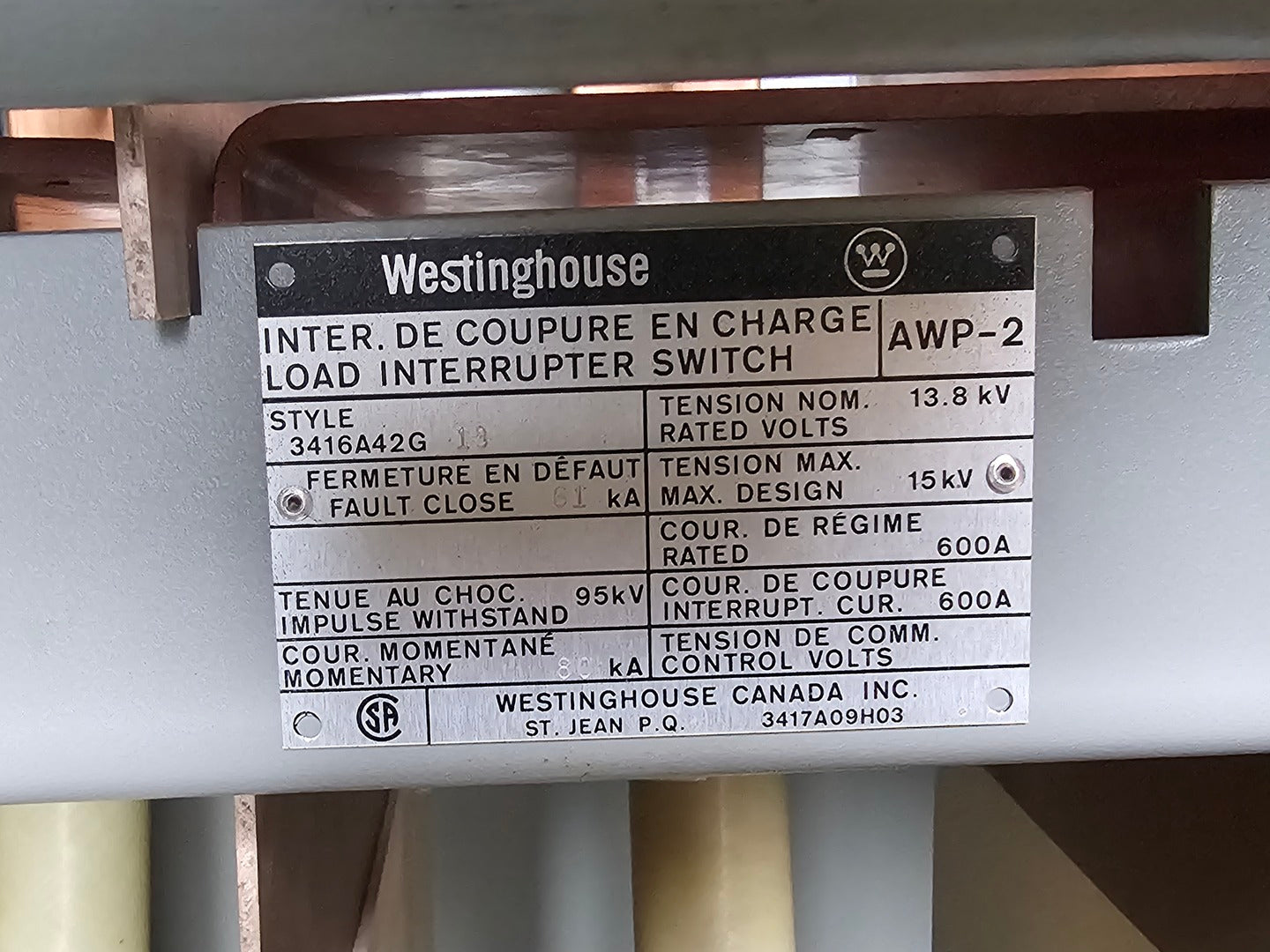

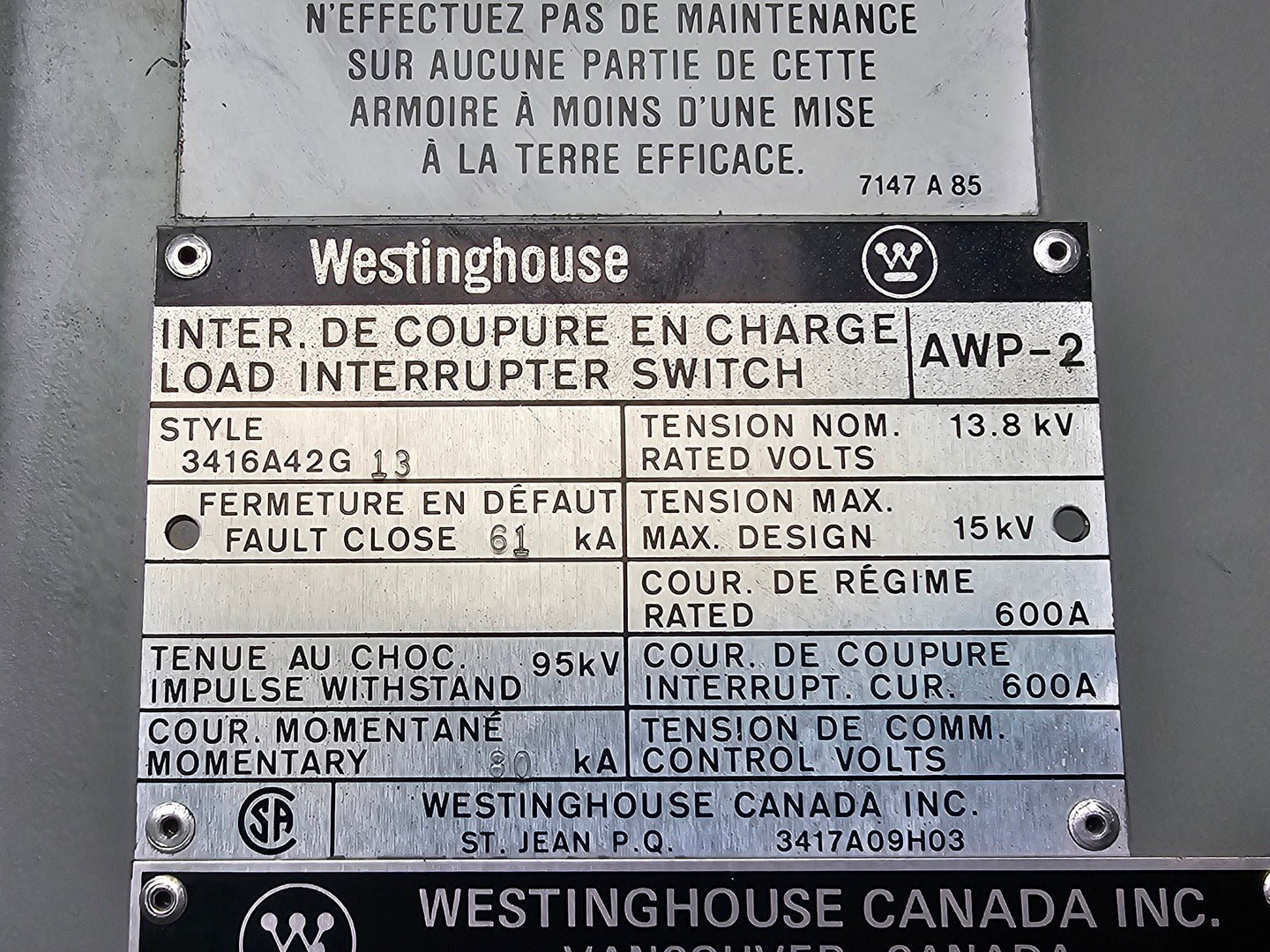

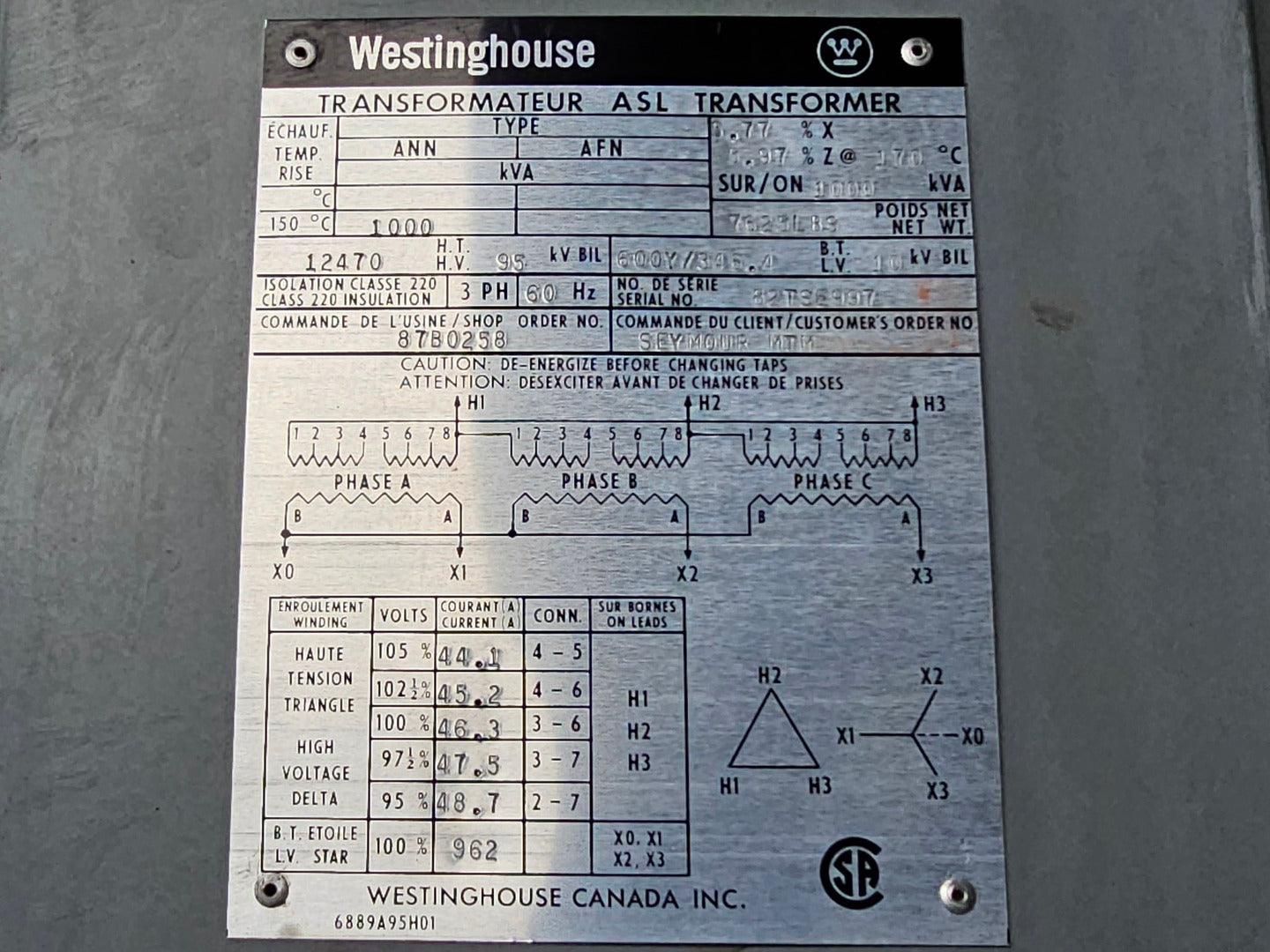

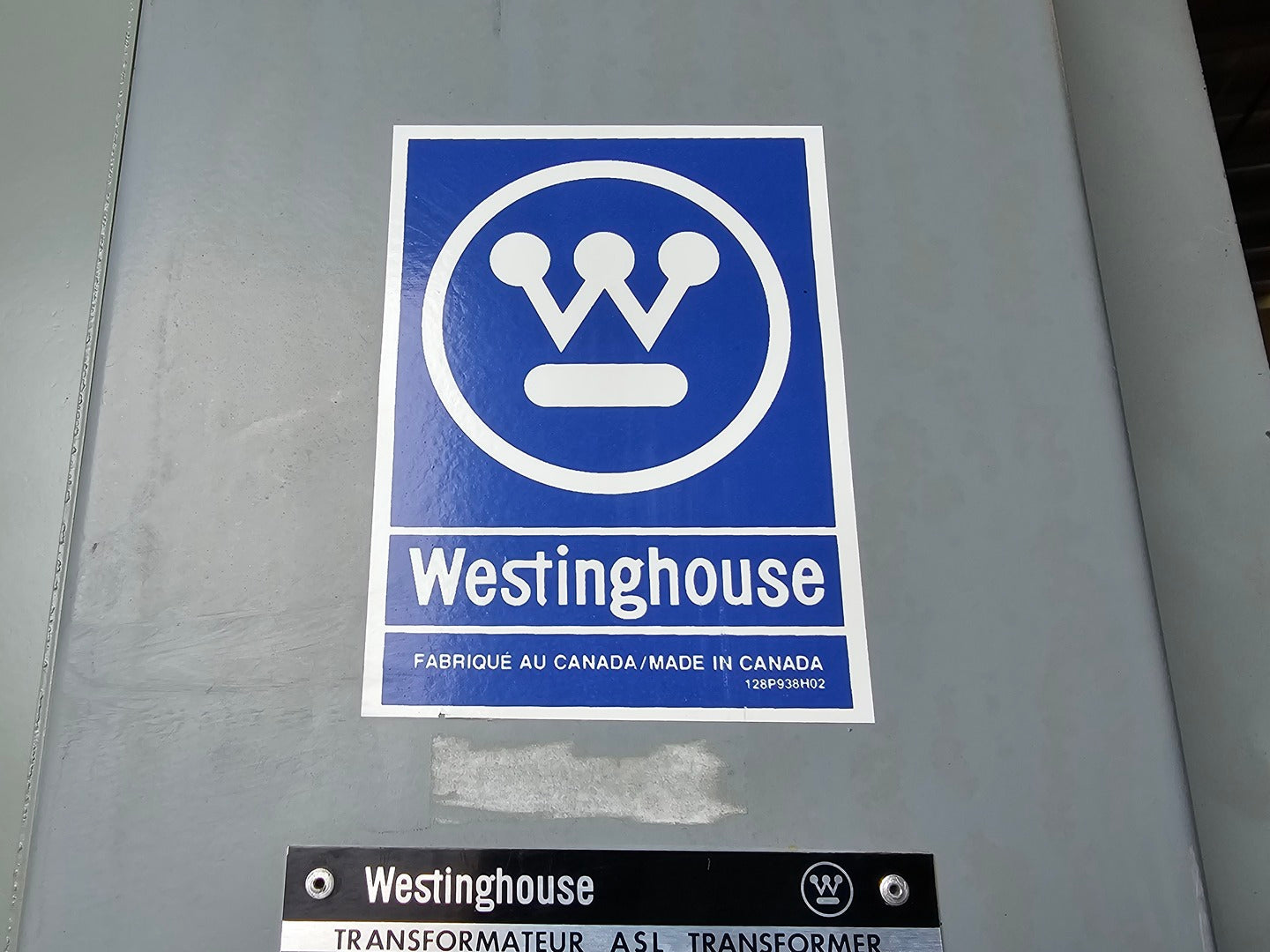

Switchgear Manufacturer: Westinghouse Canada Inc. Model: AWP-2 Style No.: 3416A42G13 Rated Voltage: 13.8 kV Maximum Design Voltage: 15 kV Continuous Current Rating: 600 A Interrupting Current: 600 A Fault Close Rating: 61 kA Momentary Withstand Rating: 80 kA Impulse Withstand: 95 kV CSA Approved Transformer Manufacturer: Westinghouse Canada Inc. Type: ASL Dry-Type Transformer Power Rating: 1000 kVA b 12,470 V Delta Secondary Voltage: 600Y/346 V Phase: 3 Phase Frequency: 60 Hz Cooling Class: ANN / AFN Insulation Class: 220 Approximate Weight: 7,625 lbs Serial Number: 82TSE997 Applications
|
