Description
| Specifications | |
|---|---|

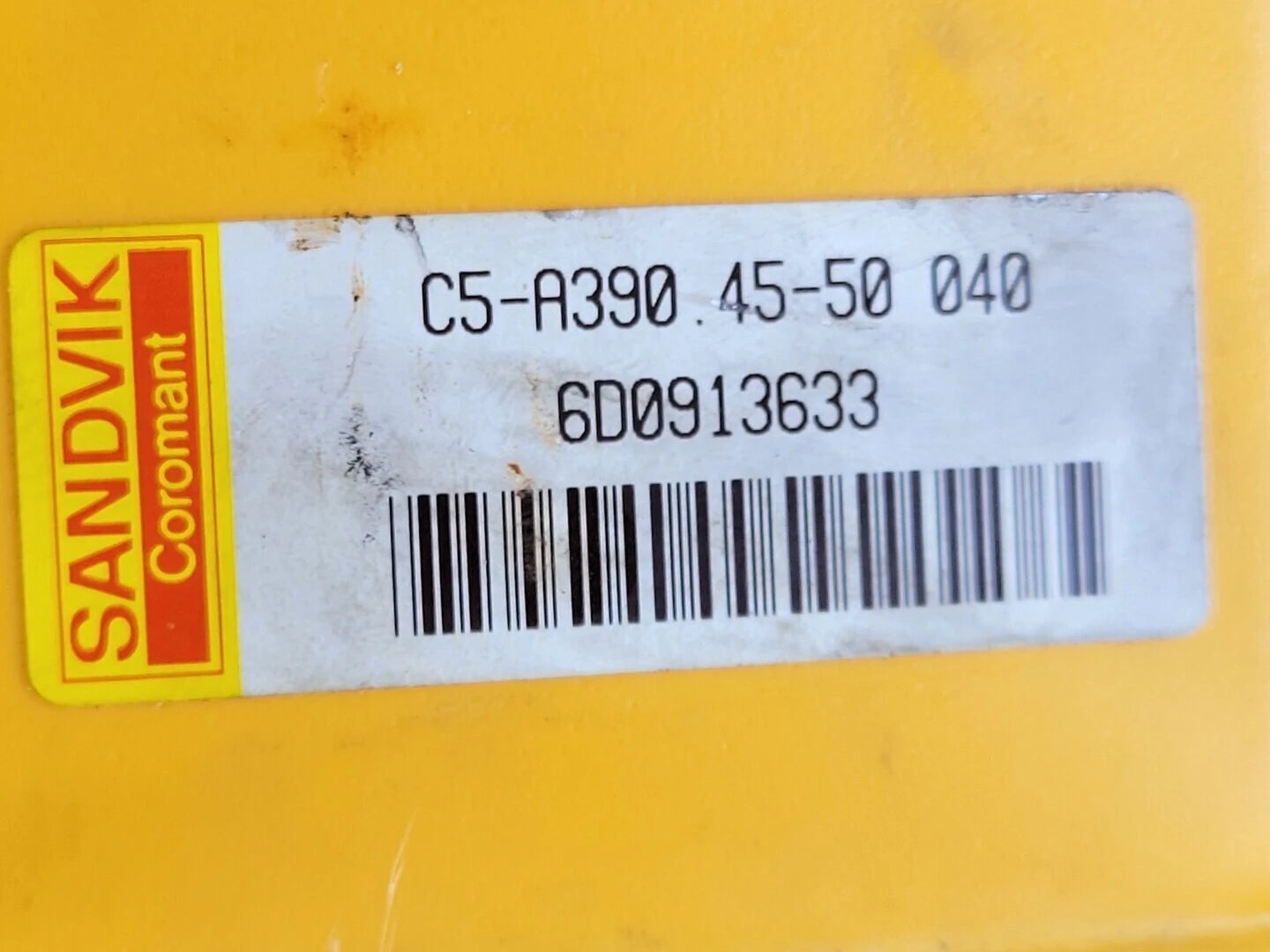

| Model | C5-A390 45-50 040 |
| S/N: | 6D0913633 |
| Condition | Good |
| Other Specifications |
|---|
|

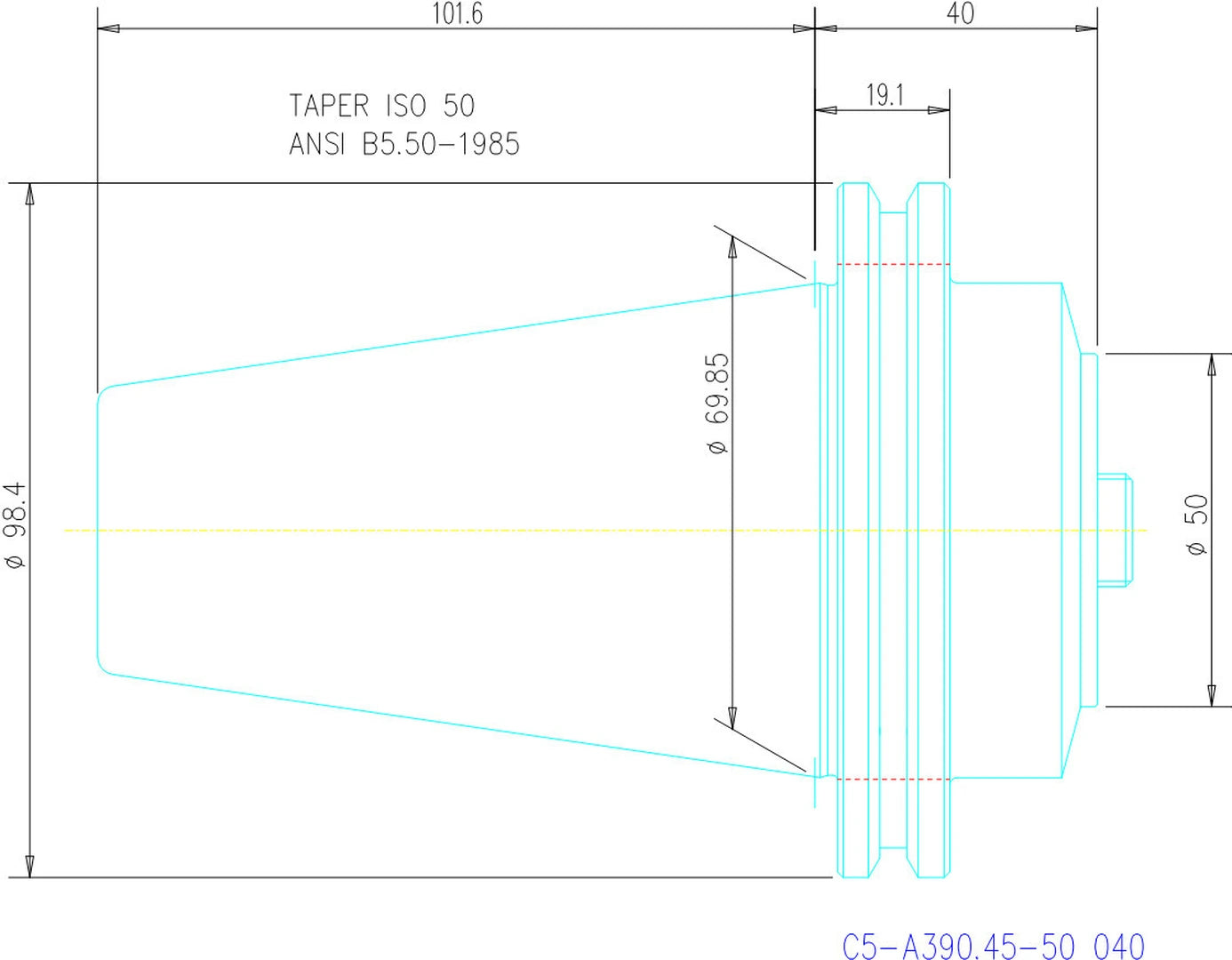

Taper: 50
Coupling Size: C5
Adaptive interface machine direction(ADINTMS): CAT-V -AD central coolant - CAT-V50
Adaptive interface workpiece direction(ADINTWS): Coromant Capto (bolt clamping) -size C5
Damping property(DPC): false
Coolant entry style code(CNSC): 1: axial concentric entry
Coolant exit style code(CXSC): 1: axial concentric exit
Coolant pressure(CP): 1,160.3 lbf/in2
Sensor embedded property(SEP): 0
Data chip provision(DCP): false
Connection diameter(DCON): 1.9685 inch
Functional diameter(DFC): 1.378 | 2.75 inch
Connection retention knob thread size(CRKS): 1"-8
Kappa (z-axis rot)(KAP): 0 deg
Functional length(LF): 1.575 inch

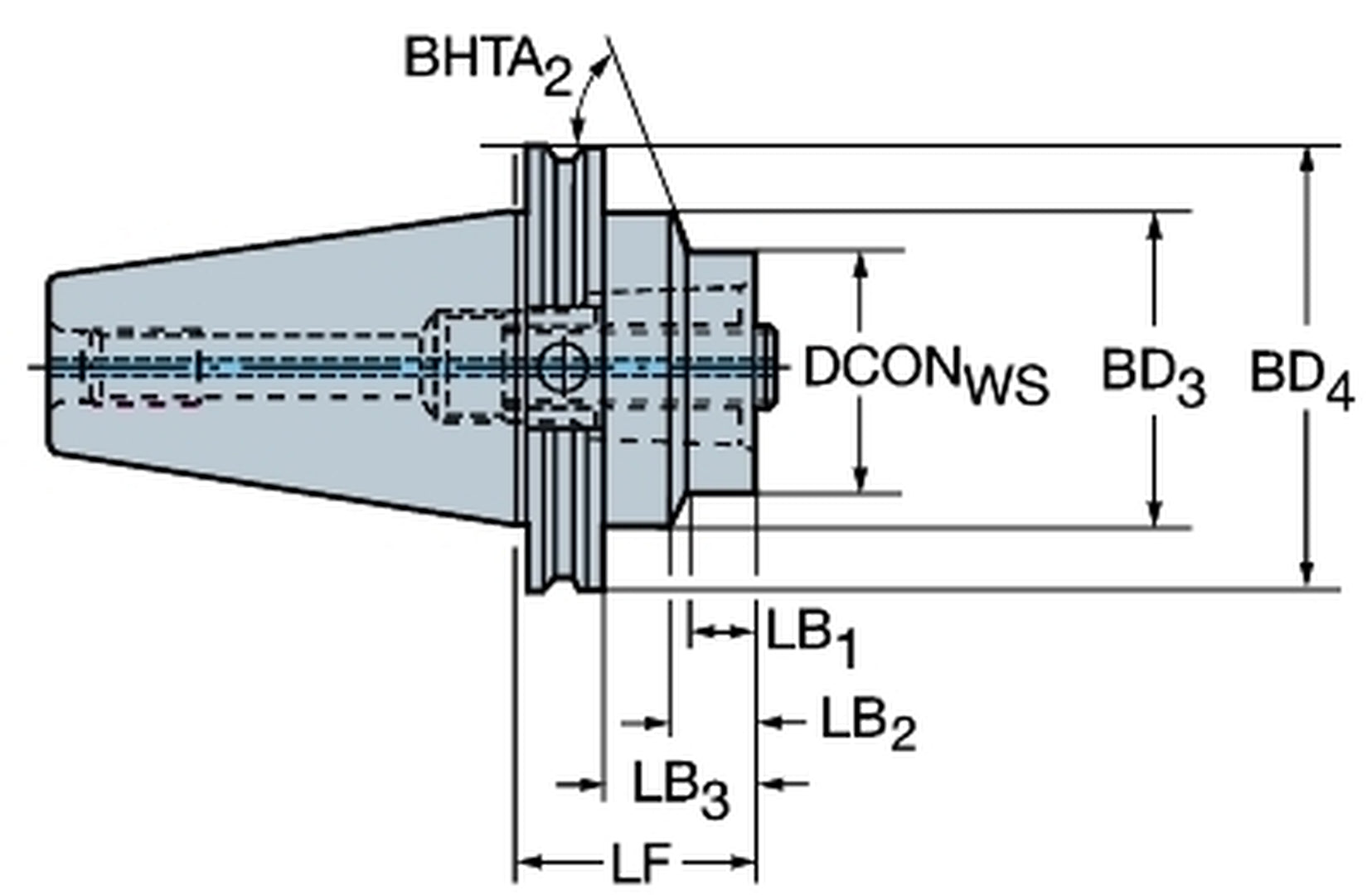

Body diameter(BD1): 1.9685 inch
Body diameter(BD2): 1.9685 inch
Body diameter(BD3): 2.7598 inch
Body diameter(BD4): 3.874 inch
Body length(LB1): 0.0945 inch
Body length(LB2): 0.1969 inch
Body length(LB3): 0.8228 inch
Body length(LB4): 1.5748 inch
Body half taper angle(BHTA1): 0 deg
Body half taper angle(BHTA2): 75 deg
Body half taper angle(BHTA3): 0 deg
Body half taper angle(BHTA4): 0 deg
Torque(TQ): 33.1903 ft lbs
Body material code(BMC): Steel
Balanced by design(BBD): false
|
