Description

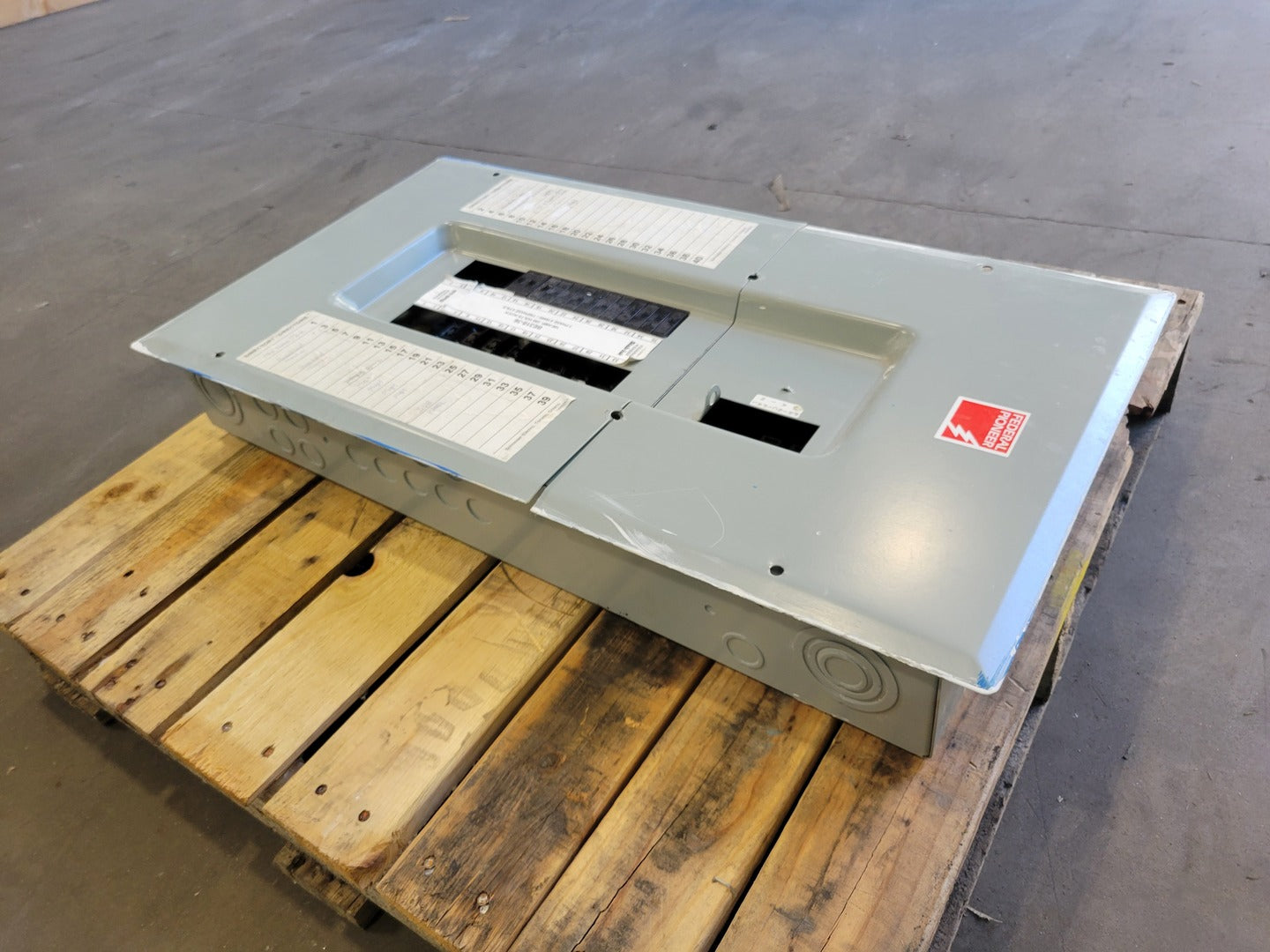

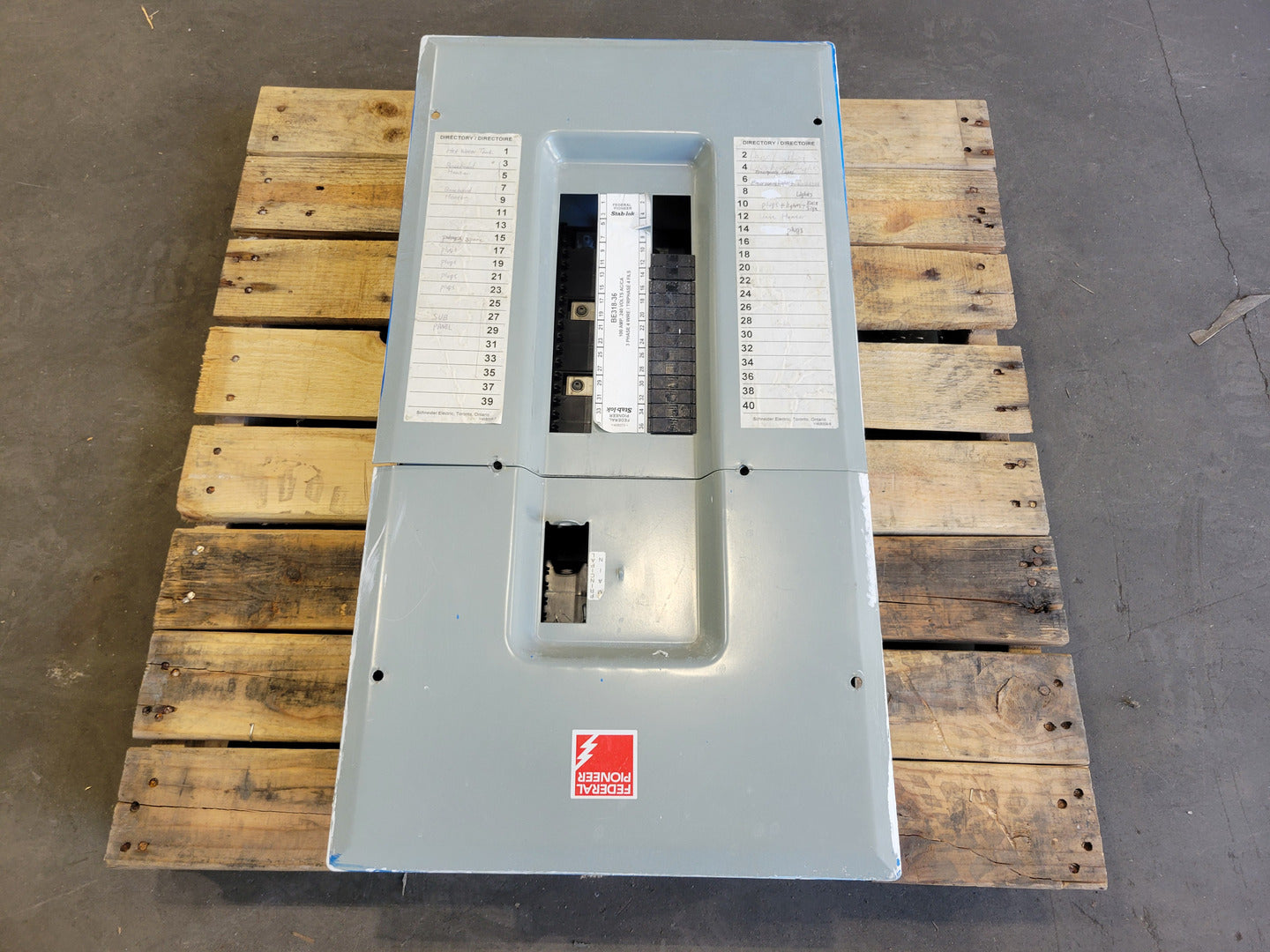

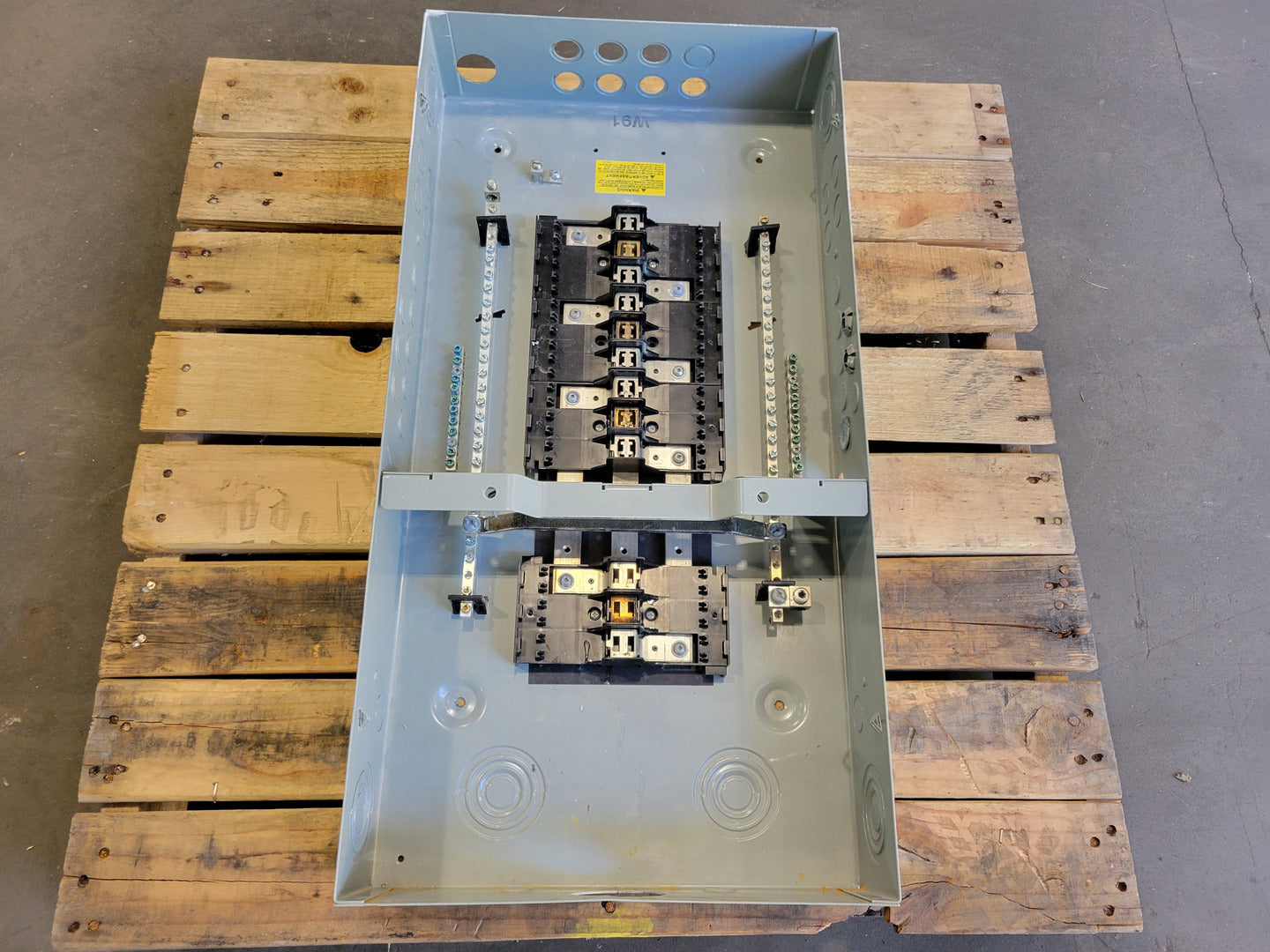

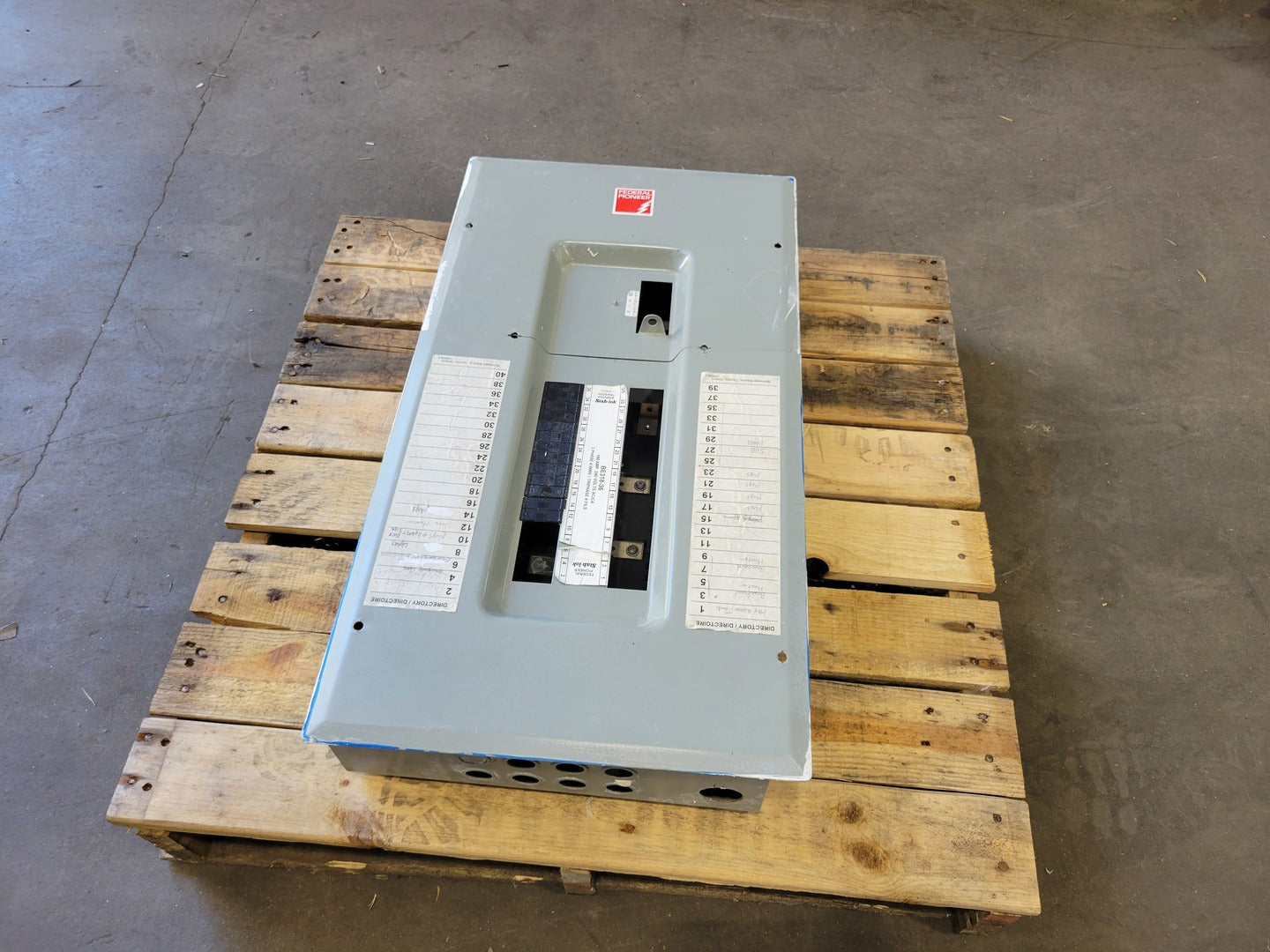

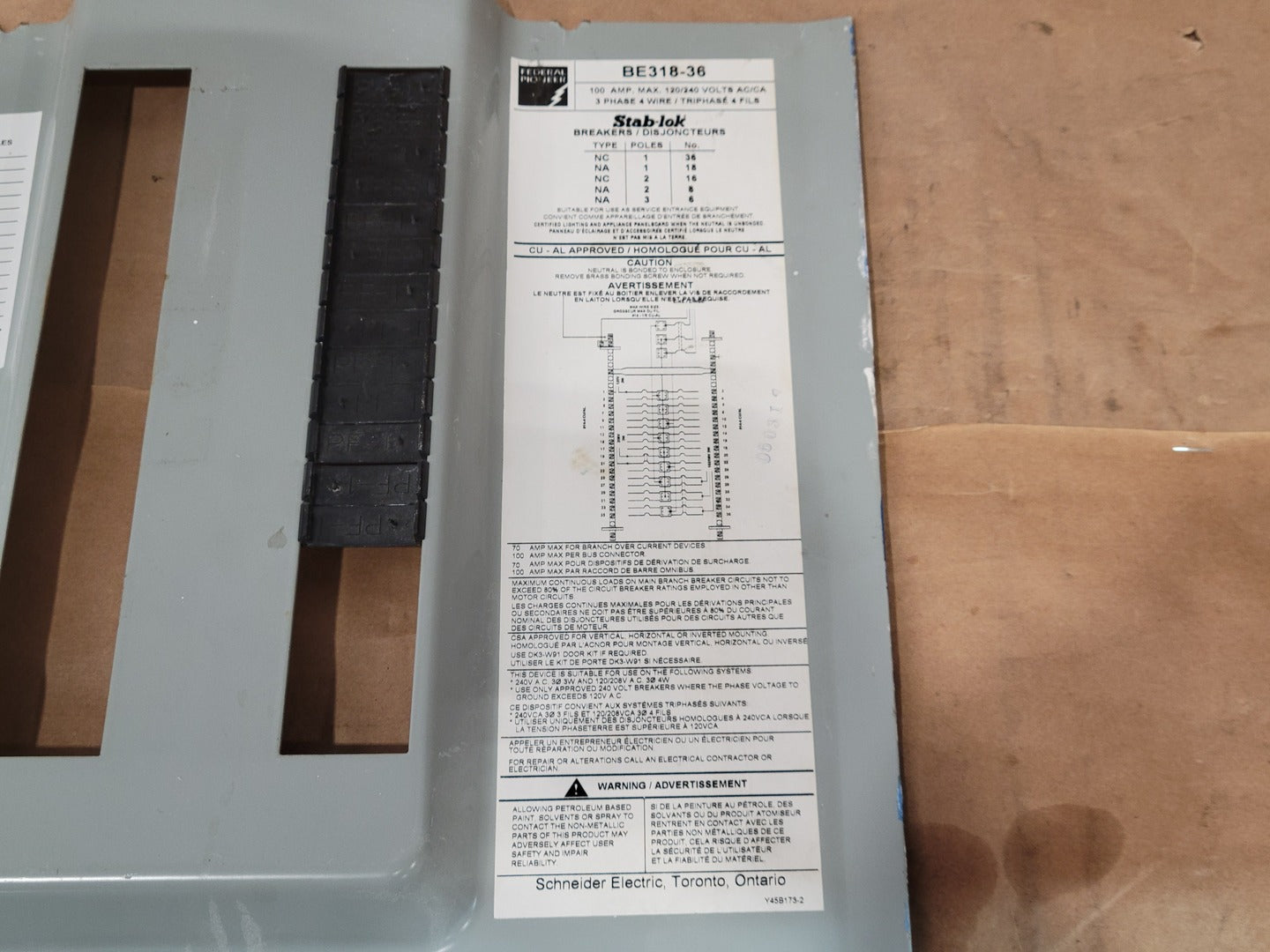

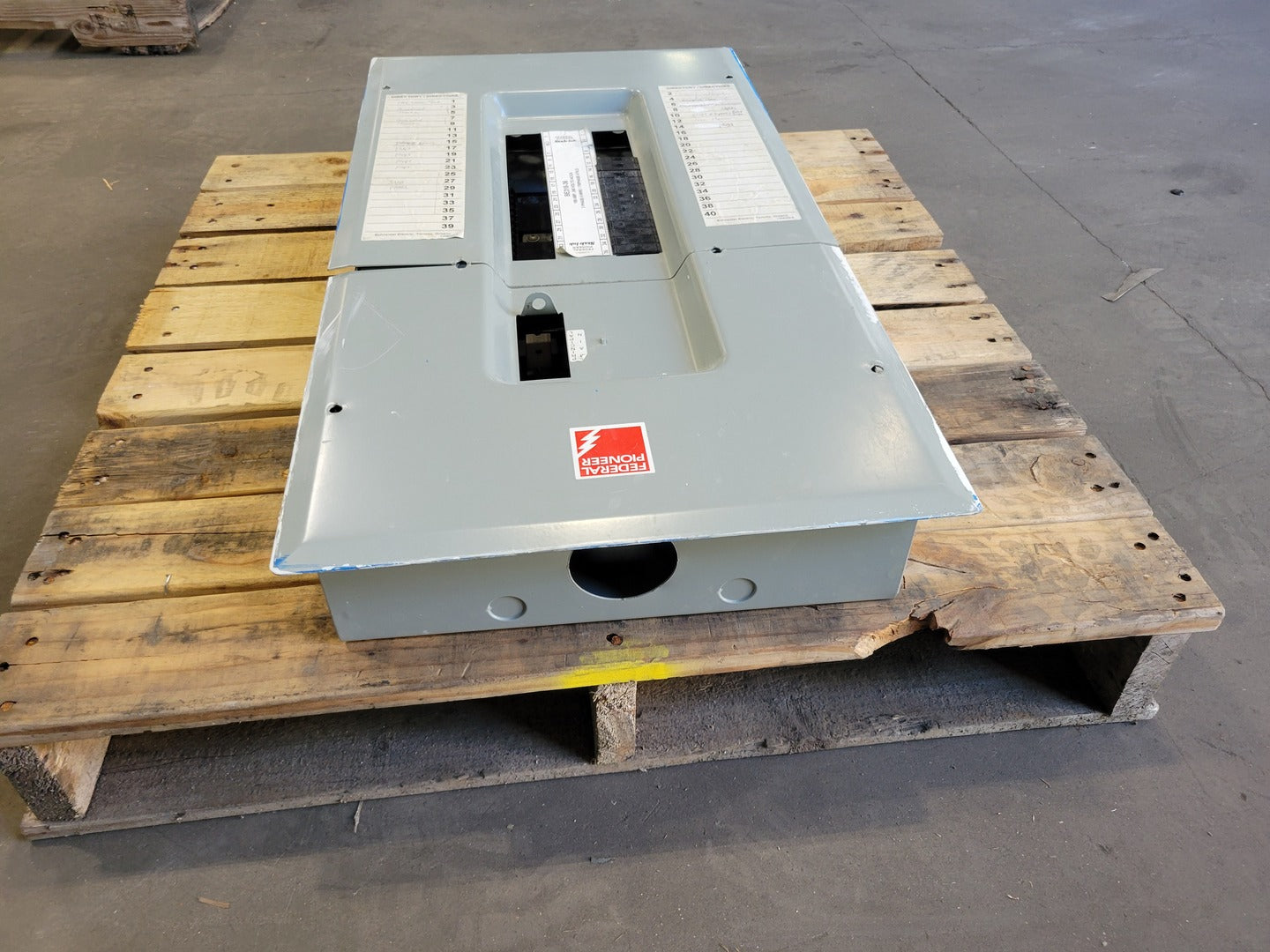

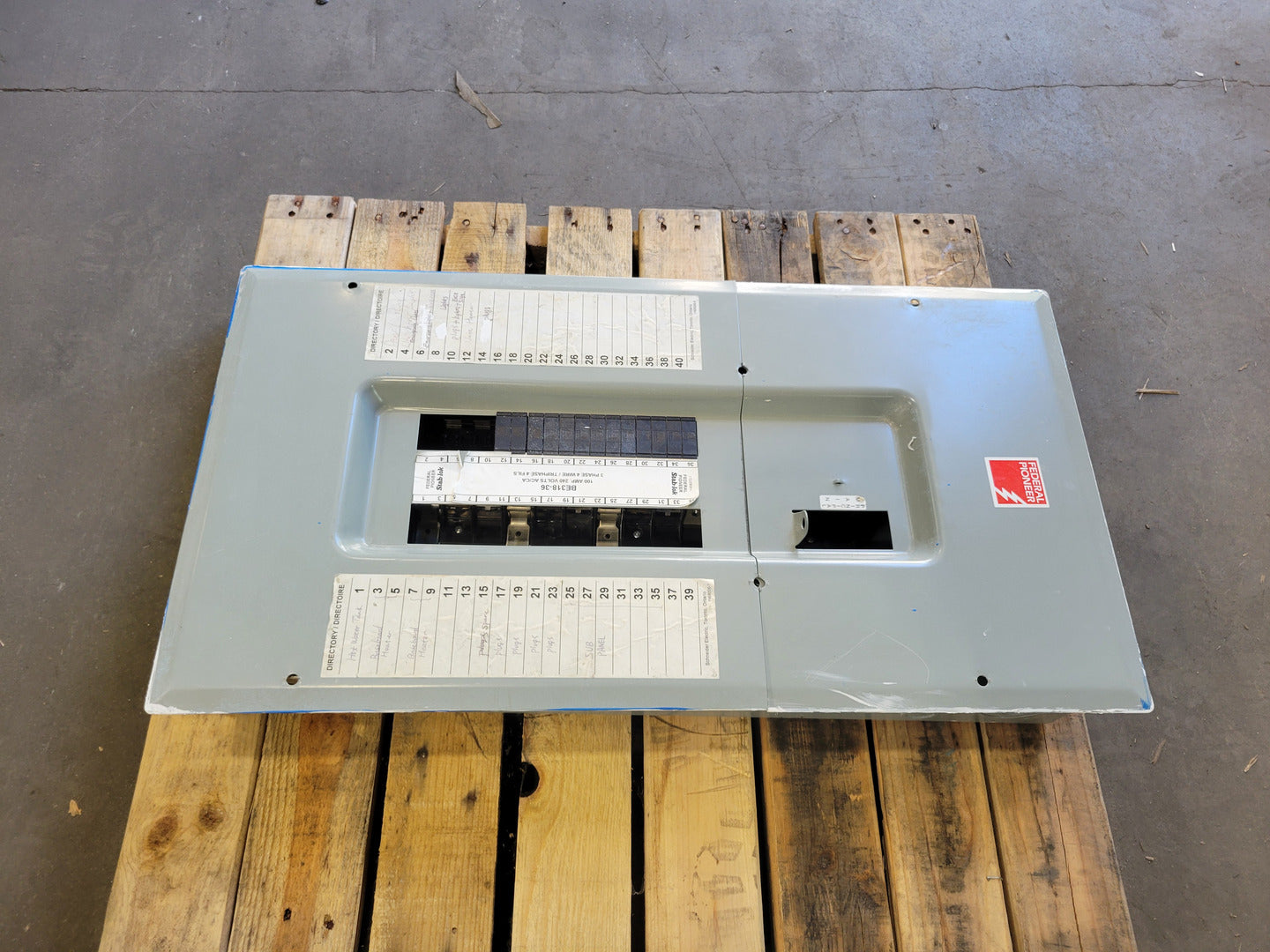

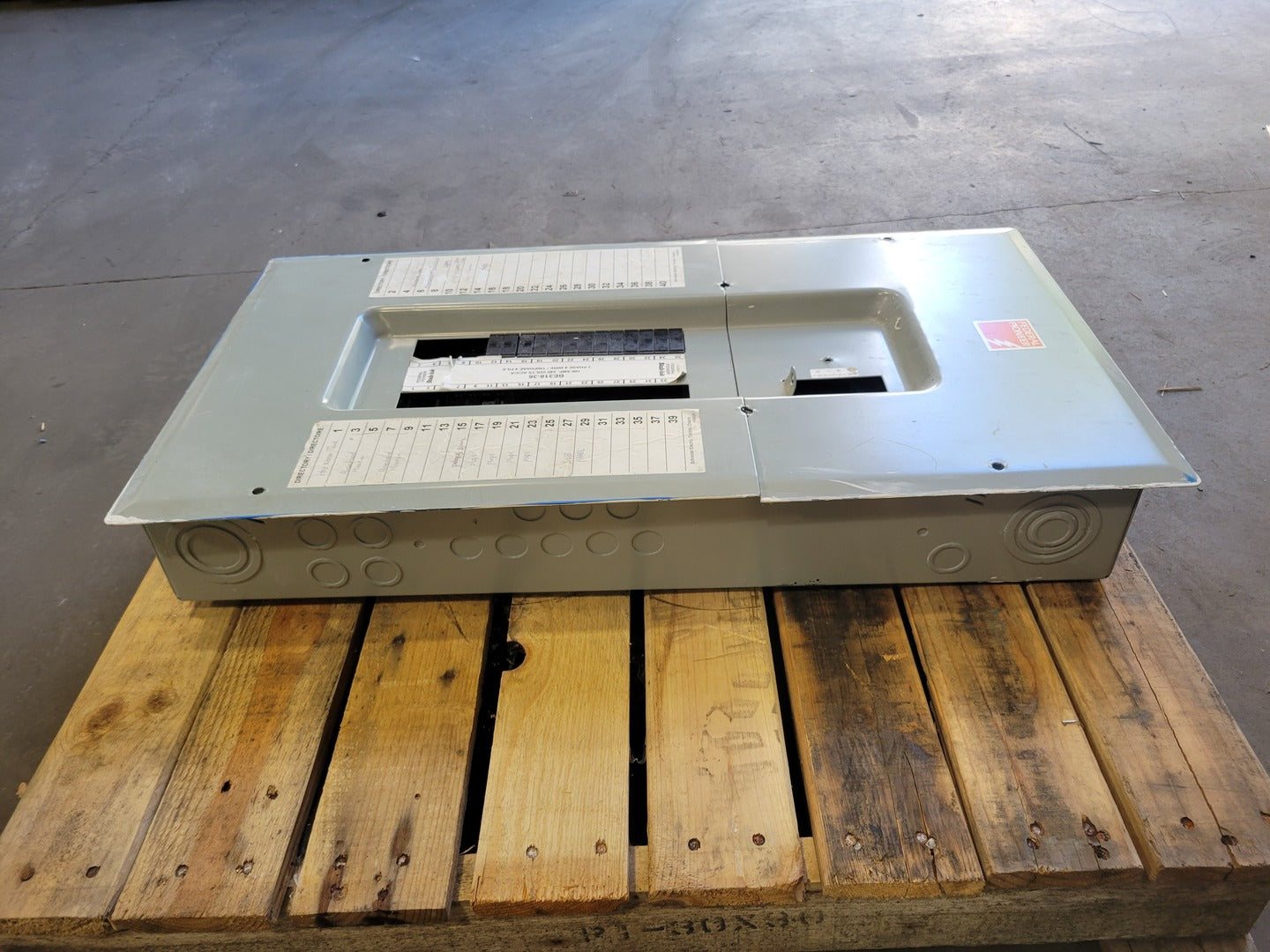

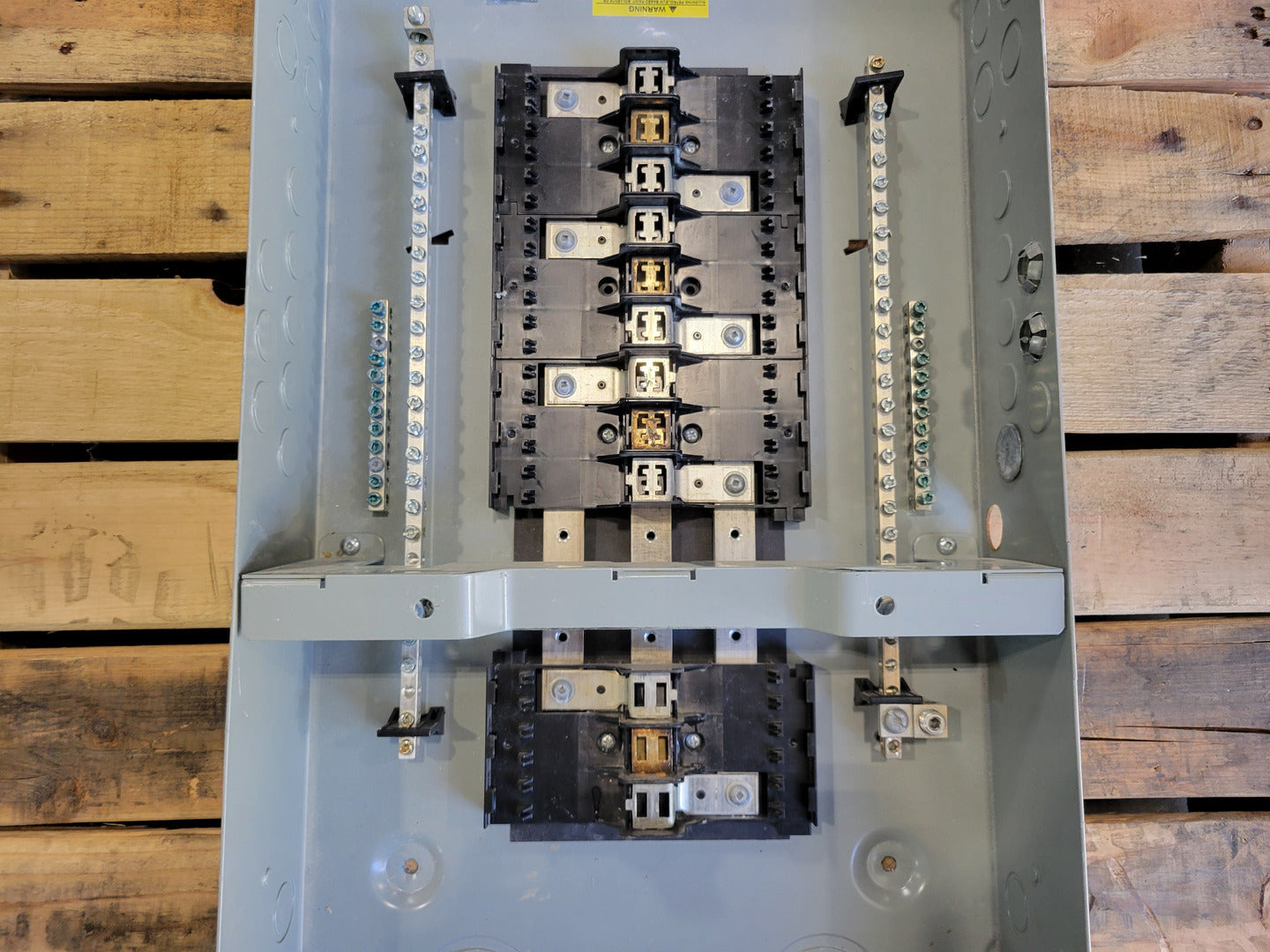

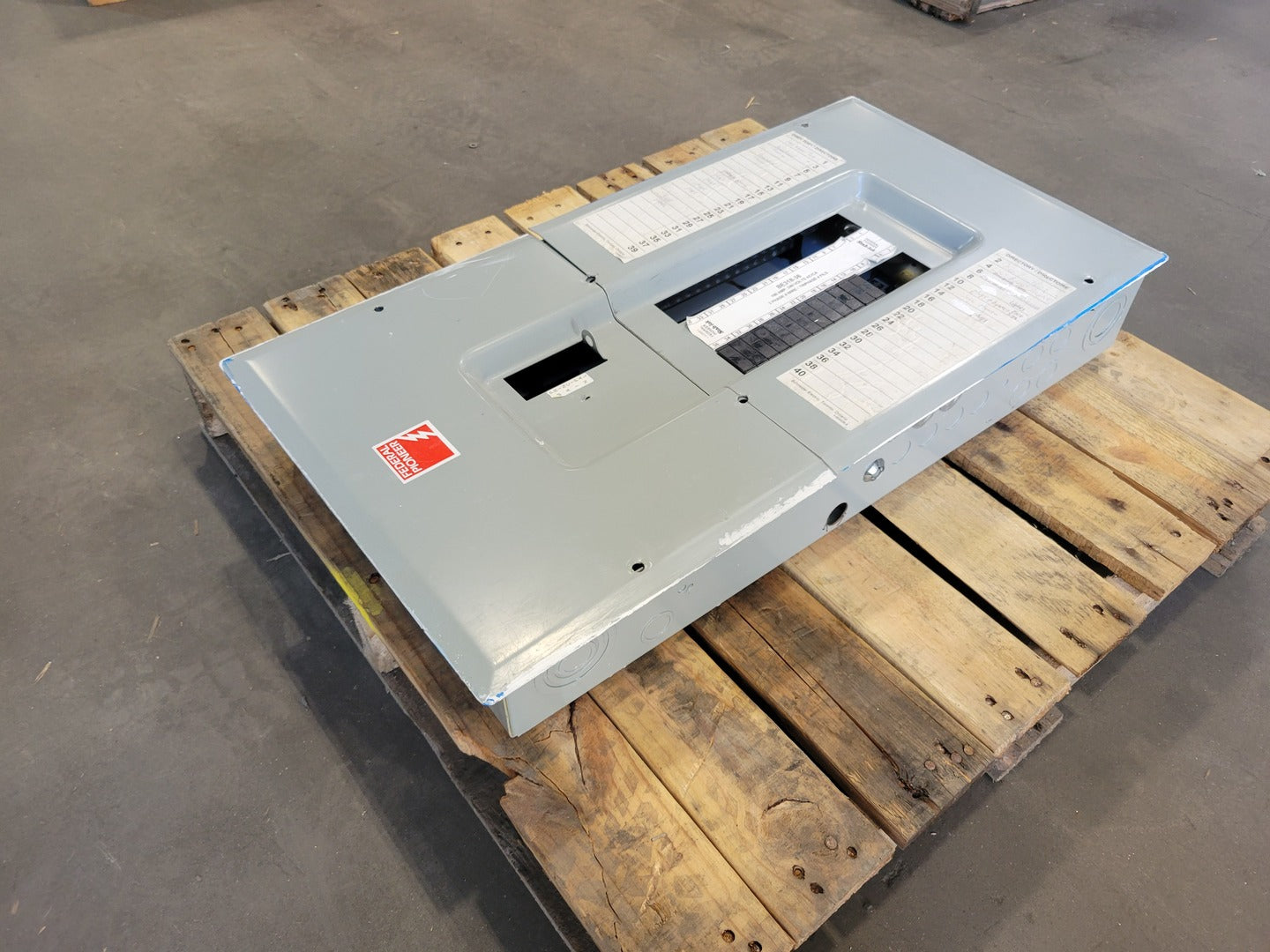

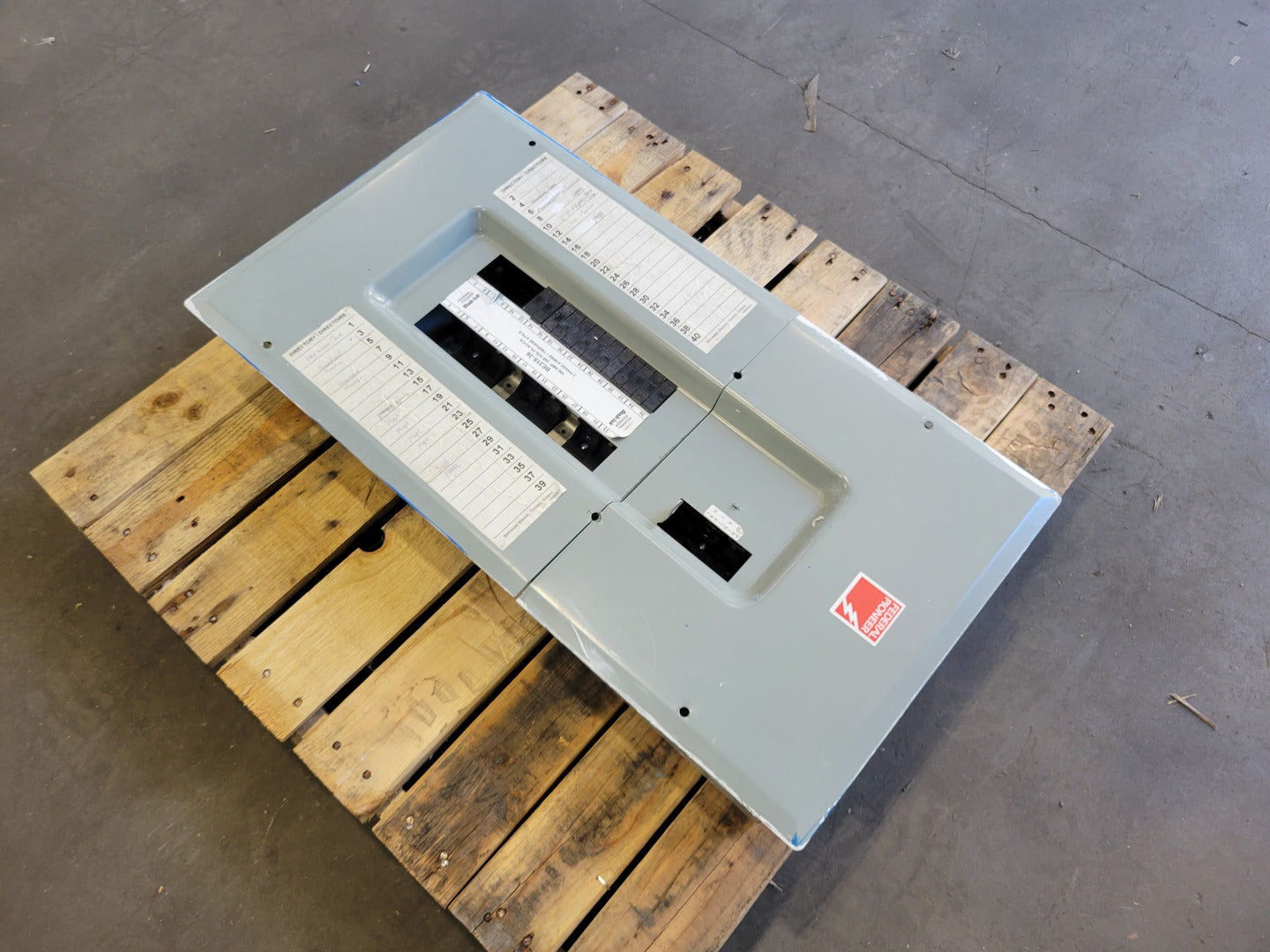

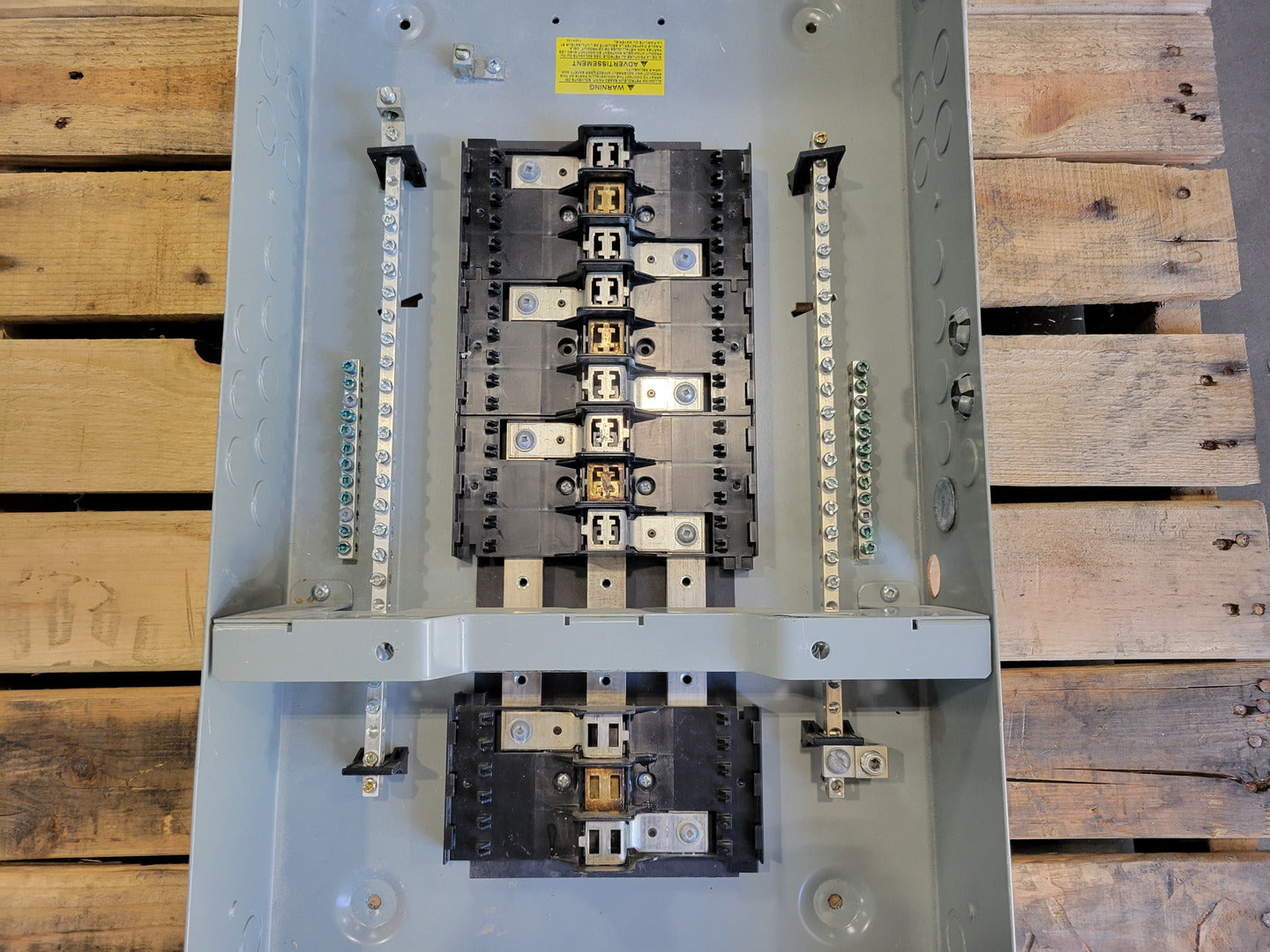

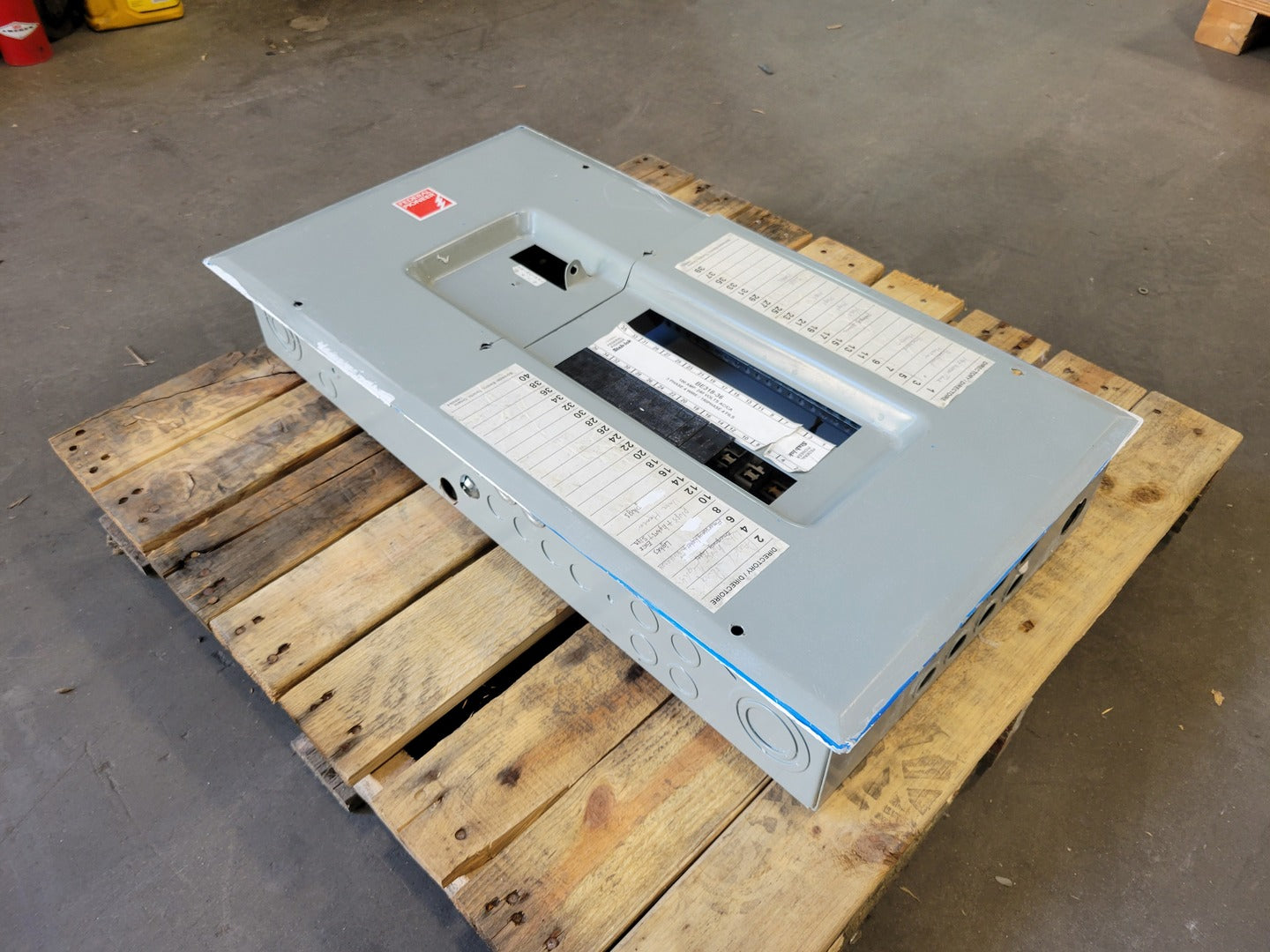

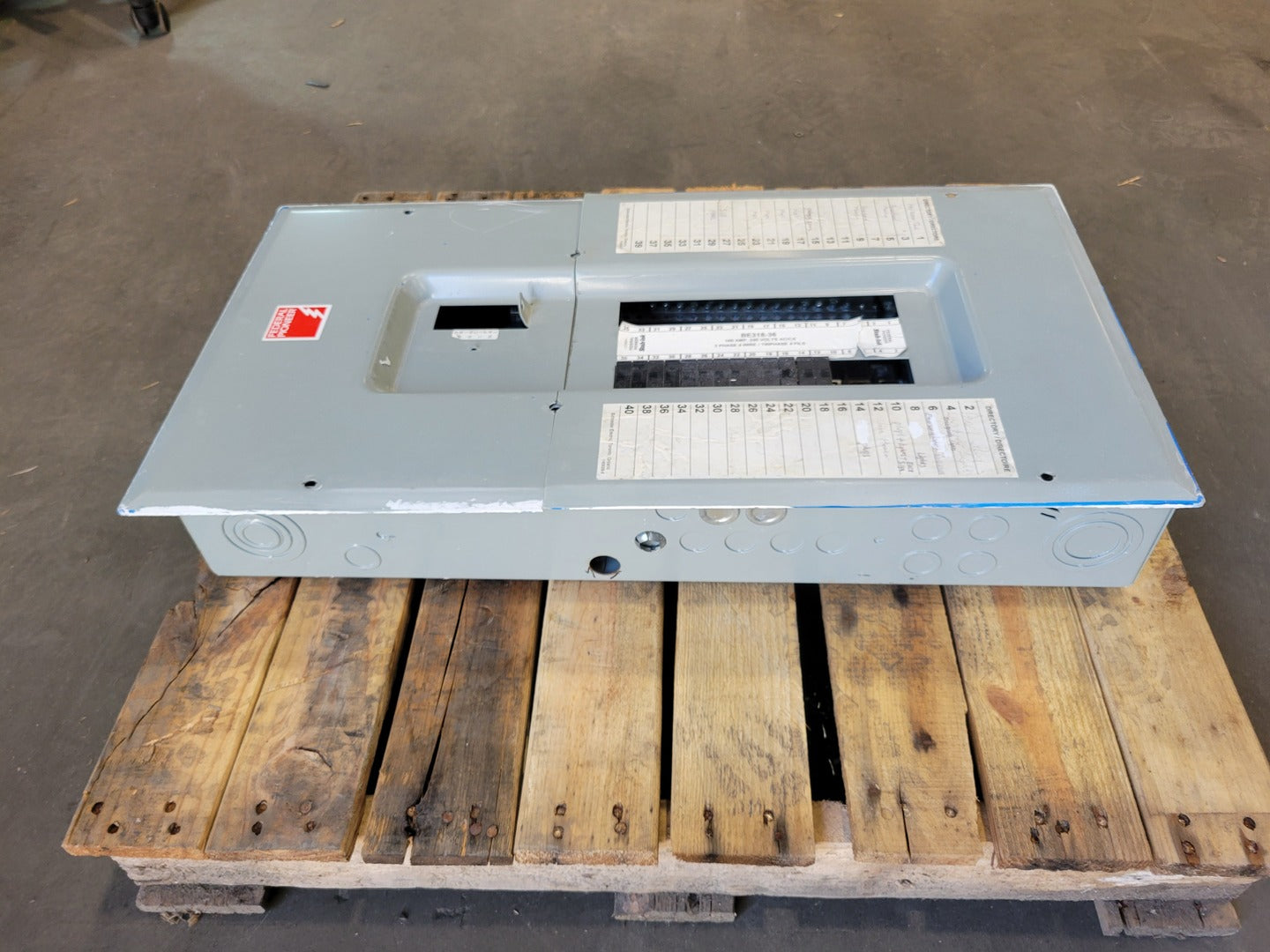

Federal Pioneer BE318-36 Stab-Lok panelboard complete with interior, enclosure, neutral bars, front cover, and circuit directory. Rated 100 Amps, 120/240 VAC, 3-phase, 4-wire, with space for up to 36 single-pole circuits. The panel appears to be an empty panelboard without installed branch breakers or a main breaker, making it suitable for replacement, retrofit, or spare parts applications.
| Specifications | |
|---|---|
| Model | BE318-36 |
| Made In | CANADA |
| Condition | Used | General |
| Amps | 100 amps |
| Voltage | 120/240 volts |
| # of Circuits | Other |
| Phase | 3-phase |
| Other Specifications |
|---|
|

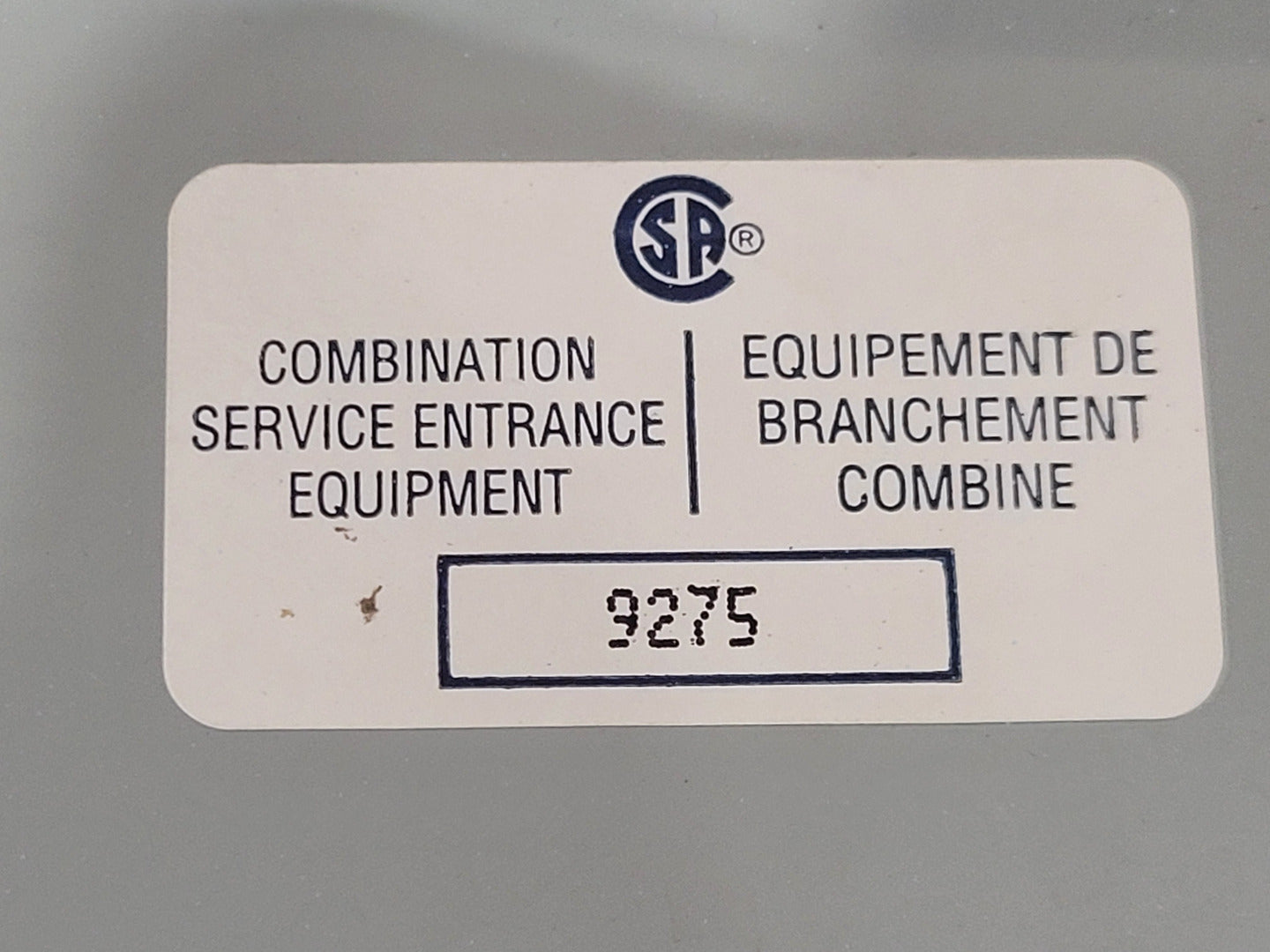

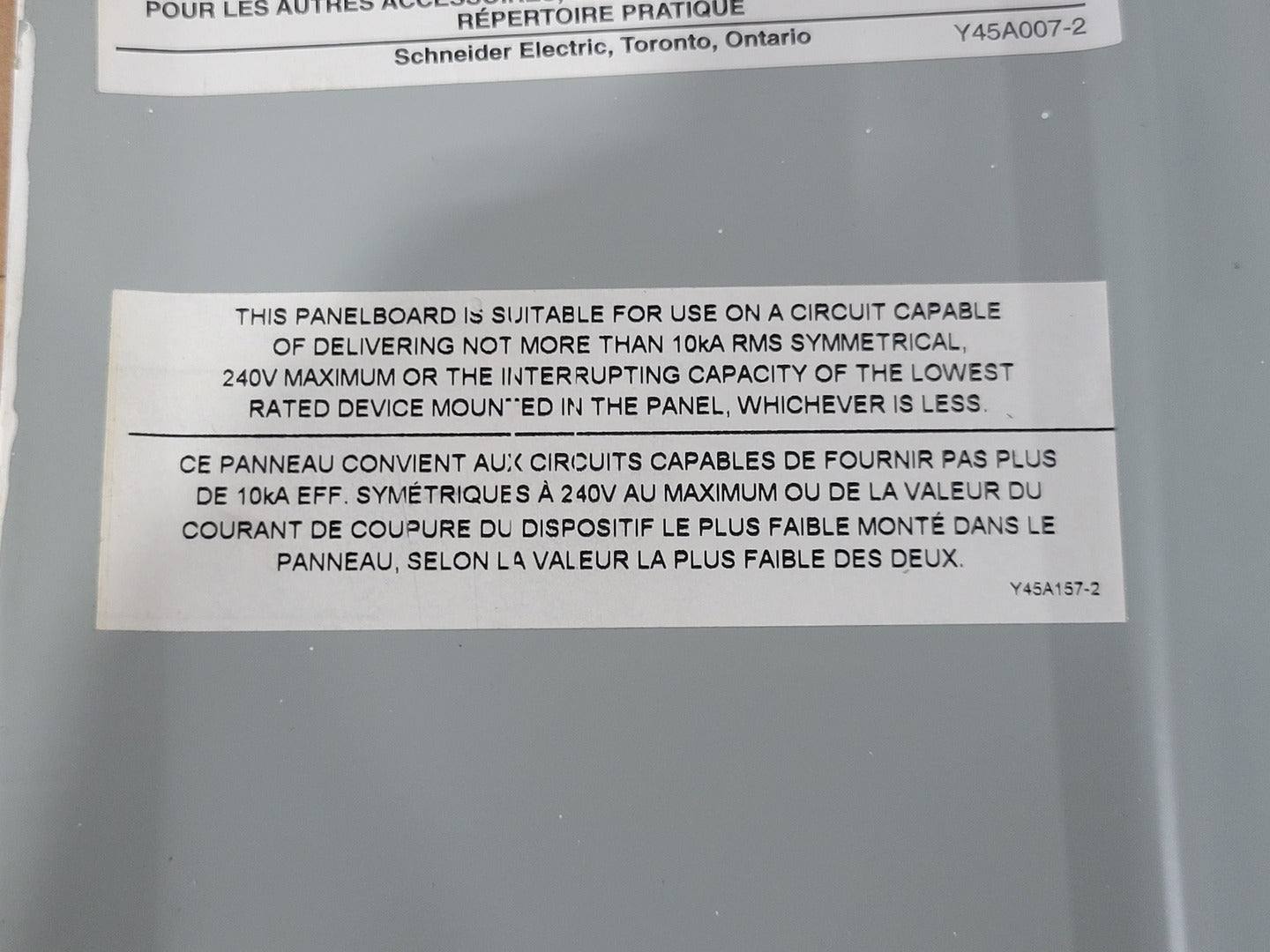

Series: Stab-Lok Panel Type: Lighting & Appliance Panelboard Wire Configuration: 4 Wire Maximum Circuit Spaces: 36 Main Lug Rating: 100 Amps Maximum Branch Overcurrent Device: 70 Amps Maximum Sub-feed Connector: 100 Amps Short Circuit Rating: 10 kA RMS Symmetrical Maximum @ 240V Suitable For: Combination Service Entrance Equipment Conductor Compatibility: Copper or Aluminum (CU-AL Approved) Mounting Style: Surface Mount Enclosure Material: Painted Steel Color: Gray |
