Description
| Specifications | |
|---|---|
| Model | C440B1A100SF3 |
| Made In | DOMINICAN REPUBLIC |
| Condition | Surplus New | General |
| Amps | 90 amps |
| Voltage | 600 volts |
| Relay Type | Overload Relay |
| Other Specifications |
|---|
|

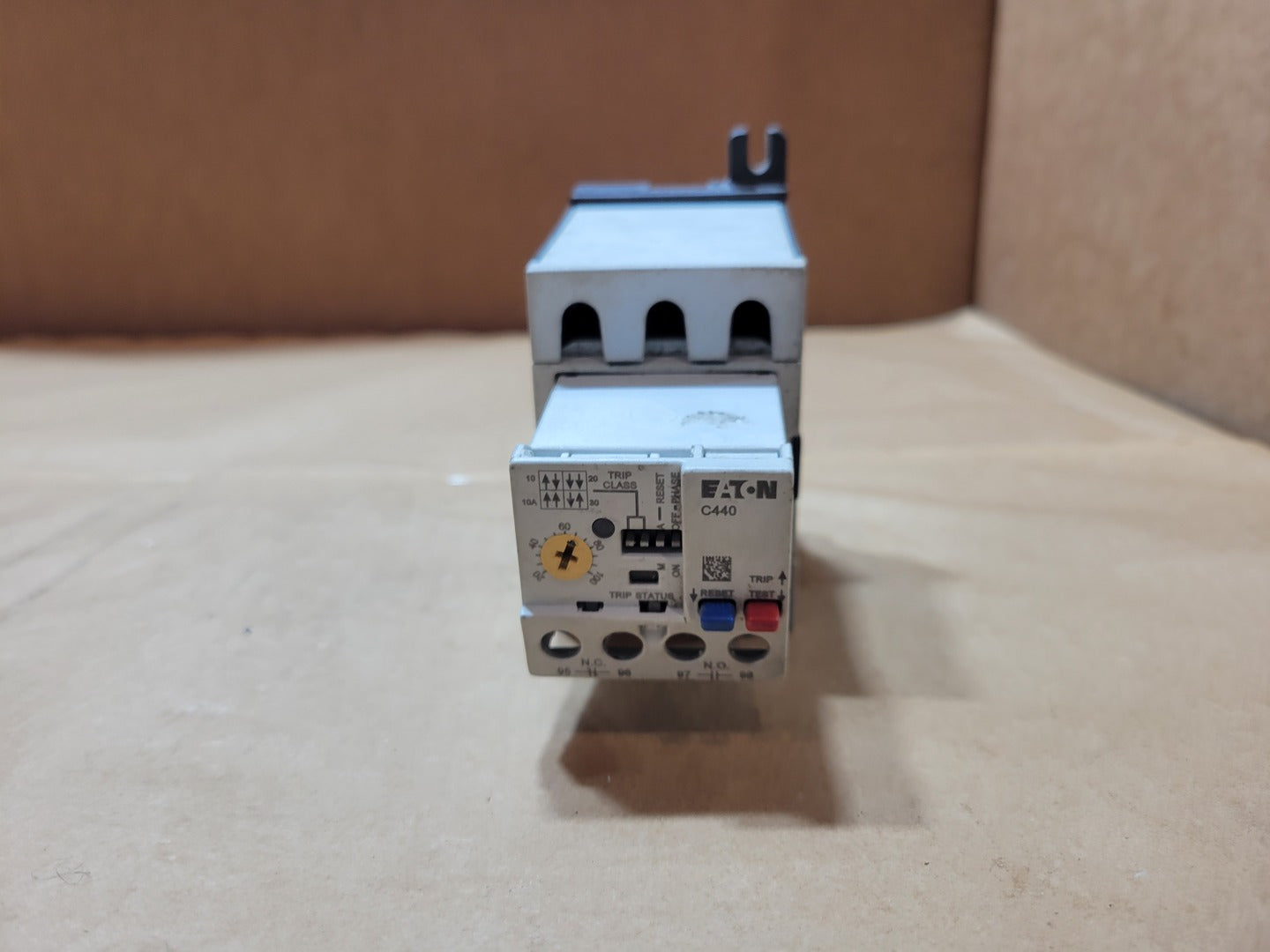

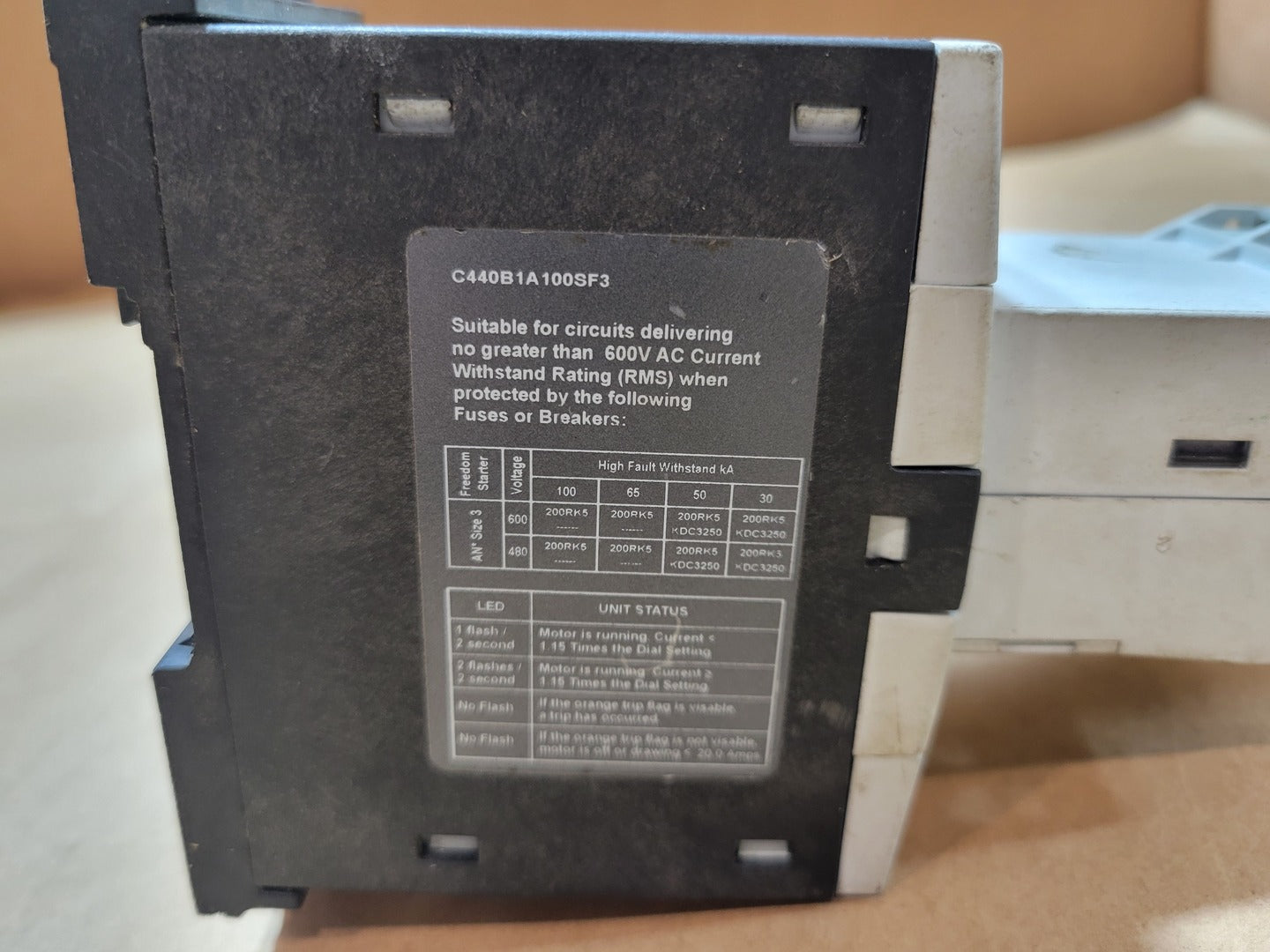

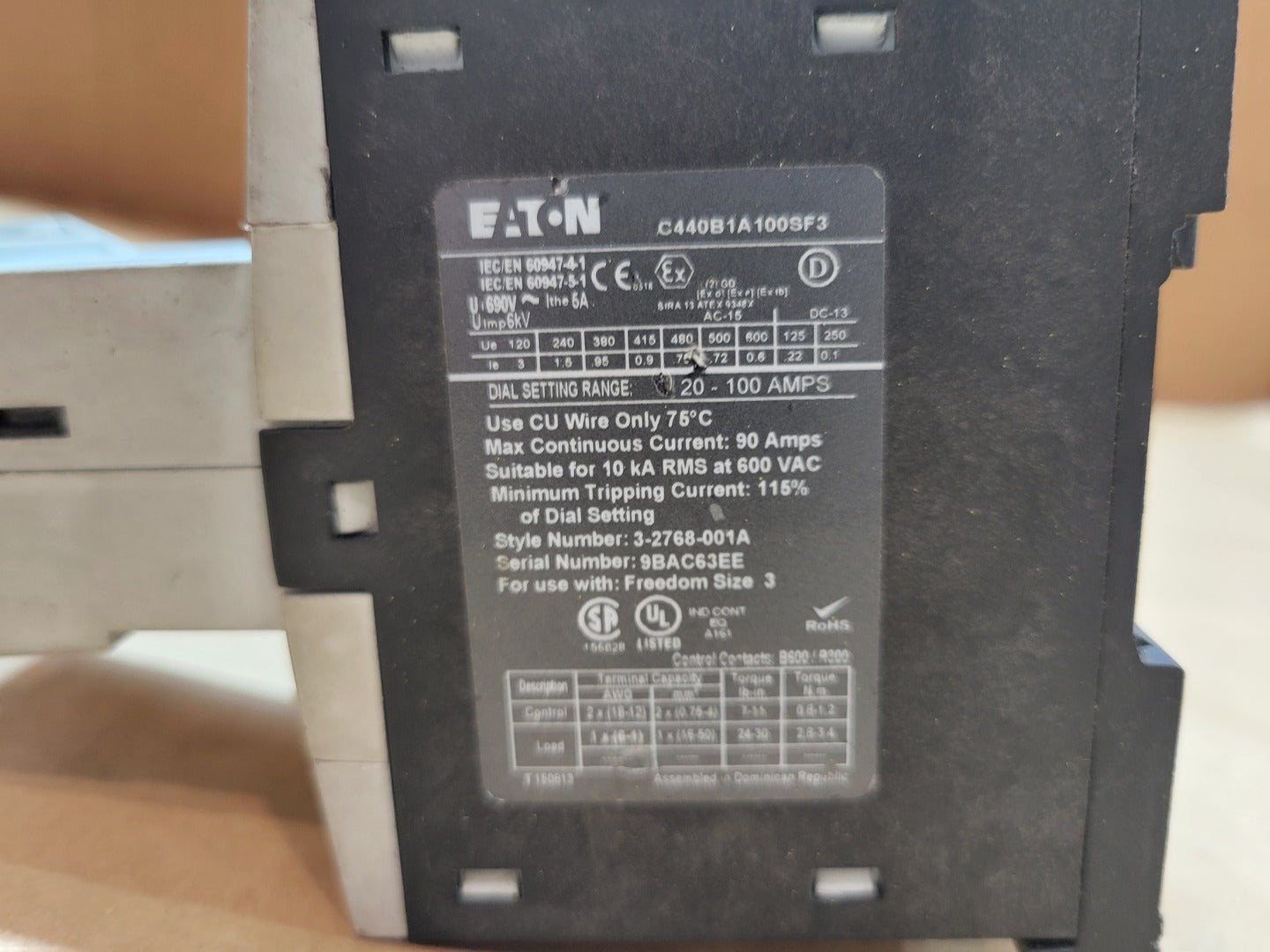

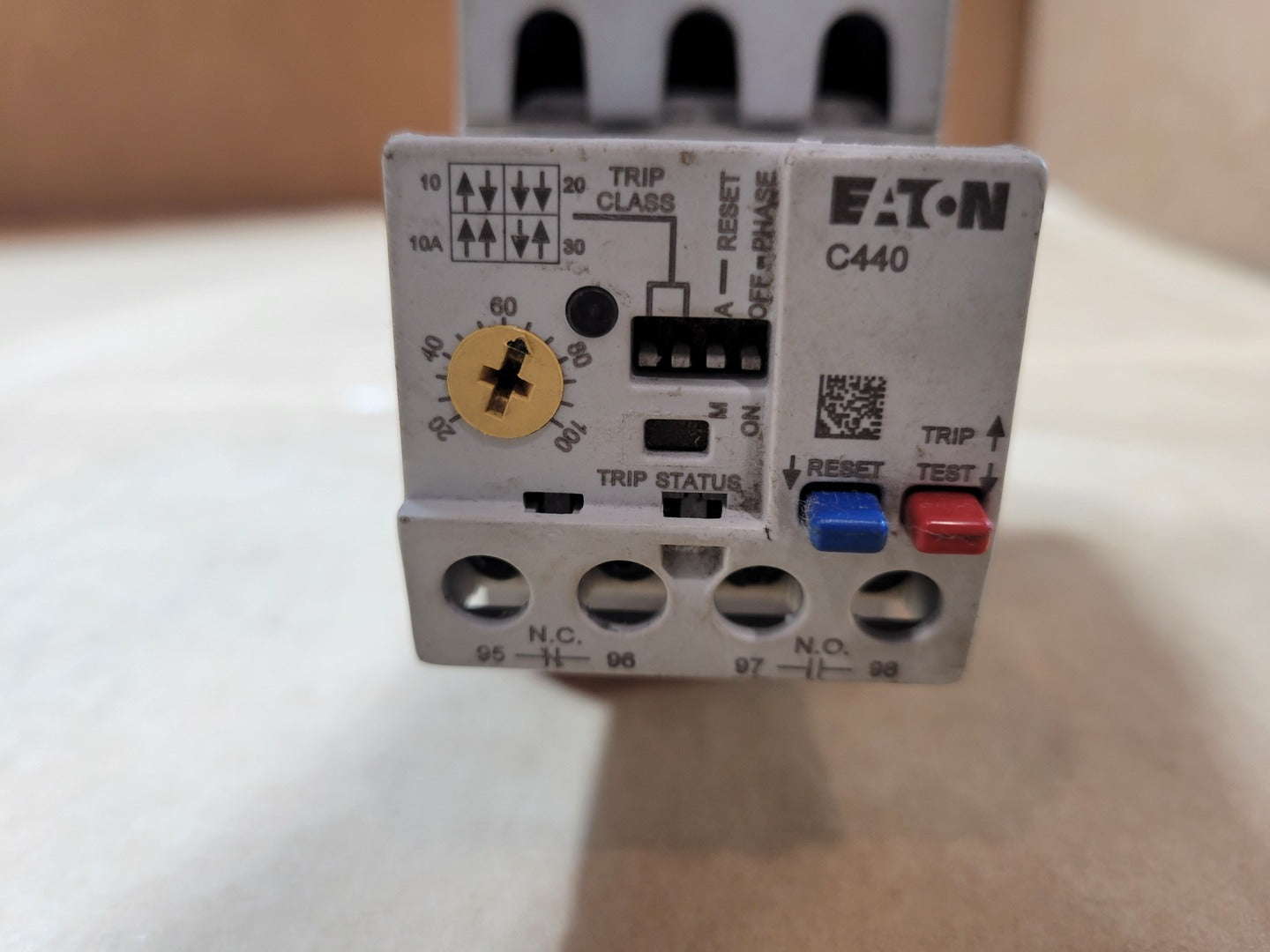

Series: C440 Type: Electronic Overload Relay Relay Style: NEMA Application: Motor Overload Protection Number of Poles: 3 Phase: 3-Phase Overload Setting Range: 20-100 A Maximum Continuous Current: 90 A Maximum Voltage: 690 VAC IEC / 600 VAC Impulse Withstand Voltage: 6 kV Frame Size: 55 mm Contactor Size: Freedom Size 3 Trip Class: Selectable 10A / 10 / 20 / 30 Reset Mode: Selectable Automatic / Manual Phase-Loss Protection: Selectable On / Off Auxiliary Contacts: N.C. 95-96 and N.O. 97-98 visible Reset Control: Blue Reset Button Trip/Test Control: Red Trip/Test Button Copper Wire Requirement: Copper Wire Only, 75°C Minimum Tripping Current: 115% of Dial Setting Short-Circuit Rating: Suitable for 10 kA RMS at 600 VAC |
