Description
| Specifications | |
|---|---|

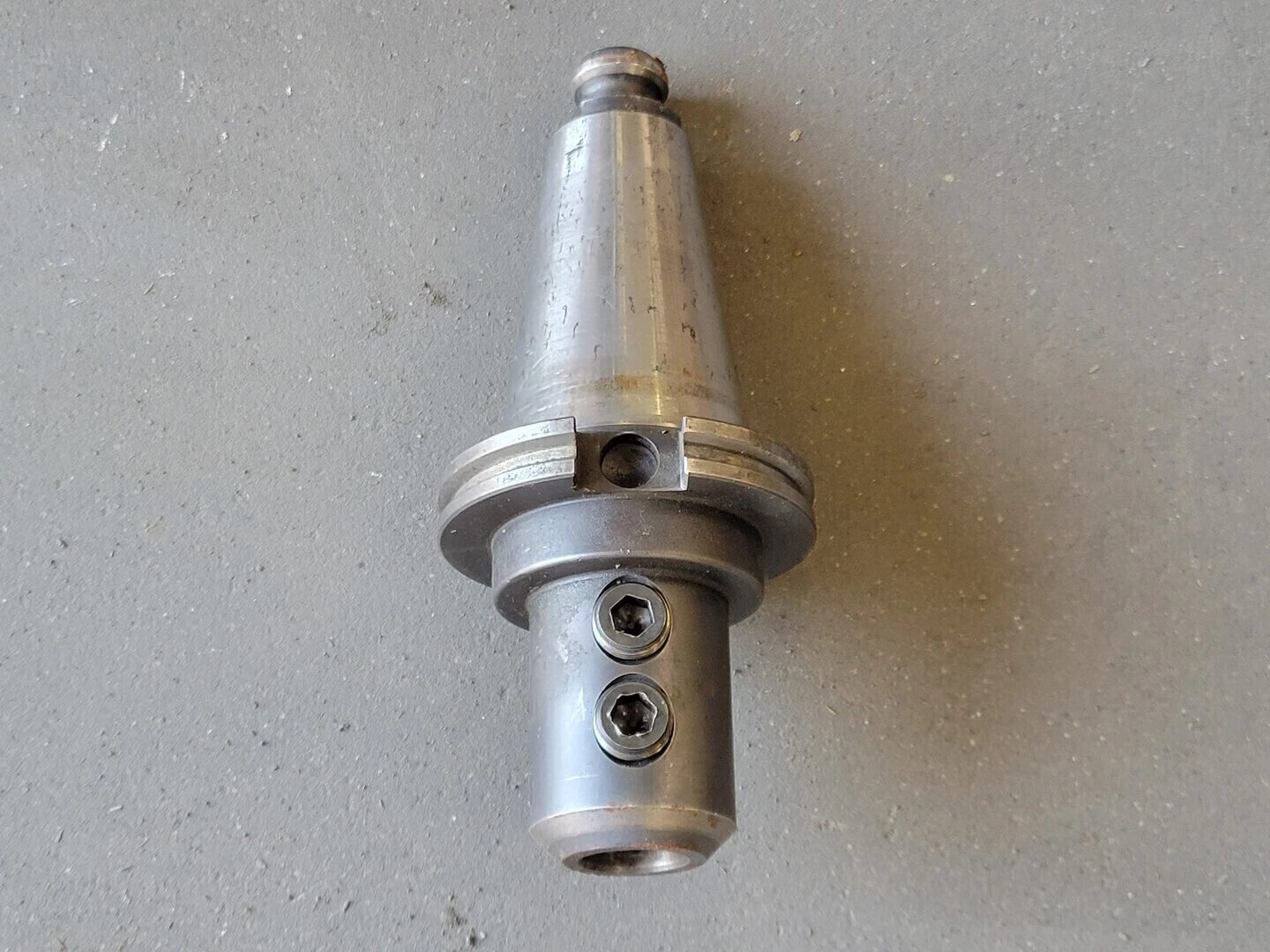

| Model | A392.4520-50 25 101 |
| S/N: | 10987 |
| Condition | Used |
| Other Specifications |
|---|
|
Taper: 50
Adaptive interface machine direction(ADINTMS): CAT-V -AD central coolant - CAT-V50
Adaptive interface workpiece direction(ADINTWS): Weldon -inch - 1 1/4
Damping property(DPC): false
Coolant entry style code(CNSC): 1: axial concentric entry,
Coolant exit style code(CXSC): 1: axial concentric exit
Coolant pressure(CP): 290.075 lbf/in2
Sensor embedded property(SEP): 0
Connection diameter(DCON): 1.25 inch
Functional diameter(DFC): 1.378 | 2.75 inch
Connection retention knob thread size(CRKS): 1"-8
Kappa (z-axis rot)(KAP): 0 deg
Functional length(LF): 4 inch
Body diameter(BD1): 2.5 inch
Body diameter(BD2): 2.7795 inch
Body diameter(BD3): 3.7323 inch
Body length(LB1): 2.9331 inch
Body length(LB2): 3.248 inch
Body length(LB3): 4 inch
Body half taper angle(BHTA1): 0 deg
Body half taper angle(BHTA2): 0 deg
Body half taper angle(BHTA3): 0 deg
Torque(TQ): 29.5025 ft lbs
Body material code(BMC): Steel
Balanced by design(BBD): false
|
