Description

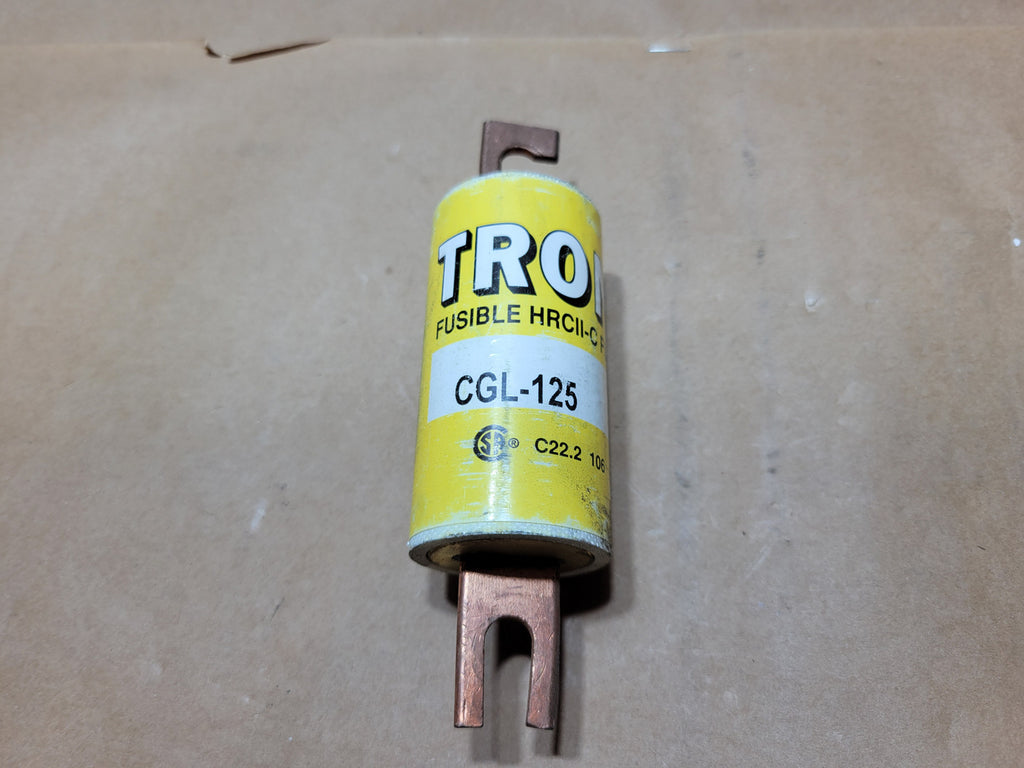

Bussmann CGL-125 TRON industrial current-limiting fuse rated for 125 amps and 600 VAC. This HRC Form II Class C fuse uses bolt-in blade terminals and is intended for industrial electrical circuit protection applications.
| Specifications | |
|---|---|
| Model | CGL-125 |
| Made In | MEXICO |
| Condition | Used | Electrical |
| Amps | 125 amps |
| Voltage | 600 volts |
| Phase | Single-phase |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | C |
| Interrupting Rating | 200 kA |
| Other Specifications |
|---|
|
Series: CGL DC Voltage Rating: 250 VDC DC Interrupting Rating: 40 kA at 250 VDC Configuration: Current-limiting, non-indicating fuse Terminal Type: Blade ends Mounting Type: Bolt-in / blade mount Body Material: Fiberglass / melamine Nominal Body Diameter: 1.50 in. / 38.1 mm Overall Length: Approximately 5.31 in. / 134.9 mm Approvals: CSA / CE per published specifications |
