Description

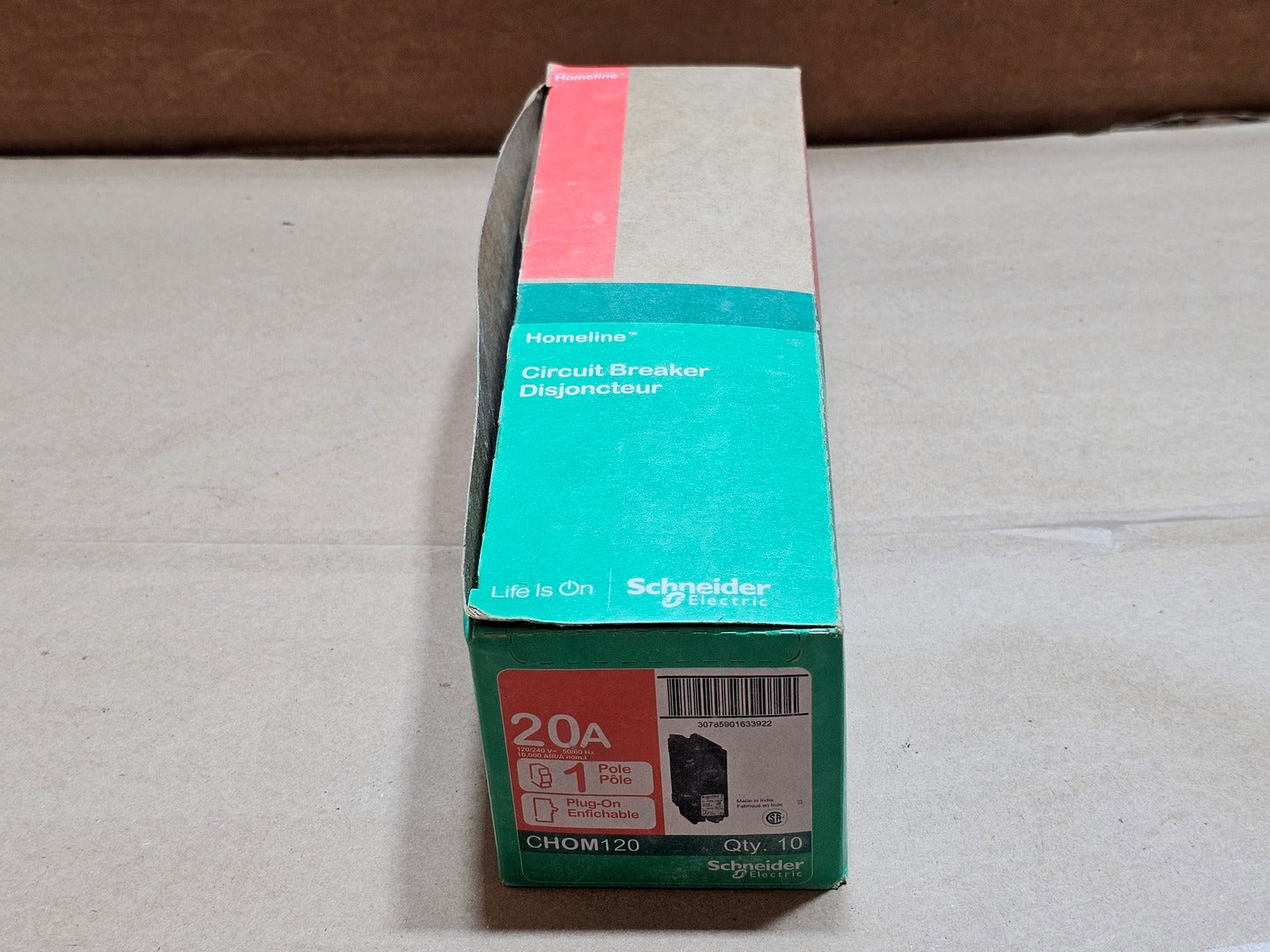

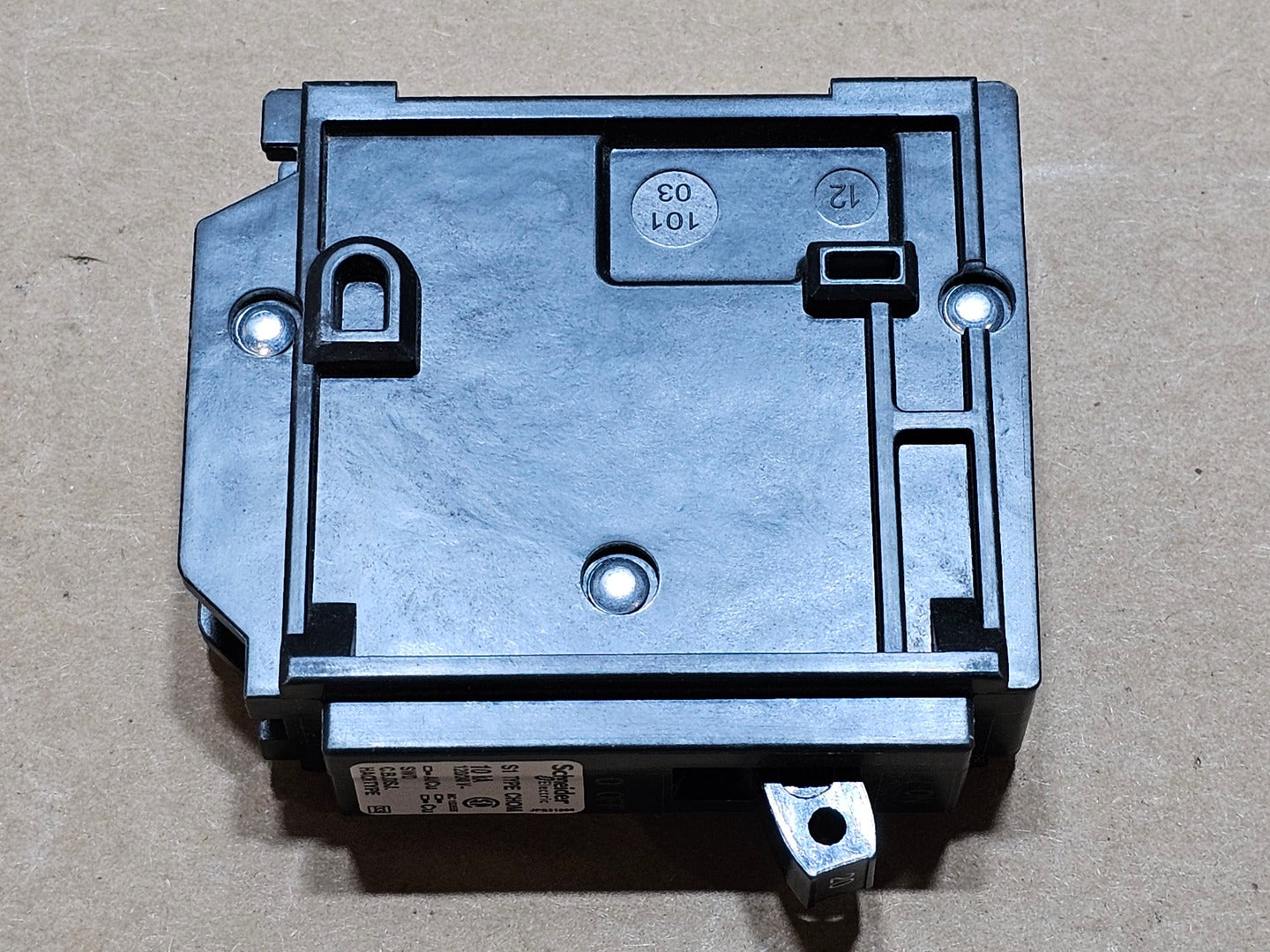

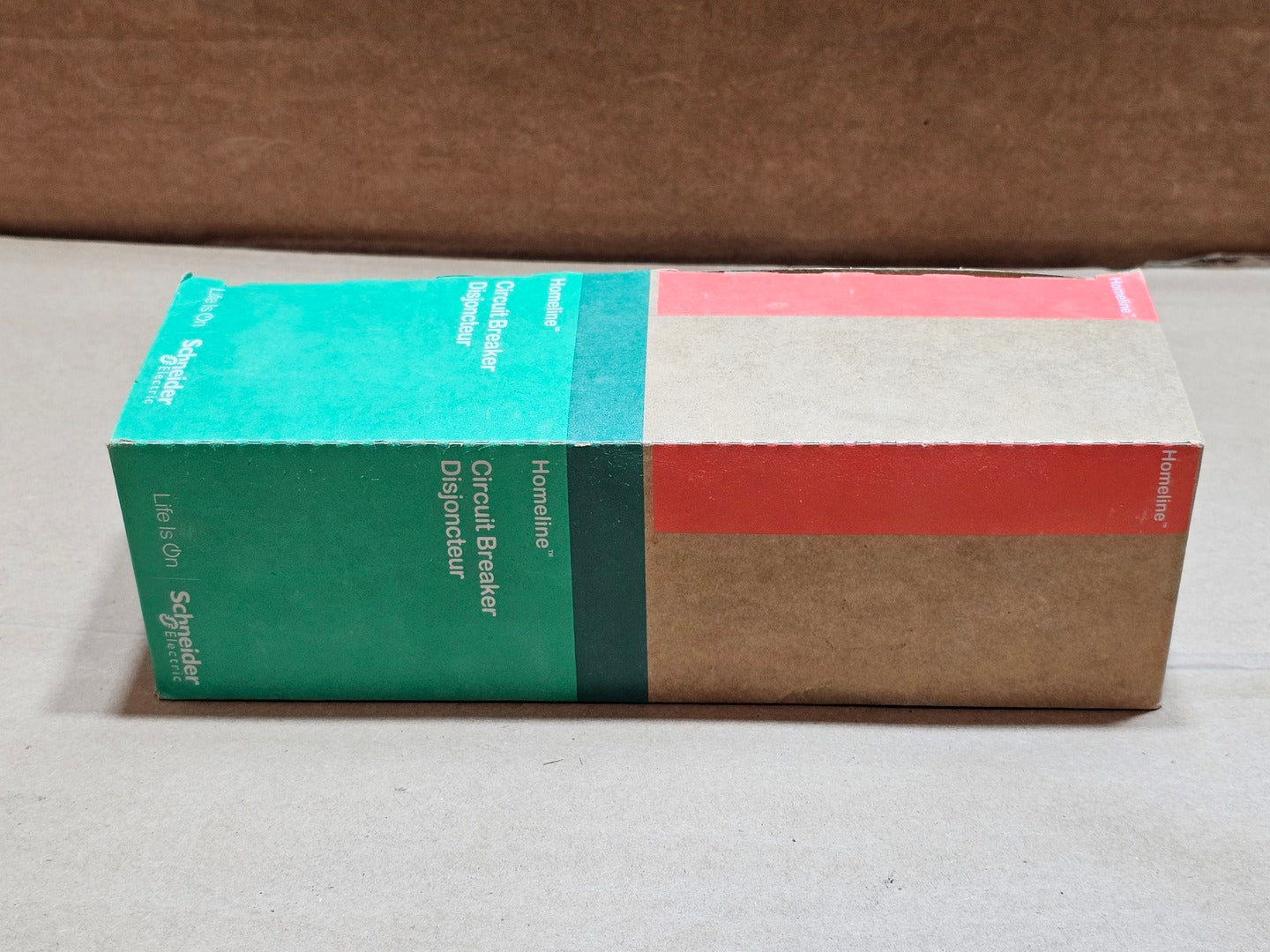

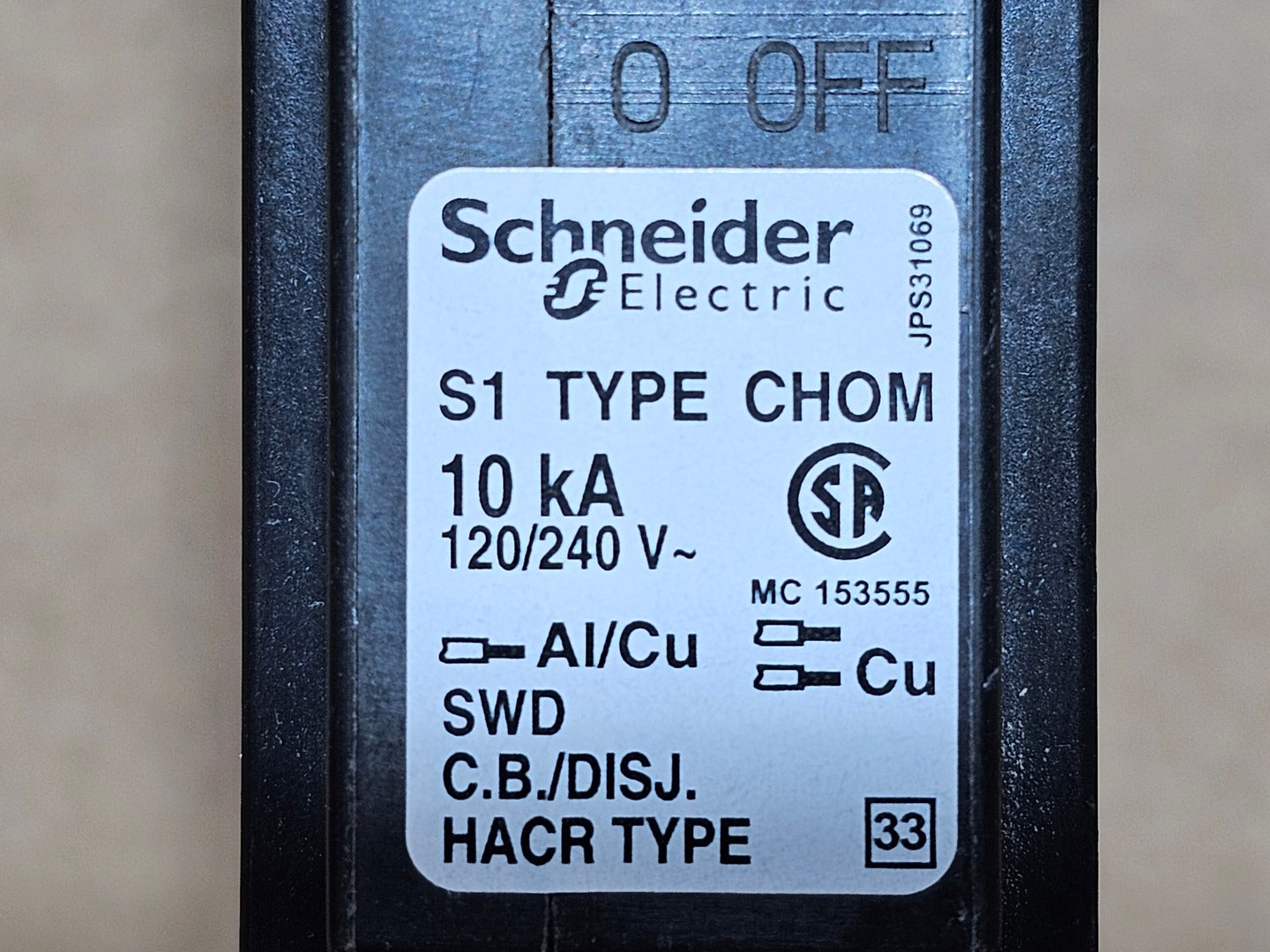

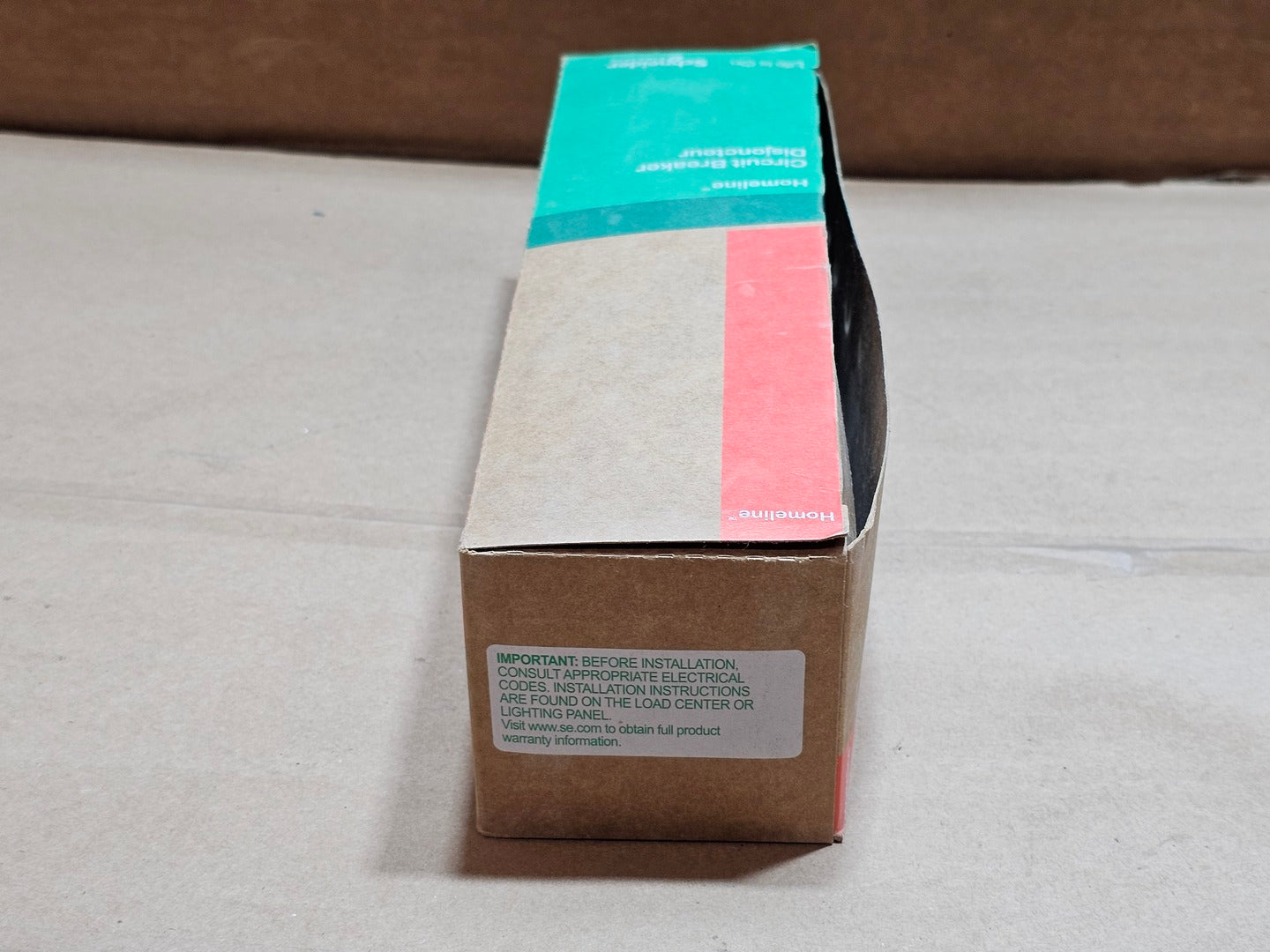

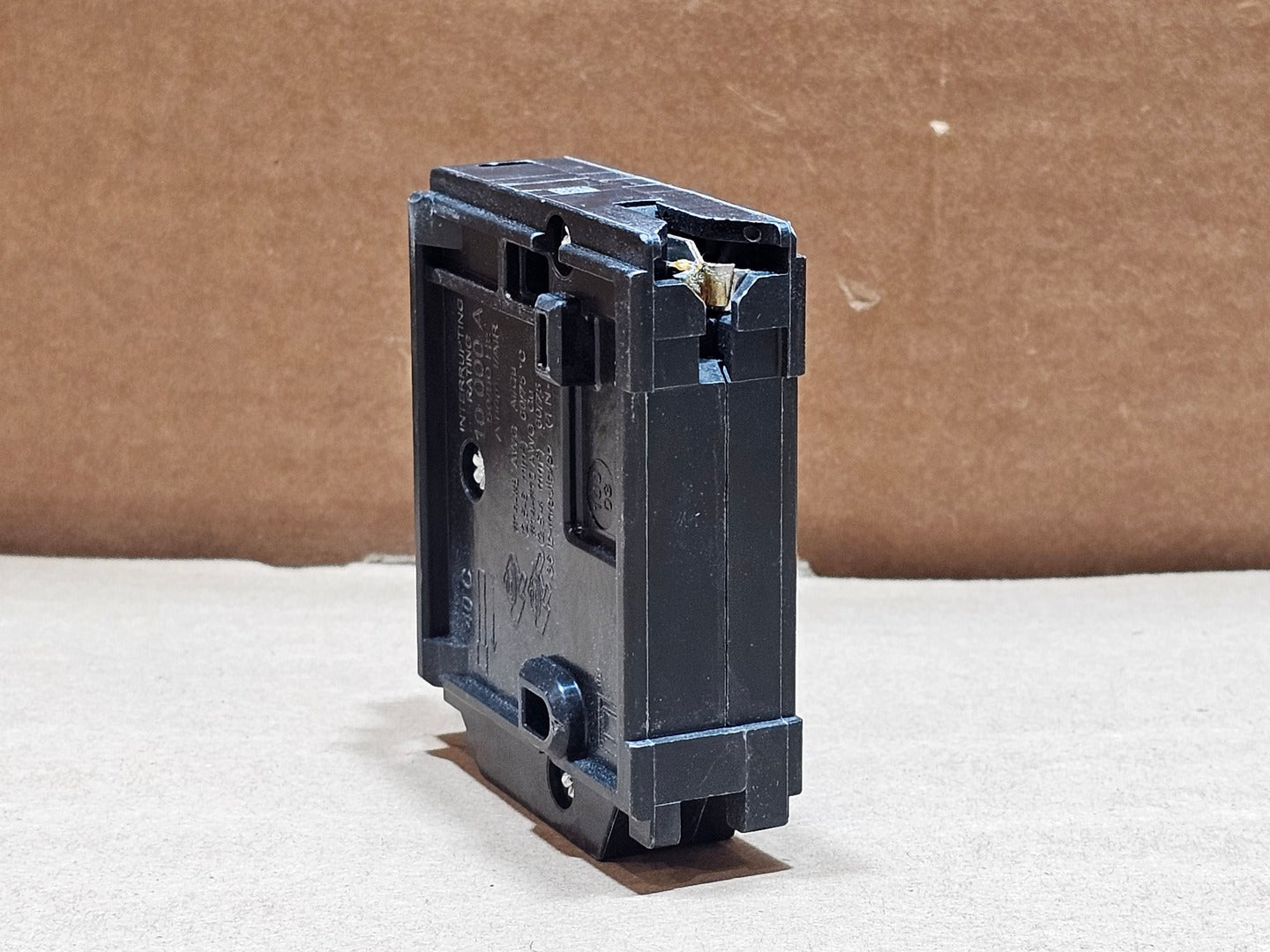

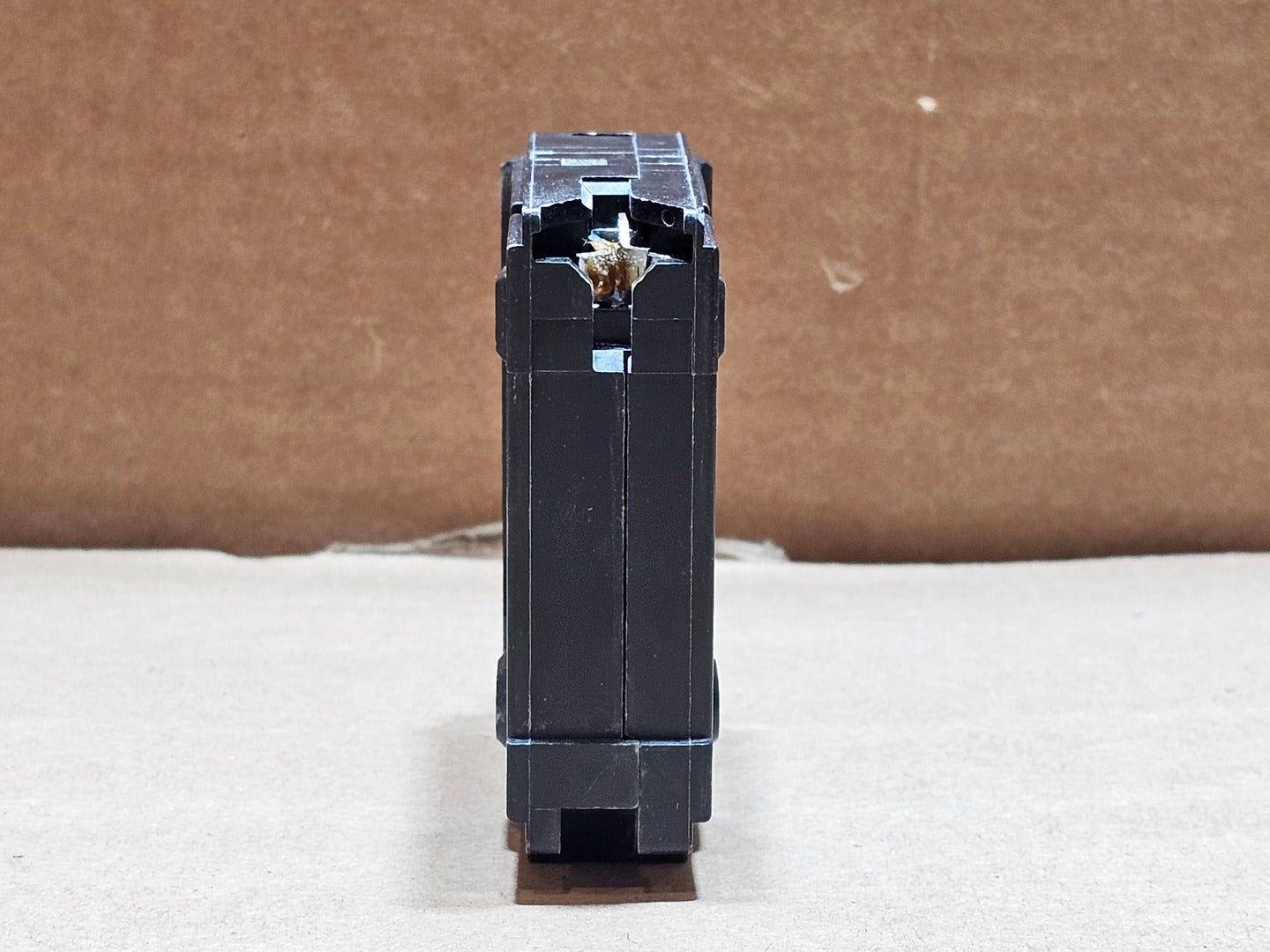

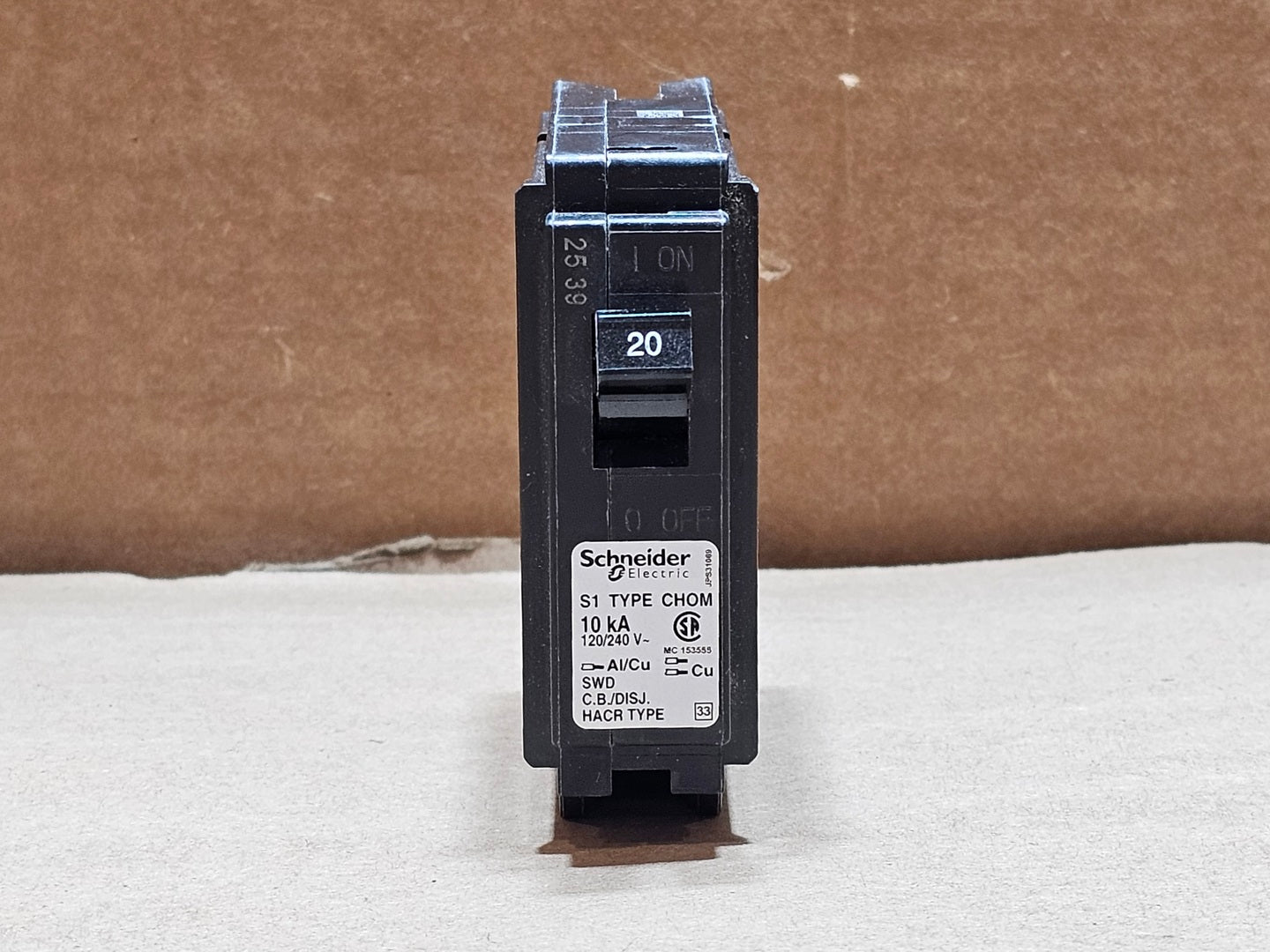

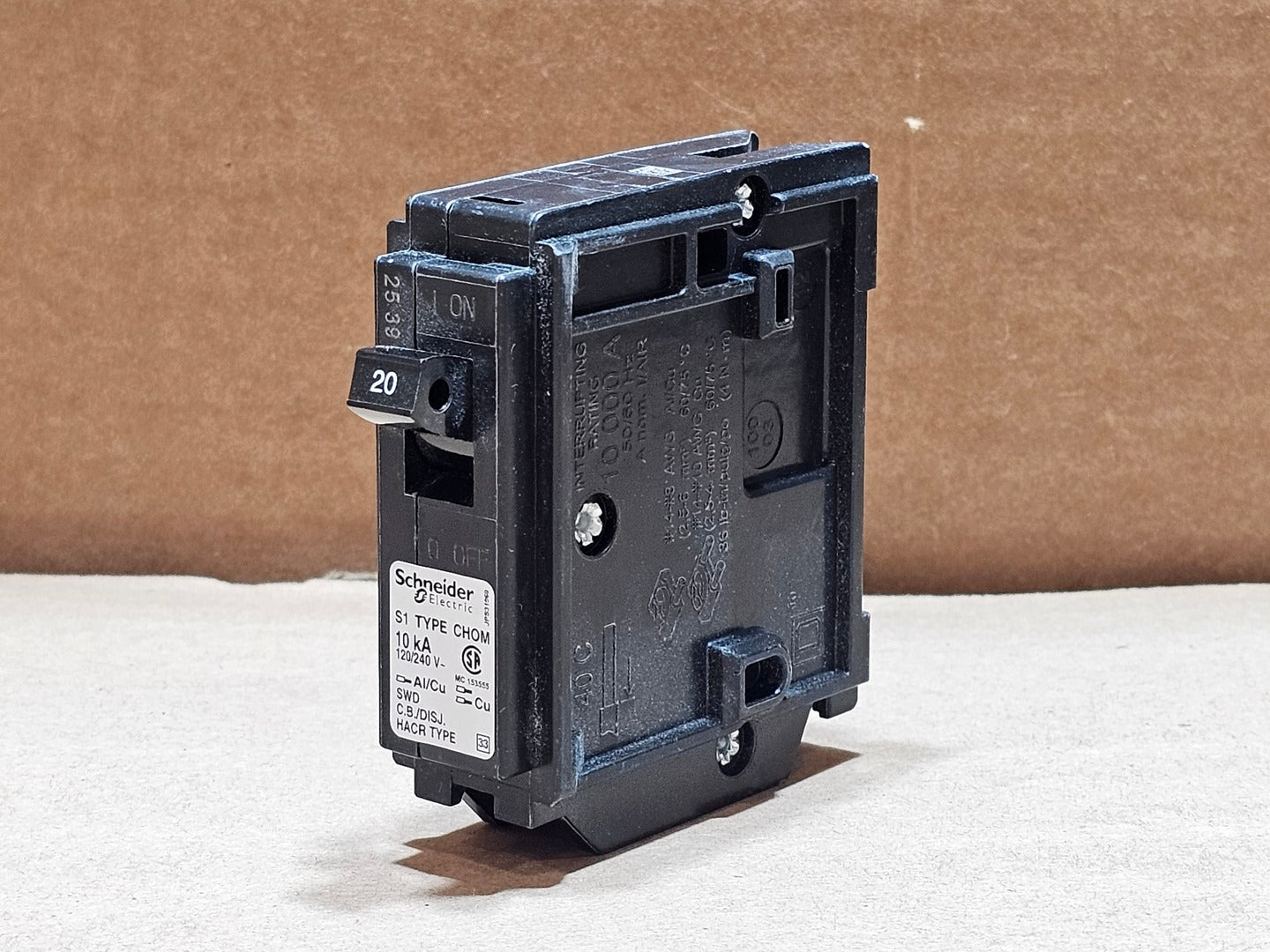

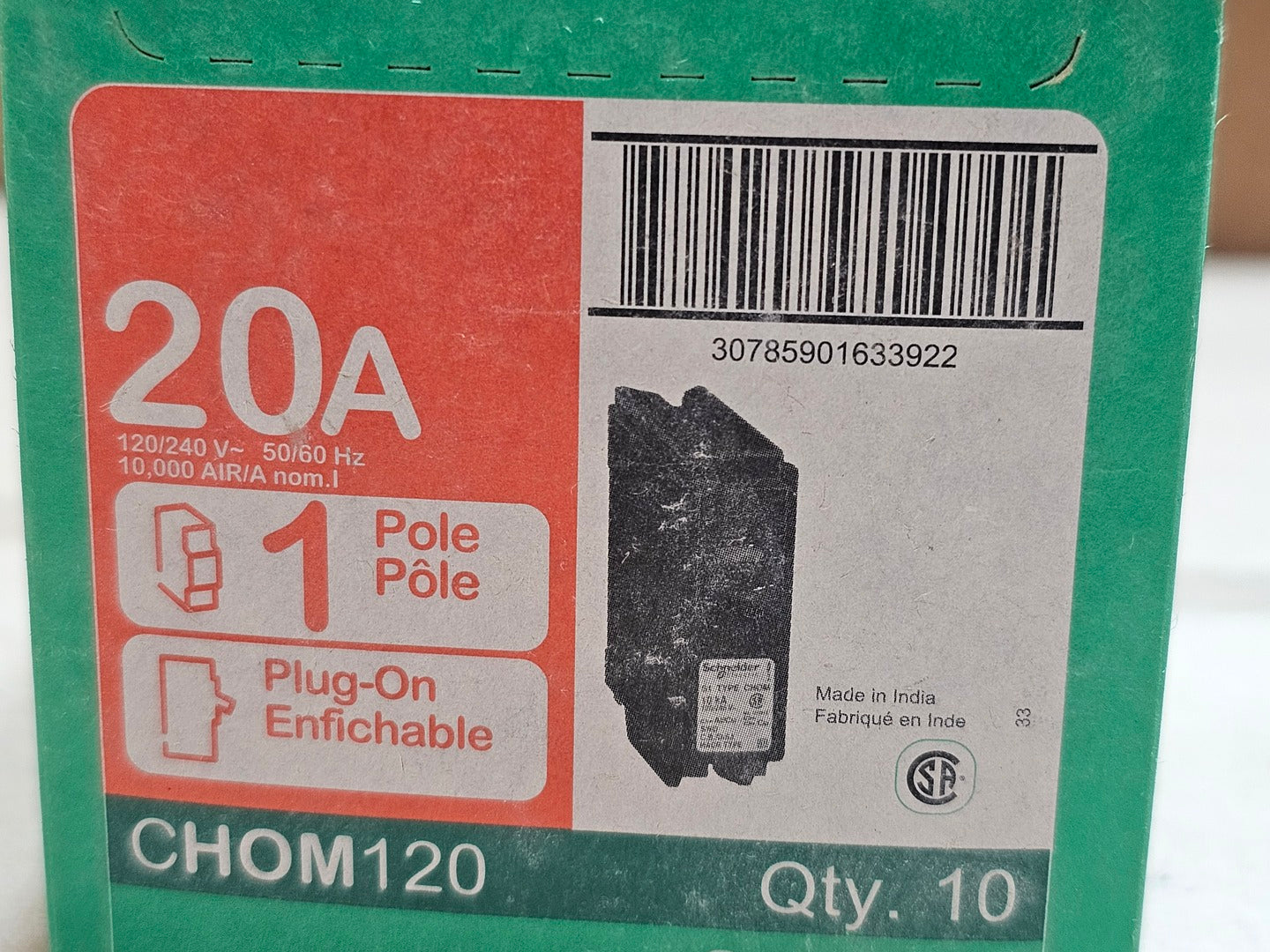

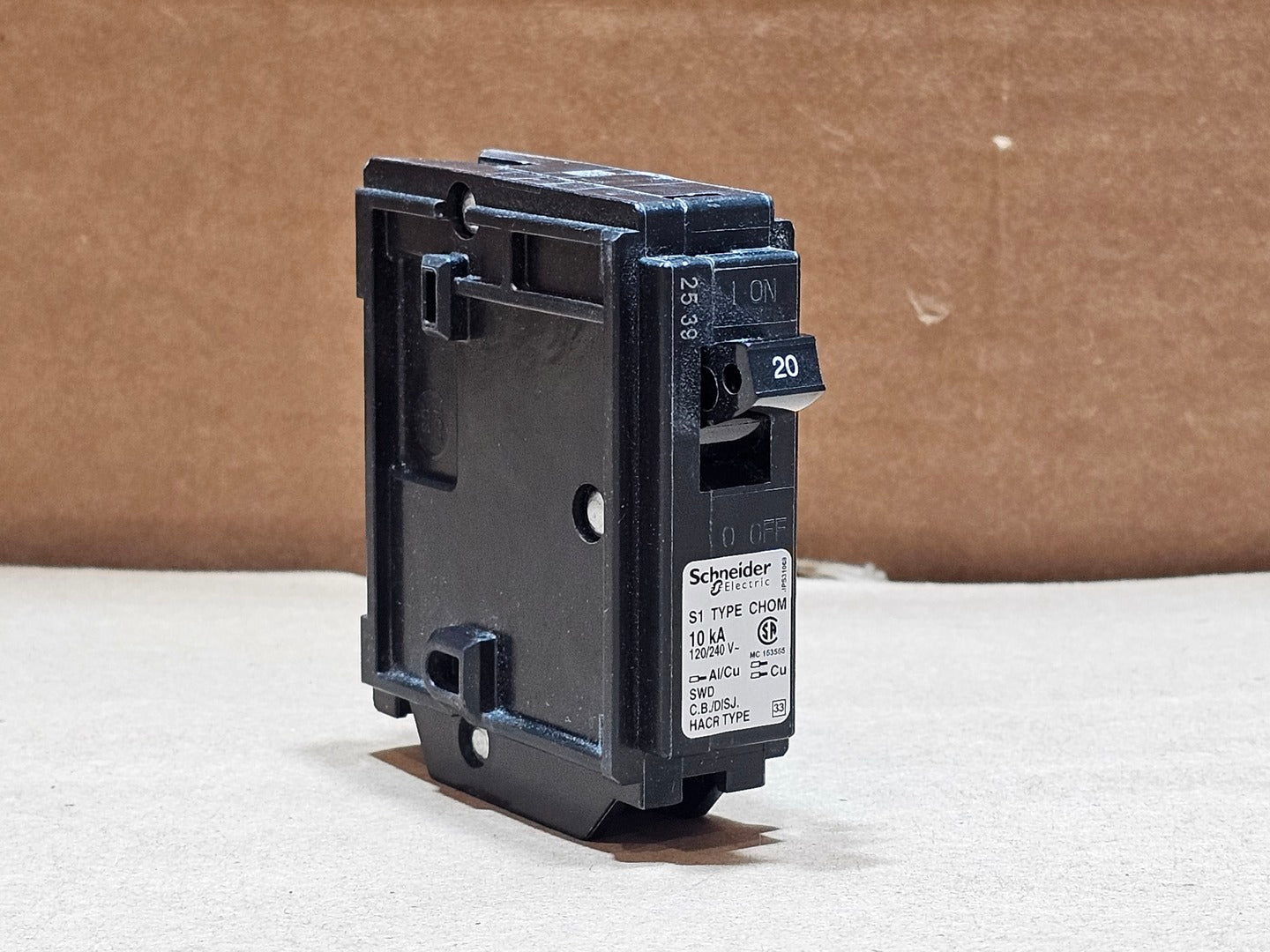

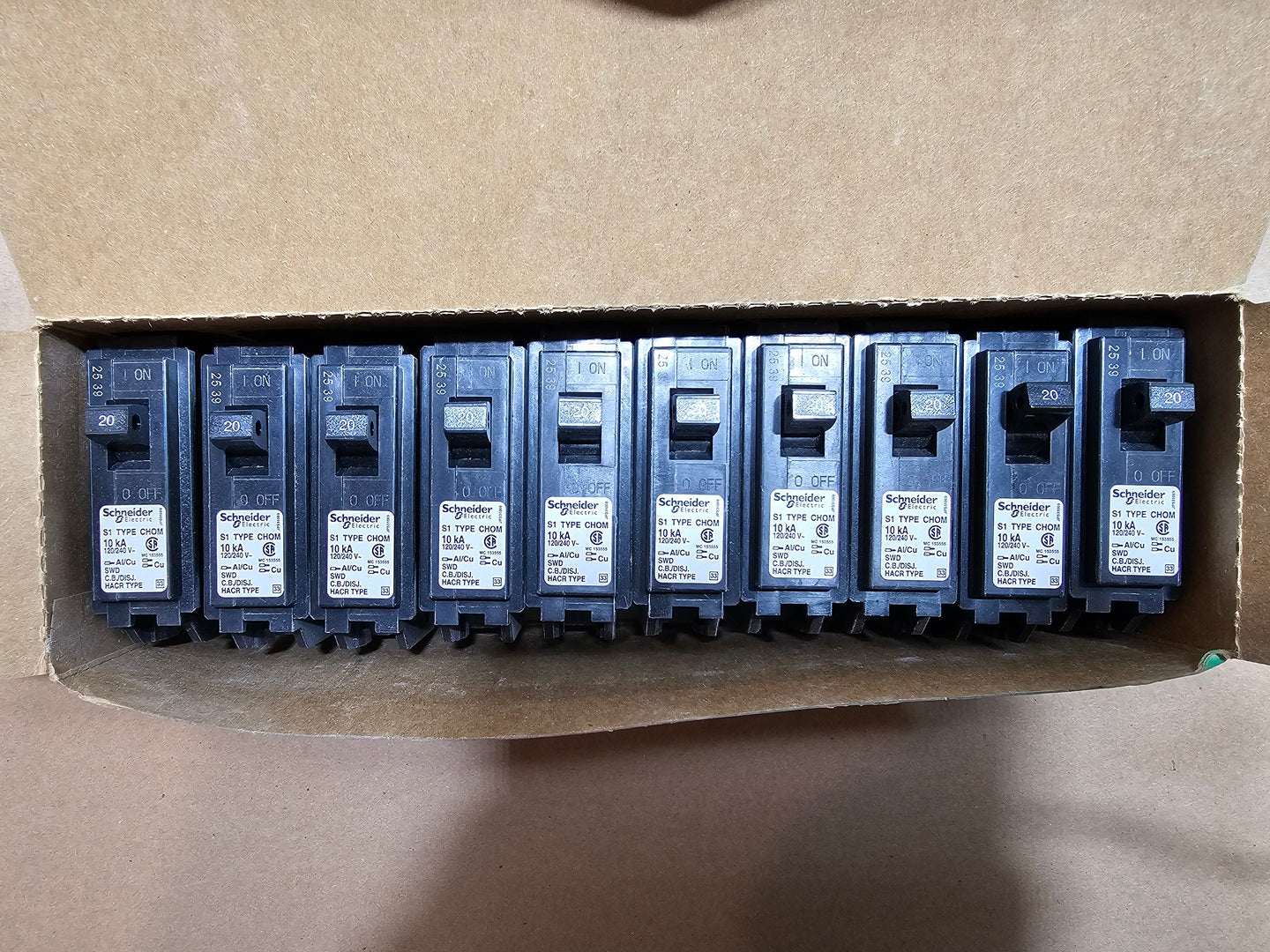

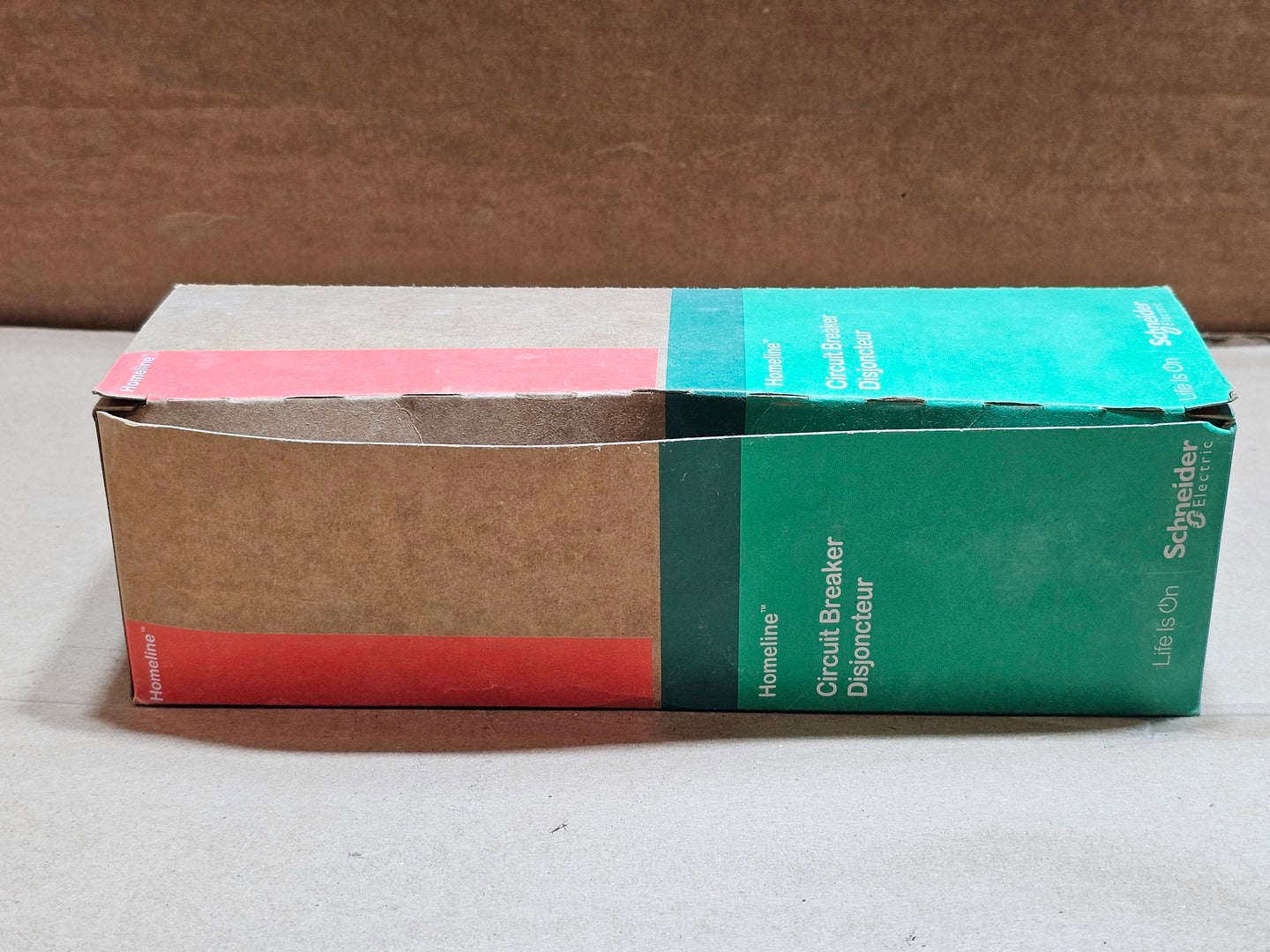

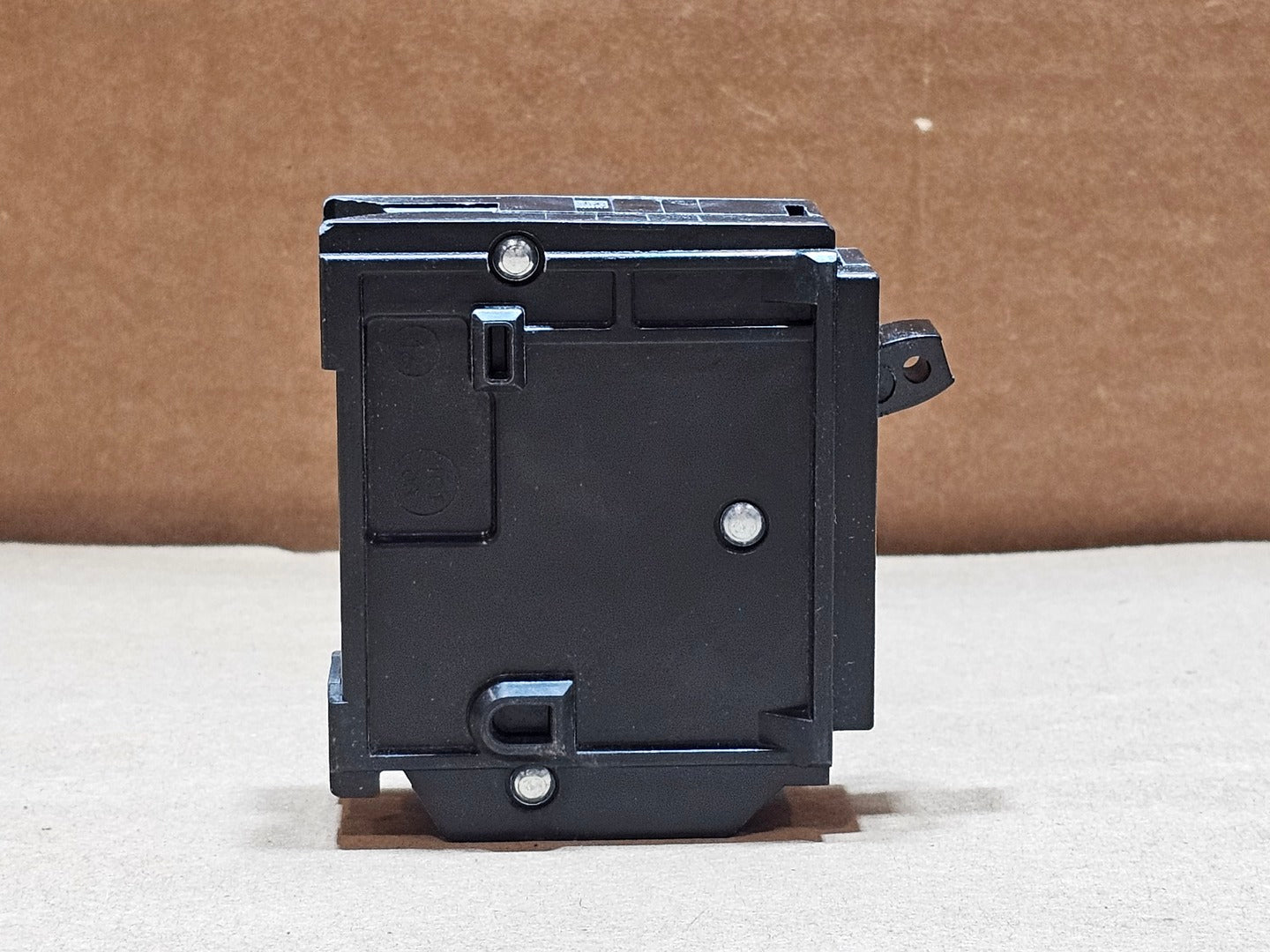

Schneider Electric Homeline CHOM120 single-pole circuit breaker rated 20 A at 120/240 VAC with a 10 kA interrupting rating. Features plug-on mounting and is marked HACR Type and SWD. Photos show multiple units together with the original Schneider Electric Homeline carton marked Qty. 10.
| Specifications | |
|---|---|
| Model | CHOM120 |
| Made In | INDIA |
| Condition | Surplus New | General |
| Amps | 20 amps |
| Series | CHOM |
| # of Poles | 1 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

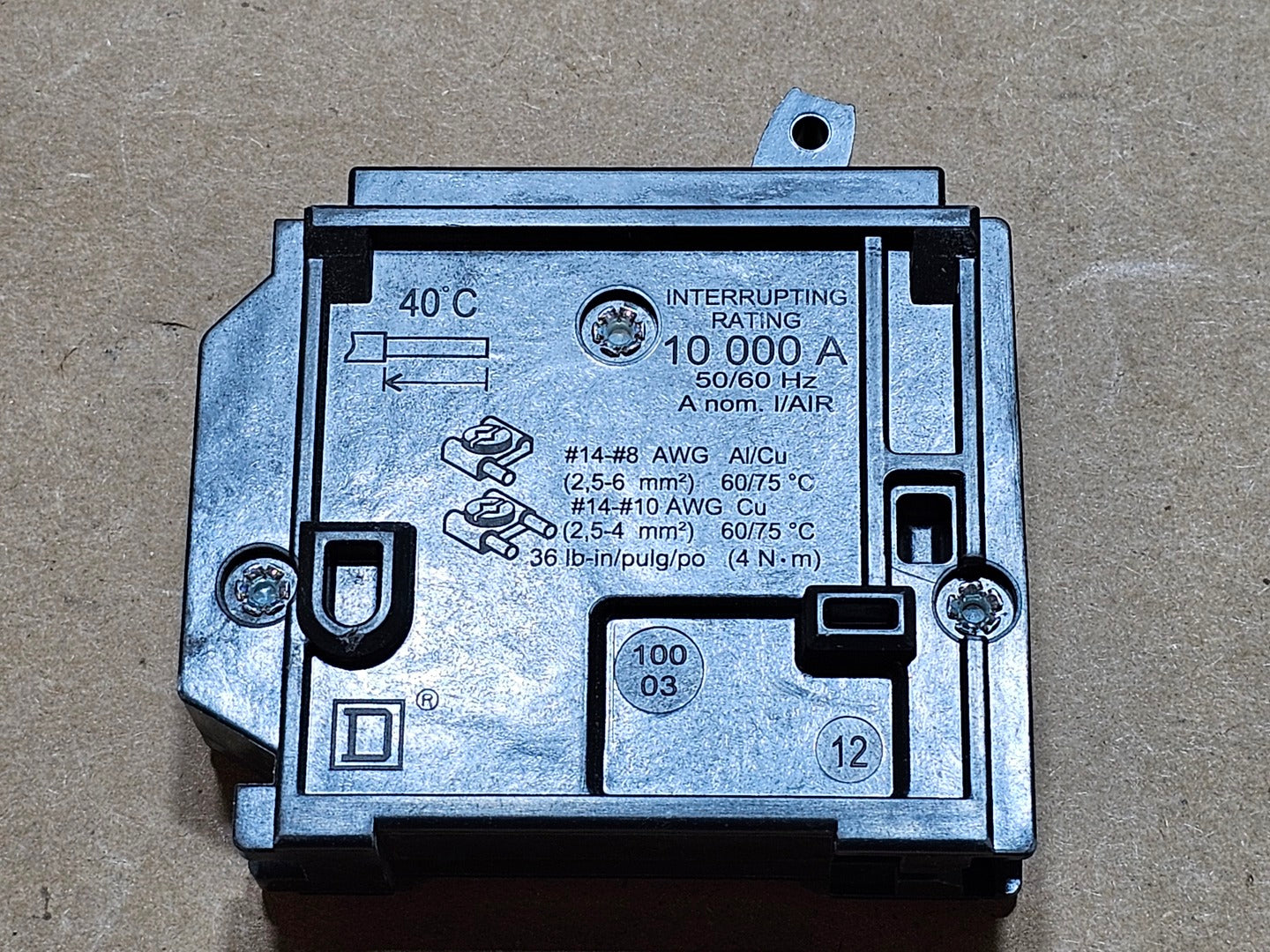

Frequency: 50/60 Hz Interrupting Rating: 10 kA / 10,000 A AIR Trip Type: Standard HACR Rated: Yes SWD Rated: Yes Al/Cu Wire Range: #14-#8 AWG (2.5-6 mm2), 60/75°C Copper Wire Range: #14-#10 AWG (2.5-4 mm2), 60/75°C Terminal Torque: 36 lb-in (4 N-m) Ambient Marking: 40°C Certification Marking: CSA visible |
